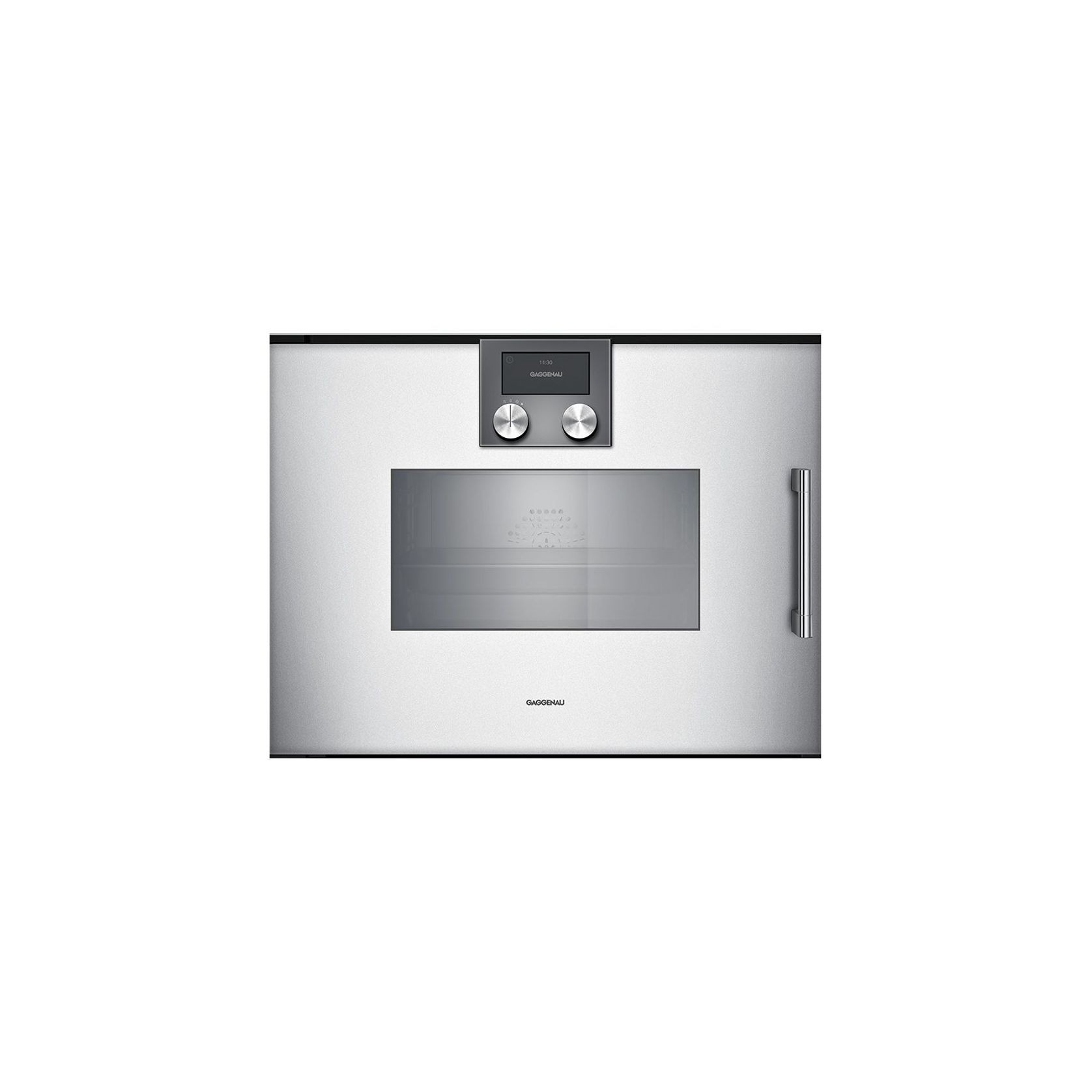

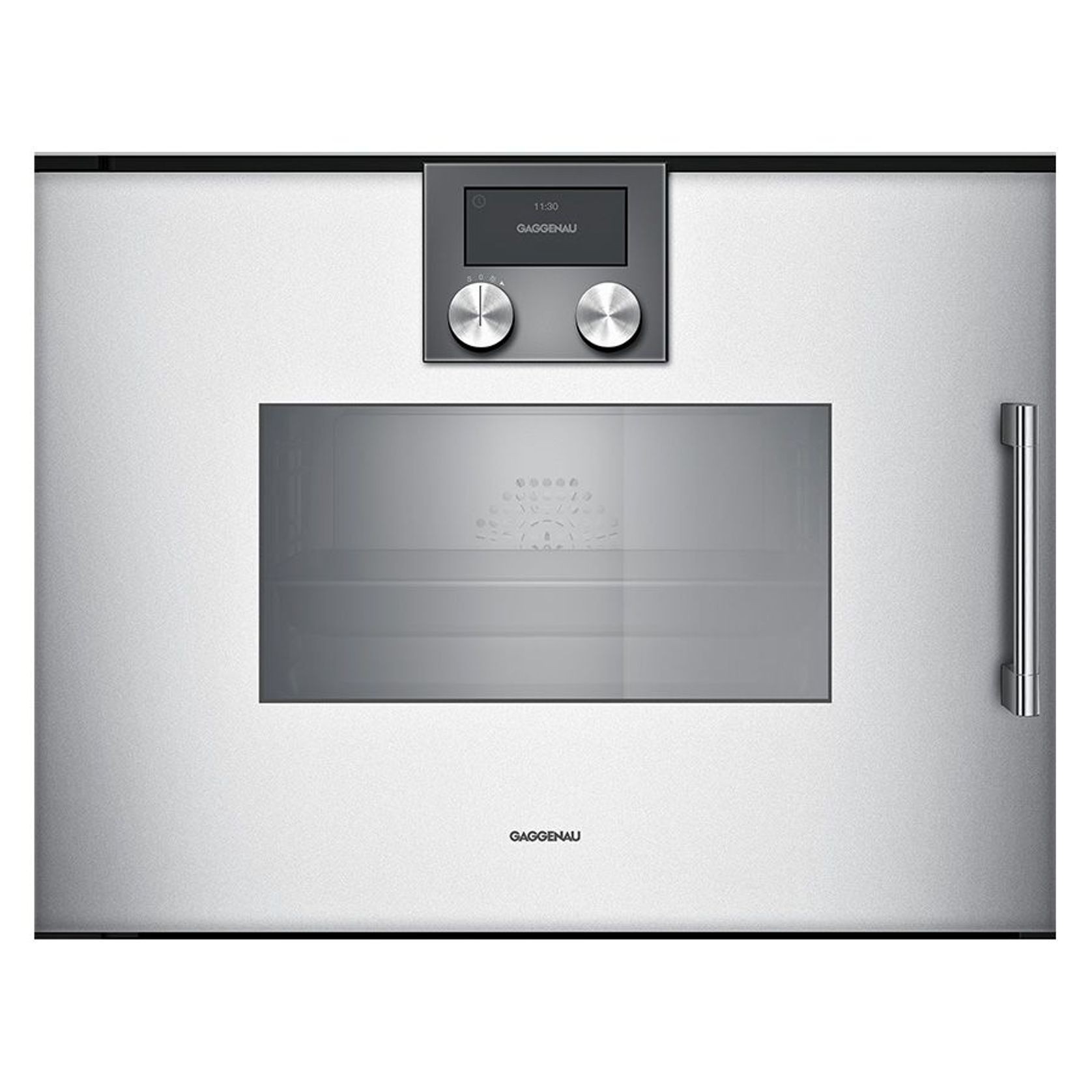

Gaggenau Silver 200 Series Combi-Steam Oven Lh Top Controls W.600

Heating methods

• Hot air + 100 % humidity. Hot air + 80 % humidity. Hot air + 60 % humidity. Hot air + 30 % humidity. Hot air + 0 % humidity. Low temperature cooking. Sous-vide cooking. Full surface grill level 1 + humidity. Full surface grill level 2 + humidity. Full surface grill + circulated air. Dough proofing. Defrosting. Regenerating.

Handling

• Rotary knob and TFT touch display operation.
• Clear text display.
• Option to save individual recipes (incl. core temperature probe).
• Personalisation of automatic programmes.
• Information key with use indicators.
• Side-opening door opens up to 110° angle.

Features

• Steam removal.
• Misting function, injects additional steam into the cavity
• Three-point core temperature probe with automatic shut-off and estimation of cooking time.
• Automatic programmes.
• Actual temperature display.
• Timer functions: cooking time, cooking time end, timer, stopwatch, long-term timer.
• Automatic boiling point detection.
• LED light on the side.
• Hygienic stainless steel cooking interior.
• 3 tray levels.
• Home network integration for digital services (Home Connect) either via cable connection LAN or wireless via WiFi.
• The use of the Home Connect functionality depends on the Home Connect services, which are not available in every country. For further information please check: home-connect.com.

Safety

• Child lock.
• Safety shut-off.
• Cooled housing with temperature protection.

Cleaning

• Cleaning programme, fully automatic.
• Descaling programme for the steam generator.
• Drying function.
• Automatic drying of the cavity at the end of the cooking process.
• Strainer filter, removable.

Planning notes

• Door hinge not reversible.
• No other electrical appliances should be installed above the BS.
• At no point may the outlet hose be positioned higher than the bottom edge of the appliance. The outlet hose must also be at least 100 mm lower than the appliance outlet (see drawing "drainage connection").
• Inlet hose can be extended once.
• The outlet hose must not be longer than a maximum of 5 m.
• The water connection for the inlet hose must always be accessible and not located directly behind the appliance.
• The connection of the outlet hose to the siphon must not be directly behind the appliance and should be accessible.
• The door panel surface of the appliance extends 21 mm from the furniture cavity.
• The outer edge of the door handle extends 72 mm from the furniture cavity.
• Necessary lateral gap between appliance door and furniture panel of min. 5 mm.
• Consider the overhang, incl. the door handle, when planning to open drawers next to the appliance.
• When planning a corner solution, pay attention to the 110° door opening angle.
• The mains socket needs to be planned outside the built-in niche.

Connection

• Total connected load 3.1 KW.
• Only cold water connection.
• Inlet hose 3.0 m with 3/4 " (26,4 mm) connection, extendable.
• Outlet hose (ø 24 mm) 3.0 m (HT-Hose).
• Connecting cable 1.8 m with plug.
• Plan a LAN cable.
• Power consumption standby/display on 0.8 W.
• Power consumption standby/display off 0.5 W.
• Power consumption standby/network 1.8 W.
• Time auto-standby/display on 20 min.
• Time auto-standby/display off 20 min.
• Time auto-standby/network 20 min.
• Please check the user manual for how to switch off the WiFi module.
