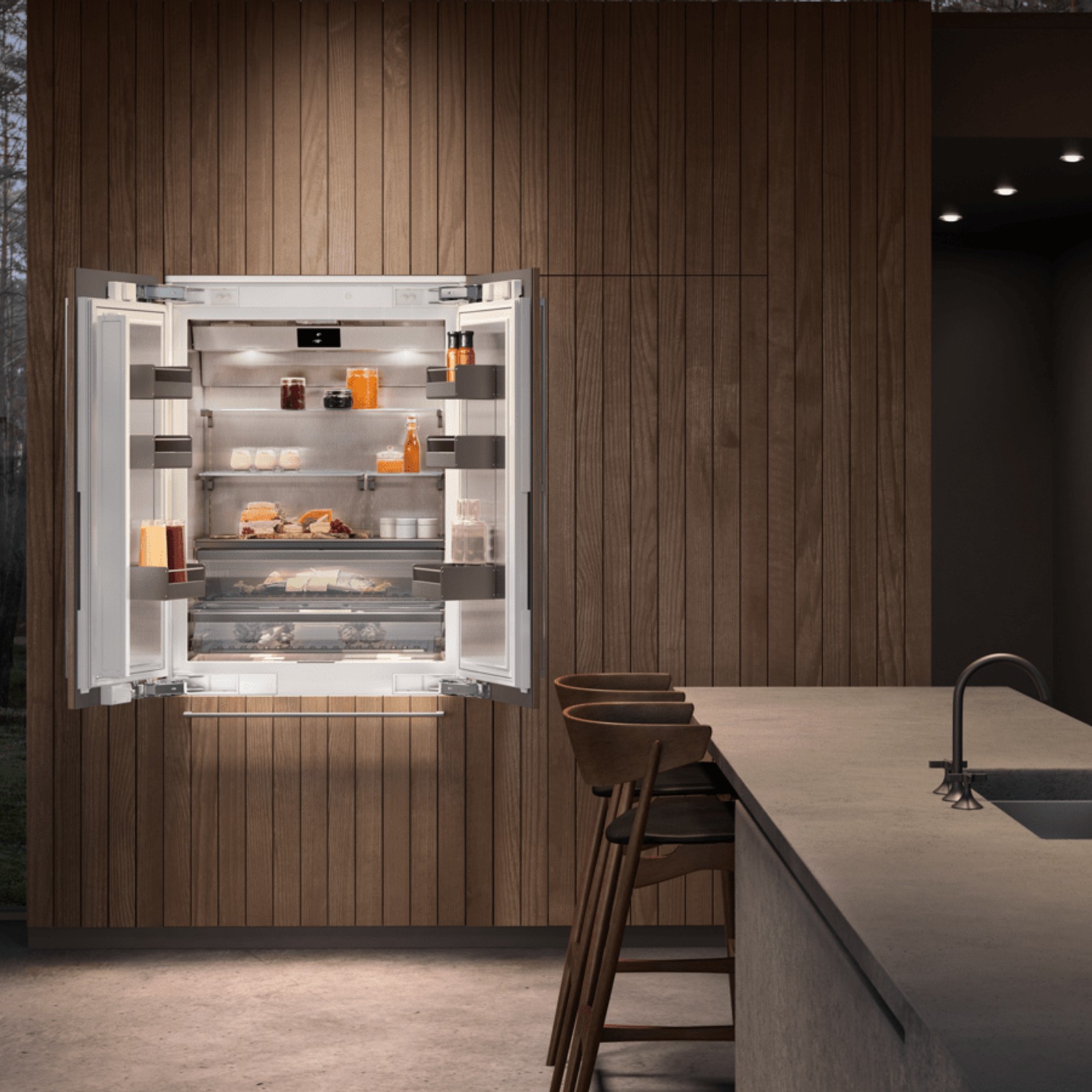

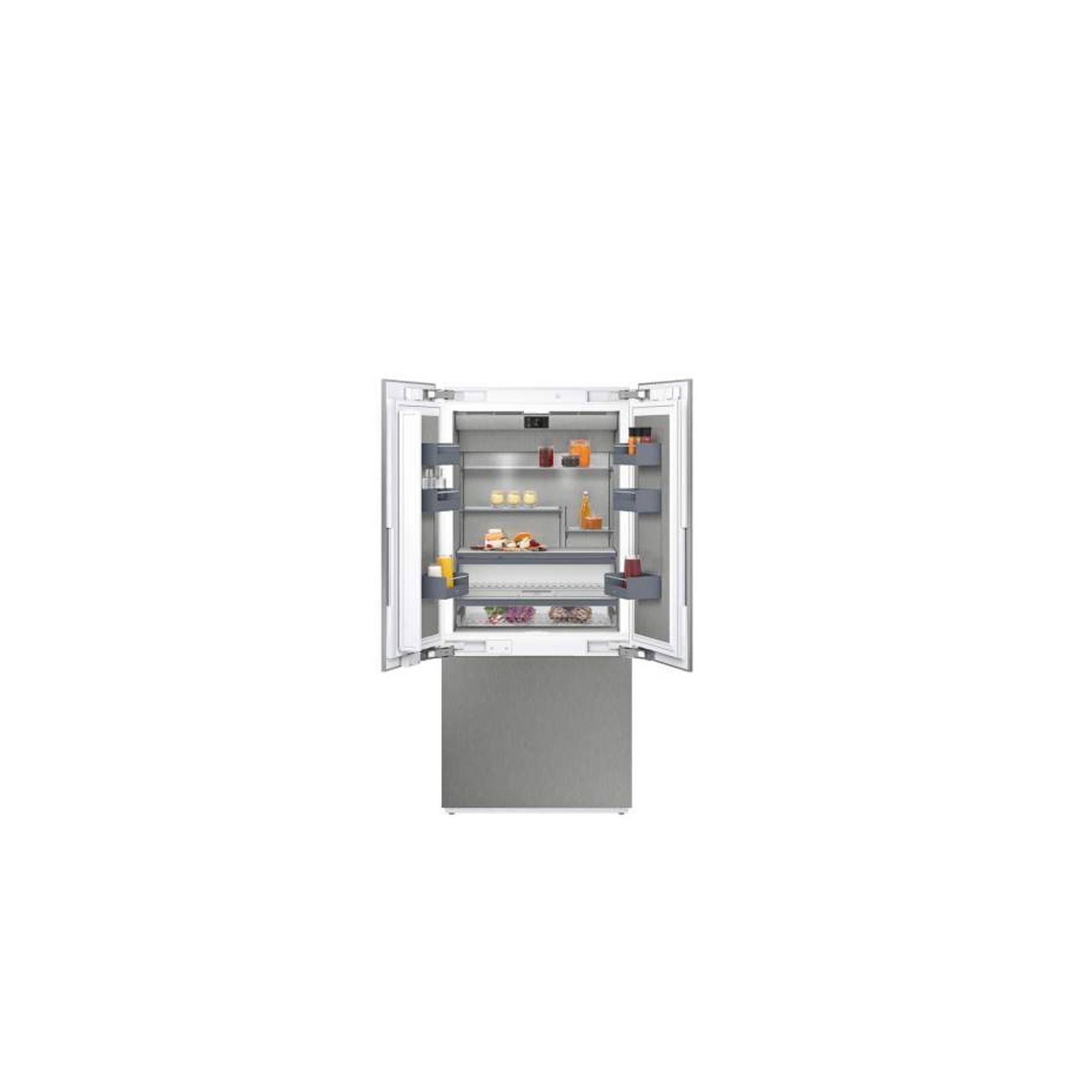

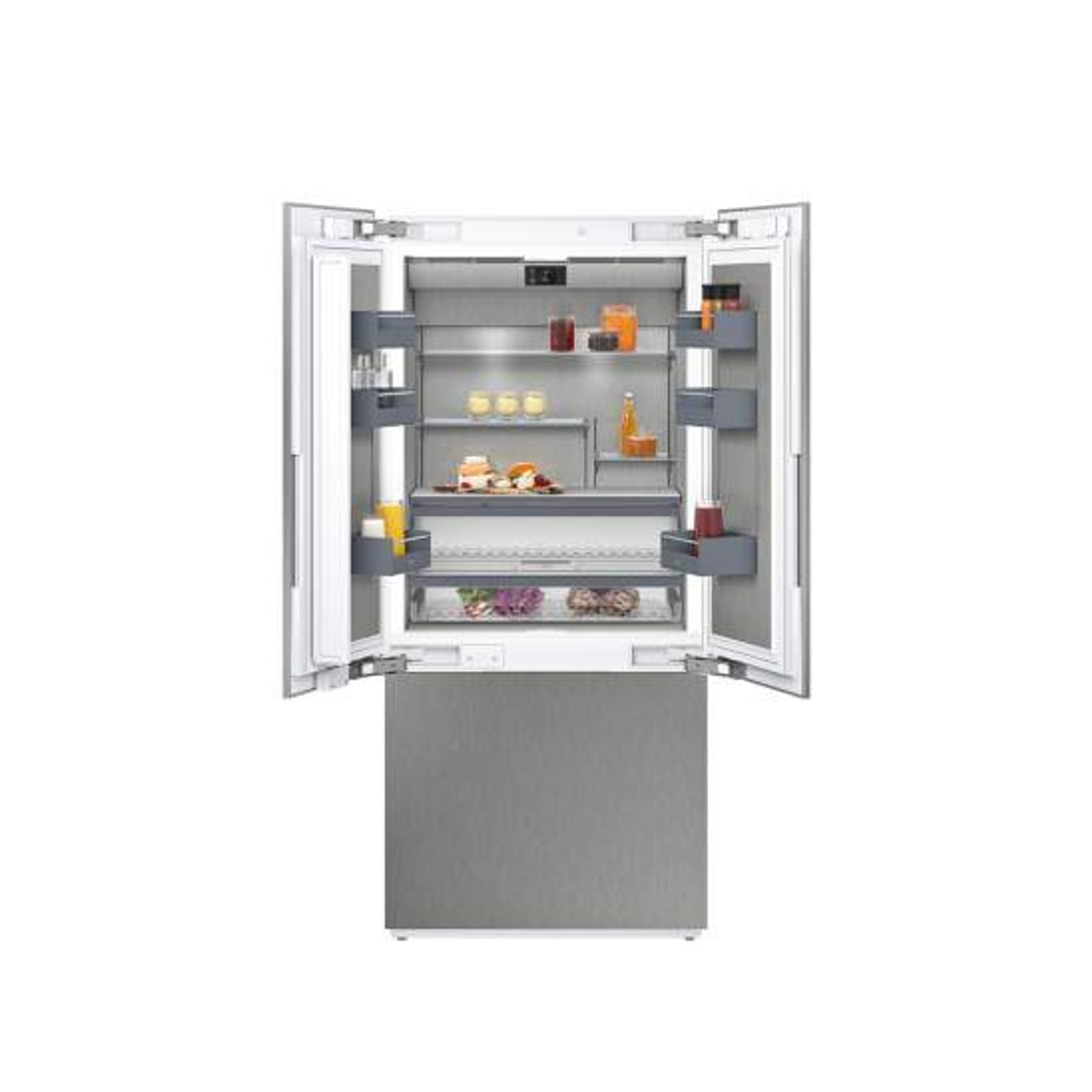

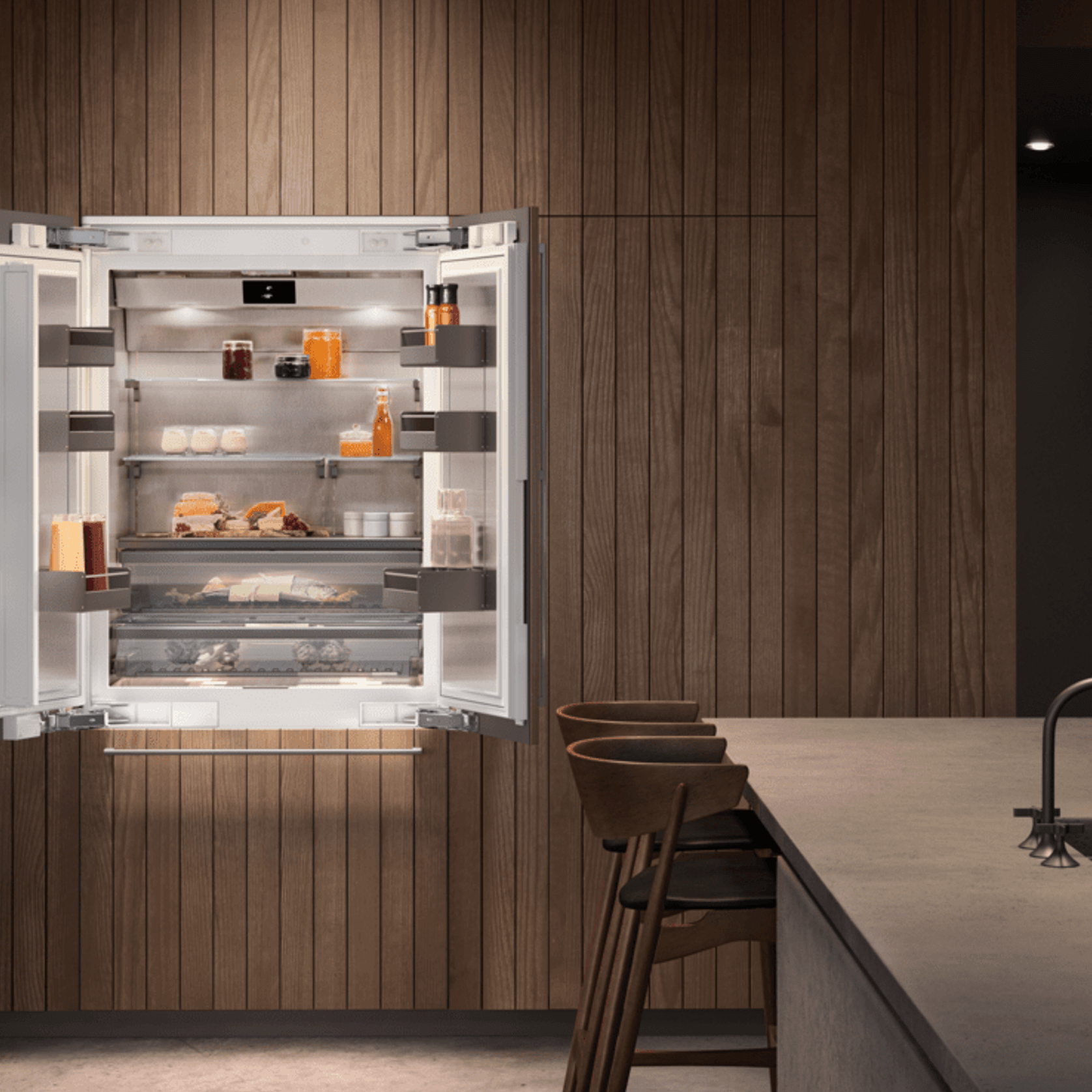

Vario Fridge-Freezer 400 Series Integrated RY 492 504 by Gaggenau

Vario Fridge-Freezer 400 Series Integrated RY 492 504 by Gaggenau is a stainless steel interior with solid anthracite aluminium elements. Opening assist for the door with two options: 1: Push-to-open function for integration into handles furniture front 2. Pull-to-open function to facilitate opening the door using a handle.

Details
  • Category
    Fridges & Freezers
  • Range
    Refrigeration
  • Brand
    Gaggenau
Specifications

Handling

  • TFT touch display operation.
  • Clear text display.

Features

  • Dynamic cold air distribution.
  • Automatic defrosting with defrost water evaporation.
  • Activated charcoal air filter.
  • Rest mode certified by Star-K.
  • When rest mode is active, the appliance can only be opened using a handle.
  • Open-door and malfunction alarm.

Cooling

  • No-Frost technology with fast cooling.
  • Temperature adjustable from +2 °C to +8 °C.
  • 3 safety glass shelves, white glass, 2 of which are individually adjustable in height.
  • 1 asymmetrically split safety glass shelf, with manual height adjustment.
  • 4 brilliant LED light spots with warm white, glare-free light within cooling area and drawers.
  • Flat door rail system with fully flexible positioning of door racks.
  • 6 height-adjustable door racks, 2 of which are extra deep.
  • Net volume 344 litres.

Fresh cooling close to 0°C

  • 1 fully extendable fresh cooling drawer close to 0 °C with transparent front, illuminated.
  • Temperature can be adjusted manually.
  • Ideal for meat, fish and poultry.
  • Net volume 34 litres.

Fresh Cooling

  • 1 fully extendable fresh cooling drawer with transparent front, illuminated.
  • Humidity can be adjusted manually.
  • Ideal for fruit and vegetables.

Freezing

  • No-frost technology with fast freezing at -30 °C.
  • Temperature adjustable from -14 °C to -24 °C.
  • 2.5 energy rating. Energy consumption 459 kWh/year
  • Freezing capacity 16 kg/24 h.
  • Storage time after a malfunction 17 h.
  • 2 fully extendable drawers.
  • Interior lighting with 2 LED light spots, warm white light.
  • Net volume 140 litres.

Ice Maker

  • Integrated in the freezer compartment, with fixed inlet water connection.
  • Particle filter for water inlet, integrated in ventilation grille area.
  • Can be switched off.
  • Ice cube production approx. 1.6 kg/24 h.
  • Removable ice storage container with approx. 3 kg capacity.

Consumption Data

  • 3.5 Star energy rating.
  • Energy consumption 436 kWh/year.
  • Noise level 41 dB (re 1 pW).

Planning notes

  • Flat hinge.
  • Door opening angle of 115°, fixable at 90°.
  • Max. door panel weight: Each door 67 kg. Drawer 10 kg.
  • Shut-off valve for water connection must be planned next to the appliance and always be accessible.
  • If the water pressure exceeds 0.8 MPa (8 bar), connect pressure relief valve between water tap and hose set.

Connection

  • Total connected load 0.300 KW.
  • Connecting cable 3.0 m, detachable.
  • Water inlet.
  • Supply hose 2.9 m with 3/4 " connection.
  • Water pressure 2 to 8 bar.
