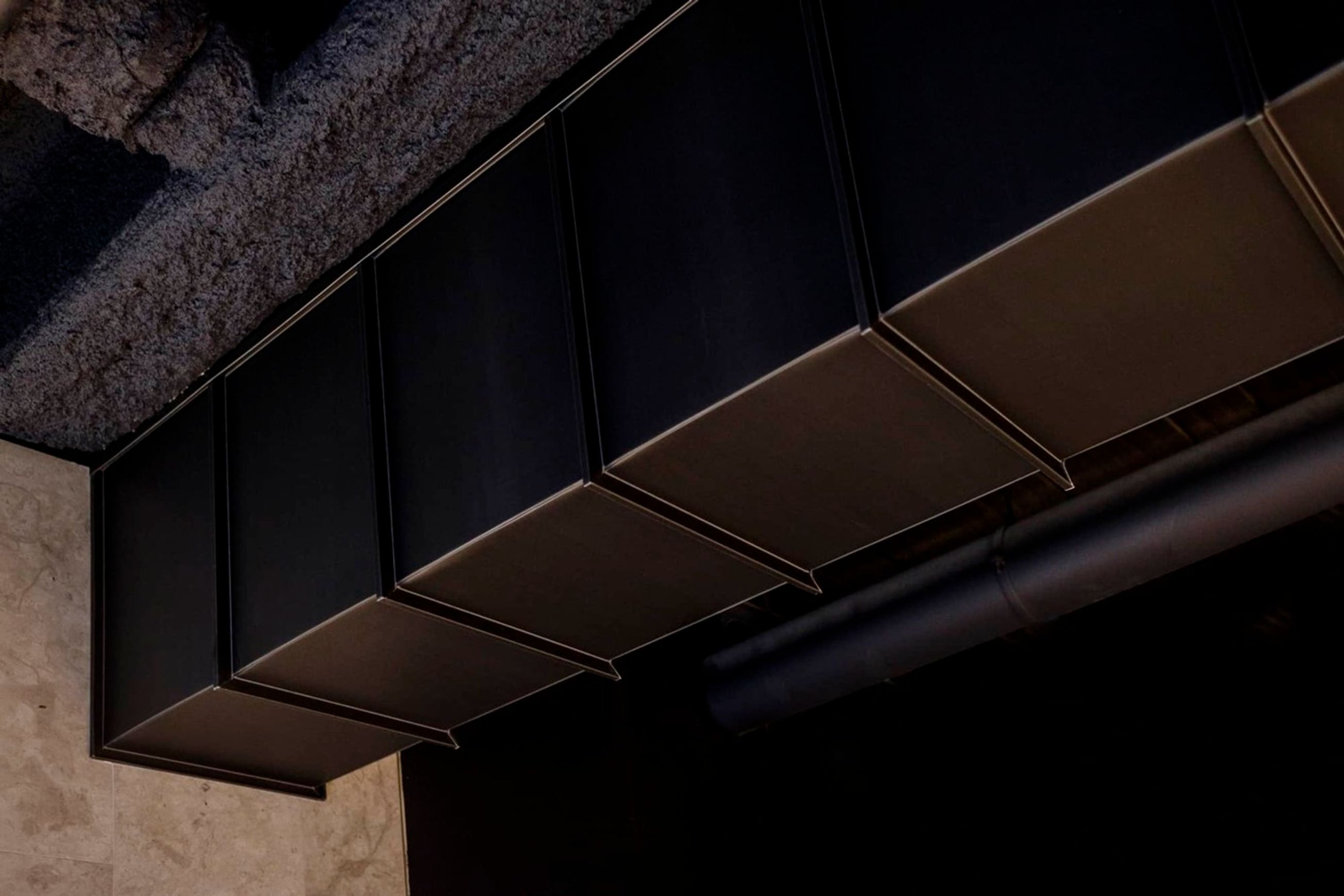

Genesis™ Standing Seam

GENESIS™ STANDING SEAM Genesis™ Standing Seam offers a truly inspiring architectural vision thanks to its strong shadow lines, variable custom-sized pan widths, and options for vertical, horizontal, diagonal, and even curved applications.

Specs

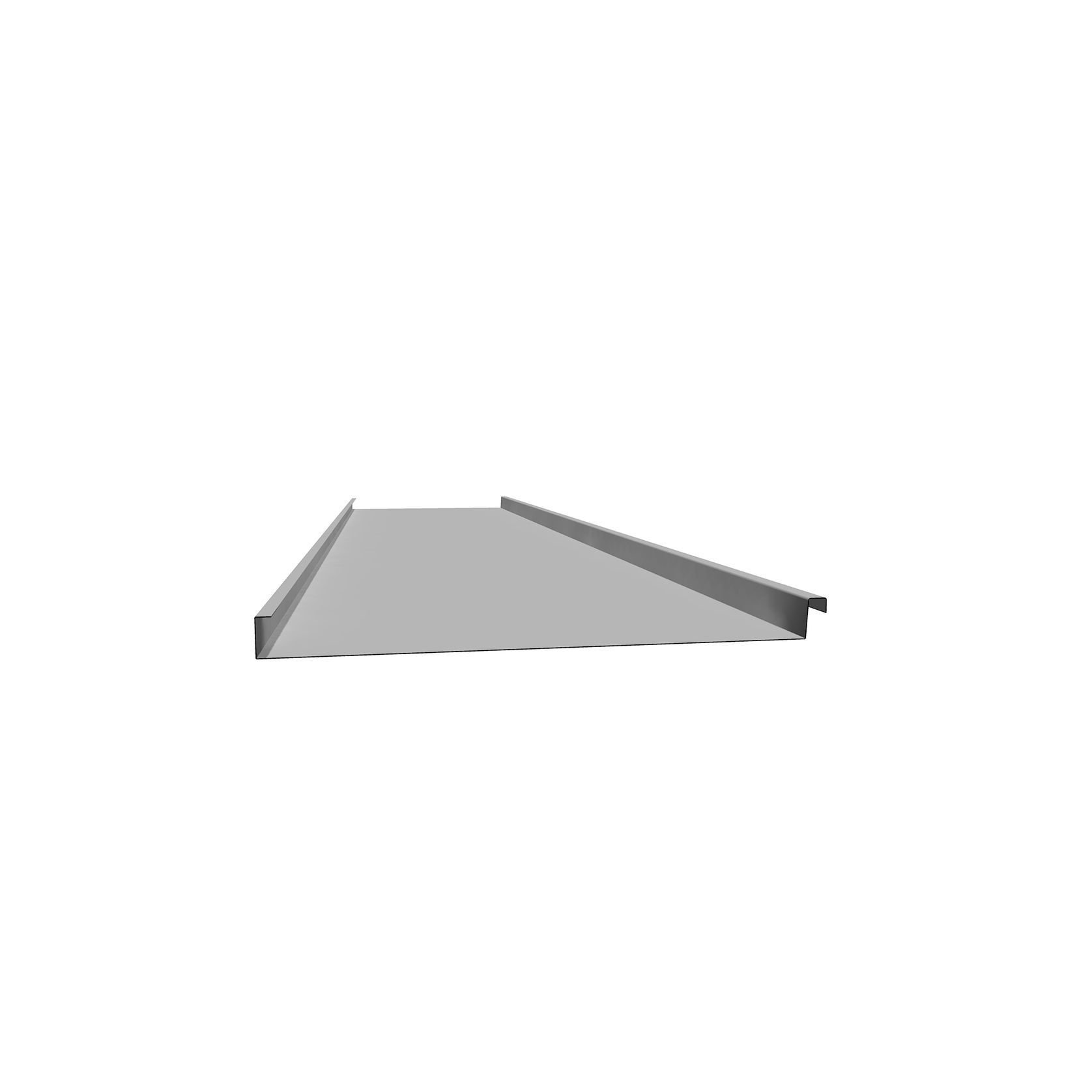

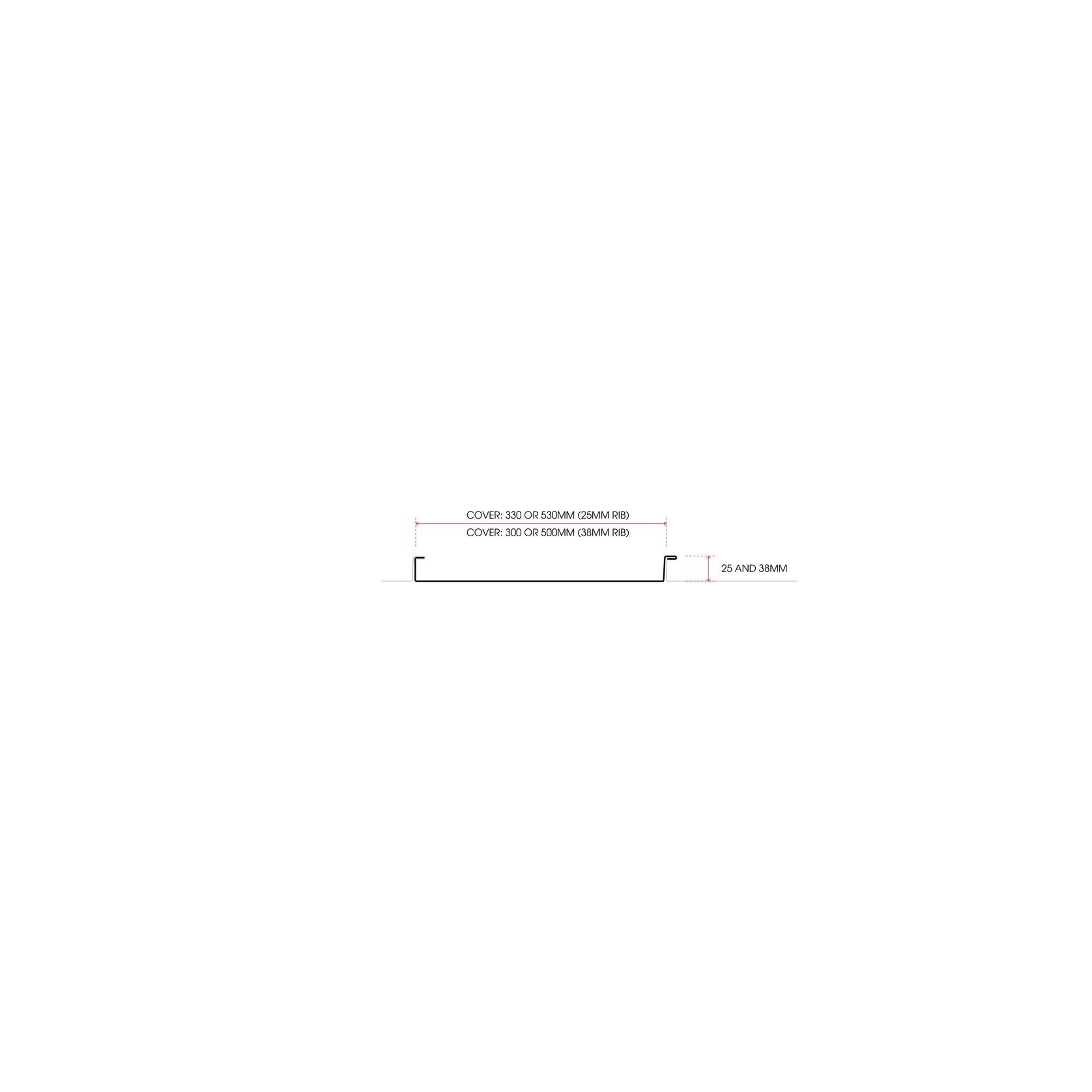

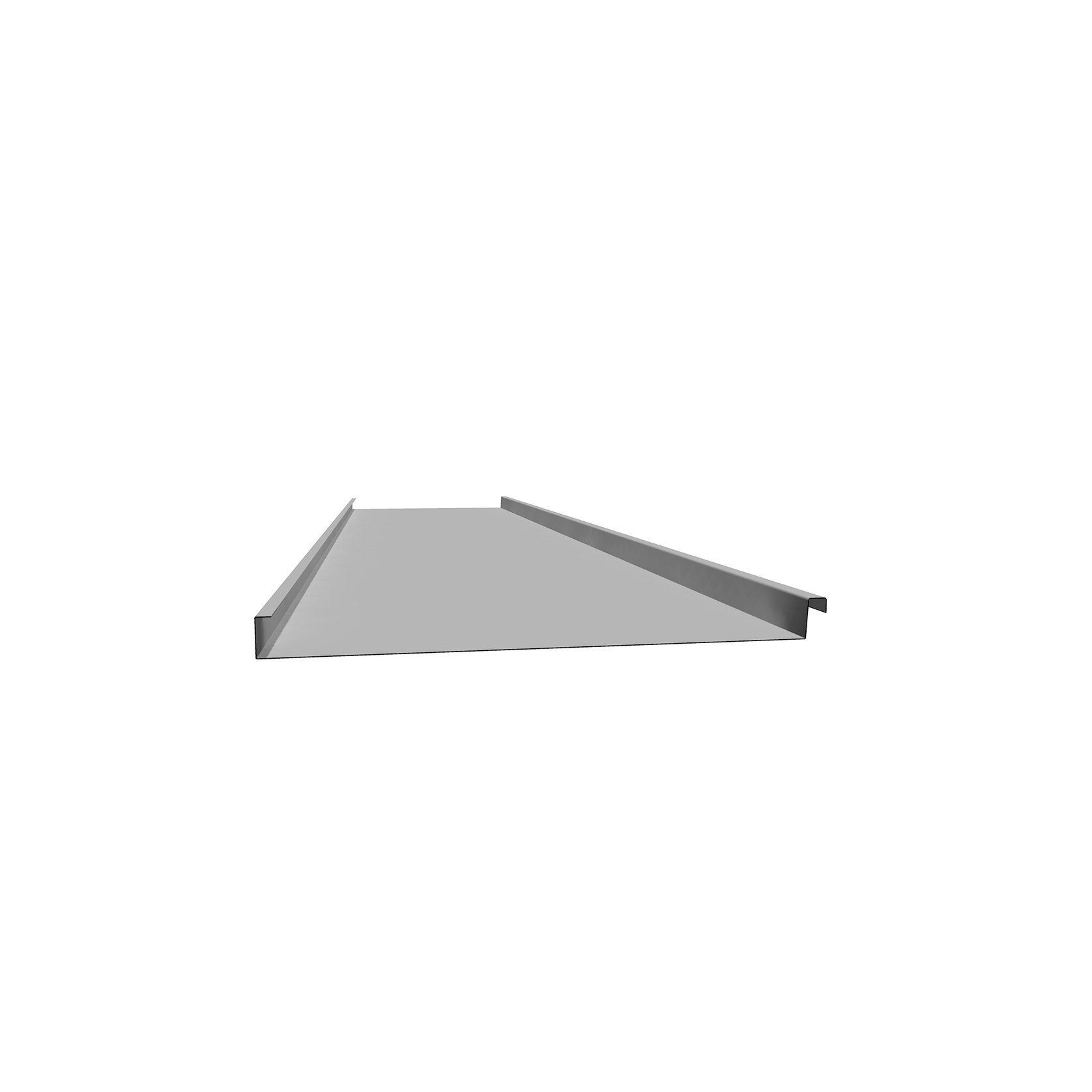

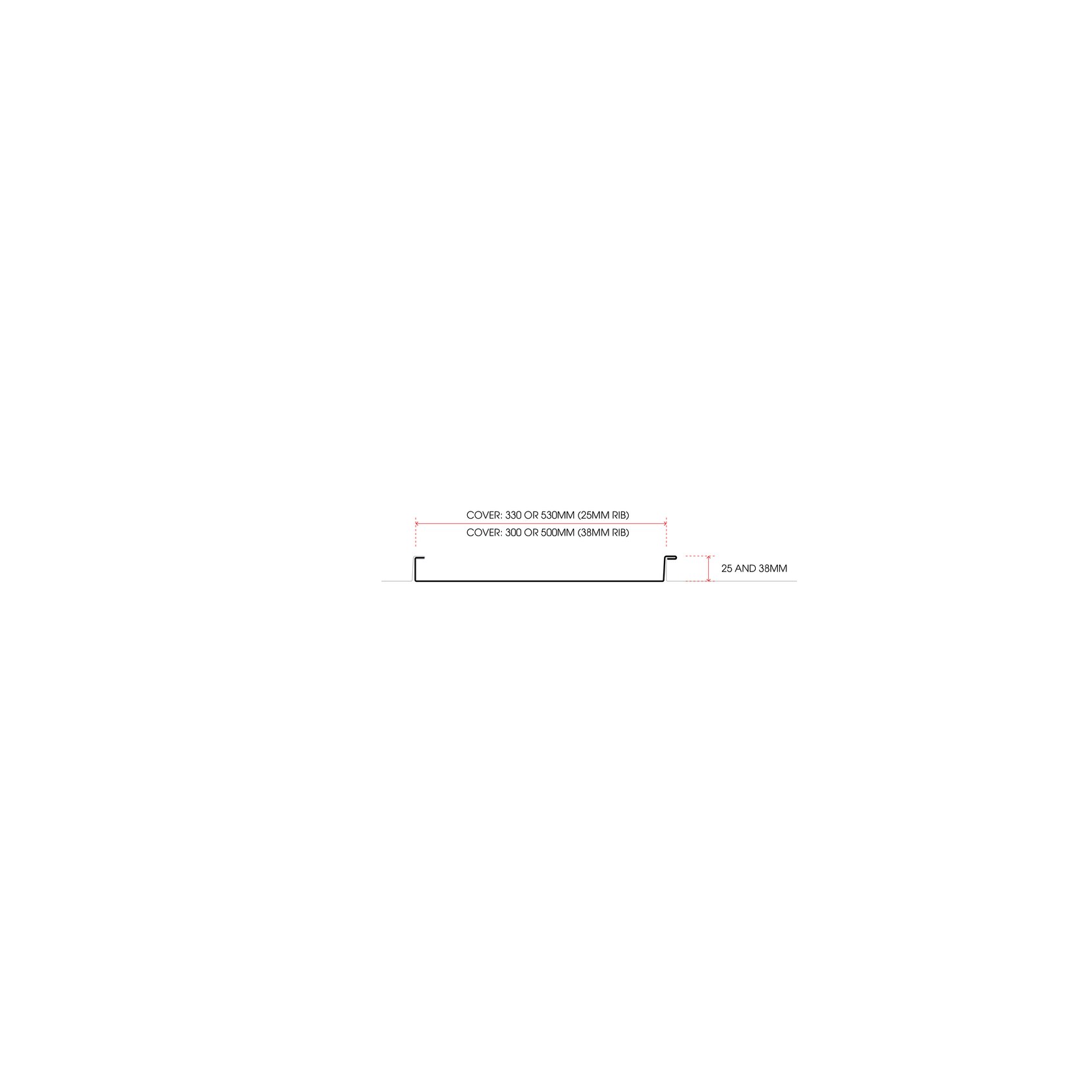

Standard rib heights and pan widths include:

• 25mm x 330mm
• 25mm x 530mm
• 38mm x 300mm
• 38mm x 500mm

Standard sheet thicknesses include 0.55mm and 0.7mm. Independent engineering testing and certification ensure that Genesis™ Standing Seam meets or exceeds the required standards. Genesis™ Standing Seam is also fire-rated for BAL purposes.

Material Options: Colorbond, Unicote Lux, Zincalume, Copper, Corten, Titanium Zinc, Aluminium

Standard Modules: 25x530mm, 25x330mm, 38x500mm, 38x300mm

Applications

GENESIS™ STANDING SEAM APPLICATIONS

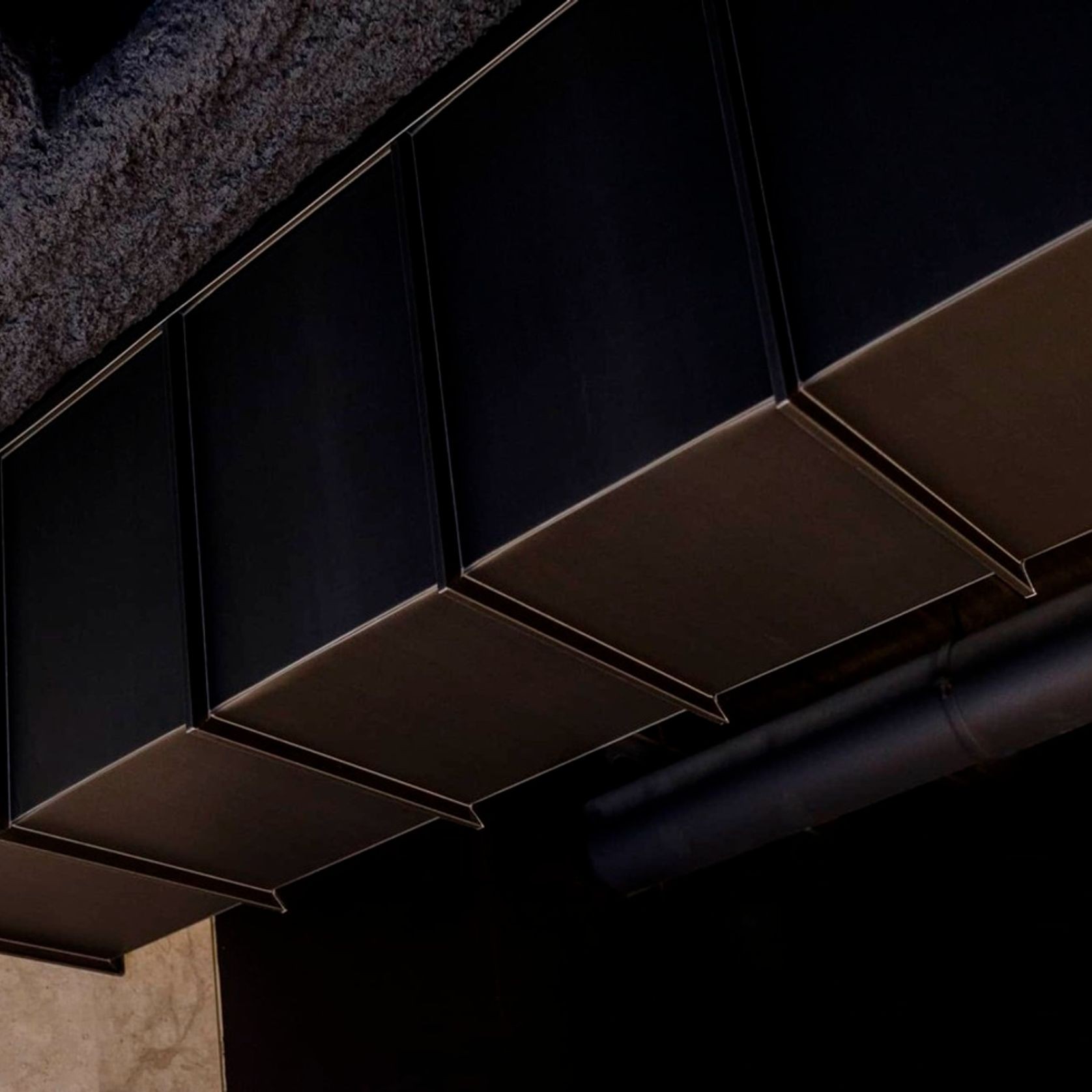

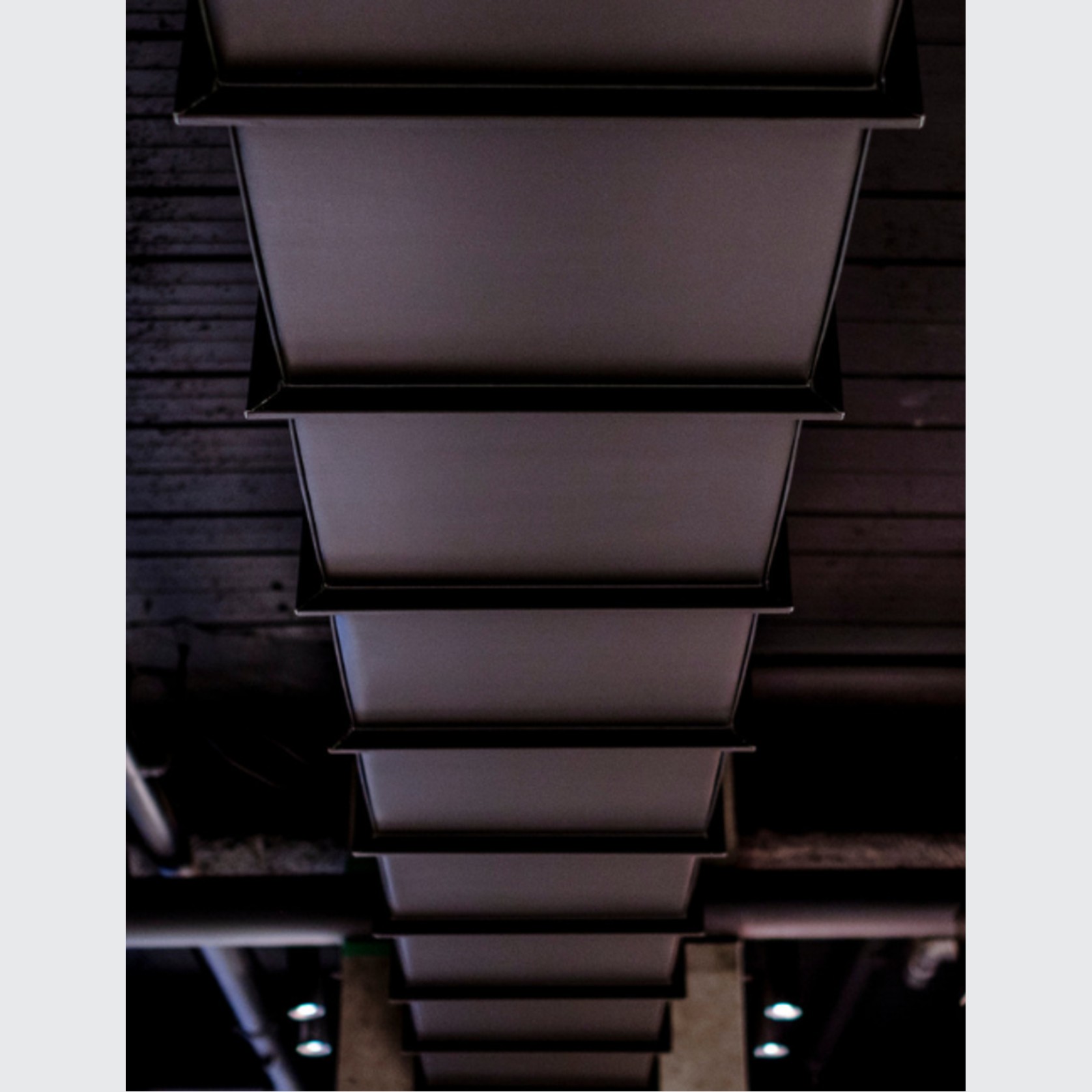

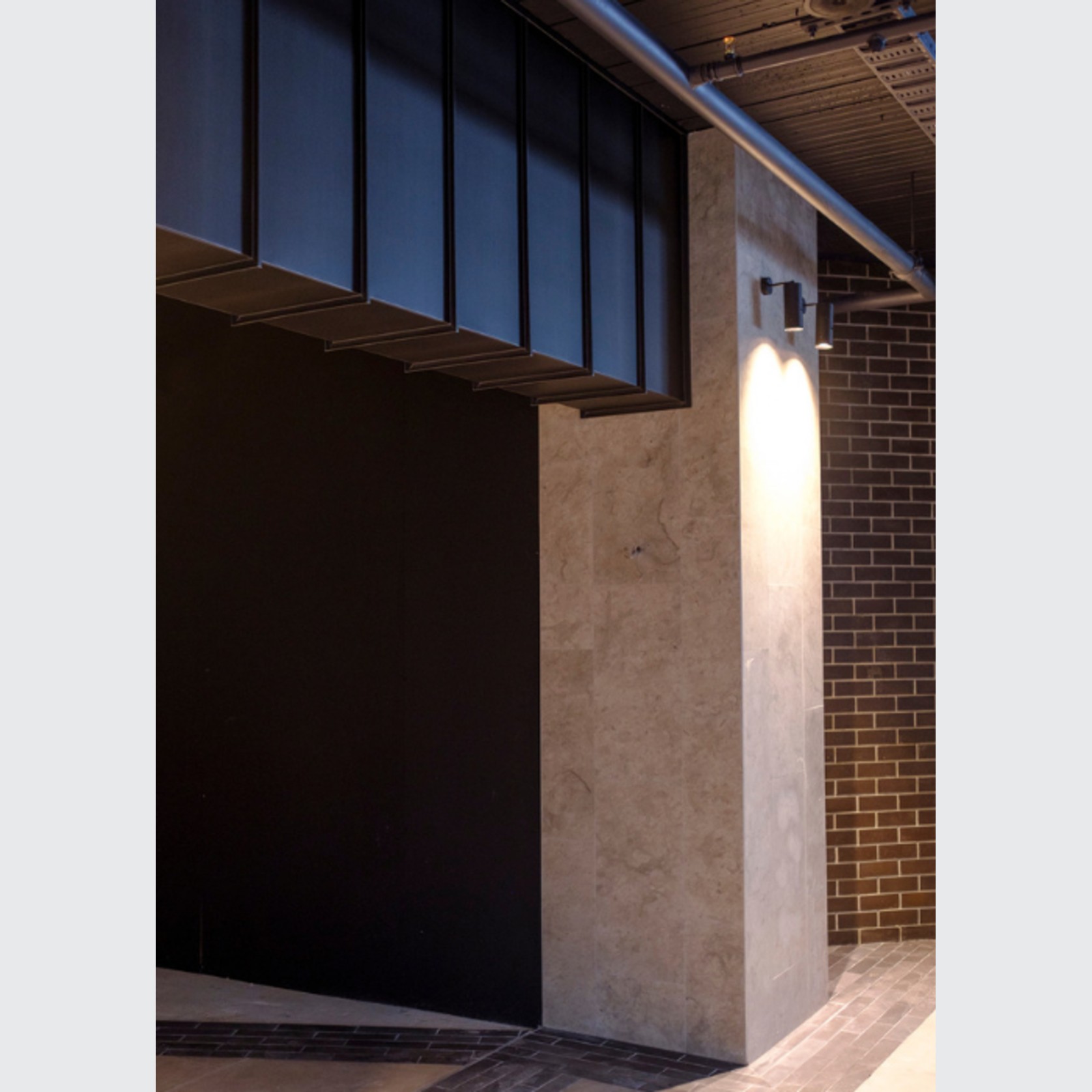

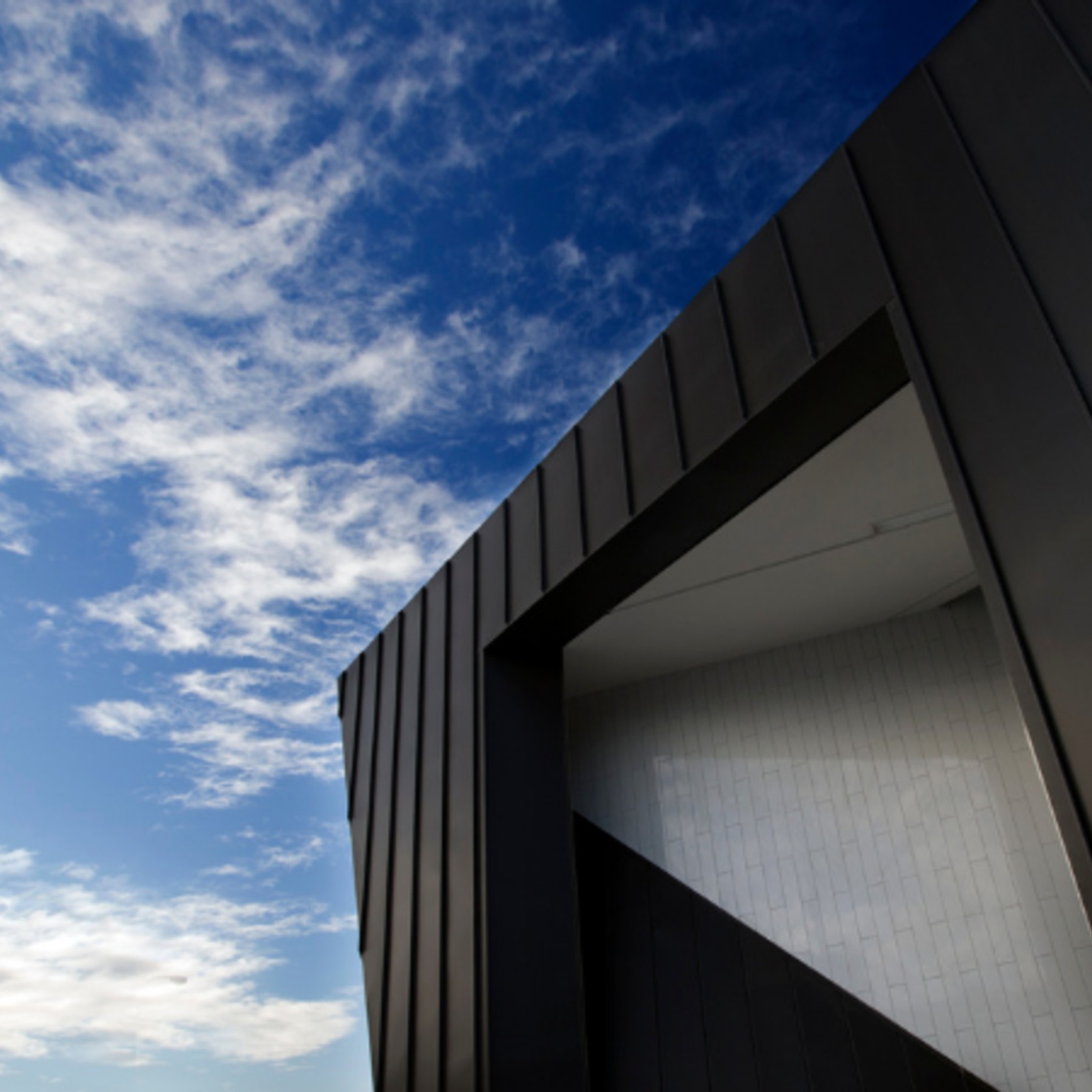

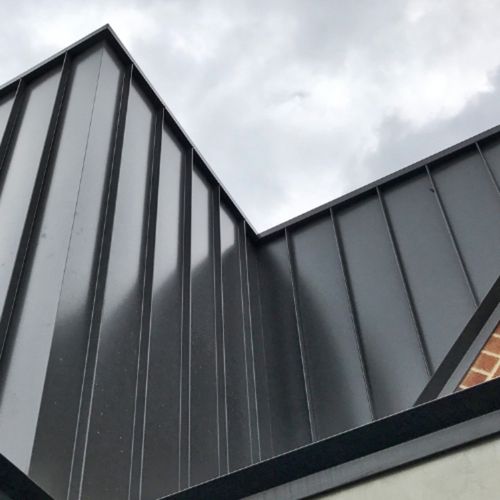

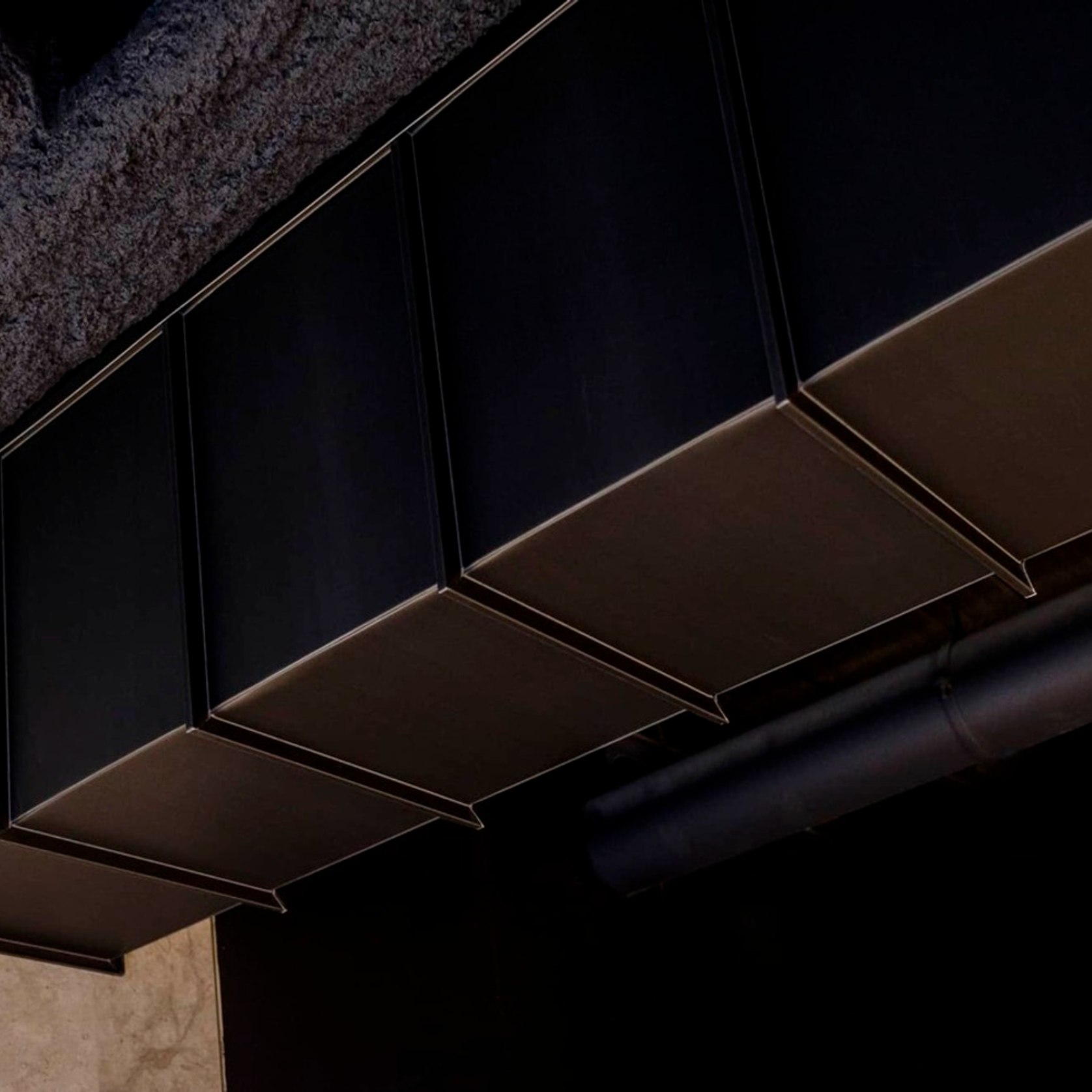

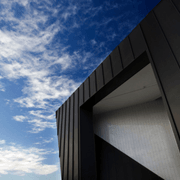

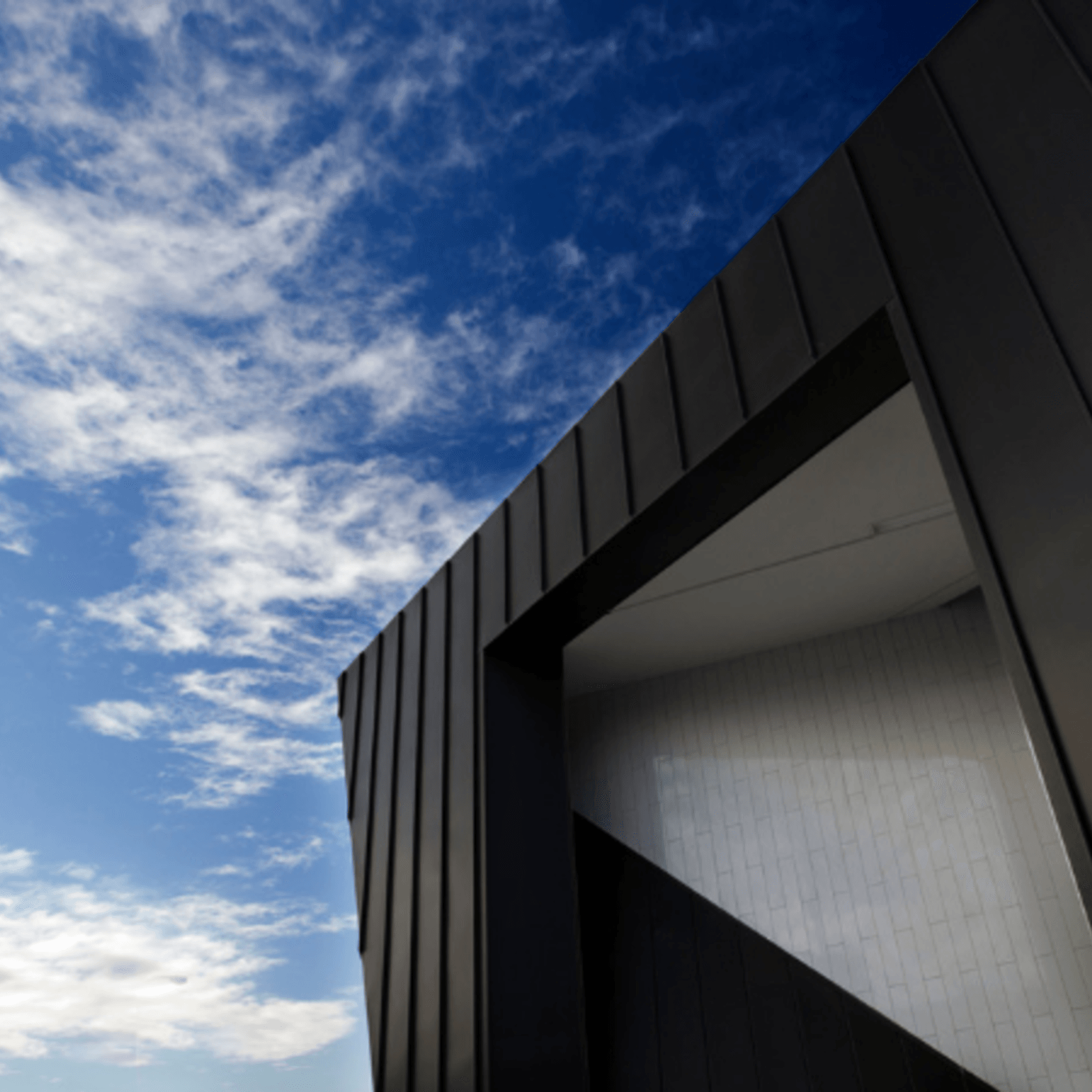

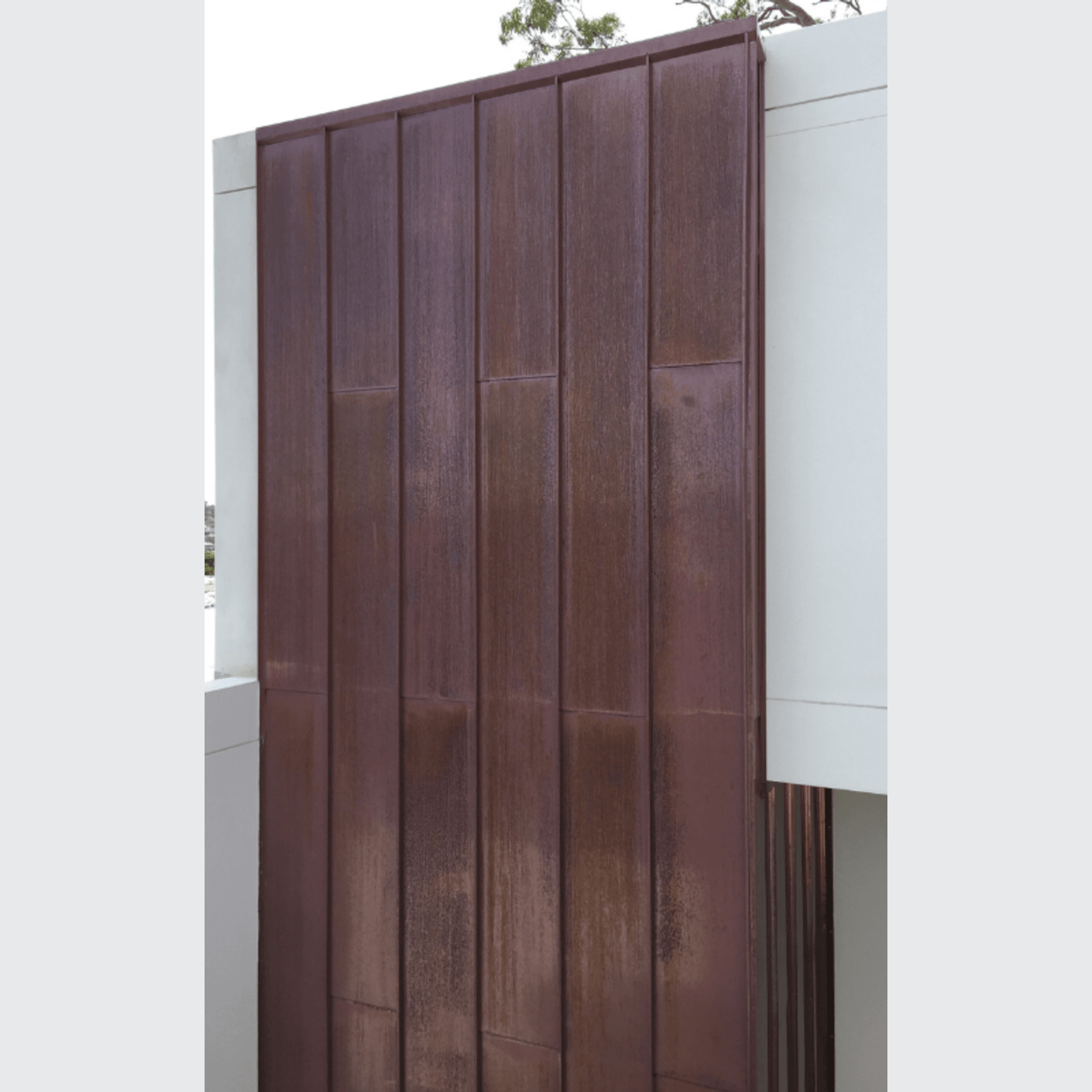

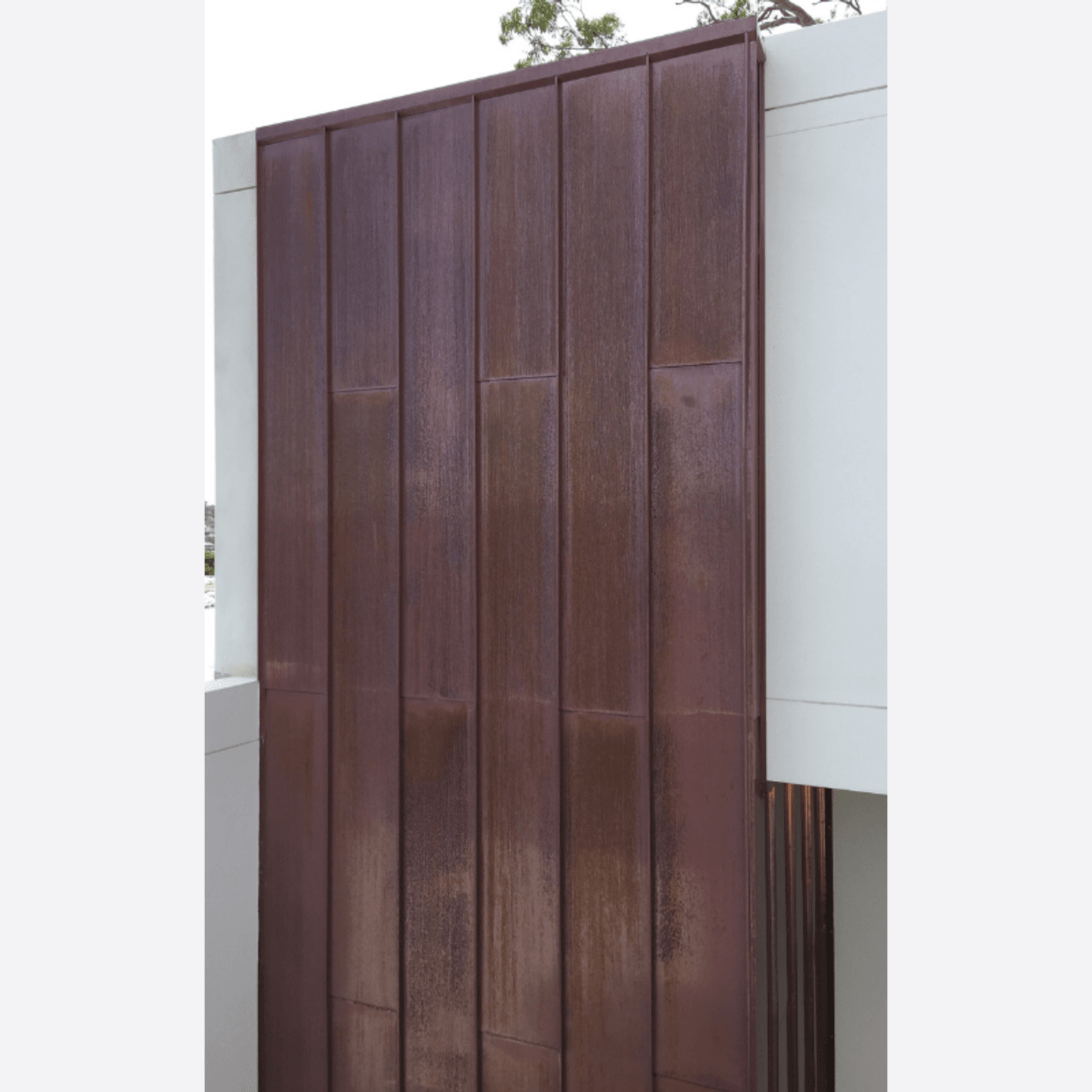

Genesis™ Standing Seam is perfectly at home in any roof or wall cladding application.

Strength is not the only quality of Genesis™ Standing Seam; playfulness and creativity feature at the forefront of any Genesis™ Standing Seam design project.

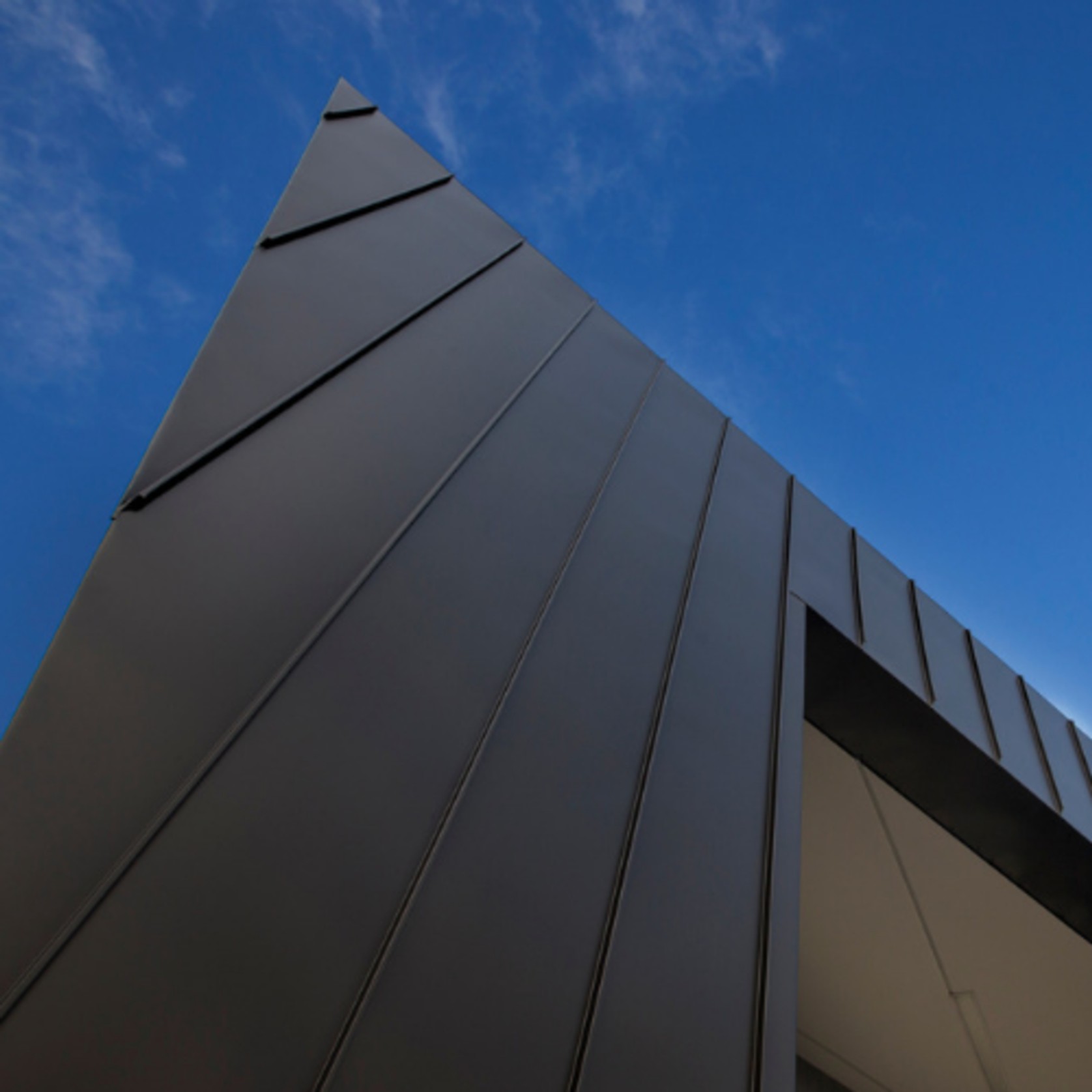

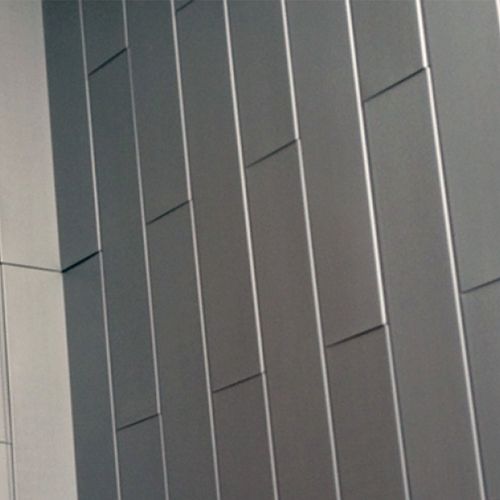

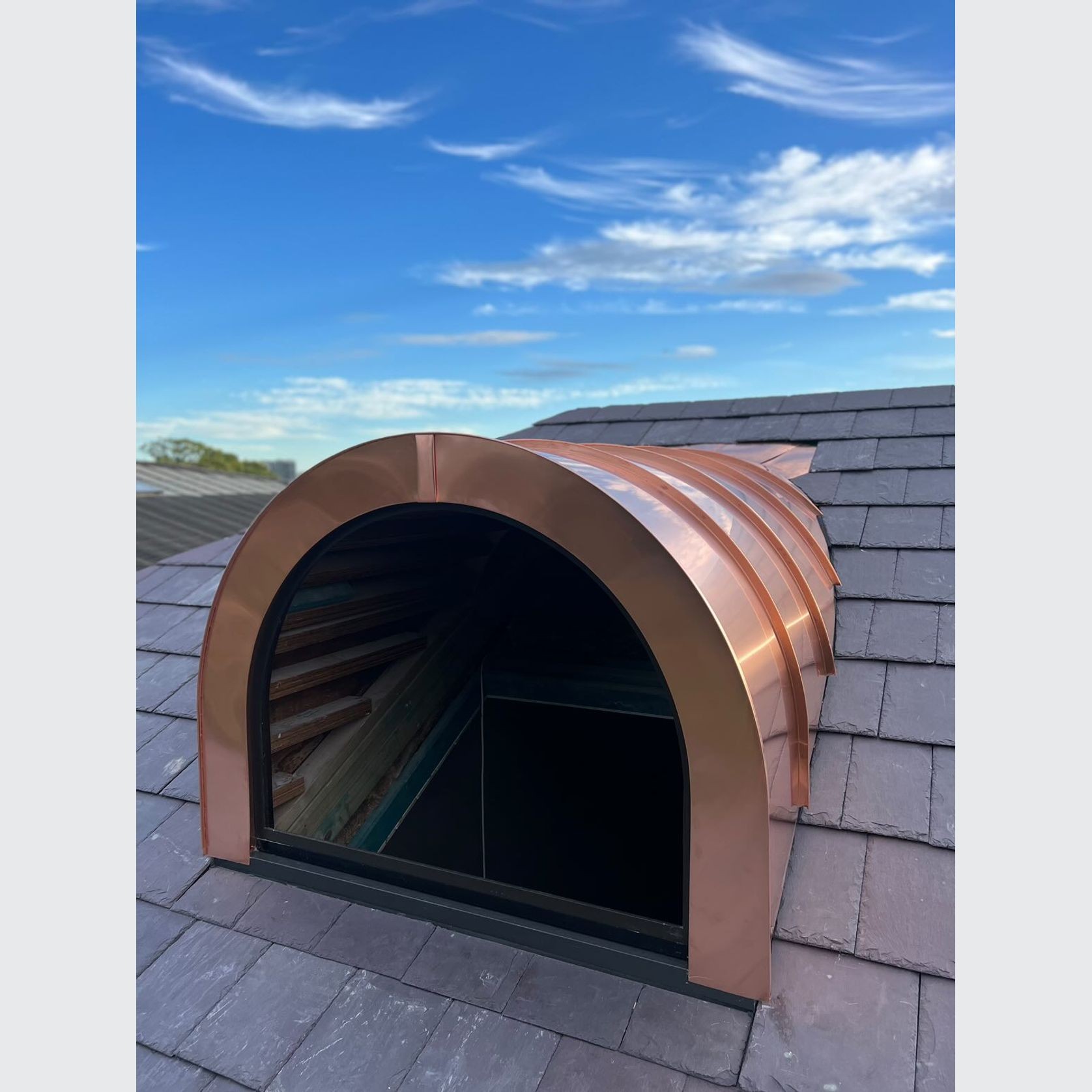

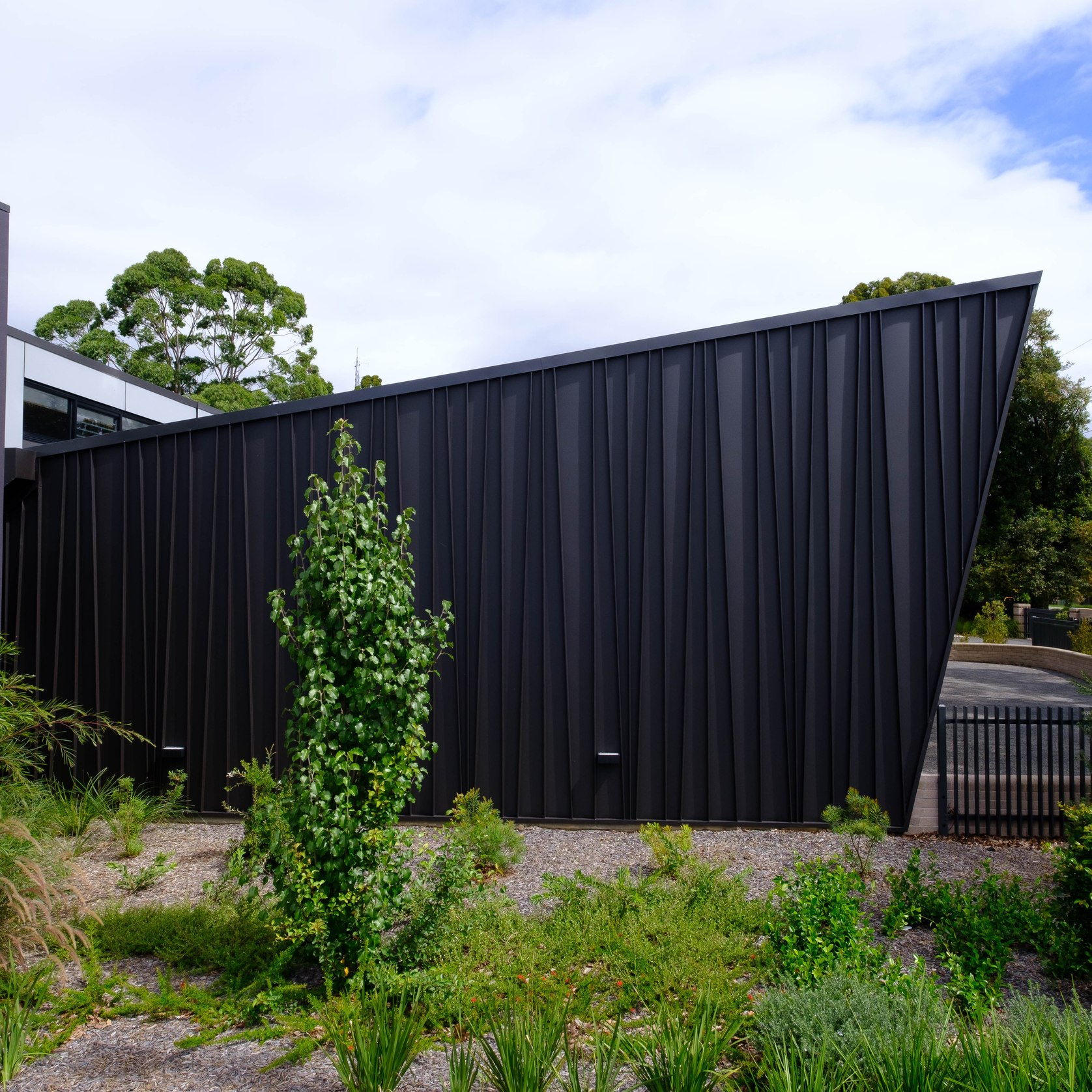

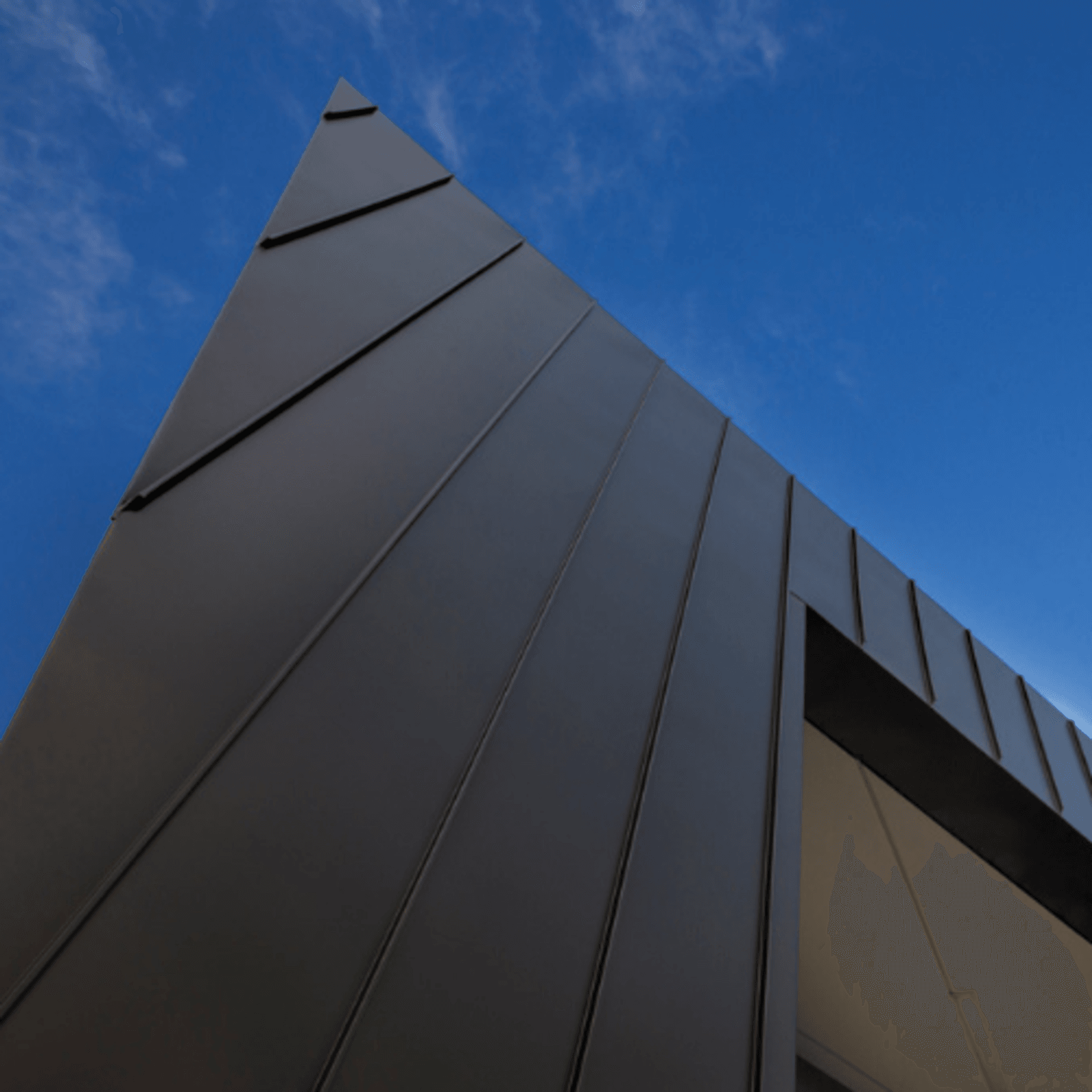

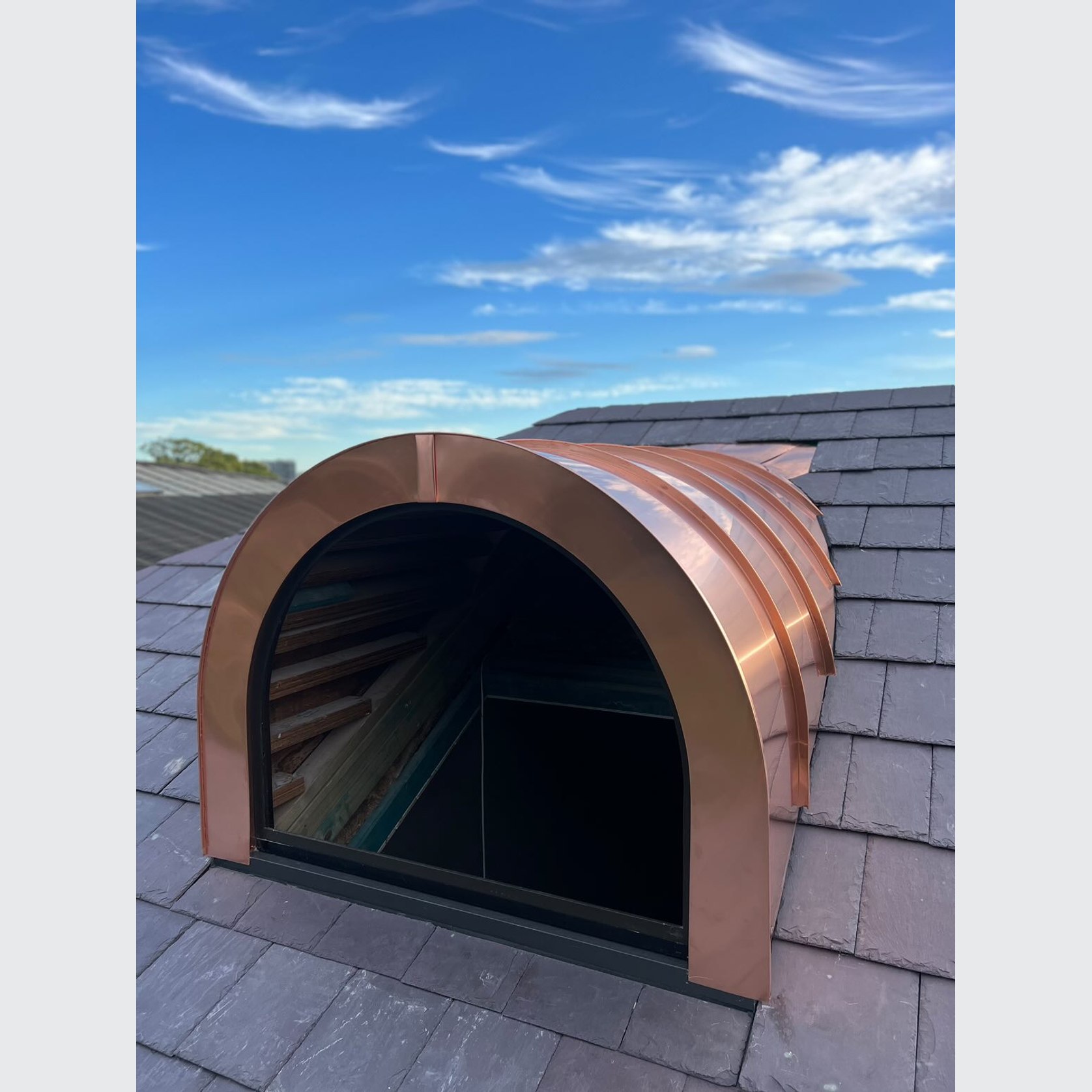

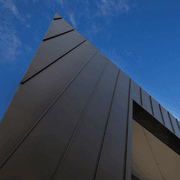

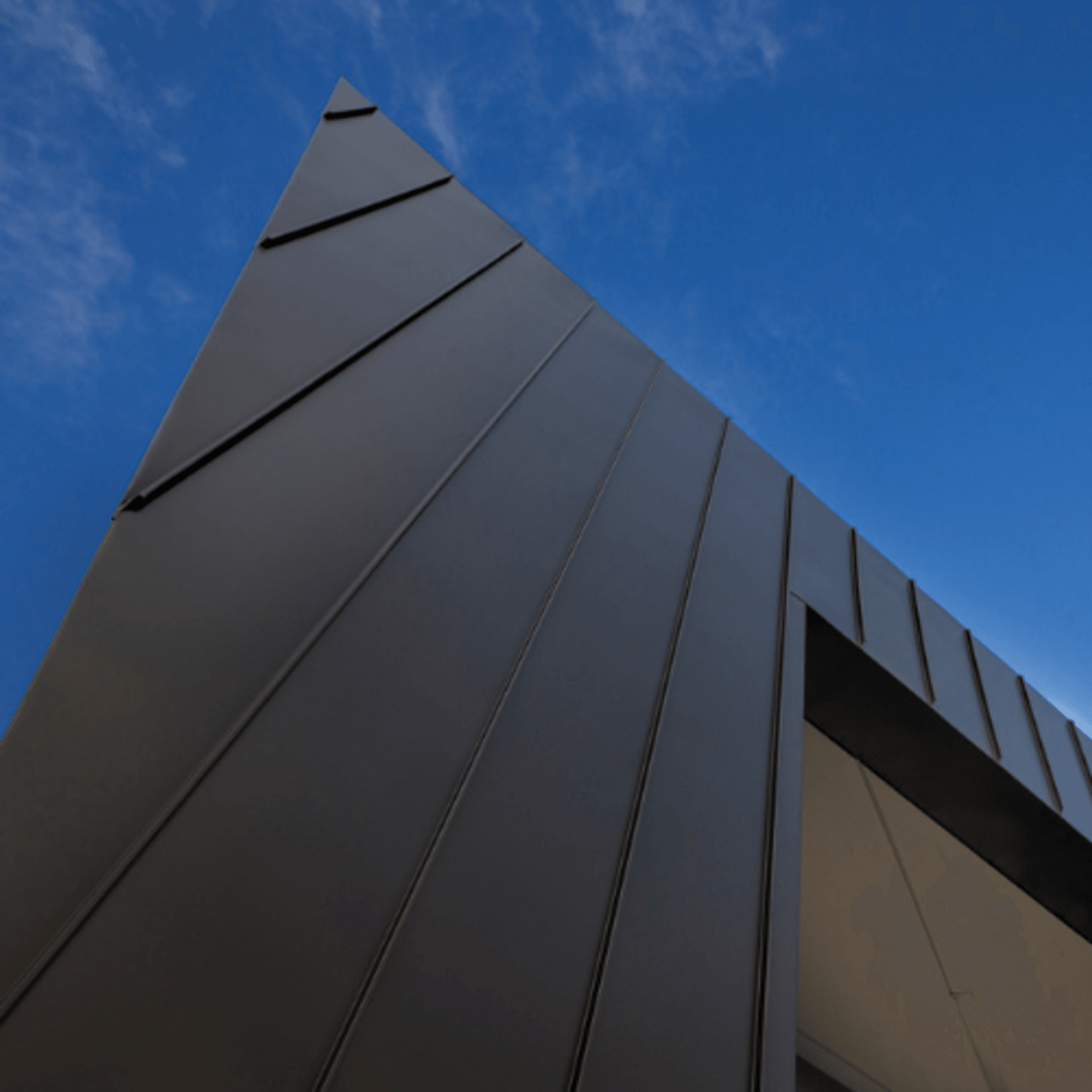

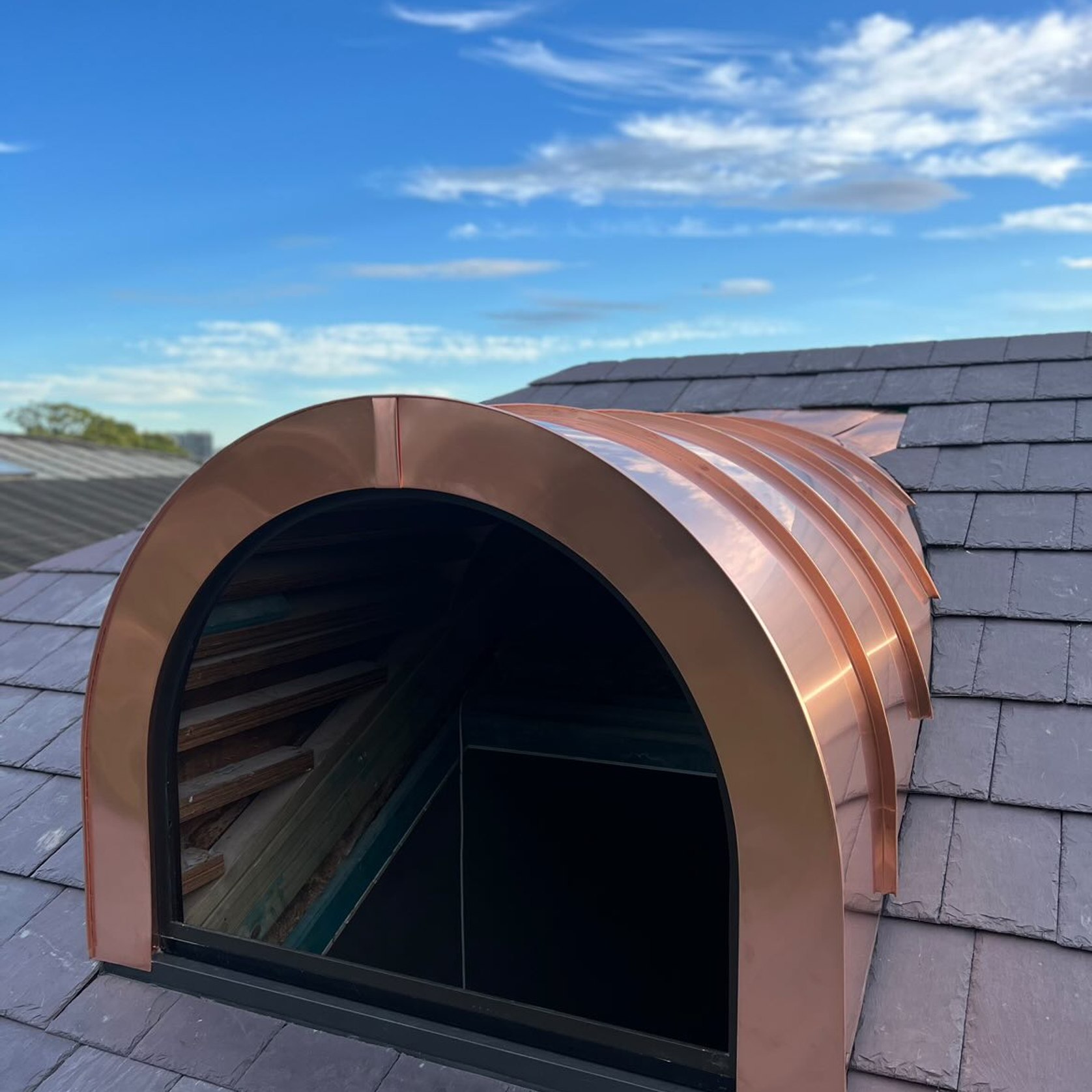

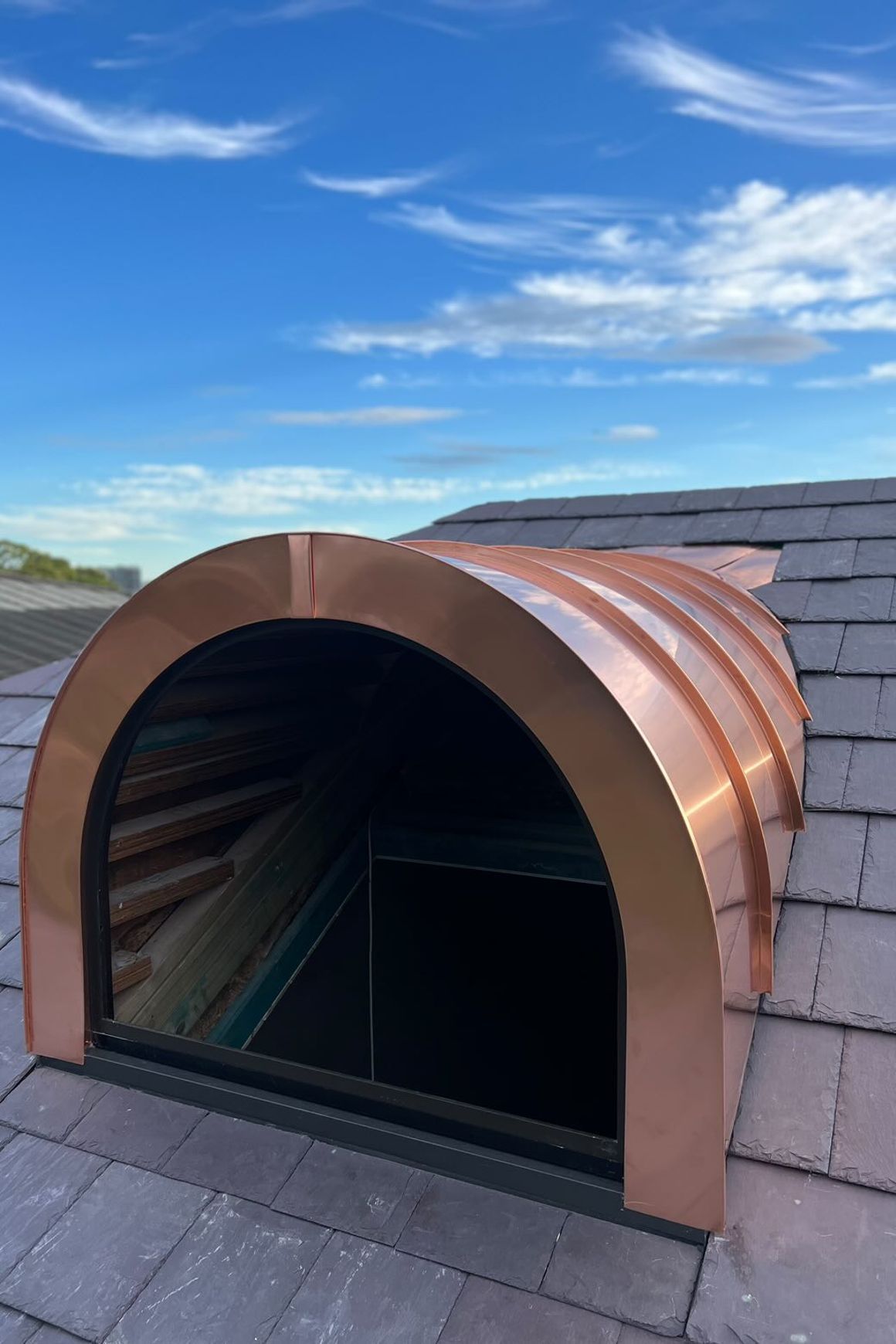

Play with a vertical, horizontal or even diagonal rib alignment to create contrasting planes and angles.  Experiment with customising the pan widths or using Genesis™ Standing Seam in curved configurations.

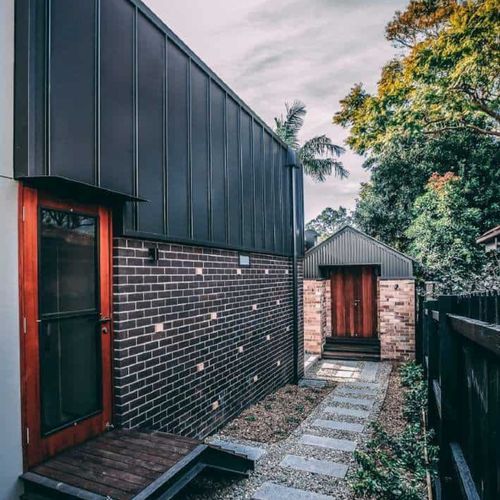

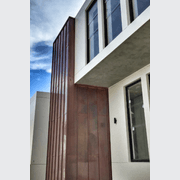

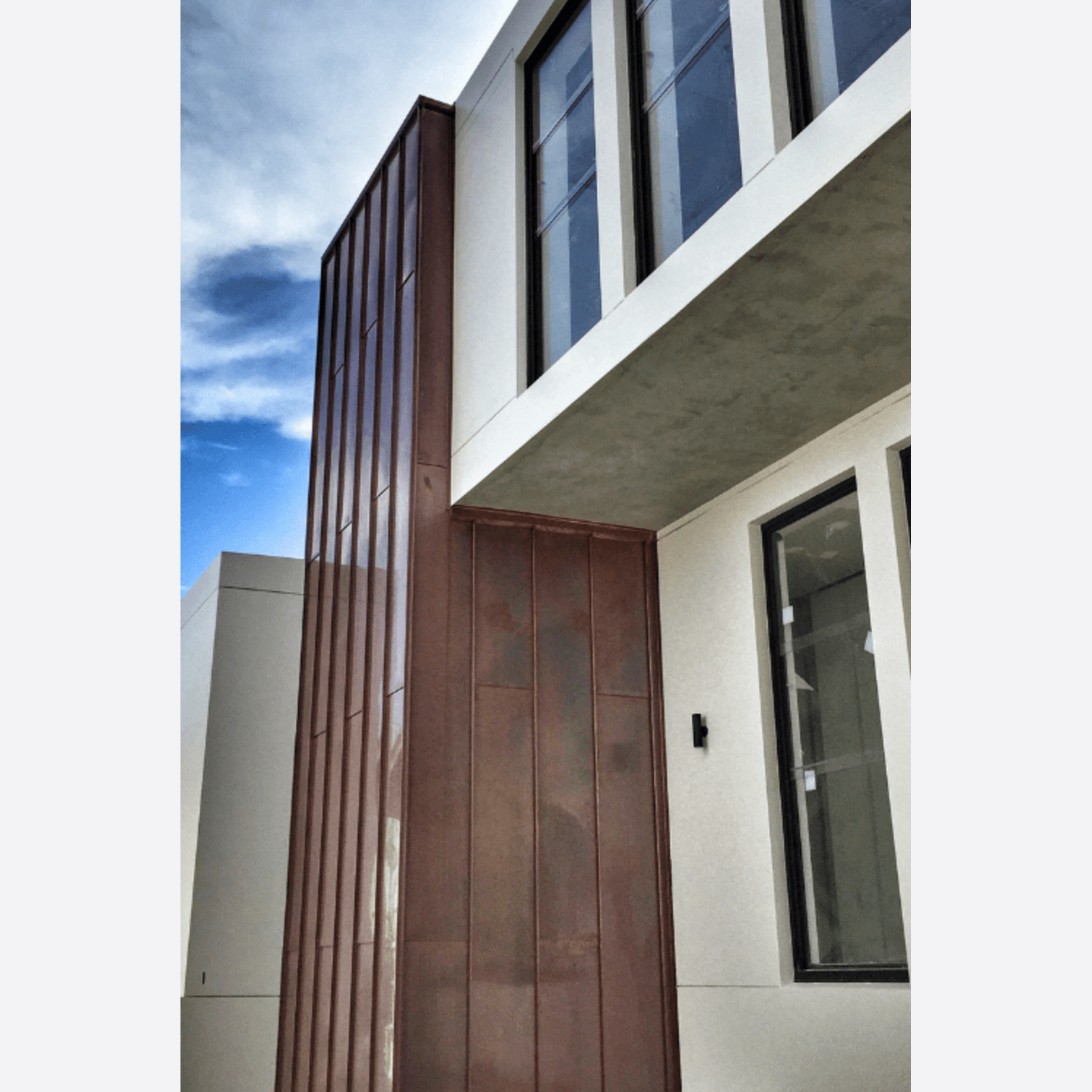

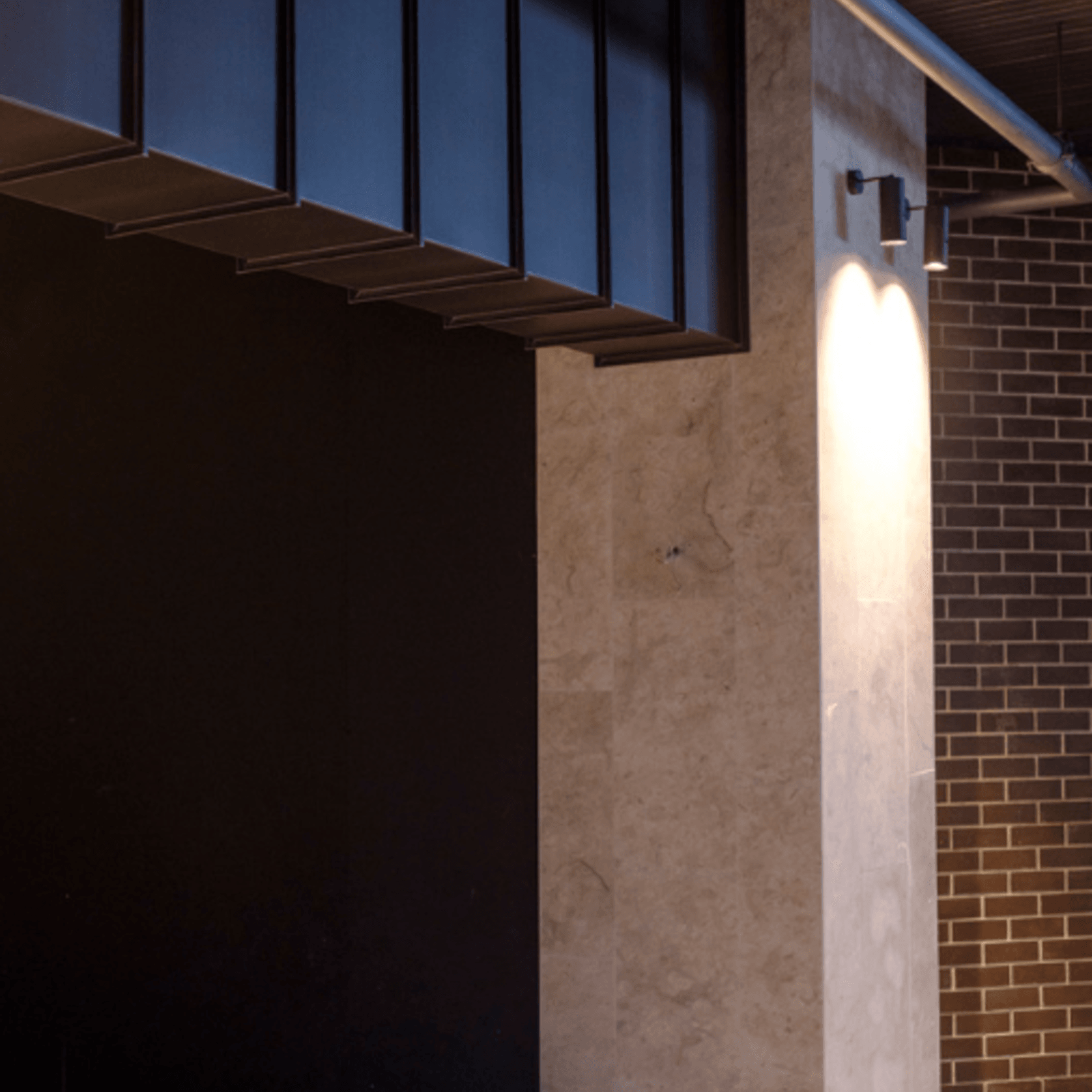

Genesis™ Standing Seam’s strong linear expression is also perfect for creating powerful aesthetic connections with other structural features including stone, timber, and glass.

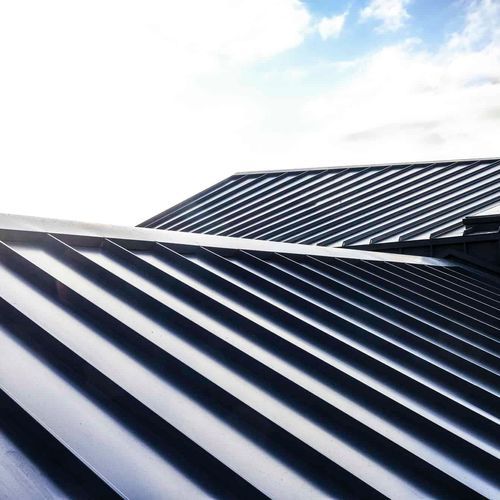

Genesis™ Standing Seam is suitable for all pitches from vertical down to a minimum pitch of 3°. Long-run panels up to 8 metres or longer (depending on site design) open up more options for creating powerful architectural designs.

You can further customise Genesis™ Standing Seam with a variety of material types and colours including Colorbond, Zincalume, zinc, copper, aluminium, and Corten options.

Add in the additional vibrant colour possibilities available in the Colorbond colour range and you’ll begin to appreciate the special qualities Genesis™ Standing Seam can bring to your next project.

Colours

GENESIS™ STANDING SEAM COLOURS

Genesis™ Standing Seam blends strong linear flow with a wide colour range for a truly artistic expression.

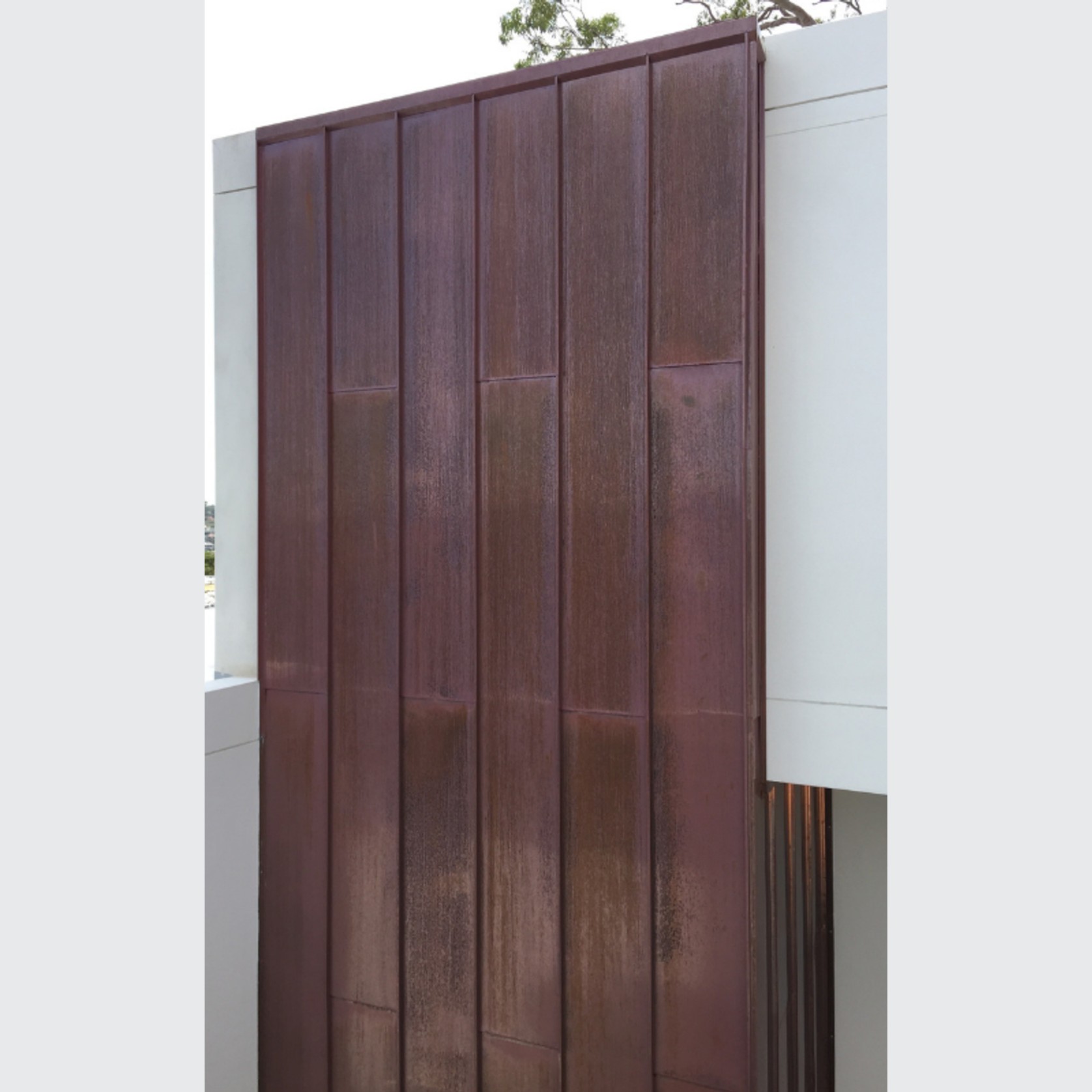

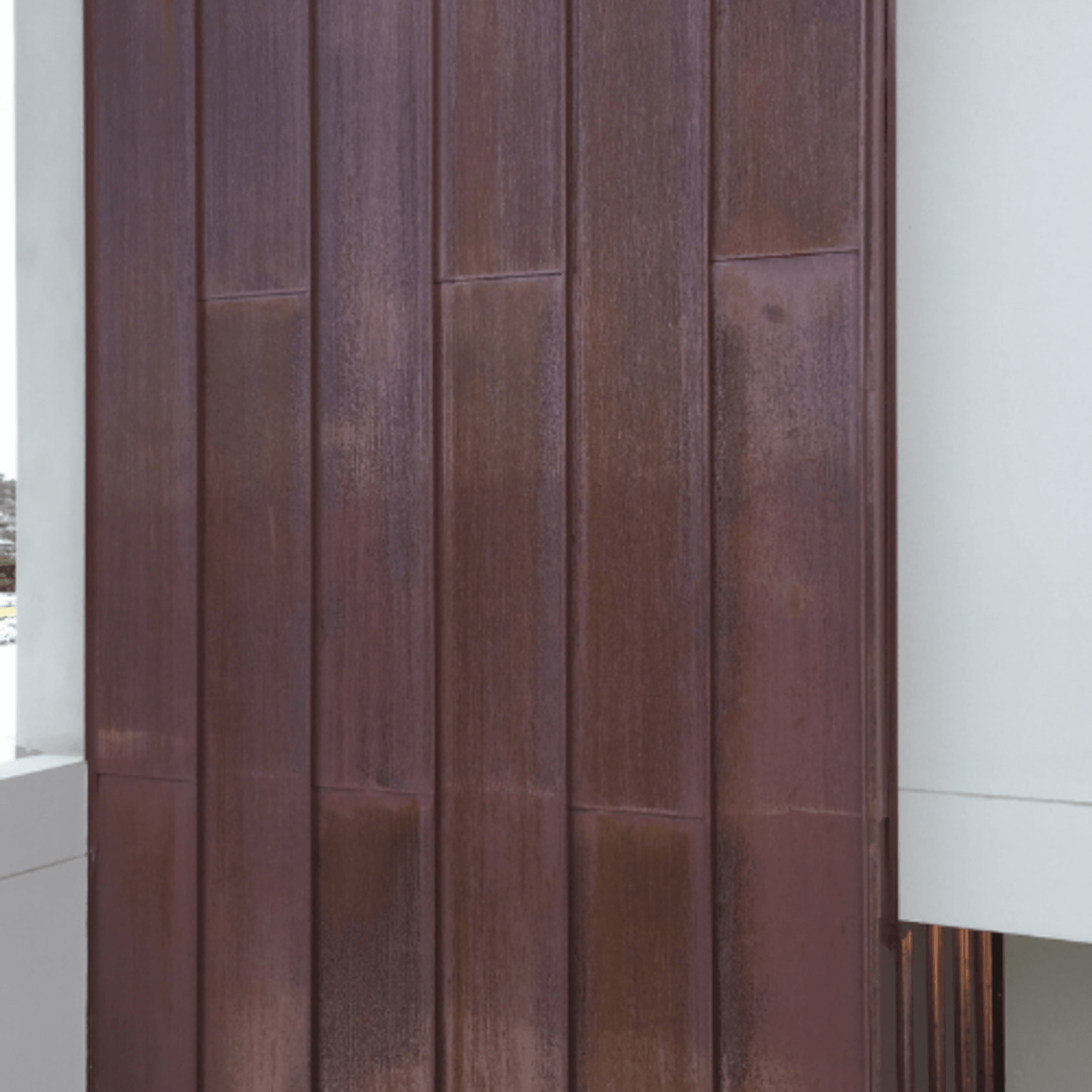

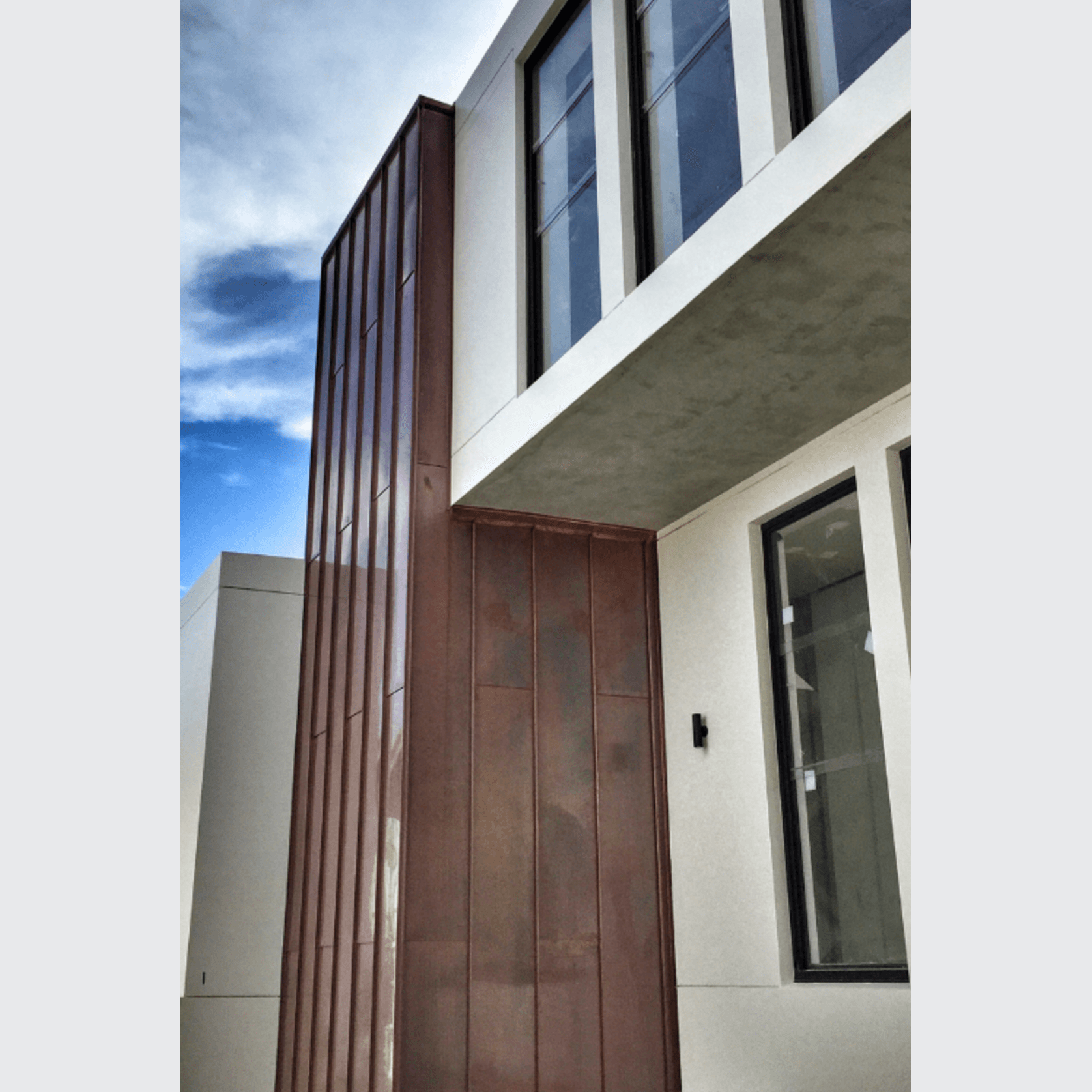

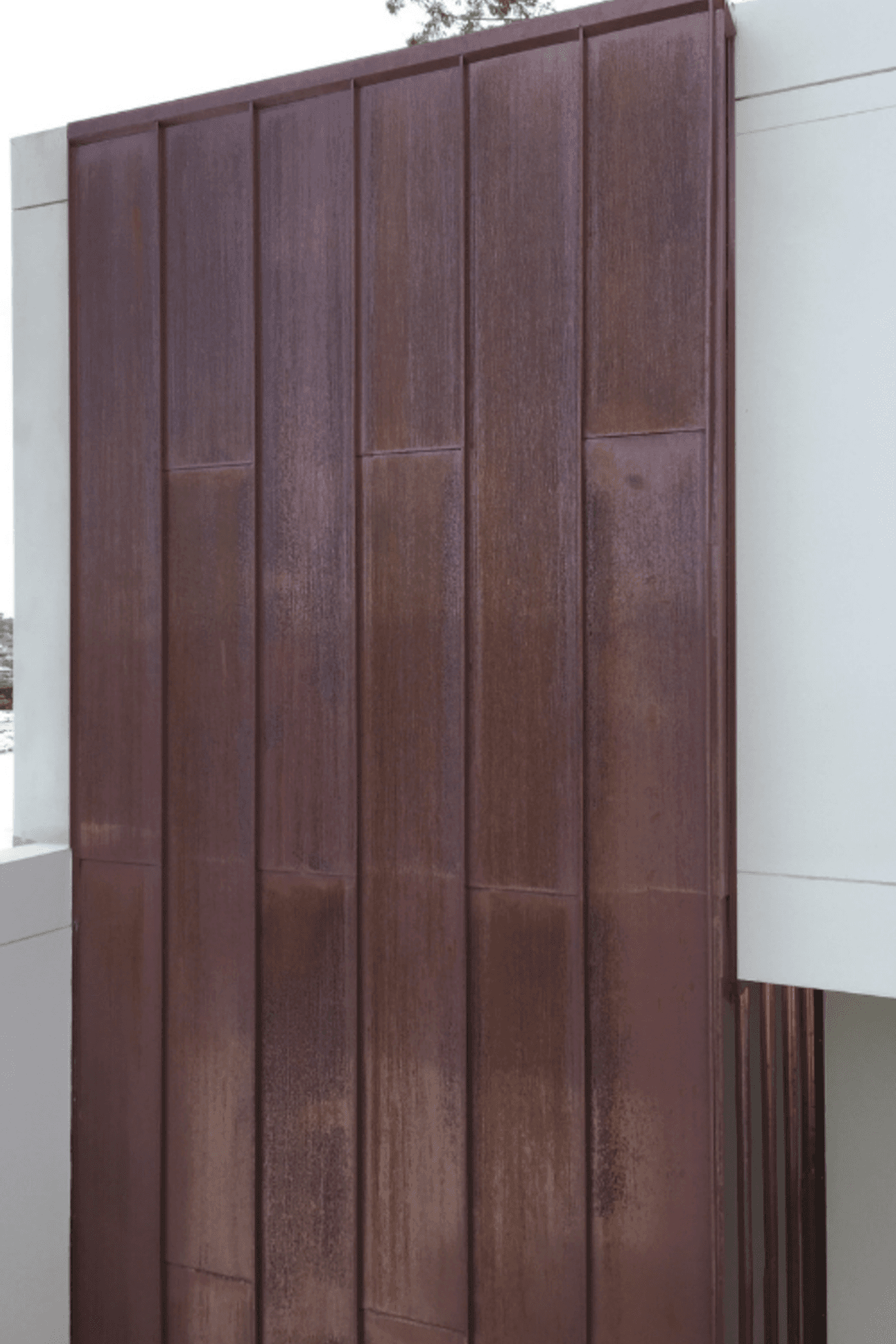

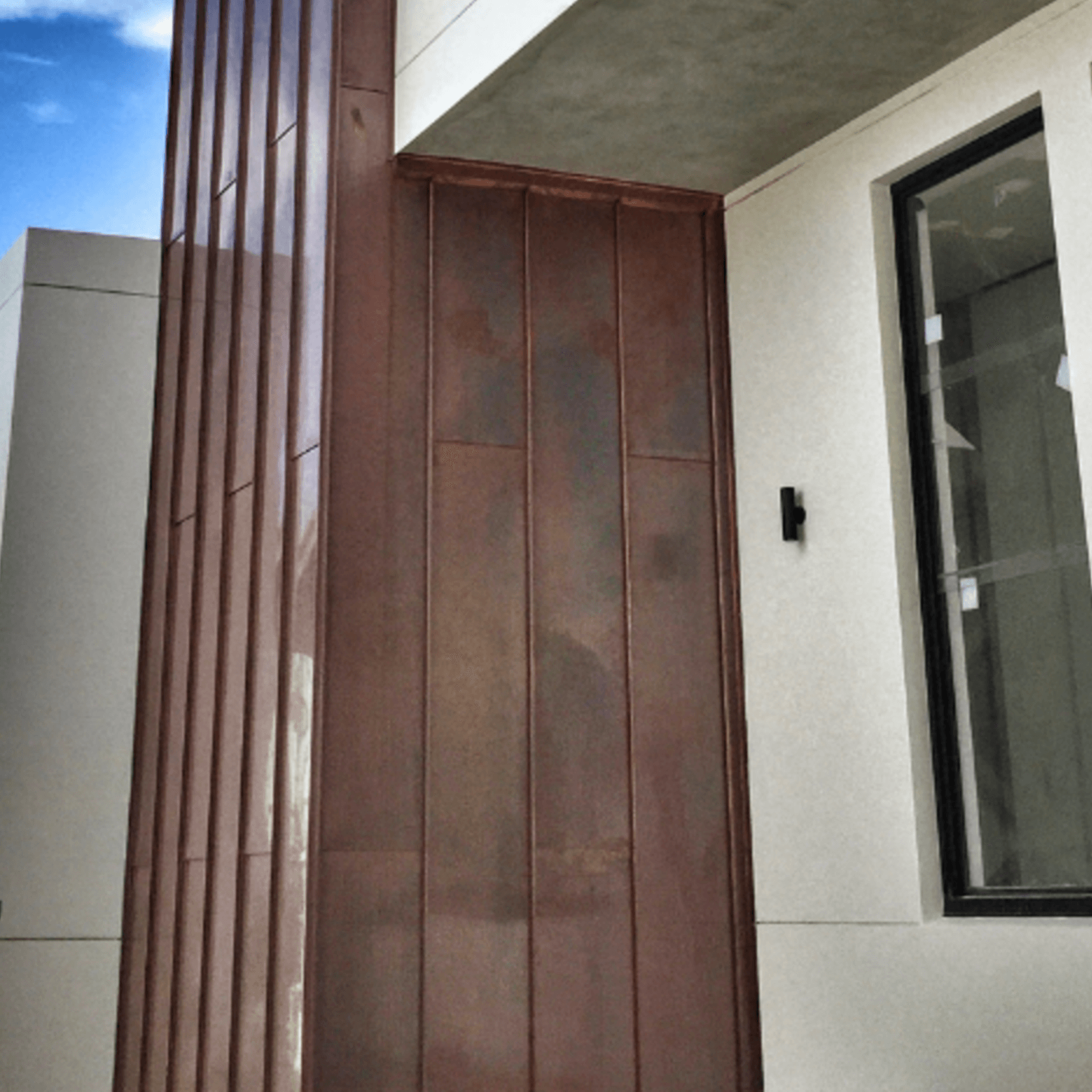

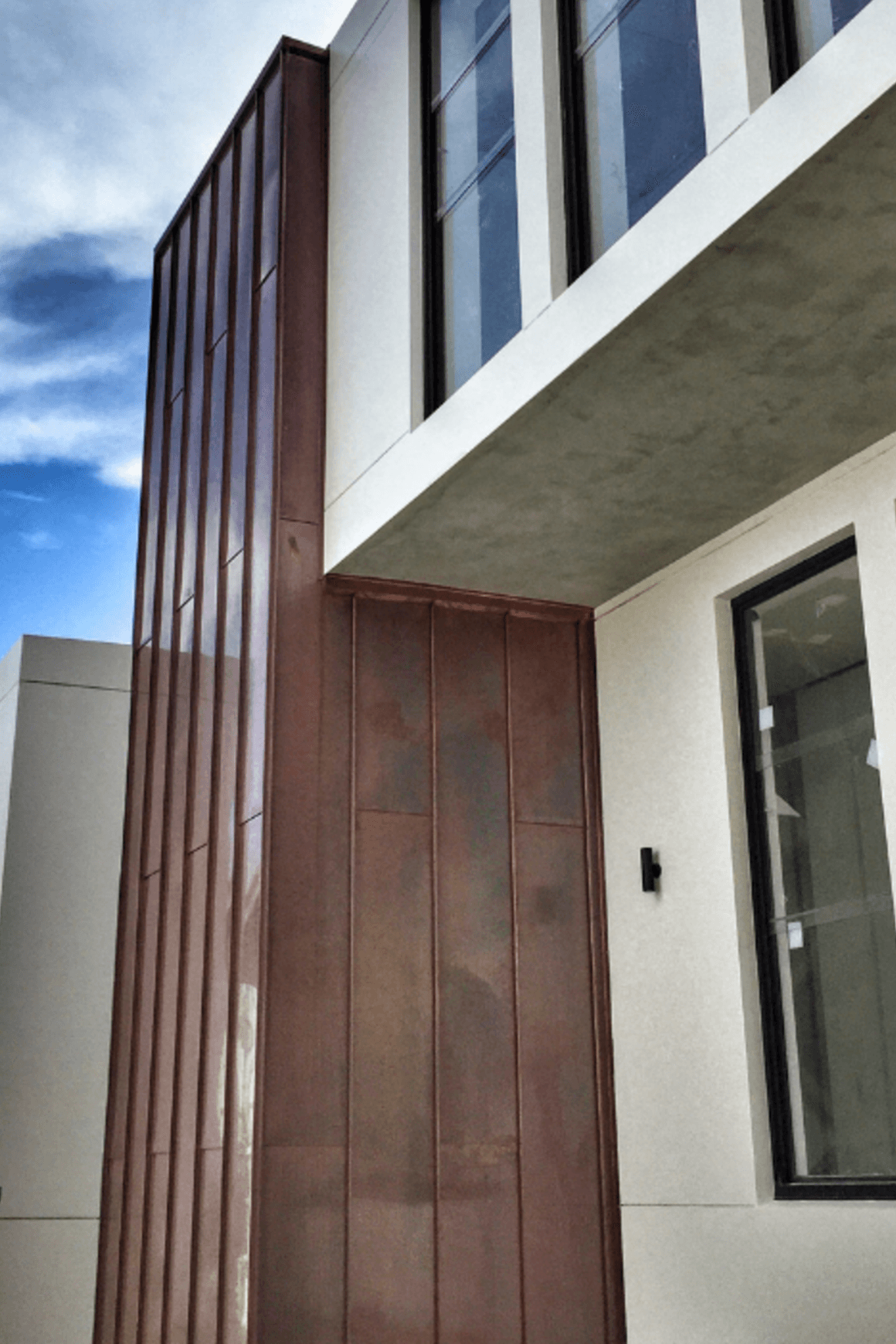

Choose from the clean, simple colours of copper, Zincalume, and Corten weathered steel or go for one of the vibrant colour options available in the Colorbond range.

The Colorbond steel colour range draws its inspiration from the rich palette of colours from the Australian landscape and marine environment.

The Classic Colorbond colour range is perfect for that more traditional look for either residential or commercial applications.

The Colorbond contemporary range brings a more youthful, exuberant range of colours-- perfect for residential and commercial projects.

Installation

GENESIS™ STANDING SEAM INSTALLATION

Genesis™ Standing Seam panels provide a simple rapid install solution for all cladding applications. You can expect to save significant amounts of time and money on installation costs with Standing Seam.

Genesis™ Standing Seam requires a continuous rigid substrate such as plywood. The recommended substrate is 15mm plywood for wall cladding and 18mm for roofing. Ventilation is also required to prevent condensation formation.

Fasten Genesis™ Standing Seam panels directly to the plywood substrate using countersunk screws through the concealed clips at 600mm centres.

Either fixed or sliding clips are suitable with the sliding clips providing for excessive thermal expansion or contraction of panels.

Accurate alignment of sheets and clips is essential to safeguard against any possible tension issues, especially under the stress of thermal contraction and expansion.

The female rib simply slots into place over the male rib of the adjoining sheet to conceal the screw clips. The seal is quickly completed using hand crimping tools or with a crimping machine for an extremely effective watertight seal

Genesis™ Standing Seam provides a choice of single or double seams—the double seam is a requirement for extra high wind loadings.

Make sure you use the appropriate fasteners for the specific application and ensure that all adjacent materials are compatible. The experienced team at No1 can offer you guidance and advice with regard to this and all applications across the range of No1 Architectural Panels.

Maintenance

GENESIS™ STANDING SEAM MAINTENANCE

Genesis™ Standing Seam has built a long-standing reputation as a superior low-maintenance cladding product that offers industry-leading durability.

Genesis™ Standing Seam’s strongly defined rib lines channel heavy rain efficiently and at the same time wash away most dirt and debris.

The old-style fixing screws used to be vulnerable to dirt build-up and corrosion issues. The cleverly concealed screw clip fastening system offers exceptional weathering protection for Genesis™ Standing Seam as well as reducing maintenance requirements.

However, all steel cladding will benefit from some maintenance to ensure you get the best performance. The removal of all leaf matter, dirt, and another organic material build-up on an annual or biannual schedule is essential for the optimal lifespan of any cladding. If the building is surrounded by trees you may need to repeat this operation even more frequently.

Leaf matter and dirt can block guttering and cause water to back up and enter into roof or wall cavities. Dirt and organic material also significantly increase the rate of corrosion and can potentially damage the paint finish. That’s why a regular maintenance programme is advisable but Standing Seam minimises any maintenance challenges you may face.

Suppliers

GENESIS™ STANDING SEAM SUPPLIERS

No1. Architectural Panels are proud to use superior Australian-made steel as part of our range of materials for our Standing Seam profiles.

No. 1 Roofing insists on industry-leading best practices and the use of the latest innovative technology throughout all Genesis™ Standing Seam manufacturing and handling processes.

Genesis™ Standing Seam –for a roof and wall cladding solution that gets a standing ovation every time.
