Hand Adjustable Louvre Panels (KISS Pivot System)
Auckland
- 501.7K profile views
- 110 saves
A choice of Hand Operable options
Louvretec's sun louvre panels are not only available as motorised systems but also as hand operable (so no motor needed). Following are our hand operable options for your louvre system.
Kiss Pivot System

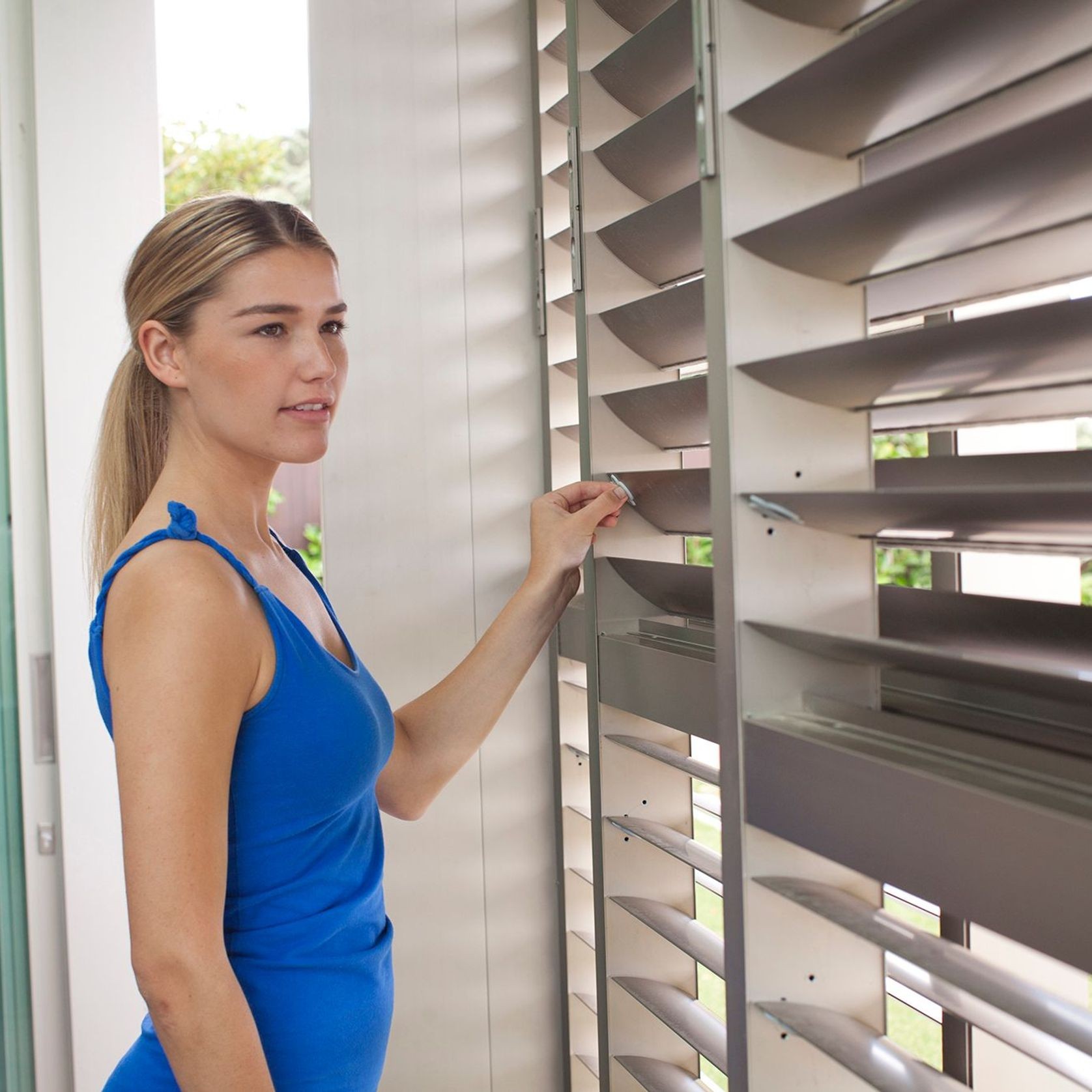

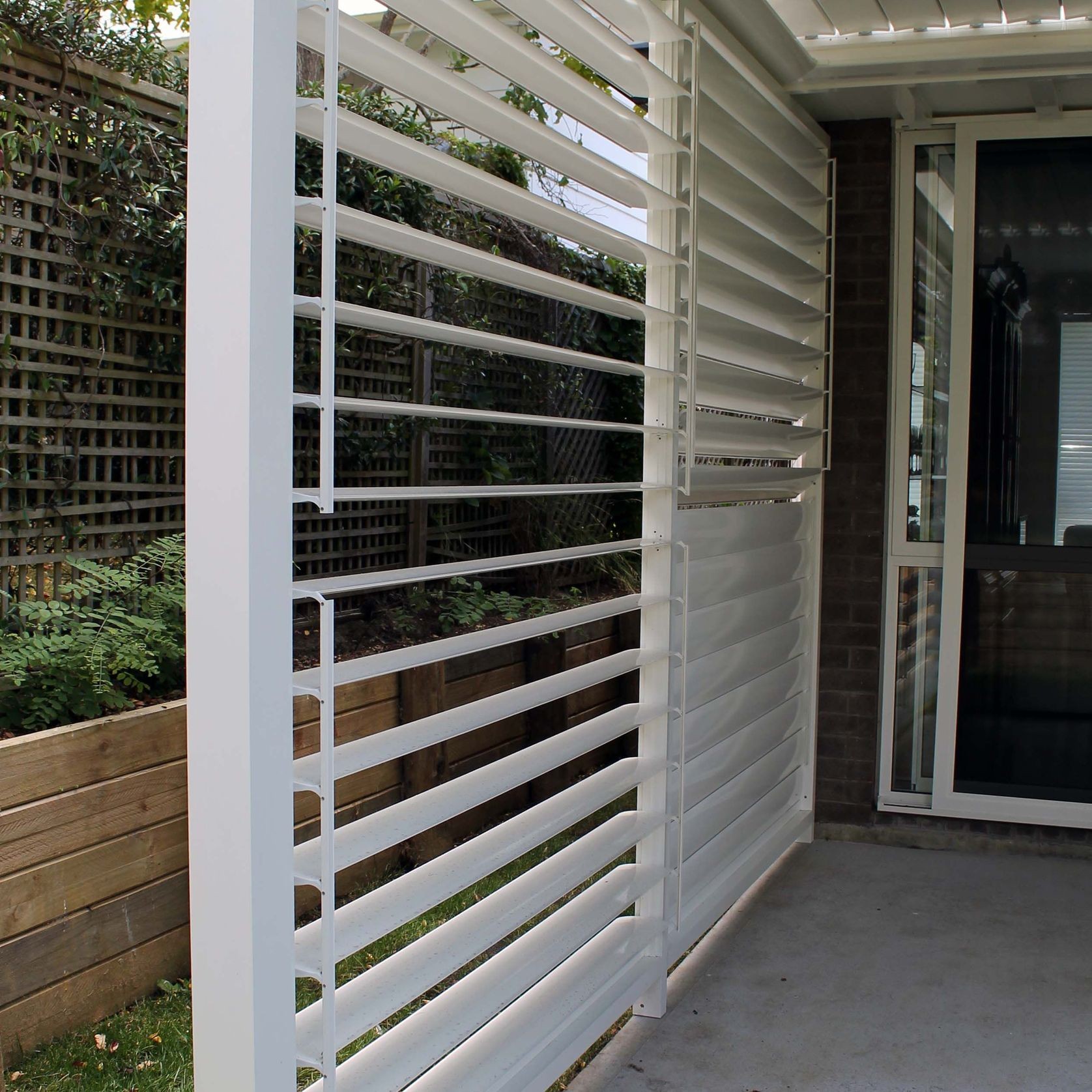

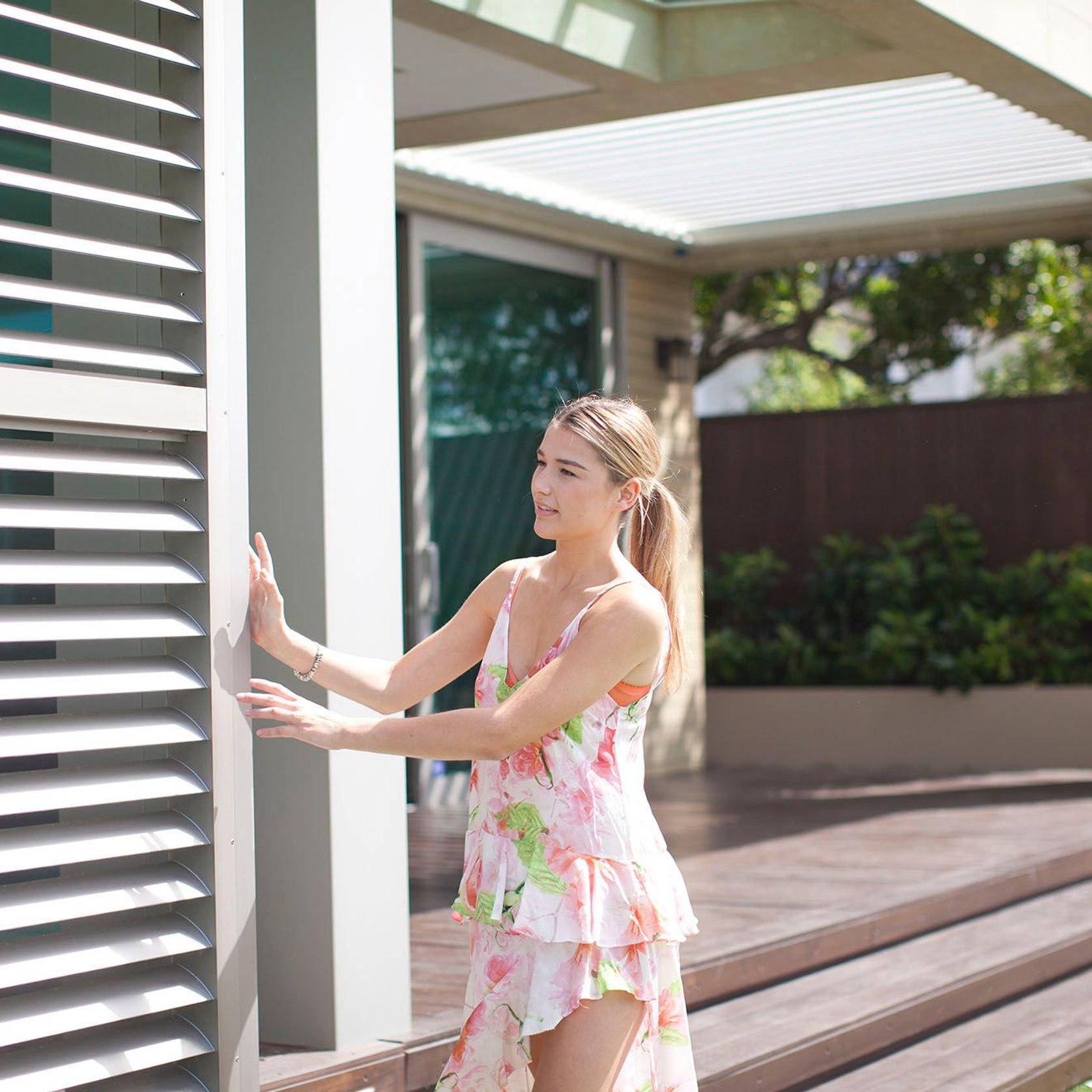

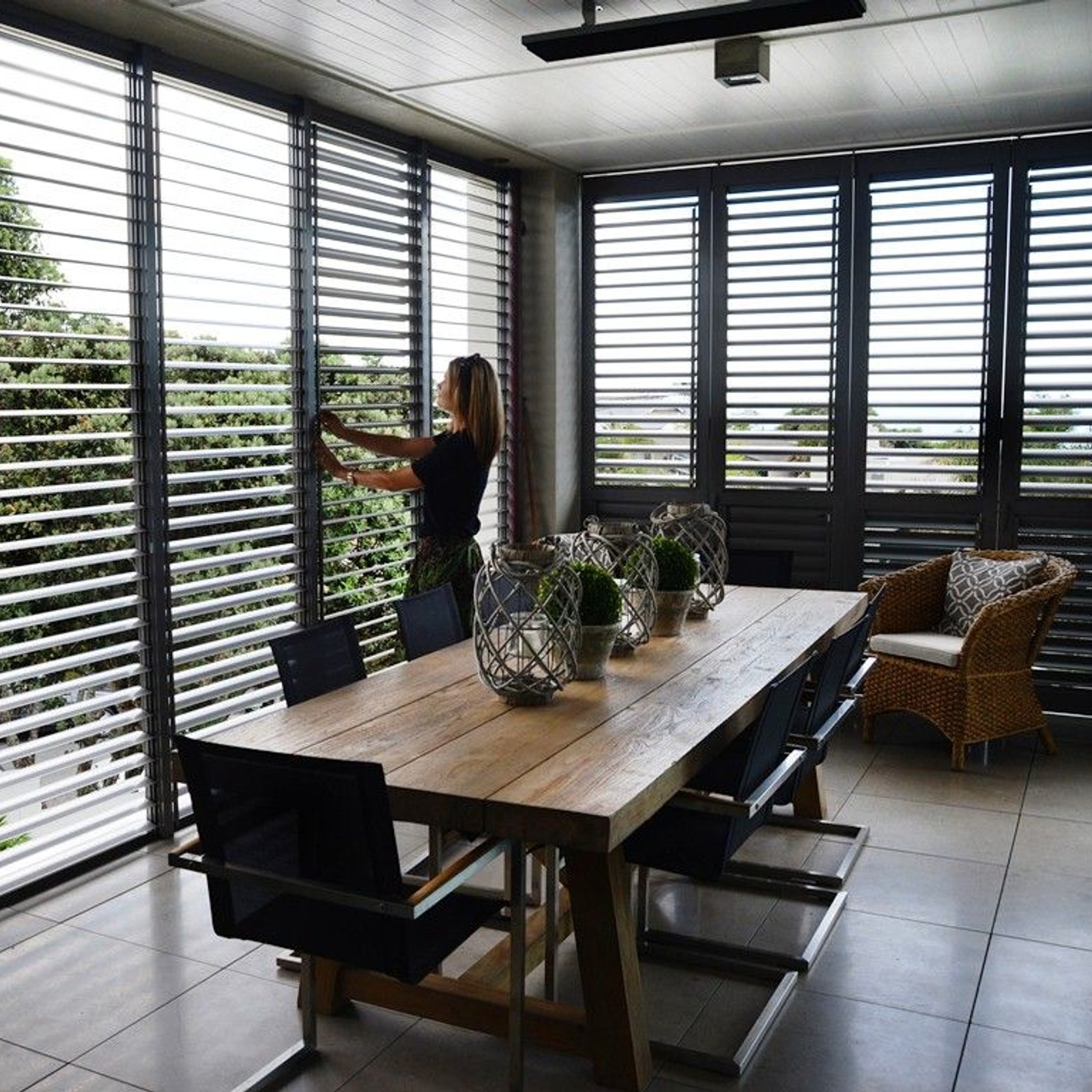

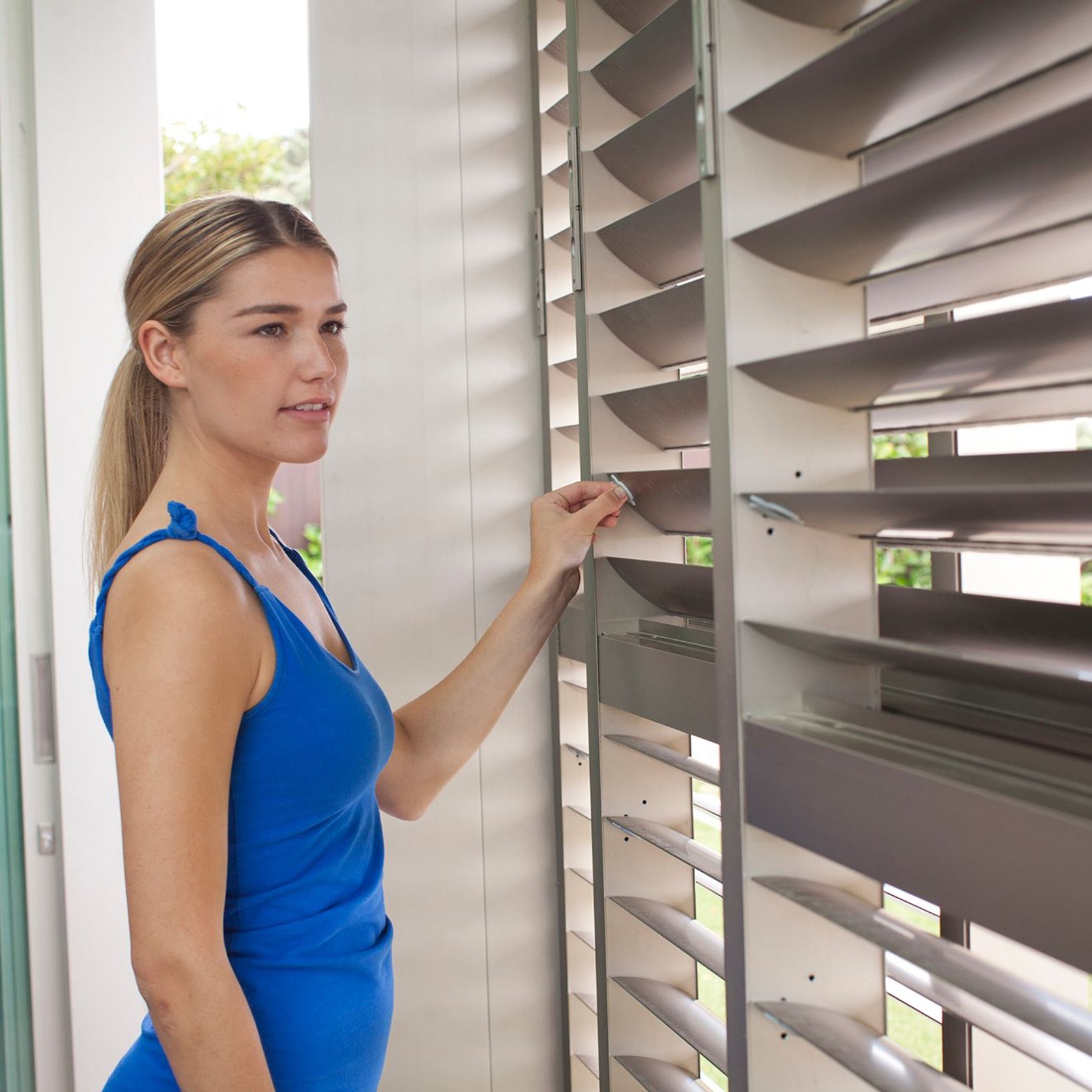

Louvretec's range of hand-adjustable sun louvres can be operated by the Kiss Pivot system. This easy to operate hand opening system features subtle drive arms providing adjustable shading and privacy solutions. A slide-lock also lets you lock off the louvres different locking points.

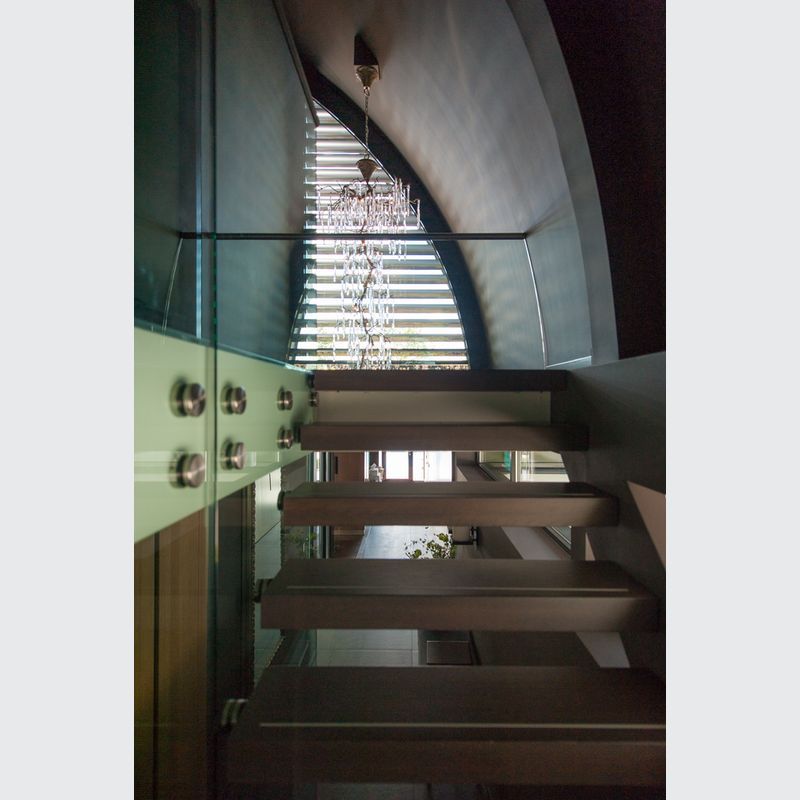

The 70mm Midi Louvre (airfoil shape), 90mm Midi Louvre (airfoil shape) & 150mm Midi Louvre (airfoil shape) are all compatible with the Kiss Pivot hand operable system. From our rectangular louvre range we recommend the 95mm Bella Vista Louvre (rectangular shape)
Each of the above louvre blades includes provision for a woolpile insert, ensuring a snug tight fit when fully closed.
All Kiss Pivot system panels are available with an adjustable slide lock, providing security when closed and five separate locking locations.

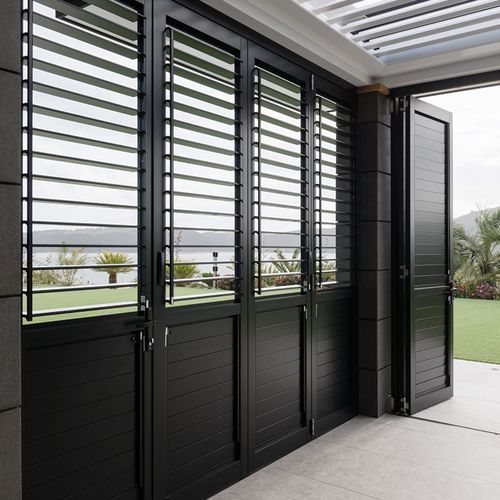

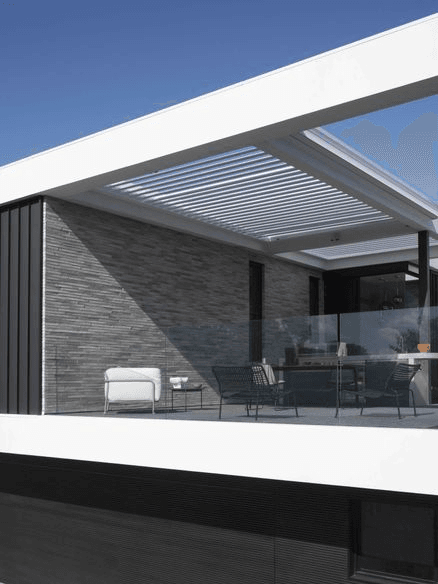

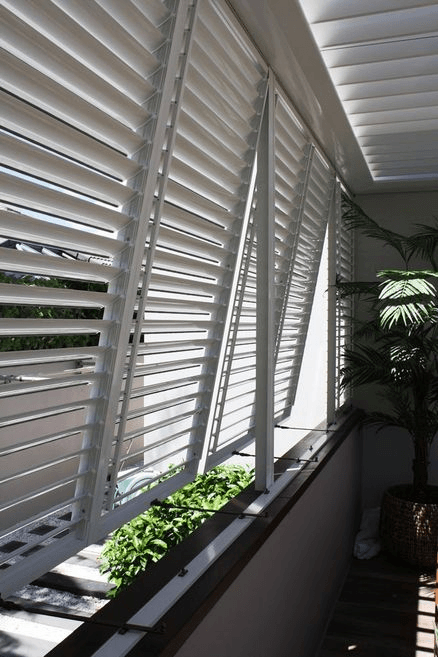

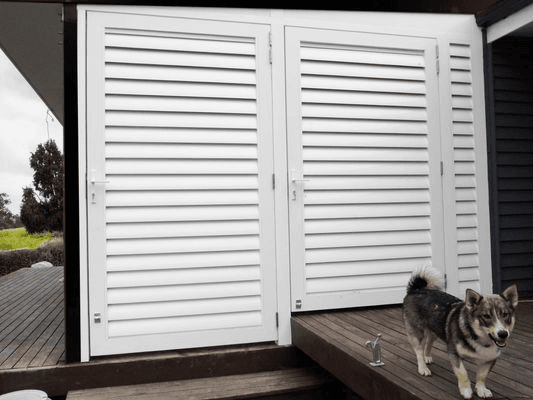

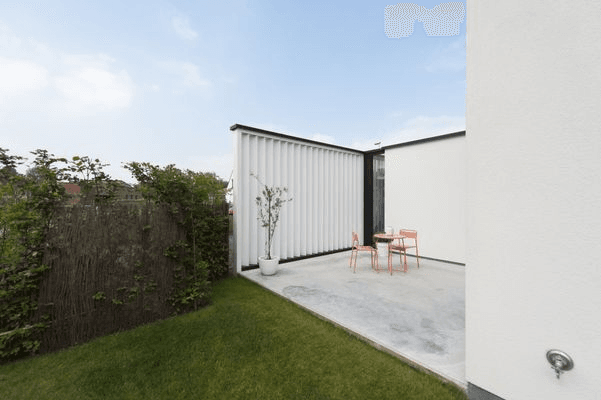

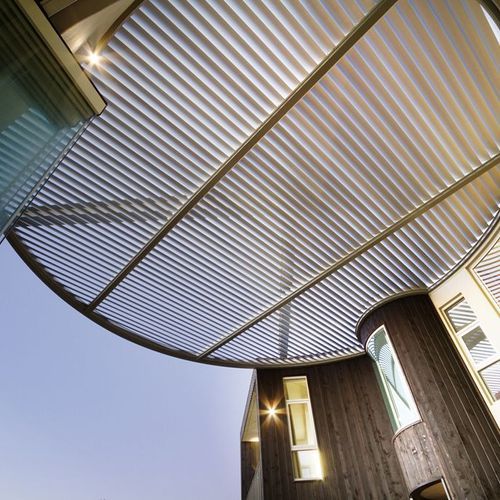

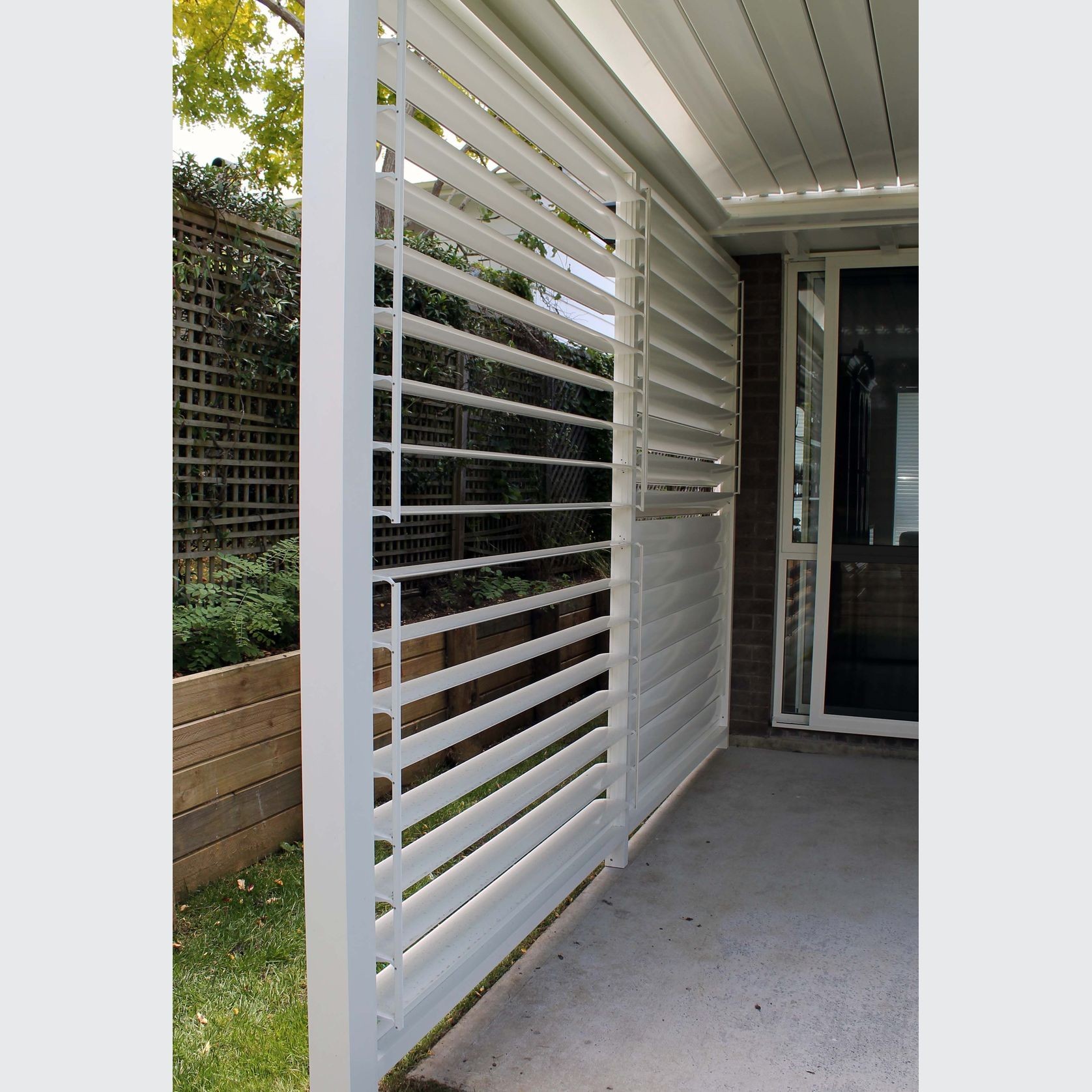

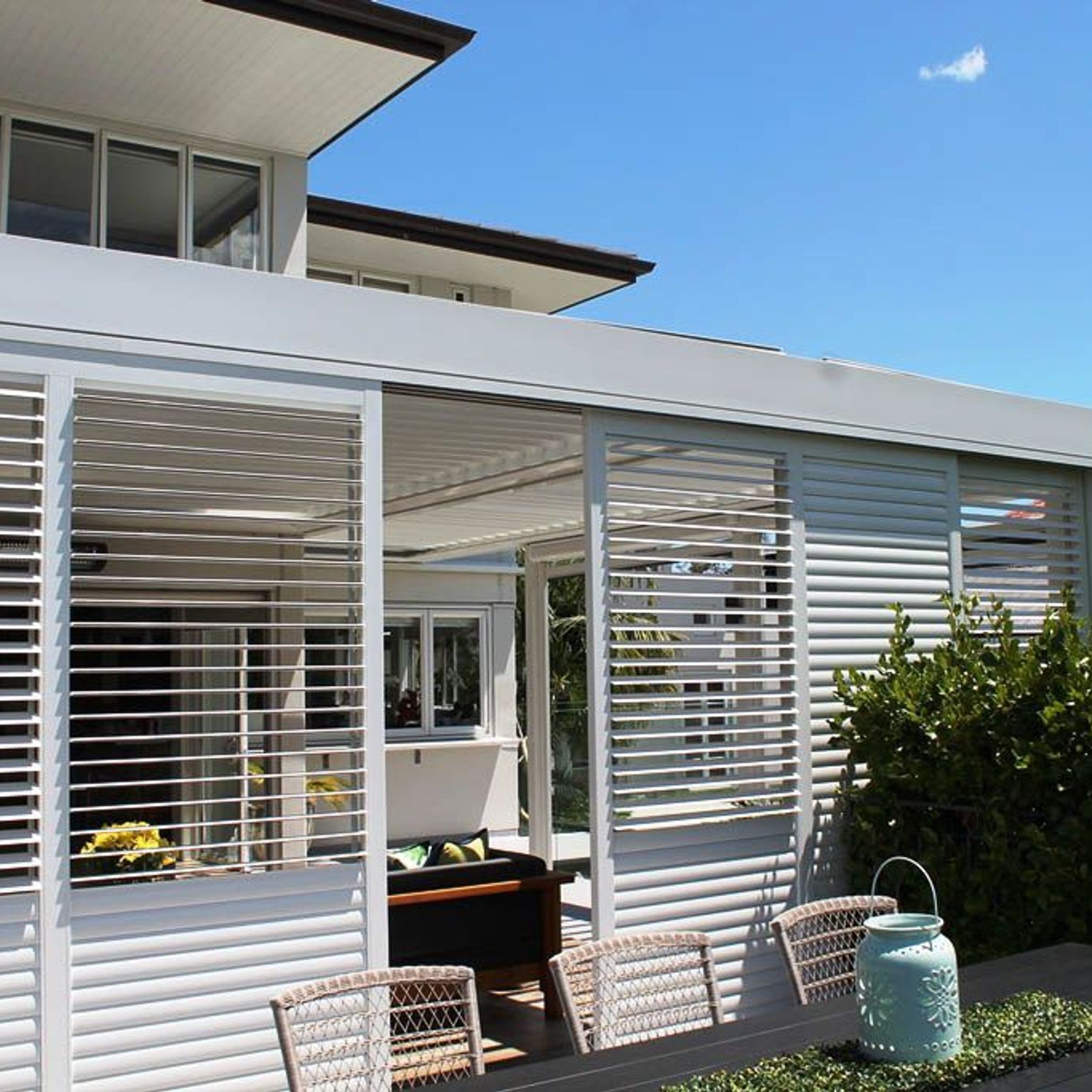

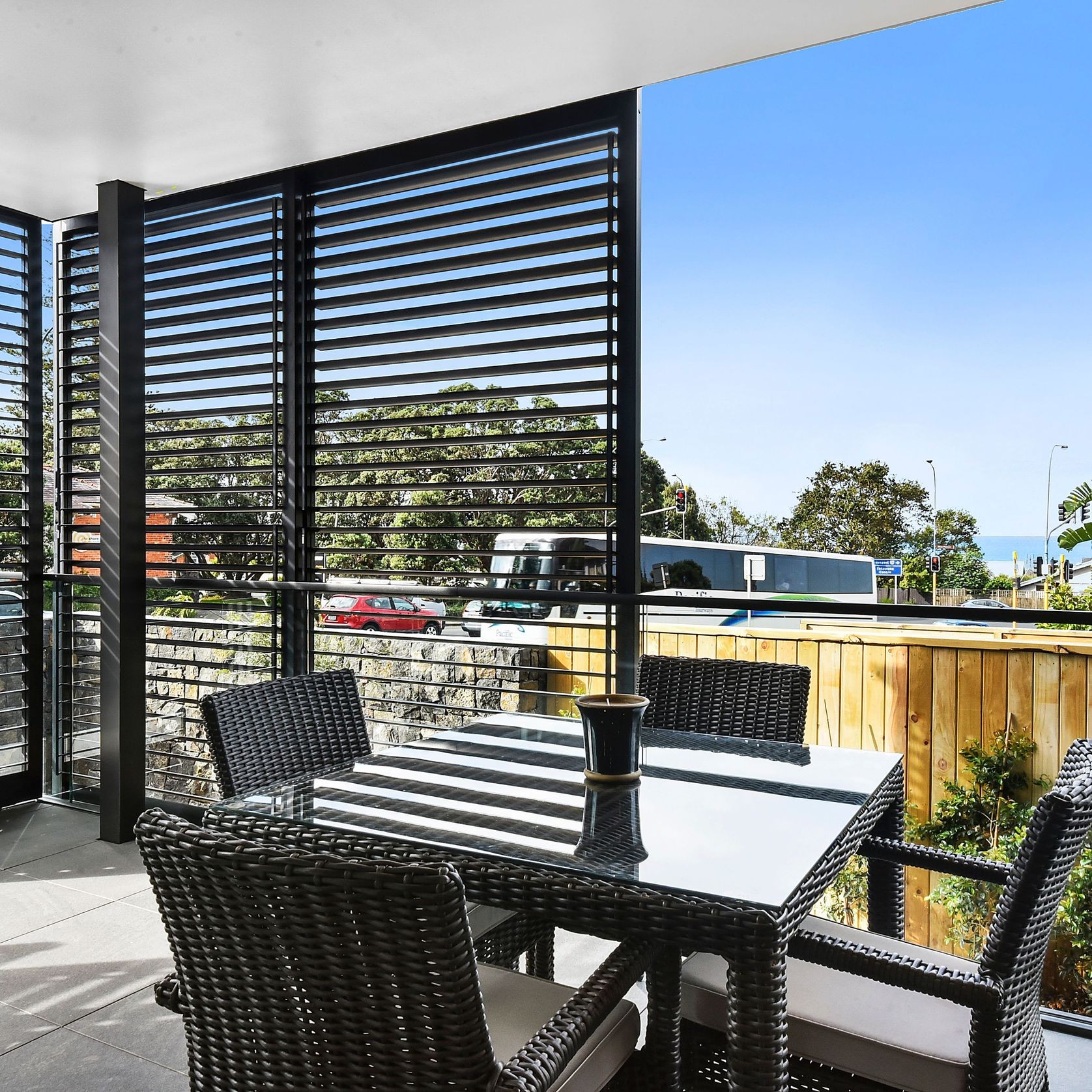

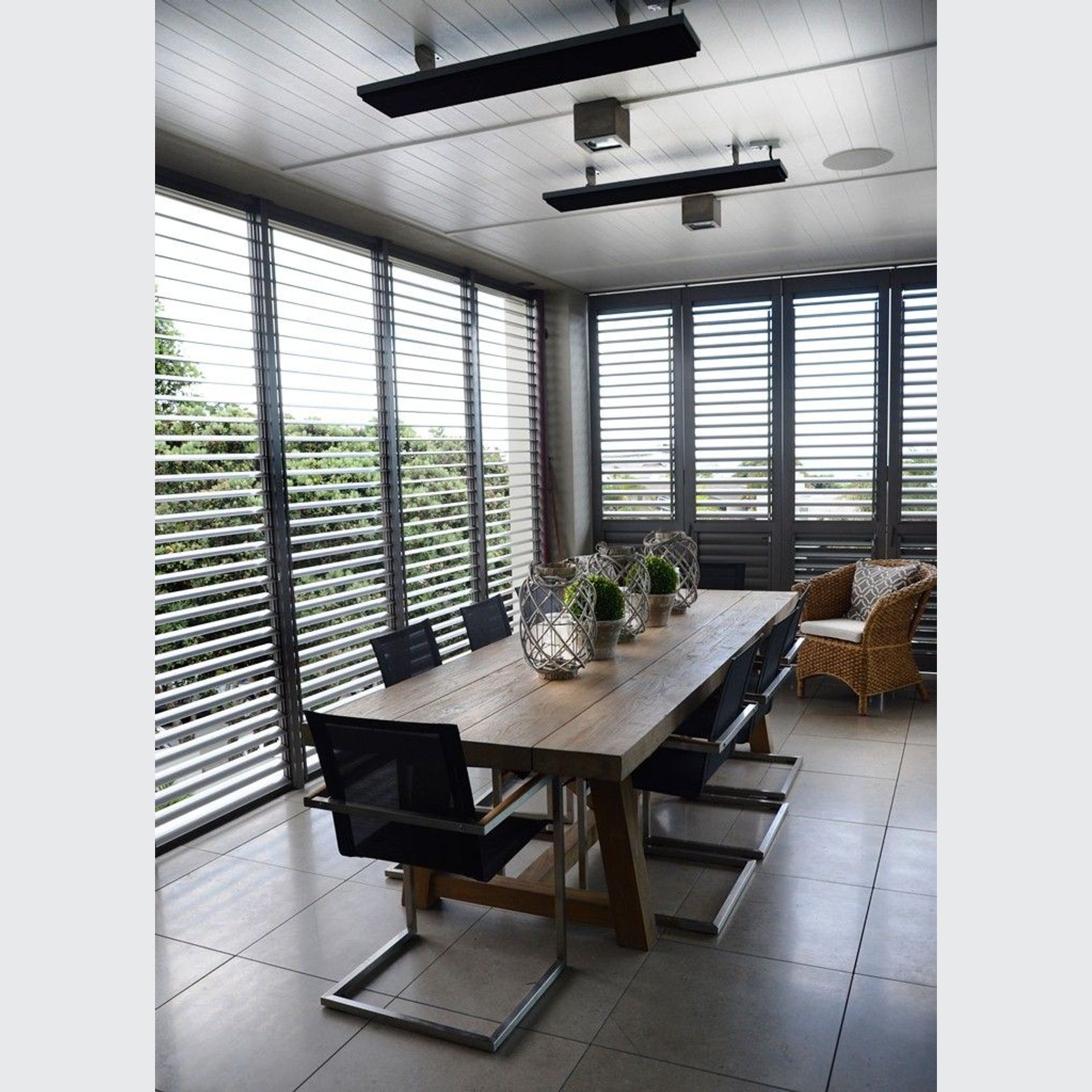

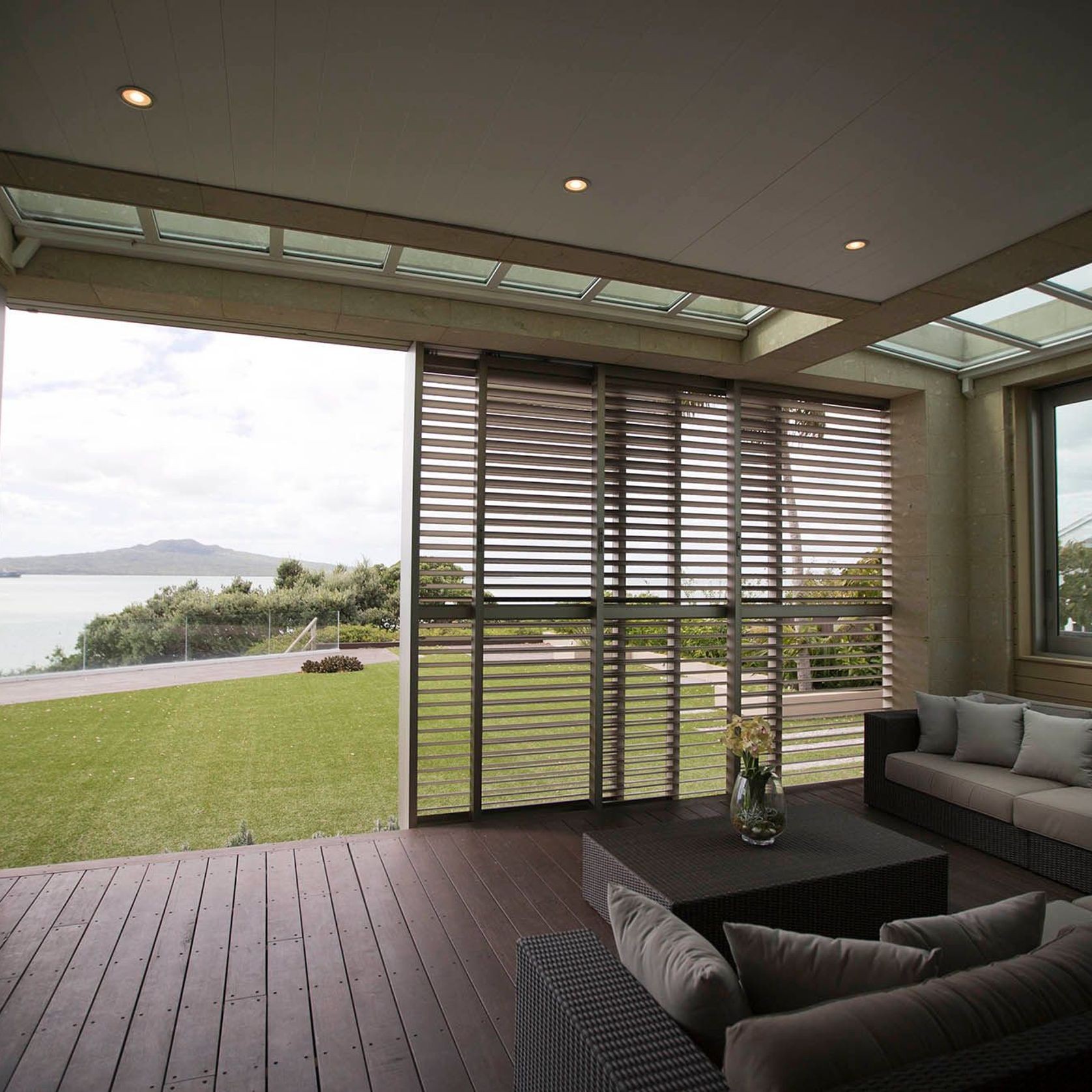

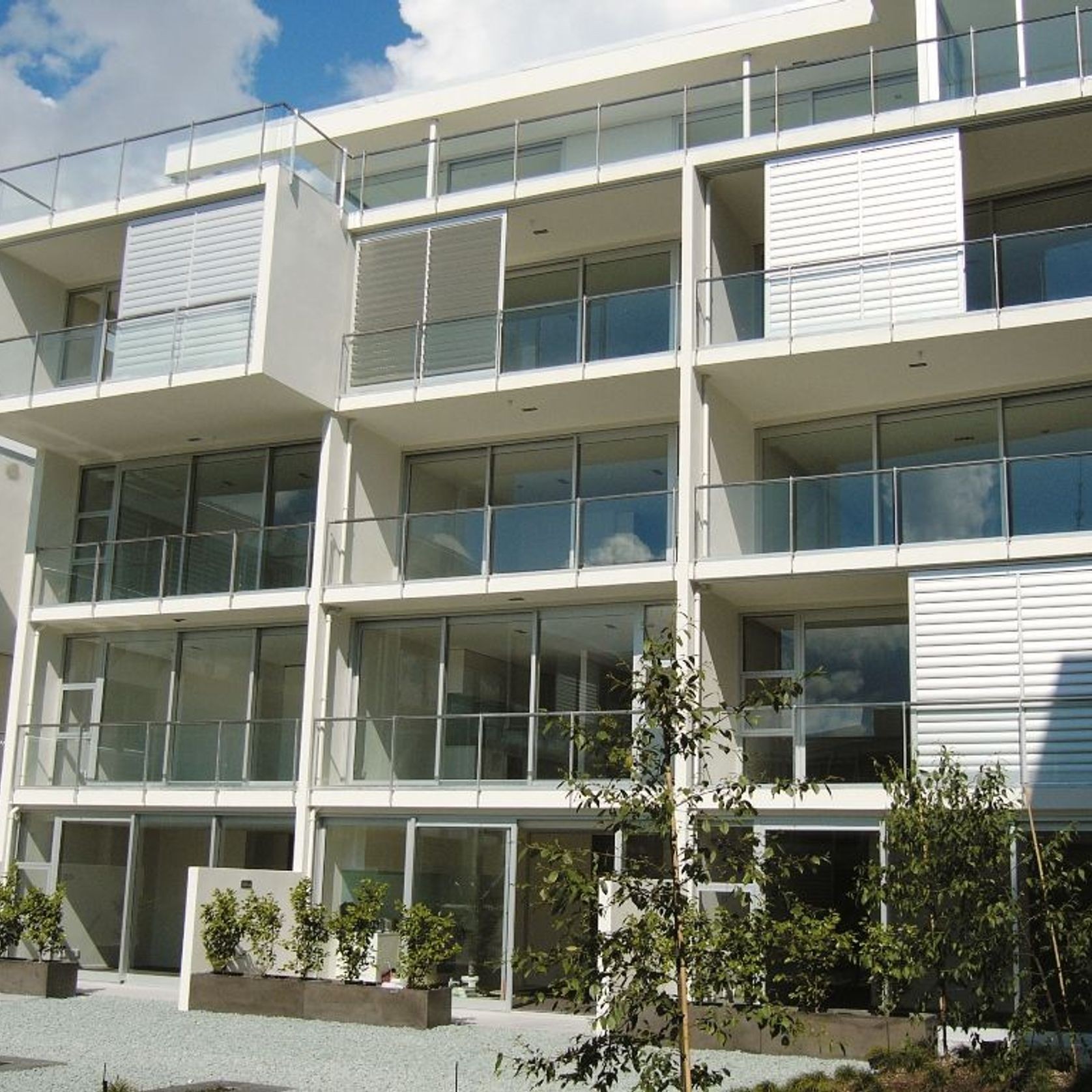

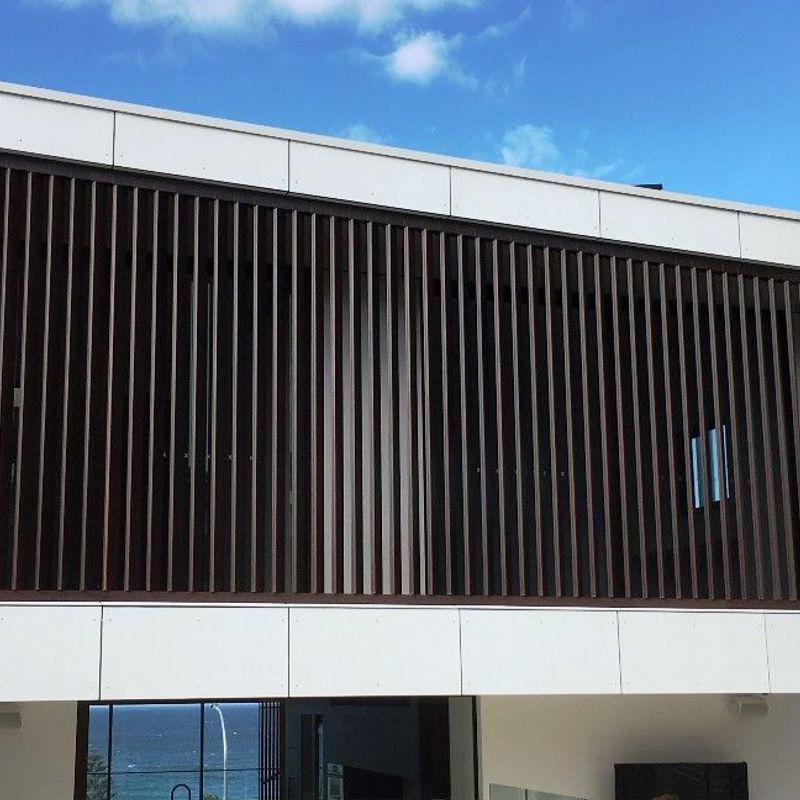

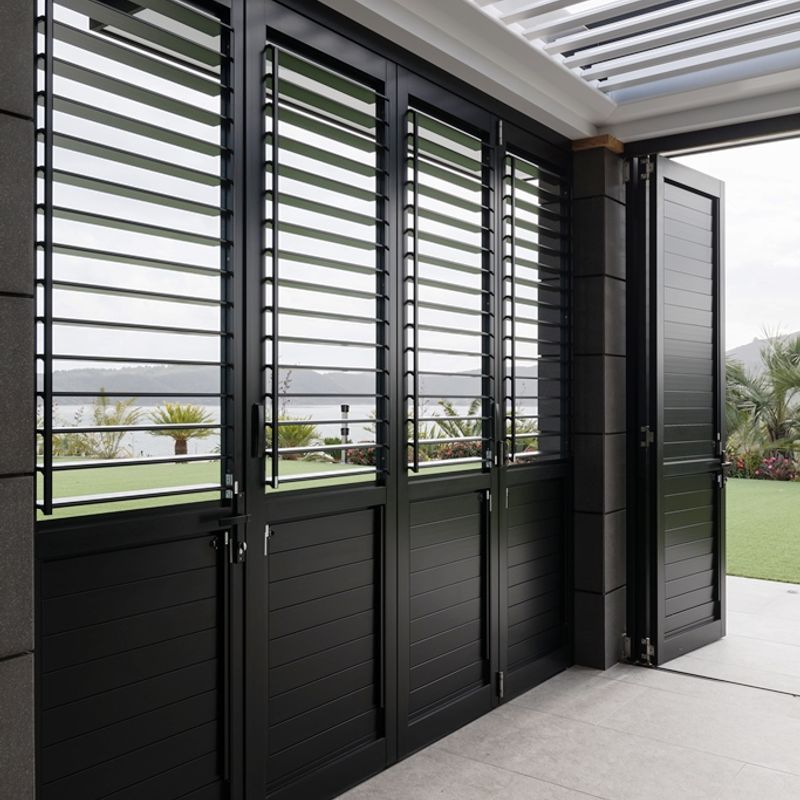

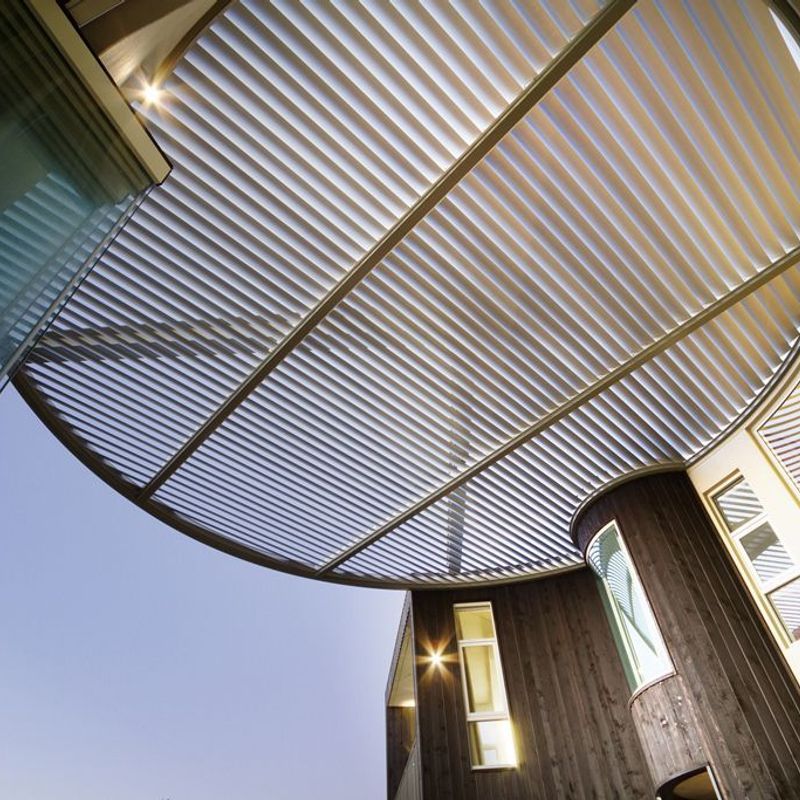

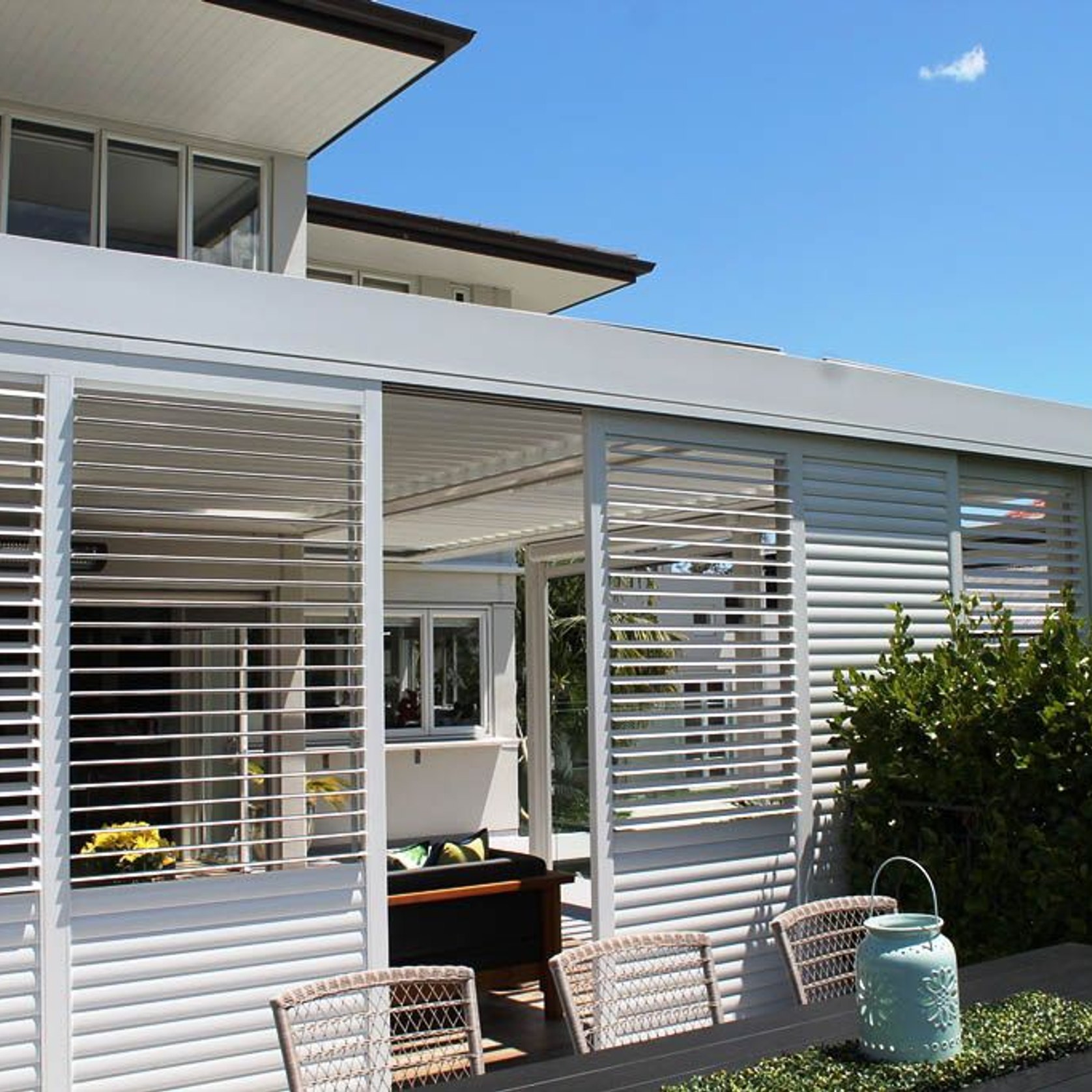

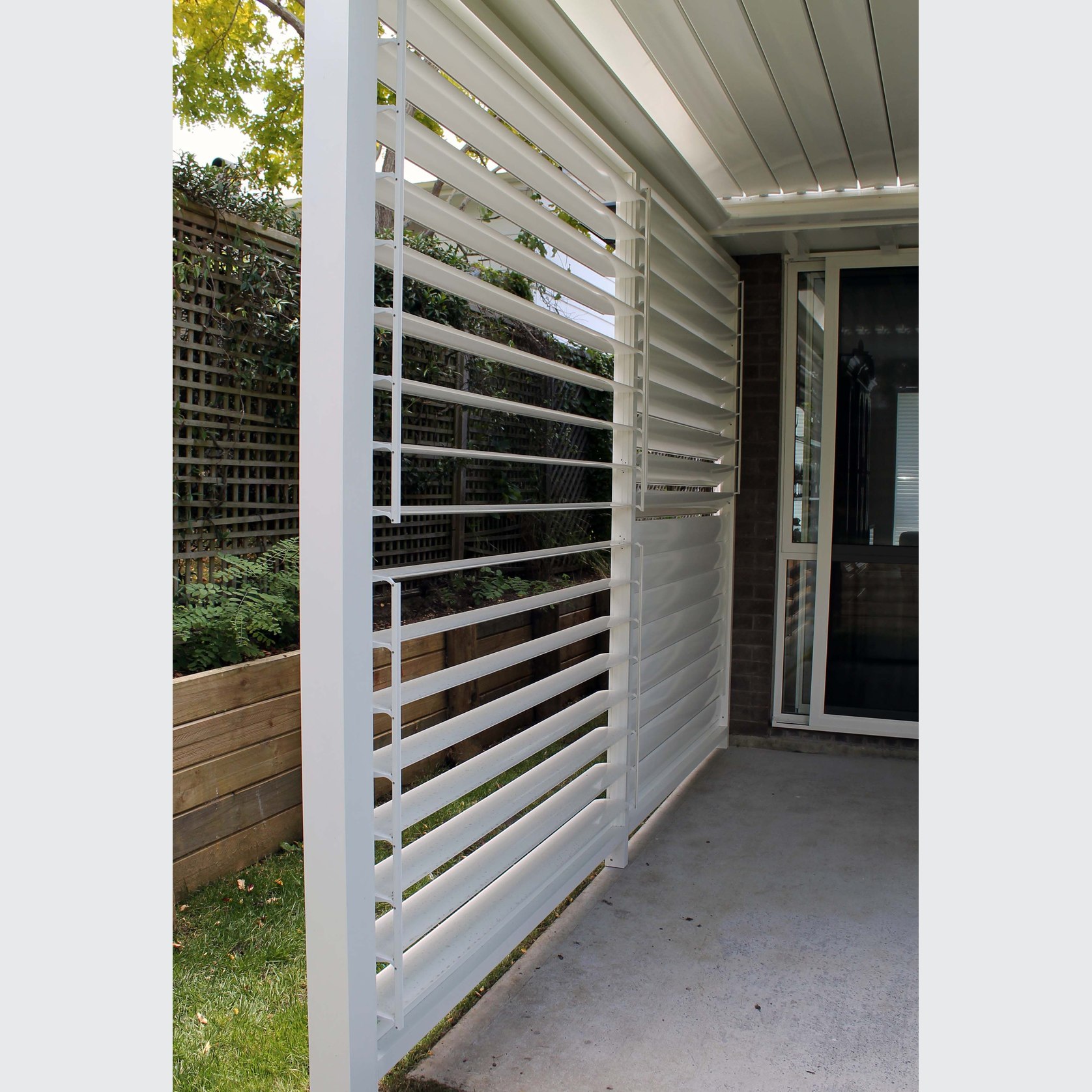

Ideal as a stand-alone panel or used as a hinged or sliding shutter panel. Kiss Pivot panels can be placed either vertically or horizontally overhead depending on requirements.
Spiral Pivot Hand Operable System
Using a custom engineered gearbox with a stainless steel handle all Louvretec sun louvres are available as hand operable instead of using a motor to open and close the louvres. The louvres can be operated with ease with the handle being detachable for storage when not in use.
P40 Pivot System

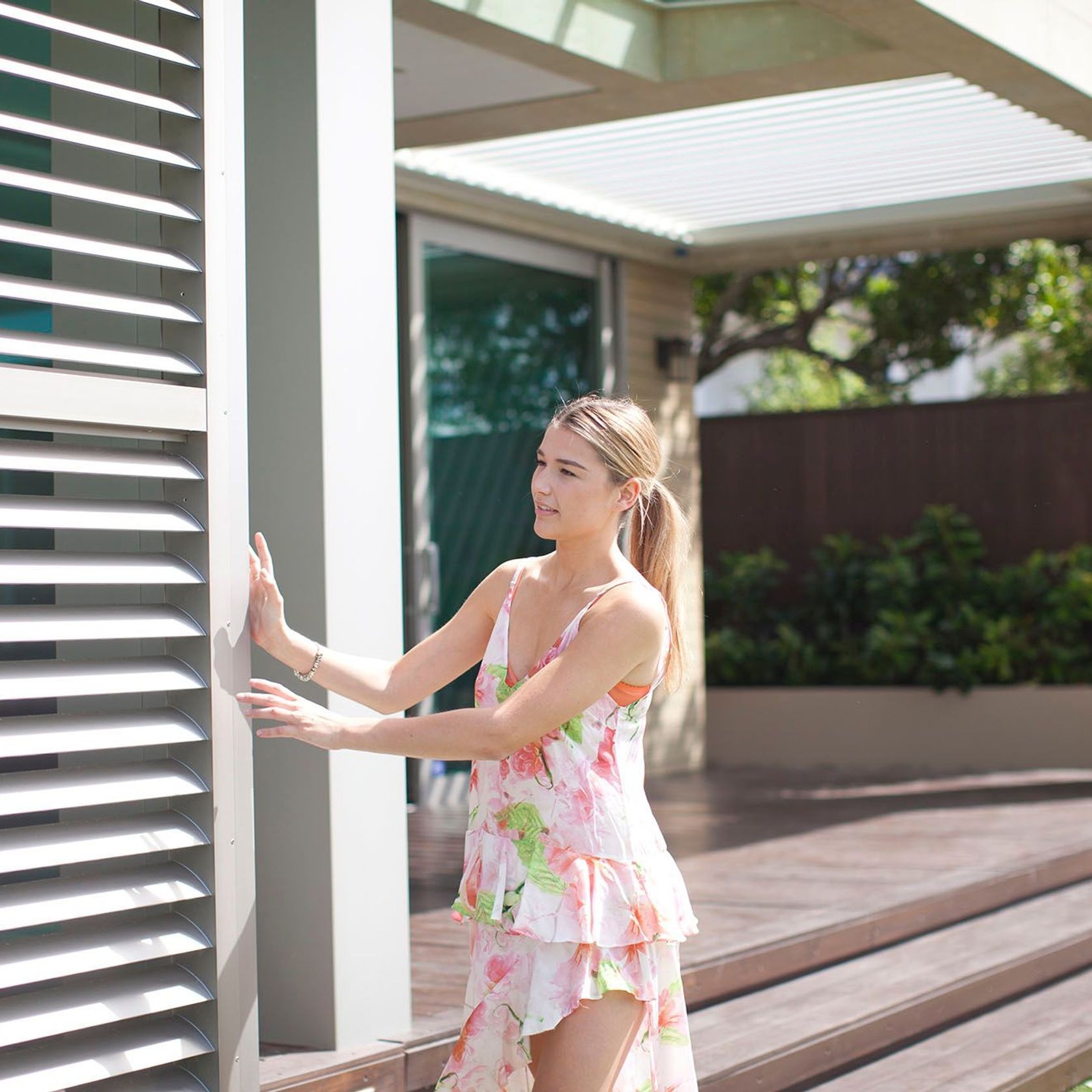

This compact hand operational louvre system features an internally geared drive with all operable parts hidden from view. Designed with a 40mm frame (known as the P40 frame) fully compatible with commercial joinery this system is also well suited to use as a stand-alone shutter or as a hinged or sliding panel. Simply operate the louvres by placing your hand on any blade to open or close. The 95mm Midi louvre is compatible with this system.
Product Details
- Product
- Hand Adjustable Louvre Panels (KISS Pivot System)
- Category
- External Louvres and Shutters
- Sold by
- Louvretec New Zealand
- Brand
- KISS Pivot System and Spiral Pivot System
- Year
- 2002
A choice of Hand Operable optionsLouvretec's sun louvre panels are not only available as motorised systems but also as hand operable (so no motor needed).
Following are our hand operable options for your louvre system.
Kiss Pivot System
Louvretec's range of hand-adjustable sun louvres can be operated by the Kiss Pivot system. This easy to operate hand opening system features subtle drive arms providing adjustable shading and privacy solutions. A slide-lock also lets you lock off the louvres different locking points.
The 70mm Midi Louvre (airfoil shape), 90mm Midi Louvre (airfoil shape) & 150mm Midi Louvre (airfoil shape) are all compatible with the Kiss Pivot hand operable system. From our rectangular louvre range we recommend the 95mm Bella Vista Louvre (rectangular shape)
Each of the above louvre blades includes provision for a woolpile insert, ensuring a snug tight fit when fully closed.
All Kiss Pivot system panels are available with an adjustable slide lock, providing security when closed and five separate locking locations.
Ideal as a stand-alone panel or used as a hinged or sliding shutter panel. Kiss Pivot panels can be placed either vertically or horizontally overhead depending on requirements.
Spiral Pivot Hand Operable System
Using a custom engineered gearbox with a stainless steel handle all Louvretec sun louvres are available as hand operable instead of using a motor to open and close the louvres. The louvres can be operated with ease with the handle being detachable for storage when not in use.
P40 Pivot System
This compact hand operational louvre system features an internally geared drive with all operable parts hidden from view. Designed with a 40mm frame (known as the P40 frame) fully compatible with commercial joinery this system is also well suited to use as a stand-alone shutter or as a hinged or sliding panel. Simply operate the louvres by placing your hand on any blade to open or close. The 95mm Midi louvre is compatible with this system.
Downloads
Downloads (3)3 Direct downloads • 7 Available on request
Installers for
this Product
Frequently asked questions about
Hand Adjustable Louvre Panels (KISS Pivot System)
The Hand Adjustable Louvre Panels (KISS Pivot System) is supplied by Louvretec New Zealand. It is also on their website, and you can browse every product Louvretec New Zealand lists on ArchiPro.
Louvretec New Zealand does not publish a price for the Hand Adjustable Louvre Panels (KISS Pivot System) on ArchiPro. for pricing, or visit their website.
It is listed under External Louvres and Shutters on ArchiPro, where you can compare it with external louvres and shutters from other suppliers.

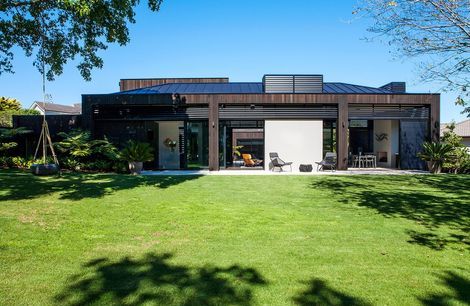

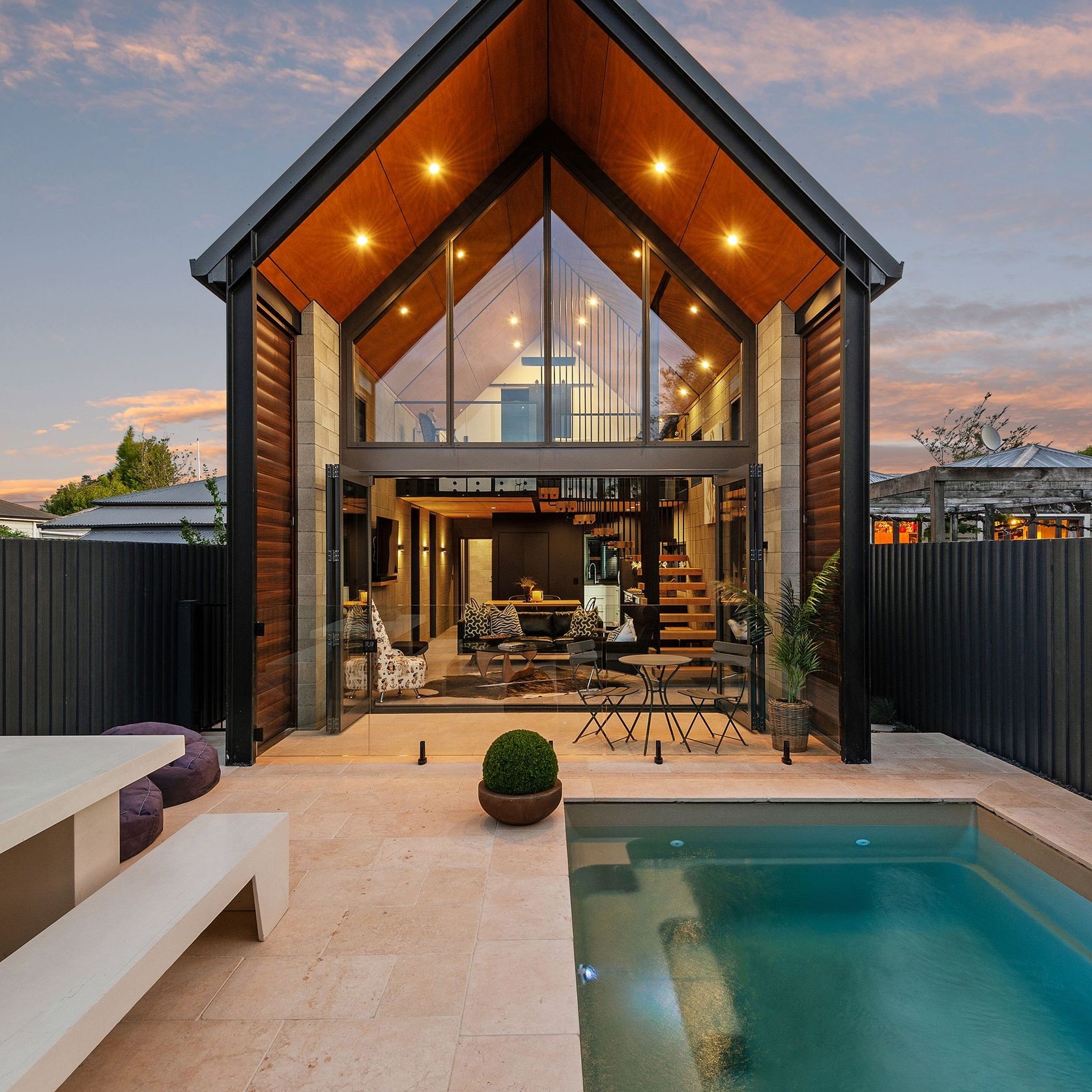

Yes. It has been specified in projects on ArchiPro, including Three Kings House | Project of the Month by Arcline Architecture and Godden Cres by Dorrington Atcheson Architects. See how it was used in a finished space.
