High-speed roll-up door EFA-SRT® CR Efficient

By EFAFLEX
Visit Website

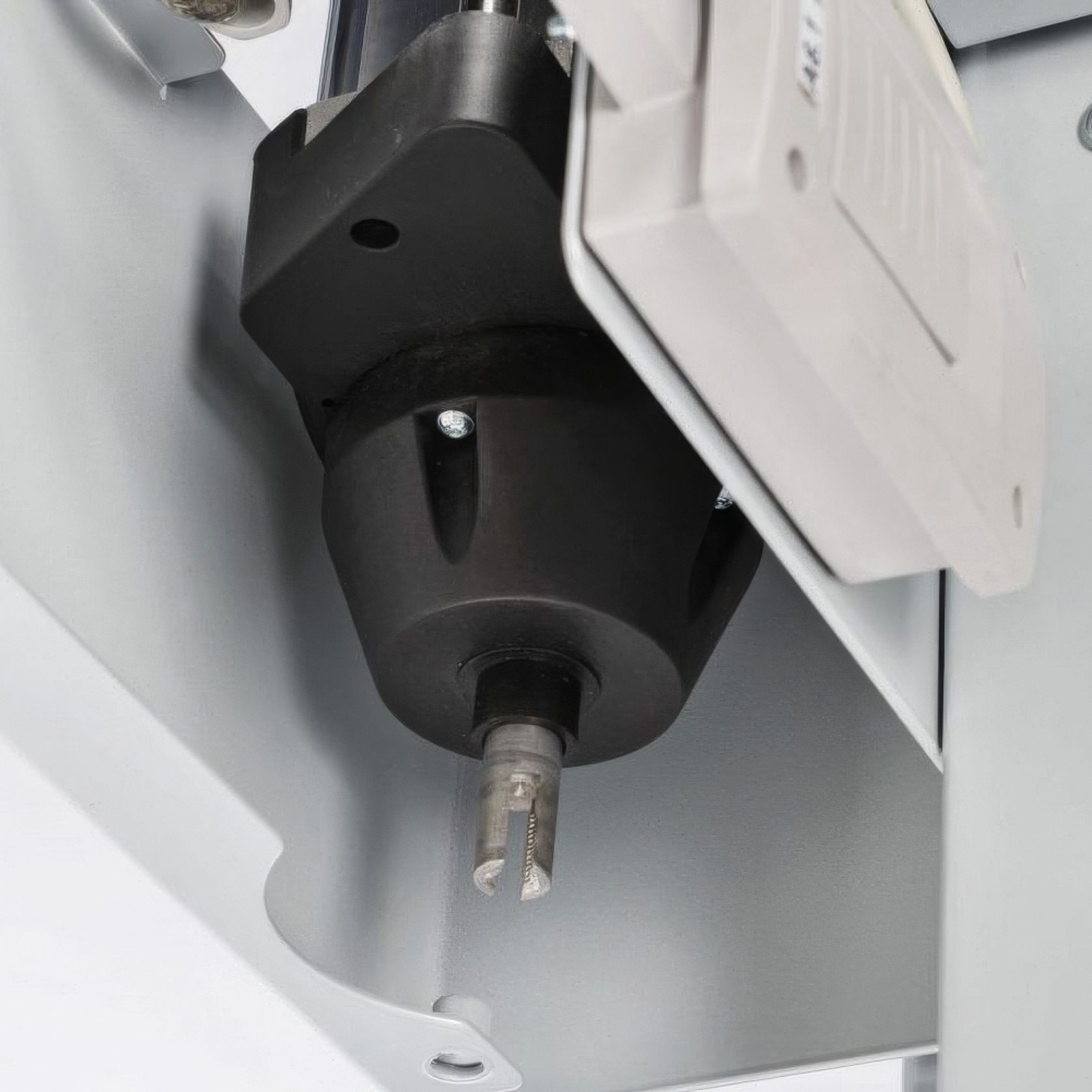

The efficient clean room door. The EFA-SRT® CR Efficient high-speed roll-up door was specially designed for use in clean rooms with medium requirements. The particularly narrow door frames allow for a space-saving and visually appealing installation, even in confined spaces. Thanks to an integrated absolute encoder, the door can immediately return to automatic operation even after a power failure, without the need for a manual synchronisation run.

Details
  • Category
    Commercial Doors
  • Range
    CR Series
  • Brand
    EFAFLEX
  • Designer
    EFAFLEX
General
  • Installation
    Professional installation required
  • Assembly
    Professional assembly required
Specifications

EFA-SRT® CR Efficient at a glance:

  • Almost airtight
  • Extremely slim frame
  • Certified up to ISO Class 6
  • Opening up to 0,8 m/s
  • Closing up to 0,5 m/s
  • Up to 100,000 operating cycles p.a.
  • Standard sizes up to w=3,000 mm, h=3,500 mm
Features

Sophisticated design

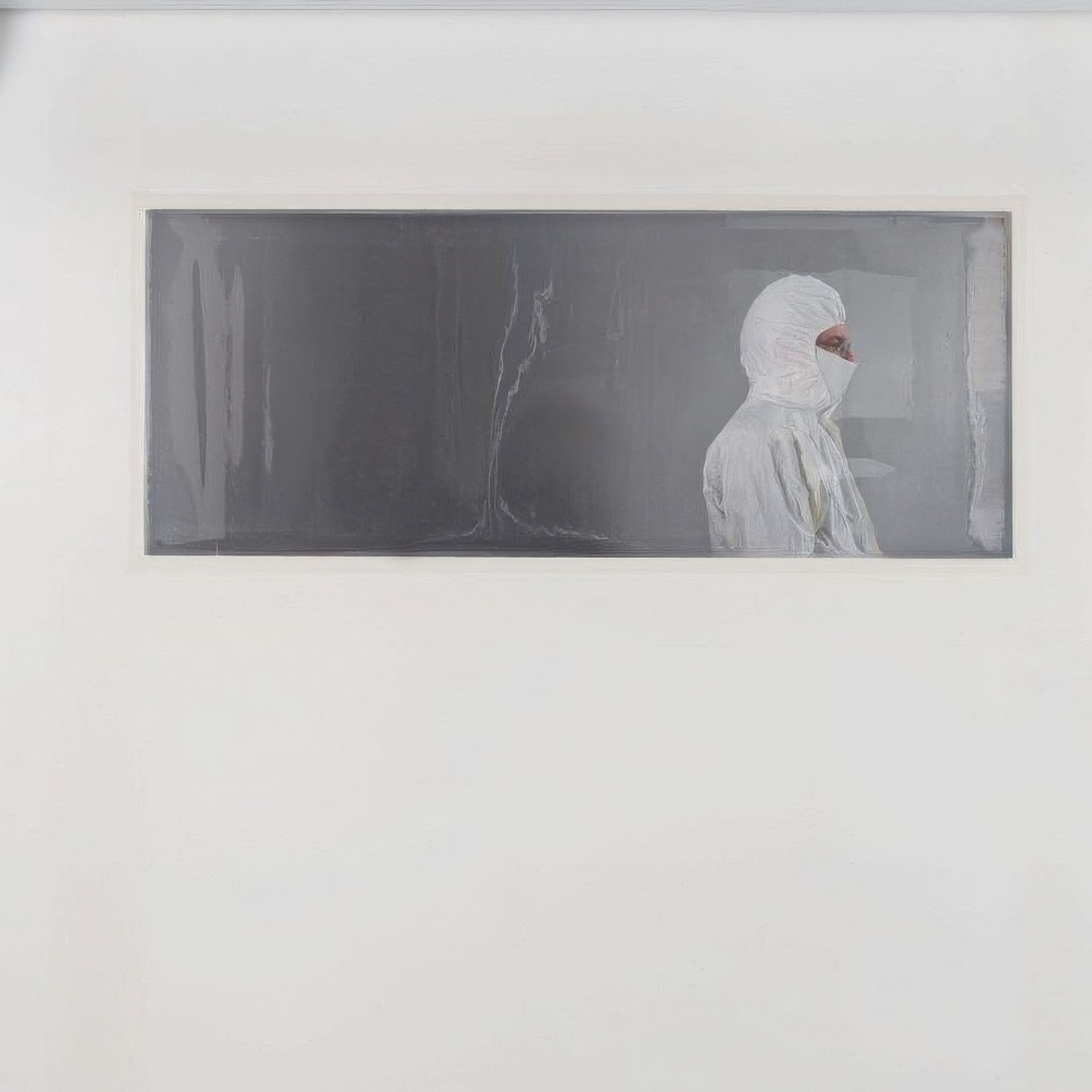

A special Transilon curtain was specially developed for use in clean rooms. It is only 2 millimetres thick and available in various colours with or without a viewing window. Furthermore, it is possible to install the EFA-SRT® CR Efficient with either a straight or a slanted cover. This results in reduction of particle deposits. The EFA-Tronic® control system was also specially developed for the use in clean rooms. It uses an externally mounted polycarbonate control cabinet with integrated frequency converter.

Low maintenance operation
Compared to a conventional ISO class 6 door, the EFA-SRT® CR Efficient high-speed roll-up door causes significantly lower maintenance costs with the same number of load changes. The efficient clean room door EFA-SRT® CR Premium has been designed for 100,000 load cycles p.a. within the scope of programmed maintenance with individual inspection intervals.

TÜV-certified quality
The EFA-SRT® CR Efficient is TÜV-certified for use in clean rooms up to ISO class 6. The special folding mechanism (active lintel seal) as well as the low facing means that there is only a low lintel requirement.

Emergency Power Supply
In addition to the standard mechanical emergency opening, there is the option to integrate our EFA-UPS for uninterrupted power supply (UPS) in a separate control cabinet. The EFA-UPS enables the complete gate opening within one hour after a power outage.
