High-speed roll-up door EFA-SRT® EX

By EFAFLEX
Visit Website

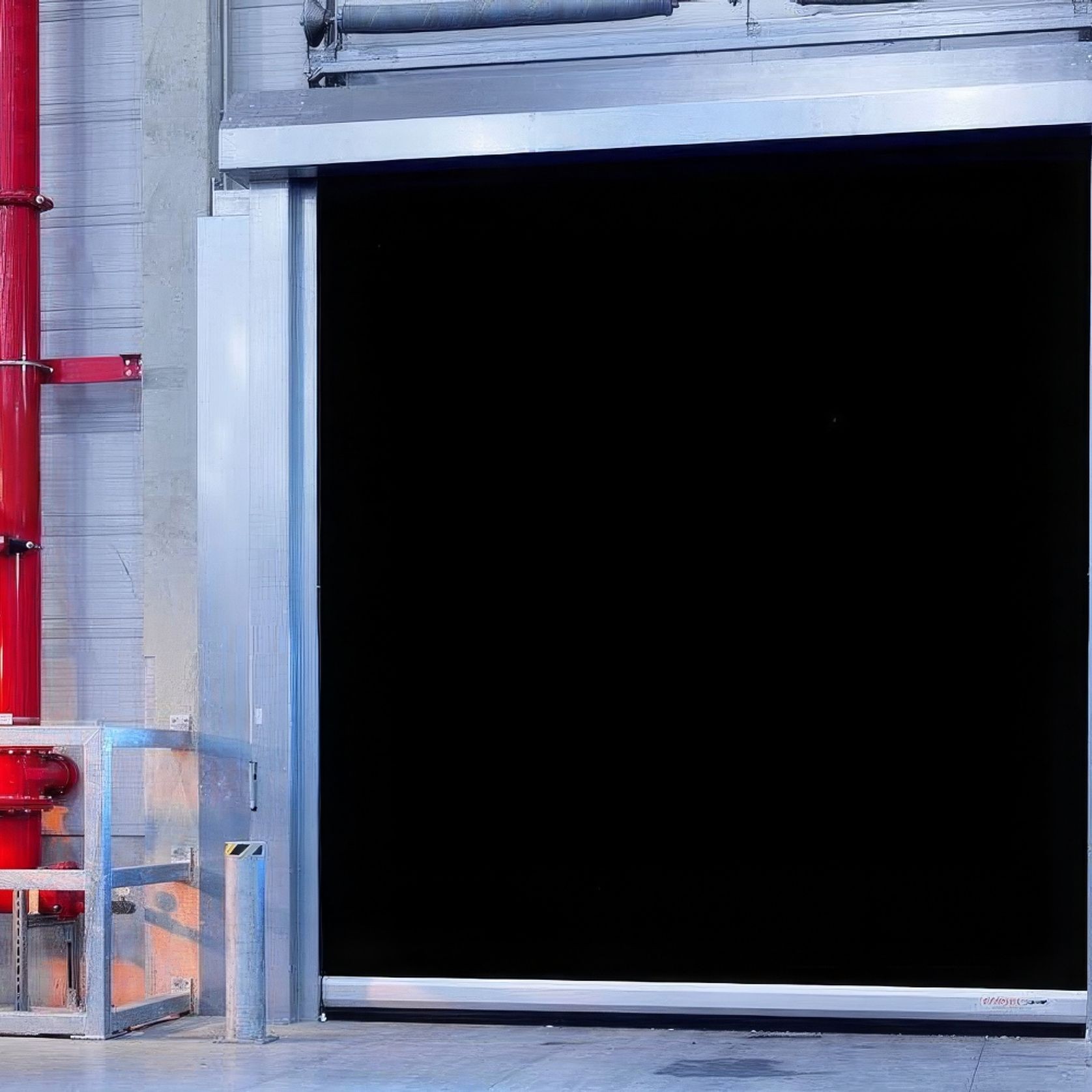

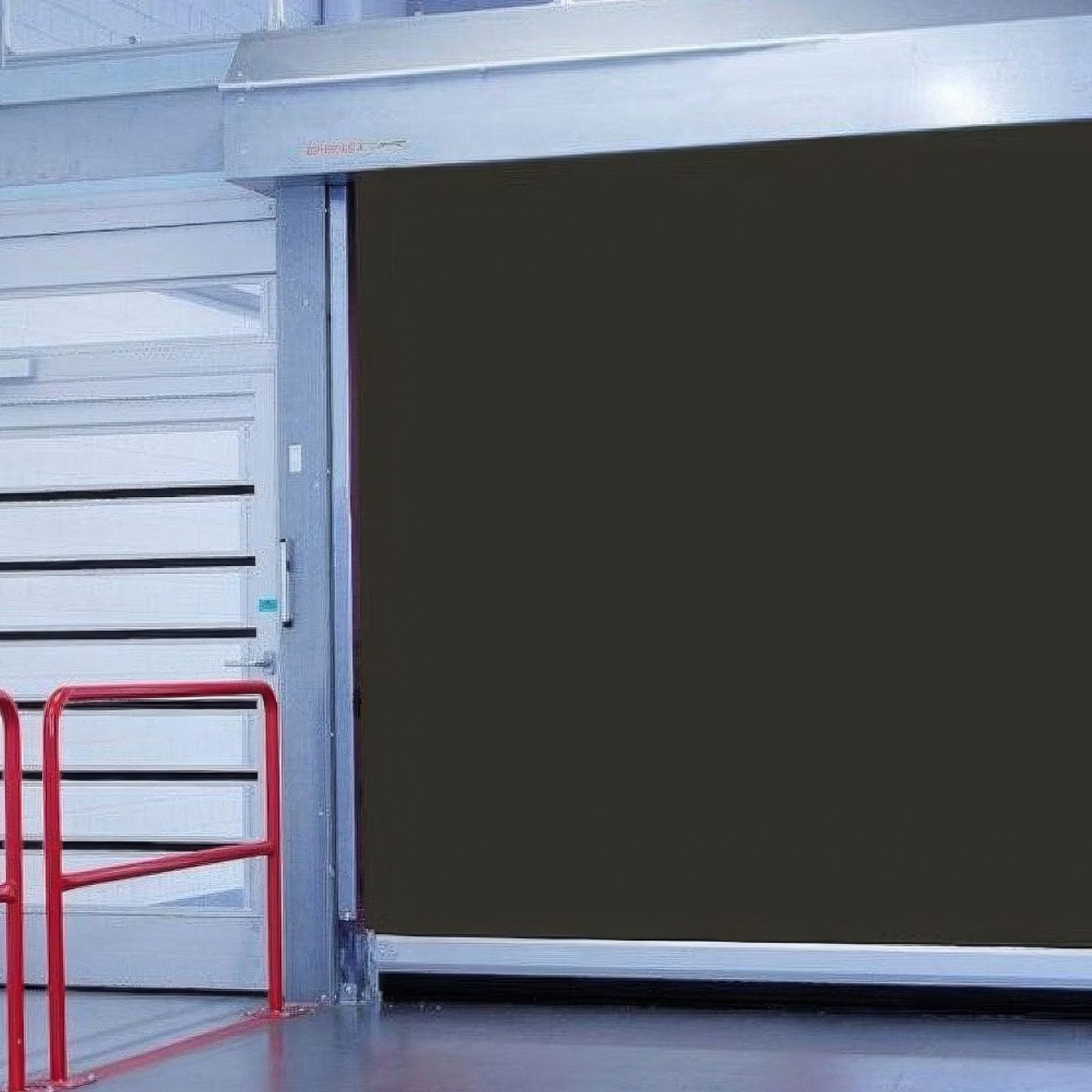

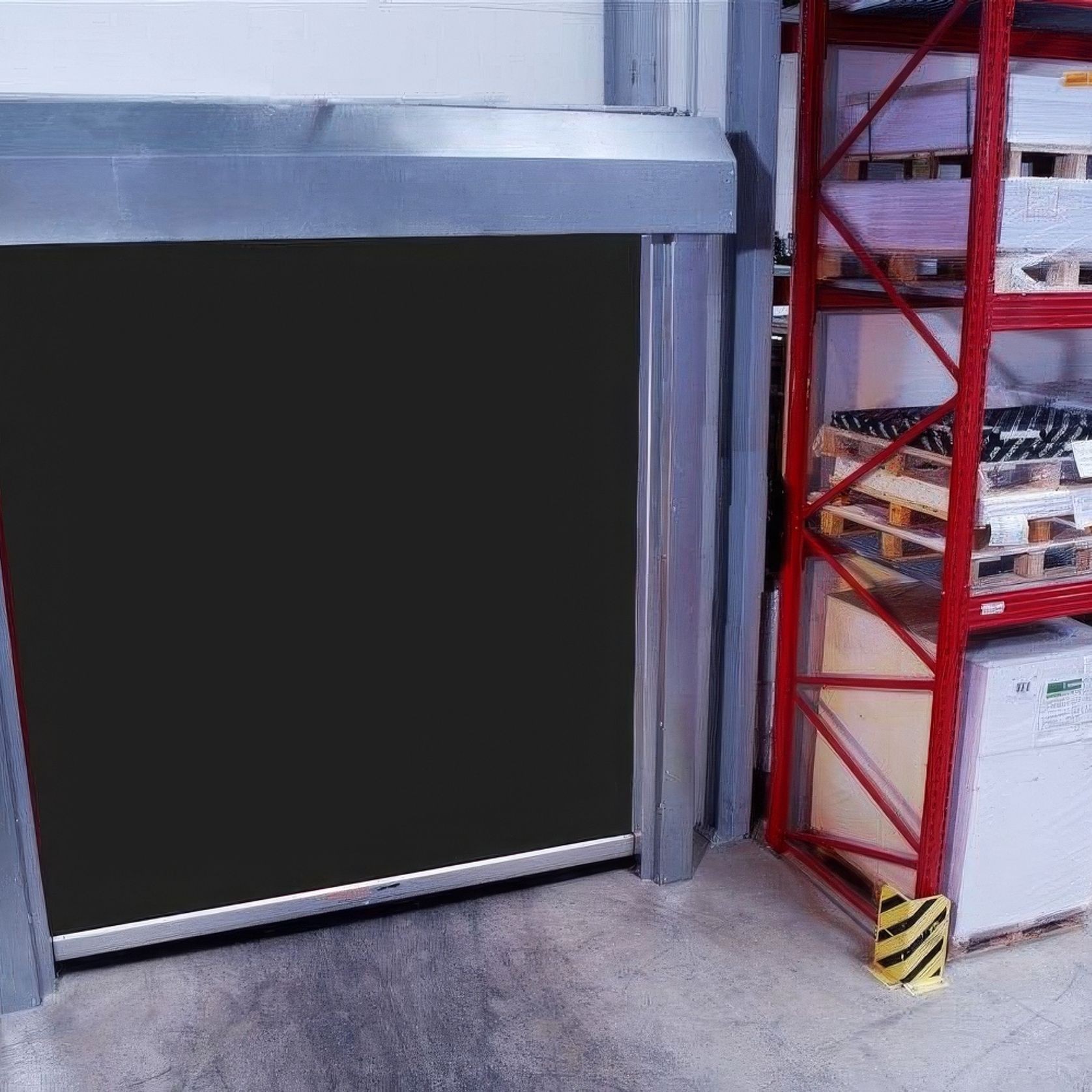

The interior door for potentially explosive atmospheres. In addition to a standard frequency converter and a microprocessor control, the EFA-SRT® EX for indoor use includes all typical basic characteristics of state-of-the-art door technology, such as dynamic door leaf tension and emergency operation via spring systems in the door cases. A hand lever at the door case allows for quick emergency operation of the door system, e.g. in case of power failure. We use a black, non-transparent ATEX special curtain as the door leaf.

Details
  • Category
    Commercial Doors
  • Range
    EX Series
  • Brand
    EFAFLEX
  • Designer
    EFAFLEX
General
  • Installation
    Professional installation required
  • Assembly
    Professional assembly required
Specifications

EFA-SRT® EX at a glance:

  • For use in explosion protection zones 1 and 2, optionally on request in EX Protection Zones 21 and 22
  • Heavy-duty inside door
  • Opening up to 1.0 m/s
  • Closing up to 0.5 m/s
  • Up to 150,000 operating cycles p.a.
  • Standard sizes up to w=4,000 mm, h=4,000 mm
Features

EX directives
The EFA-SRT® EX has been specially developed in accordance with the ATEX Directive 2014/34/EU for use in hazardous areas for Zone 1 (II 2G Ex IIB T4 Gb), Zone 2 (II 3G Ex IIB T4 Gc), Zone 21 (II 2D IIIB 135°C X Db) and Zone 22 (II 3D IIIB 135°C X Dc). The control cabinet must be installed outside the EX zone!

Reliable explosion protection
Every part of the door is specially designed to meet the requirements of the ATEX Directive (94/9/EC).

The black, antistatic special curtain of the high-speed roll-up door is certified according to ATEX category 2G/2D (corresponds to Ex zone 1/21) and is also transversely stable, which prevents the door leaf from bulging inwards or outwards.

The cases made of sendzimir-galvanised steel are also available powder-coated acc. to RAL or in stainless steel V2A (1.4301) on request.

Maximum safety
EFAFLEX high-speed doors also meet the highest standard in terms of safety.

Every single electrical component (with the exception of the control cabinet) is ATEX-certified; the certificates are supplied with the respective door. The mechanical EX protection is of course also designed according to the EX protection zone and each door receives its own EU declaration of conformity.
