Illuma-SP70

Colab Lighting
Visit Website

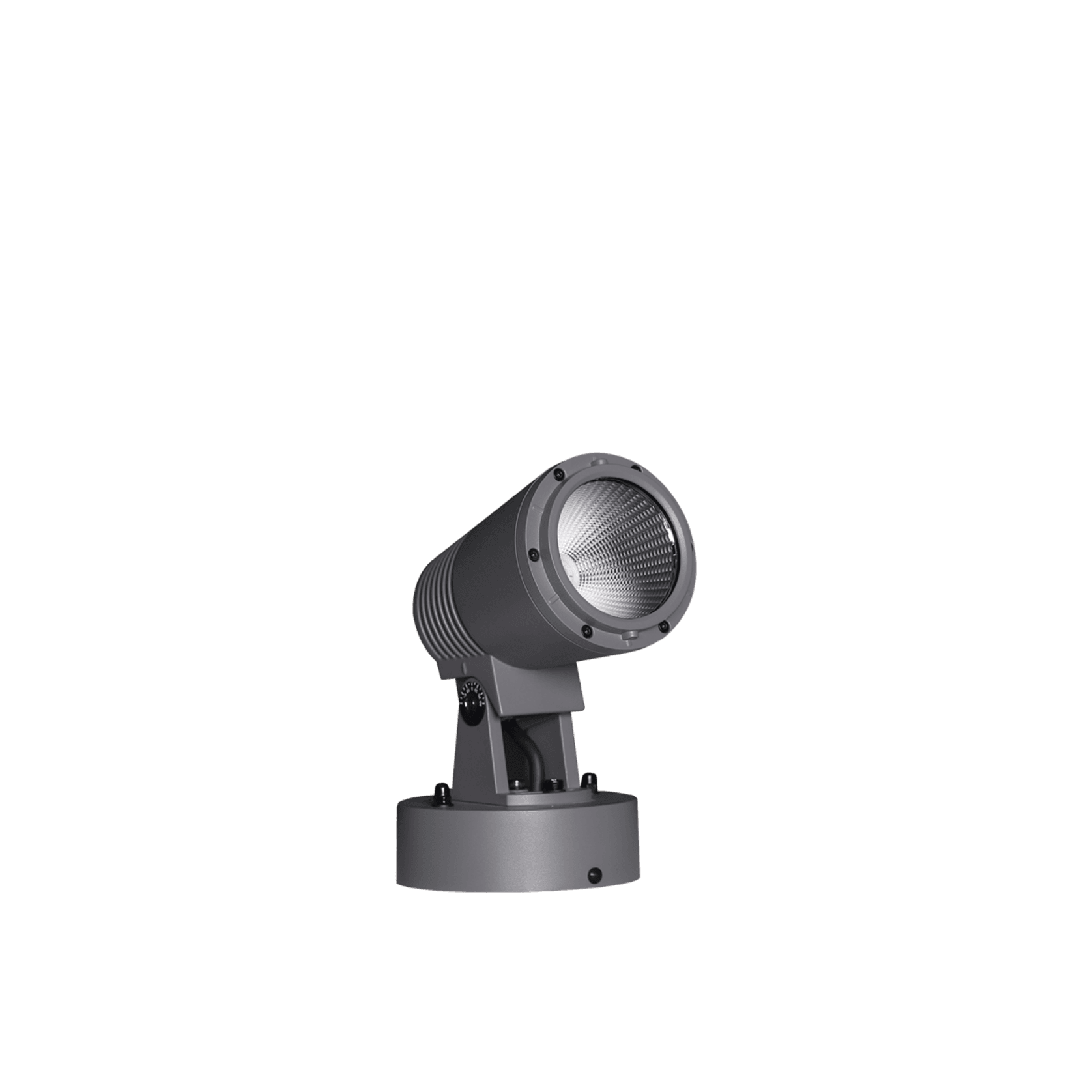

Illuma-SP70 gallery detail image

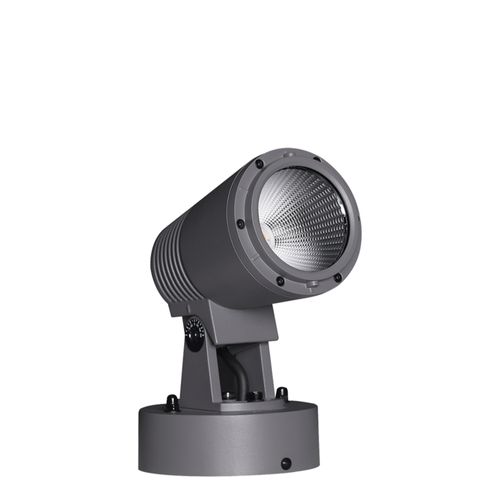

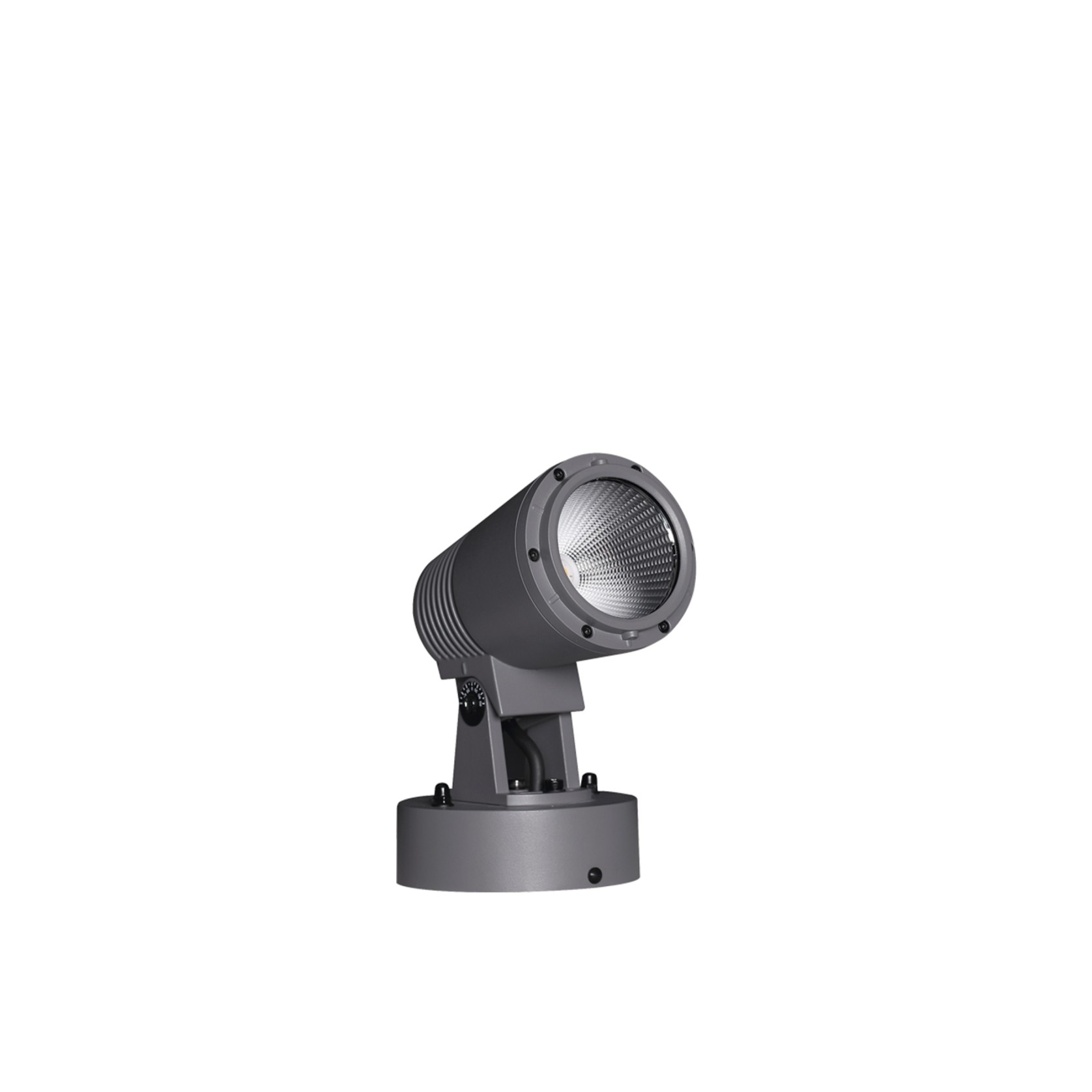

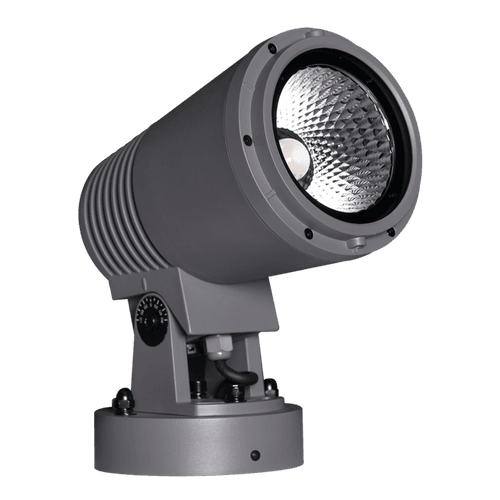

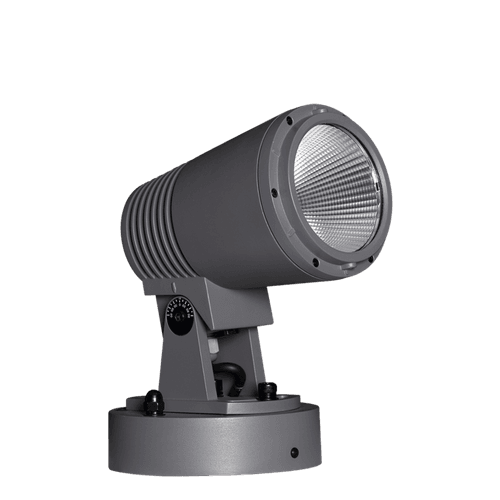

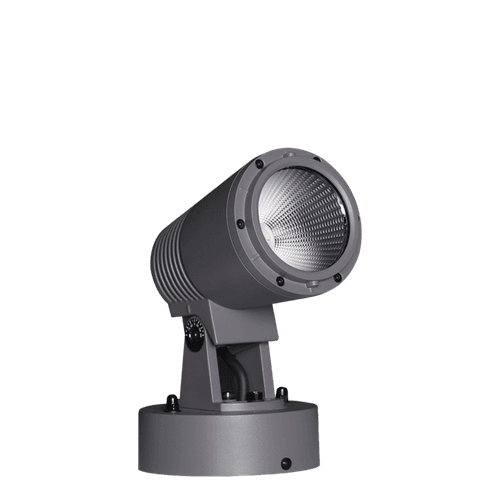

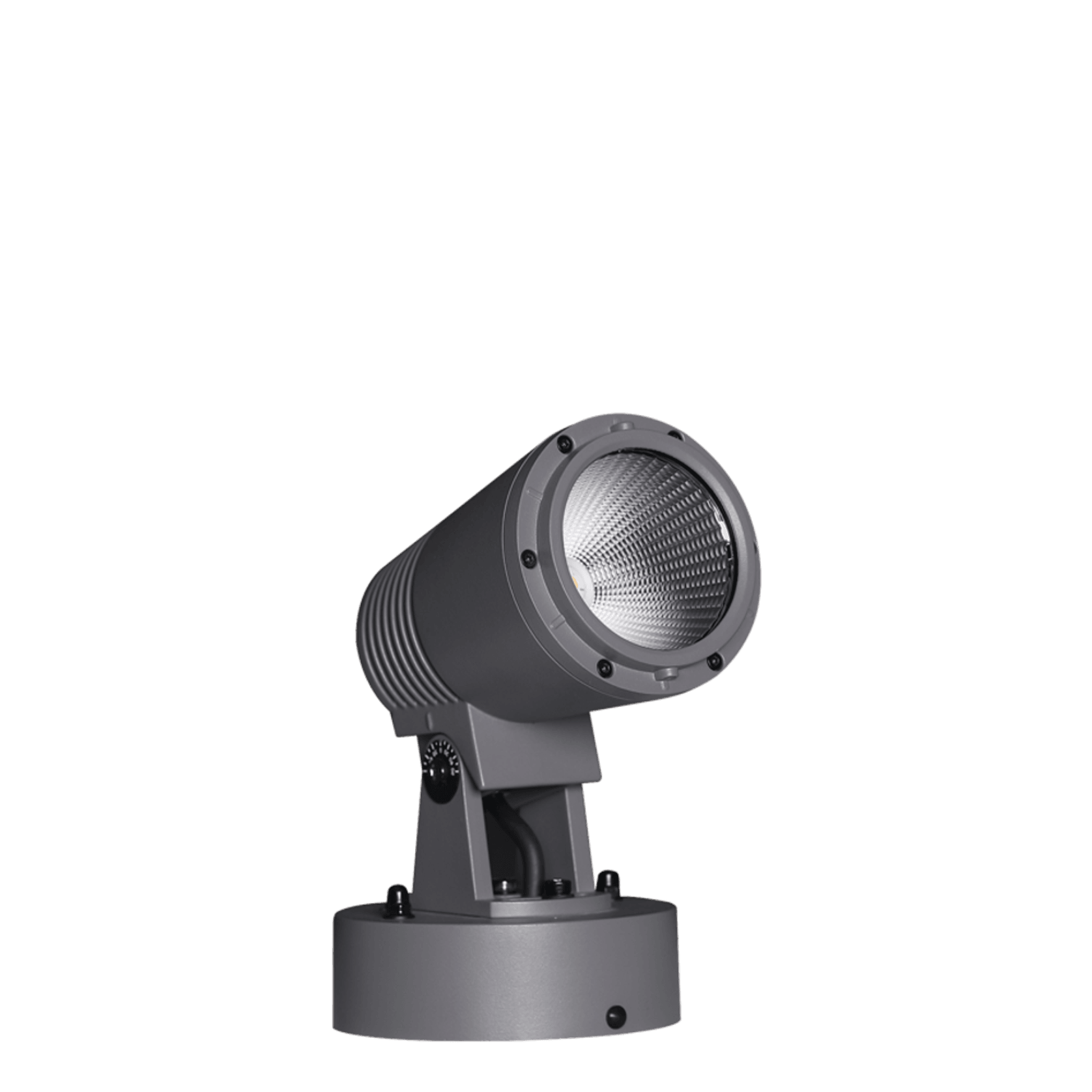

6W Architectural Surface Mounted Luminaire

Illuma is an exterior, surface mounted spot luminaire suited for architectural applications. A wide array of optical distributions make it suitable for spotlighting features or floodlighting larger sculptures and structures. With an LED light source from NICHIA providing exceptional illumination and >90% optical efficiency, Illuma is available in a range of wattages from 6W through to 40W.

Illuma is constructed from a high quality aluminium casting for added durability and superior thermal heat dissipation and has a high quality electro-static powder coating to ensure protection for years to come. The Illuma series is backed by a 5 year warranty.

Details
  • Category
    Outdoor Spotlights, Spotlights
  • Range
    Spots
  • Warranty
    5 years
Specifications

Technical Specifications

Wattage: 6W (System 7.5W)

Luminous Flux: 646-730 Lm

Luminaire Efficacy: 86.13 Lm/W

CCT:

  • 3000K
  • 4000K

CRI: >80

Distribution:

  • 15°
  • 24°
  • 38°
  • 60°

Colour Deviation: 3-SDCM

Impact Rating: IK06

Size: Ø70mm Trim x Length 104mm x Height 144mm

Dimming:

  • Non-dimmable
  • DALI-2
  • BLE (basicDIM Wireless / Casambi)

Longevity: >50,000hrs L80 B10

Accessories / Options

Accessories / Options:
