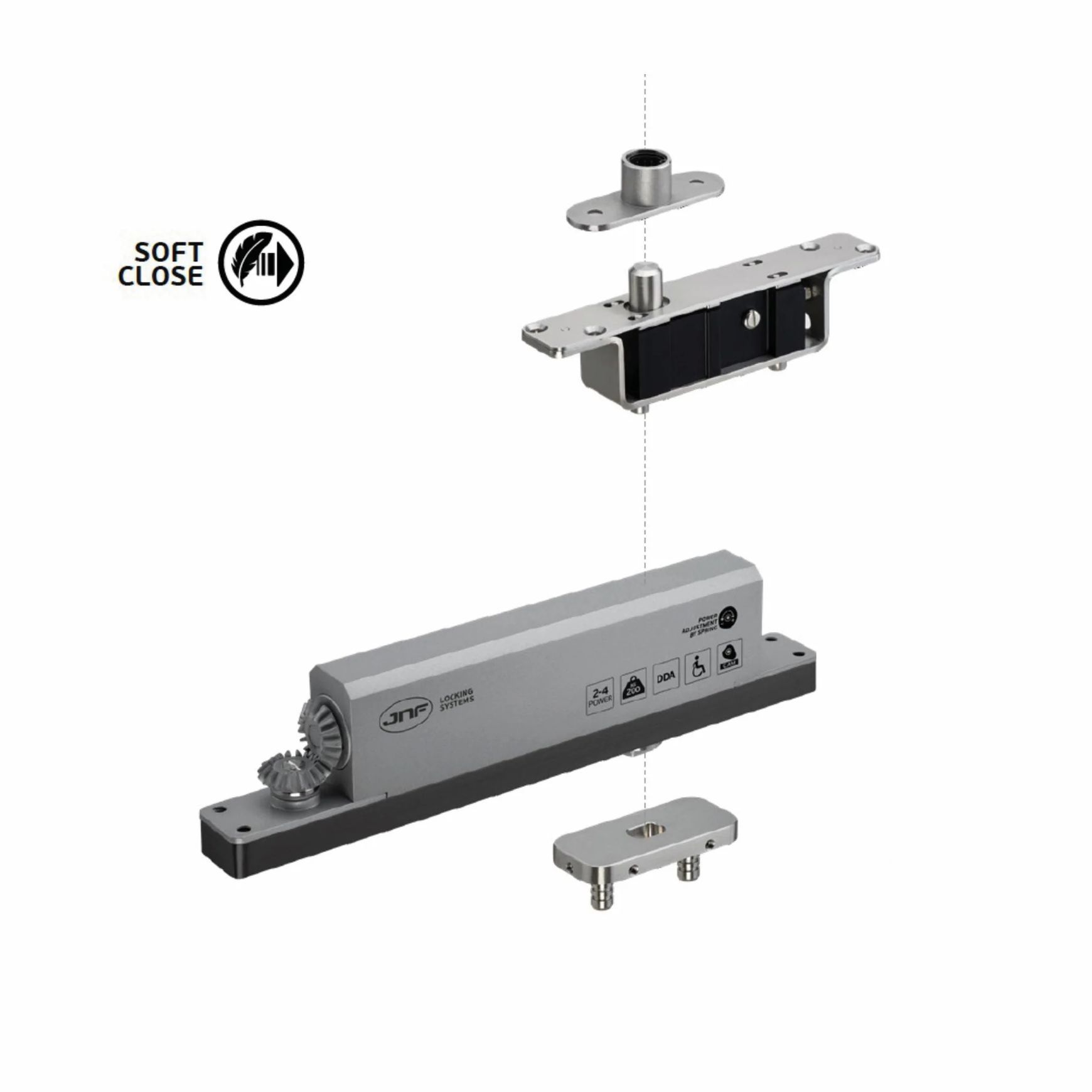

IN.05.214 Hydraulic Pivot for wooden doors up to 200 kg

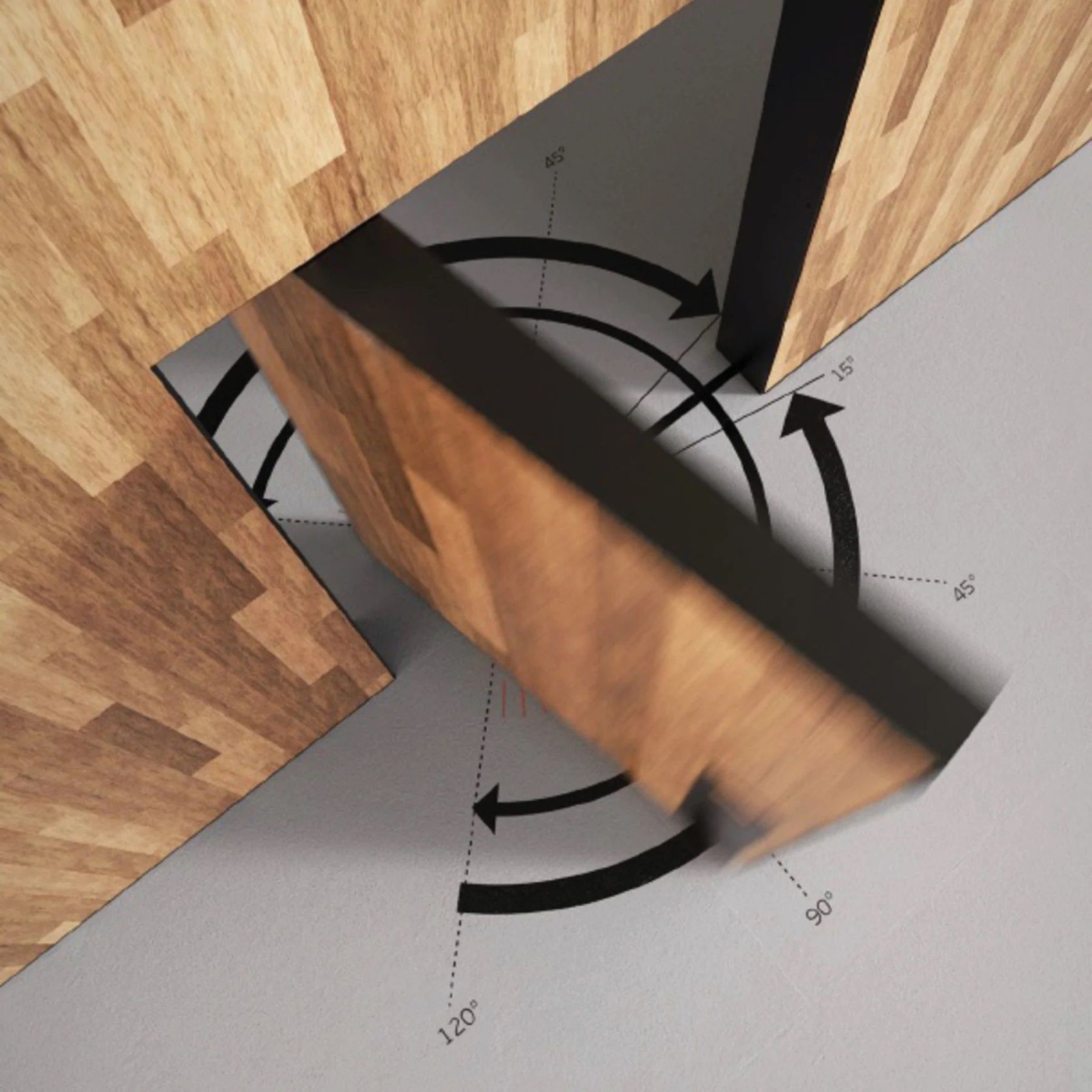

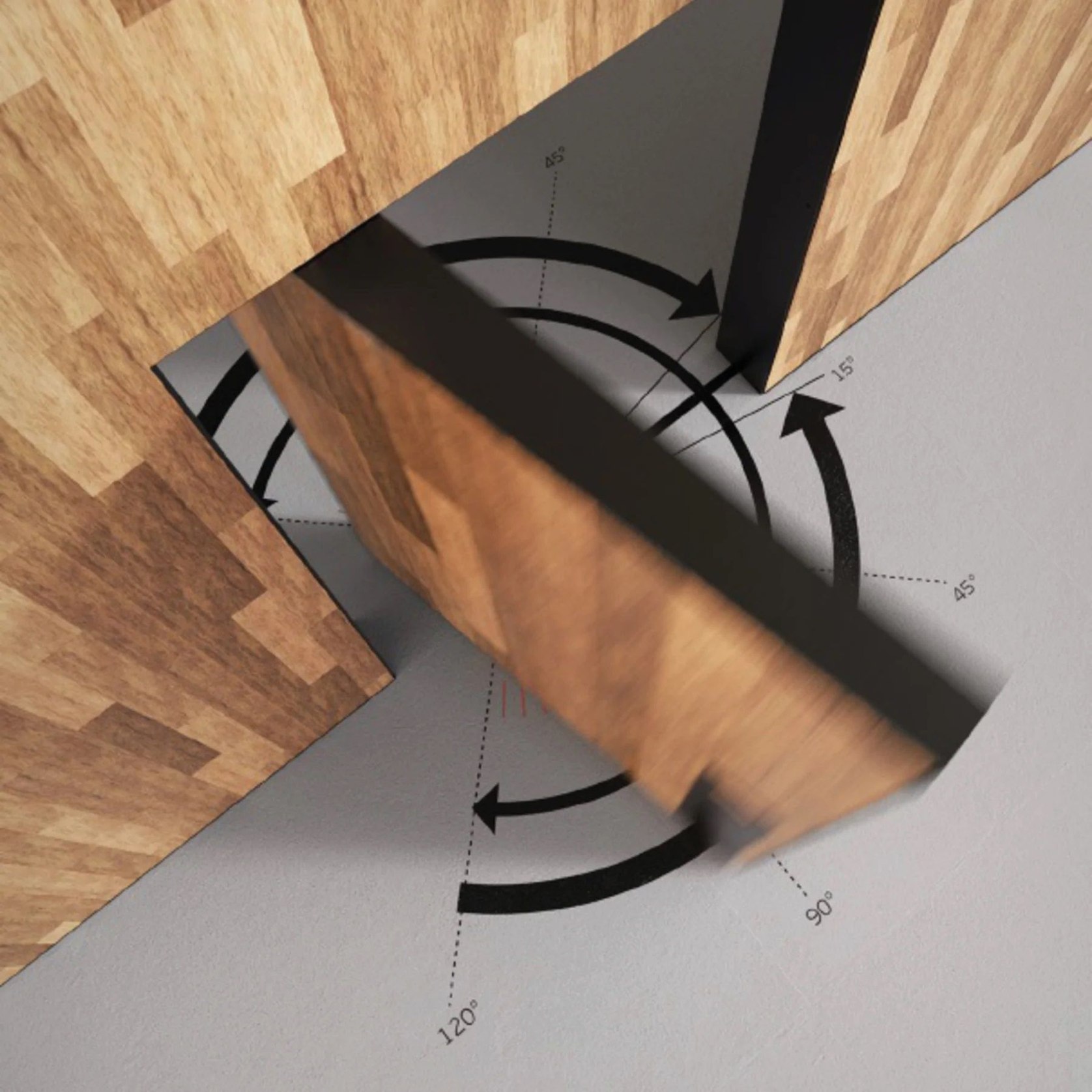

The CAM SYSTEM combined with hydraulics allows the closing control of large swing doors while opening them with little effort. The doors can be single or double-action, with a minimum thickness of 40mm.

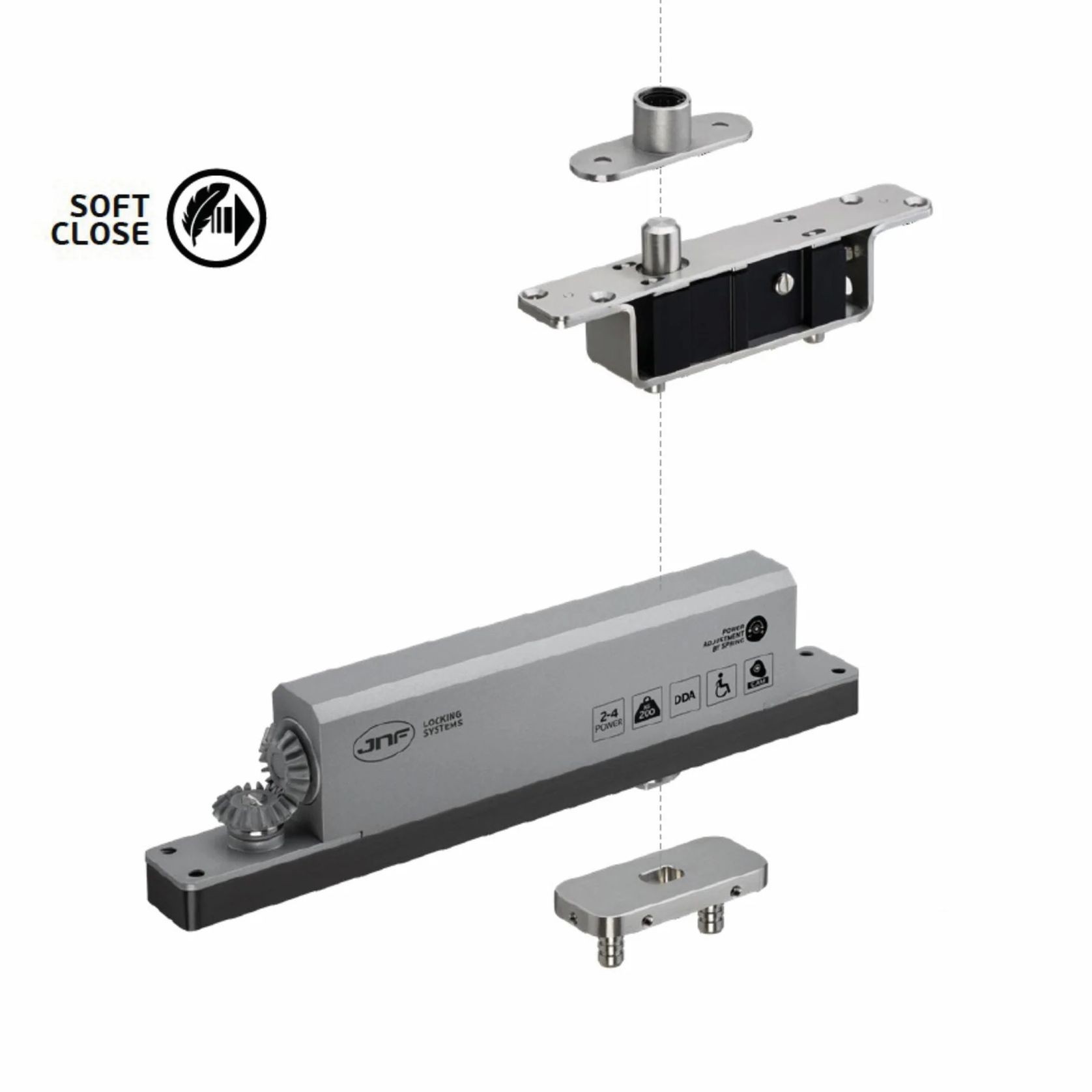

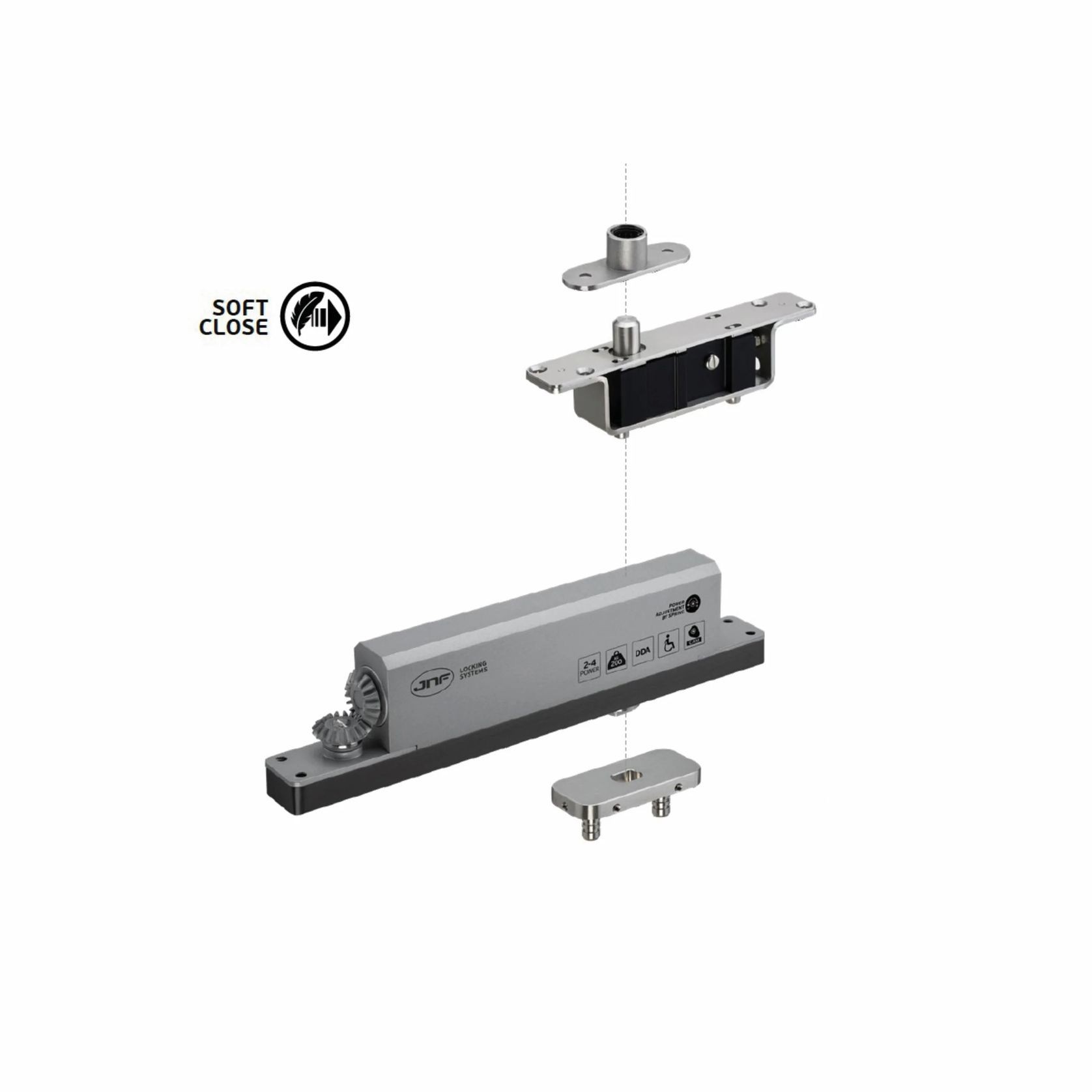

The system is hidden inside the door, with only a small base on the floor, bidirectional regulation, and a rotation point on the roof or upper frame of the door with a built-in bearing. The closing control is carried out by two valves that can precisely adjust the initial and final closing speed, the final speed being critical when the door has a lock installed.

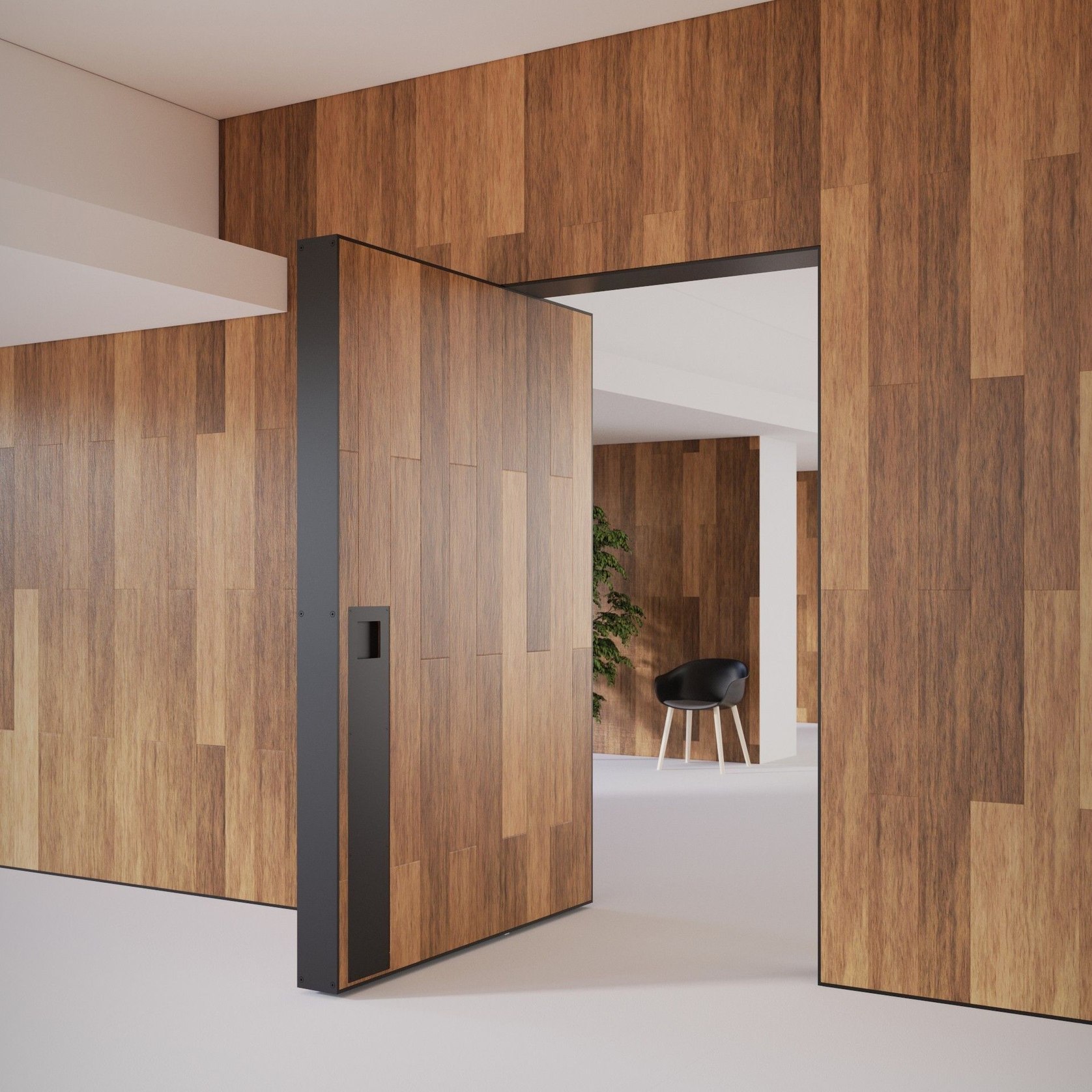

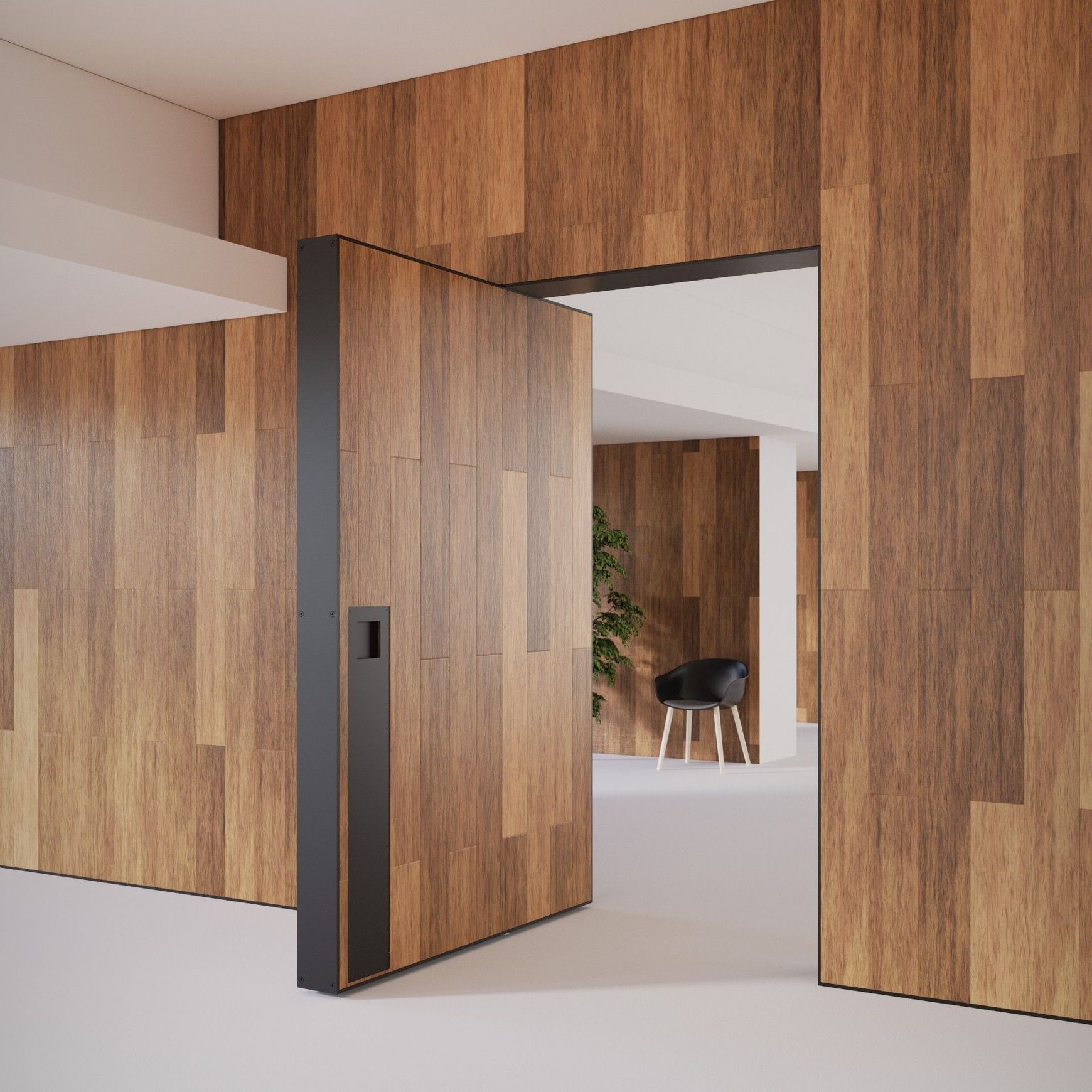

One of this system's characteristics is that the door's rotation point can be from 40mm to the centre of the door. The installation is made from the top of the door, which allows the doors to go up to the ceiling.
To cover doors with weights from 40 to 200kg, lengths up to 3000mm and heights up to 4000mm, the system has force adjustment, which can be done with the installed door.
Product Details
- Product
- IN.05.214 JNF Hydraulic Pivot Set For Wooden Doors
- Category
- Internal Doors
- Sold by
- Mardeco
- Pricing
- $2,945.41
- Brand
- JNF Architectural Hardware
- Year
- 2022
- Warranty
- 5 years
Mardeco is specified by
Studio FoxArchitects
Dravitzki Brown ArchitectureArchitects
Leuschke Group ArchitectsArchitects
Chow:Hill ArchitectsArchitects
SGAArchitects
Borrmeister ArchitectsArchitects
Stephen Jones ArchitectsArchitects
Boffa MiskellLandscape Architects
DJS CabinetryCarpenters & Cabinetmakers
Faulkner ConstructionBuilders
Design House ArchitectureArchitectural Designers
Regal KitchensKitchen & Bathroom Designers
White Wood HomesBuilders
DrydenManufacturers and Suppliers
Paton KitchensKitchen & Bathroom Designers
Kitchen CreatorsKitchen & Bathroom Designers
Kitchen LinkKitchen & Bathroom Designers
Ockham ResidentialProperty Developers
Bridget Foley DesignInterior Designers
Wonder.Architectural Designers
Michael Murray StudioKitchen & Bathroom Designers
Kella Design CoInterior Designers
Bosanac BuildersBuilders
CTRL SpaceInterior Designers
Elizabeth KaramKitchen & Bathroom Designers
Matakana Kitchens & JoineryCarpenters & Cabinetmakers
Honour CreativeInterior Designers
Auckland Waterproofing ServicesWaterproofers
JS KitchensKitchen & Bathroom Designers
IN.05.214 Hydraulic Pivot for wooden doors up to 200 kg The CAM SYSTEM combined with hydraulics allows the closing control of large swing doors while opening them with little effort.
The doors can be single or double-action, with a minimum thickness of 40mm.
The system is hidden inside the door, with only a small base on the floor, bidirectional regulation, and a rotation point on the roof or upper frame of the door with a built-in bearing. The closing control is carried out by two valves that can precisely adjust the initial and final closing speed, the final speed being critical when the door has a lock installed.
One of this system's characteristics is that the door's rotation point can be from 40mm to the centre of the door. The installation is made from the top of the door, which allows the doors to go up to the ceiling.
To cover doors with weights from 40 to 200kg, lengths up to 3000mm and heights up to 4000mm, the system has force adjustment, which can be done with the installed door.
- Scope of use
- Suitable for door thickness 40mm and up
- Maximum weight: 200 Kg
- Maximum door width 3000 mm
- Maximum door height 4000 mm
- Performance
Maximum door weight 200 kg
