Integrated - Series 7
Designed to integrate seamlessly into your cabinetry, this tall dishwasher delivers superior wash performance and advanced drying.*Customise with your own front panel and handle to match your kitchen cabinetry

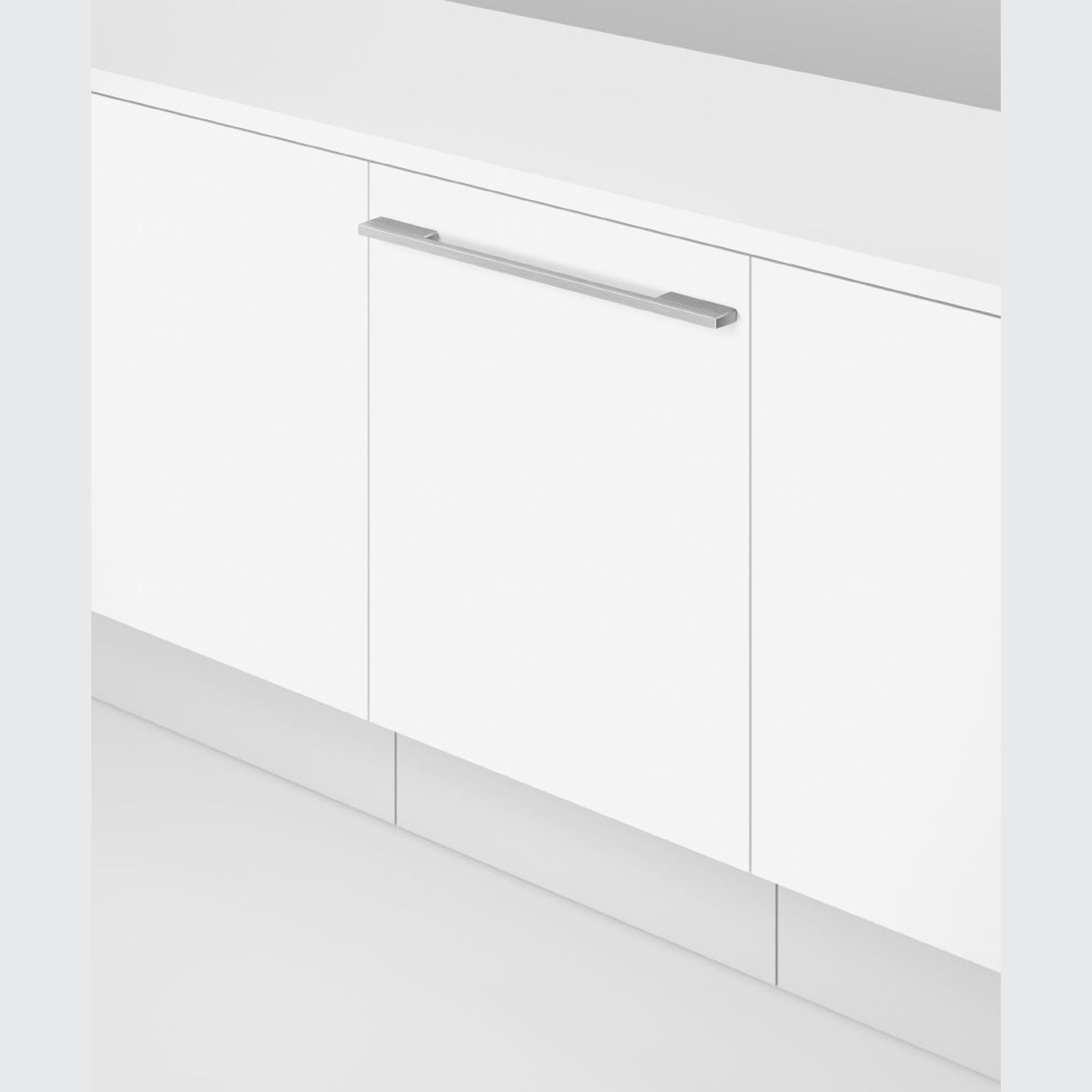

Seamless Integration
Customise your dishwasher with a panel and handle matching your cabinetry, for a seamless finish in your kitchen.
Seven wash programs from Heavy to Light, including Auto and 60min


Advanced Drying
For beautifully dry dishes every time, this dishwasher features an advanced drying system that combines fan-assisted drying and automatic door opening at the end of the cycle. By opening to release excess steam, Auto Door Open Dry helps to ensure your dishes come out dry and ready to use or store.
Dry+, Sanitise, Half Load and Intensive modifiers provide extra wash options


A Reliable Clean
This dishwasher offers eight wash programs including Glassware and Auto, which automatically senses the optimal wash settings for your dishes. The three-stage filtration system delivers a superior clean, while the rinse aid indicator reminds you to top up for beautifully clean dishes.
Wi-Fi enabled and works with the SmartHQ app for remote control and notifications


Customise Your Wash
The Half Load modifier is perfect for washing a partial load, for faster turnaround of dishes. Sanitise provides extra protection, killing 99.9% of bacteria* in the final rinse, while the Dry+ modifier is great for plastic dishes.

 *Certified to NSF/ANSI Standard 184

Quiet Performer
Running at a very low decibel rating, this dishwasher does its job without making a fuss. The combination of clever technology and simple mechanics means greater reliability and superior wash performance, with minimal noise.

Efficient Performance
With a 4.5 star energy rating and 5.5 star water rating, this dishwasher delivers a powerful wash. Use the Eco wash program for optimal water and energy consumption, or choose when the cycle begins with Delay Start.

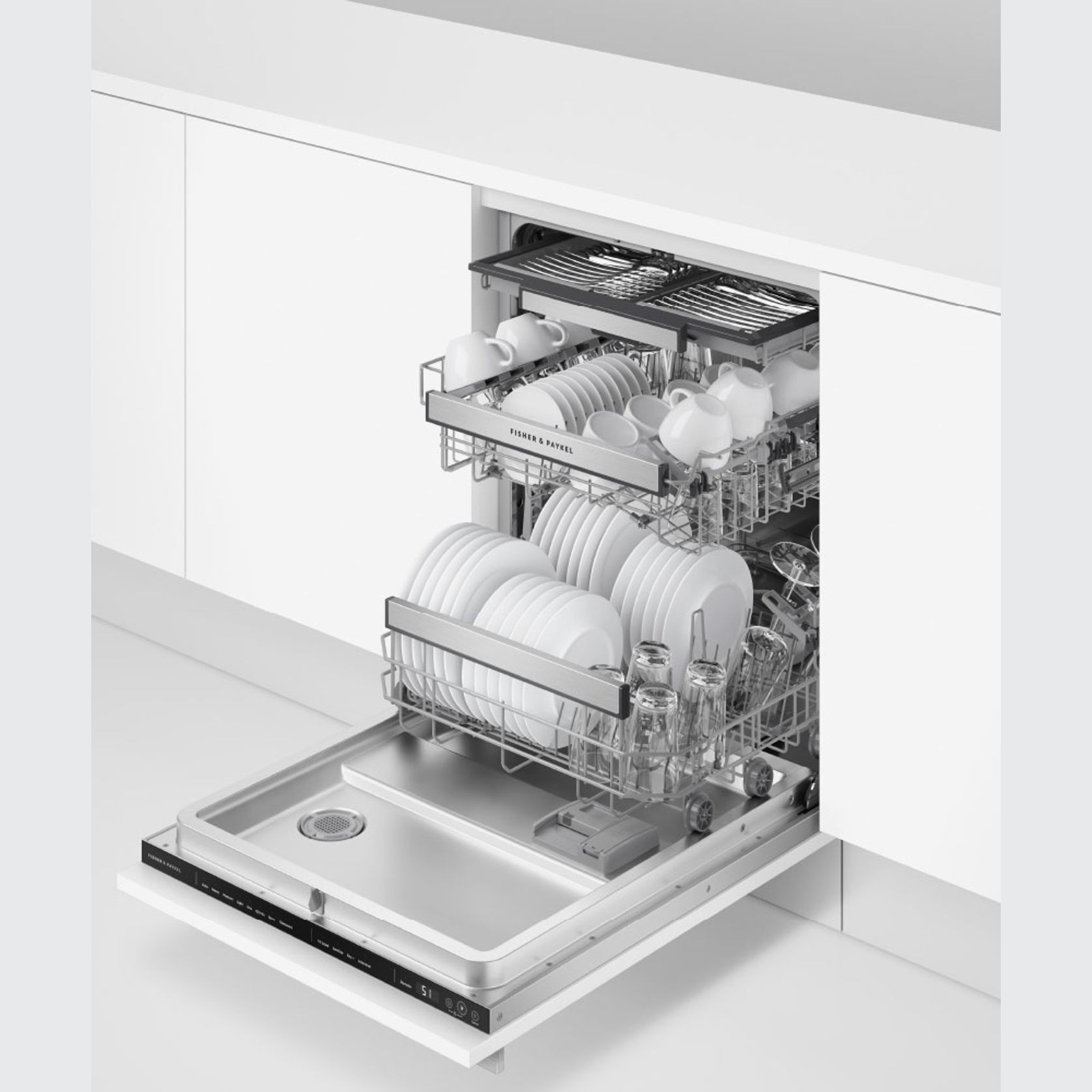

Flexible Loading
Designed to fit 15-place settings with ease. Adjustable rack options provide flexibility for any load, with a full-width cutlery tray, height-adjustable middle rack, cup holders and wine glass supports.

Details
  • Category
    Dishwashers
  • Range
    Fisher & Paykel
  • Brand
    Fisher & Paykel
Specifications

CAPACITY AND LOADING

  • Accommodates round plates up to (lower basket): 320mm
  • Accommodates round plates up to (top basket): 200mm (with cutlery tray), 250mm (cutlery tray removed)
  • Adjustable height, foldable cupracks
  • Easy lift adjustable upper basket
  • Fold down tines
  • Fold down wine racks
  • Full width cutlery/utensil tray
  • Large crockery insert in lower basket
  • Place settings: 15
  • Telescopic slides
  • Wine glass supports

CONSUMPTION

  • Energy rating: 4.5 star
  • Water rating: 5.5 star (WELS)

CONTROLS

  • Child lock
  • Energy saving delay start option of up to 12 hours
  • Floor light cycle feedback
  • Internal light
  • Internal wash selector
  • Intuitive capacitive touch controls
  • Rinse aid indicator light
  • Wi-Fi connectivity

FEATURES

  • Air curtain for bench protection
  • Aquastop
  • Auto Door Open Dry
  • Fan assisted drying
  • Flood protection
  • Fully independent spray arms
  • Internal tub material: Stainless Steel
  • Motor type: BLDC
  • Three-stage filtration system
  • Variable wash pressure technology

PERFORMANCE

  • Noise emissions: 42dBA

POWER REQUIREMENTS

  • Amperage: 10A
  • Supply frequency: 50Hz
  • Supply voltage: 230V

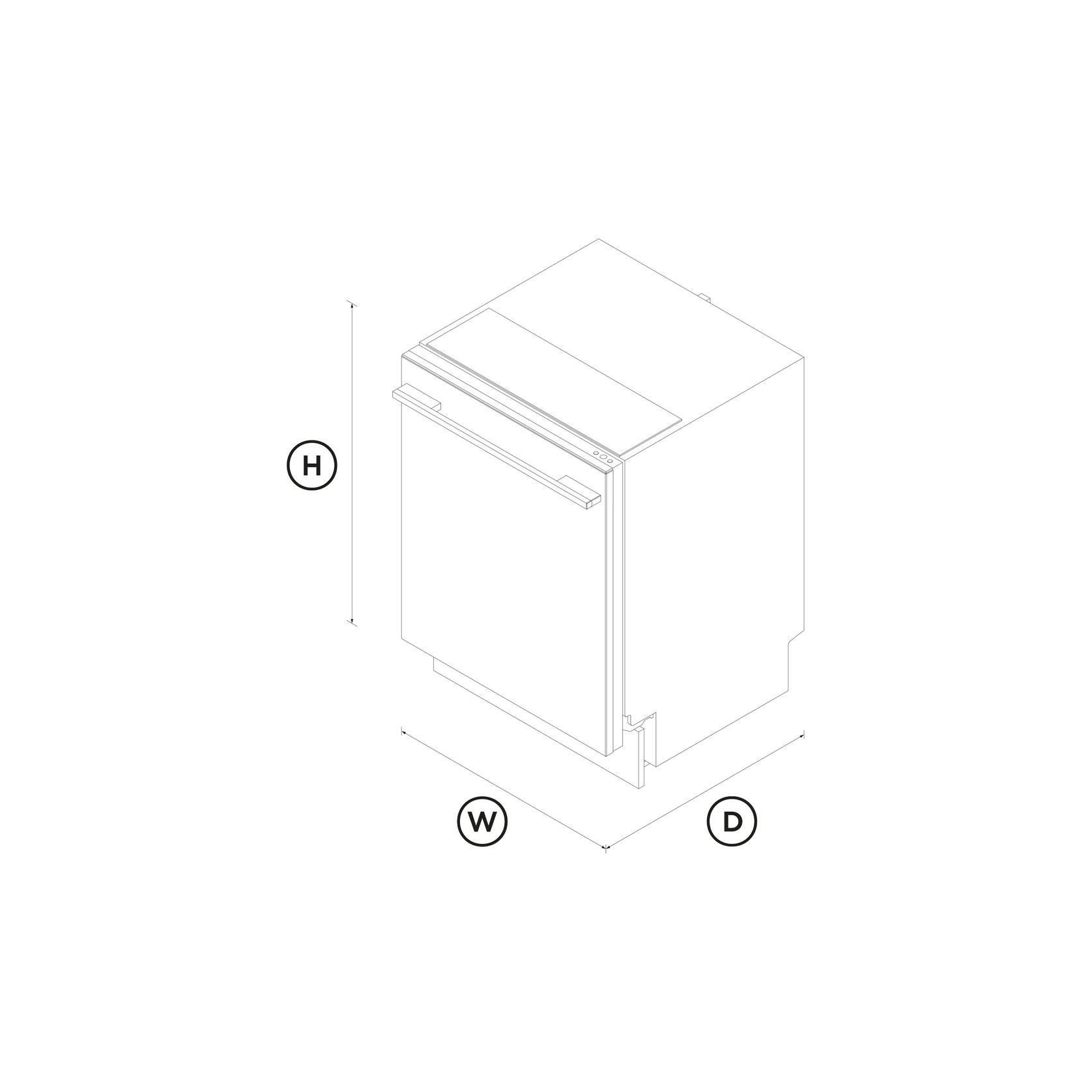

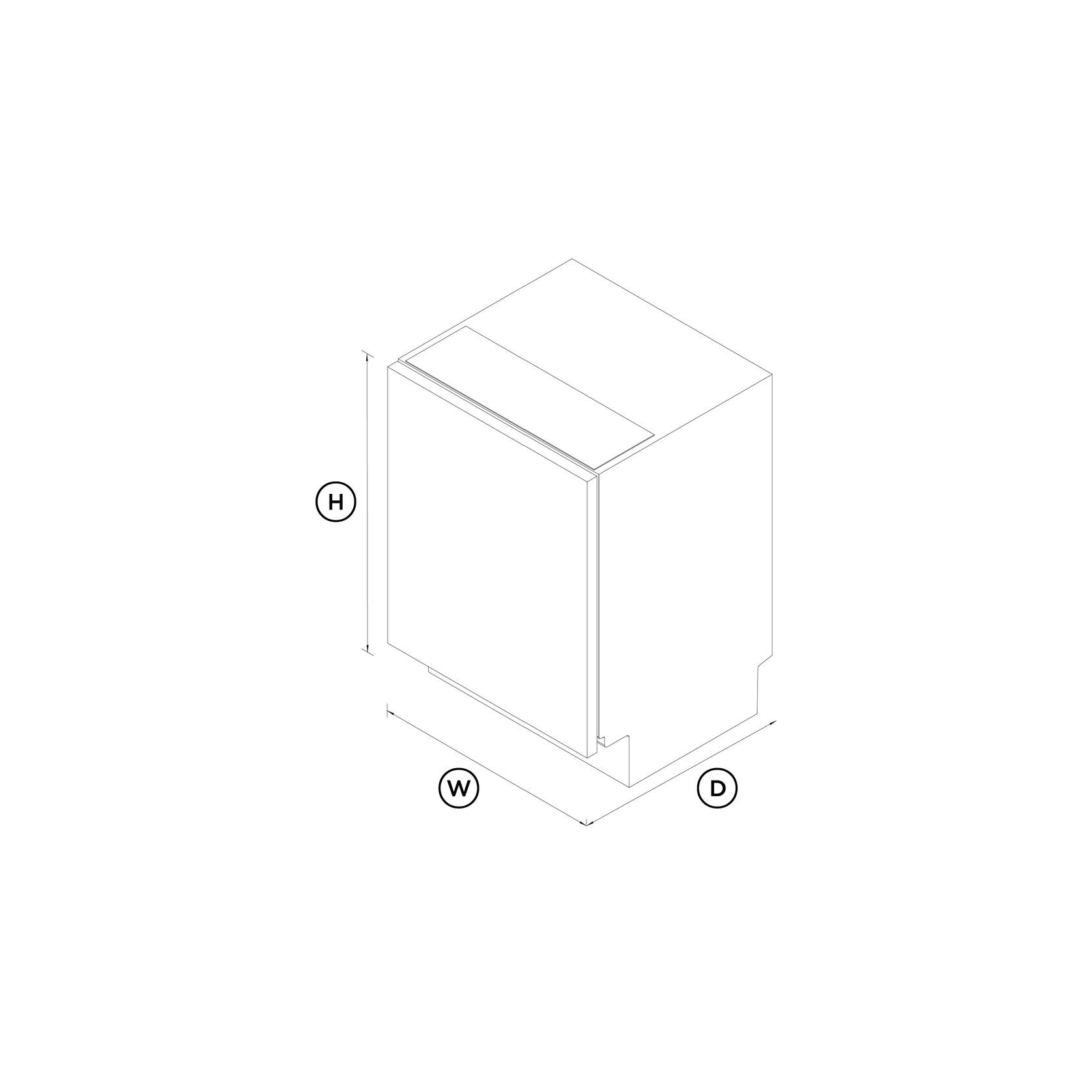

PRODUCT DIMENSIONS

  • Depth: 554mm
  • Height: 820 - 880mm
  • Width: 598mm

WARRANTY

  • Parts and labour: 2 years

WASH PROGRAM MODIFIERS

  • Dry +
  • Half-load
  • Intensive
  • Sanitise
  • Wash modifiers: 4

WASH PROGRAMS

  • 60 min
  • Auto
  • Eco
  • Glassware
  • Heavy
  • Light
  • Medium
  • Rinse
  • Wash programs: 8

WATER CONNECTION

  • Water pressure: 30kPa - 1000 kPa
  • Water supply: 3/ BSP (20mm) Connector Water Inlet Hose
Accessories

ACCESSORIES

  • Cutlery basket
  • Kickstrip: Custom

ACCESSORIES (SOLD SEPARATELY)

  • Door panel black stainless steel: ADDW60PB
  • Door panel stainless steel: ADDW60PX
  • Handle kit Contemporary round, aluminium: AHS-OBDD-60S
  • Handle kit Contemporary square fine, aluminium: AHD5-OBDD-60S
  • Handle kit Contemporary square fine, black: AHD5-OBDD-60SB
  • Handle kit Contemporary square, aluminium: AHD3-OBDD-60S
  • Handle kit Contemporary square, black: AHD3-OBDD-60B
SKU: 82436
