Kuppel-F100
9W / 13W Fixed LED Recessed Downlight
Recessed LED architectural luminaire series providing optimised and efficient performance with an IP54 rating and deep-set lamp source for symmetrical low glare distribution. Available in a range of wattage/lumen packages, the Kuppel series also offers various dimming options with screw adjustable wing mounting for easy installation.
Made from a die-cast aluminium housing with an aluminium reflector, it is available in a variety of finishes. Integrating Zhaga compliant Citizen LED technology and coupled with Tridonic control gear, the Kuppel series offers a 5 year warranty.
- CategoryDownlights
- RangeDownlights
- Warranty5 years
Technical Specifications
Wattage:
- 9W (System 11W)
- 13W (System 15W)
Luminous Flux:
- 1000-1200 Lm
- 1300-1600 Lm
Luminaire Efficacy:
- 122.22 Lm/W
- 115.38 Lm/W
CCT:
- 3000K
- 4000K
CRI: >90
Beam:
- 30°
- 50°
Colour Deviation: 3-SDCM
UGR: <15
Size: Ø110mm x Height 79mm
Cut out size: Ø100mm
Dimming:
- Non-dimmable
- DALI-2
- BLE (basicDIM Wireless / Casambi)
Longevity: >50,000 Hrs L80 B10

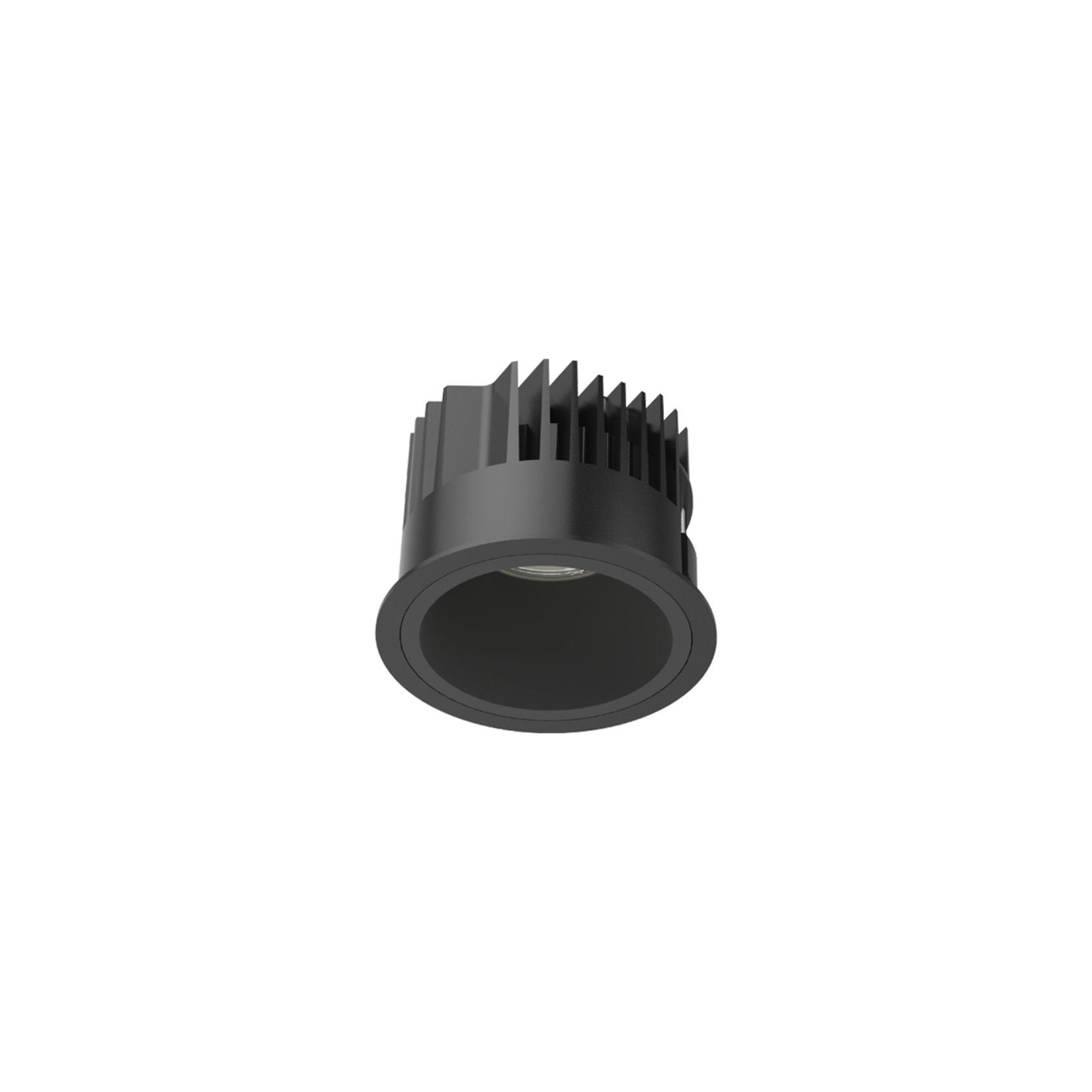

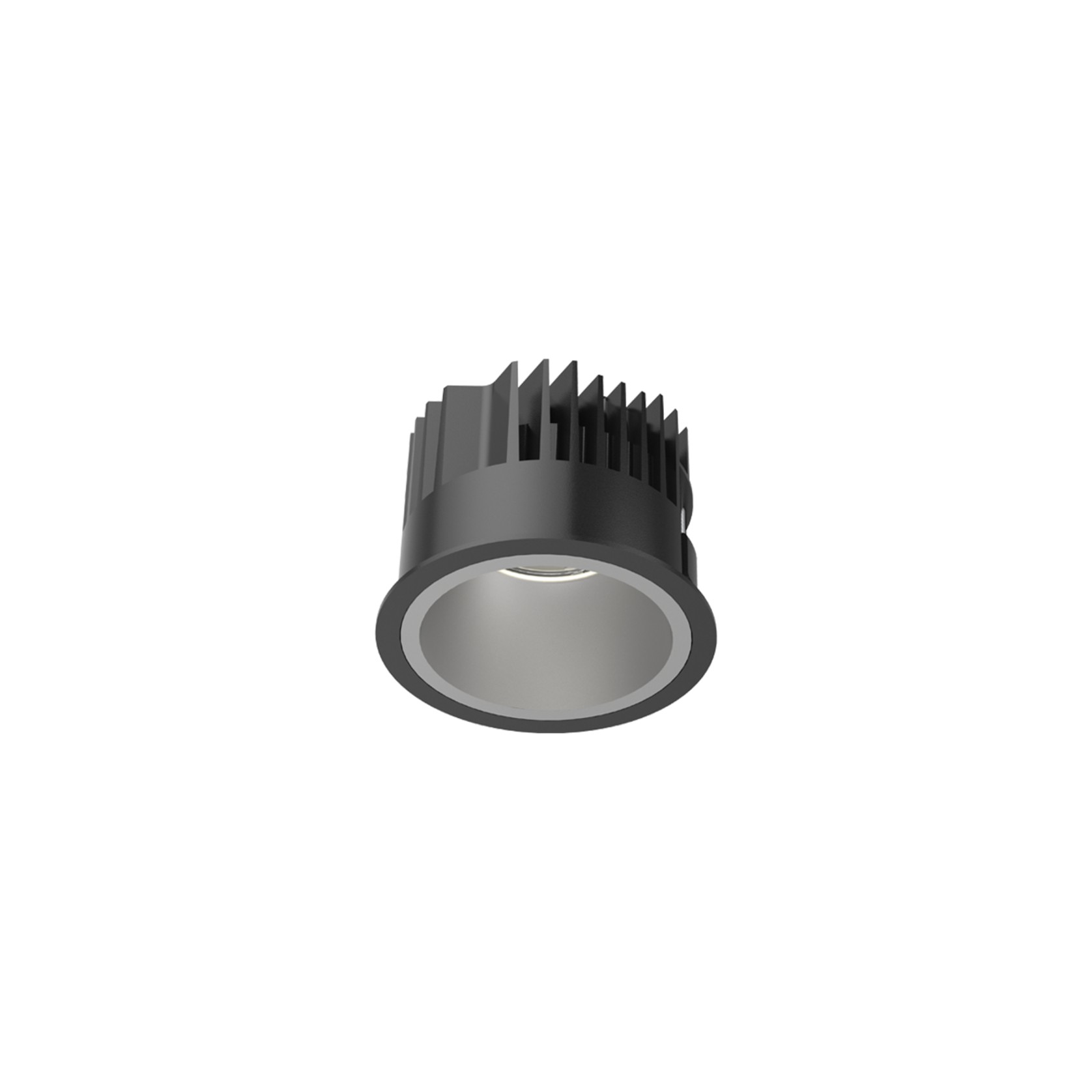

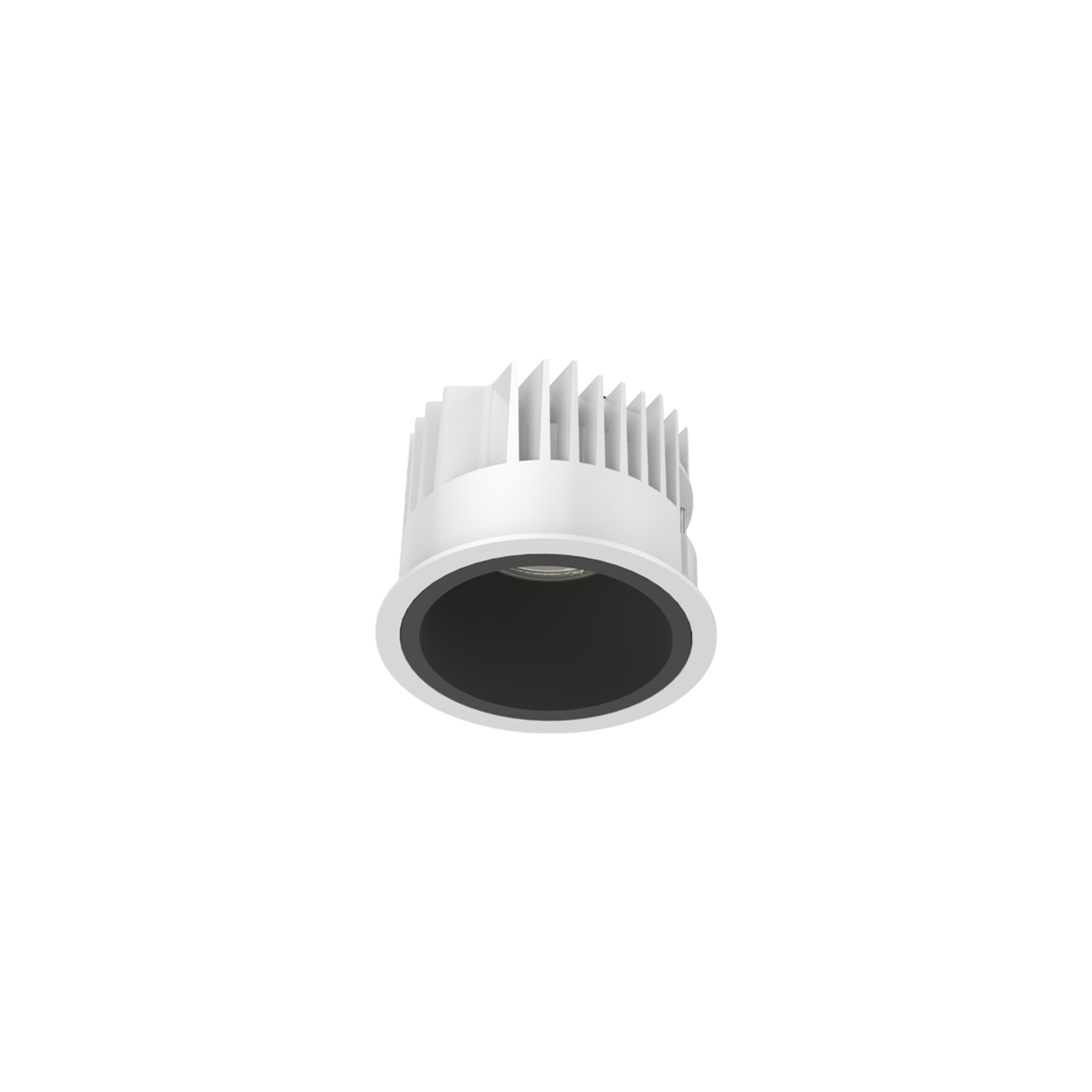

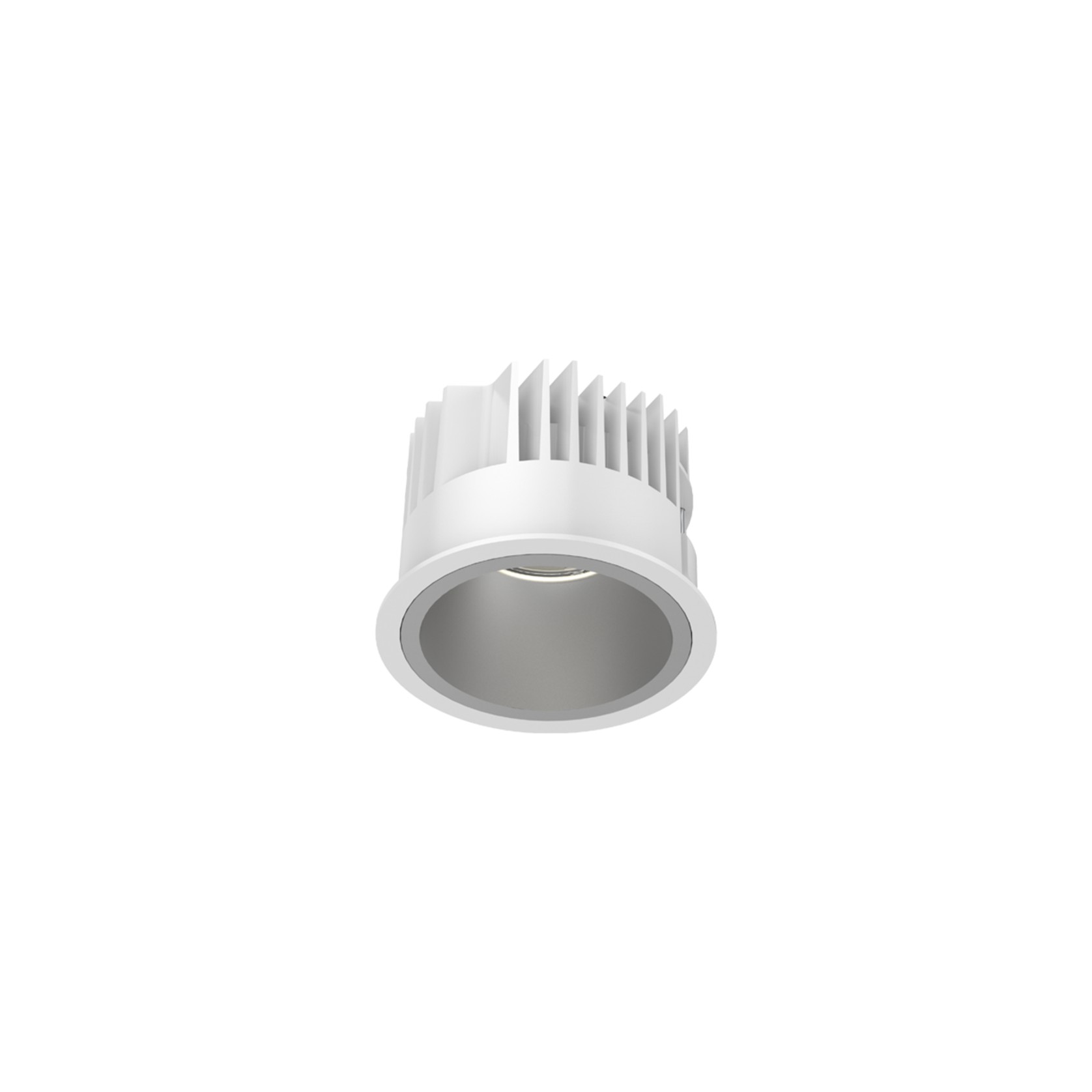

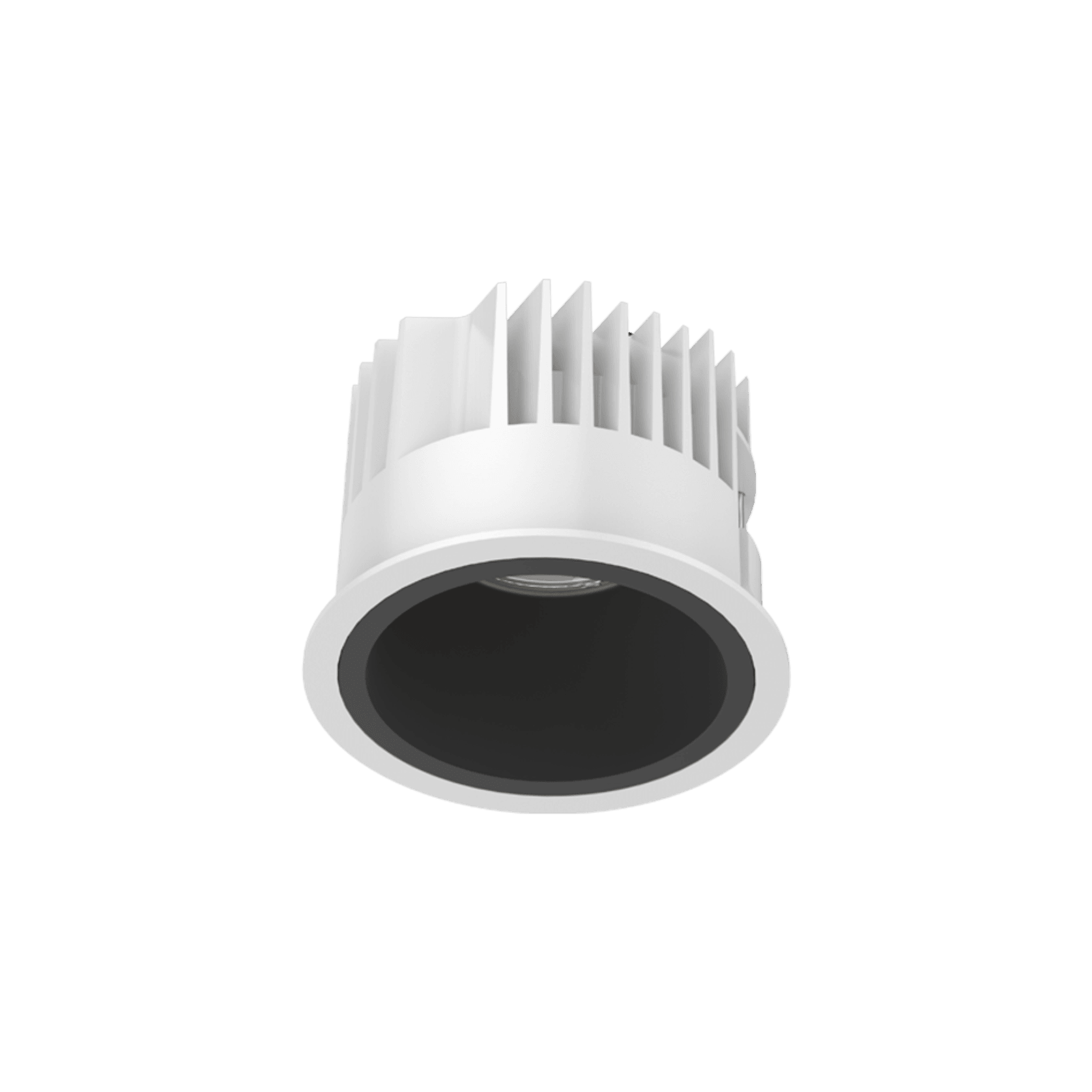

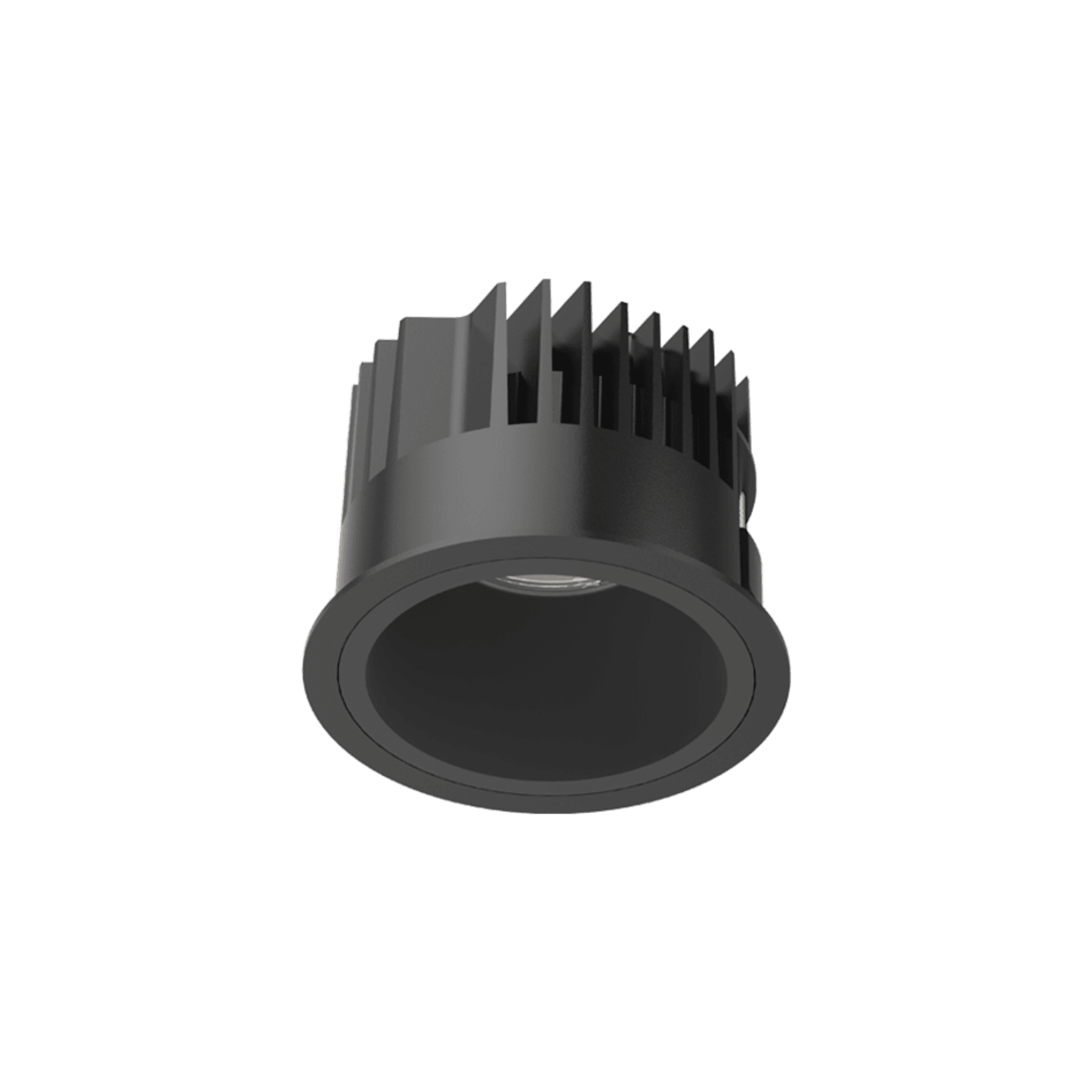

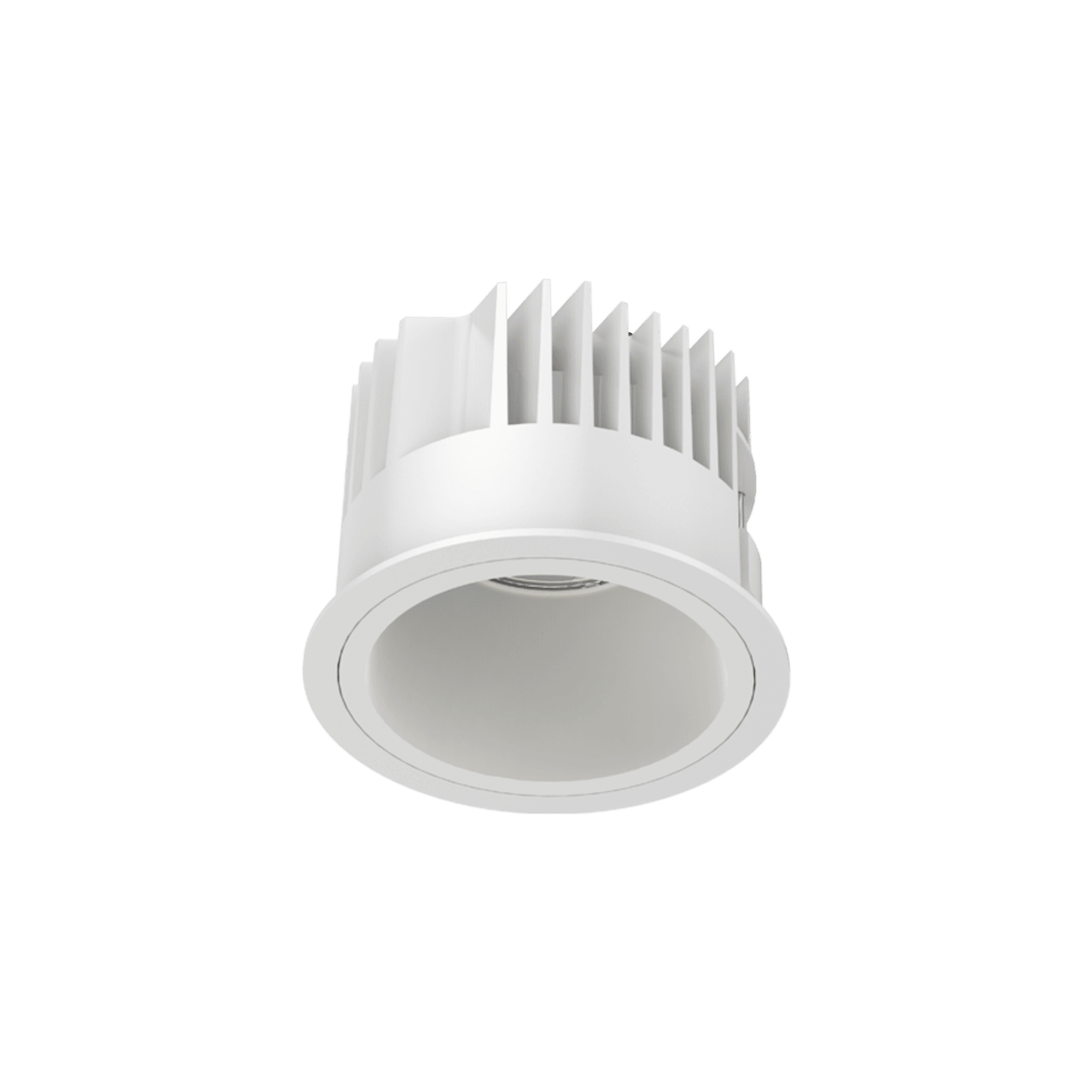

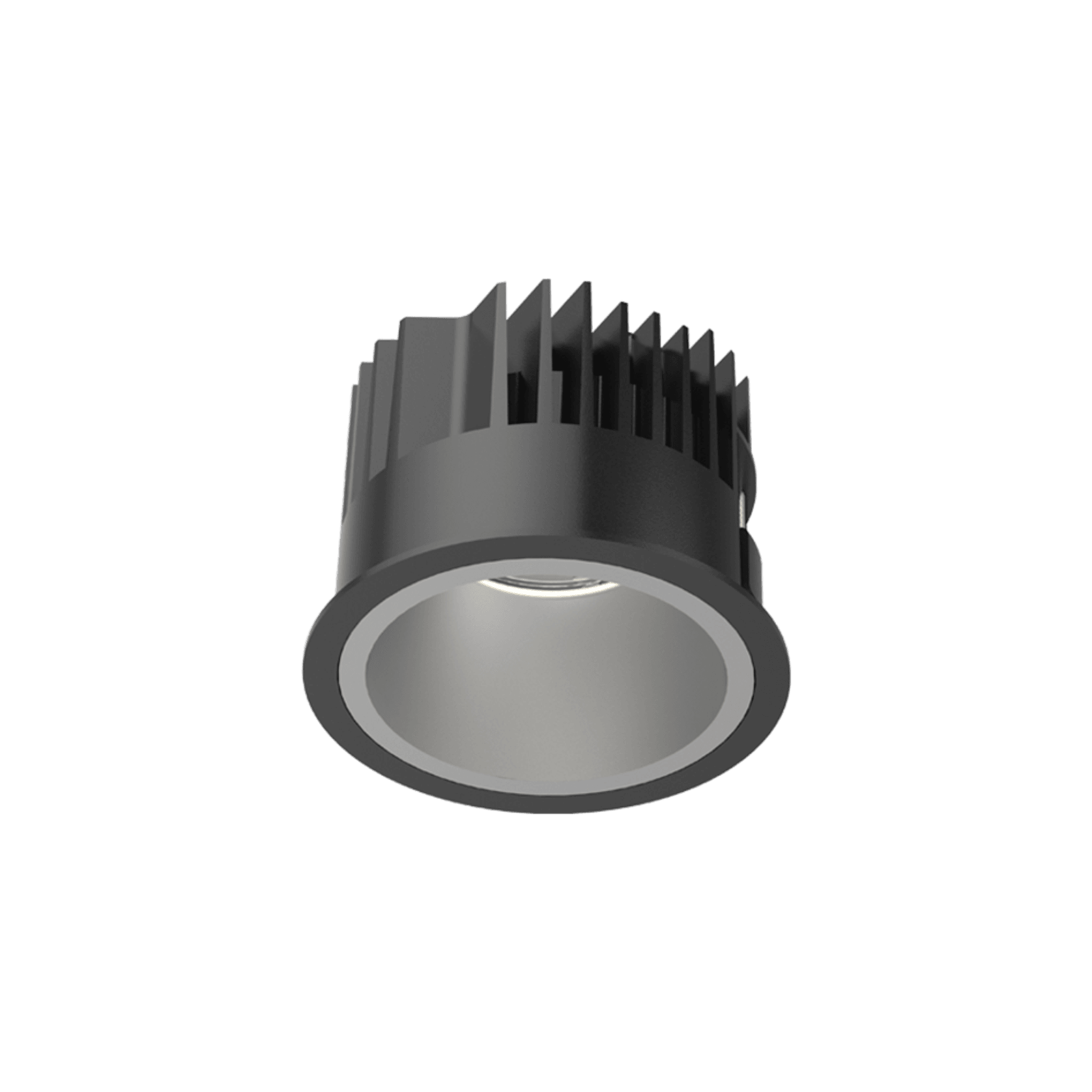

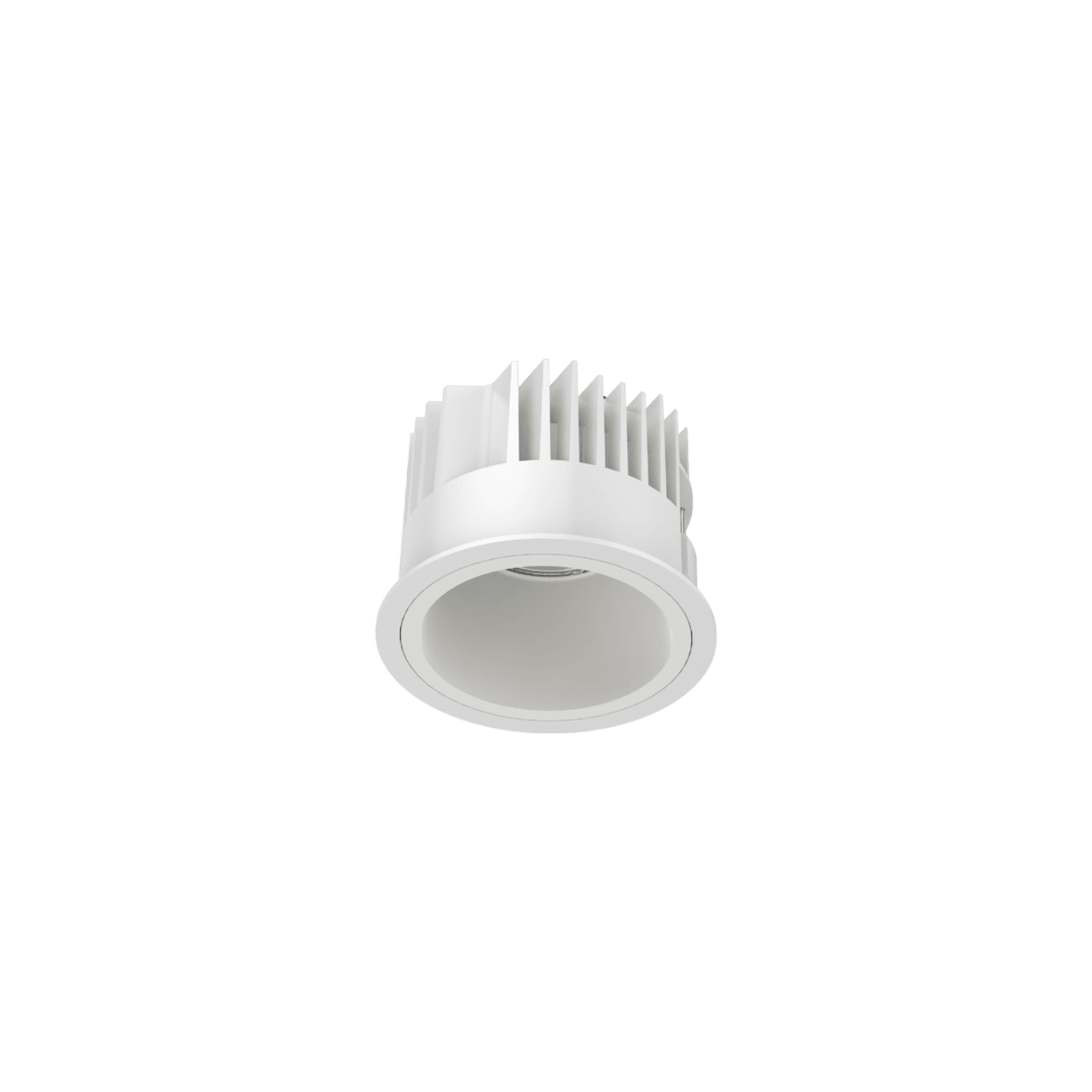

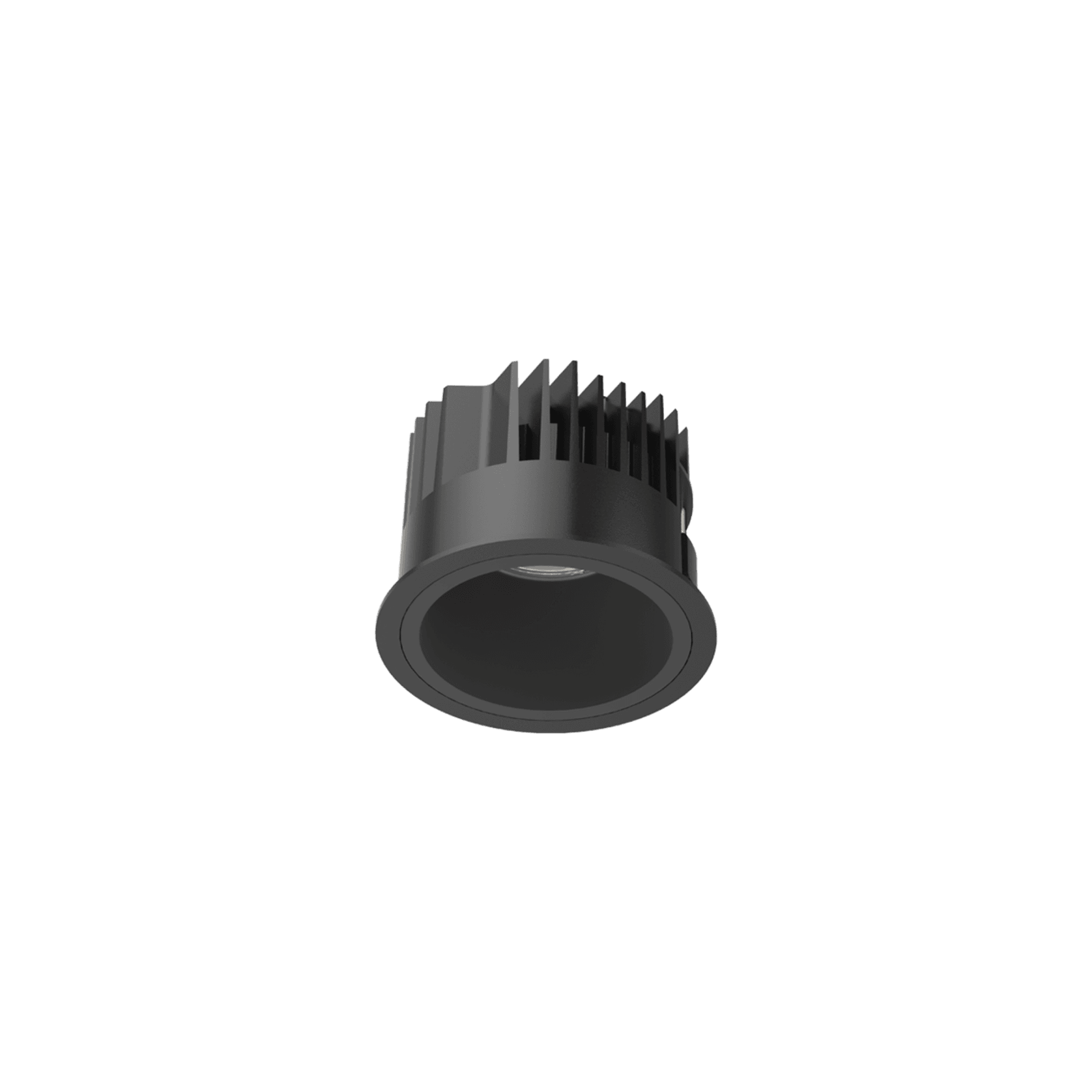

Finish Options:
- White
- Black

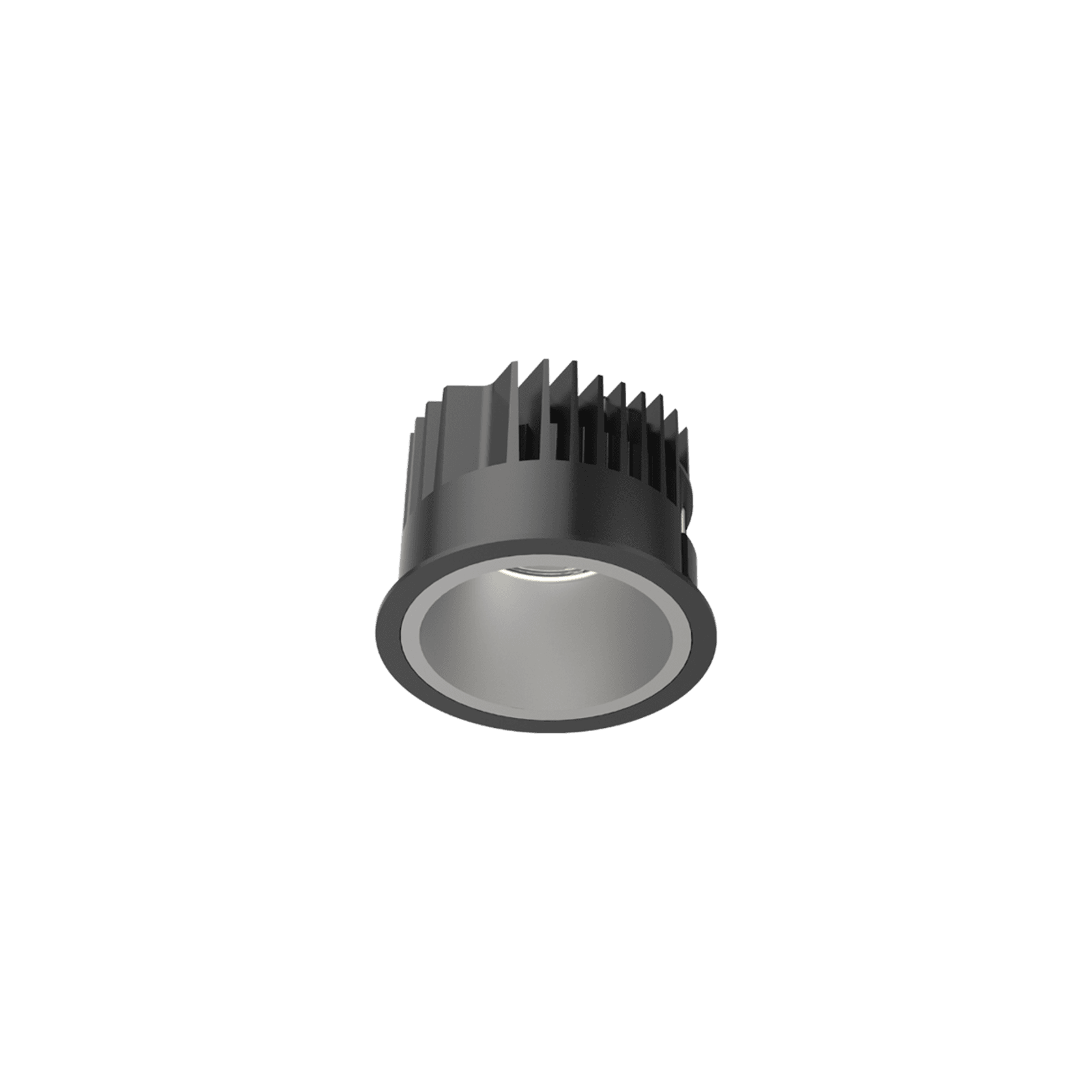

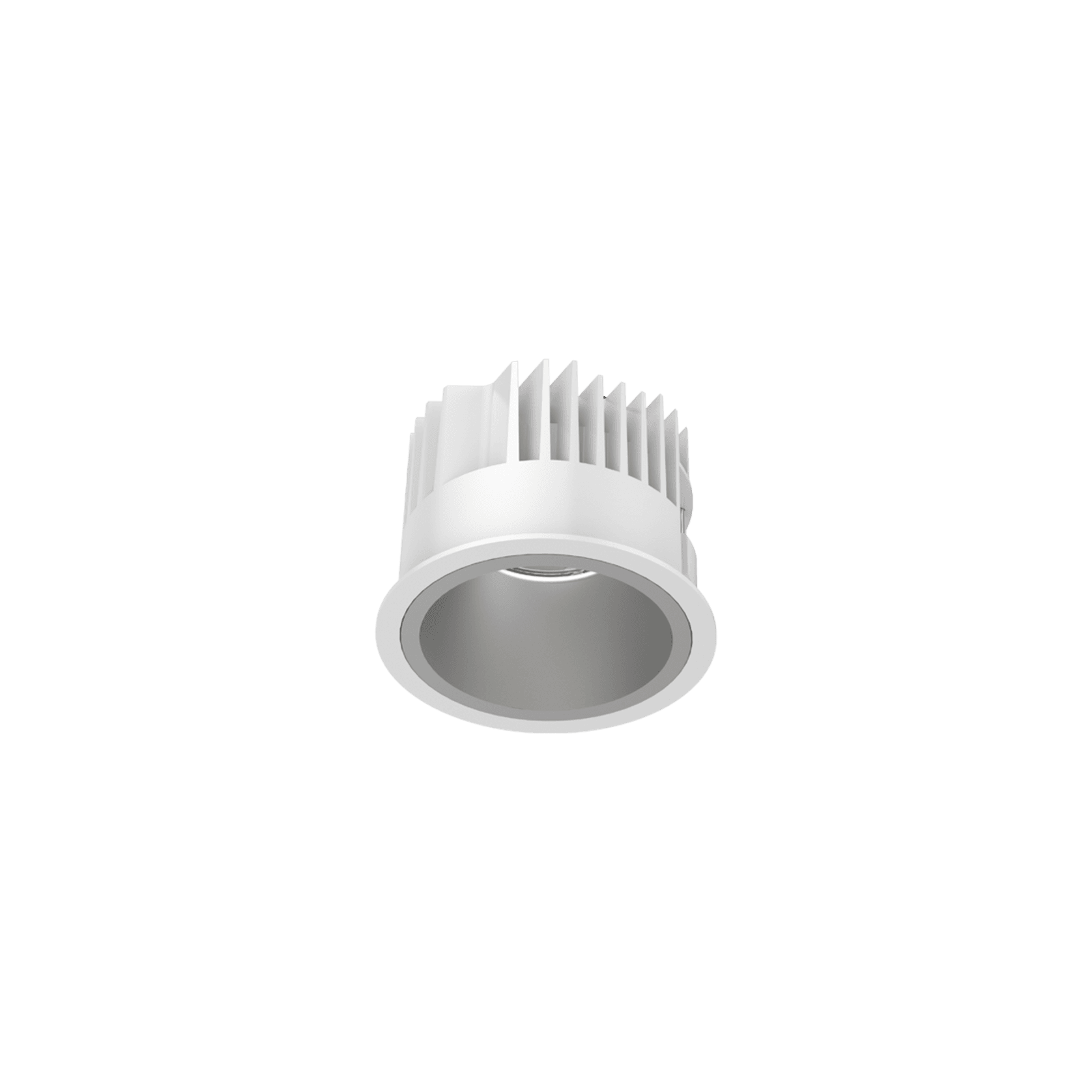

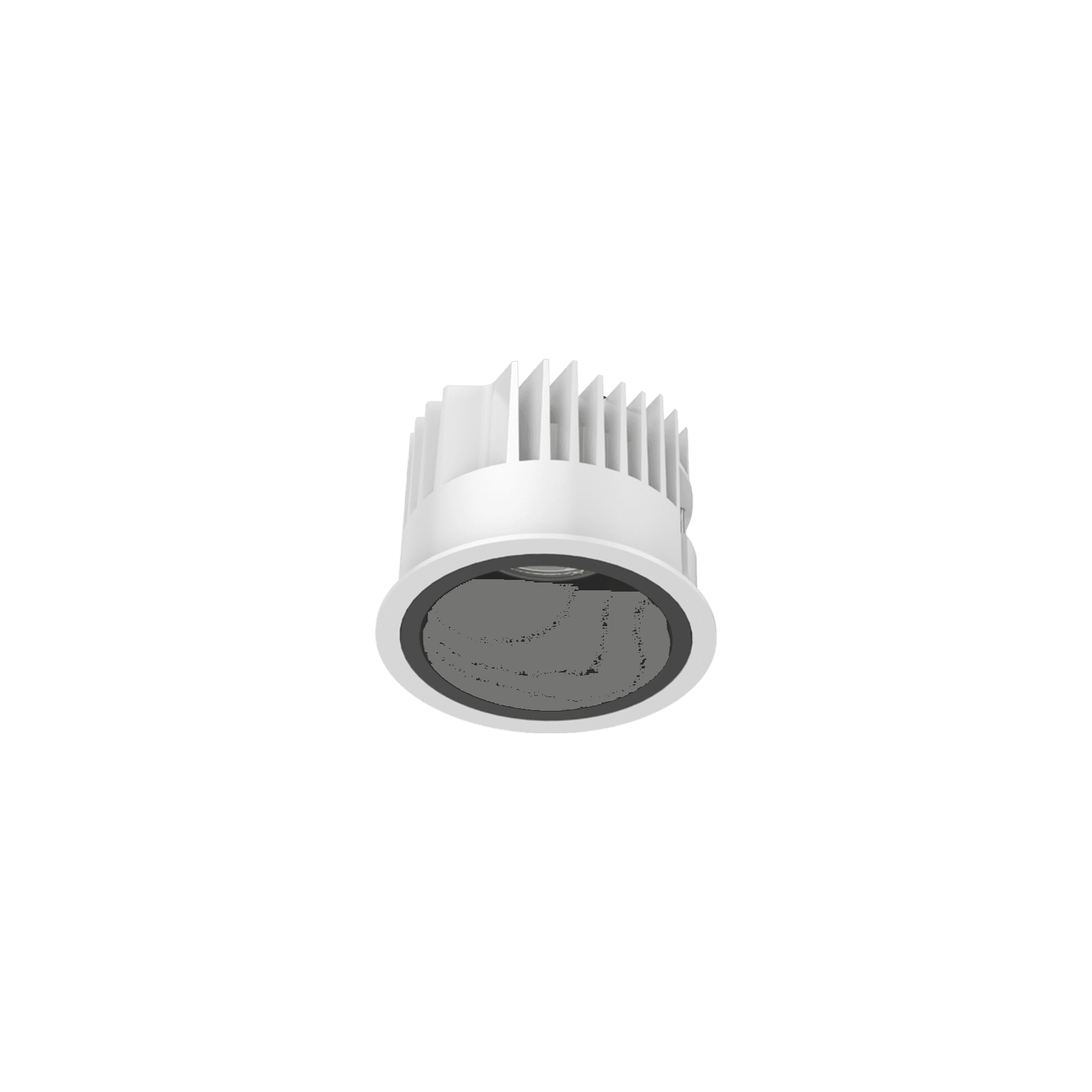

Baffle Colour:
- White
- Black
- Matt
Warranty: 5 Years
