The Nube Emotion is a recessed aluminium downlight with opal polycarbonate diffuser. Offered in three different sizes and three finishes, it can be installed flush or in support by means of the special spacer accessory (not included).

Details
  • Category
    Downlights
  • Range
    L&S
Specifications

35mm

● Diameter: 40mm
● Height: 12mm
● Hole Dimensions: 35mm x 12mm
● Watts: 1.8W
● Voltage: 12V
● Cutting Unit: n/a
● IP Rating: IP44
● Lumens: 90
● Angle: 65 ˚
● Lux B: 500
● Lux C: 200
● Lux D: 50
● CRI: >80

58mm

● Diameter: 64mm
● Height: 12mm
● Hole Dimensions: 58mm x 12mm
● Watts: 2.5W
● Voltage: 12V
● Cutting Unit: n/a
● IP Rating: IP44
● Lumens: 160
● Angle: 65 ˚
● Lux B: 650
● Lux C: 275
● Lux D: 75
● CRI: >80

68mm

● Diameter: 74mm
● Height: 12mm
● Hole Dimensions: 68mm x 12mm
● Watts: 3W
● Voltage: 12V
● Cutting Unit: n/a
● IP Rating: IP44
● Angle: 65 ˚
● CRI: >80

Features

● Very slim – sits almost flush once installed
● Frosted diffuser
● Each light allows for Warm White, Natural White or Emotion contrast switching

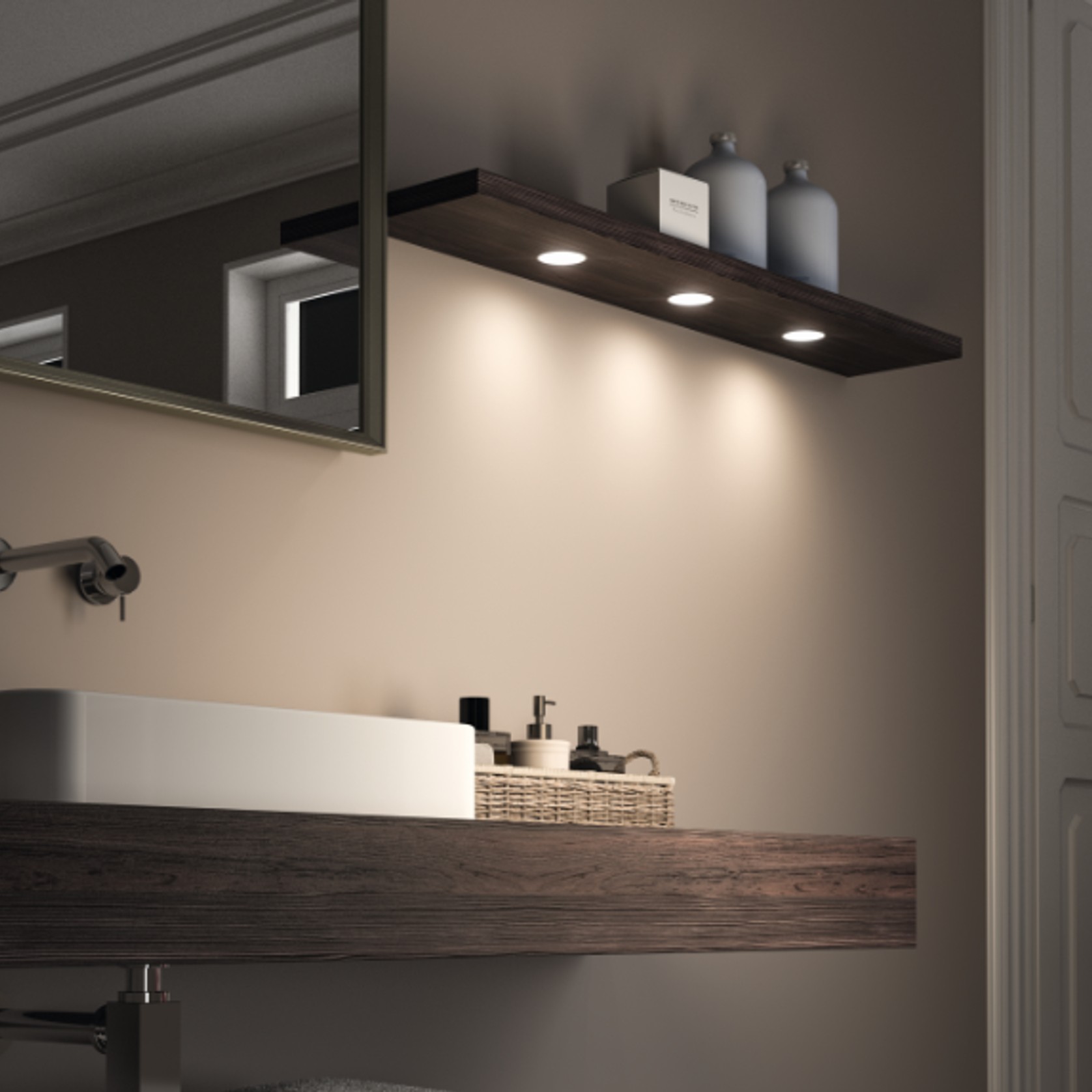

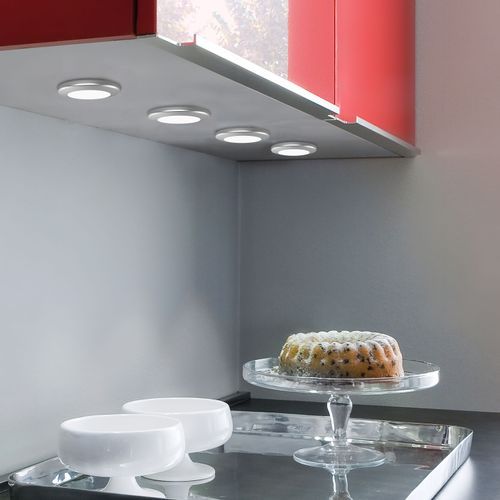

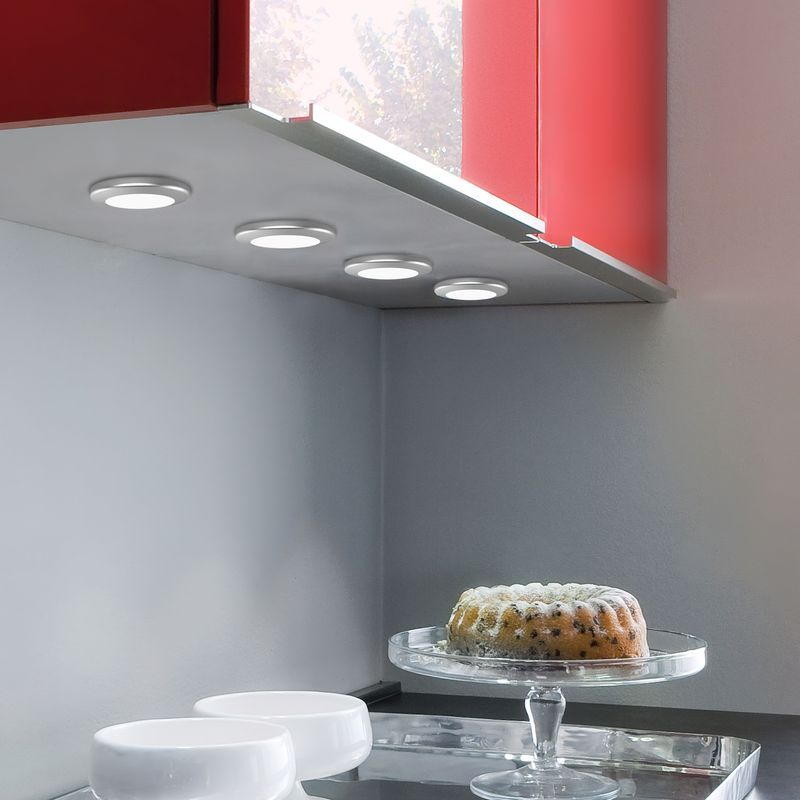

● For under-cabinet applications and mounting inside cabinets
● Must be only used with 30W driver unit (LSDRIVS30)
● Conversion cable included to switch lighting from either warm or natural white
● Available in sizes 35mm, 58mm and 68mm
● Available in White, Black or Nickel finish
