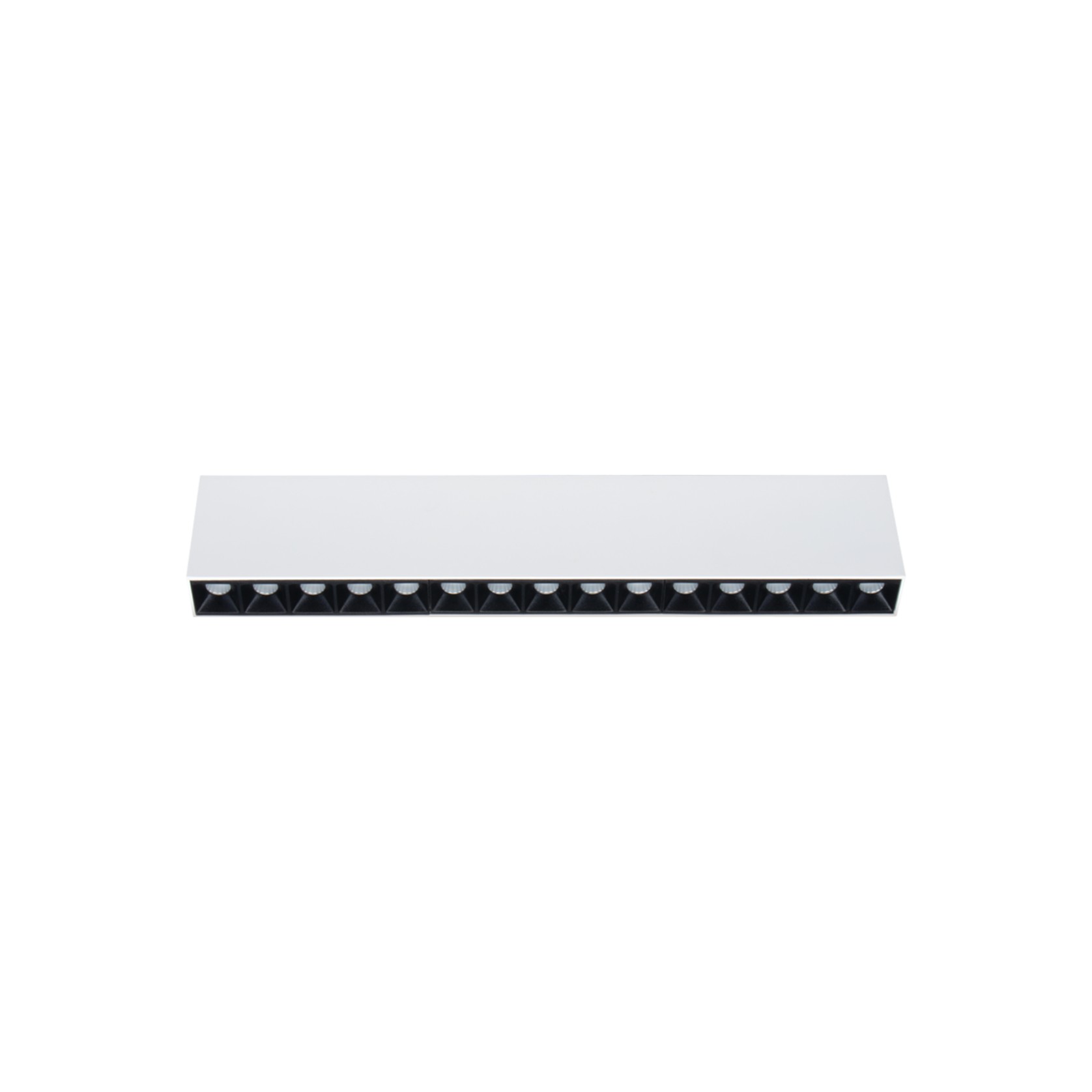

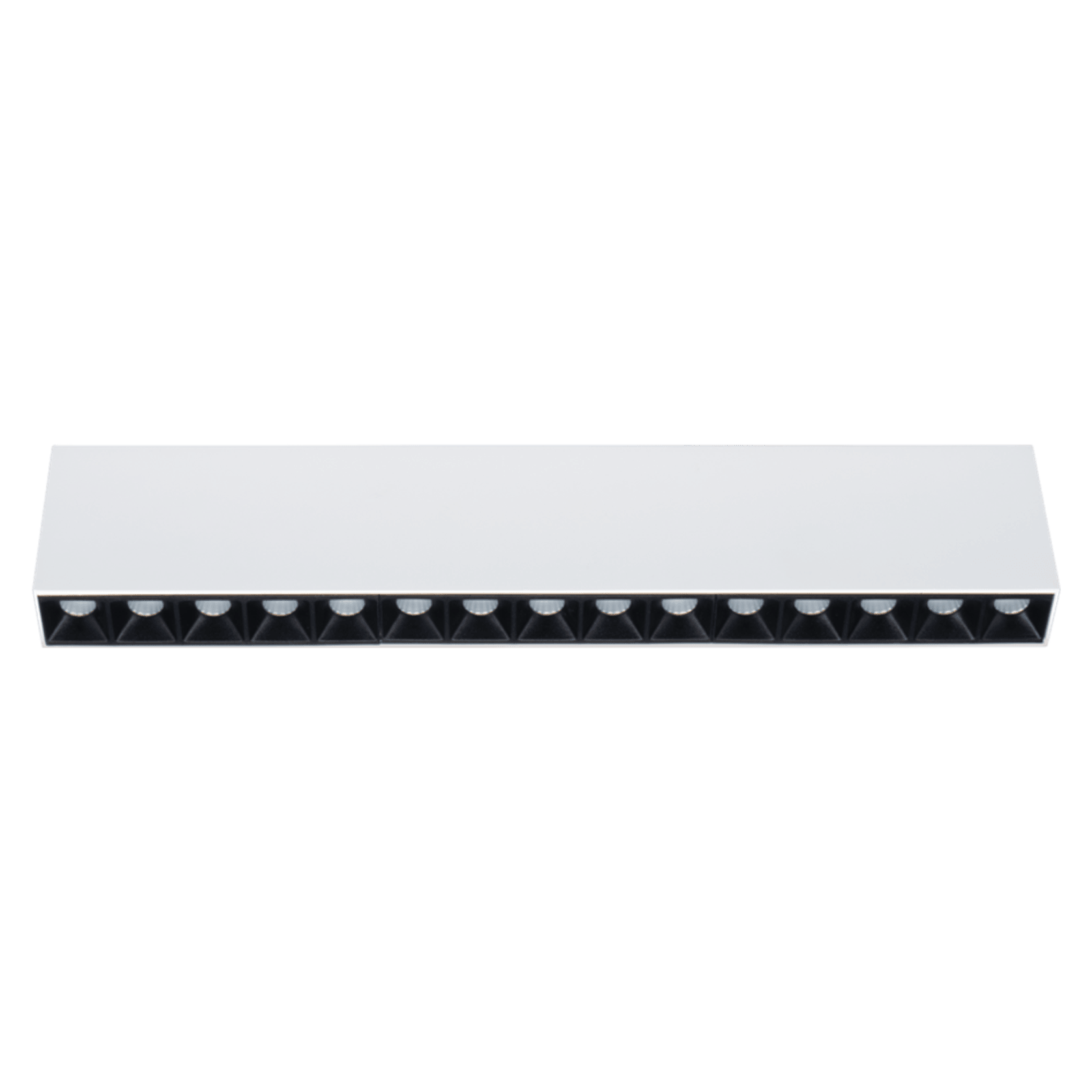

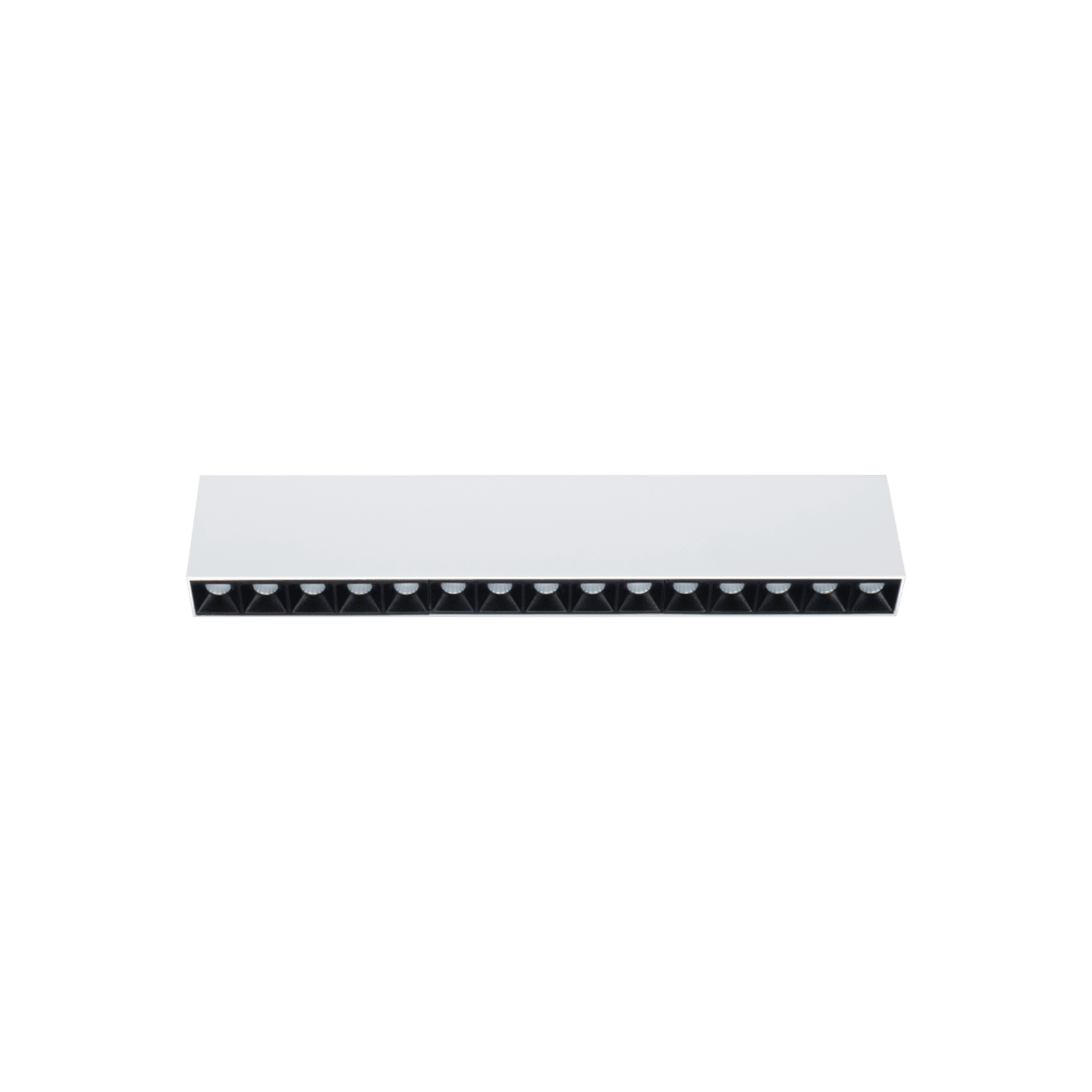

Linie-SM15C
30W Fixed Surface Mount Linear Downlight
Fixed, surface mounted, LED architectural downlight series provides symmetrical, low-glare light distribution within a compact, linear housing. Available in a variety of baffle finishes to suit different applications and interior spaces.
Comes quality constructed using a die-cast aluminium structure with high grade polycarbonate secondary baffle optics. Integrating Bridgelux LED technology with a quality branded control gear, the Linie series comes with a 5 year warranty.
- CategoryDownlights
- RangeDownlights
- Warranty5 years
Technical Specifications
Wattage: 30W (System 32W)
Luminous Flux: 1870-2118 Lm
Luminaire Efficacy: 62.36 Lm/W
CCT:
- 3000K
- 4000K
CRI: >90
Beam:
- 15°
- 30°
- 45°
Colour Deviation: 3-SDCM
UGR: <19
Size: Width 34.5mm x Length 402mm x Height 81mm
Dimming:
- Non-dimmable
- DALI-2
- BLE (basicDIM Wireless / Casambi)
Longevity: >50,000 Hrs L80 B10
Finish Options:
- Black
- White
Baffle Colour:
- Black
- White
- Specular
- Gold
- Rose Gold
Warranty: 5 Years
Accessories / Options:
- LINIE-SM-REC-LENS
Product No: LINIE-REC-LENS
Rectangular Distribution - LINIE-SM-SQR-LENS
Product No: LINIE-SQR-LENS
Square Distribution
