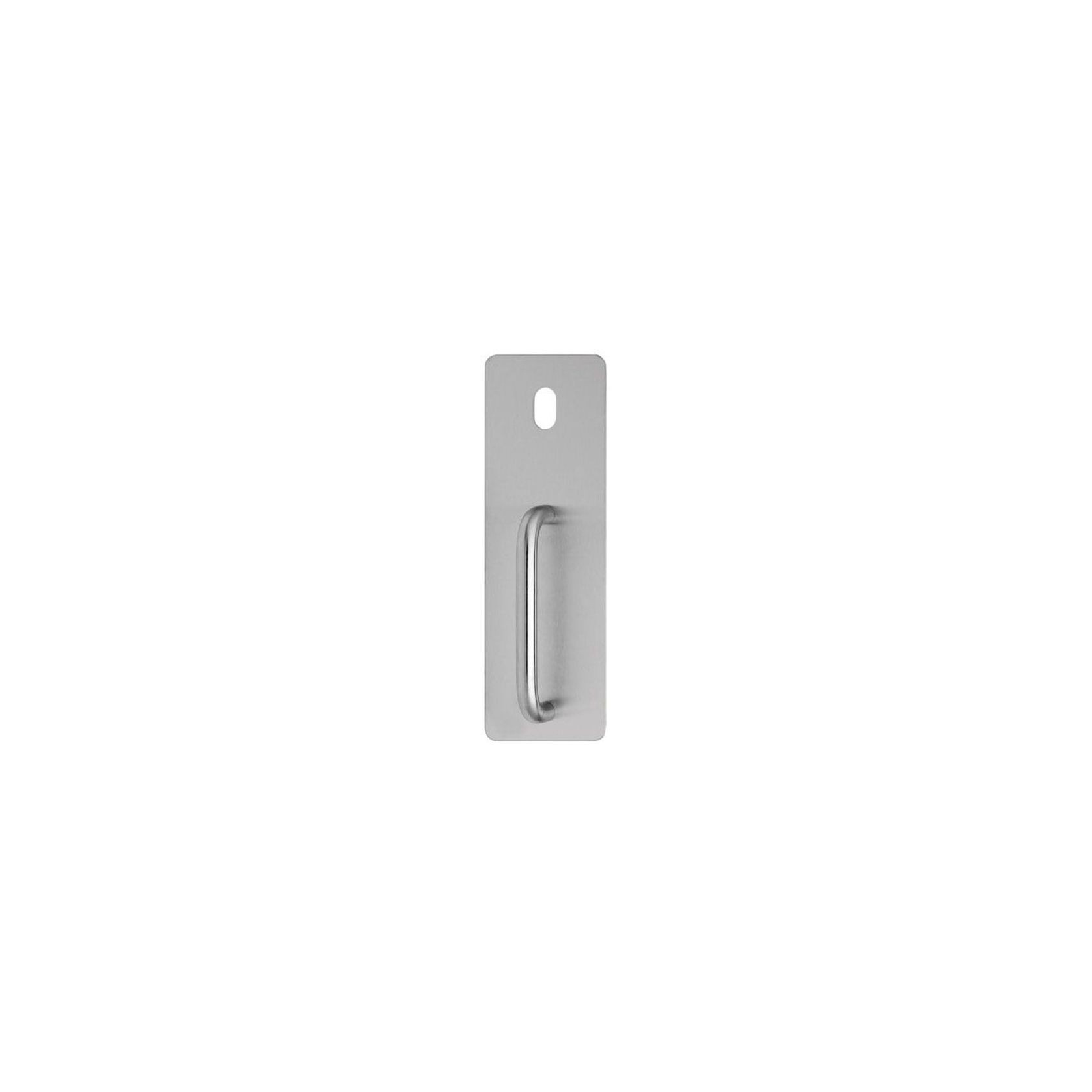

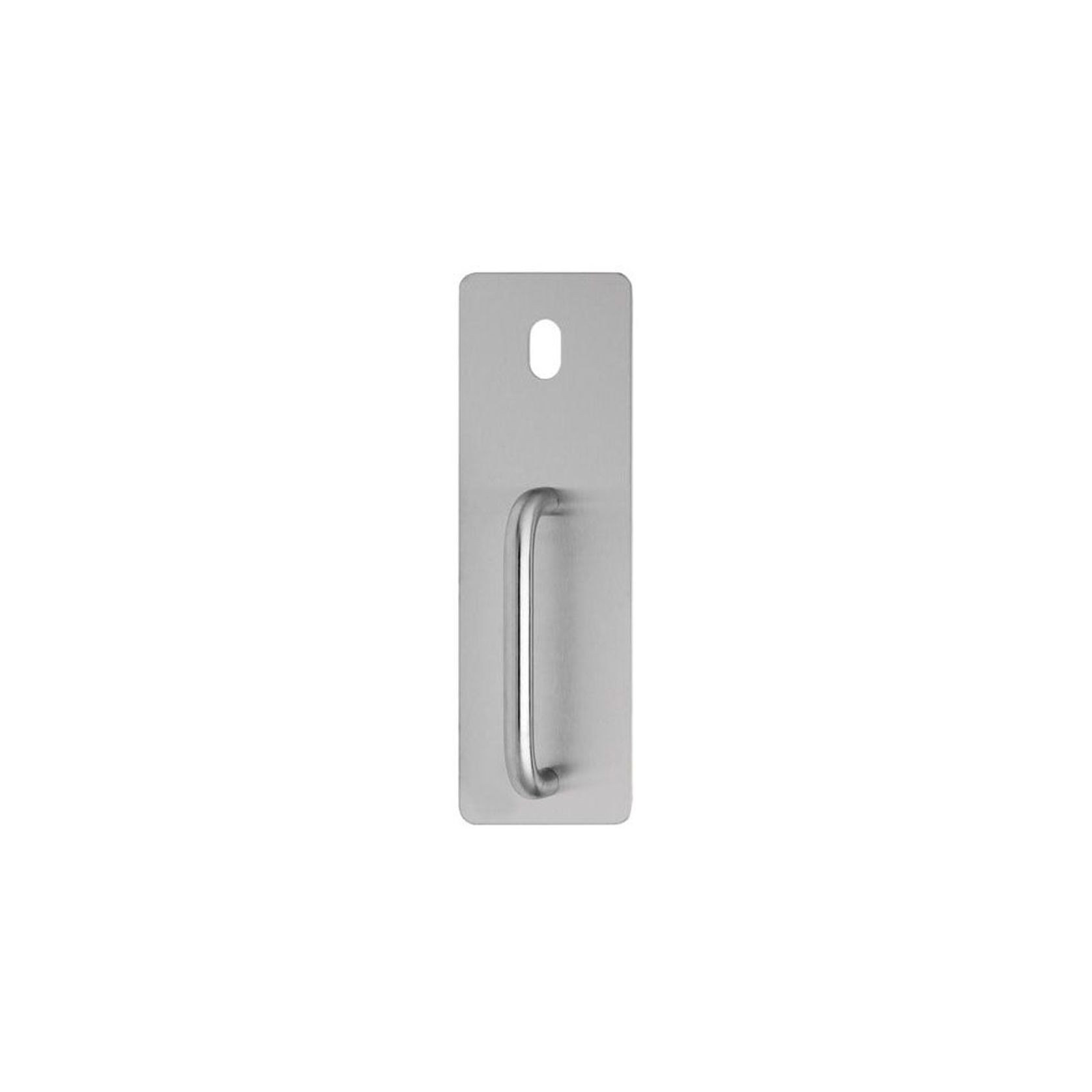

The 214 Series Door Furniture is 300 x 100 x 2mm thick stainless steel or brass plates with 10mm radius corners. Concealed fixed plates have studs with internal threads located in each corner, visible plates have corresponding countersunk holes and are fixed back to back through the door.

Application
Designed for use with 3570 Series Mortice Locks.

assa abloy lockwood door hardware push plate pull handle

Product Details

Product: Lockwood 214/215 Series 10mm Radius Corner Push
Category: Pull Handles
Sold by: ASSA ABLOY
Range: Lockwood - Commercial
Brand: ASSA ABLOY

Product Variants

Colours

ASSA ABLOY is specified by

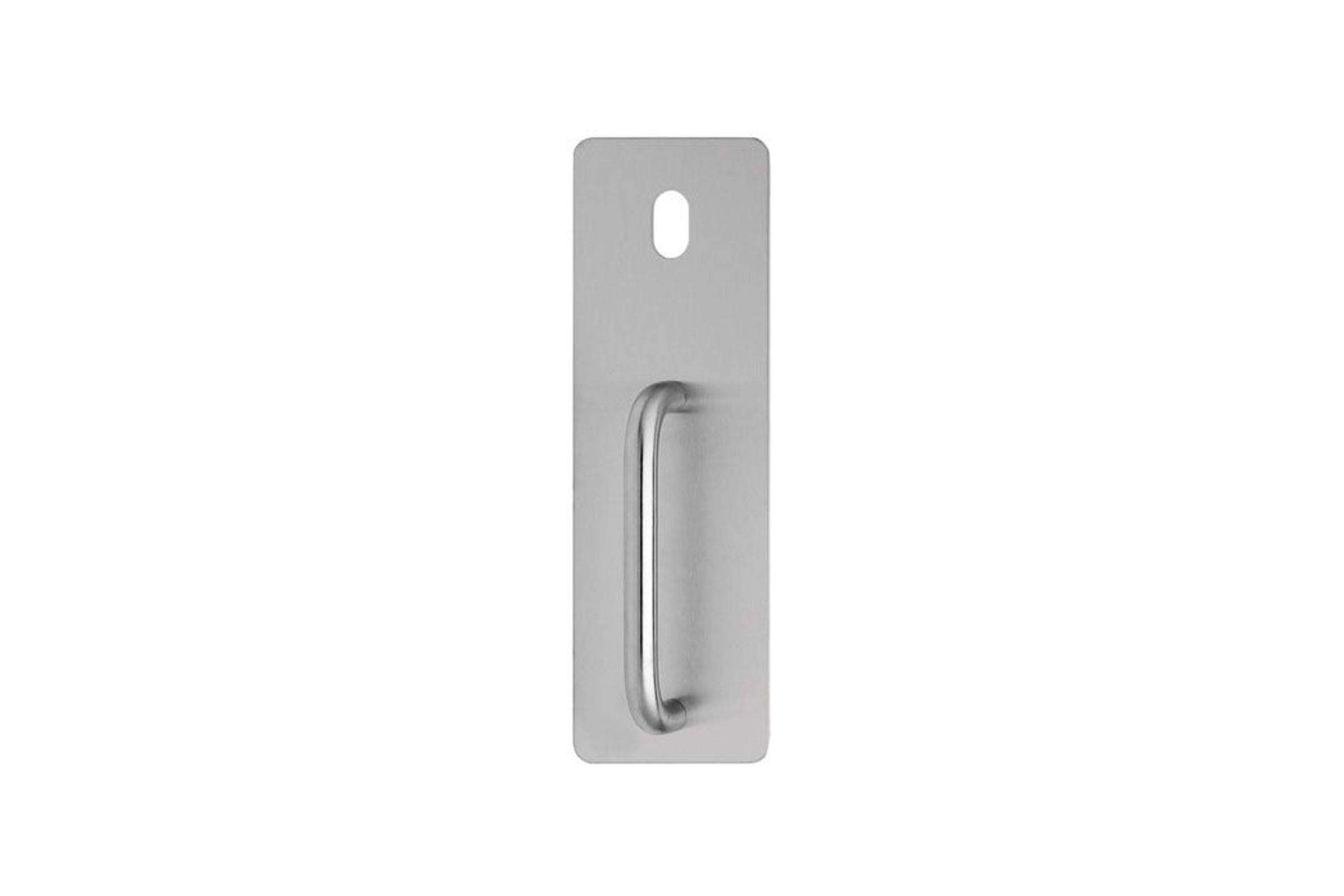

Lockwood 214/215 Series 10mm Radius Corner Push

The 214 Series Door Furniture is 300 x 100 x 2mm thick stainless steel or brass plates with 10mm radius corners.

Concealed fixed plates have studs with internal threads located in each corner, visible plates have corresponding countersunk holes and are fixed back to back through the door.

Application
Designed for use with 3570 Series Mortice Locks.

Scope of use

Suitable for use in public, commercial, industrial and institutional buildings, where there is a need for high grade and durable fittings.

Specs / Details

Materials
Stainless steel or brass.

Door Thickness
35 to 45mm standard. For doors 45 to 55mm thick, specify long fixing screws SP2000-208.

Finishes

Standard

Satin Stainless Steel SS

Non Standard

Polished Stainless Steel PS
Powdercoat PC
Polished Brass PB

Dimensions
300 x 100 x 2mm.

Performance

Internal plate with P2 pull handle
Visible fixings (screws not included)
Push text outline
Non-handed
Fire rated up to 2 hours
Supplied in trade pack
