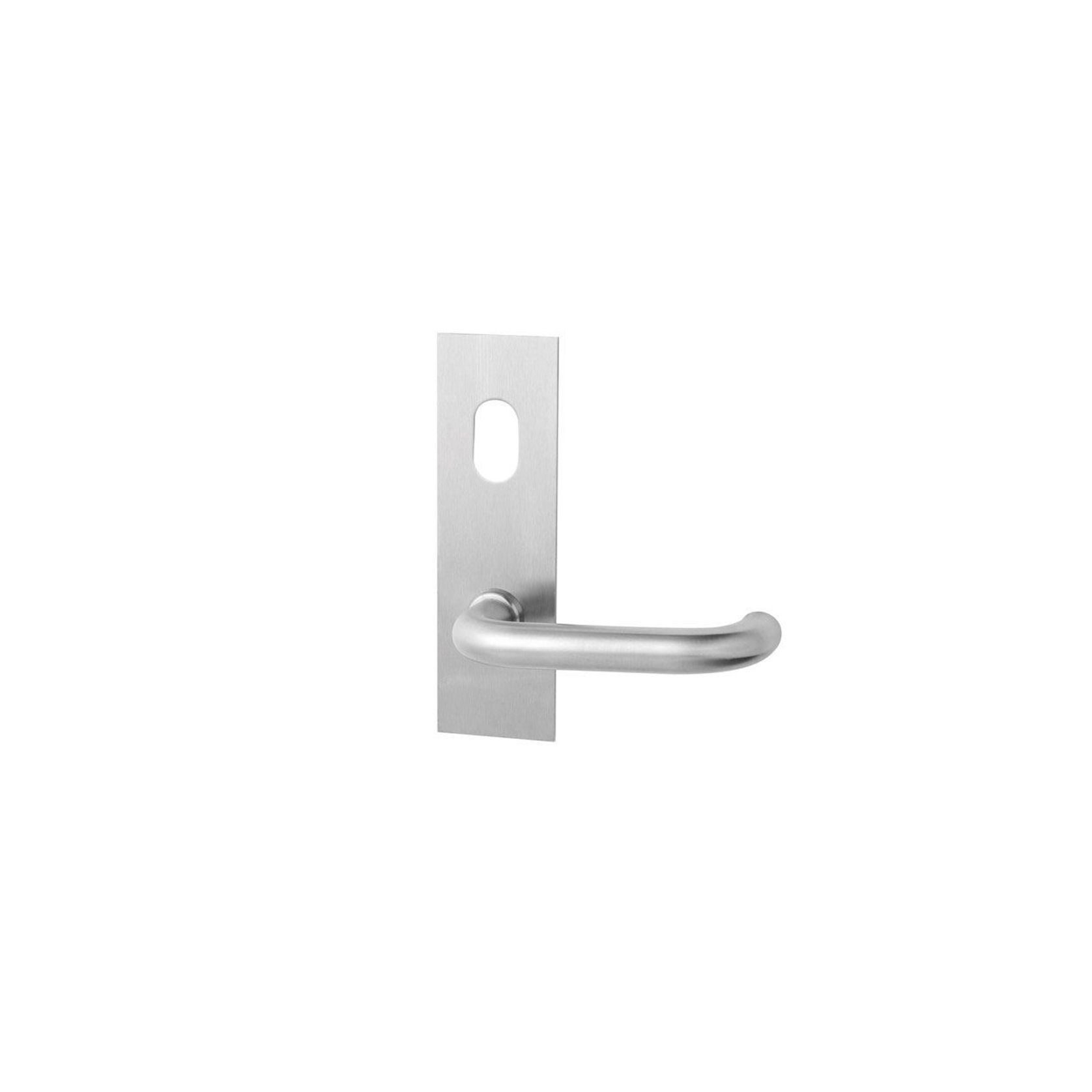

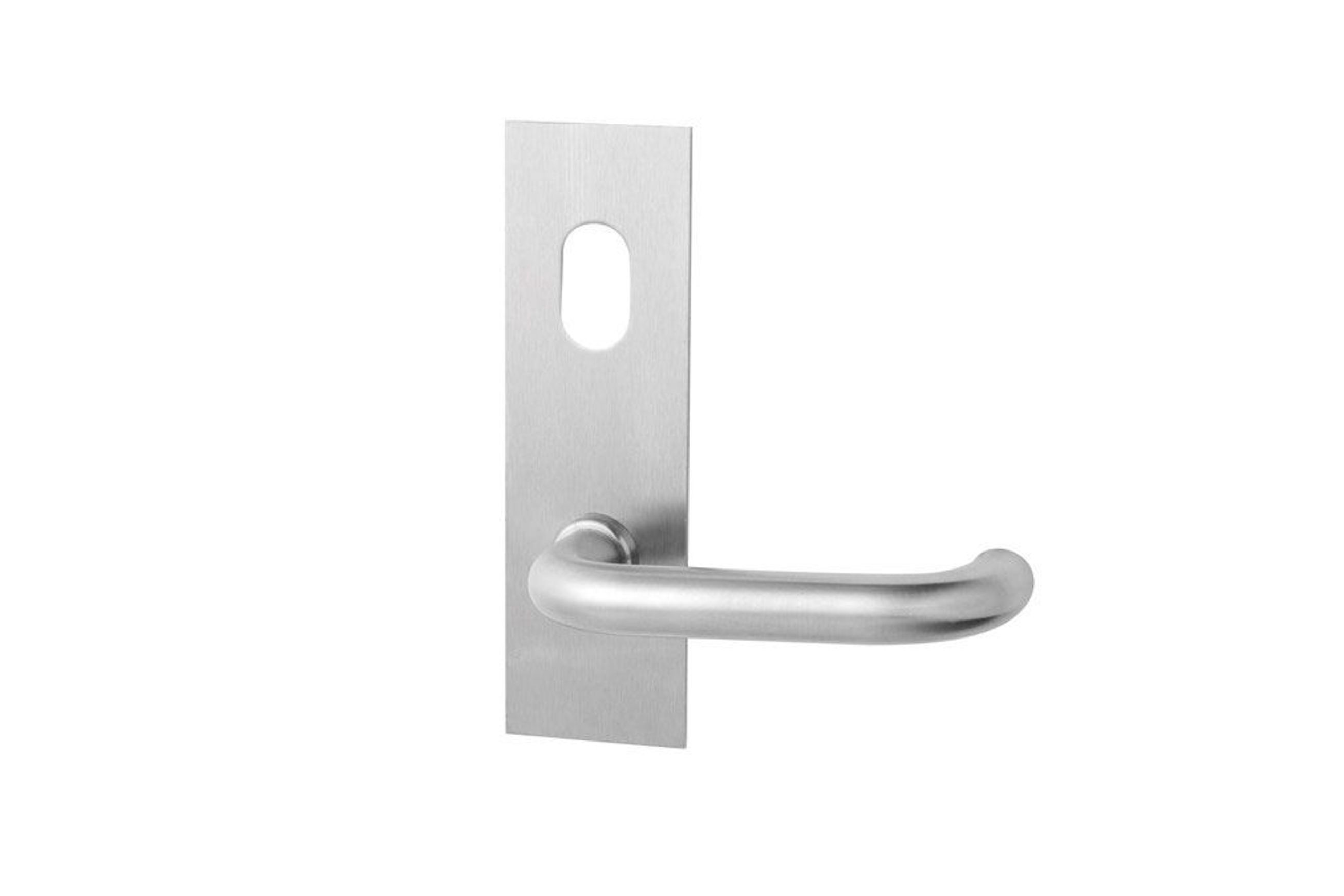

Lockwood 224 Series Artefact Rectangular Plates
by ASSA ABLOY
Auckland, New Zealand
- 658.6K profile views
- 60 saves

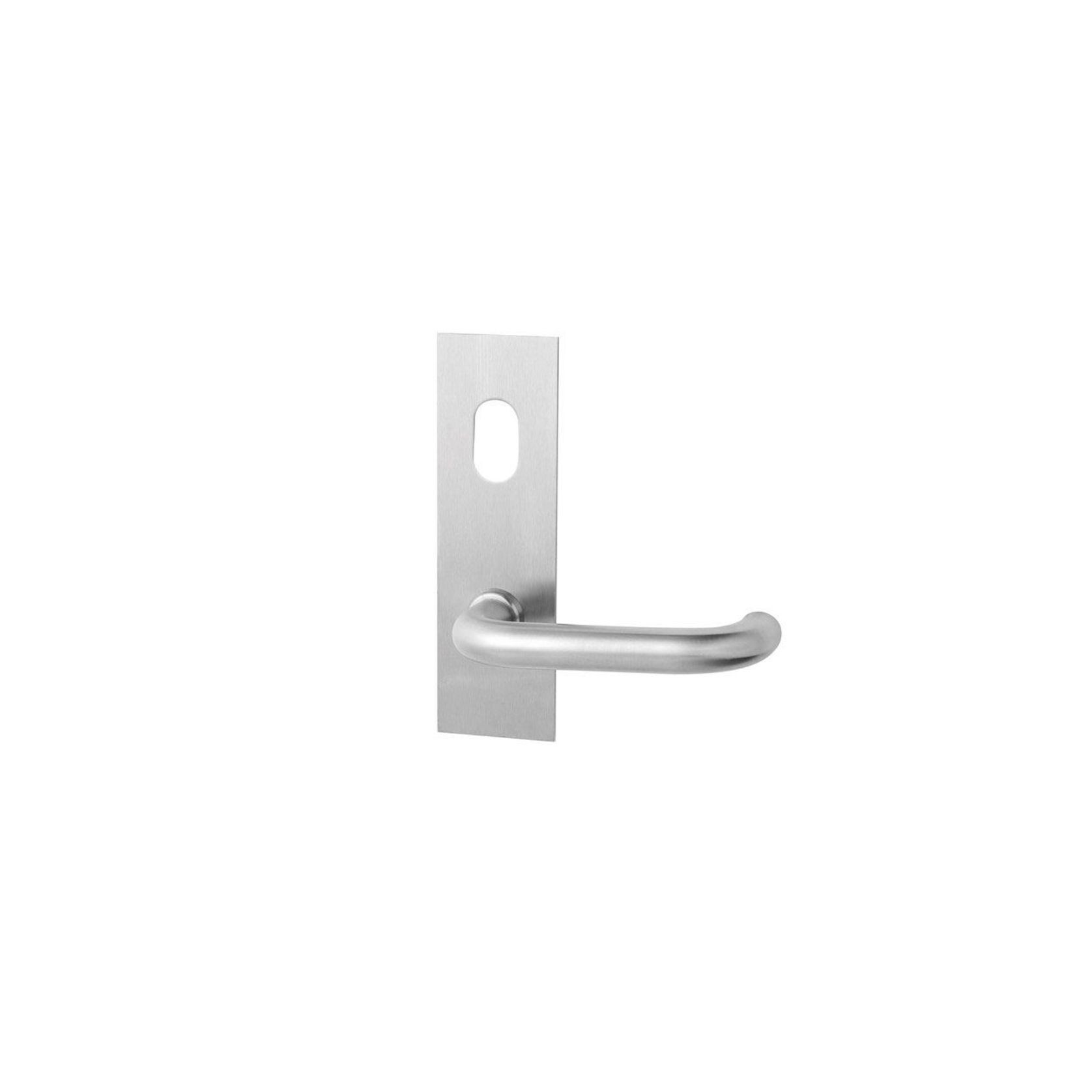

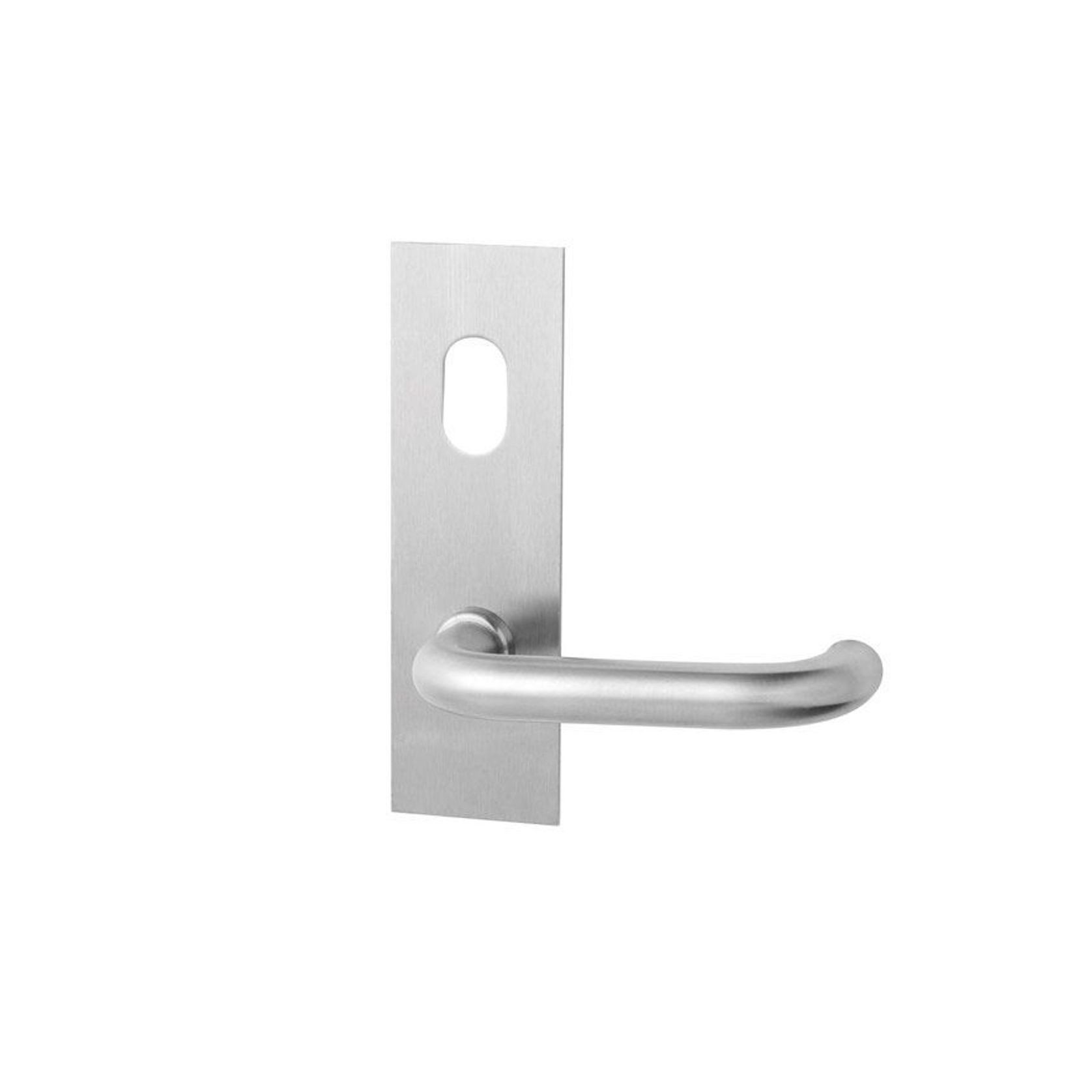

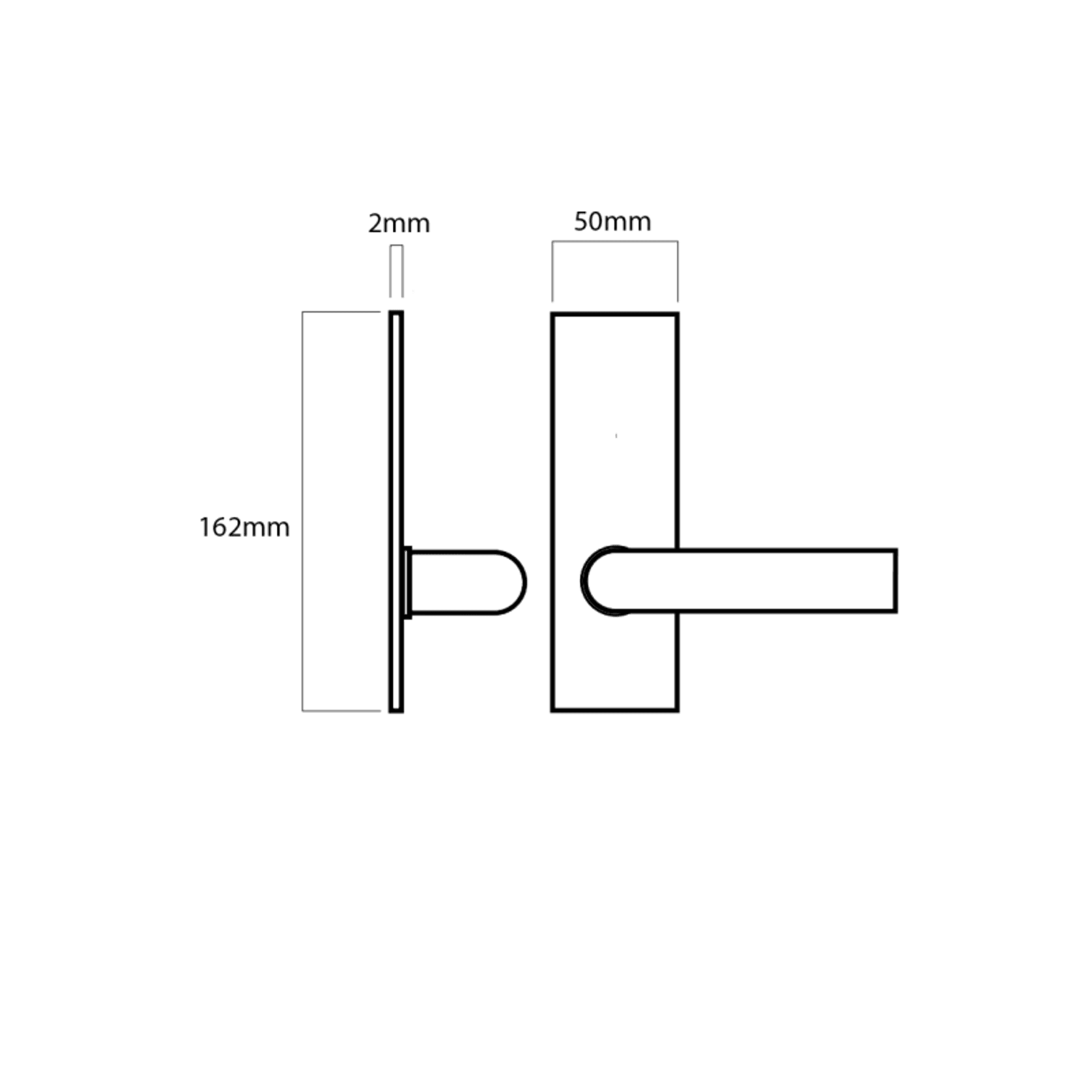

The 224 Series Door Furniture is 162mm long x 50mm wide with square ends. Concealed fixed plates have studs with internal threads located top and bottom, visible fixed plates have corresponding countersunk holes and are fixed back to back through the door.
Product Details
- Product
- Lockwood 224 Series Artefact Rectangular Plates
- Category
- Lever Handles
- Sold by
- ASSA ABLOY
- Designer
- ASSA ABLOY
- Brand
- ASSA ABLOY
Product Variants
- Colours
ASSA ABLOY is specified by
RTA StudioArchitects
Construkt ArchitectsArchitects
ASC ArchitectsArchitects
+MAP ArchitectsArchitects
DLA ArchitectsArchitects
SA StudioArchitects
Fat Parrot ArchitectureArchitects
Ignite ArchitectsArchitects
GHD DesignArchitects
Francis Gp ArchitectsArchitects
Paul Brown & Associates LimitedArchitects
Jigsaw ArchitectsArchitects
Evelyn McNamara ArchitectureArchitects
South ArchitectsArchitects
Architecture BureauArchitects
ContextArchitects
Gary Todd ArchitectureArchitects
Respond ArchitectsArchitects
Smith ArchitectsArchitects
Dalman ArchitectsArchitects
Chow:Hill ArchitectsArchitects
Designgroup Stapleton ElliottArchitects
YokeArchitects
Bossley ArchitectsArchitects
Nulook® Windows & Doors WanganuiGlaziers
Abron GroupDesign & Build
Nulook® Windows & Doors CanterburyGlaziers
VoxellArchitectural Designers
Foley GroupInterior Designers
Conder ConstructionConstruction
Clements Windows & DoorsGlaziers
Fisher® Windows and Doors OtagoGlaziers
Nebulite® Windows & Doors TaurangaGlaziers
Liddington Electrical SouthernElectricians
Walker ArchitectureArchitectural Designers
Golden Homes CanterburyDesign & Build
Vistalite® Ashburton Heartland AluminiumMetal Fabricators and Welders
White Wood HomesBuilders
Nulook® Windows & Doors New PlymouthGlaziers
Nulook™ Windows & Doors Kumeu
High Performance WindowsMetal Fabricators and Welders
The House CompanyBuilders
Nebulite® Windows & Doors SouthlandGlaziers
Whitestone Vistalite North OtagoJoinery Installers & Repairs
Altus® Window SystemsJoinery Installers & Repairs
Design BuildersBuilders
Fixation BuildersBuilders
David Reid HomesDesign & Build
New Zealand Green Building CouncilAssociations
JD HomesBuilders
Nebulite® Windows & Doors MastertonGlaziers
Landmark Homes GisborneBuilders
FocusplanInterior Designers
Lewis WindowsServices
Fisher® Windows and Doors MarlboroughGlaziers
Nebulite® Windows & Doors Garden CityGlaziers
Fairview WarkworthMetal Fabricators and Welders
Landmark Homes New ZealandBuilders
O'Neil + Shirley ArchitectureArchitectural Designers
Rylock® Windows & Doors Auckland SouthGlaziers

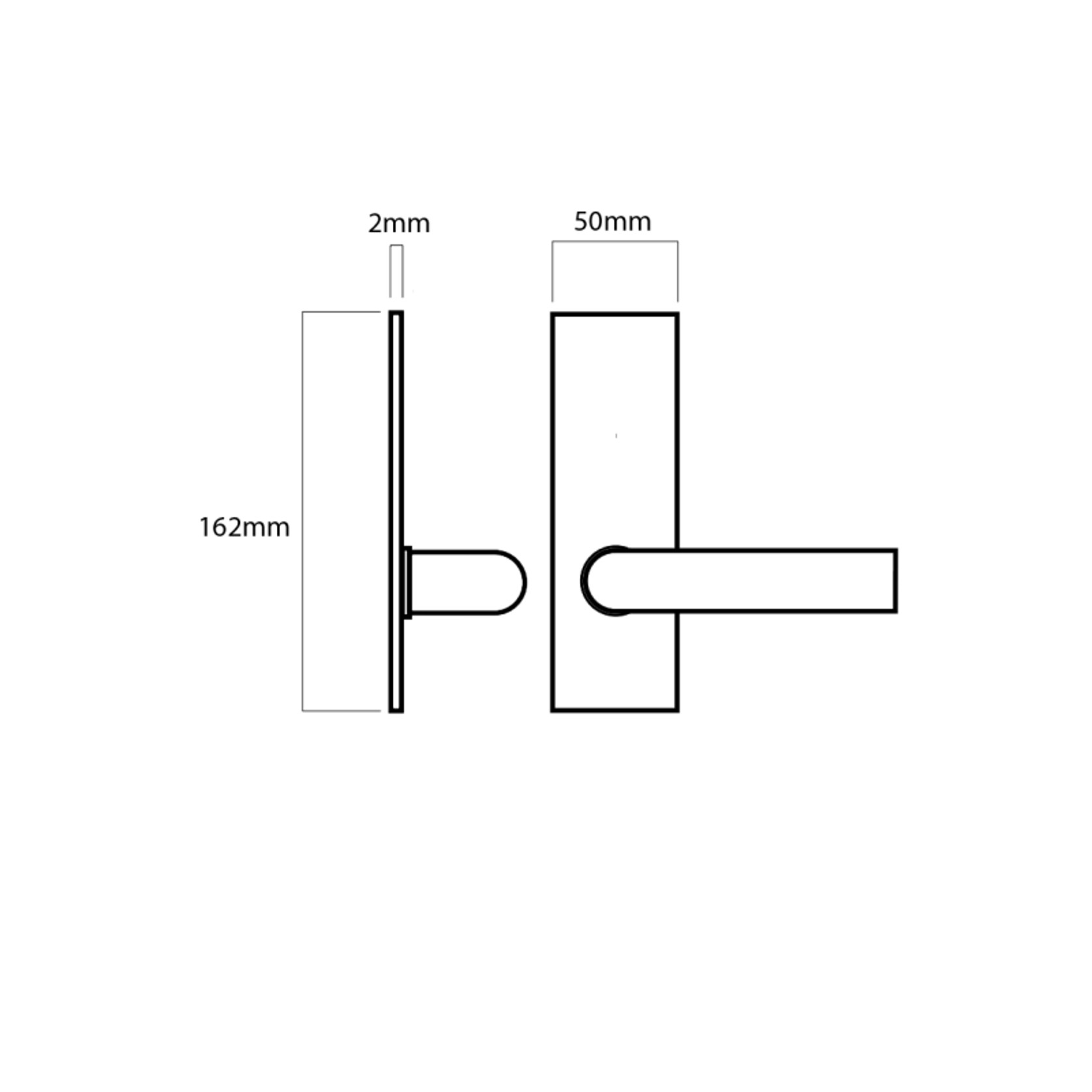

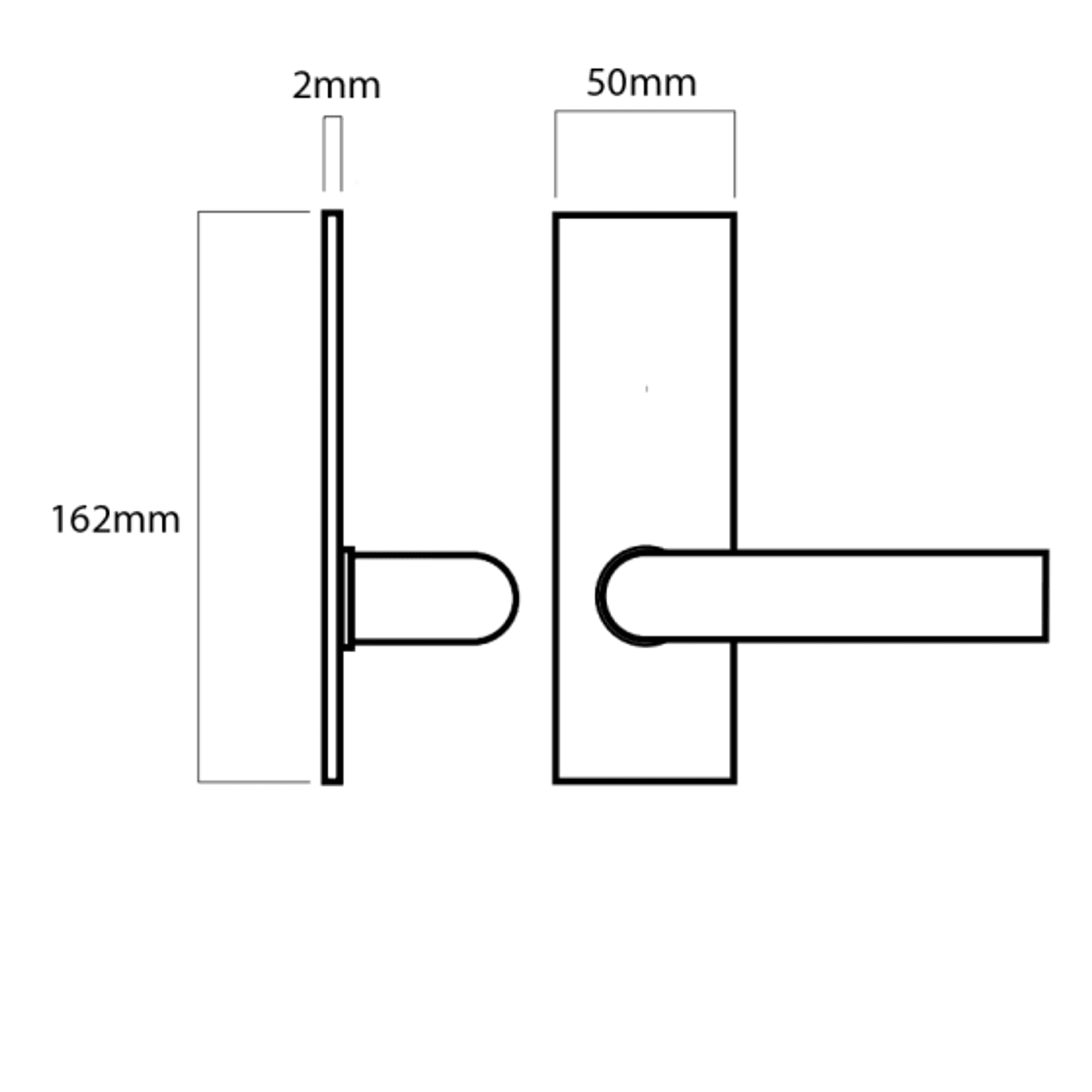

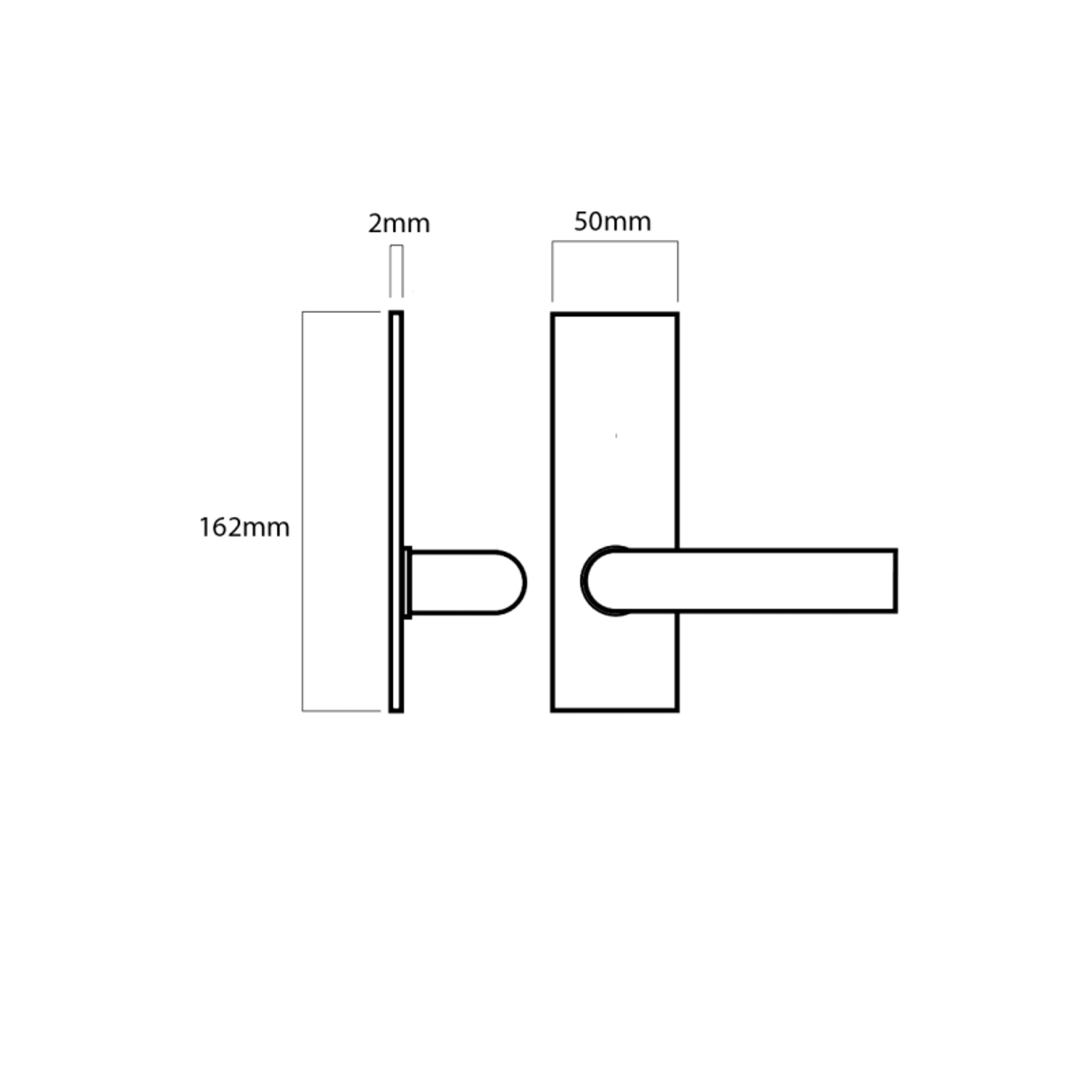

The 224 Series Door Furniture is 162mm long x 50mm wide with square ends.
Concealed fixed plates have studs with internal threads located top and bottom, visible fixed plates have corresponding countersunk holes and are fixed back to back through the door.
- Specs
Materials
Stainless Steel only.Door Thickness
35 to 45mm standard. For doors 45 to 55mm thick, specify long fixing screws SP2000-208.Standard Finish
Stainless Steel SS- Scope of use
The Lockwood Detention Series door furniture range was developed after extensive research with government representatives, architects, nurses and locksmiths experienced in correctional, juvenile justice and health departments.
Application
Designed for use with Lockwood 3770/3570 Series Mortice Locks.- Performance

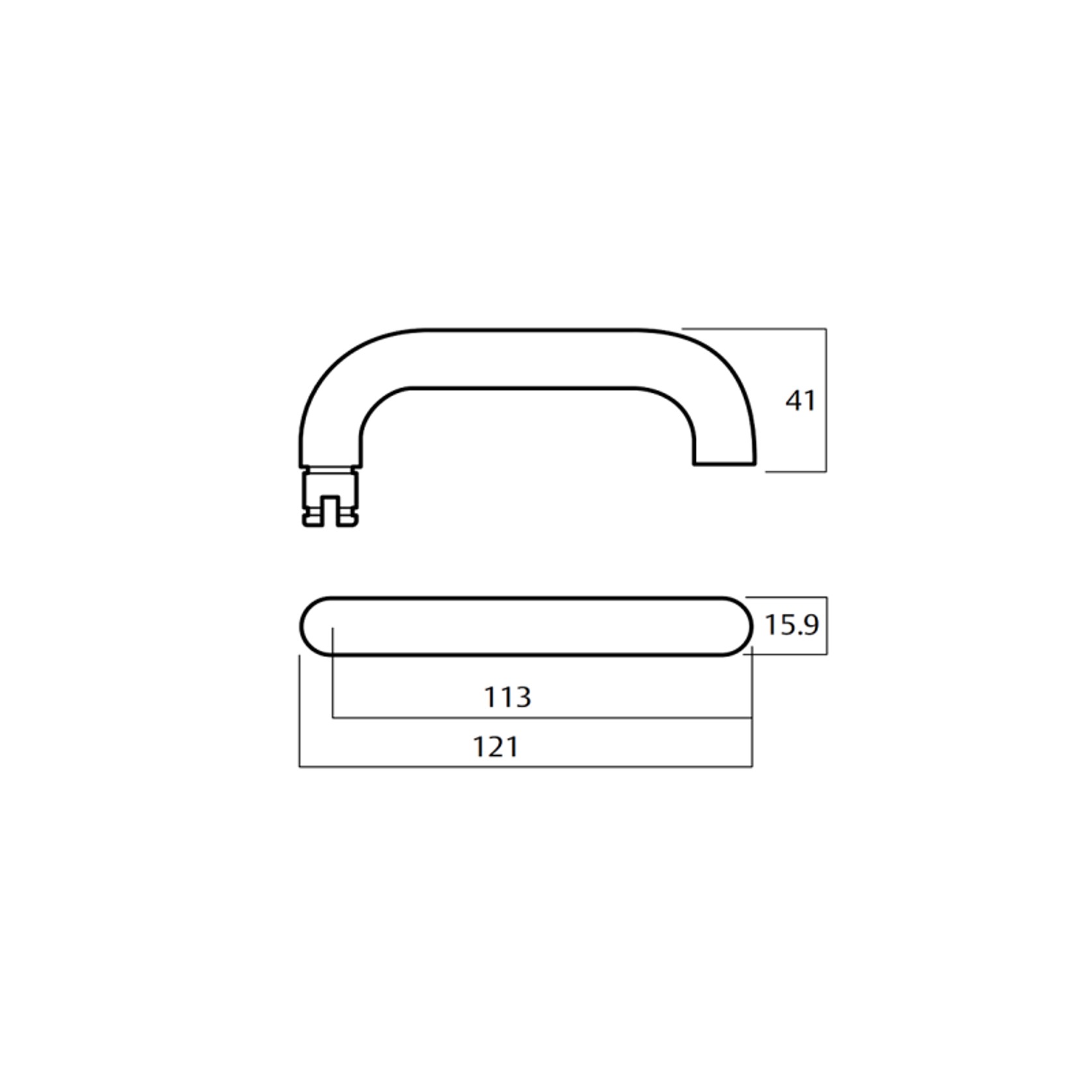

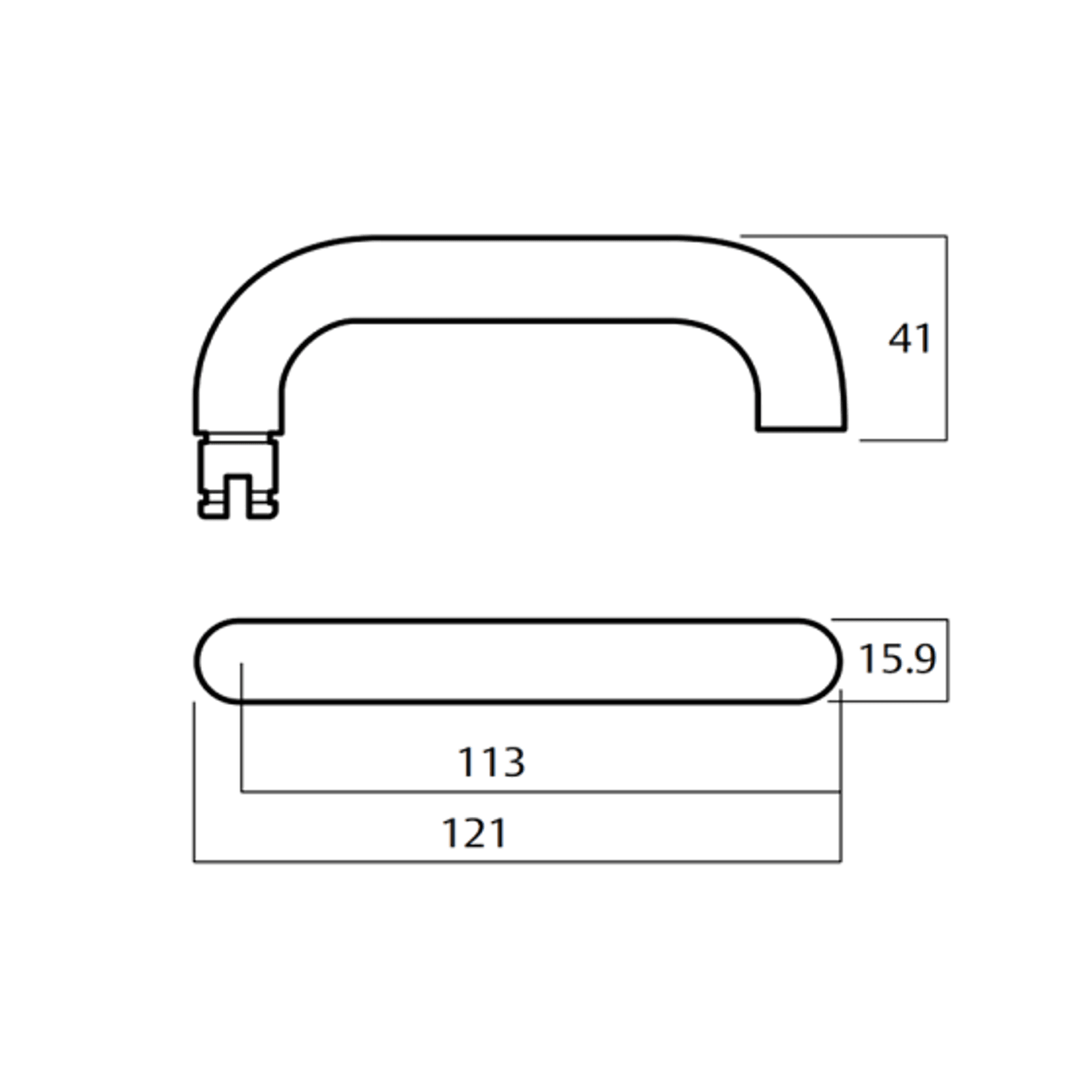

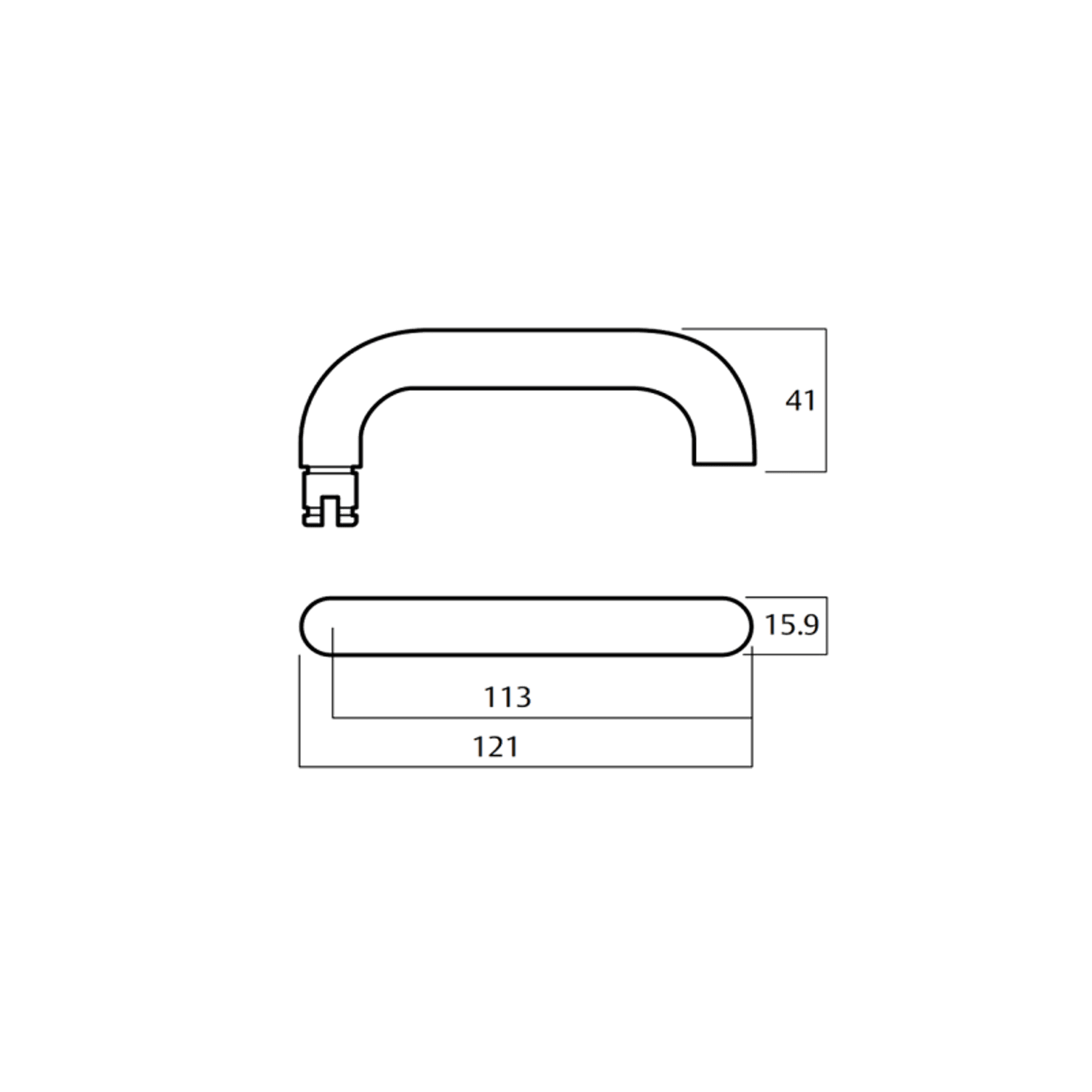

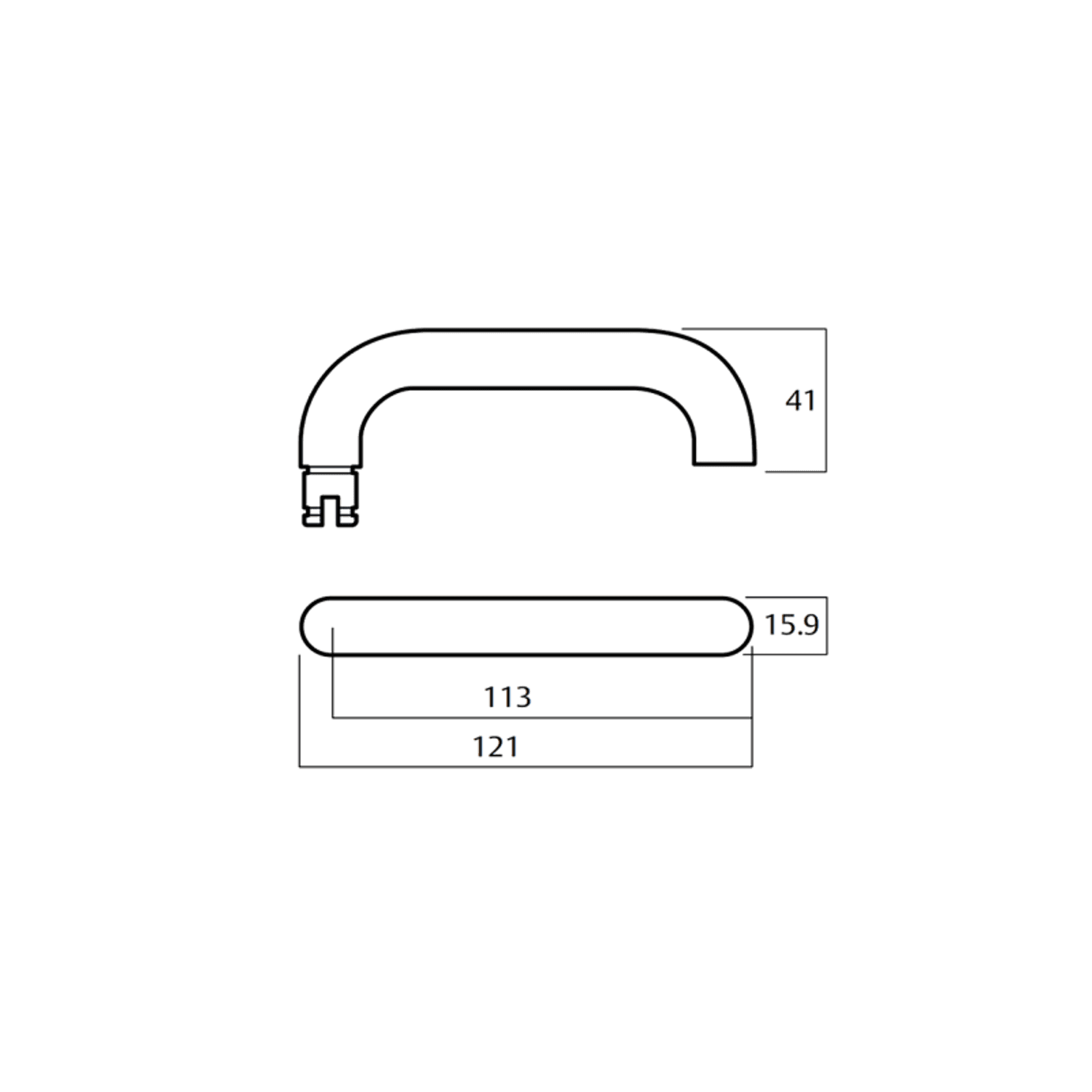

- Lockwood lever 70
- External plate
- Lever only
- Cylinder pitch 64mm
- Fixing centres 148mm
- Concealed fixings
- Non-handed
- Manufactured from stainless steel
- Suits door thickness from35mm to 45mm as standard.
- For doors 45 to 55mm thick, specify long fixing screws SP2000-208
- Supplied in trade pack
