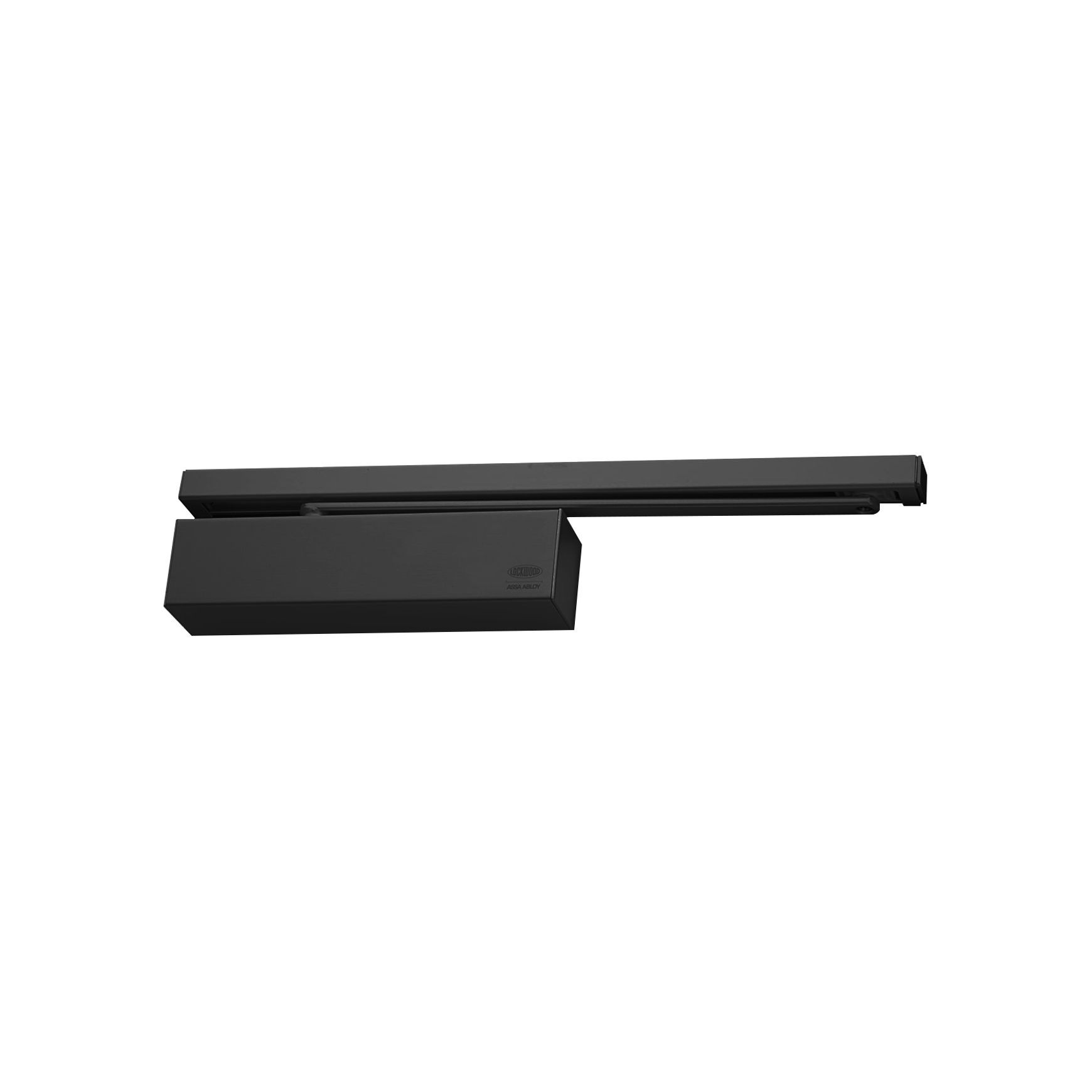

Lockwood EN1-6 Cam Action Door Closer Black 2616DABLK
Wetherill Park, Australia
- 998.7K profile views
- 53 saves

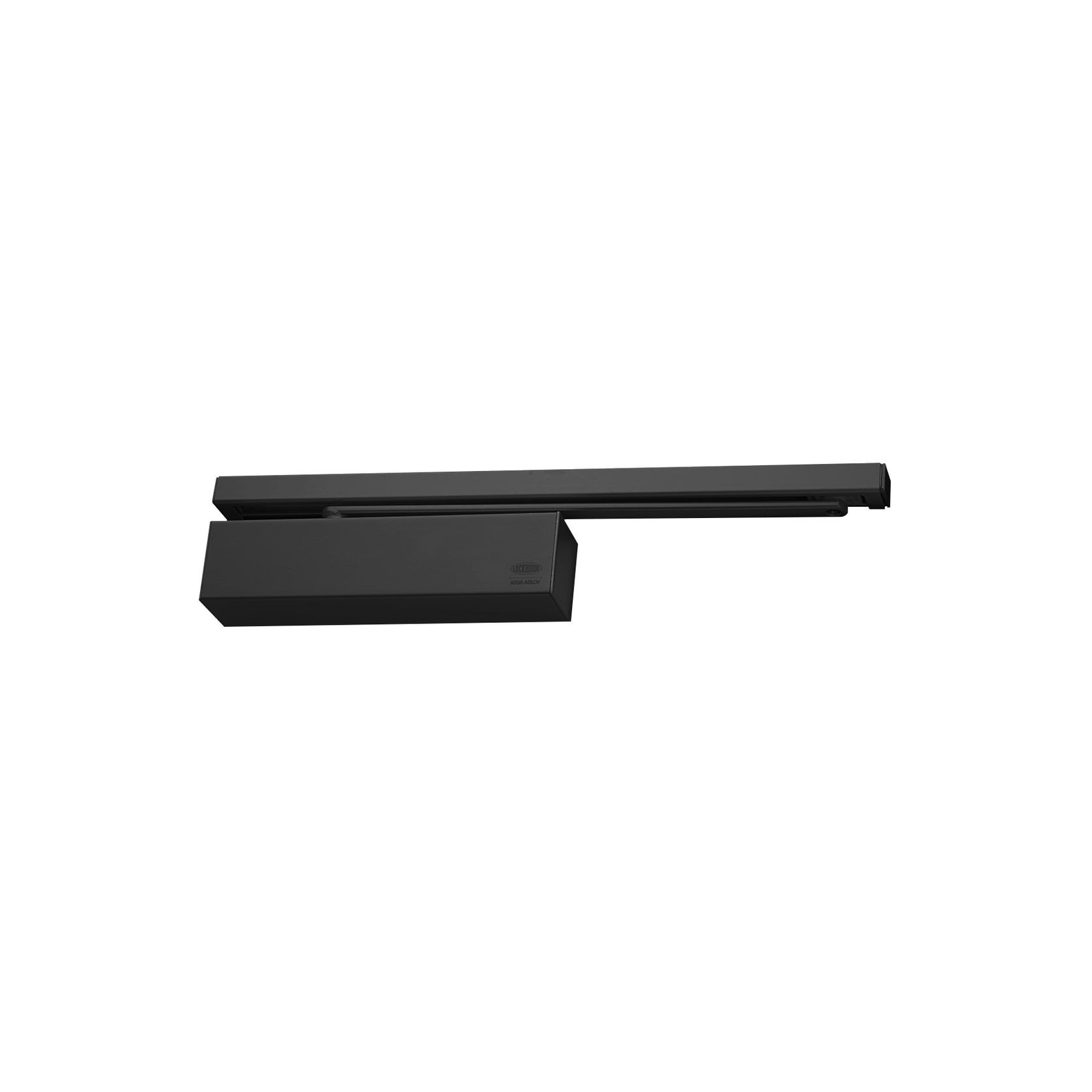

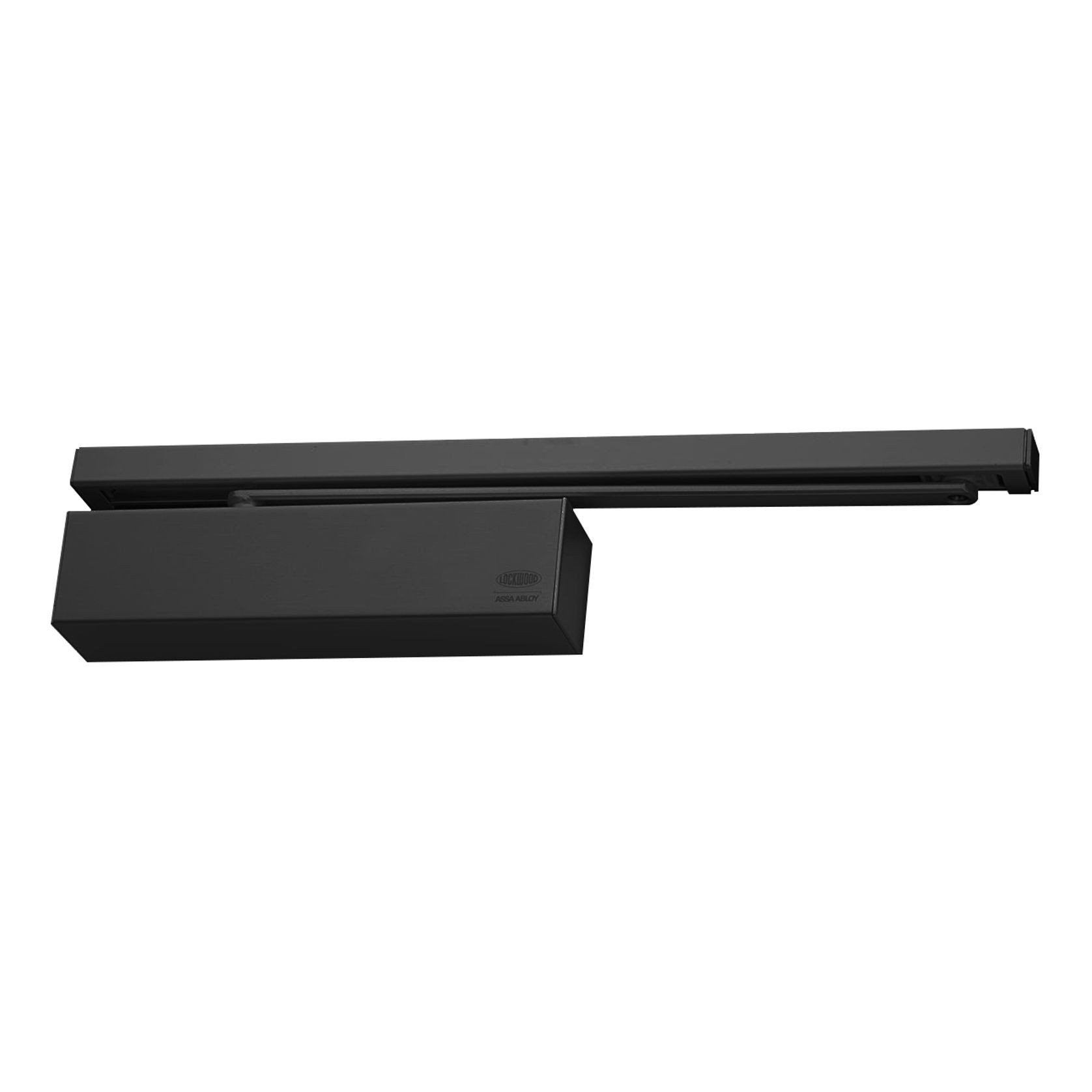

Lockwood Cam Action Door Closer
2616DABLK
Door Closer is a mechanical device that closes a door in a controlled manner, preventing it from slamming.
Features:
- Premium, high quality door closing device. When opening a door fitted with a Lockwood 2616 CAM Action Door Closer, the force required is less than that of a rack and pinion type door loser and continues to decrease through the opening arc
- Aesthetically appealing, narrow profile CAM Action Door Closer is suited for public and commercial applications where children, the elderly and the disabled are likely to be using the door
- Light to open, but its adjustable closing force is high enough for heavy duty applications. One model (2616) covers right hand and left hand applications, pull side/ push side applications and also features an adjustable arm height
Product Details
- Product
- Lockwood EN1-6 Cam Action Door Closer Black 2616DABLK
- Category
- Door Closers
- Sold by
- Keeler Hardware
- Range
- Lockwood
- Brand
- Lockwood
- Country of origin
- Australia
- Type of use
- Commercial and Residential
- Package type
- Fragile - handle with care
- Care and cleaning
- Easy maintenance
- Installation
- Tools required
- Assembly
- Minor assembly required
Product Variants
- Colours
- Hold Open
- Handing
- Back Check
Keeler Hardware is specified by
Ian Moore ArchitectsArchitects
Cadence & CoArchitects
TDDP ArchitectsArchitects
R ARCHITECTUREArchitects
JOST ArchitectsArchitects
Ha ArchitectureArchitects
Habitat Studio ArchitectsArchitects
Bones StudioArchitects
Dieppe DesignArchitects
J Mammone ArchitectureArchitects
De Moyer ArchitectureArchitects
Bryant Alsop ArchitectsArchitects
Ironbark ArchitectureArchitects
Invilla ArchitectureArchitects
Scale ArchitectureArchitects
Alexander &CO.Architects
Bijl ArchitectureArchitects
Hive ArchitectureArchitects
David Baillie ArchitectArchitects
Anderson ArchitectureArchitects
mcmahon and nerlichArchitects
Schemes & SpacesInterior Designers
Rise Architectural BuildersBuilders
STUDIO GAXAInterior Designers
X + OInterior DesignersDasch AssociatesInterior Designers
Susie Miles DesignInterior Designers
TrueBuild HomesDesign & Build
New SpacesBuilders
Ilm InteriorsJoiners
APC BuildBuilders
Kate NixonInterior Designers
Jumble & StackInterior Designers
Lockwood Cam Action Door Closer2616DABLK Door Closer is a mechanical device that closes a door in a controlled manner, preventing it from slamming.
Features:
- Premium, high quality door closing device. When opening a door fitted with a Lockwood 2616 CAM Action Door Closer, the force required is less than that of a rack and pinion type door loser and continues to decrease through the opening arc
- Aesthetically appealing, narrow profile CAM Action Door Closer is suited for public and commercial applications where children, the elderly and the disabled are likely to be using the door
- Light to open, but its adjustable closing force is high enough for heavy duty applications. One model (2616) covers right hand and left hand applications, pull side/ push side applications and also features an adjustable arm height
- Specs
Specifications:
- Power: EN adjustable 1 to 6
- Back Check: Adjustable
- Hold Open: Adjustable. Hold-open can be set at any angle up to 120 degree of opening
- Handing: Non-handed, Suitable for left or right hand doors
- Cover: Formed metal cover
- Materials: Cast aluminium body manufactured from high-performance silicon alloy
- Mechanism: CAM action
- Mounting: Pull side, push side and over-door mounting
- Valves: Two pressure relief valves are a standard feature to protect against abuse
- Delayed Action: Adjustable
- Closing Speed: Adjustable
- Latching Speed: Adjustable
- Finish: Black
- Scope of use
Door Closer Function - A hydraulic device that is used to automatically close a door after it has been opened. Door closers are commonly used as a fire prevention measure, typically installed on fire doors, as well as helping to prevent draughts.
- Compliance
Standards and Compliance:
- Fire Rated: Has been successfully tested up to four hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS1905.1:2005, Part: Fire Resistant Door sets.
- Note: Hold open option is not approved on any fire door.
- Disabled Access Australian Standard (AS1428.1) Design for access and mobility.
- Performance
Our belief that we manufacture the finest premium products available in today’s market place is backed by the Lockwood 25 Year Mechanical Warranty, ensuring that Lockwood continues to keep Australians safe by delivering security and peace of mind.
