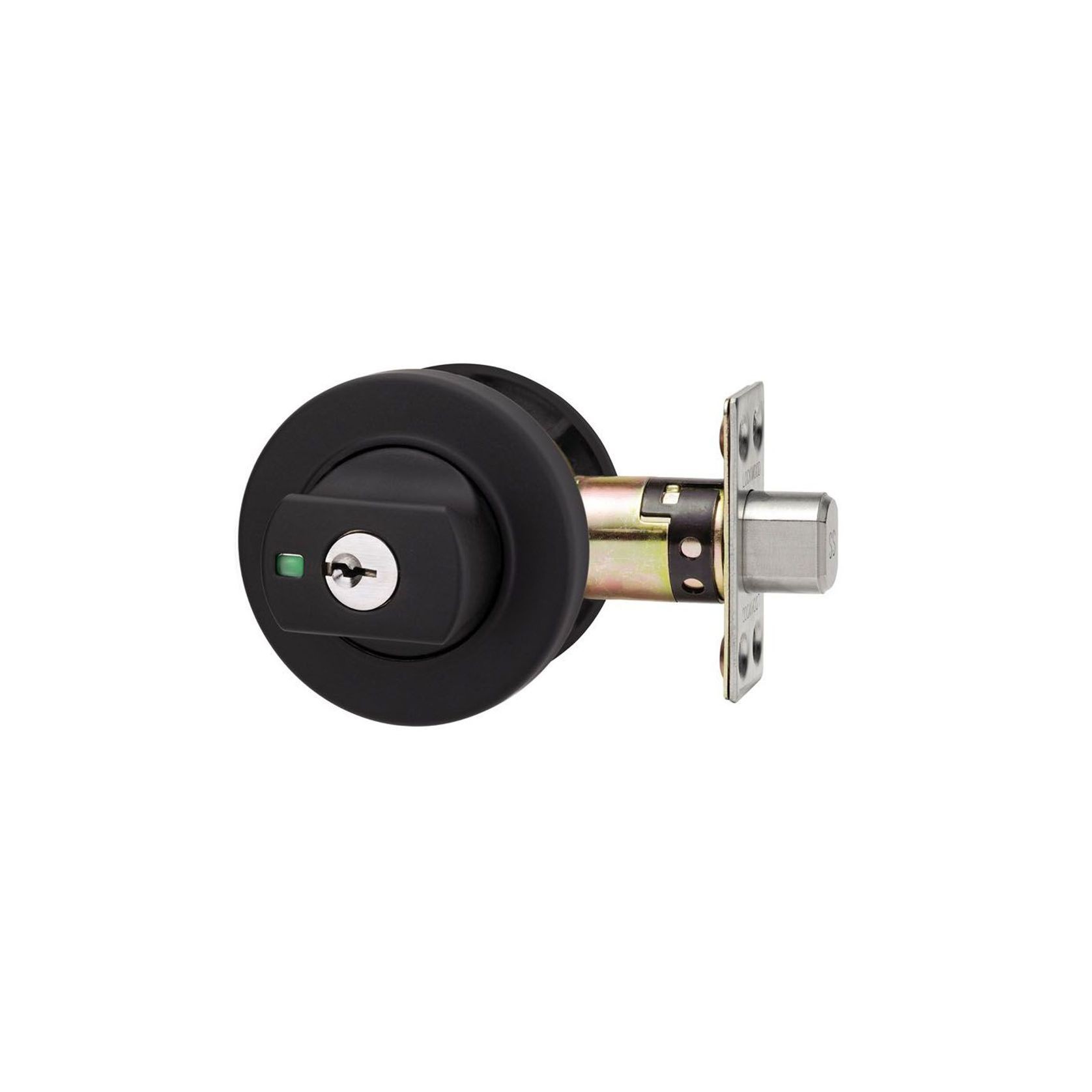

Lockwood Paradigm 005 Double Cylinder Deadbolt
Designed in Australia, the Paradigm® 005 Double Cylinder Deadbolt represents the pinnacle in deadbolt security products. Incorporating innovative safety features including Safety Release™, LockAlert® and DualSelect®, the Paradigm 005 Double Cylinder Deadbolt is ideal for residential and architectural applications.
Its contemporary styling can be combined with the entrance handle and lever sets in the Nero range to create an elegant look for any front door.
LockAlert
The 005 Deadbolt incorporates Lockwood's patented LockAlert status indicator that shows the Lockset mode at a glance. The lockset can operate in three modes:
Secure Mode
Locked from the inside and outside.
Safety Mode
Locked from the outside and free to exit from inside.
Passage Mode
Free to enter from outside and free to exit from inside.
DualSelect®
Turn the key for safety mode.Turn the key further to select secure mode.
SafetyRelease™
Automatically unlocks the internal knob upon entry minimising the risk of being locked in.
Anti-Corrosion
Successfully tested in accordance with AS2332.3.1:2001 neutral salt spray test.
Kinetic Defence®
Bump and pick resistant.
Counterbalance Bolt
Proportionally distributes the load between the door and door frame.
Retrofitable
Replace your existing Deadbolt.
Fits 54mm hole.
60-70mm adjustable backset.

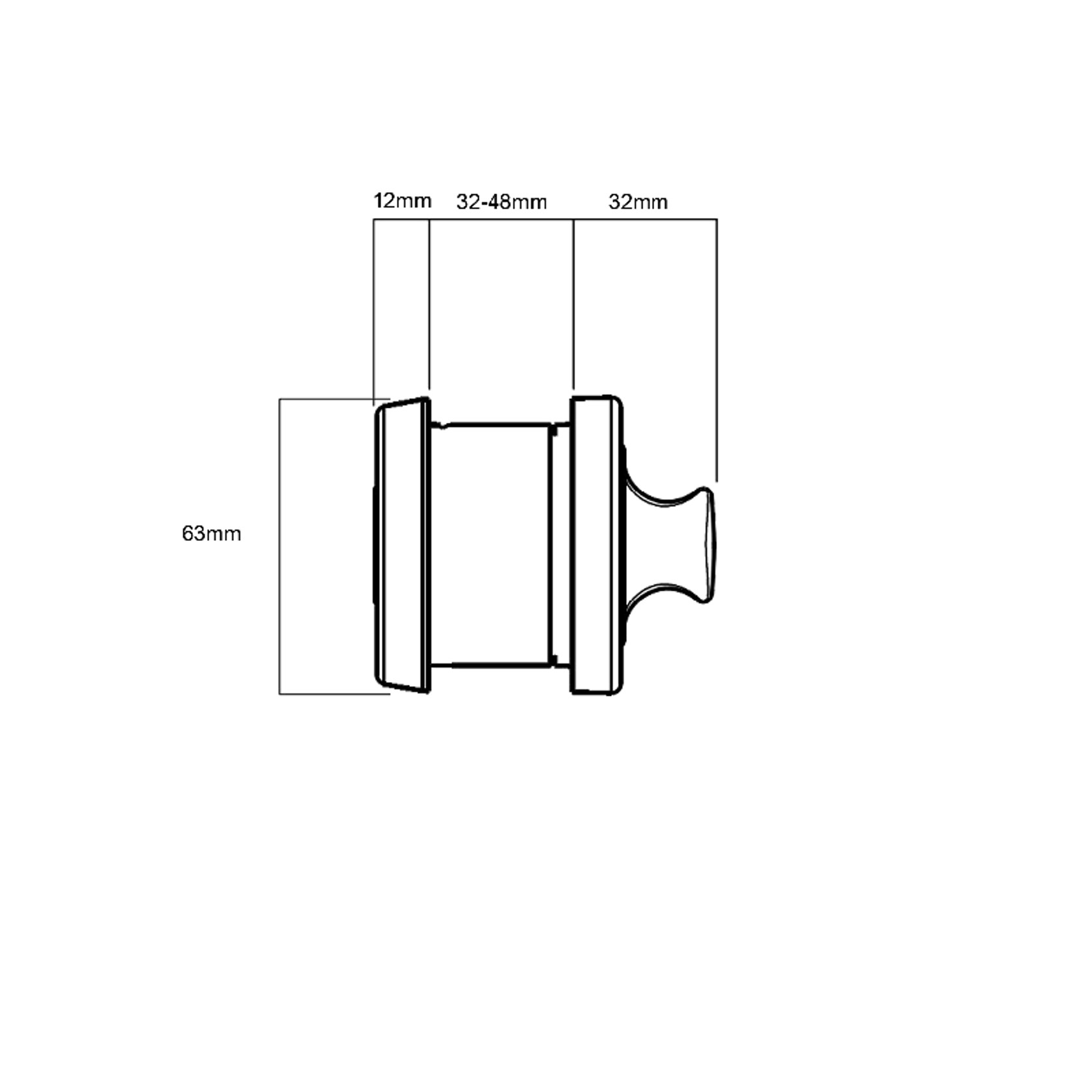

32-48mm door thickness.
2 Keys Included
Can be keyed alike to other Lockwood door locks.
- CategoryLatches and Locks, Internal Doors, Door Closers
- RangeLockwood - Commercial
- BrandASSA ABLOY
- DesignerASSA ABLOY
Incorporating innovative safety features including Safety Release™, LockAlert® and DualSelect®, the Paradigm 005 Double Cylinder Deadbolt is ideal for residential and architectural applications.
Backset 60-70mm adjustable
Materials High purity zinc alloy
Door Thickness 32 to 48mm
Finishes Matt Black
Bolt High security cut resistant stainless steel bolt
Strike Box strike with concealed crossgrain door frame strengthening screw
Cylinder
- Internal and External
- 5 pin tumbler mechanism
- Brass cylinder and barrel
Standards and Compliance
- Security - Australian Lock Standard AS4145.2-2008
- Durability - Australian Lock Standard AS4145.2-2008
- Corrosion - Australian Lock Standard AS4145.2-2008
Keying
Standard Keying
- Supplied individually keyed with two keys per lock
- 78,000 key combinations
- Key blank KB2015P
- AS 4145.2-2008 K5
Restricted Special Keying
Lockwood locks can be keyed to a number of controlled and/or specially keyed systems.
These range from legally protected keys to protect against unauthorised duplication, which can also include specially designed key systems such as master key systems, which allow for different levels of mechanical access control.
- Multi-mode slimline deadbolt providing safety, security and convenience
- SafetyRelease™ automatically unlocks internal turn knob upon key entry from outside
- Conforms to the security and durability requirements of Australian Standard AS4145.2-2008 | SL8D8C6K5
- High security cut resistant stainless steel bolt
- Counterbalance bolt distributes load between door and door frame
- Simple to install, retrofits existing deadbolt door preparations

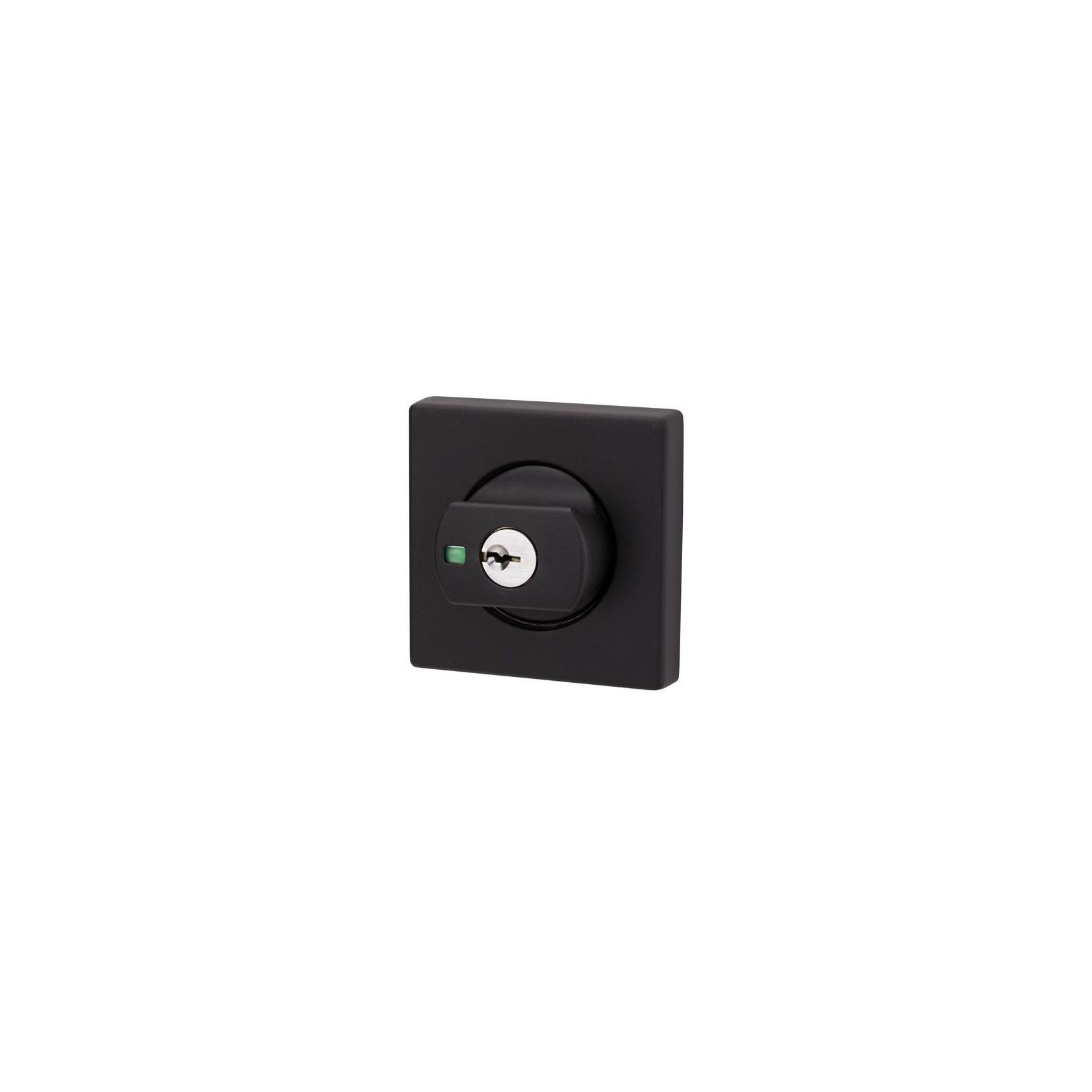

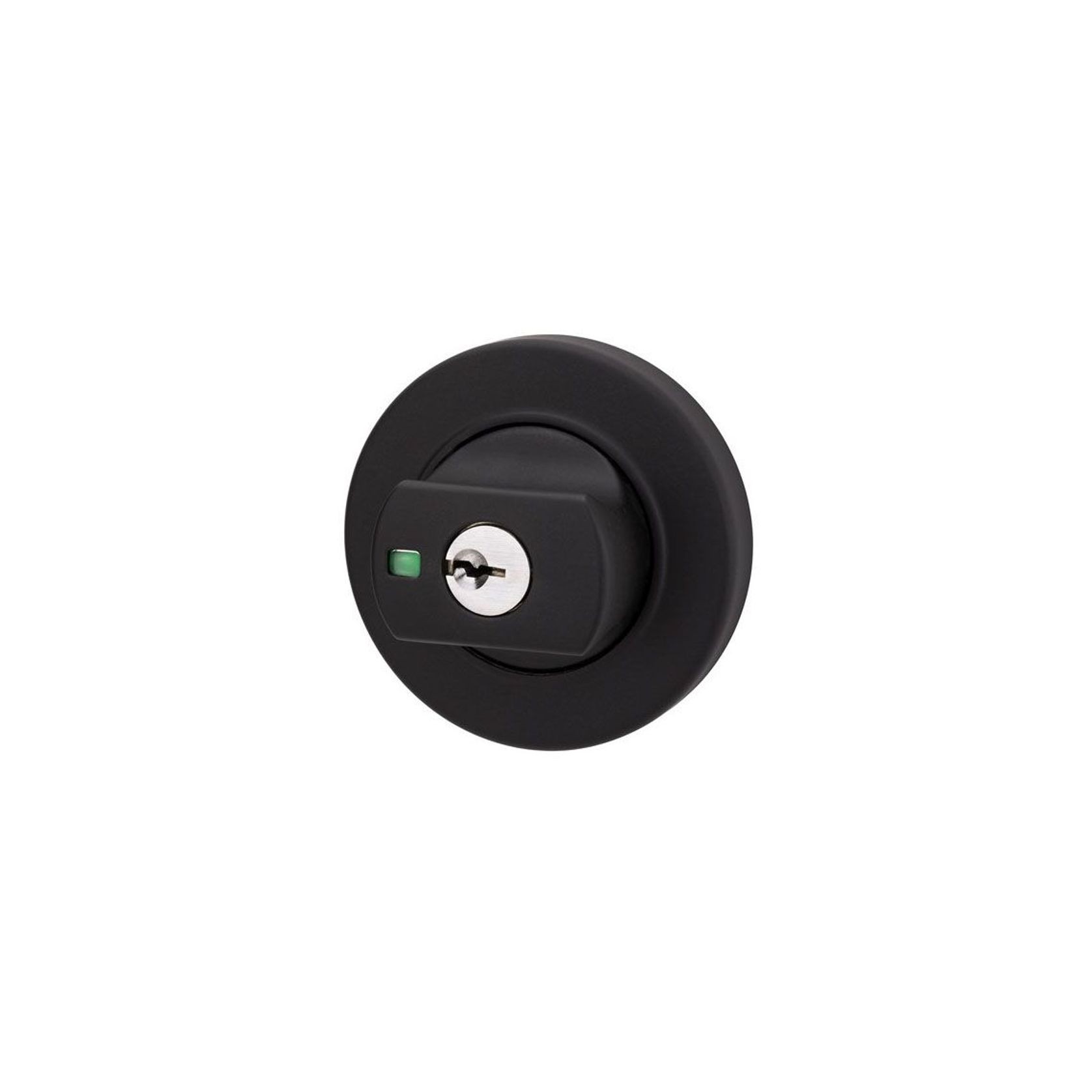

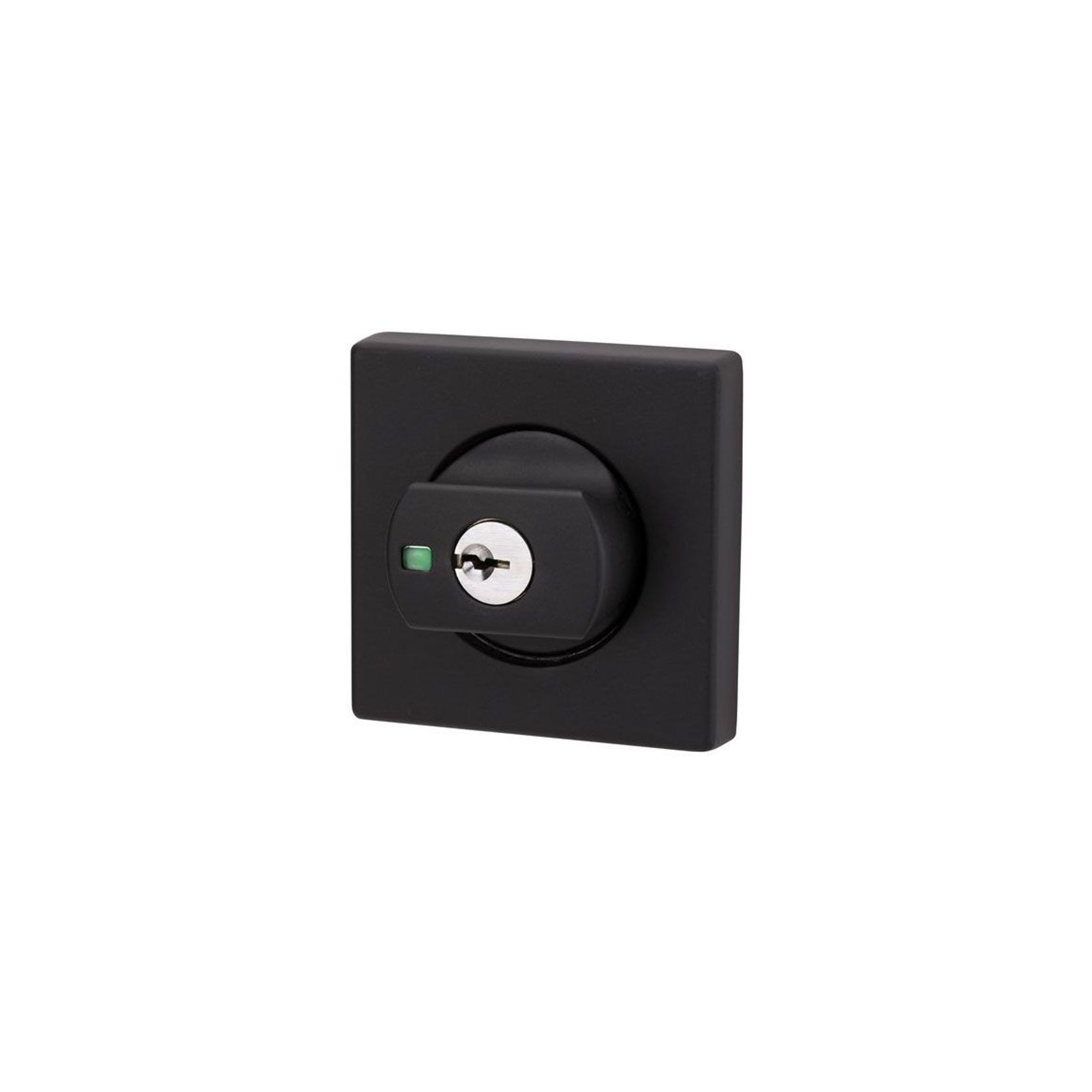

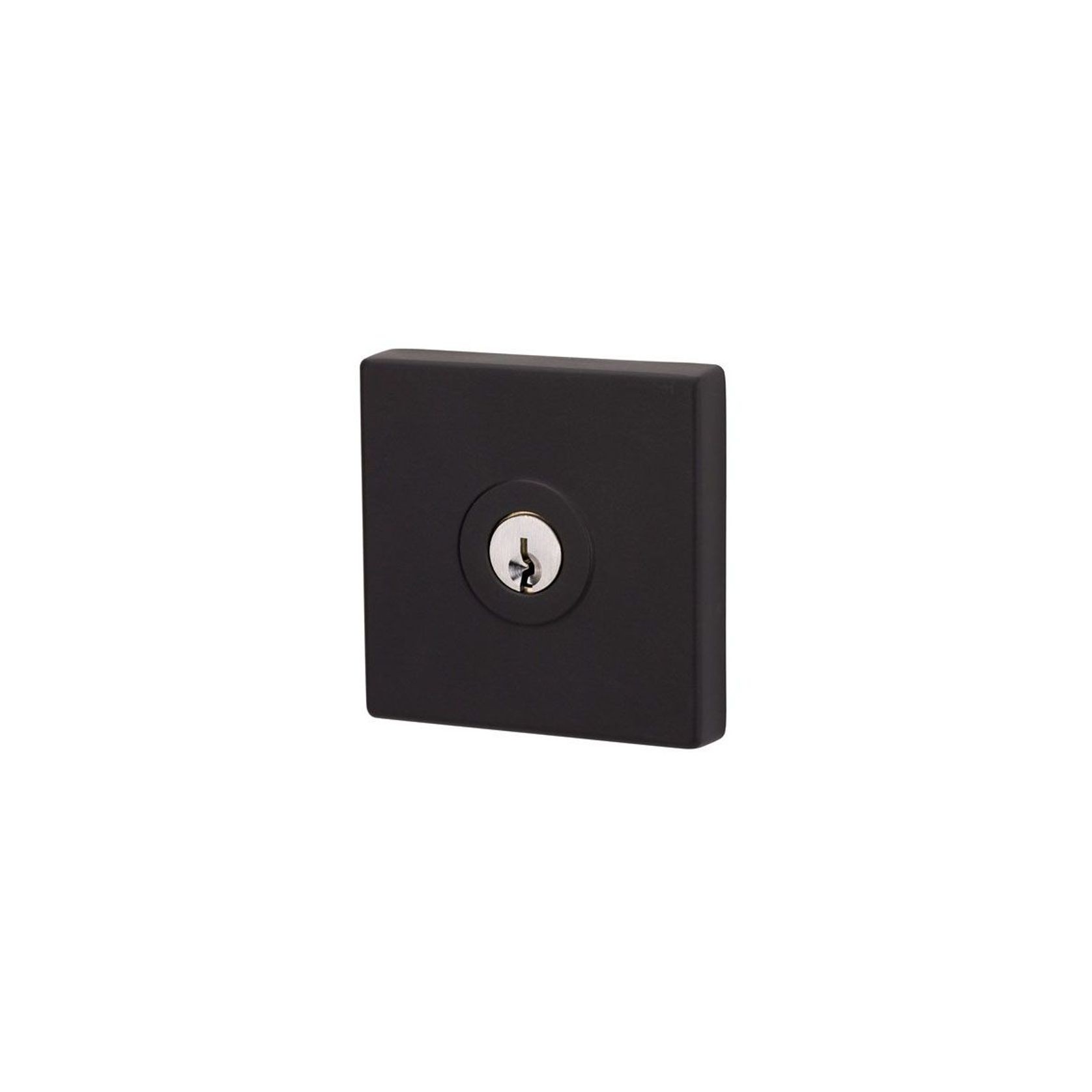

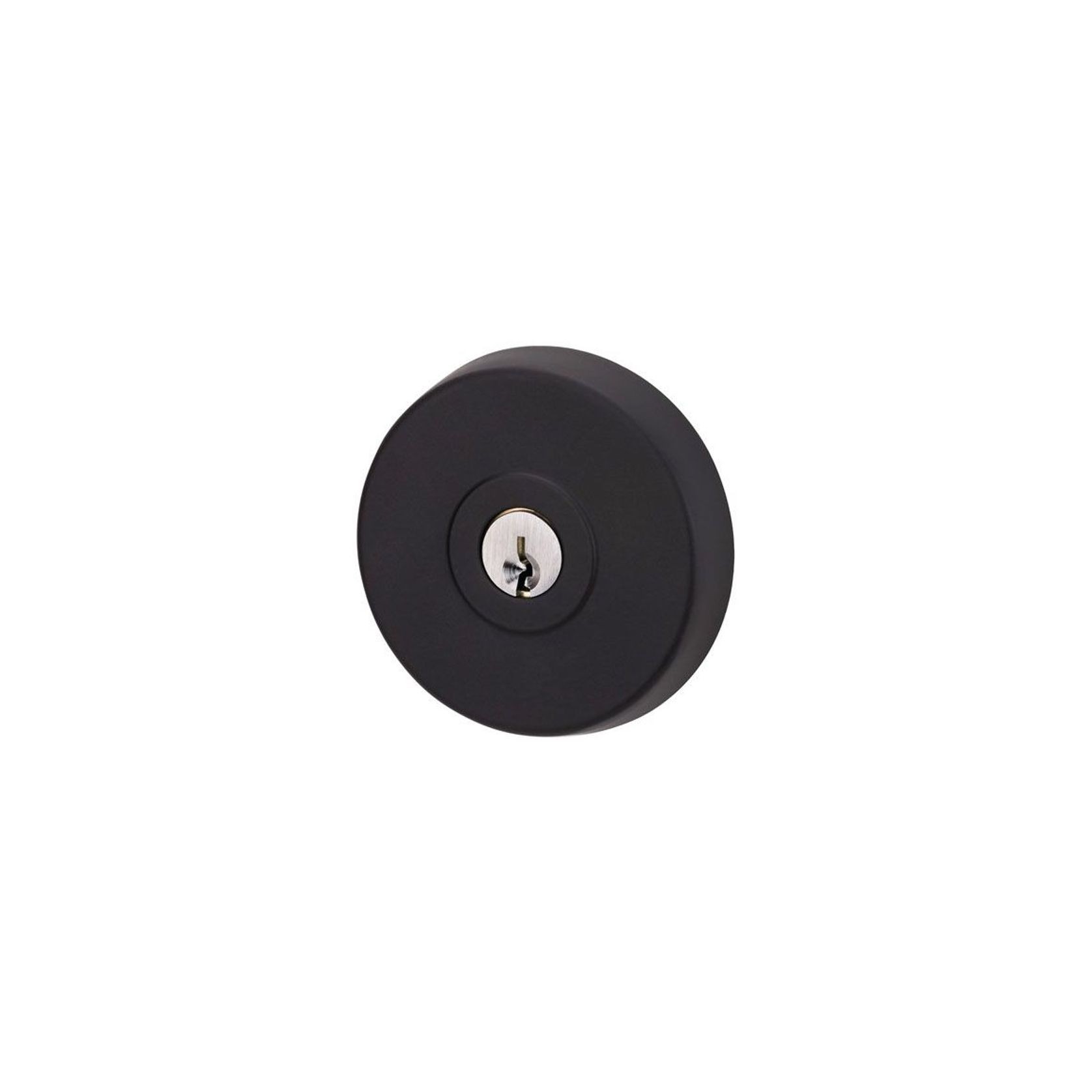

- Available in round or square designs
