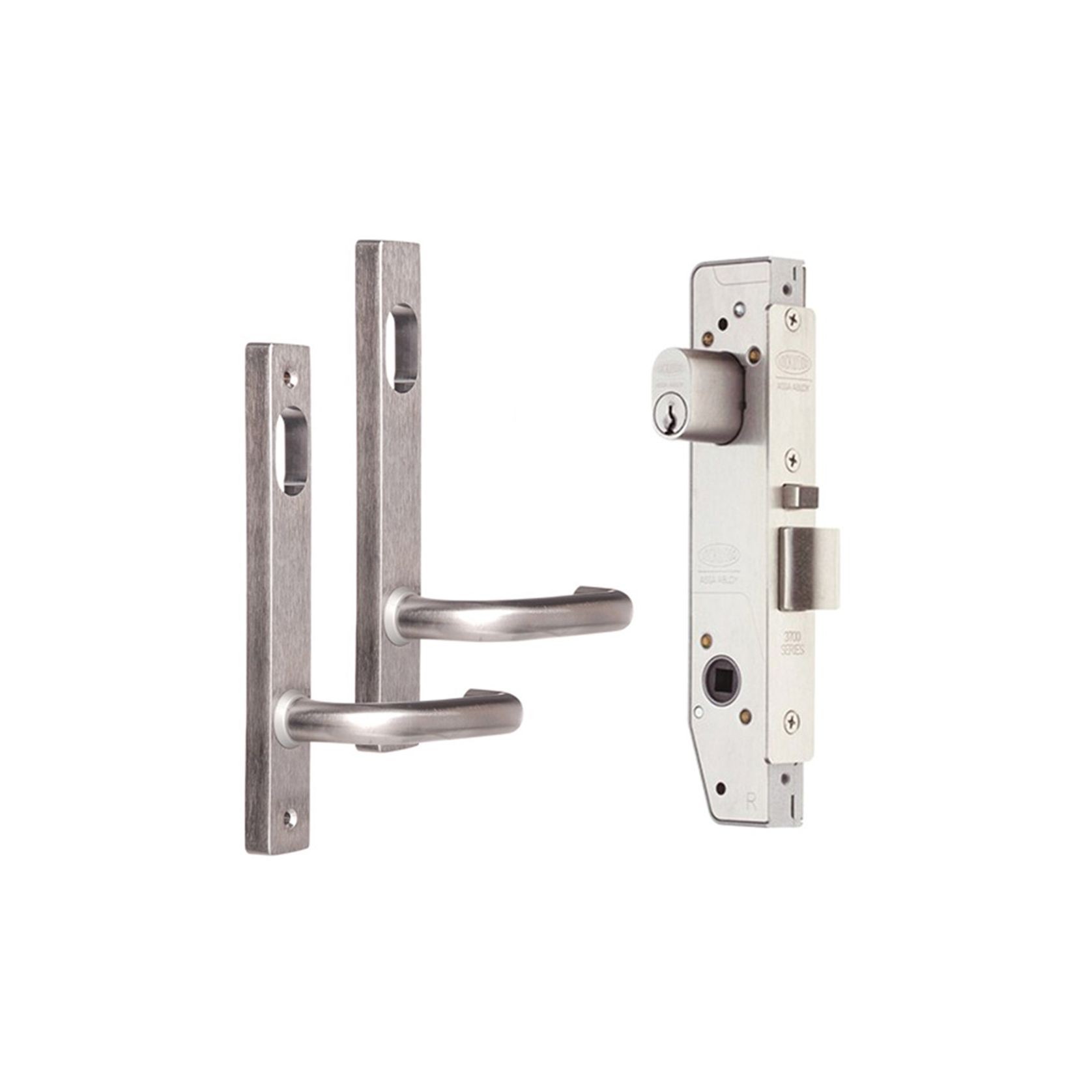

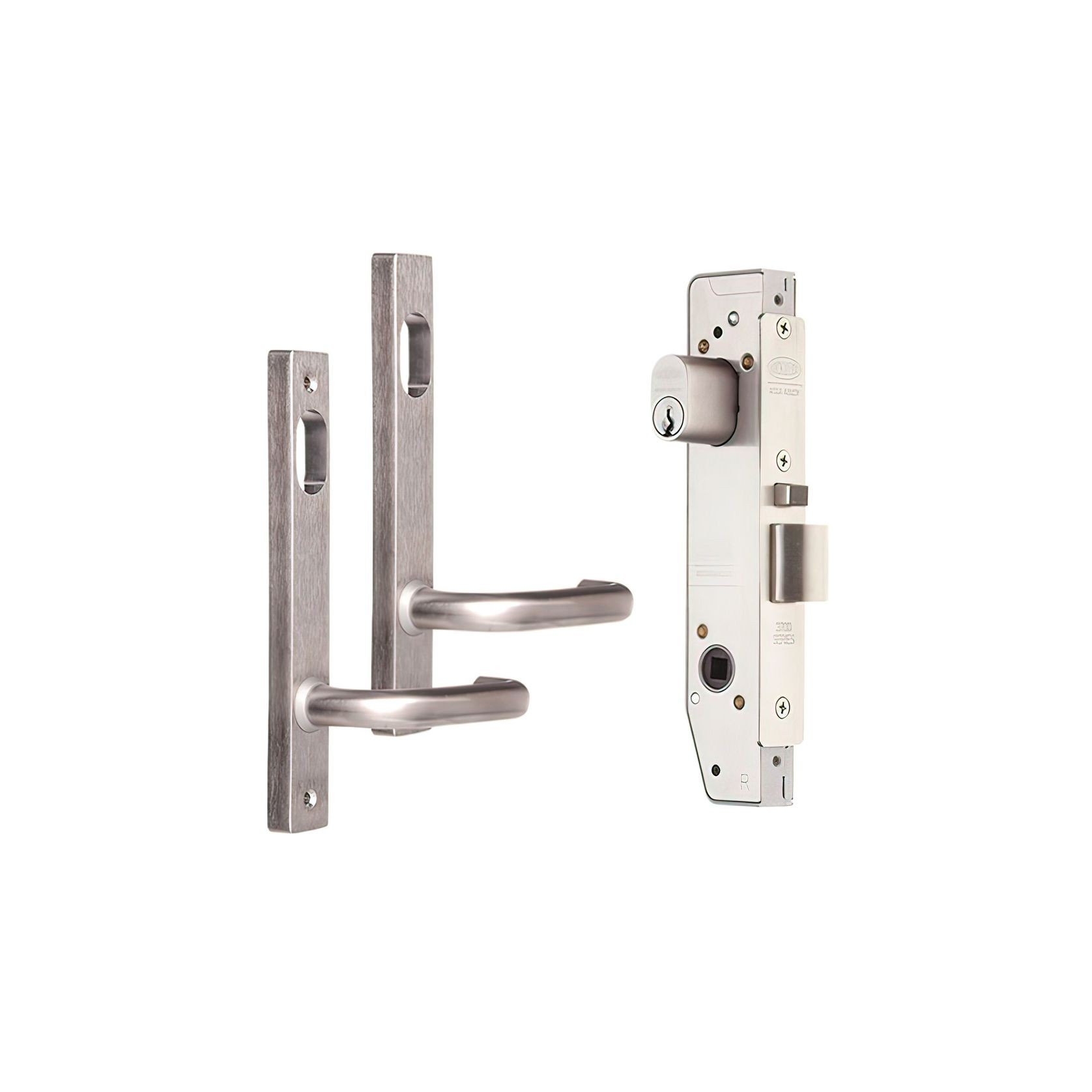

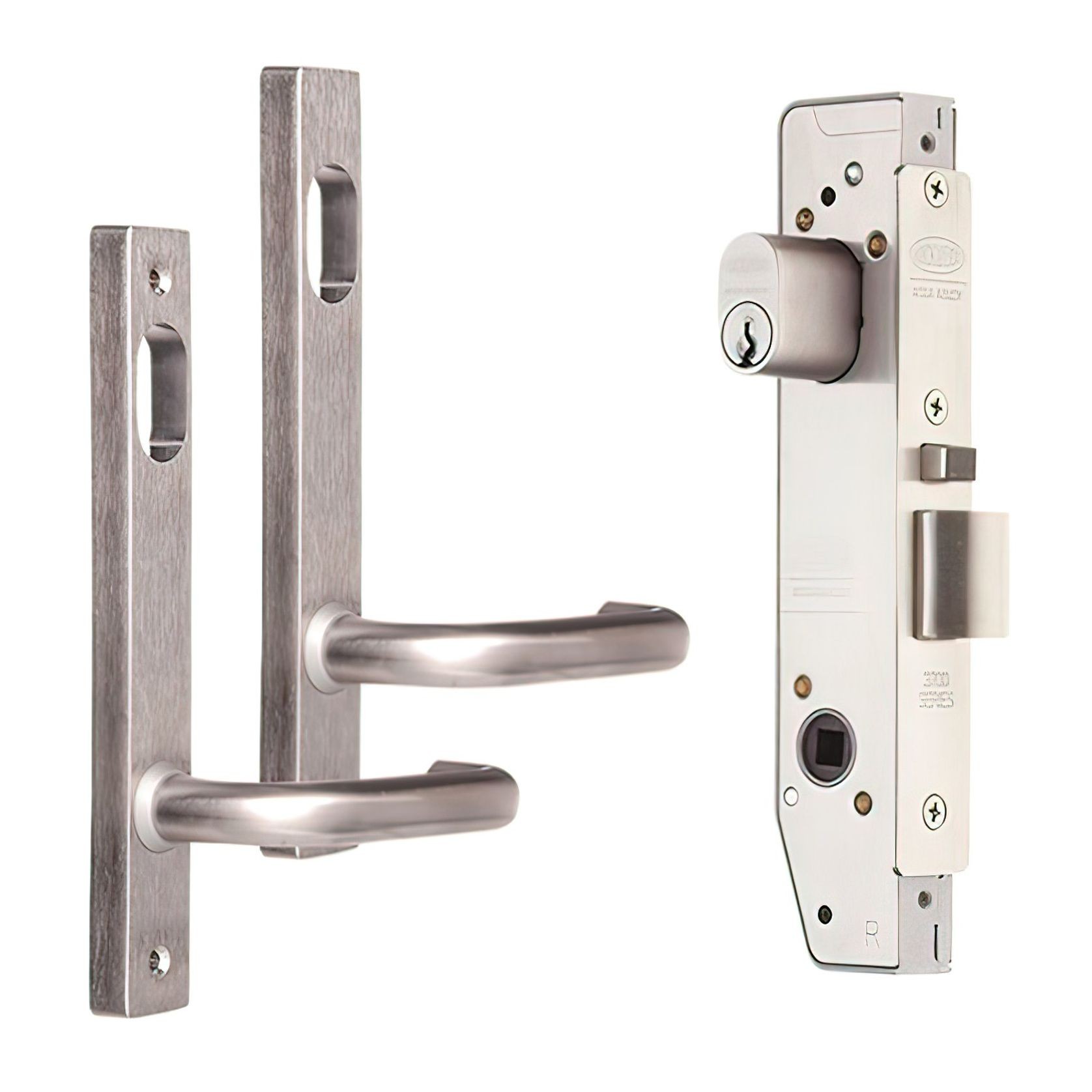

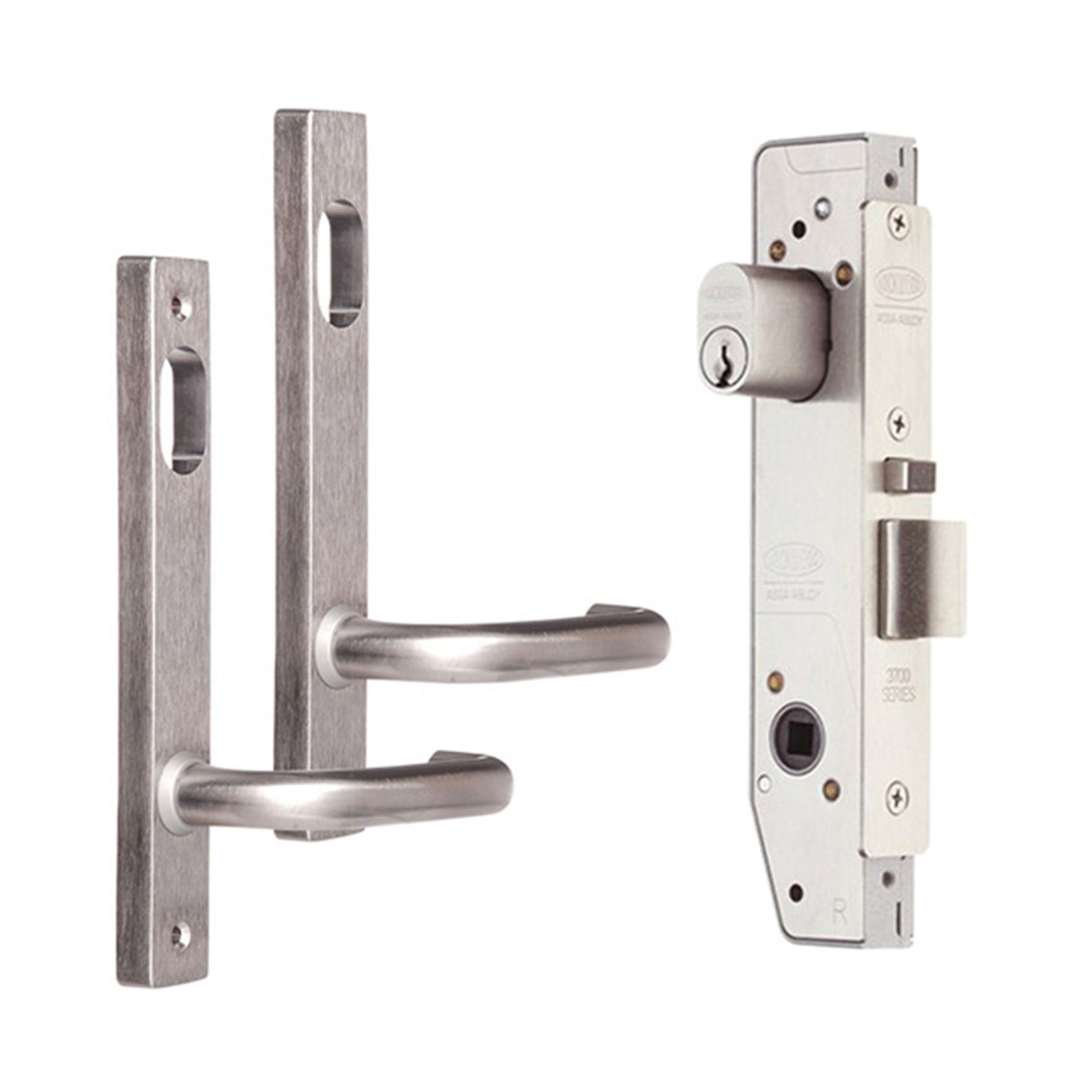

Lockwood Narrow Mortice Lock Kit Double Cyl/Handles SC

Plate SizePlate Size: 185mm x 26mm x 11.5mm Finish: Satin Chrome Security: Conform with Level S7 (Physical Security) Australian Lock Standard (AS-4145.2-2008). Conforms to Level S8 (Physical Security) when fitted with door furniture and anti-drill cylinder. Durability: Conform with Level D8 (Durability) Australian Lock Standard (AS4145.2-2008). Anti-Corrosion: Conform with Level C6 (168 hours) Australian Standard (AS4145.2-2008).

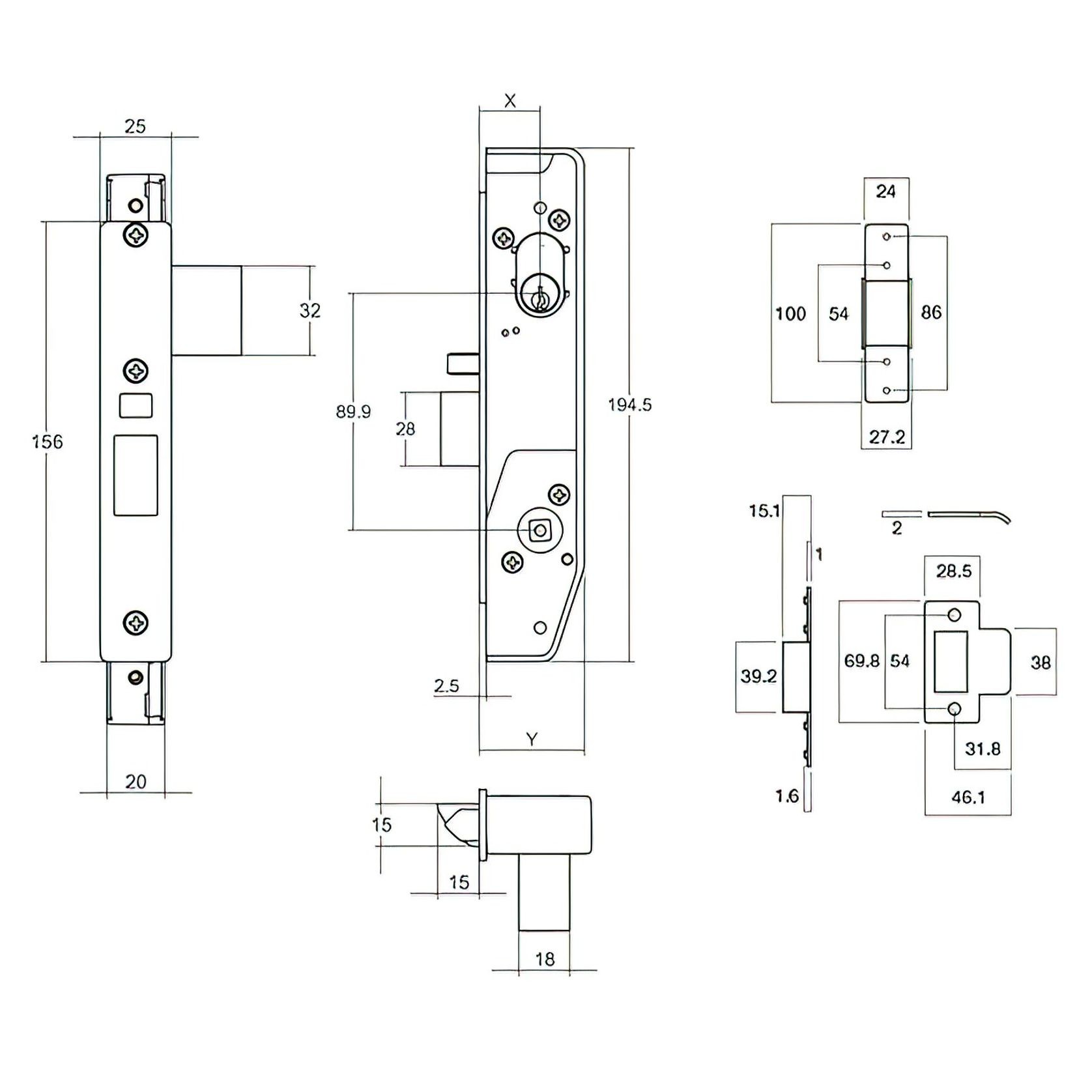

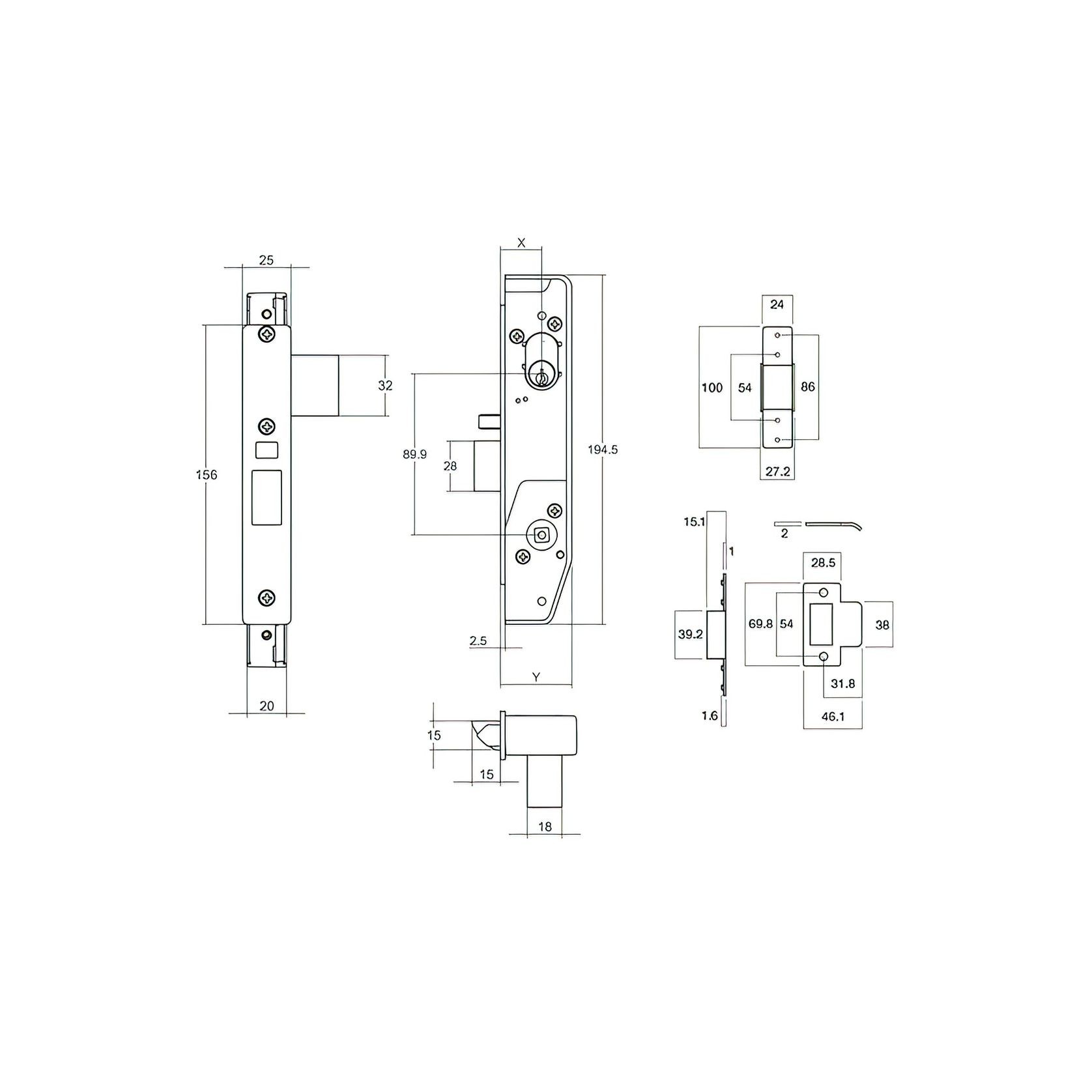

Mortice lock:

• Short backset universal primary mortice lock.
• Easy Red /Green function setting.
• All lock settings are made from under the faceplate allowing for simple in-door configuration.
• Standard primary locks include holdback and anti-lockout capabilities.
• Lock is always holdback capable, no setting is required. Holdback can be activated at any time - unless anti-lockout is selected.
• Operated by key or handle outside or by turnsnib, key or handle inside.
• Zinc diecast body with stainless steel chassis plates for improved strength.
• Electric Strike compatibility.
• Supplied with cylinders.
• Supplied with Selector 'V' cam.
• Compatible to most restricted keying systems.
• Backset: 23mm backset as standard
• Suits metal door thickness: 35mm to 50mm.
• Stainless steel reversible latch bolt: 15mm
• Finish: Stainless Steel.

External Furniture:

• Narrow stile exterior square end plate
• Cylinder hole and 70 series tubular lever
• Plates are designed to fit back to back
• External plates supplied with fixing screws
• Disabled access AS1428.1 compliant lever
• Plate size: 185mm x 26mm x 11.5mm
• Suits door thickness: from 32mm to 50 mm
• Screw fixing centres: 160mm
• Fixing: Concealed
• Finish: Satin Chrome

Internal Furniture:

• Narrow stile internal square end plate
• Cylinder hole and 70 series tubular lever
• Plates are designed to fit back to back
• Disabled access AS1428.1 compliant lever
• Fixing: Visible
• Fixing holes centres: 160mm
• Suits door thickness: from 32mm to 50mm
• Plate size: 185mm x 26mm x 11.5mm
• Finish: Satin Chrome

Security:

• Conform with Level S7 (Physical Security) Australian Lock Standard (AS-4145.2-2008).
• Conforms to Level S8 (Physical Security) when fitted with door furniture and anti-drill cylinder.

Durability:

• Conform with Level D8 (Durability) Australian Lock Standard (AS4145.2-2008).

Anti-Corrosion:

• Conform with Level C6 (168 hours) Australian Standard (AS4145.2-2008).

Includes:

• 1 x 38782SS mortice lock.
• 1 x 4801/70SC external lever on plate.
• 1 x 4901/70SC internal lever on plate.
• 2 x 570 cylinders with keys.
