Be confident with a design that transcends the basic functional and aesthetic requirements of residential hardware.

Featuring a 63mm round rose or 66.5mm square rose, the Nero® Velocity Large Rose Series is suitable for retrofit and common residential door preparations.

Tags

velocity series lockwood door hardware door handles lever

Product Details

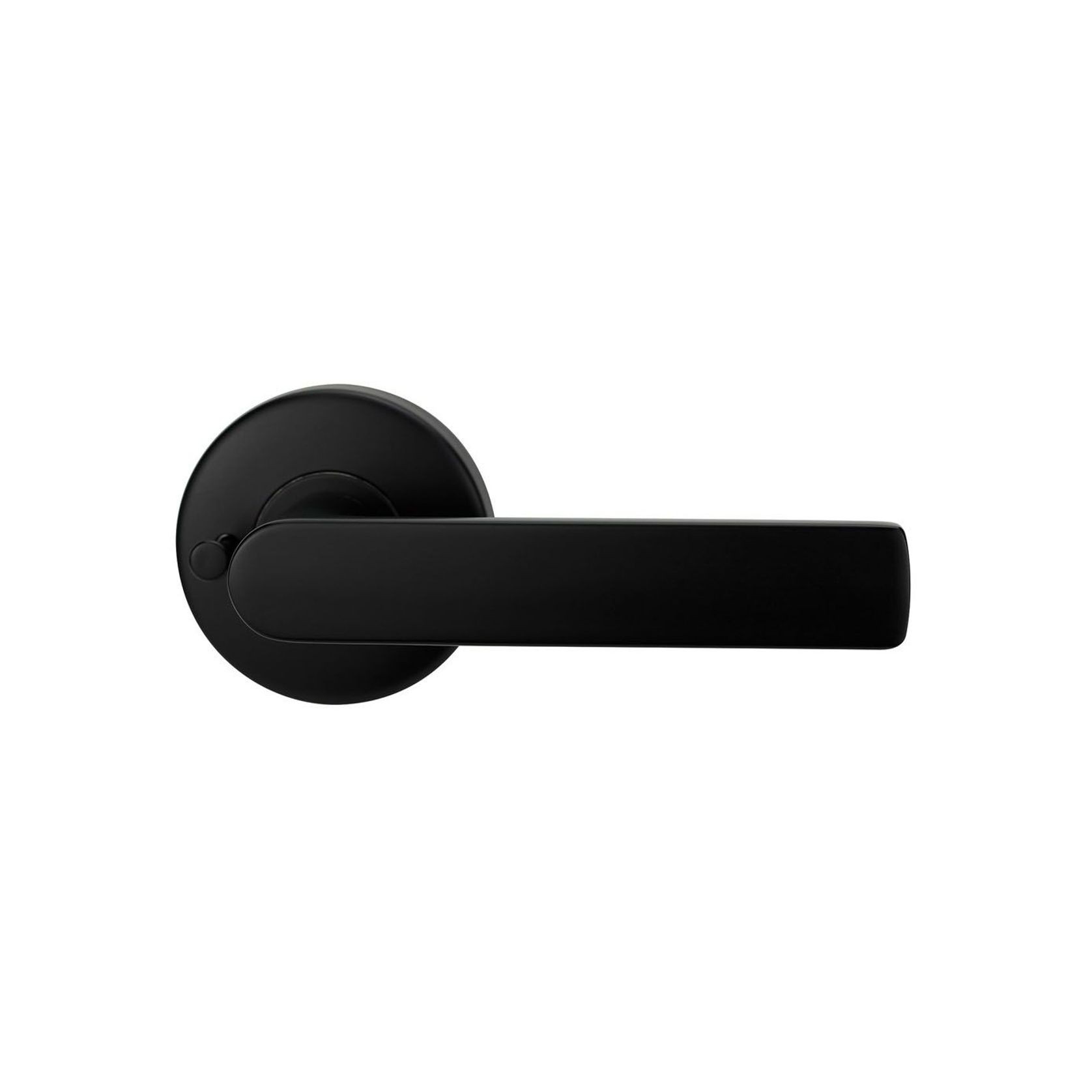

Product: Lockwood Velocity® Series Large Rose Element Lever
Category: Lever Handles
Sold by: ASSA ABLOY
Range: Lockwood - Commercial
Designer: ASSA ABLOY
Brand: ASSA ABLOY

ASSA ABLOY is specified by

(56) Professionals

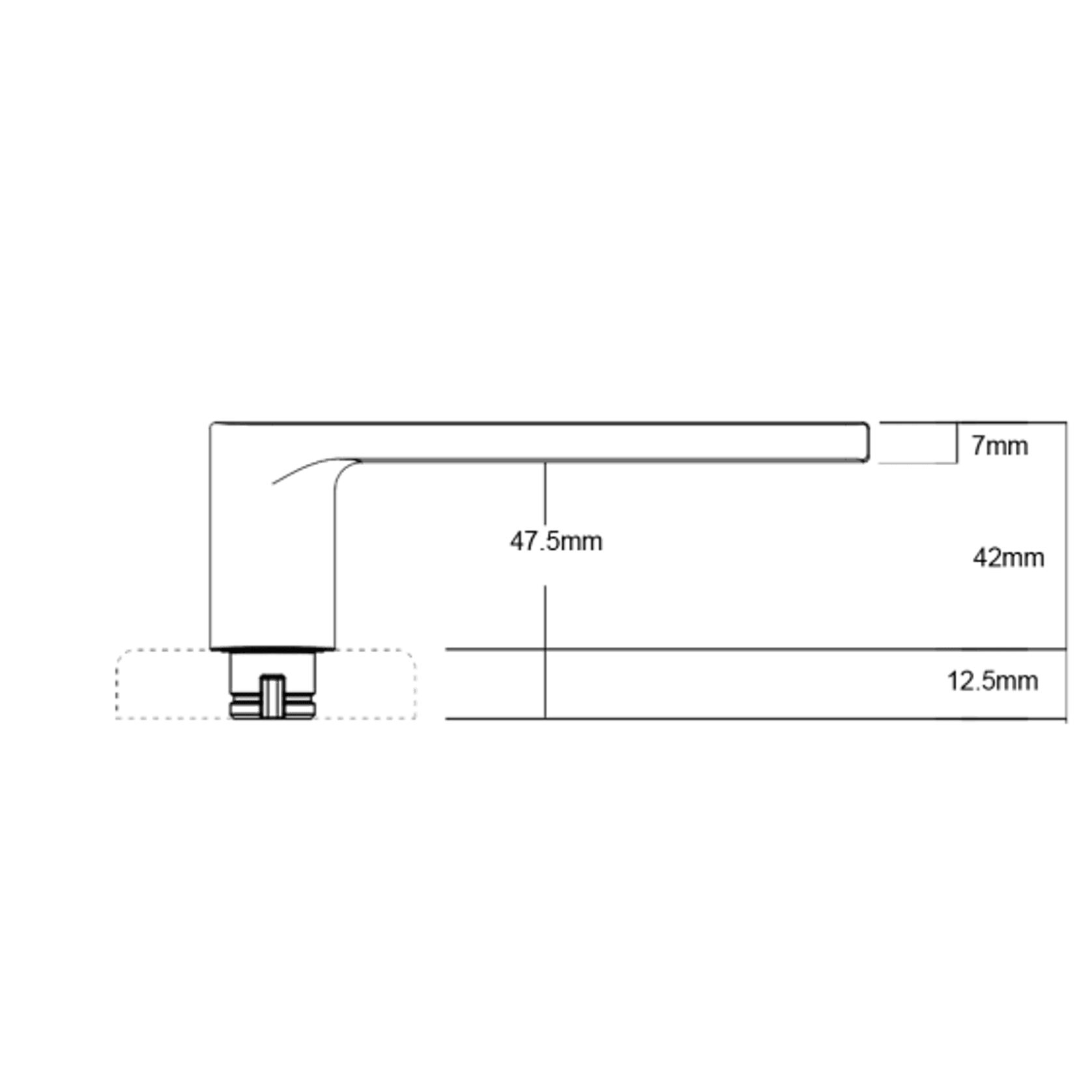

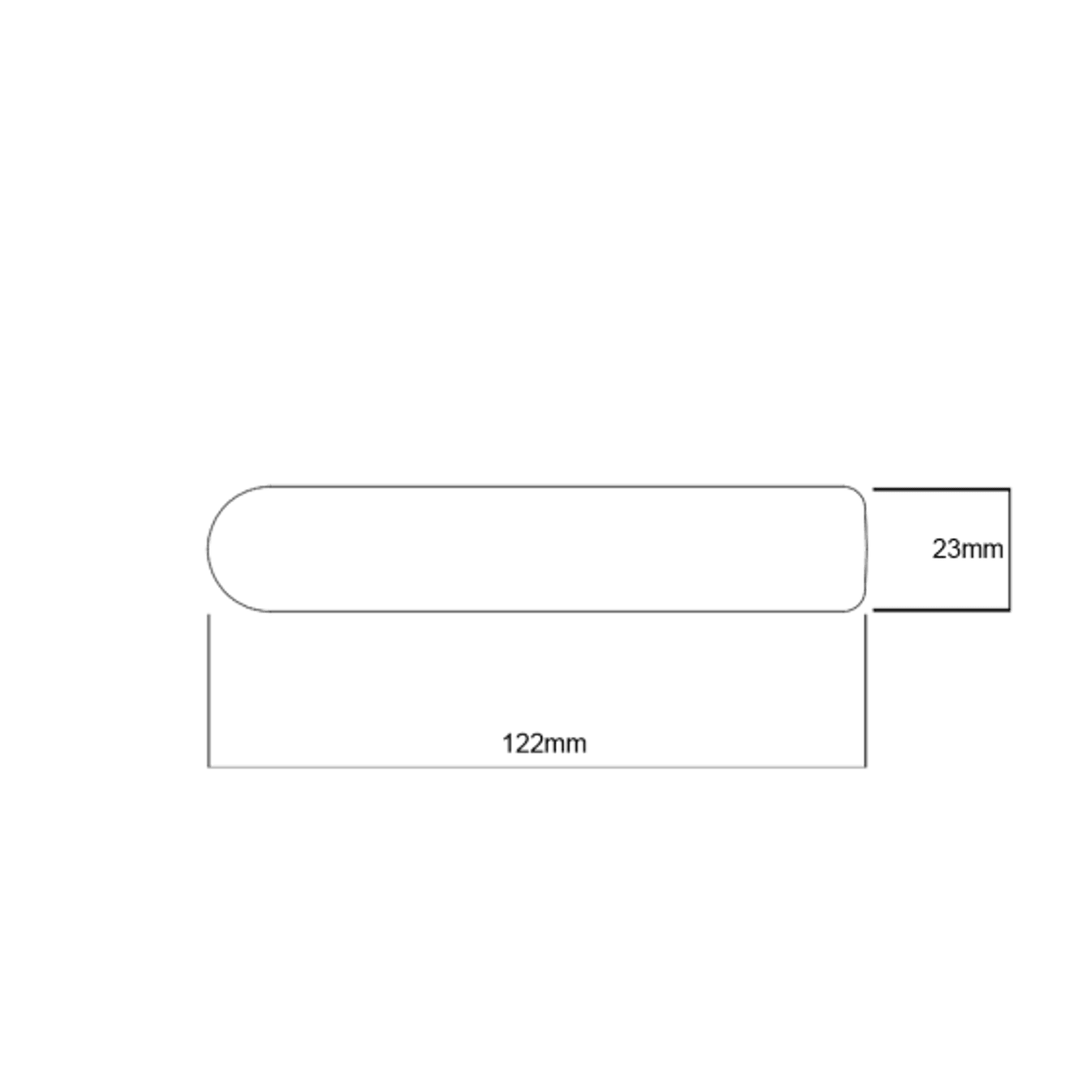

Lockwood Velocity® Series Large Rose Element Lever dimensions

Visit site

Setting the benchmark in ease of installation, the Lockwood Velocity® leverset is supplied pre-assembled with no loose screws or spindles. Screws align through the rose removing the need to locate them blind through the door. A twist and a quick tightening of the screws and the levers are installed! Featuring a 63mm round rose or 66.5mm square rose, the Nero® Velocity Large Rose Series is suitable for retrofit and common residential door preparations.

Be confident with a design that transcends the basic functional and aesthetic requirements of residential hardware.

Featuring a 63mm round rose or 66.5mm square rose, the Nero® Velocity Large Rose Series is suitable for retrofit and common residential door preparations.

Specs

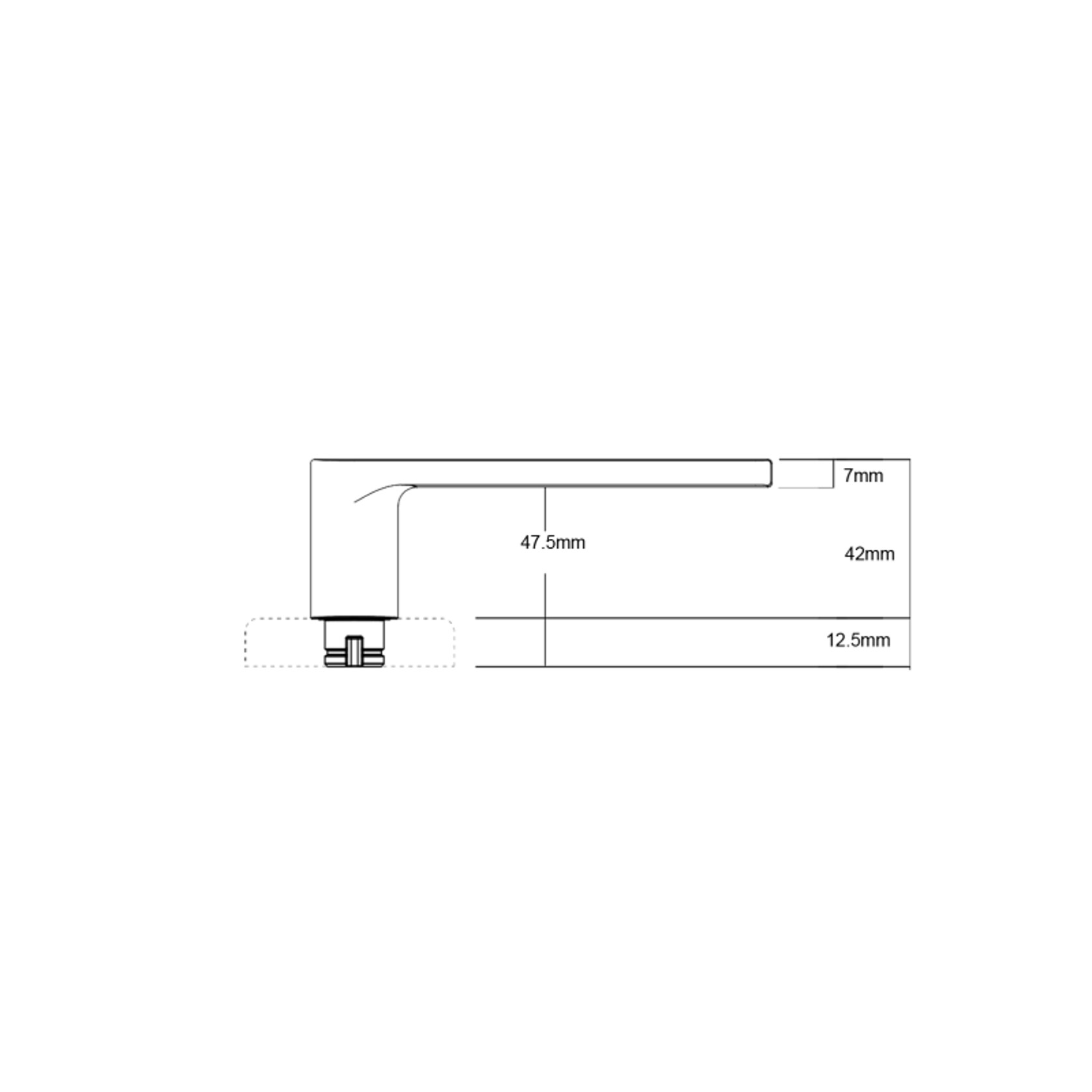

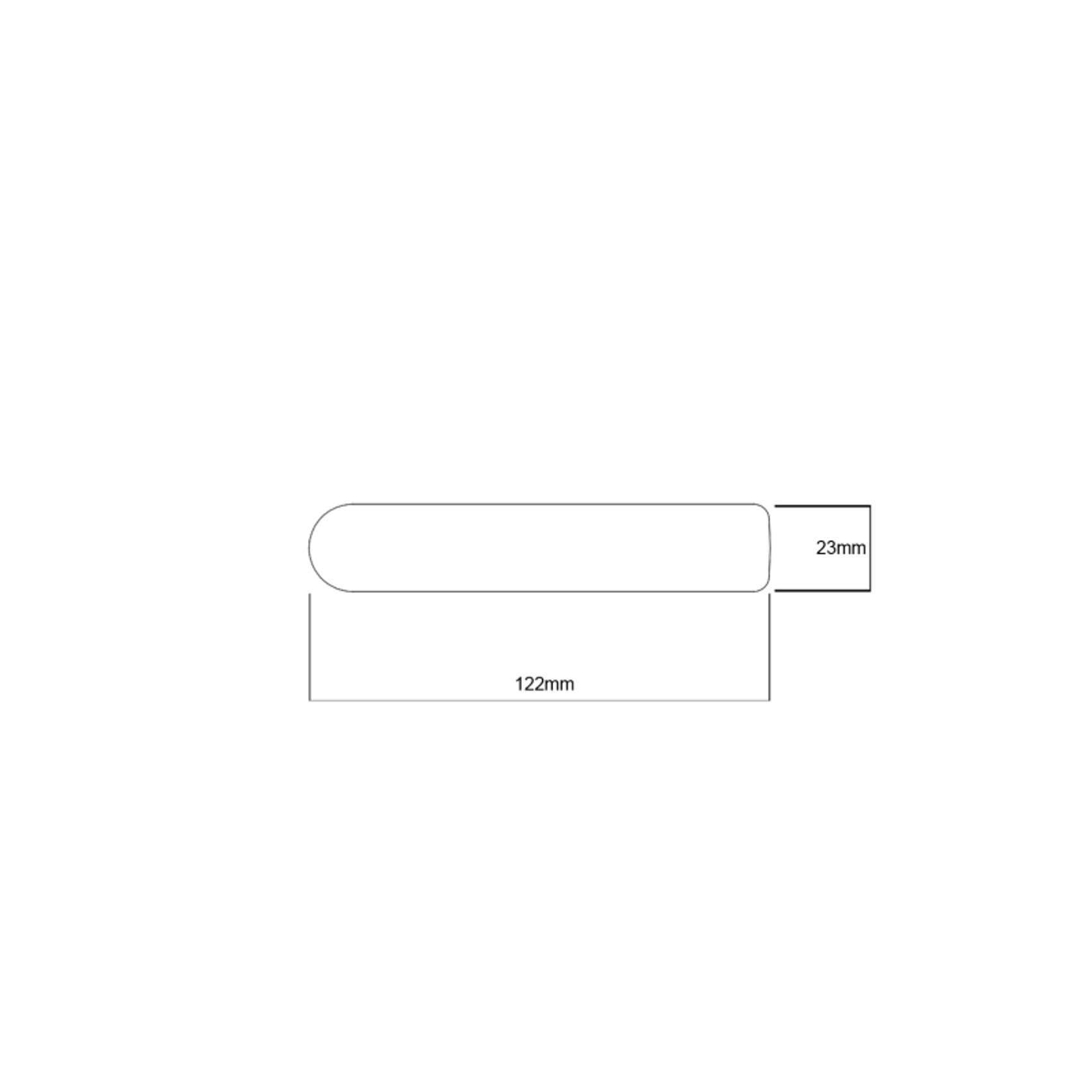

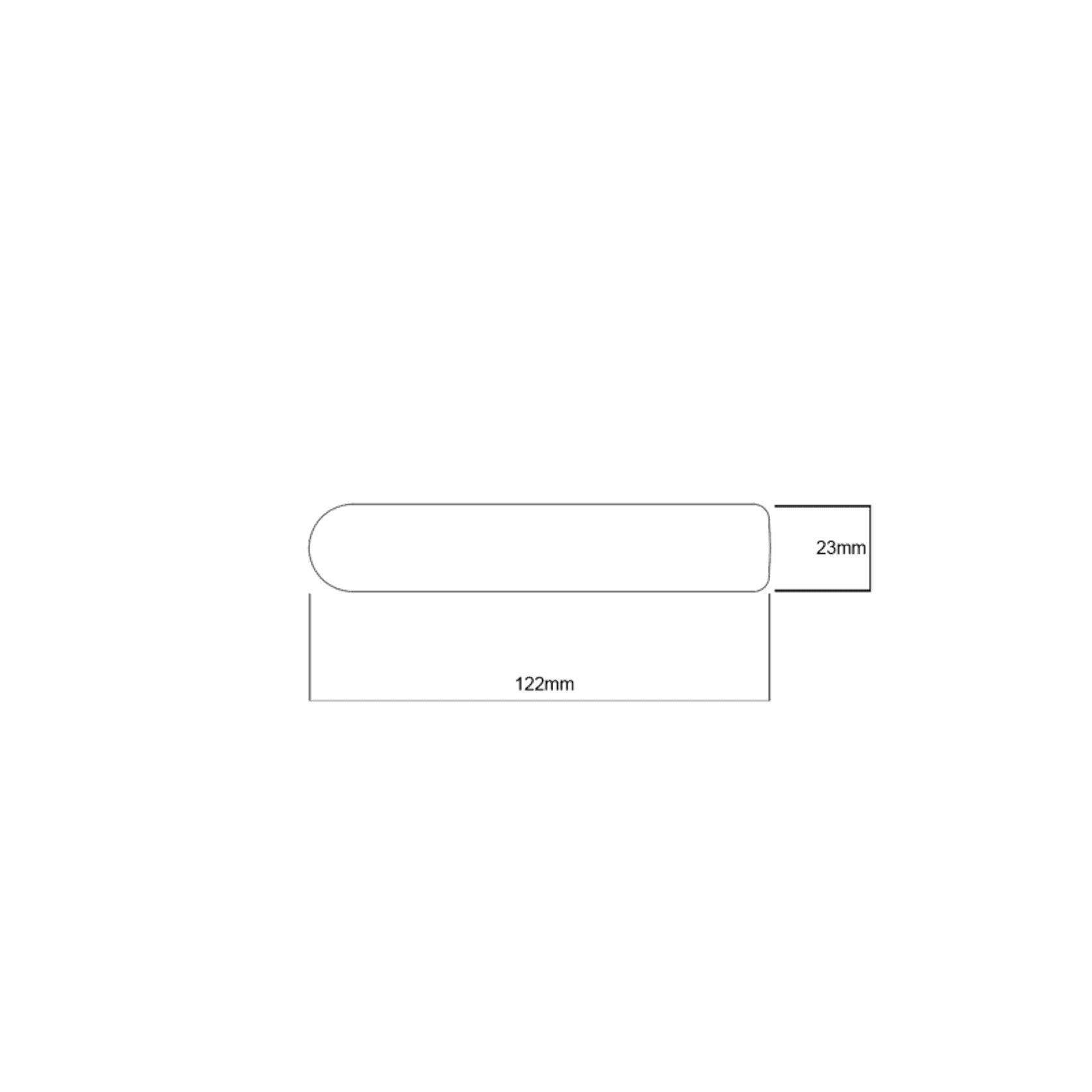

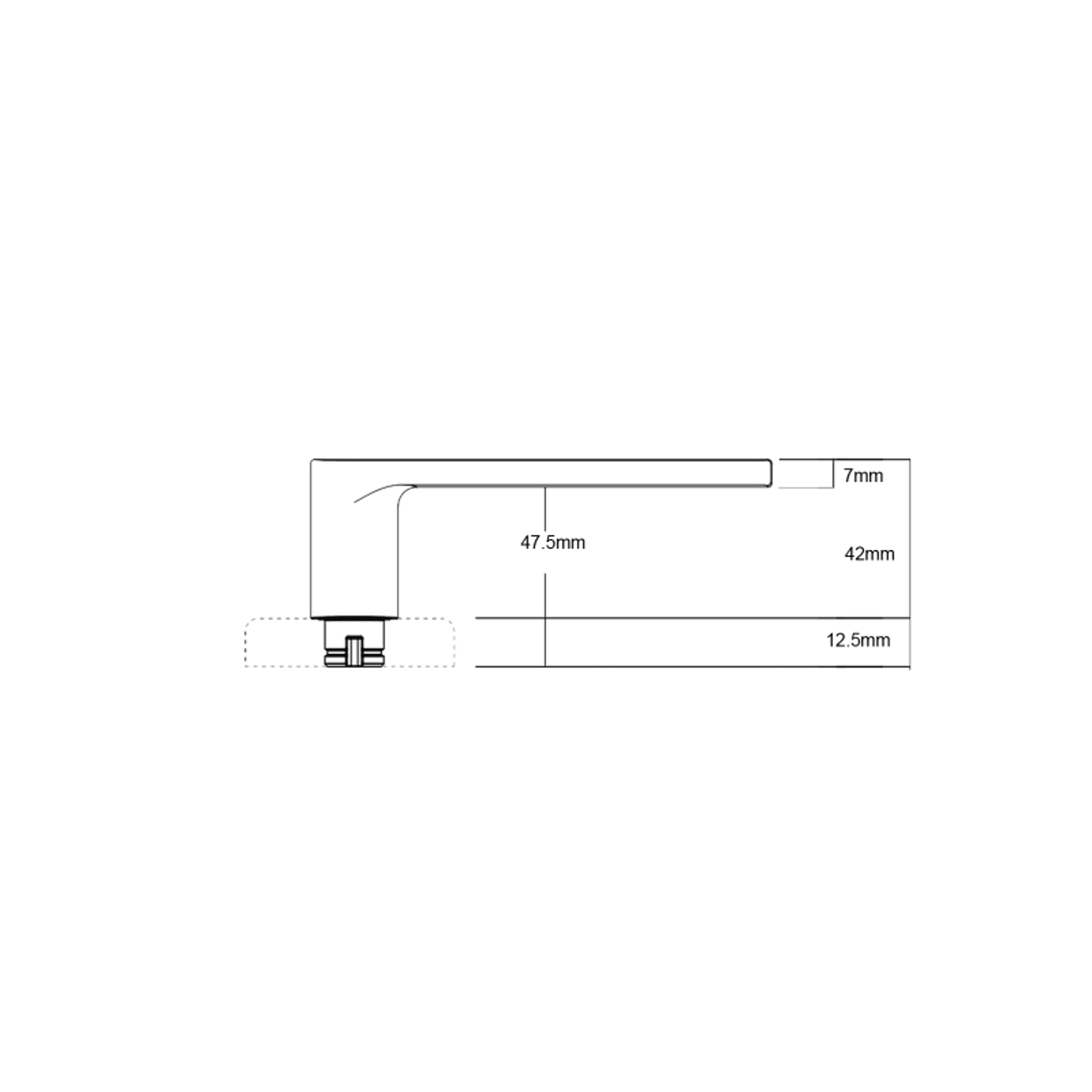

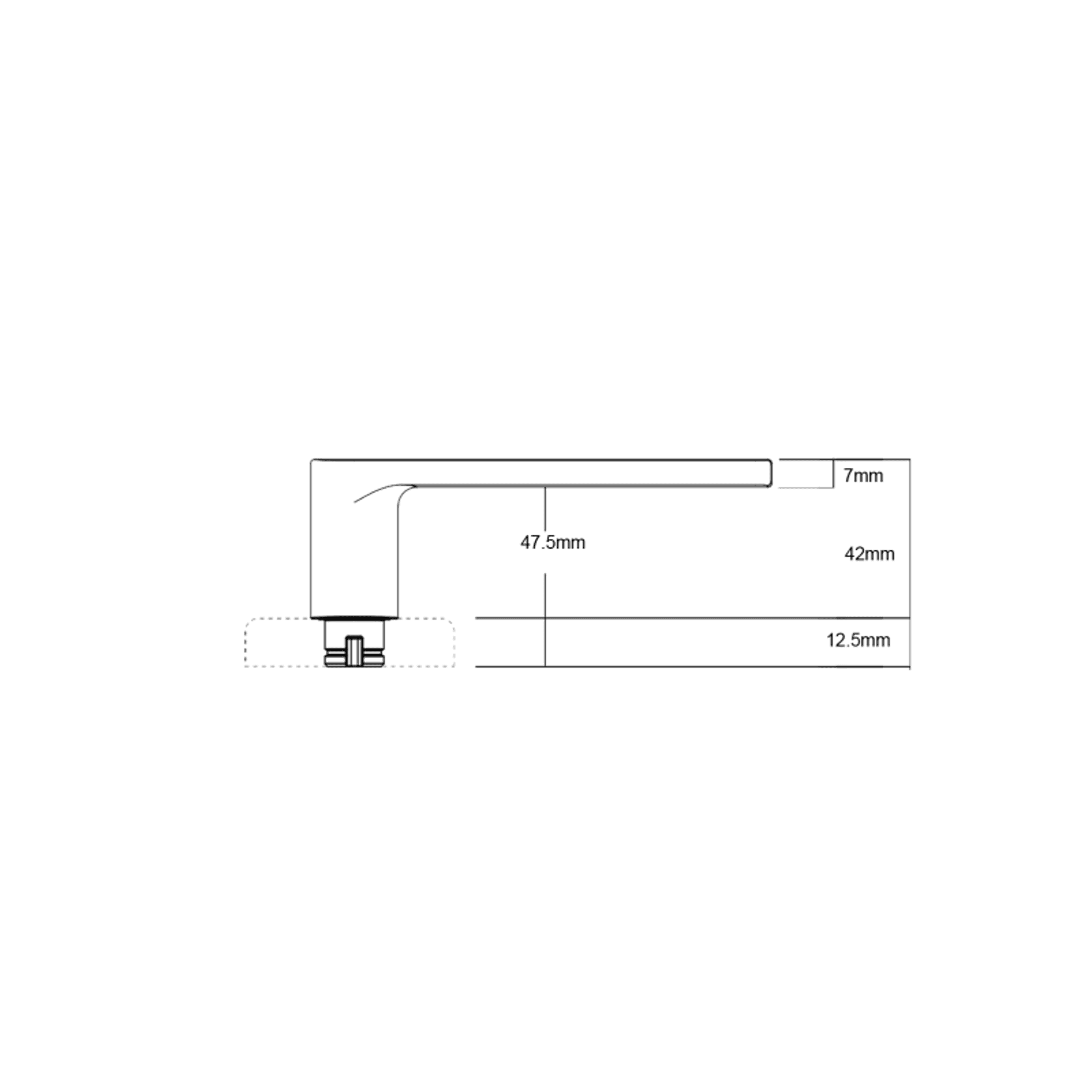

Lever Dimensions

Length: 122mm
Projection: 54.5mm
Finger clearance: 47.5mm

Rose Dimensions

Rouse Rose: 63mm by 12.5mm
Square Rose: 66.5mm by 12.5mm

Product Details

Functions

Passage
Privacy
Dummy

Materials: Solid zinc die-cast

Door Thickness: 32 to 45mm

Latches

Passage sets are supplied with a pair of lever handles and a 60mm backset tubular latch
Privacy sets are supplied with a pair of lever handles and a 60mm backset privacy tubular latch which includes an activating pin for the inside of the door and an external emergency release function. The privacy setting is automatically released when the internal handle is operated
Dummy sets are supplied with one fixed lever handle
All latches are supplied with industry standard "D" strikes

Standards and Compliance

Durability - Australian Lock Standard AS4145.2-2008
Corrosion - Australian Lock Standard AS4145.2-2008

Scope of use

Velocity® Door Furniture offers home owners and builders a contemporary collection of levers on rose for use within a residential environment.

Performance

All fixings are concealed beneath a removable rose trim providing a crisp and clean presentation desired by the discerning home owner
Simple twist and tighten fixing method with pre-assembled leverset allows for super easy and fast installation

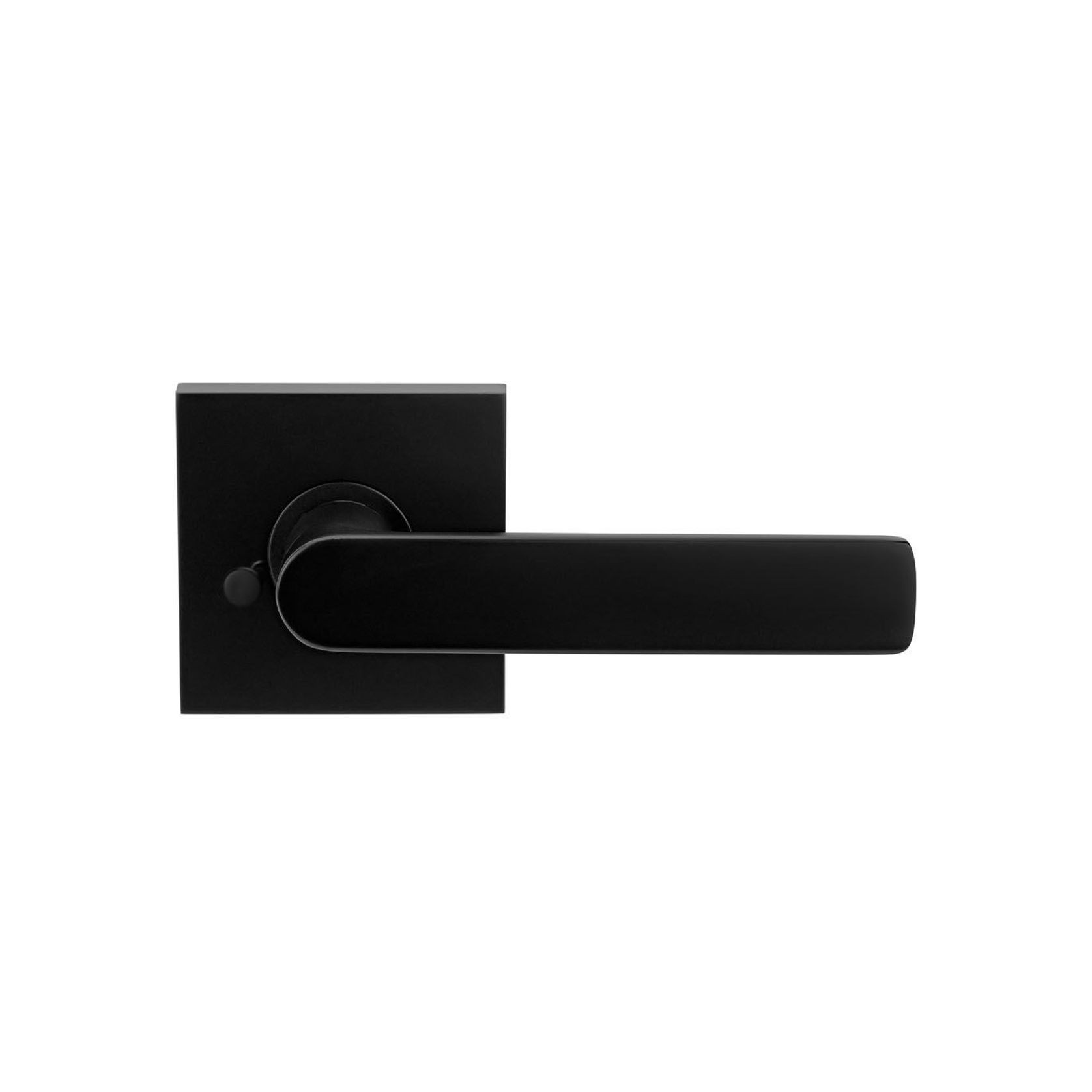

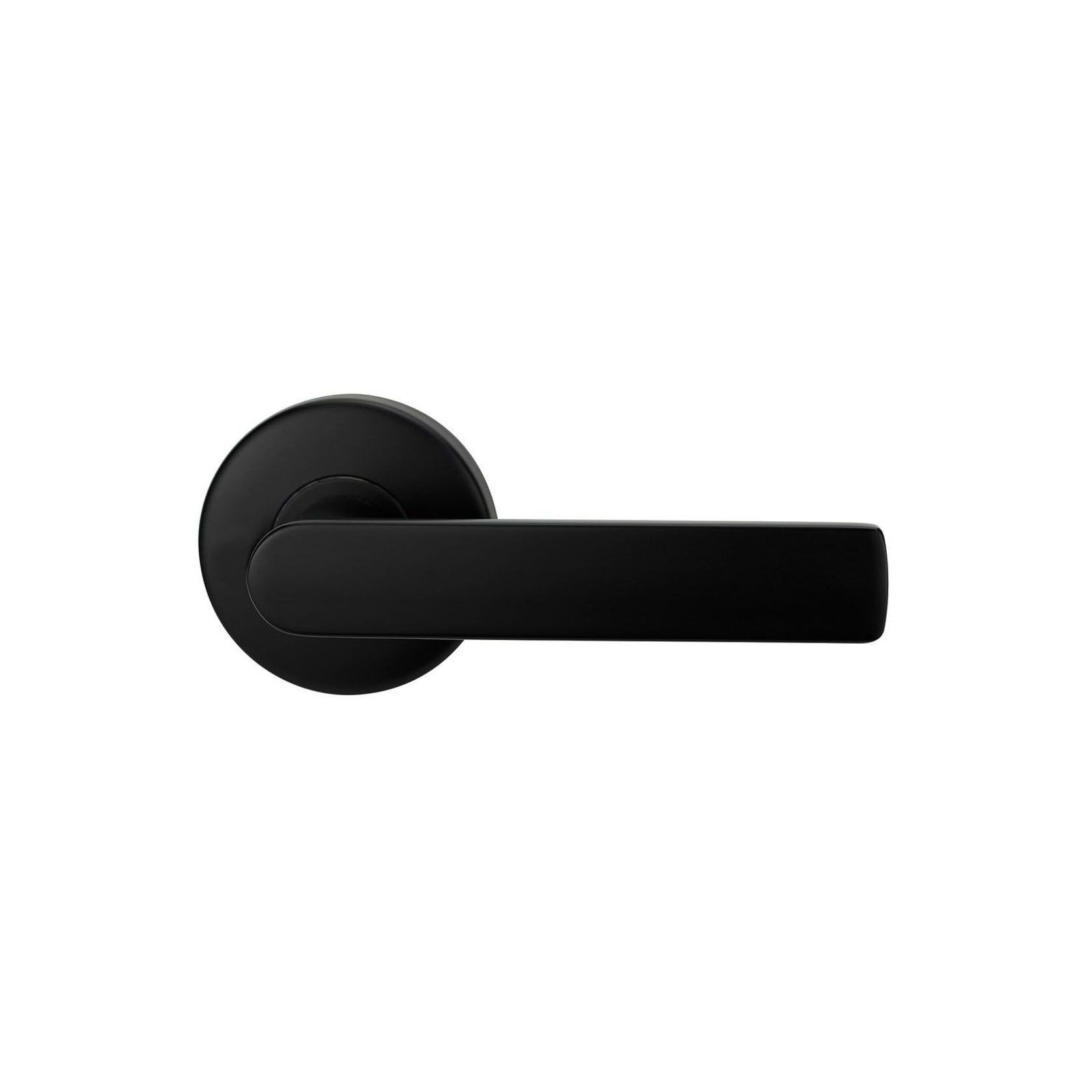

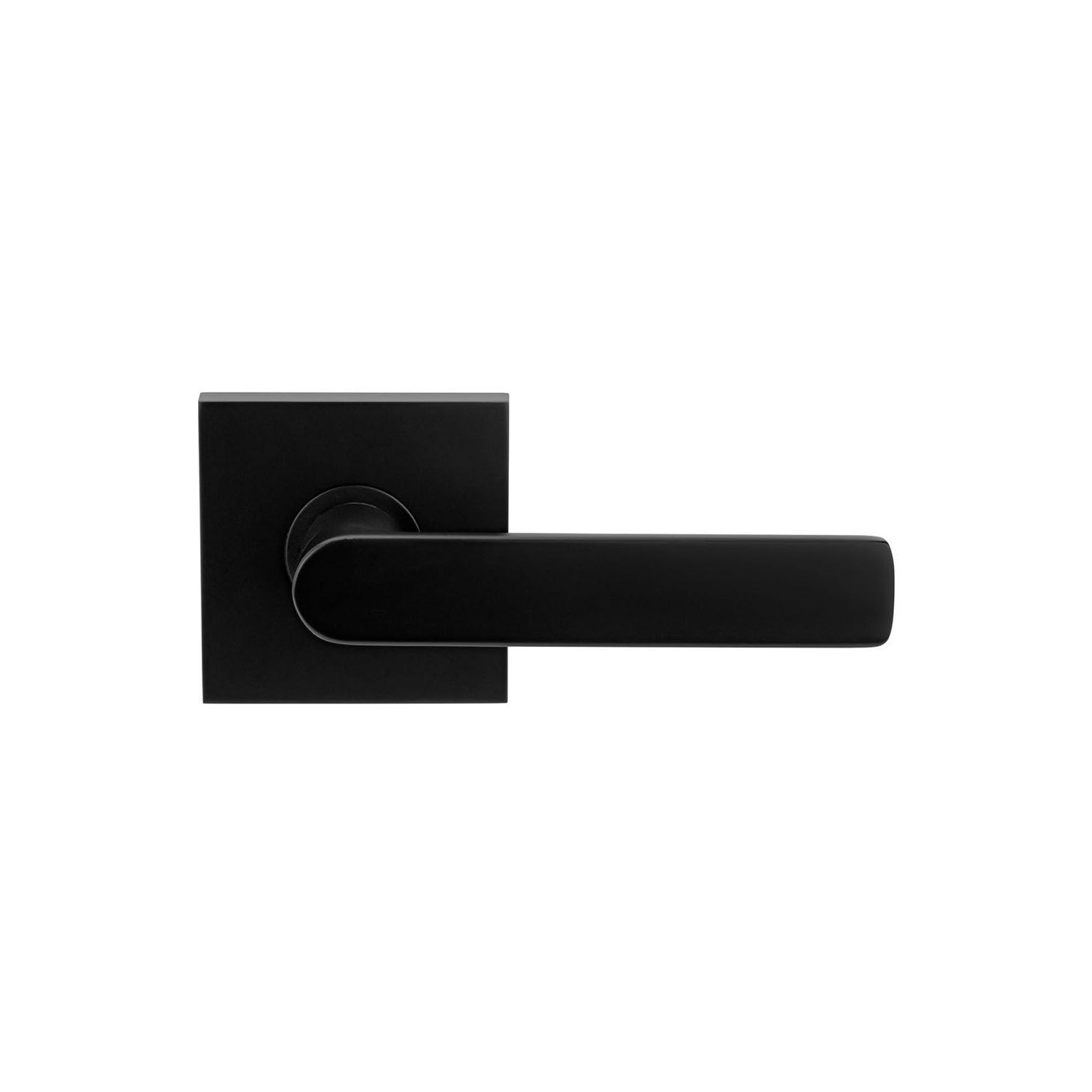

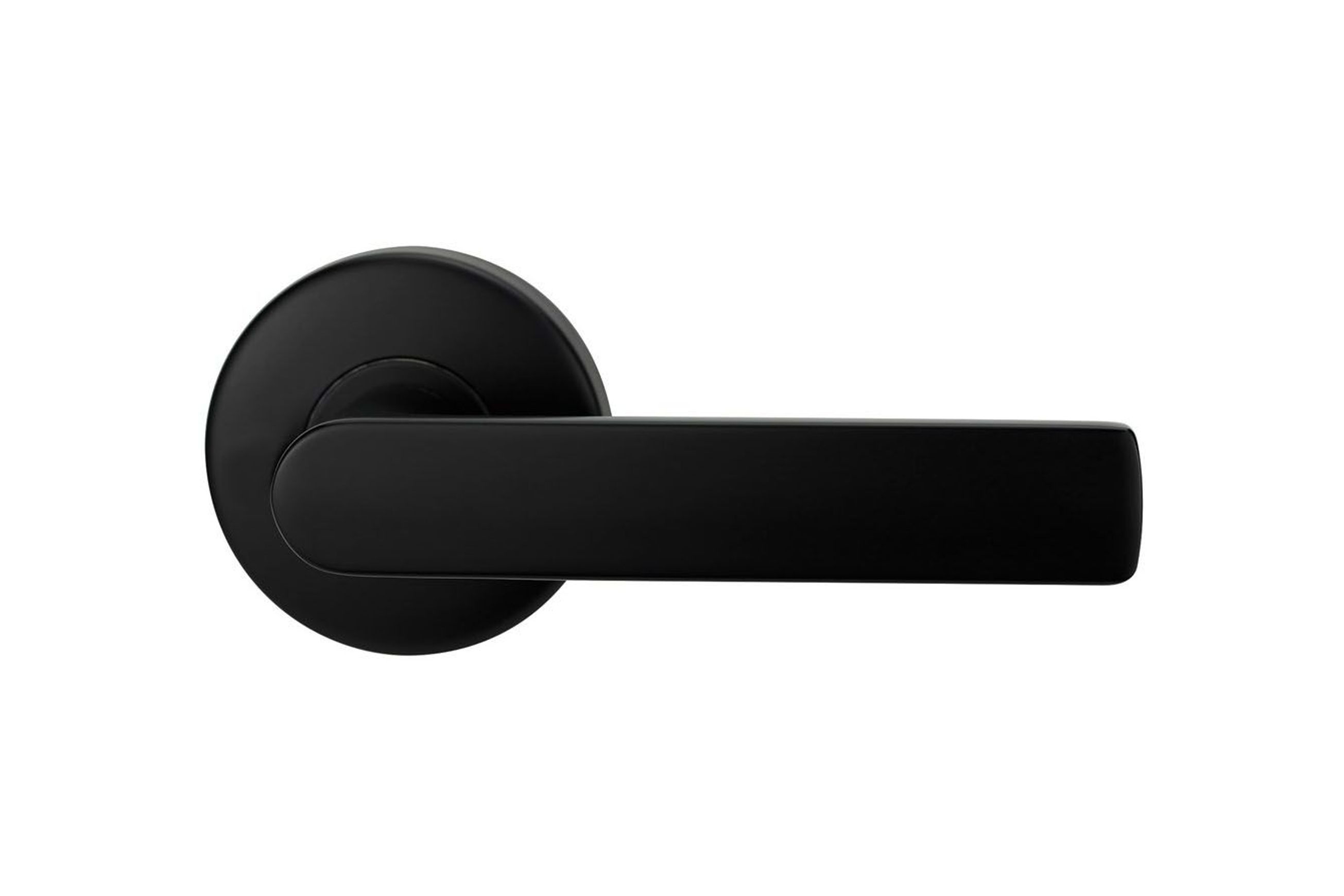

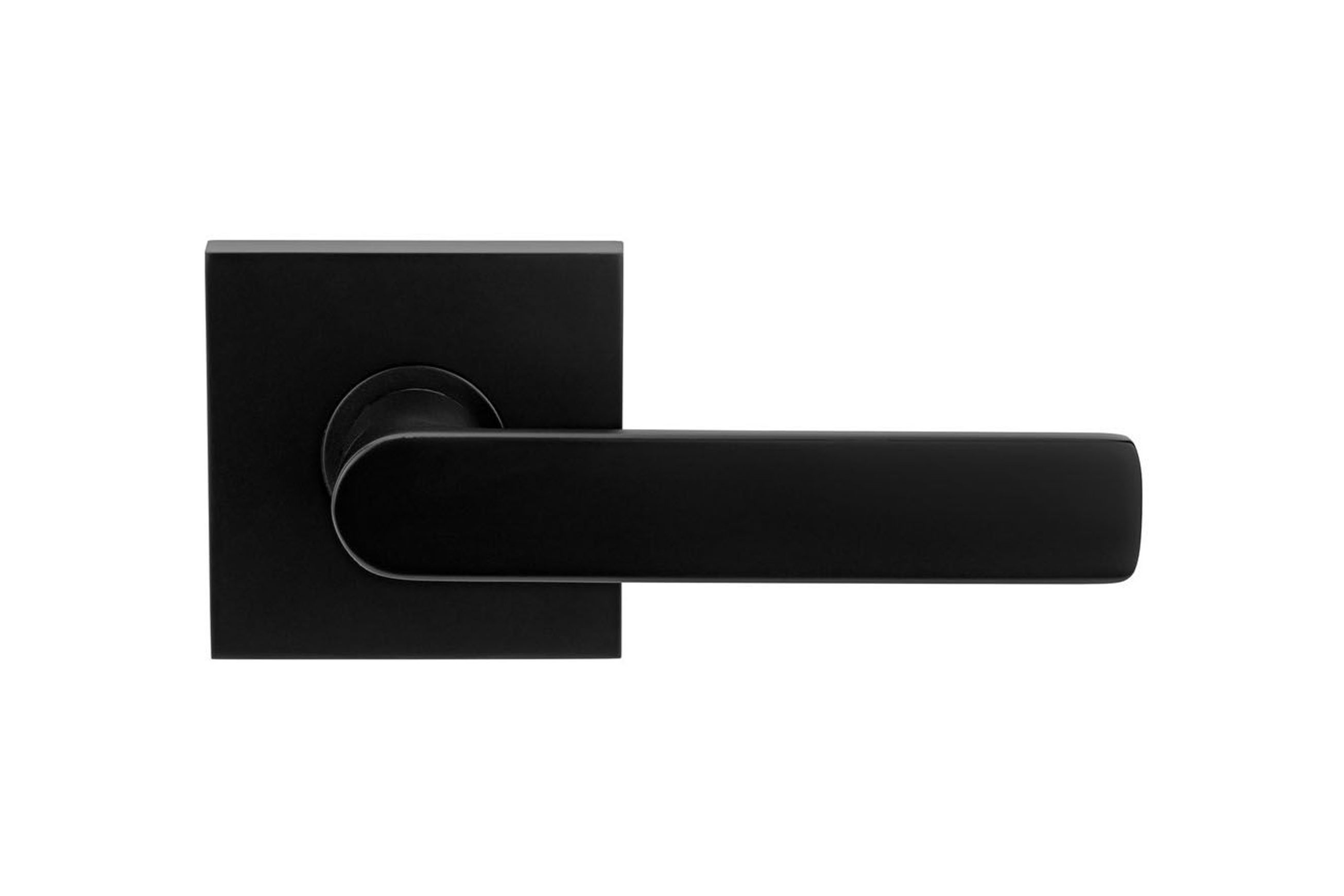

Available in a choice of square or round rose with the Element lever design
The roses fit 50mm or 54mm diameter holes, making it suitable for retrofit and common door preparations
Designed in Australia for the specific needs of the Australian market
