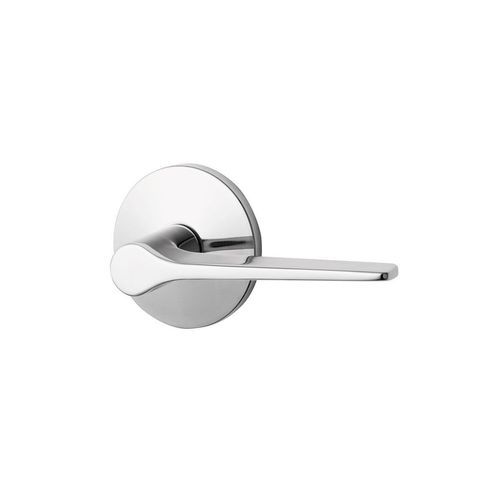

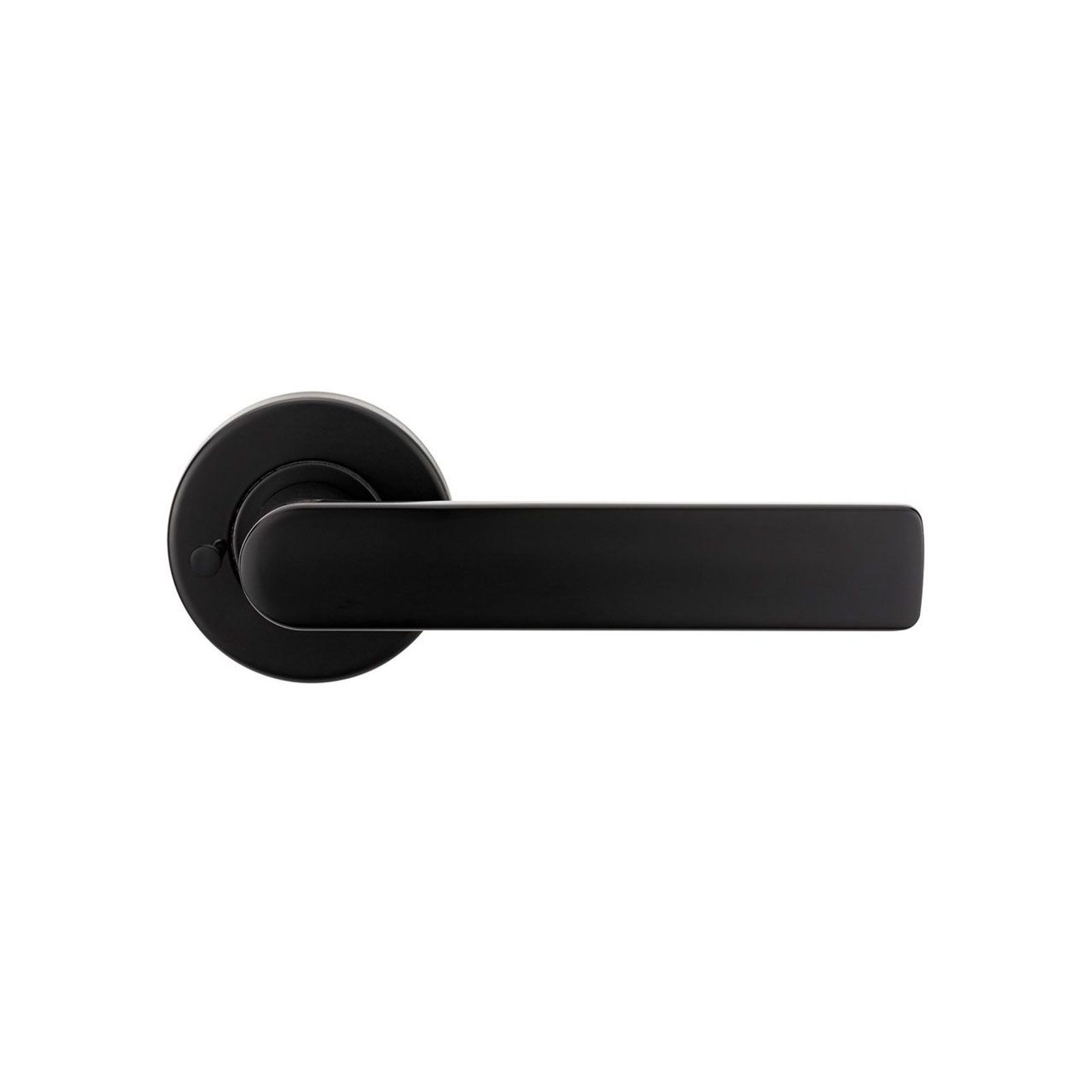

Lockwood Velocity® Series Small Rose Element Lever

Capture the aesthetic tone of on-trend design whilst maintaining utilitarian desire with the Nero® Velocity Small Rose Series.

Specs

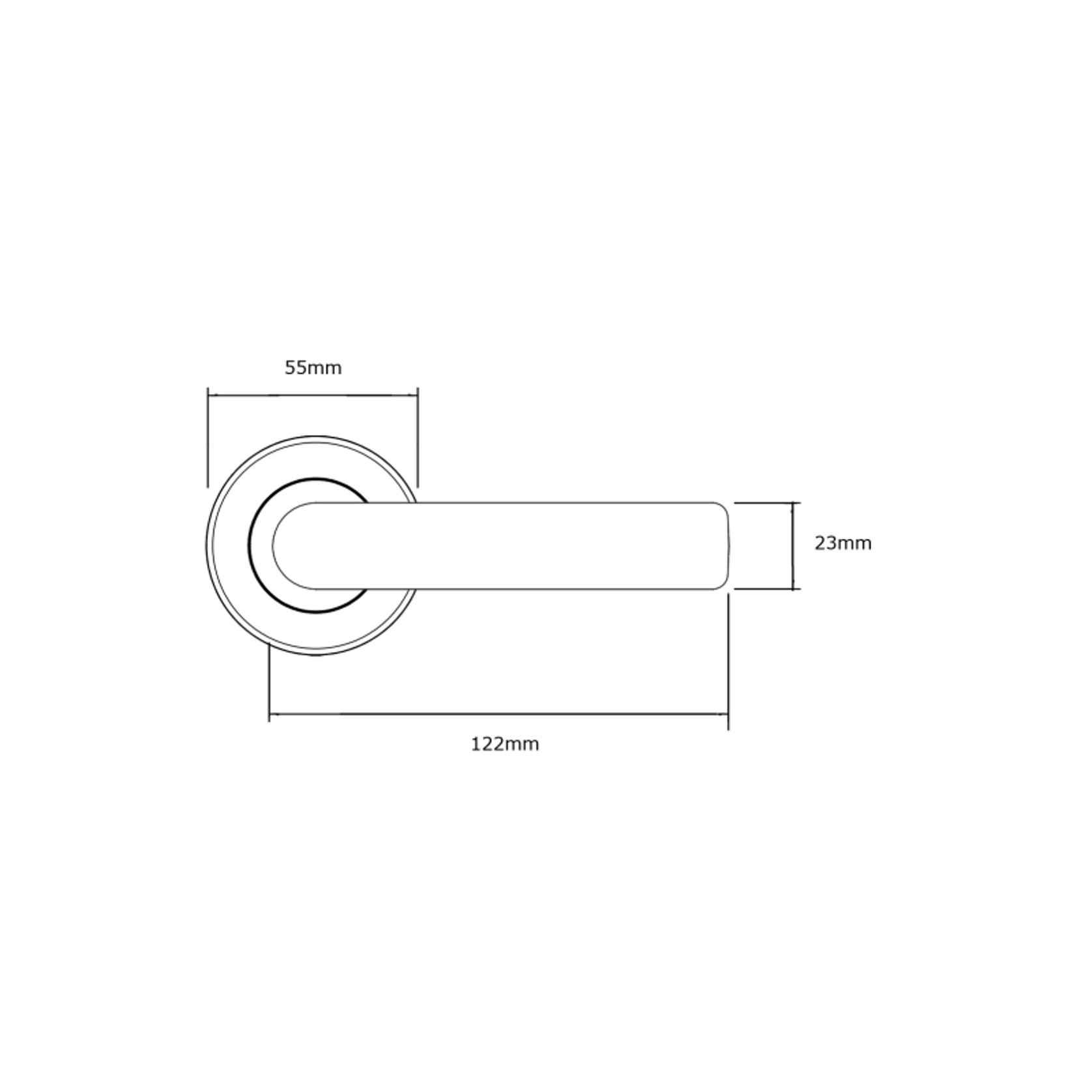

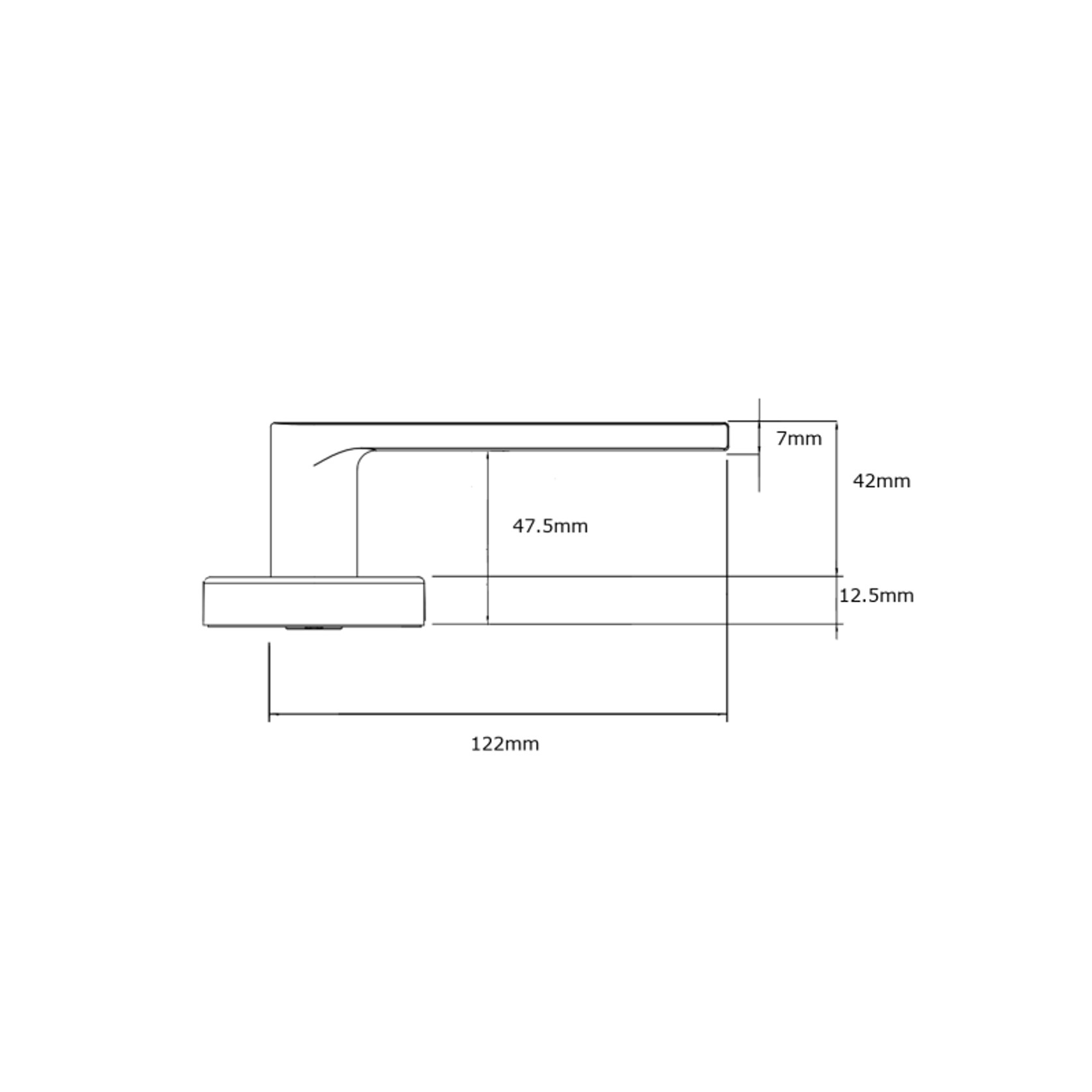

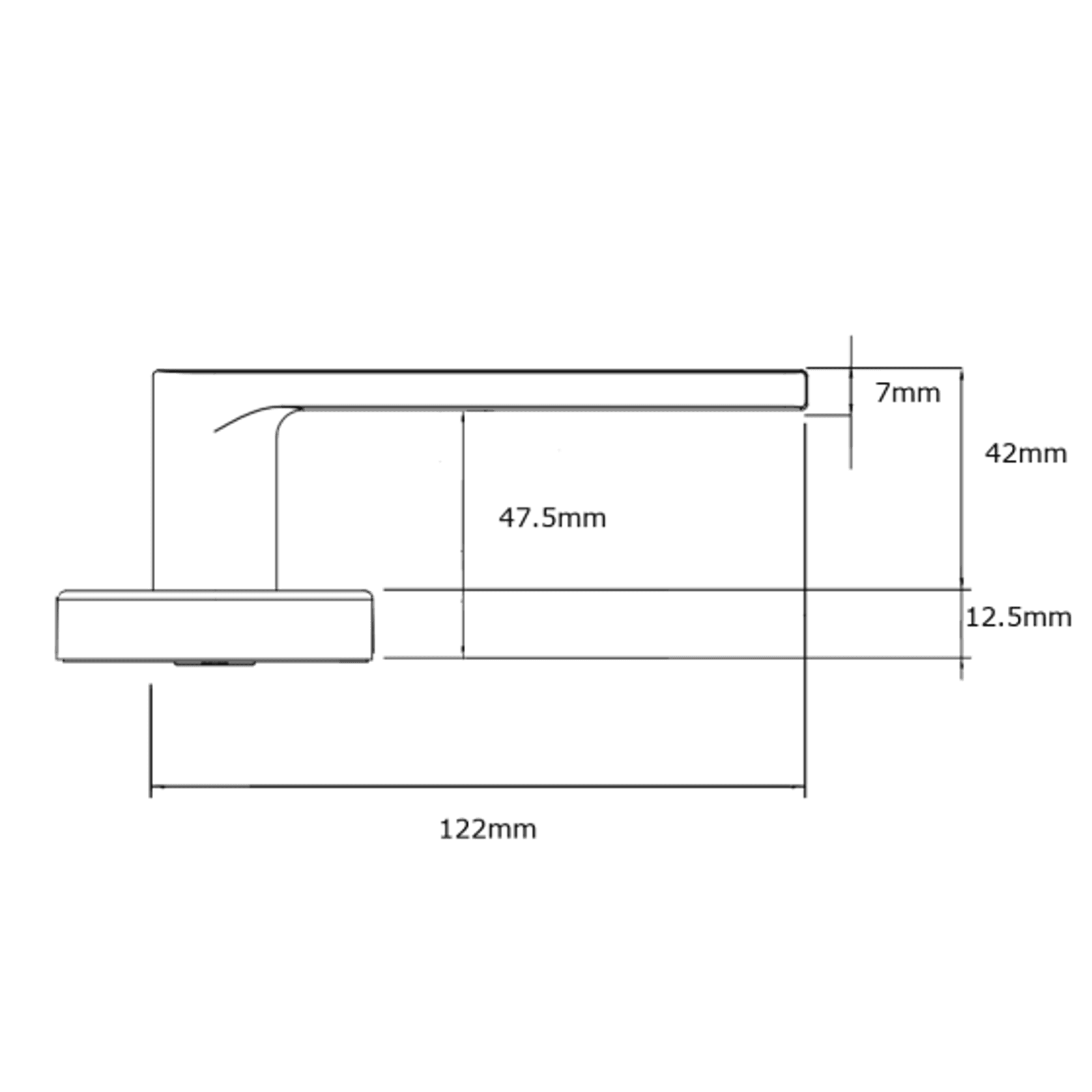

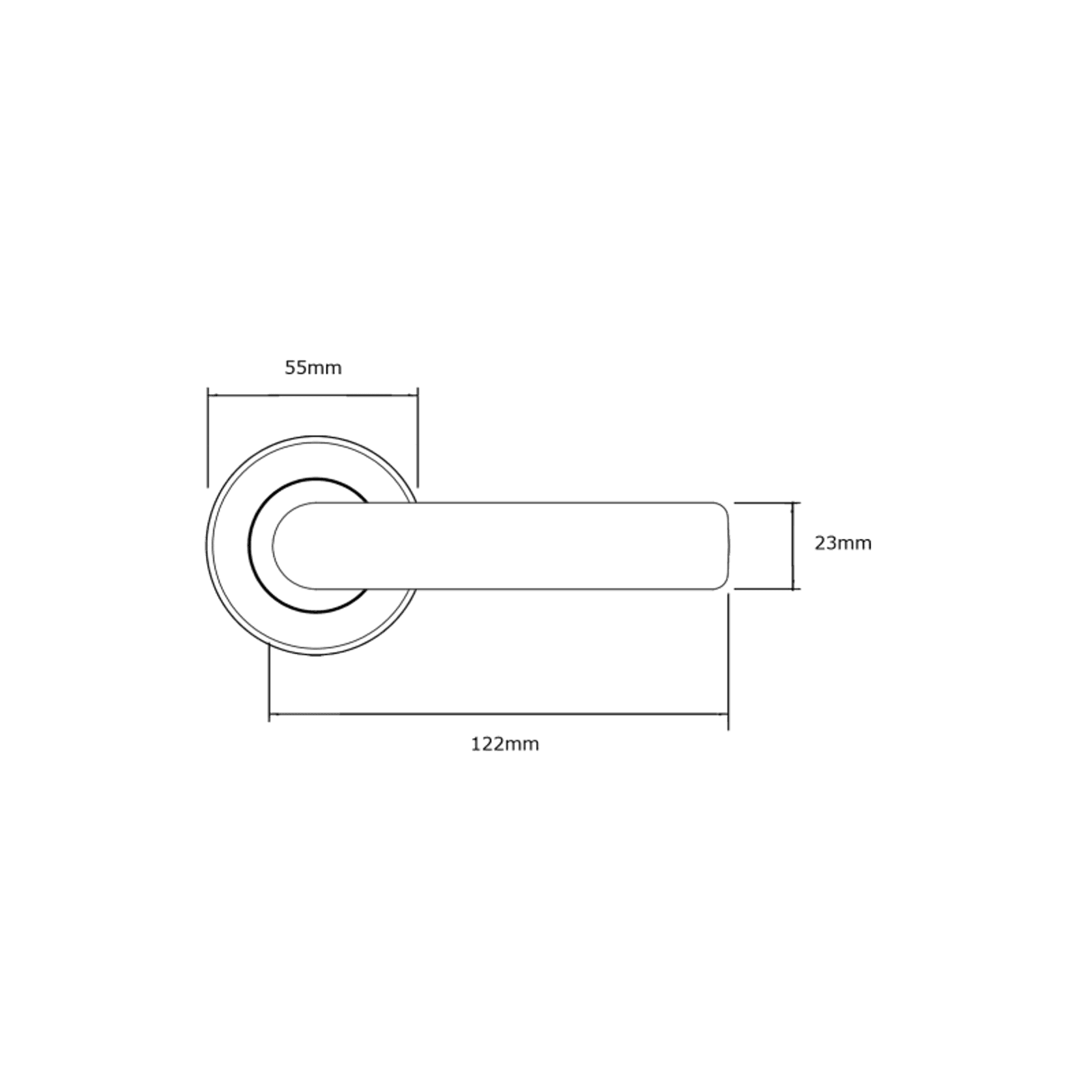

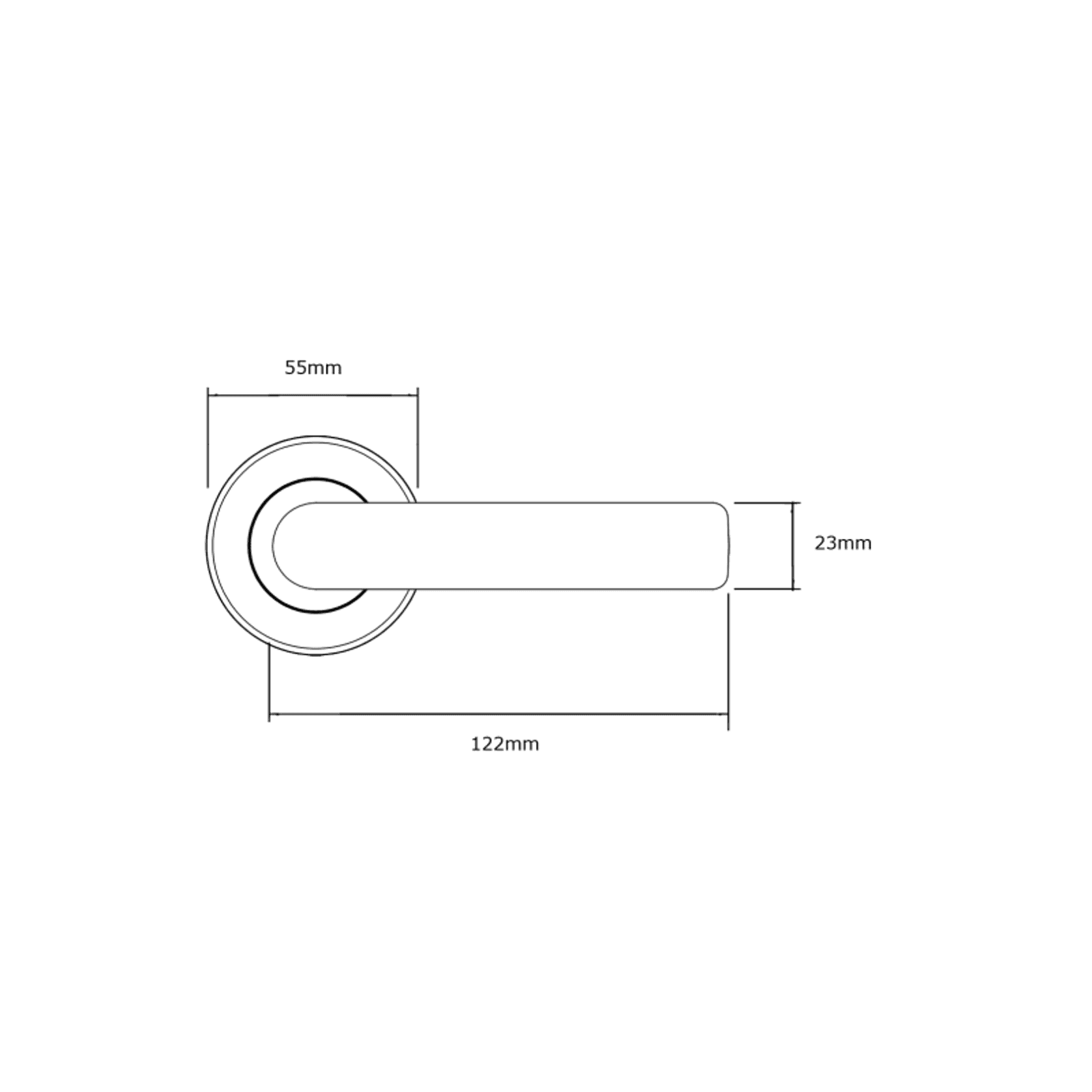

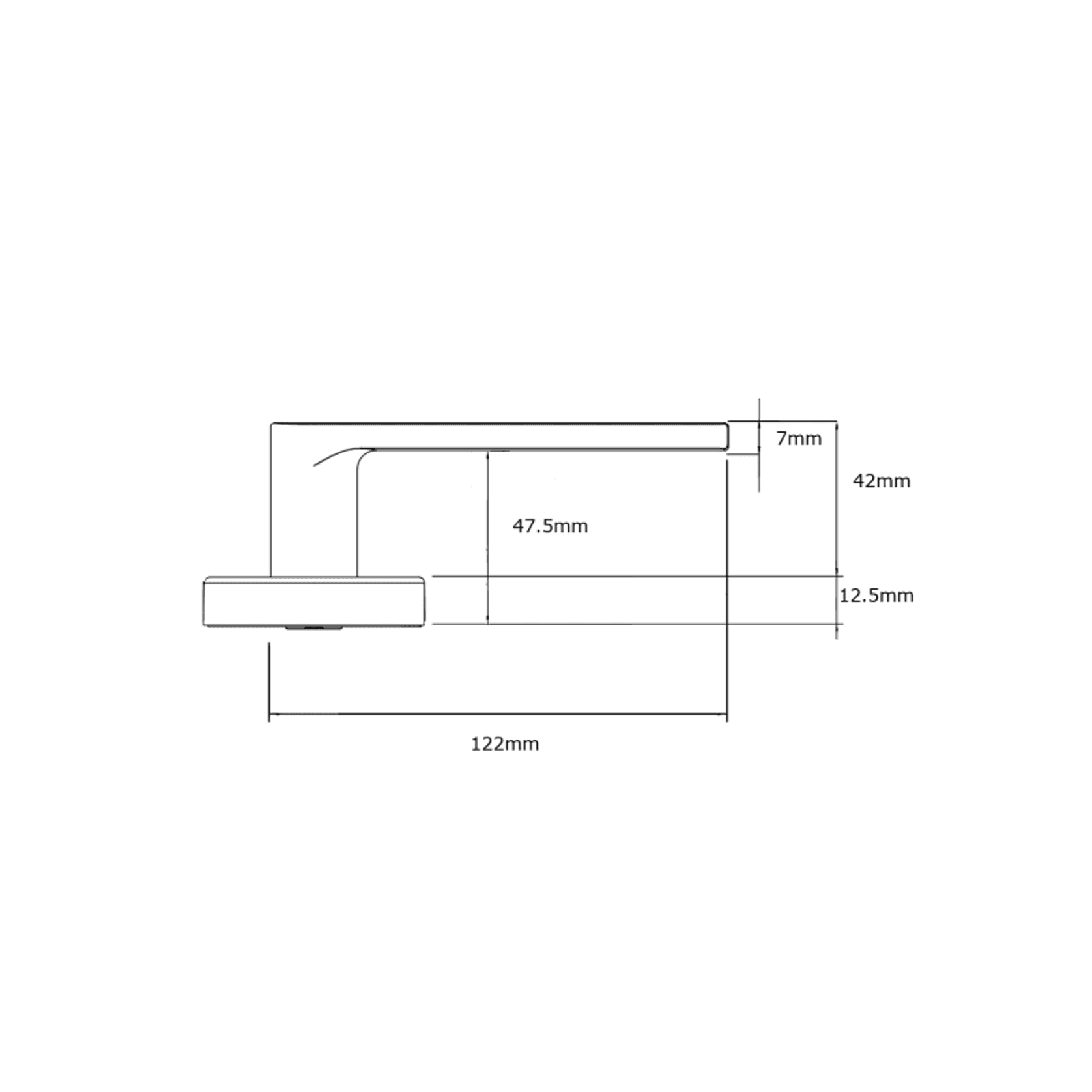

Lever Dimensions

• Length: 122mm
• Projection: 54.5mm
• Finger clearance: 47.5mm

Rose Dimensions

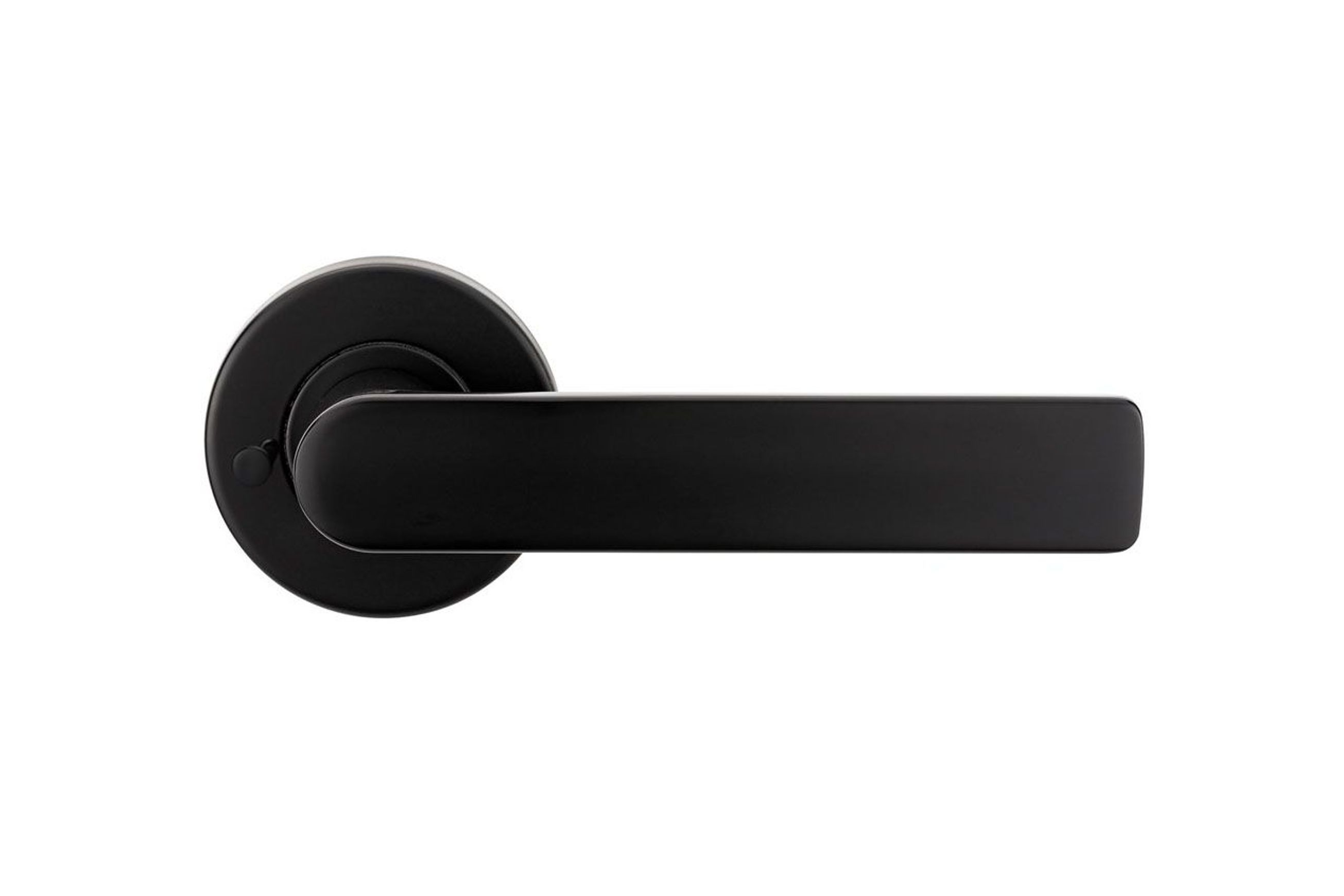

• Round Rose: 55mm by 12.5mm

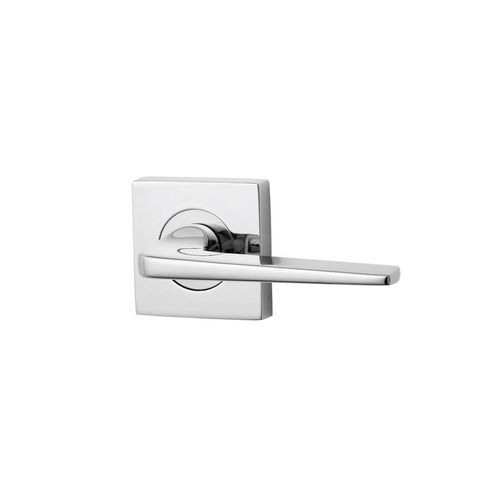

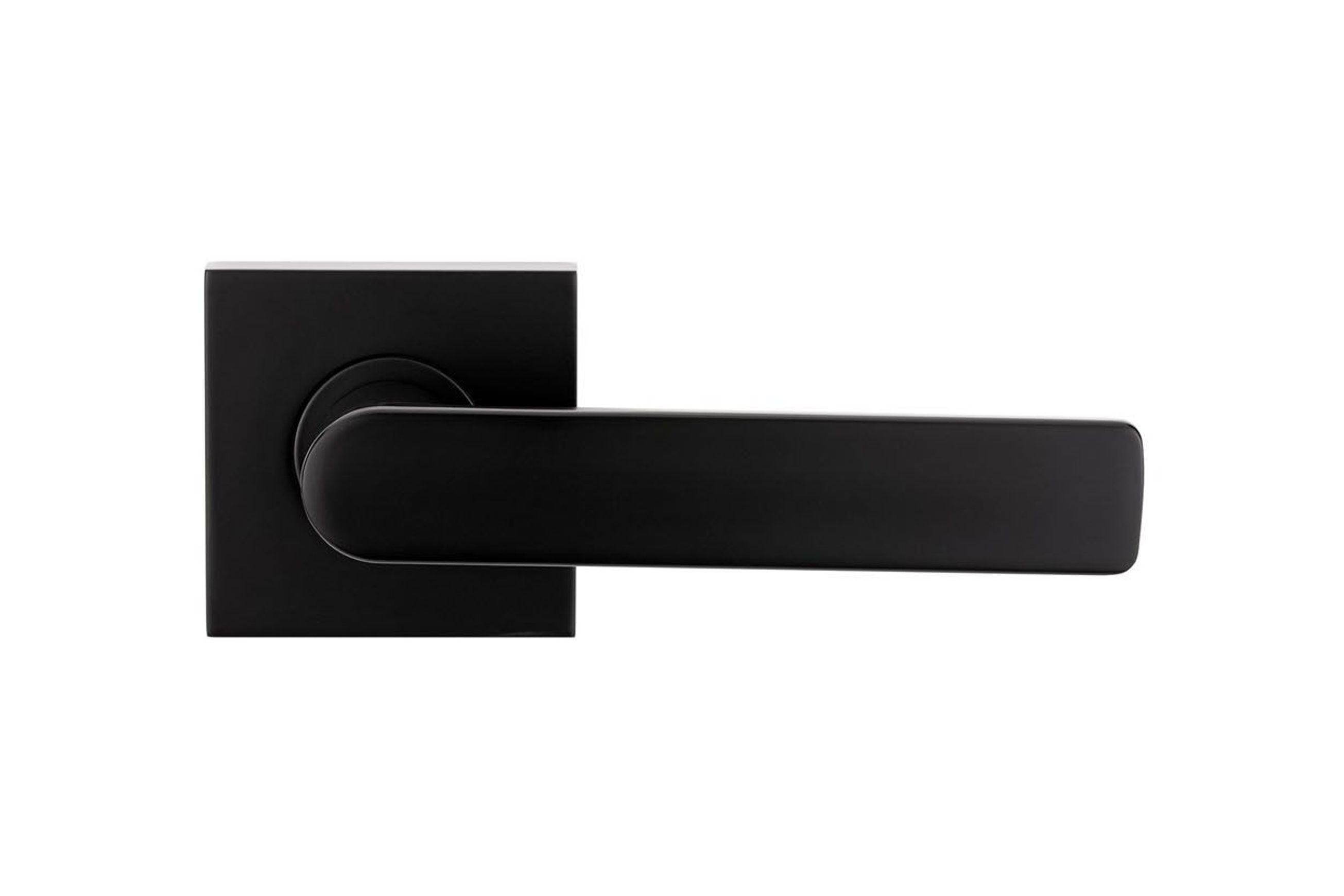

• Square Rose: 58mm by 12.5mm

Functions

• Mortice
• Passage
• Privacy
• Dummy

Materials:  Solid zinc die-cast

Door Thickness:  32 to 45mm

Latches

• Mortice sets are supplied with a pair of lever handles to be used with commerical mortice locks
• Passage sets are supplied with a pair of lever handles and a 60mm backset tubular latch
• Privacy sets are supplied with a pair of lever handles and a 60mm backset privacy tubular latch which includes an activating pin for the inside of the door and an external emergency release function. The privacy setting is automatically released when the internal handle is operated
• Dummy sets are supplied with one fixed lever handle
• All latches are supplied with industry standard "D" strikes



Standards and Compliance

•  Durability - Australian Lock Standard AS4145.2-2008
•  Corrosion - Australian Lock Standard AS4145.2-2008

Scope of use

Lockwood Velocity® Series Small Rose Door Handles offer home owners and builders a contemporary collection of levers on rose for use within a residential environment.

Performance

• All fixings are concealed beneath a removable rose trim providing a crisp and clean presentation desired by the discerning home owner

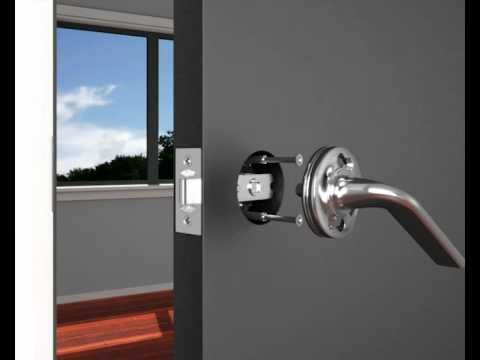

• Simple twist and tighten fixing method pre-assembled leversets allows for super easy and fast installation

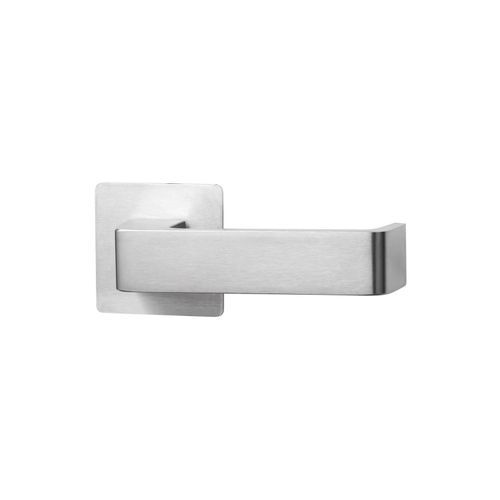

• Available in a choice of square or round rose with the Element lever design
• Successfully tested up to 2 hours on fire door assemblies with the Australian Standard AS1905.1 2005 - Part 1: Fire Resistant Doorsets

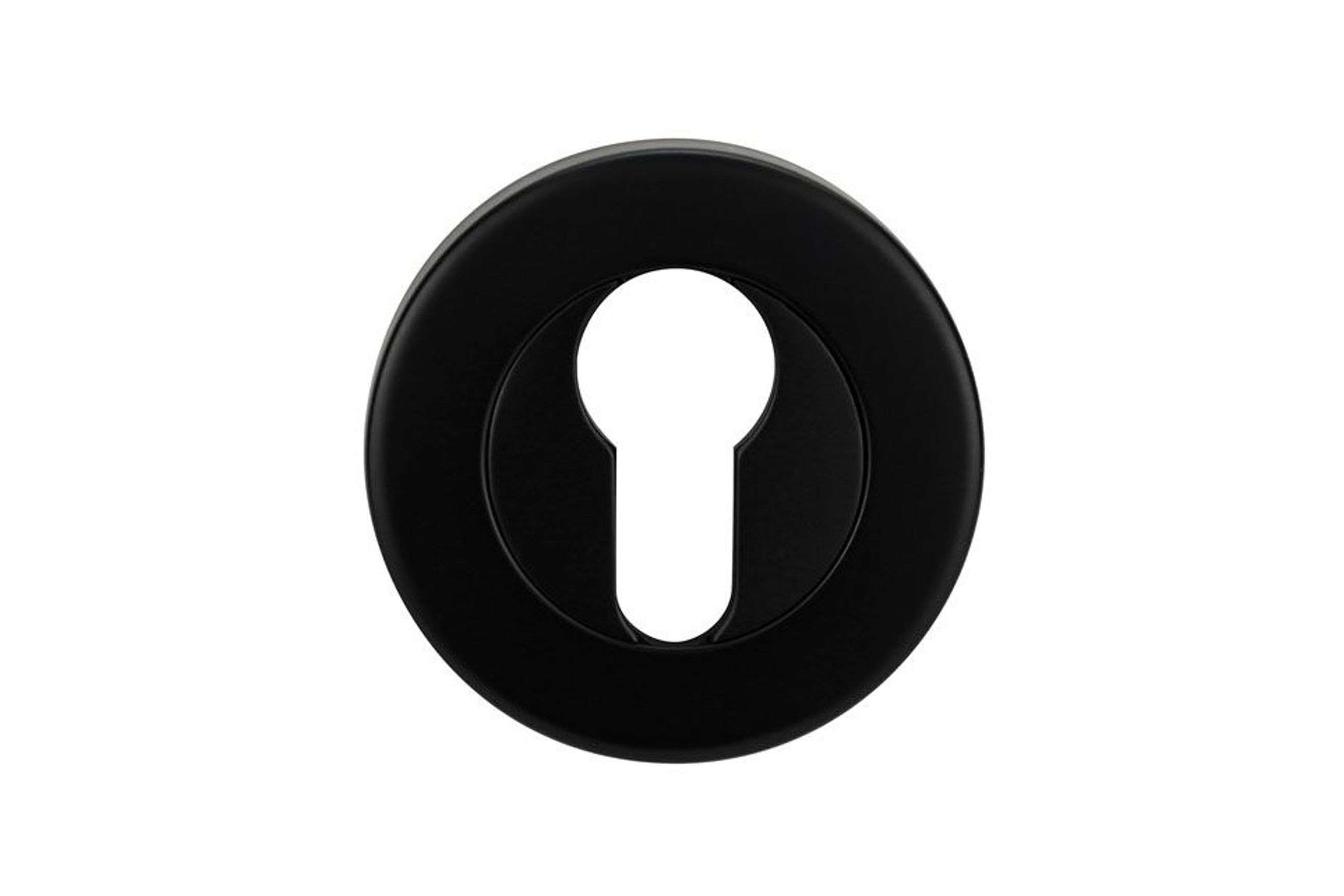

• Includes range of escutcheons such as AS1428.1 compliant turnknob, standard turnknob and privacy indicating emergency turn
