Louvre Roof

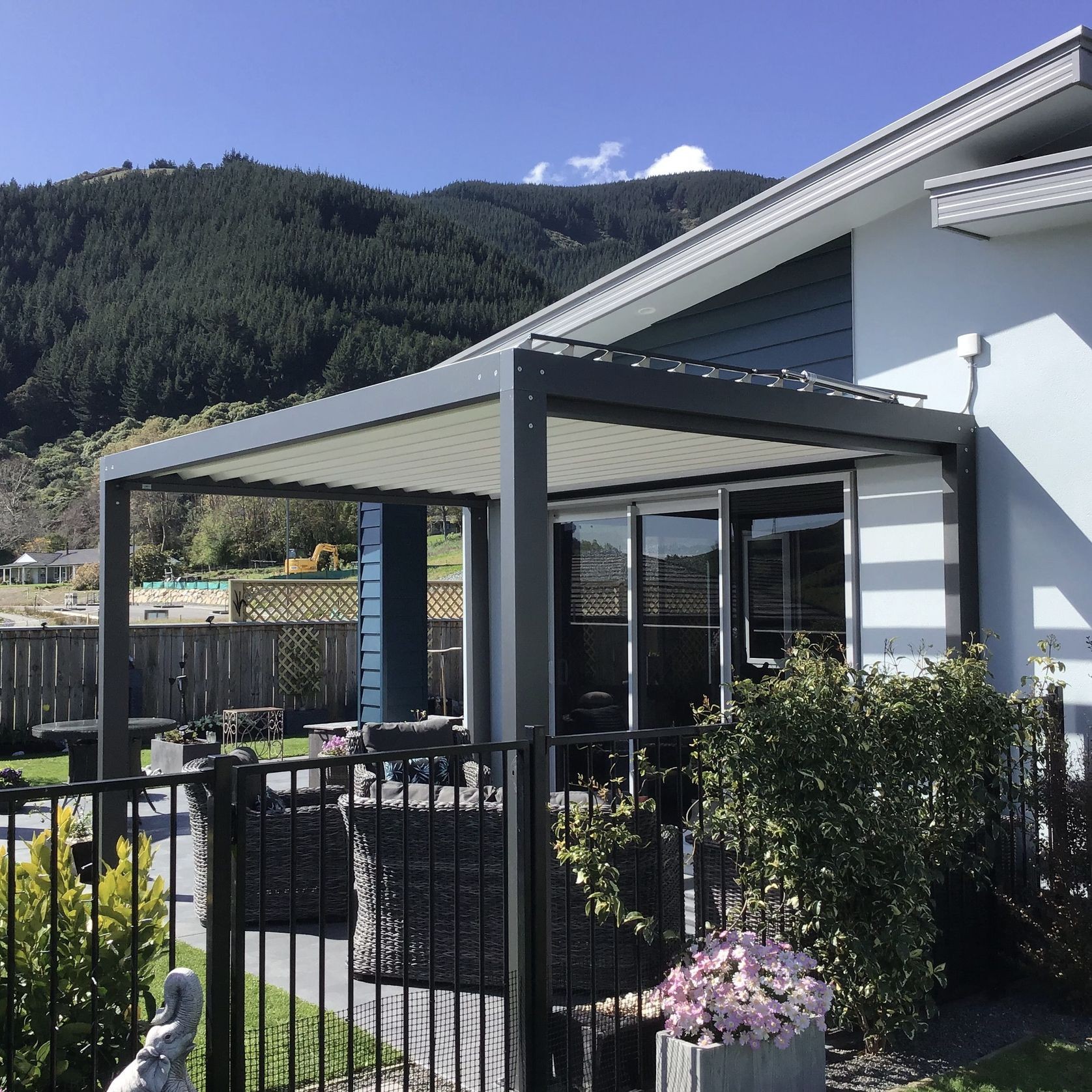

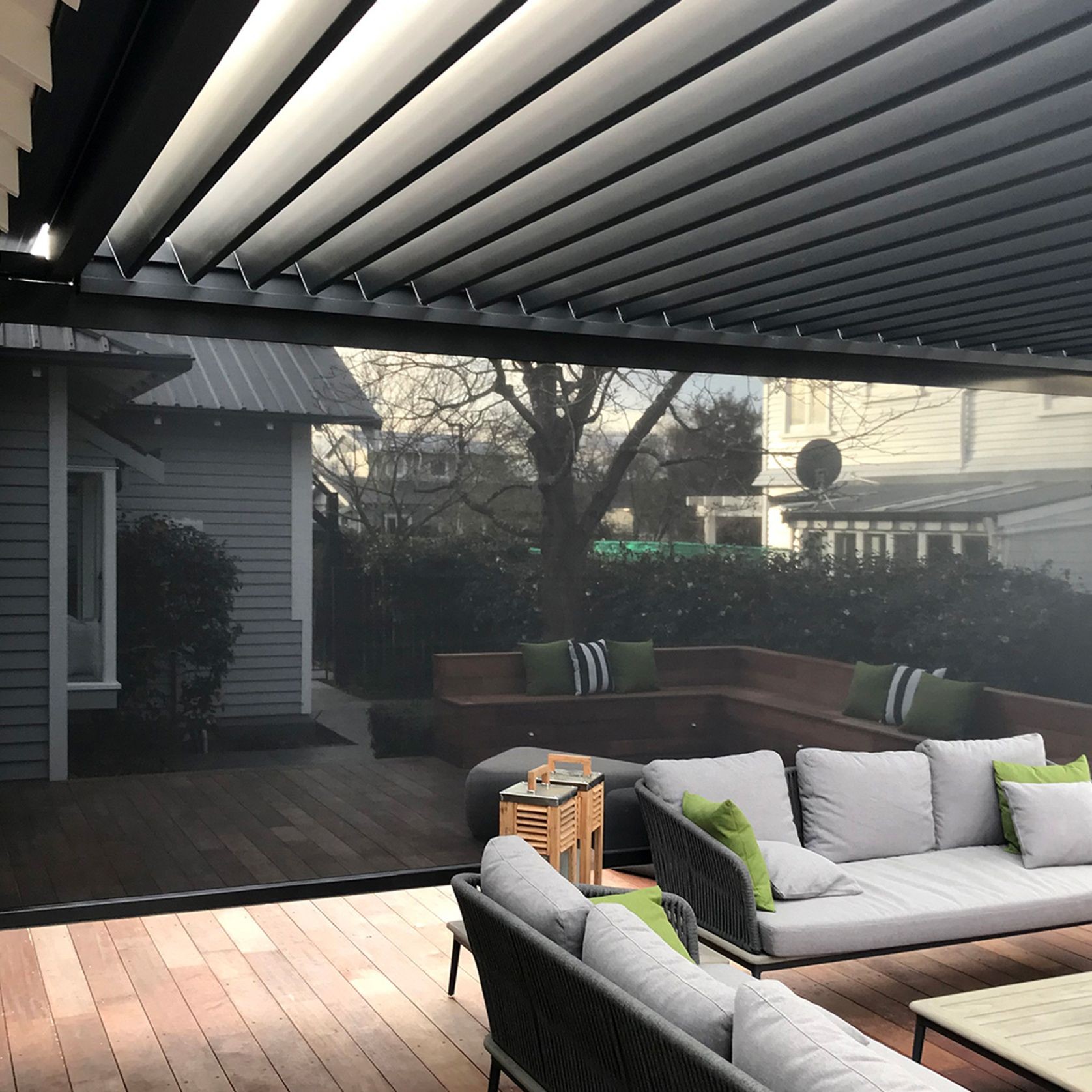

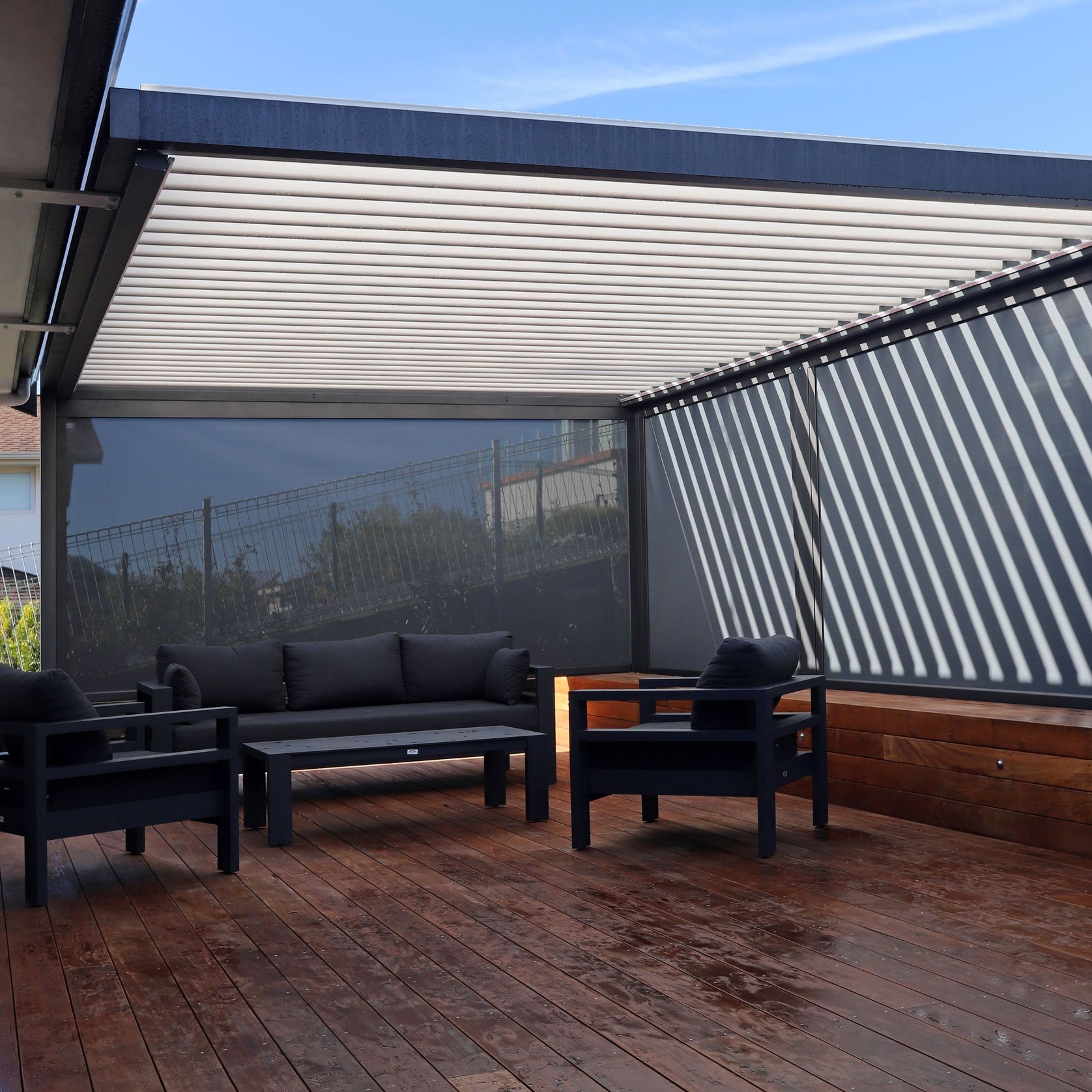

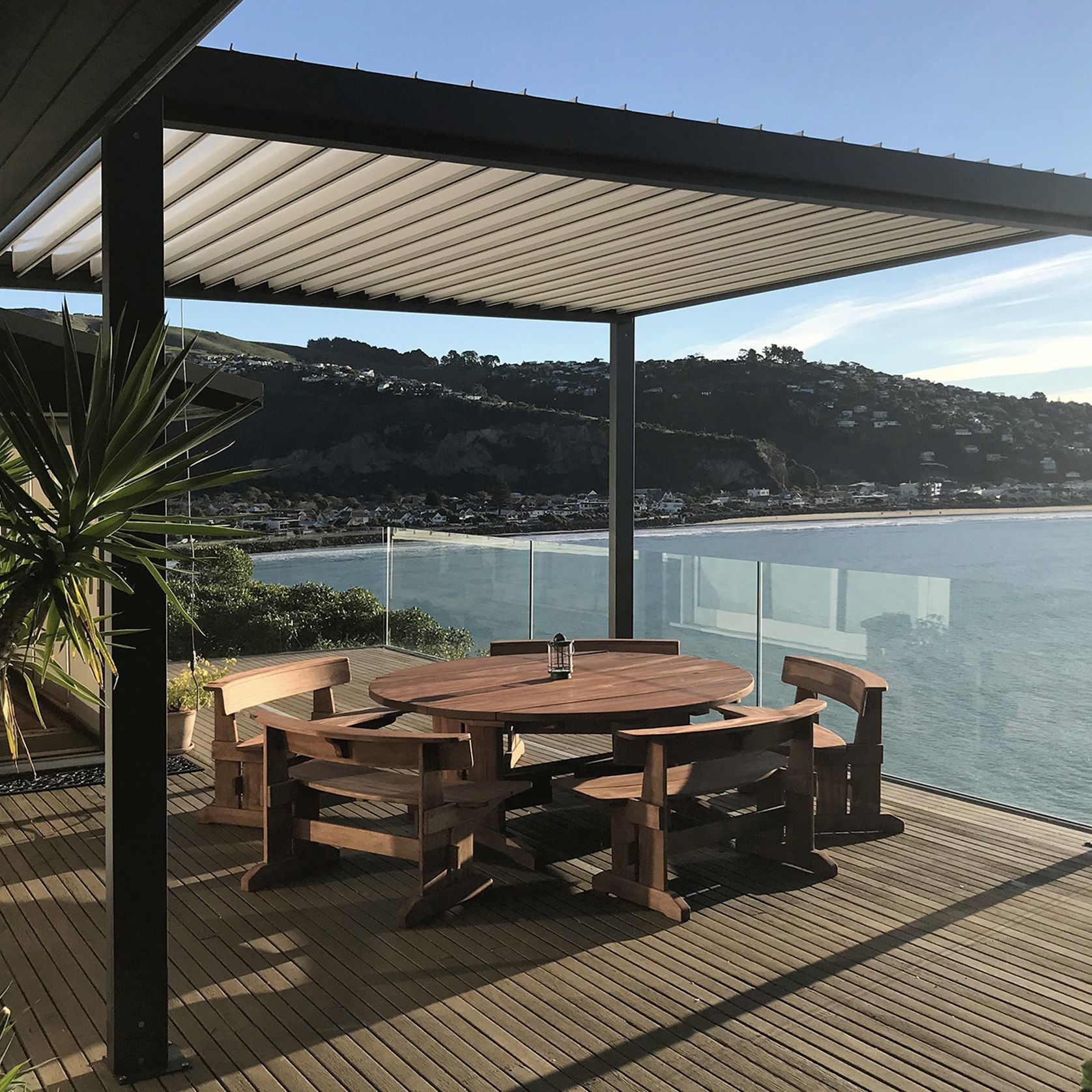

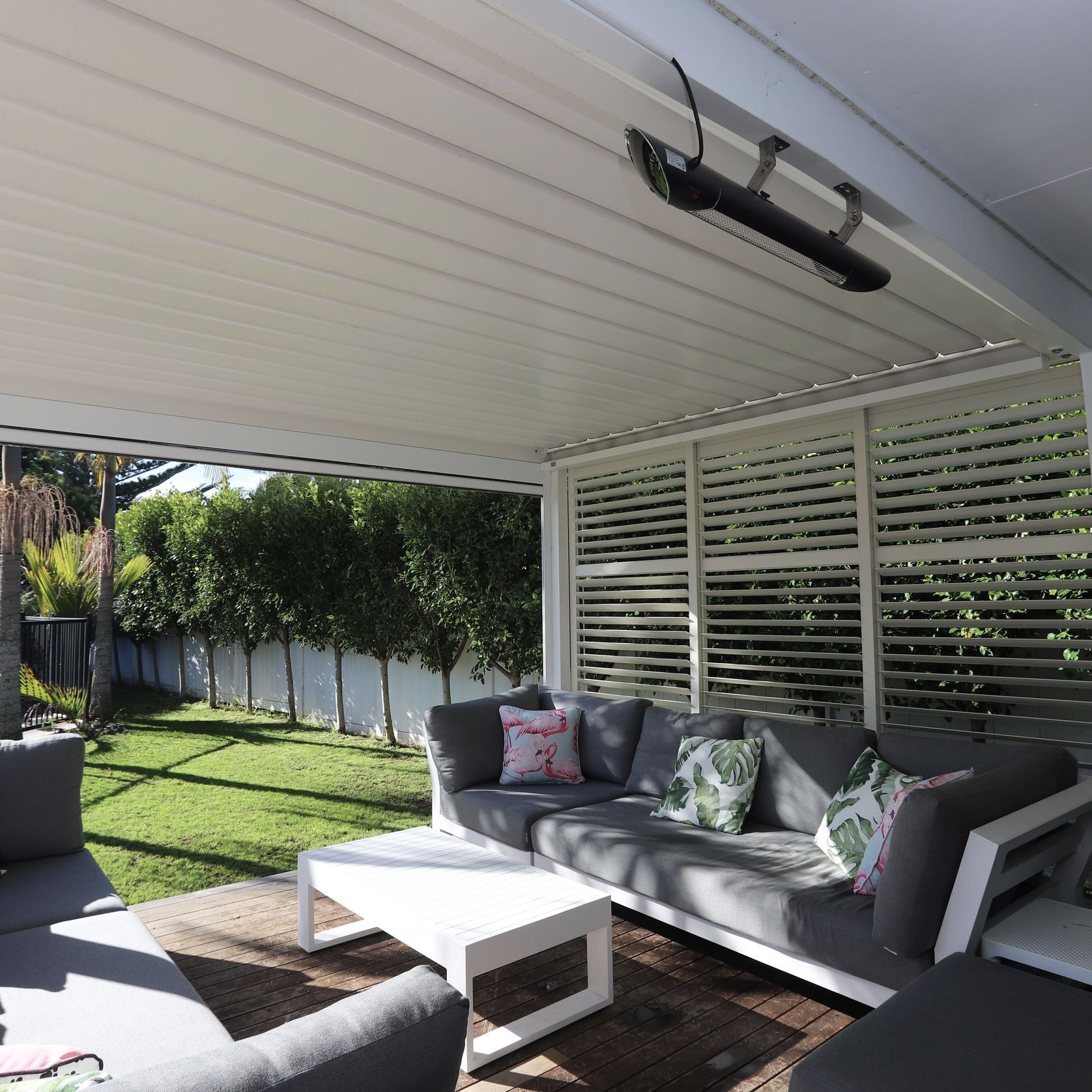

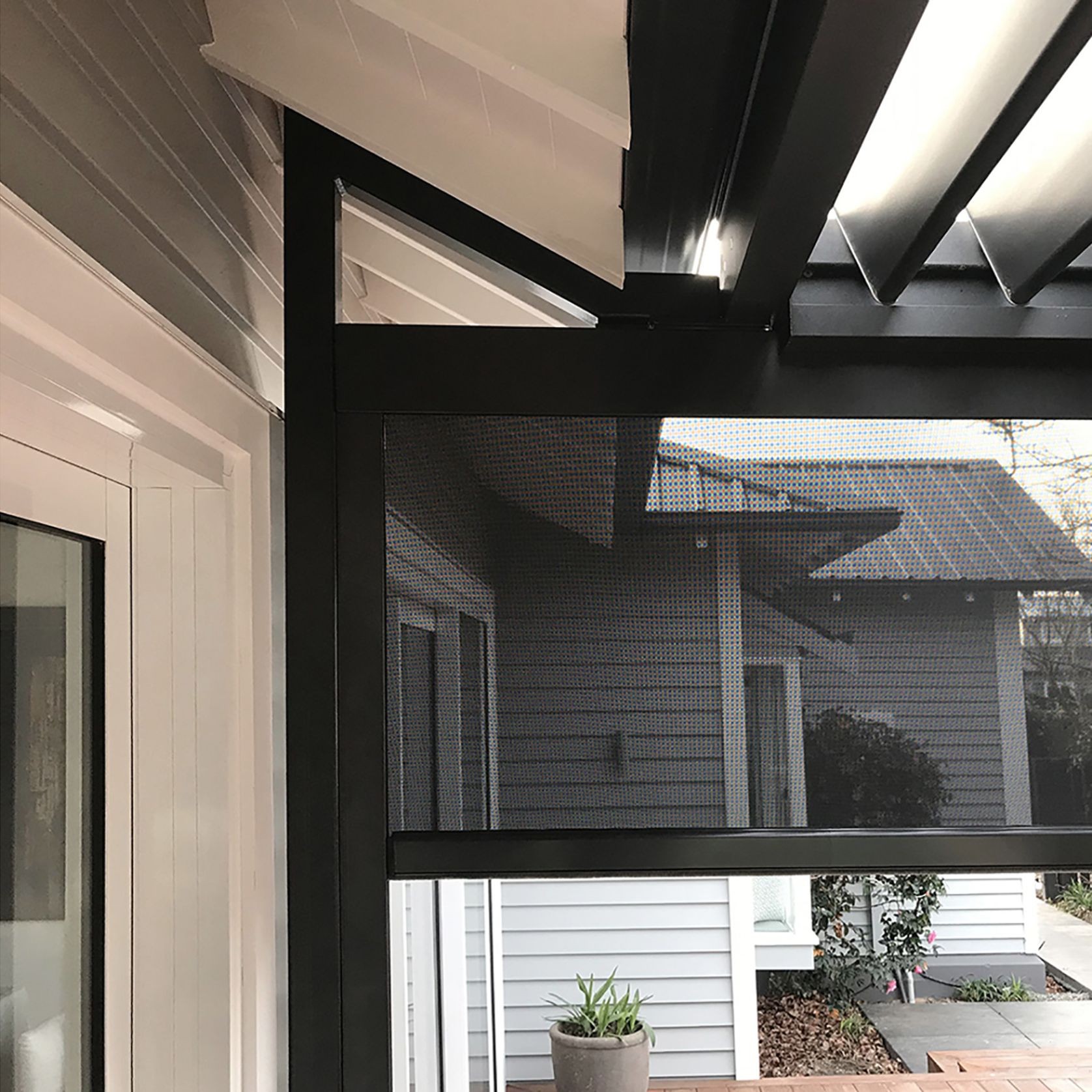

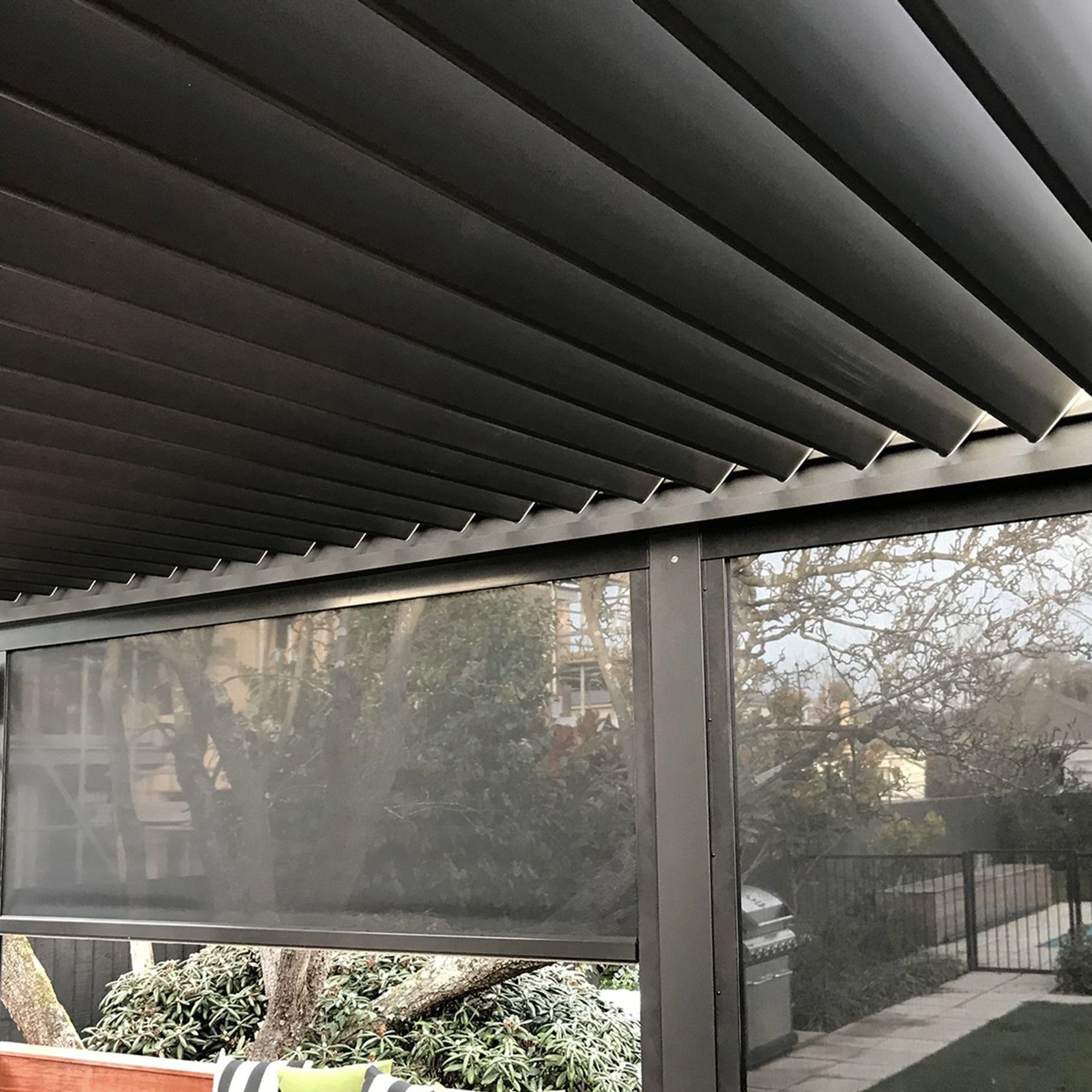

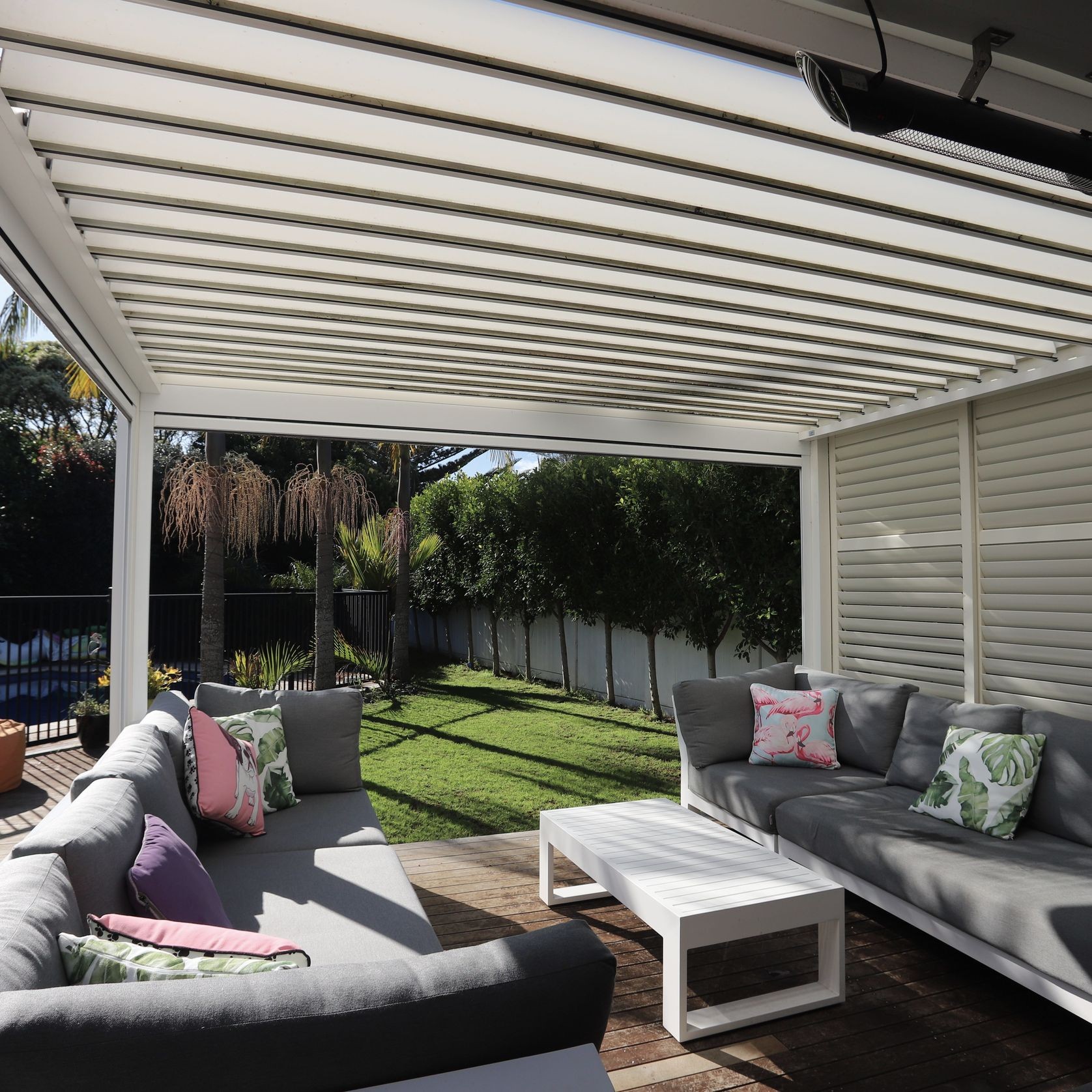

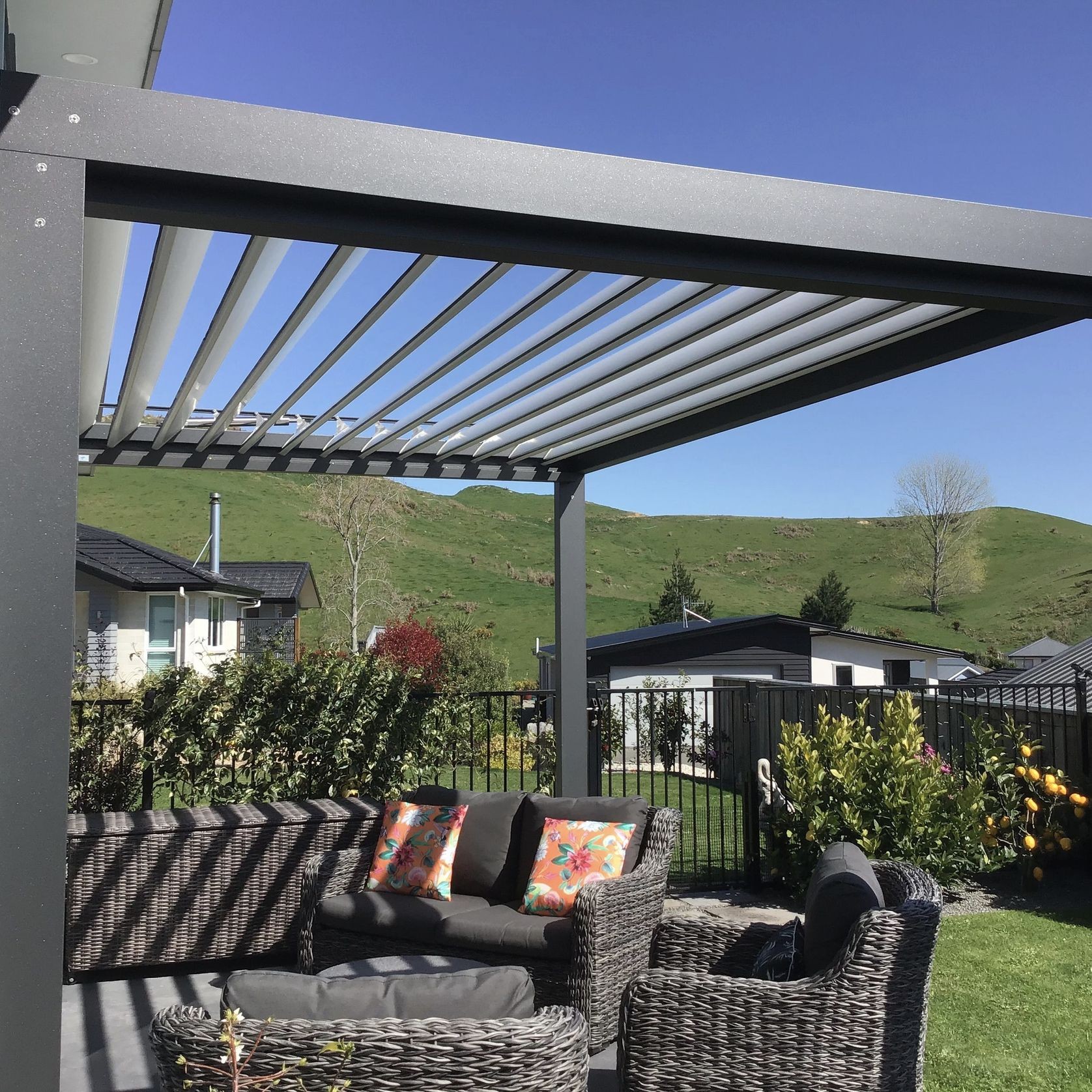

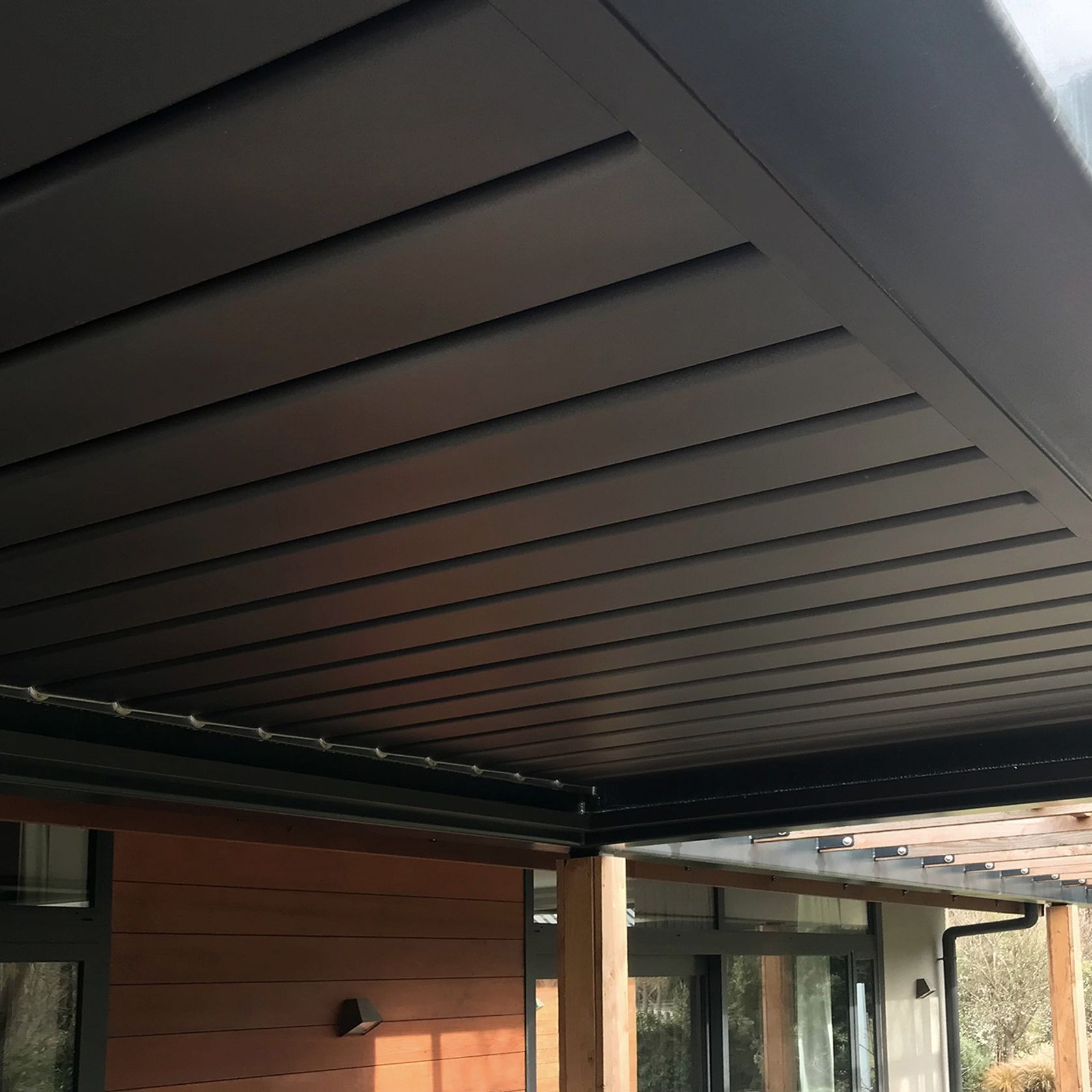

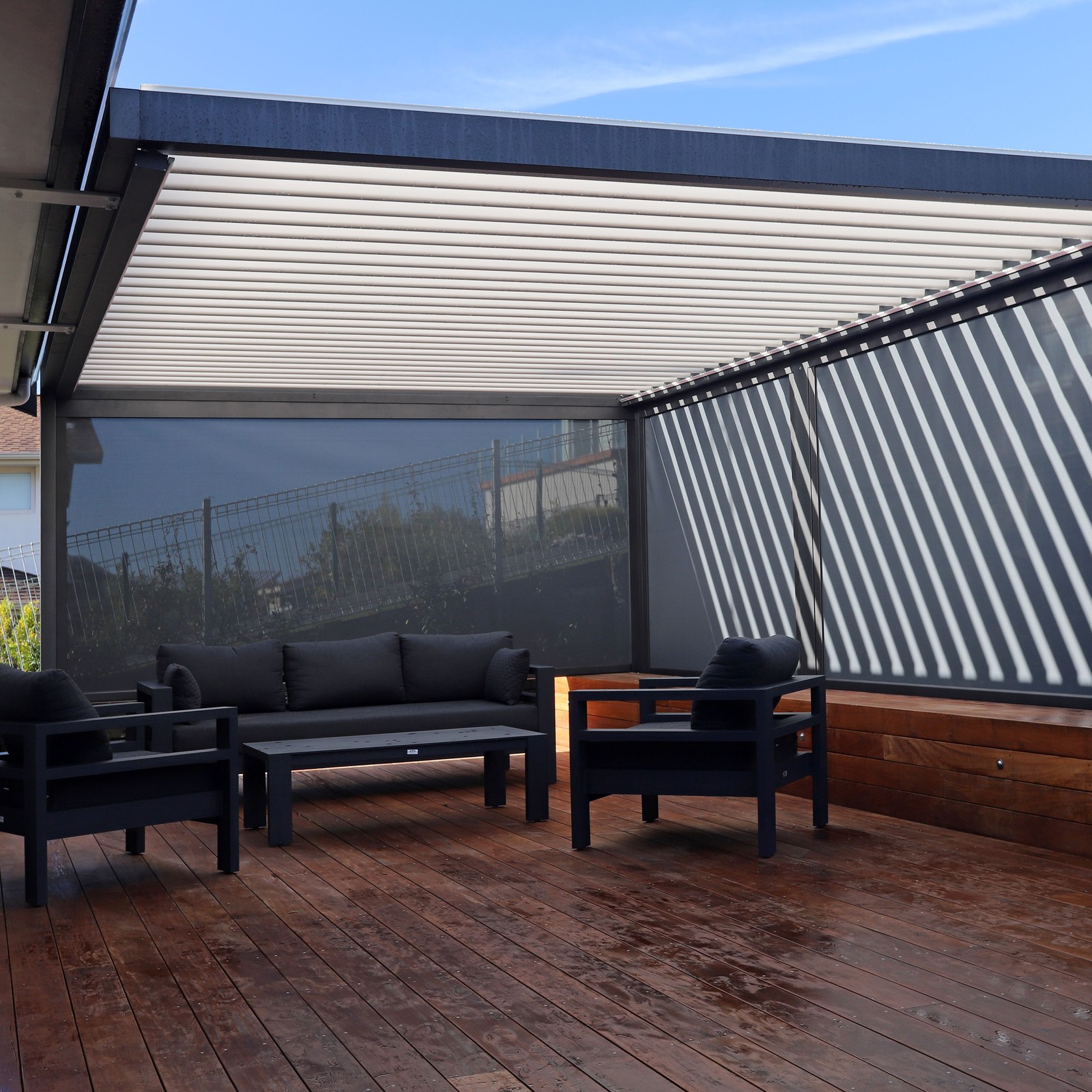

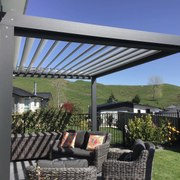

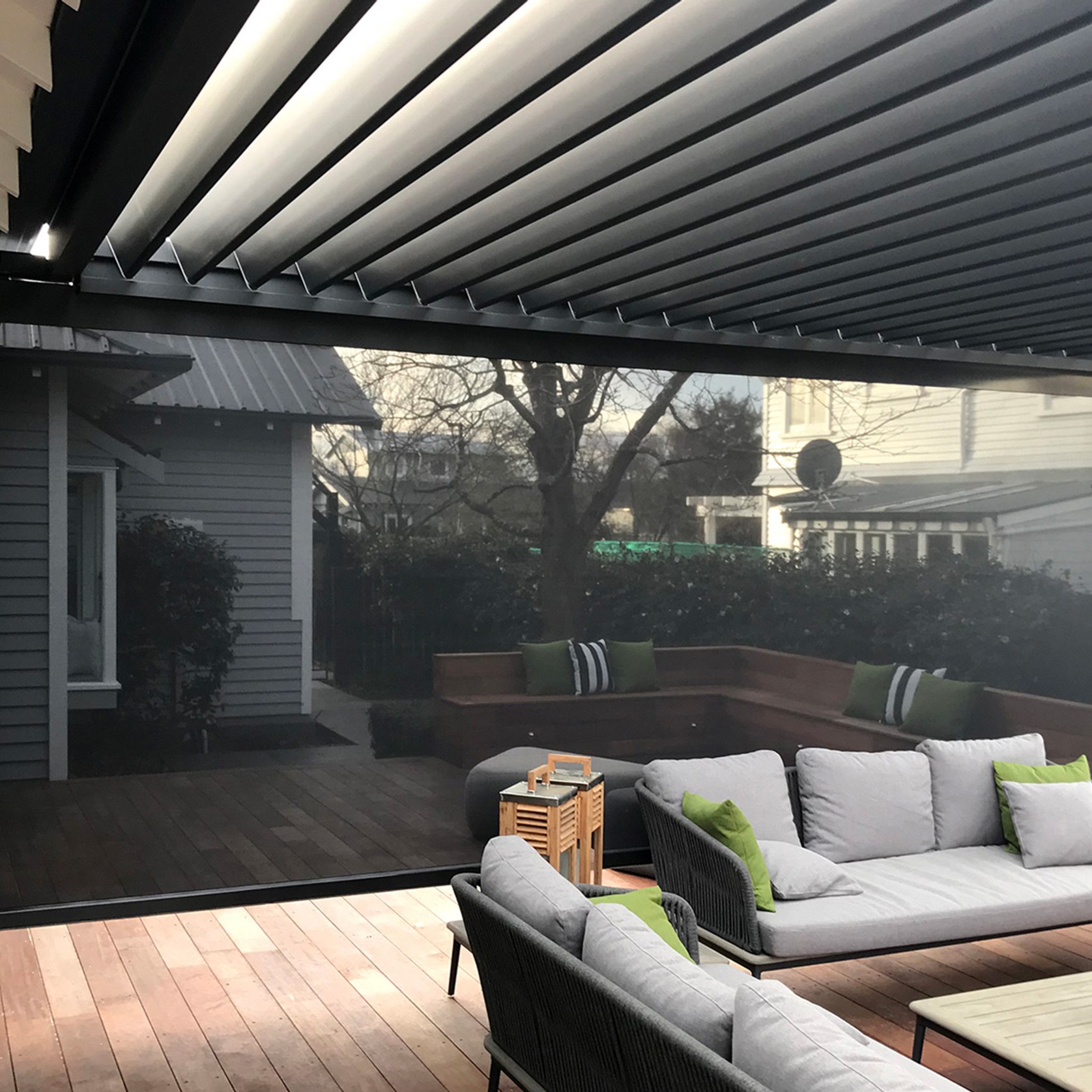

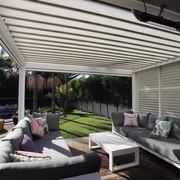

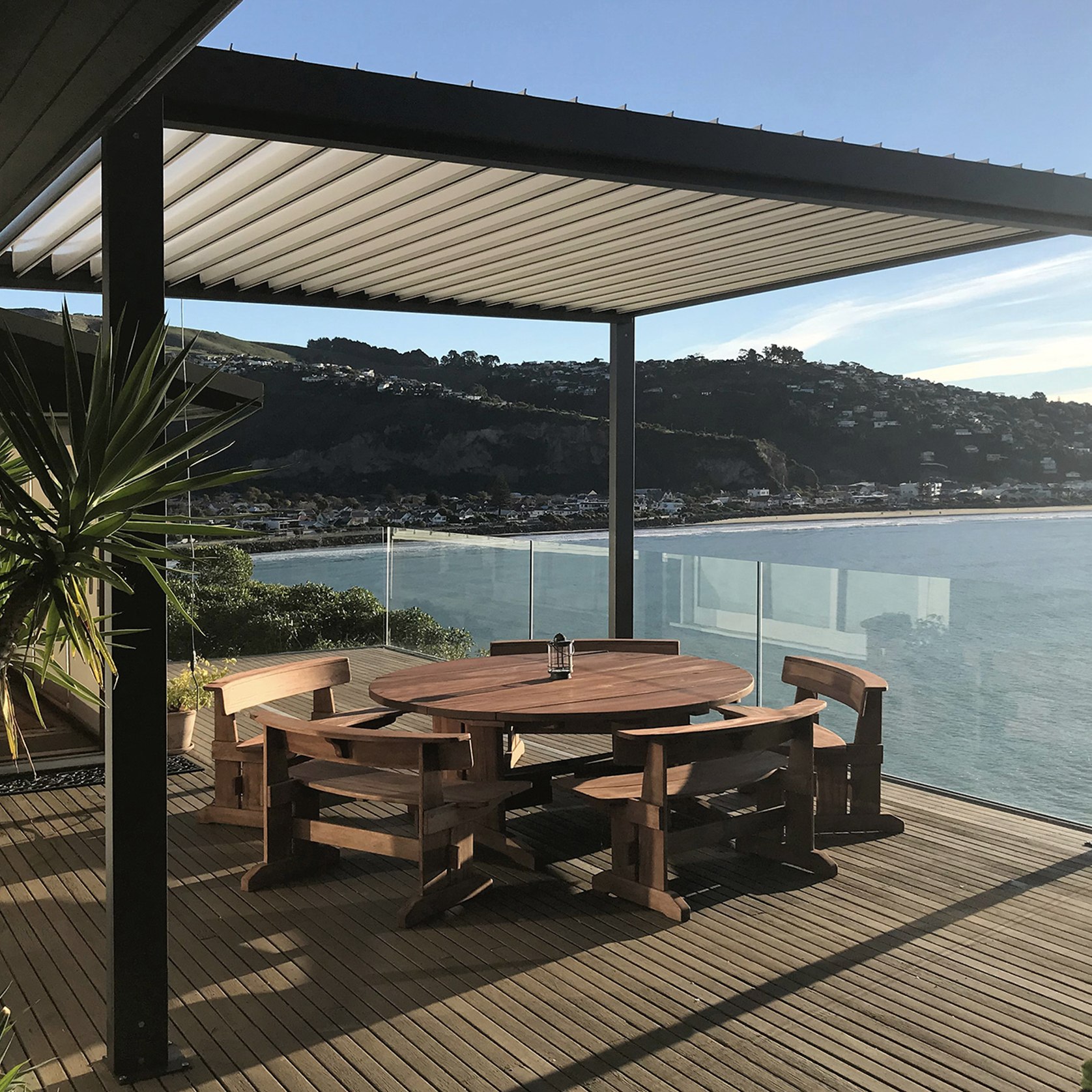

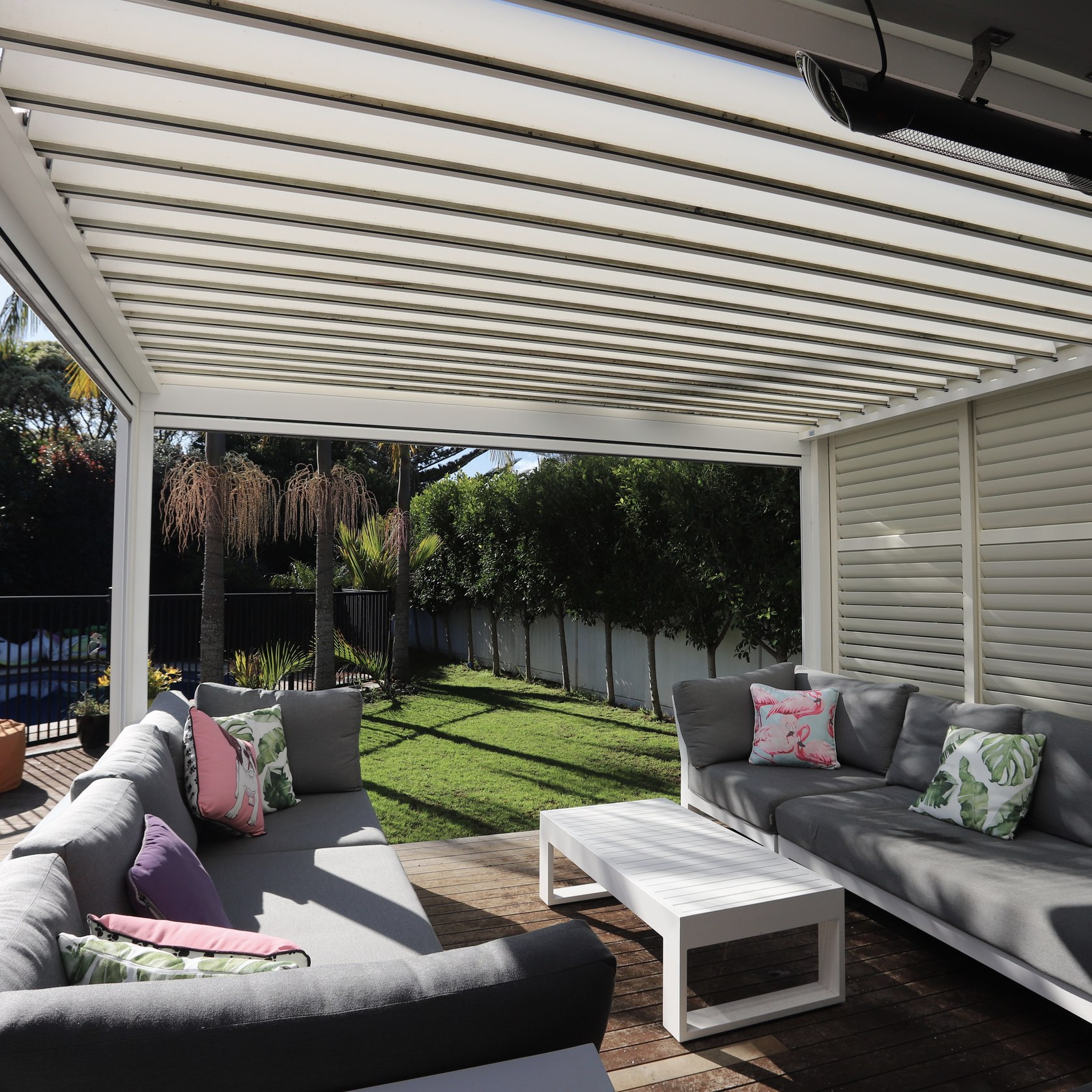

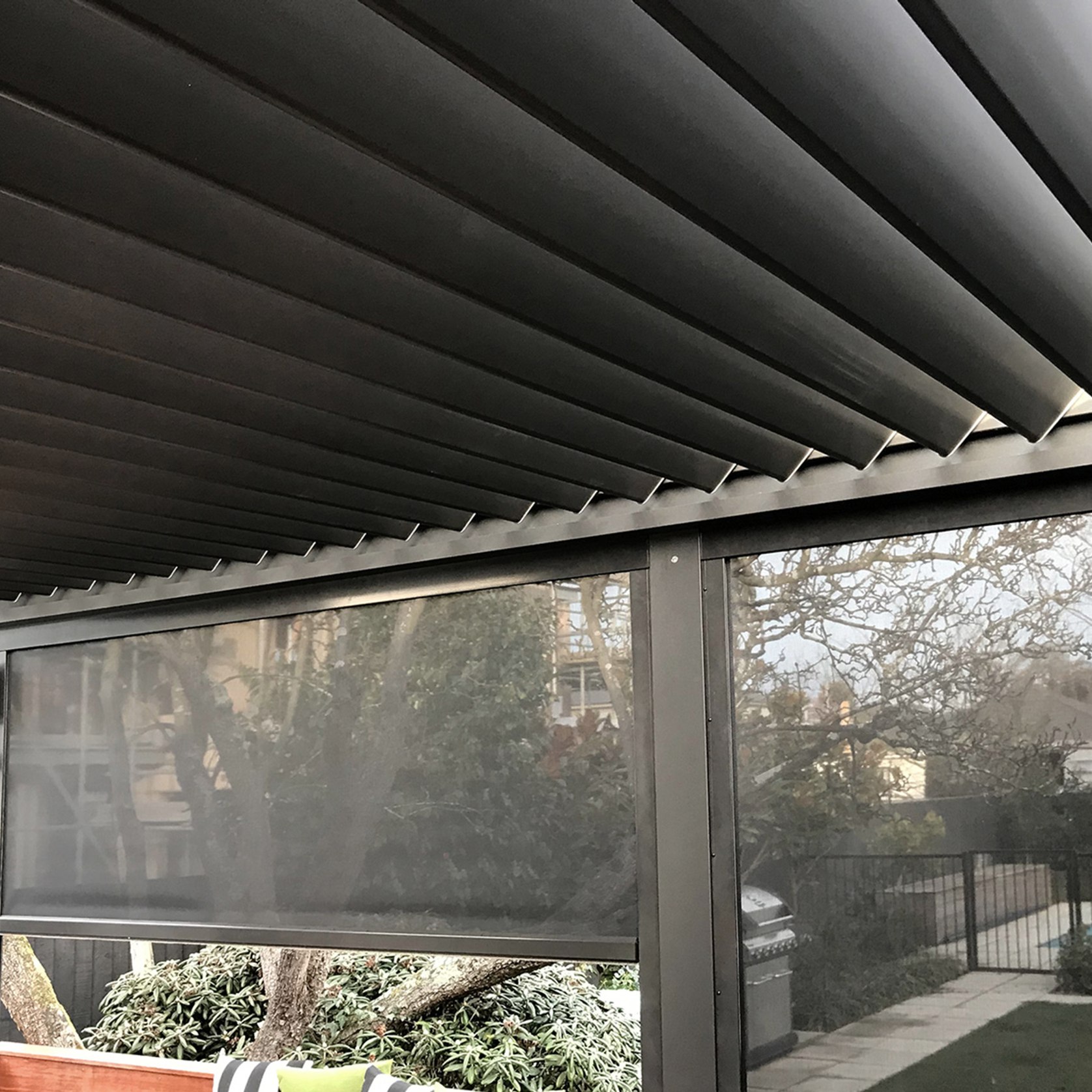

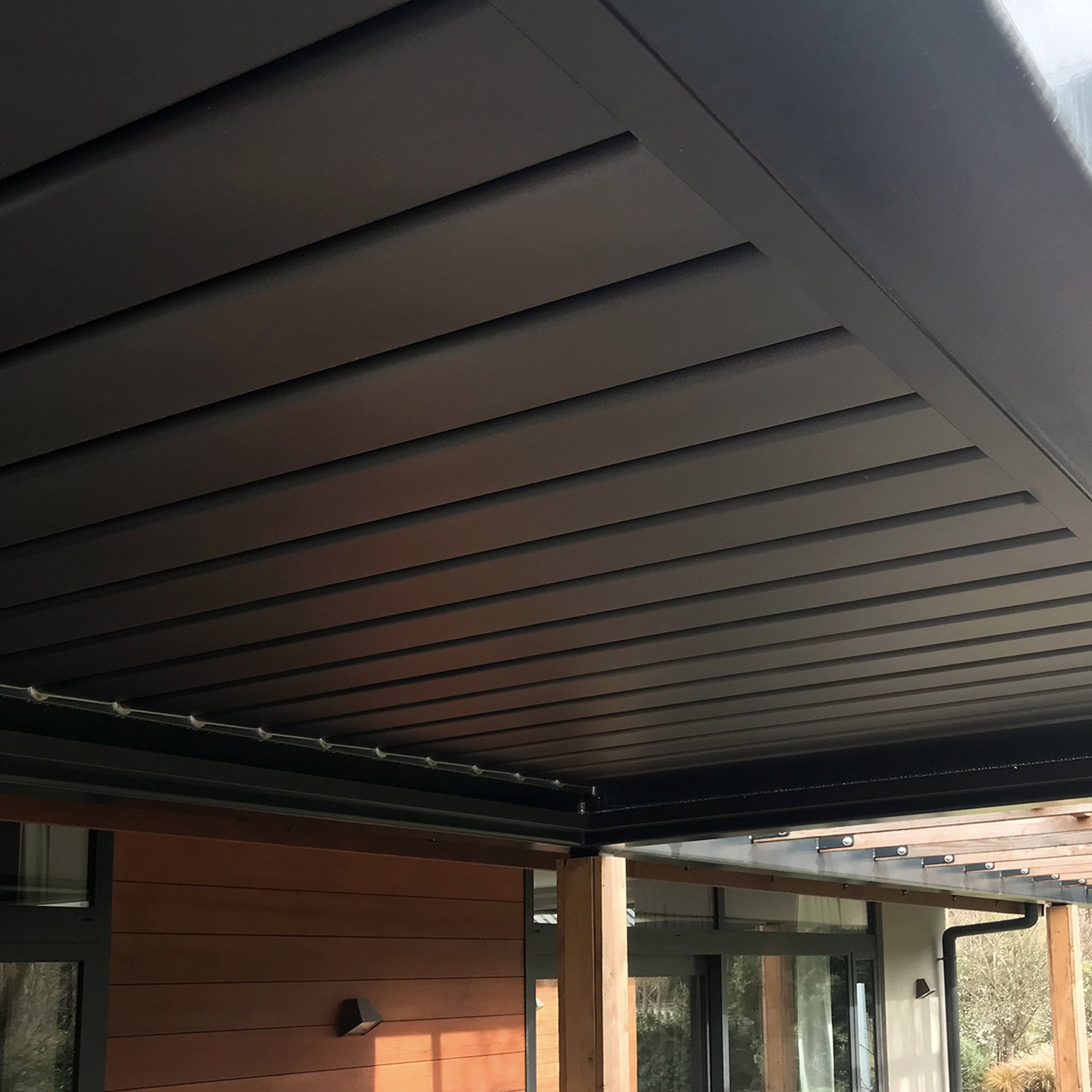

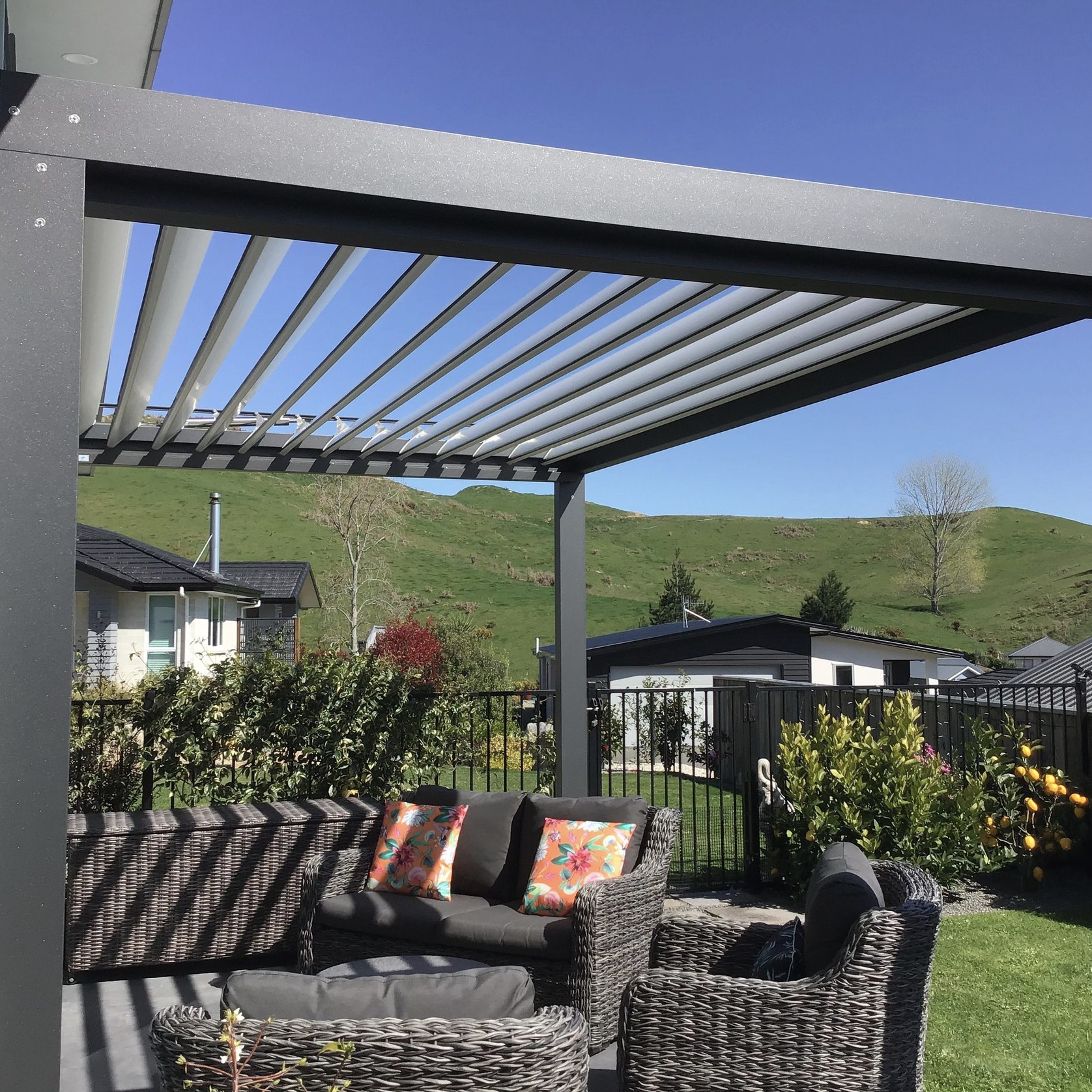

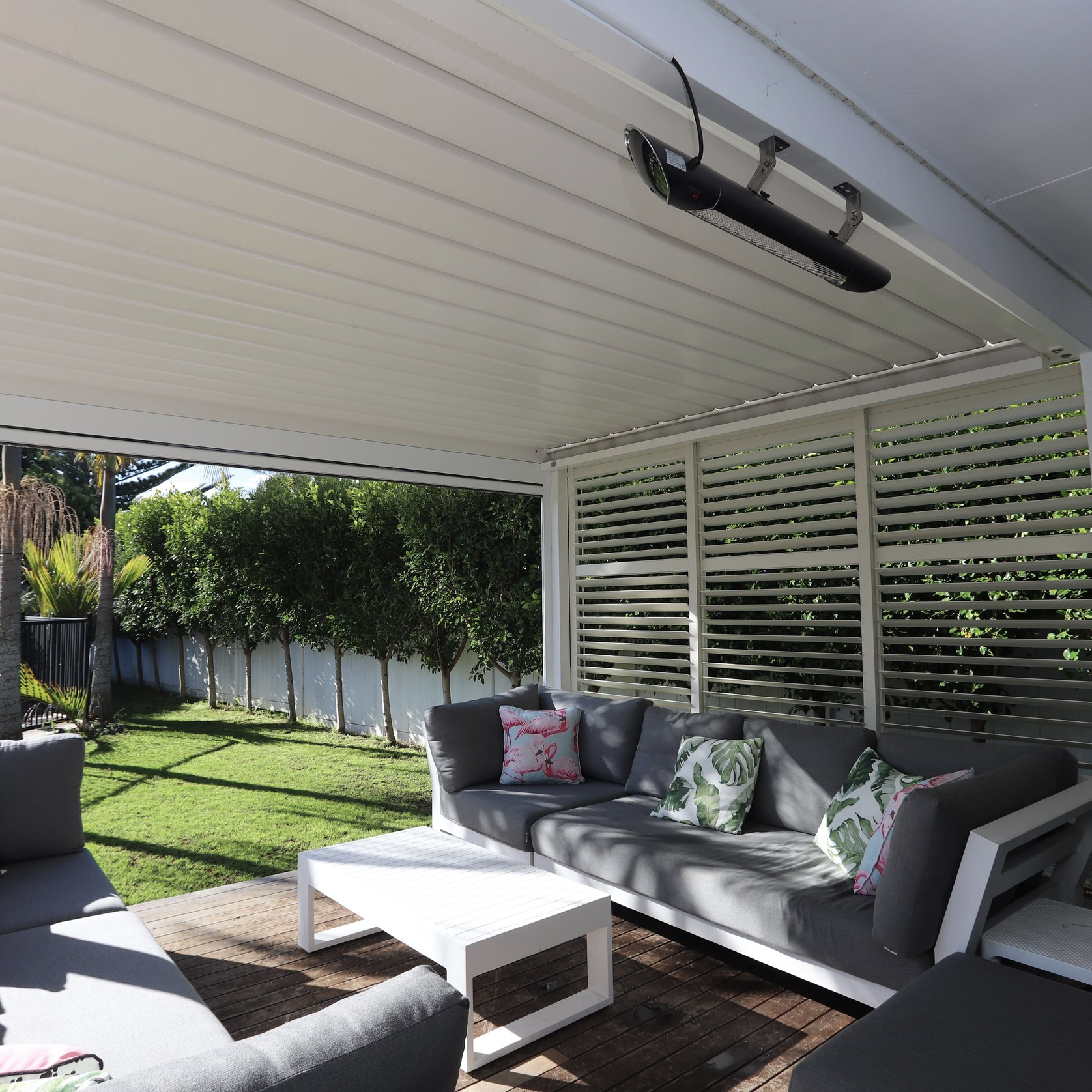

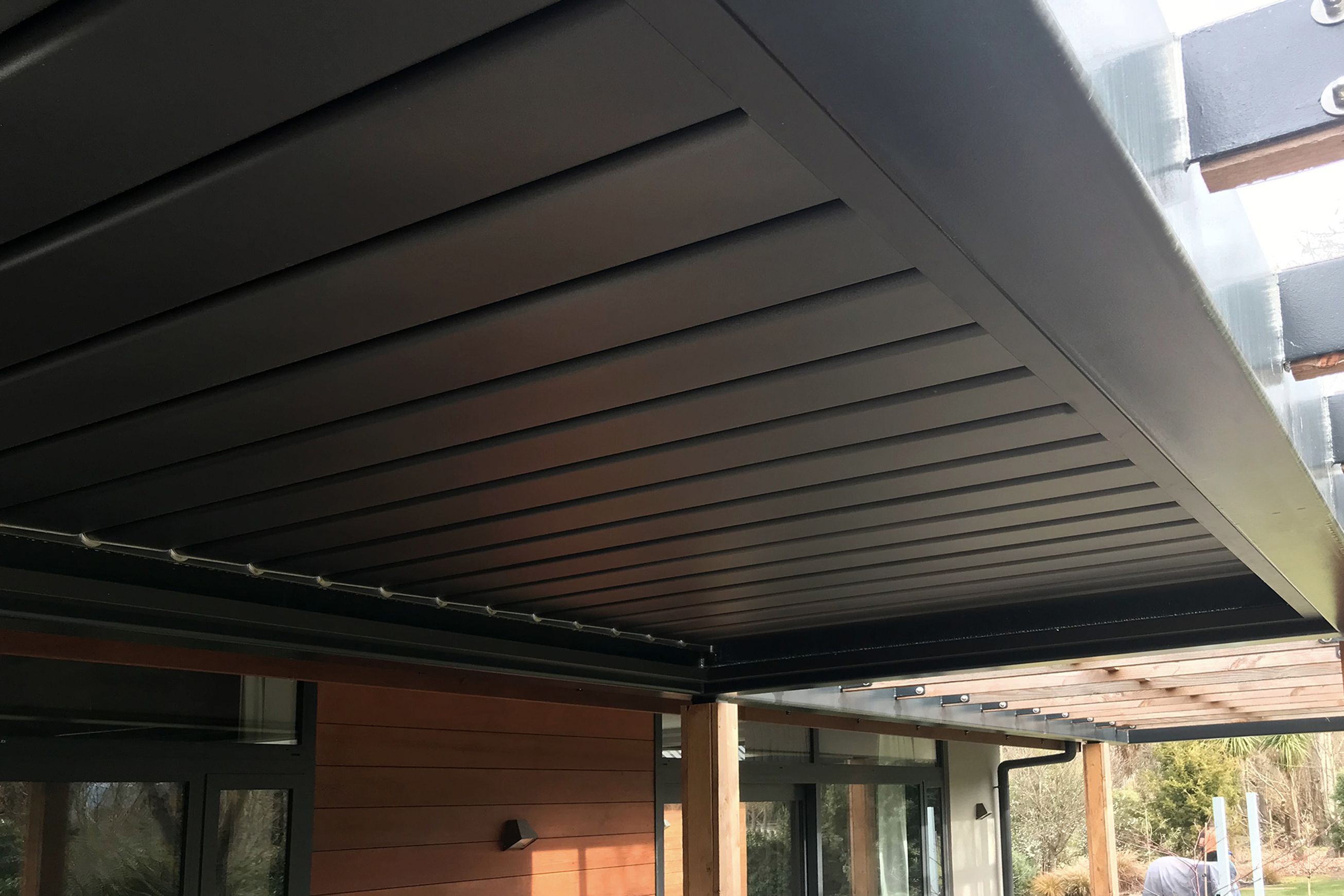

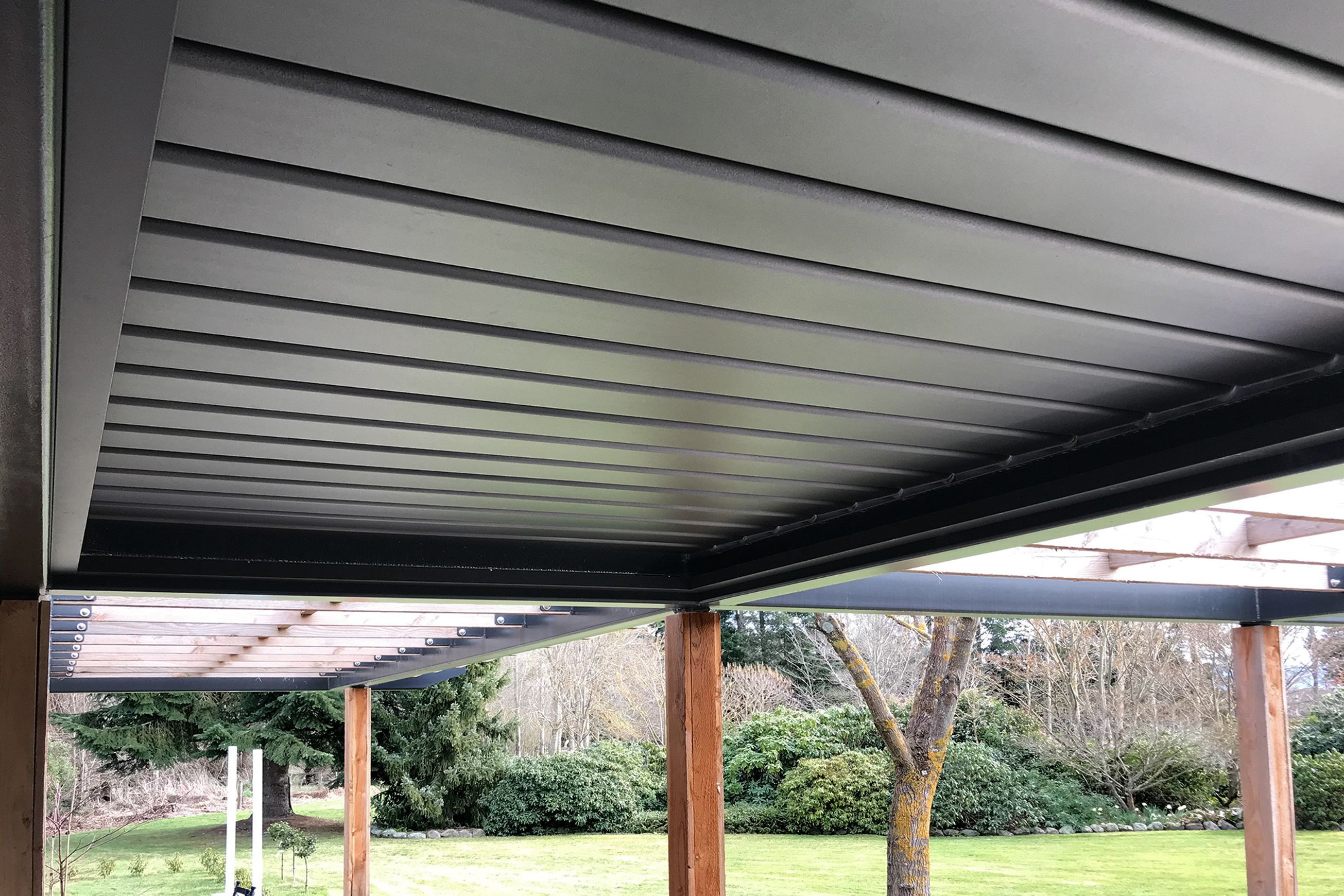

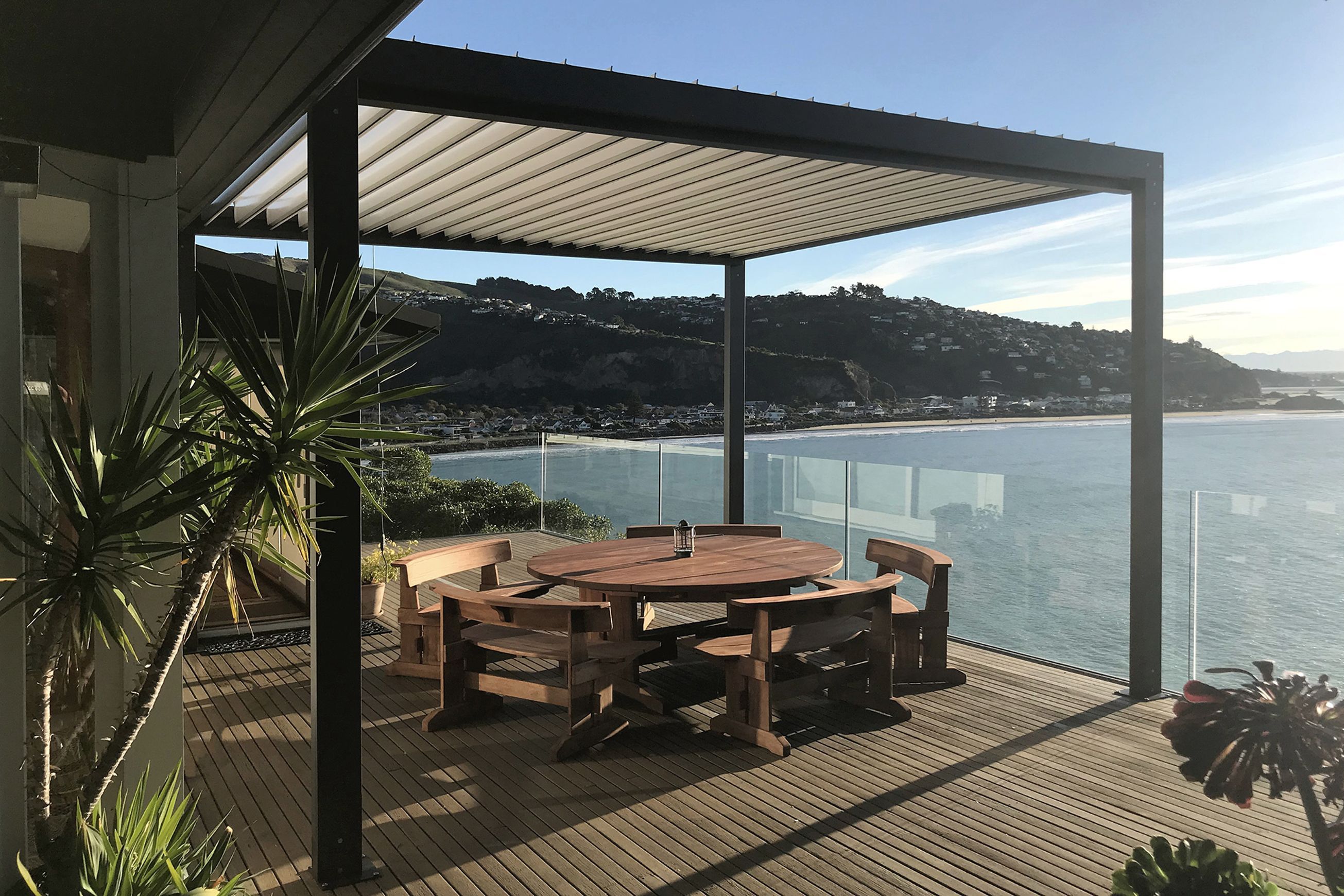

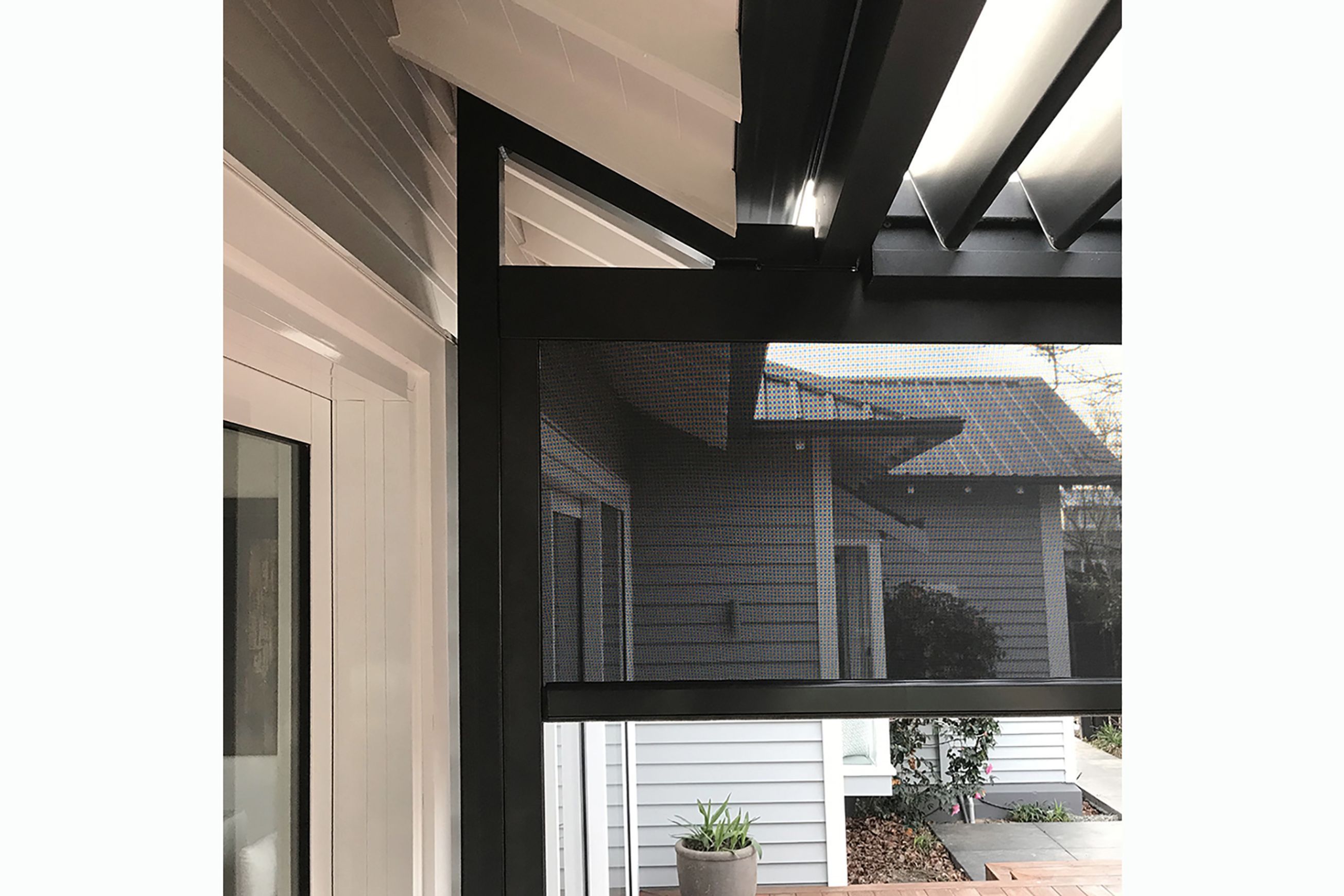

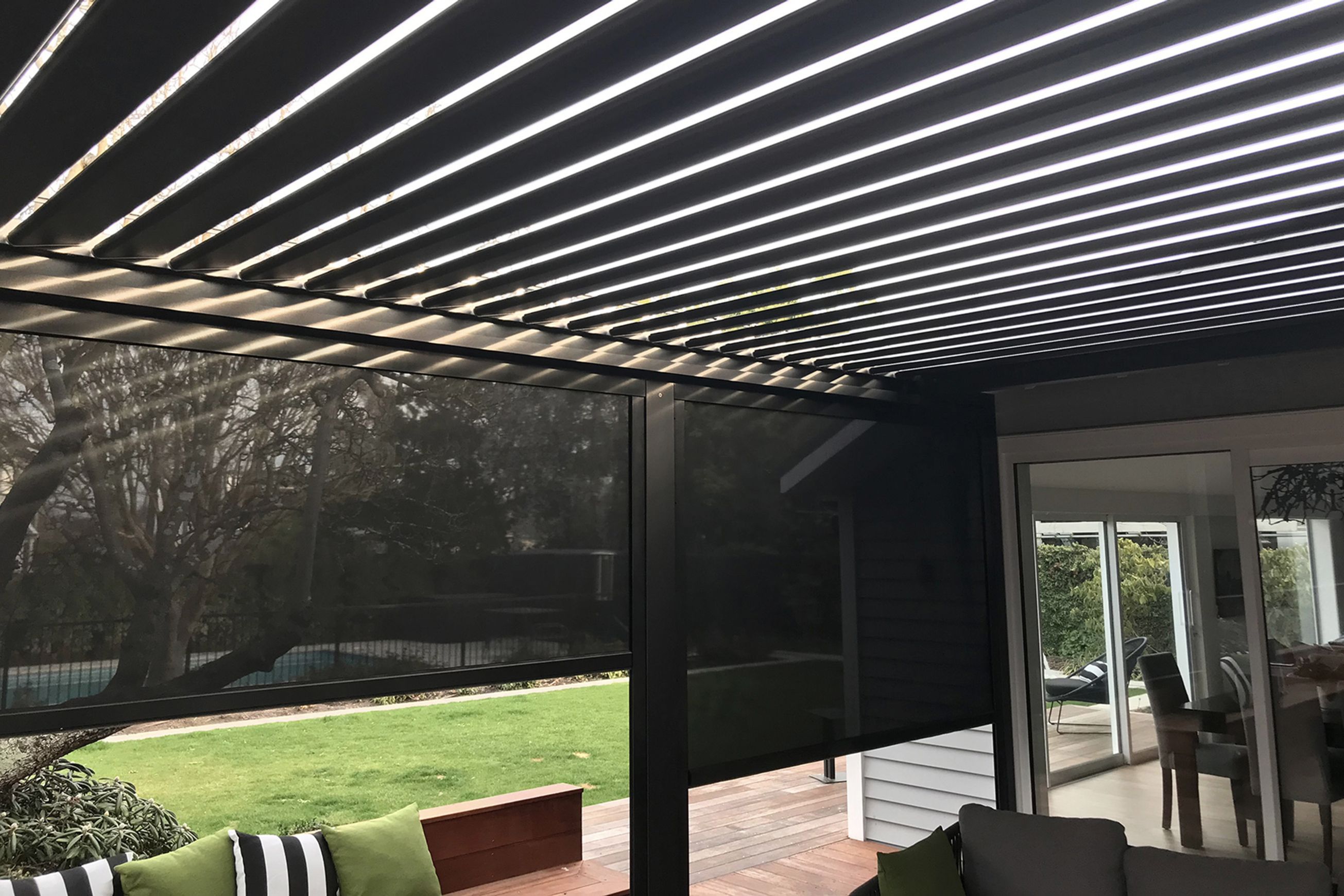

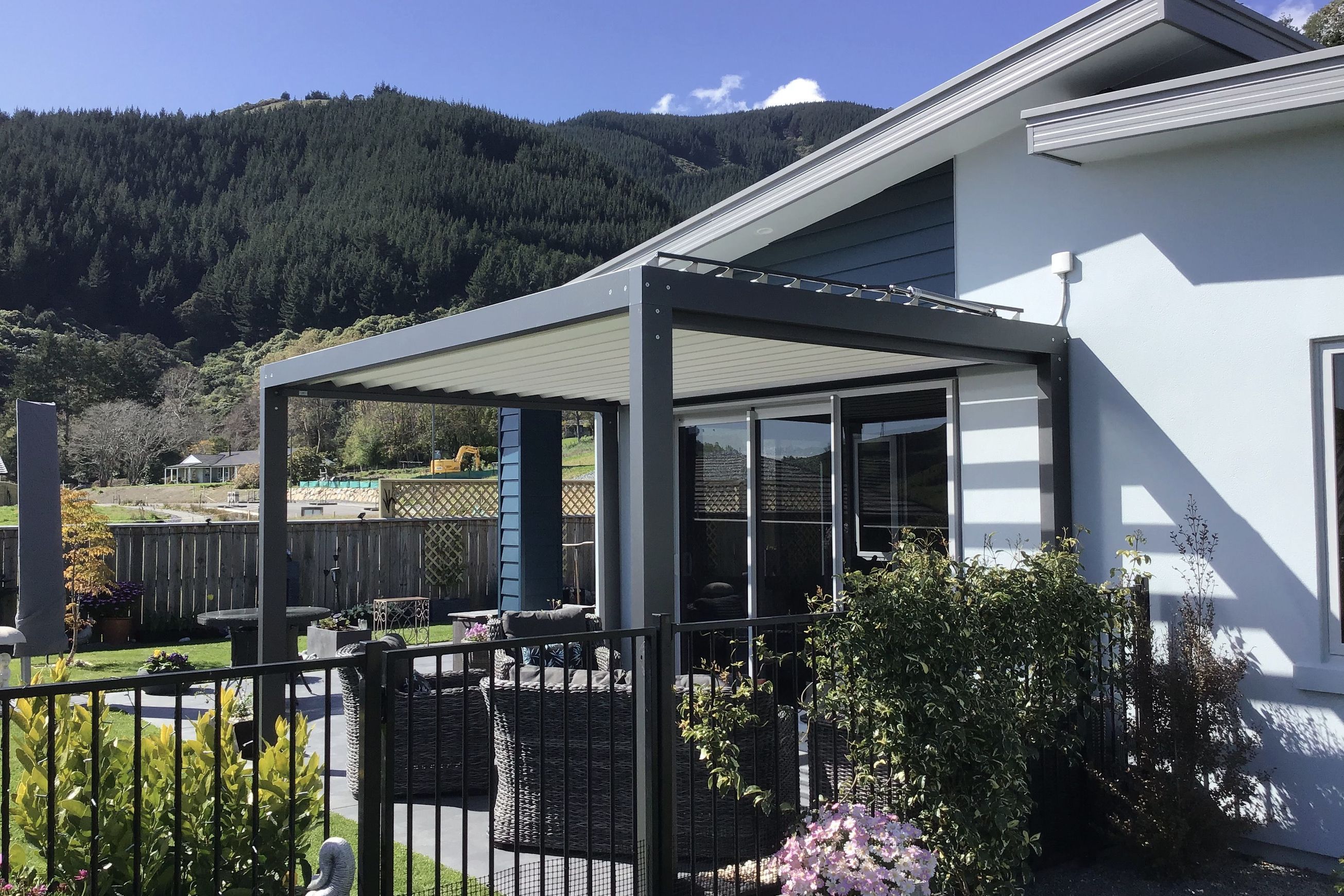

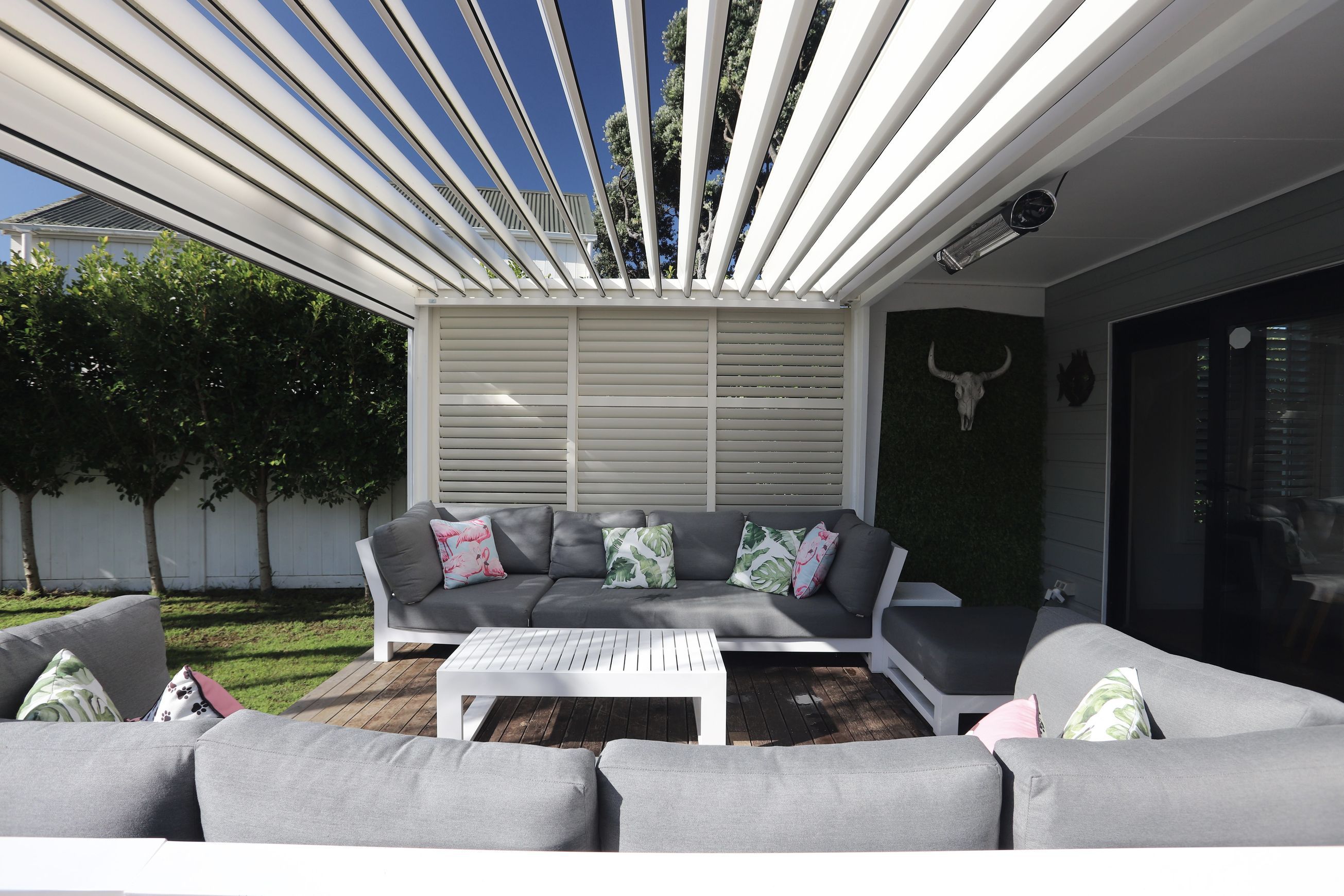

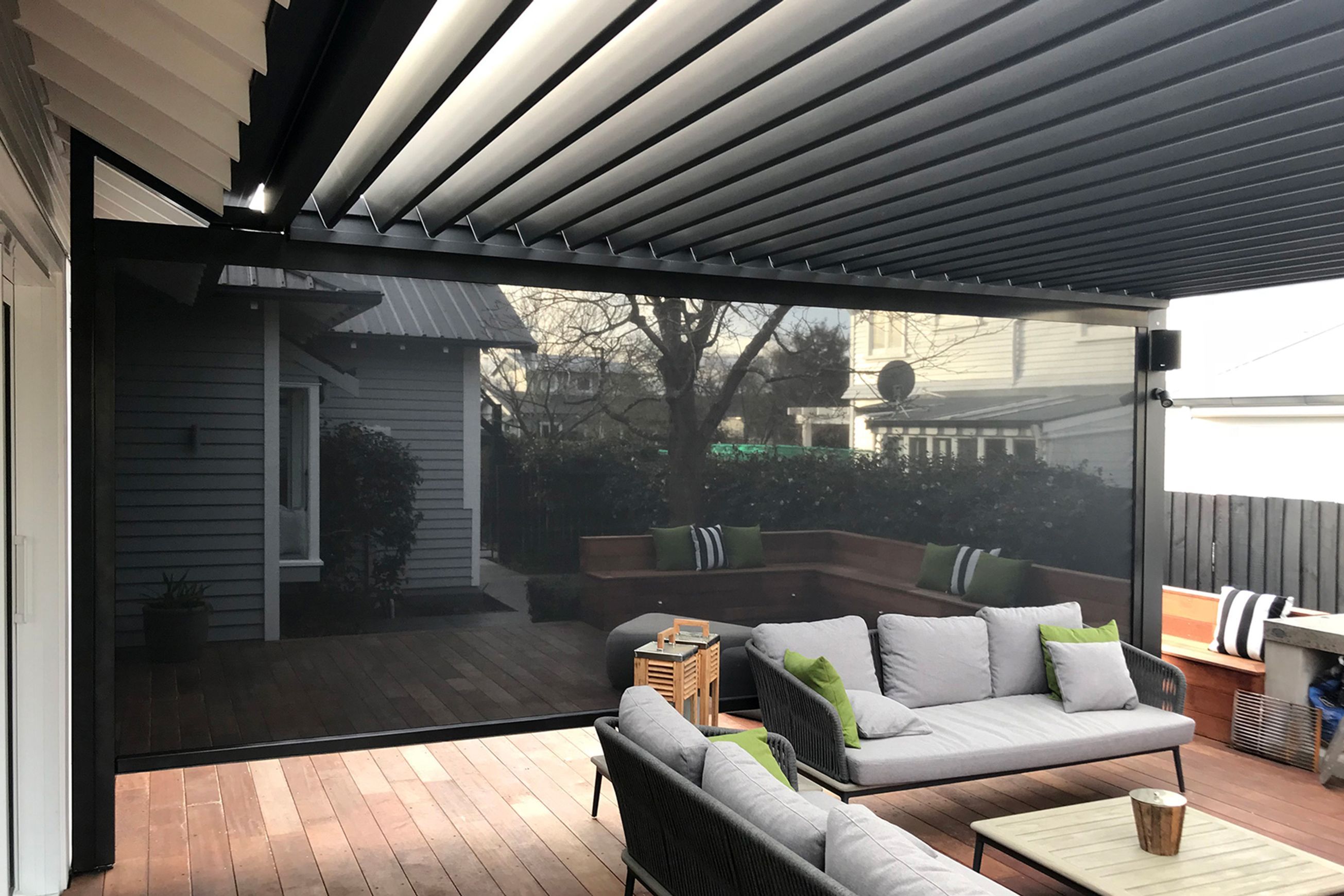

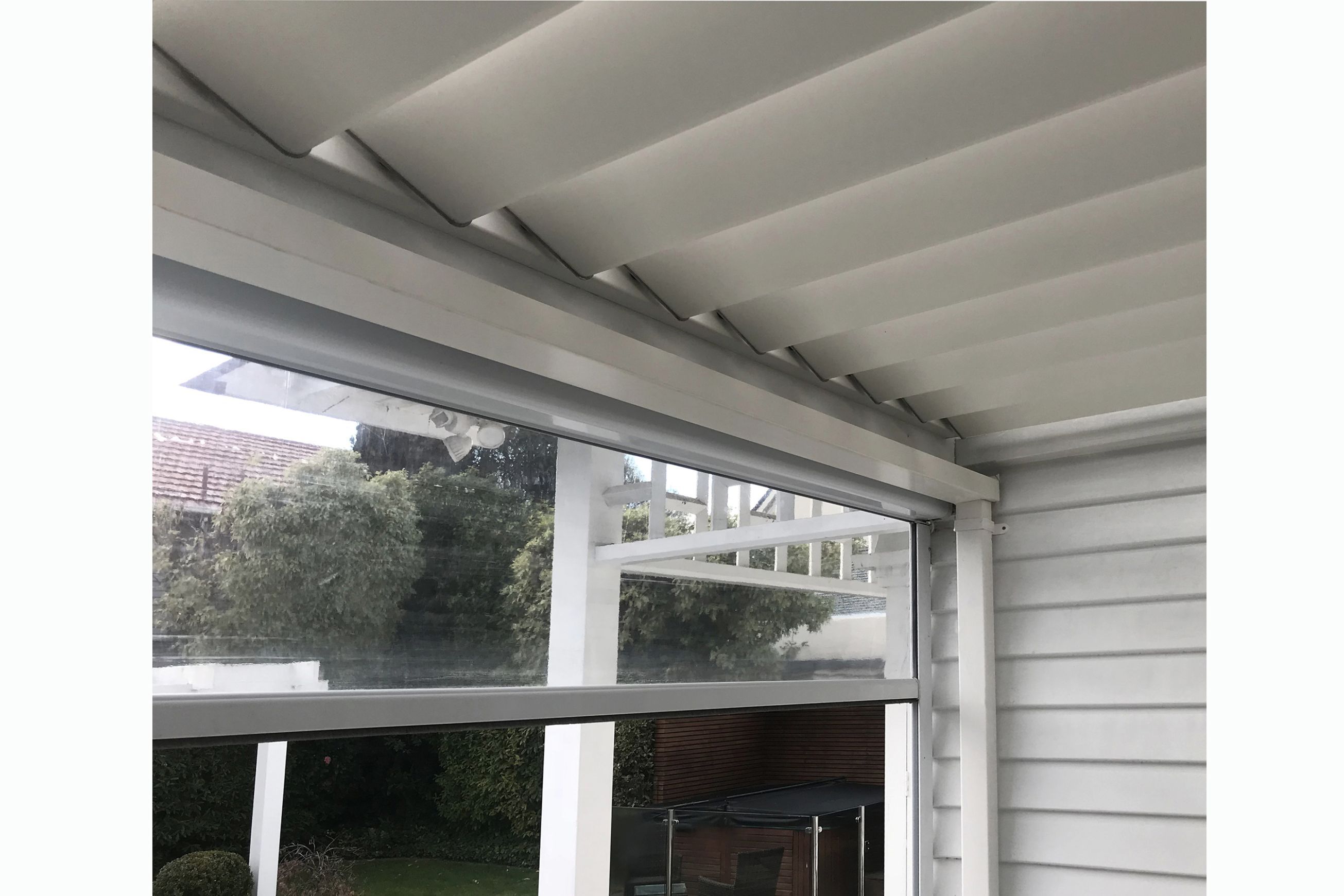

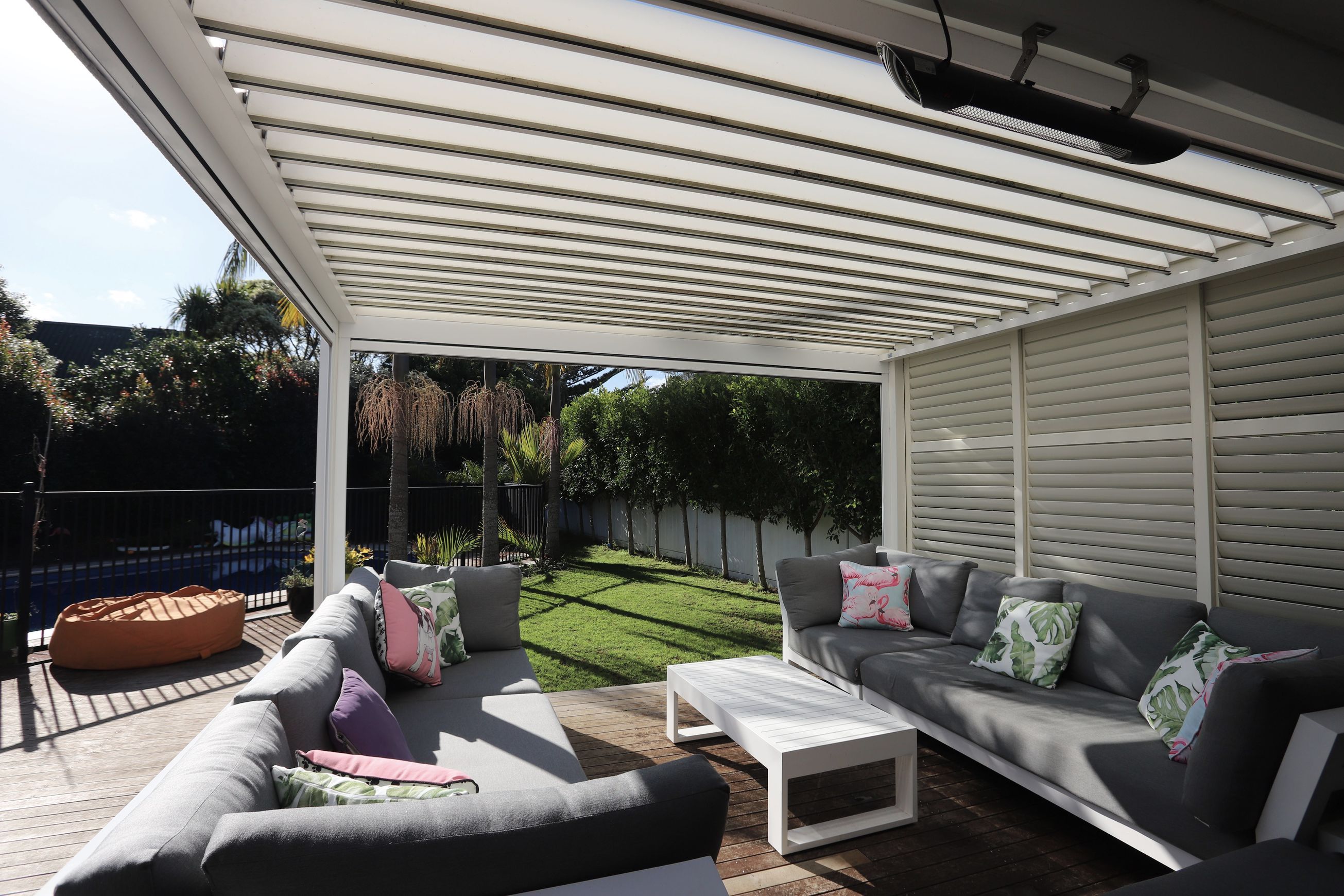

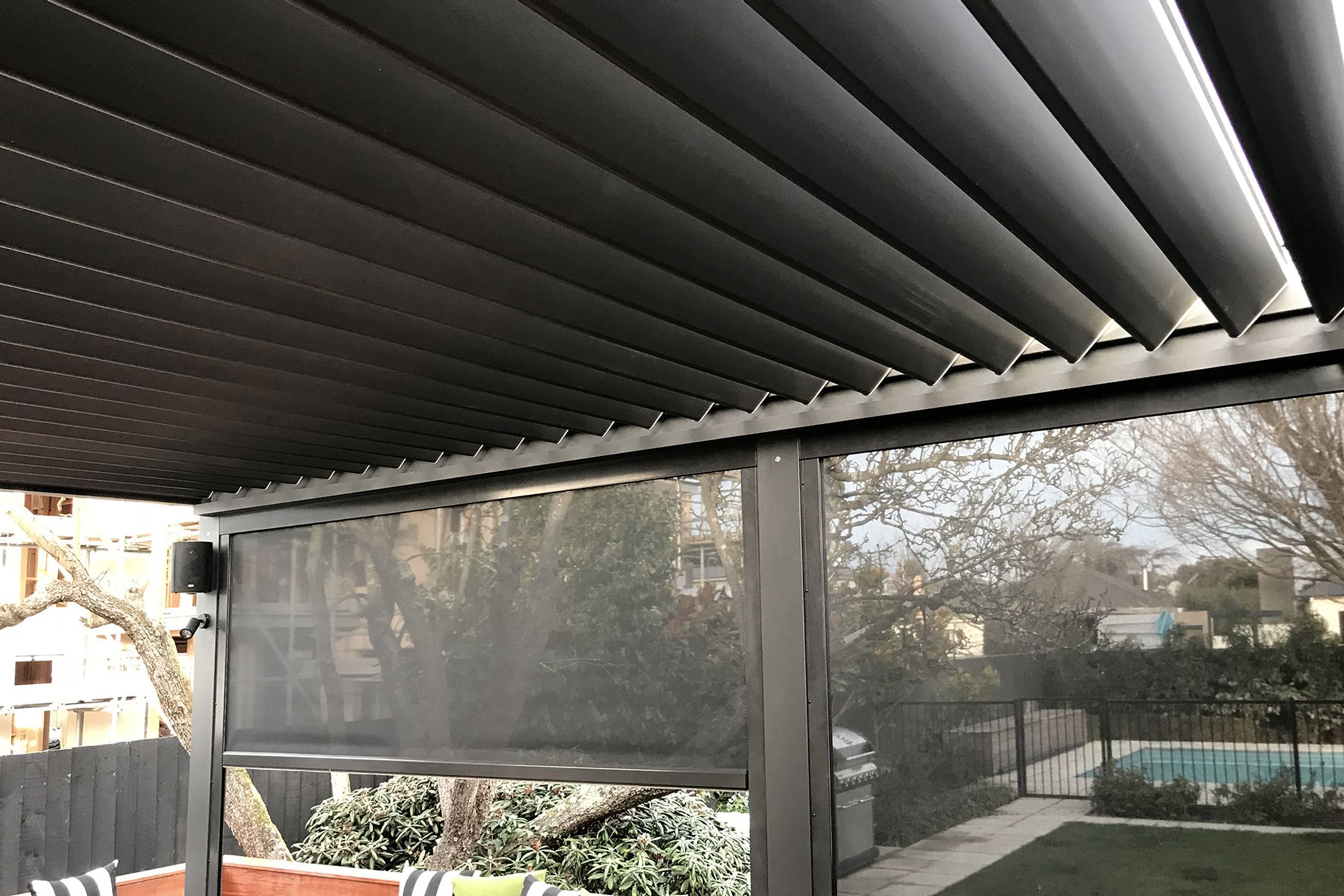

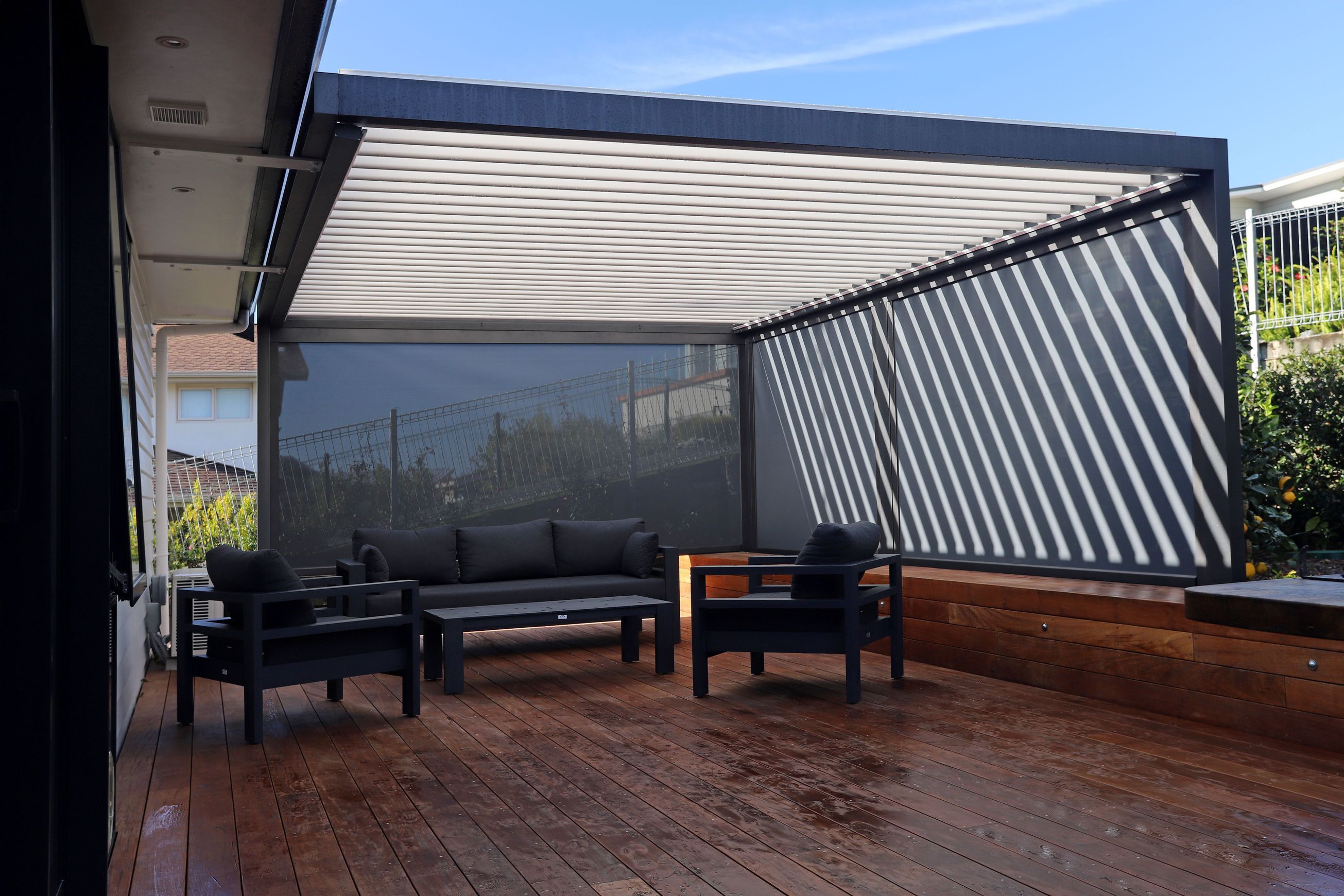

The new generation Louvre Roof is suitable for both private houses, Cafés and commercial installations. It is strongly built and is designed to withstand winds up to 65km/hr. The louvre roof transforms areas such as, Pergola’s, terraces, patios, decks and courtyards into pleasant and protected outdoor areas.

• European designed, manufactured and installed by Window Treatments NZ Ltd

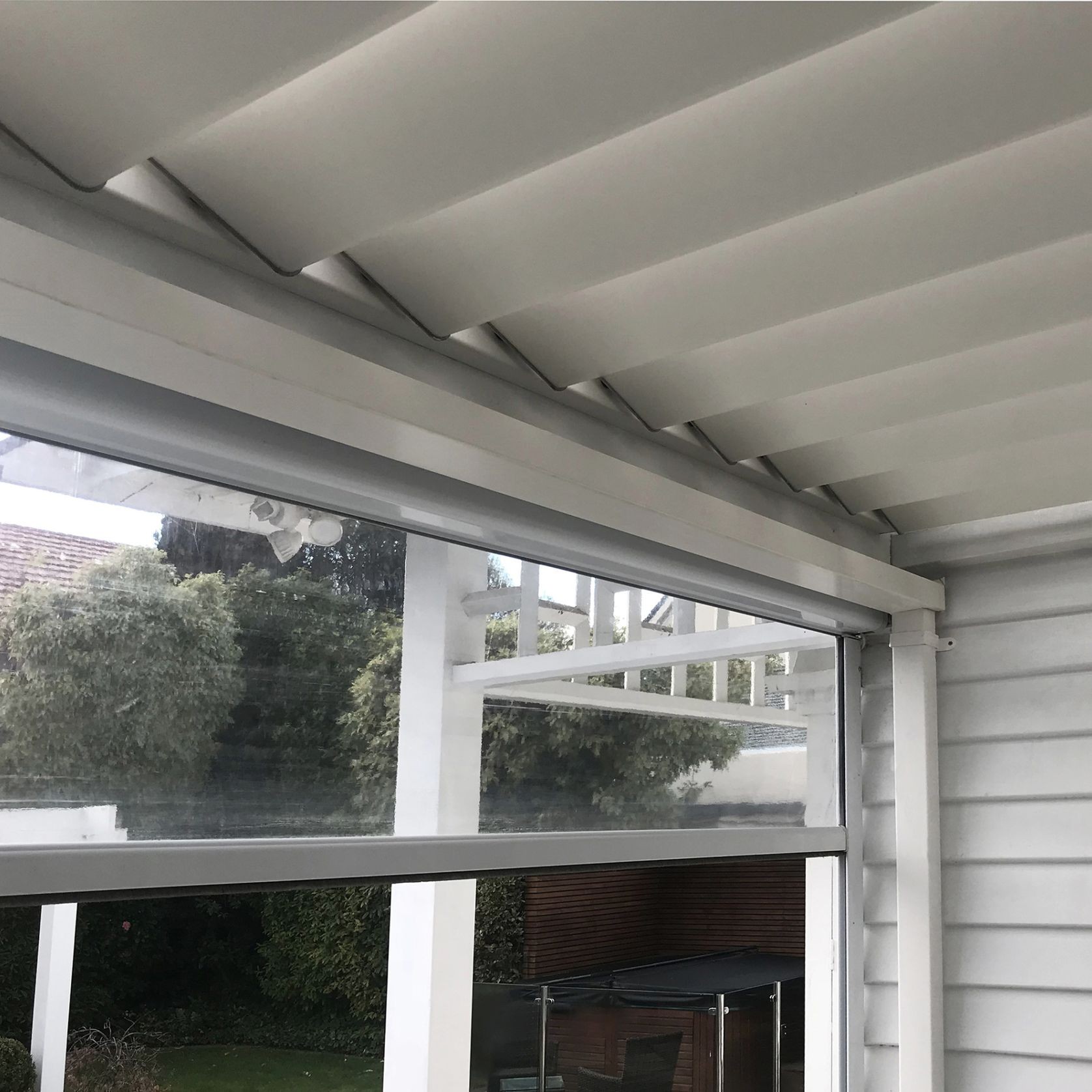

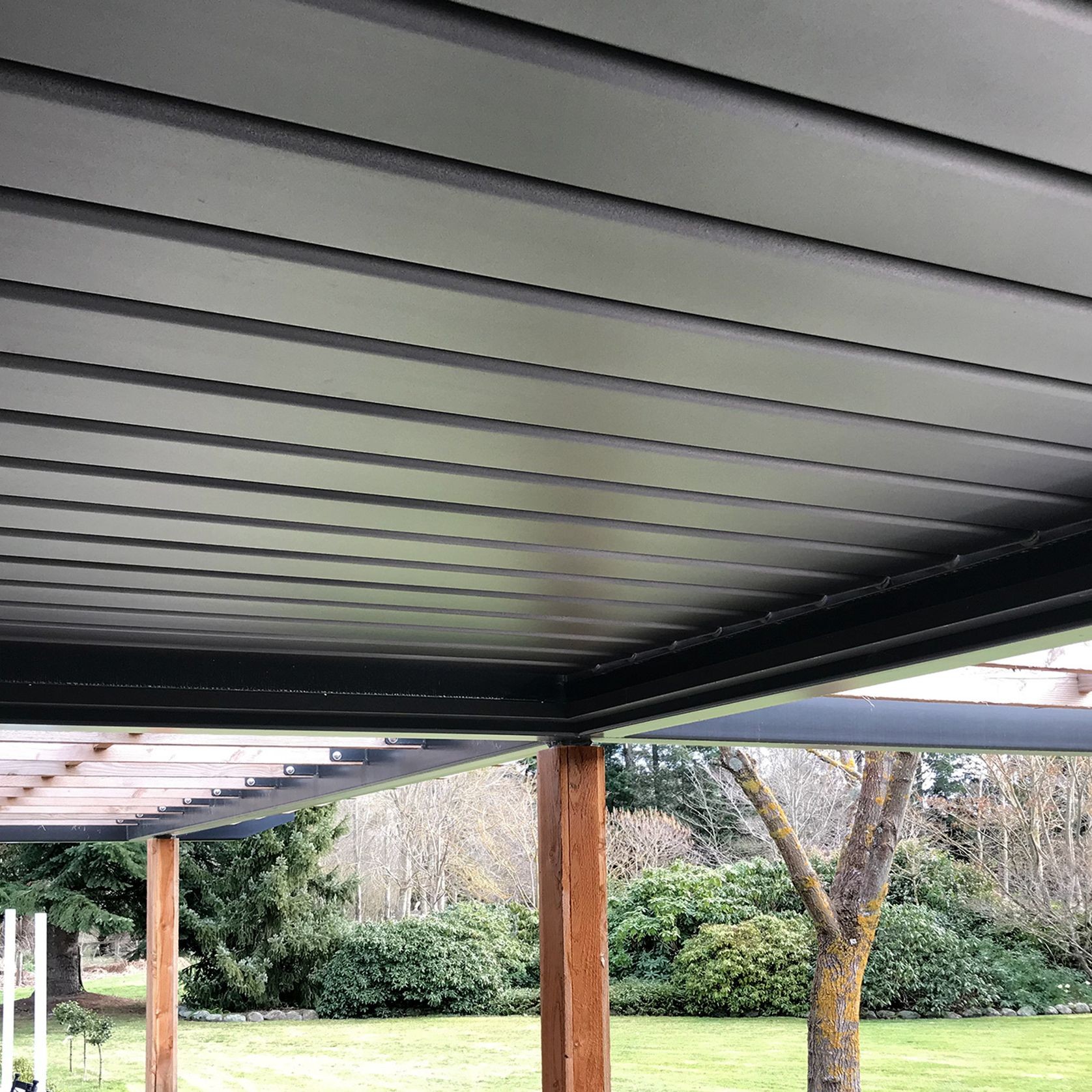

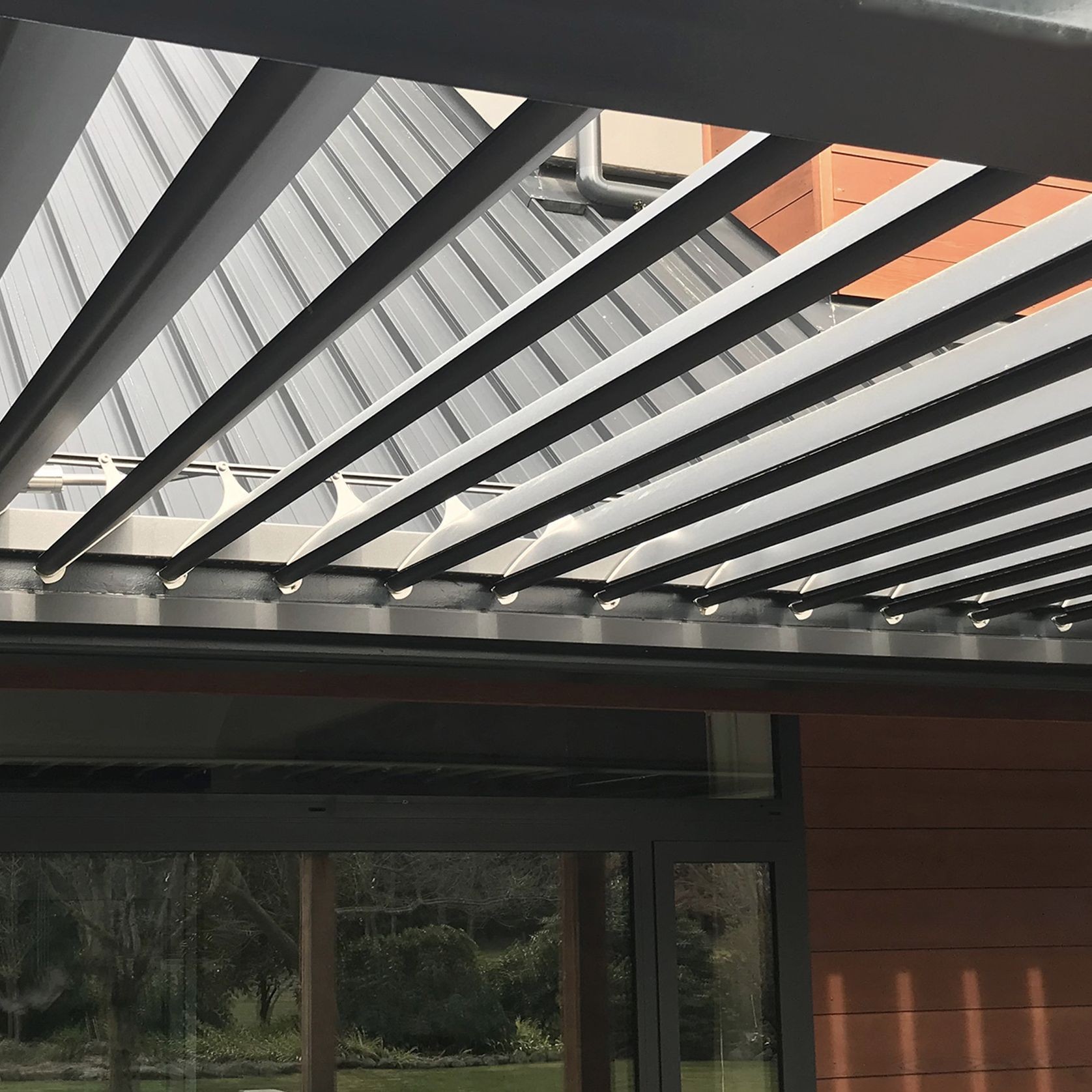

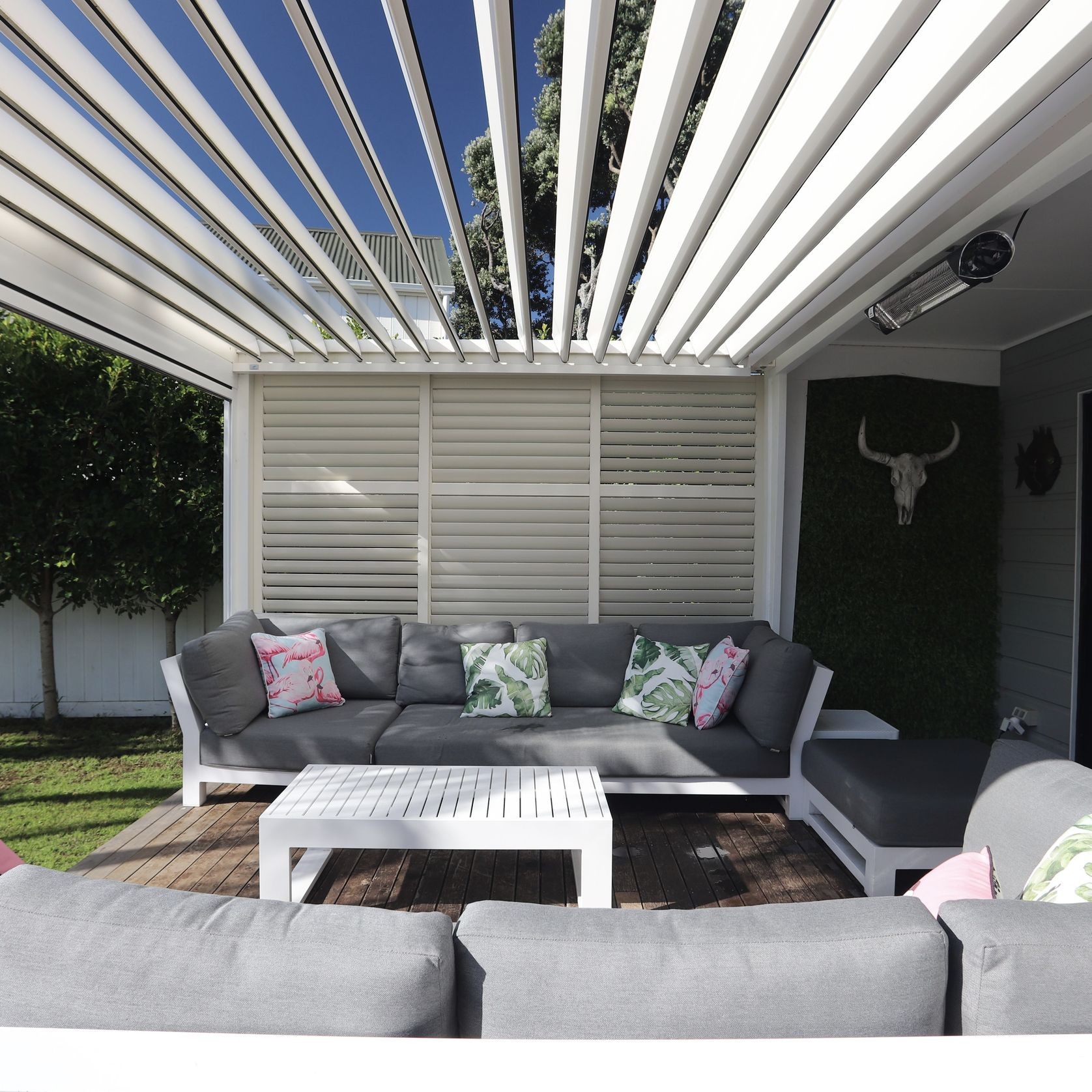

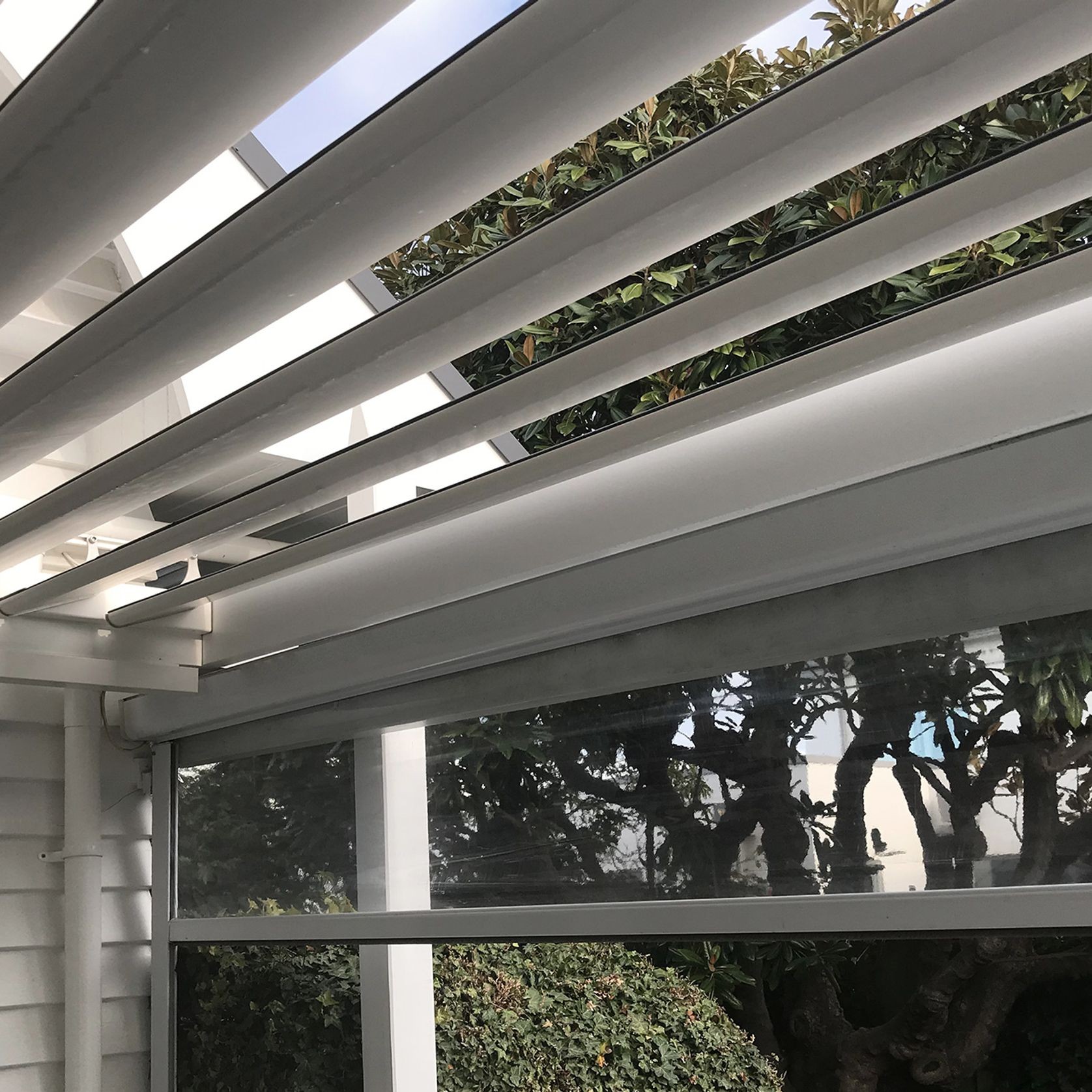

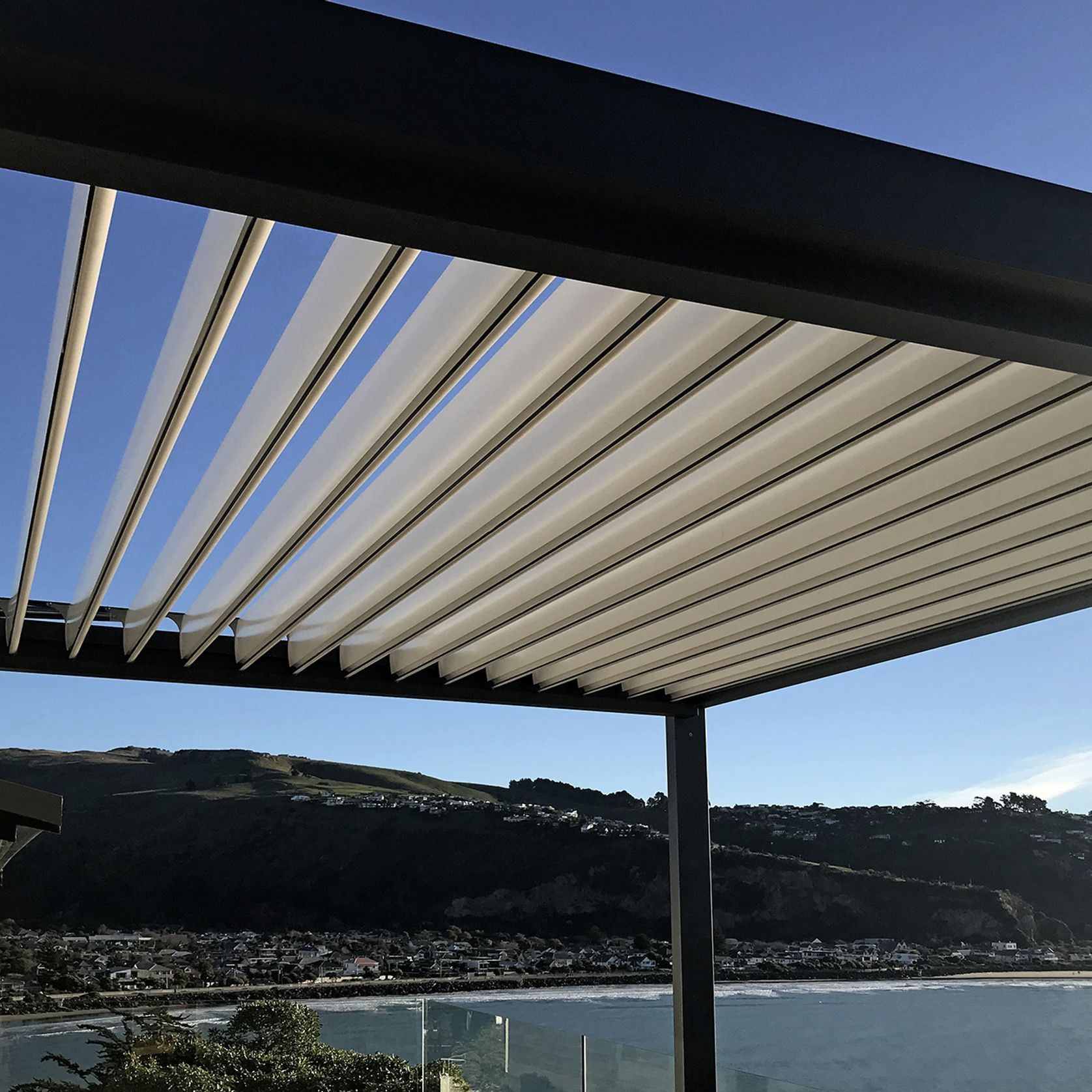

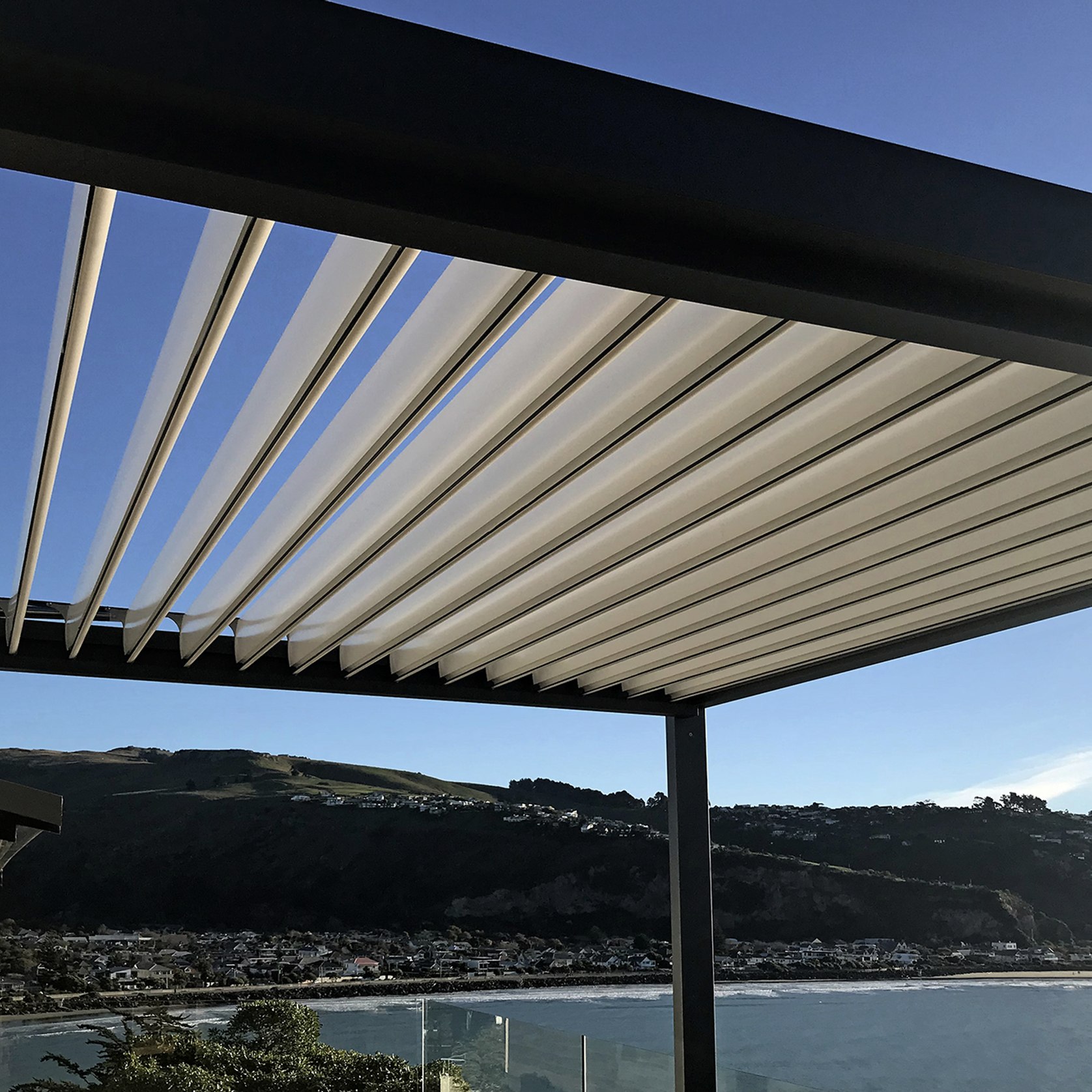

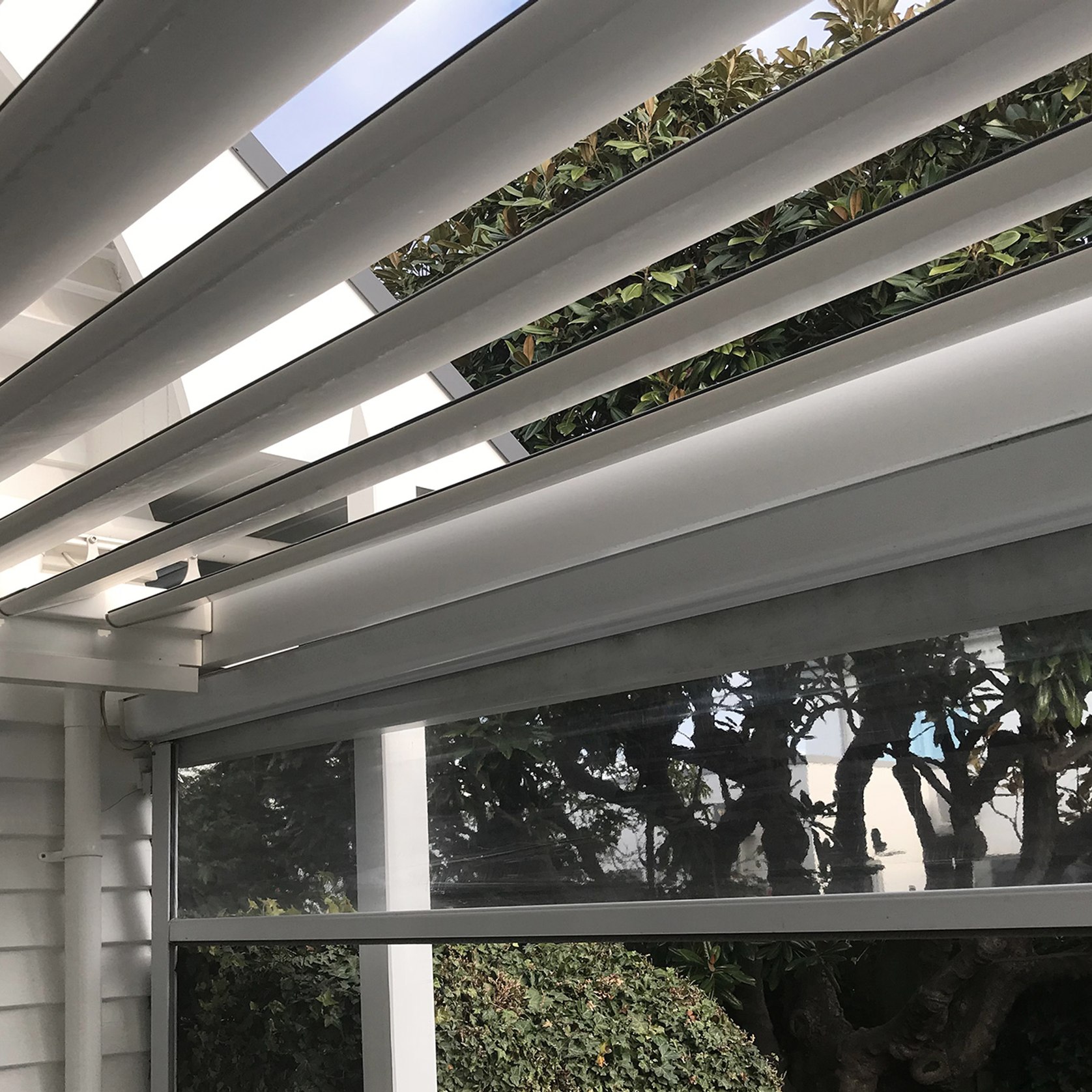

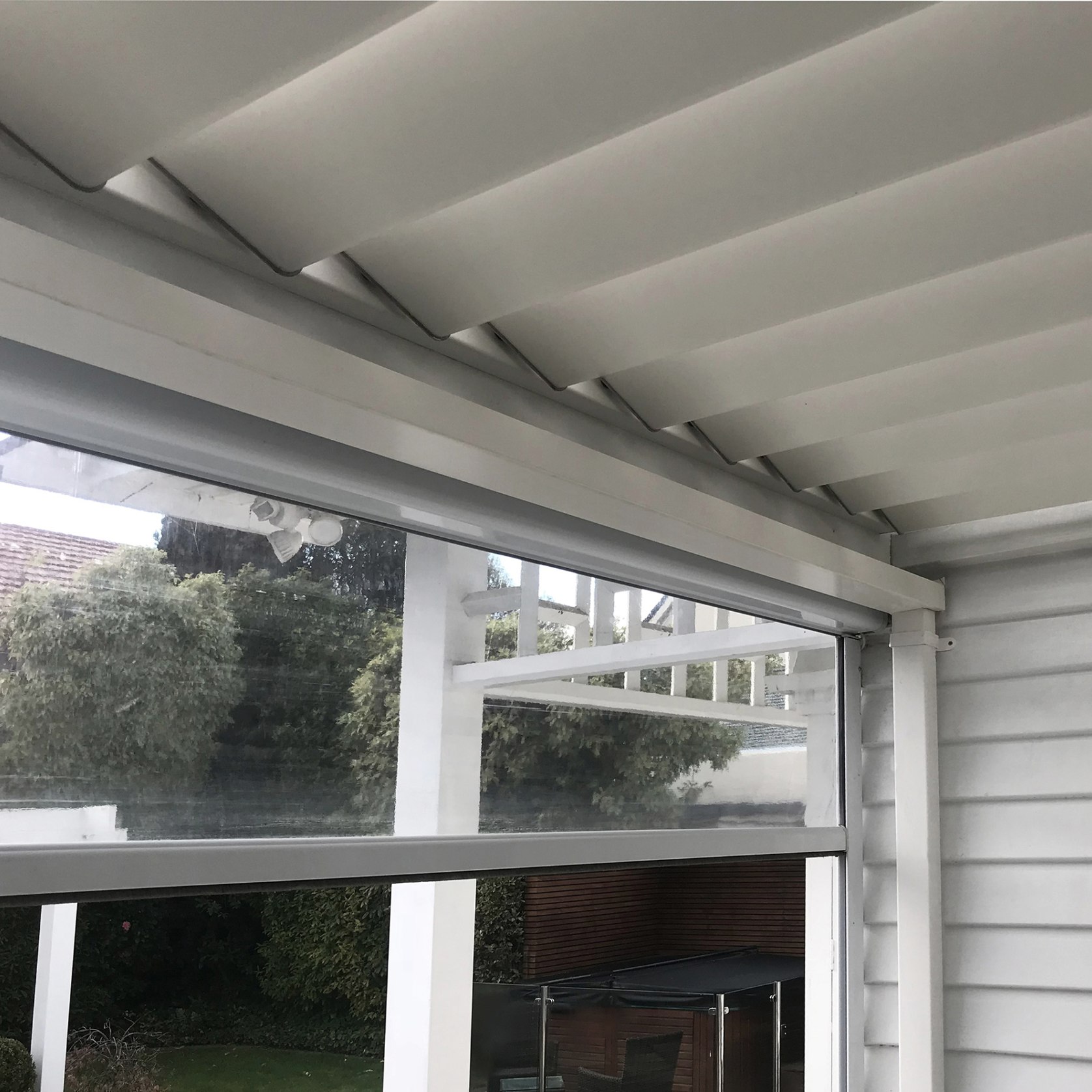

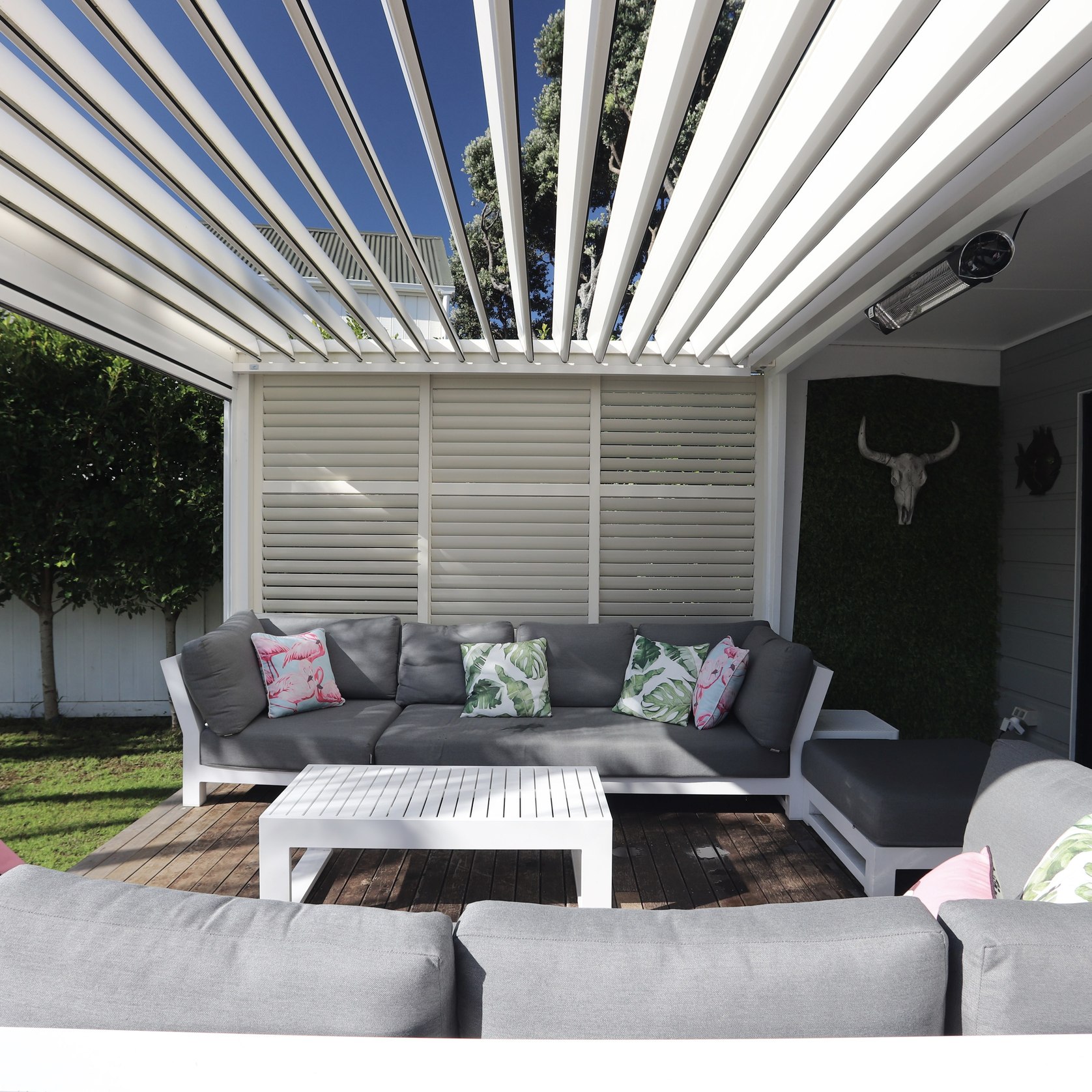

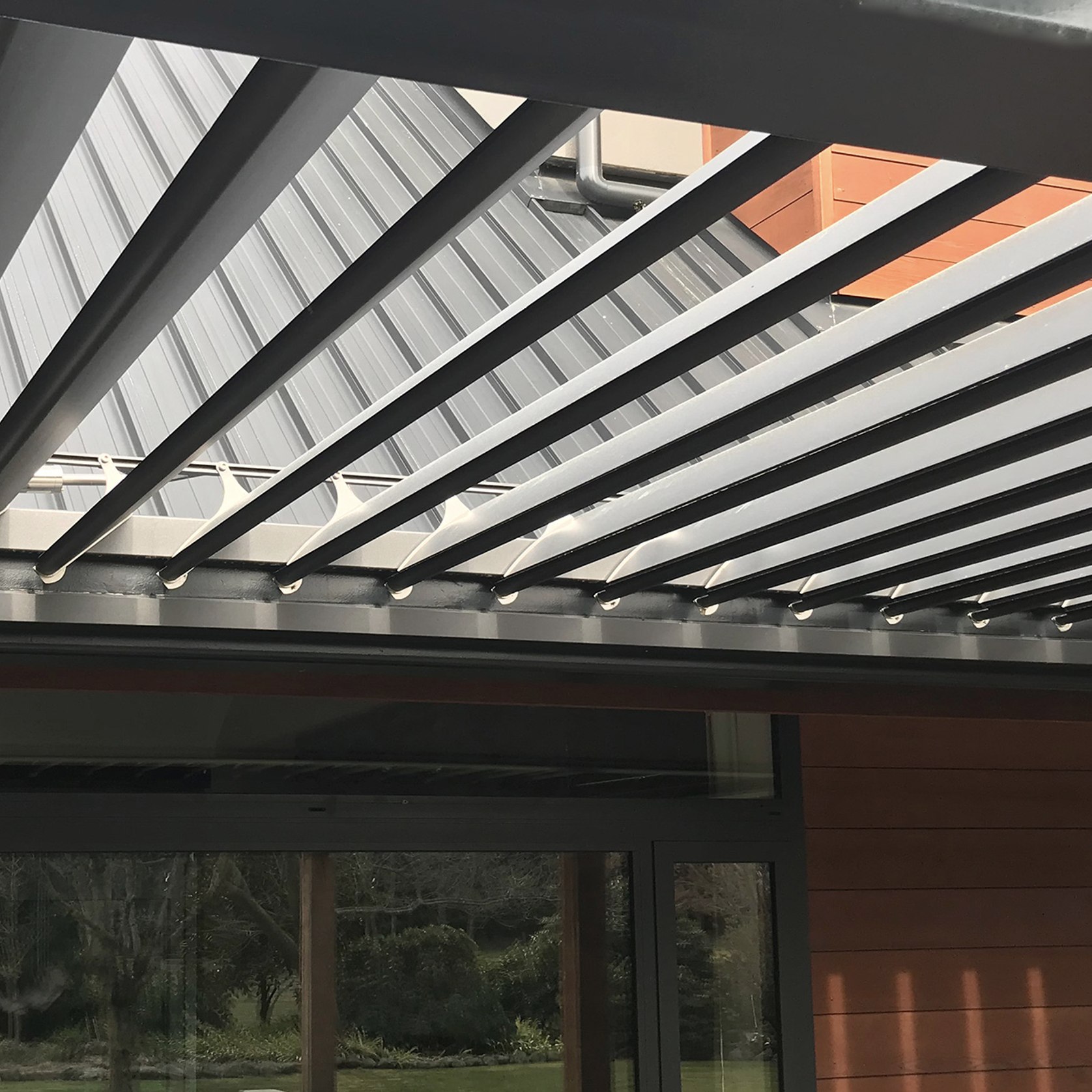

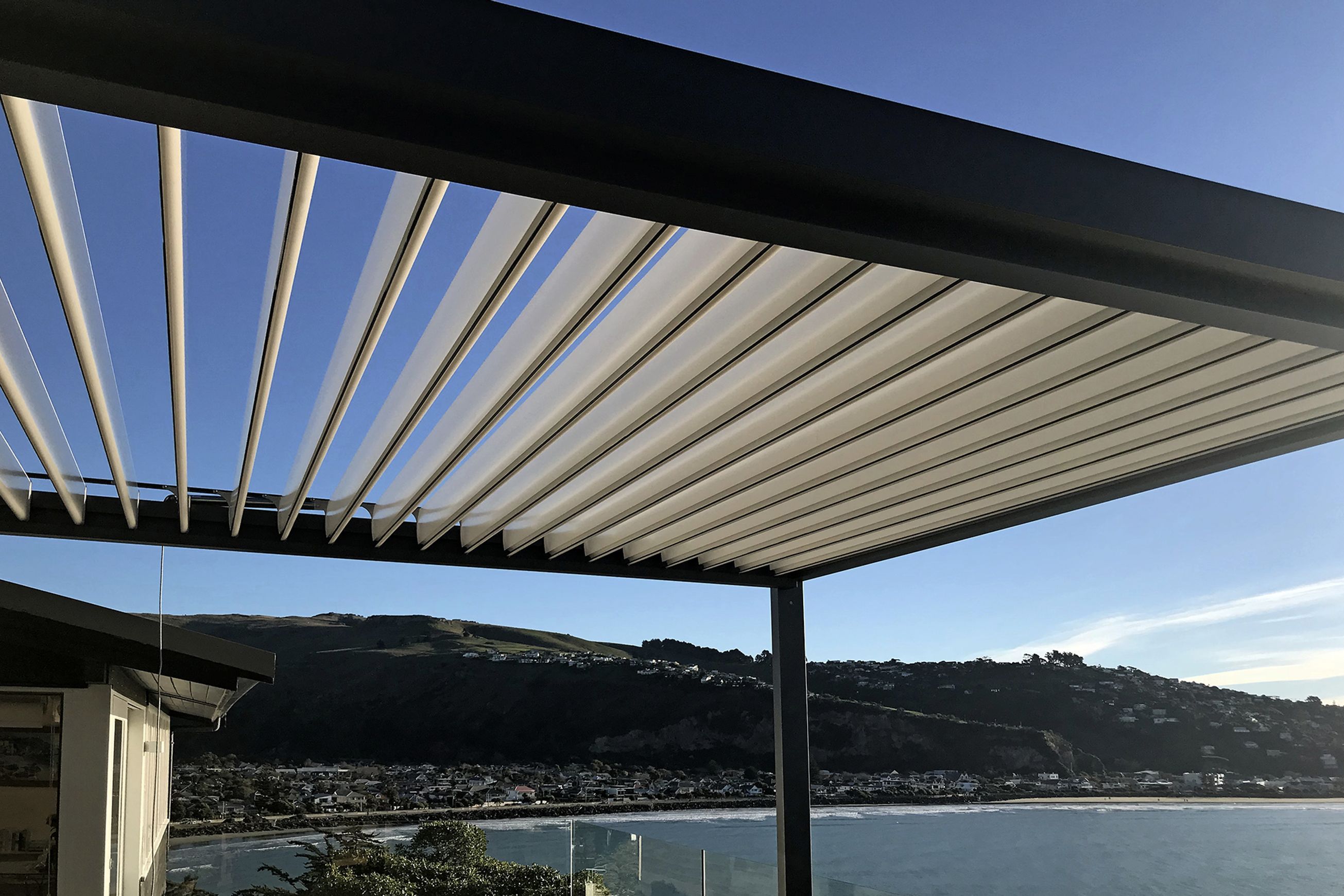

  • Sleek aluminium elliptical shaped rotating louvres with quiet closure
  • Marine grade stainless steel parts

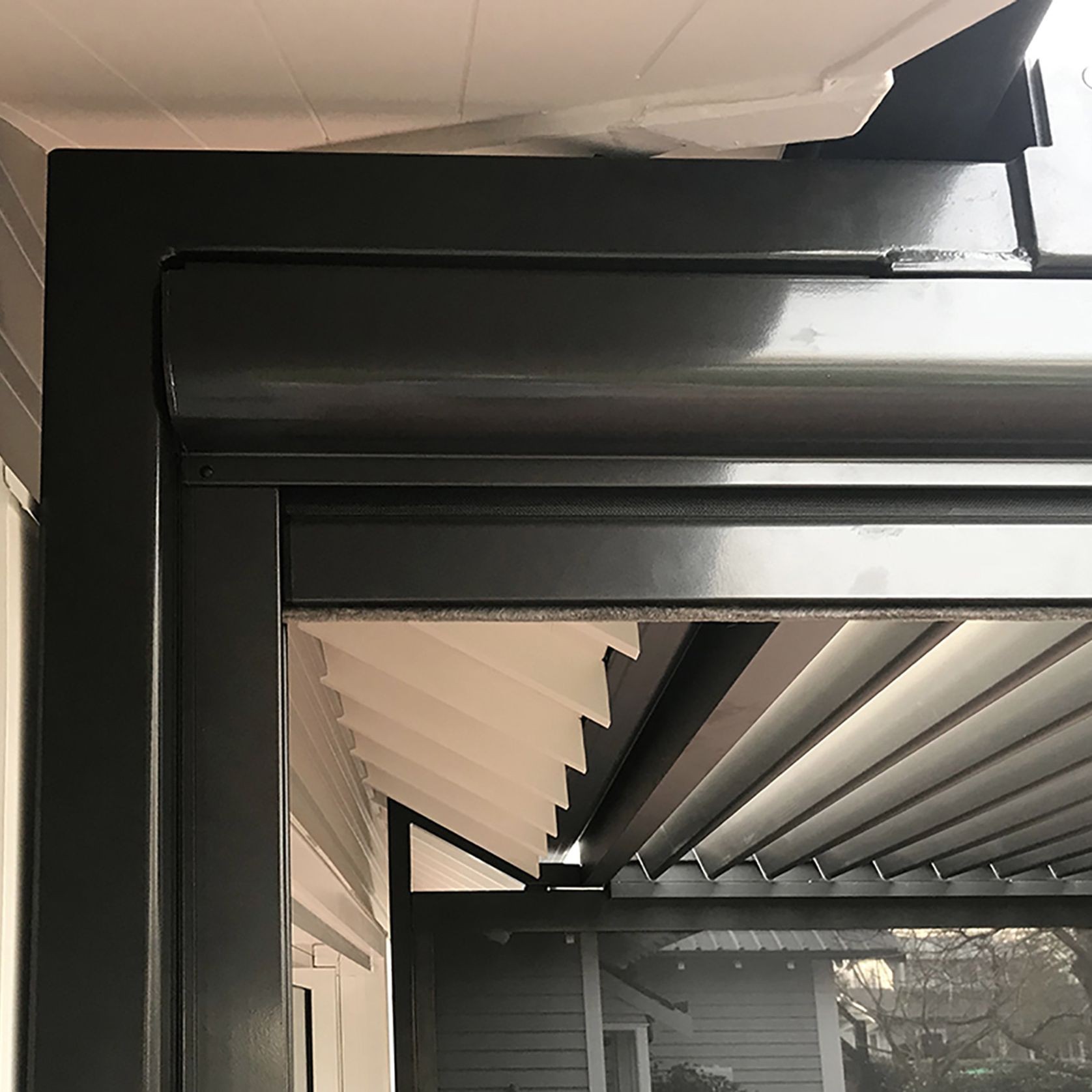

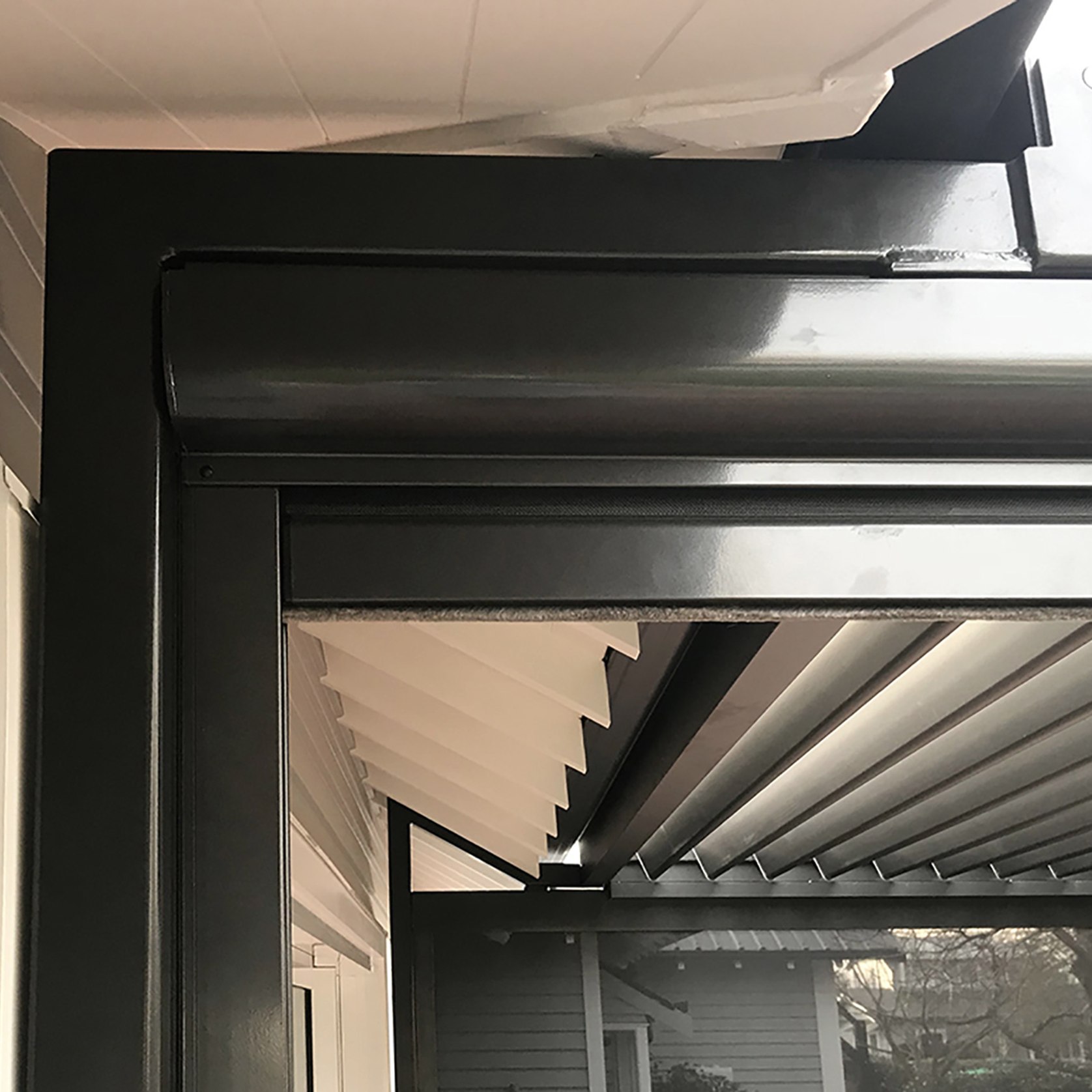

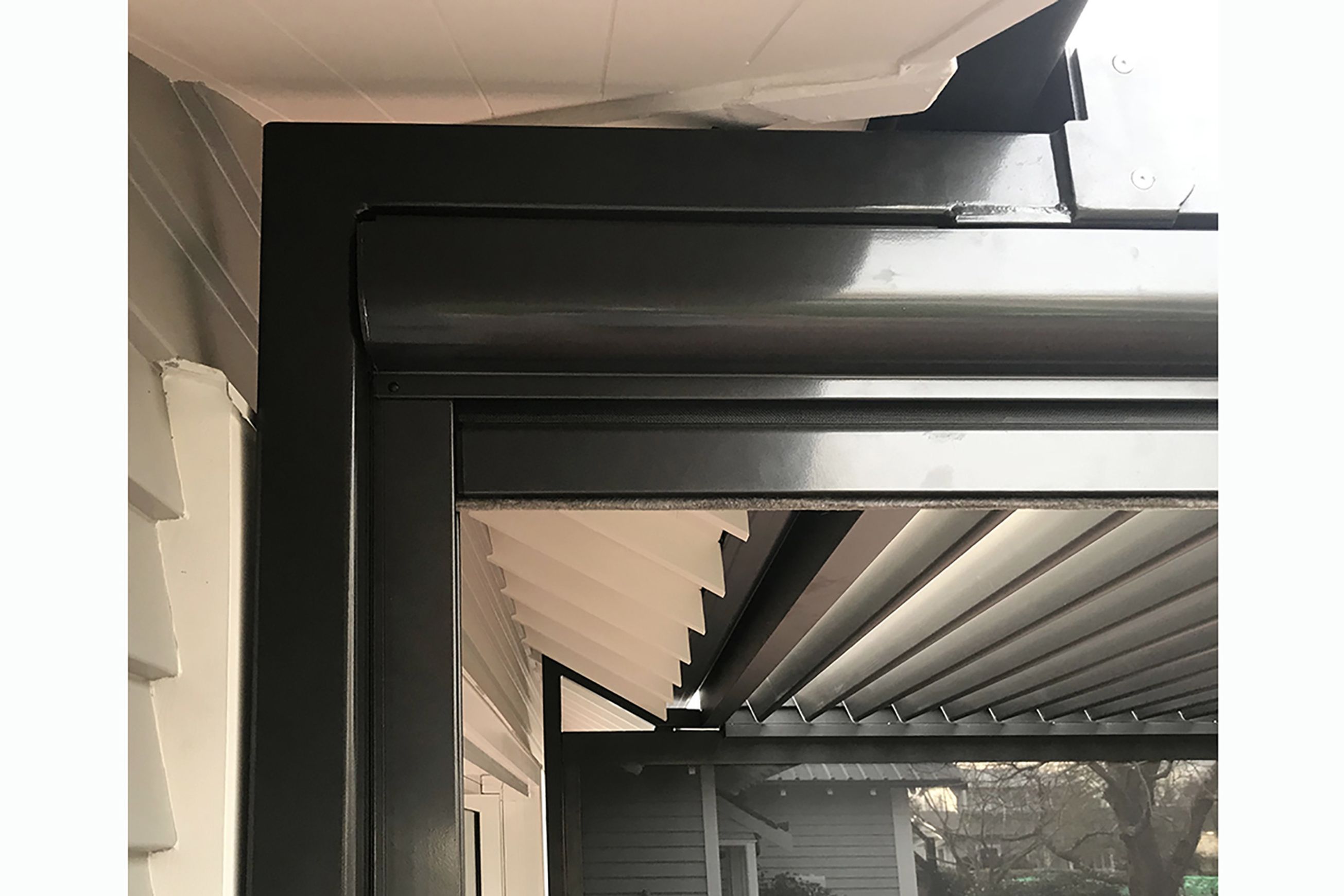

  • Strong aluminium beams & posts, all 150mm x 85mm
  • Classical, stylish, minimalistic and very robust

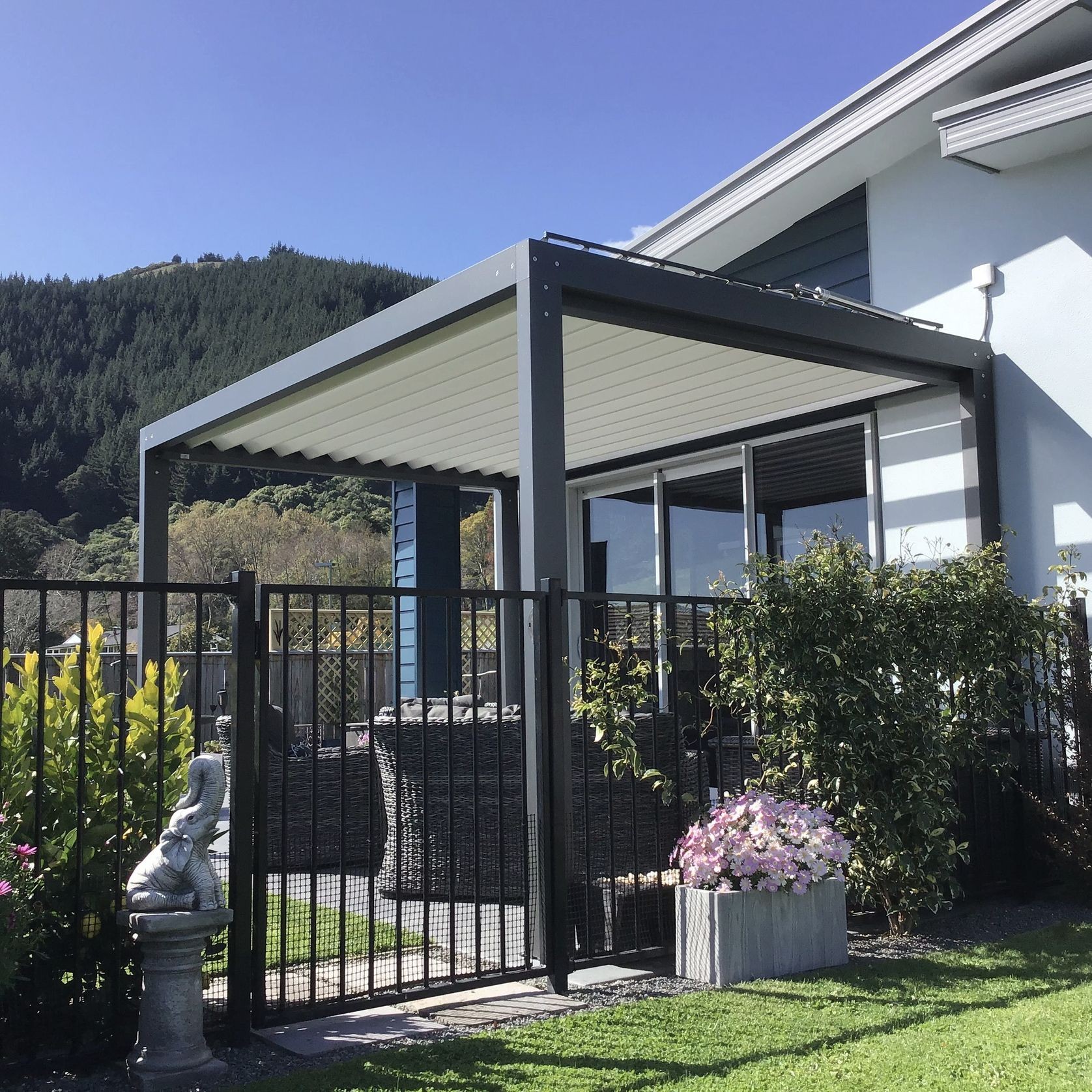

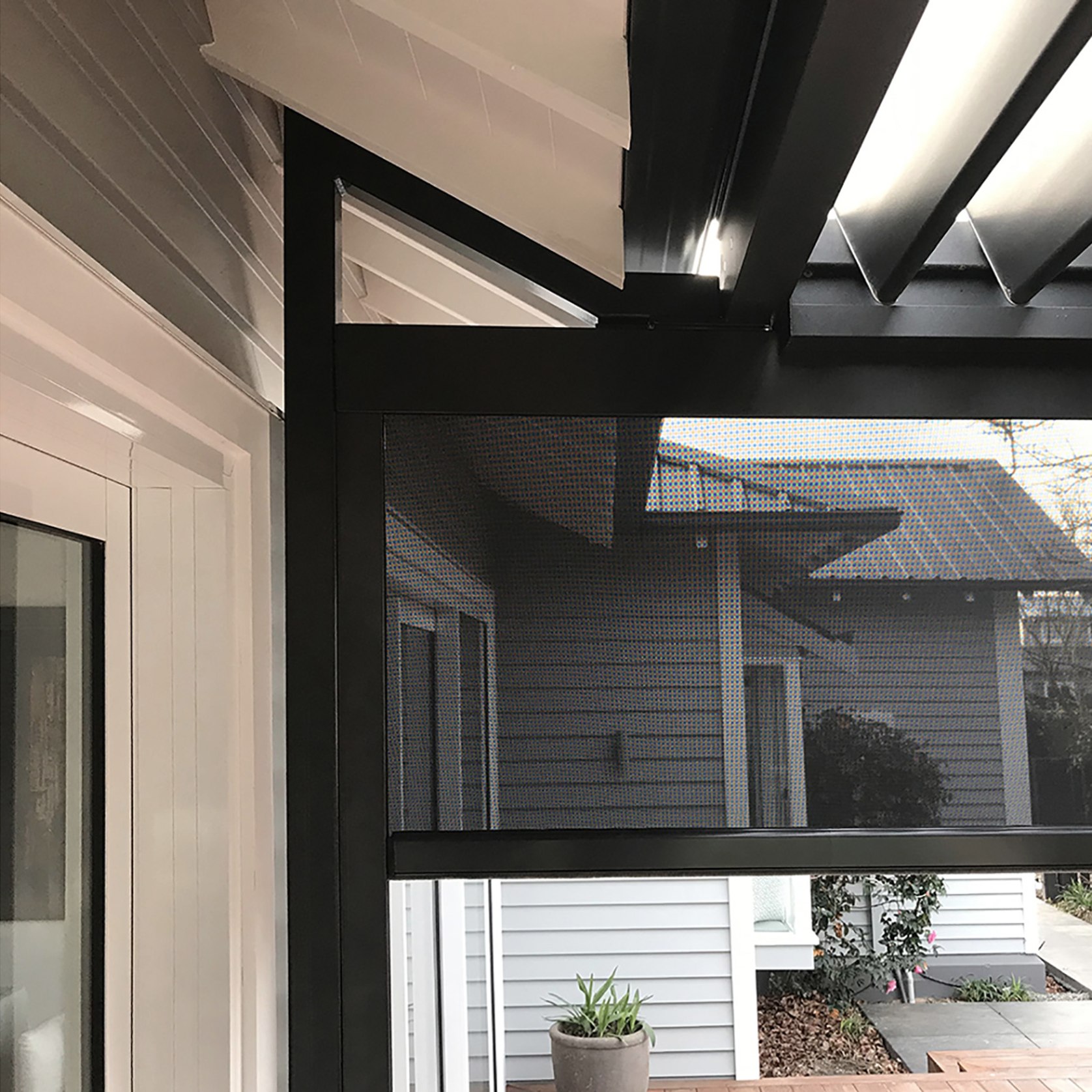

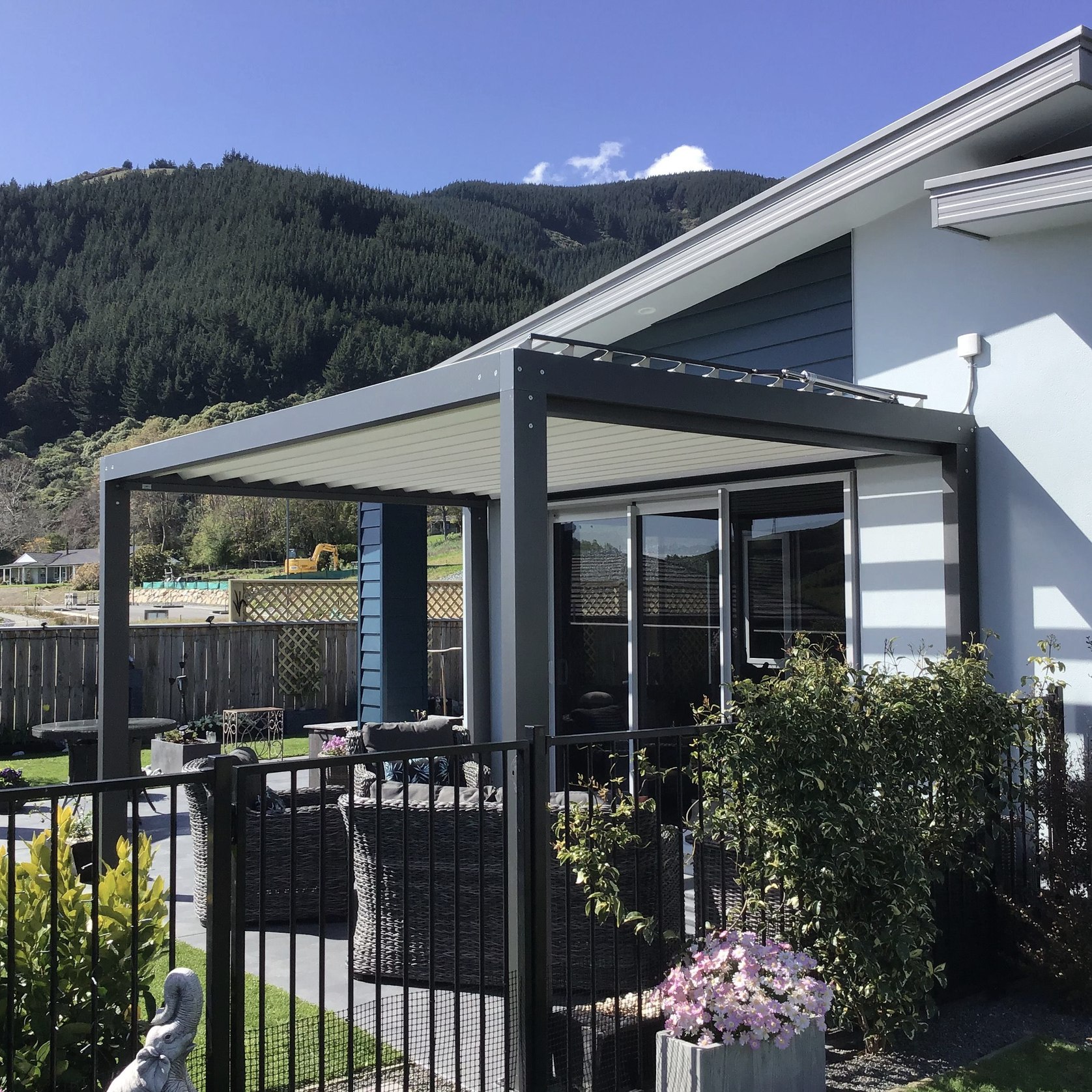

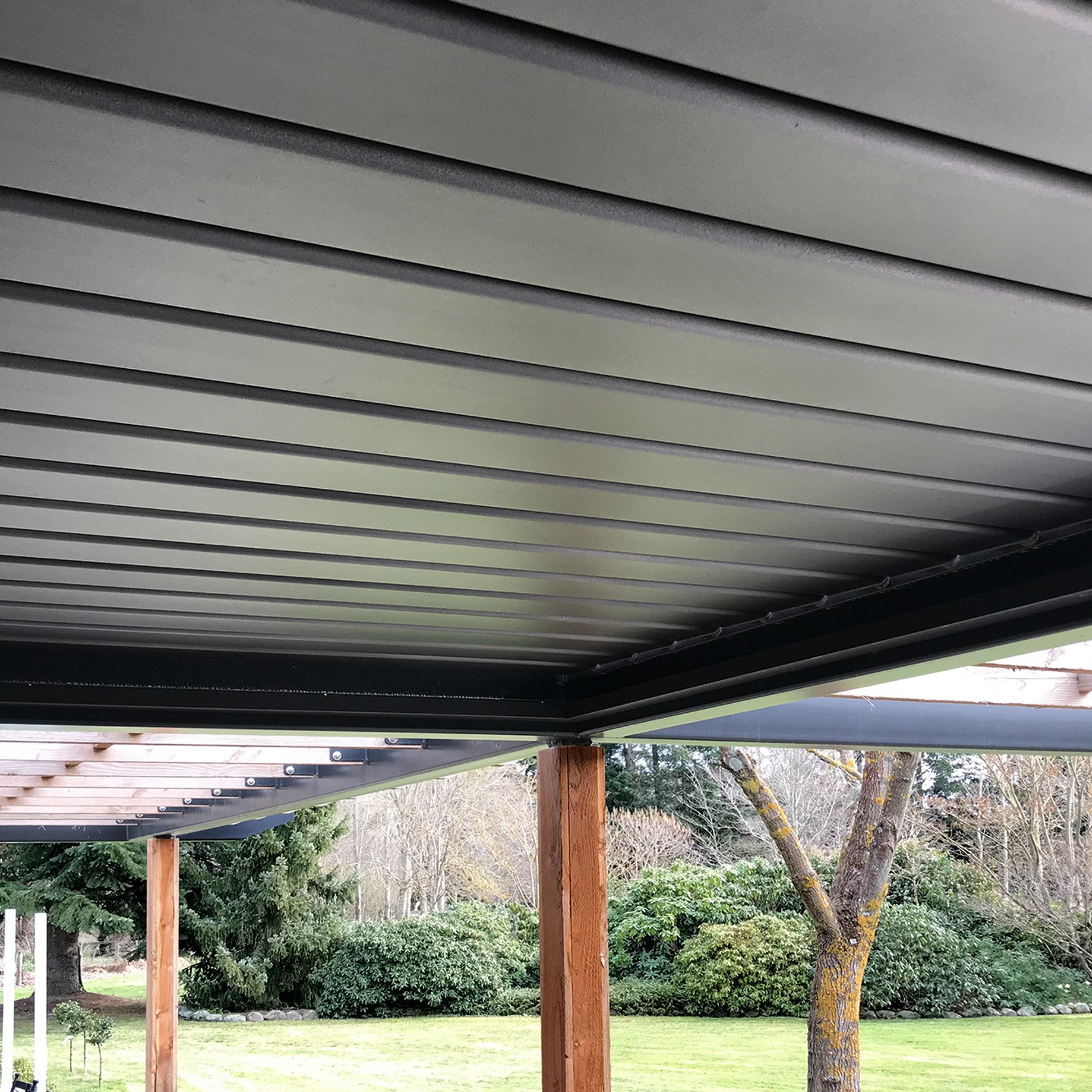

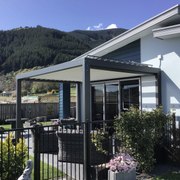

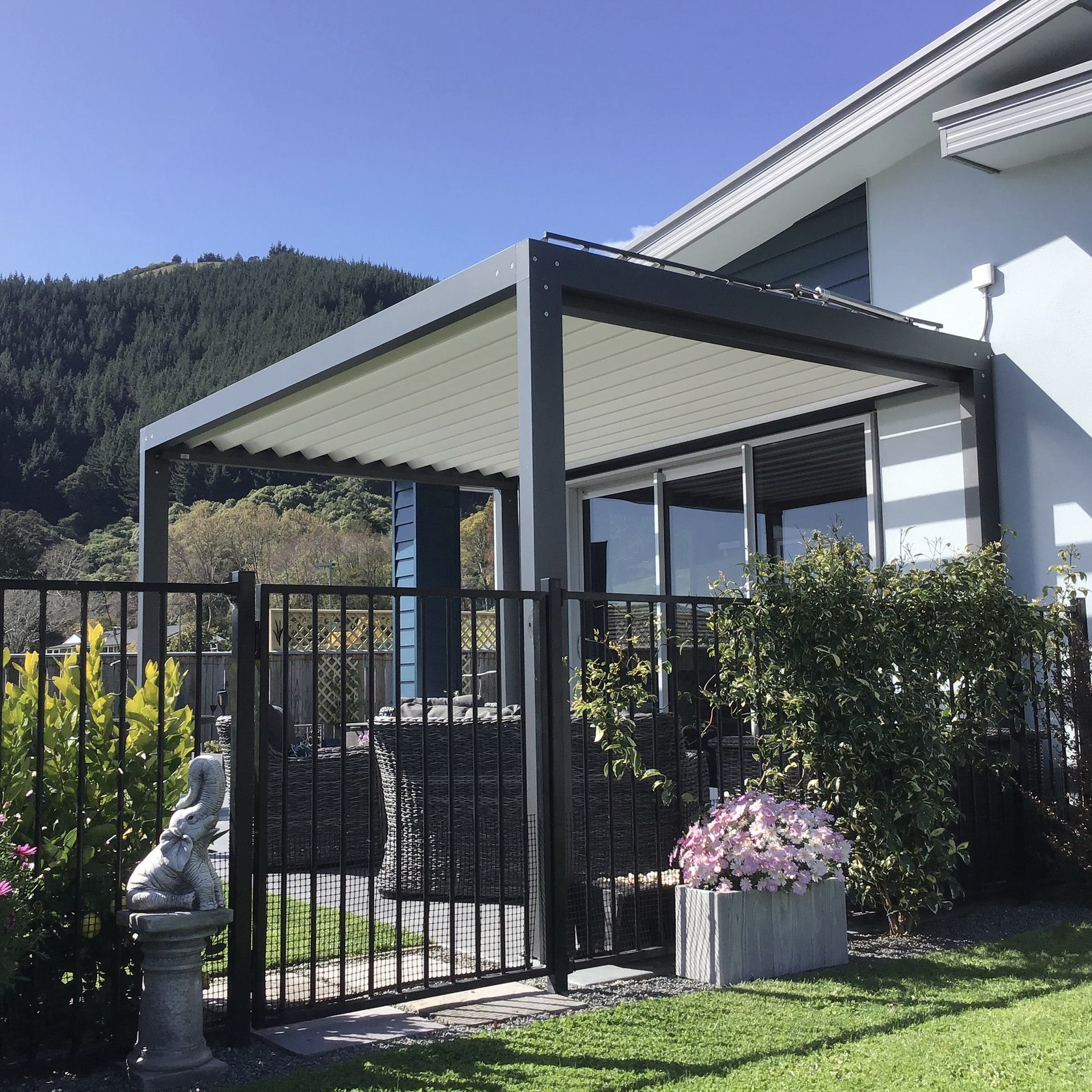

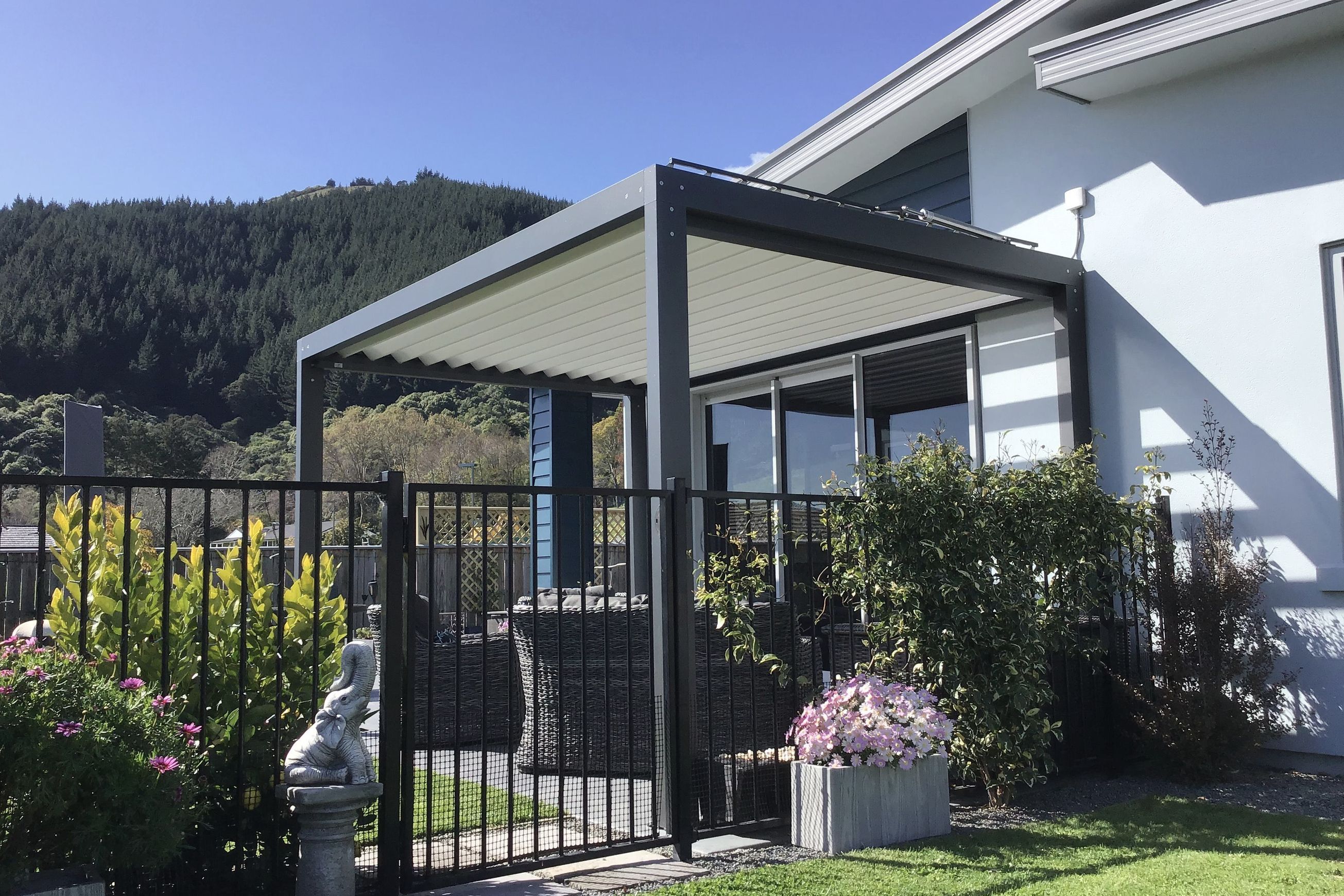

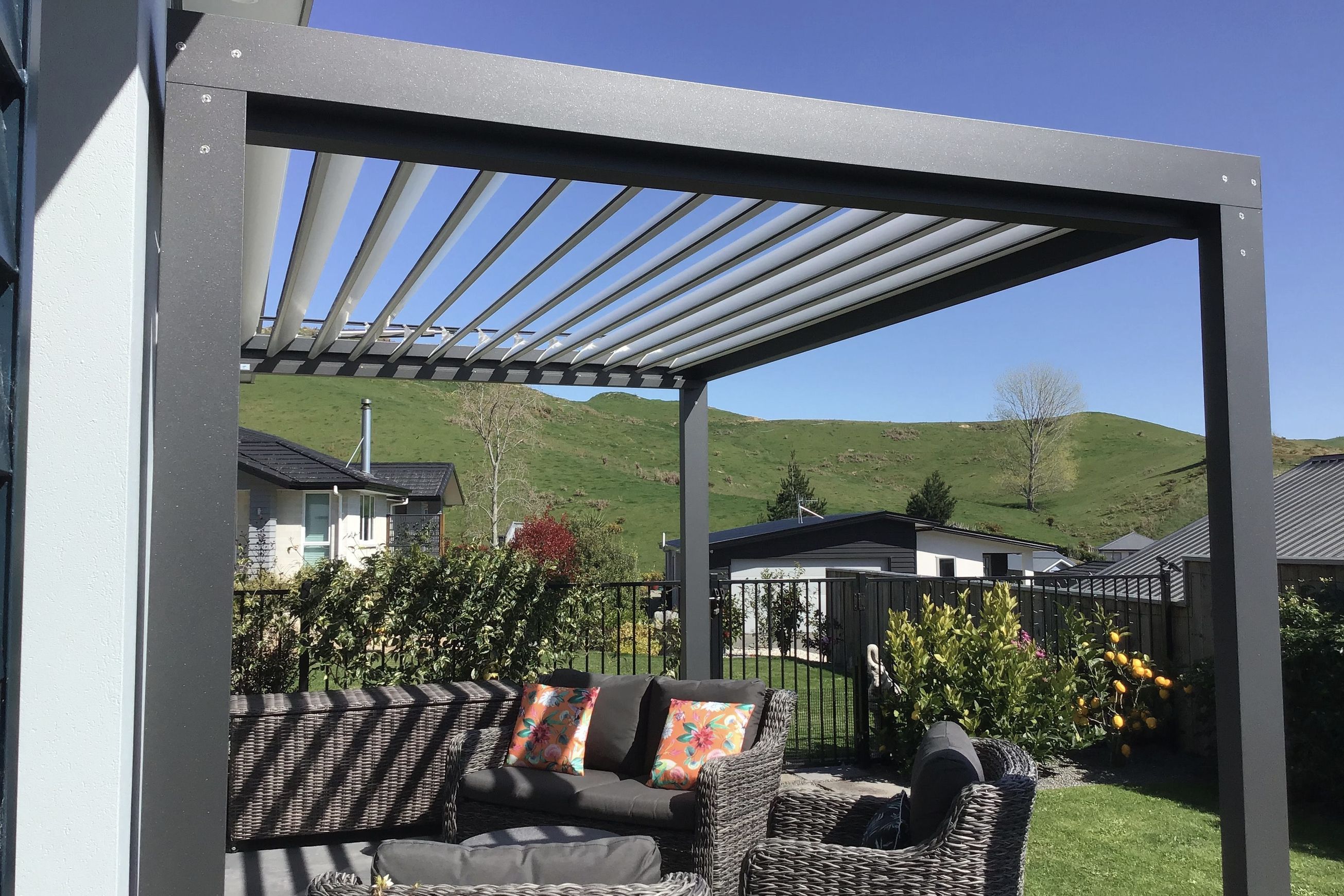

  • Can be free standing, attached to an existing building or attached to an existing pergola structure
  • Motorised with 240v Elero Picolla XL (Italian) Stainless steel motor with remote control or wall switch
  • Maximum overall width: 4100mm
  • Maximum overall projection without additional centre post on the projection beams: 5200mm
  • Maximum overall projection with additional centre posts on the projection beams: 7000mm
  • Maximum overall height: 2700mm (without posts: no maximum)
  • Multi – modular louvre roofs can be manufactured for large areas
  • Two standard colours: Gun Metal (metallic grey/black and Perla (off white)
  • Special colours available

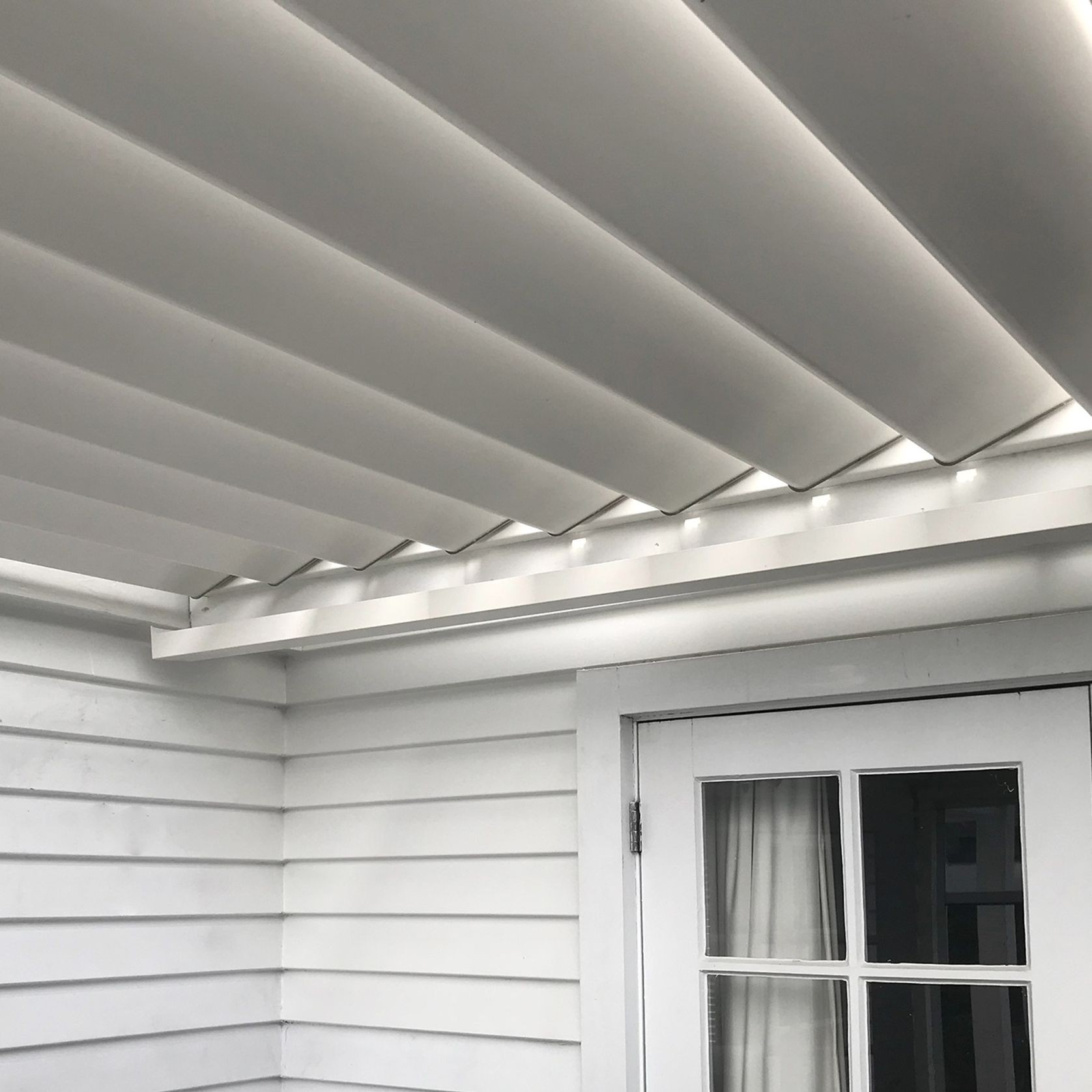

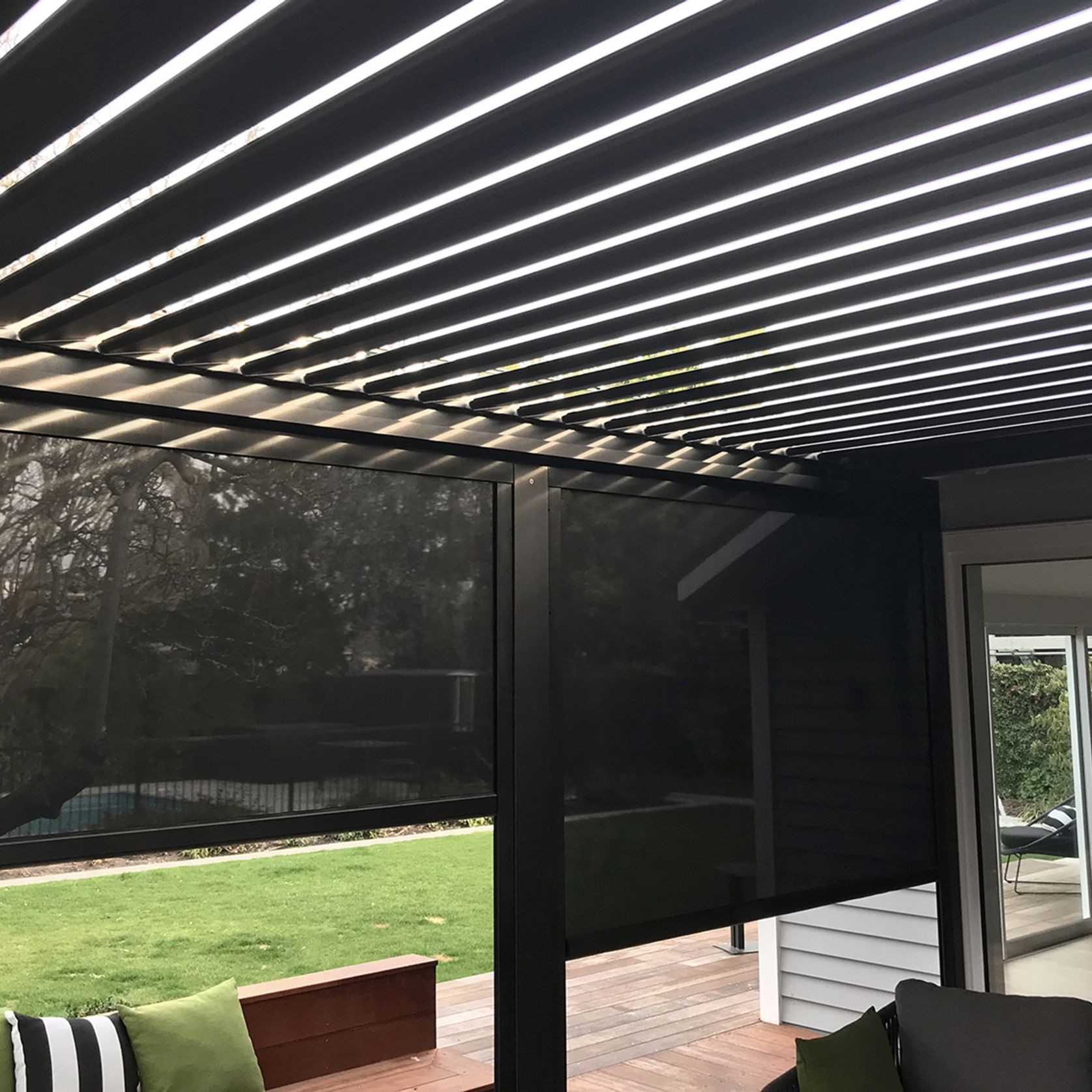

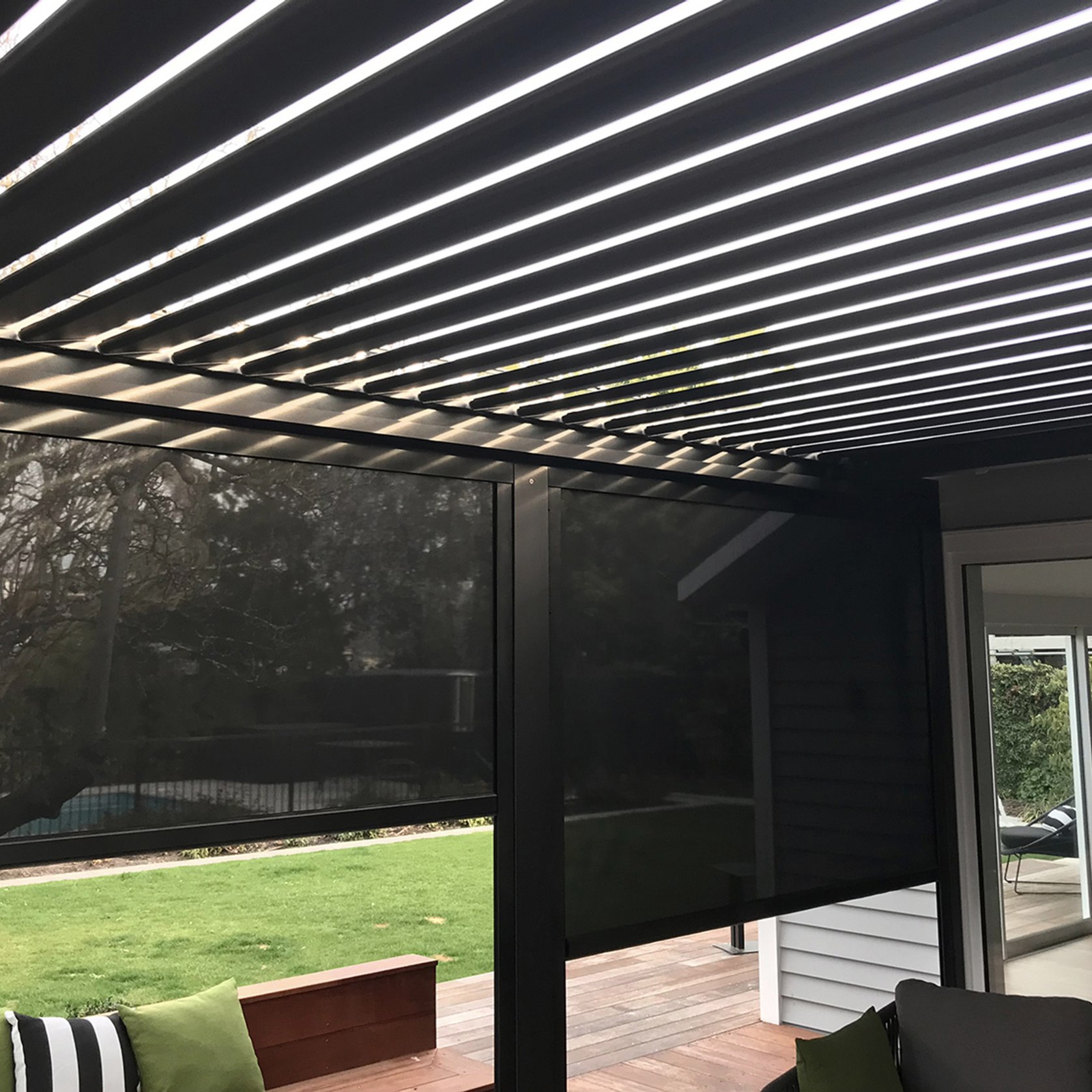

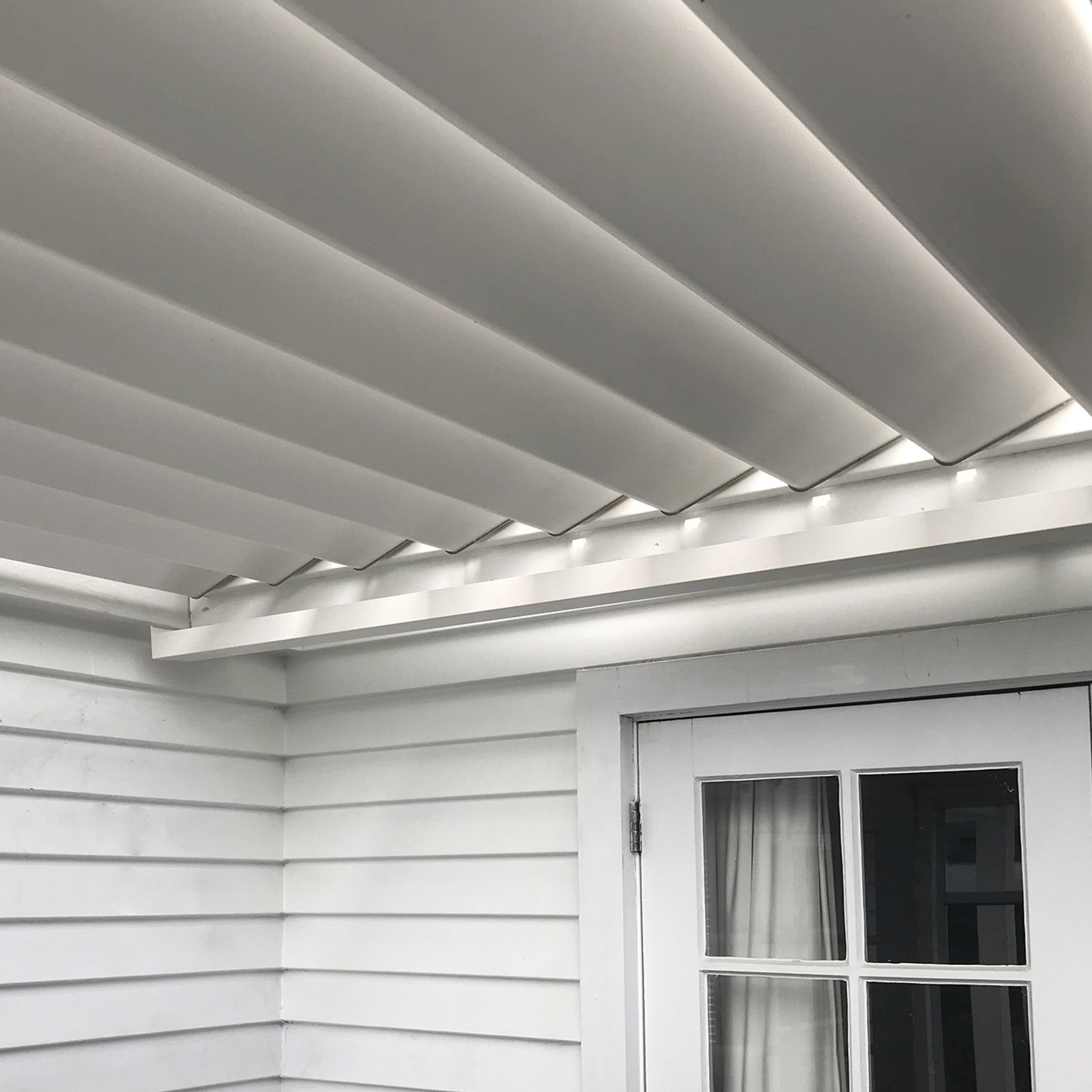

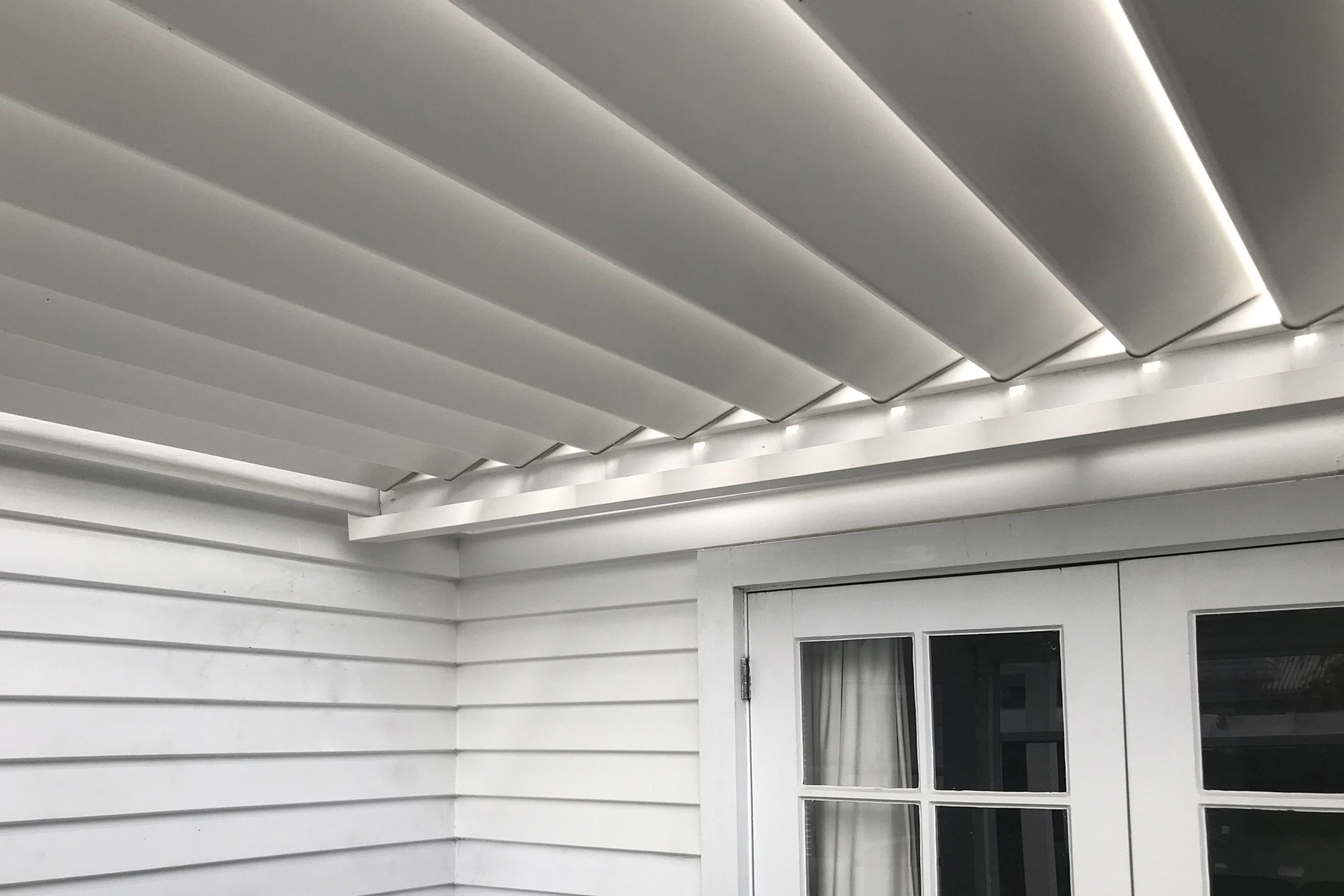

  • LED lighting strips (6 colours) with remote control for dimming, colour modes and saturation control(optional extra)
  • 3 year warranty
  • Maximum size possible without requiring a building consent when attached to a building is 20m2 providing the louvre roof is at ground level Maximum size possible without requiring a building consent when the Louvre Roof is freestanding (not attached a building), is 30m2 providing the louvre roof is at ground level Louvre Roofs irrespective of size installed on floor levels 1 and above, require a building consent Planning permission (PIM) may be required regardless of the louvre roof size The customer is responsible to apply and obtain a building consent and/or PIM if required Window Treatments NZ Ltd do not apply for building consents when required
  • The louvre roof is weather proof but is not guaranteed to be water tight in adverse or storm conditions The louvres must be opened when wind exceeds 65km/hr and or when snowing
