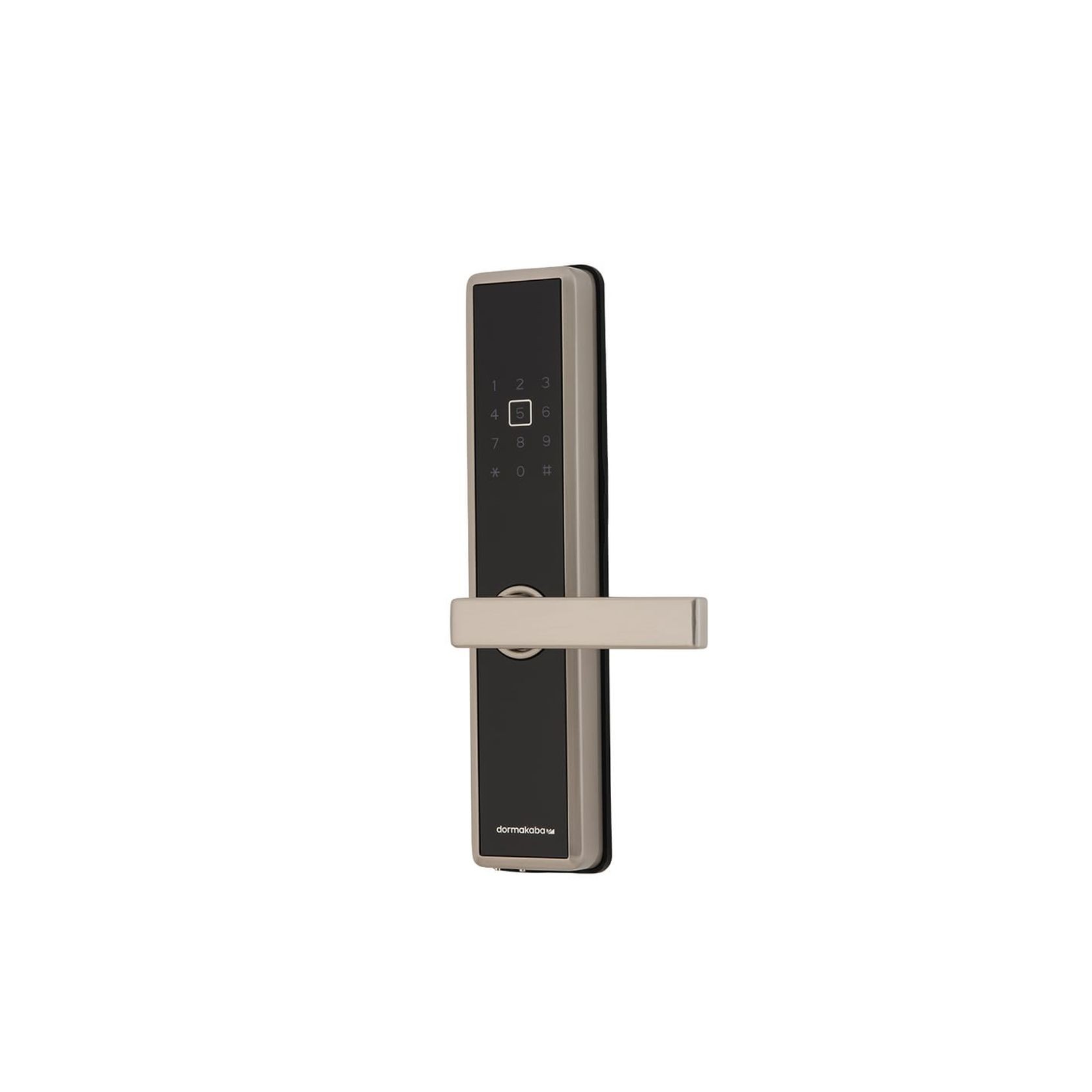

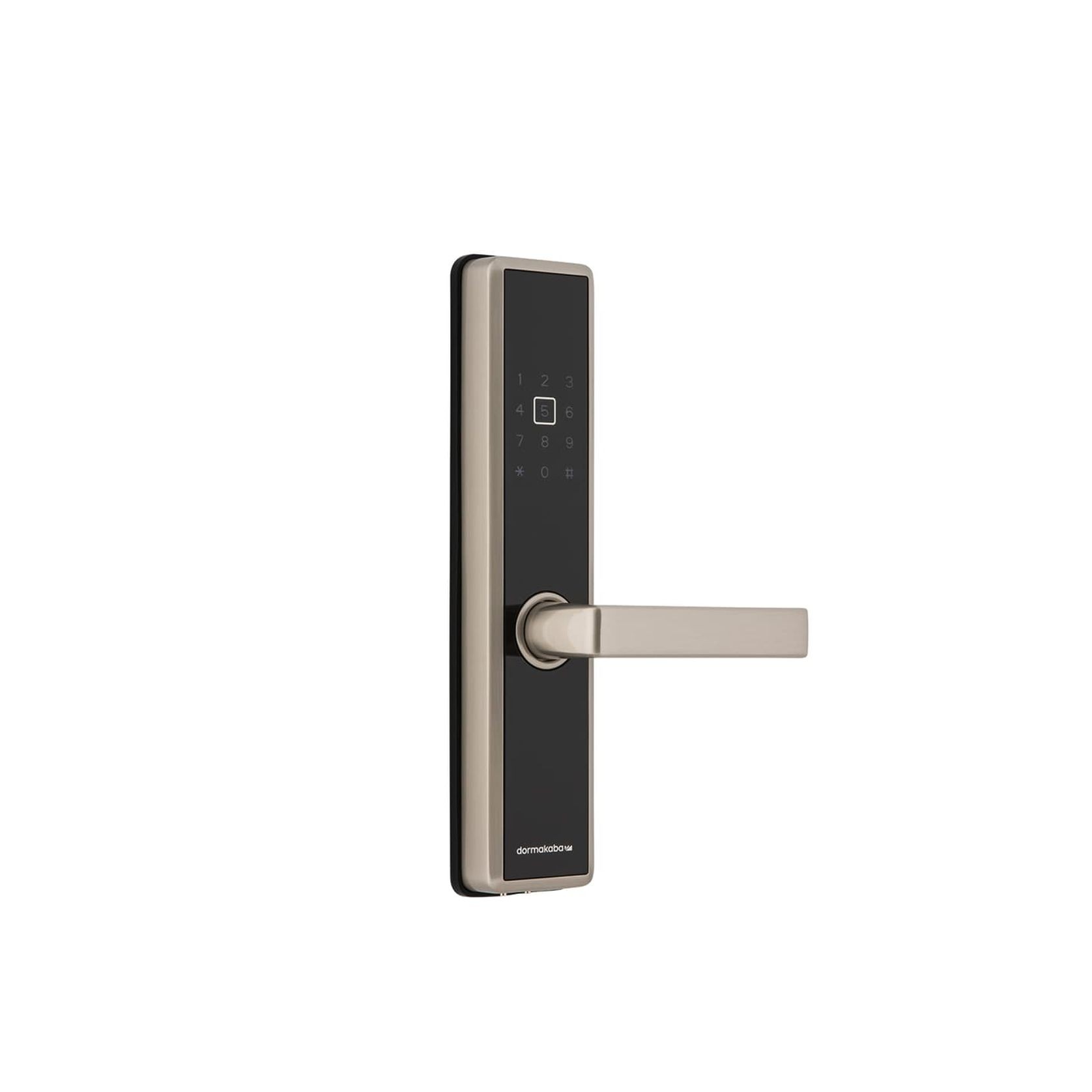

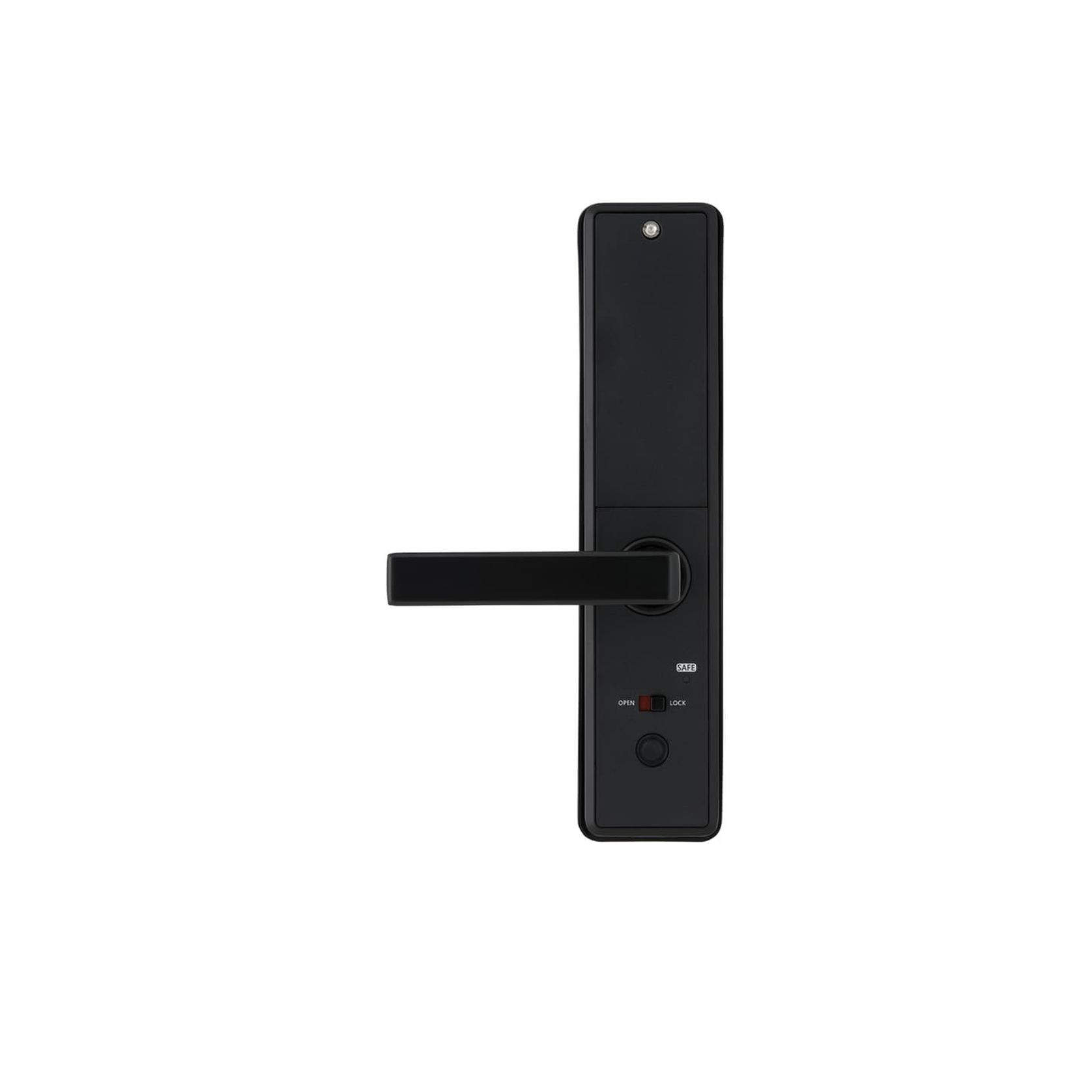

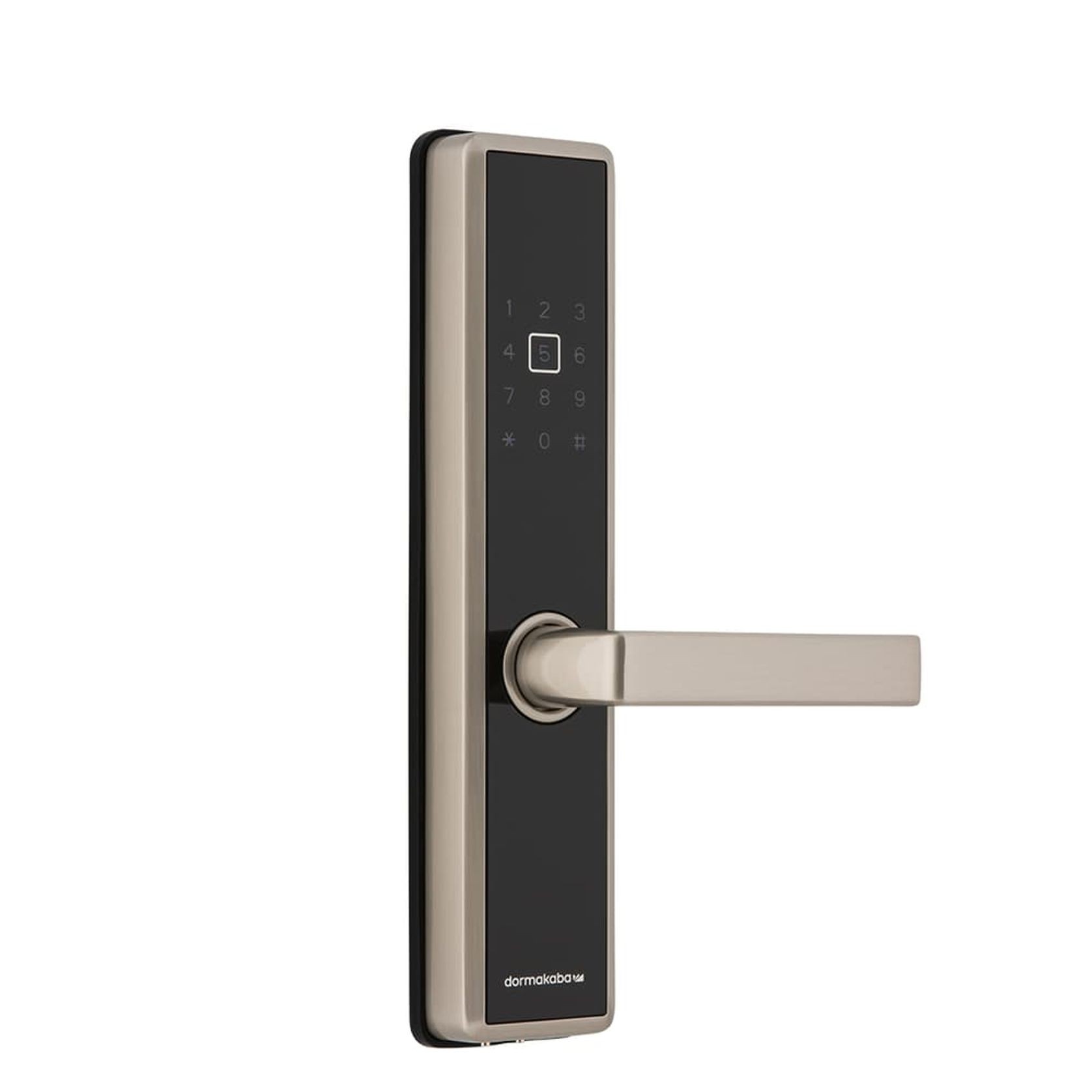

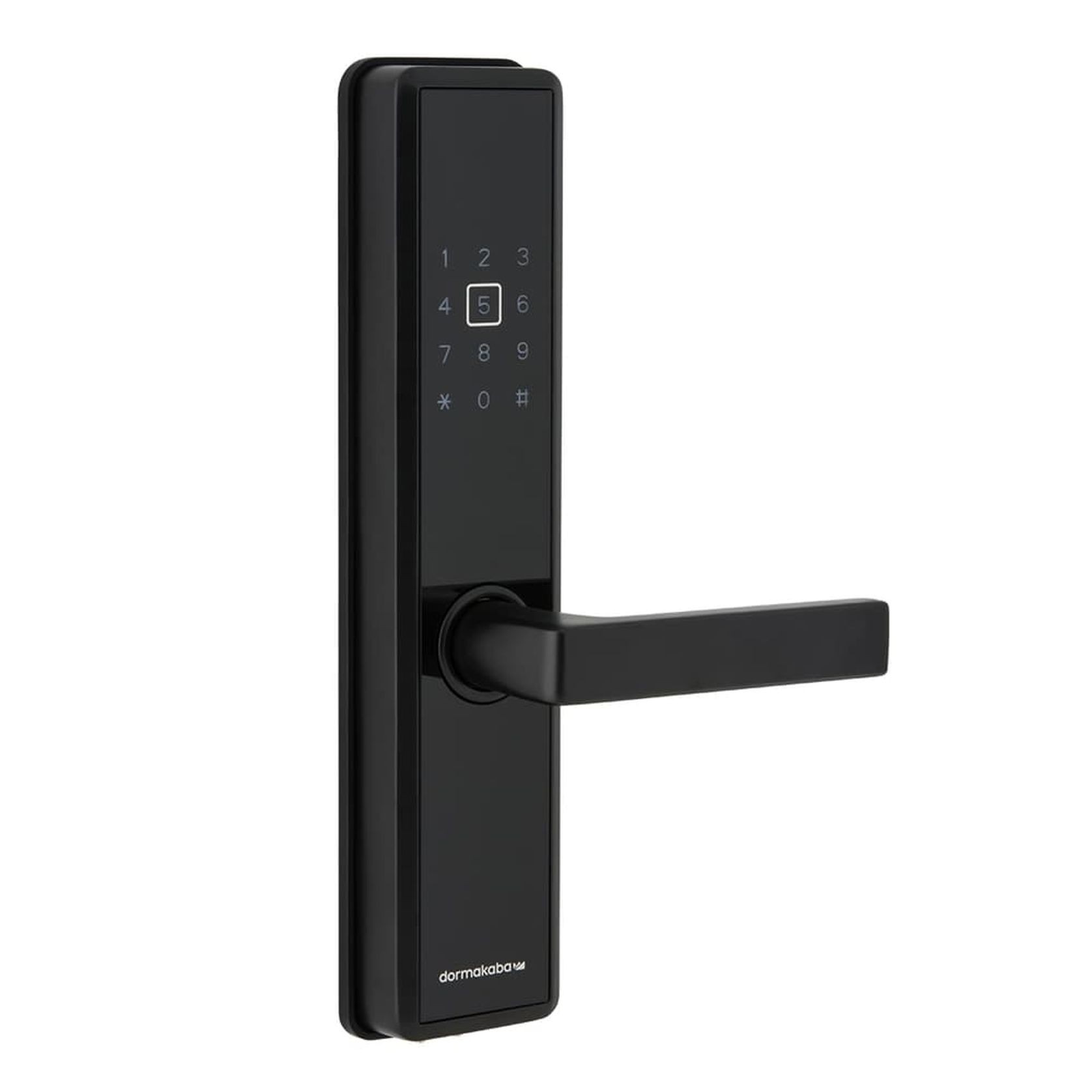

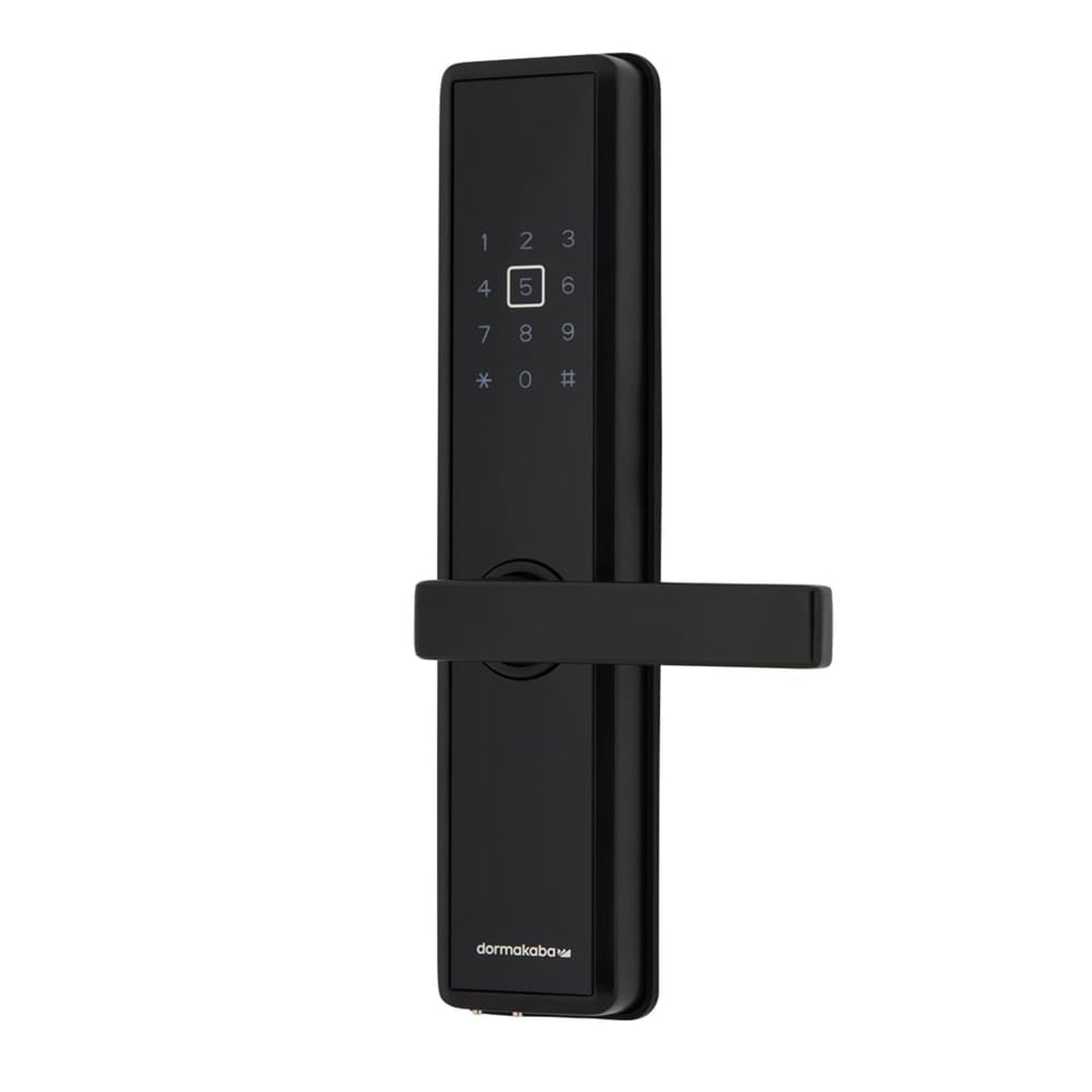

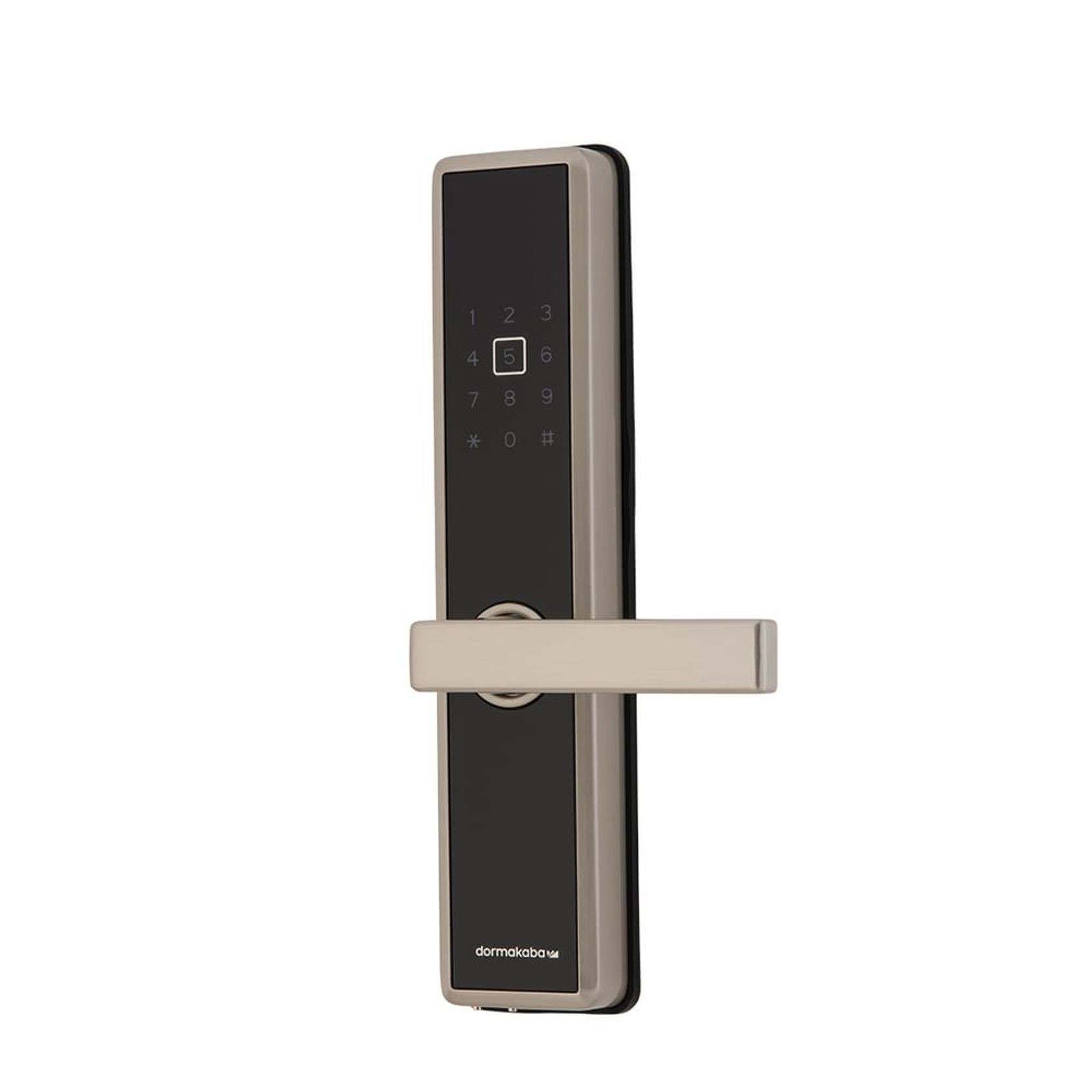

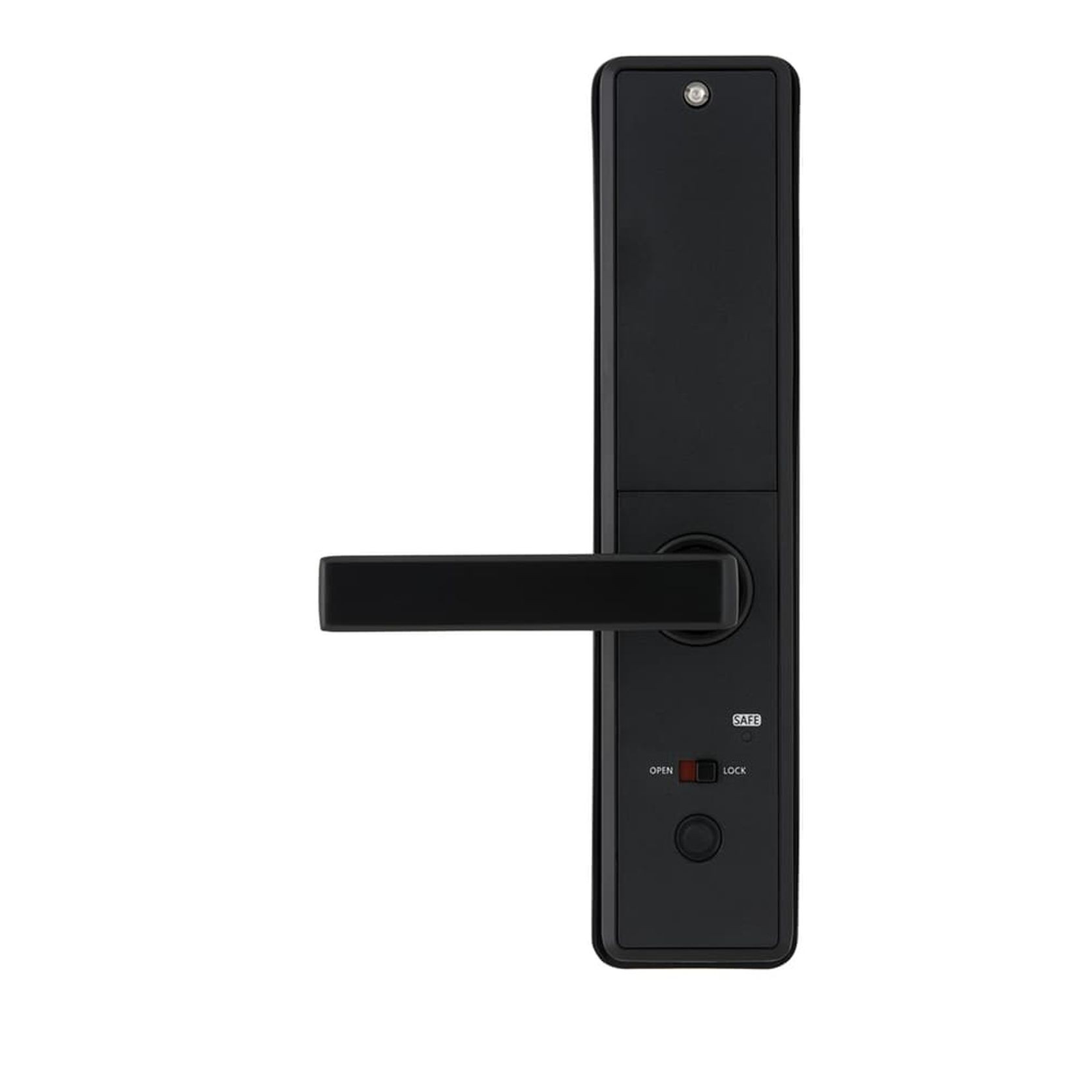

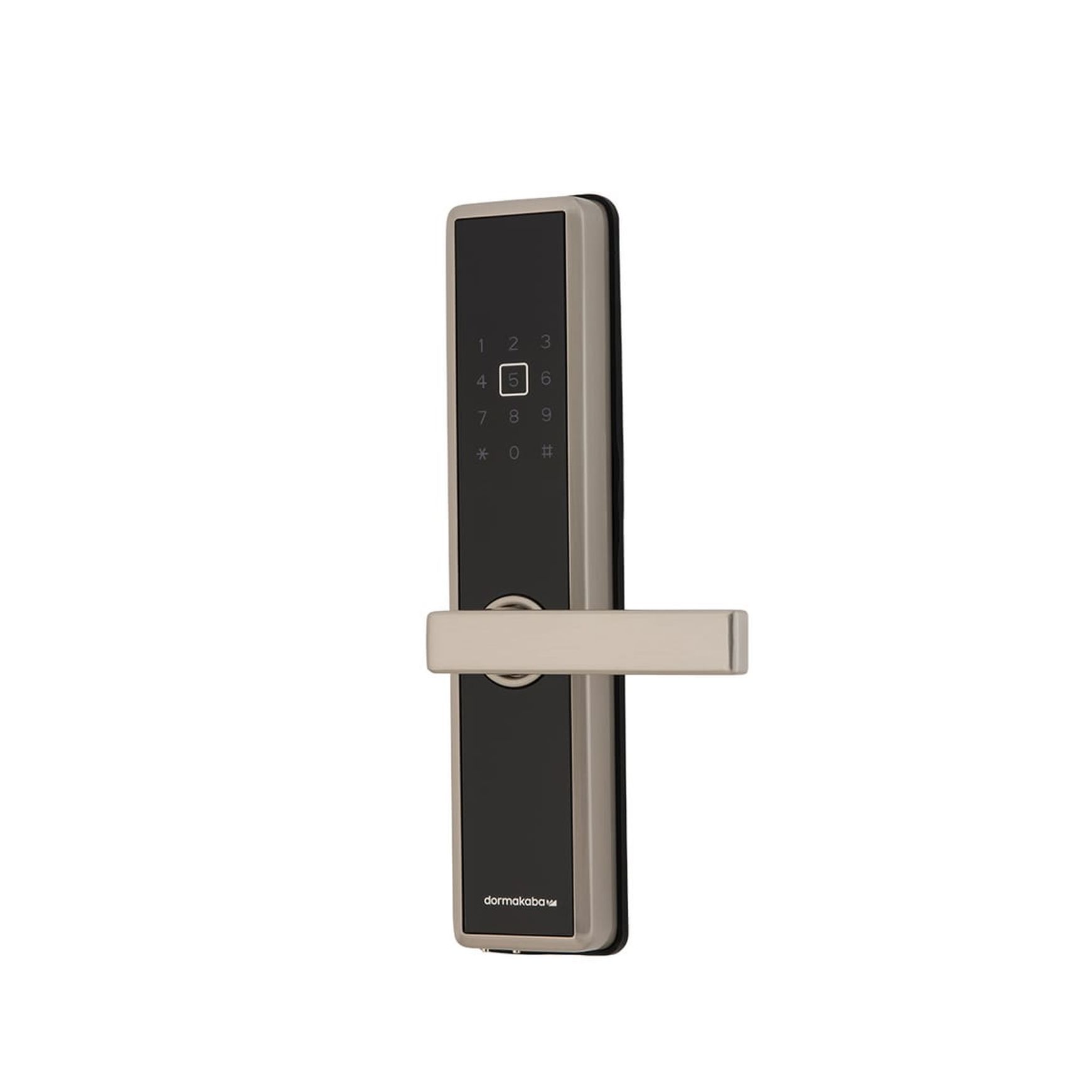

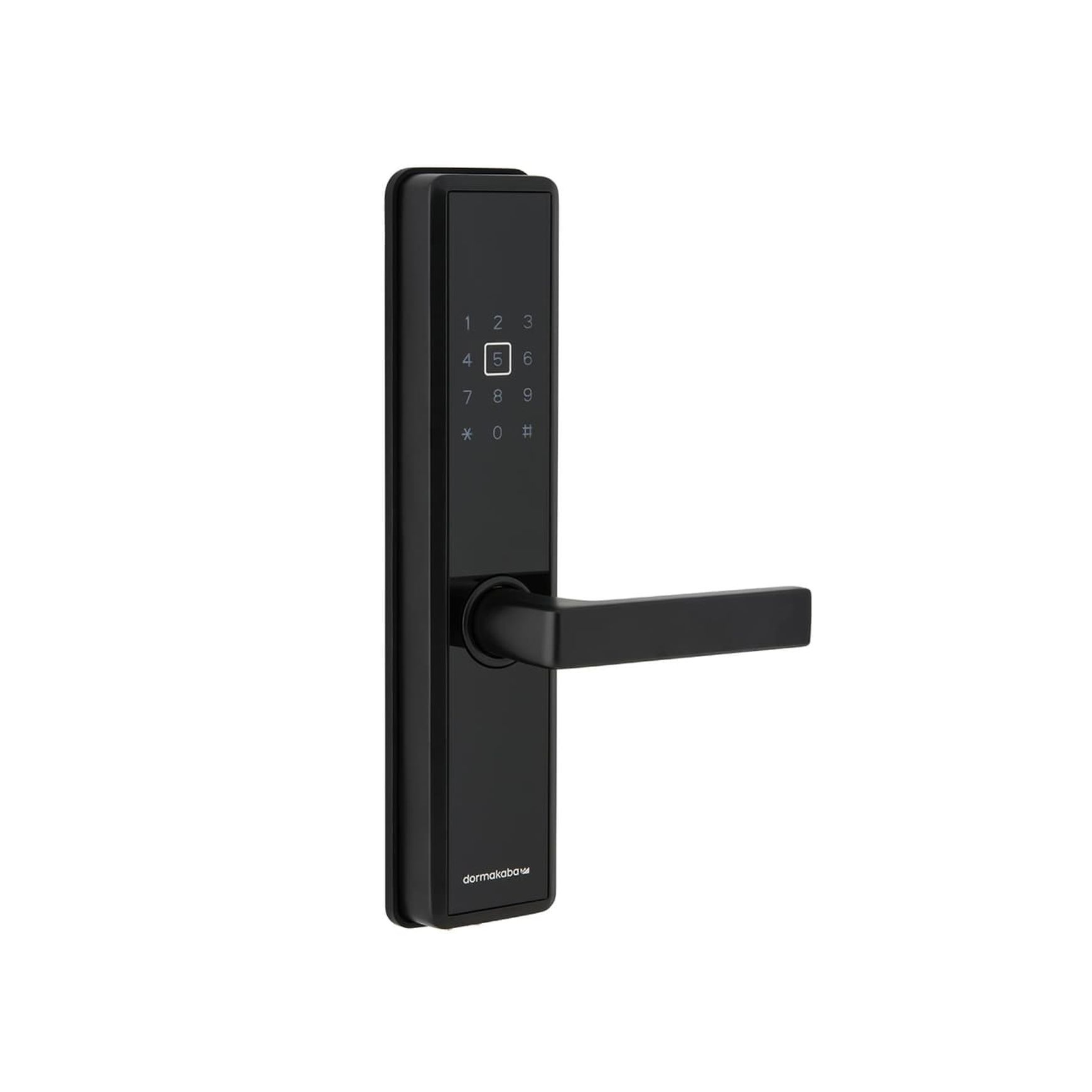

M5 Digital Mortice Door Lock
Designed with elegance, matched with the convenience of the smart features and functions whilst not compromising on security, reliability and performance. Giving you the ultimate control of your home security.
The M5 comes standard with 2 proximity cards, 2 fobs, 3 keys and BLE connectivity. Additional cards/fobs are available from your local M5 distributor.
With the assistance of step by step voice guided programming, setting up and maintaining the M5 is as simple as entering the administrator PIN and following the voice prompts. An RFID Card/Fob can be added as Administrator once programmed.

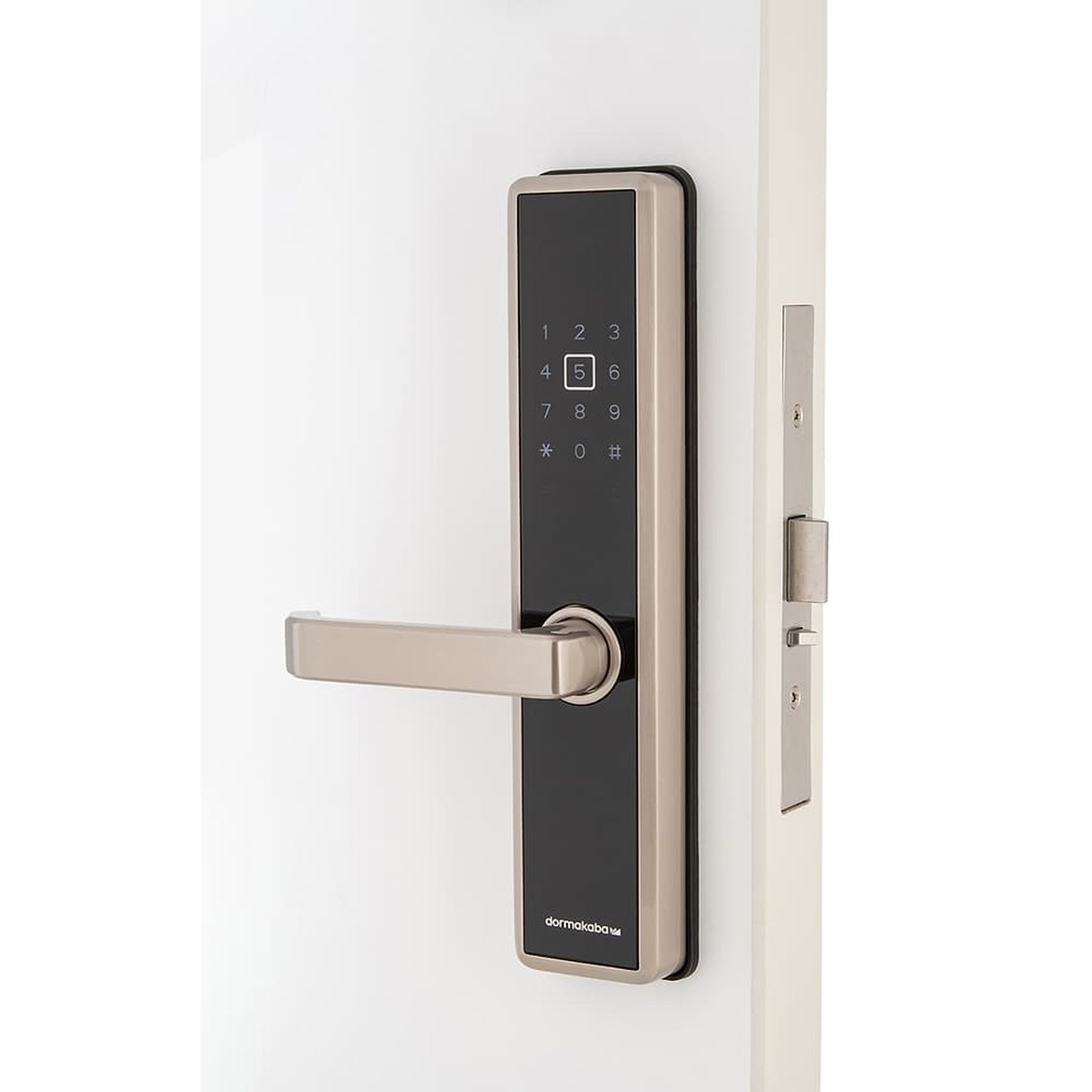

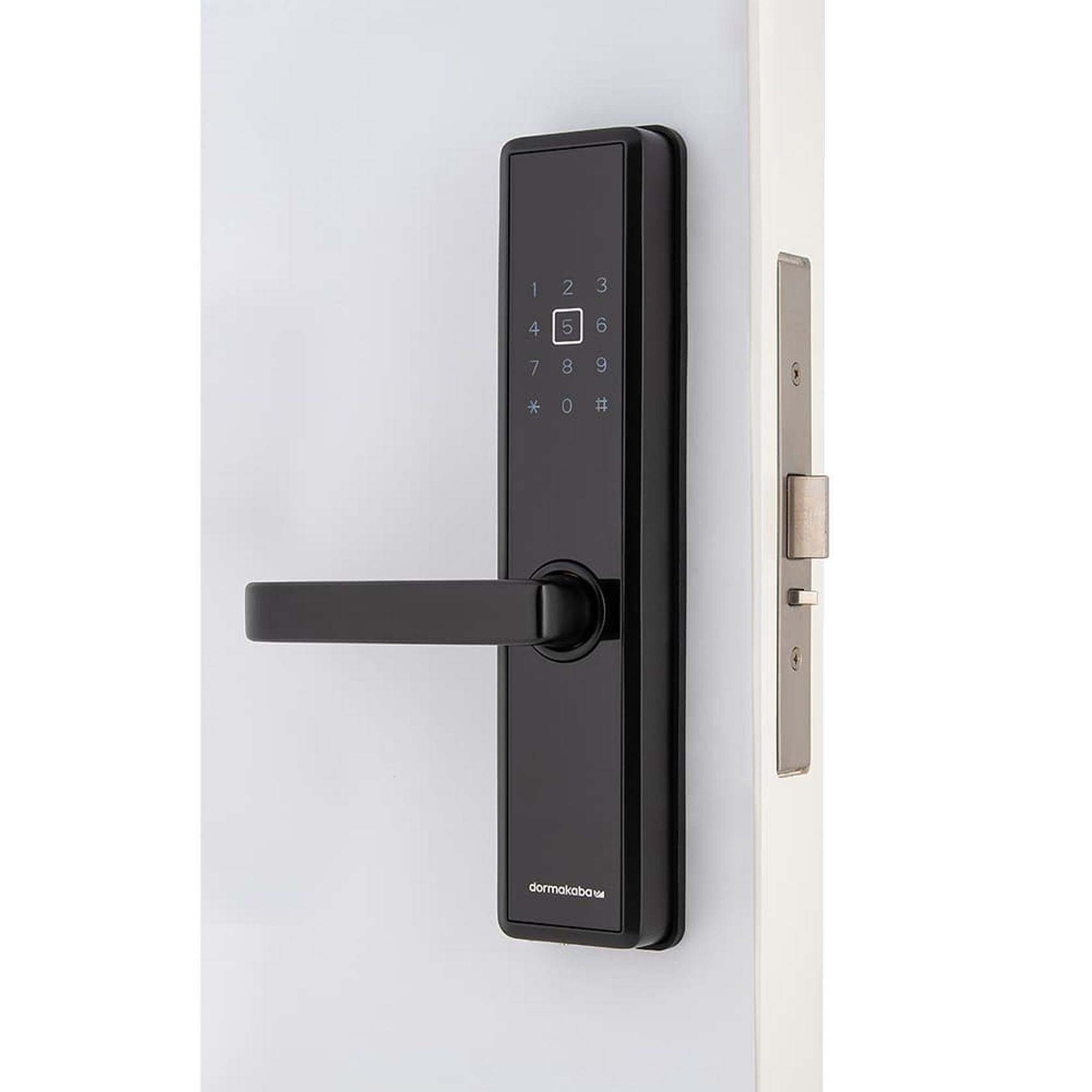

The M5 is supplied as standard with the Australian style dormakaba MS2602 Series mortice lock providing the reassurance in knowing that by exceeding the highest levels of Australian standard for both mechanical security and durability (AS4145.2).
The M5 is certified to RCM standards under ACMA.
The M5 is truly the best solution for any digital locking solution.
- CategoryDigital Door Locks
- RangeDigital Door Locks
- Branddormakaba
- Designerdormakaba
Product Details
- Voice guidance in English/Chinese
- Low battery alarm
- Break-in and tamper alarm
- Wrong pin code lockout alarm
- Passage mode
- One-time password
- Password sharing
- Scramble password
- Unclosed door warning
- External emergency battery terminals or mechanical key
Technical Details
- Alkaline battery
- Door thickness 35mm - 50mm

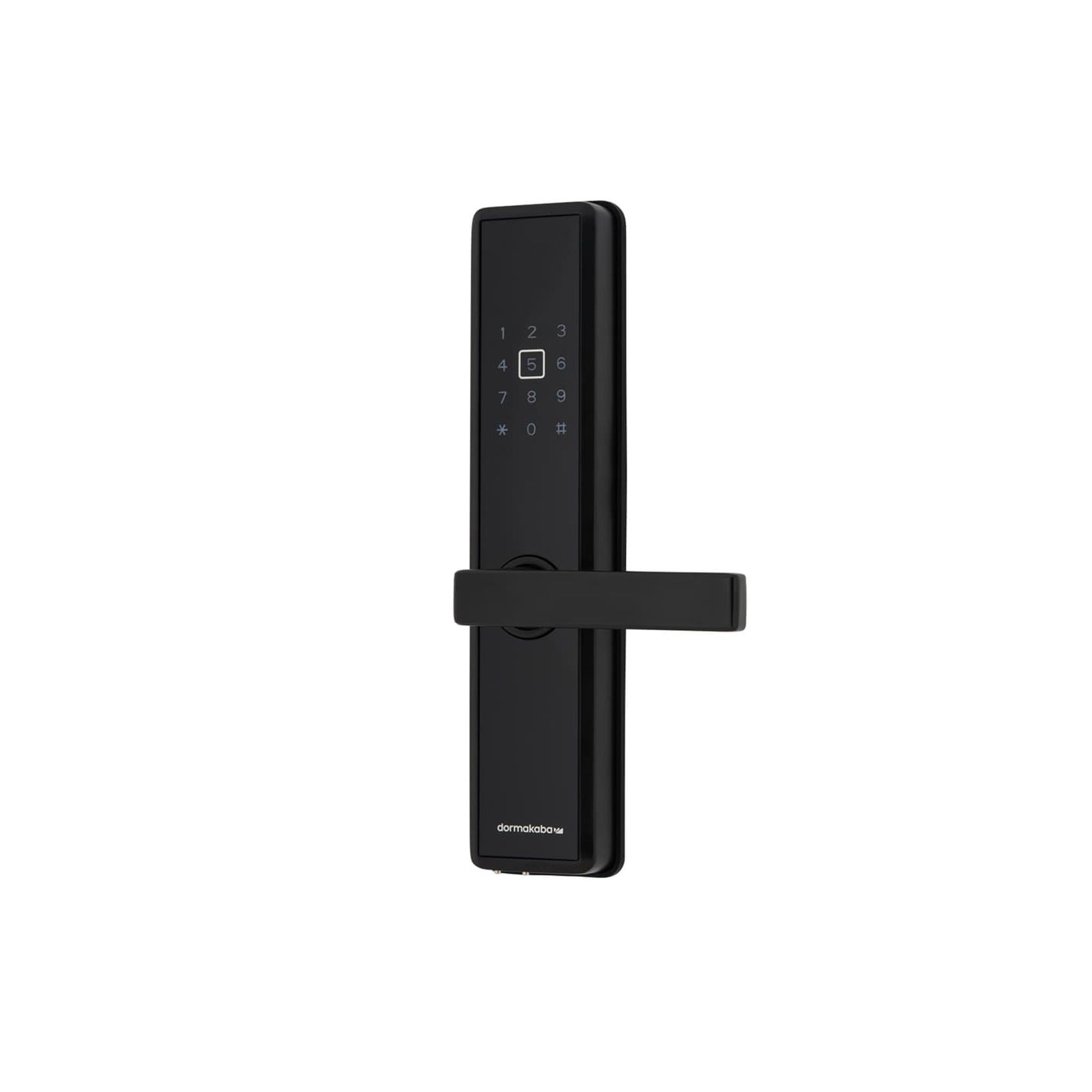

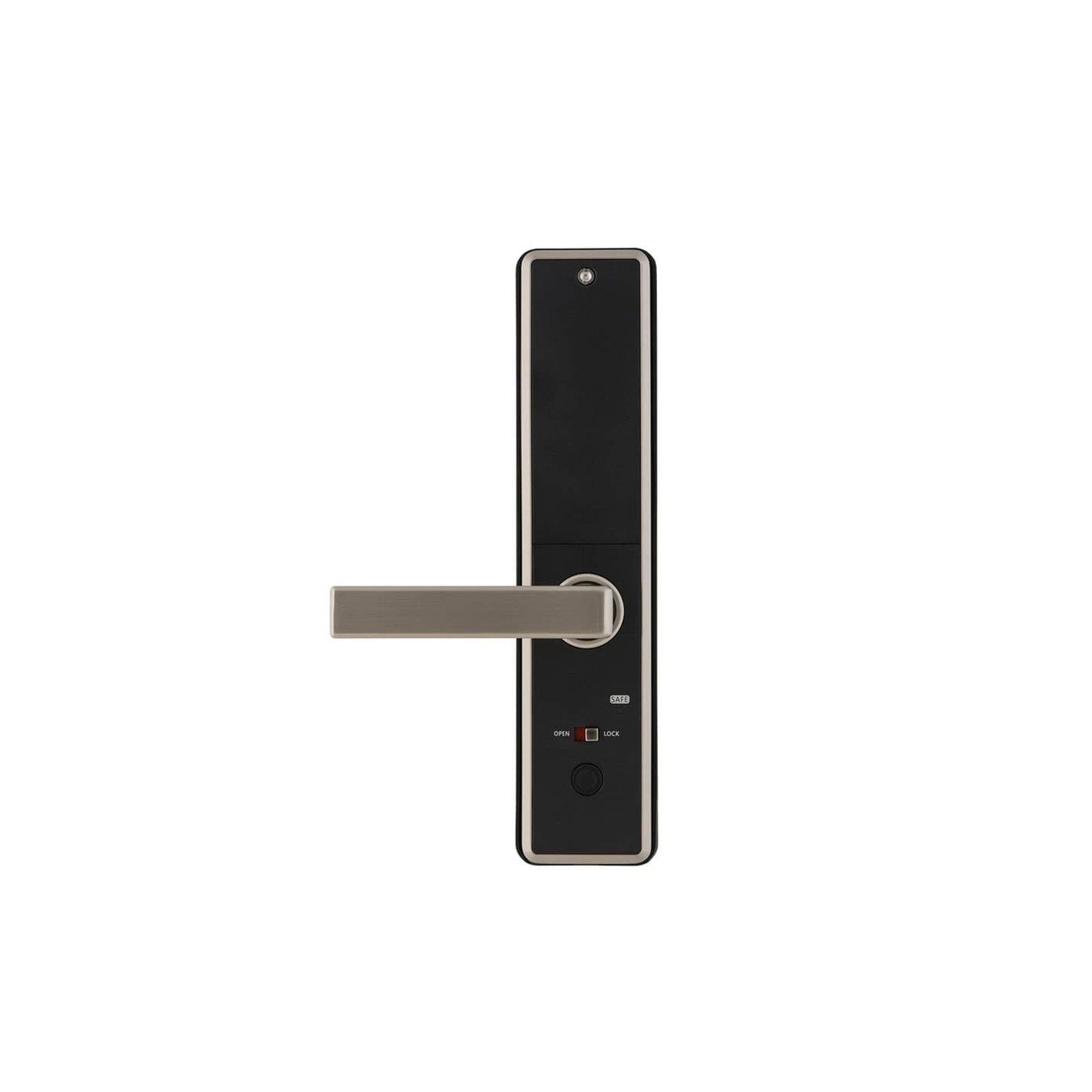

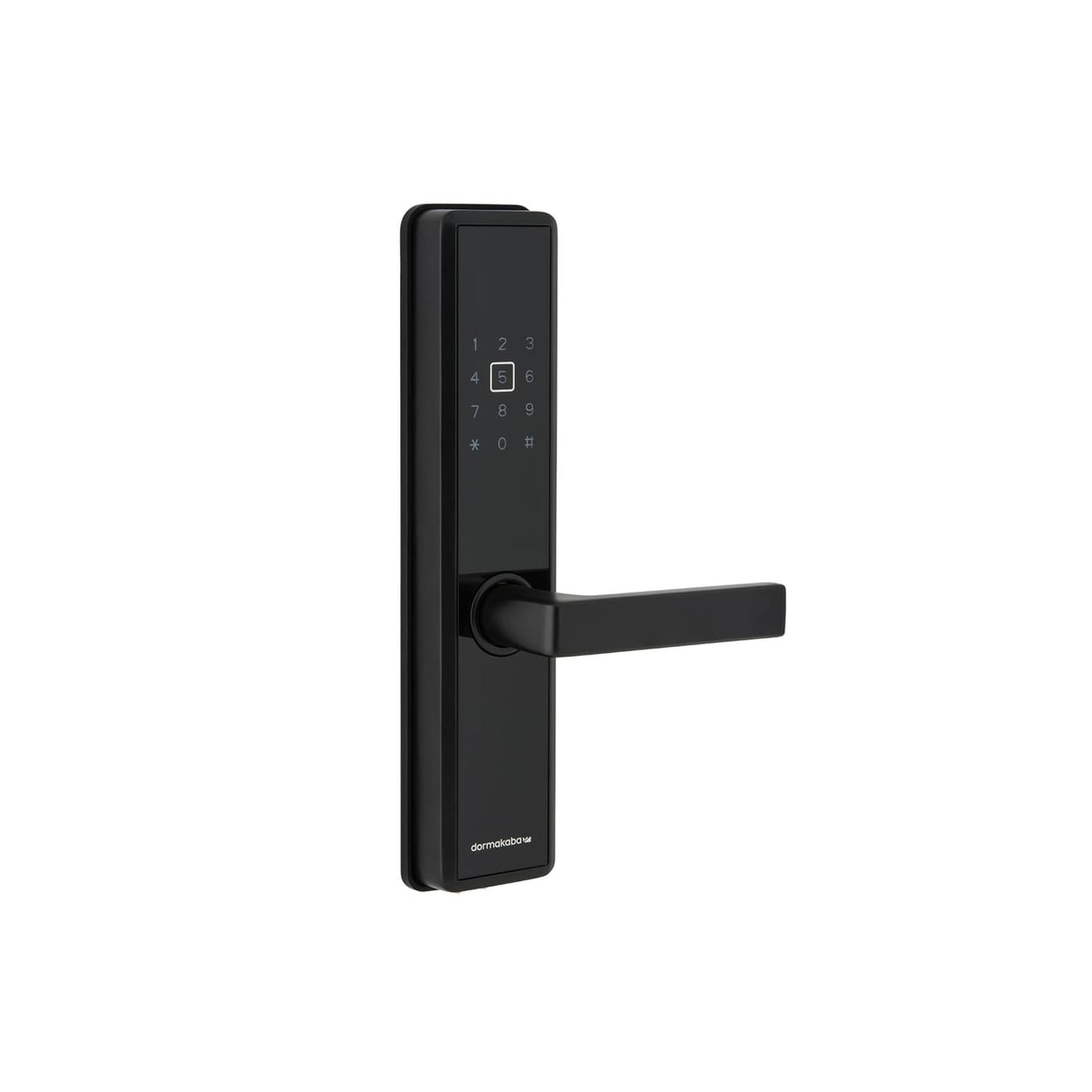

- Finish and colour: Black with Matt Black rim Black with Brushed Nickle rim
- Keypad: Illuminated 12 keys
- Mortice type: Australian style, 60mm backset EN Mortice
- Card key: 100 Cards/users
- Card configuration: 2 large cards (RFID cards) 2 small cards (fobs)
- Pin codes: 10
- Mechanical key override: 3 keys included
- BLE devices: 10
- Length of pin code: 6-12 digits
- Mobile Platform: iPhone (iOS 8.0 and above) Android-based Smart phone (Android 5.0 and above)
- Temperature (⁰C): -20 to +55⁰
- Humidity (%): 0 to 90%, non condensing
- Weather protection: IP54
- Dimensions:
External body 65 x 285 x 27.5 mm (W x H x D)
Internal body 65 x 280 x
