Millenium Roof Window
by Vistalite® Windows and Doors
Nelson, New Zealand
- 495.8K profile views
- 115 saves

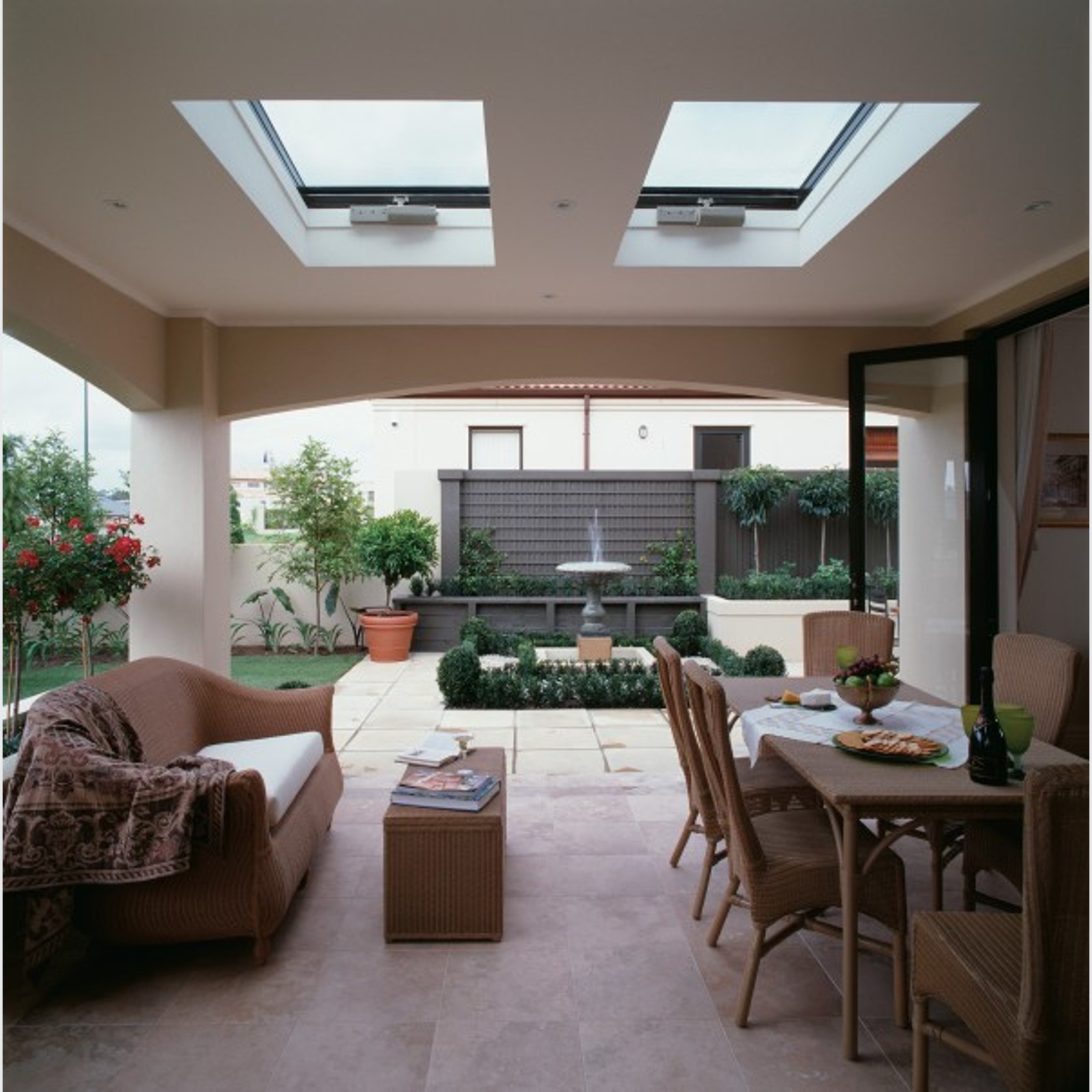

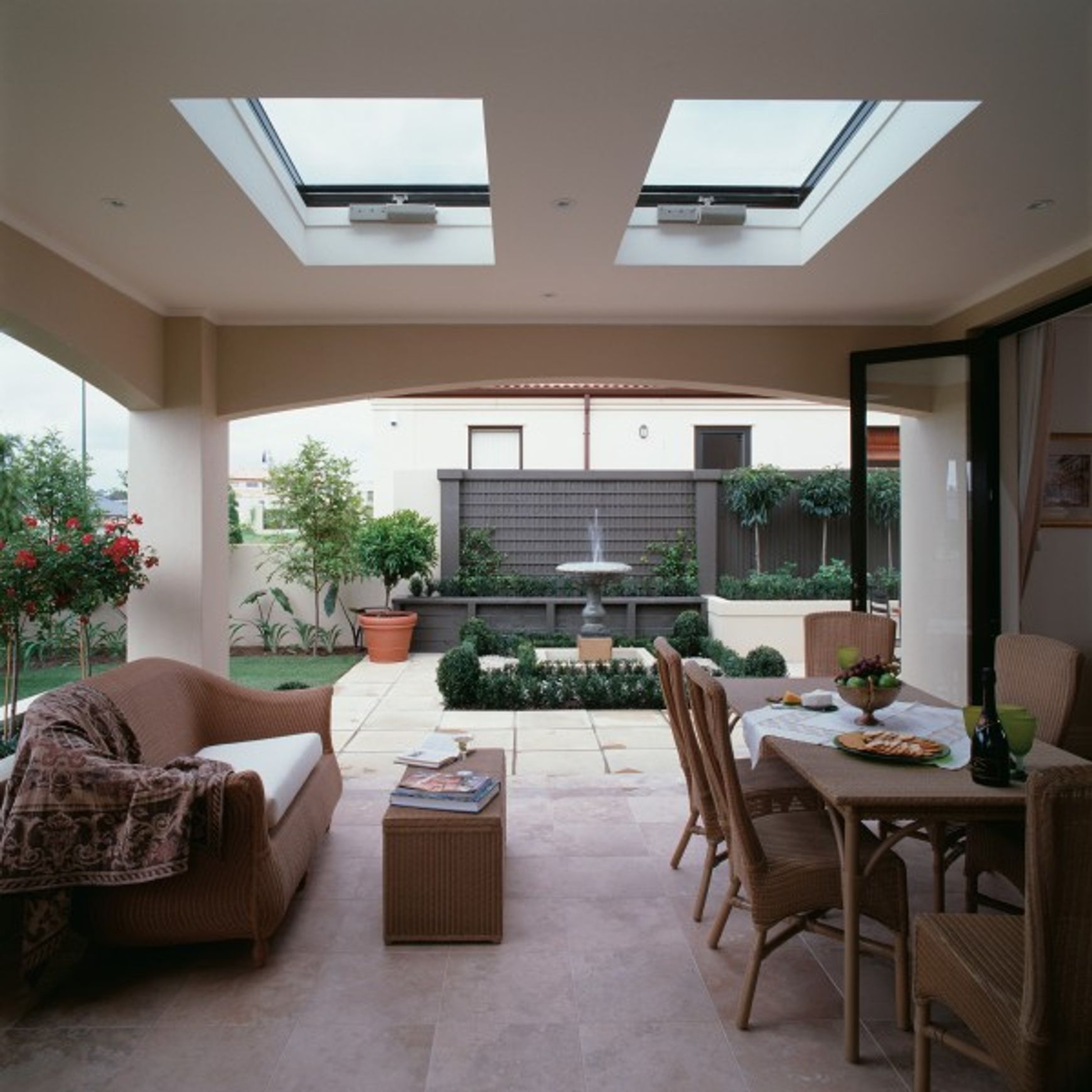

Our Millenium Roof Windows are normally operated using winding gear which can be manually or electronically operated and can include such options as rain sensors so roof windows can close automatically when rain is detected.
Product Details
- Product
- Millenium Roof Window
- Category
- Skylights and Roof Windows
- Sold by
- Vistalite® Windows and Doors
Vistalite® Windows and Doors is specified by
Stephan Meijer ArchitectureArchitects
Rafe Maclean ArchitectsArchitects
Smith ArchitectsArchitects
ContextArchitects
Salmond ArchitectureArchitects
Johnston ArchitectsArchitects
Chaney & Norman ArchitectsArchitects
Four Walls ArchitectureArchitects
Kamermans Architects LtdArchitects
Dravitzki Brown ArchitectureArchitects
Mason & Wales ArchitectsArchitects
Assembly ArchitectsArchitects
Wyatt + Gray ArchitectsArchitects
Condon Scott ArchitectsArchitects
Gary Todd ArchitectureArchitects
Ground Up StudioArchitects
Owens BuildingBuilders
Williams ElvidgeBuilders
Nebulite® Windows & DoorsManufacturers and Suppliers
Vistalite® Windows and Doors ManawatuGlaziers
Kiwi Craft KitchensKitchen Cabinet Makers
DuluxManufacturers and Suppliers
eCubedEnvironmental Engineers
Trinity ConstructionConstruction
ASSA ABLOYManufacturers and Suppliers
Fisher® Windows and DoorsManufacturers and Suppliers
Archi BuildBuilders
Altus® Window SystemsJoinery Installers & Repairs
Metro Performance GlassManufacturers and Suppliers
Rylock® Windows & DoorsManufacturers and Suppliers
Triple Star ManagementBuilders
Home ProjectsBuilders
E13 Performance WindowsGlaziers
Ze BuildBuilders
Warnock Architecture LtdArchitectural Designers
Shore ConstructionConstruction
Dunlop BuildersBuilders
Architex NZArchitectural Designers
Percival ConstructionBuilders
Level ConstructionBuilders
Nulook® Windows & DoorsManufacturers and Suppliers
Arc AtelierArchitectural Designers
Aspen HomesConstruction
staceyfarrell.comArchitecture & Design
Lewis WindowsServices
Our Millenium Roof Windows are normally operated using winding gear which can be manually or electronically operated and can include such options as rain sensors so roof windows can close automatically when rain is detected.
- Specs
Maximum sizes for Roof windows and sashes vary by width, height, wind zone and glazing requirement. Your local fabricator will be able to advise whether a configuration is possible. As a guide fixed window panels up to 1500mm by 1000mm width are attainable, however, constraints within the NZ Building Code or NZS4218:2009 may restrict the maximum size.

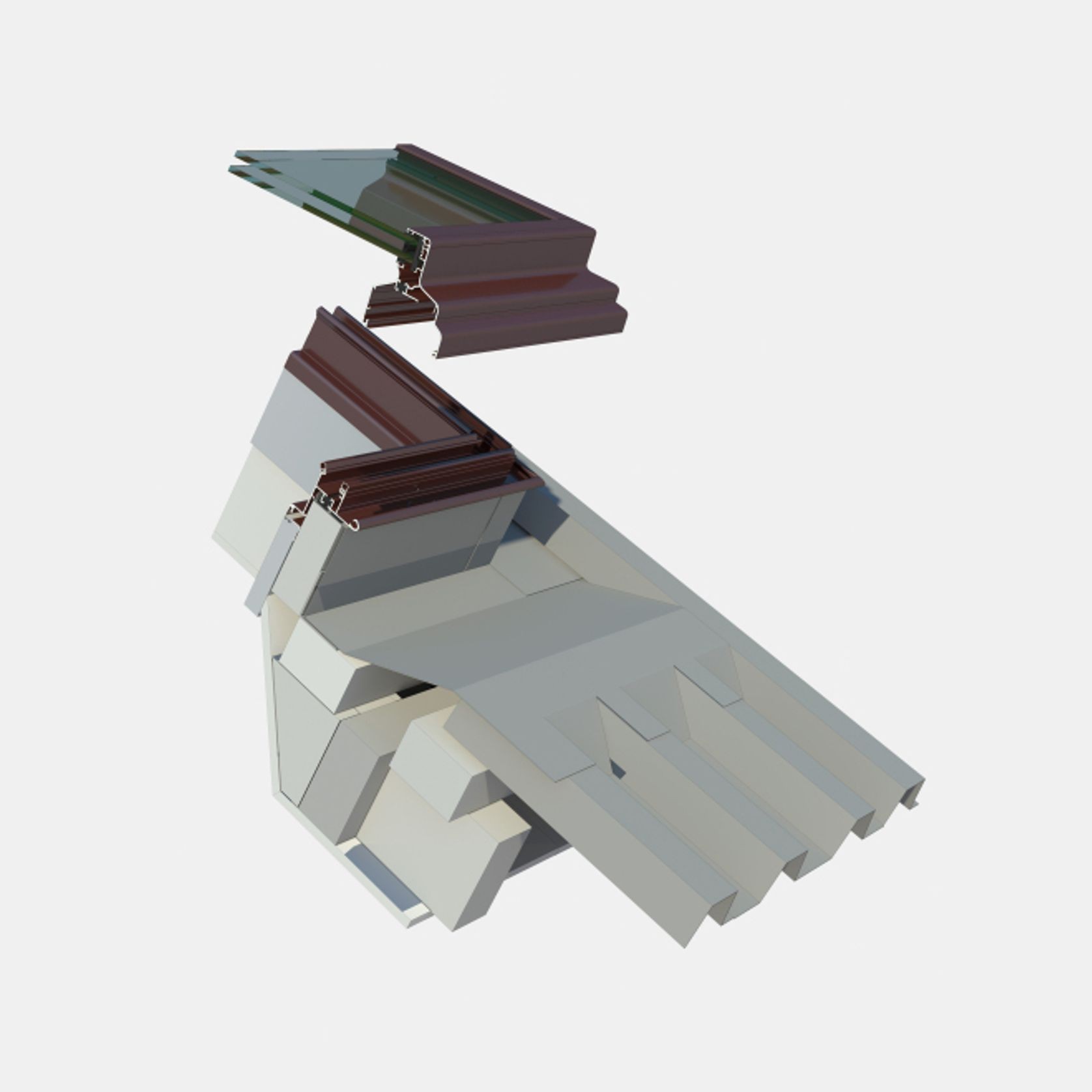

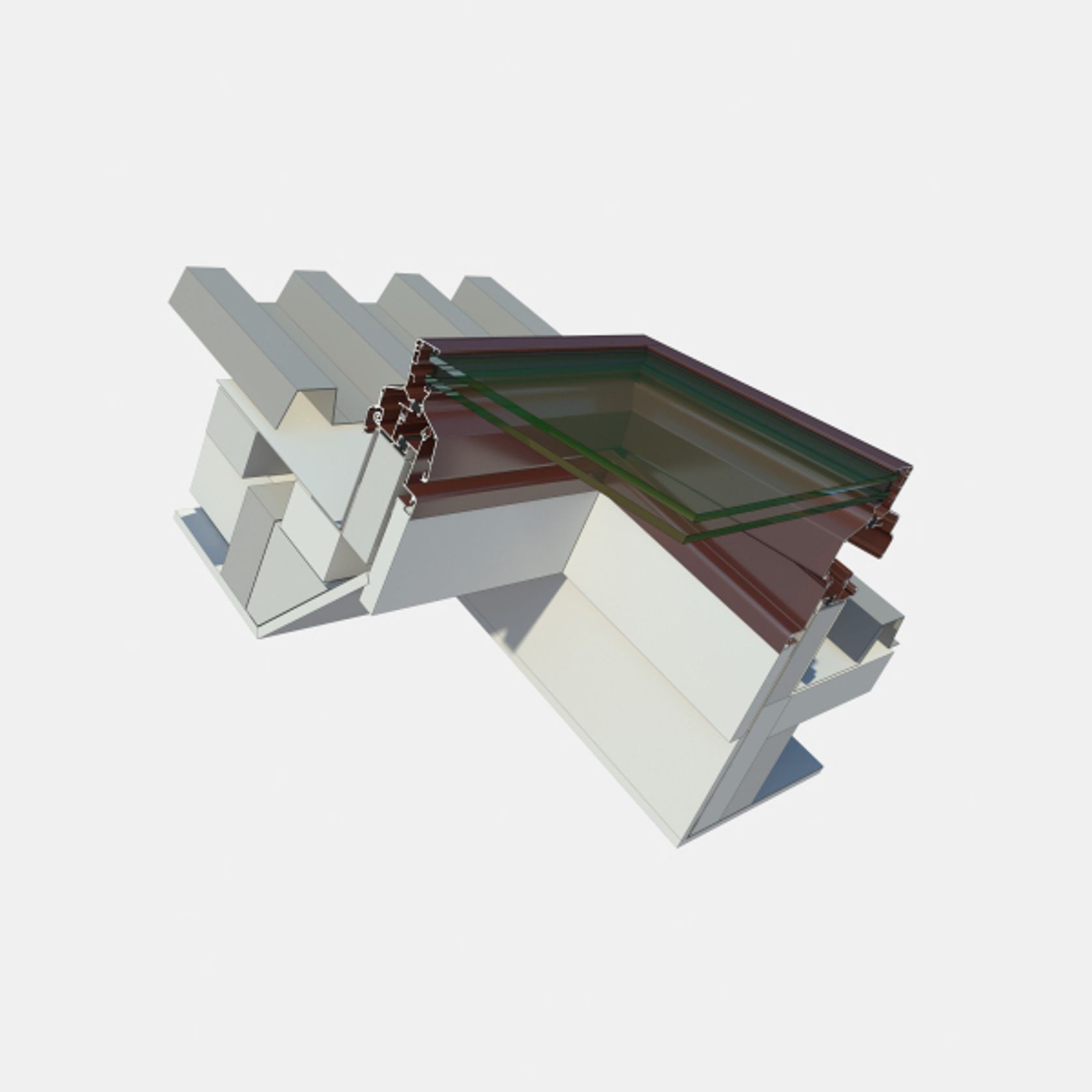

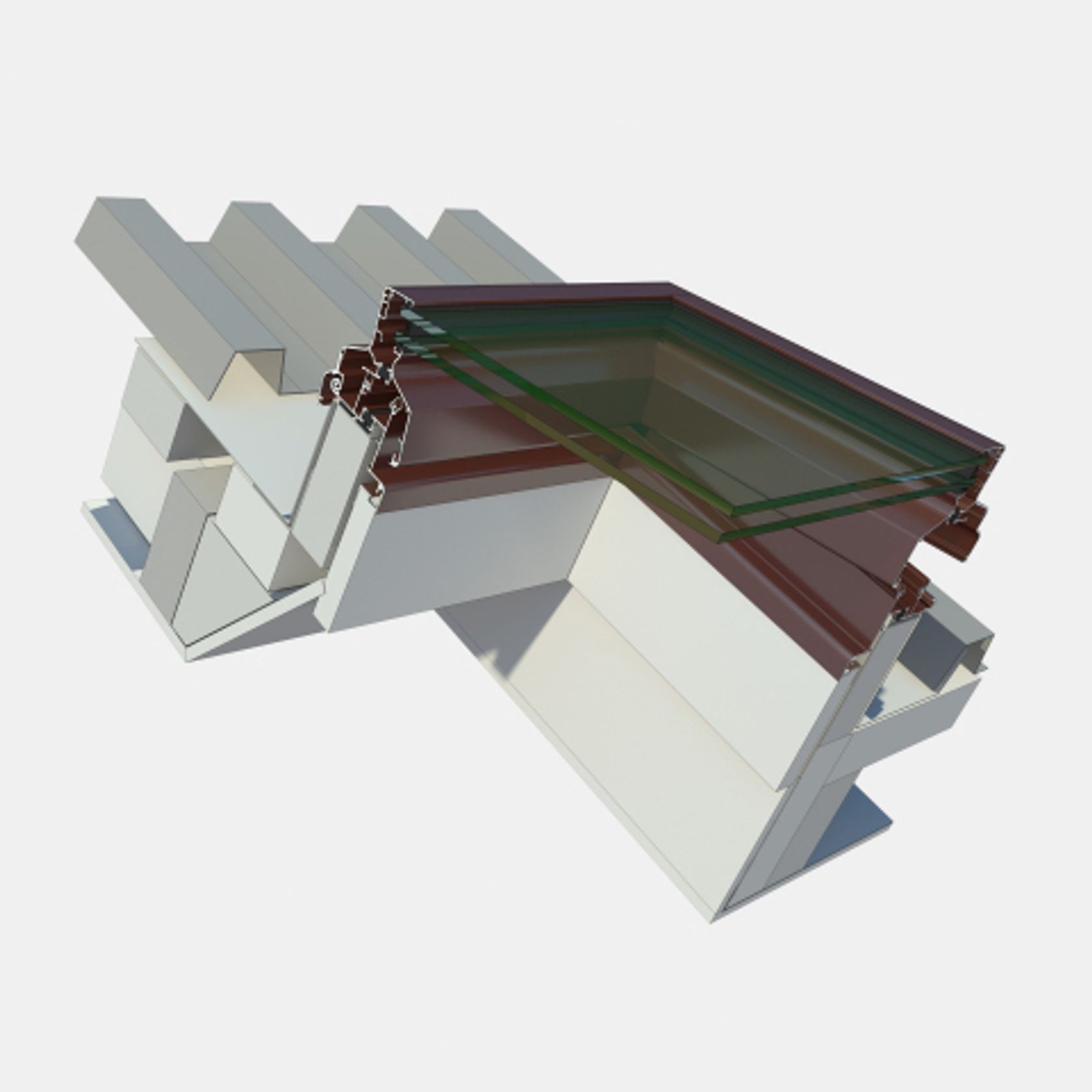

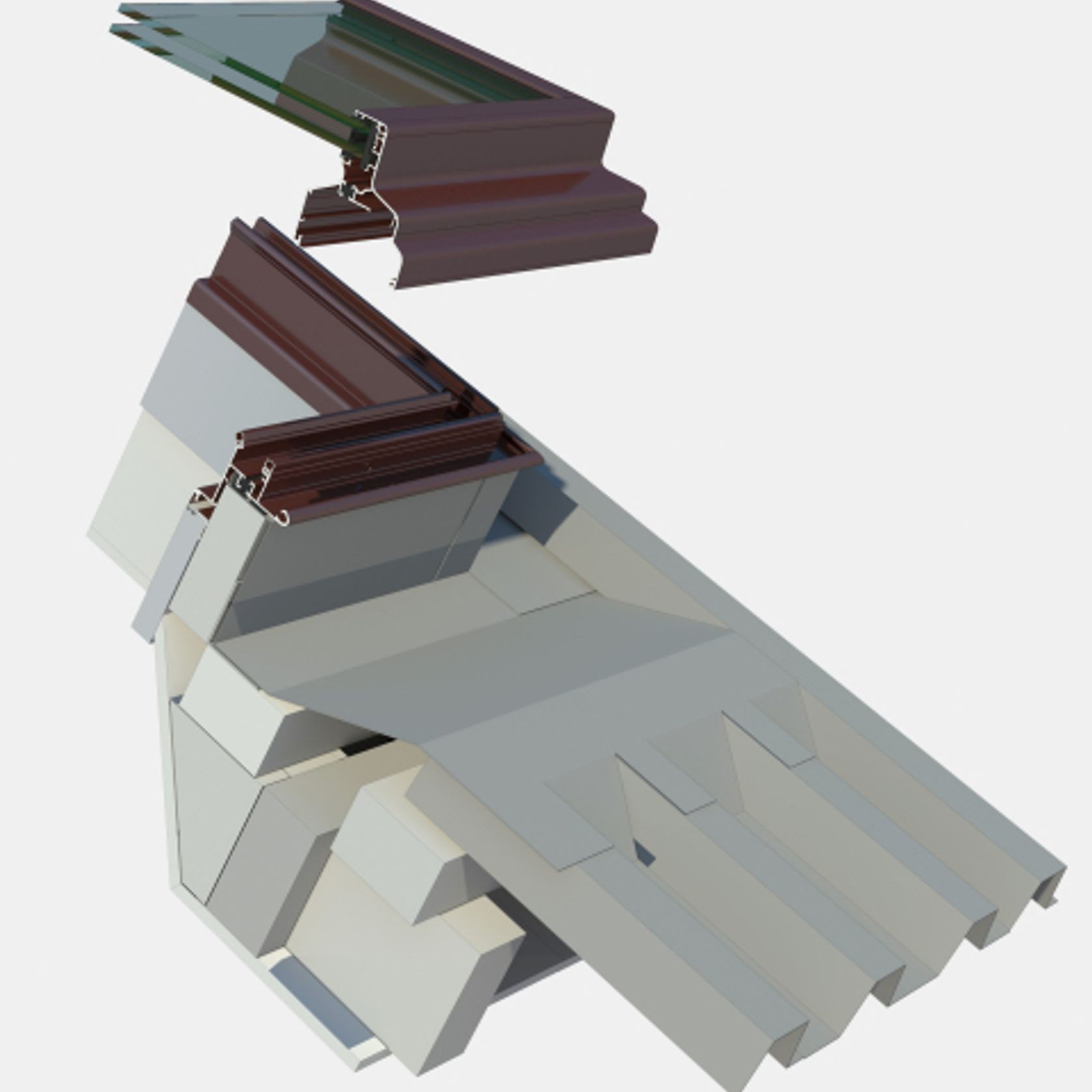

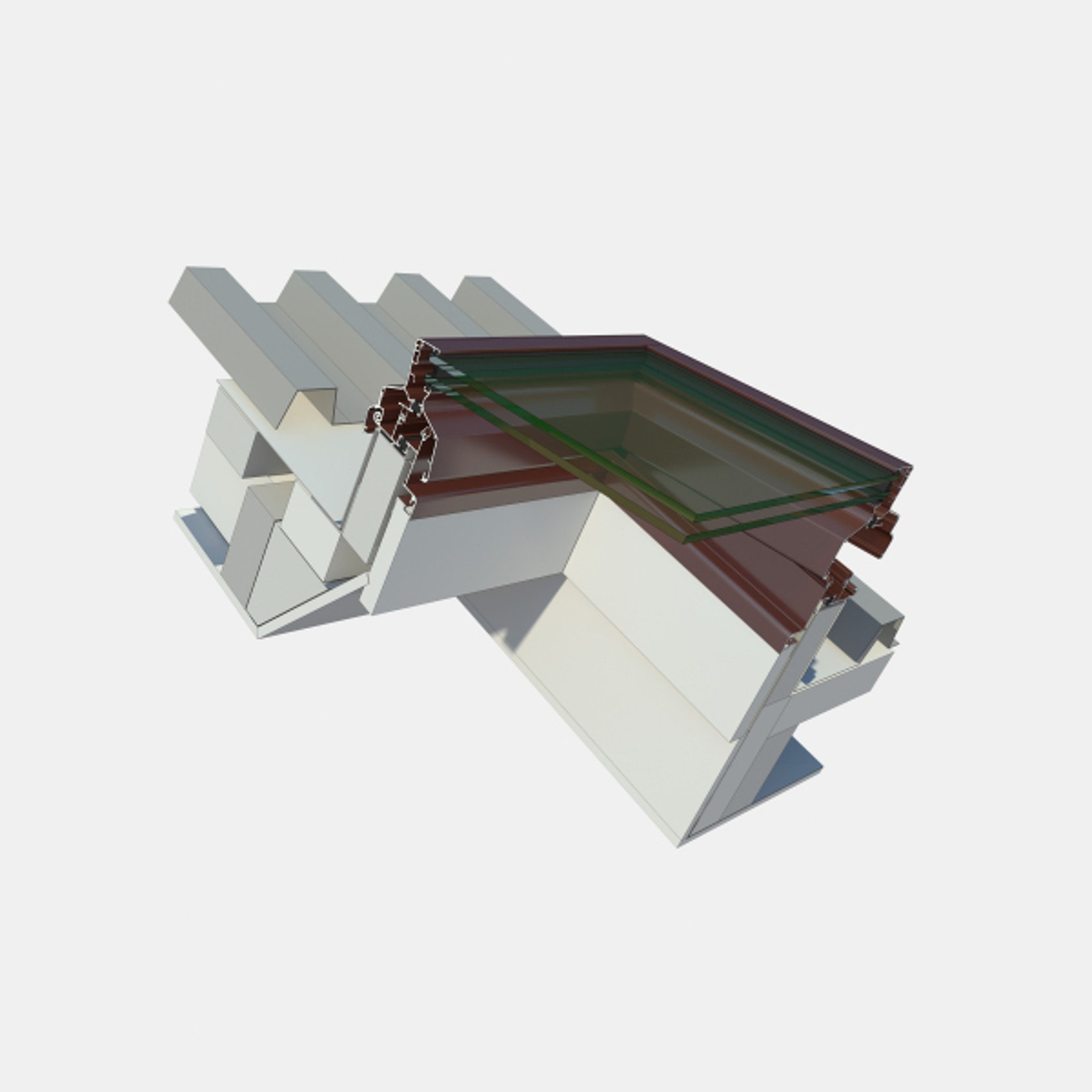

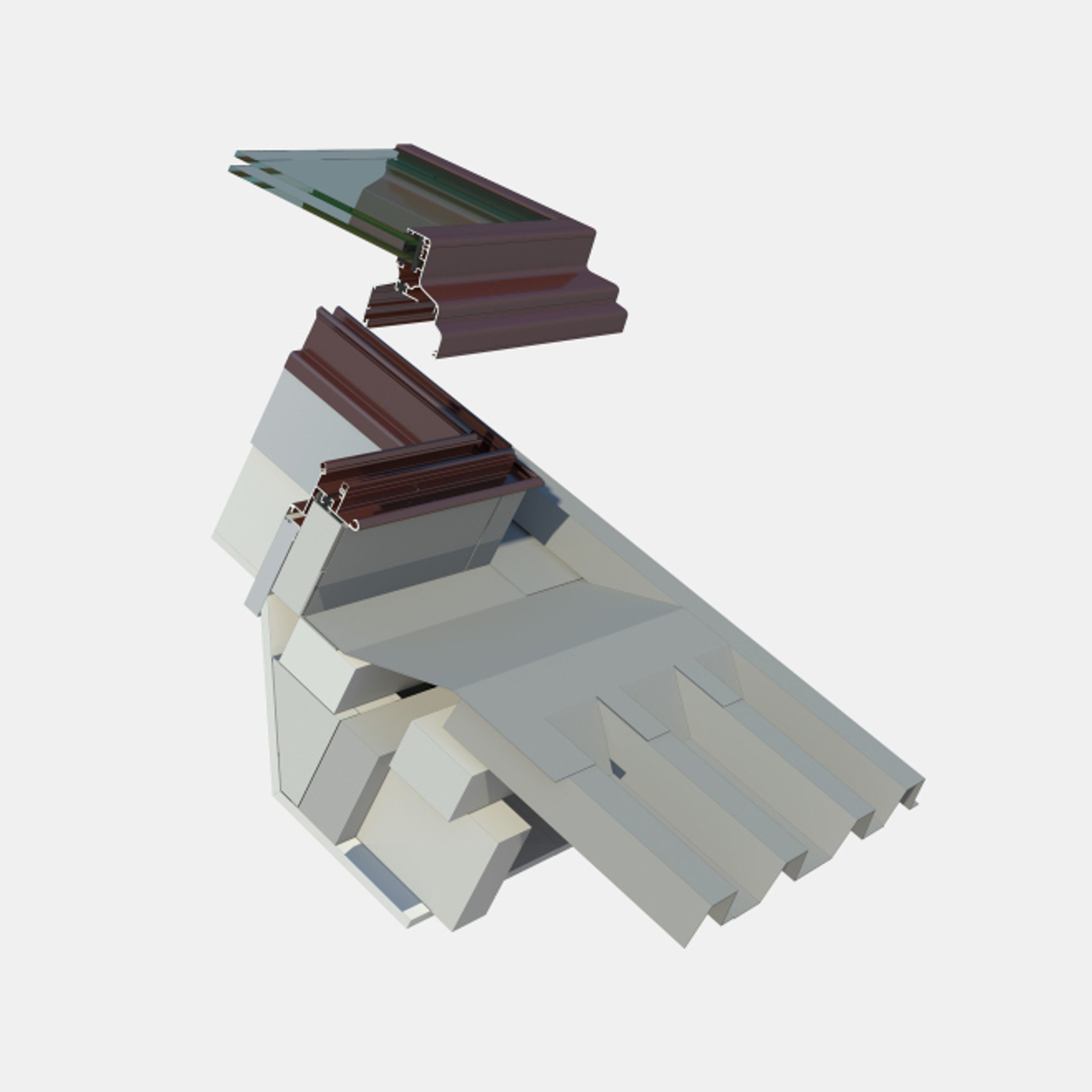

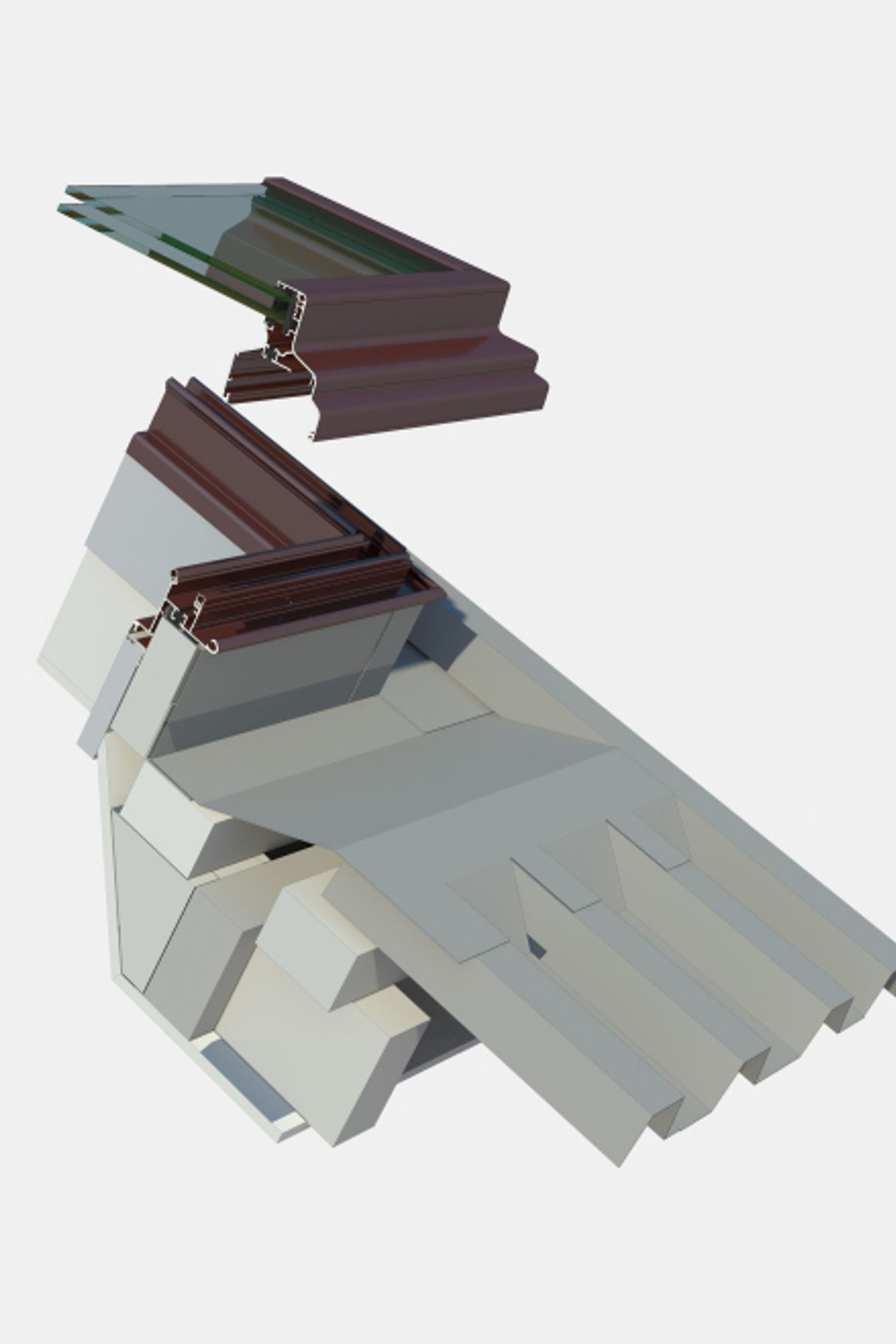

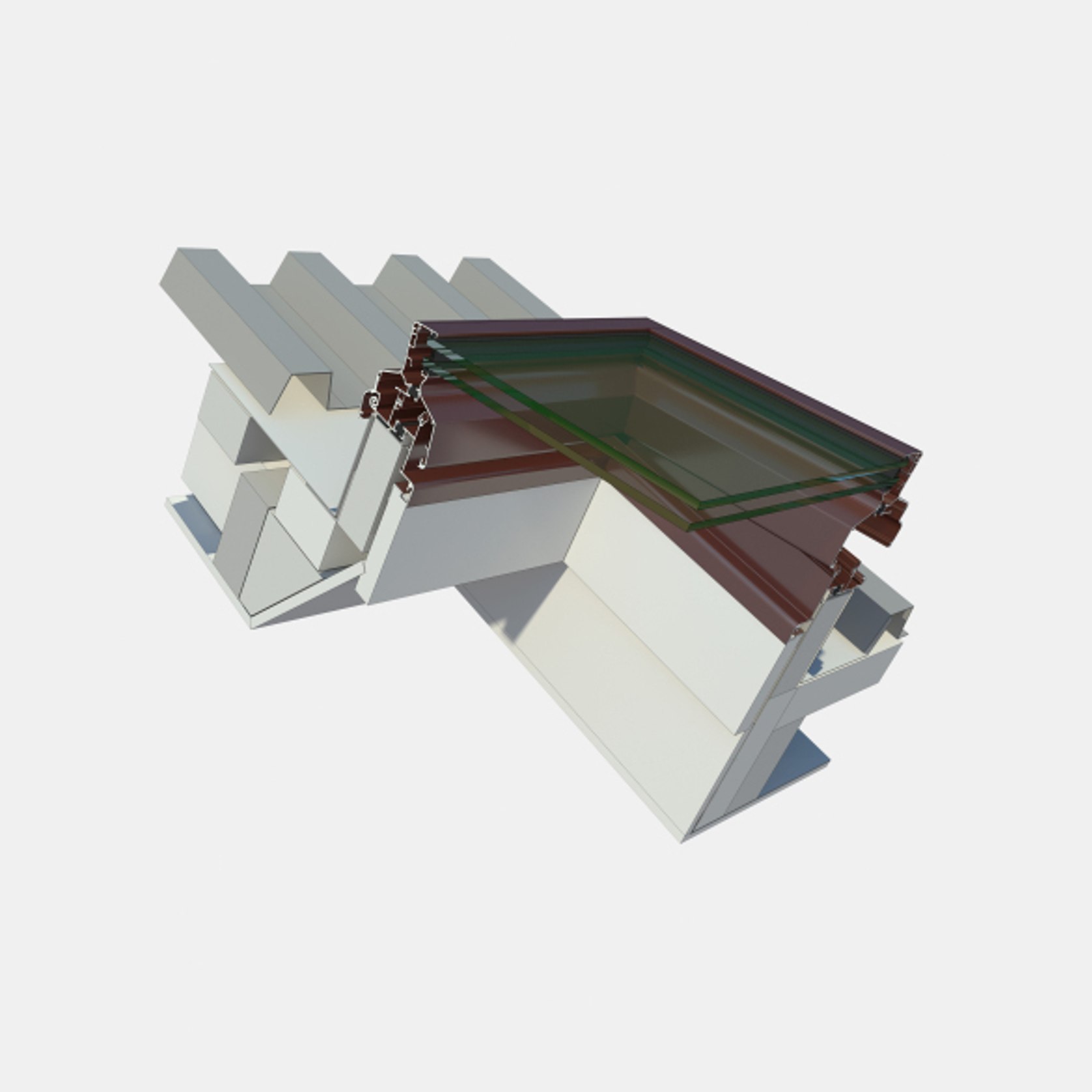

- Frame Types
- Fixed window frame with 38mm flange cover and 22mm glazing pocket
- Alternatively, an opening roof window frame is available with 38mm flange cover and 22mm glazing pocket and can be opened using a winding mechanism
- A range of three beads are available to accommodate glazing options, 22mm, 25mm & 32mm other IGU combinations are available by varying the size of the backing rubbers
