Ninety Mile | Interior Linings

By Genia
Website

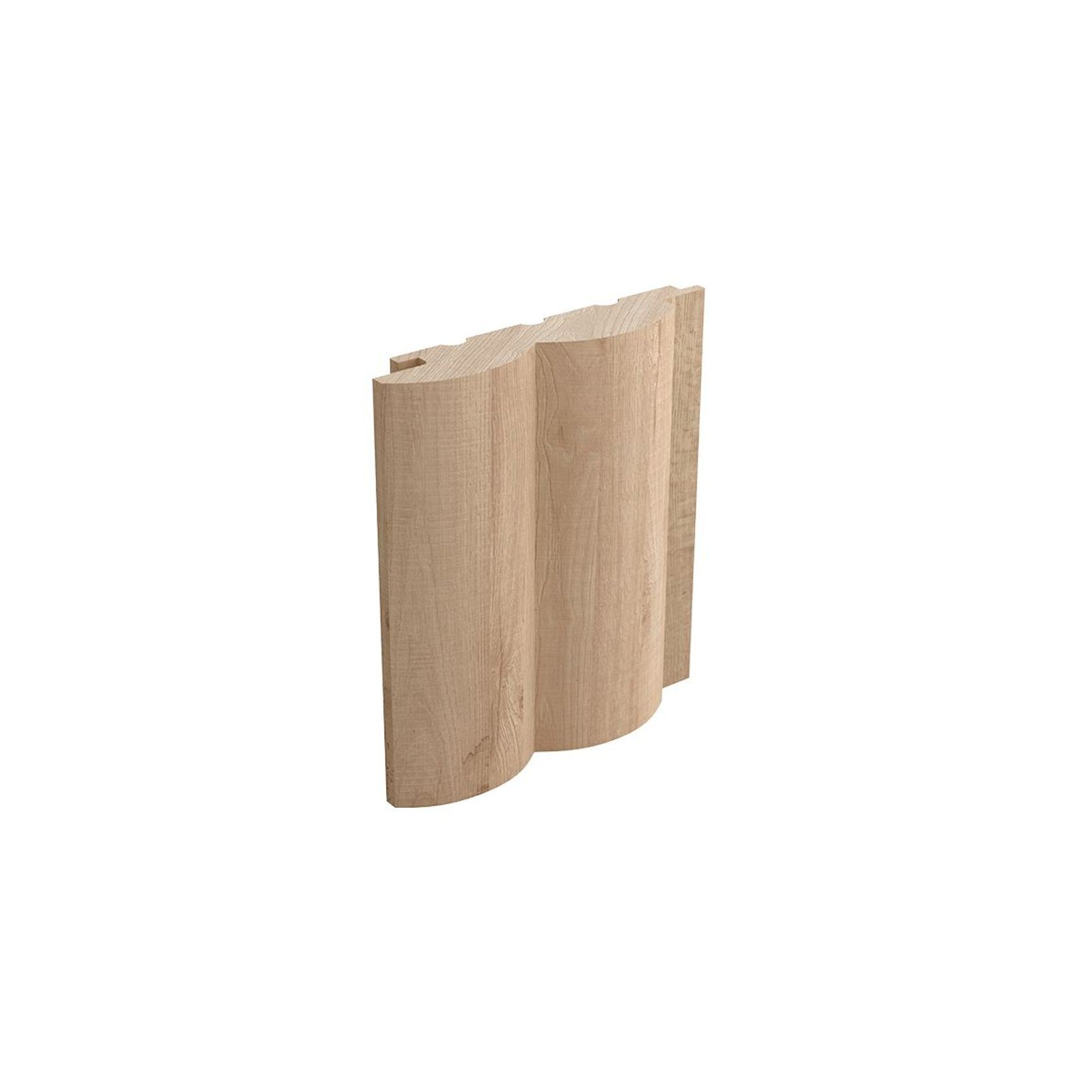

The Ninety Mile timber lining profile features a breathtaking curve that adds a one-of-a-kind touch to any interior space and creates a visually stunning effect. This profile draws inspiration from the magnificent giant dunes located at the northern end of the Ninety Mile beach.

Genia Architectural offers a range of interior lining profiles that have been influenced by New Zealand's natural beauty and designed to inspire. With our range of interior lining profiles, you can infuse your space with a natural warmth and texture that exudes a sense of distinction and natural beauty.

Our profiles are suitable for both residential and commercial applications including:

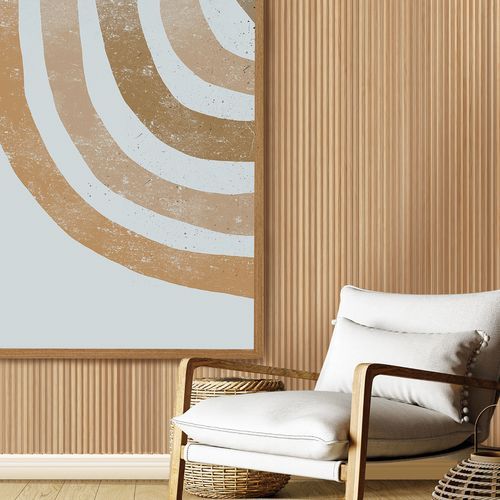

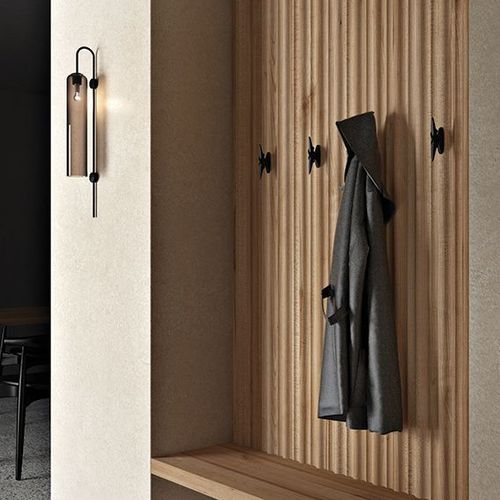

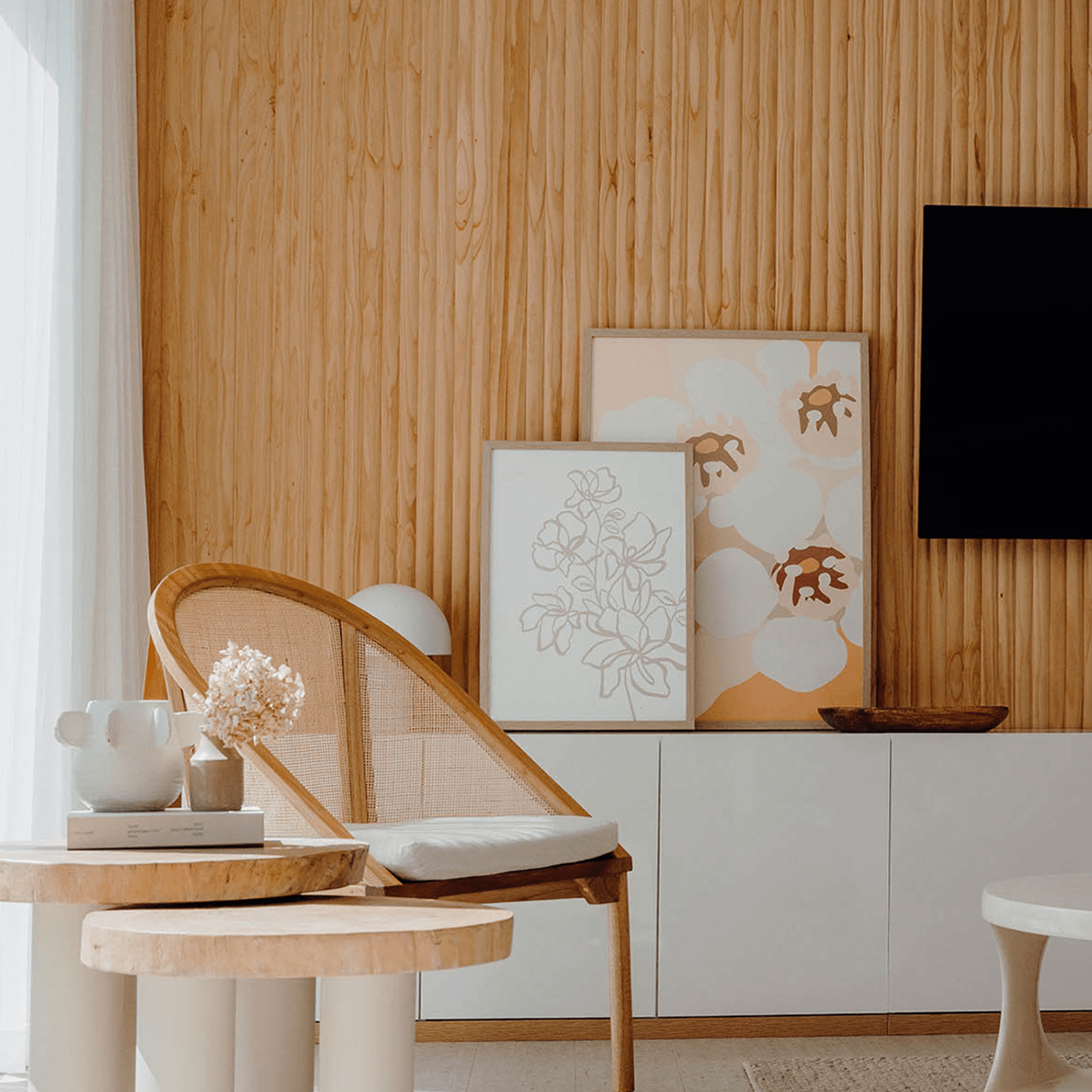

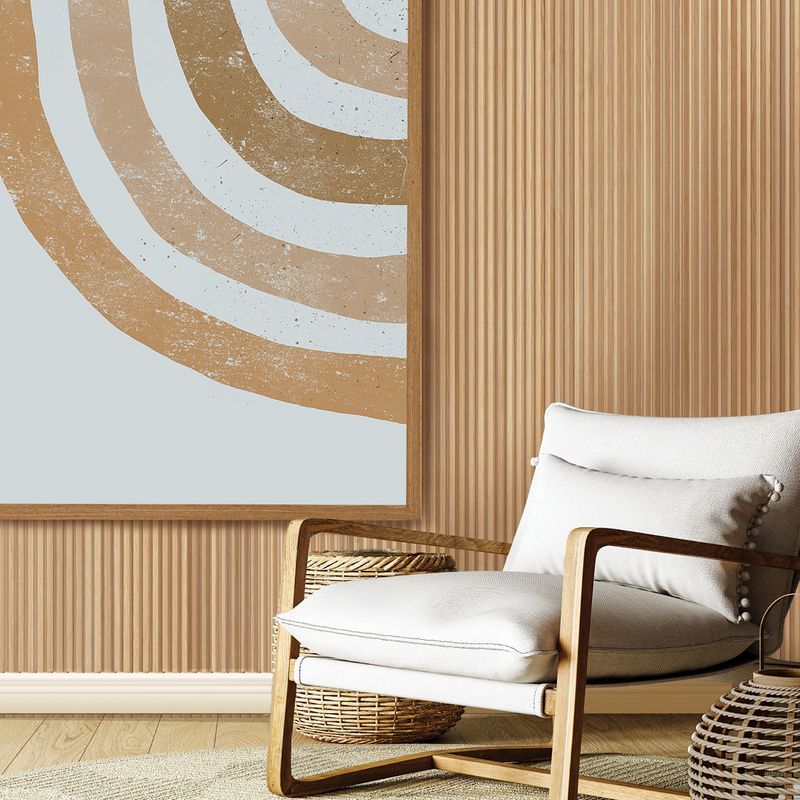

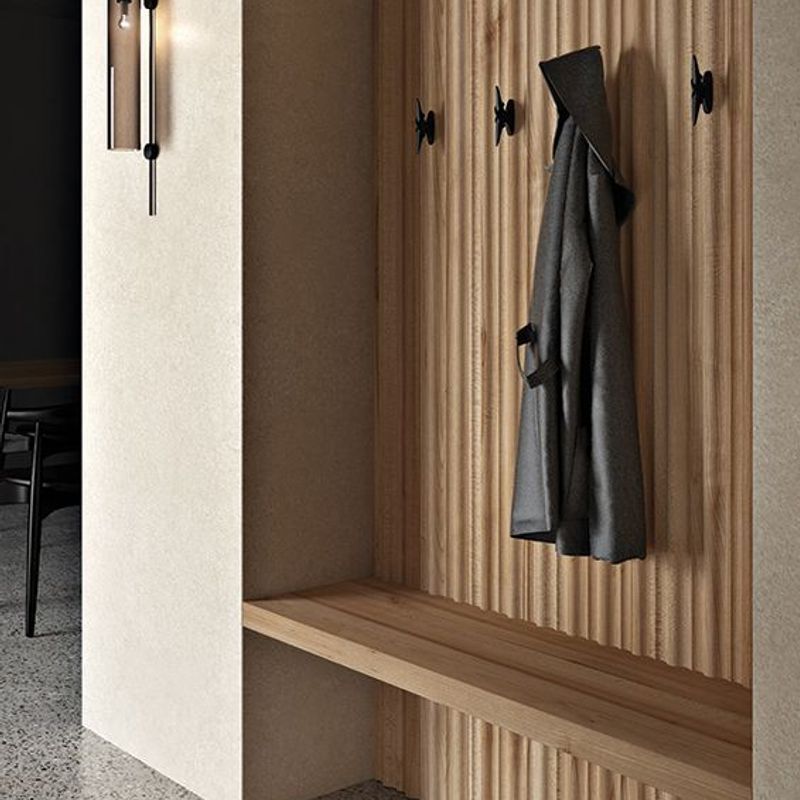

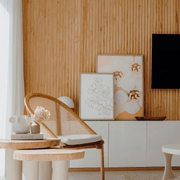

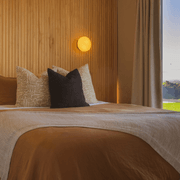

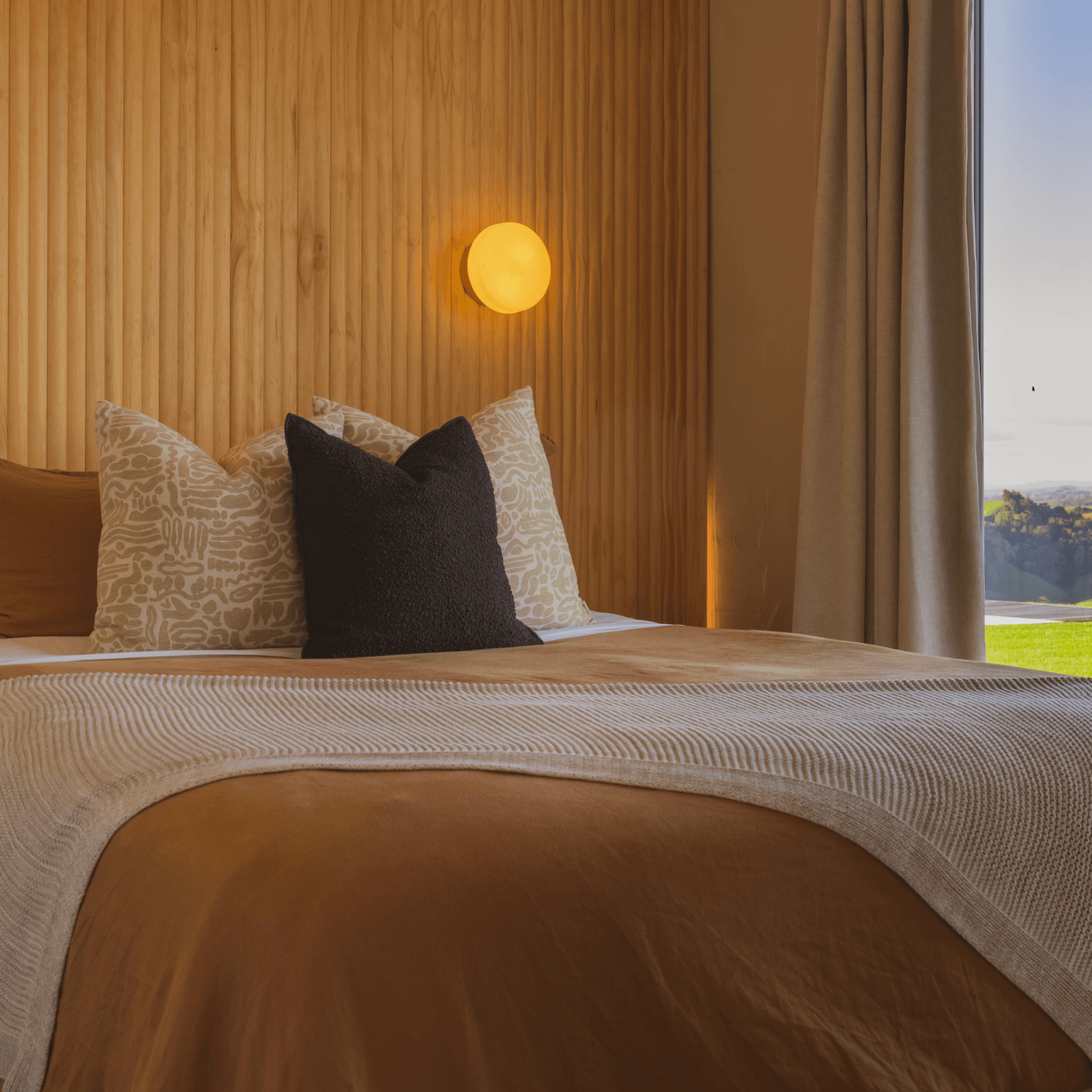

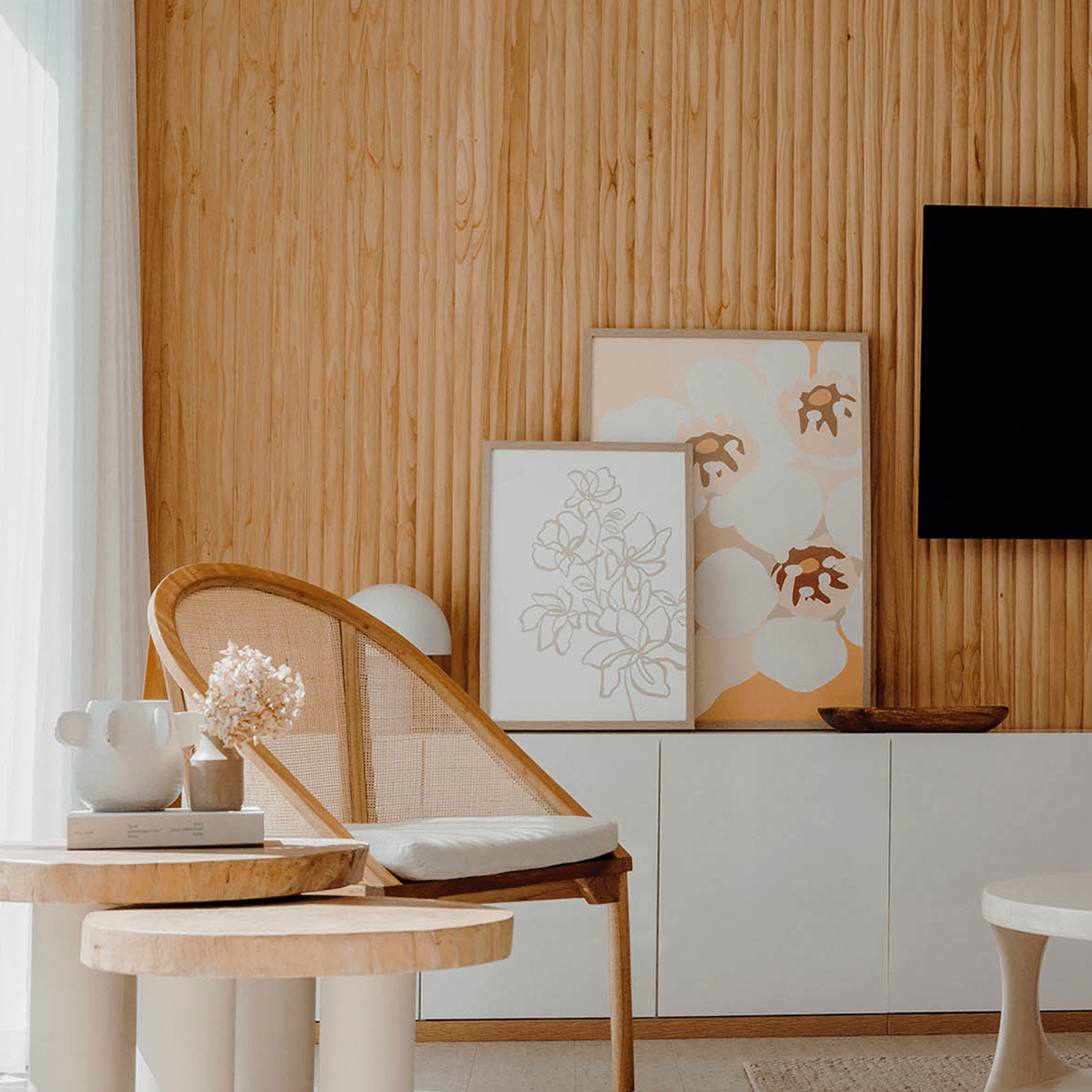

  • Walls
  • Ceilings

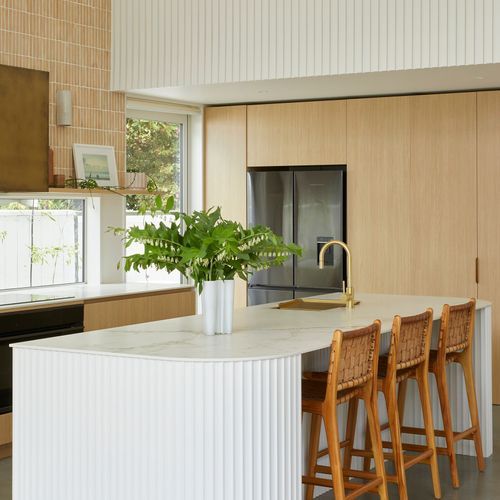

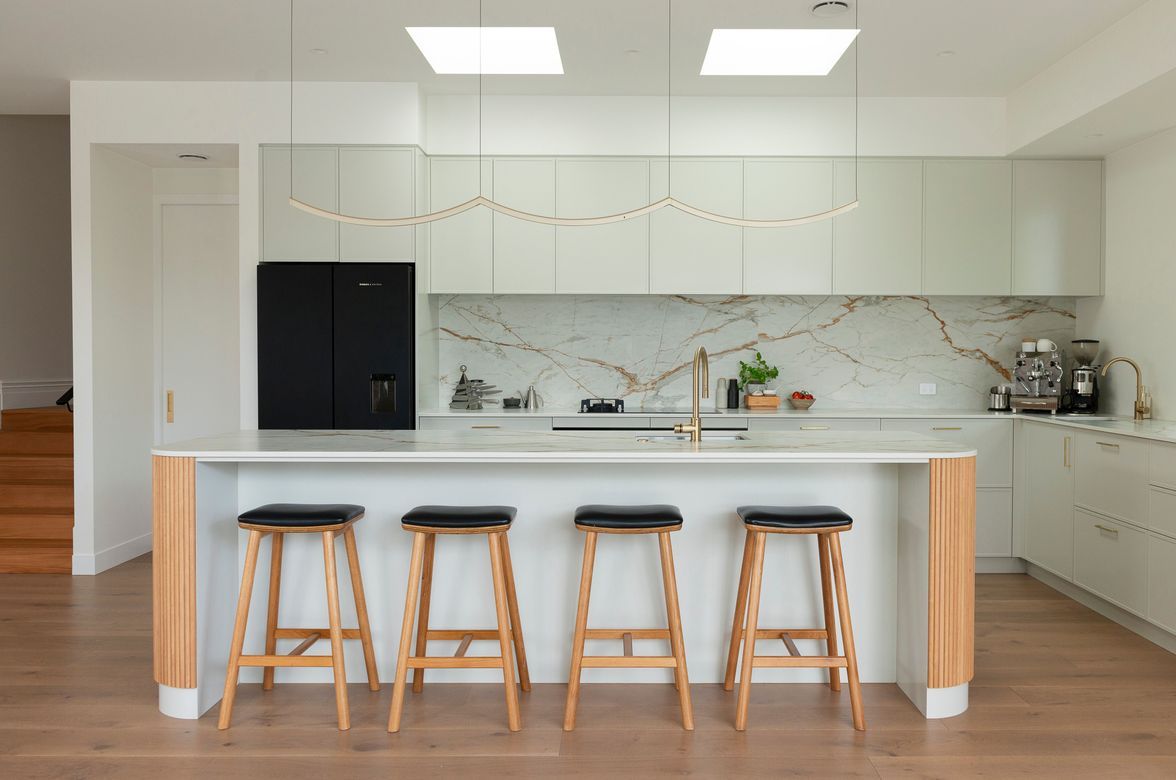

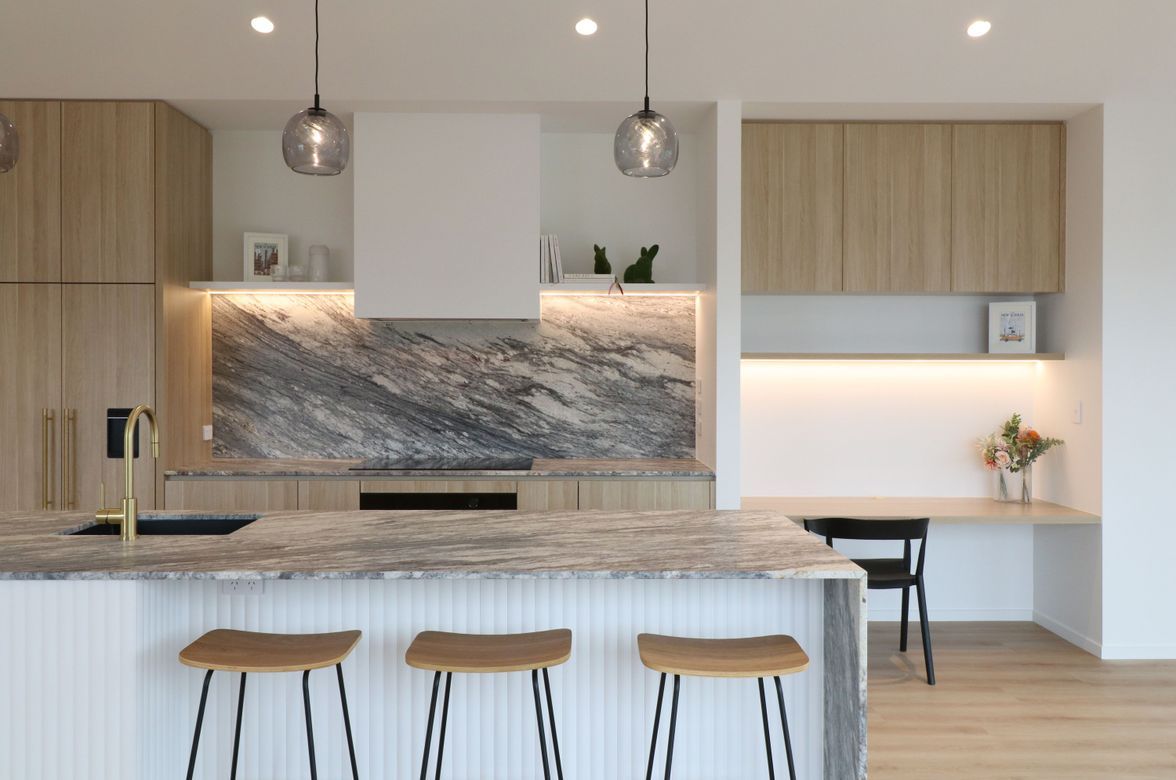

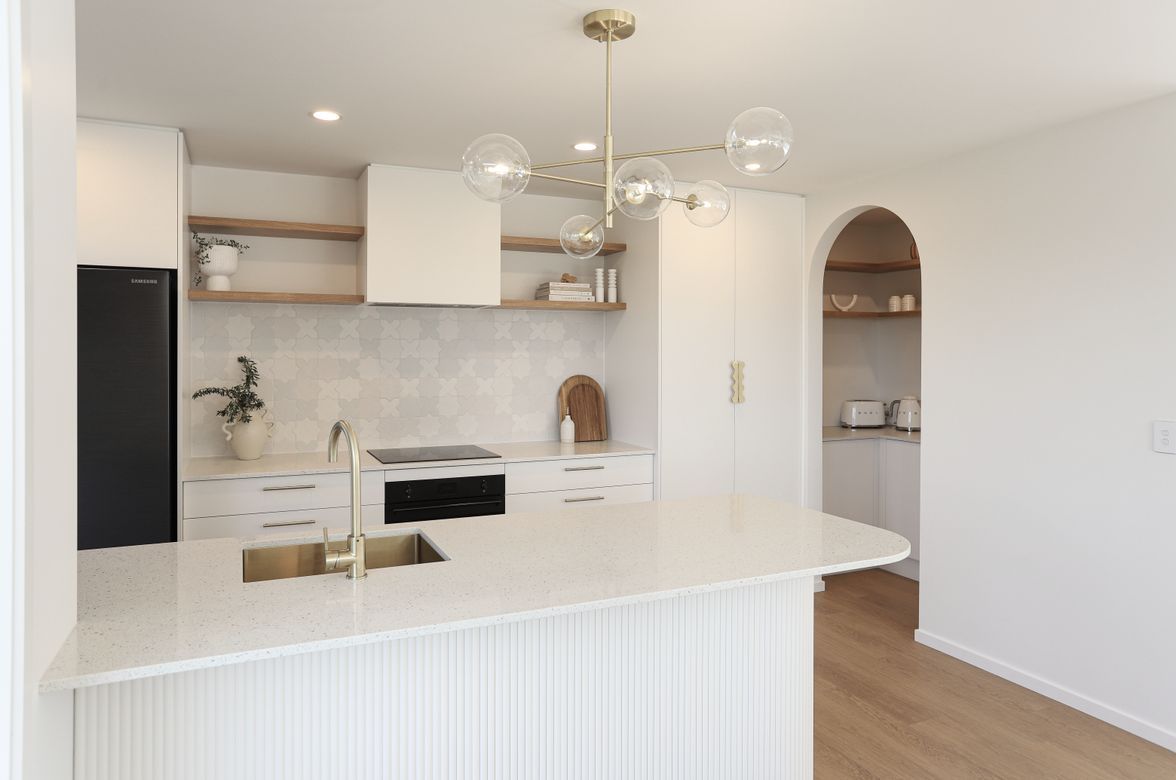

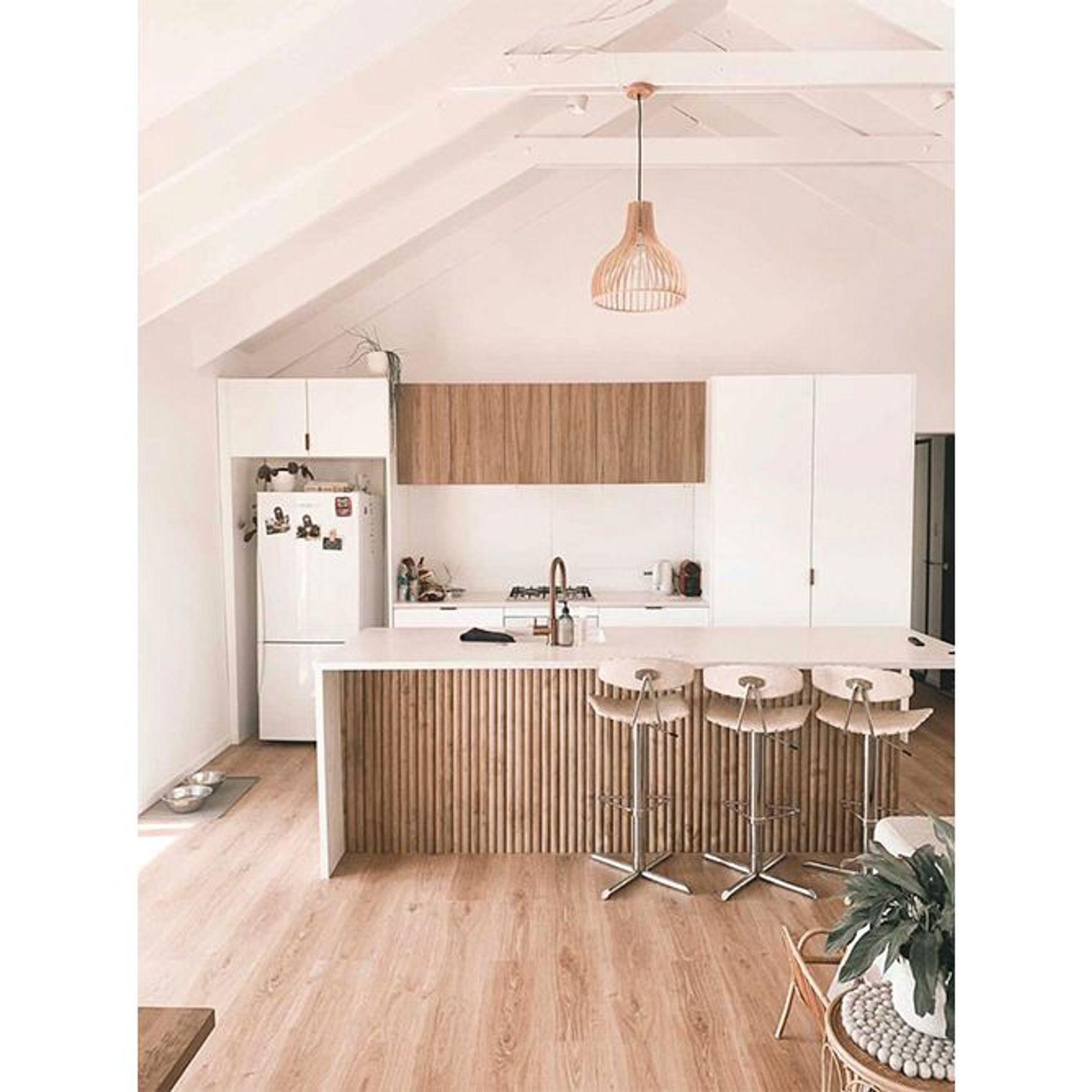

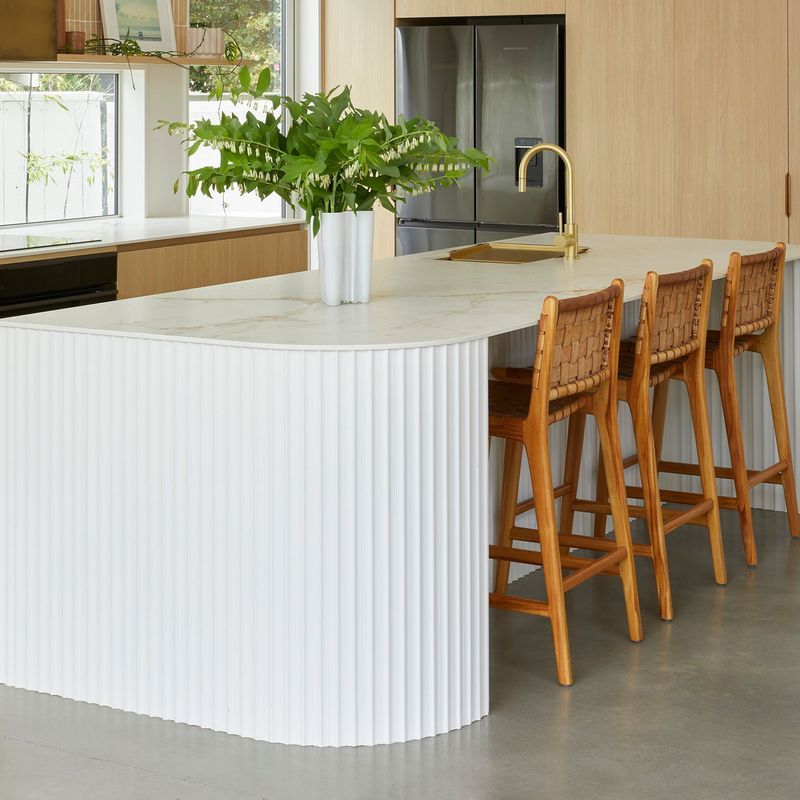

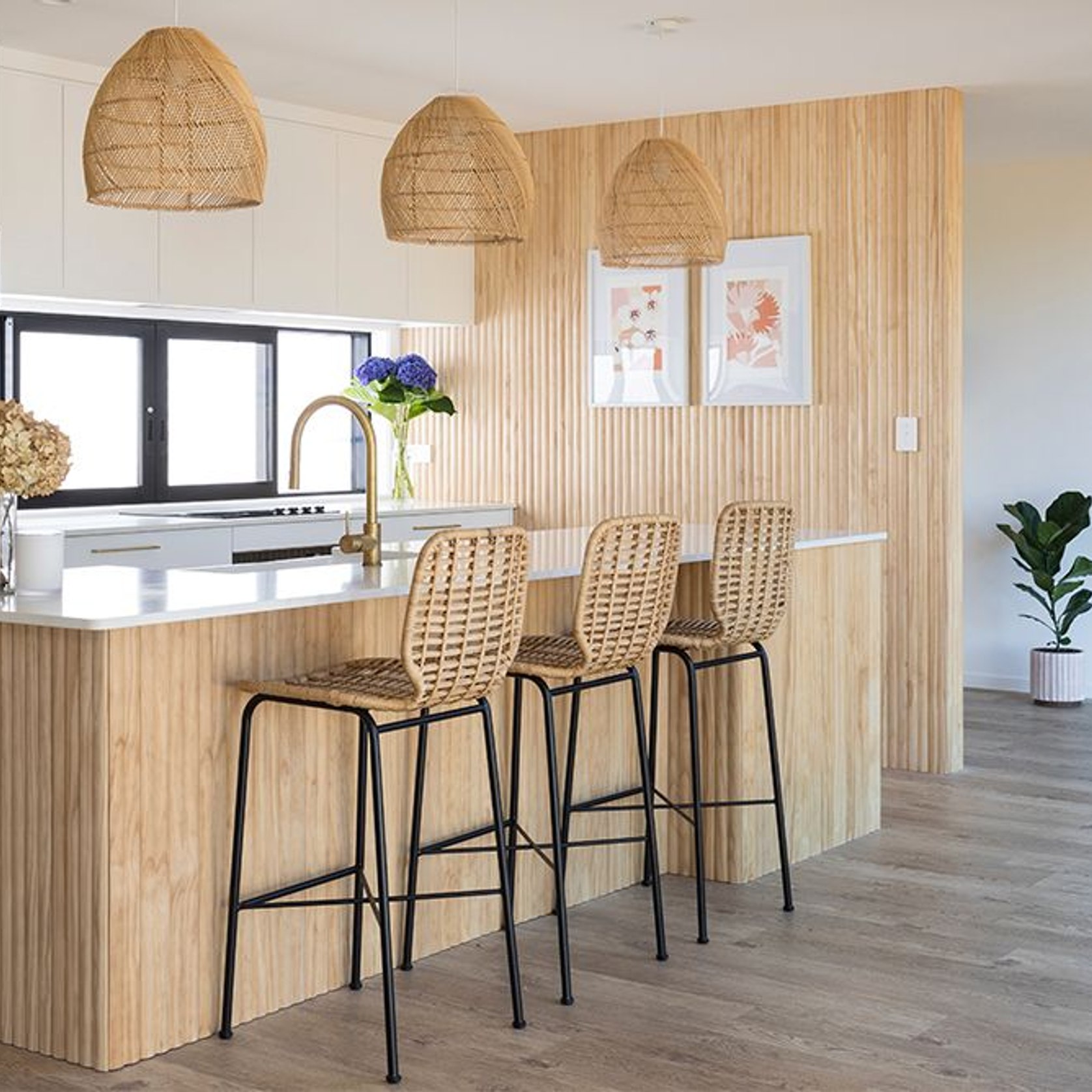

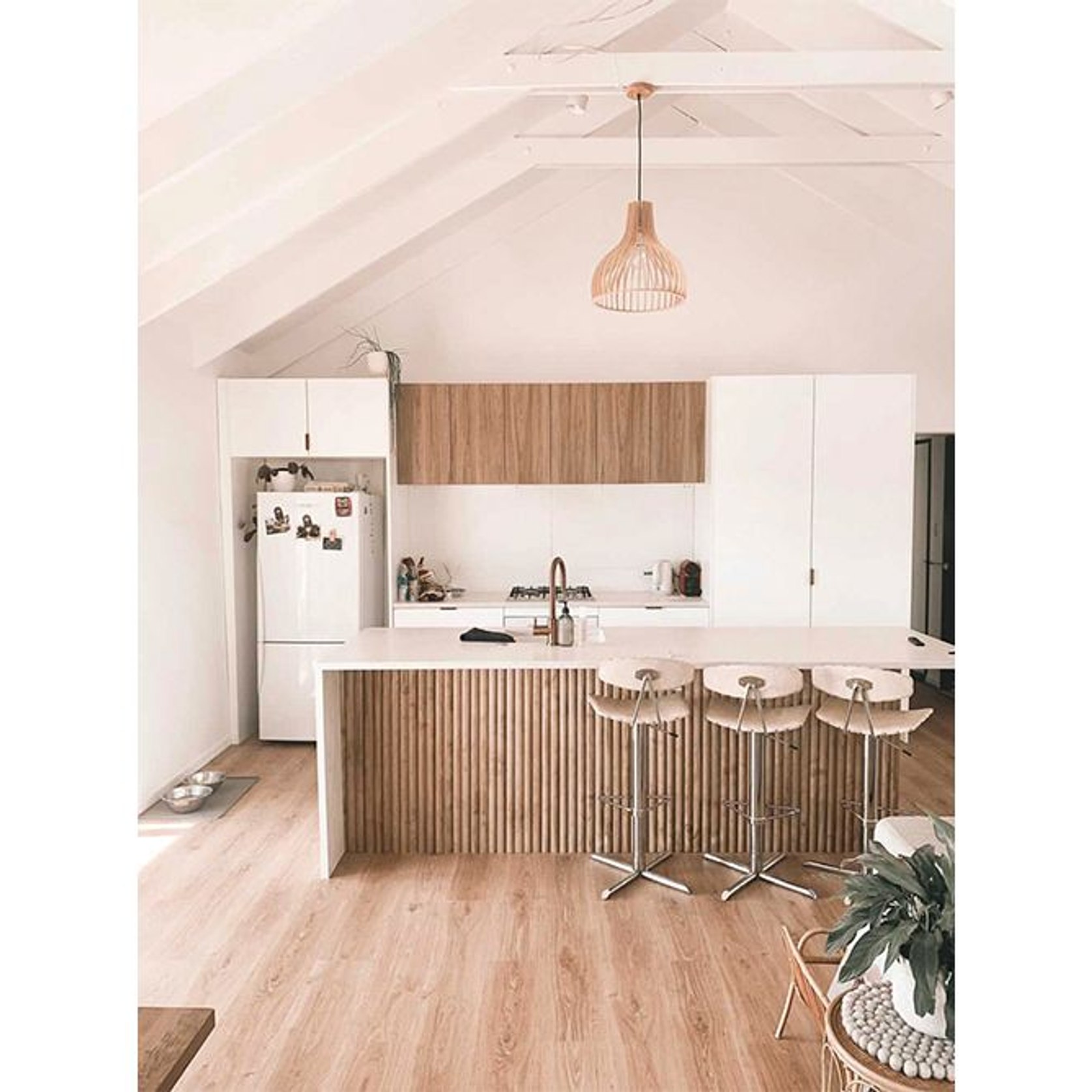

  • Bar/Bench Fronts

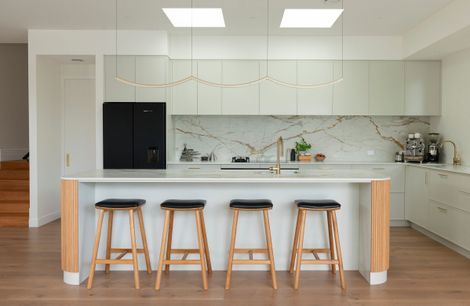

  • Cabinetry

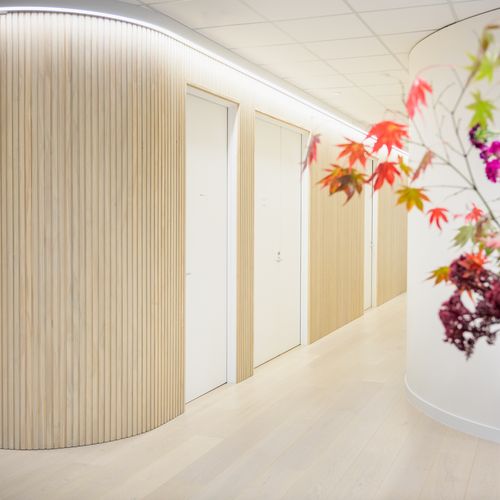

  • Curved Surfaces

Manufactured from solid timber and supplied in lengths that are easy for handling and installation. Radius profiles are also available for curved finishing and detailing requirements.

Details
  • Category
    Timber
  • Range
    Architectural Wall Linings
  • Brand
    Genia
Specifications

Dimensions: Board dimensions are 90mm in width x 18mm in thickness and are available in 1.2, 1.8, 2.4, and 2.7 metre lengths.

Weight: NZ Pine weighs approx 500kg per M3 . A 2.4 metre board weighs approx 2kg.

Accessories: Optional trim 24x10mm bullnose.

Specifications by variant:

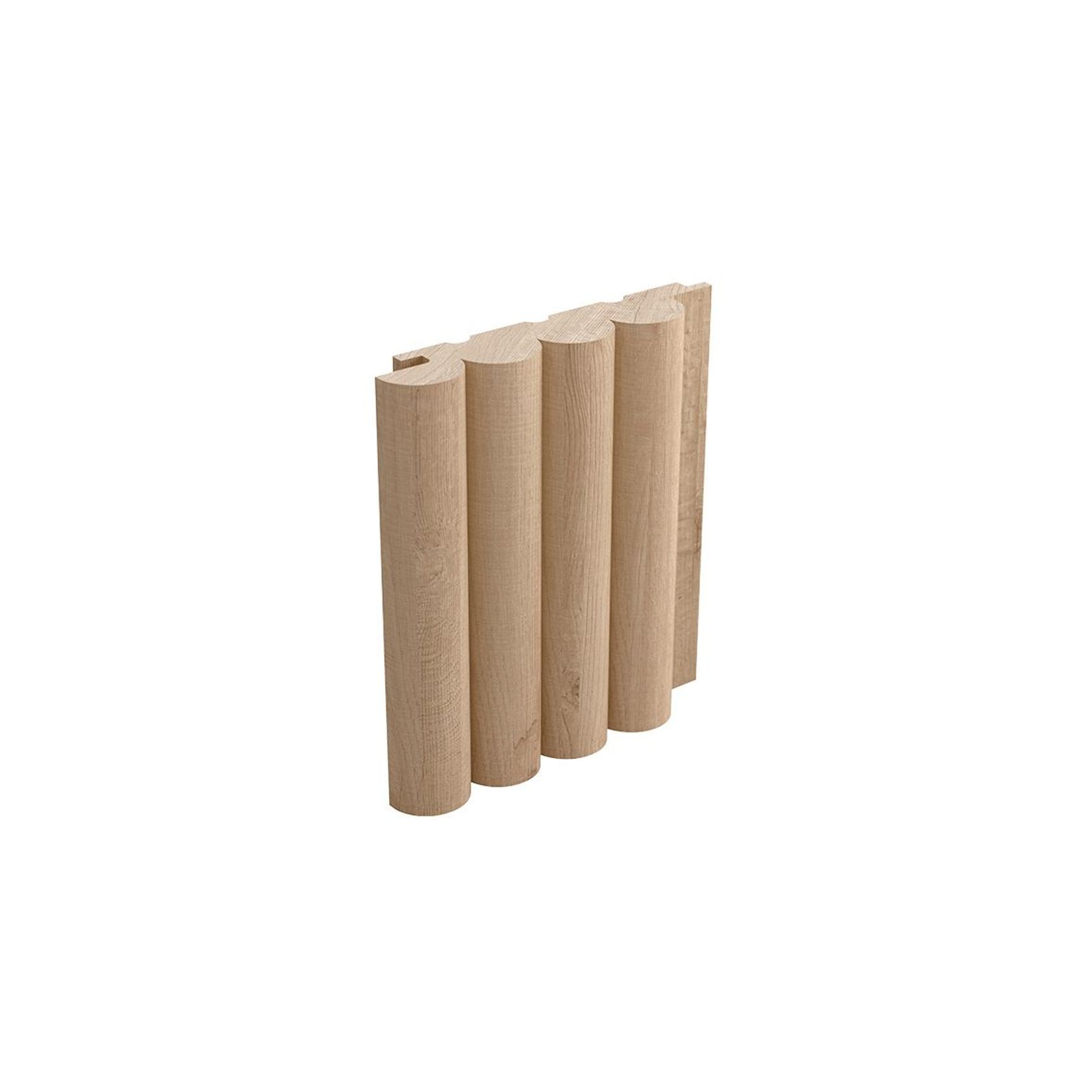

NM03

Profile Name/ Code: NM03

Profile type: Standard

Application: Flat Surfaces

Profile Dimensions (Width x Height): 90mm x 18mm

Profile Cover: 77mm

Matching Radius Profile: NM04

Max Curve (Radius): --

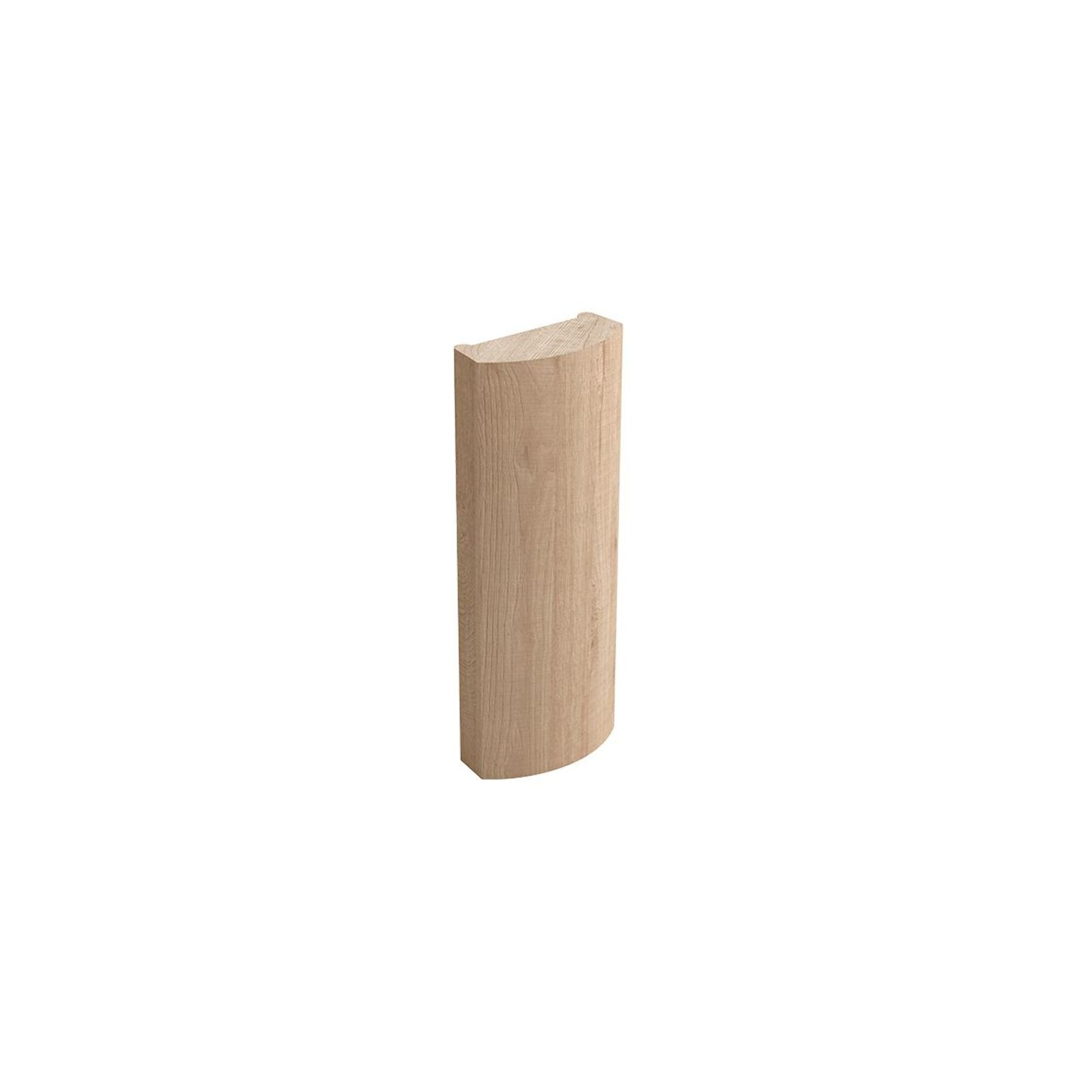

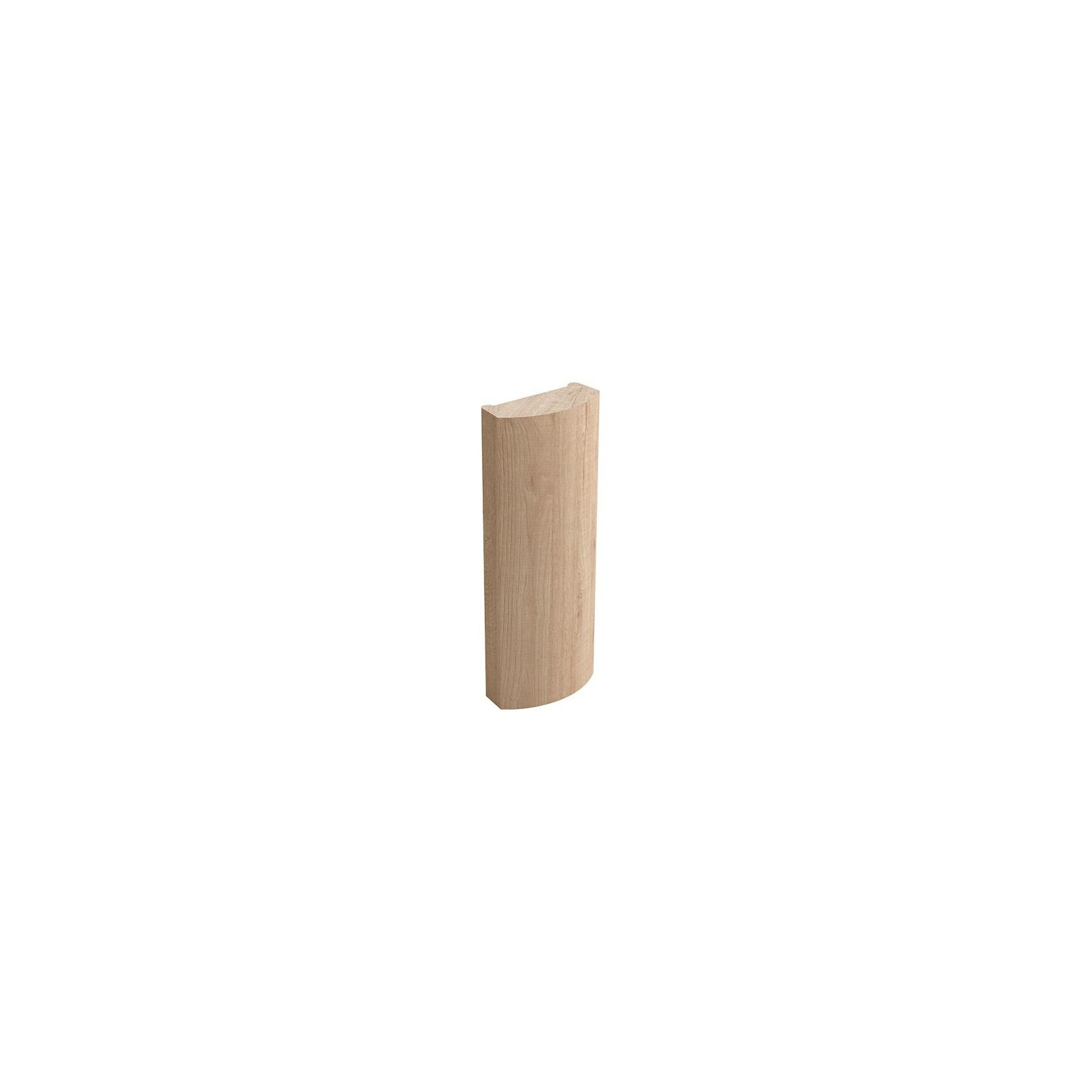

NM04

Profile Name/ Code: NM04

Profile type: Radius

Application: Curved Surfaces

Profile Dimensions (Width x Height): 38.5mm x 18mm

Profile Cover: 38.5mm

Matching Radius Profile: --

Max Curve (Radius): 300mm

NM06

Profile Name/ Code: NM06

Profile type: Standard

Application: Flat Surfaces

Profile Dimensions (Width x Height): 90mm x 18mm

Profile Cover: 77mm

Matching Radius Profile: NM07

Max Curve (Radius): --

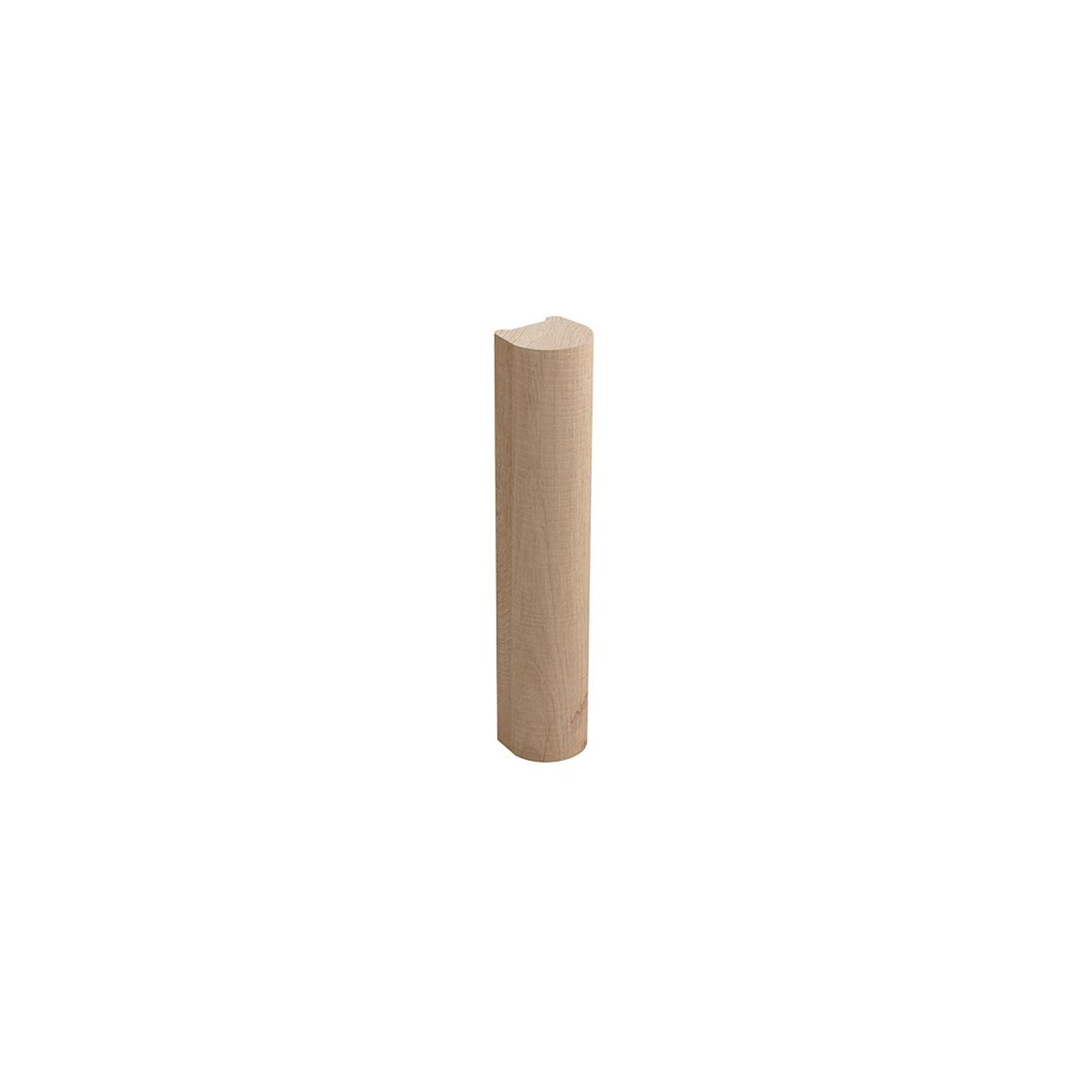

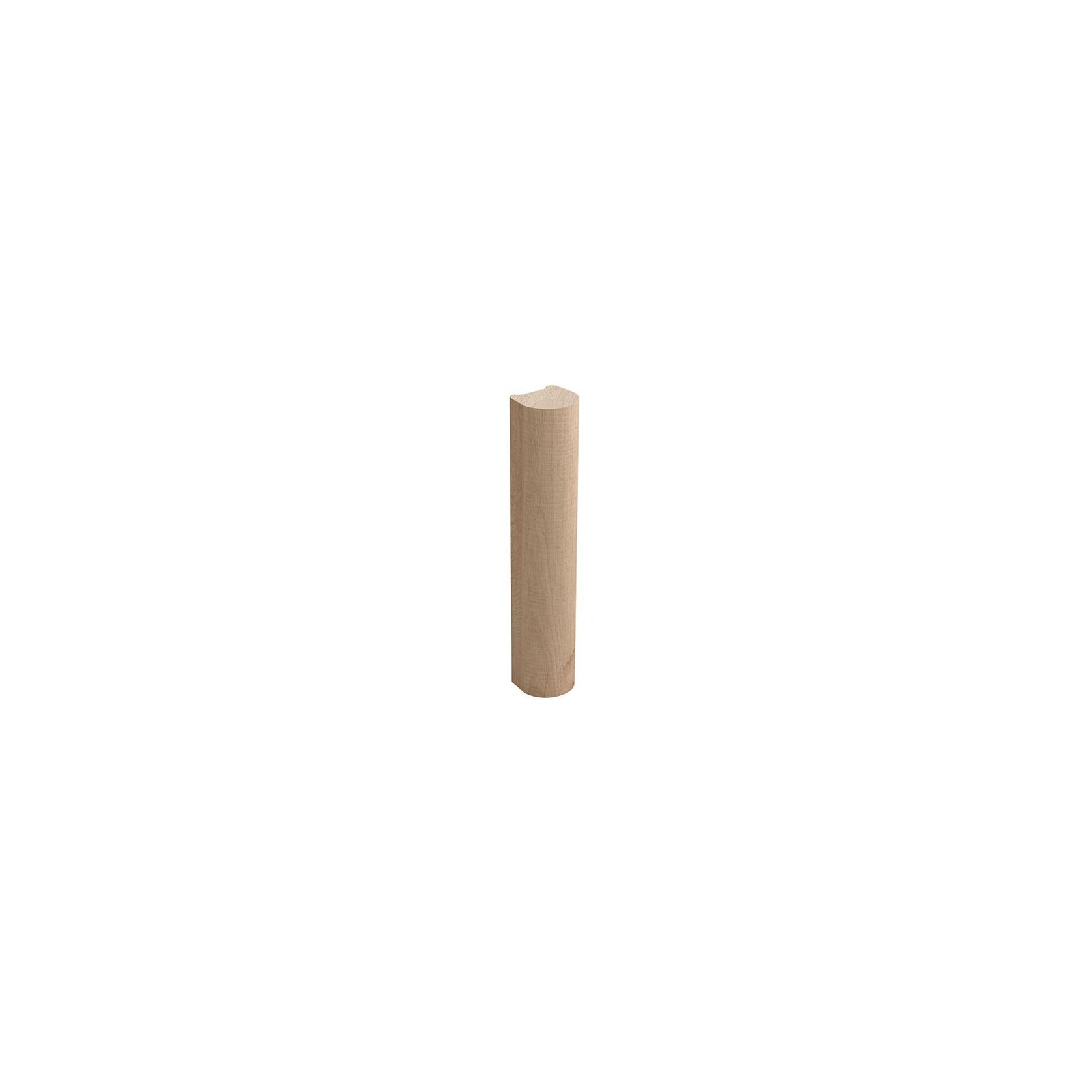

NM07

Profile Name/ Code: NM07

Profile type: Radius

Application: Curved Surfaces

Profile Dimensions (Width x Height): 19mm x 18mm

Profile Cover: 19mm

Matching Radius Profile: --

Max Curve (Radius): 300mm

Performance

Environment - A variety of timber species available including FSC Certified Premium clear grade New Zealand Radiata.

Fire Rating - Group 3 without any special coating. An intumescent coating system will enable up to Group 1-S.

Coating & Finishes - Timber profiles are supplied unfinished or pre-finished either painted, stained and/or clear coated.

Installation - Timber profiles are installed with a simple hidden fastening system and/or construction adhesive.

Curves & Radii - Radius profiles enable curved surfaces to be included in designs, see specific profiles for further details including radius specifications.
