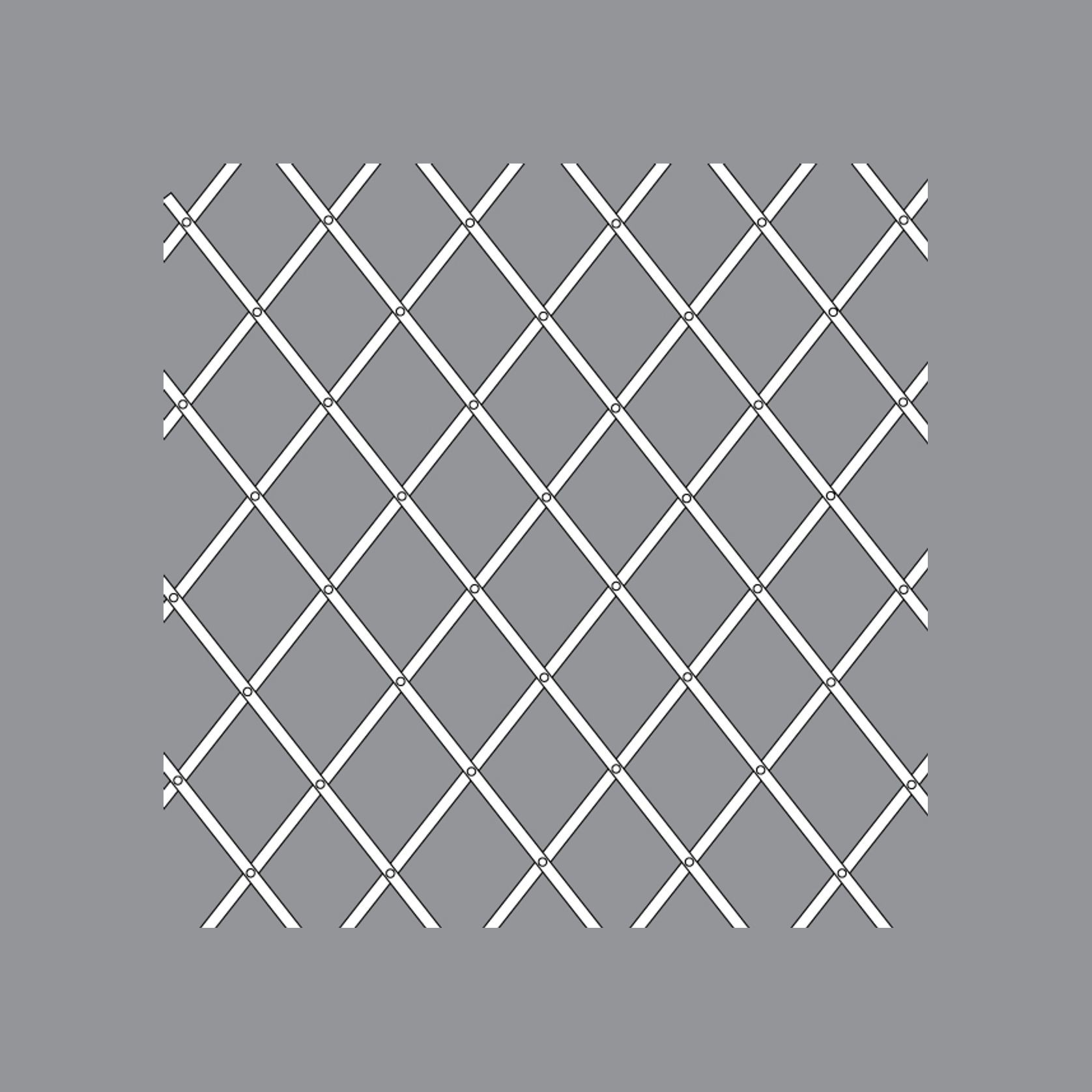

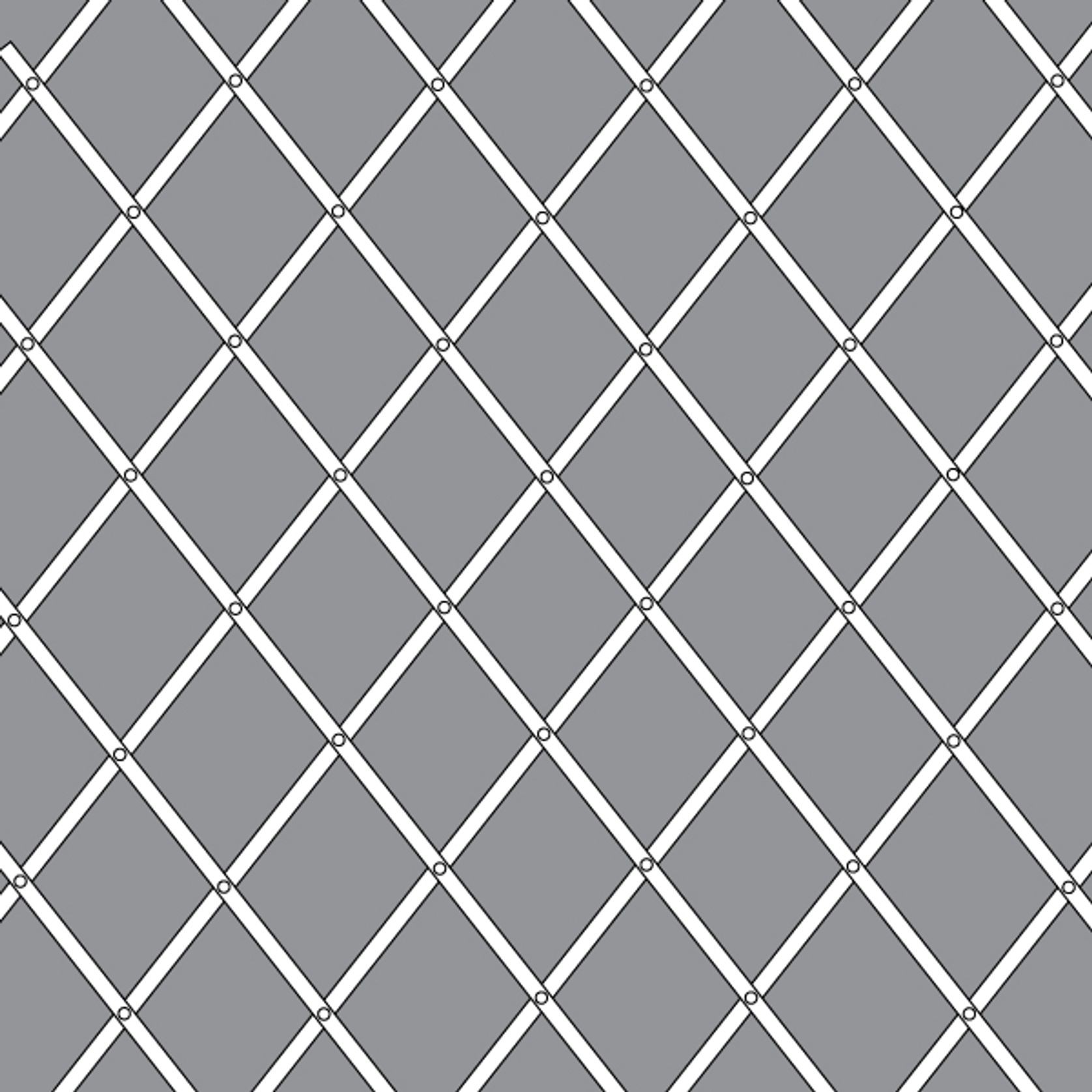

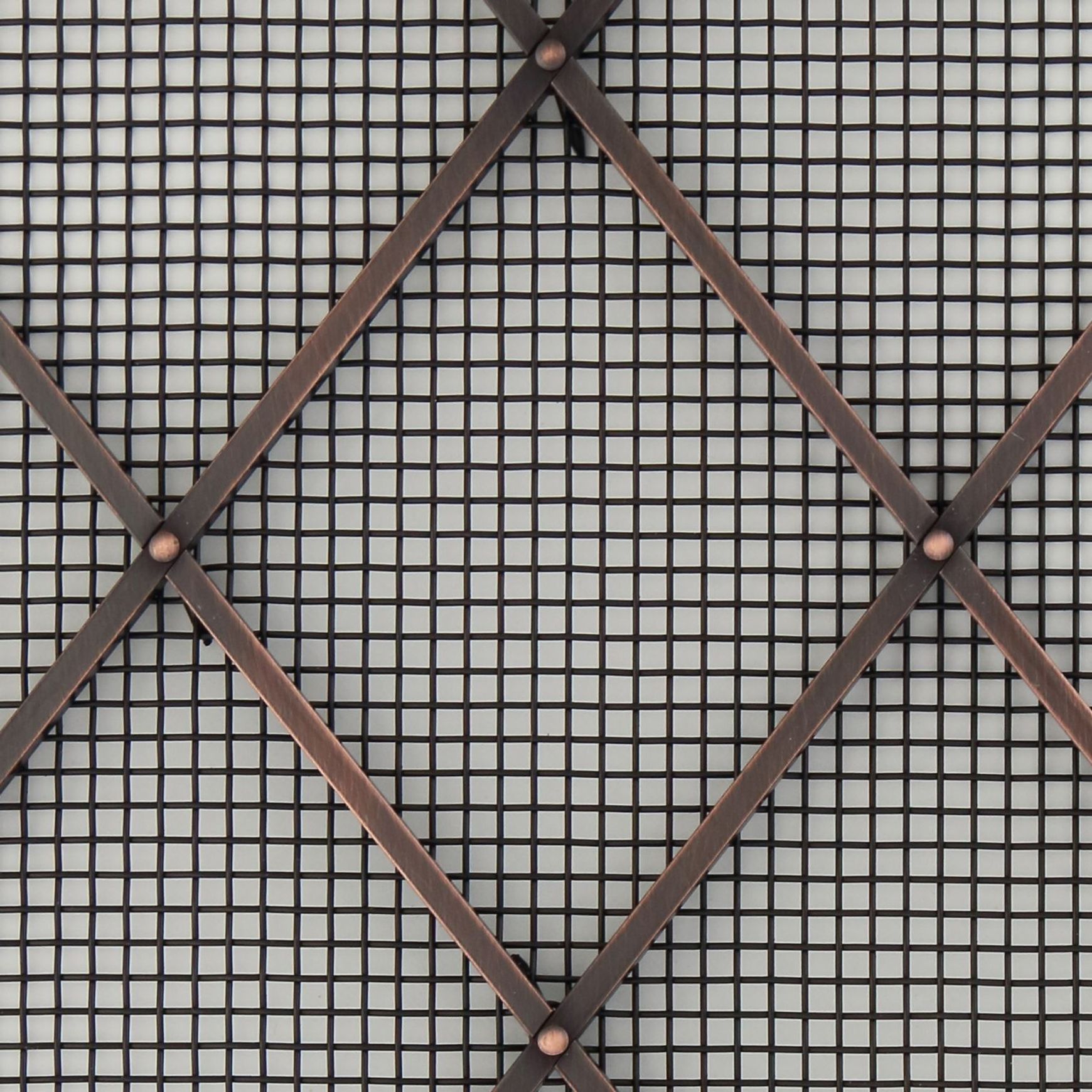

Oxford Hand Assembled Diamond Grille With Pinheads

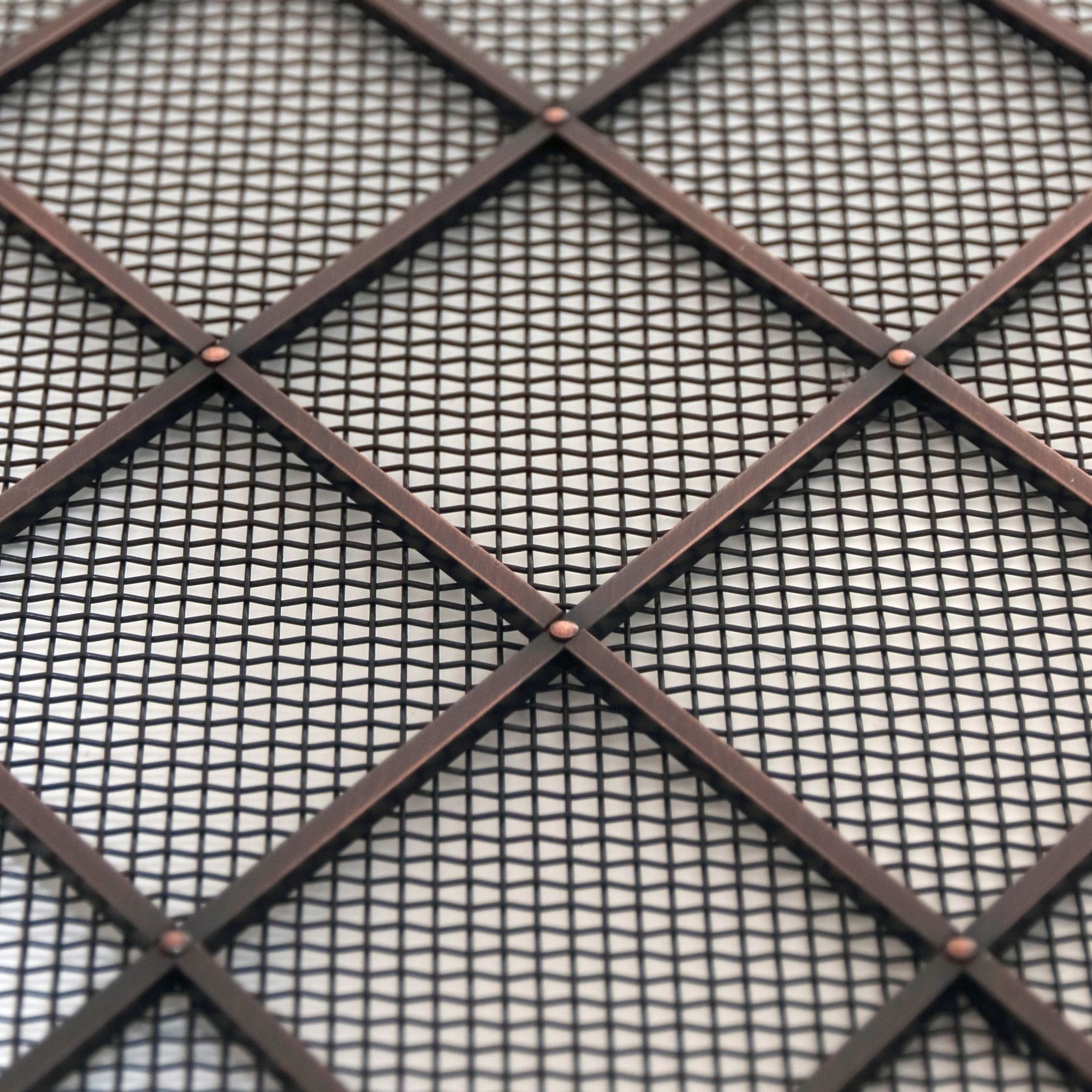

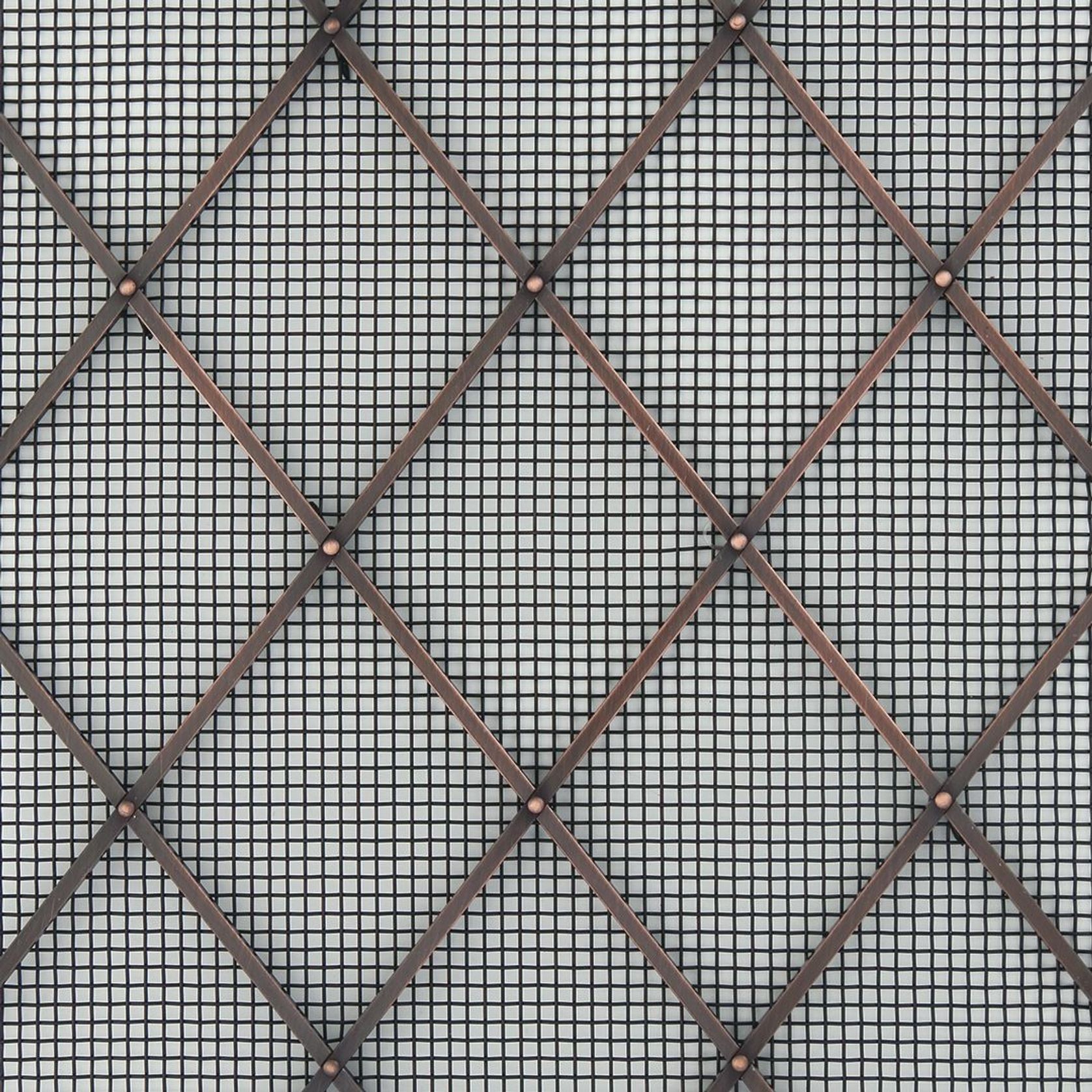

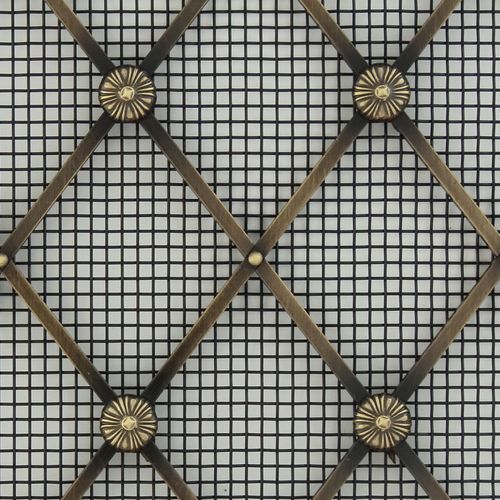

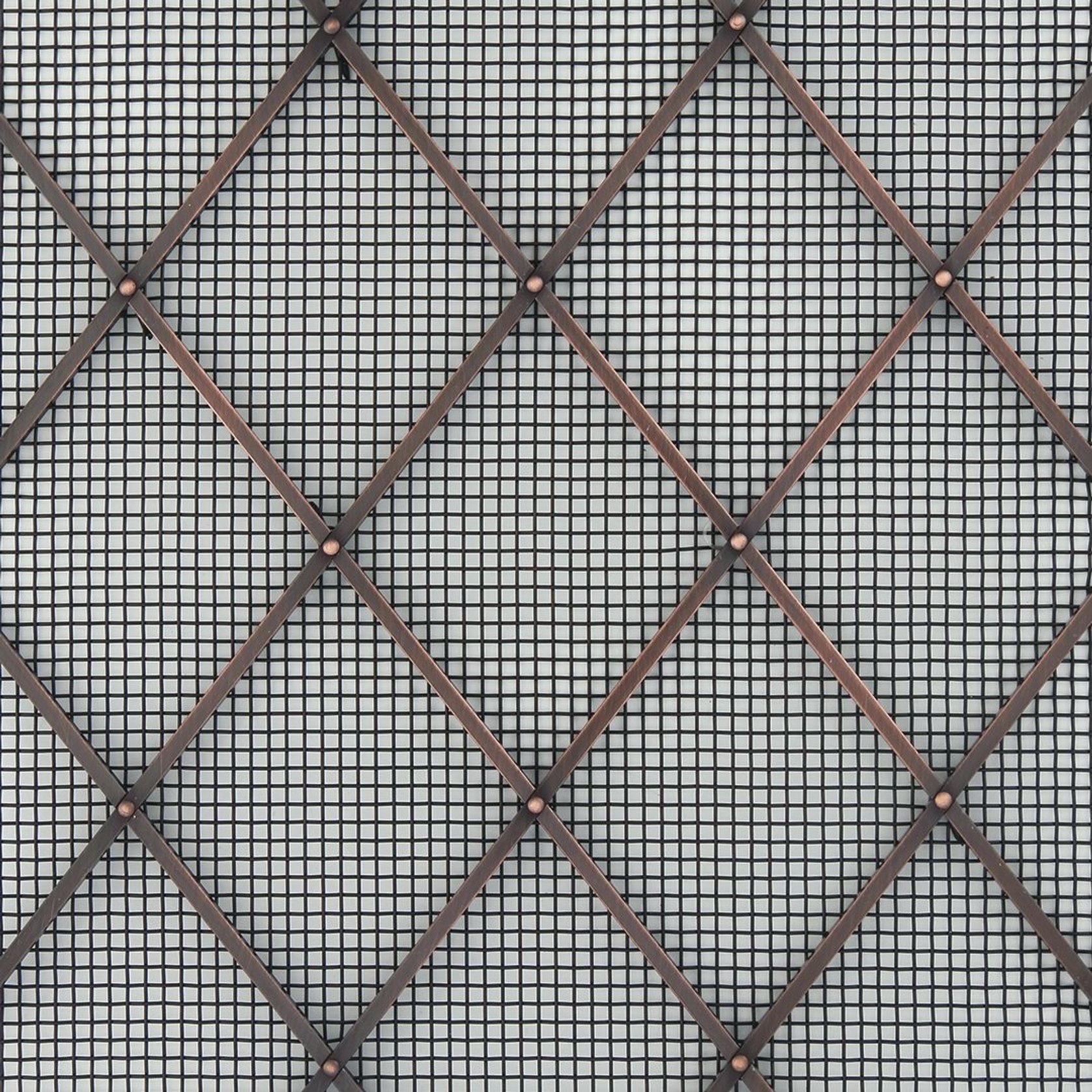

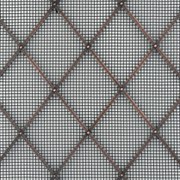

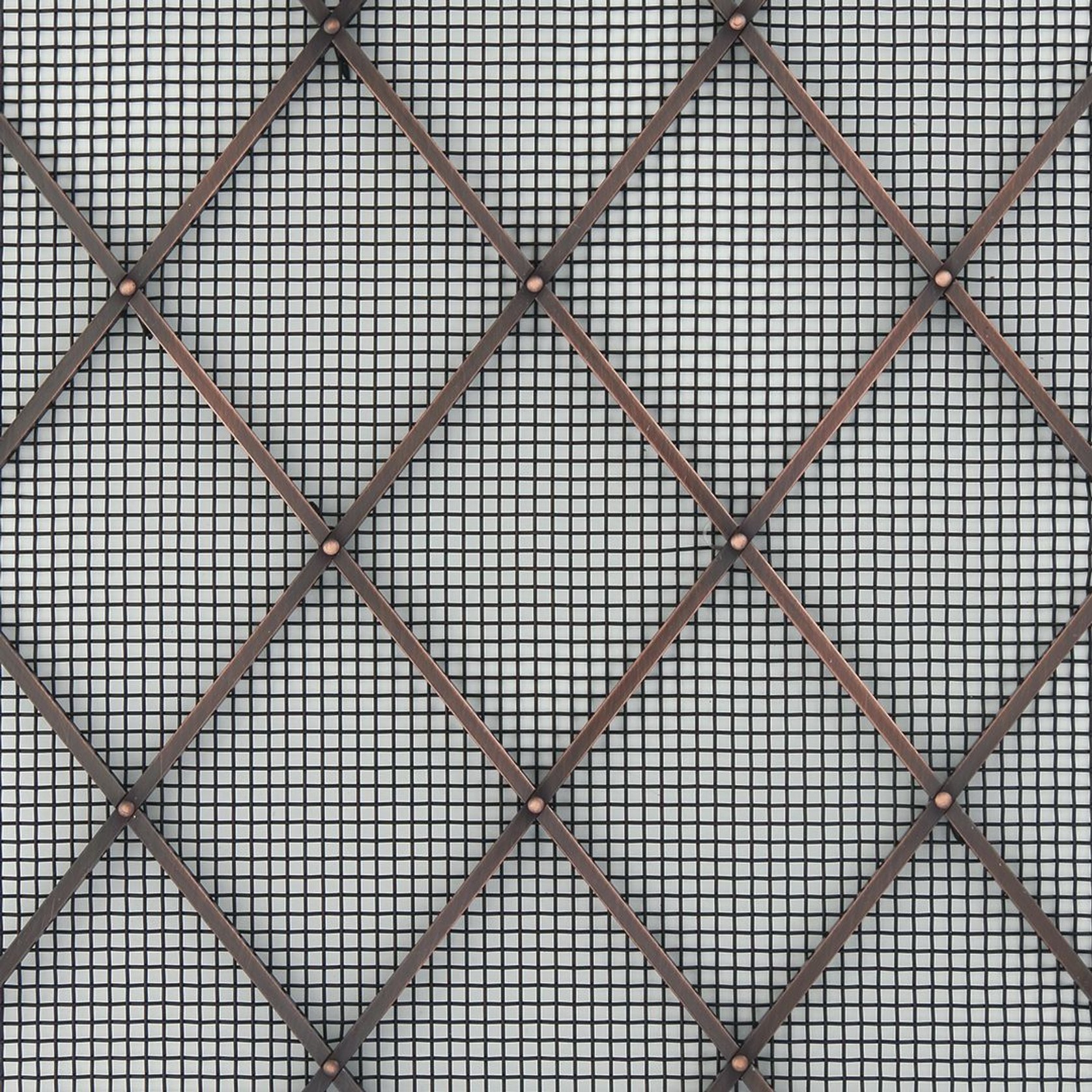

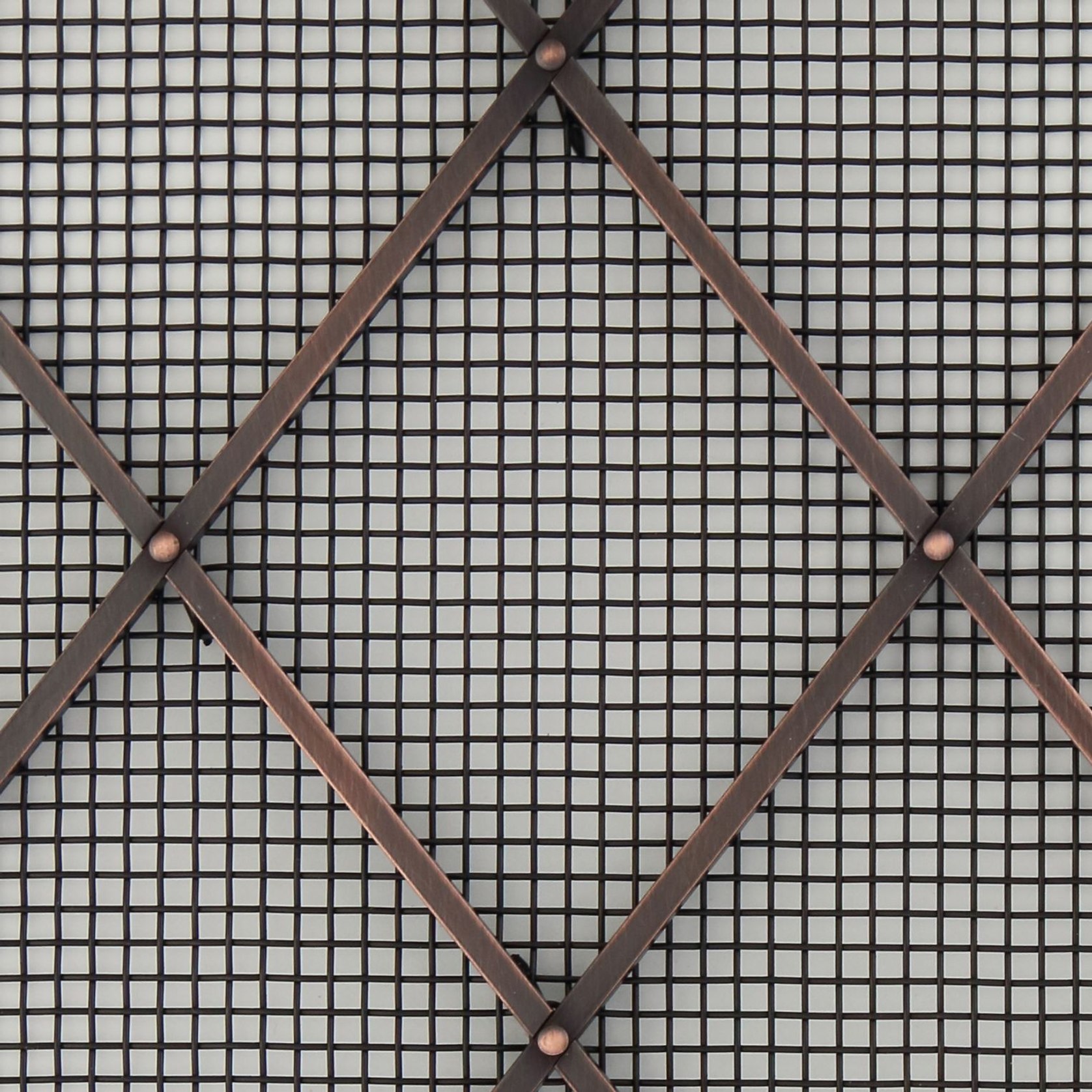

Rosettes: These hand assembled grilles are fixed together with plain pins or rosettes on pins which present to the front side. On the rear, these pins are bent over and secure the mesh. Rosettes can be applied on every intersection or on alternating intersections. Rosette designs include plain and floral. If you choose to have no rosettes, you'll just see the pin heads on each intersection. When rosettes are specified, they are not placed within 20mm of the grille edge to allow for fixing into a rebate.

Layout: The maximum size for hand assembled grilles is 700 x 1200mm. Patterns of the grilles are always centred. These grilles are custom made to a specific size and cannot be cut or trimmed in size. The thickness of hand assembled grilles is about 3.5 to 4mm composed of 3mm solid brass square rod plus either 0.5m for fine backing mesh or 1mm for open backing mesh.

Backing Mesh: Fine 1.5mm or Open 3mm backing mesh is available in Brass in any finish or Stainless Steel soldered to the grille.

Framing: All grilles are available fixed into an outer angle, T-section or flat frame in the same finish as the grille.
