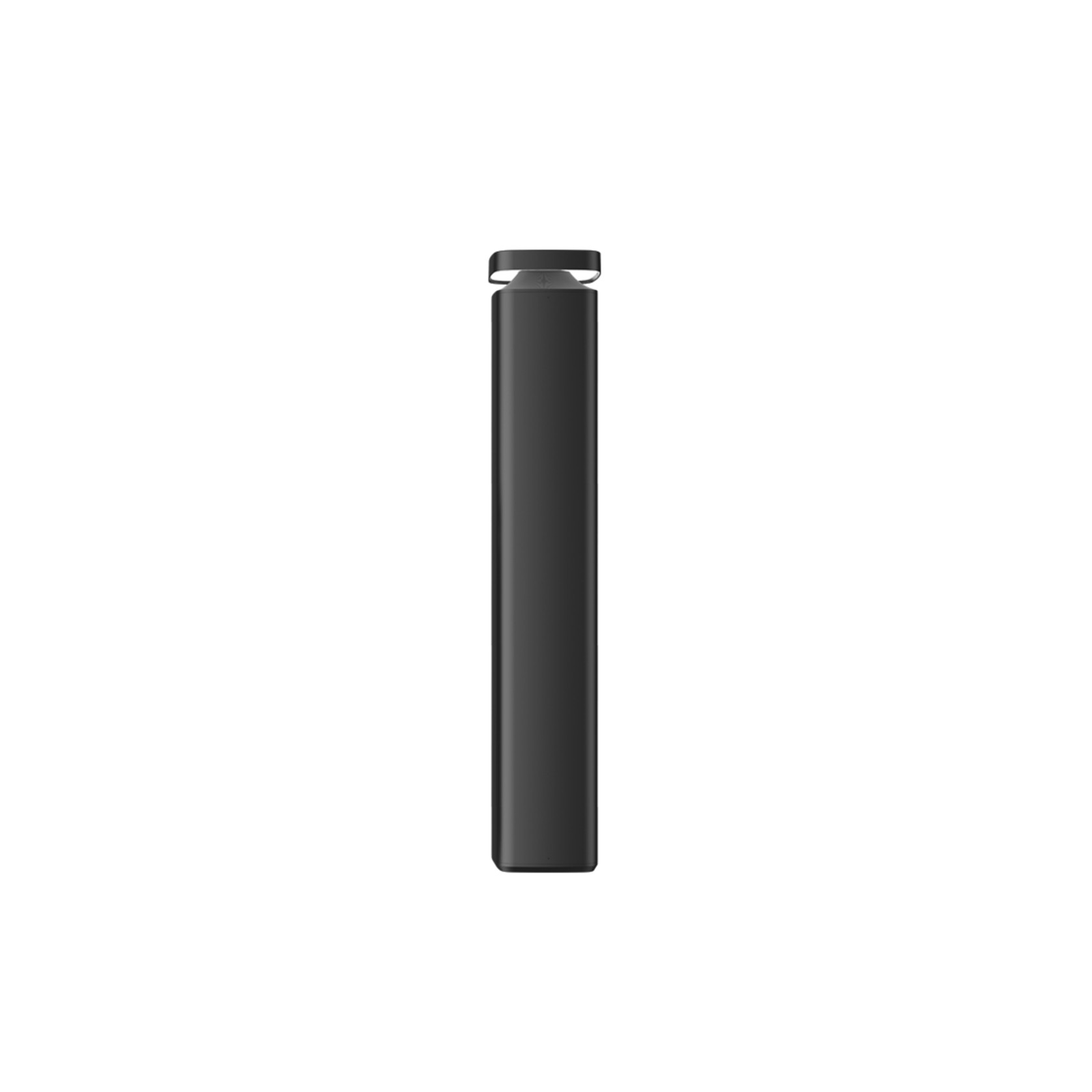

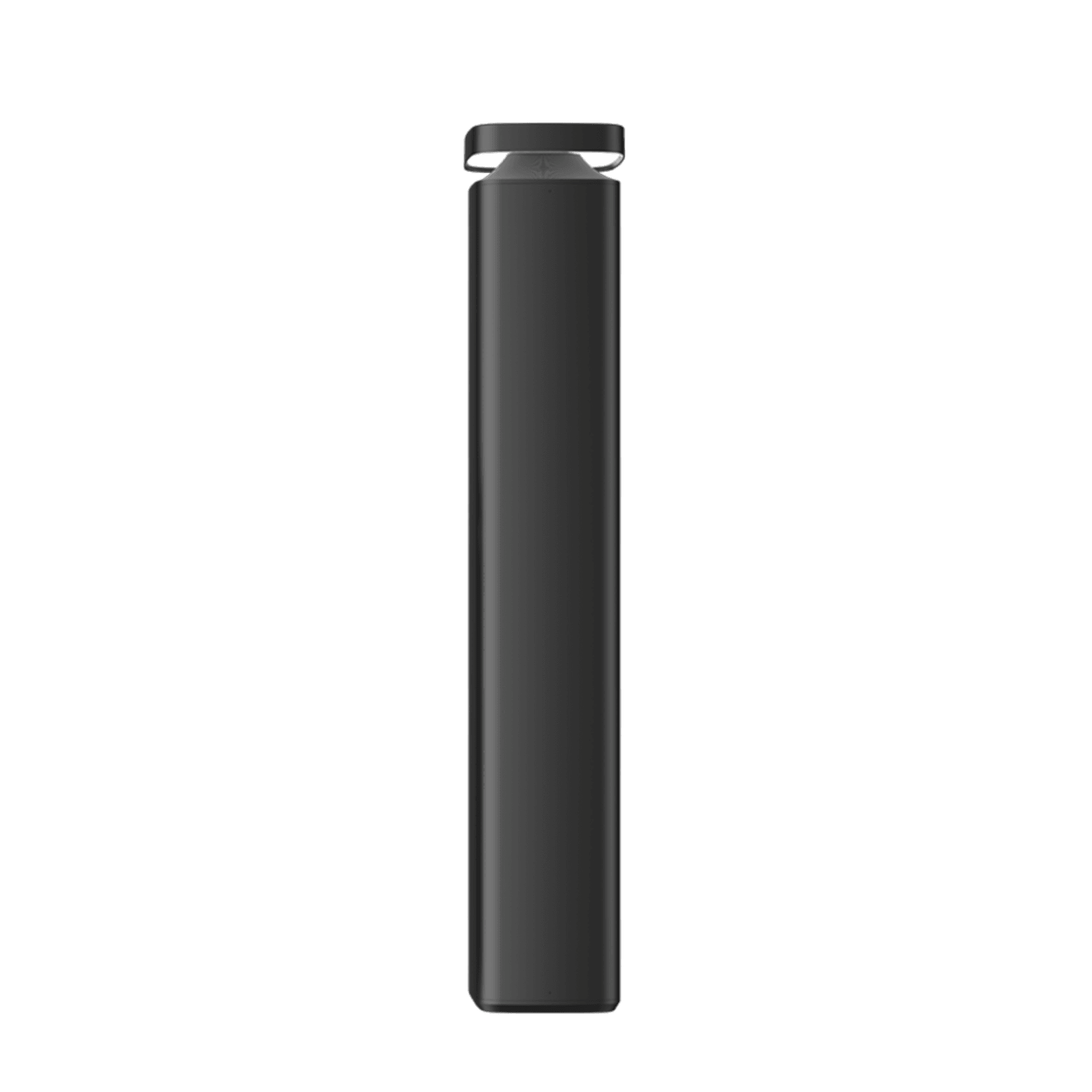

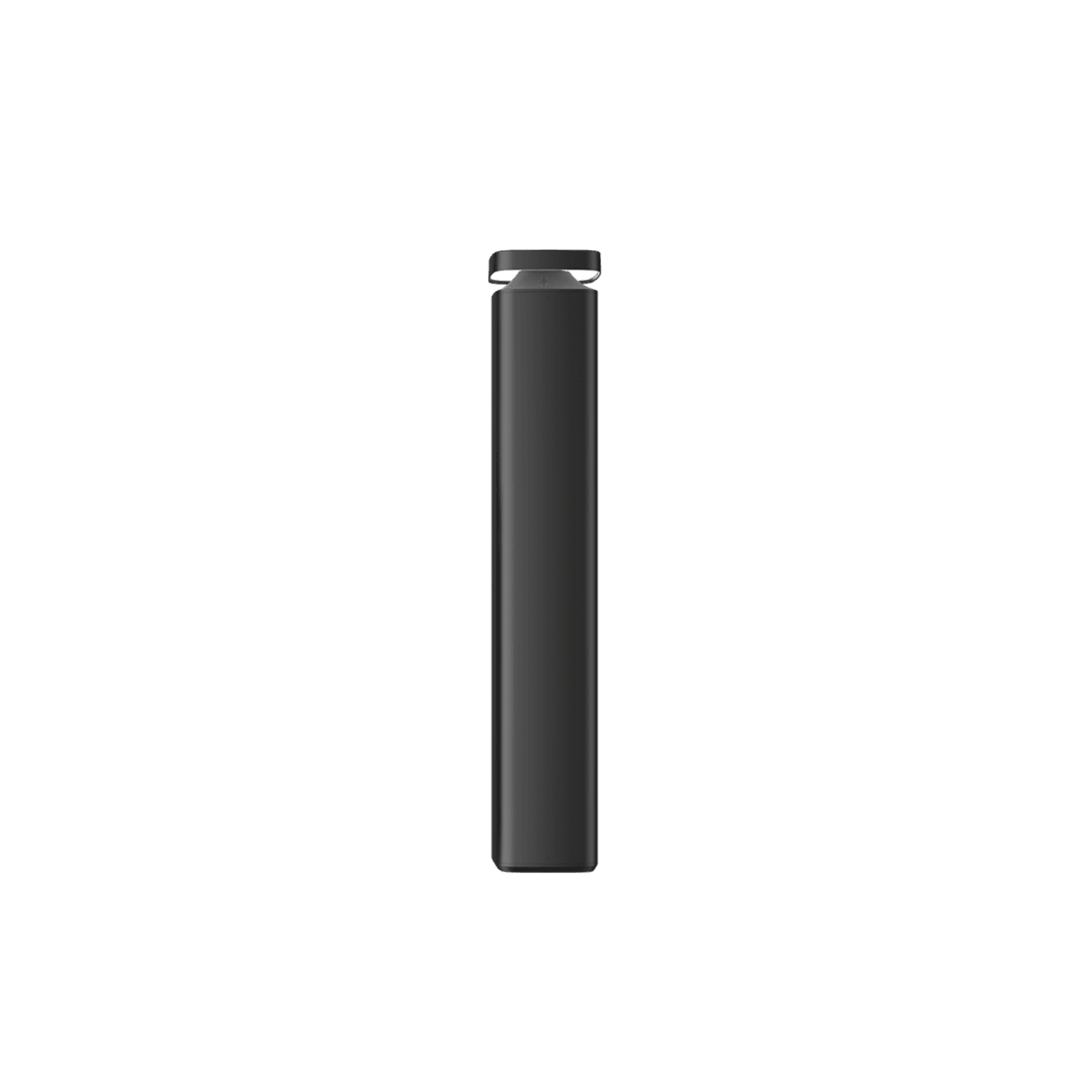

12W / 24W Square Landscape Bollard

Surface mounted LED architectural landscape luminaire series characterised by its optimal low glare illumination and surperior distribution. Sturdy four sided construction, IP65 ingress protection rating with an IK08 impact rating makes the Quadrant the perfect choice for carparks, schools, hospitals and commercial spaces.

Three sizes and two wattages cater for all possible applications. Featuring an indirect light source, symmetrical low-glare distribution for high visual comfort. Extrudued 6063AL aluminium, polyester powder coated for exceptional durability and superior corrosion resistance. Quadrant offers a 5 year warranty.

Details
  • Category
    Path & Bollard Lights
  • Range
    Bollards
  • Warranty
    5 years
Specifications

Technical Specifications

Wattage:

  • 12W (System)
  • 24W (System)

Luminous Flux:

  • 505 Lm
  • 1162 Lm

Luminaire Efficacy:

  • 42.08 Lm/W
  • 48.41 Lm/W

CCT:

  • 3000K
  • 4000K

CRI: >80

Distribution: 360°

Colour Deviation: 3-SDCM

Impact Rating: IK08

Size:

  • 170mm2 x Height 250mm
  • 170mm2 x Height 600mm
  • 170mm2 x Height 1000mm

IP Rating: IP65

Dimming:

  • Non-dimmable
  • DALI-2

Longevity: >50,000Hrs L70 B50

Finish Options:

  • Black
  • Silver

Warranty: 5 years
