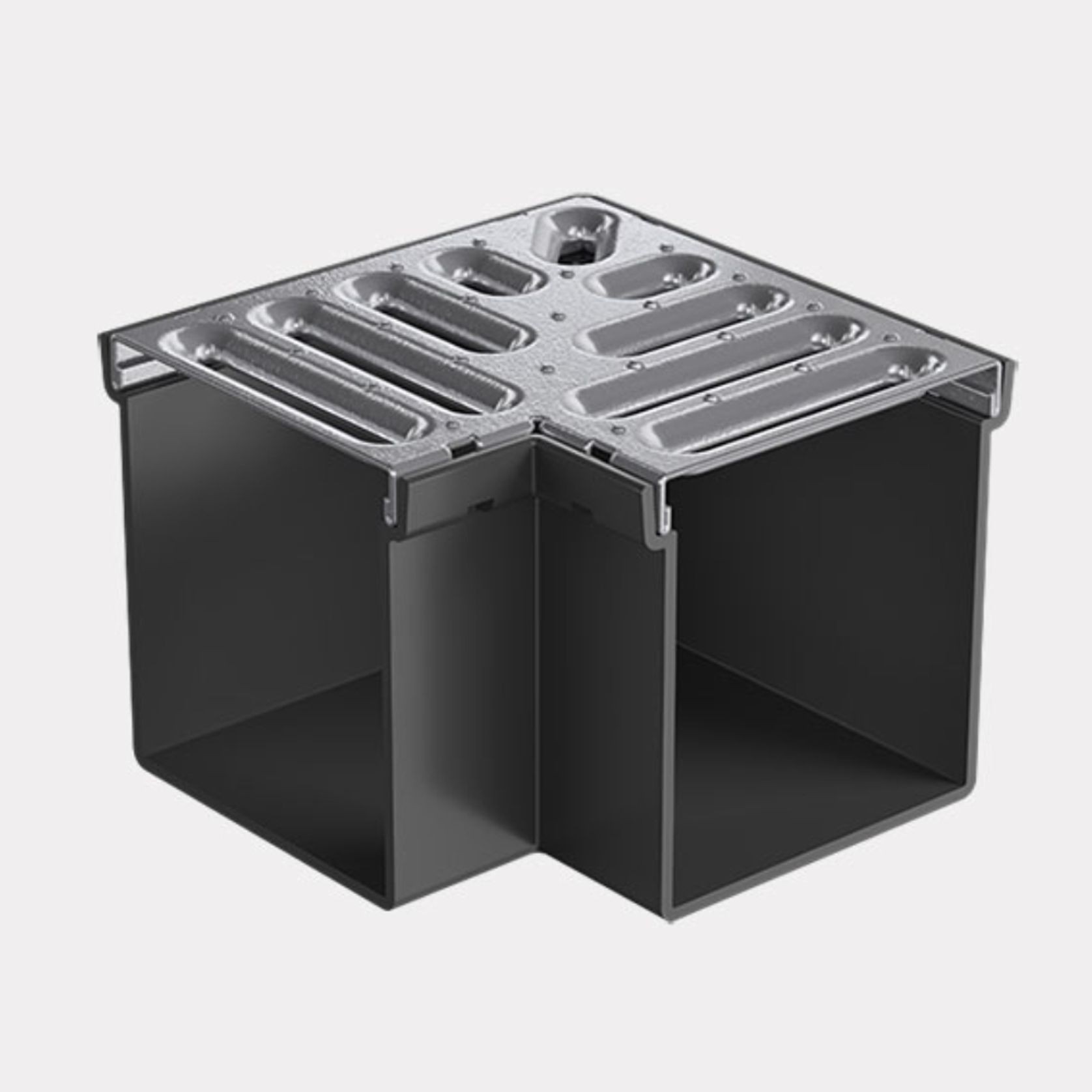

Rain Drain Trade – Corner with Galvanised Steel Grate

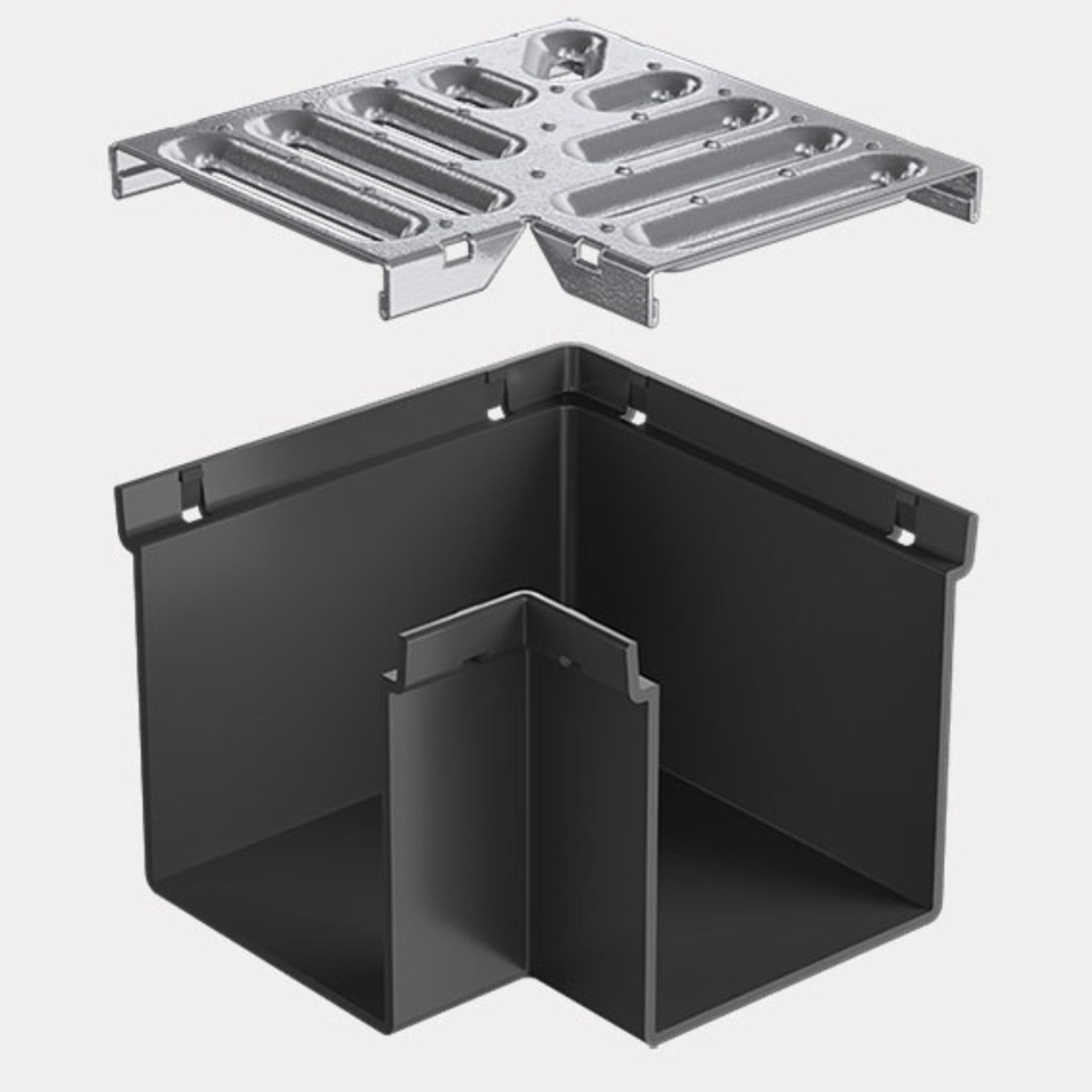

The Rain Drain Trade Corner allows a 90 degree change of direction in RELN Rain Drain Trade Channels. The unique design allows left or right turns, and is easy to install to the channel via the RELN Rain Drain Trade Corner Clip. The Black Plastic Heel Guard Grate is a flat profile pedestrian safe design, making it perfect for areas with both foot and vehicle traffic.

With its deep 121mm profile, Rain Drain Trade effectively collects and distributes high volumes of surface water throughout its system. The interchangeable clip in grates and hold-down feet make it a breeze to install. This range is a top all-round drain for diverting surfacewater away from the home.

Details
  • Category
    Stormwater Drainage
  • Range
    Rain Drain™ Trade
Specifications

EXTERNAL DIMENSIONS

Measurement of the external perimeter.

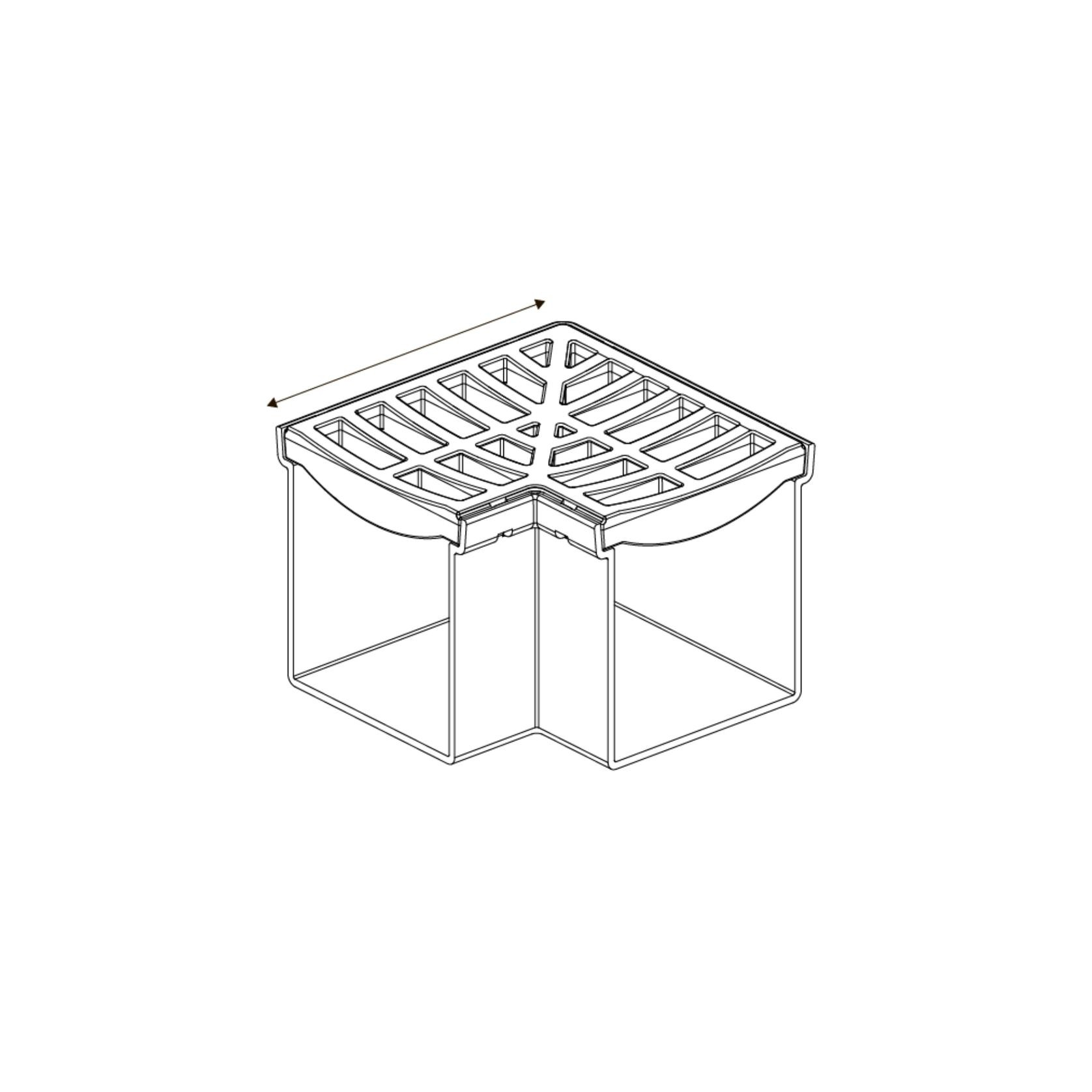

  • Length - 162mm

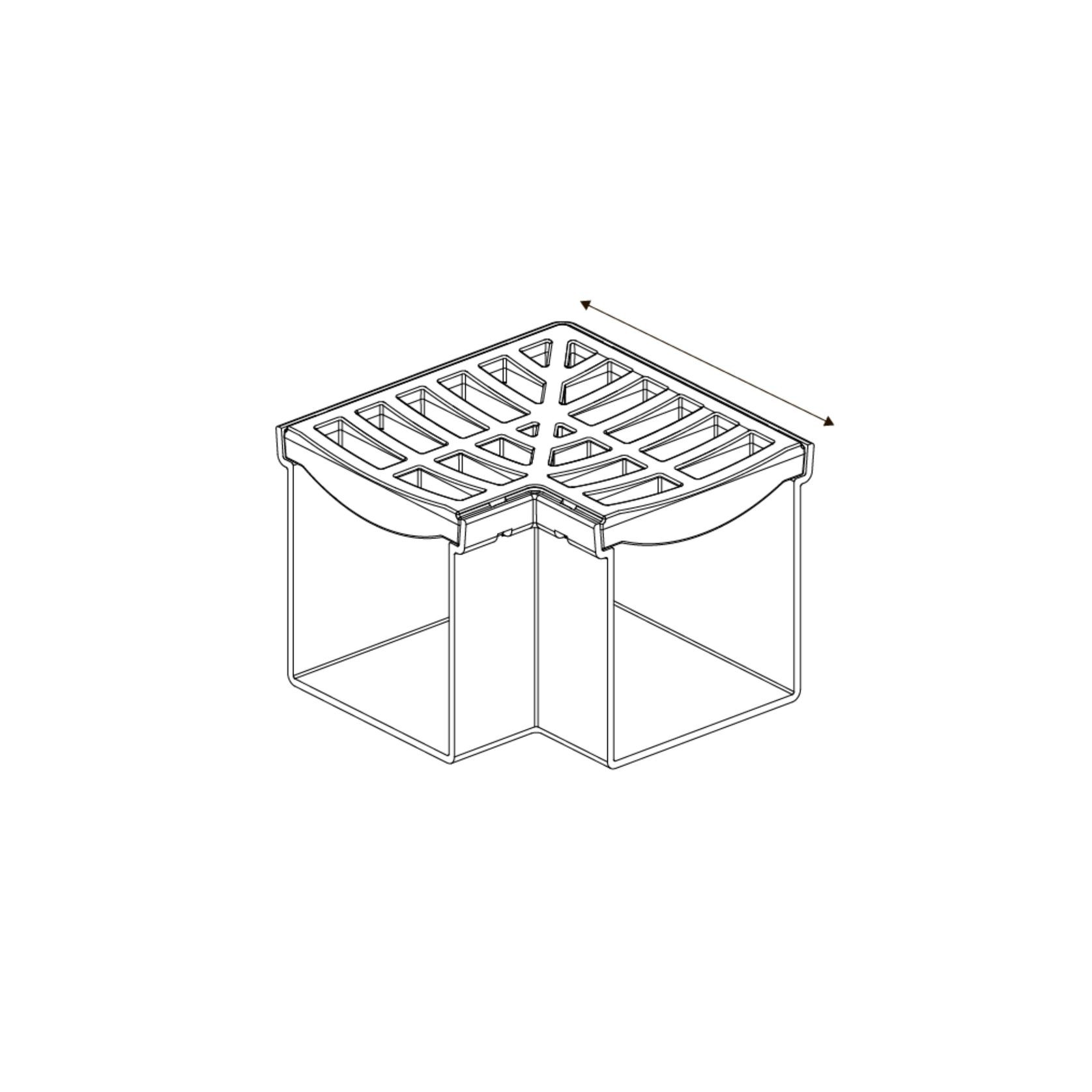

  • Width - 162mm

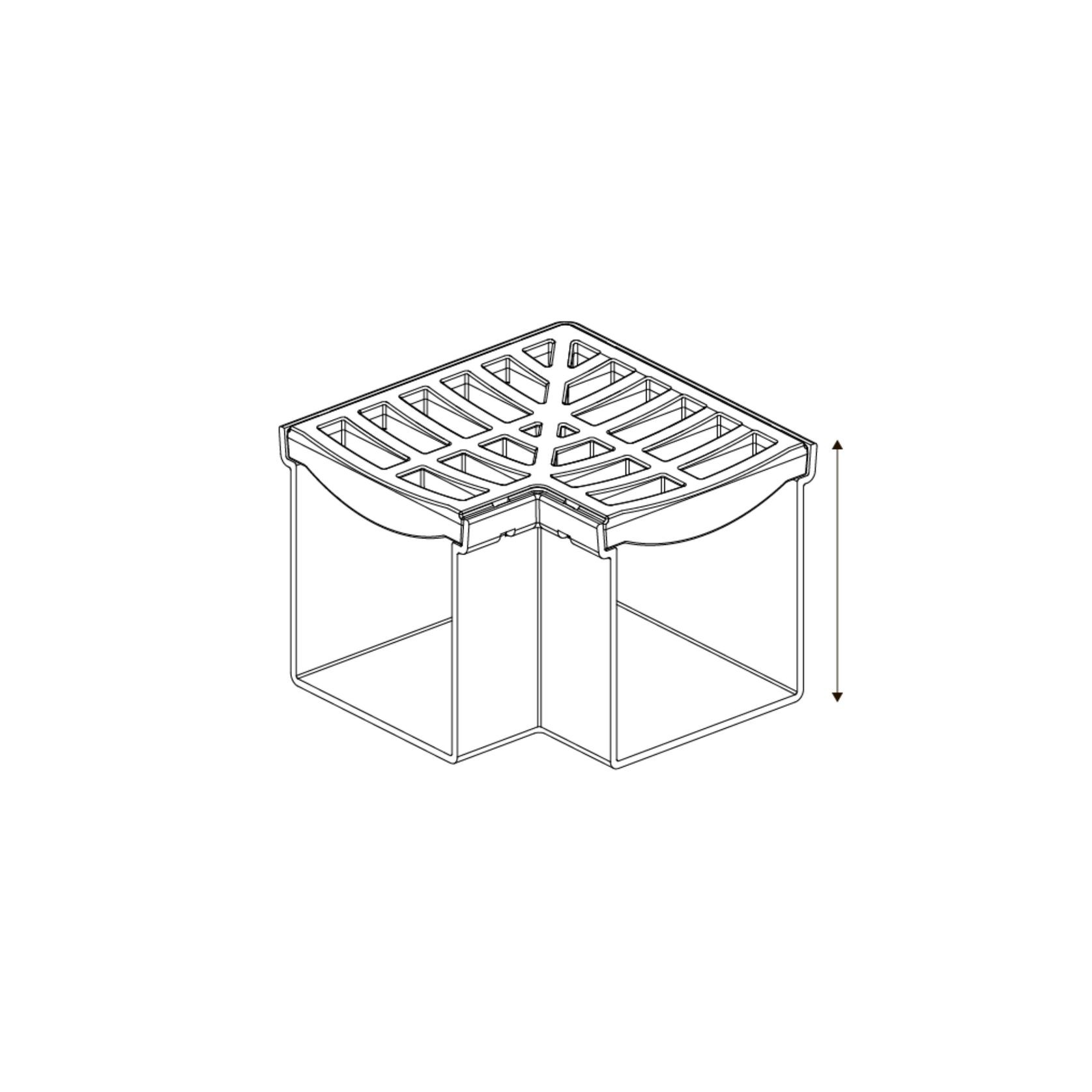

  • Depth - 120mm

INTERNAL DIMENSIONS

Measurement of the internal perimeter.

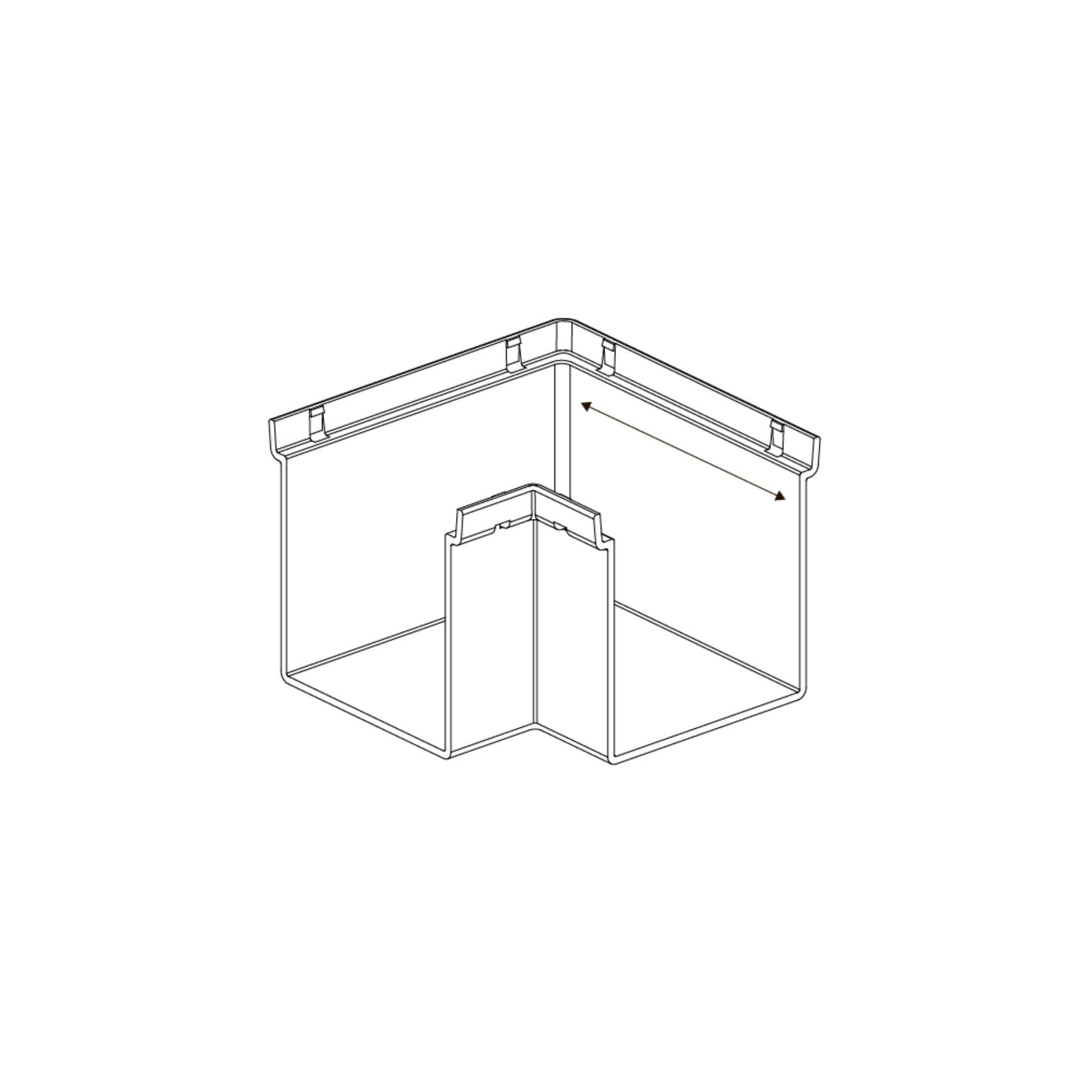

  • Length - 162mm

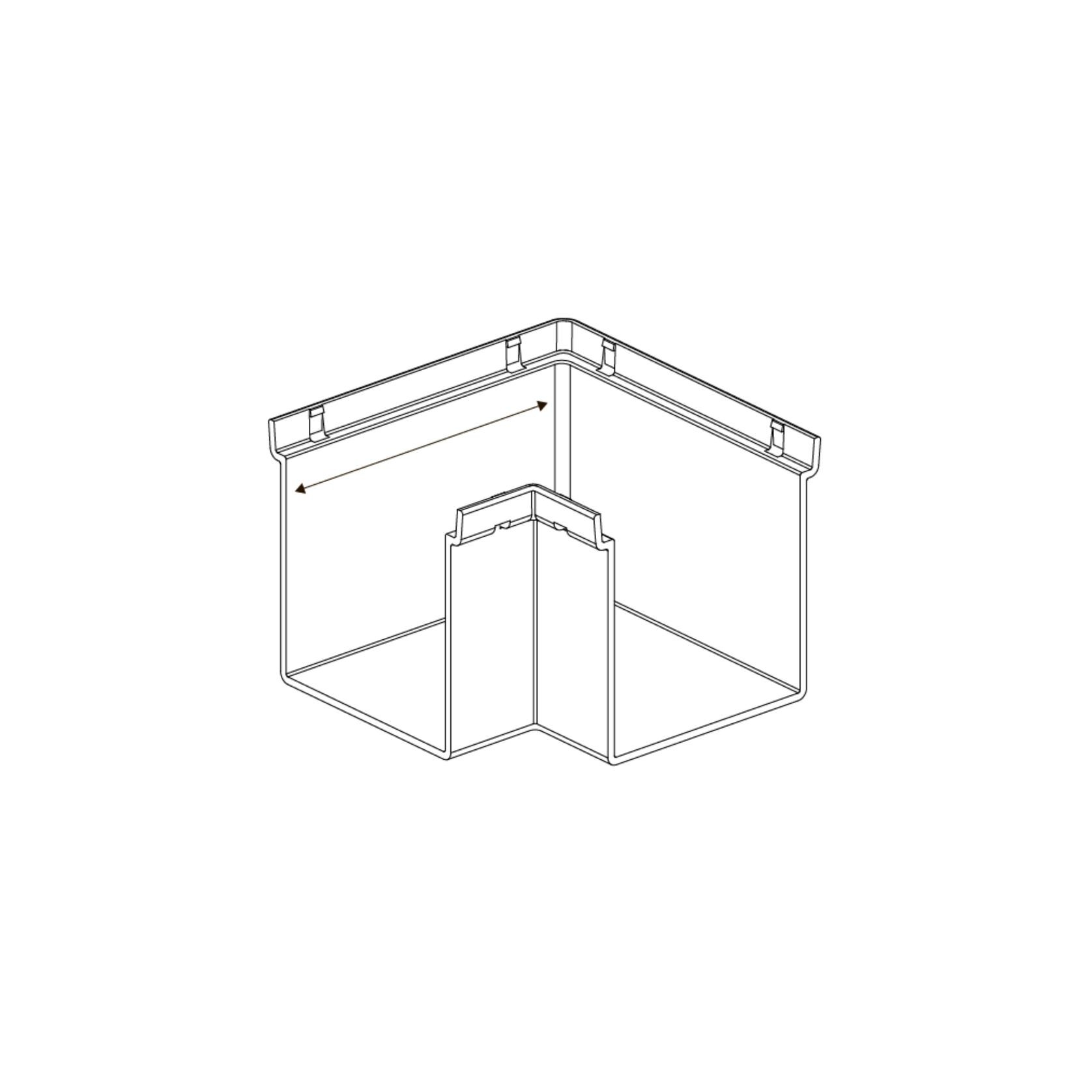

  • Width - 100mm

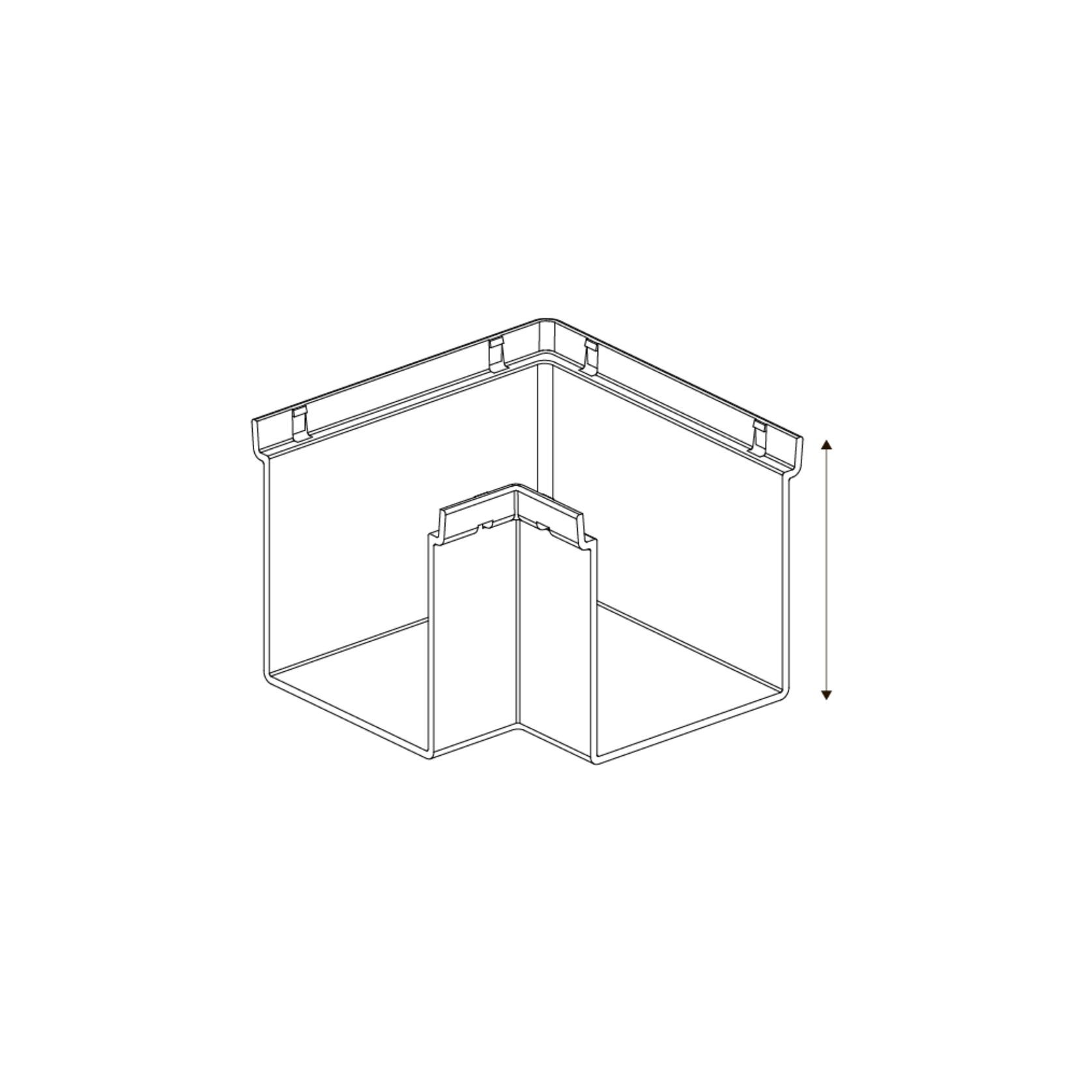

  • Depth - 100mm

WEIGHT

1.7kg

Performance
  • Durability – Channel made in Australia from tough, durable, and lightweight UV stabilised recycled plastic. Grate made in Australia from Pressed Galvanised Steel.
  • Easy to install – Rain Drain Trade is a breeze to install with its genuine extruded 3m length, fewer joins, interchangeable clip-in grates and hold down feet to stop floatation during the pouring of concrete.
  • Available in 1m and 3m lengths – Two different lengths to provide flexibility. 3m Channels means less work and fewer joins in lengthy drainage applications.
  • Commercial drainage solution – With a range of accessories and grate options, Rain Drain Trade is perfect for paths, driveways, and domestic areas with corners and T sections
  • Class A Load Rating – Rated to Class A and when correctly installed in concrete, the grate can withstand light vehicle traffic
  • Deep 121mm profile – A deep profile for capturing large volumes of water flow
  • Plumber-friendly – End outlet can be knocked out to connect to 90mm PVC stormwater pipe
  • Environmentally friendly – Made from 100% UV stabilised recycled plastic
