RAK Compact Accessible Wall Faced Toilet Pan

MacDonald Industries

The Compact accessible toilet range has been created to provide comfortable convenience to people with additional needs. Apart from its broad dimensions, Compact accessible bathroom toilets also come standard with Rimless technology which delivers the ultimate in hygienic bathroom flushing. Rimless technology ensures water is fully projected around the front of the toilet pan giving a completely clean flush. Rimless flushing makes it easier to clean and reduces bacteria and dirt by more than 90%.

Details
  • Category
    Toilet Pans
  • Brand
    RAK
General
  • Type of use
    Commercial and Residential
Specifications

When used with the soft close seat and lid, the Compact suite meets the requirements of AS1428.1:2009 as being suitable for use in disabled bathrooms.

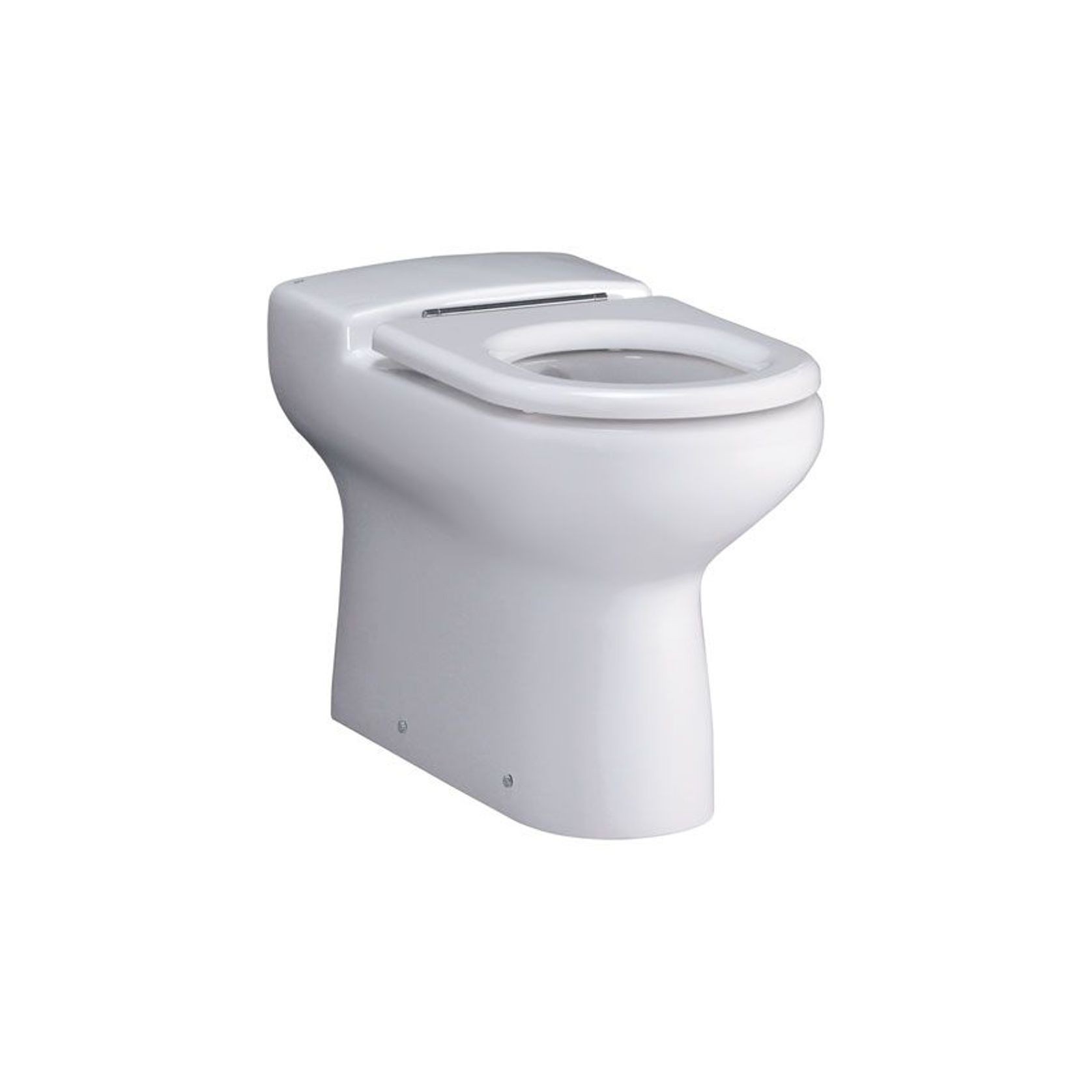

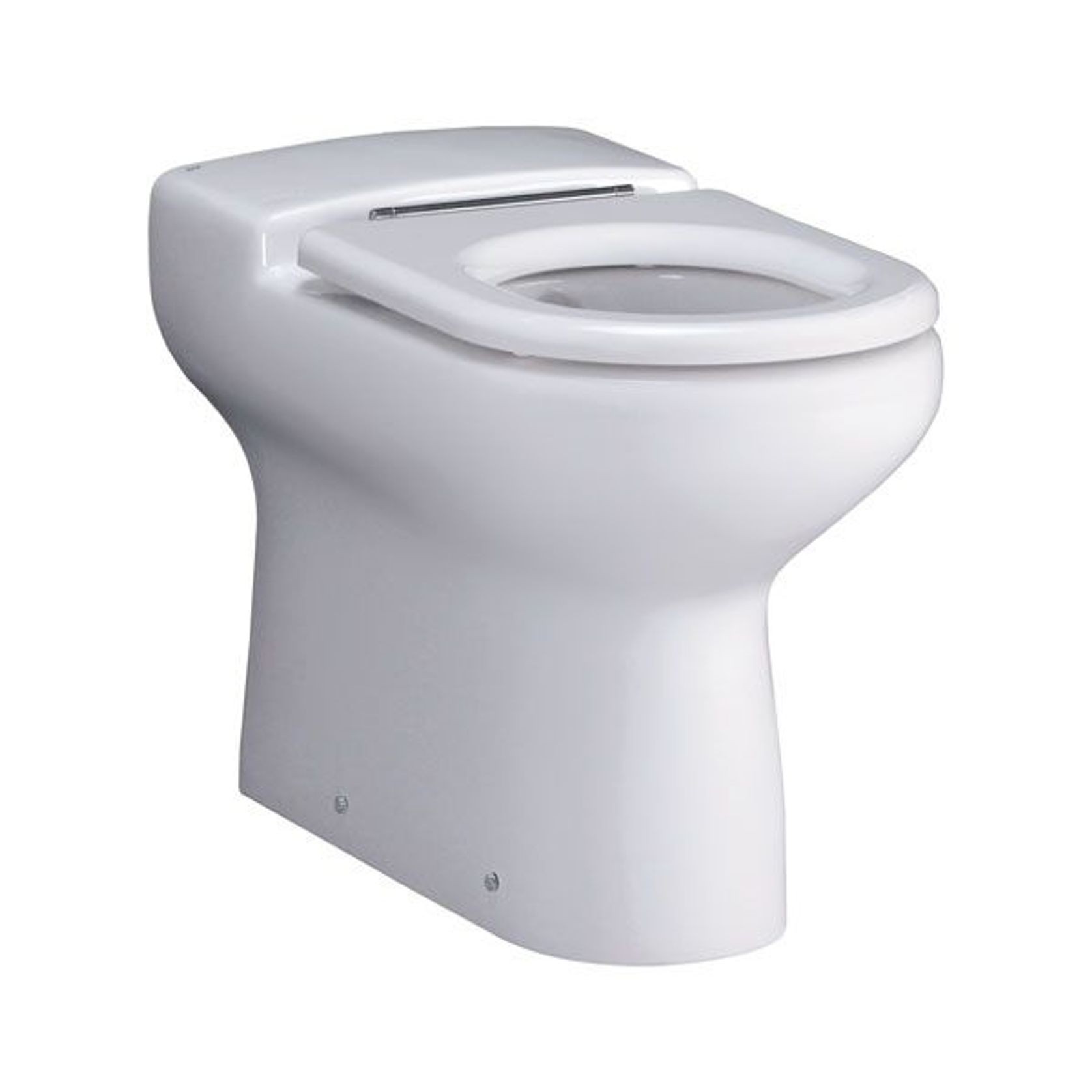

Compact accessible is available in wall faced toilet suite, wall faced toilet pan (as shown) or wall hung toilet pan formats.

Colour: Alpine white only.
Trap type: P-trap outlet connection.
Inlet: Ø55mm inlet connection.
Fixing: FS37UK floor fixing kit included (x2).
Seat: Compact urea soft-close toilet seat, also available in toilet seat without lid.

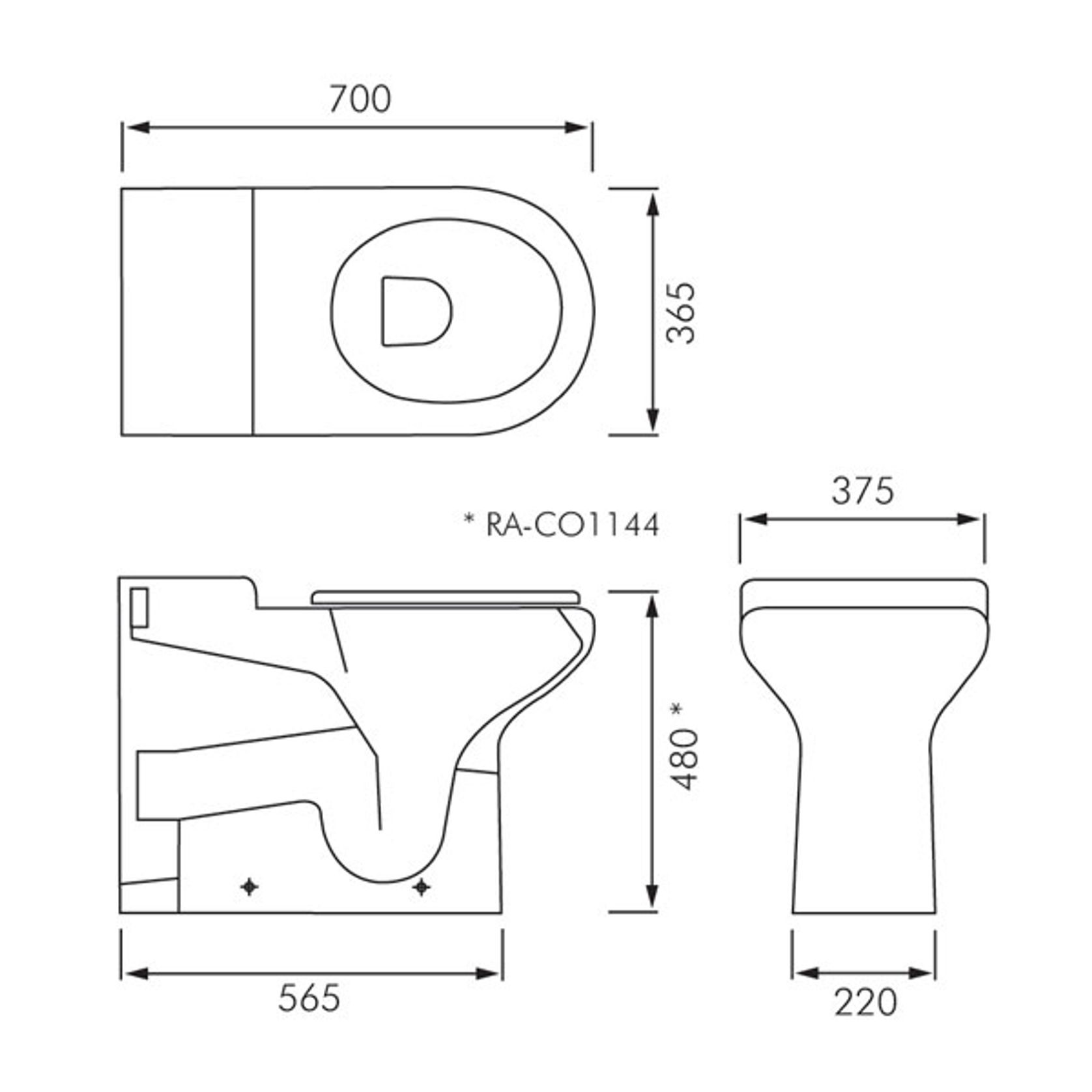

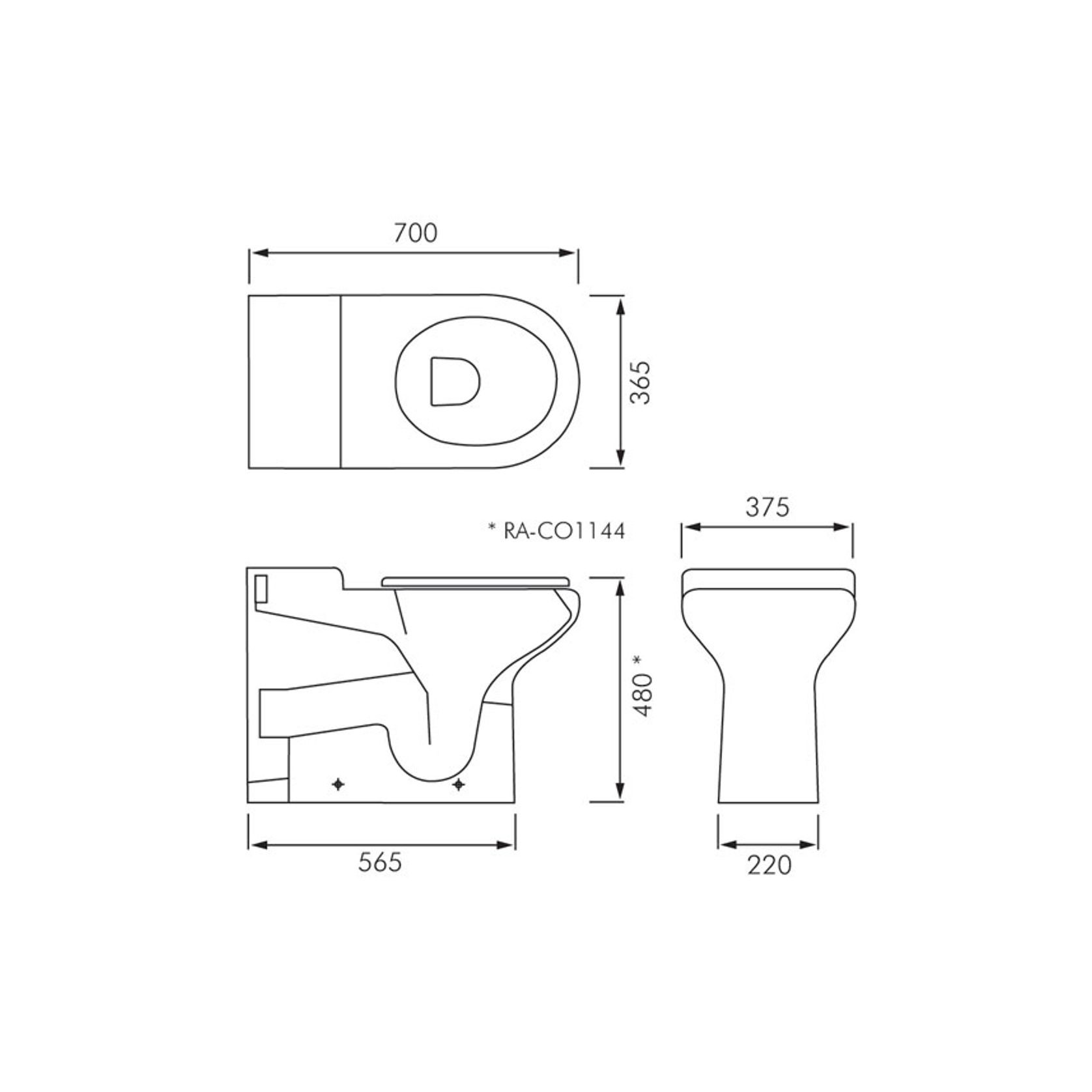

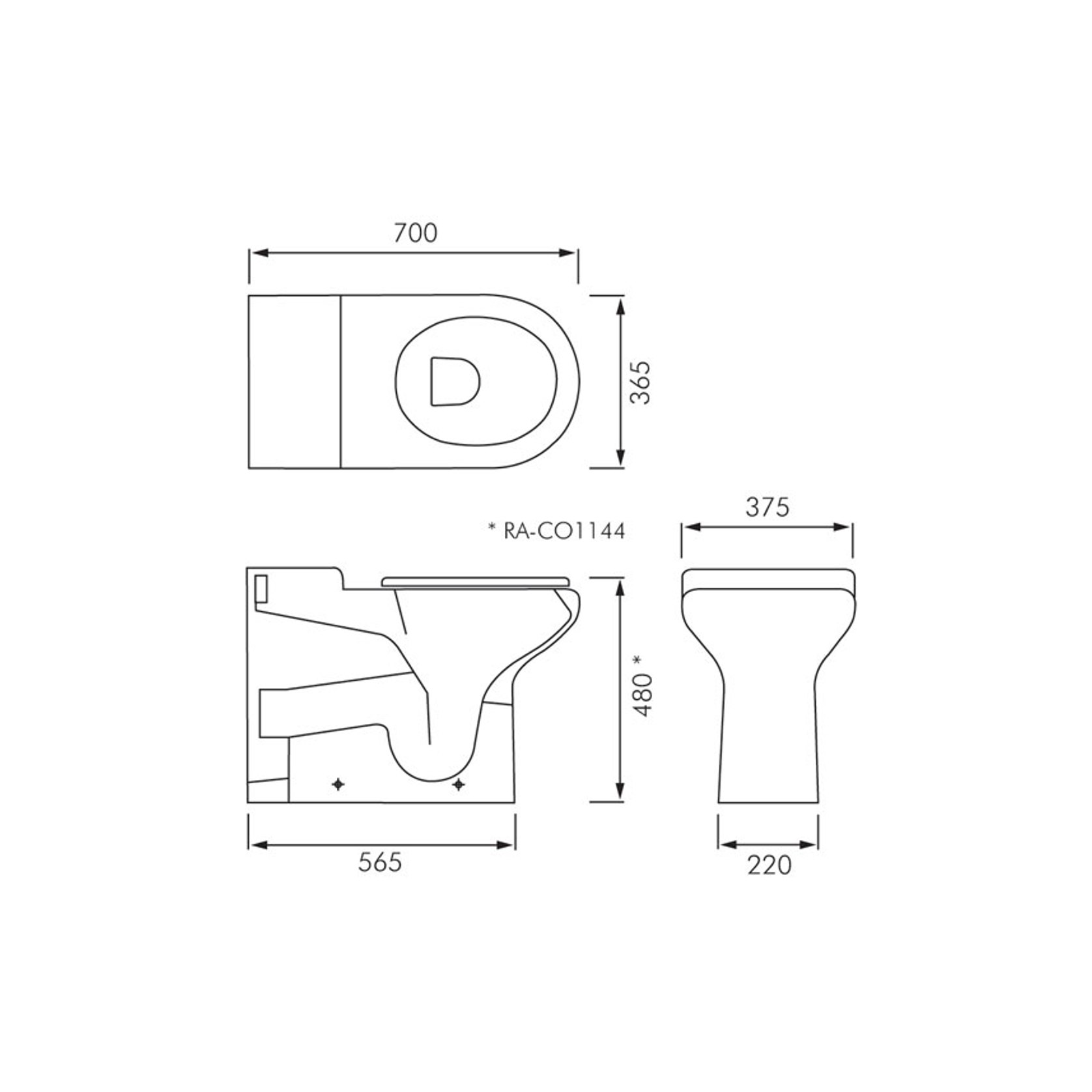

Dimensions: All dimensions in mm. Tolerance ±5% for below 200mm and ±3% above 200mm.
Flushing: Refer separate literature for our Zurn flushing valves and Wisa inwall cisterns.

AS1428.1:2009 compliant:
RA-CO1144
- RAK Compact accessible toilet pan P-trap complete with soft-close toilet seat & lid

AS1428.1:2009 non-compliant:
RA-CO1145
- RAK Compact accessible toilet pan P-trap complete with care toilet seat (no lid)

OPTIONAL EXTRA:

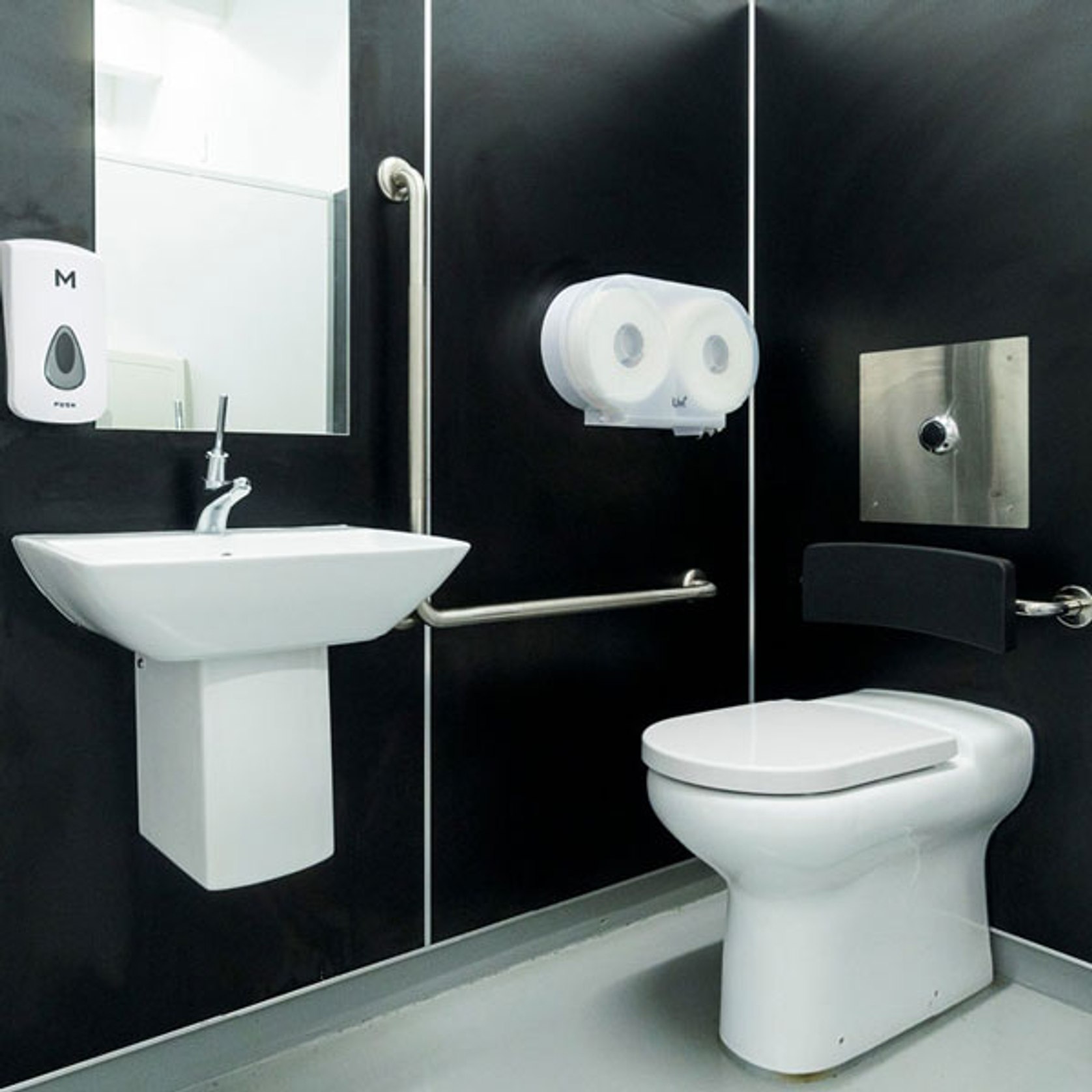

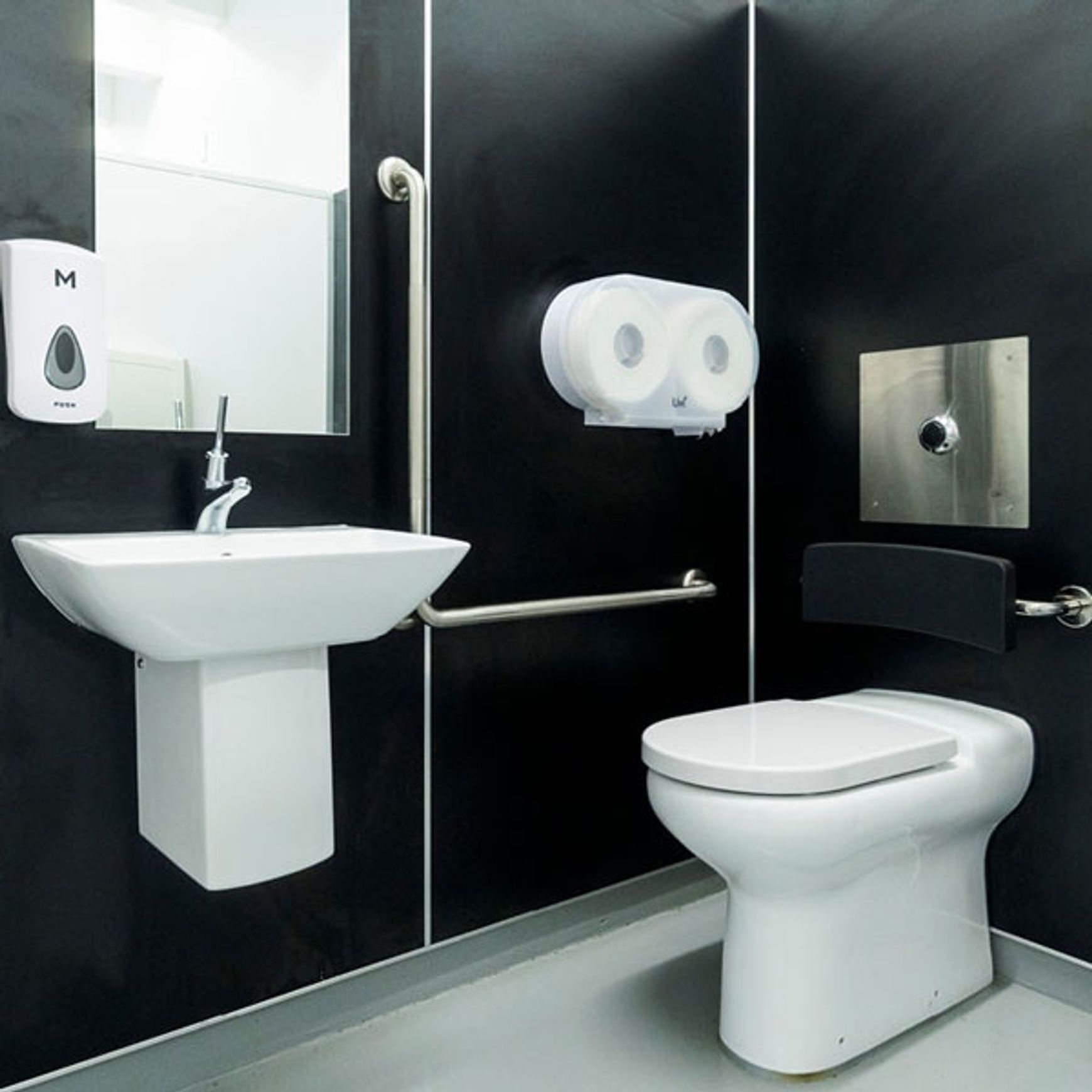

For a back rest offering extra comfort, refer Delabie DE510629 in separate literature.
