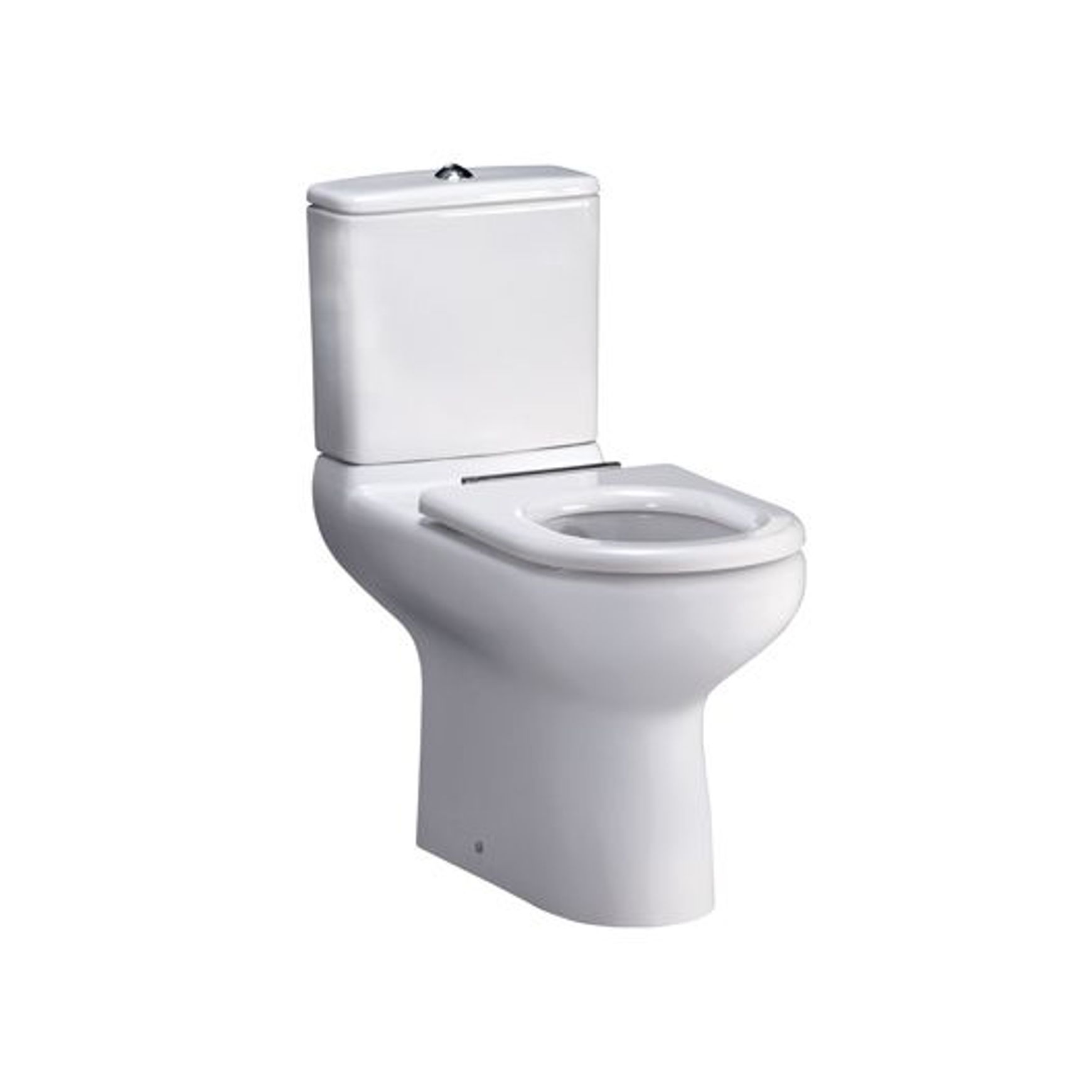

RAK Compact Accessible Wall Faced Toilet Suite
Auckland
- 286.8K profile views
- 19 saves
The Compact accessible toilet range has been created to provide comfortable convenience to people with additional needs. Apart from its broad dimensions, Compact accessible toilets also come standard with Rimless technology which delivers the ultimate in hygienic flushing. Rimless technology ensures water is fully projected around the front of the toilet pan giving a completely clean flush. Rimless flushing makes it easier to clean and reduces bacteria and dirt by more than 90%.
When used with the soft close seat and lid, the Compact suite meets the requirements of AS1428.1:2009 as being suitable for use in disabled bathrooms.

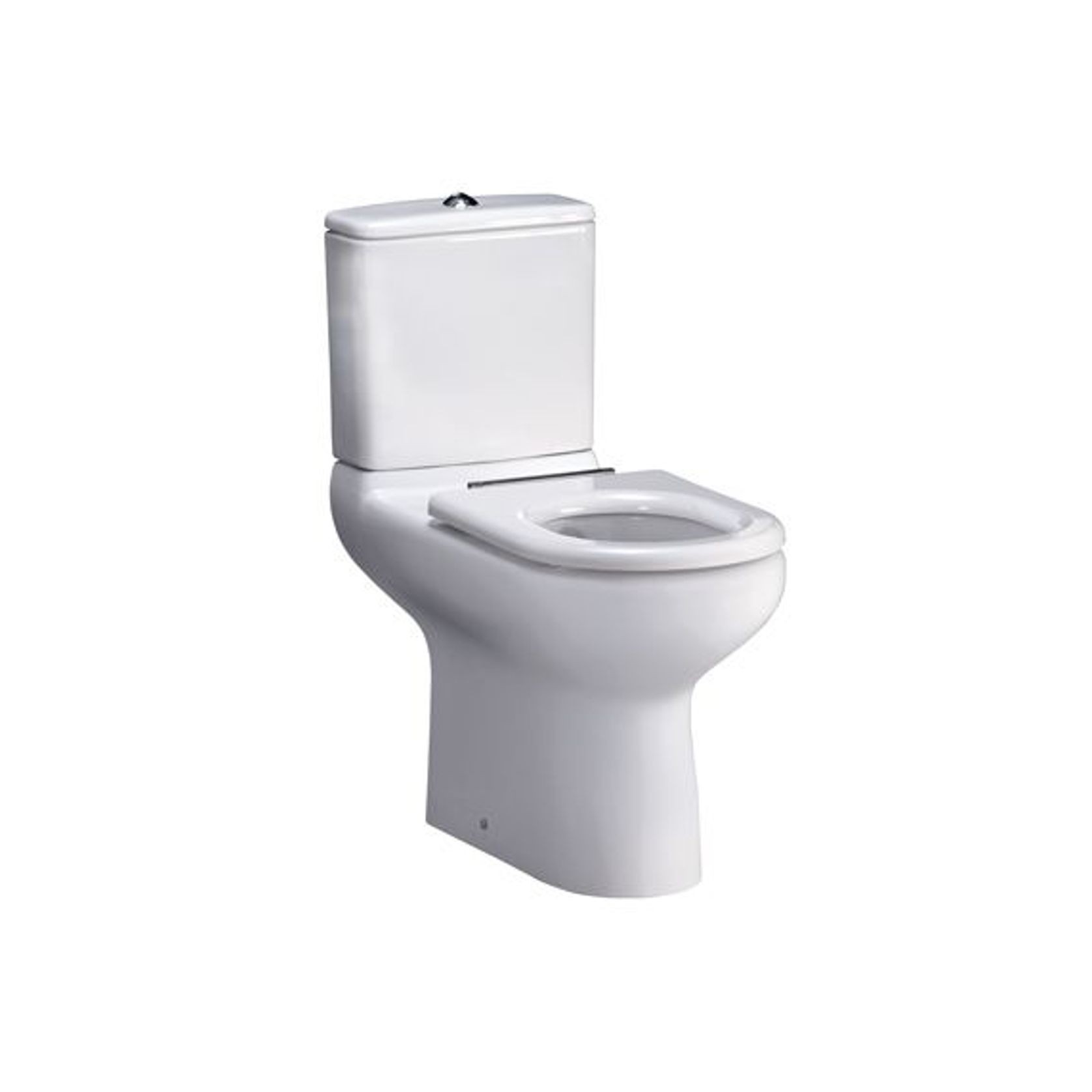

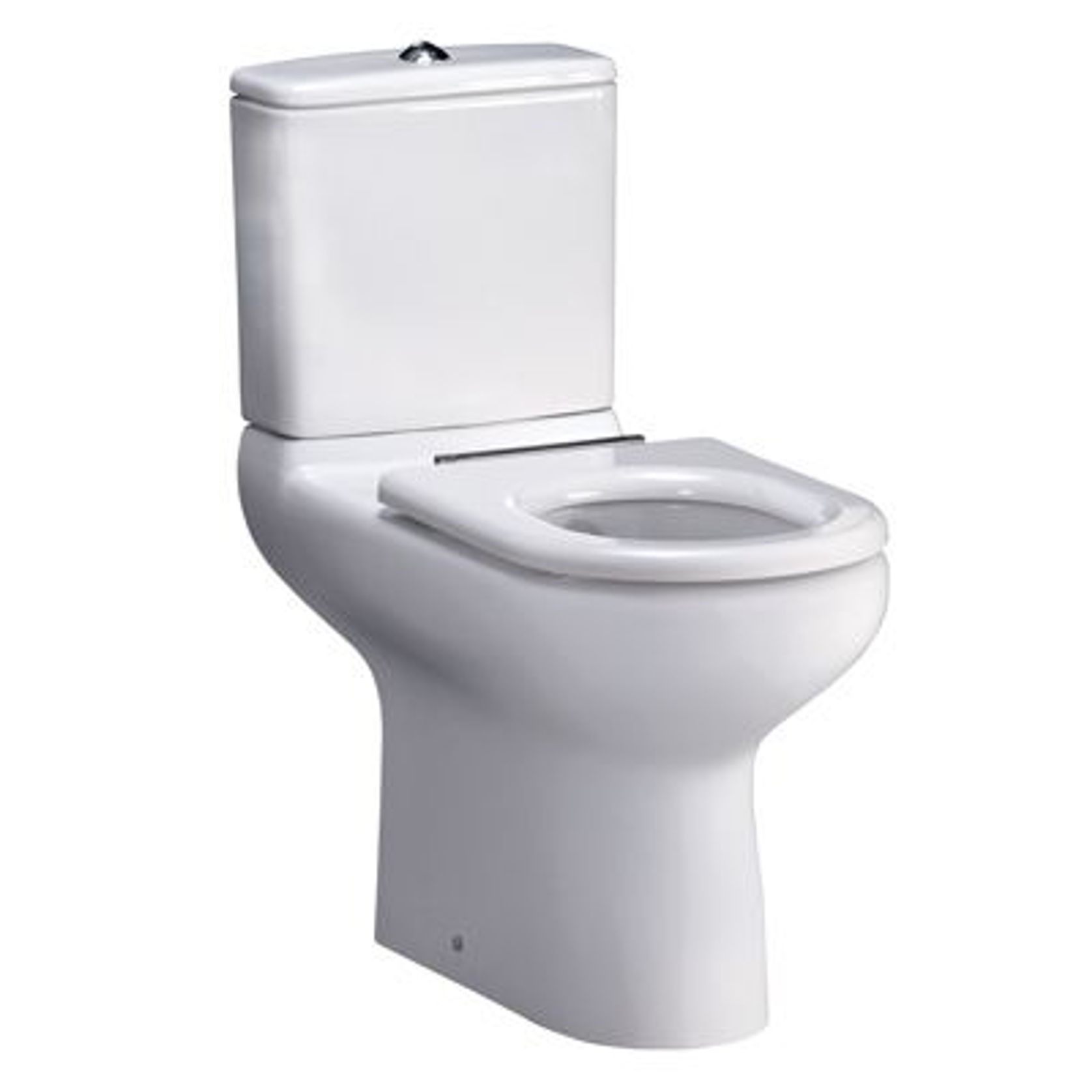

Compact accessible is available in wall faced toilet suite (as shown), wall faced toilet pan or wall hung toilet pan formats.
Product Details
- Product
- RAK Compact Accessible Wall Faced Toilet Suite
- Category
- Toilet Suites
- Sold by
- MacDonald Industries
- Brand
- RAK
- Type of use
- Commercial and Residential
MacDonald Industries is specified by
Ignite ArchitectsArchitects
Arthouse ArchitectsArchitects
DCA Architects of TransformationArchitects
7D Architecture LtdArchitects
Stevens Lawson ArchitectsArchitects
McCoy Wixon ArchitectsArchitects
GHD DesignArchitects
Architects44Architects
Mason & Wales ArchitectsArchitects
Studio Pacific ArchitectureArchitects
PAUA Architects LtdArchitects
Stephenson&TurnerArchitects
Wilson & Hill ArchitectsArchitects
TEAM Architects AucklandArchitects
Fat Parrot ArchitectureArchitects
Eliška Lewis ArchitectsArchitects
HB ArchitectureArchitects
Sheppard & Rout ArchitectsArchitects
Moller ArchitectsArchitects
Gel ArchitectsArchitects
Totem StudioArchitects
Designgroup Stapleton ElliottArchitects
MAKE ArchitectsArchitects
Jigsaw ArchitectsArchitects
Williams Architects LtdArchitects
Architect PeopleArchitects
Bishop ArchitectureArchitectural Designers
August Millard LimitedBuilding Surveyors
Hanlon & Partners LtdEngineers
Peter Dunbar Architectural DesignerArchitectural Designers
Henwood ConstructionConstruction
Arcline ArchitectureArchitectural Designers
RCPProject Managers
HawkinsConstruction
Heron PlumbingDrainage Specialists
Tile SpaceManufacturers and Suppliers
Peter Diver Plumbing & DrainagePlumbers & Gas Fitters
AmbitecManufacturers and Suppliers
Plumbing and Heating Centre Ltd NZ
Foley GroupInterior Designers
PG Plumbing + GasfittingPlumbers & Gas Fitters
Nixon HomesBuilders
AquaPro PlumbingPlumbers & Gas Fitters
The Compact accessible toilet range has been created to provide comfortable convenience to people with additional needs.
Apart from its broad dimensions, Compact accessible toilets also come standard with Rimless technology which delivers the ultimate in hygienic flushing. Rimless technology ensures water is fully projected around the front of the toilet pan giving a completely clean flush. Rimless flushing makes it easier to clean and reduces bacteria and dirt by more than 90%.
When used with the soft close seat and lid, the Compact suite meets the requirements of AS1428.1:2009 as being suitable for use in disabled bathrooms.
Compact accessible is available in wall faced toilet suite (as shown), wall faced toilet pan or wall hung toilet pan formats.
- Specs
Colour: Alpine white
Trap type: P-trap or S-trap outlet connections.
Cistern: 6/3L dual flush, fitted directly to toilet pan with concealed fixings.
Inlet: ½”BSP concealed back inlet connection (remote isolation valve included).
Water pressure range: 10-1000kPa (50-500kPa recommended).
Fixing: FS37UK floor fixing kit included (x2).
Seat: Compact urea soft-close toilet seat & lid, also available without lid.

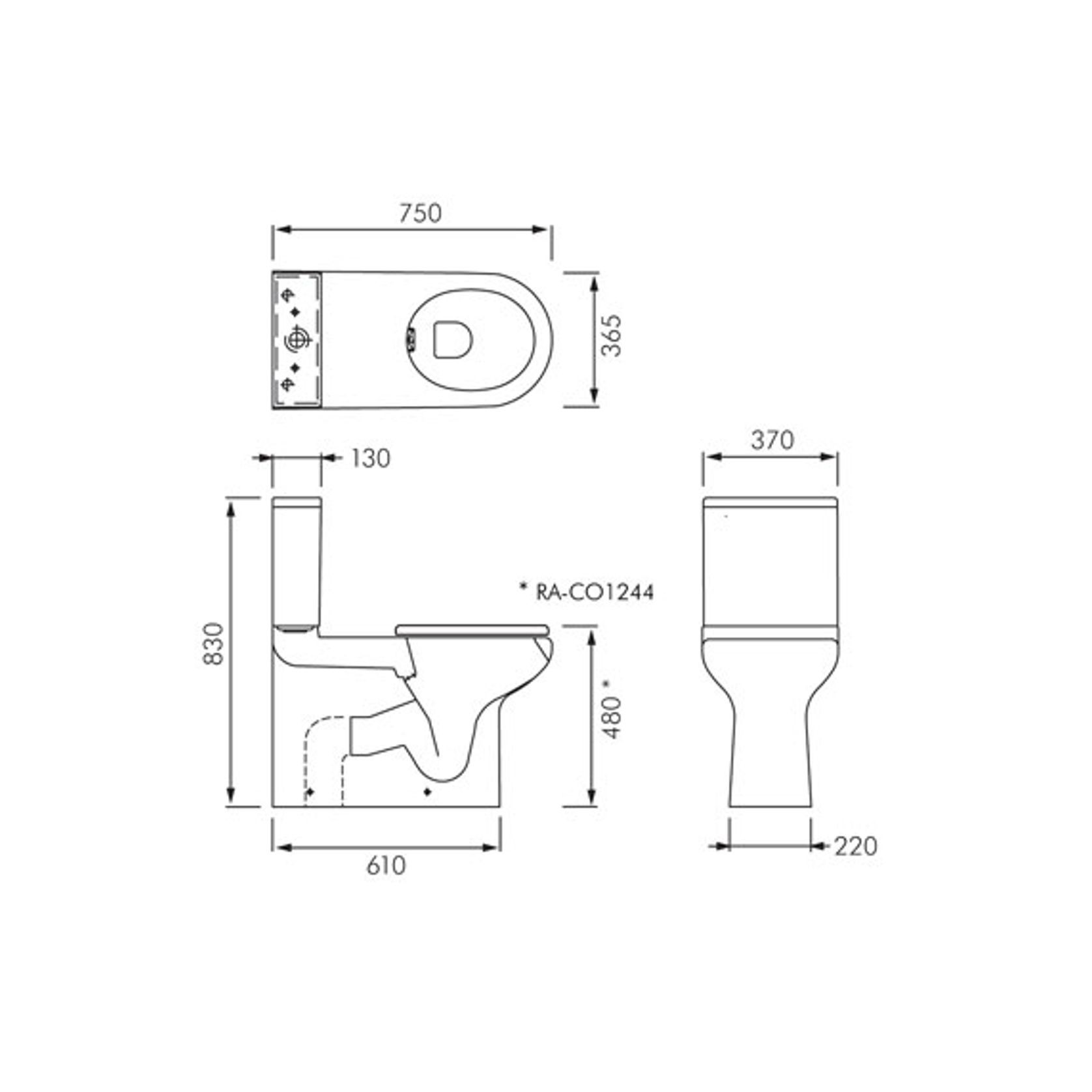

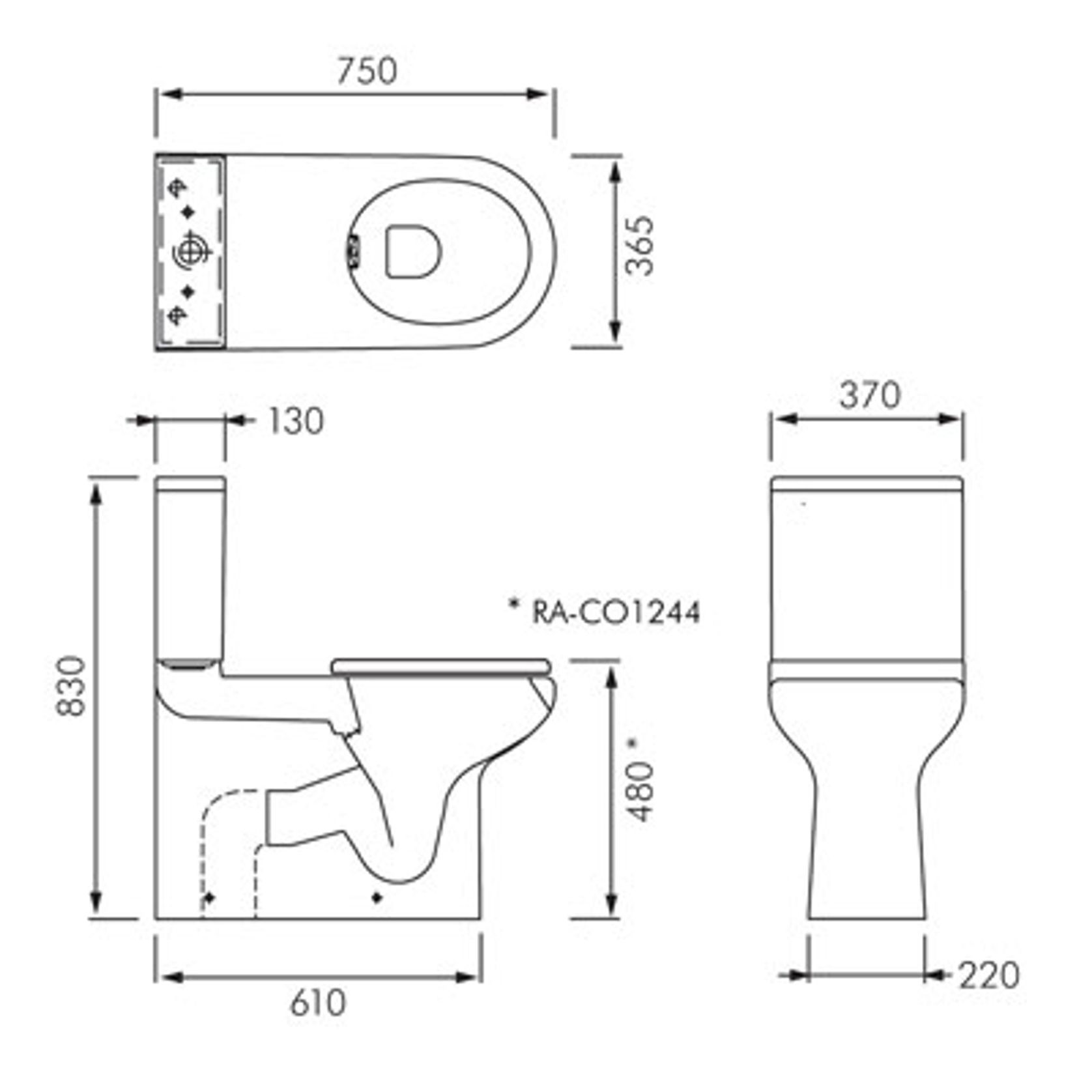

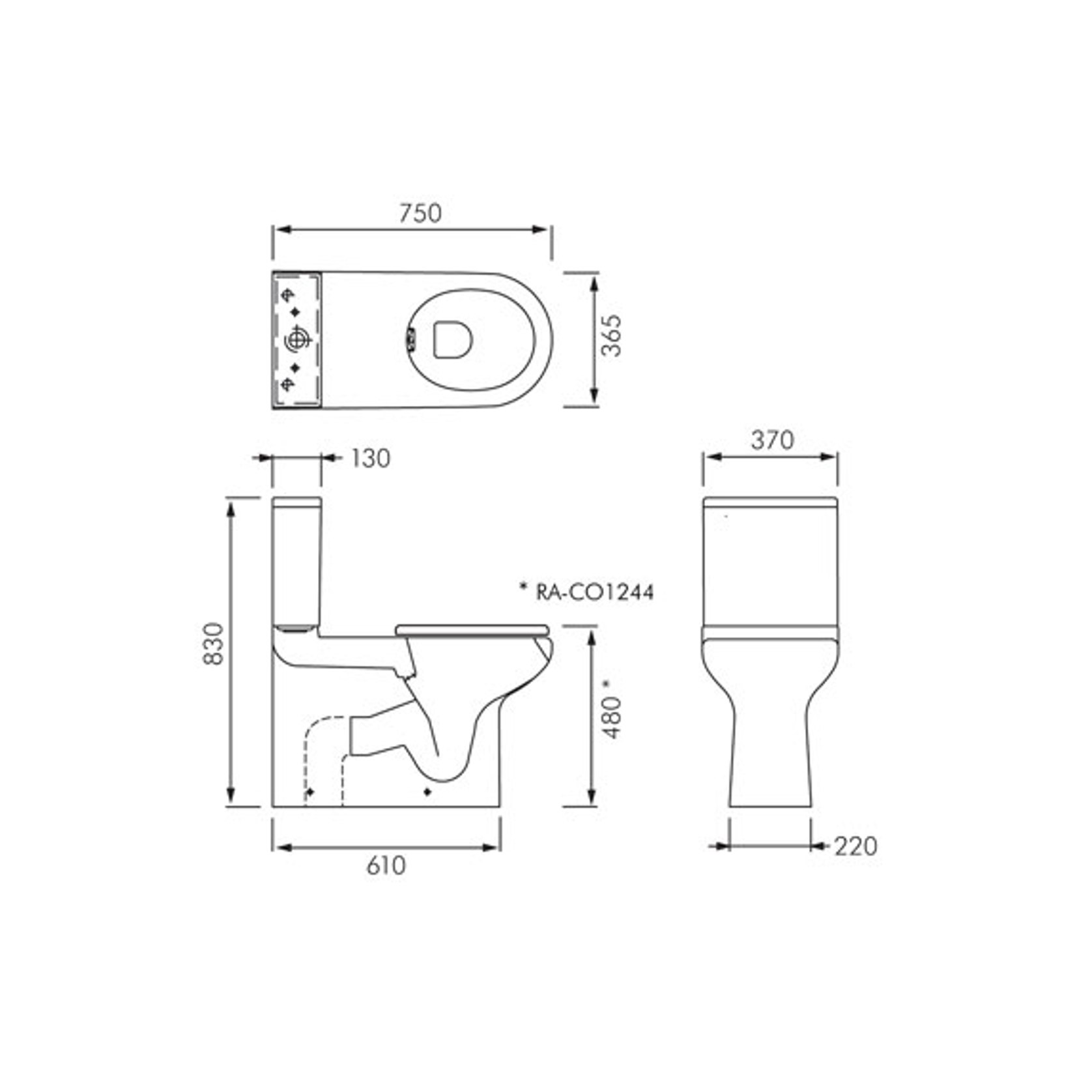

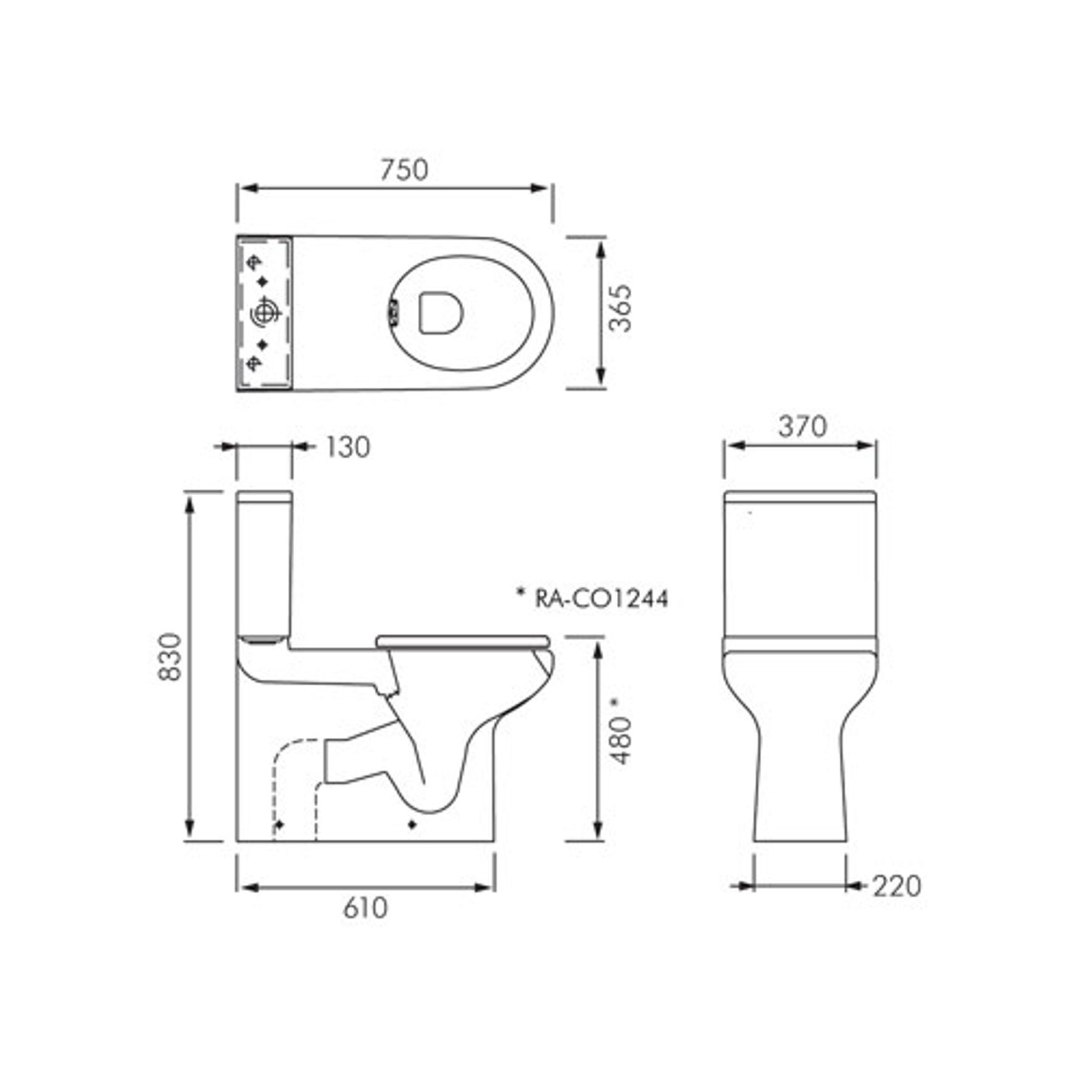

Dimensions: All dimensions in mm. Tolerance ±5% for below 200mm and ±3% above 200mm.AS1428.1:2009 compliant:
RA-CO1244P - RAK Compact accessible toilet suite P-trap complete with soft-close toilet seat & lid
RA-CO1244S - RAK Compact accessible toilet suite S-trap complete with soft-close toilet seat & lidAS1428.1:2009 non-compliant:
RA-CO1245P - RAK Compact accessible toilet suite P-trap complete with care toilet seat (no lid)
RA-CO1245S - RAK Compact accessible toilet suite S-trap complete with care toilet seat (no lid)Optional extra:
For a back rest offering extra comfort, refer MacDonald BE-BT35 in separare literature.
