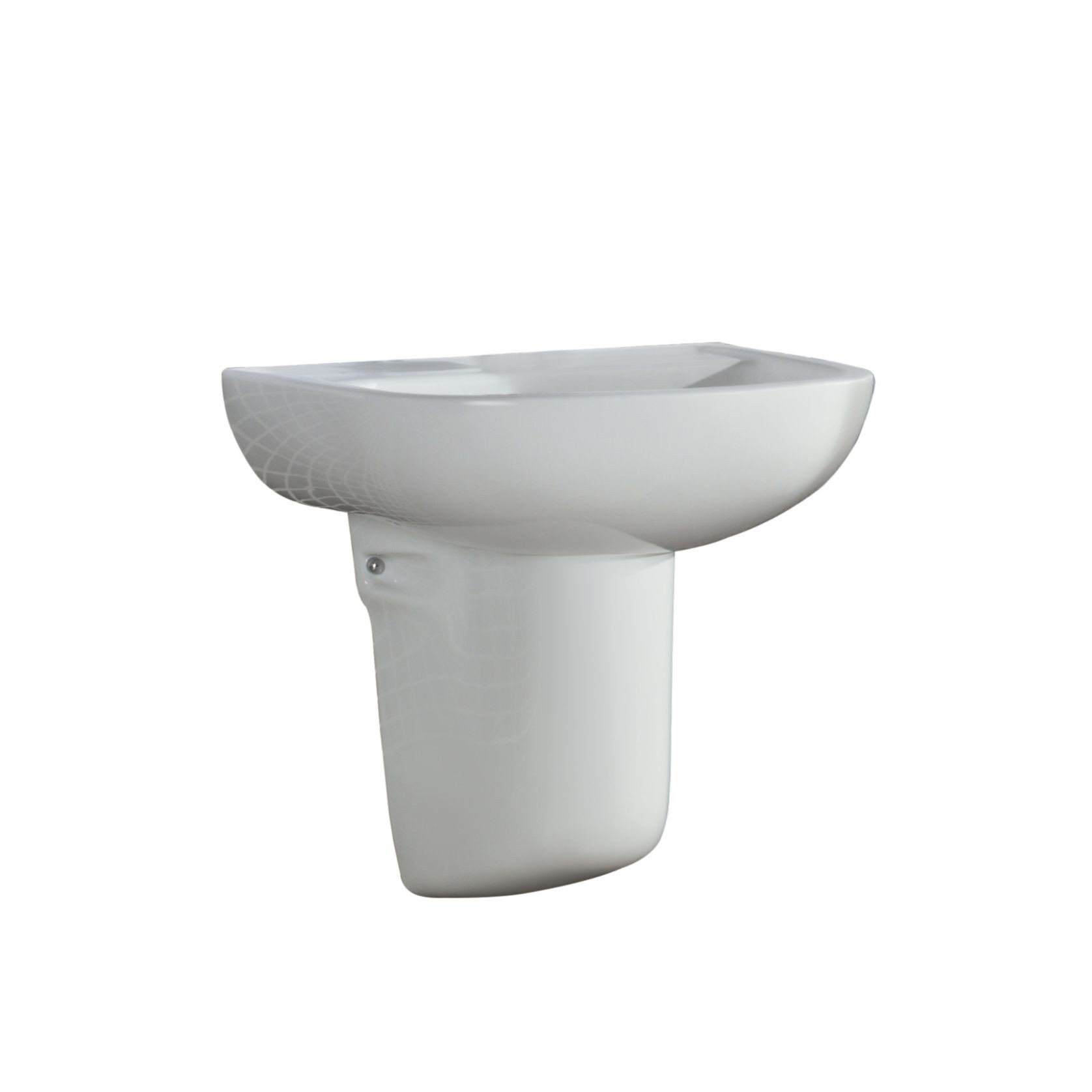

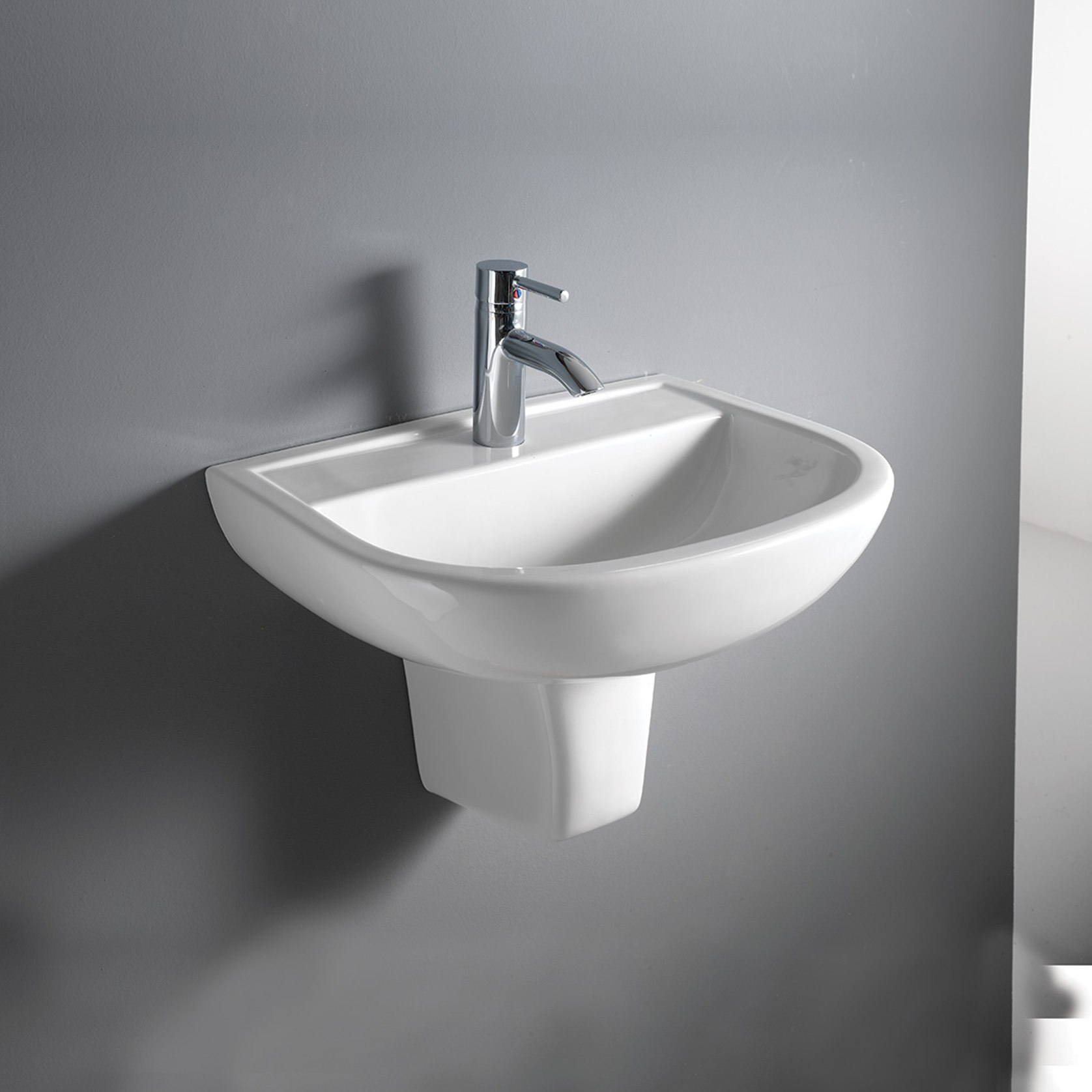

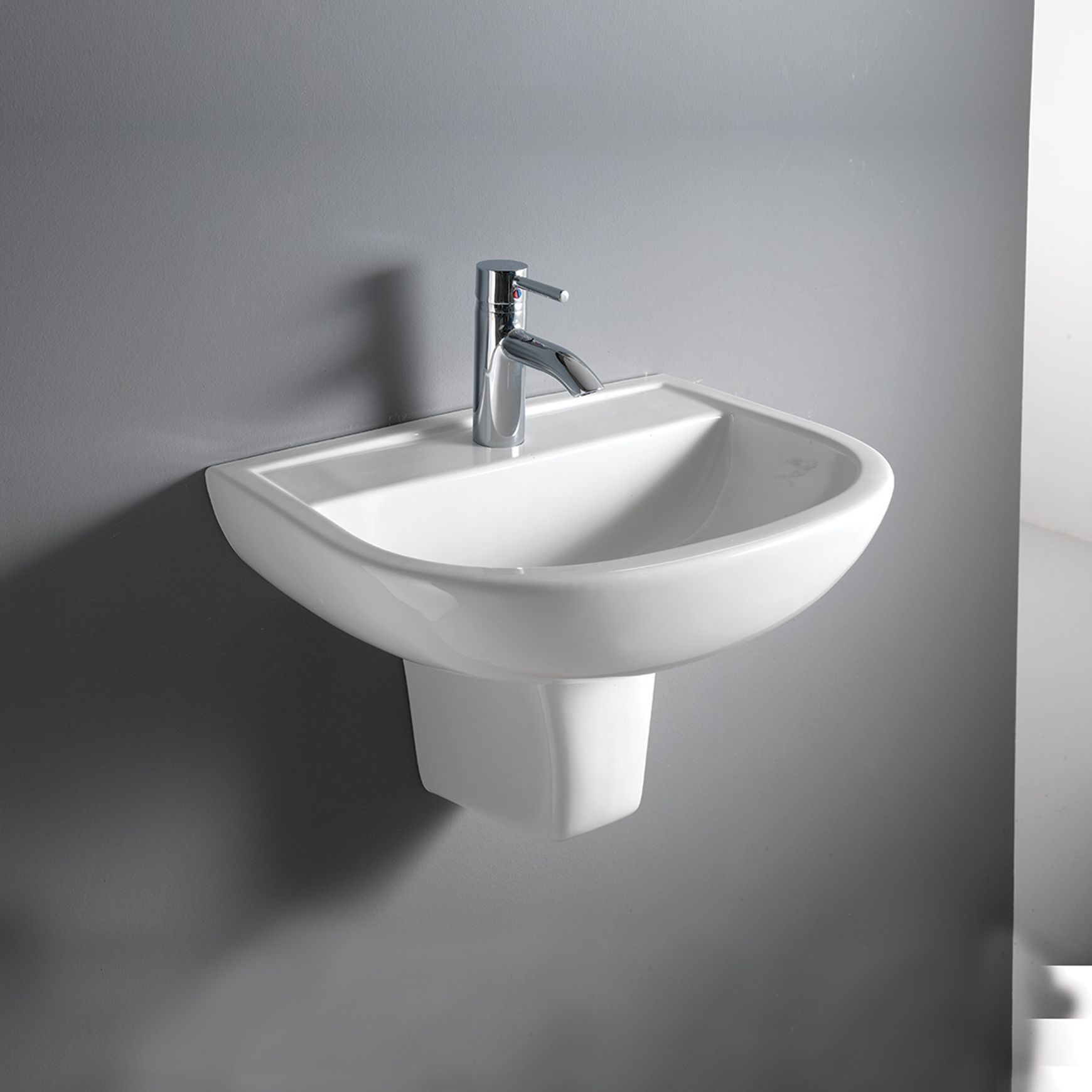

RAK Compact Medical Wall Hung Basin

The Compact Medical basin range has slender dimensions to suit healthcare facilities where no overflow is required and comes in options with or without a tap hole.

Compact medical is available in 450mm, 500mm, 550mm basins, 380mm and 500mm horizontal basins, and 510mm Integrated trap basin formats, all available with or without tap hole.

Details
  • Category
    Basins
  • Range
    Compact
  • Brand
    RAK Ceramics
  • Warranty
    1 week
General
  • Country of origin
    United Arab Emirates
  • Type of use
    Commercial and Residential
  • Installation
    Professional installation recommended
Specifications

Colour: Alpine white only.
Tap holes: No tap hole, 1 tap hole.
Waste outlet: For 32mm waste (not included). Refer separate literature for waste and trap options.

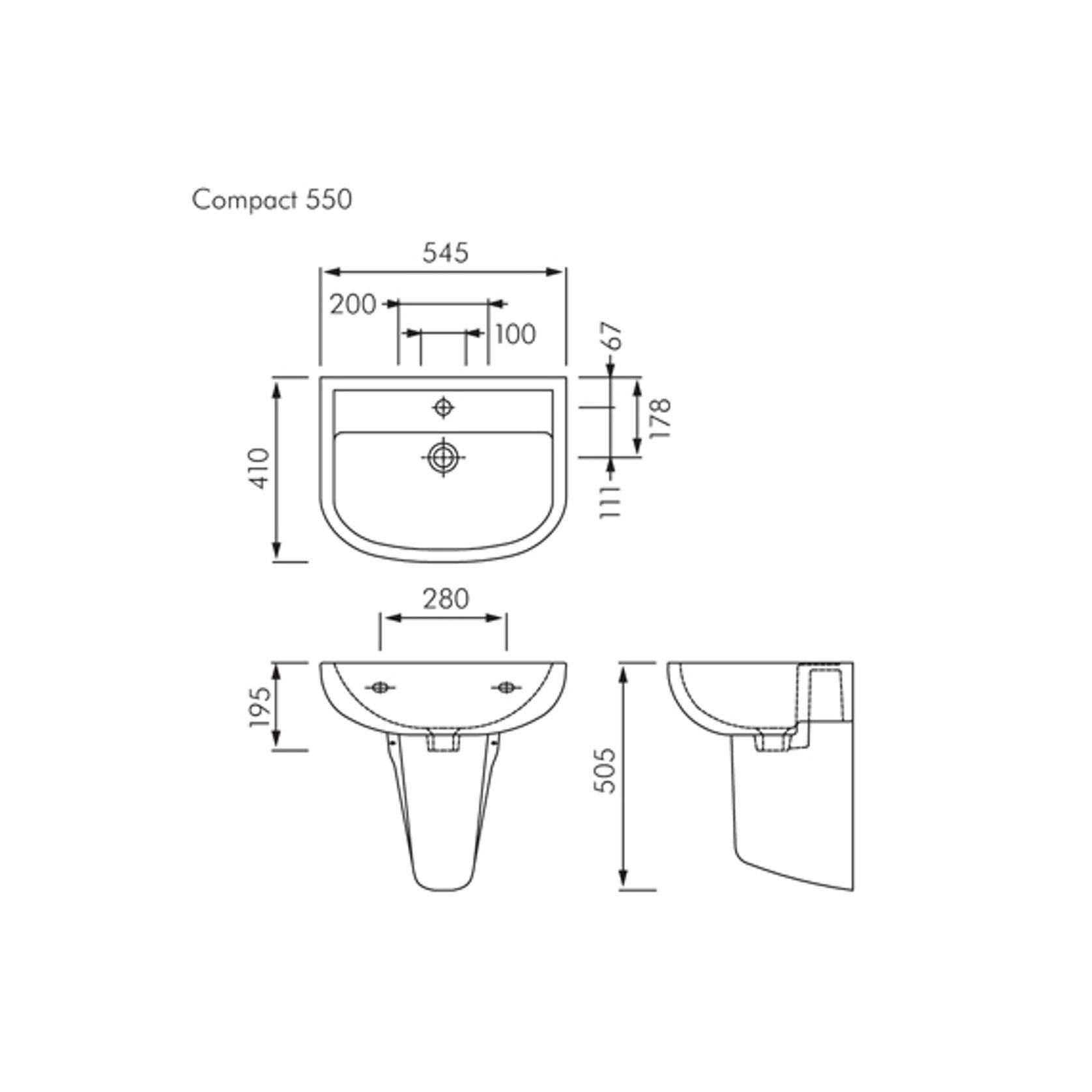

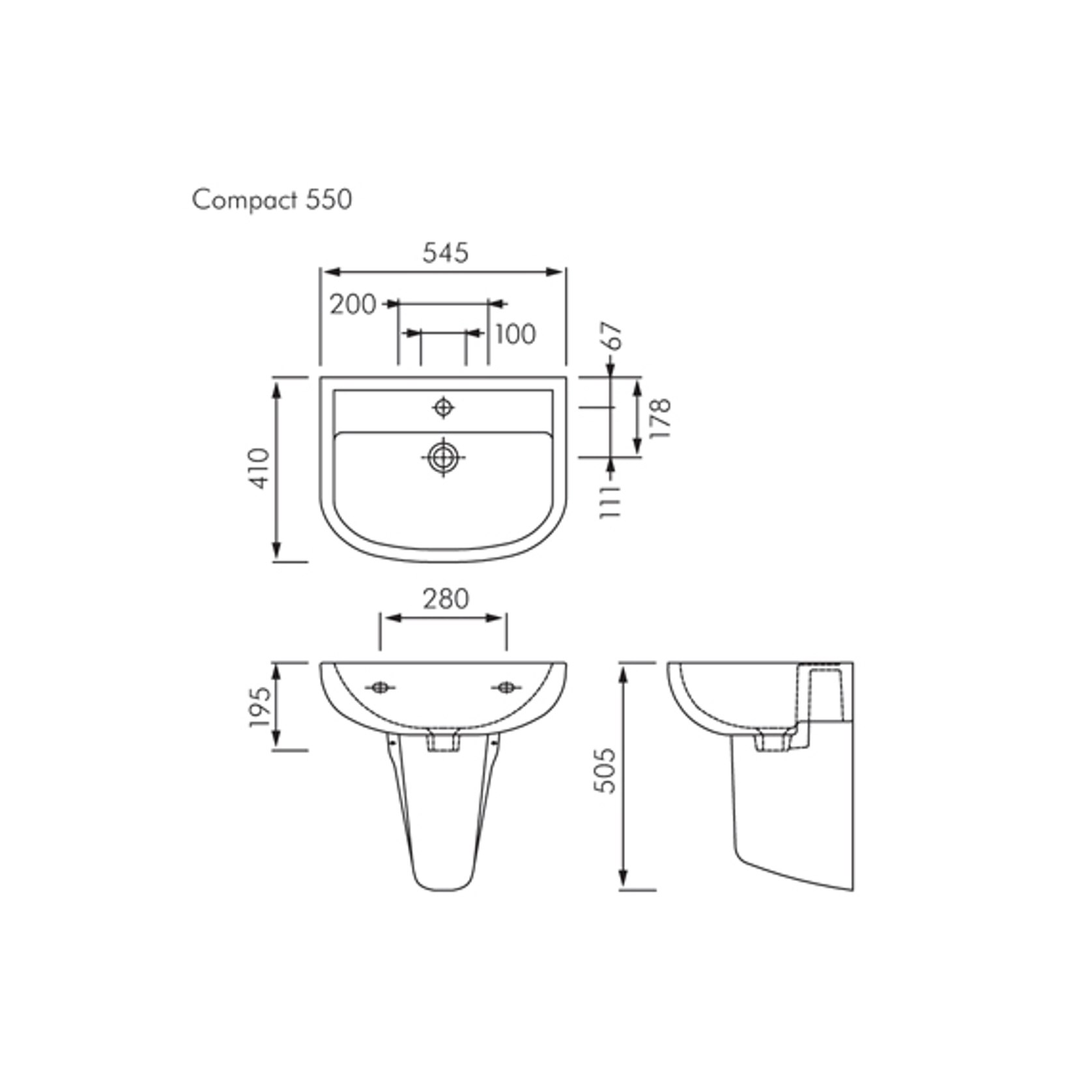

Basin size: Compact 550 Basin: 545 x 410mm, Compact 450 Basin: 450 x 360mm
Overflow: No overflow only.
Fixing: FS31SL wall fixing kit included.

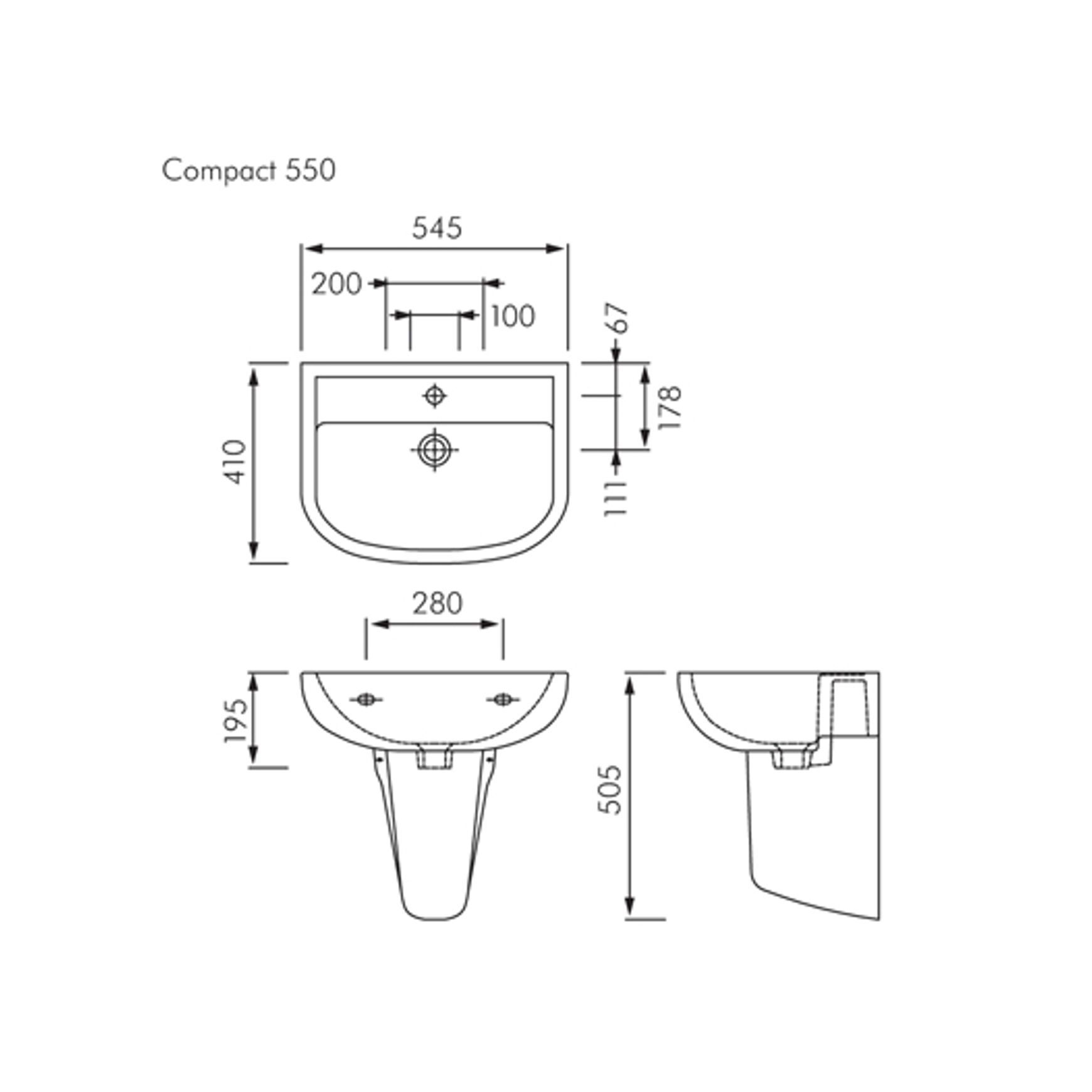

Dimensions: All dimensions in mm. Tolerance ±5% for below 200mm and ±3% above 200mm.

Models Available

RA-CO2100HP55 - RAK Compact 550 wall hung basin without overflow, no tap hole.
RA-CO2110HP55 - RAK Compact 550 wall hung basin without overflow, 1 tap hole.

RA-CO2110HP45 - RAK Compact 450 wall hung basin without overflow, 1 tap hole.
