RAWE Stonebox Gabion - Free Standing Walls

Website

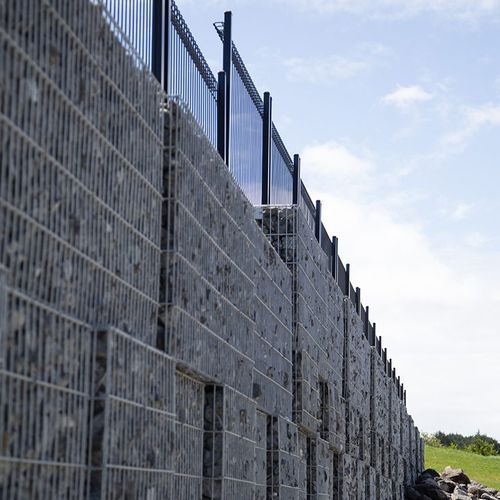

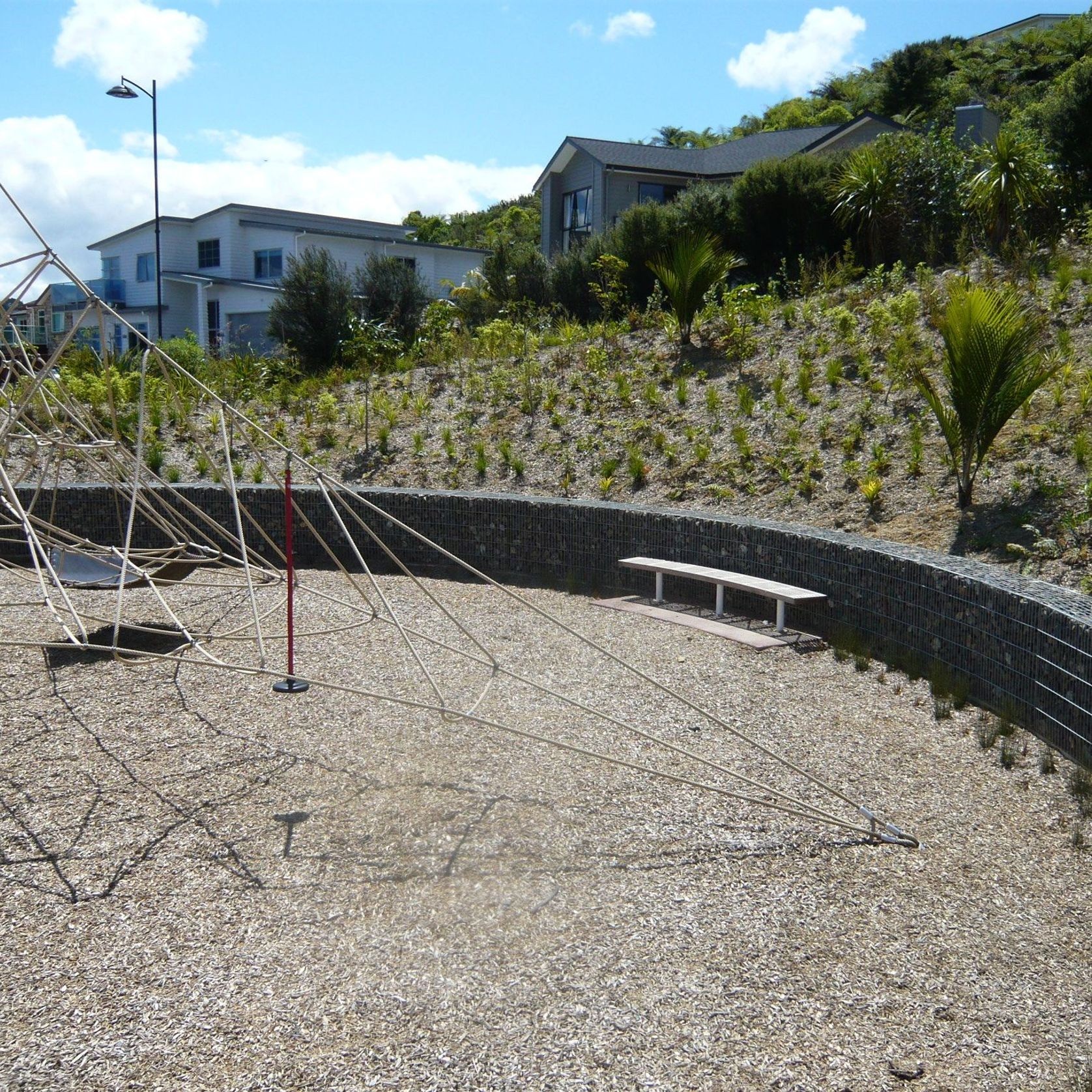

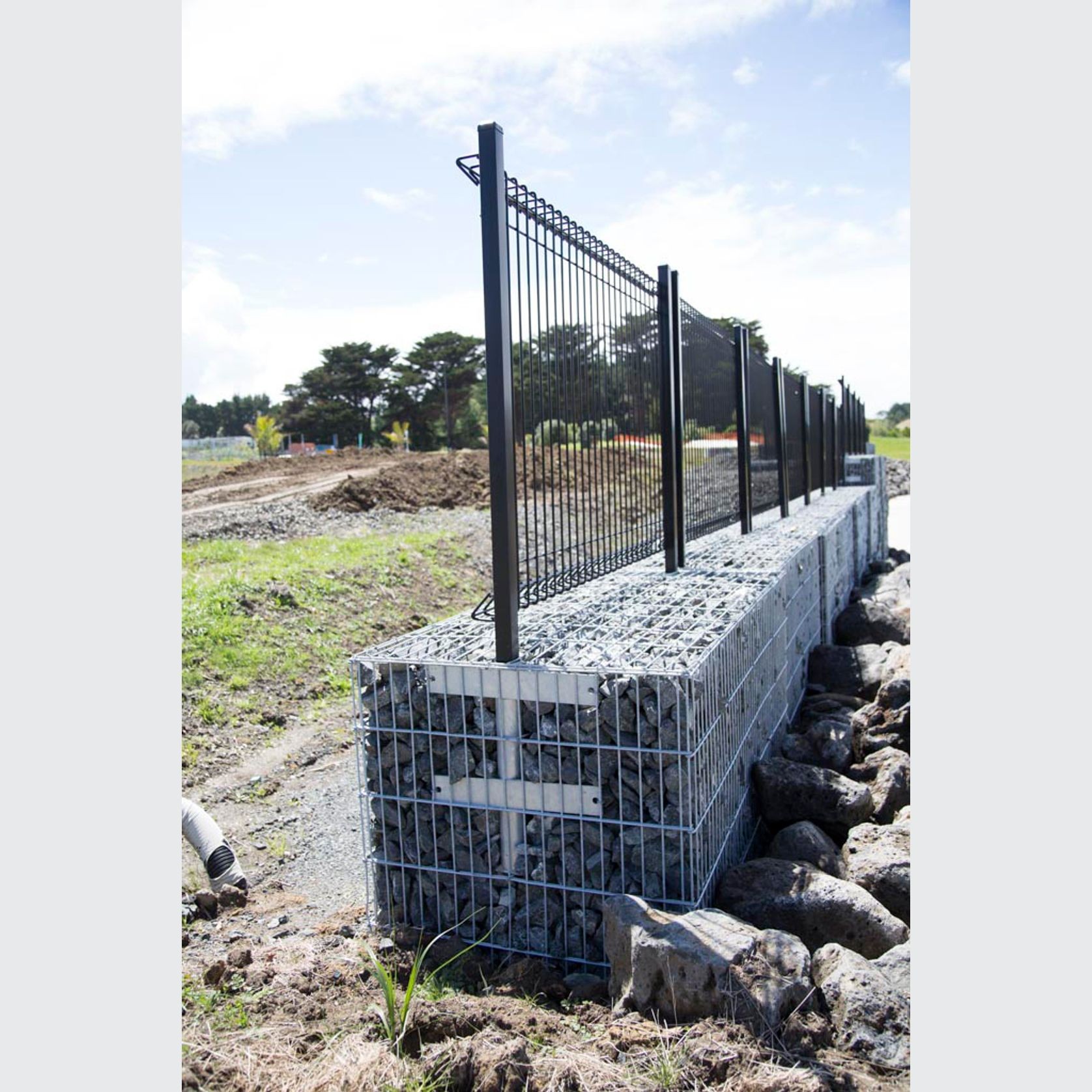

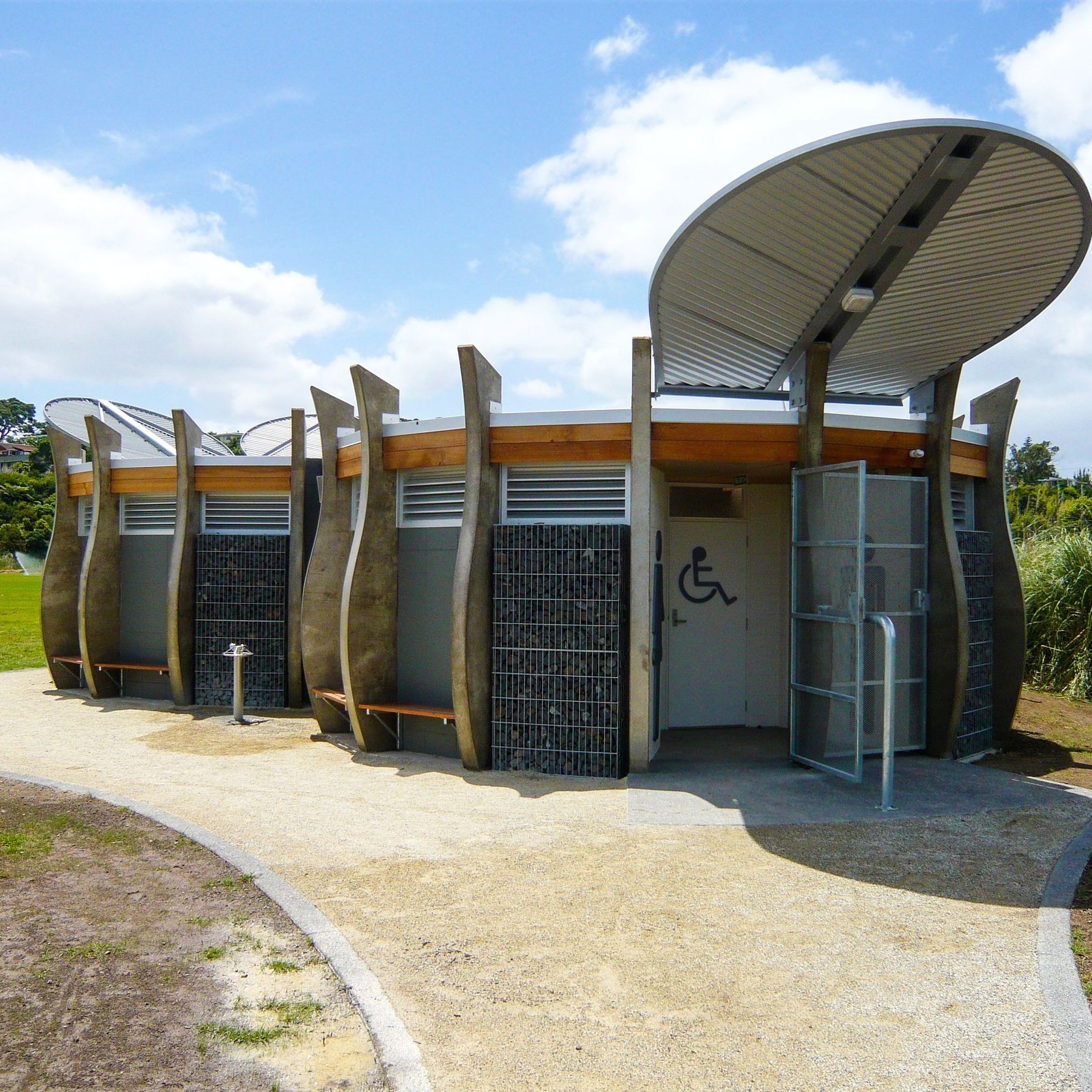

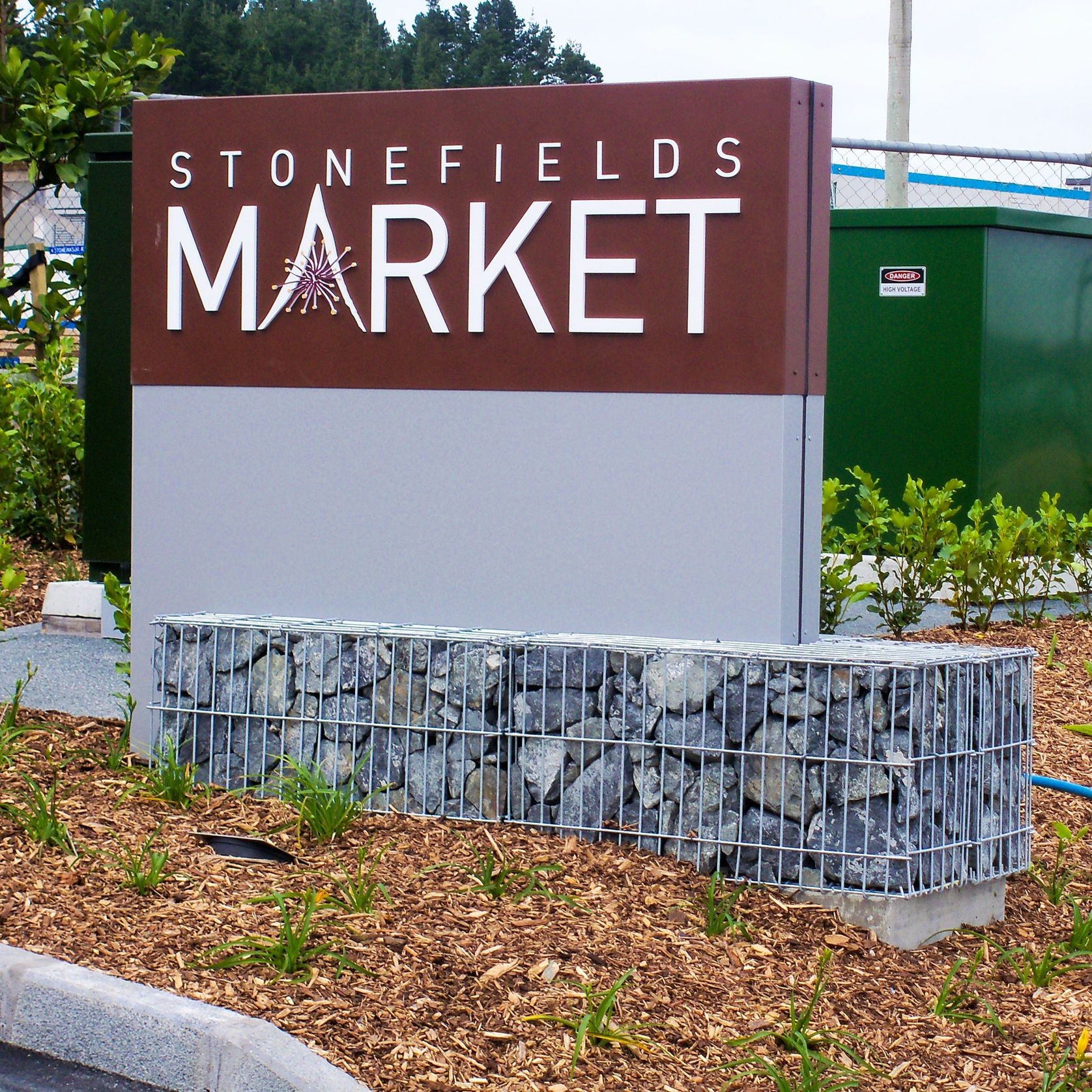

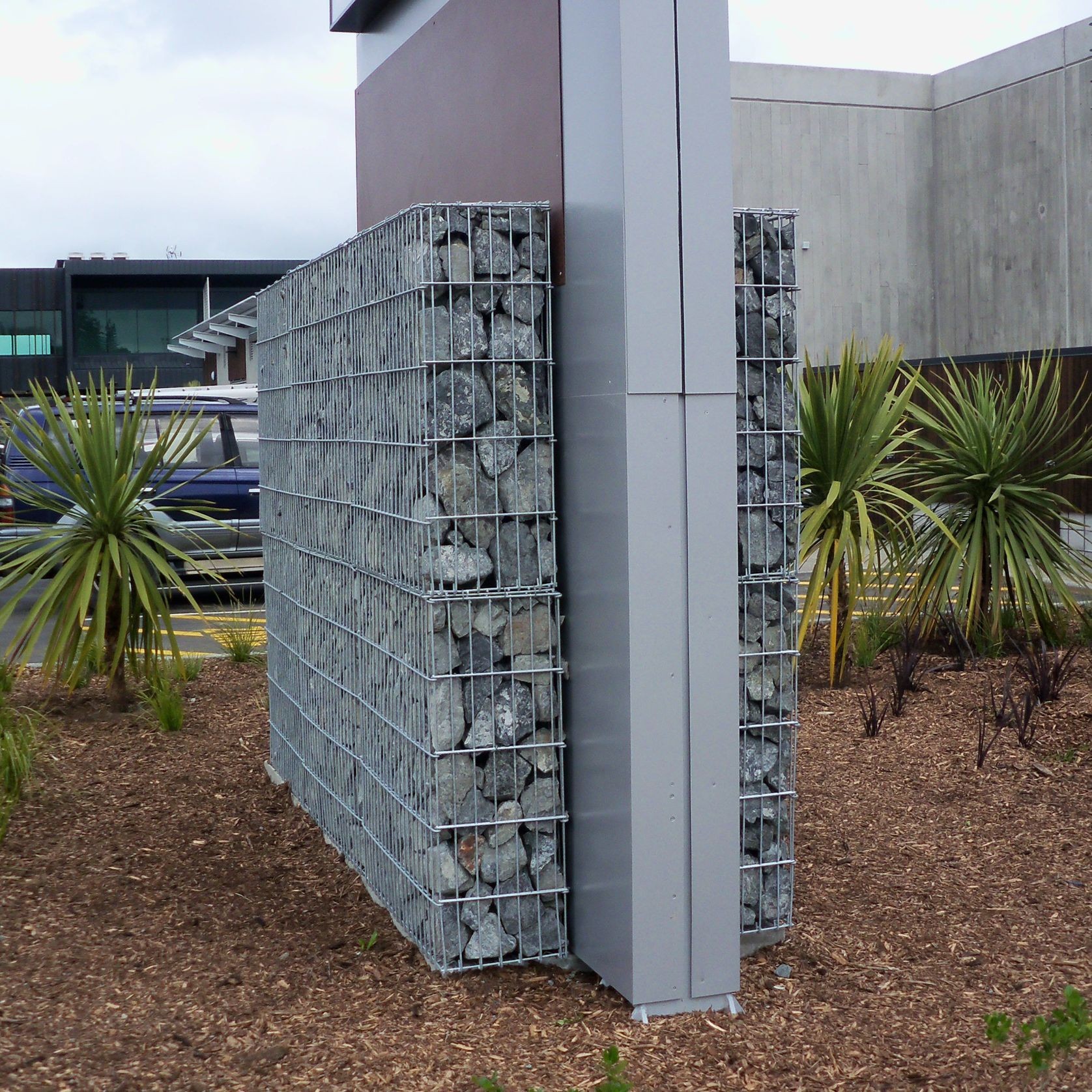

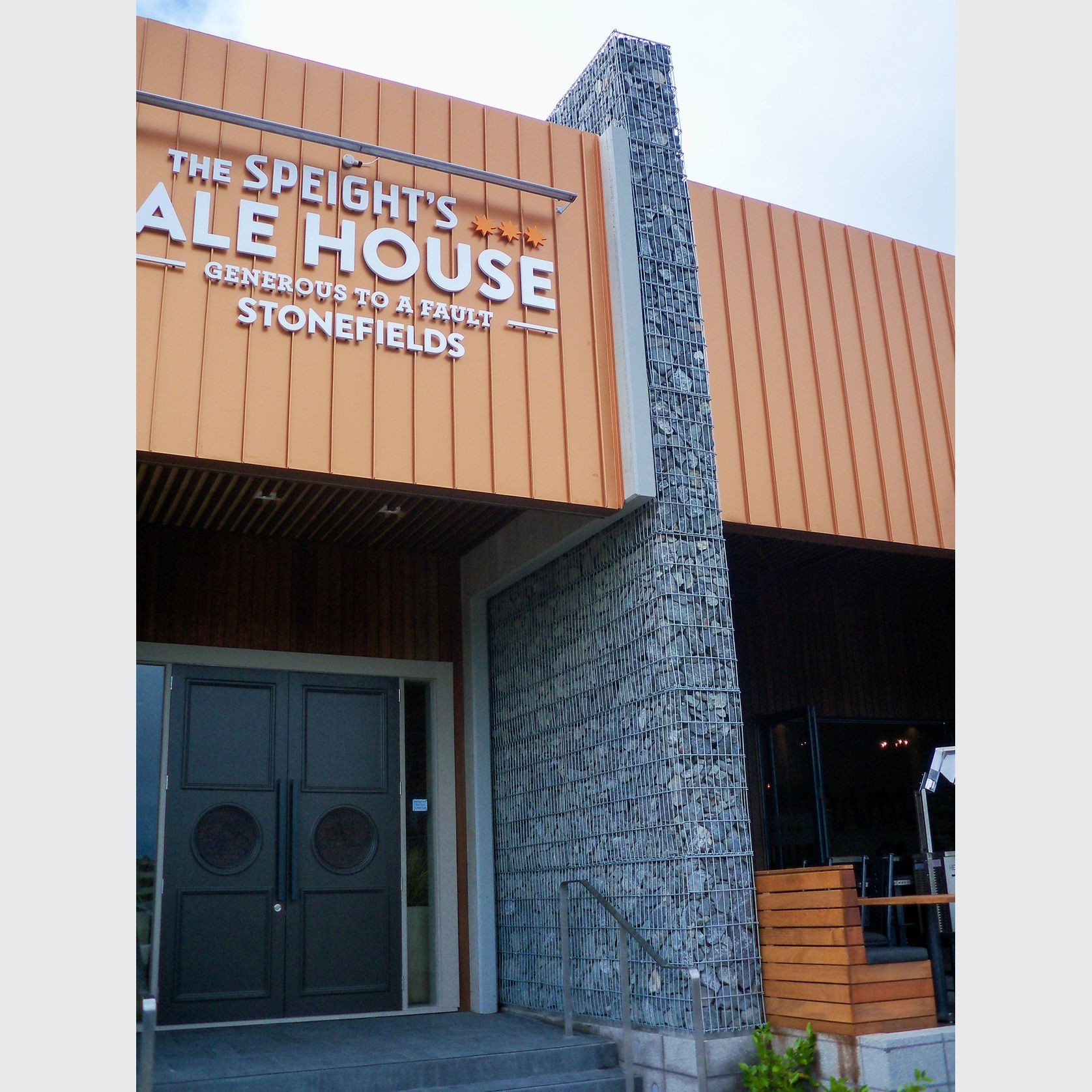

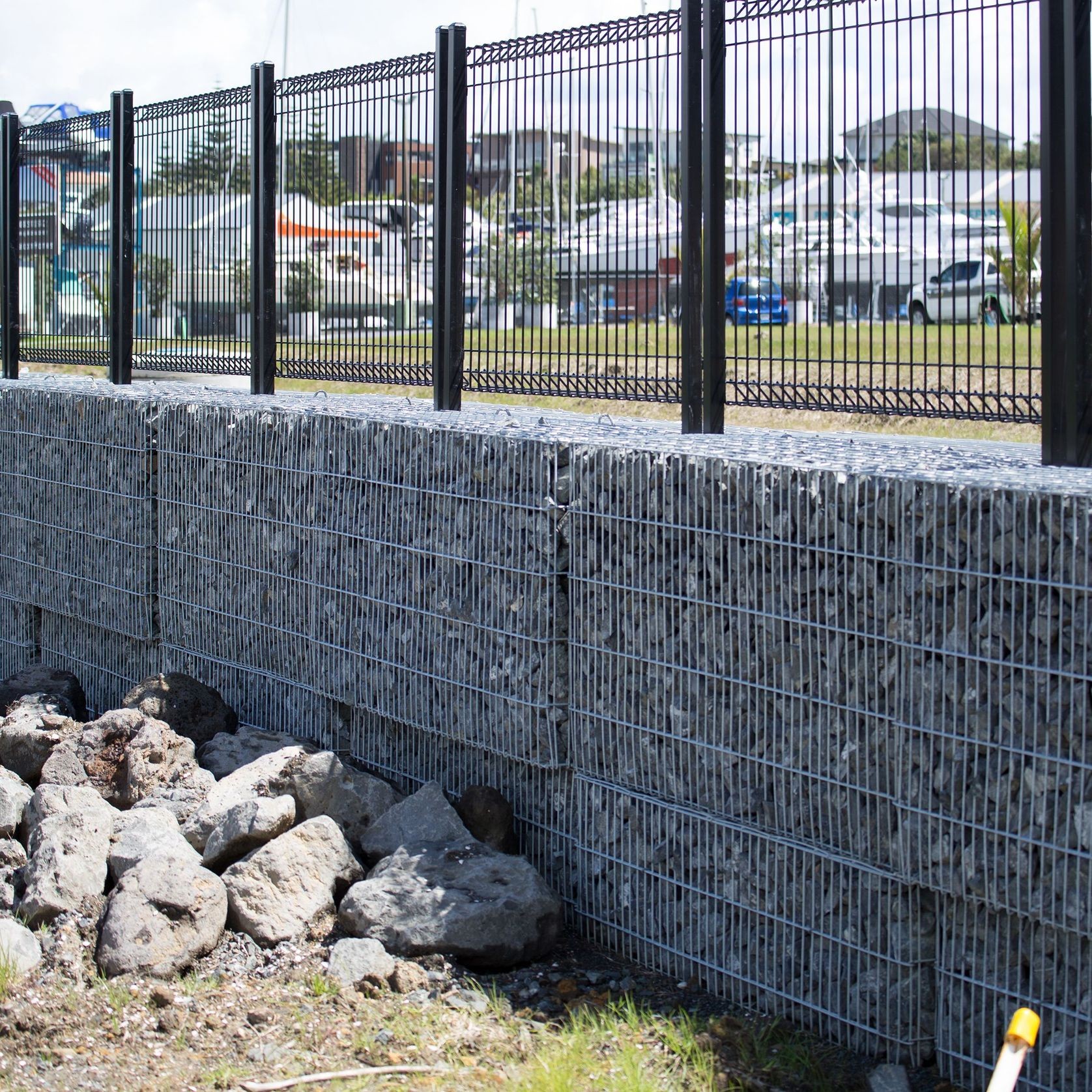

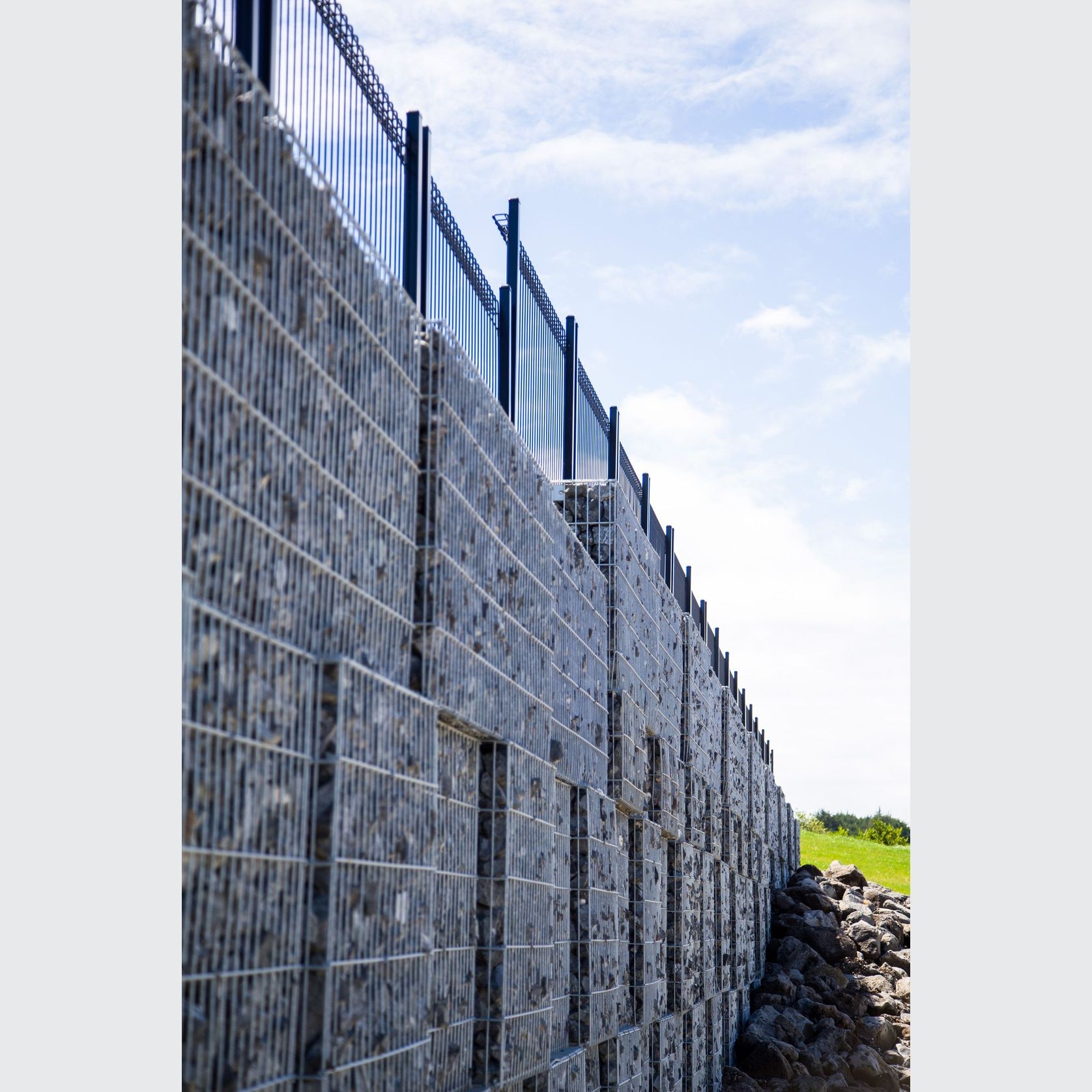

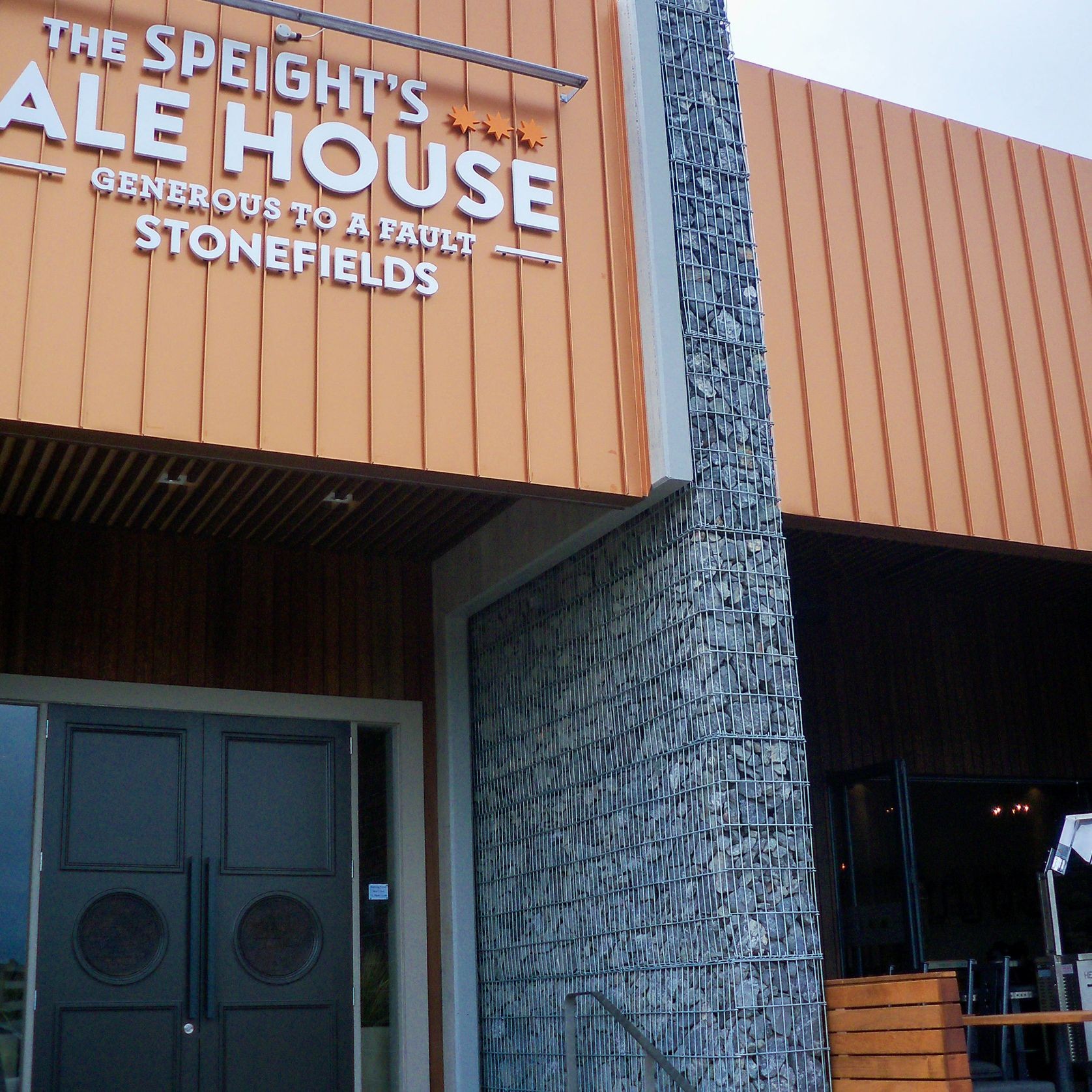

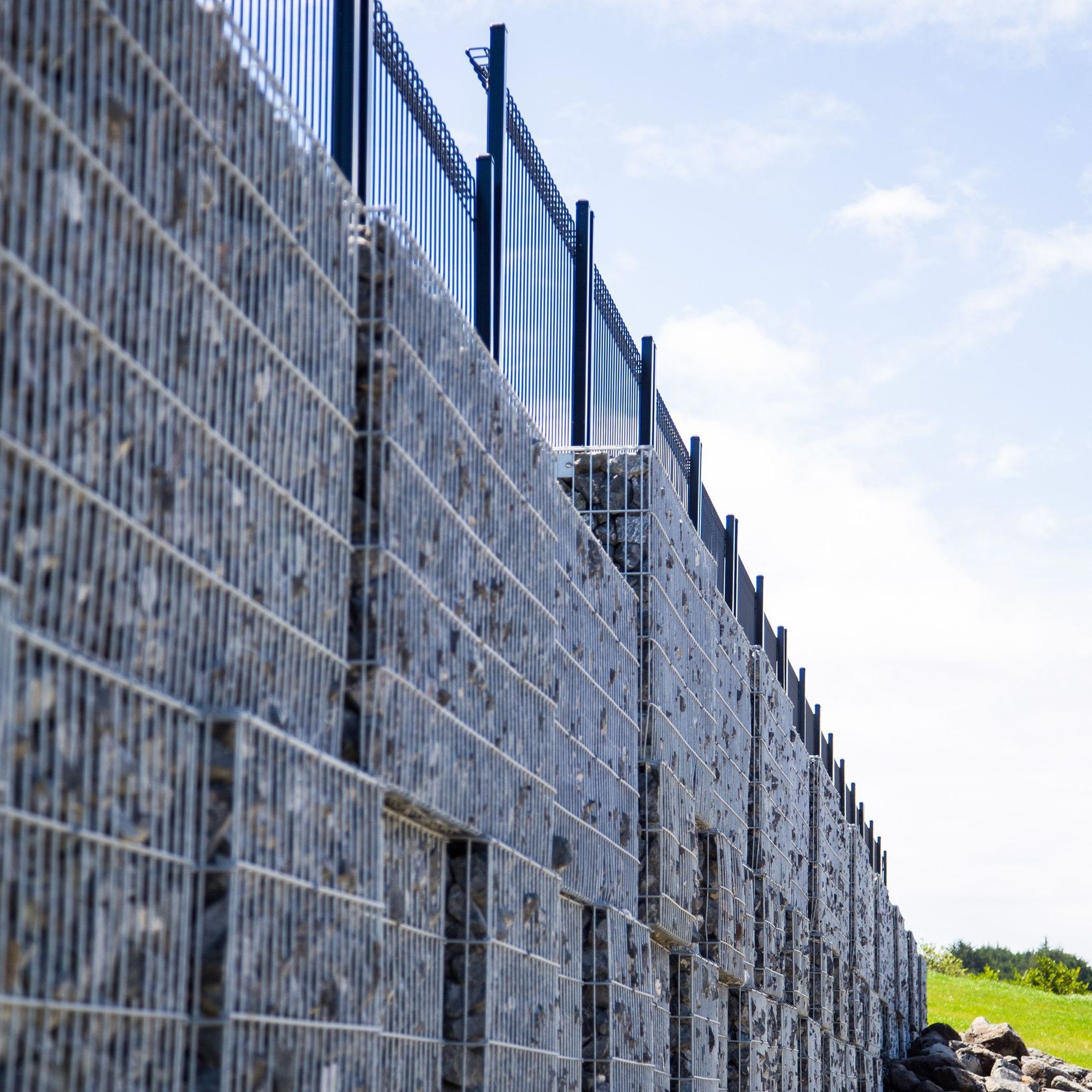

The Rawe Stonebox enables retaining walls, free standing walls, or stone facades to be quickly and architecturally constructed. Ideal for urban landscape application, the Rawe Stoneboxes are manufactured in a range of standard sizes and are constructed out of 6mm steel bar that is double hot-dip galvanised.

Note: A more industrial grade of Gabion is also available from Hynds branches nationwide.

The innovative Rawe Stonebox

  • Rawe Stoneboxes are usually filled in our factory
  • The special vibration and compaction machinery ensures that the stone fill material is accurately placed and compacted
  • Stone fill slumping and deformation is eliminated
  • The design and strength of the individual components ensure form stability
  • W e supply the Stoneboxes stacked on pallets, making delivery problem free
  • The integrated lifting system means that these filled, Stoneboxes can be easily lifted and maneuvered into position
  • Standard construction equipment (diggers, hiabs, etc) is all that is required to lift the Stoneboxes into position
  • Can be supplied unfilled

Technical Data:

  • Stonebox components are manufactured out of 6mm steel bar
  • The standard mesh pattern is constructed with a single vertical and a double horizontal steel bar
  • This mesh configuration provides a 5cm by 20cm pattern
  • All components are fabricated and welded before they are double, hot-dip galvanized
  • The double galvanizing process complies with the stringent German standard DIN-EN-ISO 1461
  • The resulting corrosion protection layer provides protection for a minimum of 55 years at A2 exposure classification
  • Noise barrier options can also be provided
  • Various types of stone fillings available such as Greywacke, Basalt or Kaiaua Pebble
