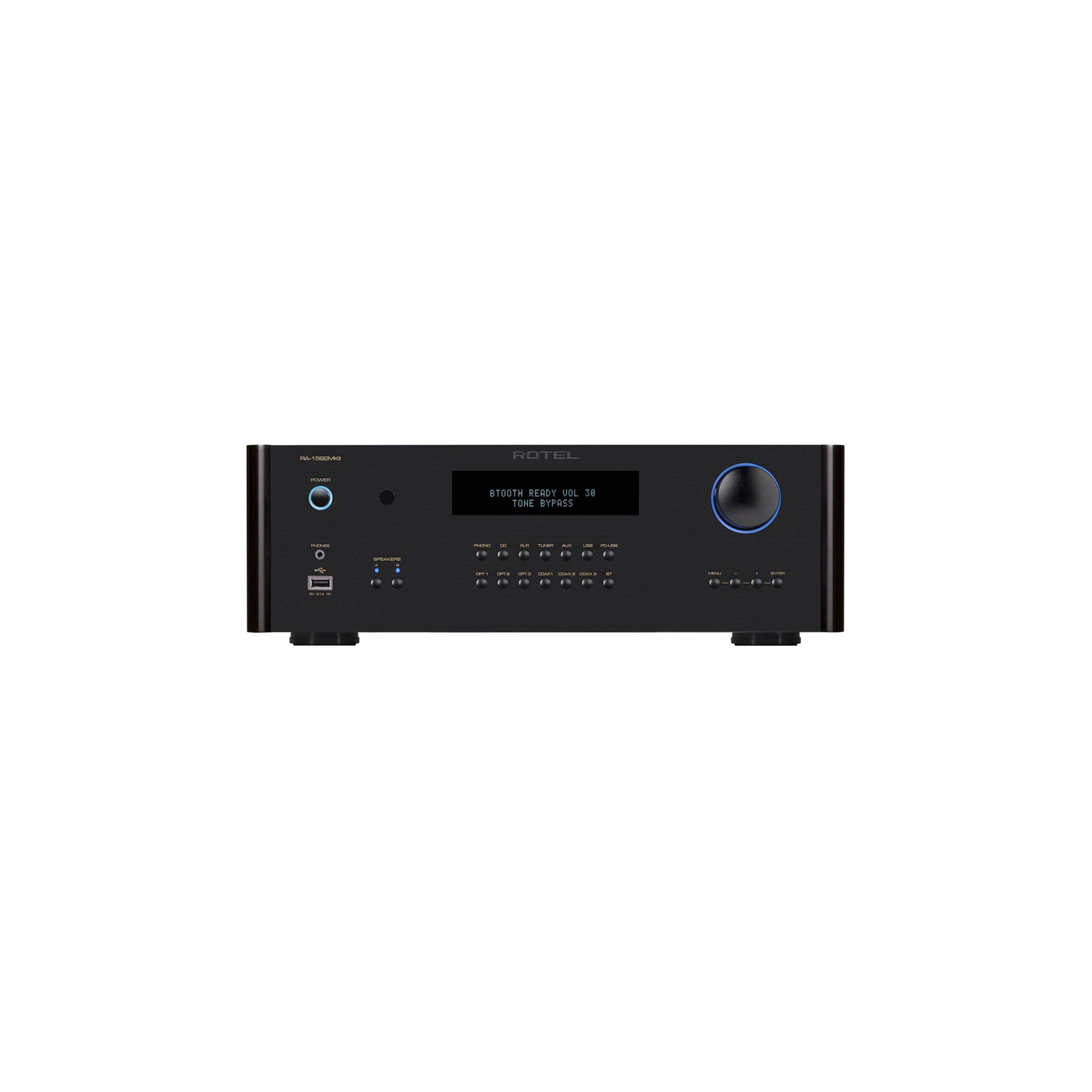

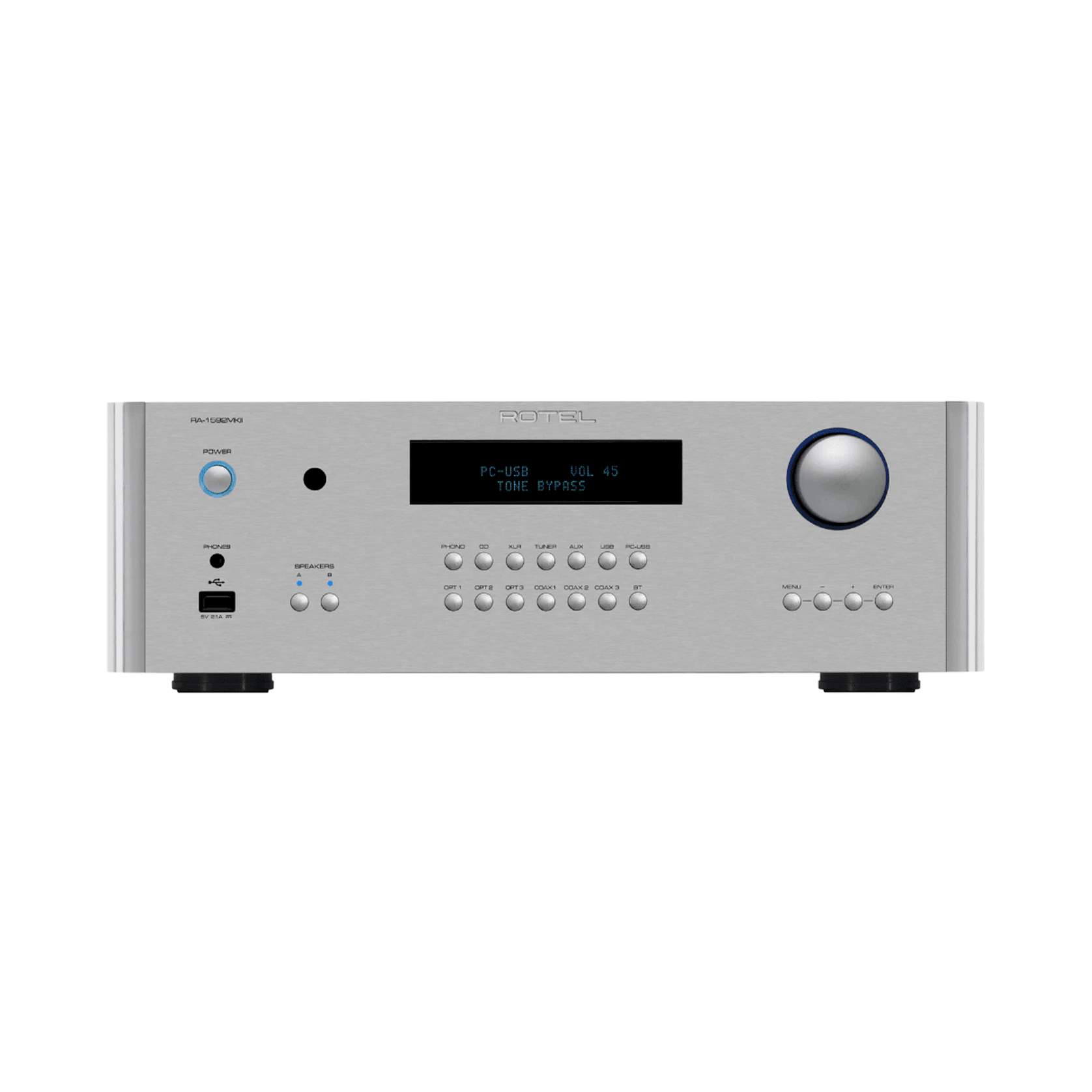

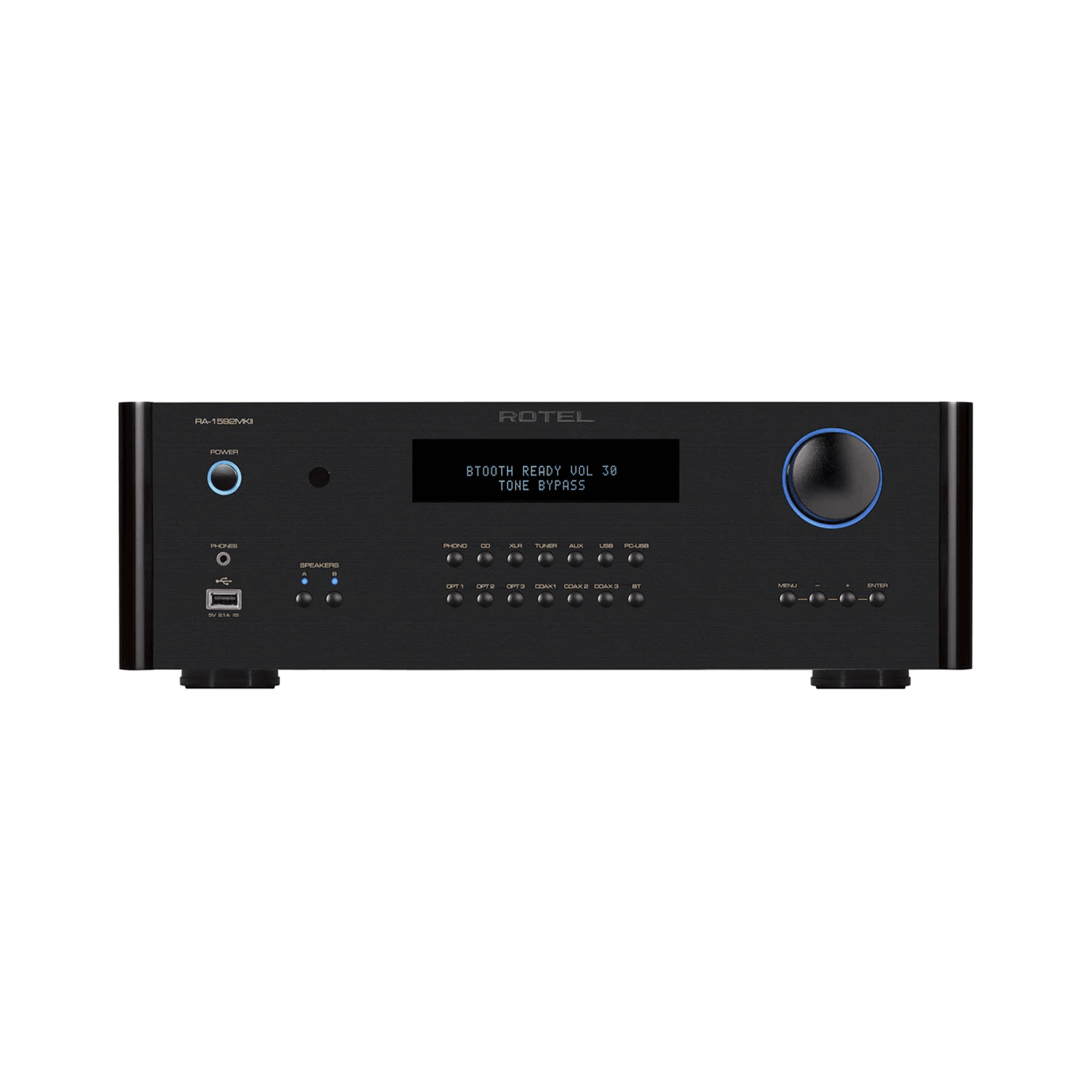

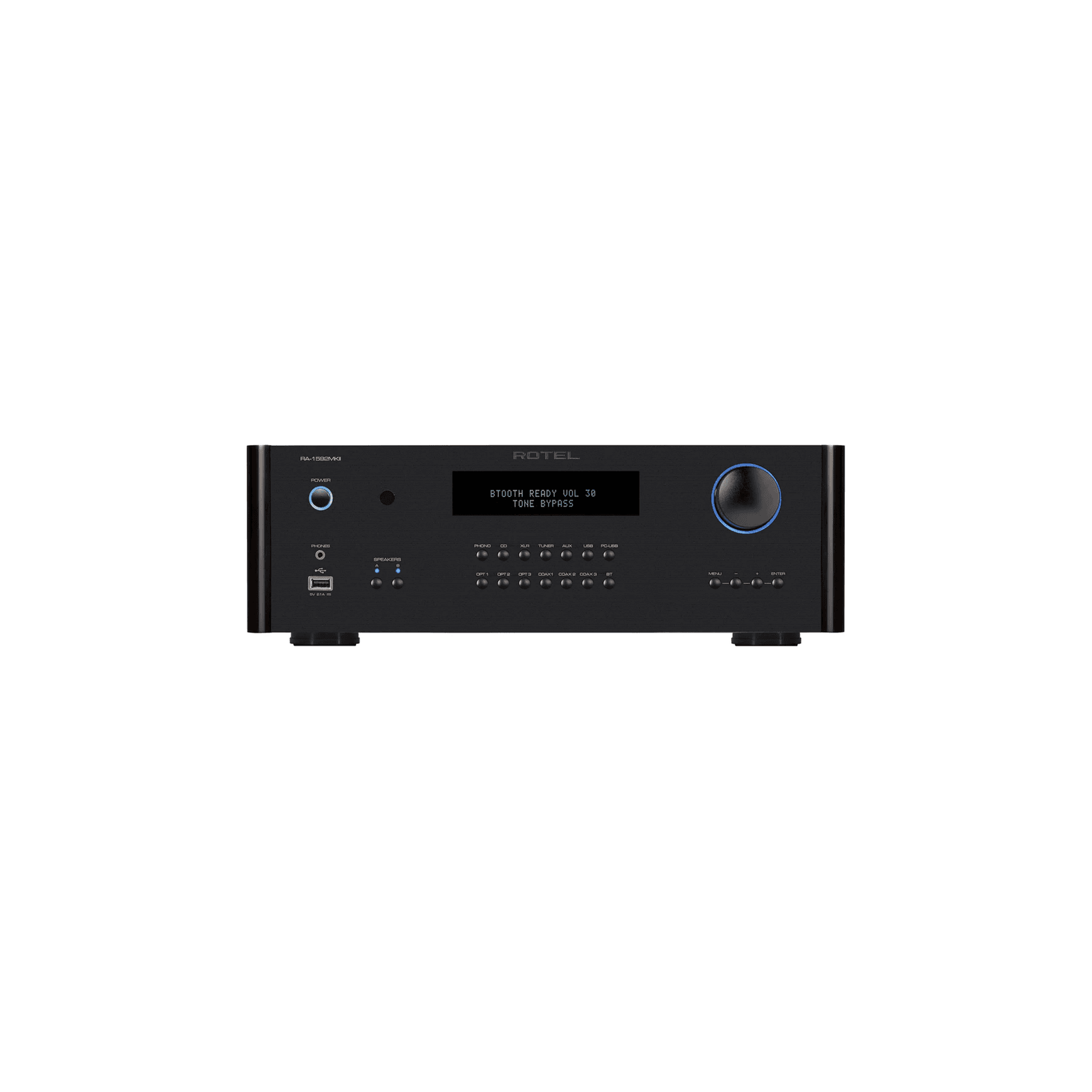

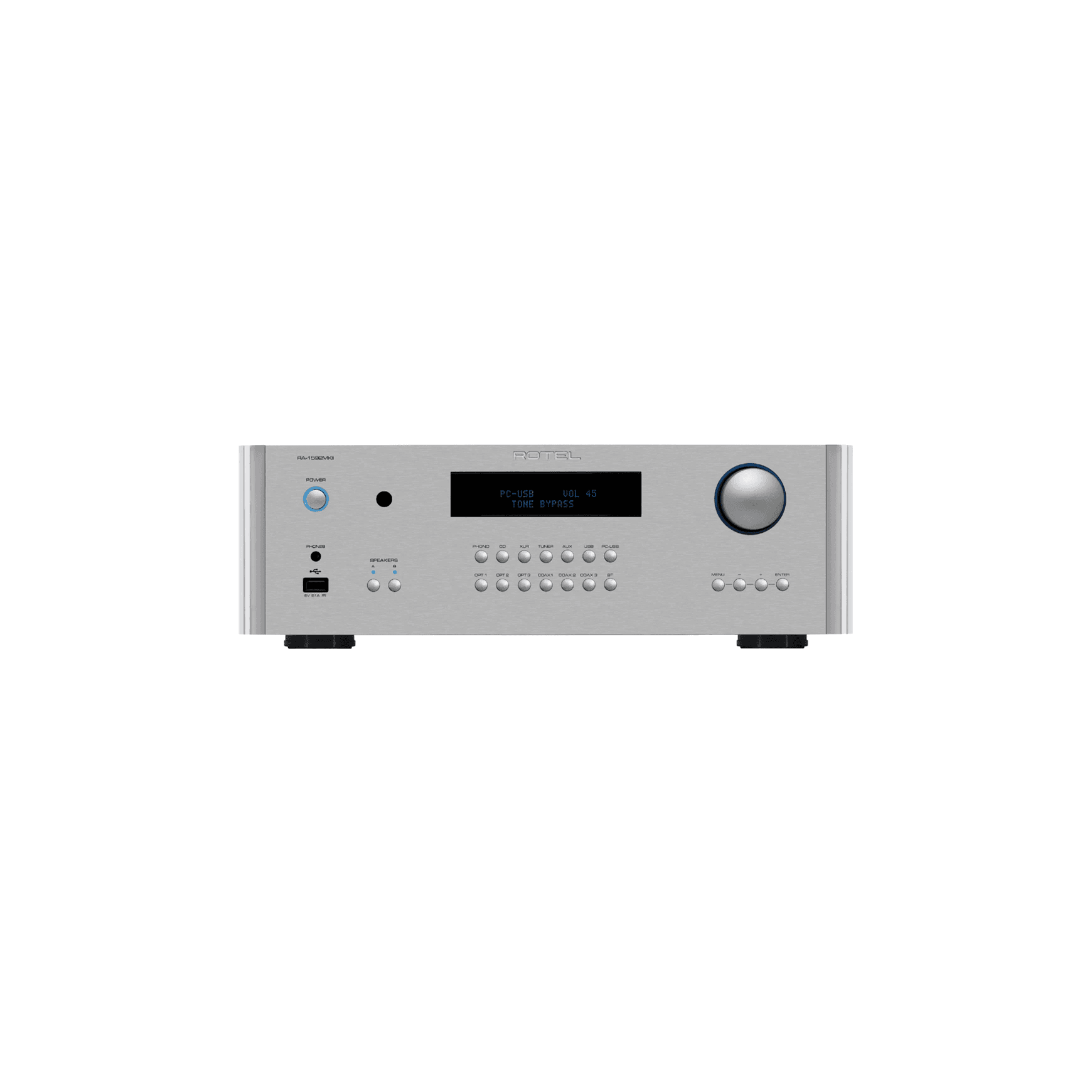

Rotel RA-1592 MK II Integrated Amplifier

CONTINUOUS POWER OUTPUT

200W/Ch (All channels driven, 8Ω)

TOTAL HARMONIC DISTORTION (THD)

(20Hz–20kHz) < 0.008%

FREQUENCY RESPONSE

• Line Level Inputs: 10Hz - 100kHz ±0.5dB
• Digital Inputs: 10Hz - 90kHz ±2dB
• PhoNo Input: 20Hz - 20kHz ±0.5dB

S/N RATIO (IHF "A" Weighted)

• Line Level Inputs: 103dB
• Digital Inputs: 102dB
• PhoNo Input: 80dB

DAMPING FACTOR

600

INPUT SENSITIVITY

• Line Level Inputs (RCA): 340mV
• Line Level Inputs (XLR): 540mV
• PhoNo Input (MM): 5.2mV

INPUT IMPEDANCE

• Line Level Inputs (RCA): 100kΩ
• Line Level Inputs (XLR): 100kΩ
• Digital Inputs: 75Ω
• PhoNo Input (MM): 47kΩ

INPUT OVERLOAD

• Line Level Inputs (RCA): 3.5V
• Line Level Inputs (XLR): 5.5V
• PhoNo Input: 52mV

PREOUT LEVEL

1.9V

OUTPUT IMPEDANCE

100Ω

TONE CONTROLS

±12dB at 100Hz / 10kHz

COAX/OPTICAL DIGITAL INPUT SIGNALS

LPCM (Up to 24-bit/192kHz)

PC-USB

• USB Audio Class 1 (up to 24-bit /96 k Hz)
• USB Audio Class 2 (up to 32-bit/384 k Hz)
• DSD and DoP support
• MQA and MQA Studio (up to 24-bit / 384k Hz )

DIMENSIONS (W × H × D)

• 431 × 144 × 425mm
• 17" × 5.7" × 16"

FRONT PANEL HEIGHT

3U / 132.6mm (5.25")

POWER REQUIREMENTS

230V, 50Hz POWER CONSUMPTION

500W

STANDBY POWER CONSUMPTION

<0.5W

NET WEIGHT

17.63kg (37lbs.)

BTU RATING

1239 BTU/h

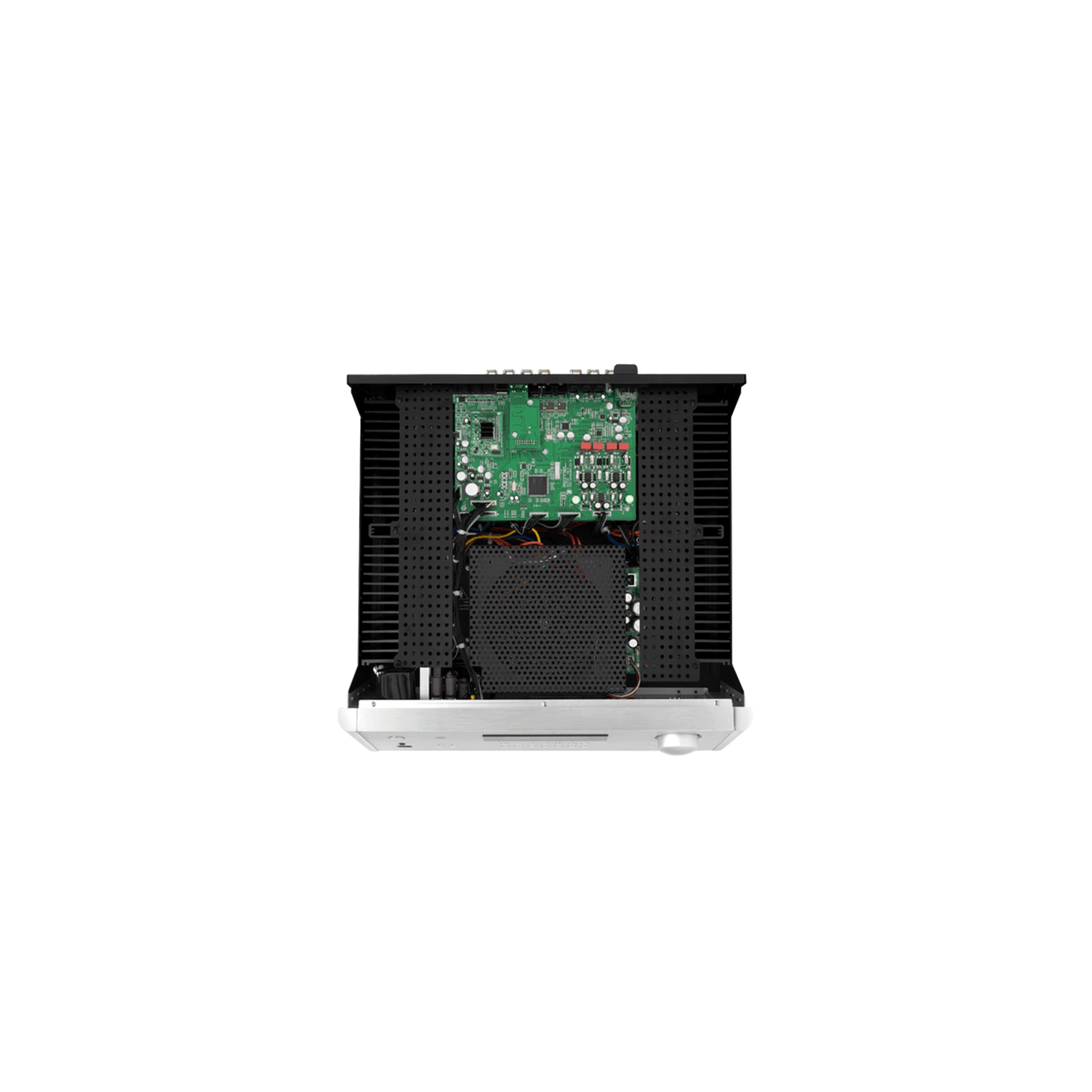

The RA-1592MKII Integrated Amplifier includes circuit design inNovations, optimisation of audio signal paths and updates to critical power supply components delivering a breathtaking performance with dynamic rhythm and timing.

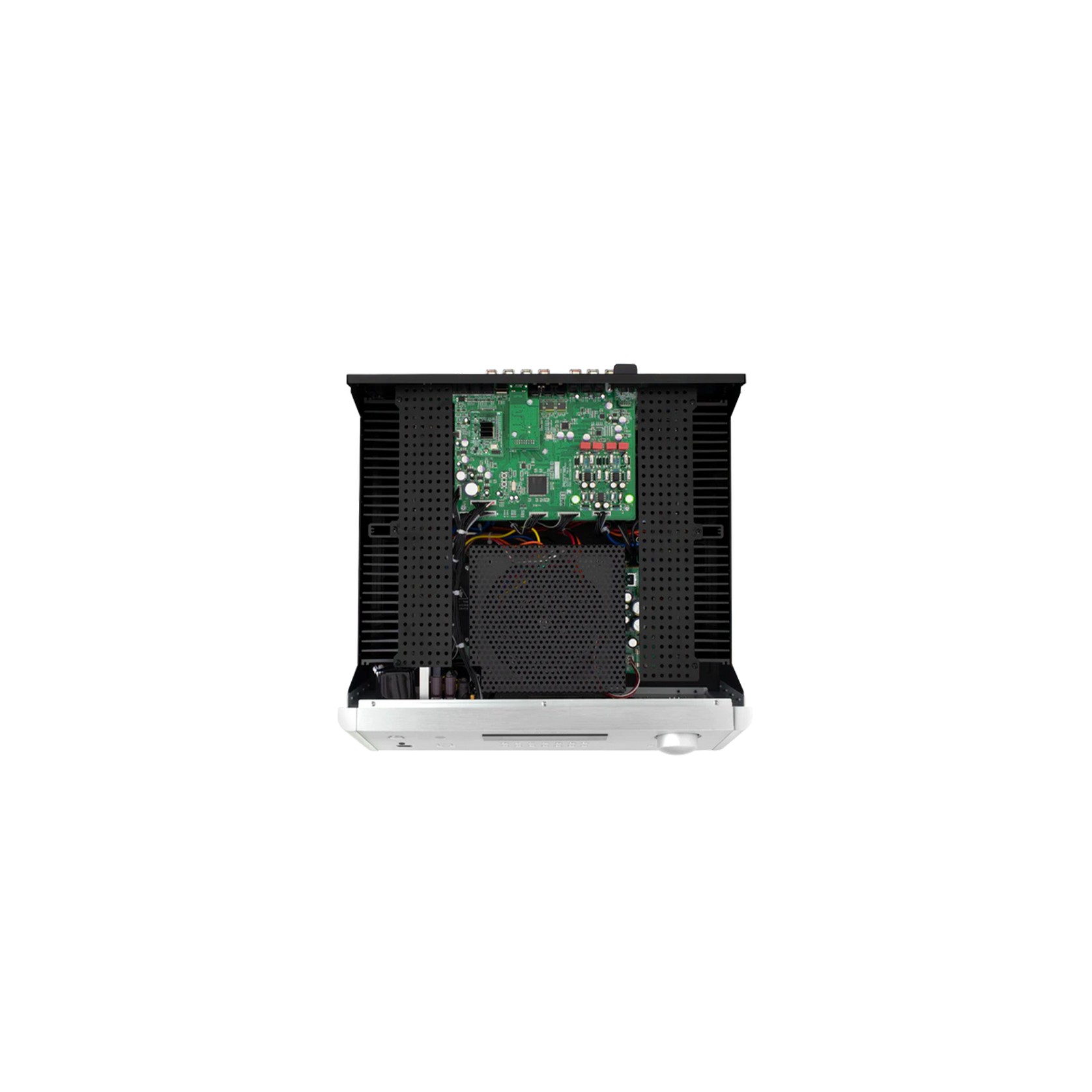

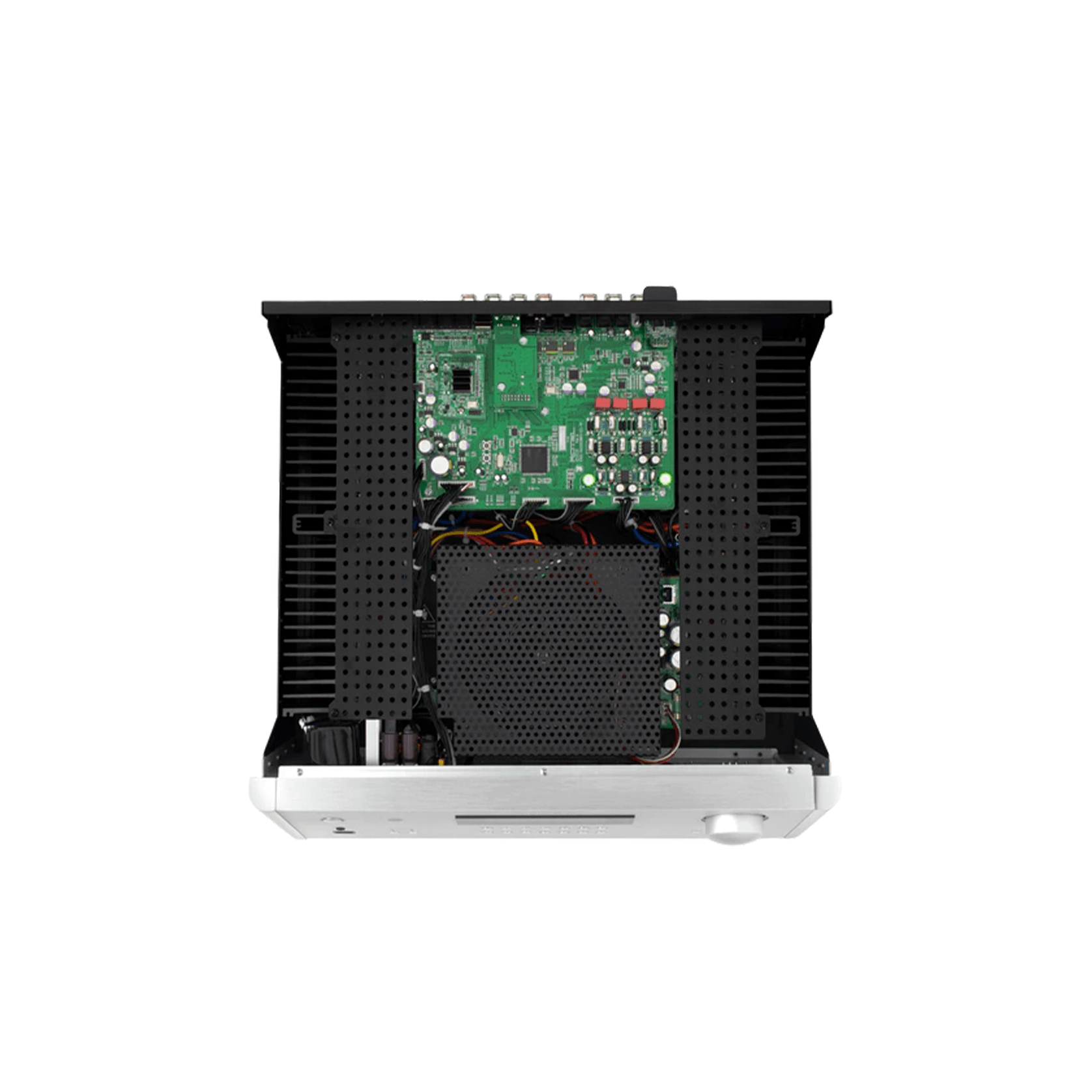

Utilising Rotel’s best-in-class preamplifier topology and award-winning power amplifier techNology, the RA-1592MKII is a No-compromise, size-efficient, all-in-one integrated audio product. The RA-1592MKII delivers 200 Watts per channel into 8 ohms powered by Rotel’s in-house manufactured toroidal transformer feeding an array of slit-foil capacitors for rich, deep, controlled, bass energy.

The RA-1592MKII supports your favourite sources including Analogue, XLR, Digital, aptX™ and AAC wireless Bluetooth, PC-USB supporting MQA and 32-bit/384kHz PCM, and Moving Magnet PhoNo stage. Digital to Analog conversion utilises a Texas Instruments premium DAC with precisely tuned output filter circuits delivering unprecedented acoustic detail, wide sound stage and exacting positioning.

The RA-1592KII is certified Roon Tested delivering the best experience using Roon software so you can just enjoy the music.

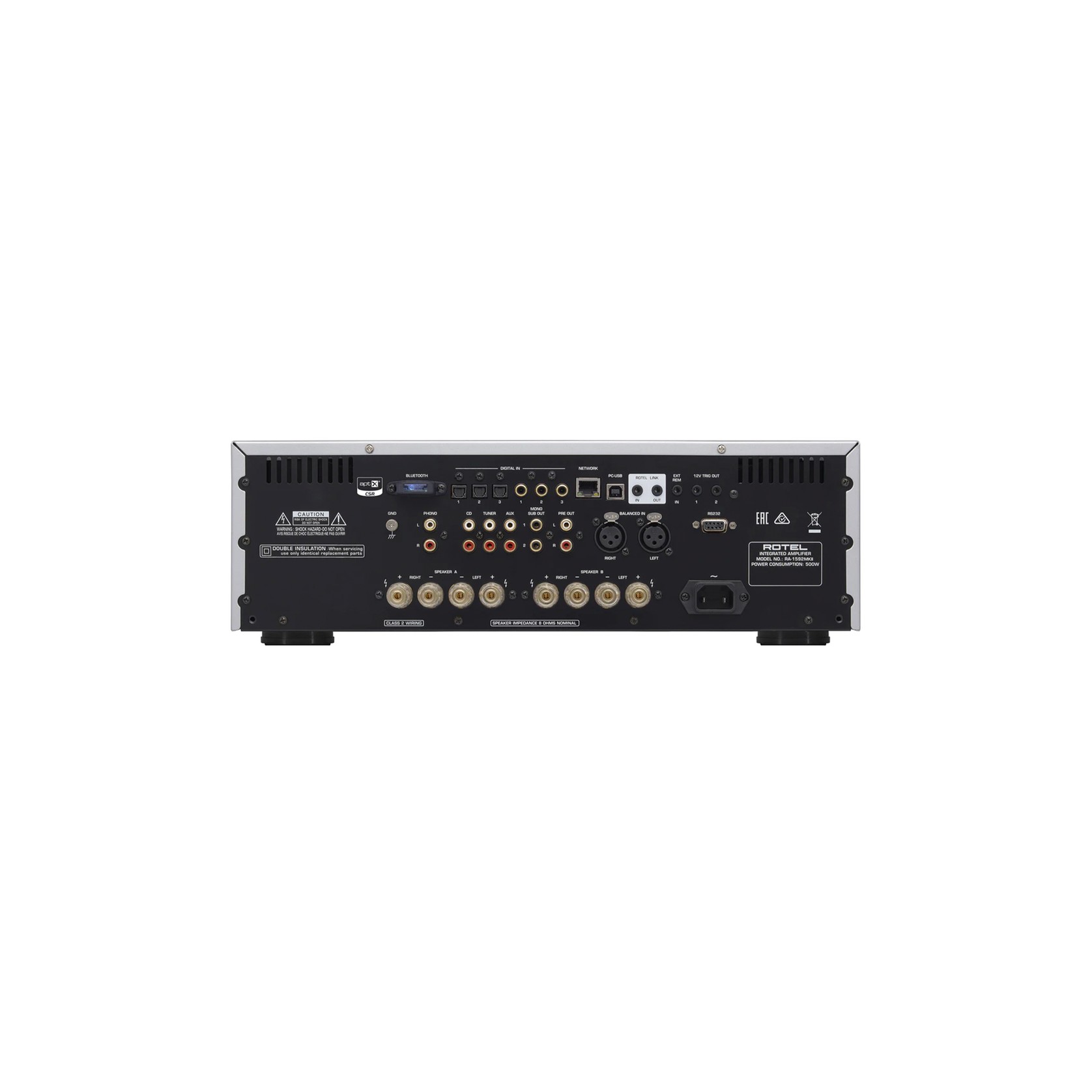

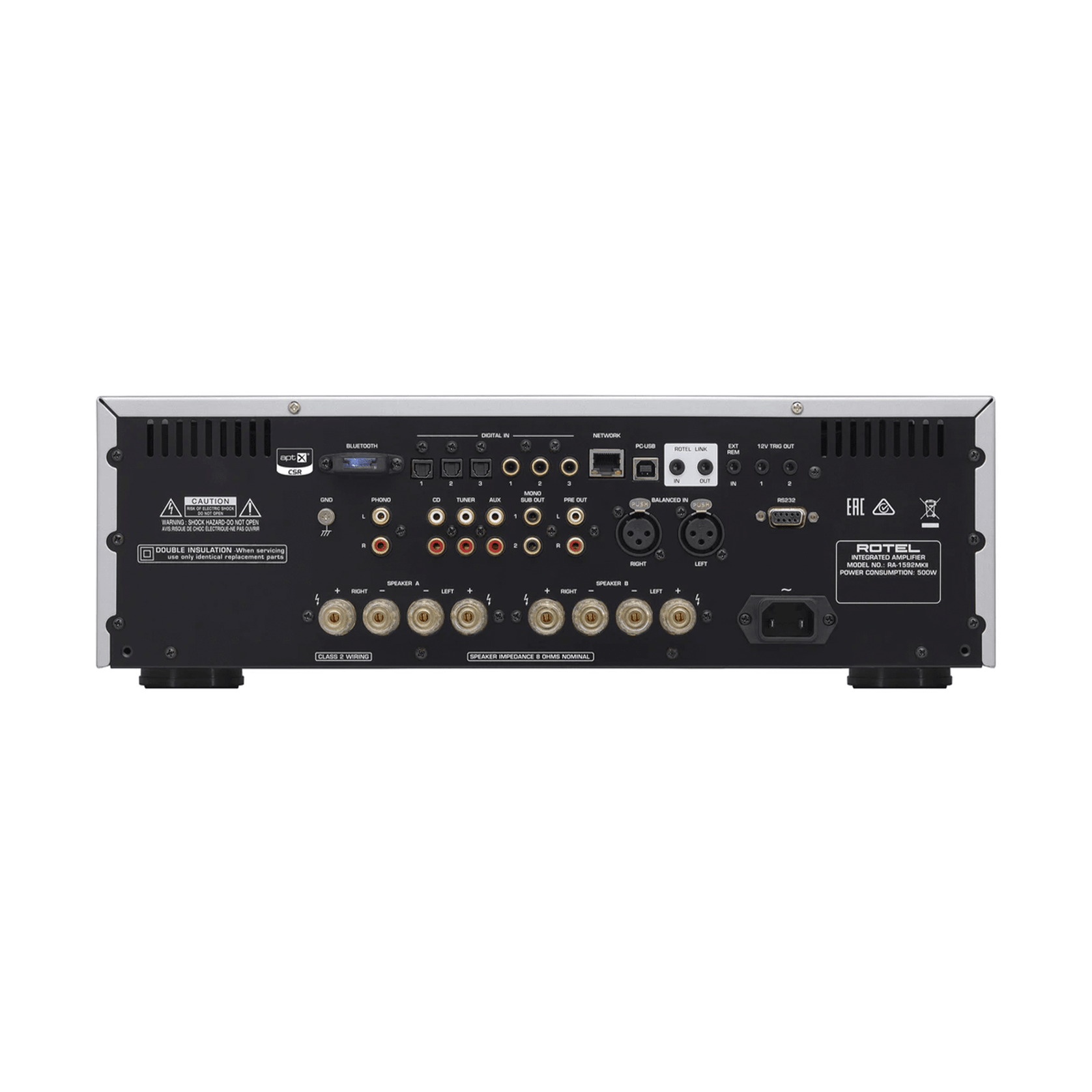

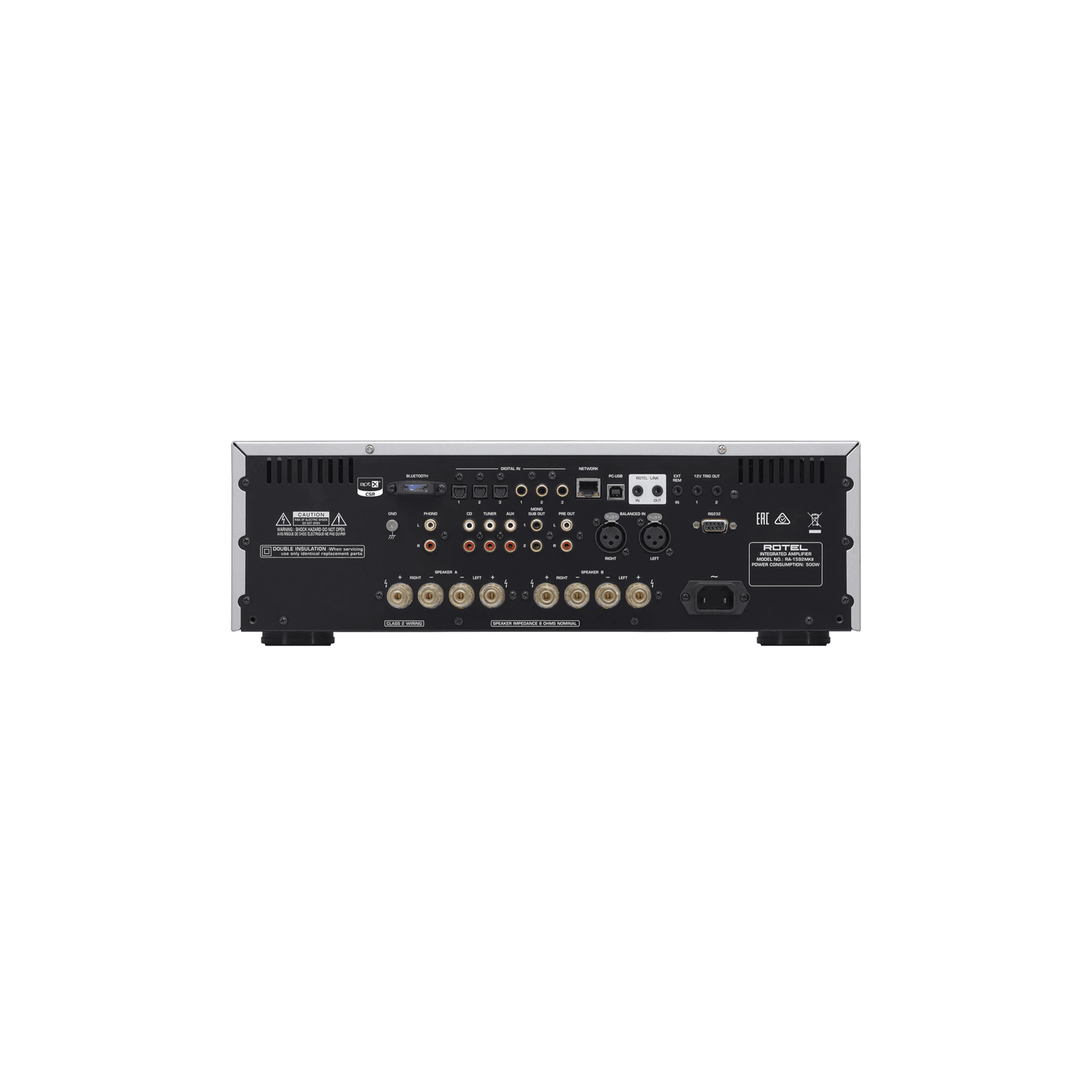

Selectable A-B speaker outputs, RS232, Ethernet and 12V triggers ensure seamless integration with control systems.

Convenience, performance and value - the RA-1592MKII delivers.
