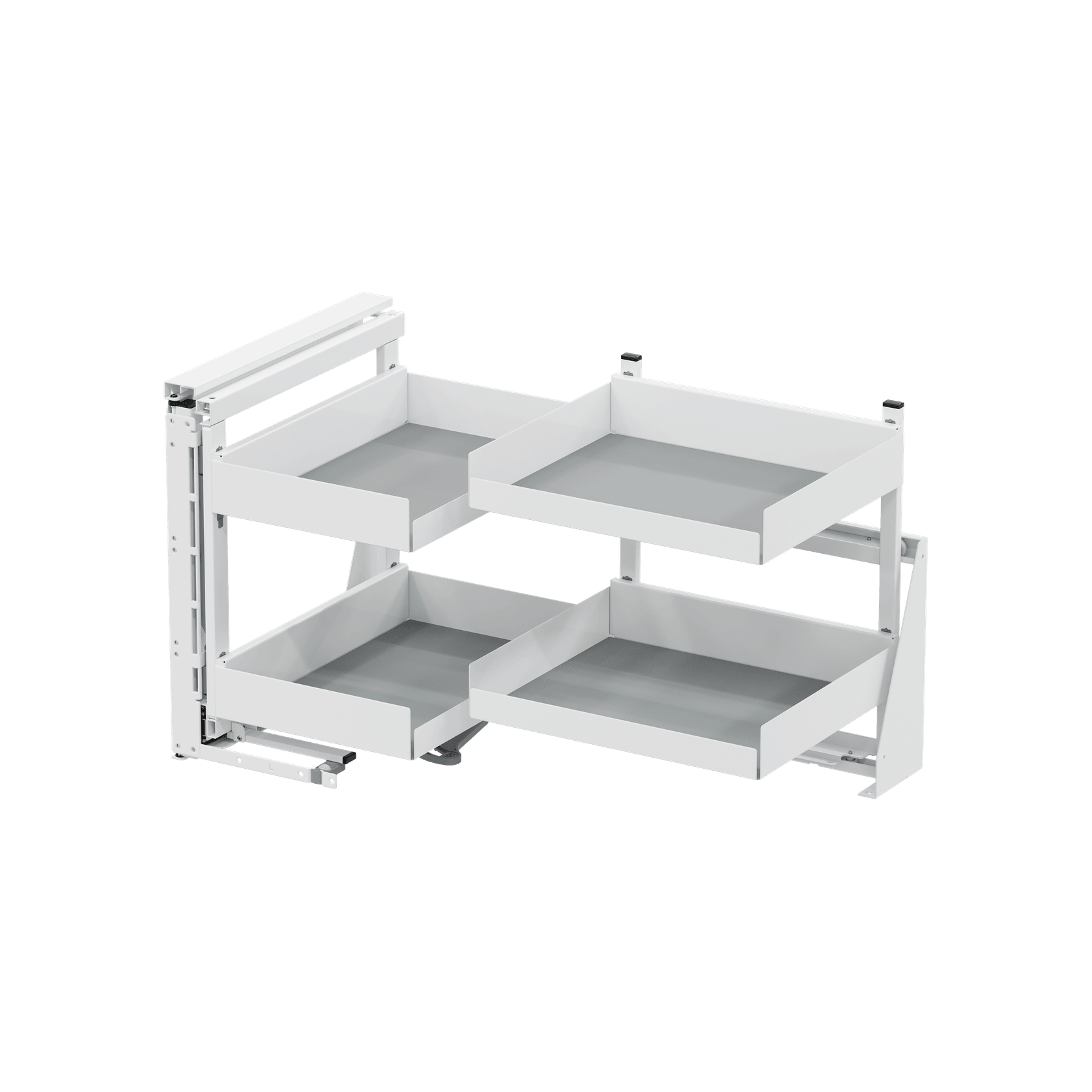

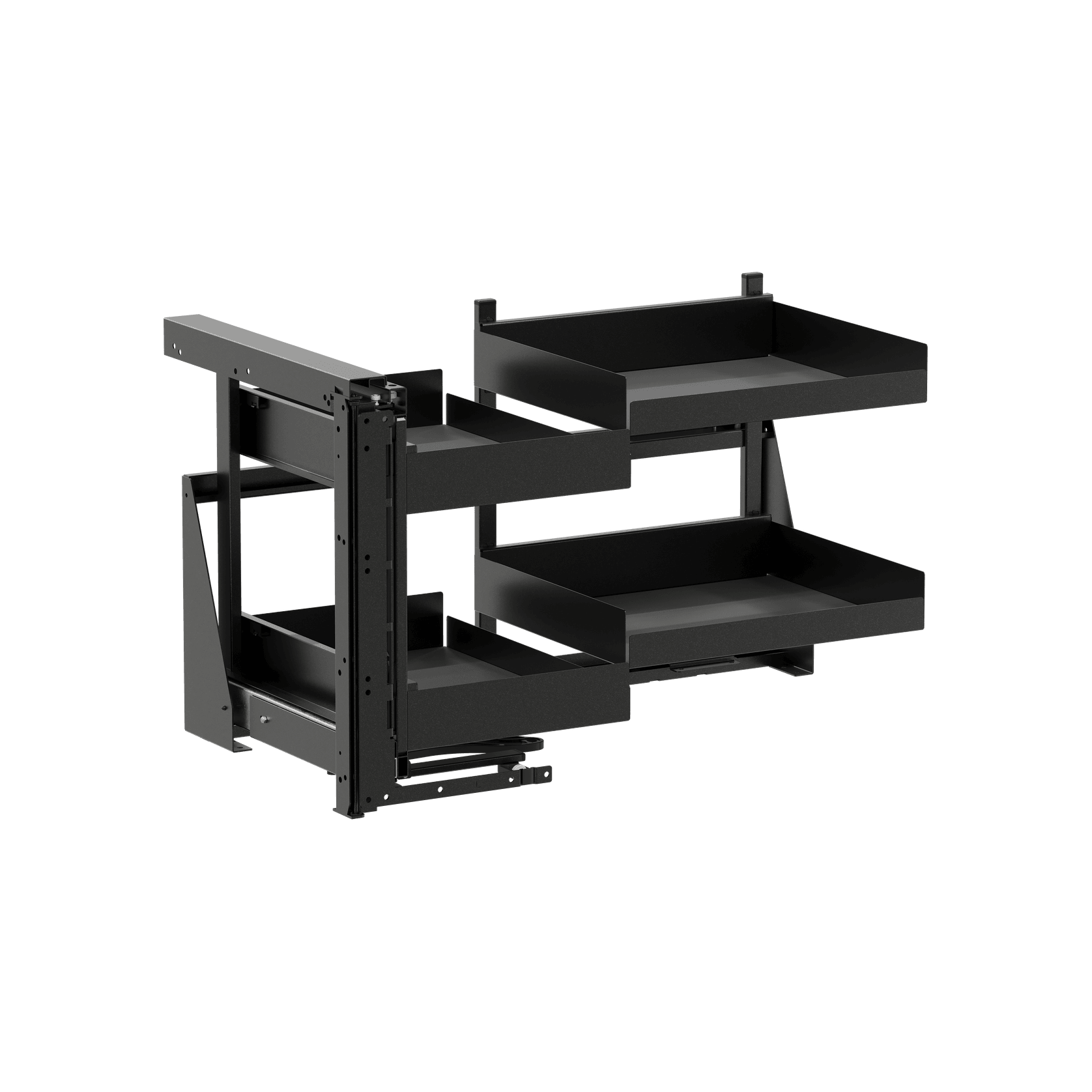

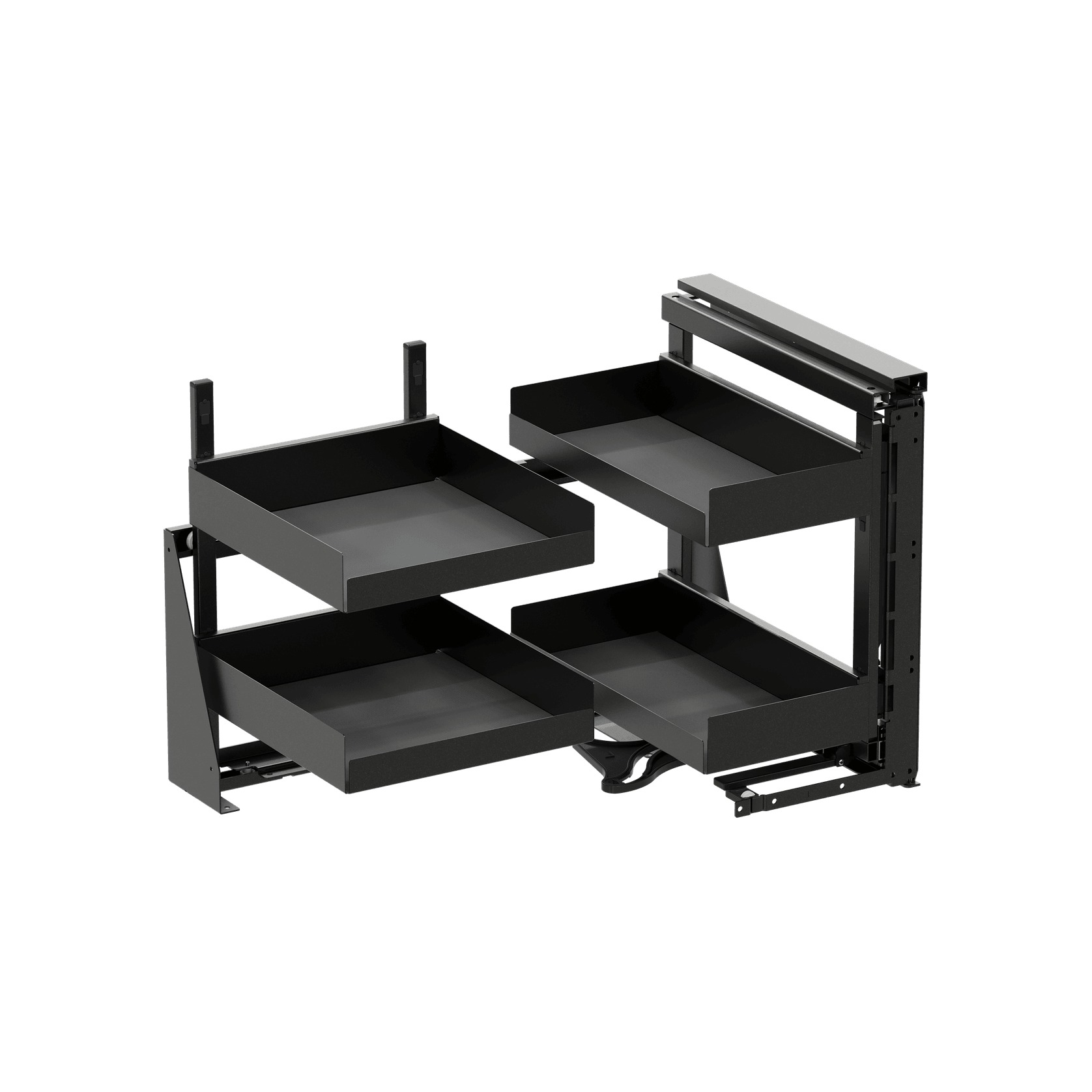

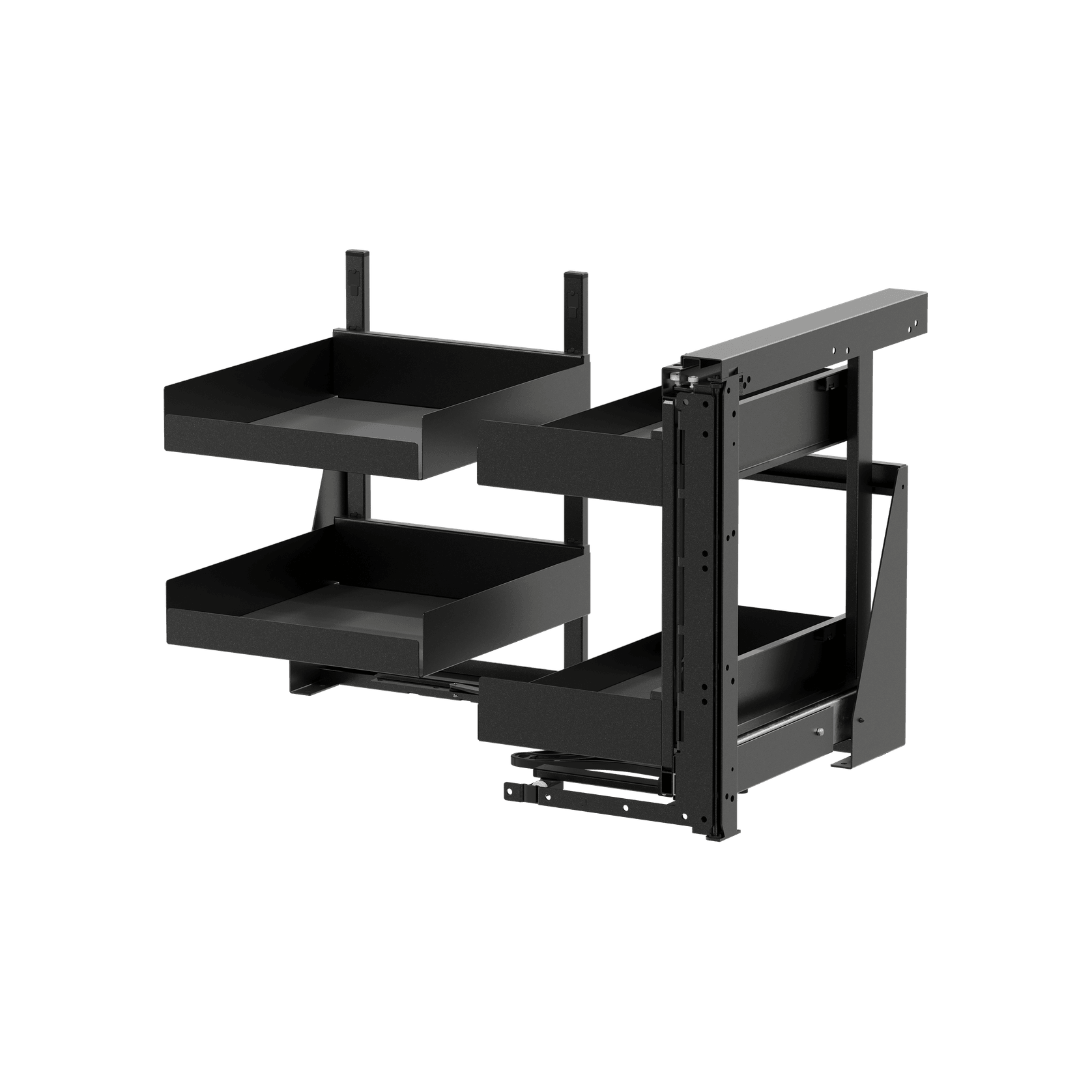

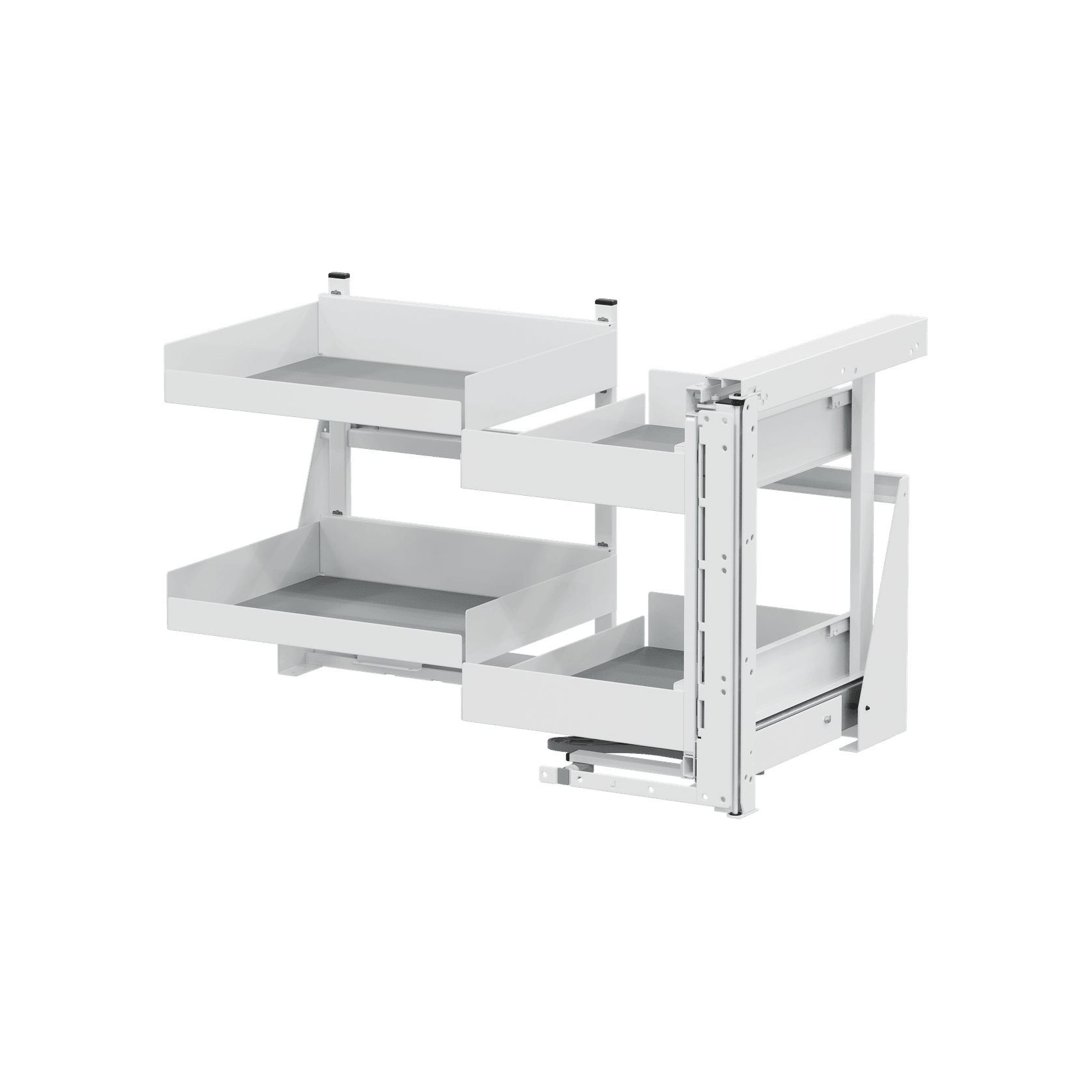

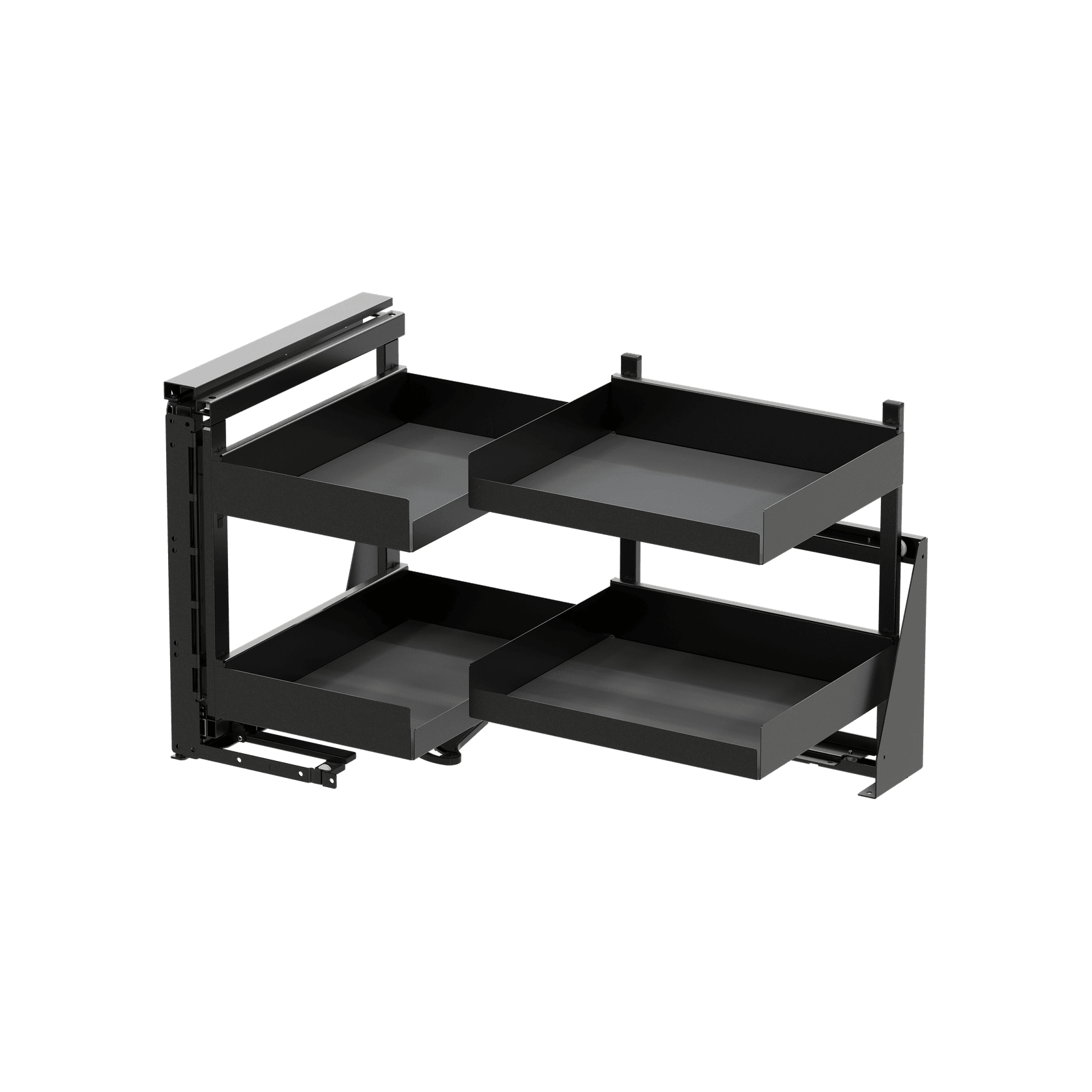

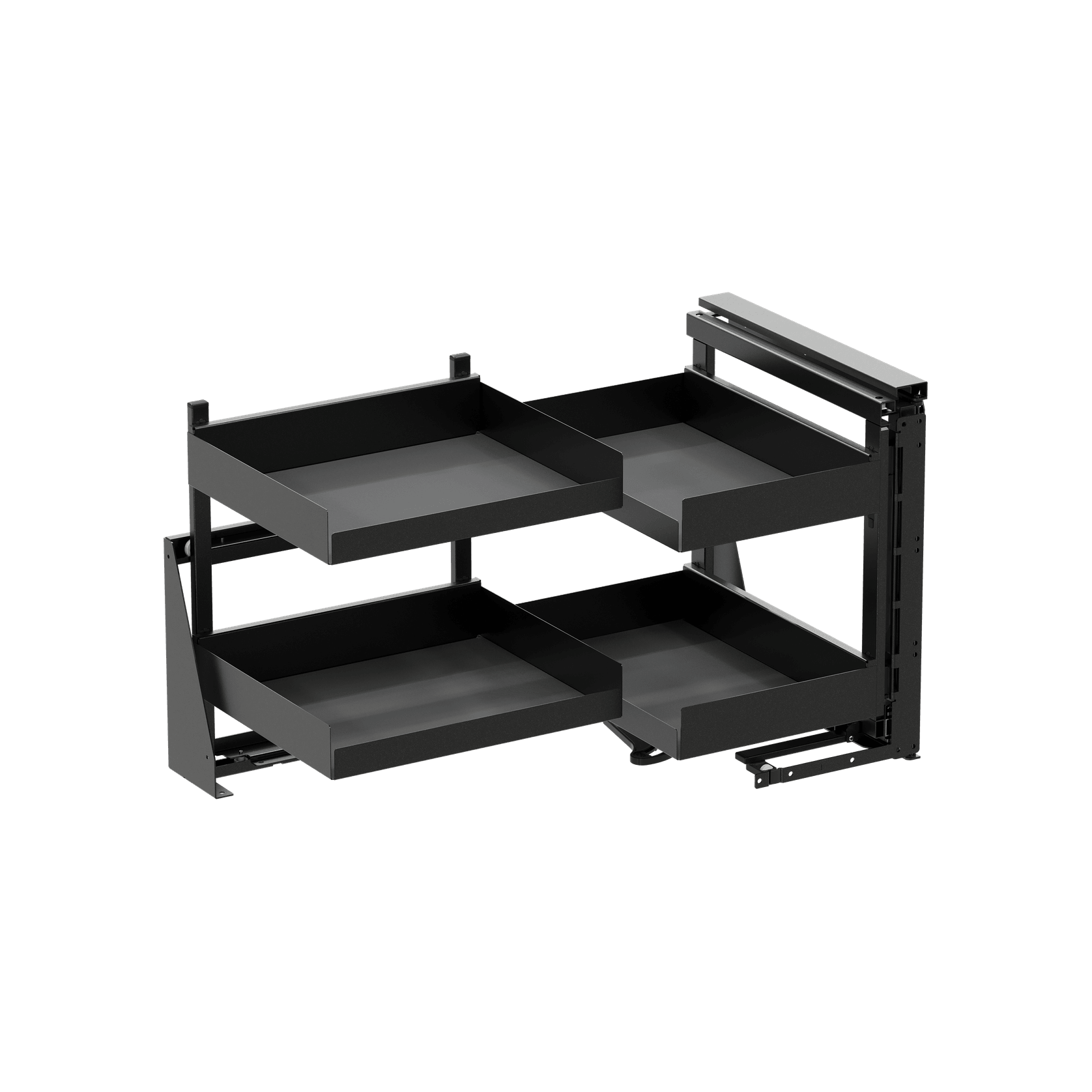

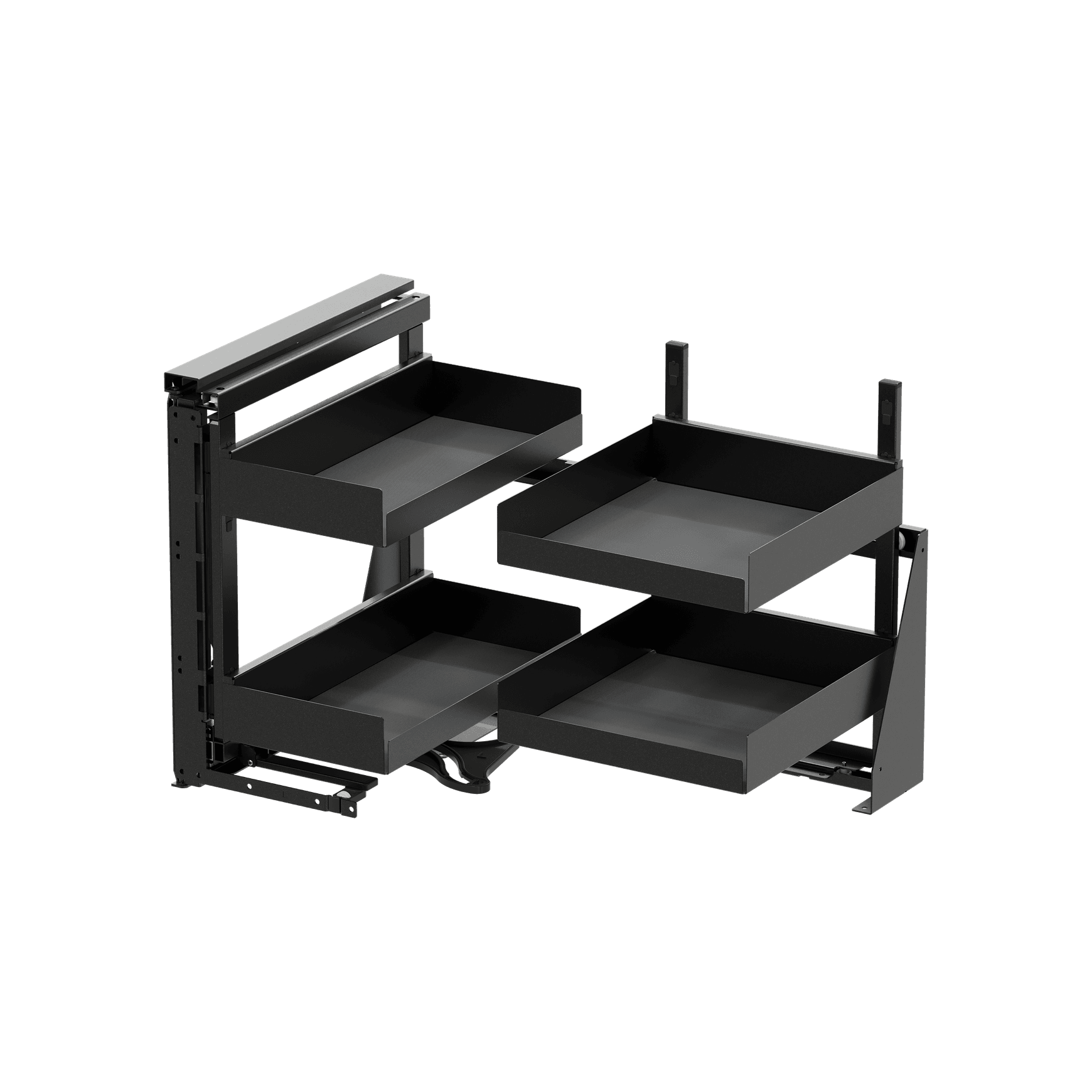

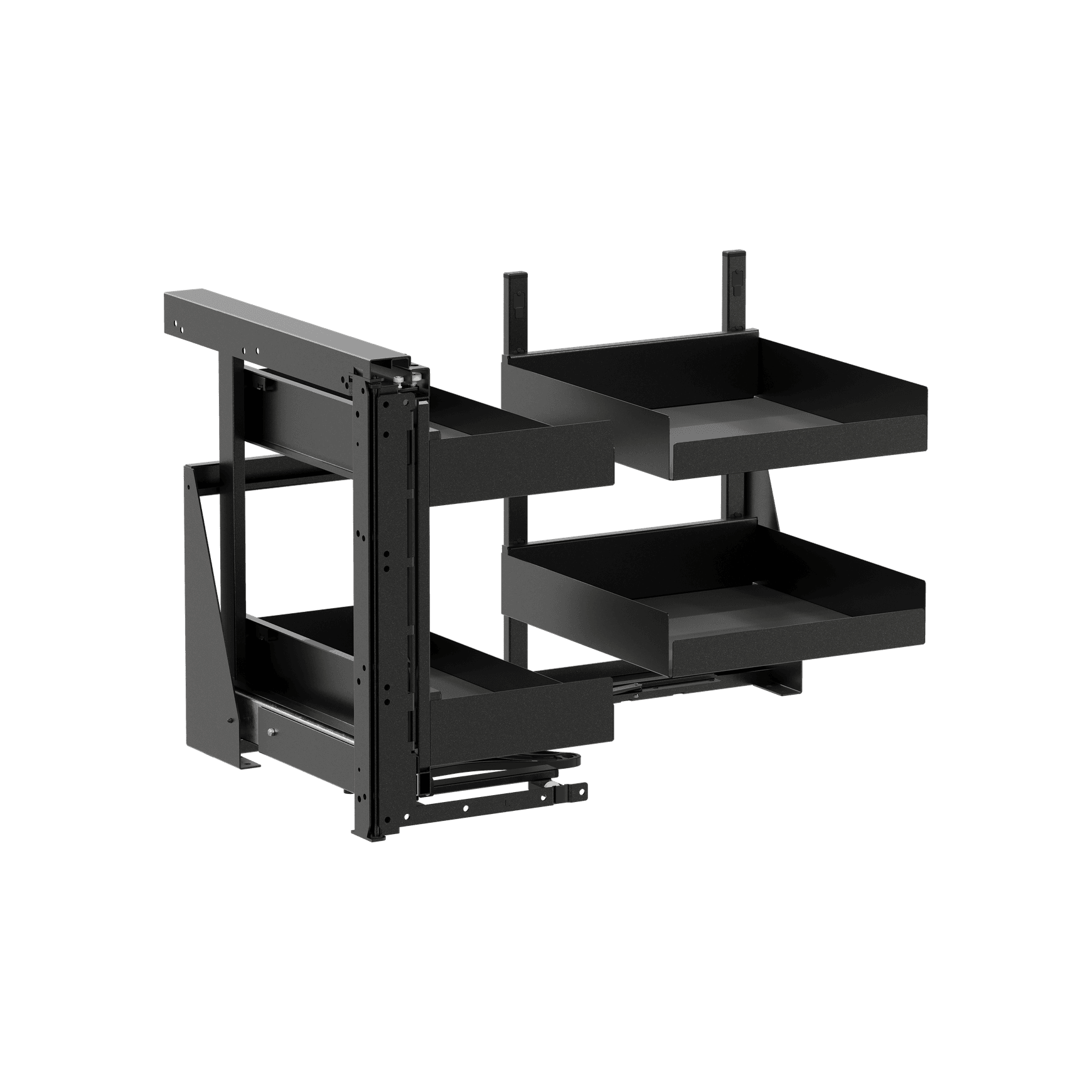

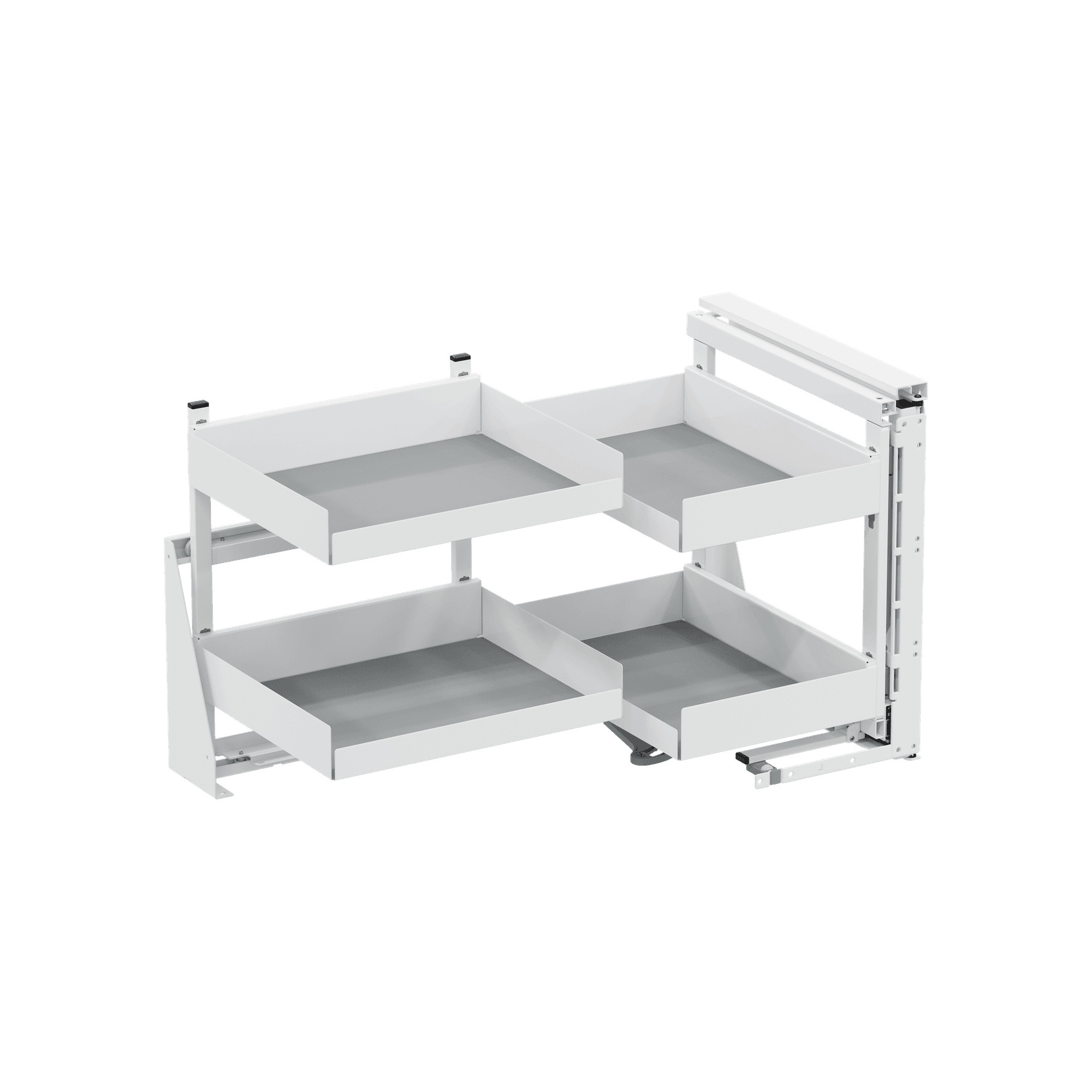

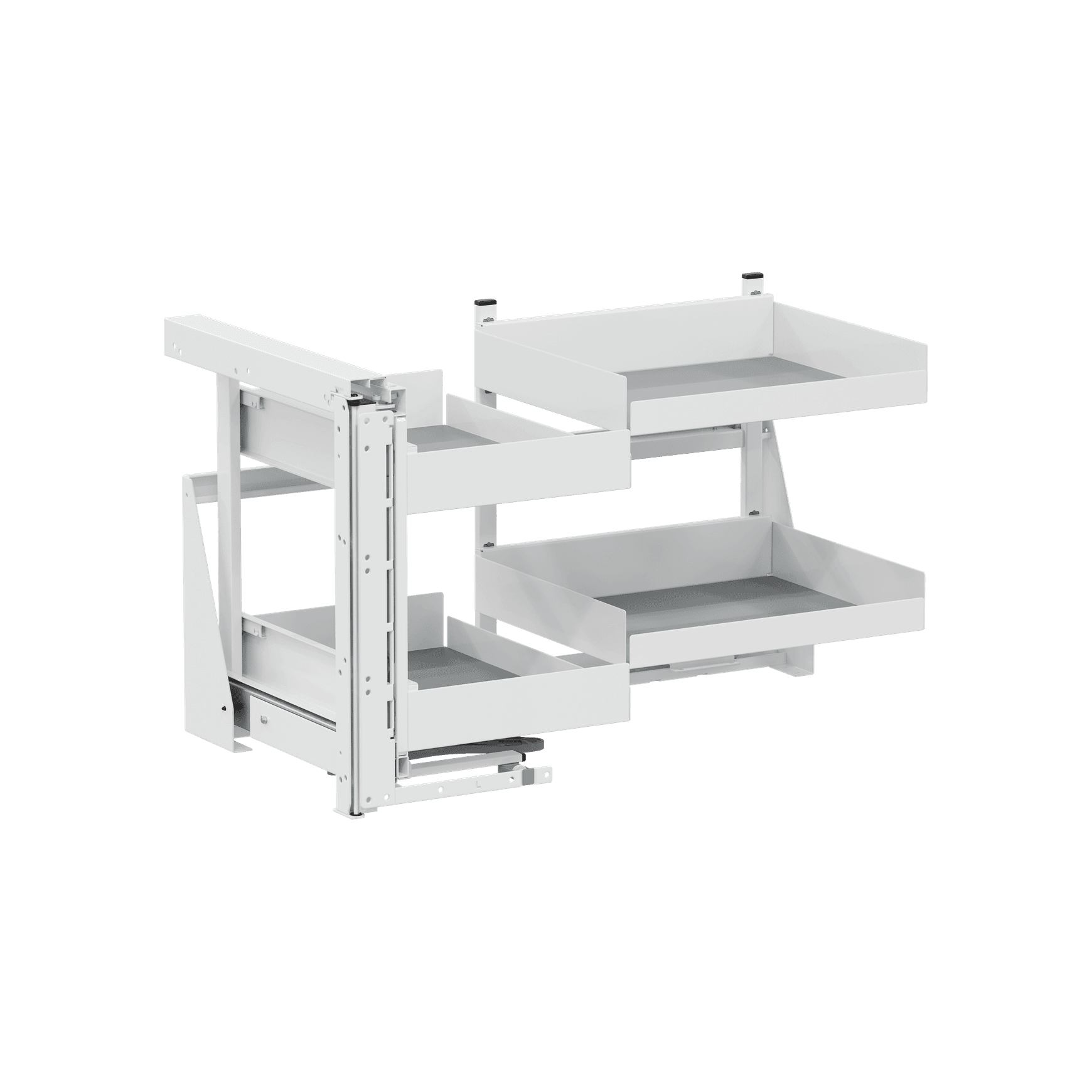

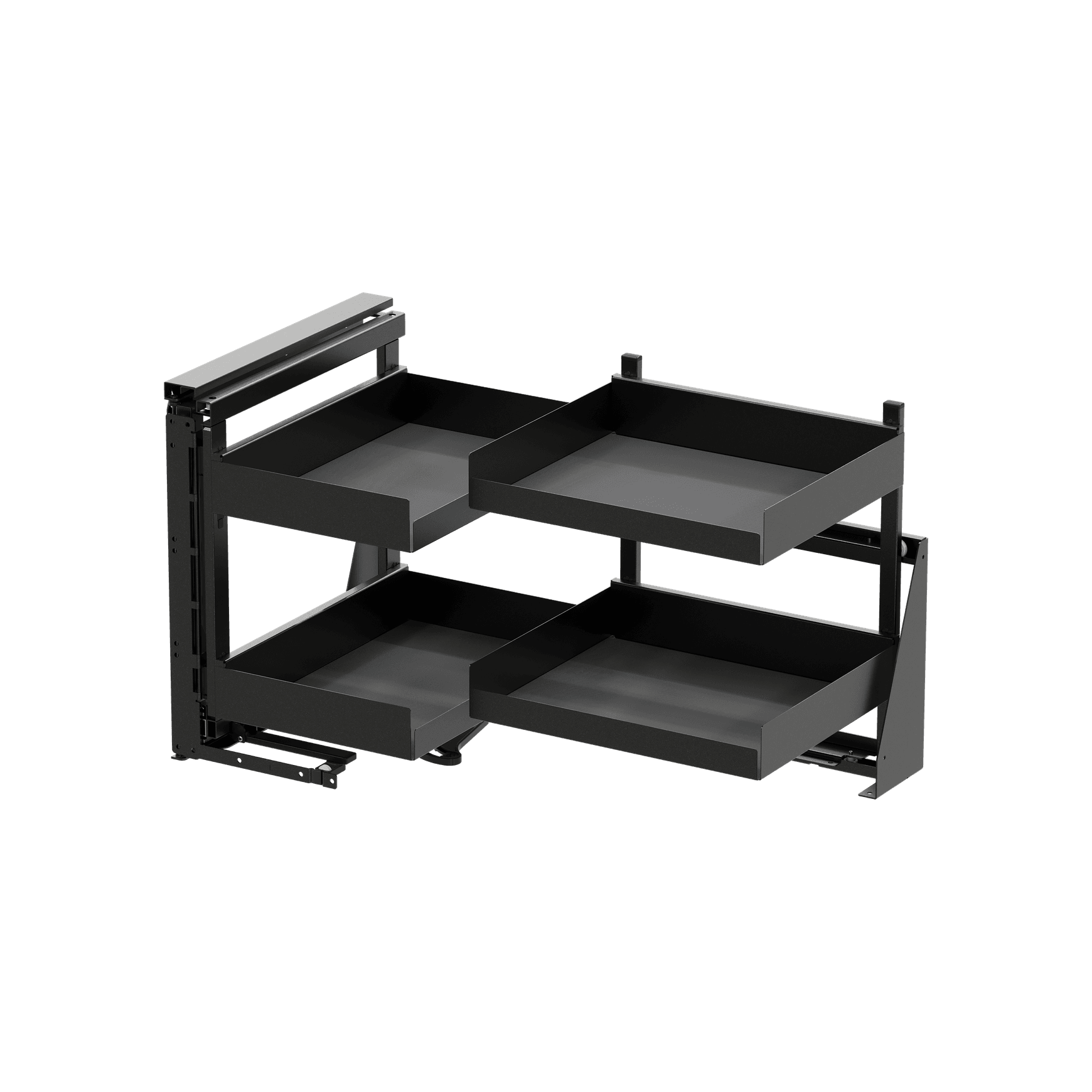

Essentio® by Vauth-Sagel: VS COR® Fold Corner Unit

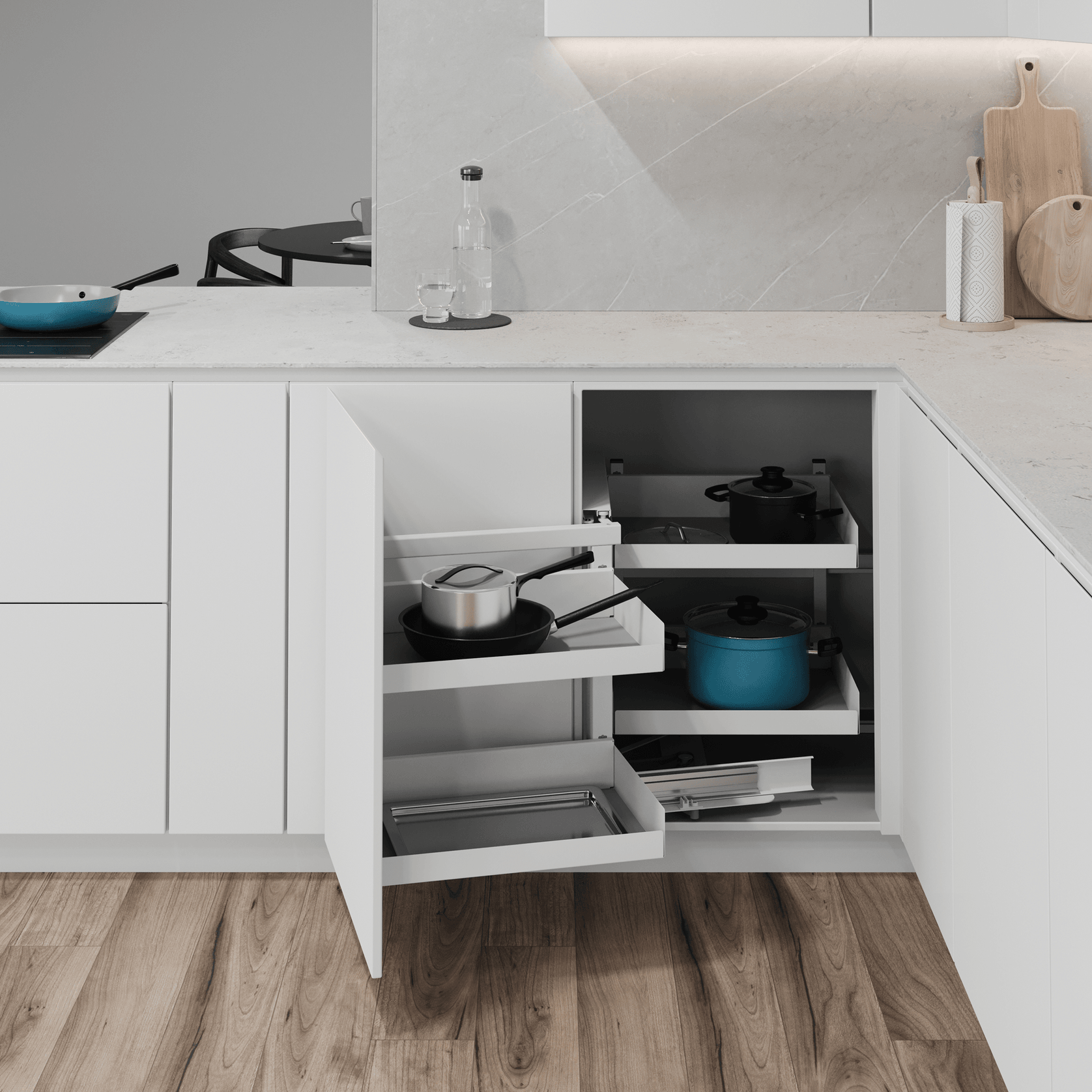

An optimised version of the classic corner cabinet unit, VS COR® Fold’s user-friendly movement makes cabinet contents very easily accessed upon opening.

Specs

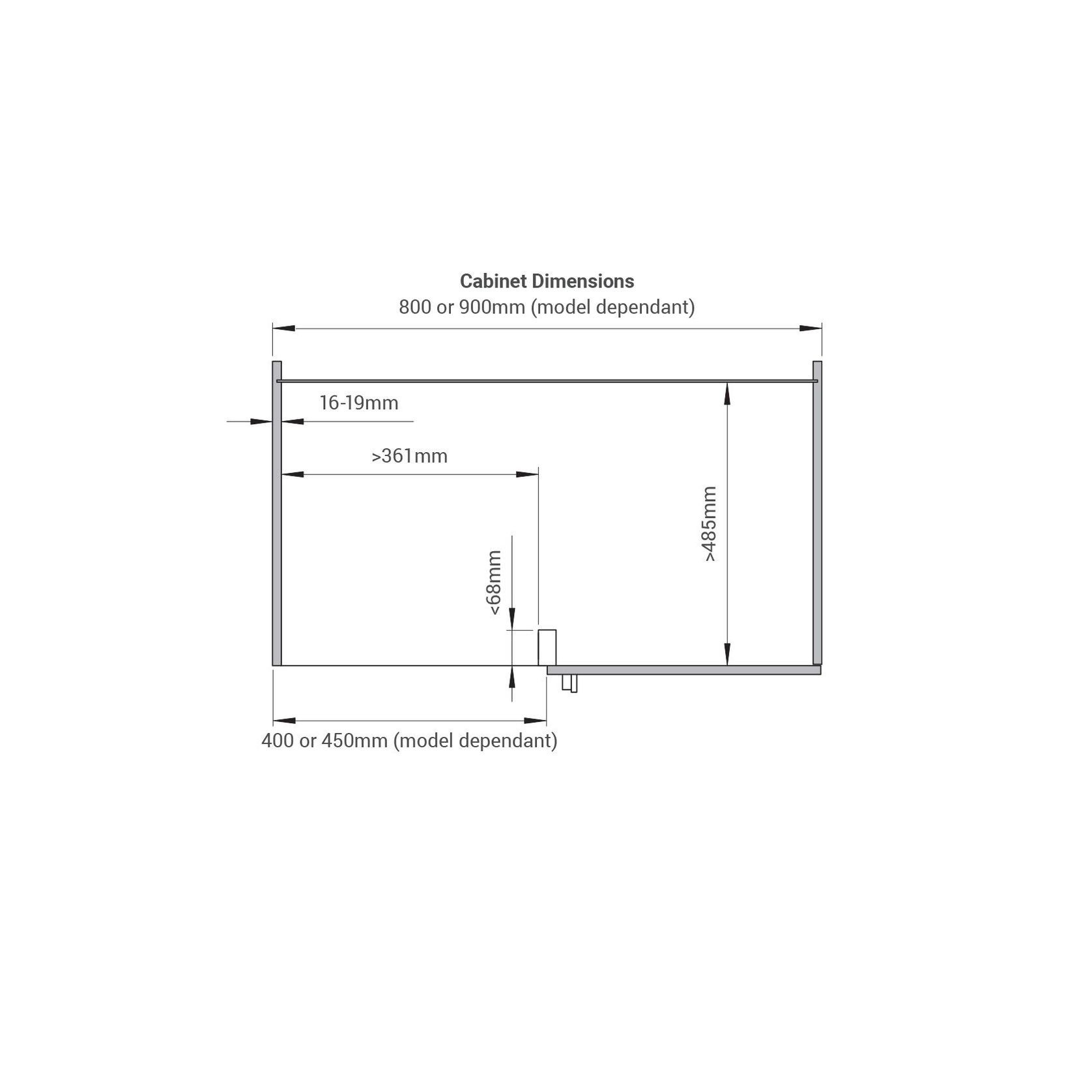

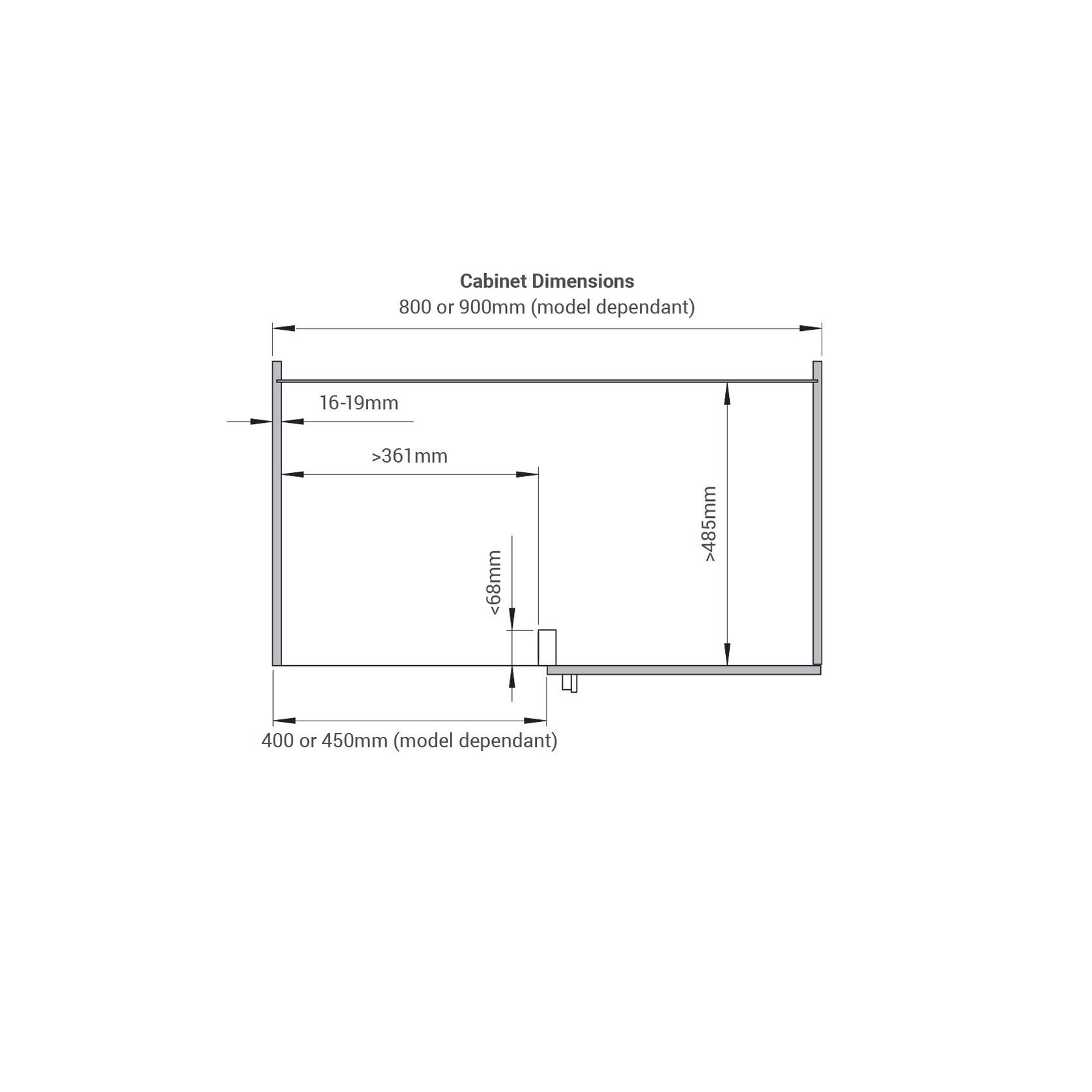

Cabinet widths: 800 and 900mm
Door widths: 400 and 450mm
Minimum installation depth: 485mm
Minimum installation height: 530mm

Maximum load: 8kg per front basket, 9.5kg per rear basket
Maximum load: 35kg

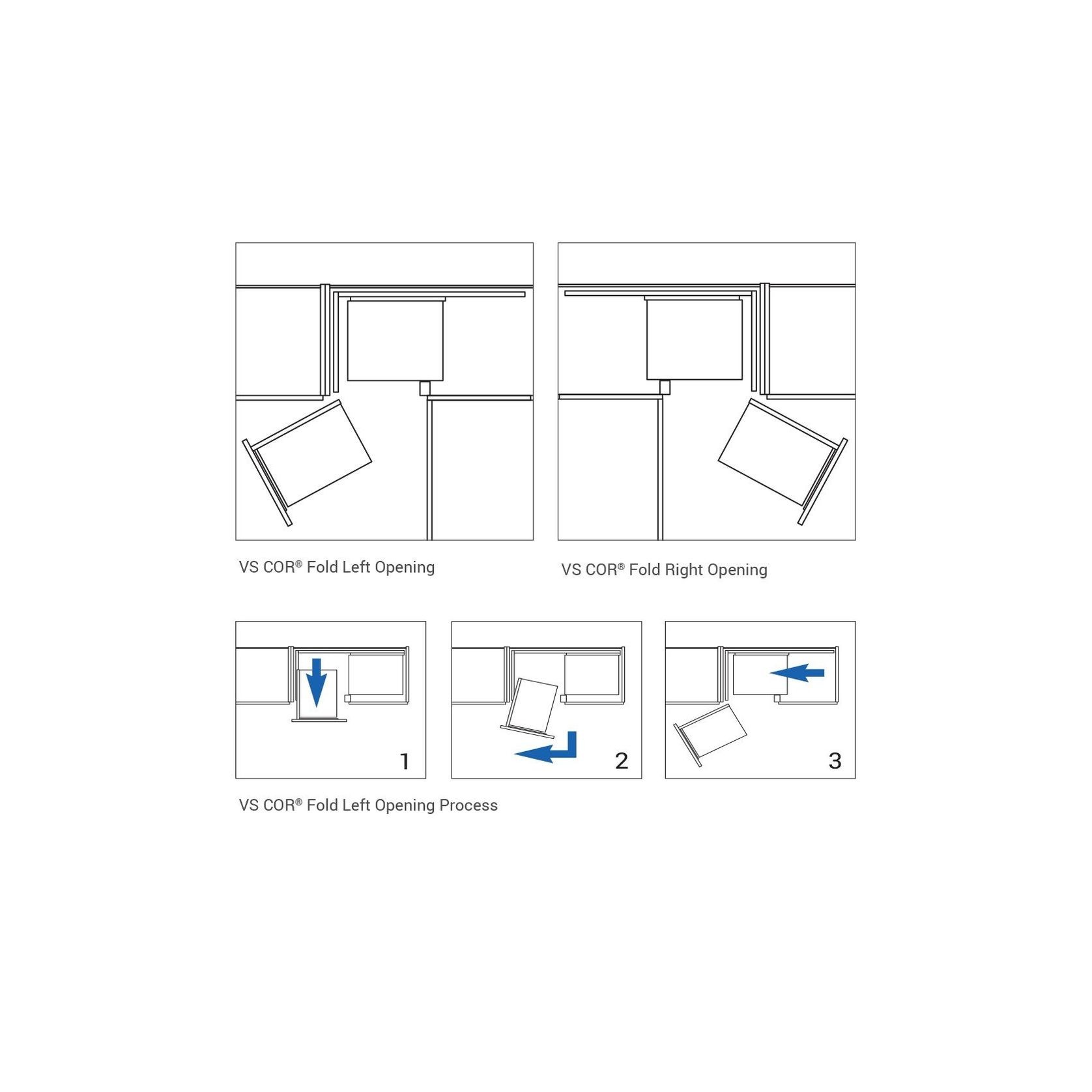

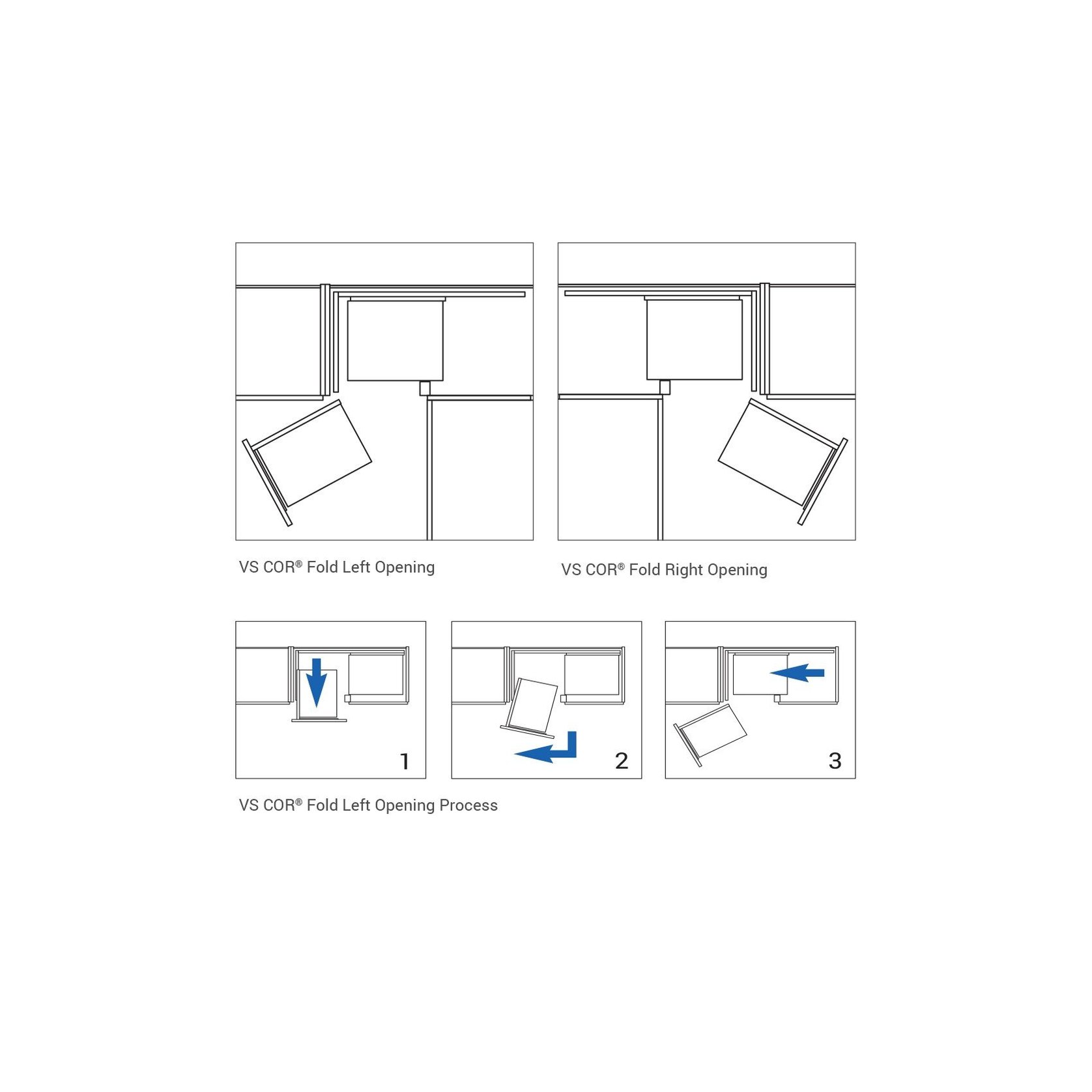

Options for left hand and right hand opening

Shelf area:
800mm cabinet units - approx 0.447m2 over 4 baskets
900mm cabinet units - approx 0.662m2 over 4 baskets

Features

Cabinet widths: 800 and 900mm
Door widths: 400 and 450mm
Minimum installation depth: 485mm
Minimum installation height: 530mm

EasyFit: tool-free installation of the front onto pull-out
Pivot point simply clips on to mounted frame; no measuring needed
3-D front adjustment allows simple, convenient front adjustment
Individual height adjustment for trays
Integrated soft and self closing; smooth and silent
Opening angle limiter to avoid cabinet damage
Maximum load: 8kg per front basket, 9.5kg per rear basket
Maximum load: 35kg
Options for left hand and right hand opening
Retrofit ready; may be installed into existing cabinets without removing benchtop
Baskets made of ultra-slim formed sheet steel, with a uniform, durable powder coated finish and an integrated non-slip mat finish

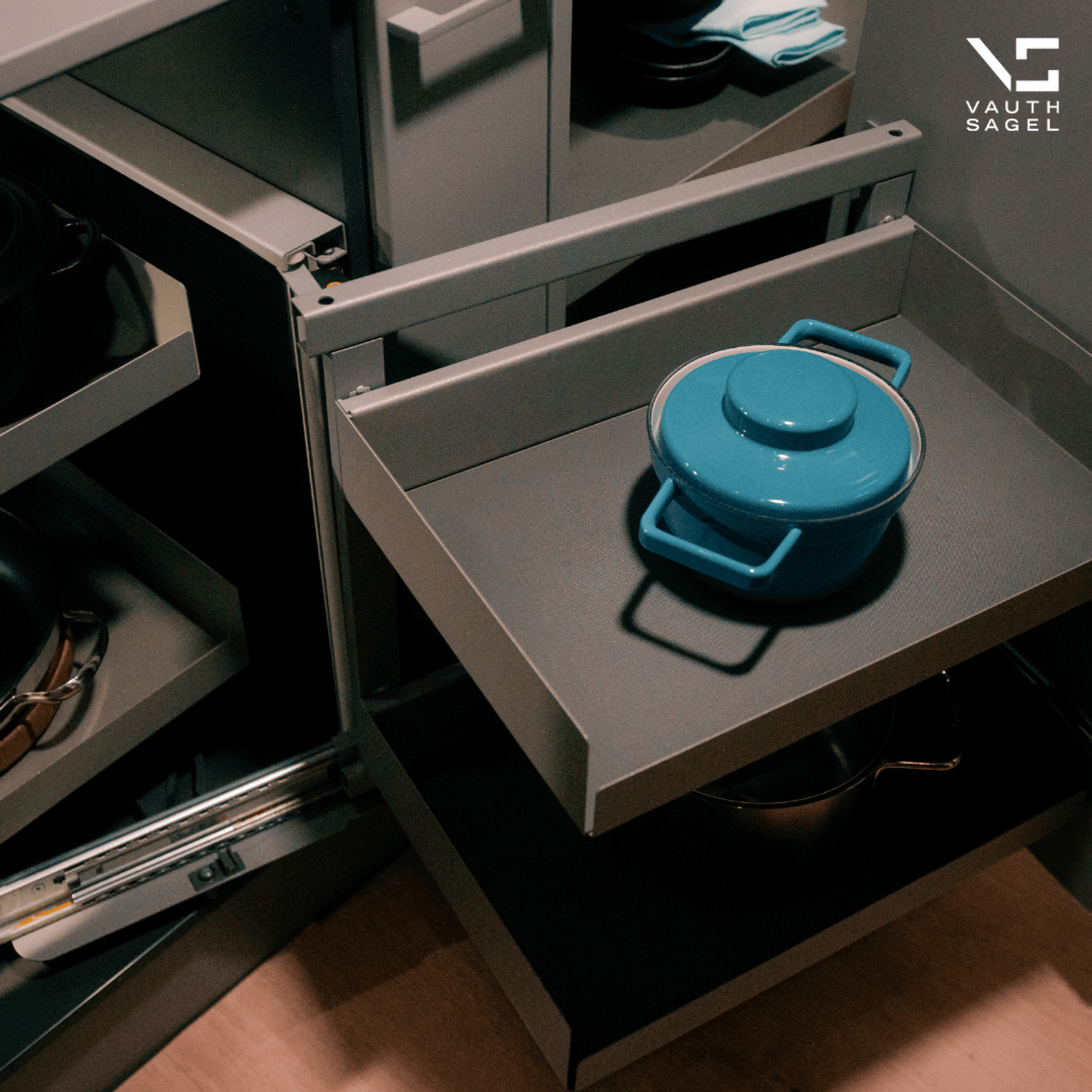

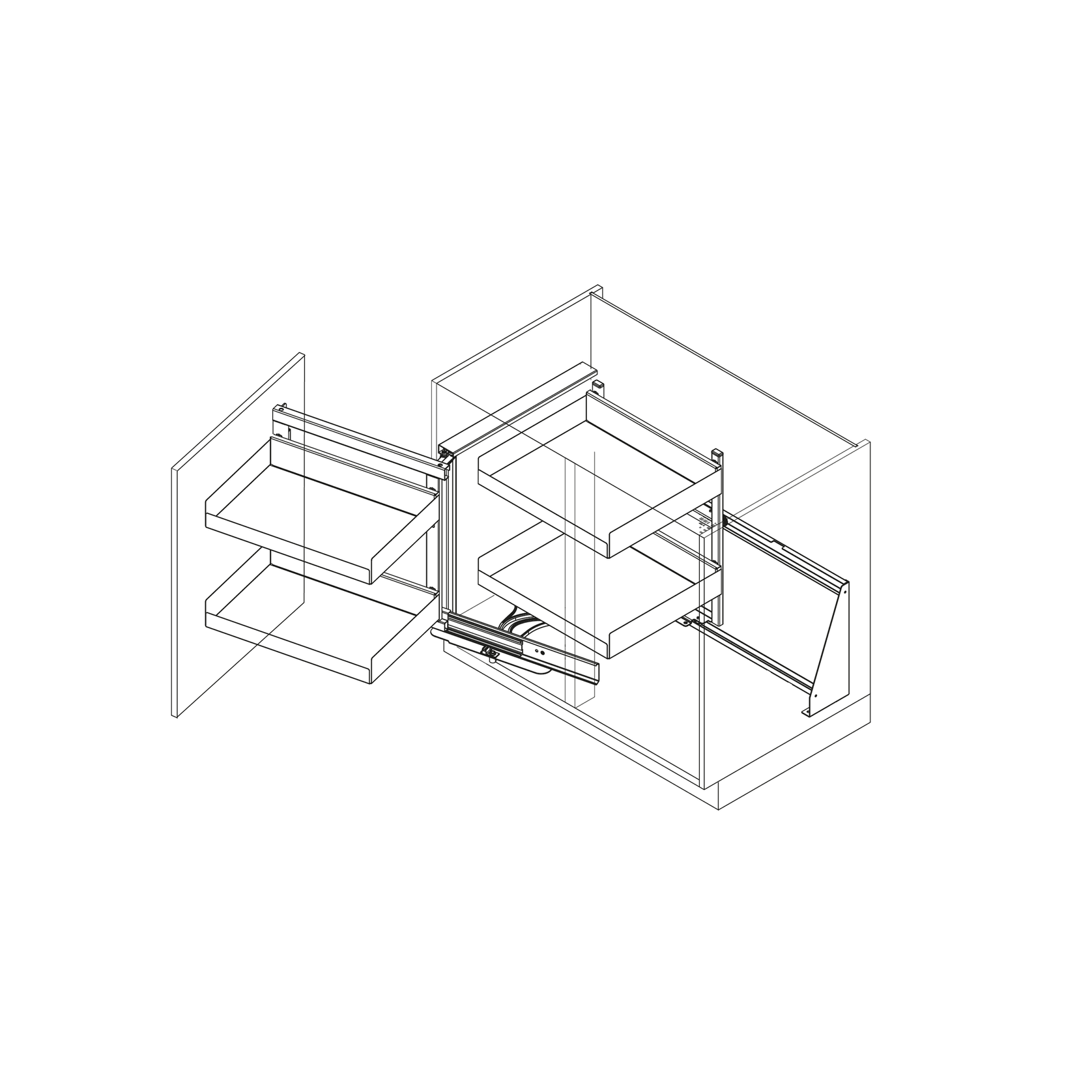

Rear baskets automatically move to front when opening the cabinet door
Excellent for visibility of contents
Compatible with VS ADD® Box and VS ADD® Separator

Shelf area:
800mm cabinet units - approx 0.447m2 over 4 baskets
900mm cabinet units - approx 0.662m2 over 4 baskets

Scope of use

Residential
