Silent Gliss SG 5600 Motorised Curtain Tracks
SG 5600 | Silence, Speed & Power.

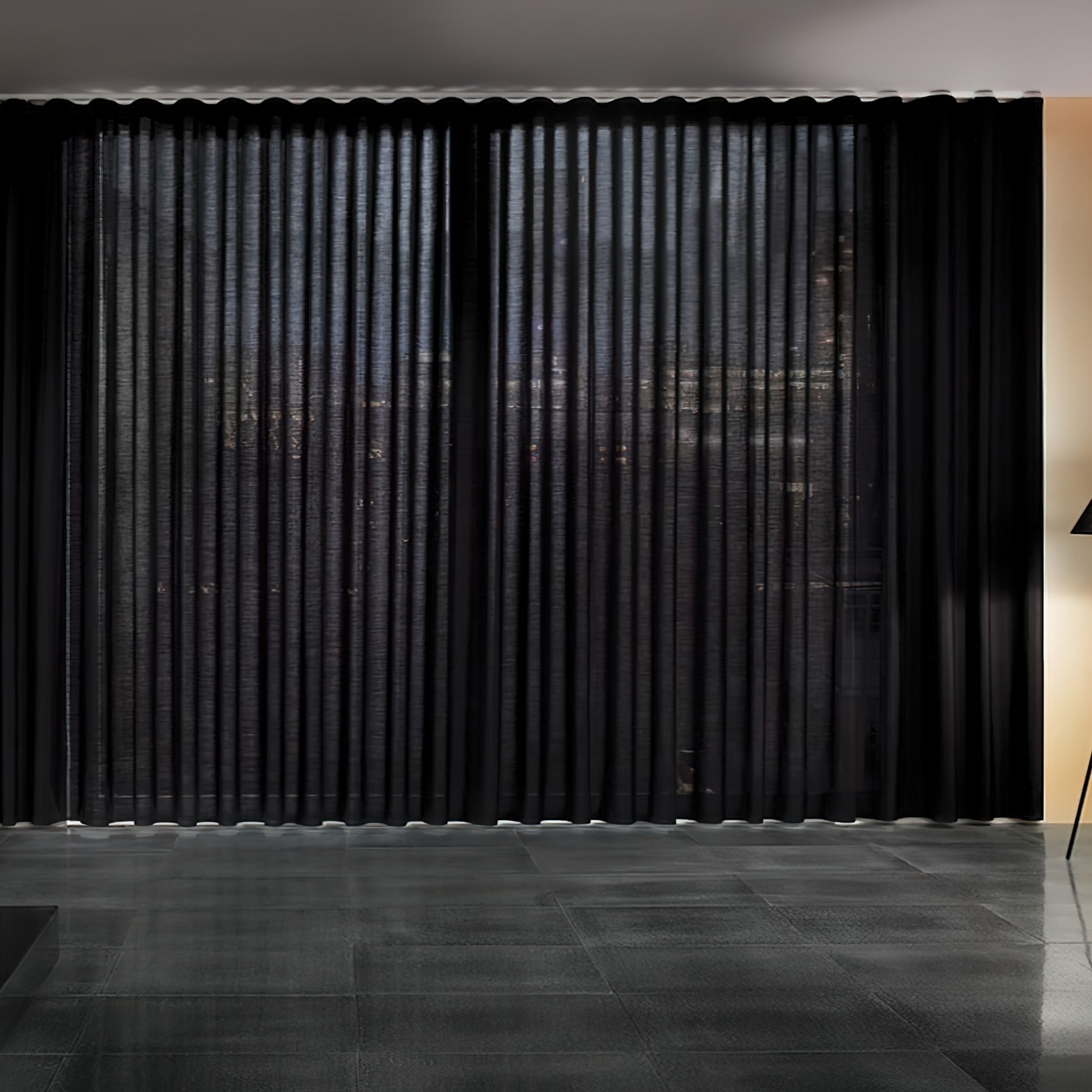

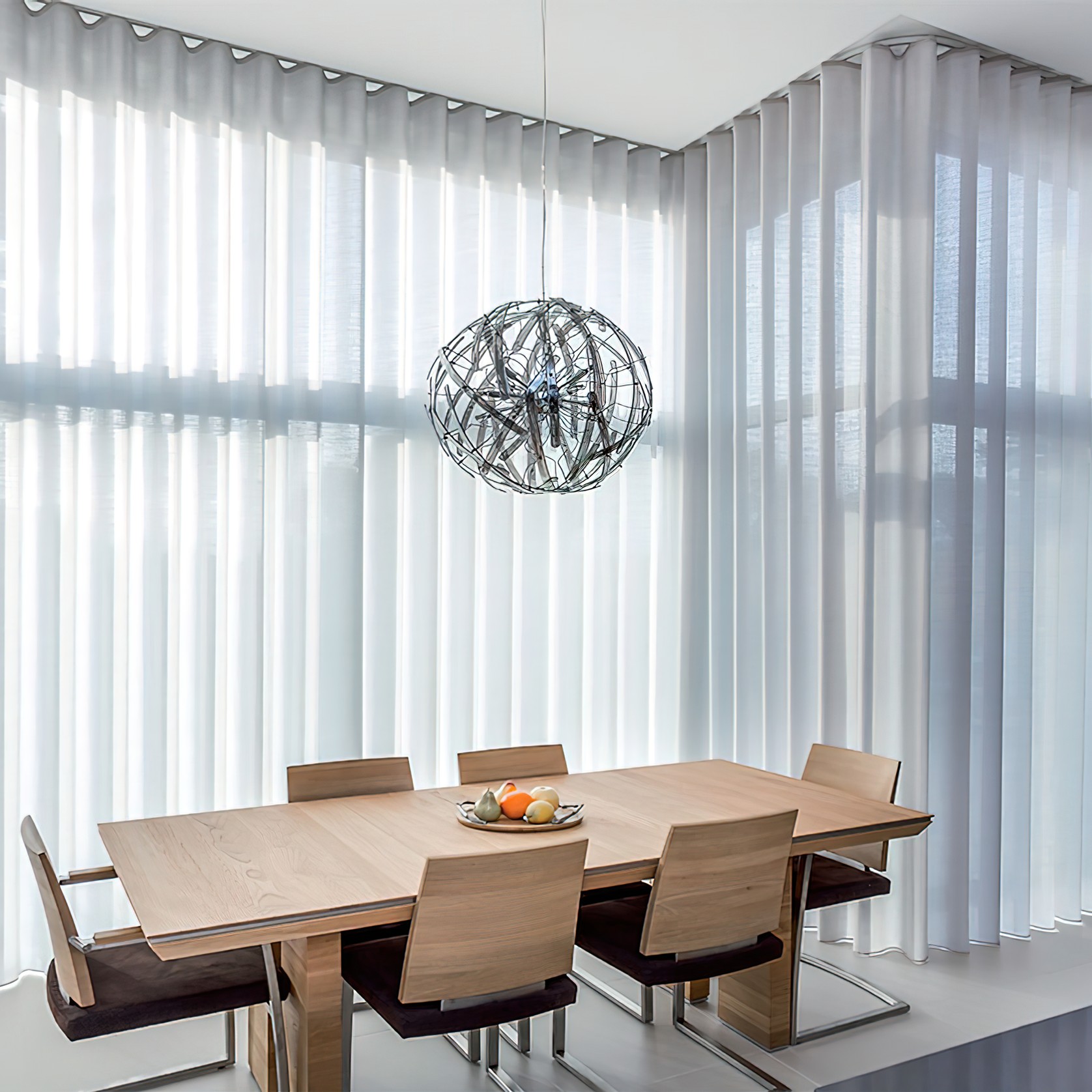

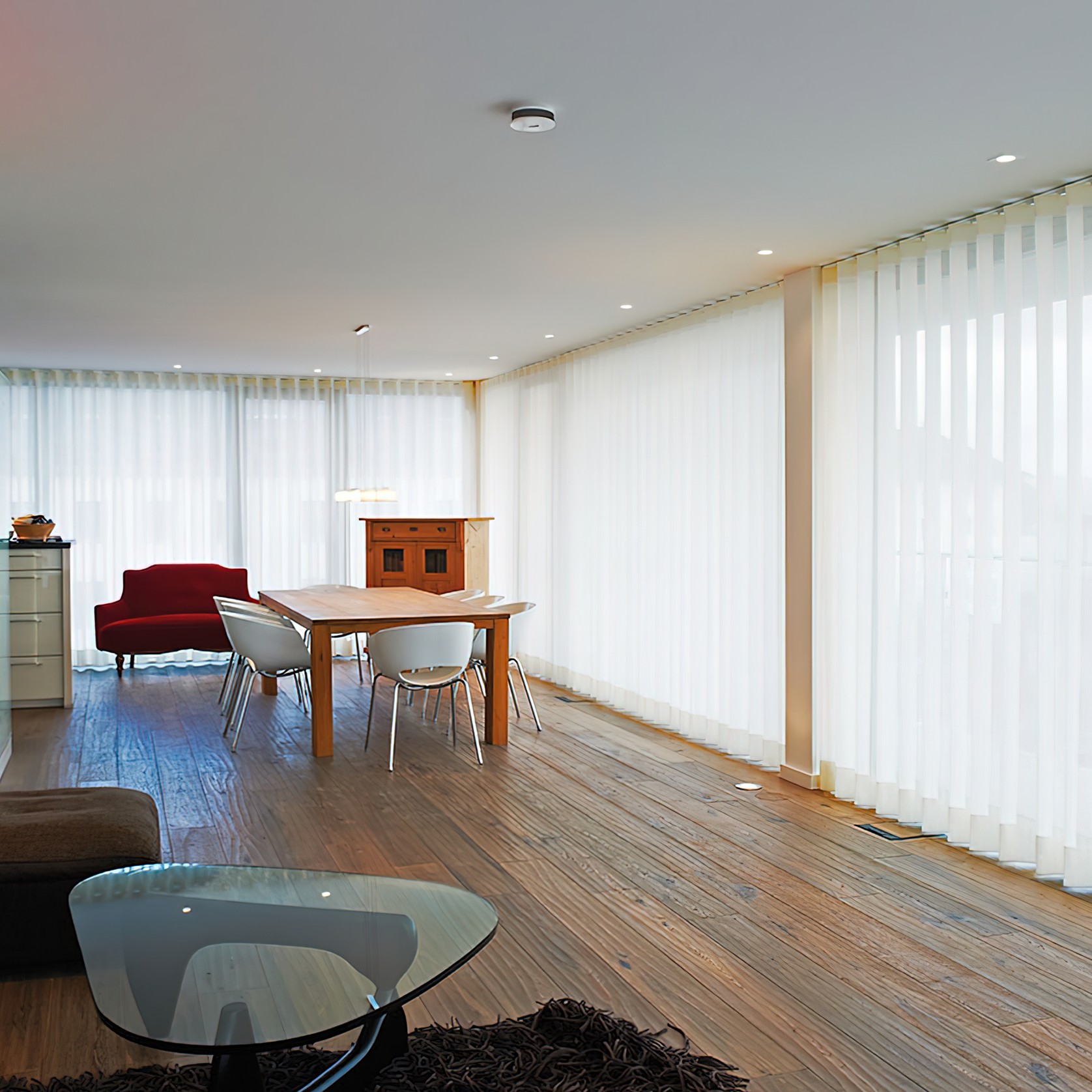

The Silent Gliss 5600 motorised curtain tracks provide benchmarking technology based on outstanding Swiss innovation which meets the complex demands of modern architecture across a wide range of commercial and domestic applications.
The Silent Gliss 5600 curtain track system provides complete silence due to a perfect combination of a new patented* two-component roller technology, the exclusive Swiss engineered high-performance motor and the specially coated curtain tracks. Unmatched silence. Available Australia wide.
Combining new coated tracks with our new two component technology - 2C gliders.
The premium 2C gliders and rollers (patent pending), combined with the specially coated tracks allow the curtain to move smoothly and silently. These gliders are manufactured using 2 materials, a hard component which ensures stability and a soft ‘filling’ to absorb the noise. The end result is unprecedented silence.
New 2C Glider Technology.
A combination of two high quality materials designed as Hard & Soft components, Hard component for stability and perfect gliding. Soft component combination absorbs noise emissions. Designed for wave cord. Patent pending.
SG 5600 | Motorisation
Top of the range medium to heavy duty motorised track system.
Download brochure
SG 5600 | Smart Fix
A uniform bracket range for use across all our systems.
Download brochure
- CategoryCurtain Rails & Tracks
- RangeCurtain Tracks

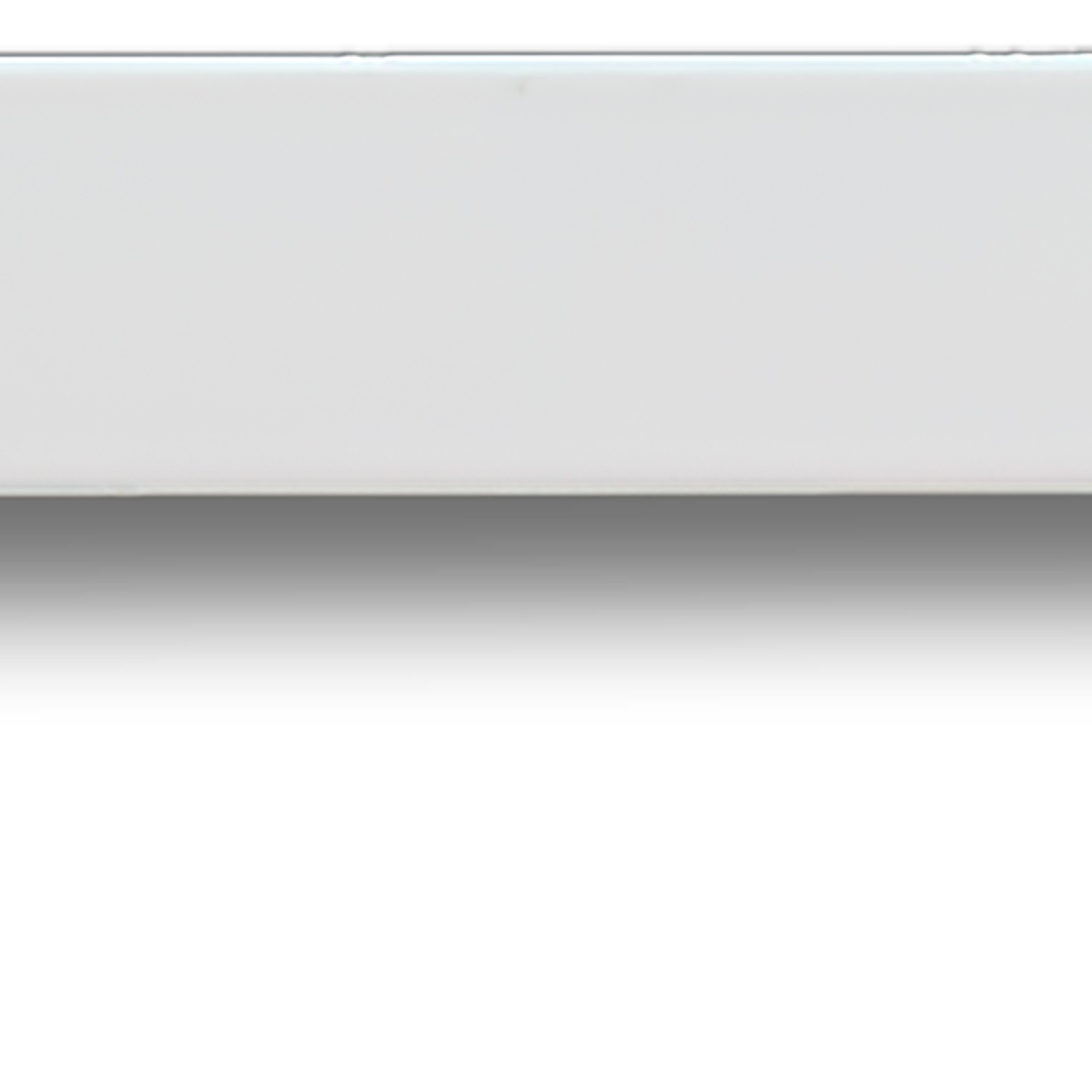

SG 5600 | Motorisation
Application:
• Top of the range medium to heavy duty motorized track system.
Product information:
• Silent, quick & smooth operation – 21cm/sec opening/closing speed.
• 2C glider technology. The sound of silence.
• Standard or Wave (60mm or 80mm glider spacings available) headings – roller gliders in all cases.

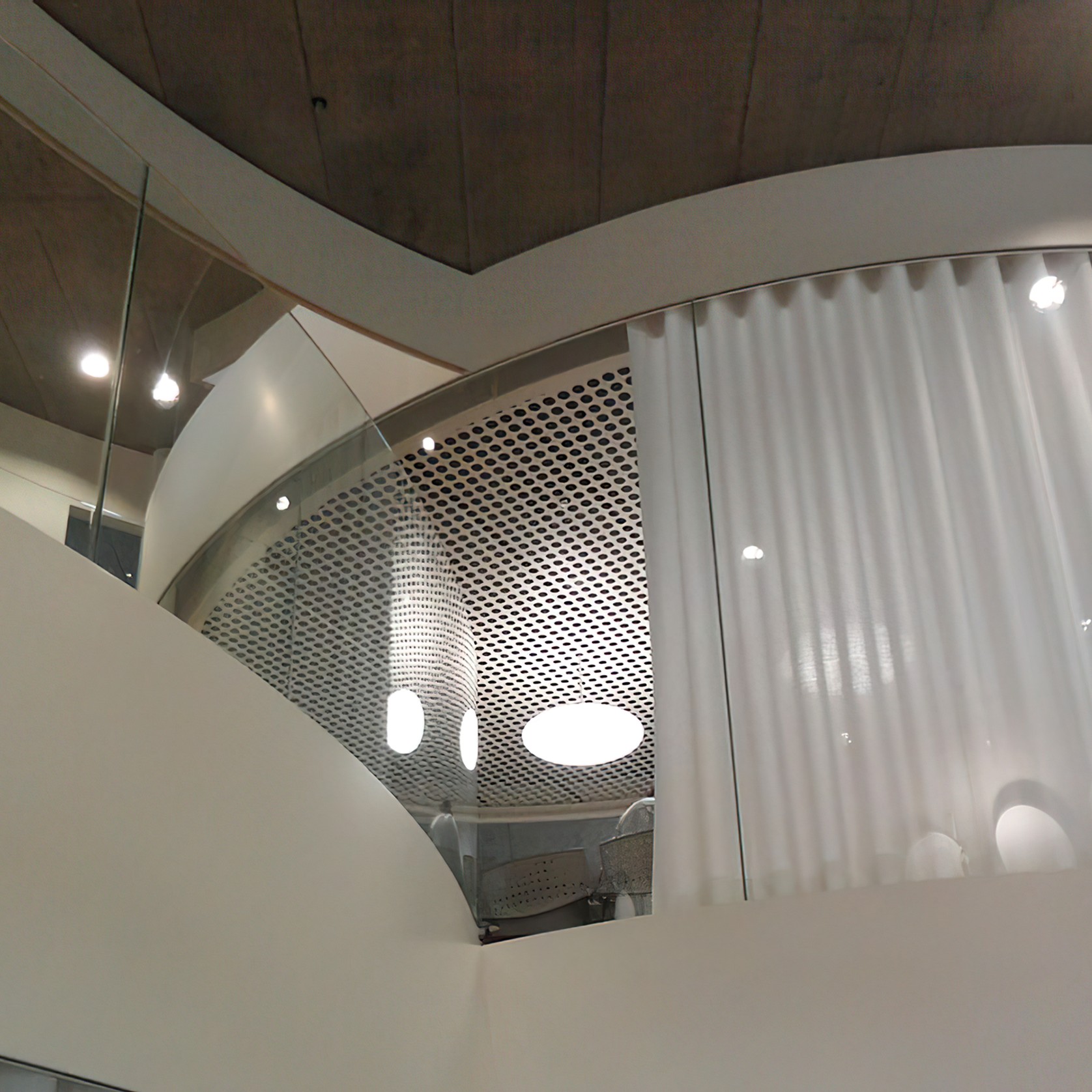

• Bendable in both directions – 250mm minimum radius.
• Top, face or extended face fixing – direct fixing through the track profile is also possible.

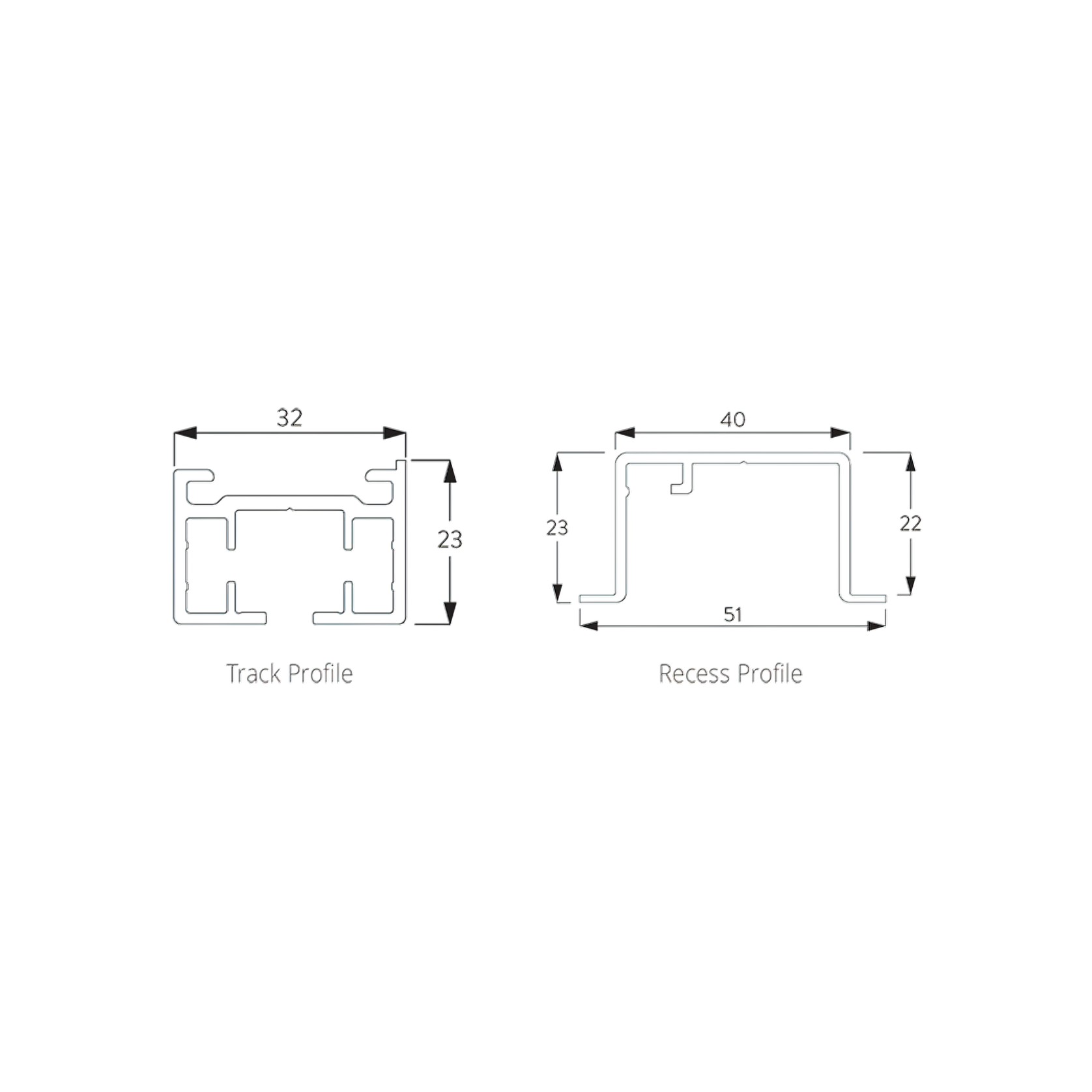

• Fixing within recess profile #10862 is also available – this configuration is also bendable – 500mm minimum radius – please note that both track profiles must be bent together.
• Maximum width of up to 25m & a maximum curtain weight of up to 65kg
(depending upon configuration – please refer to curtain weight charts).
Colours:
• Track available in natural anodised or white powdercoat finish.
• Motor available in silver/grey & white.
Motor information:
• Has the option to add a radio receiver module (915 Mhz) – motors are supplied with Molex cable which, in all cases, is 4-core – for radio remote or dry contact switching, the 2 actives (black & brown) have to be combined.
• Motor can be rotated in its housing to suit the curtain heading style.

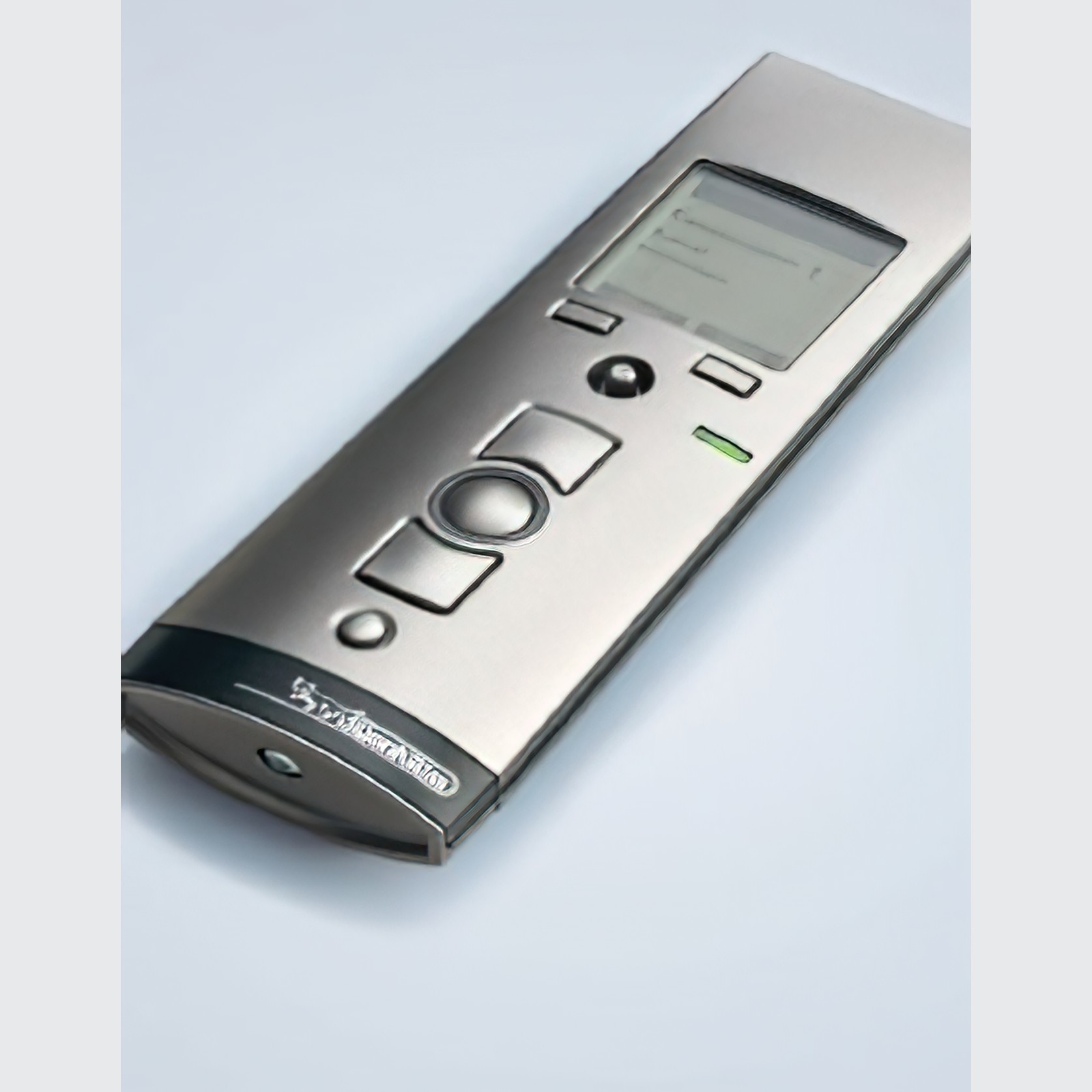

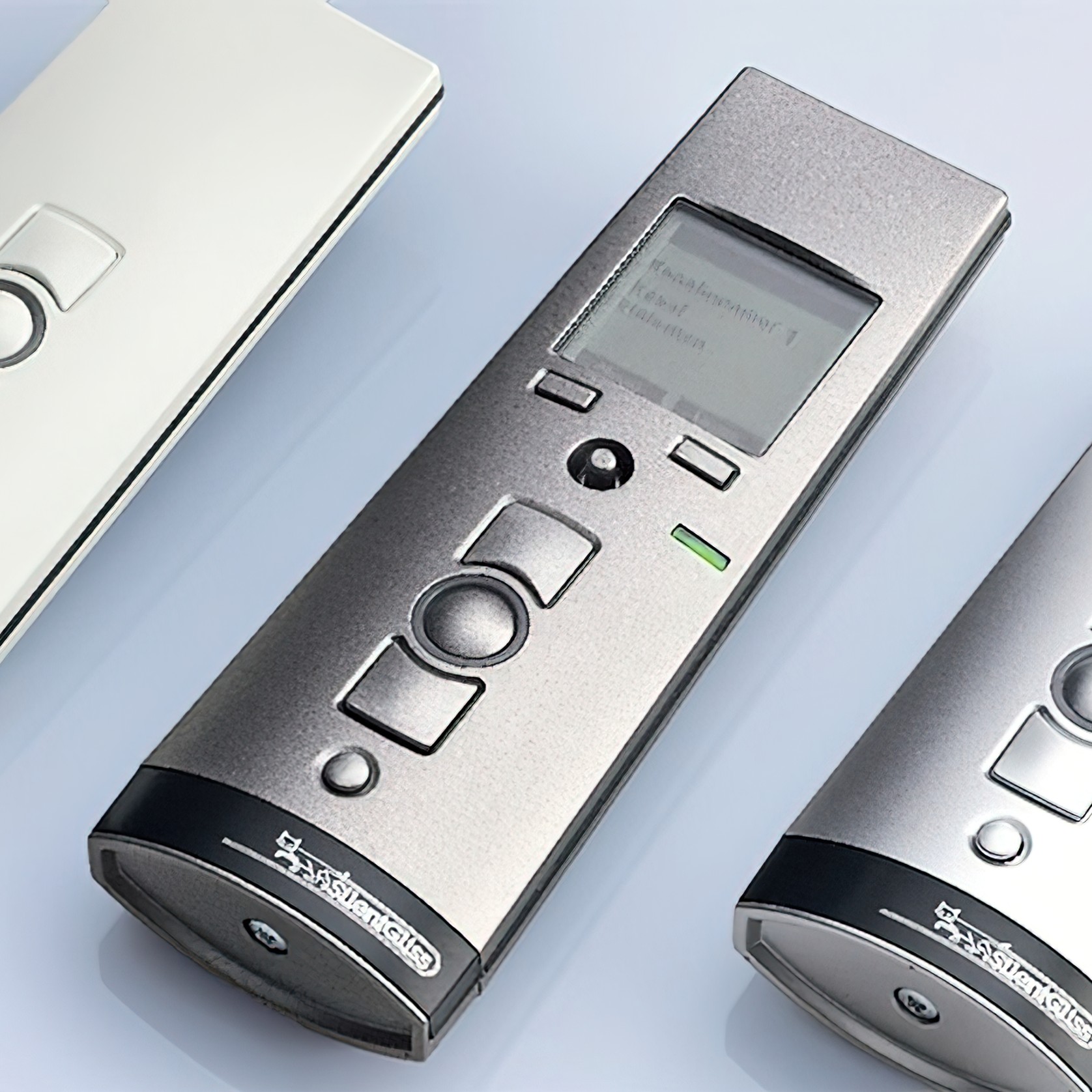

• Radio remote transmitters are available in hand-held or wall mount versions. Hand-held are available in 1, 5 or 15 Channel versions & in White, Silver or Anthracite – they are supplied complete with a magnetic wall plate. • Simple & quick programming of the transmitter to the motor.
• 240V switching (via the 2 active cables) or dry contact switching (via data cable) are available – dry contact switching option can also be combined with radio remote operation – integration via leading BMS is also possible.
• Automatic or manual (via test lead or radio remote transmitter) limit setting with soft start/soft stop (motor stops silently on its limits).
• ‘Touch & Go’ function offers easy operation. • Manual over-ride is possible in the event of power failure.
Download:
Motorisation Brochure
SG 5600 | Smart Fix

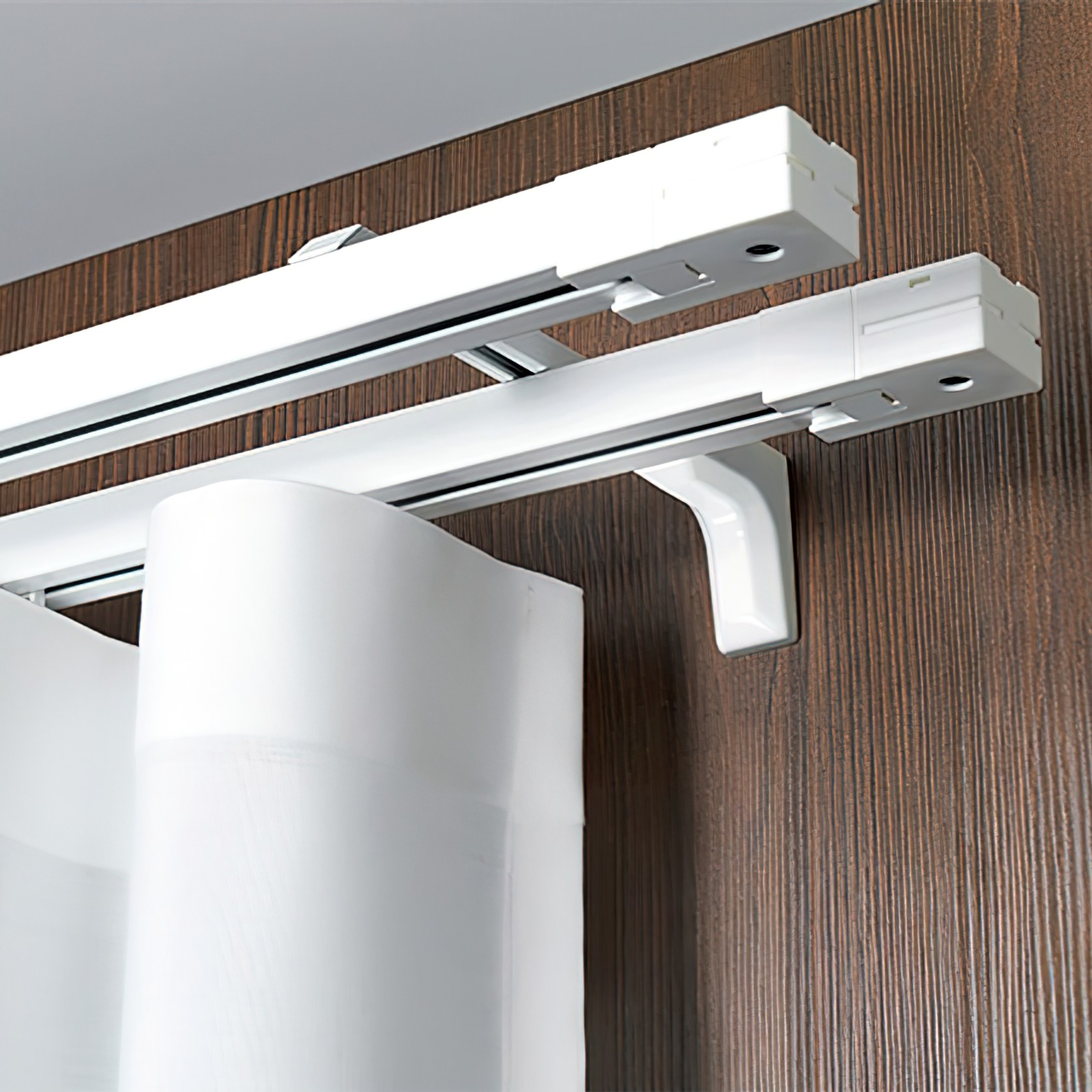

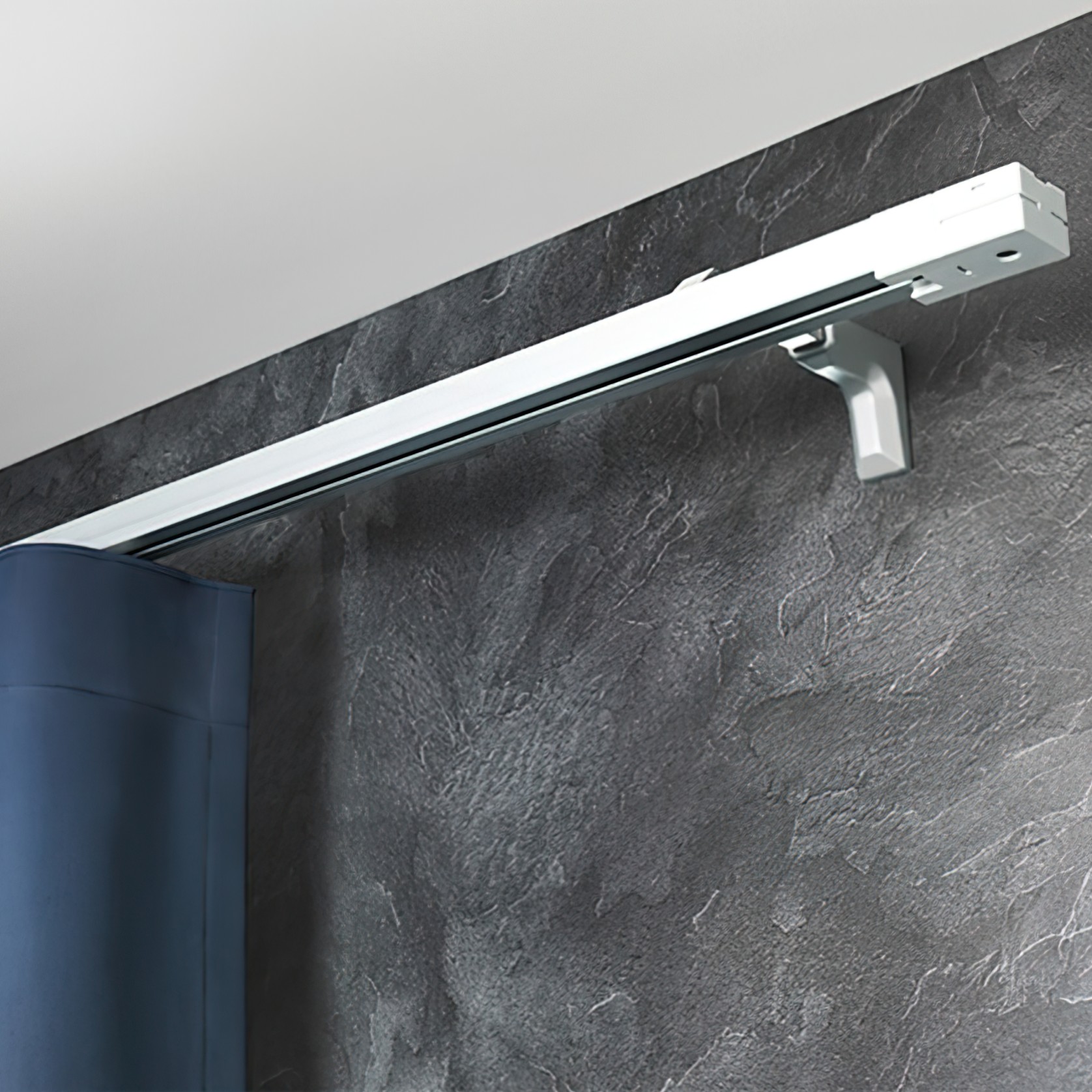

Smart Fix | Product Information• Smart Fix offers the ultimate flexibility and ease of installation. • Modern, versatile design: • Silent Gliss systems can now be f itted with Smart Fix, a uniform bracket range for use across all our systems. • This new design includes magnetic metal covers which are easy to fit and elegantly hide the screws. • Smart Fix replaces a total of 51 brackets and significantly reduces the range to only 22 brackets! options (3 brackets with slot). • Can also be flush ceiling mounted when paired with matching recessed profile
Square Smart Fix• Contemporary designed brackets with a lower down-stand, ideal if fitting space is limited. • A total of 9 brackets including fixed length and adjustable options (3 brackets with slot).
Universal Smart Fix• A bracket console with 3 different extension arms for ultimate flexibility and adjustability.
Download:
Smart Fix Brochure
