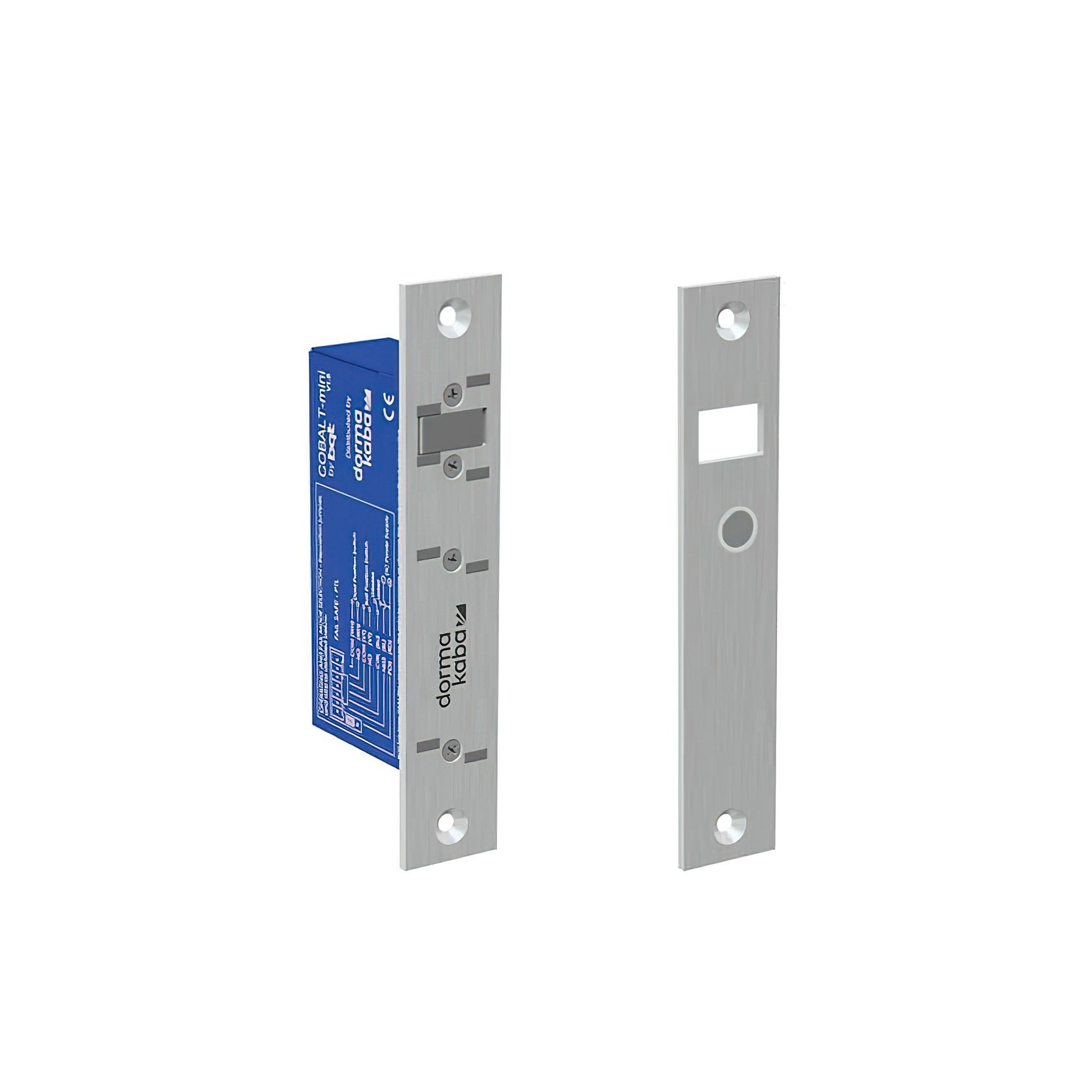

SL30SGL - COBALT Mini Electronic Side Load Lock

By dormakaba
Visit Website

The electronic side load lock, COBALT-mini, is a motor driven electronic lock designed to secure commercial and residential single action doors. Its small footprint ensures the Cobalt-mini can be installed in most locations however it still has the ability to pull a door in tightly against a seal and will release instantly when requested, even with excessive load on the door.

Details
  • Category
    Window and Door Hardware
  • Range
    Electromechanical Locking
Specifications
  • Door misalignment of up to 8mm is corrected.
  • Side load release - up to 100kgs.
  • Automatic deadbolting.
  • 10mm thick stainless steel bolt pin.
  • Reverse polarity and transient protection.
  • Multiple attempts to lock.
  • Convert from Fail Safe to Fail Secure by repositioning a single jumper.
  • Door and bolt position monitors.
  • Mortice mount horizontally or vertically, on single acting doors.
  • Surface mount with the aid of the SLA30SGL accessories, including mounting onto glass.
Scope of use
  • Endurance 300,000 cycles of normal operation.
  • Holding Force 10,000N (1000Kg).
  • Voltage at Lock 12 - 24VDC +/-15%.
  • 10mm thick stainless steel bolt pin.
  • Side Load Release Up to 100kg opening load on door.
  • Door Misalignment Up to 8mm.
  • Including mounting onto glass.
Performance
  • Endurance 300,000 cycles of normal operation.
  • Holding Force 10,000N (1000Kg).
  • Voltage at Lock 12 - 24VDC +/-15%.
  • 10mm thick stainless steel bolt pin.
  • Side Load Release Up to 100kg opening load on door.
  • Door Misalignment Up to 8mm.
  • Including mounting onto glass.
