Urbane Stealth Pivots

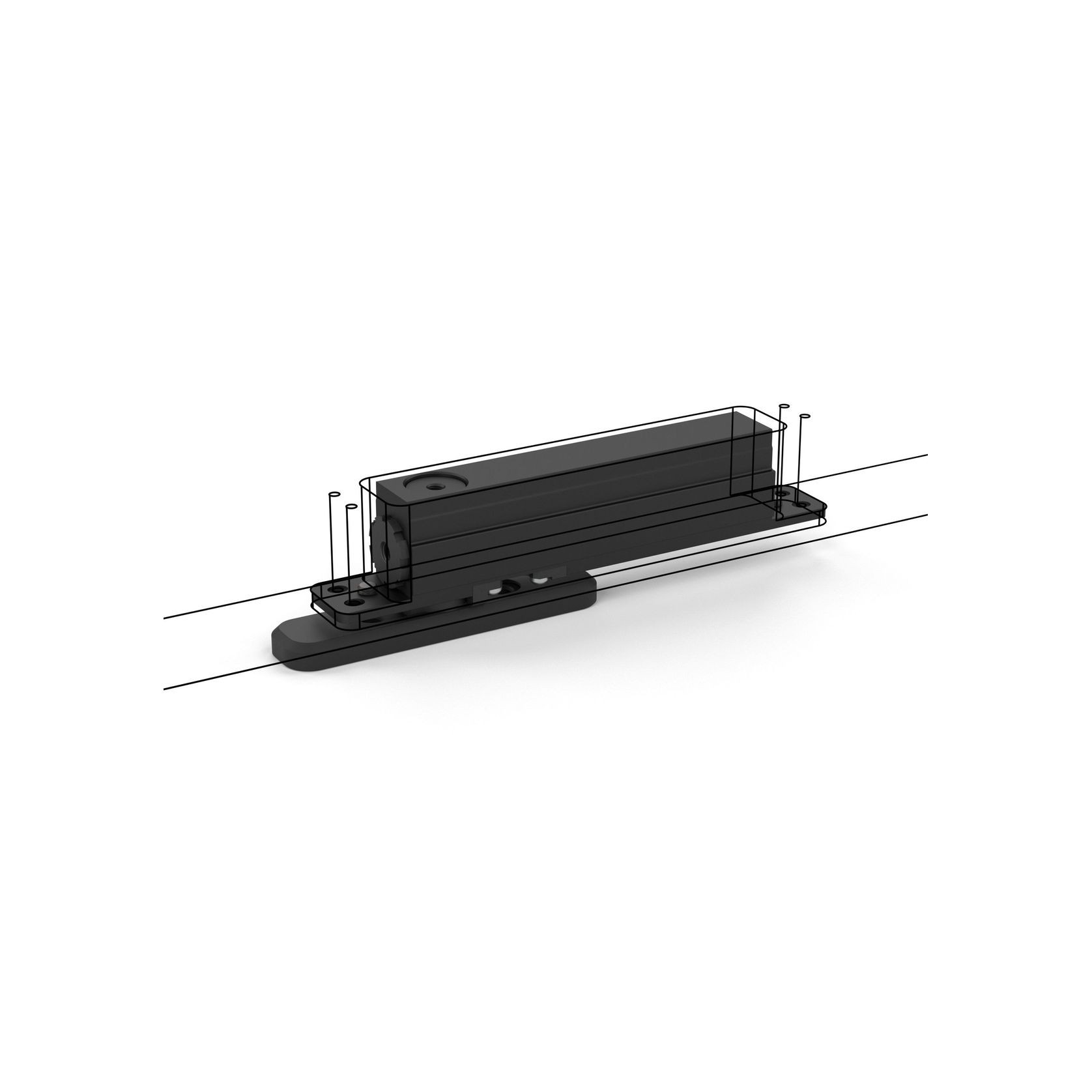

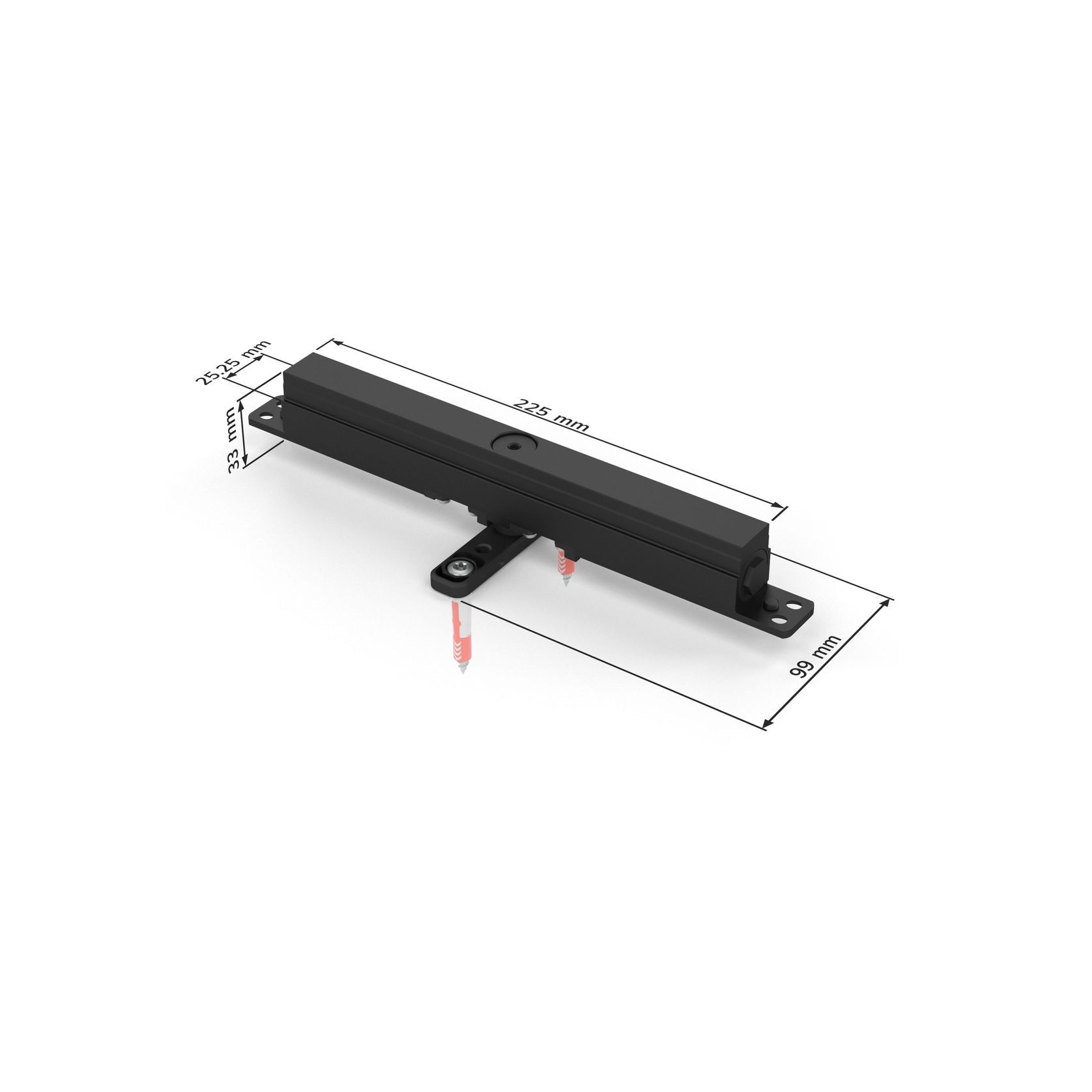

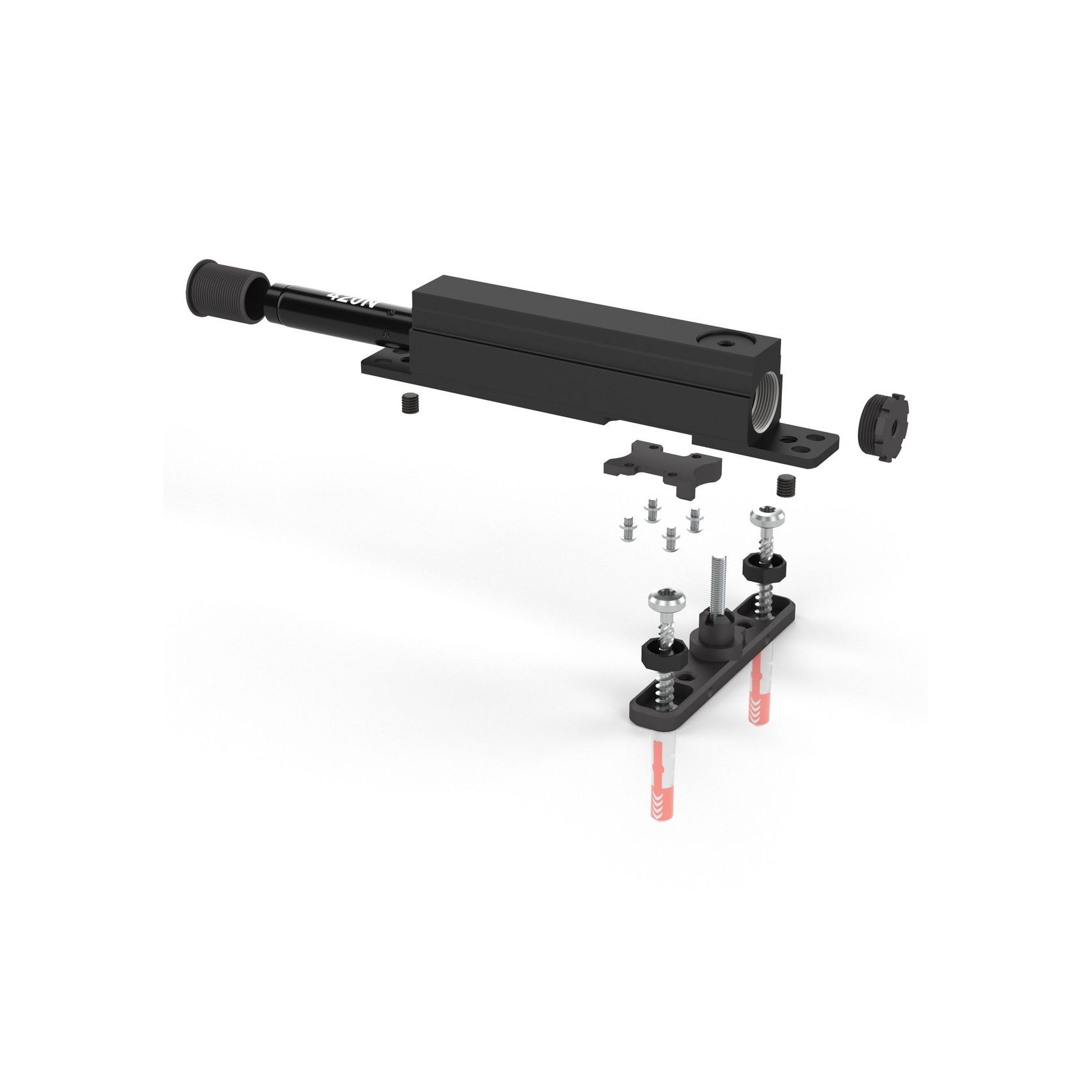

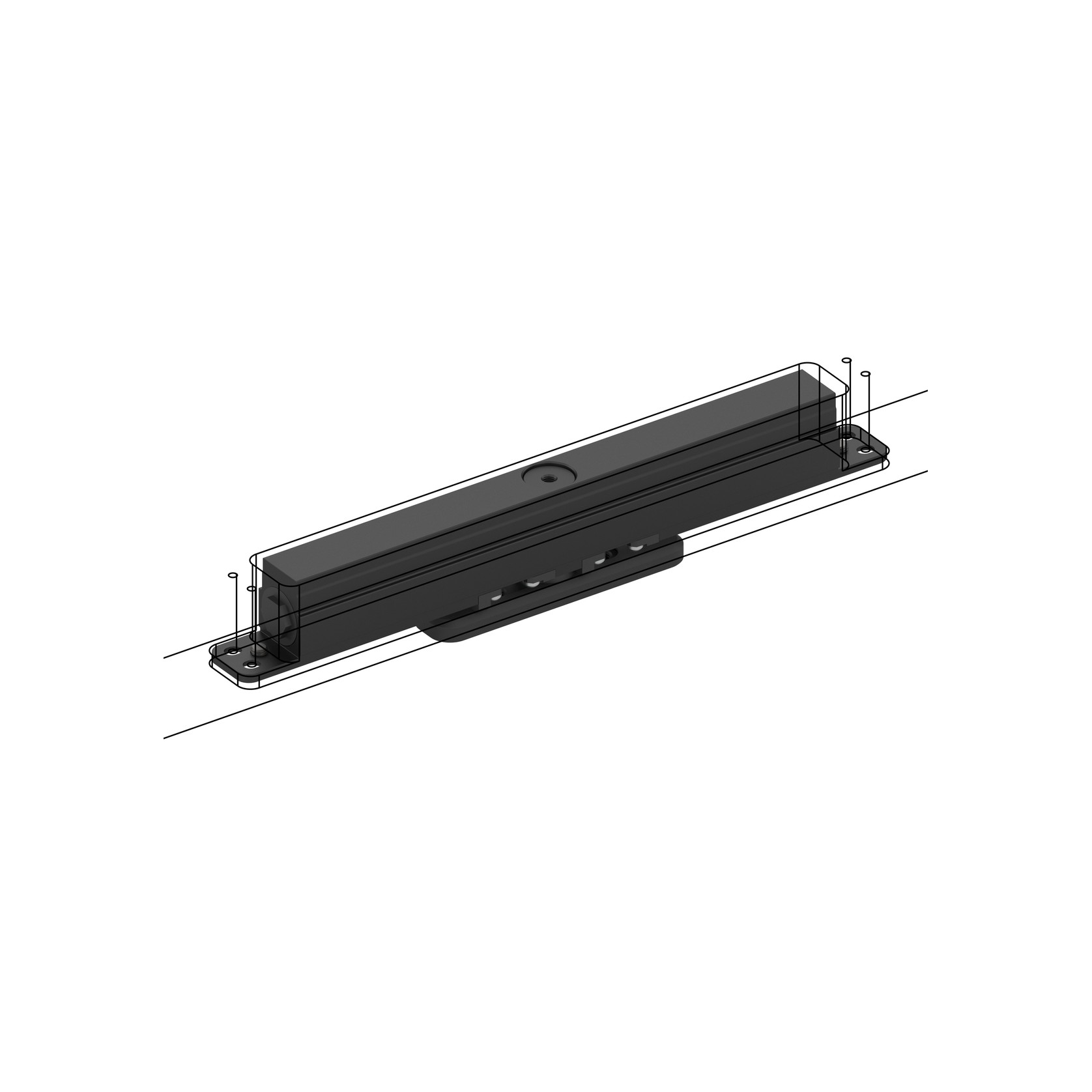

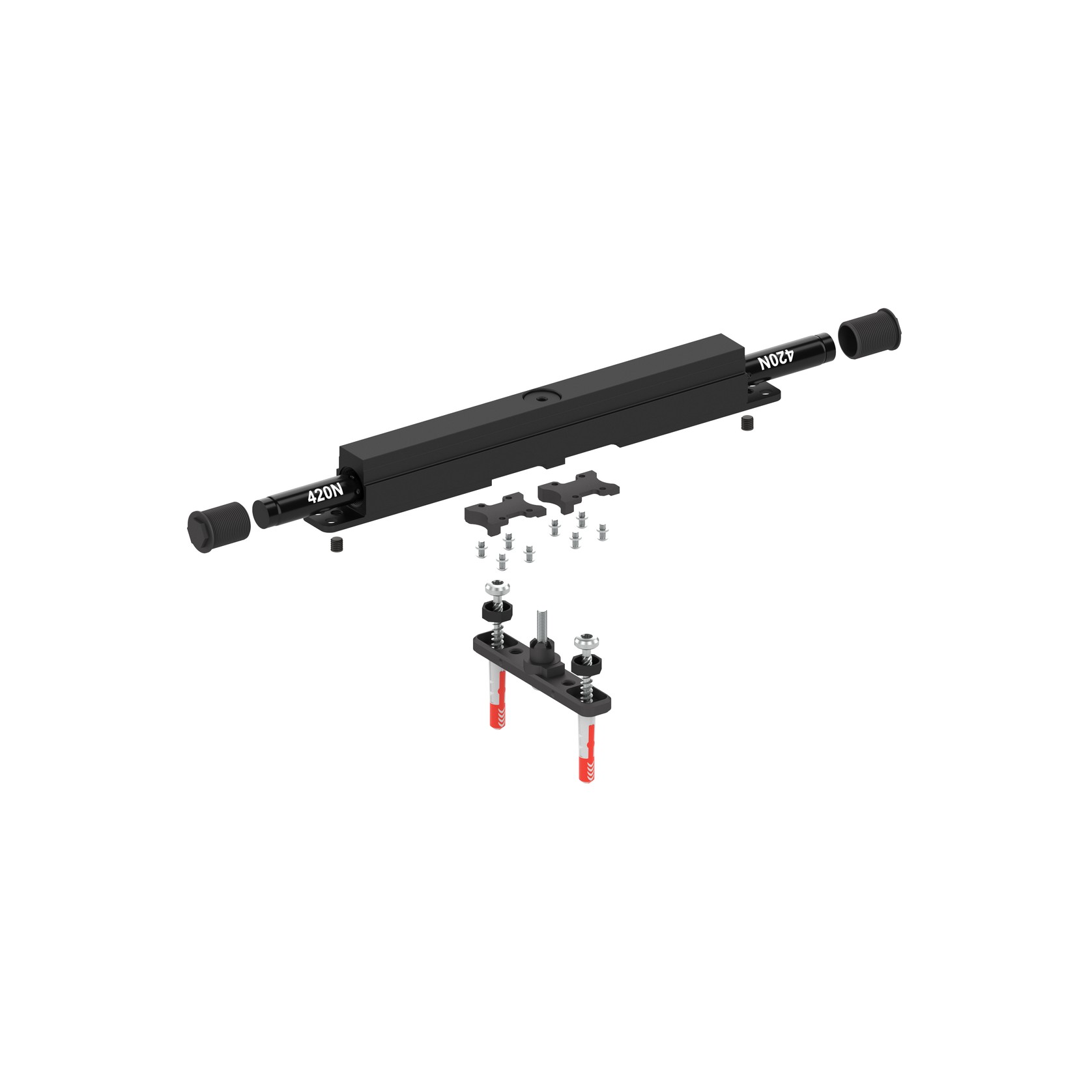

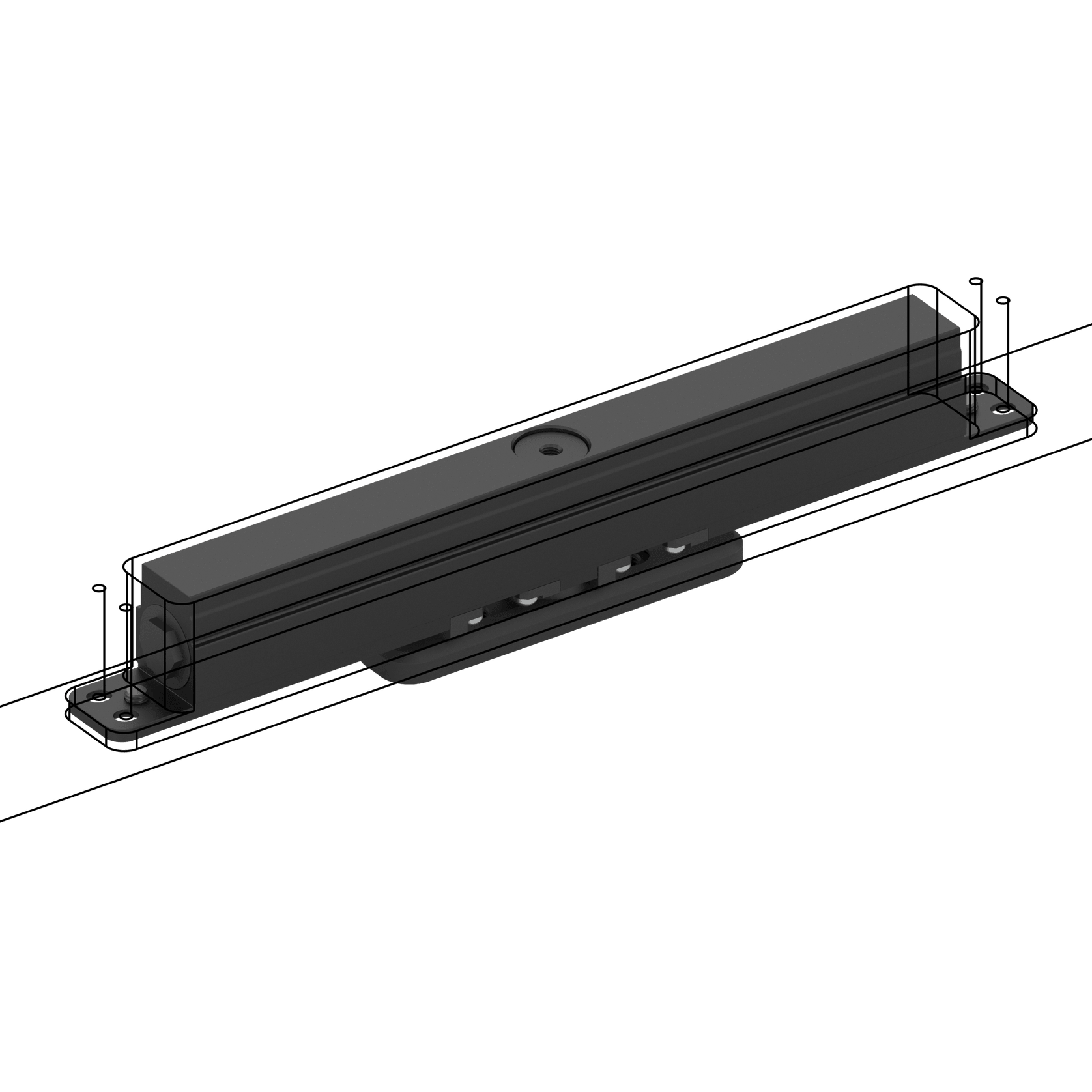

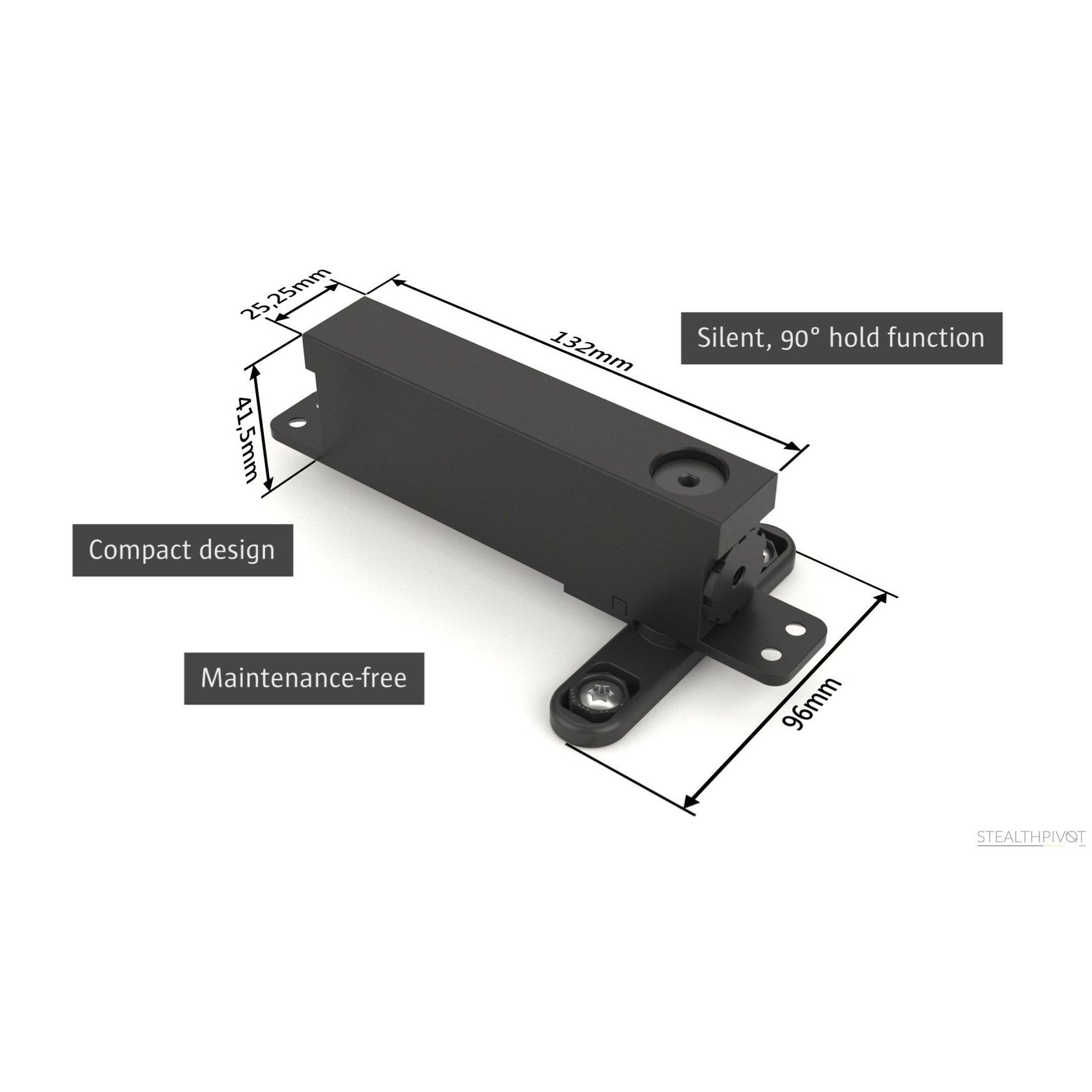

Stealth pivot is a compact and innovative pivoting hinge system, that can be fitted inside virtually any glass, aluminium or timber door leaf.

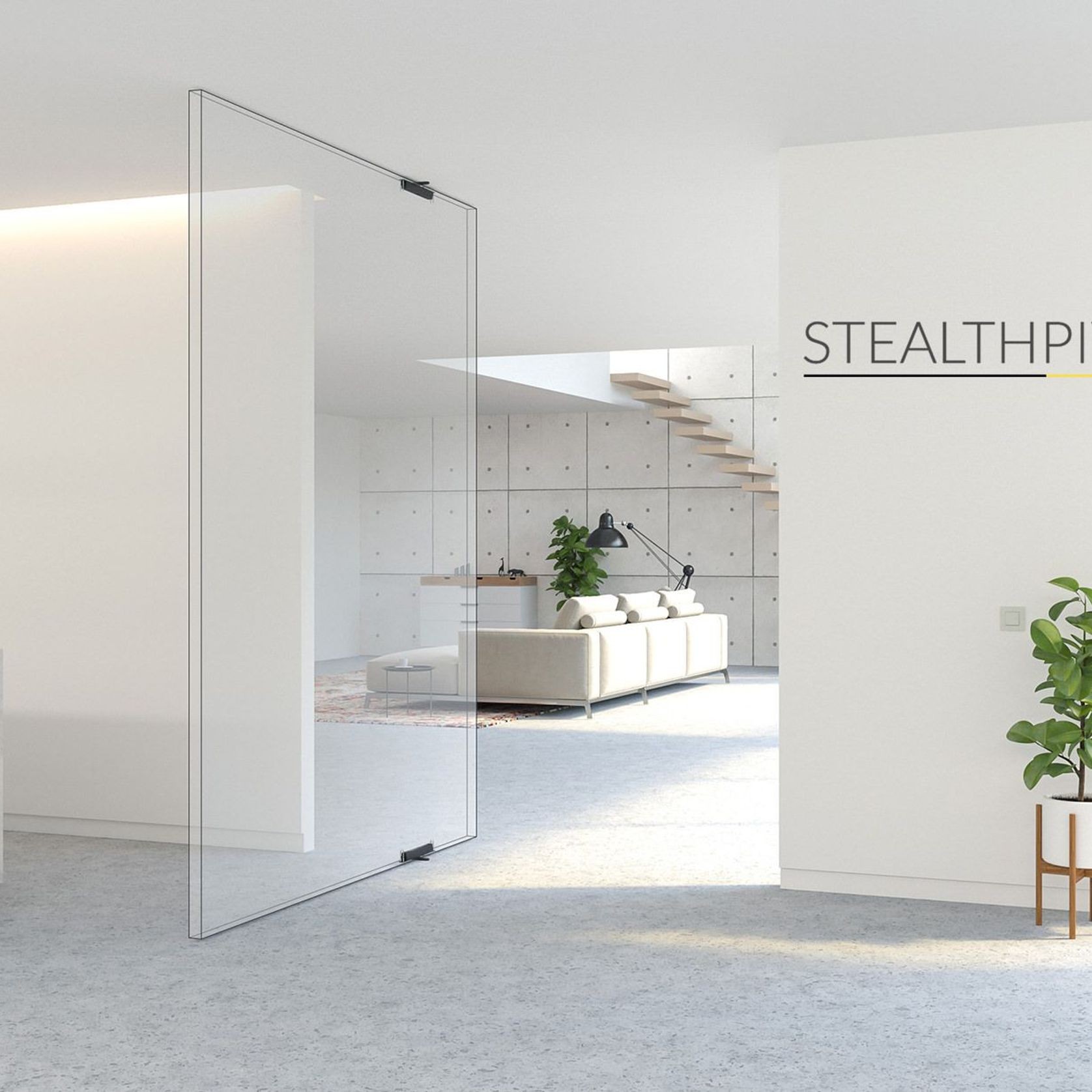

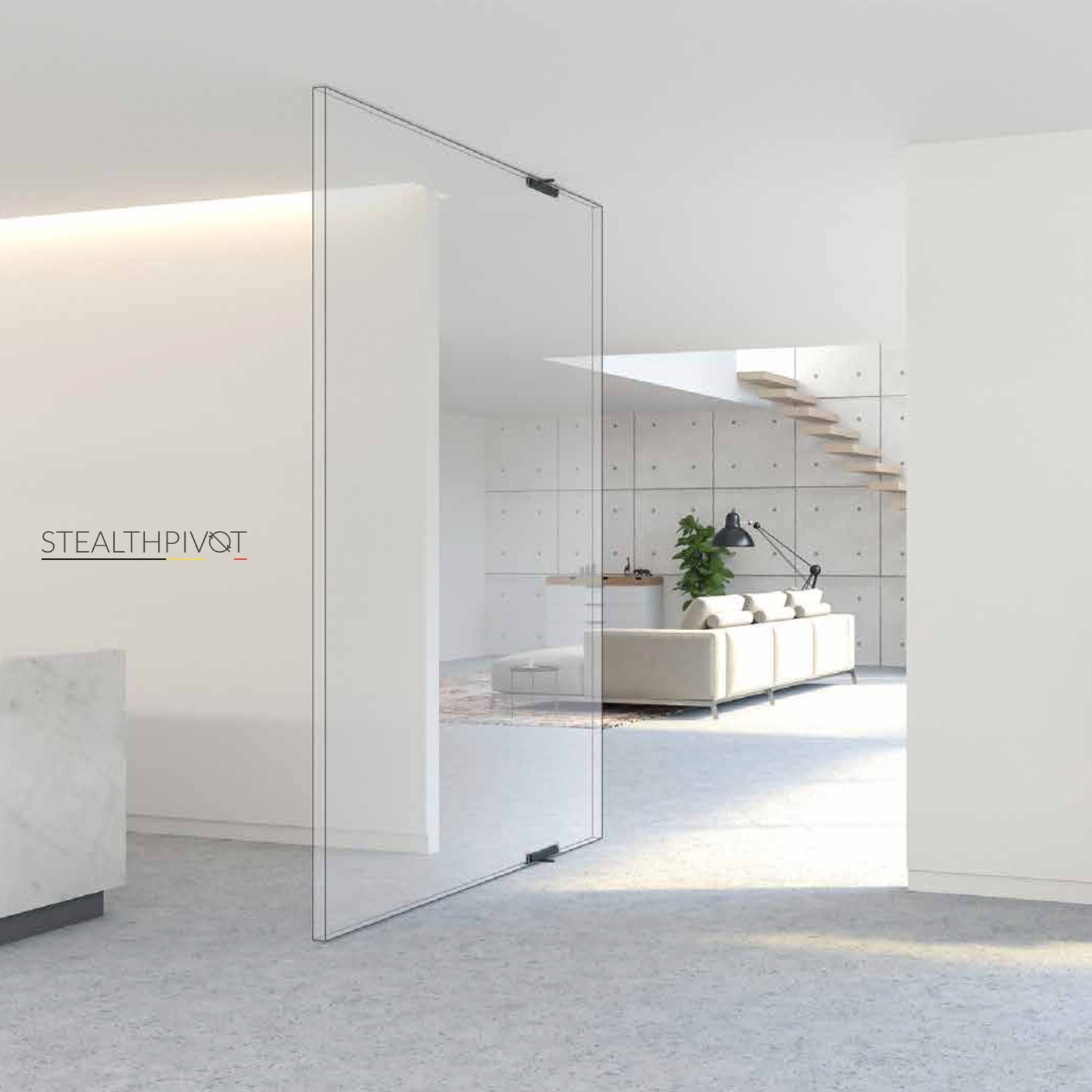

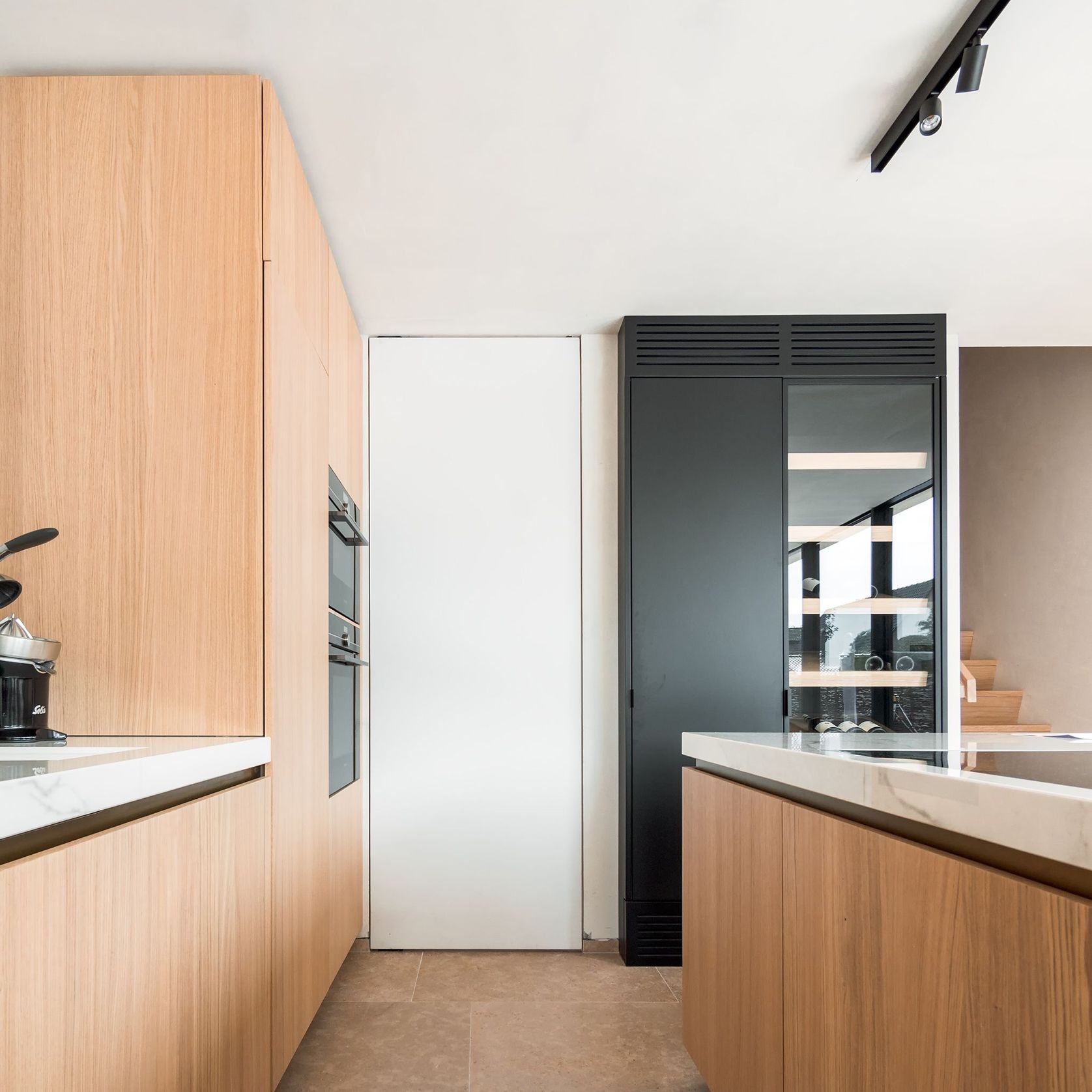

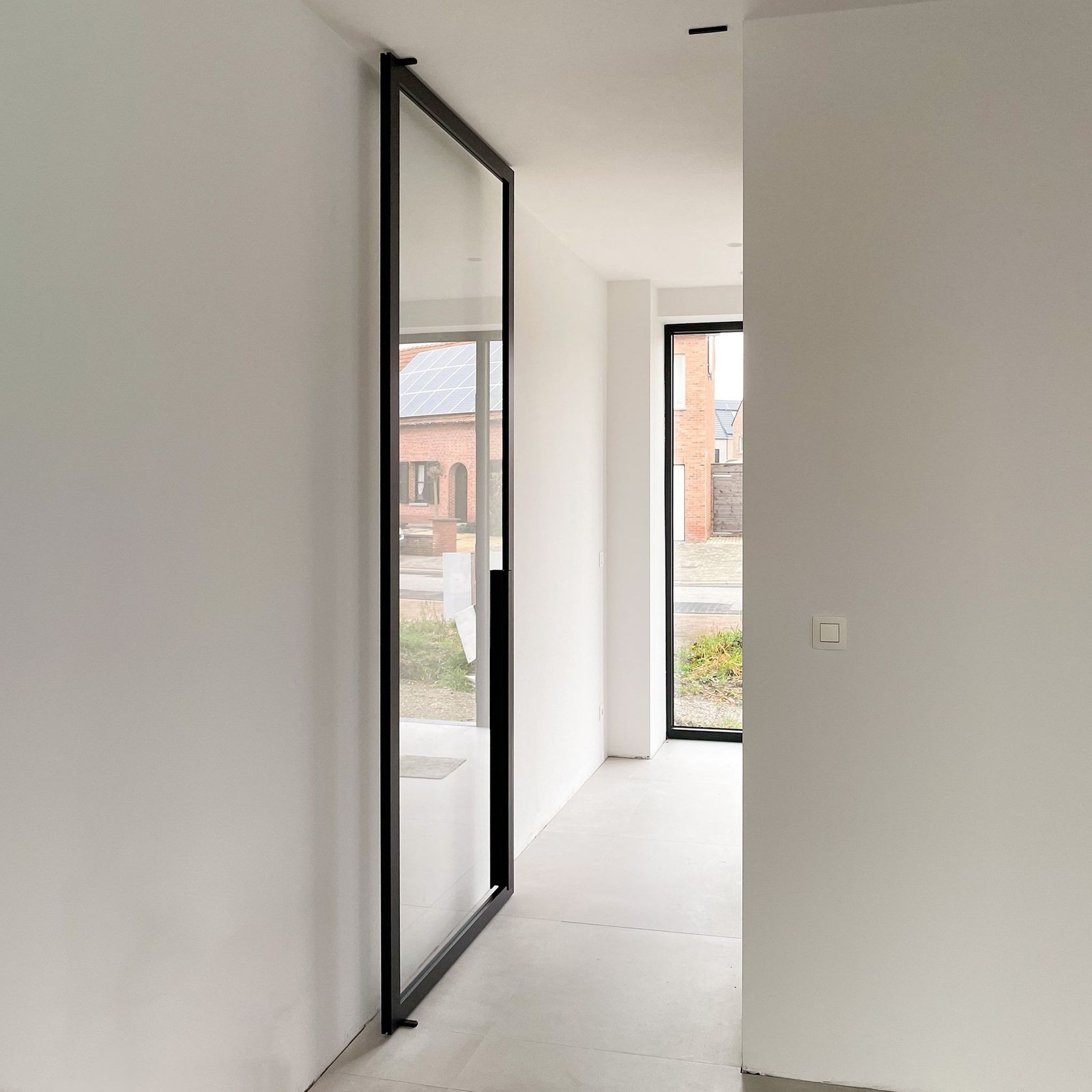

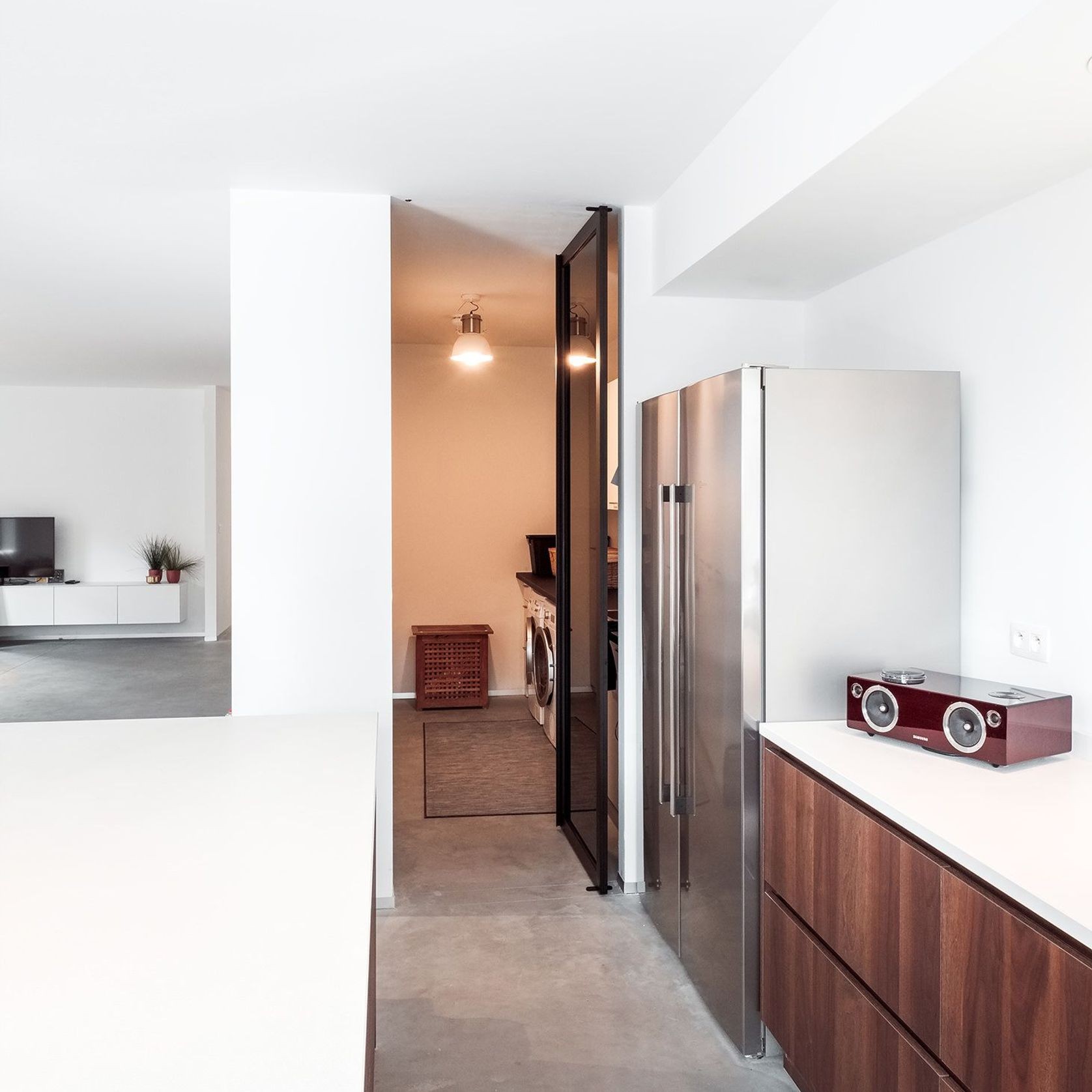

The pivot hinge features a high-tech comfort closure that works in all swing directions up to 360°. When fitted and installed, the hinge remains invisible, hence the name "Stealth Pivot".

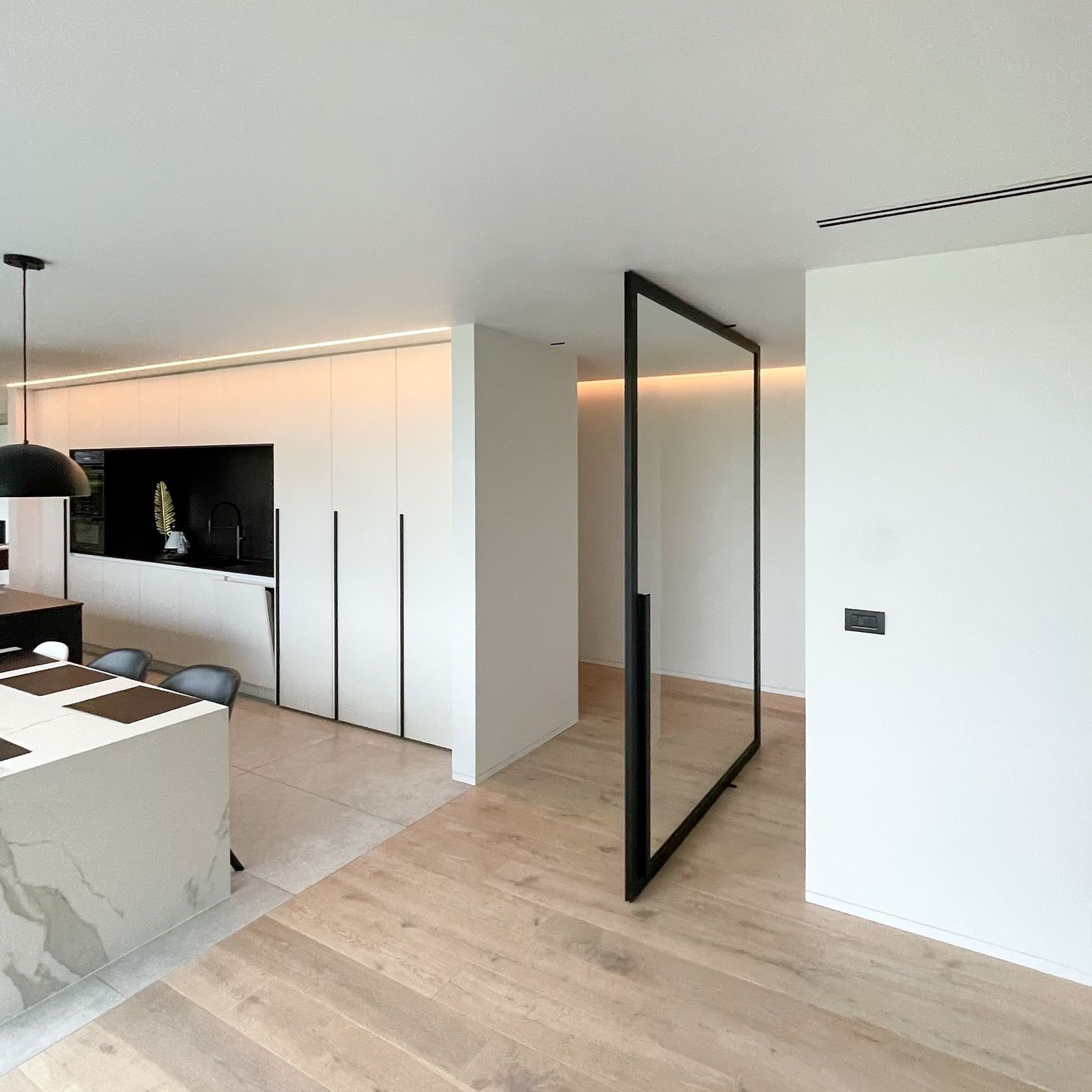

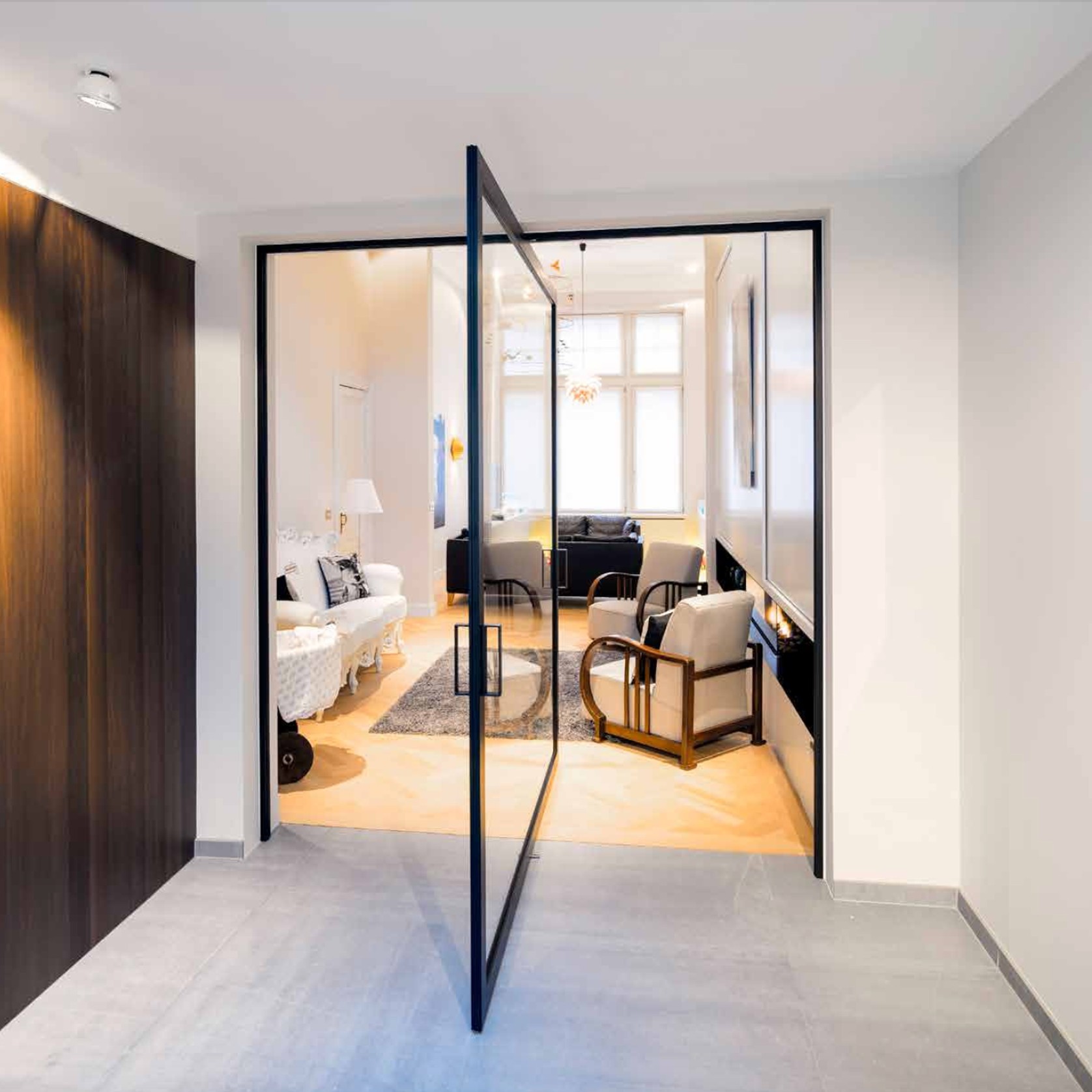

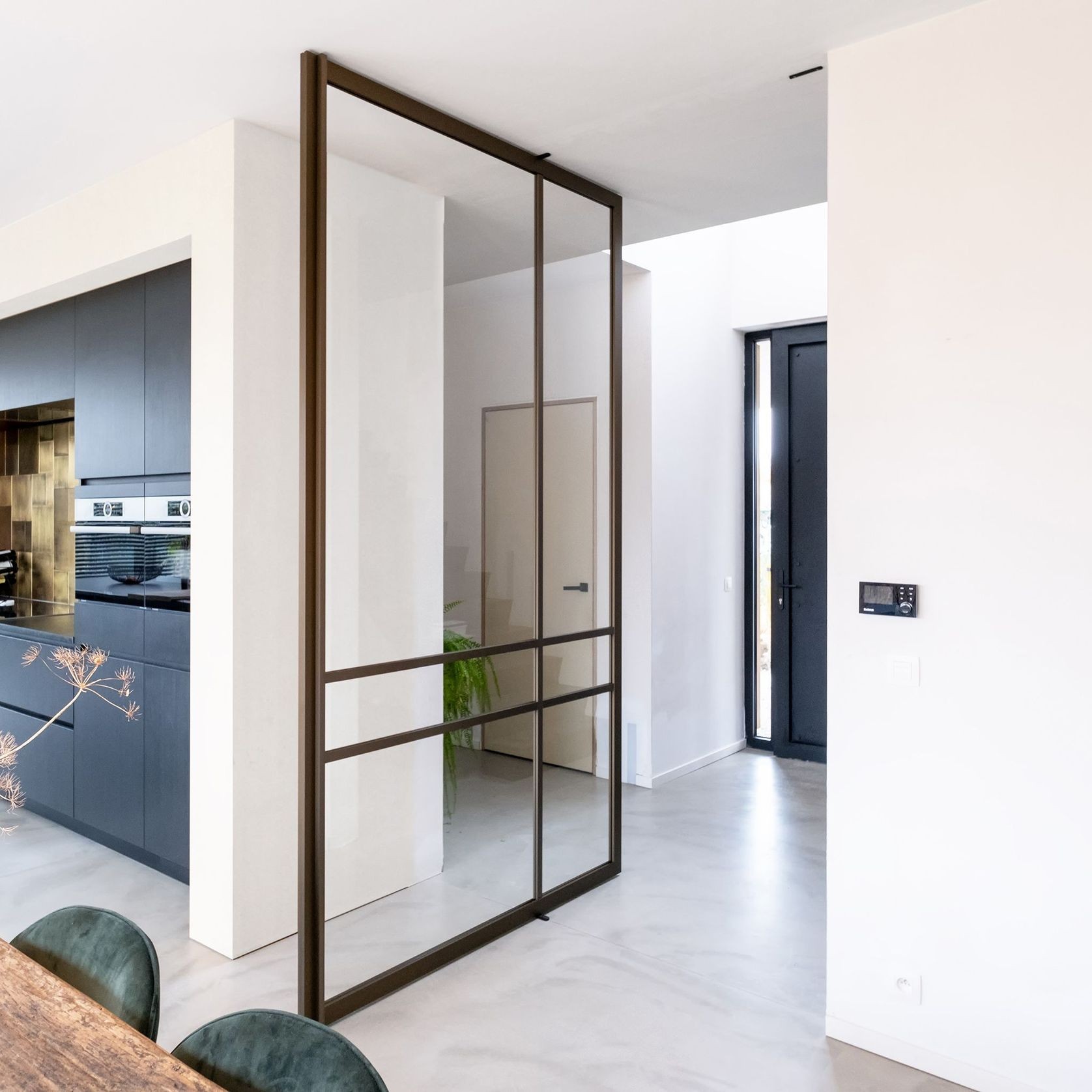

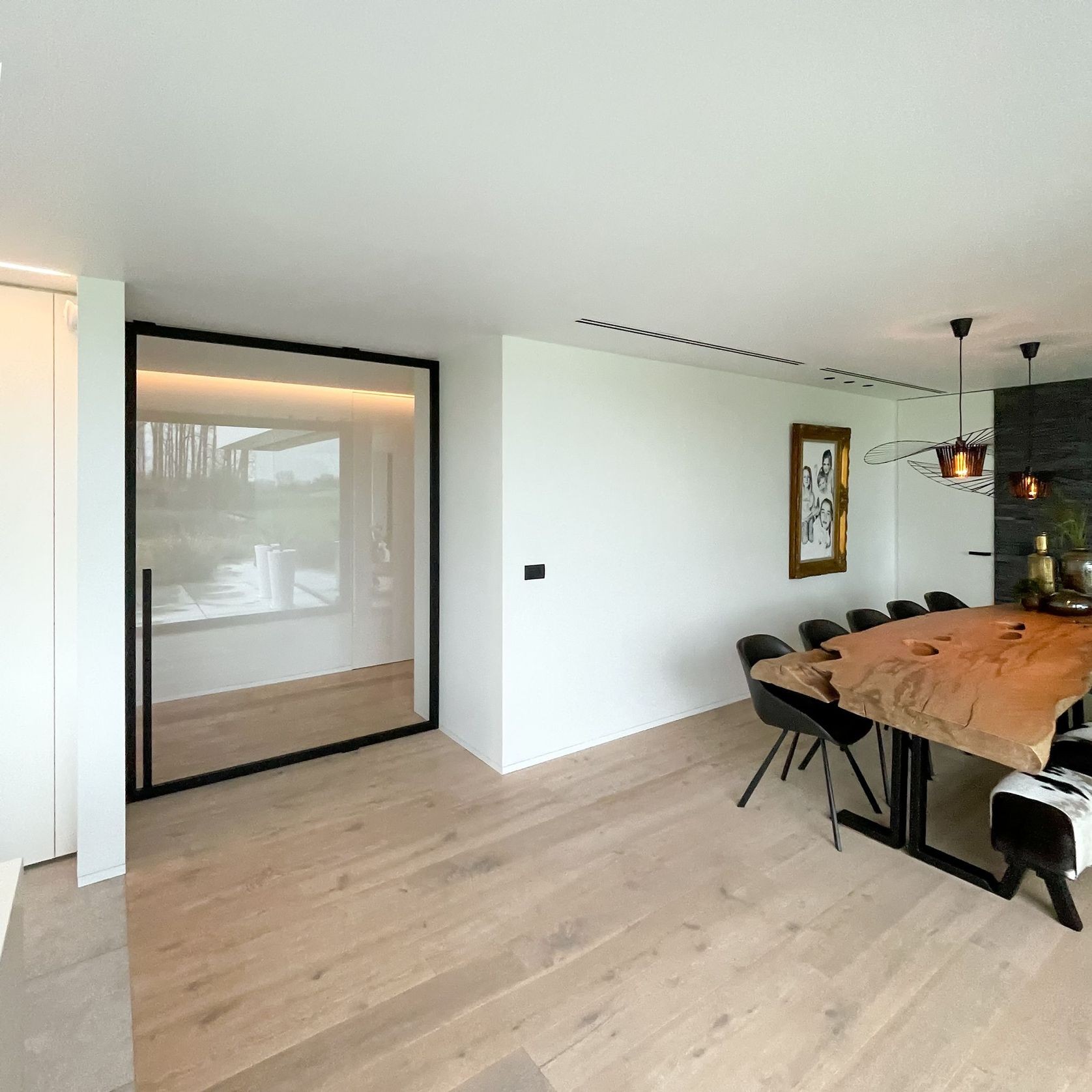

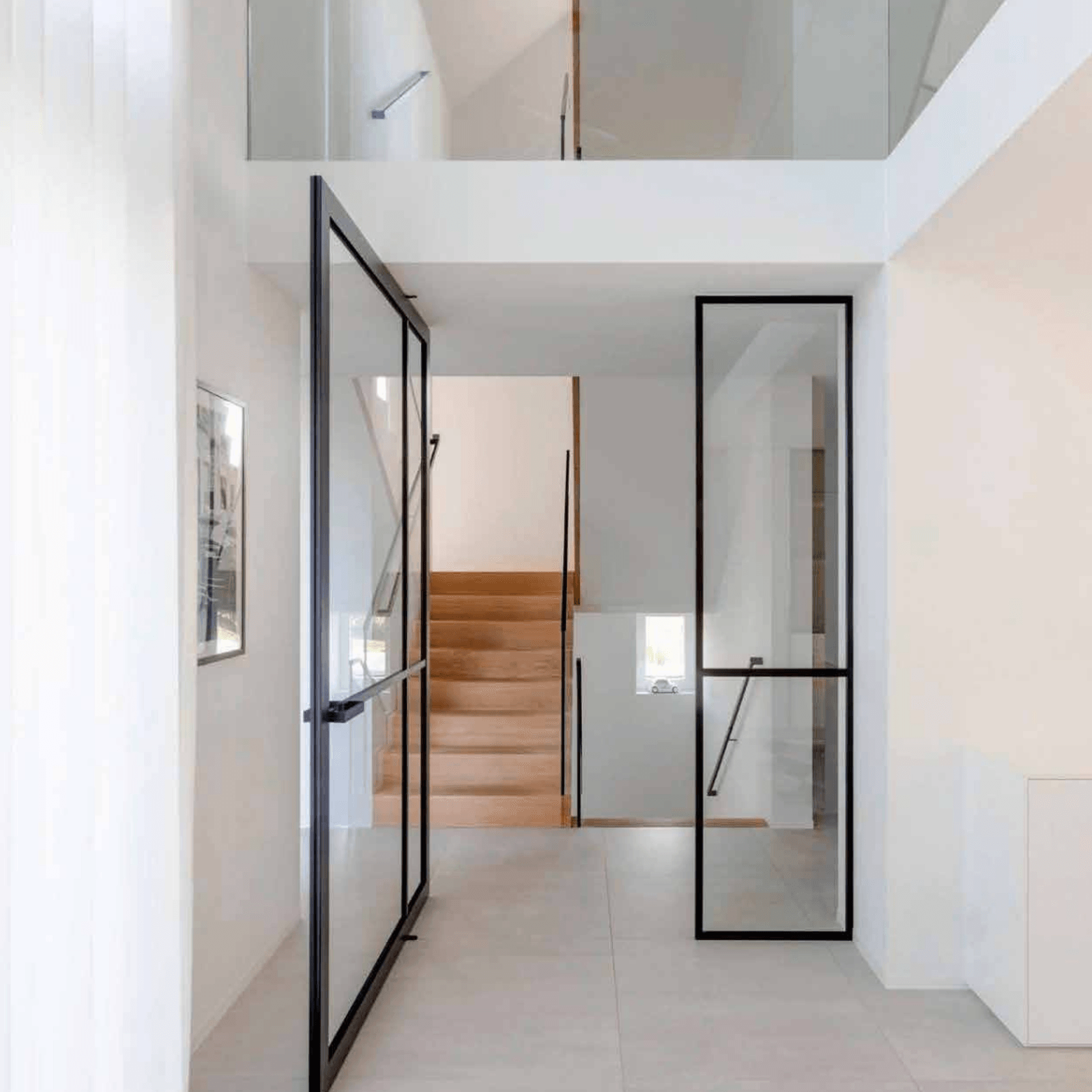

The self-closing pivot hinge makes it possible to create pivot doors up to 150 kg, that feel as light as a feather.

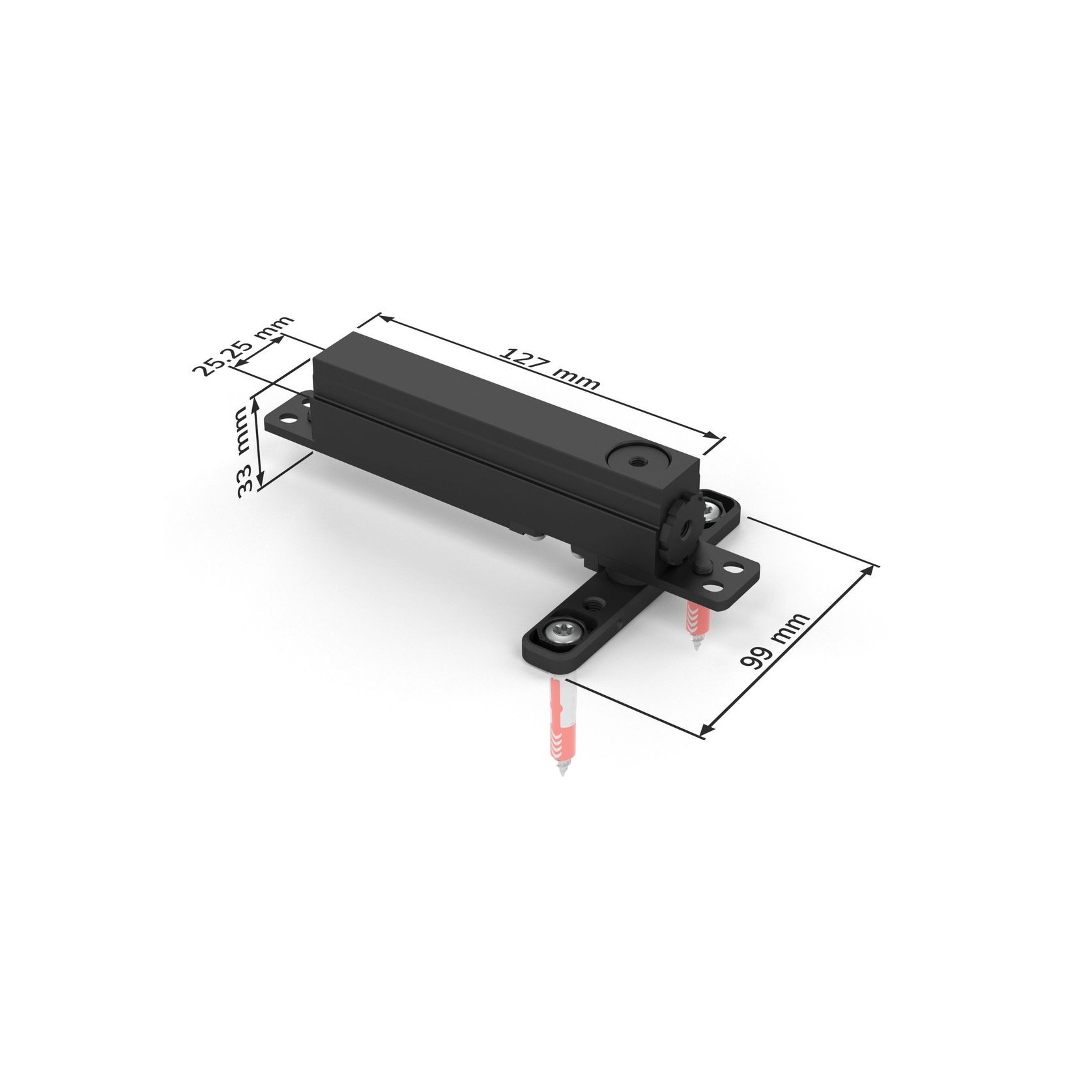

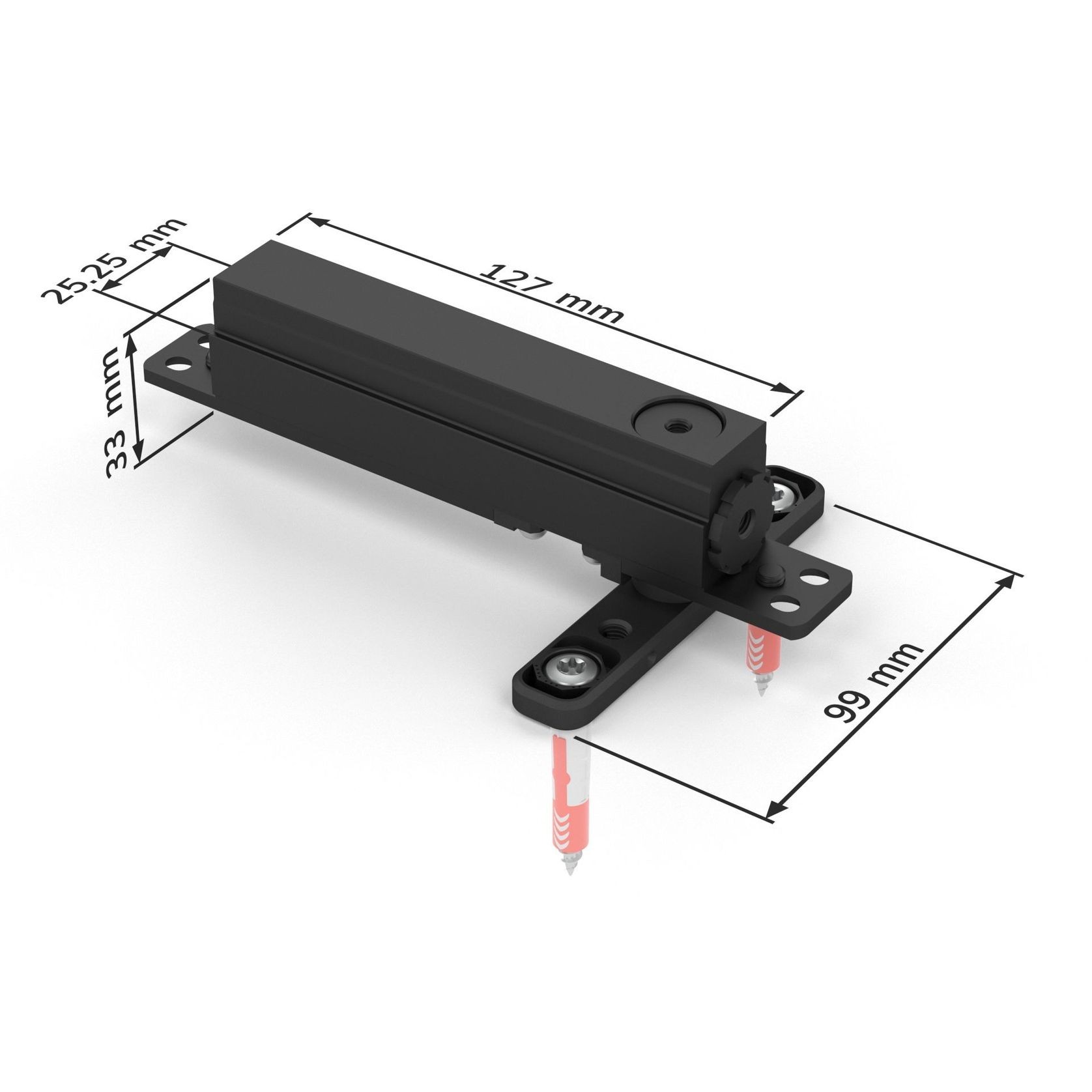

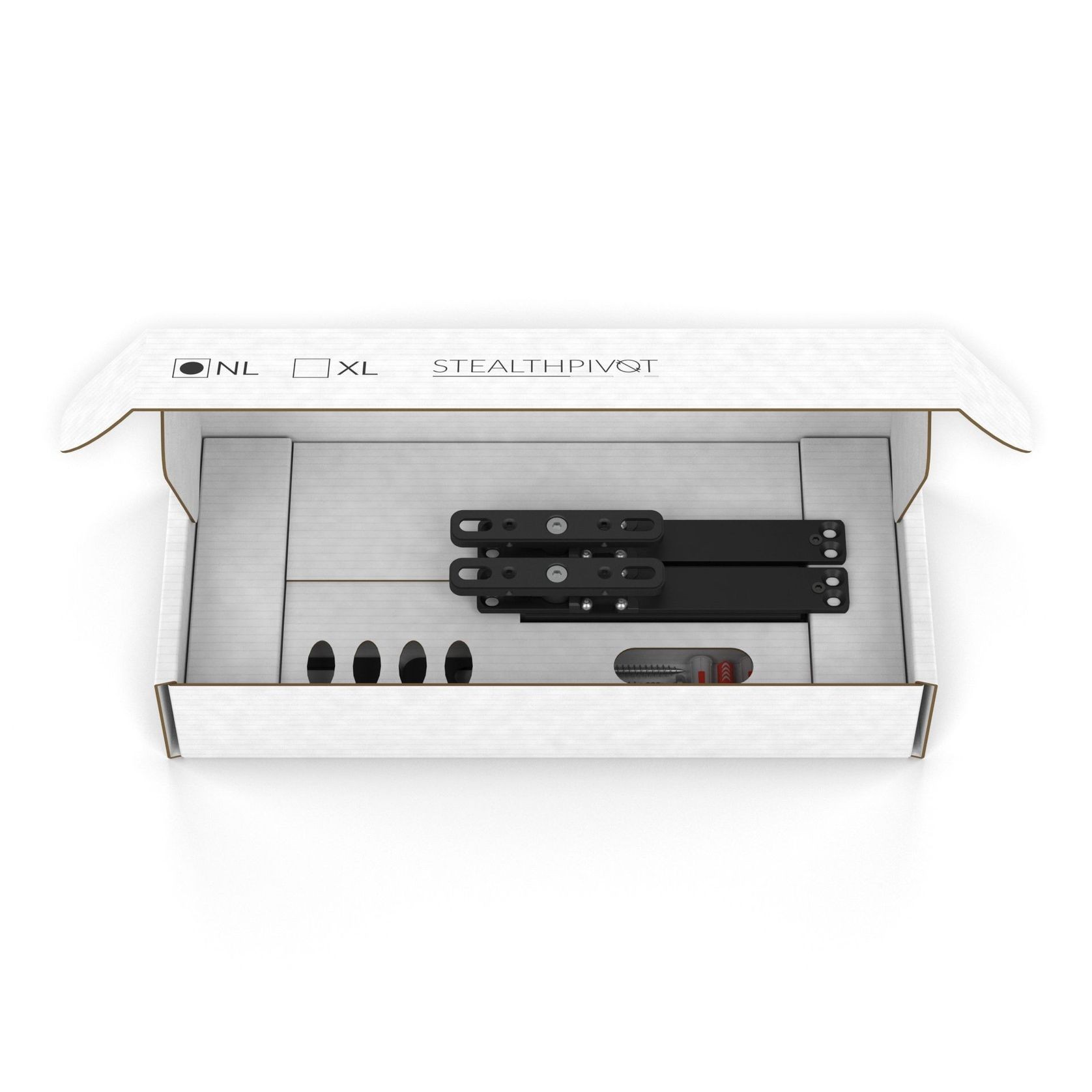

The NL version is designed for pivot doors up to 75 kg and can be positioned from 80 mm up to the centre of the door.

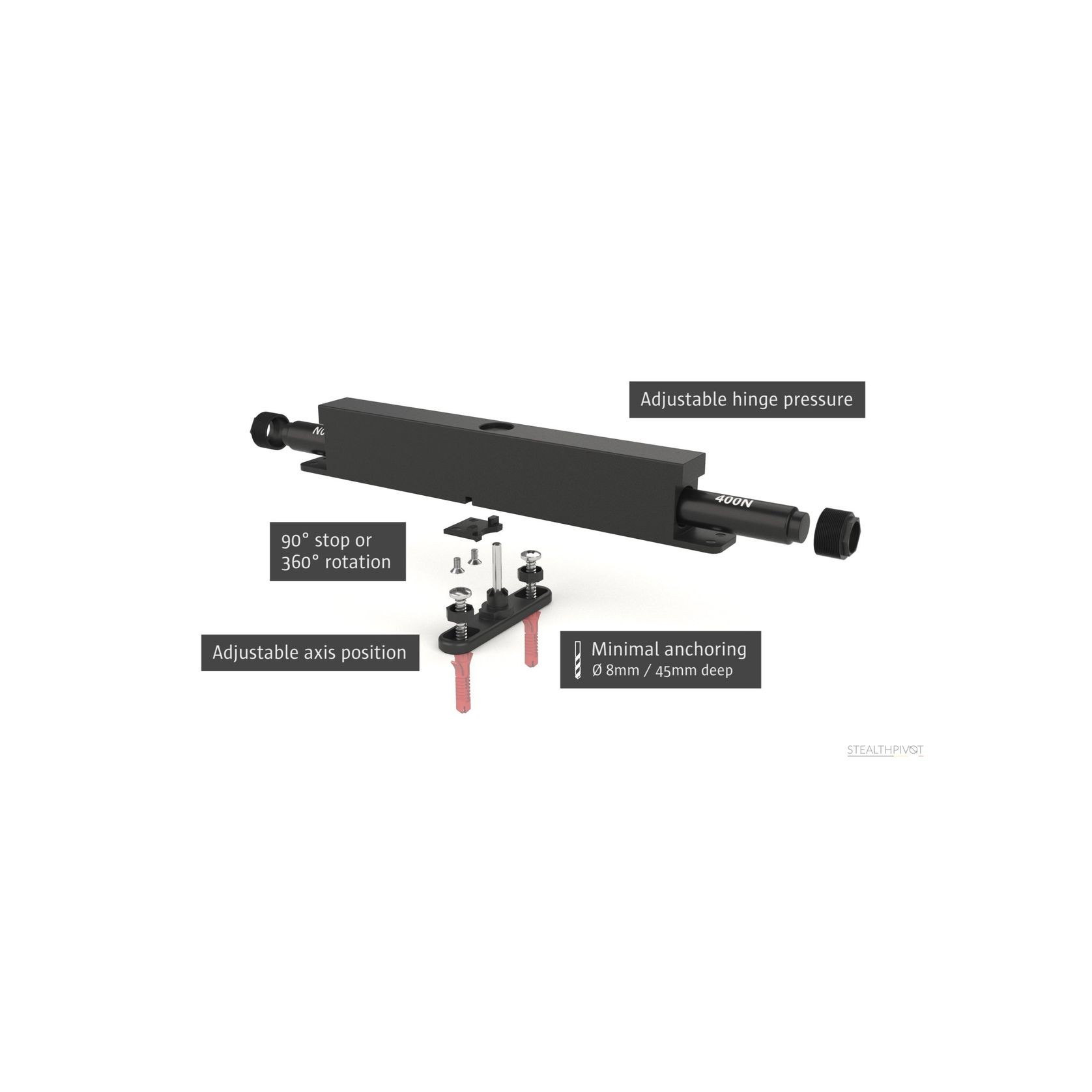

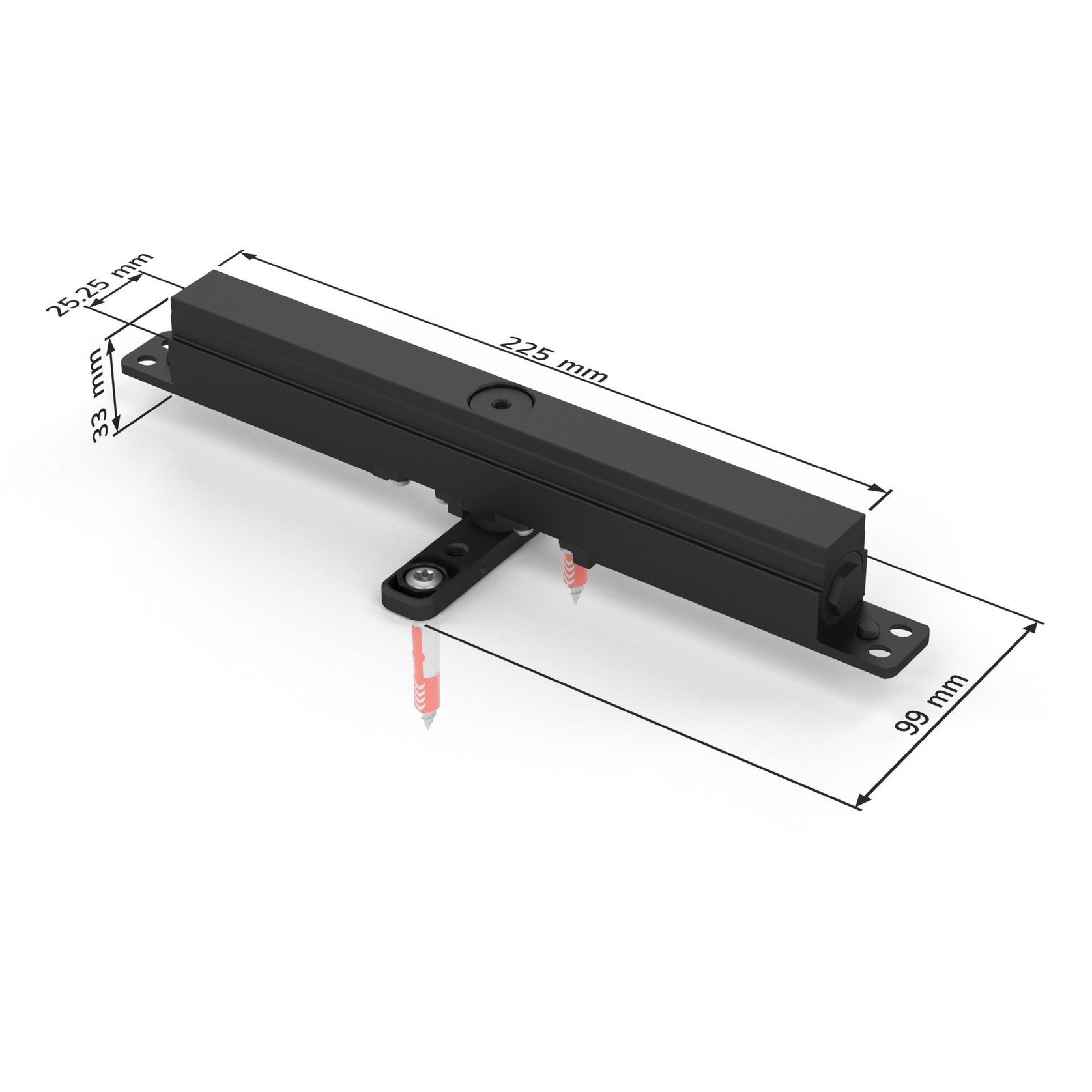

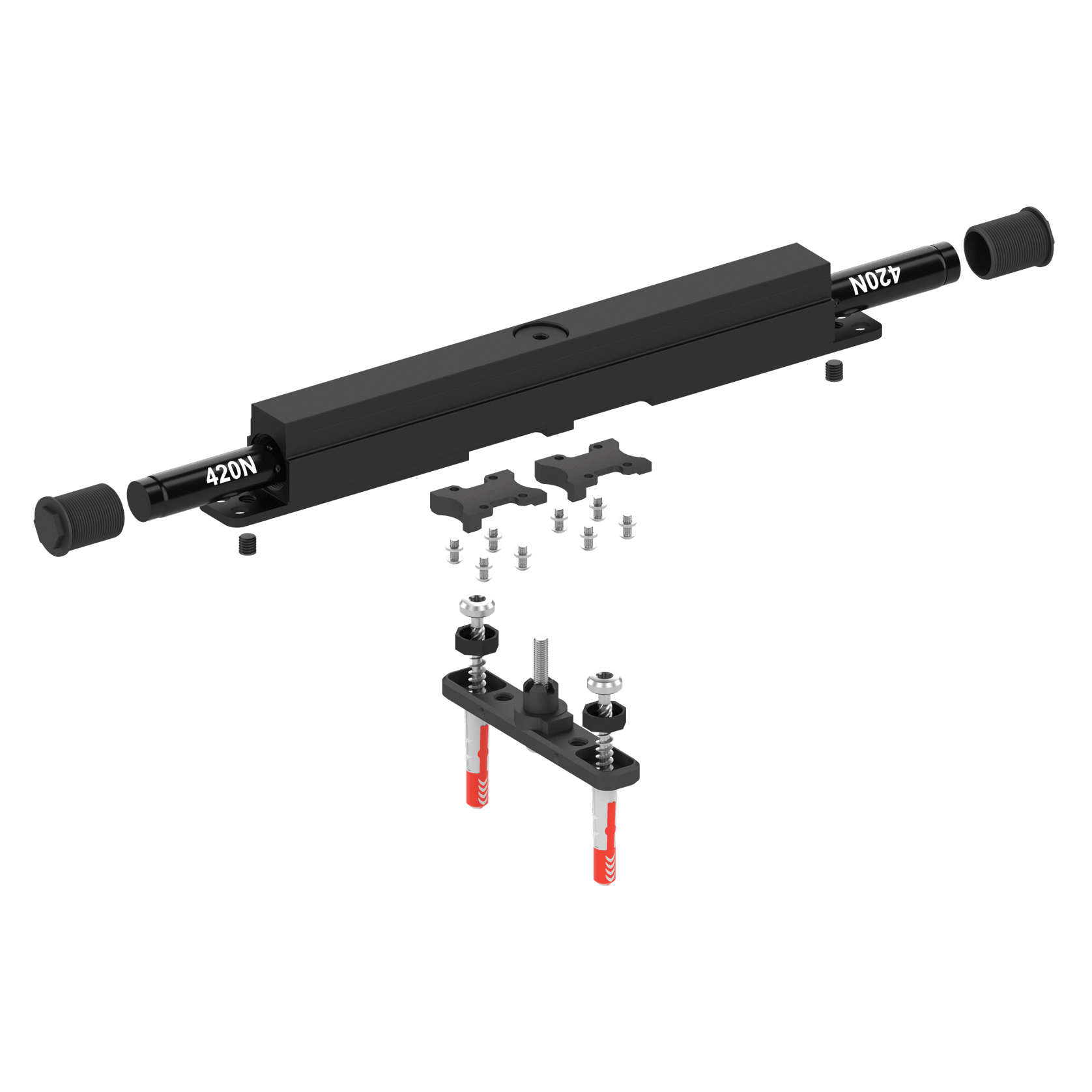

The XL version is designed for large pivot doors up to 150 kg. The axis can be positioned at 1/4 up to the centre of the door. It can be used closer towards the wall, but it all depends on the overall width of the door.

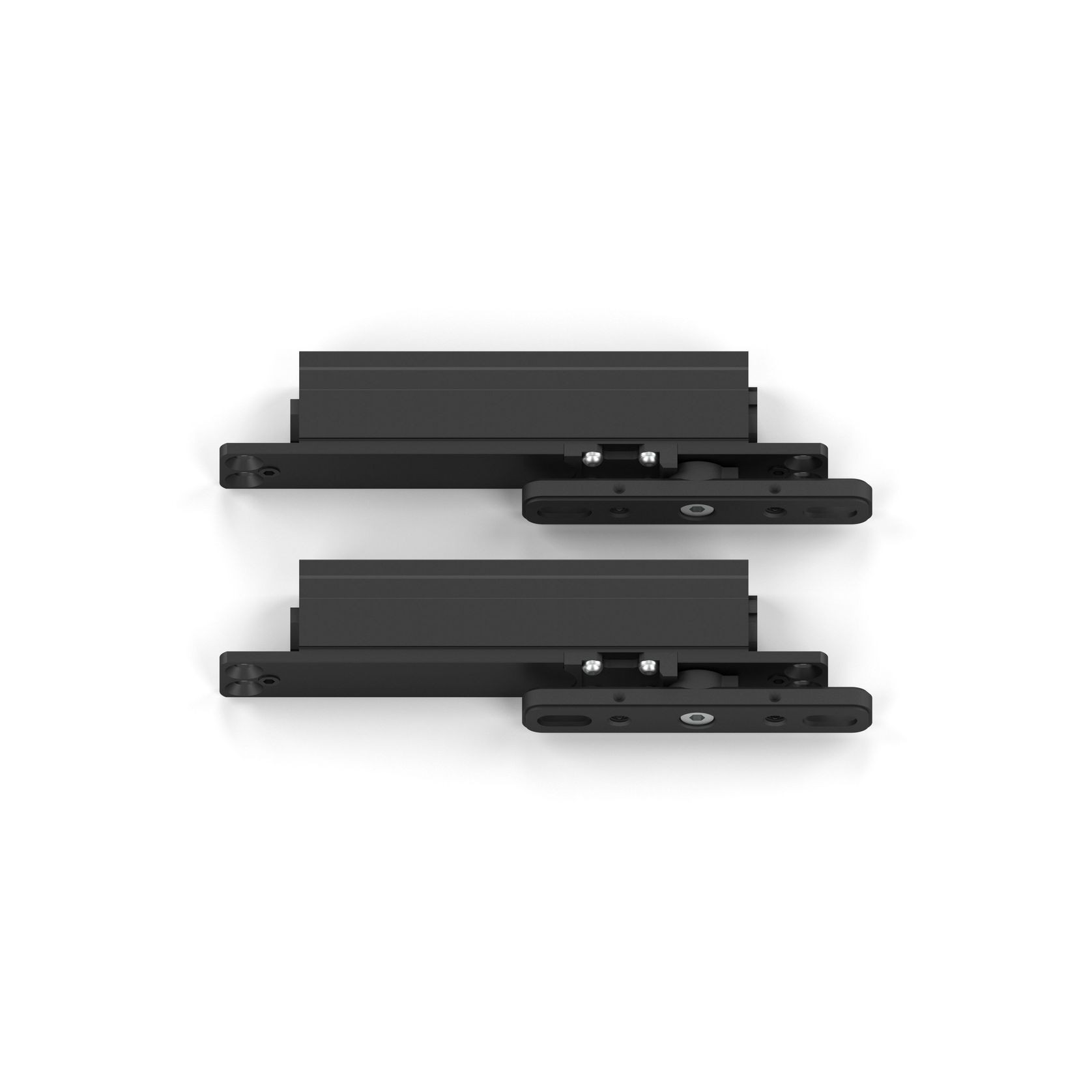

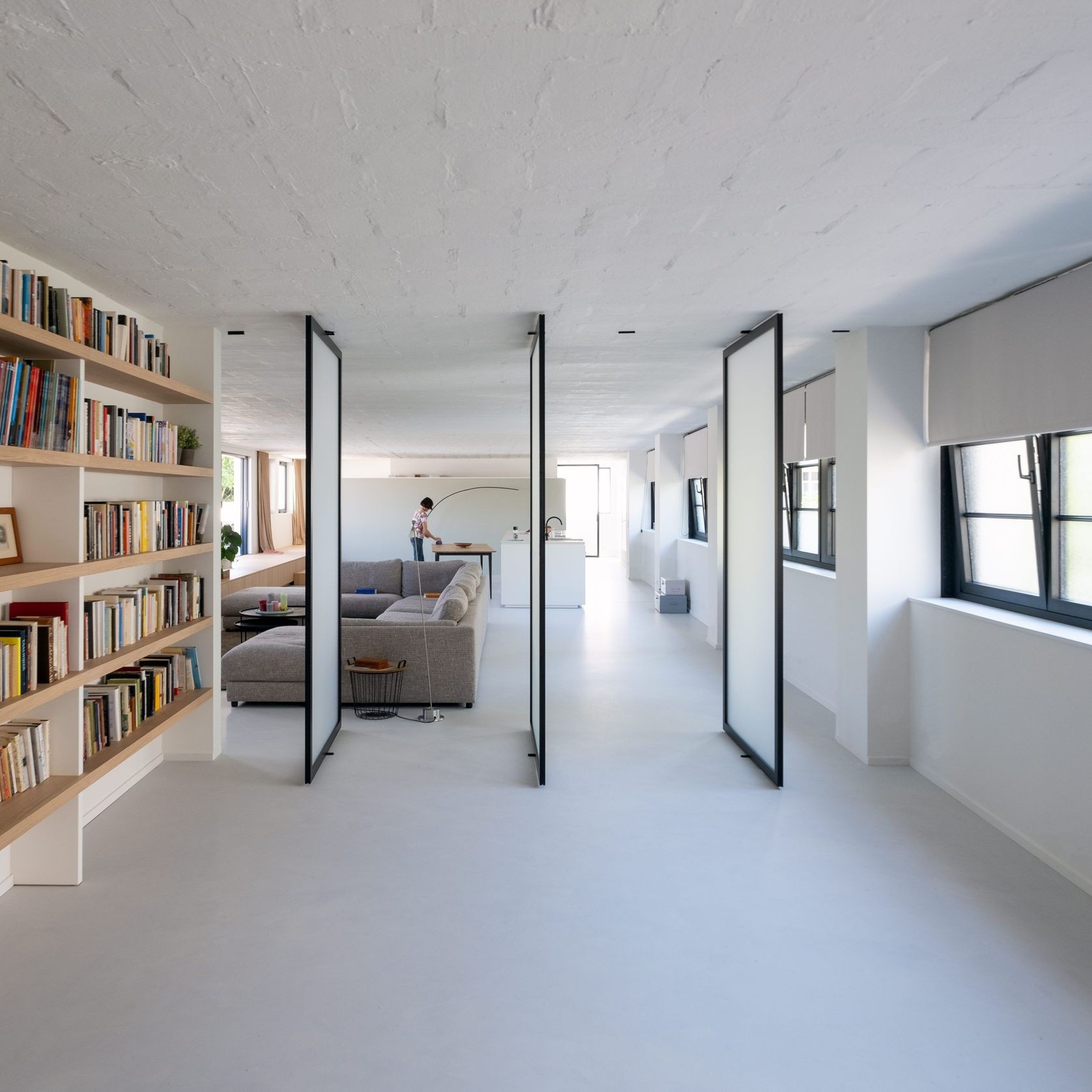

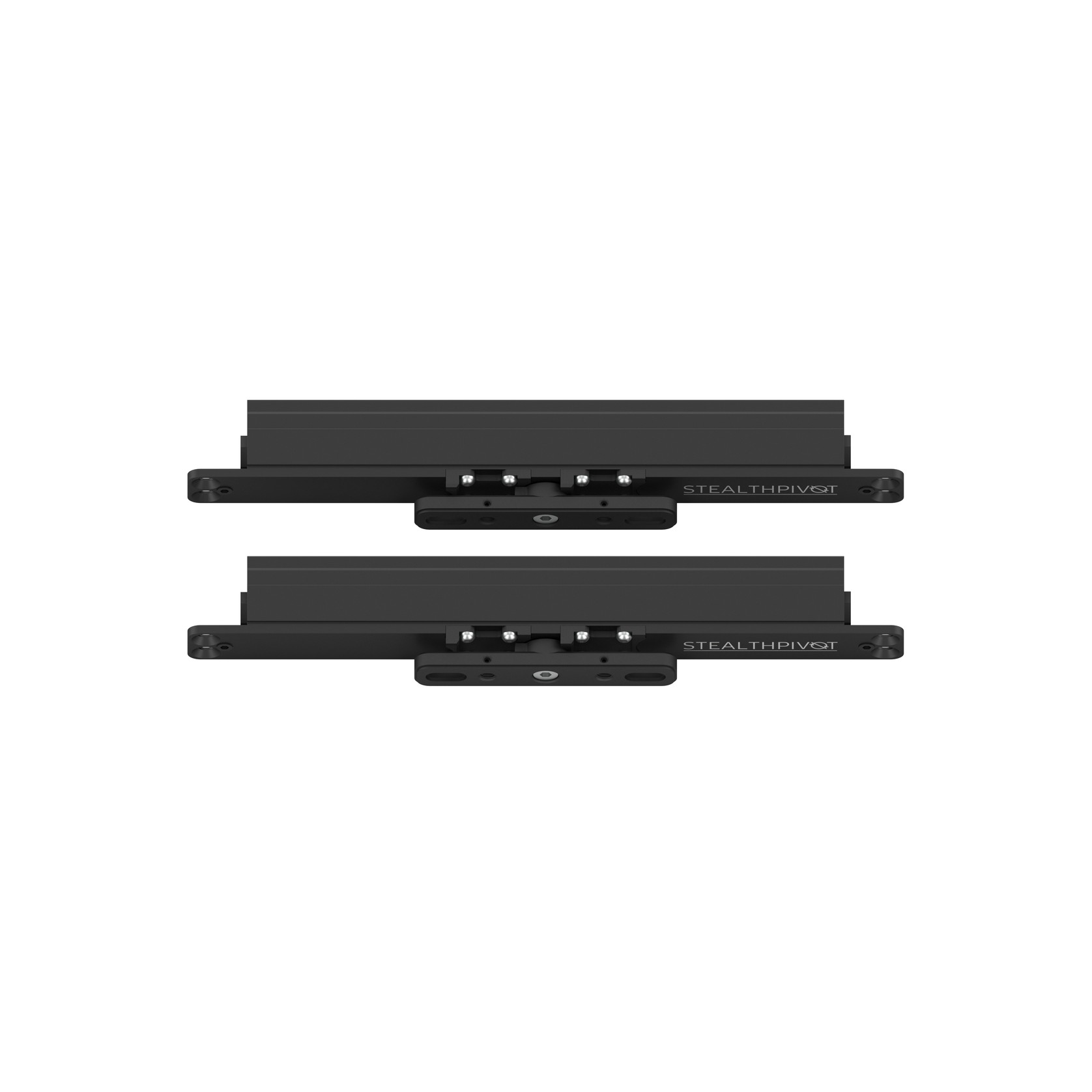

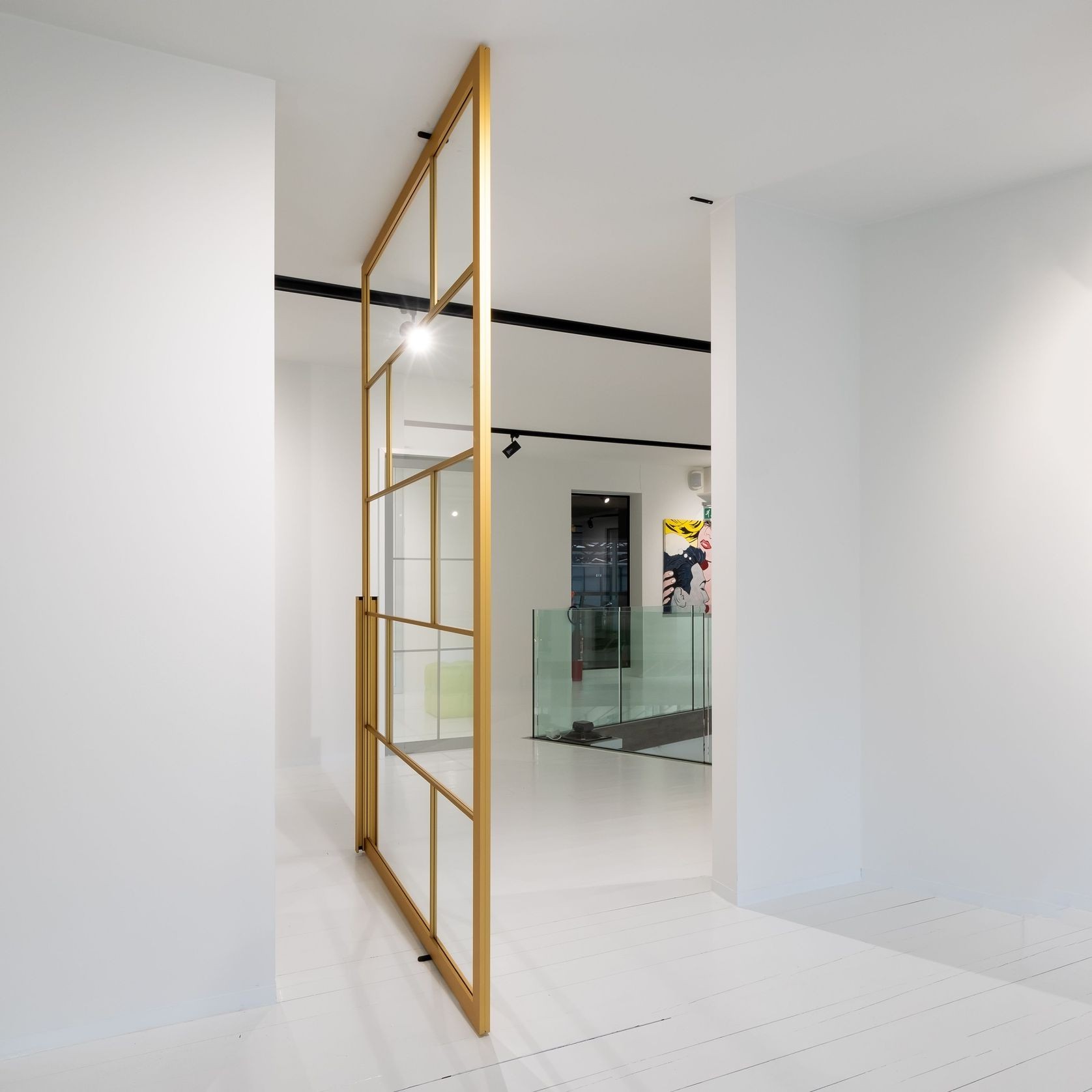

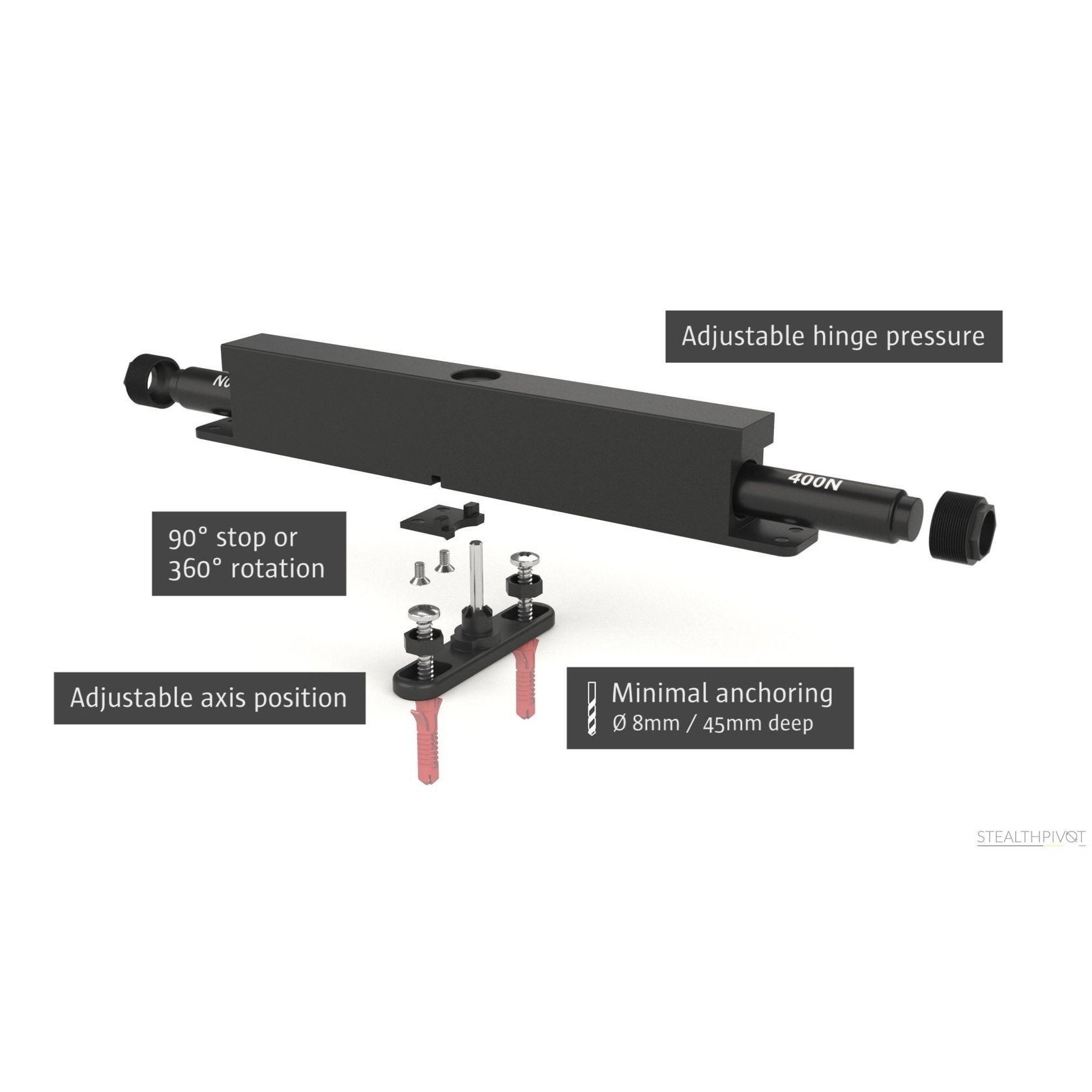

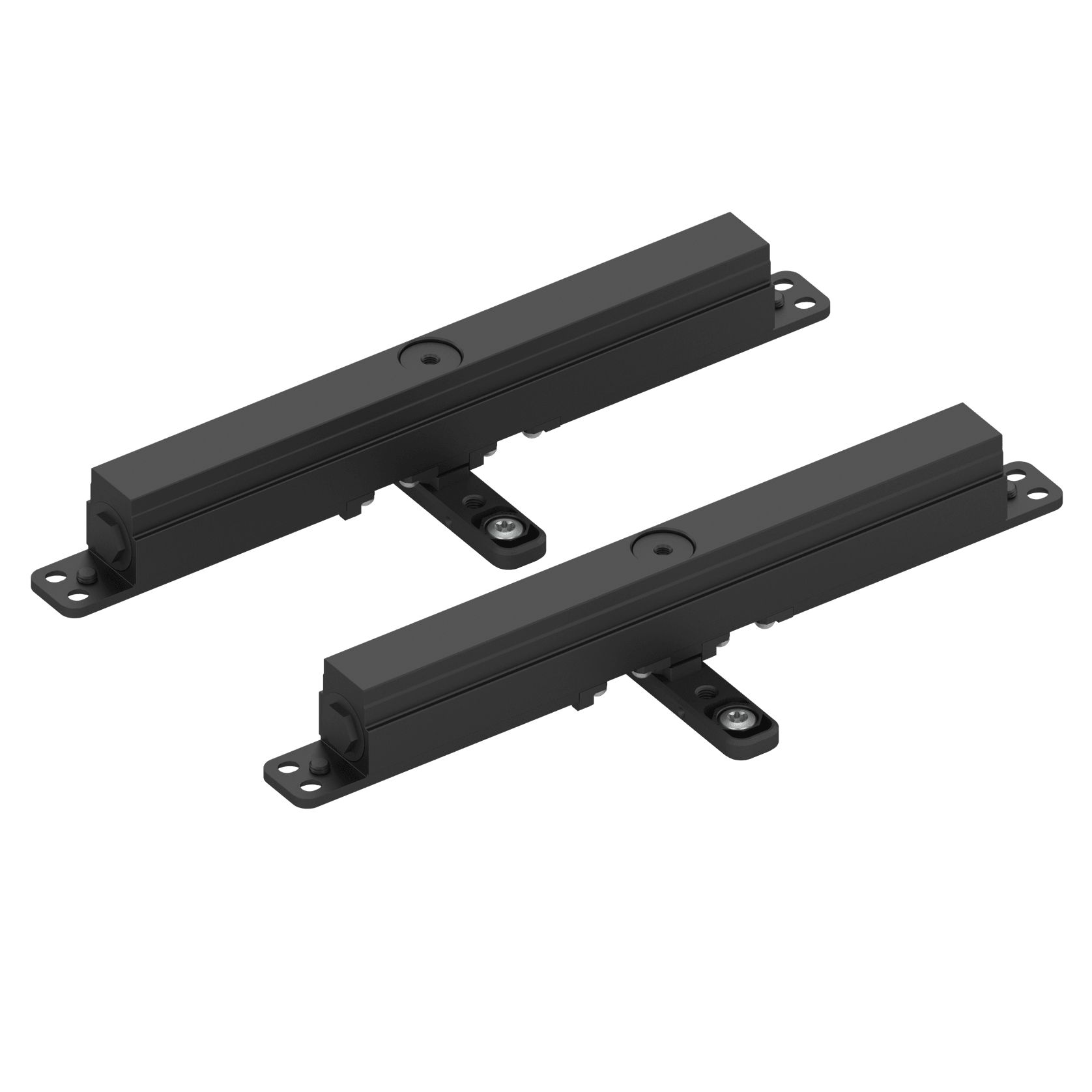

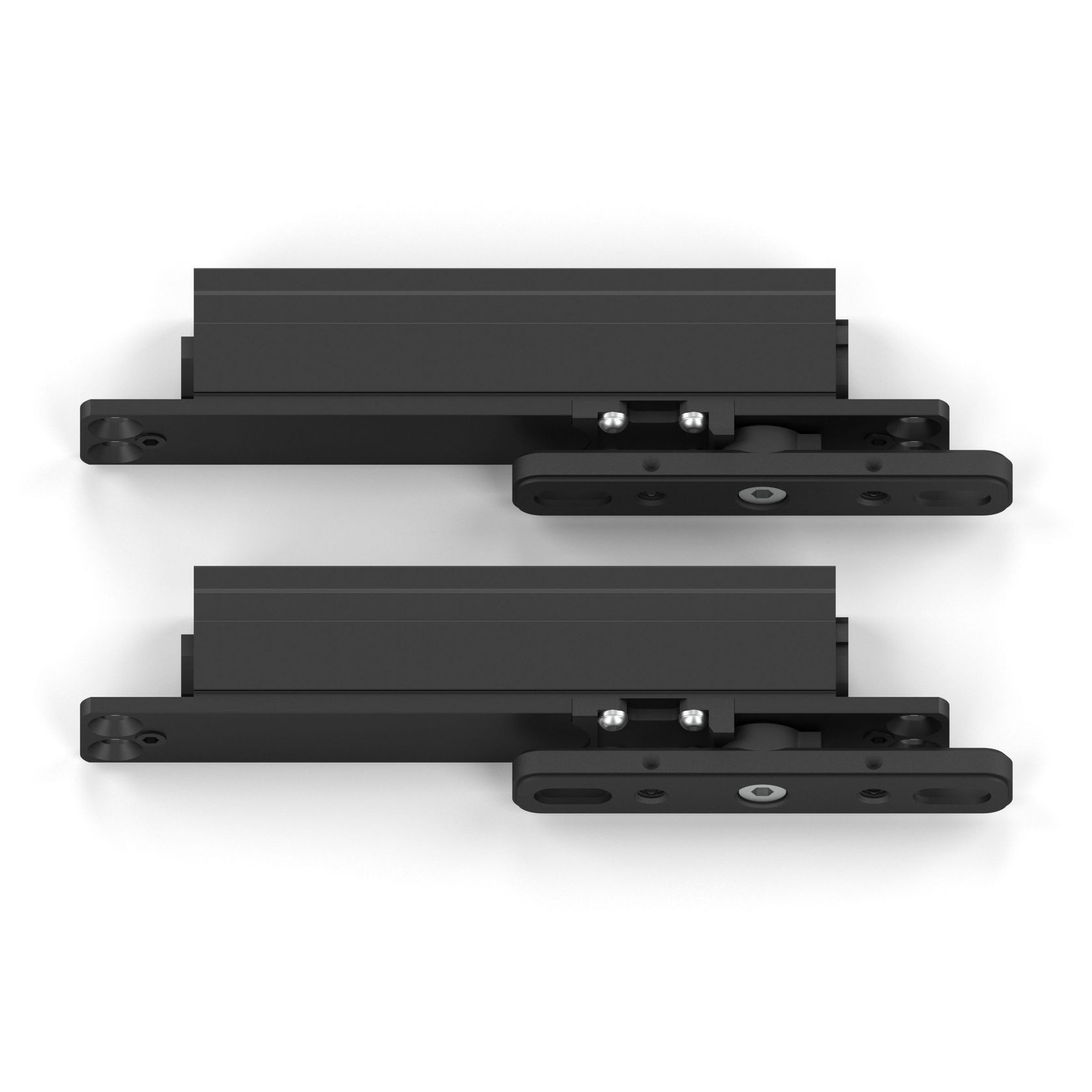

Both hinge sets feature a configurable swing operation of 180° or 360° like a carousel.

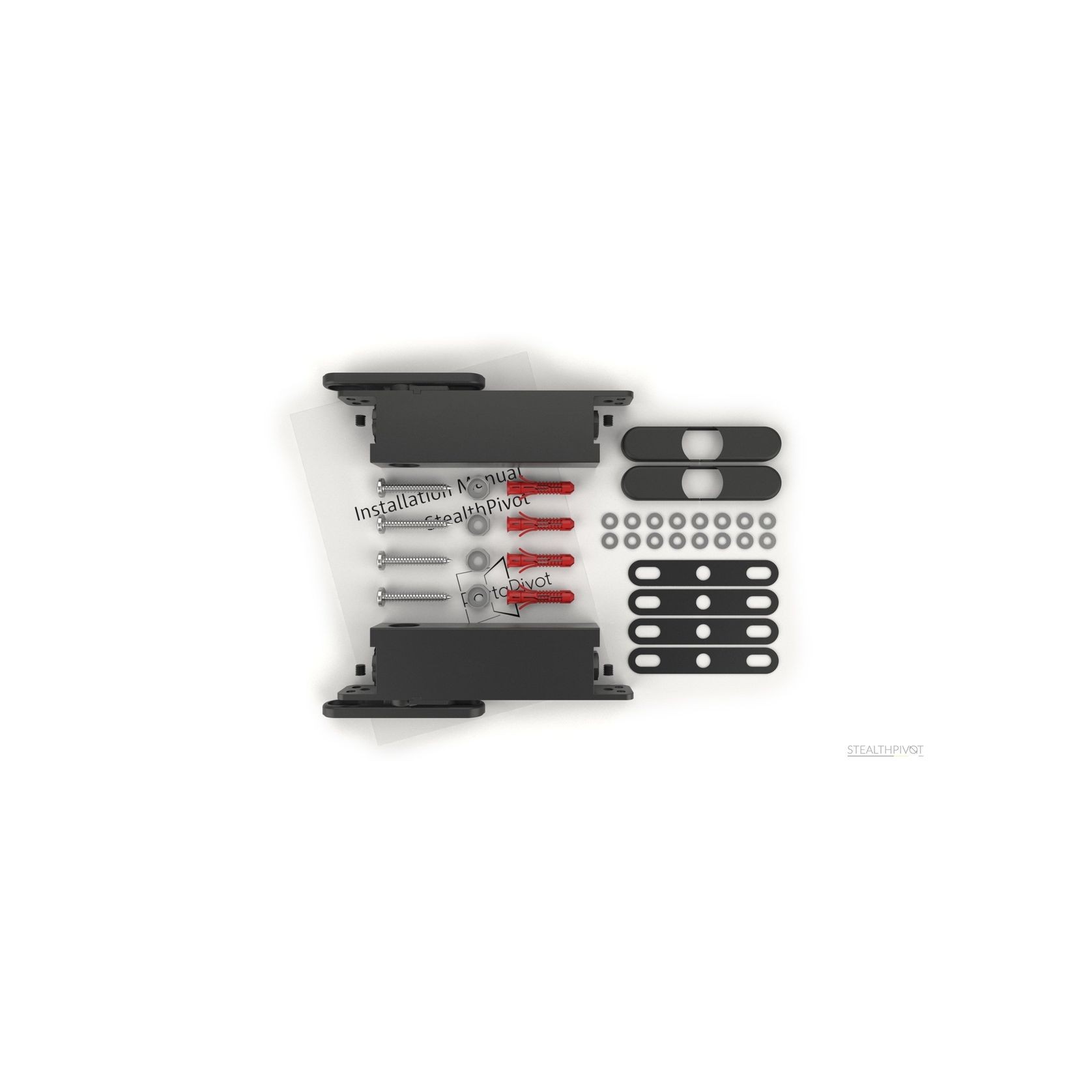

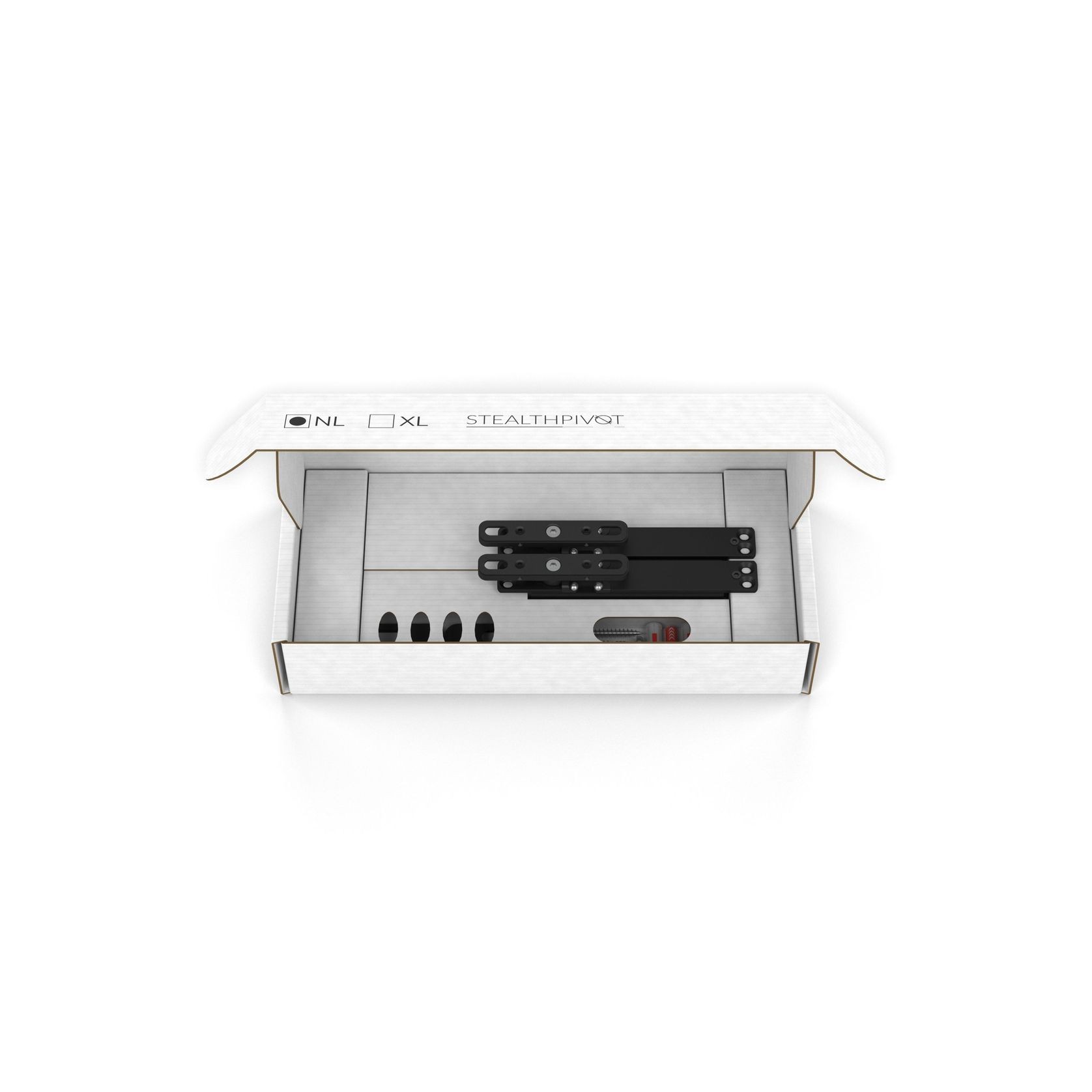

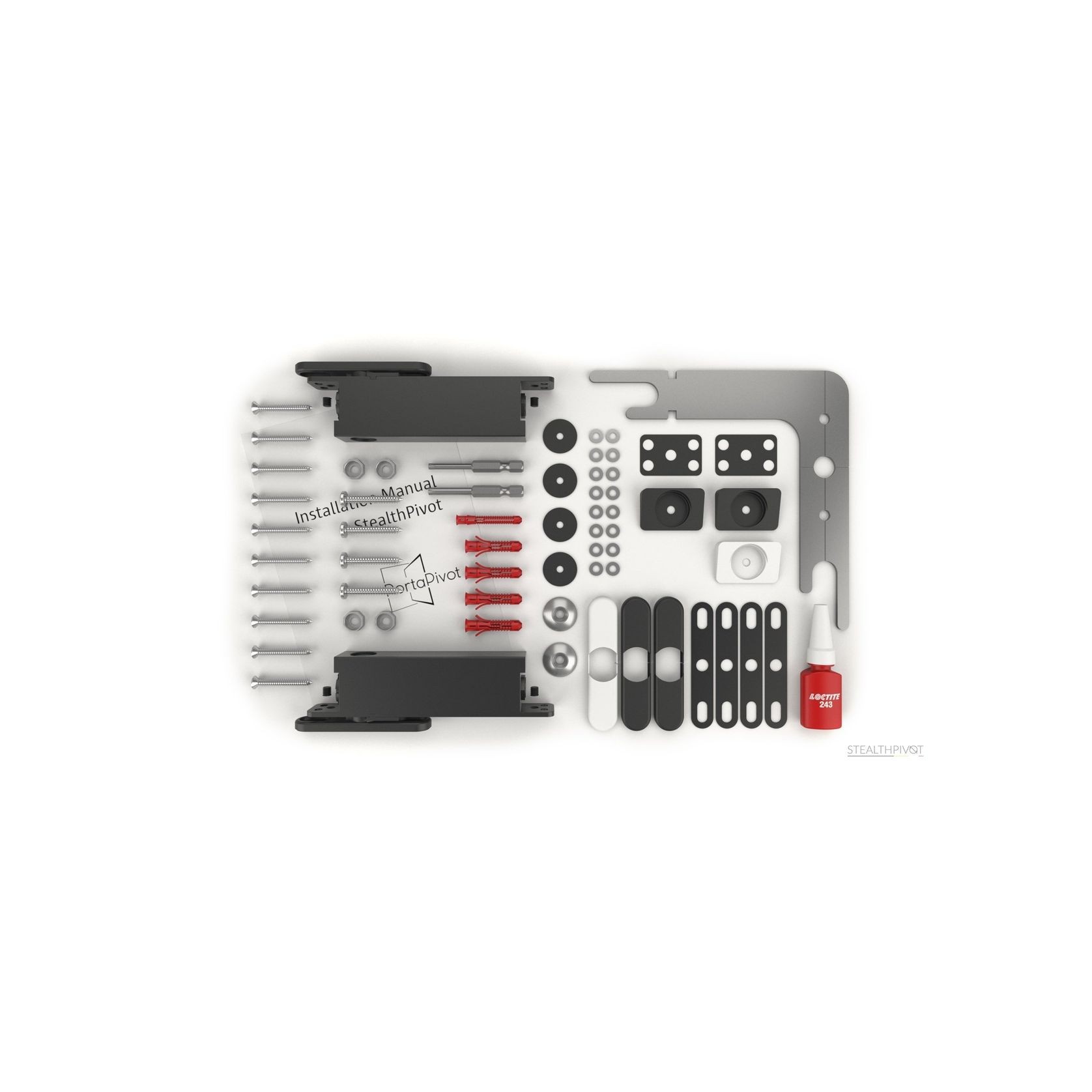

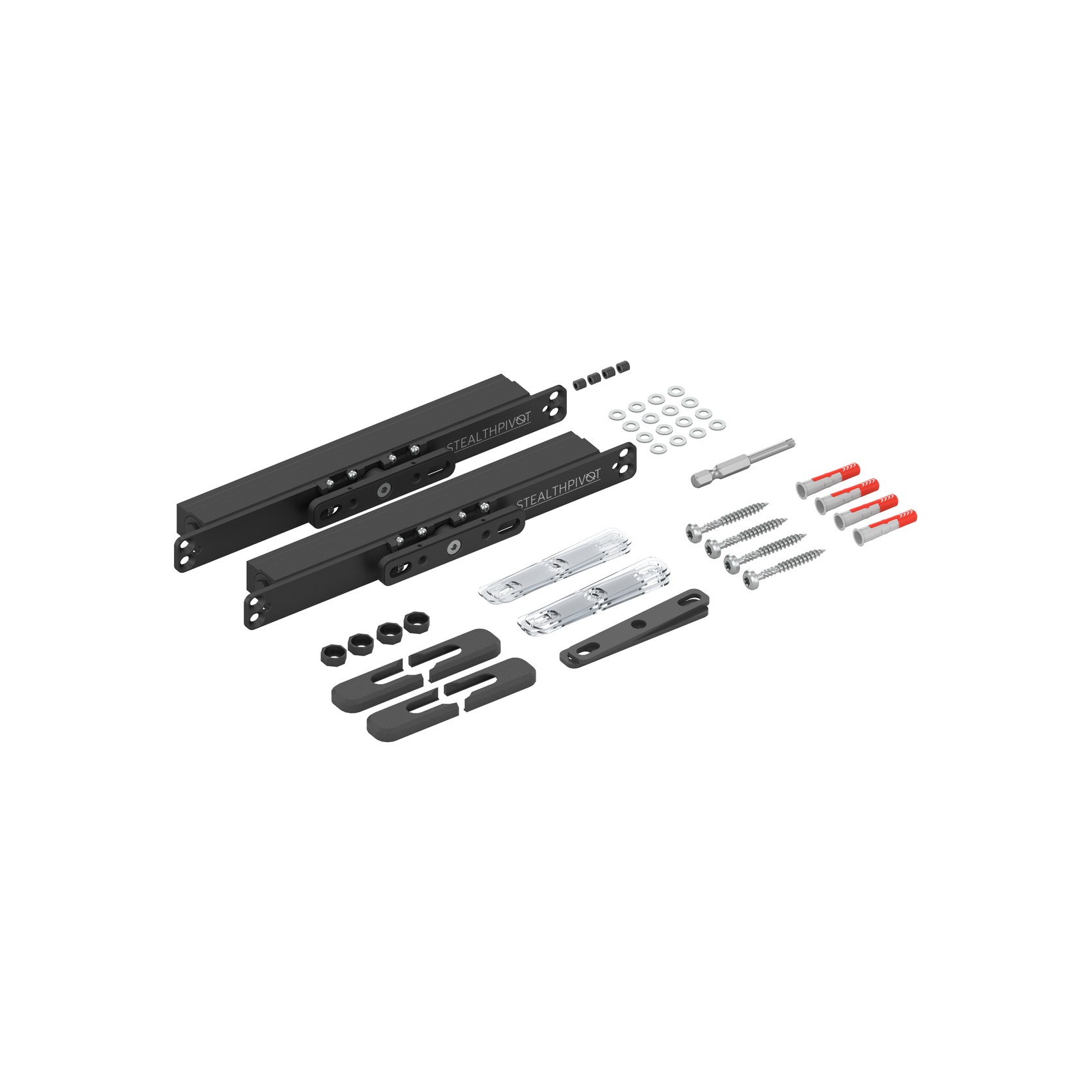

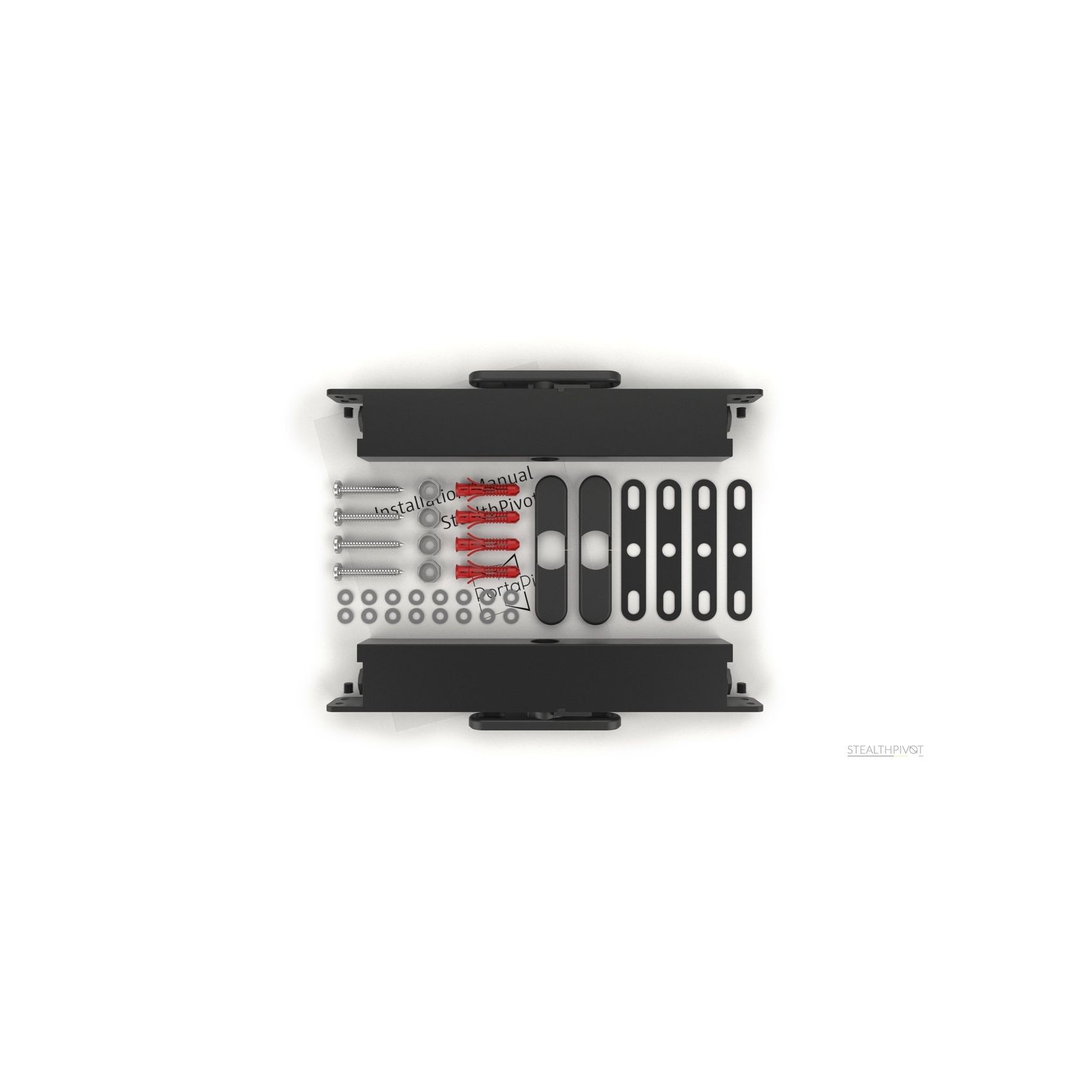

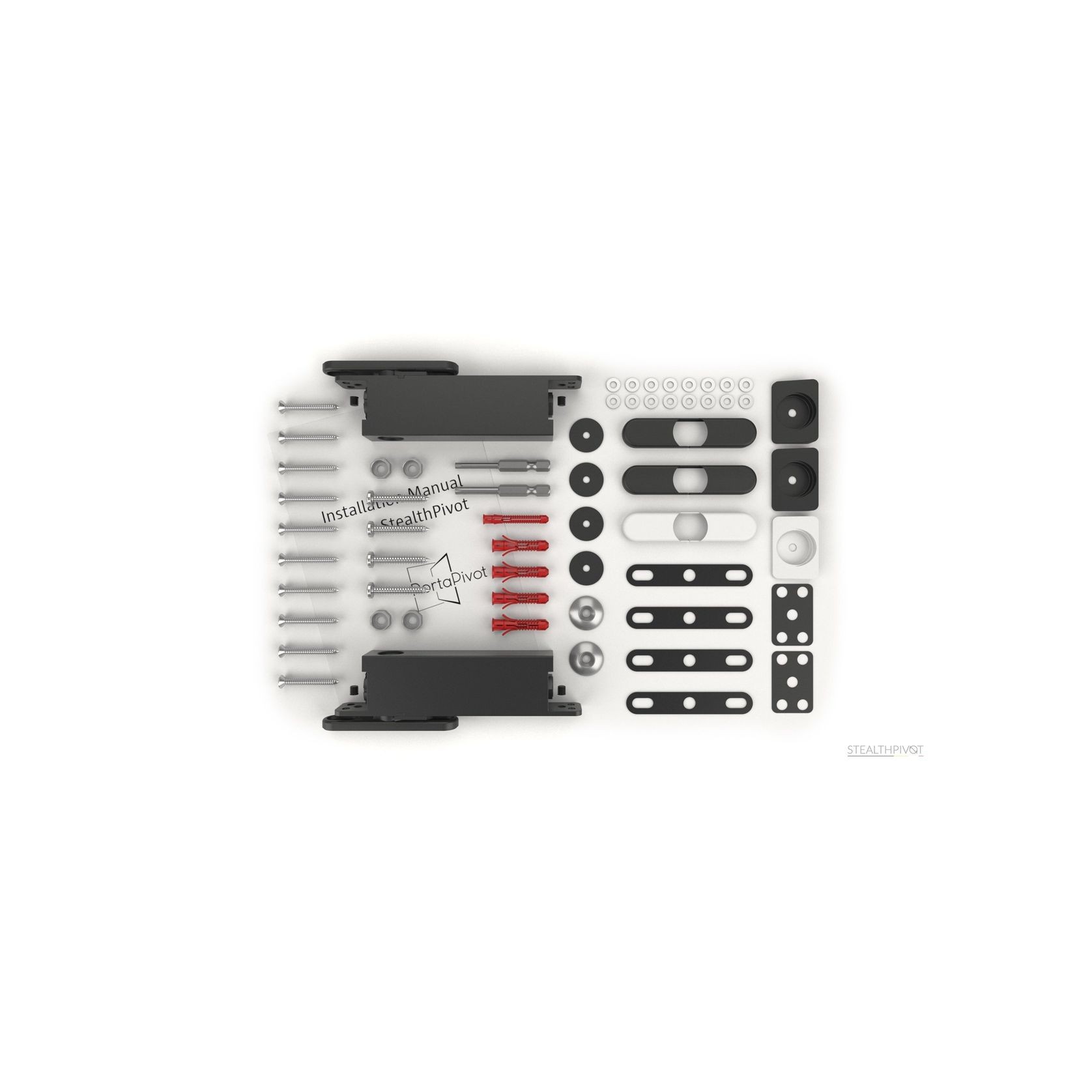

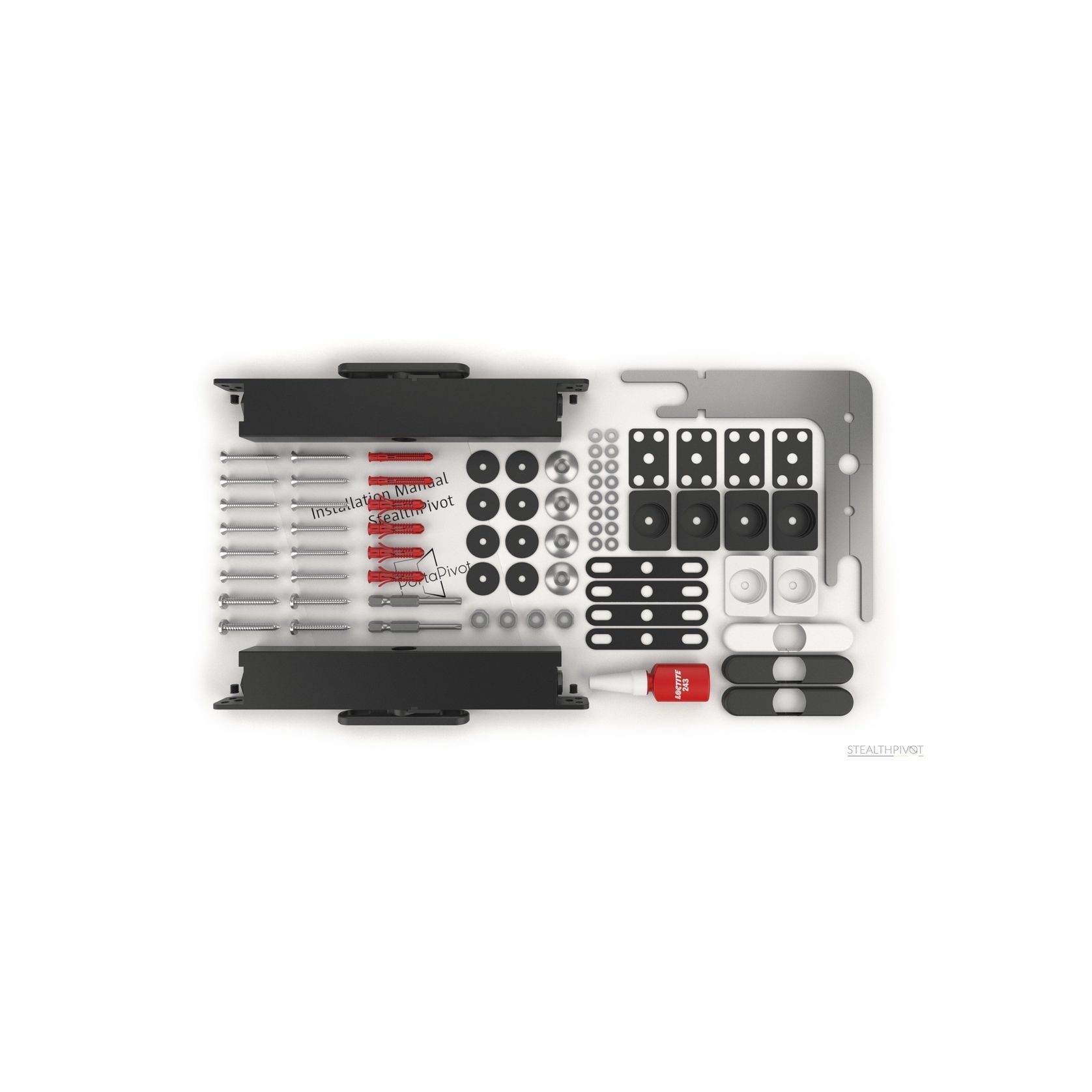

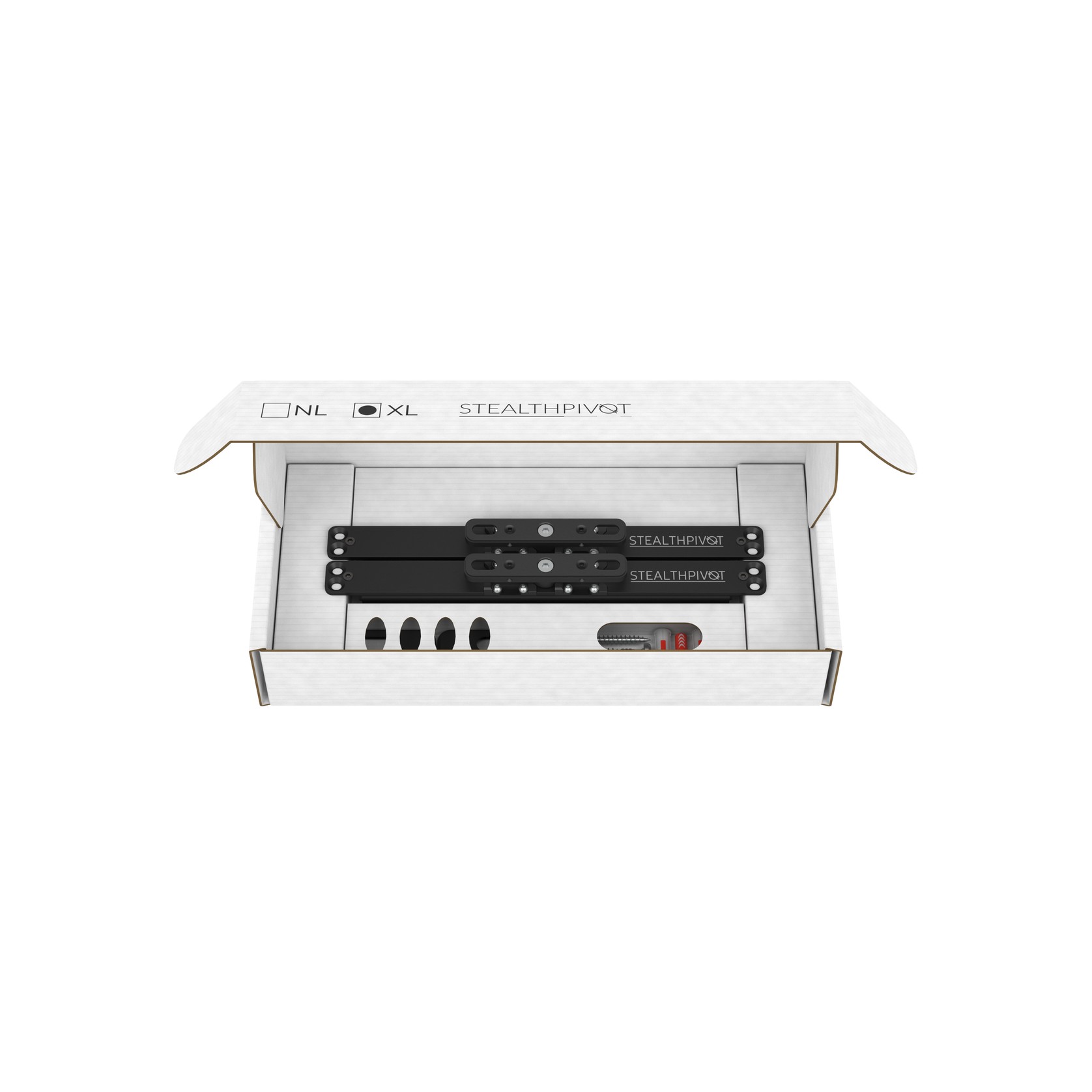

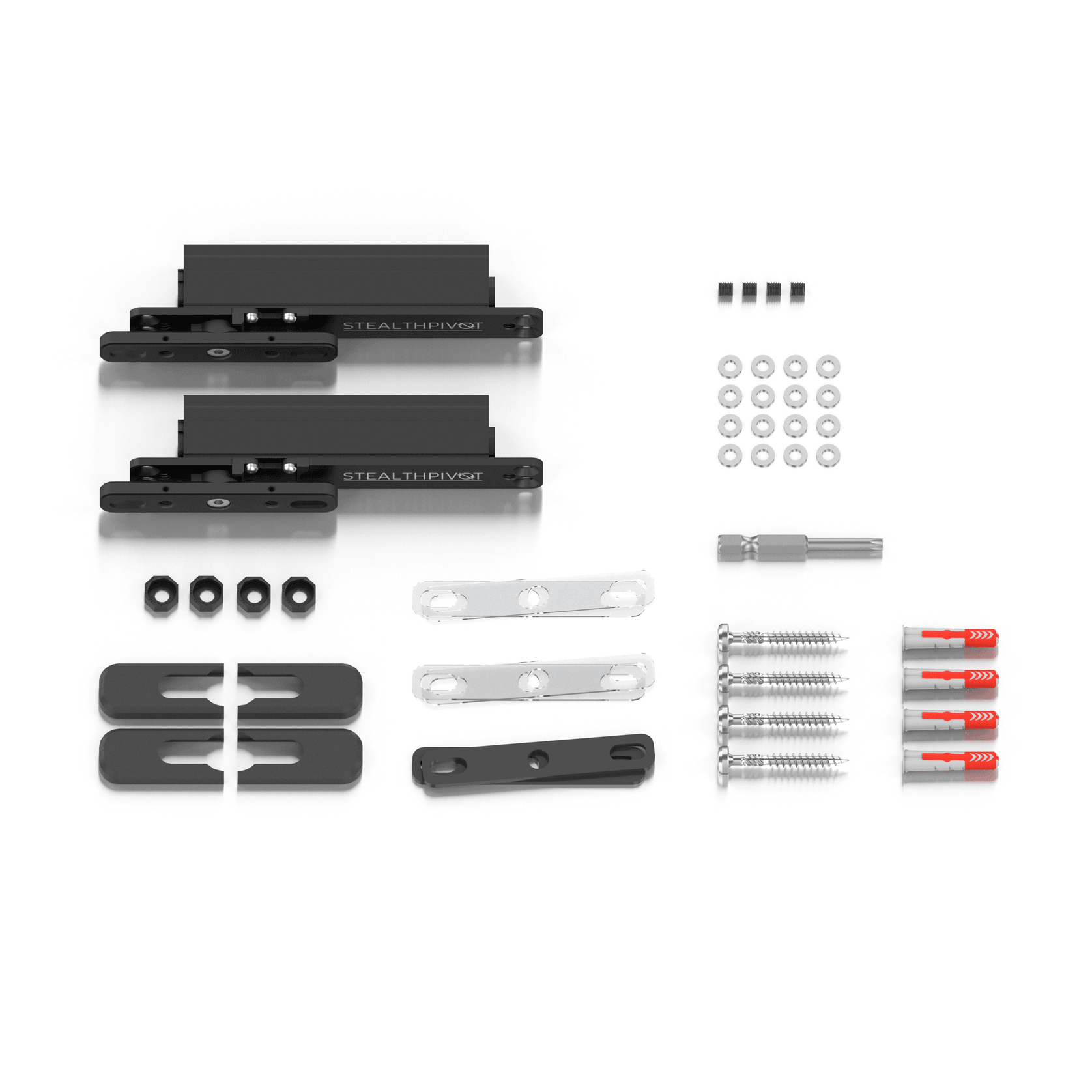

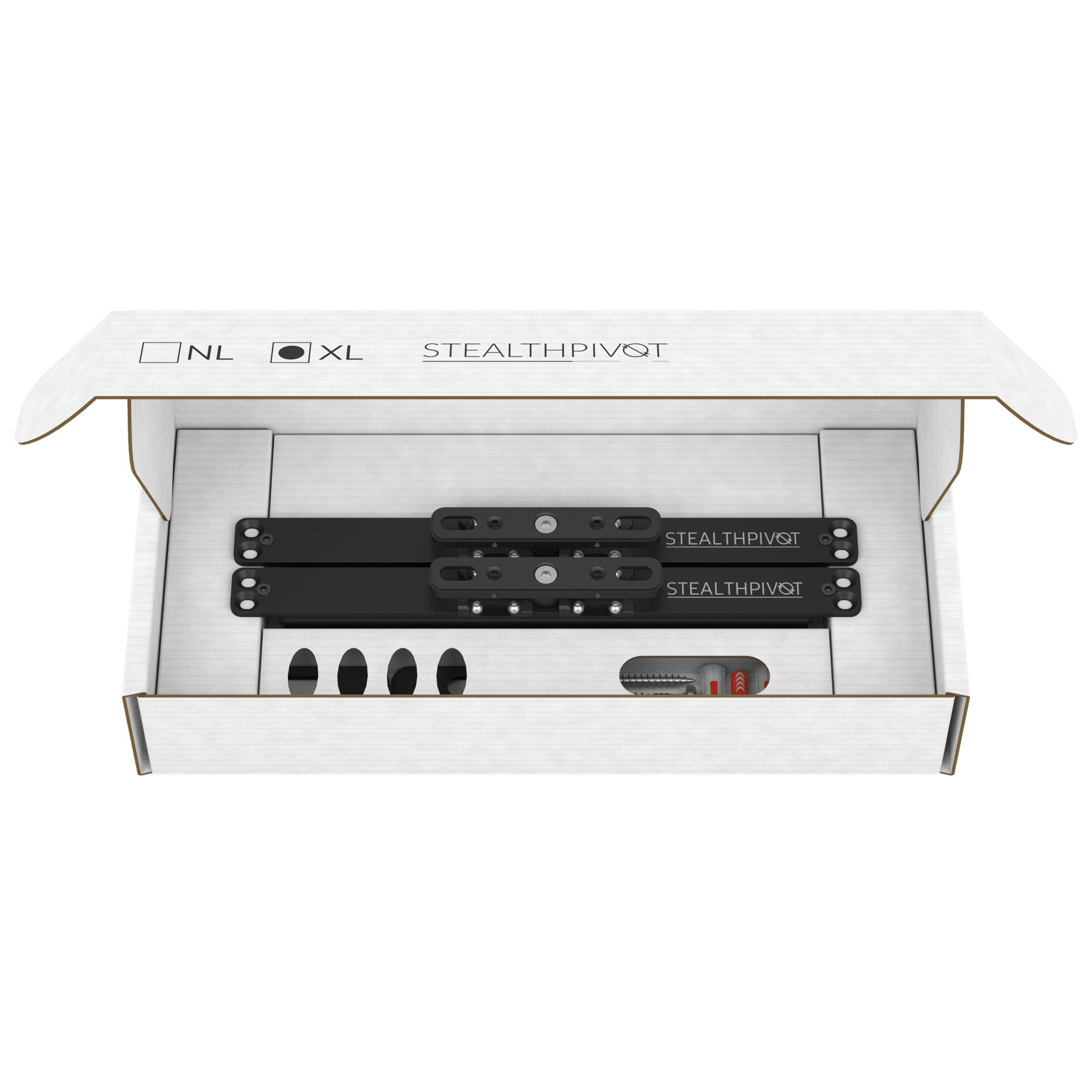

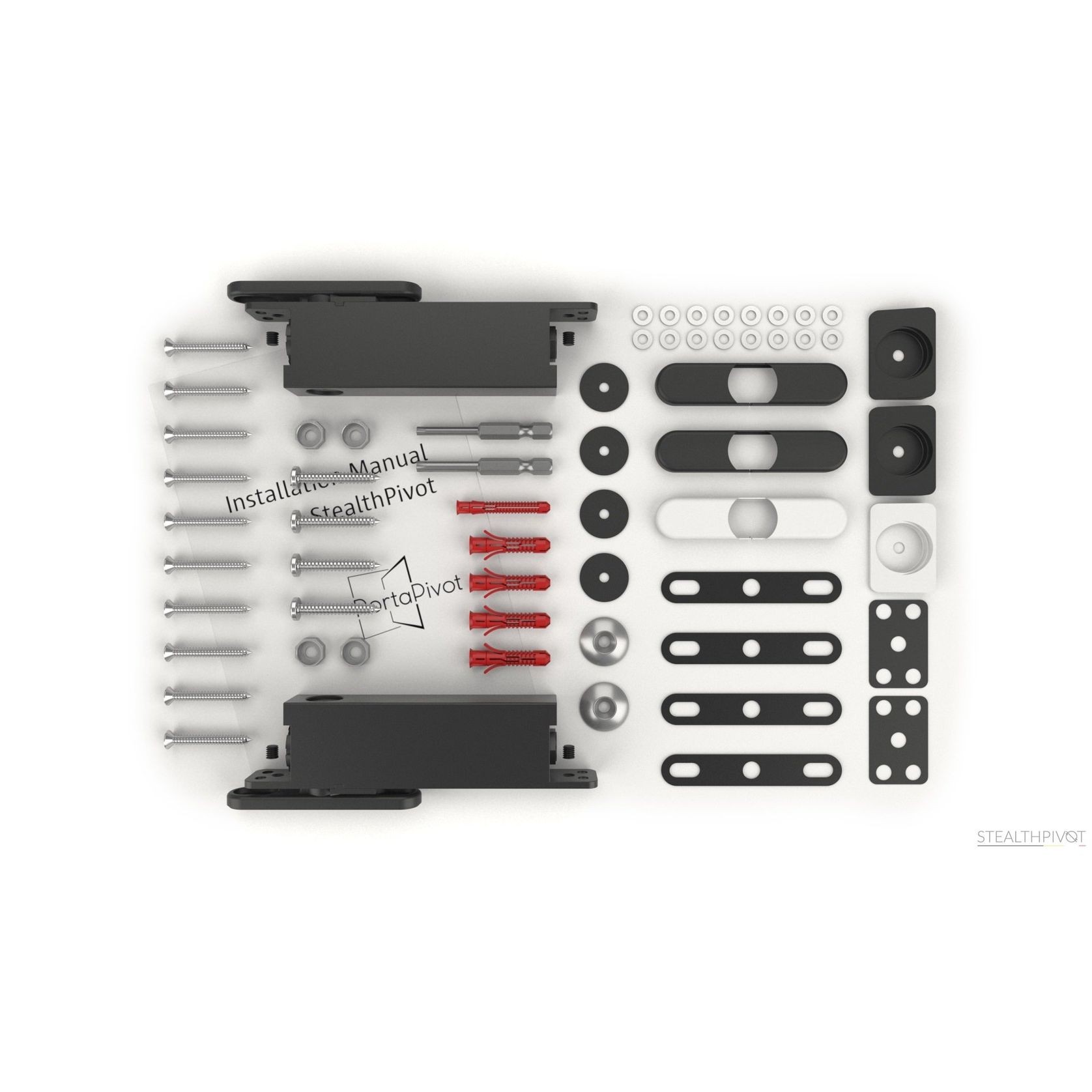

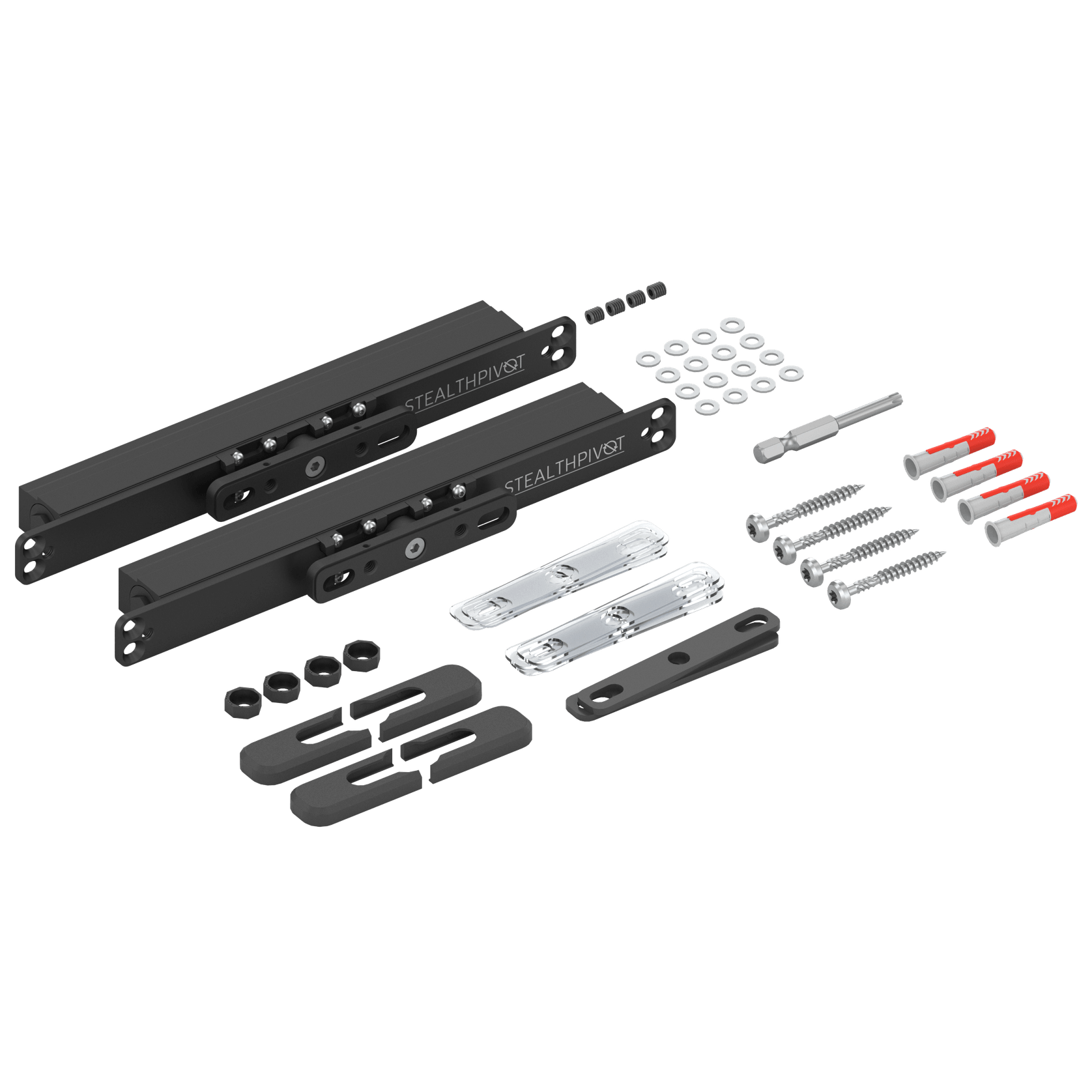

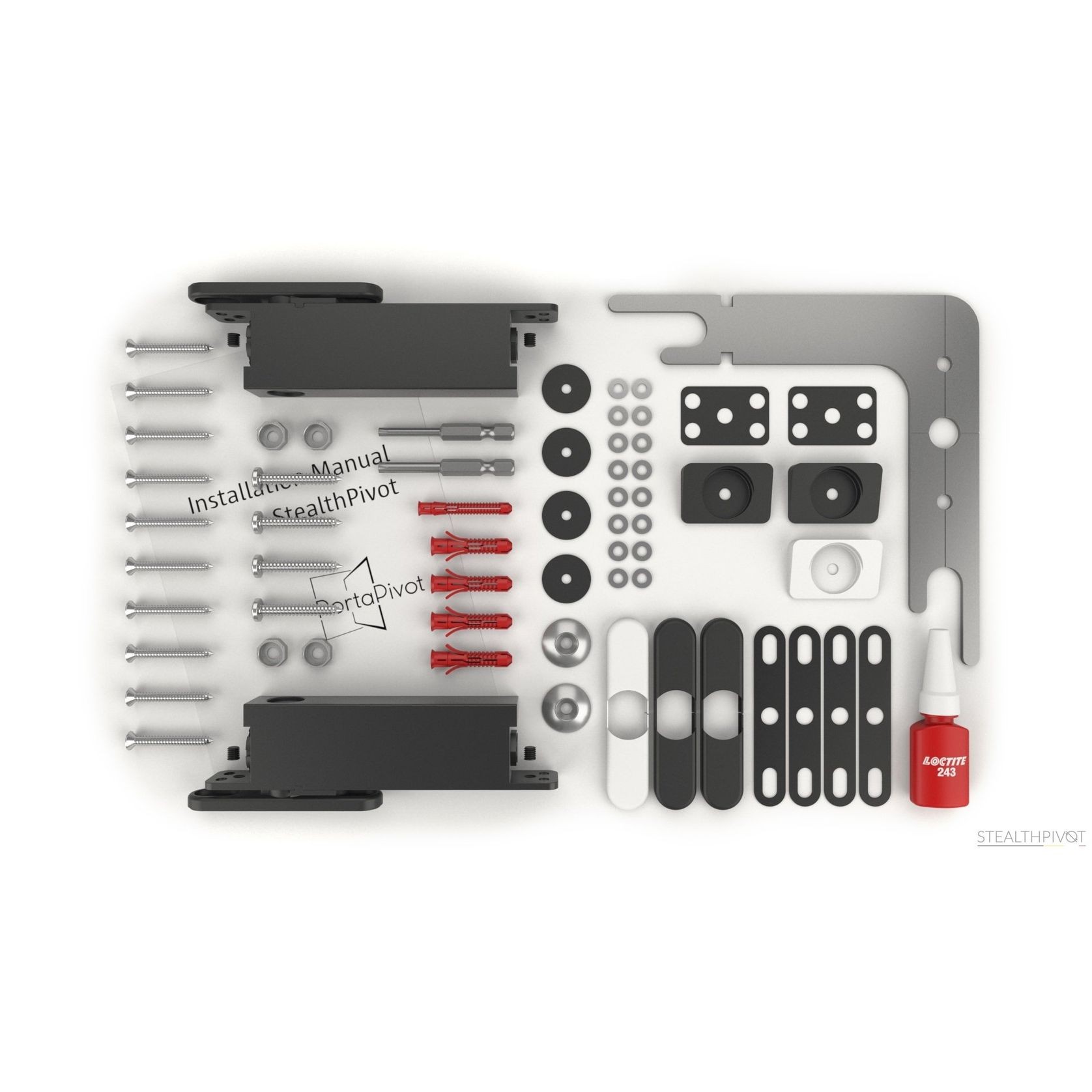

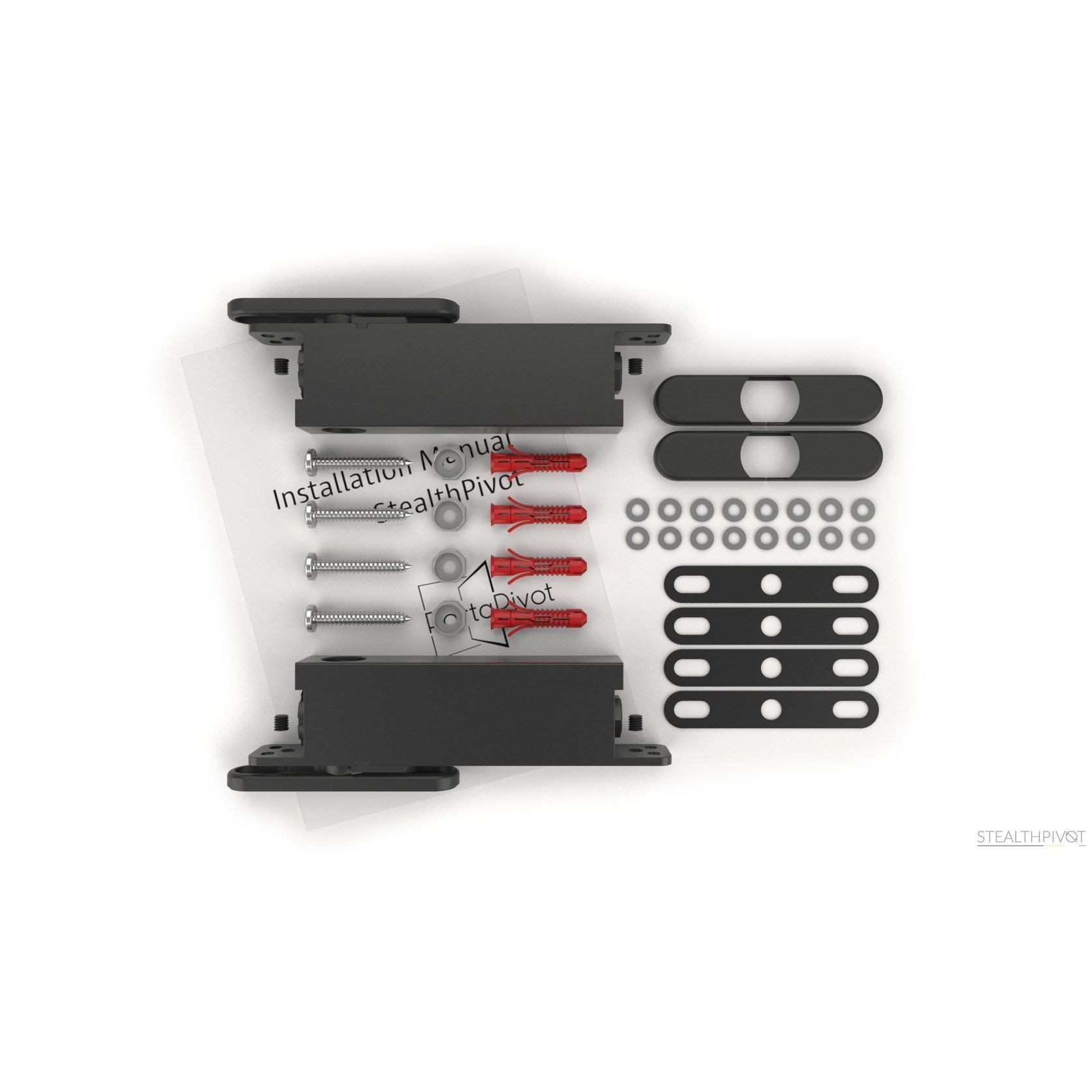

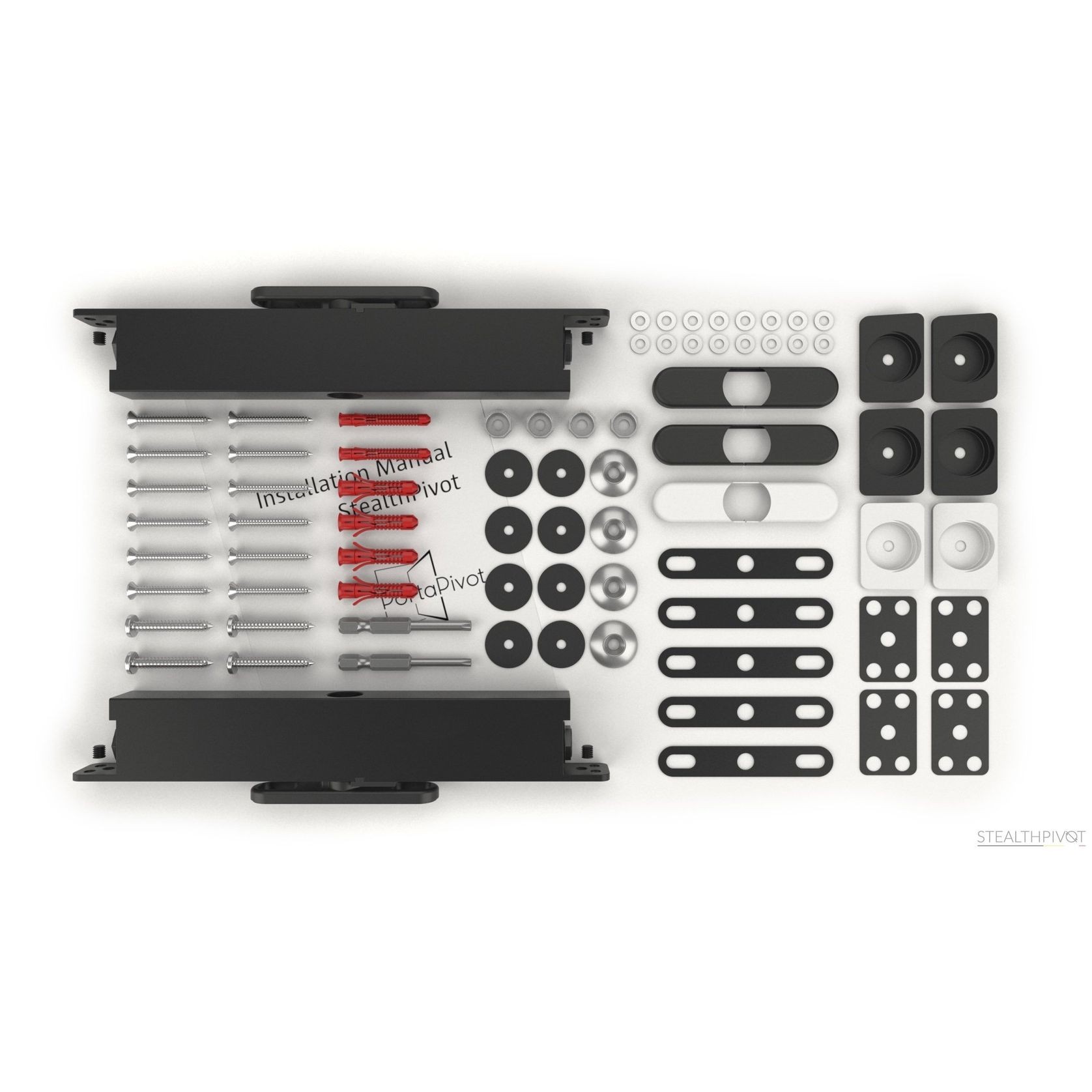

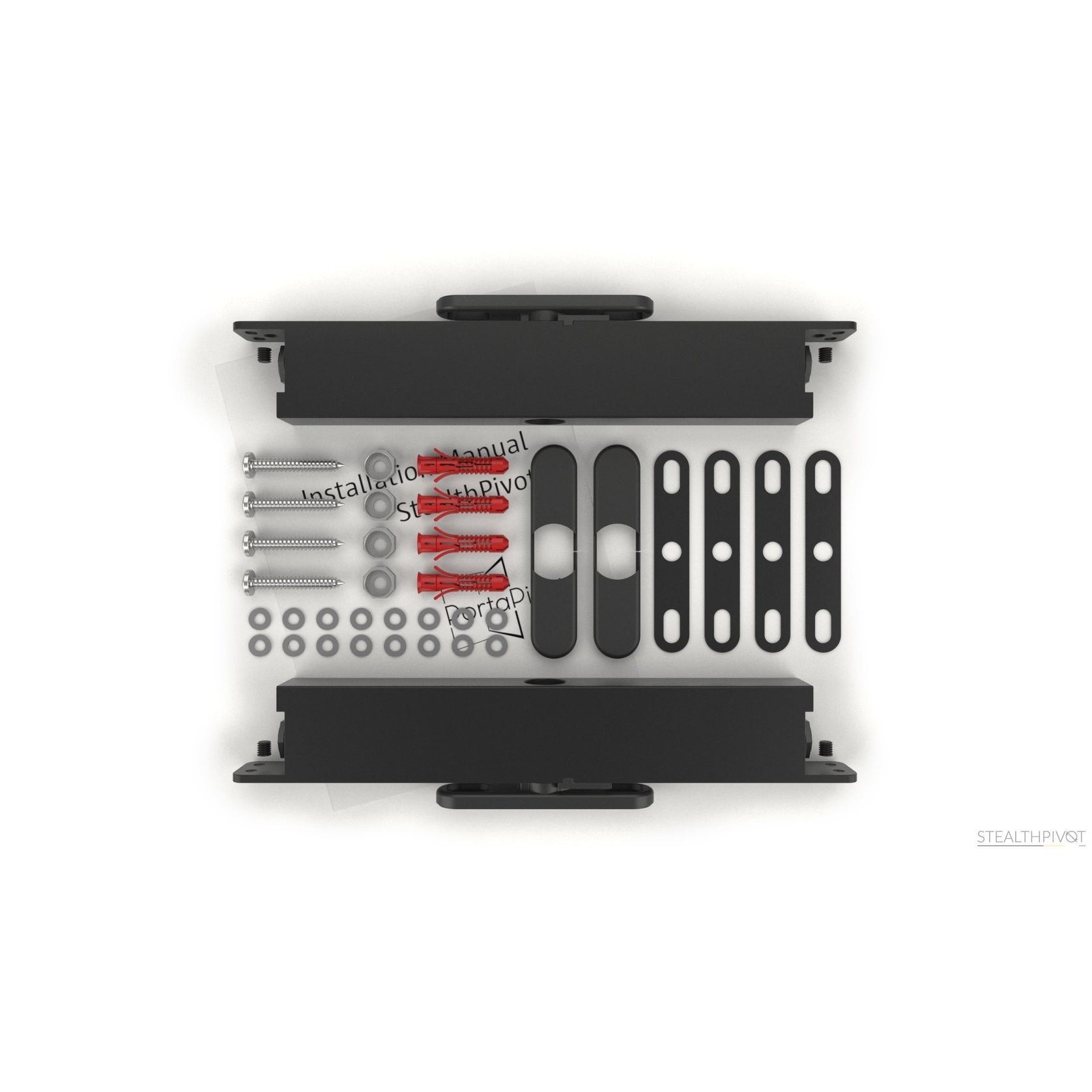

Pivots can be purchased individually or in a kit form including framing and hardware.

Ready for Glass and Assembly.
