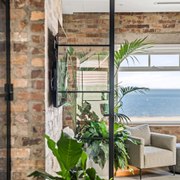

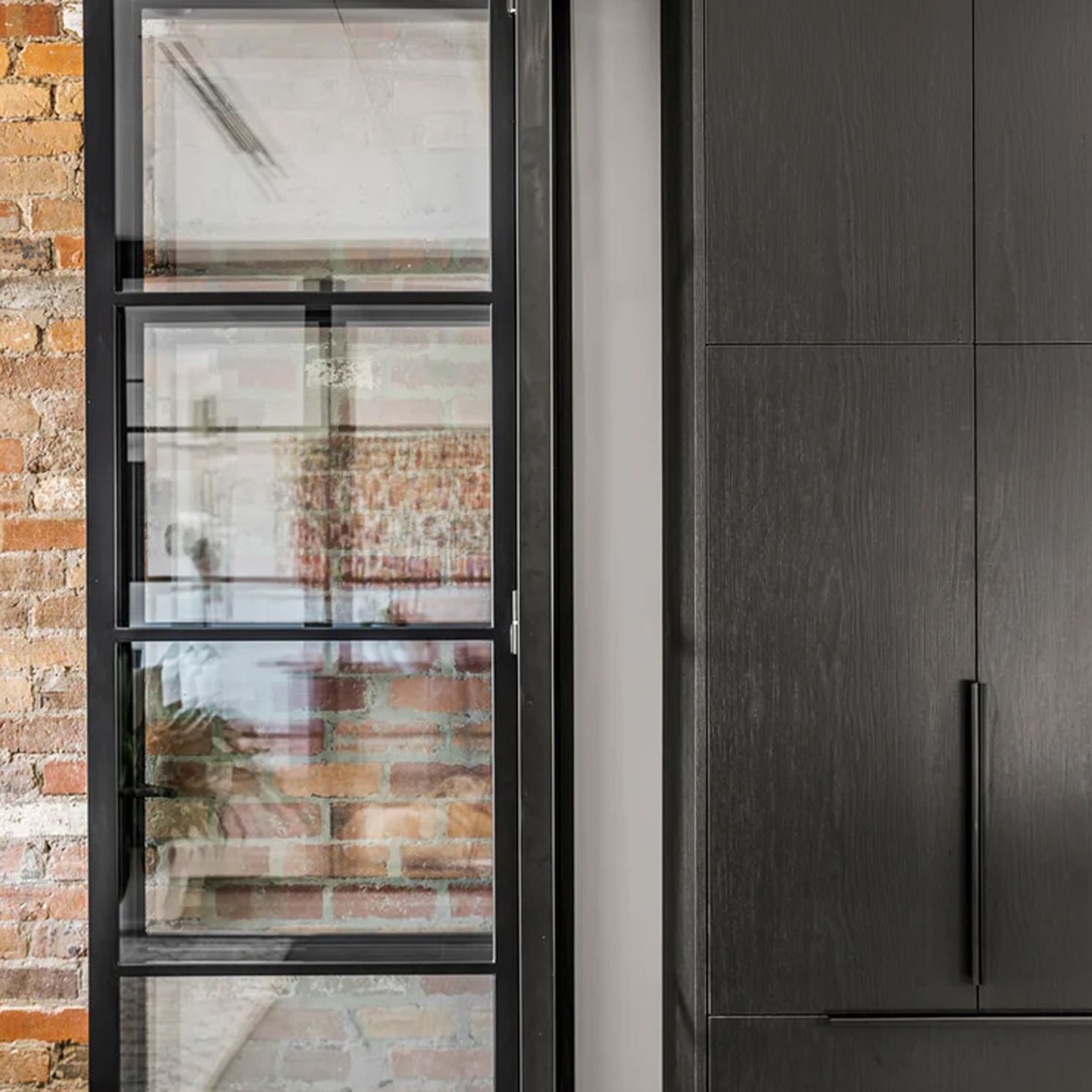

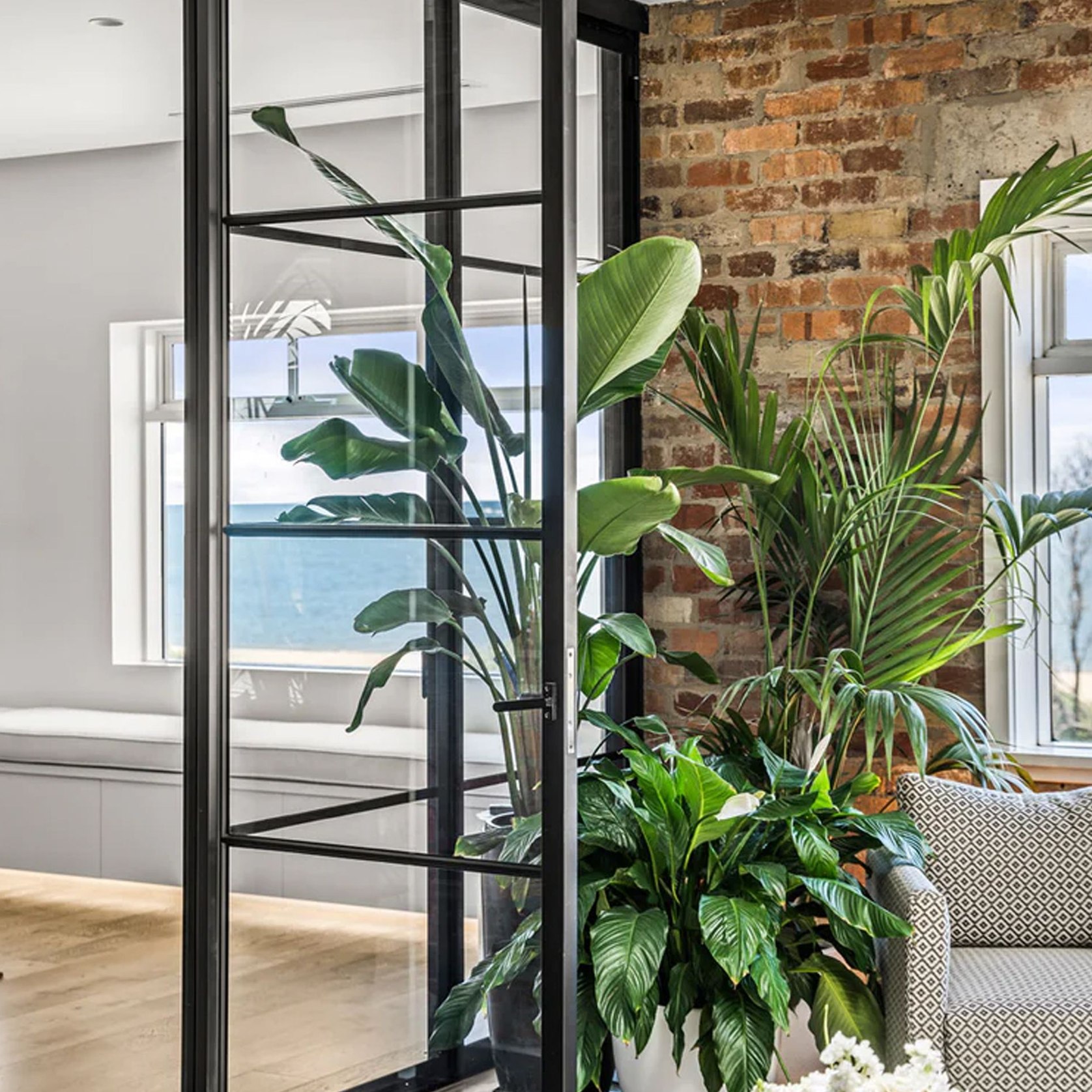

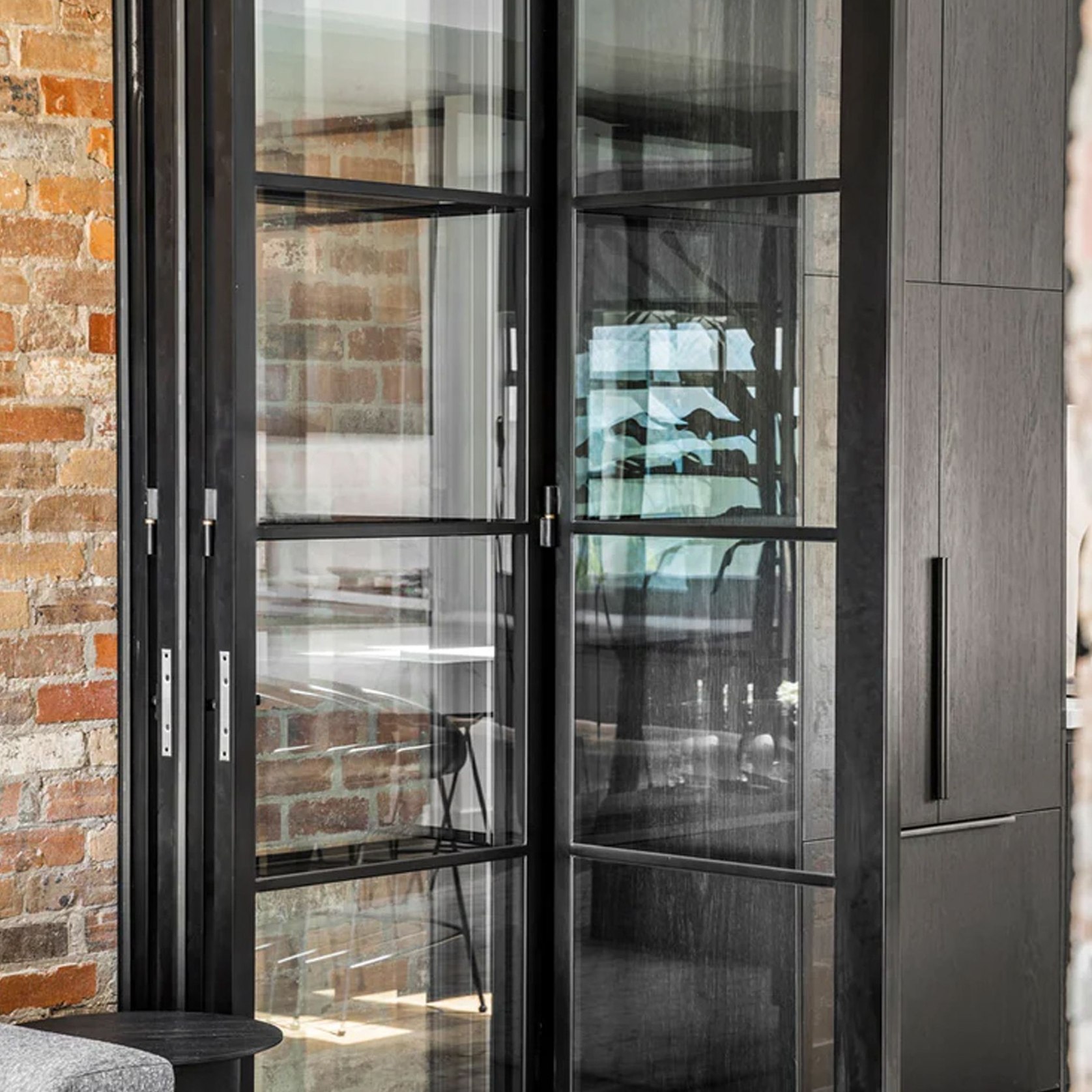

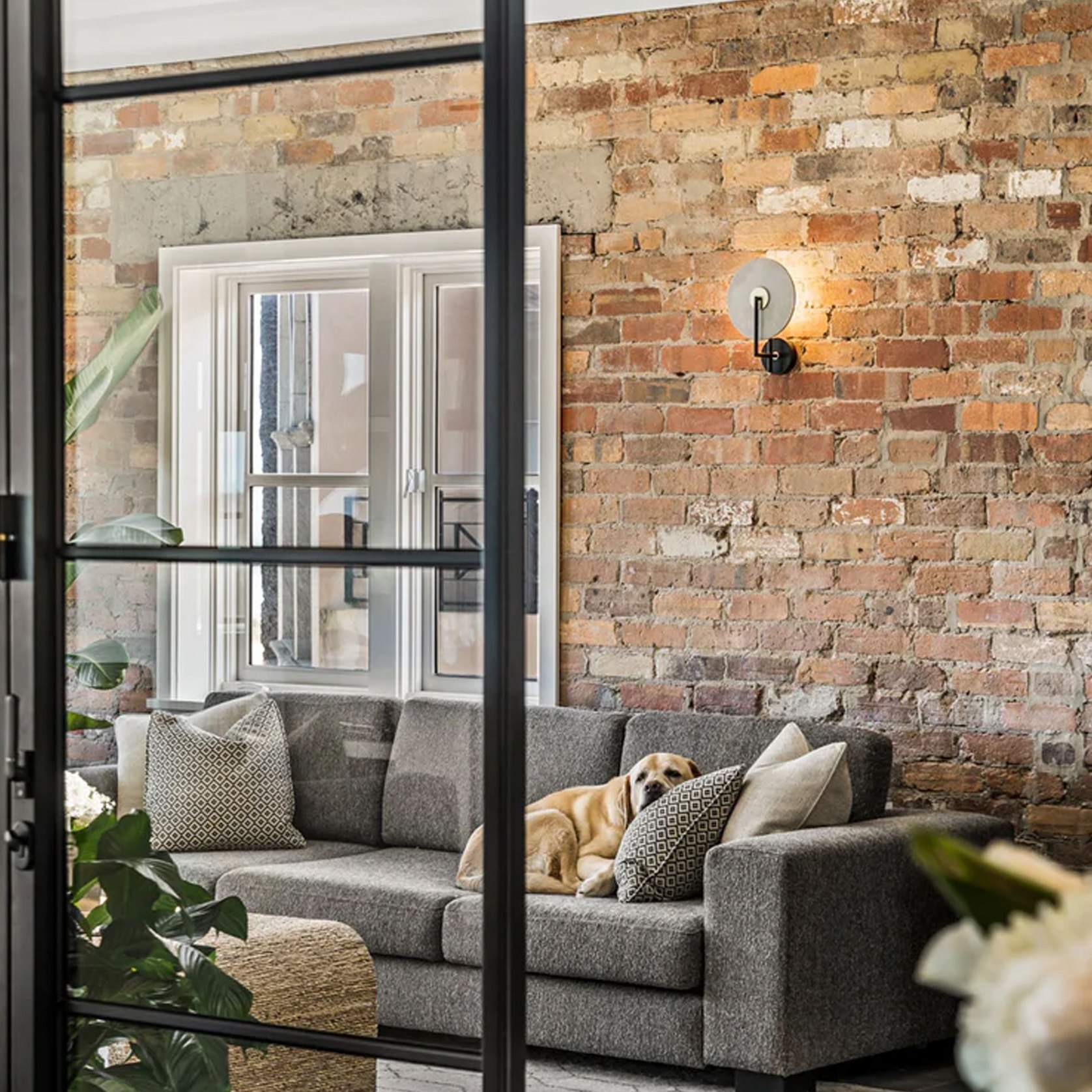

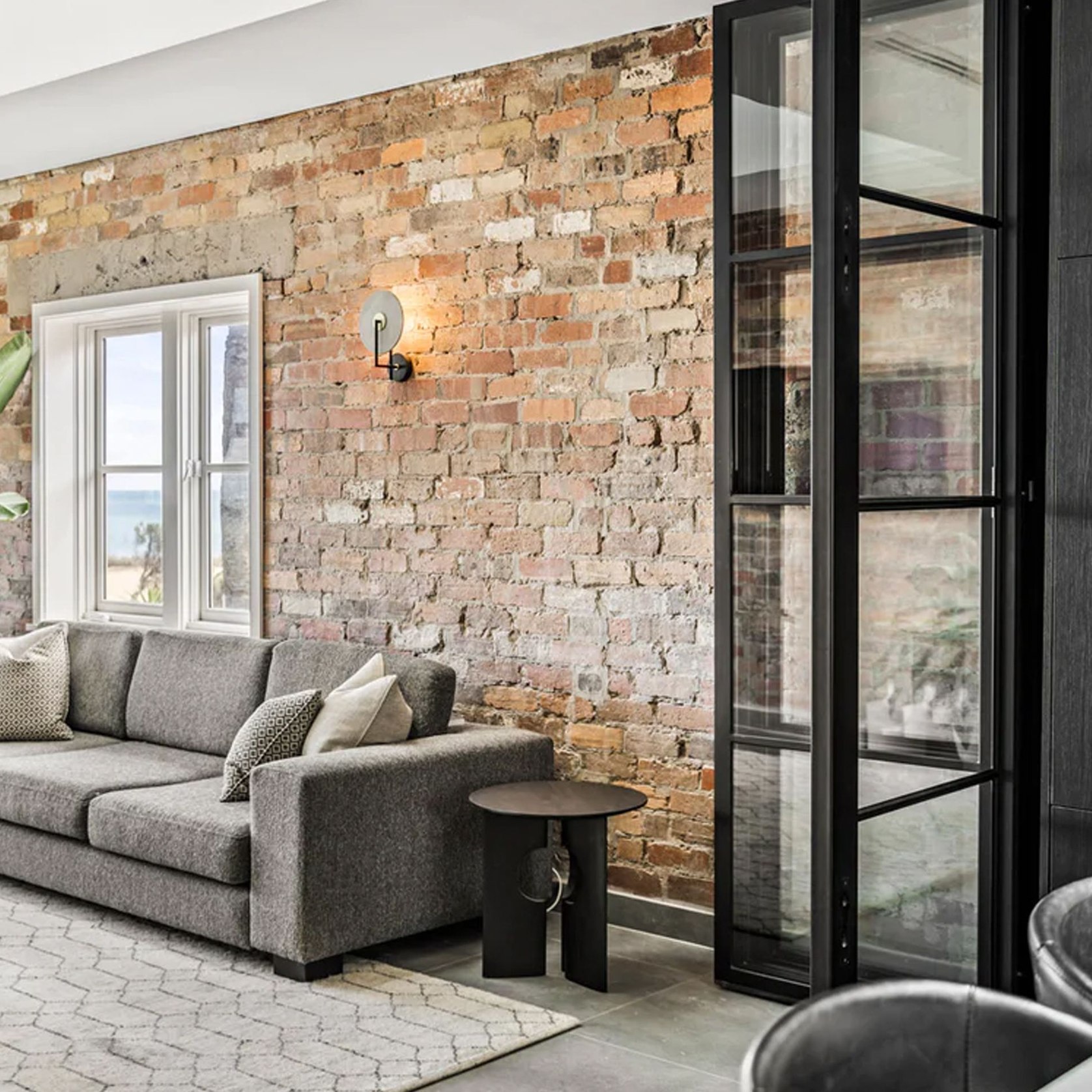

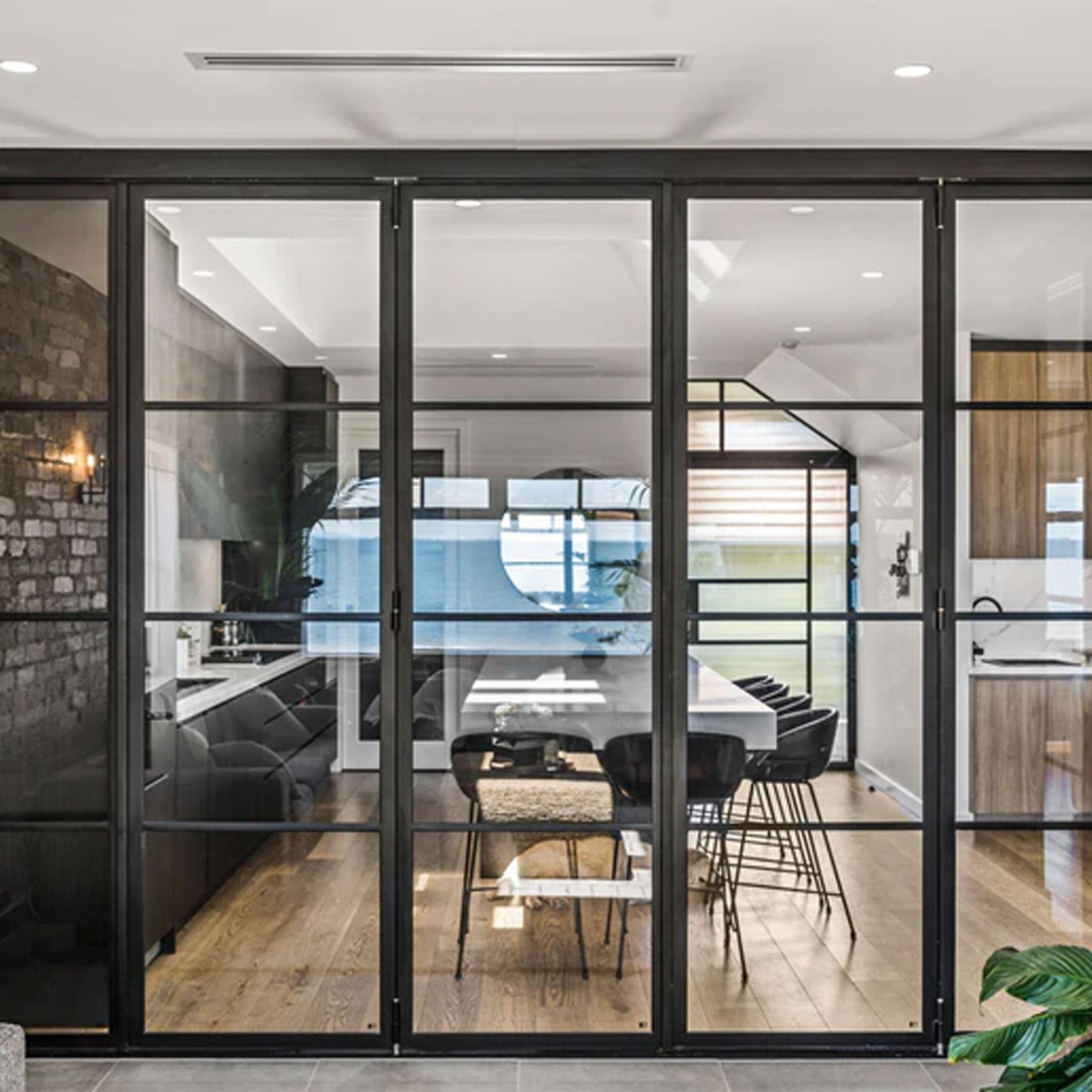

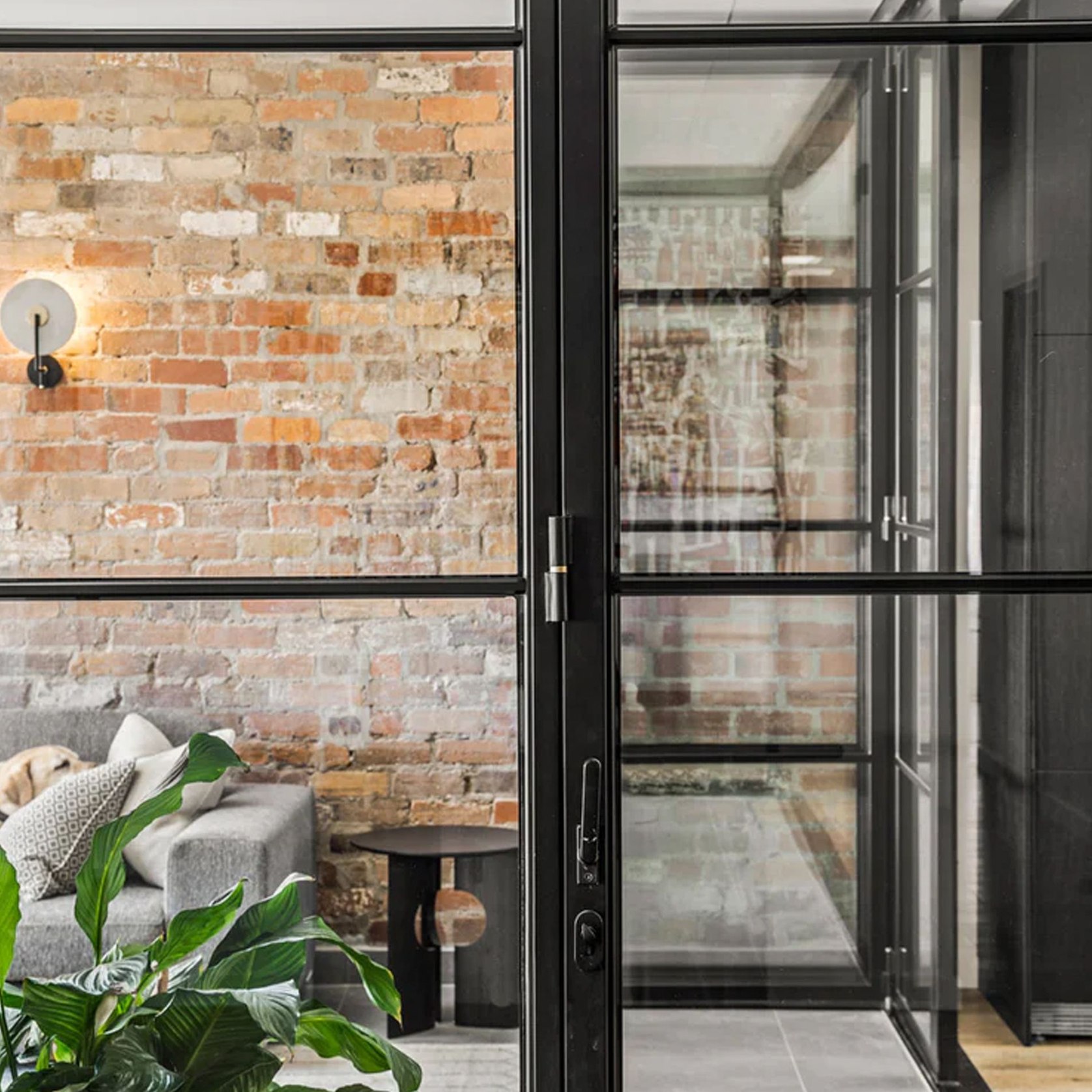

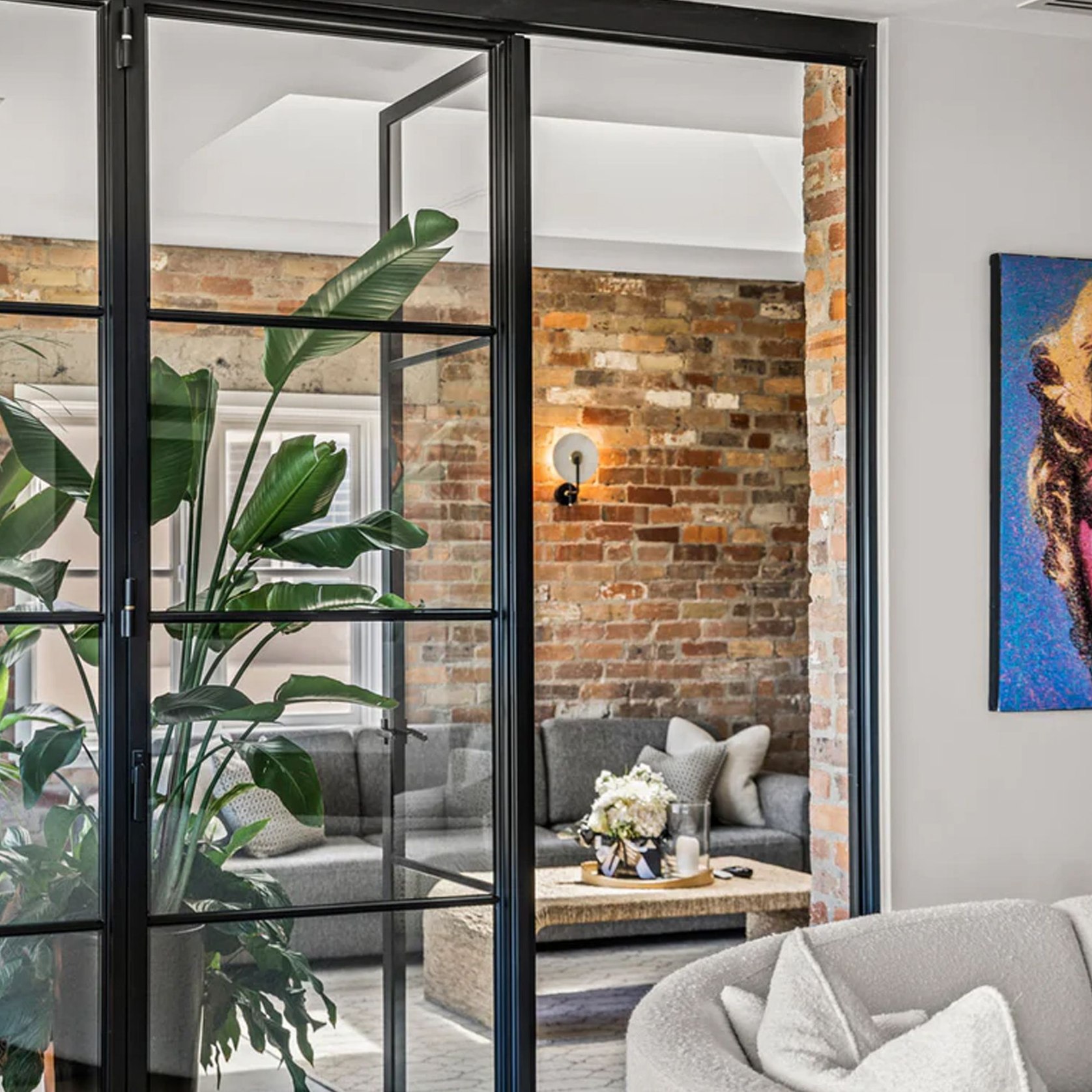

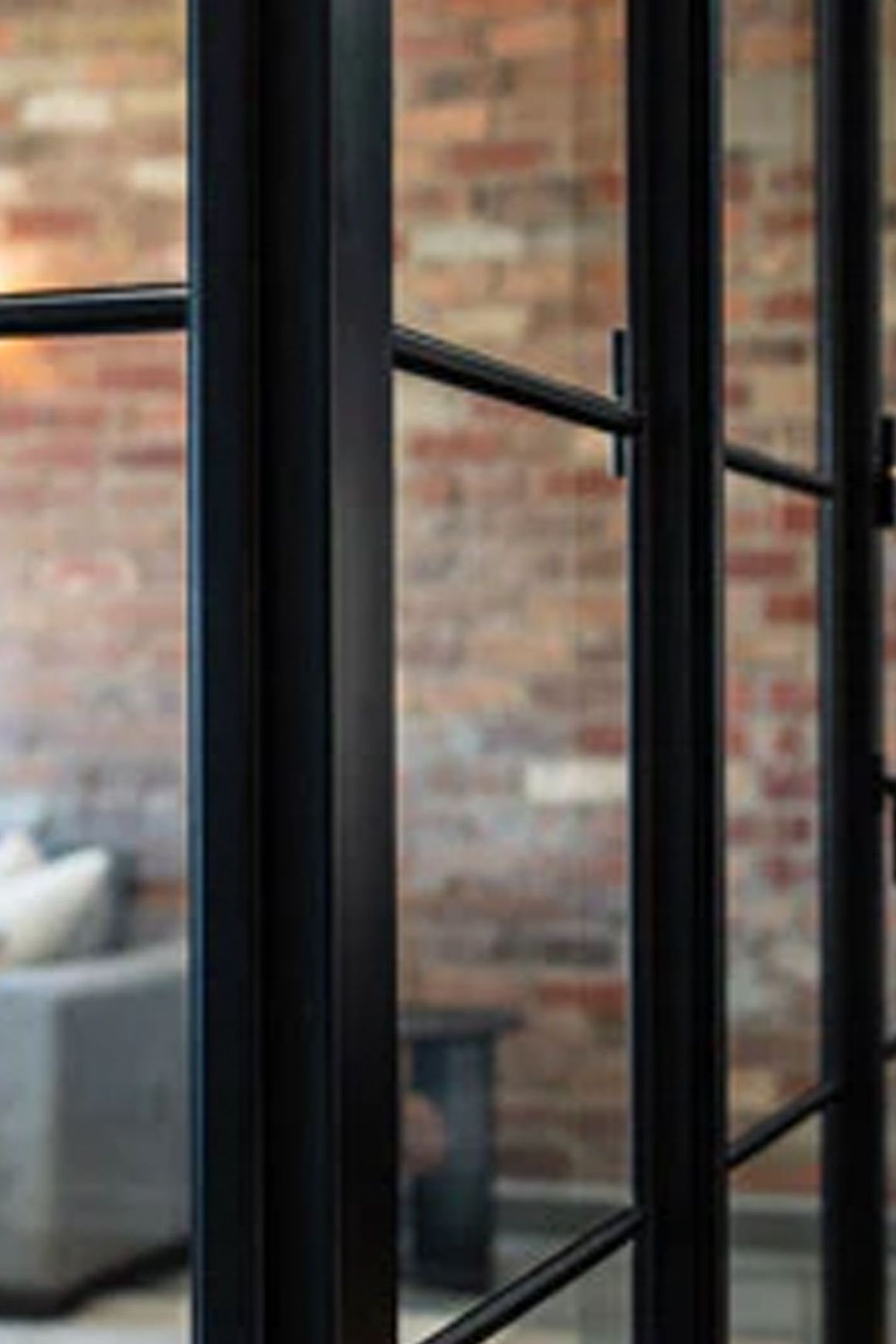

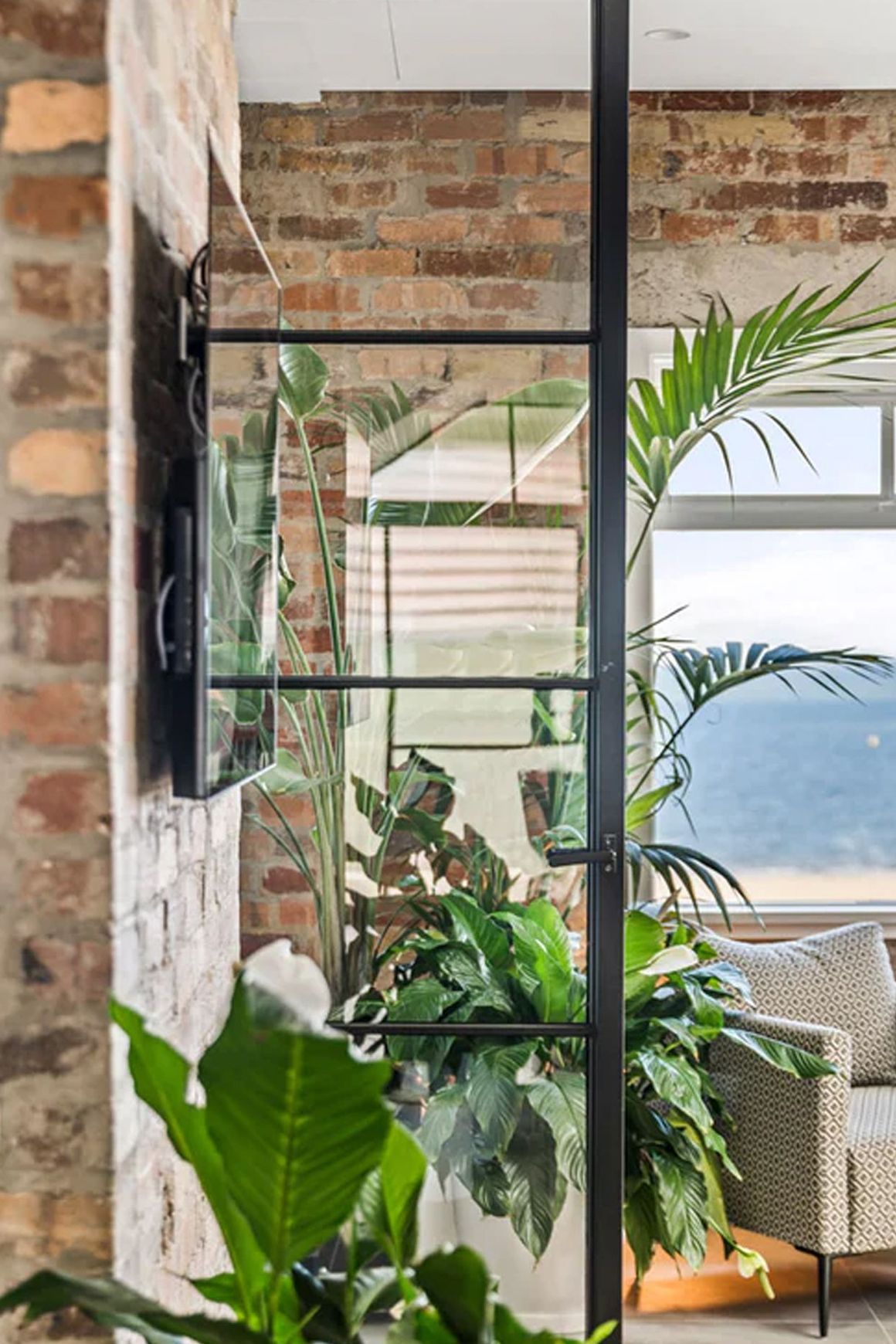

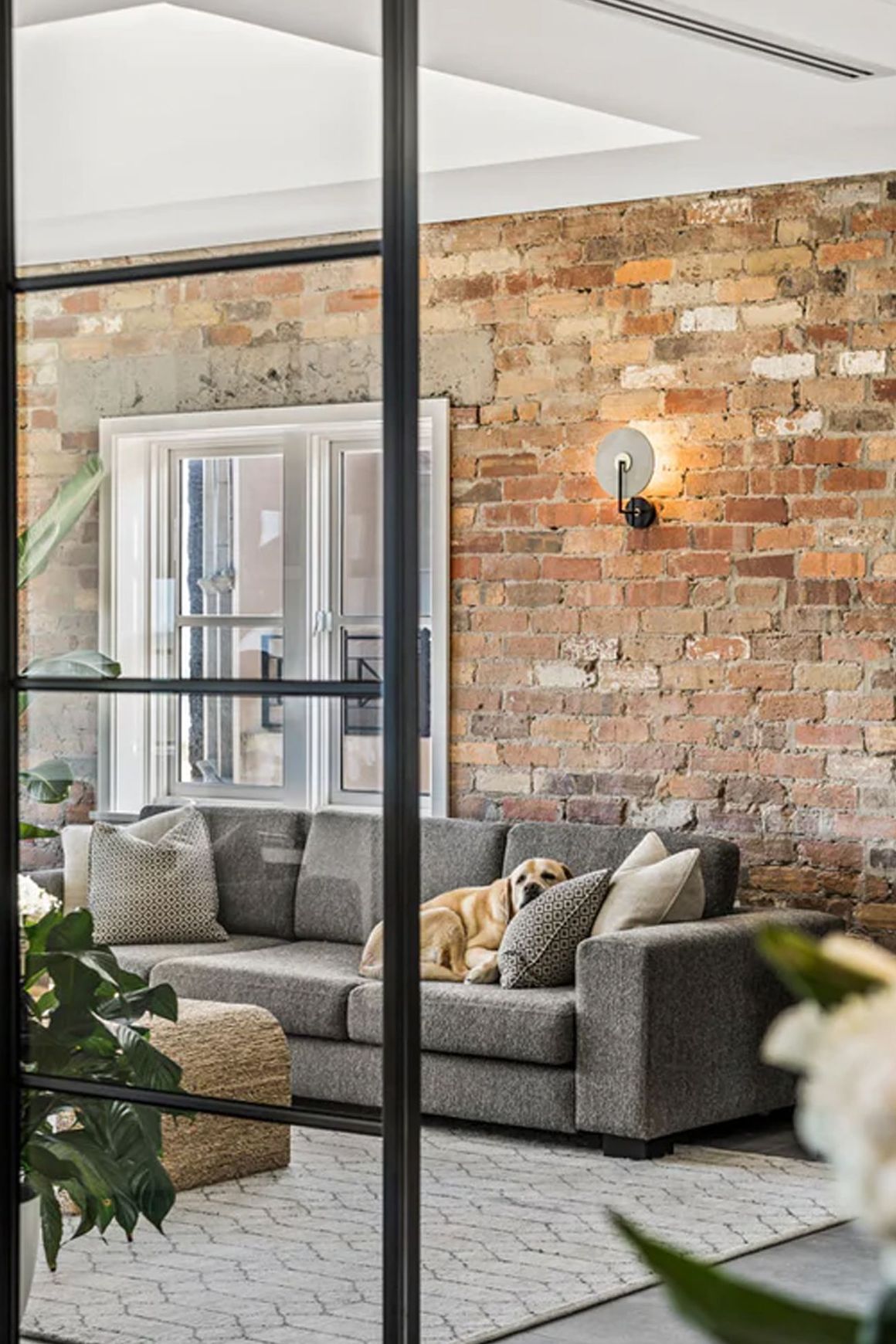

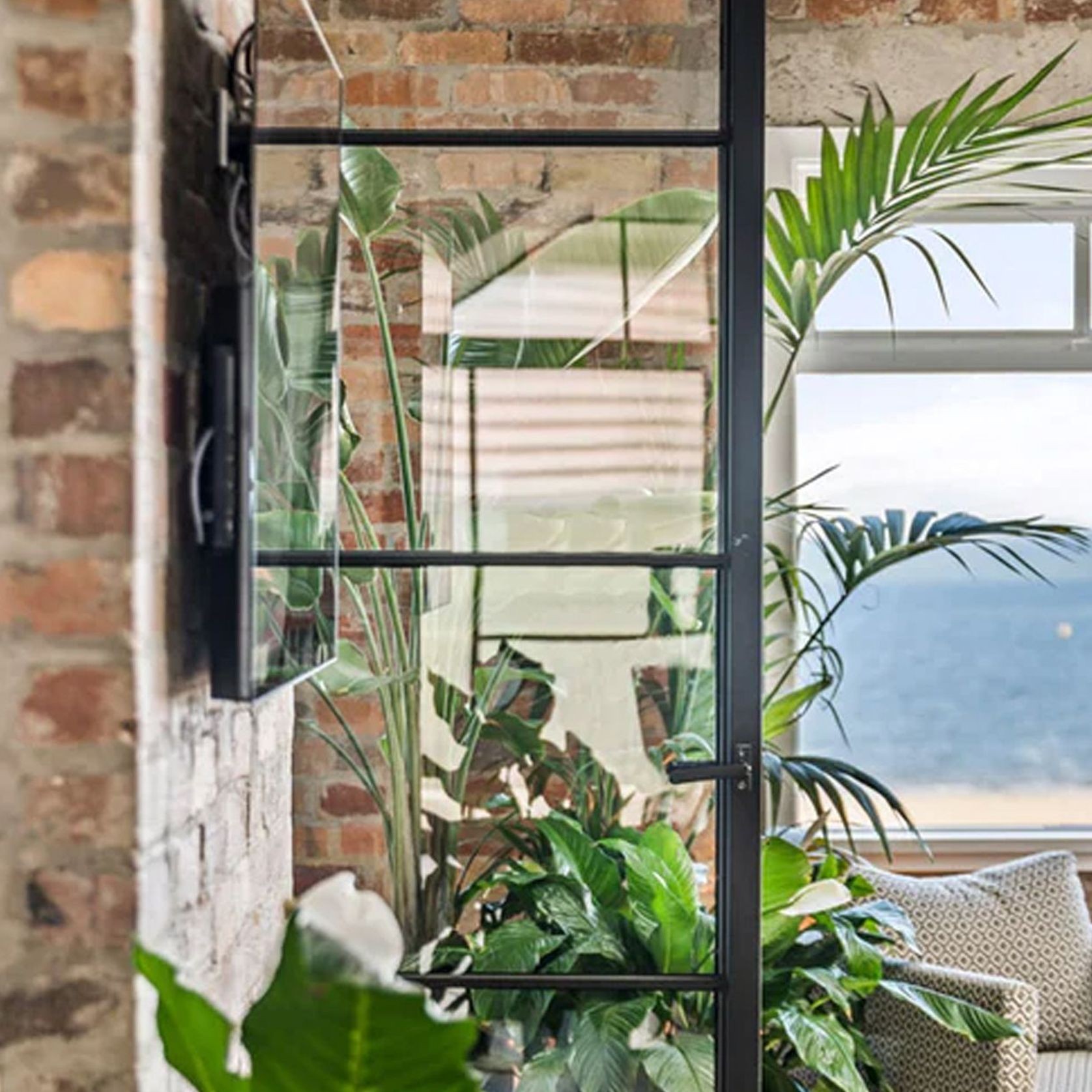

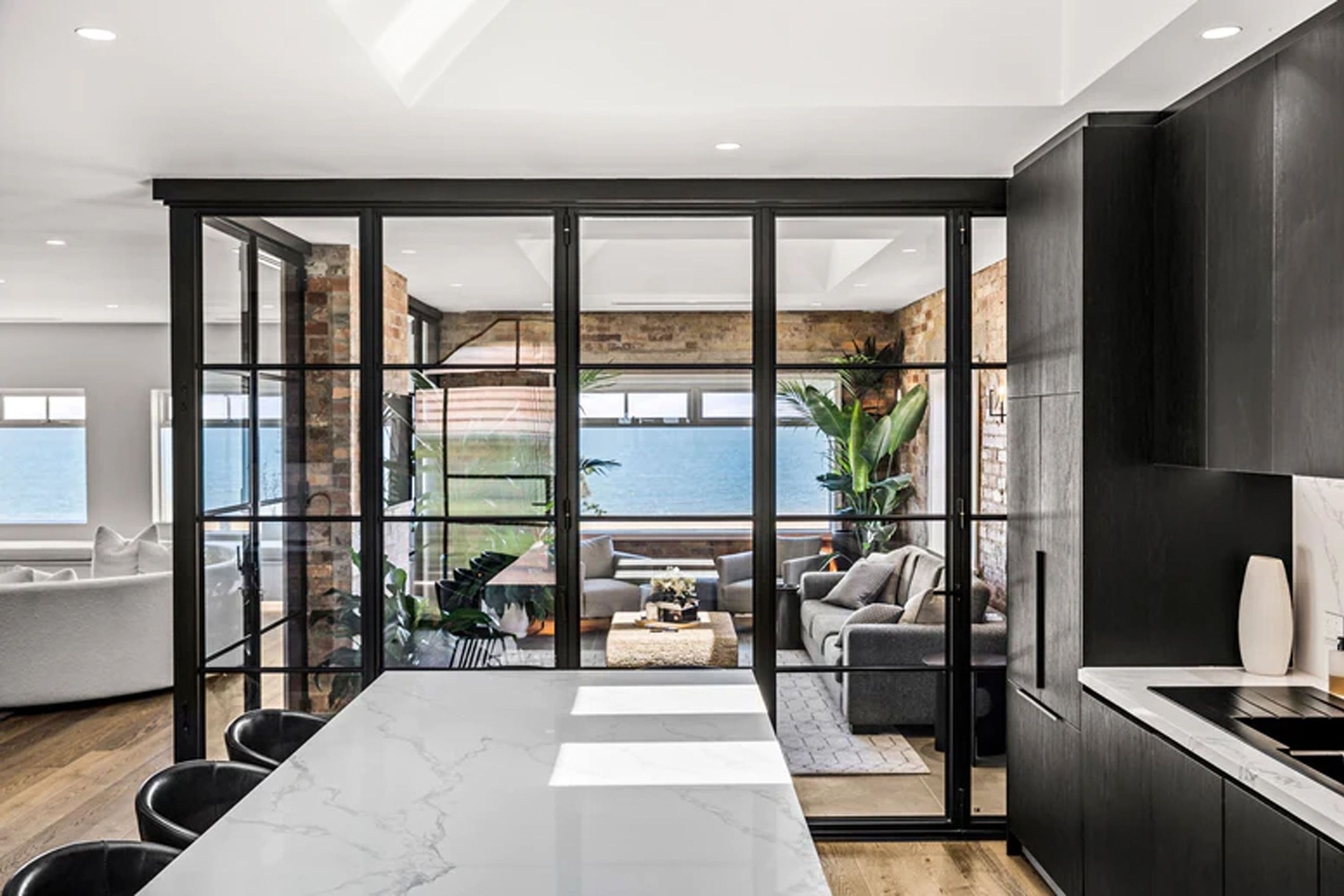

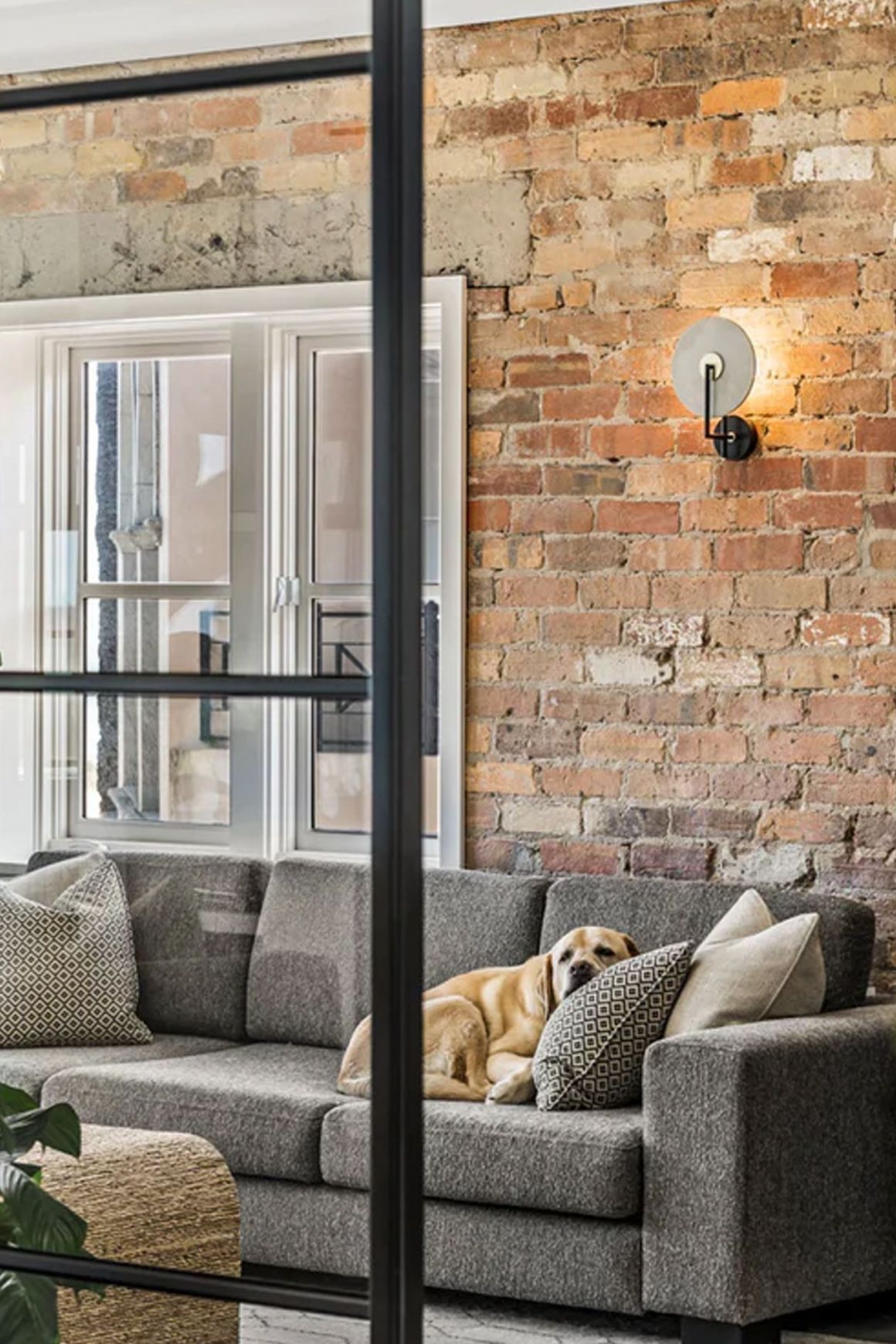

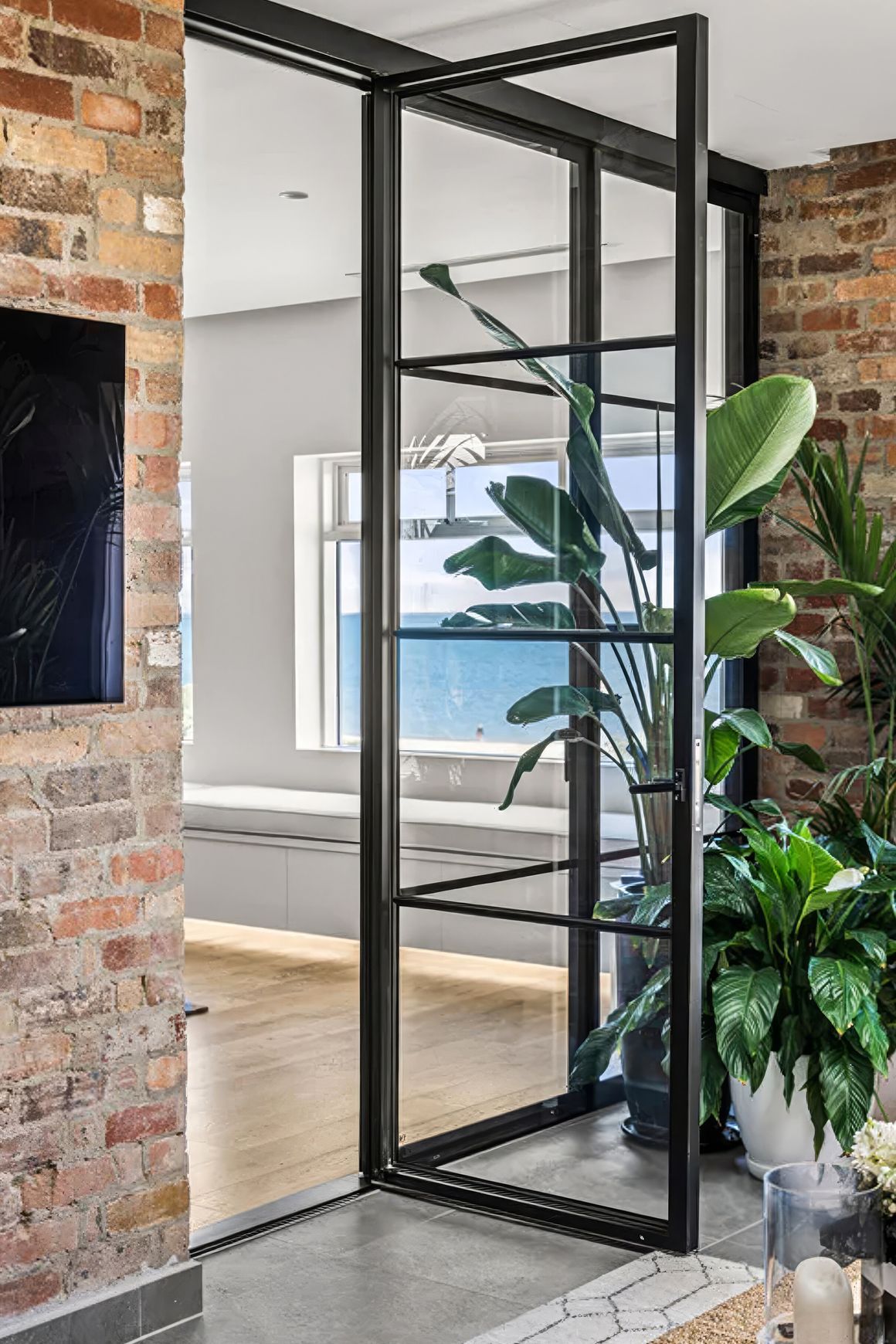

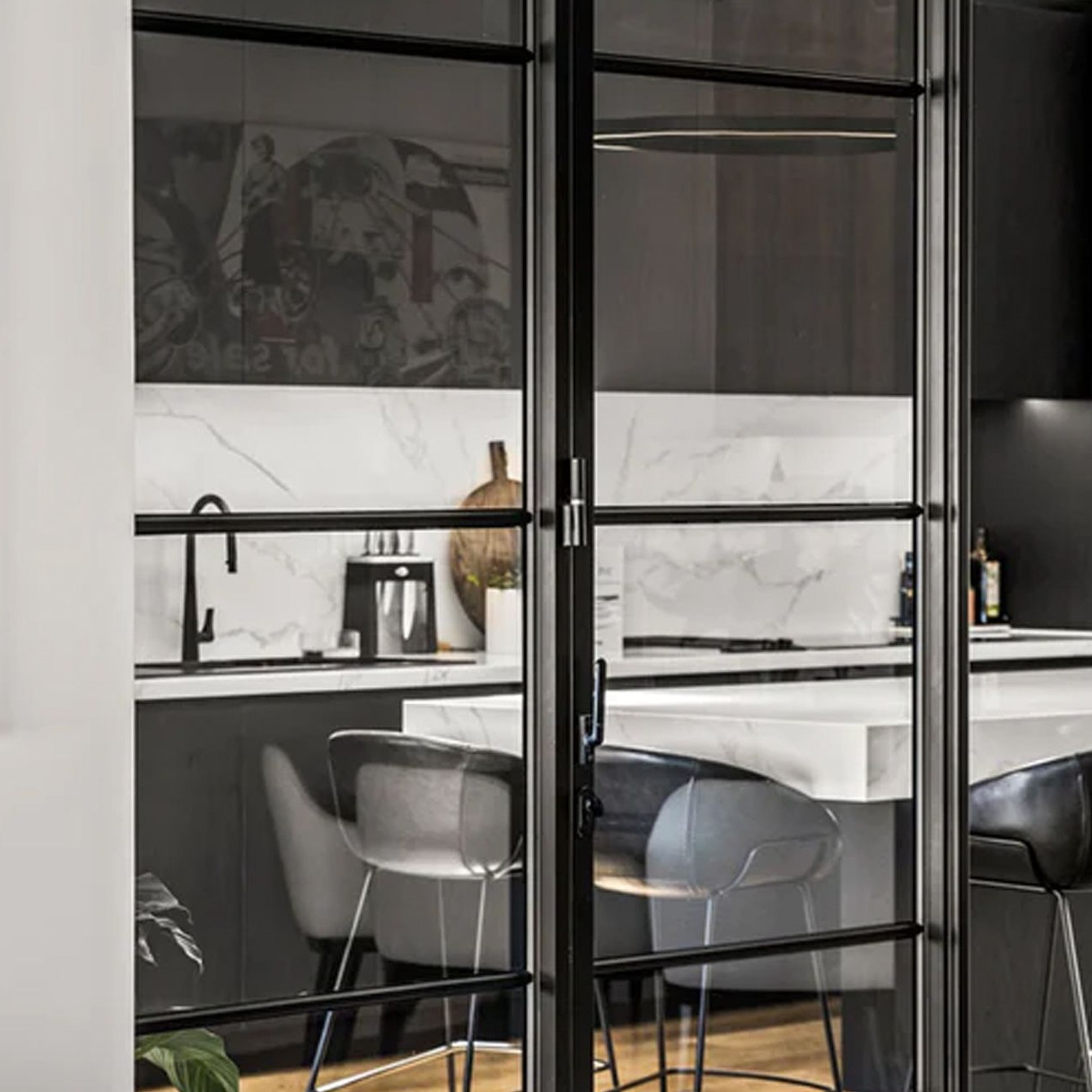

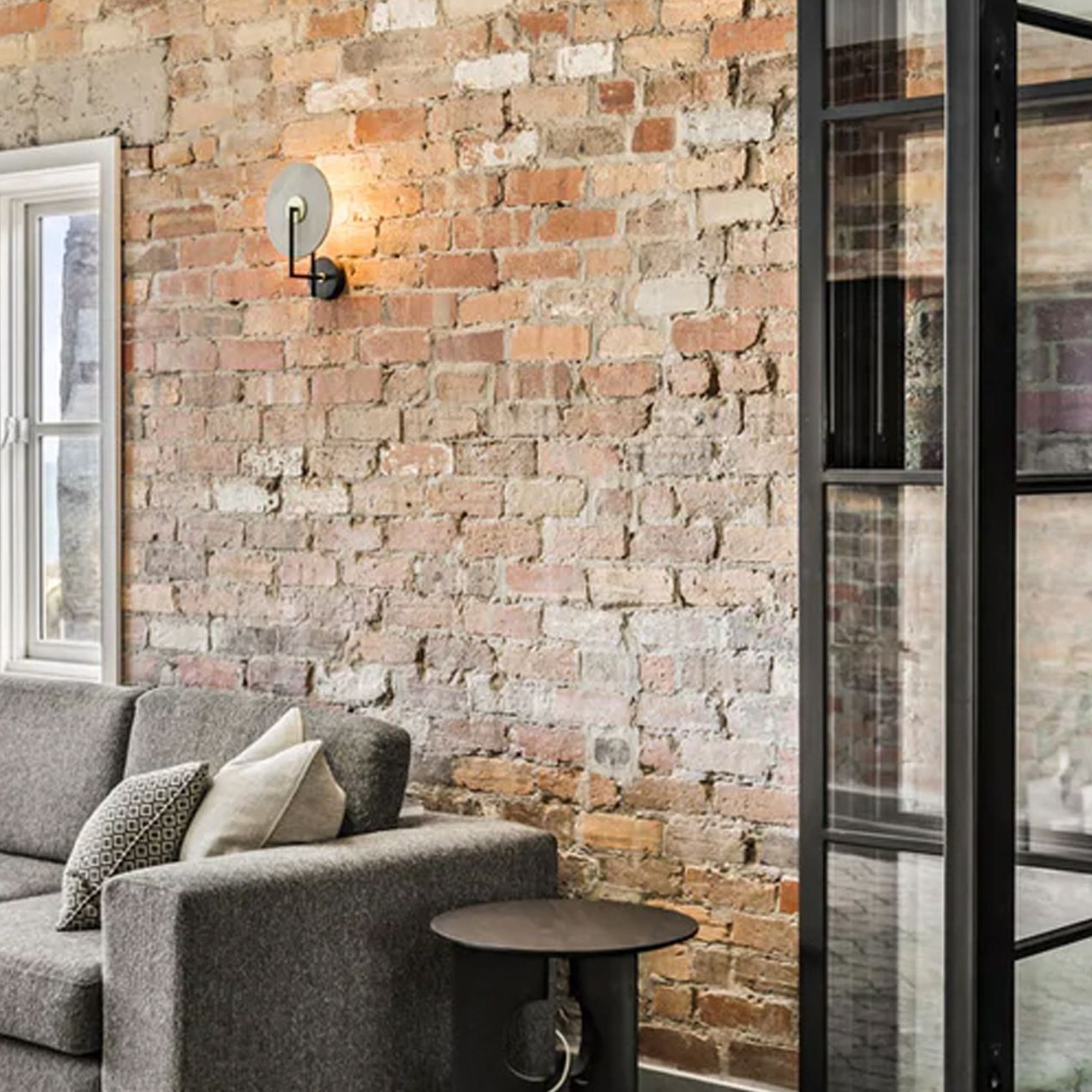

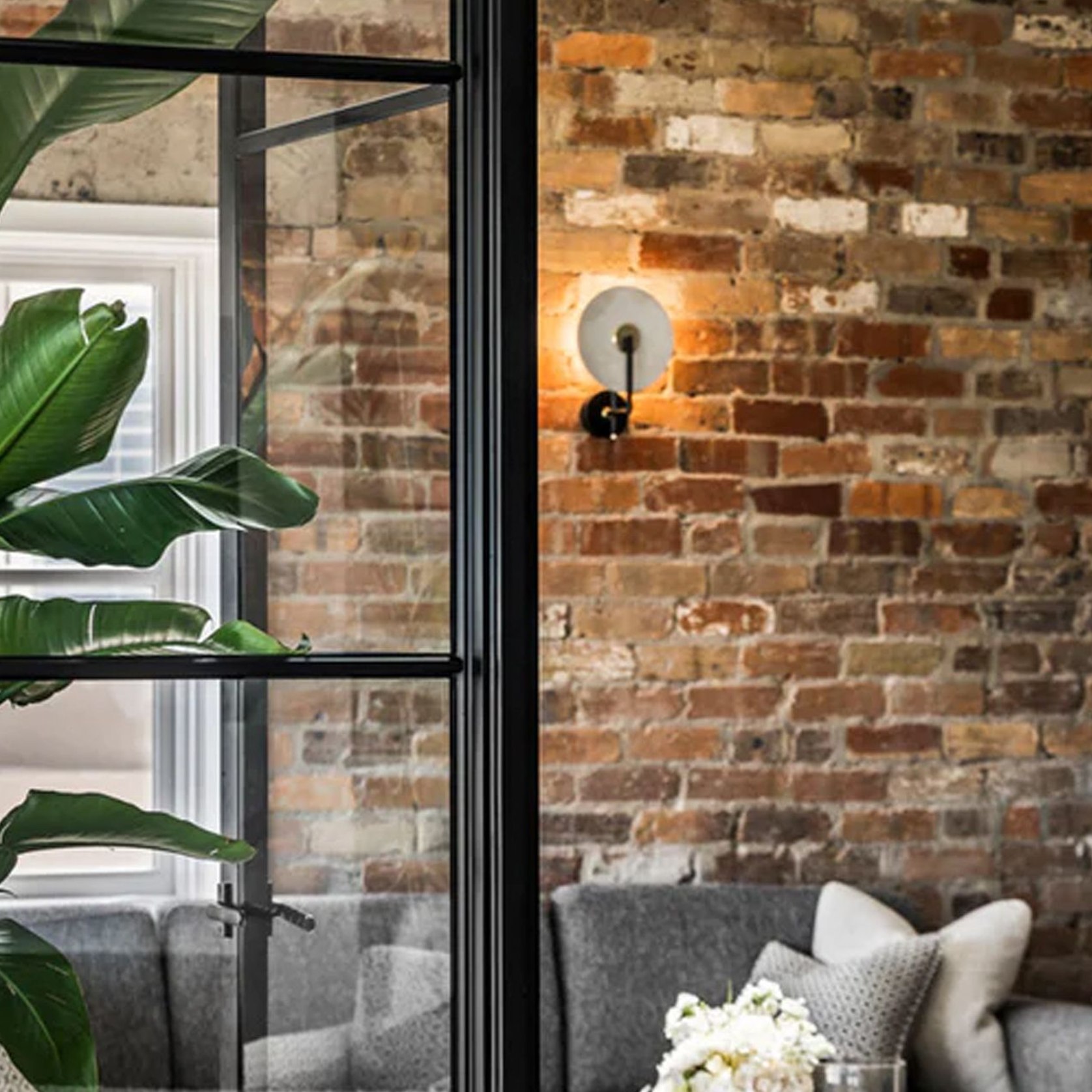

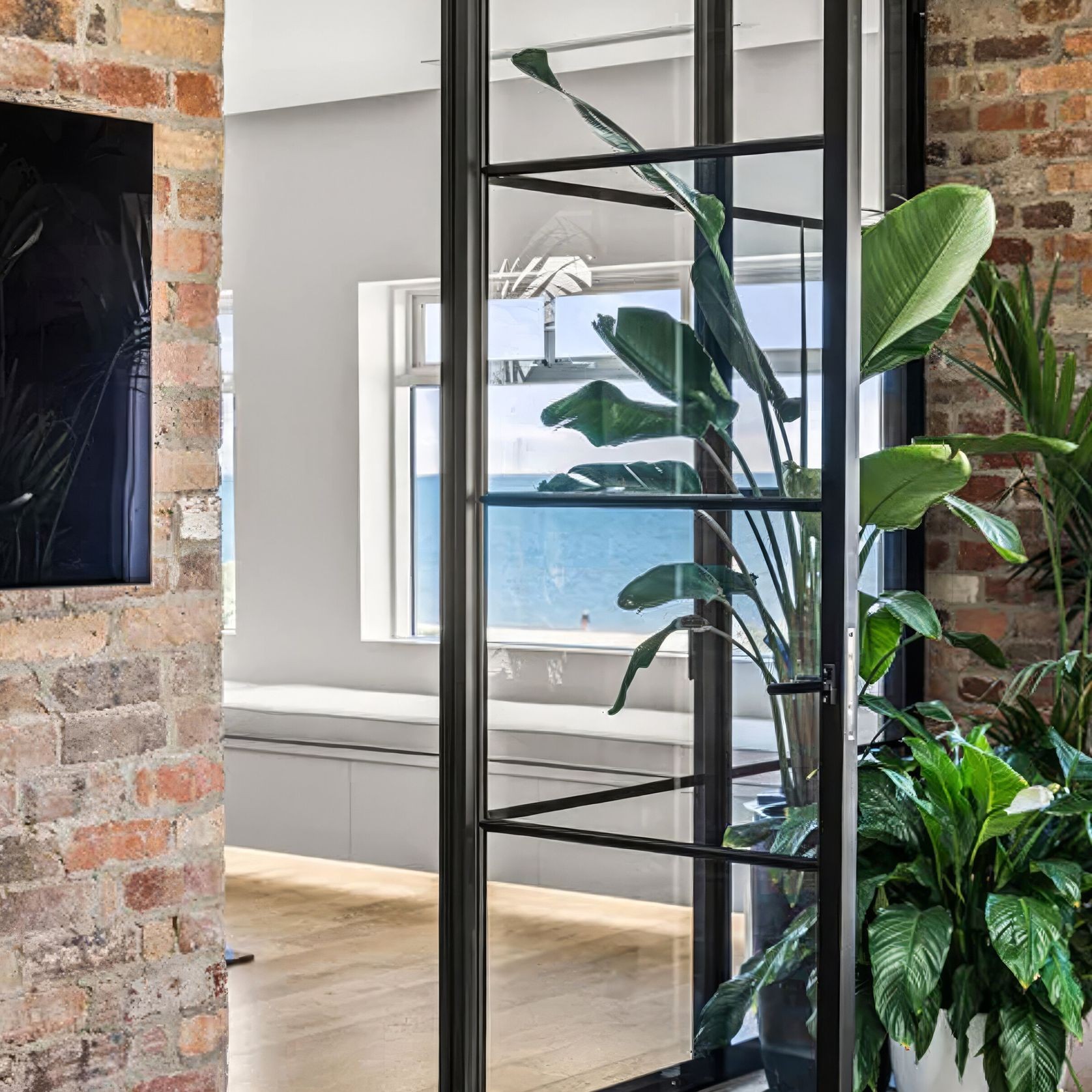

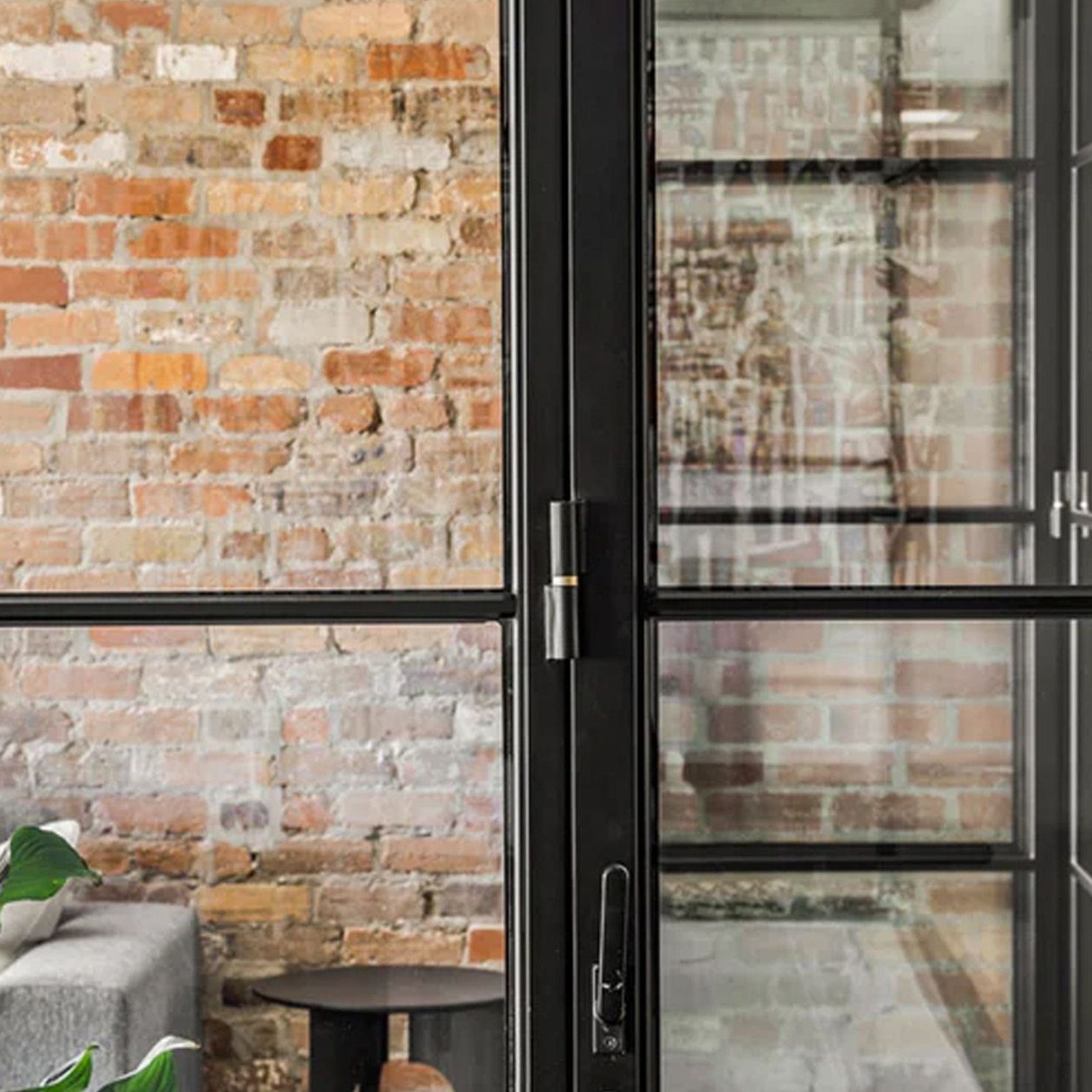

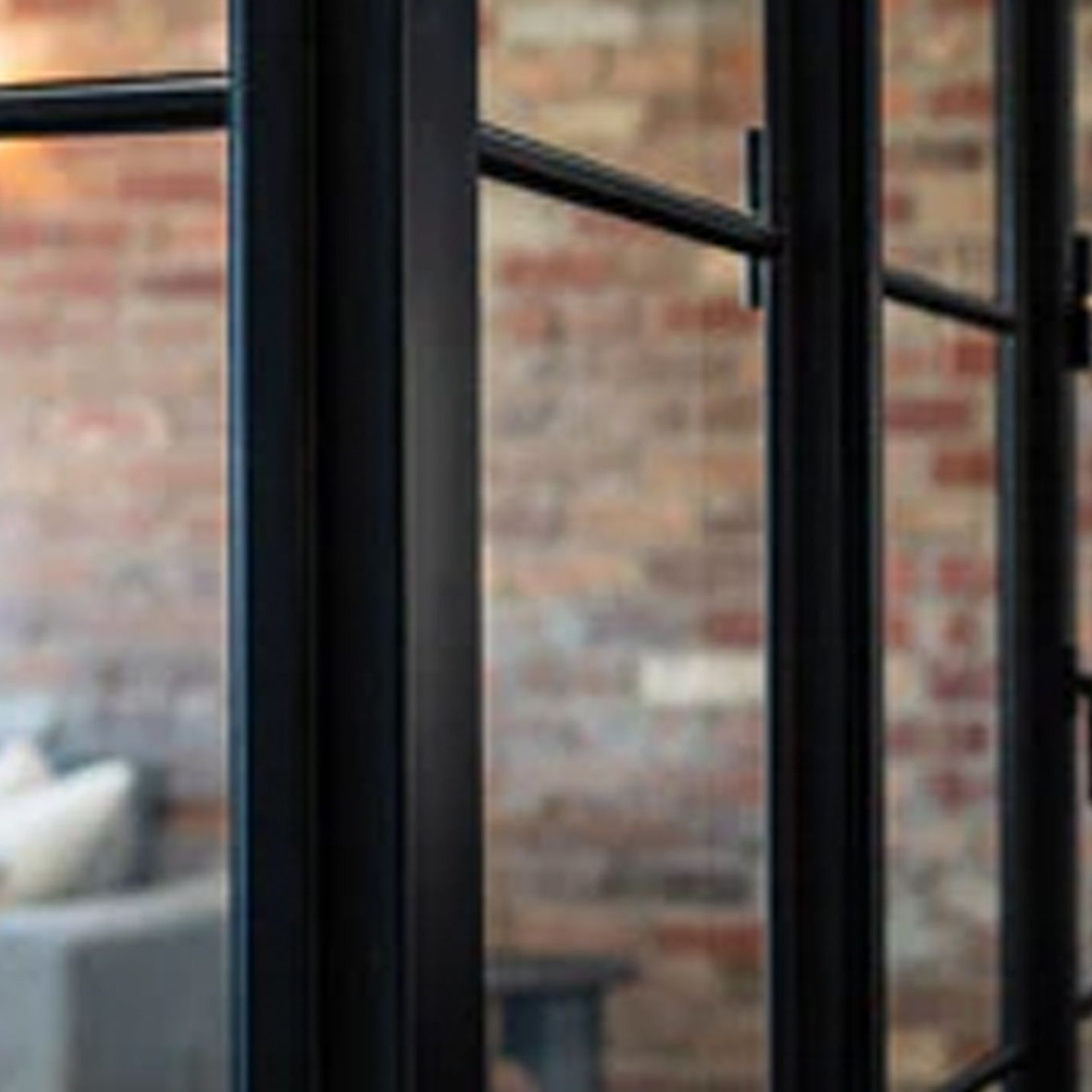

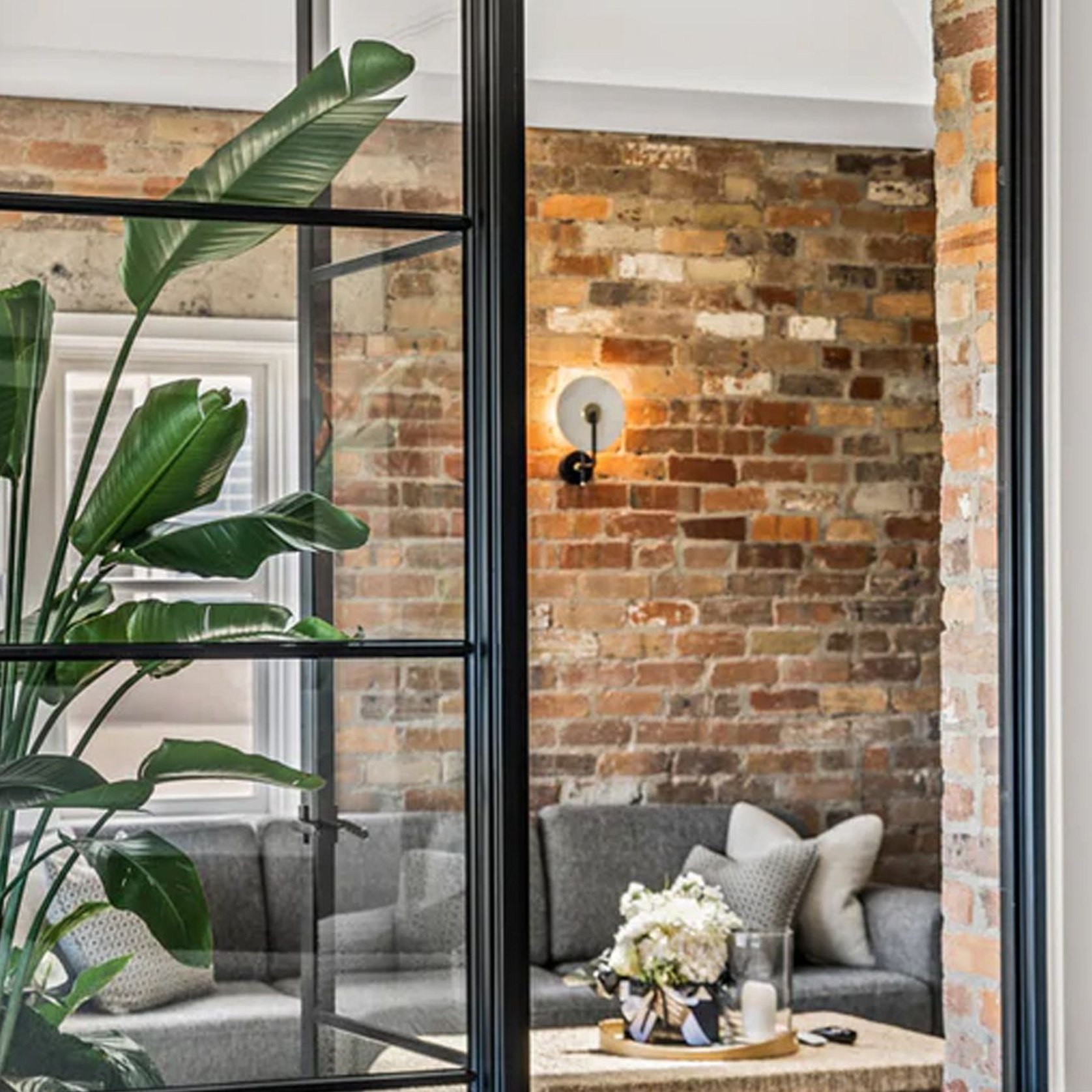

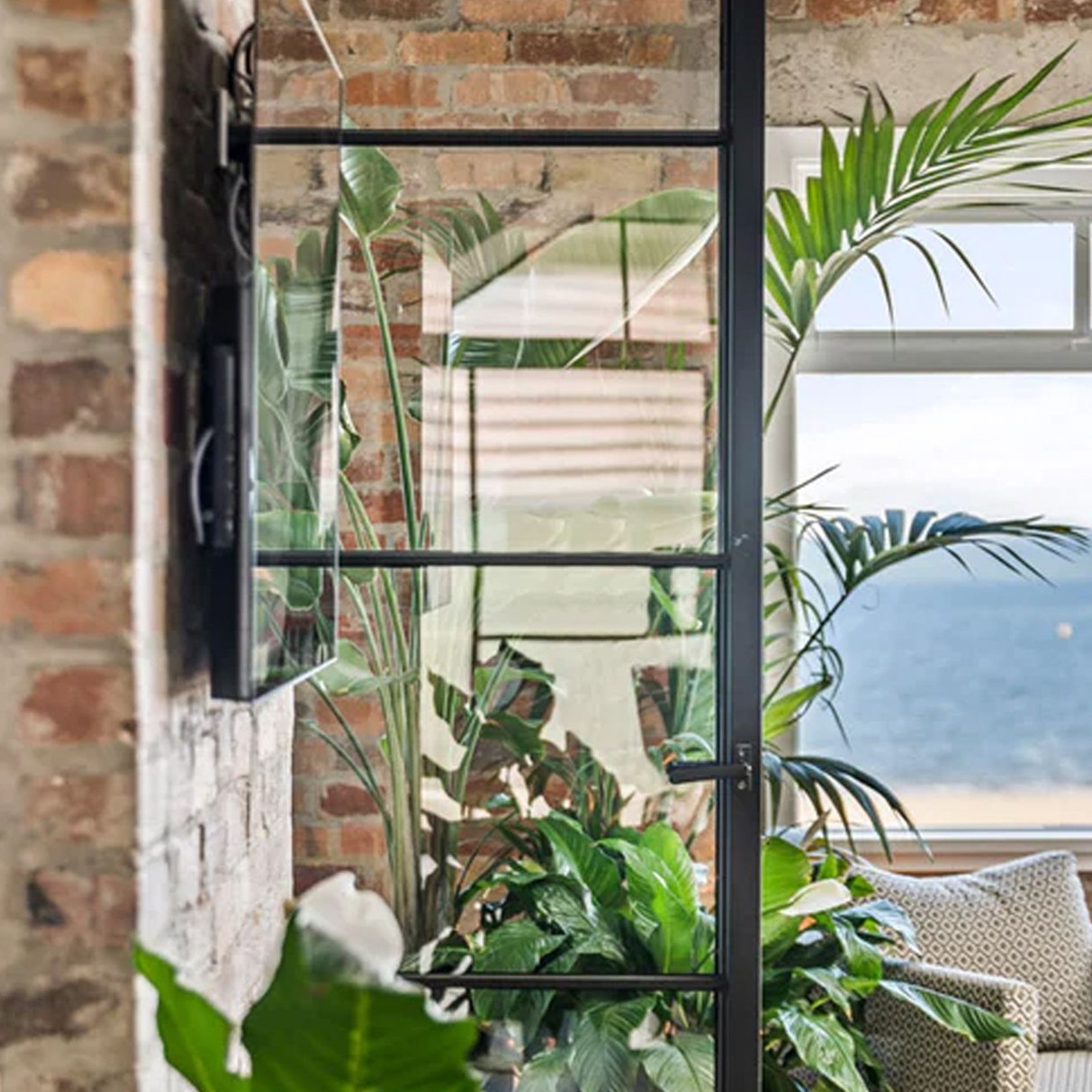

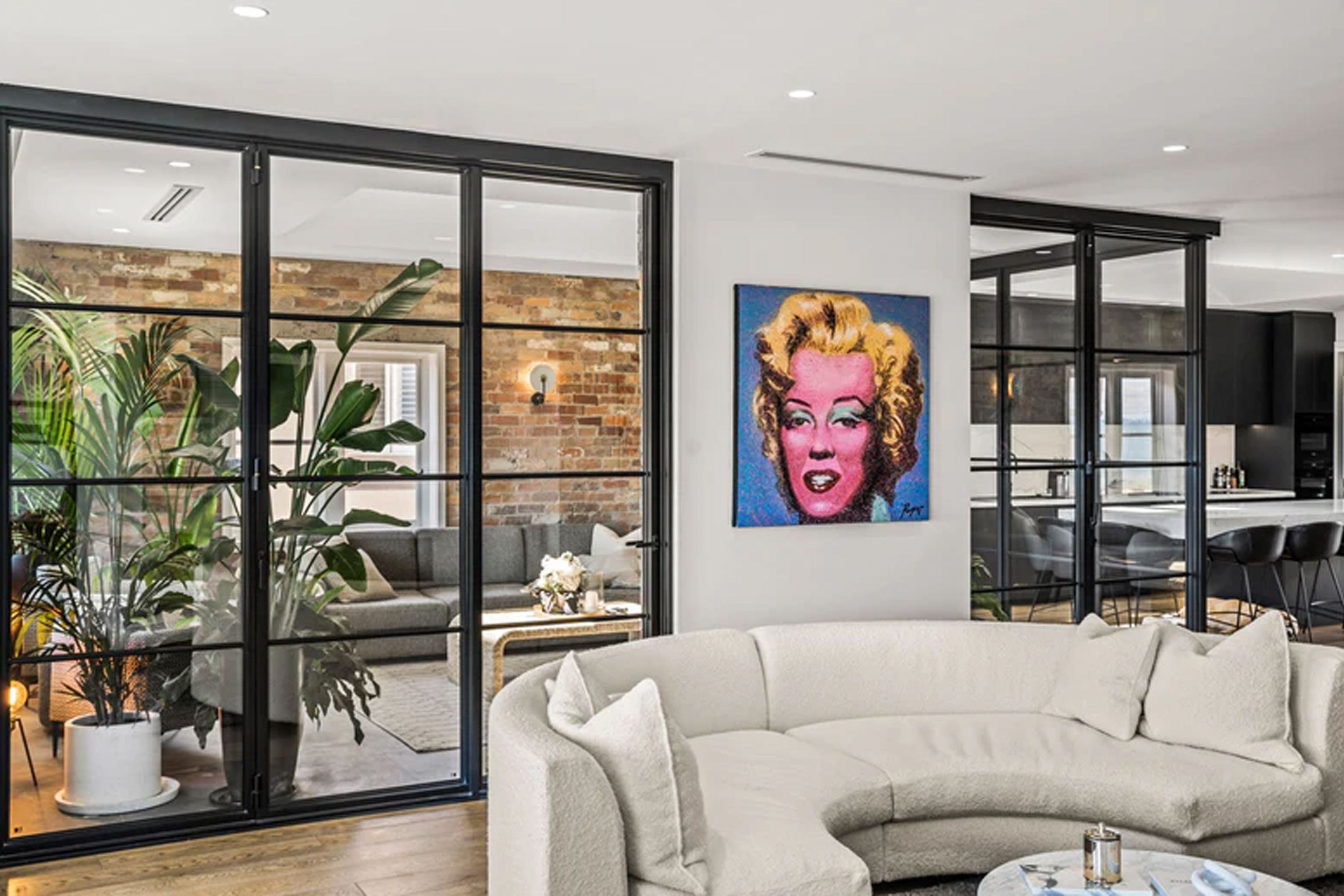

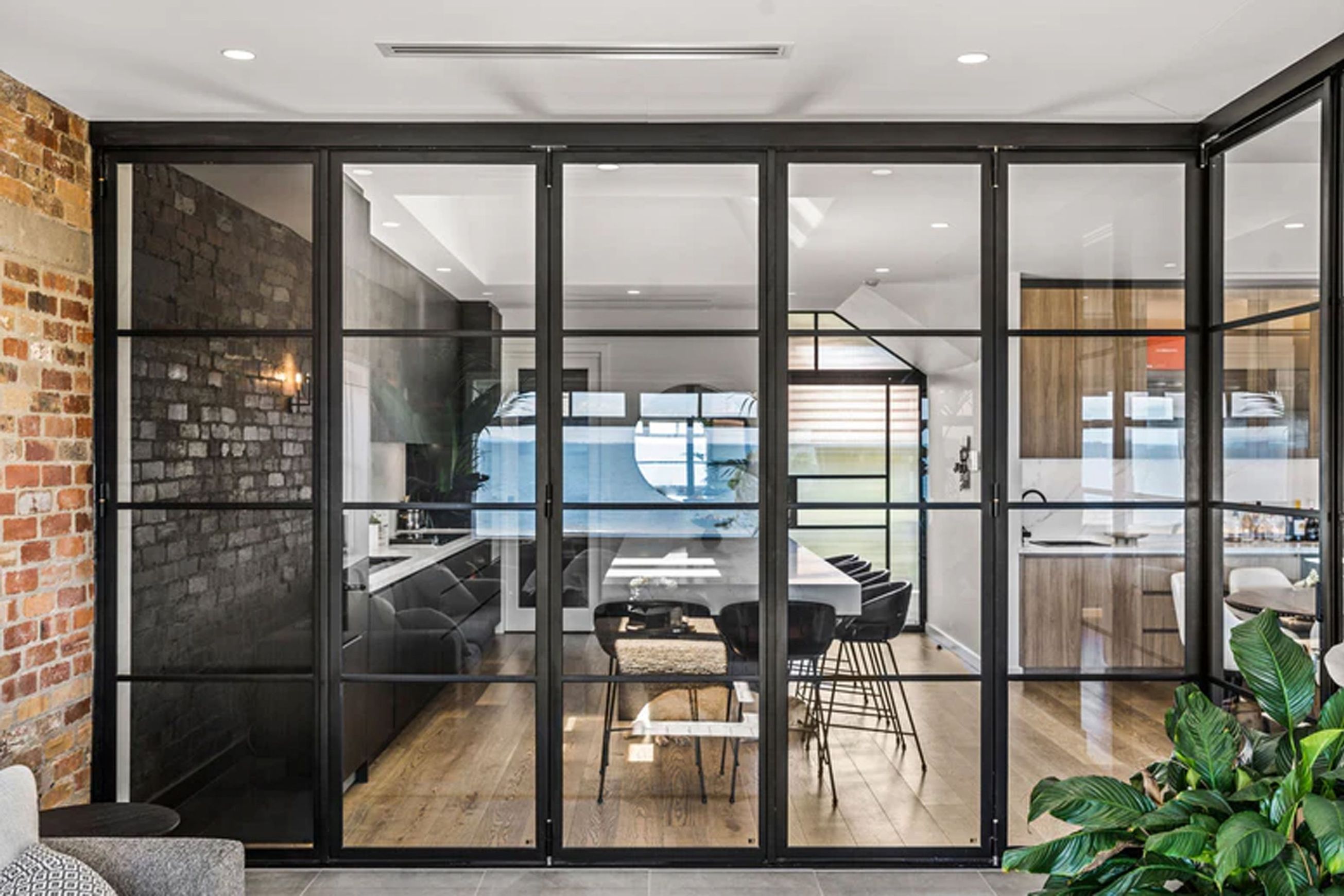

Steel Frame Glass Bifold Doors - Galvanised FPS50

ZEN
Not Applicable

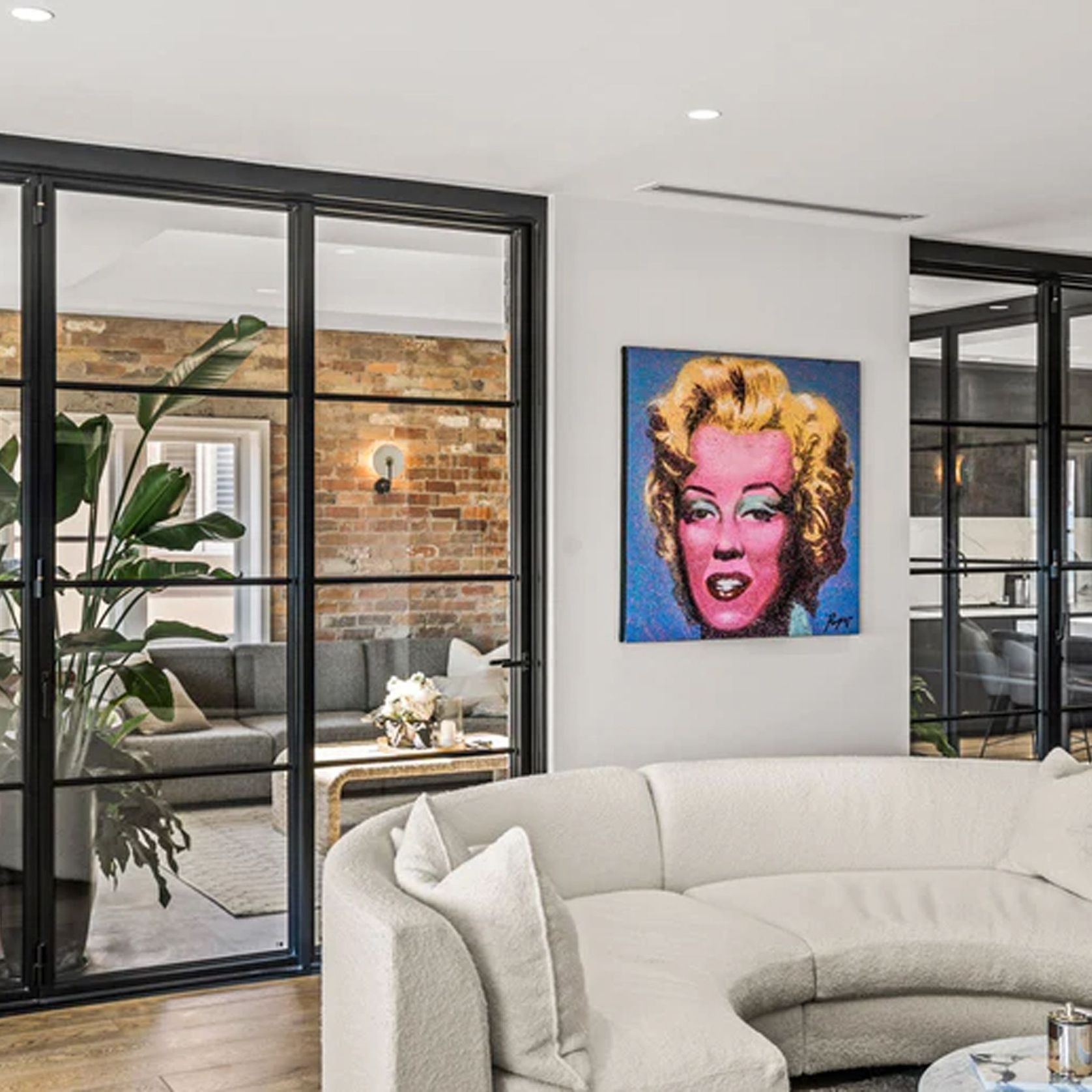

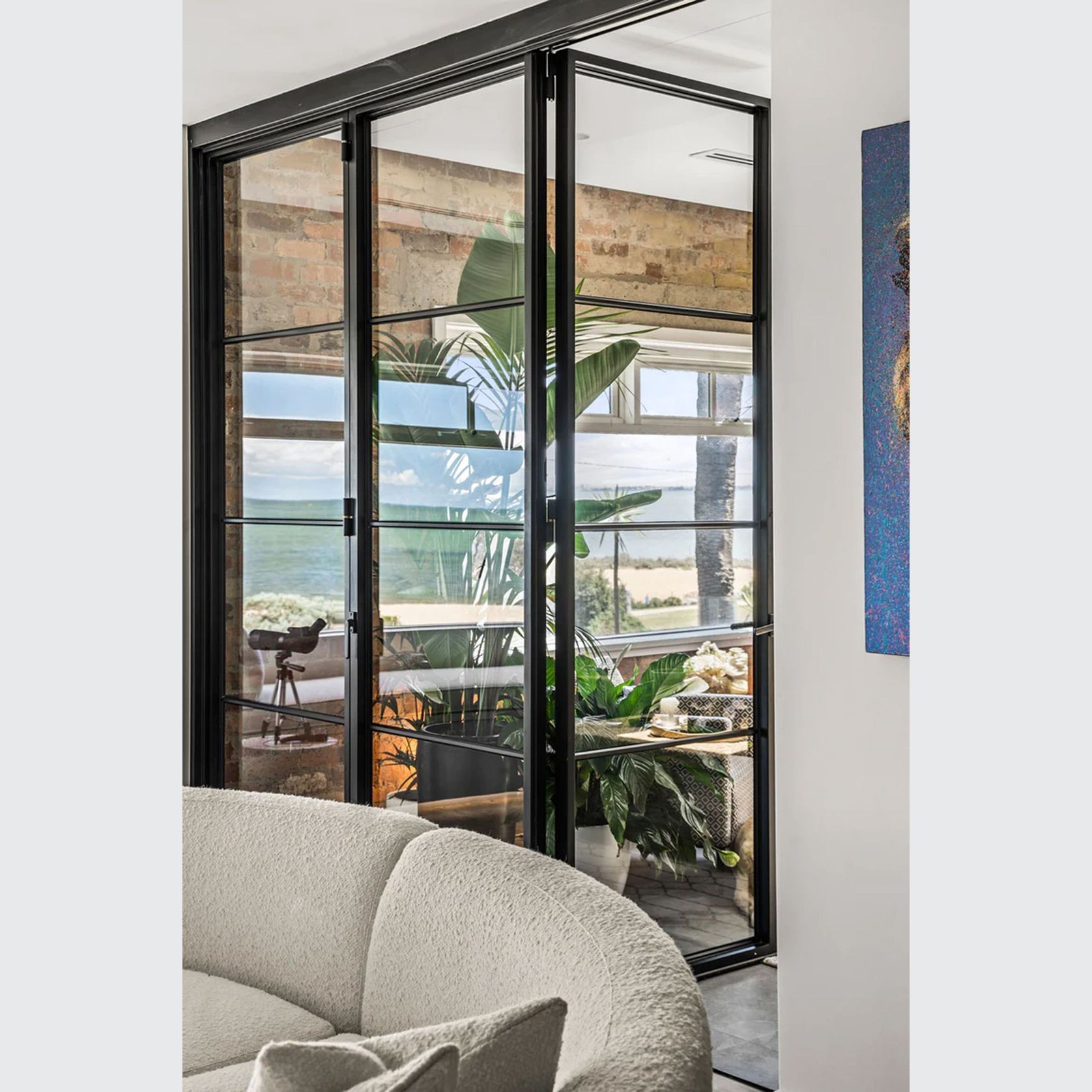

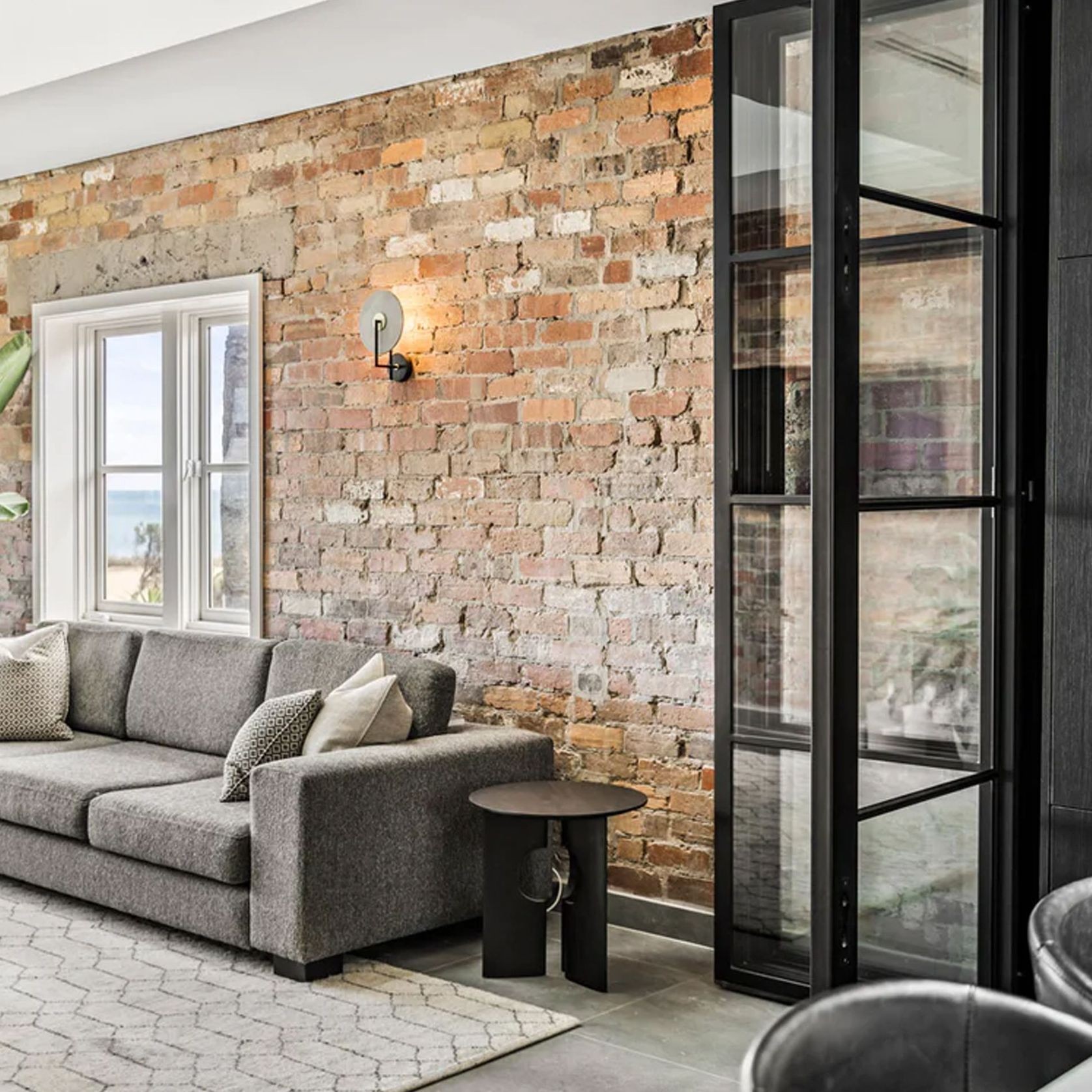

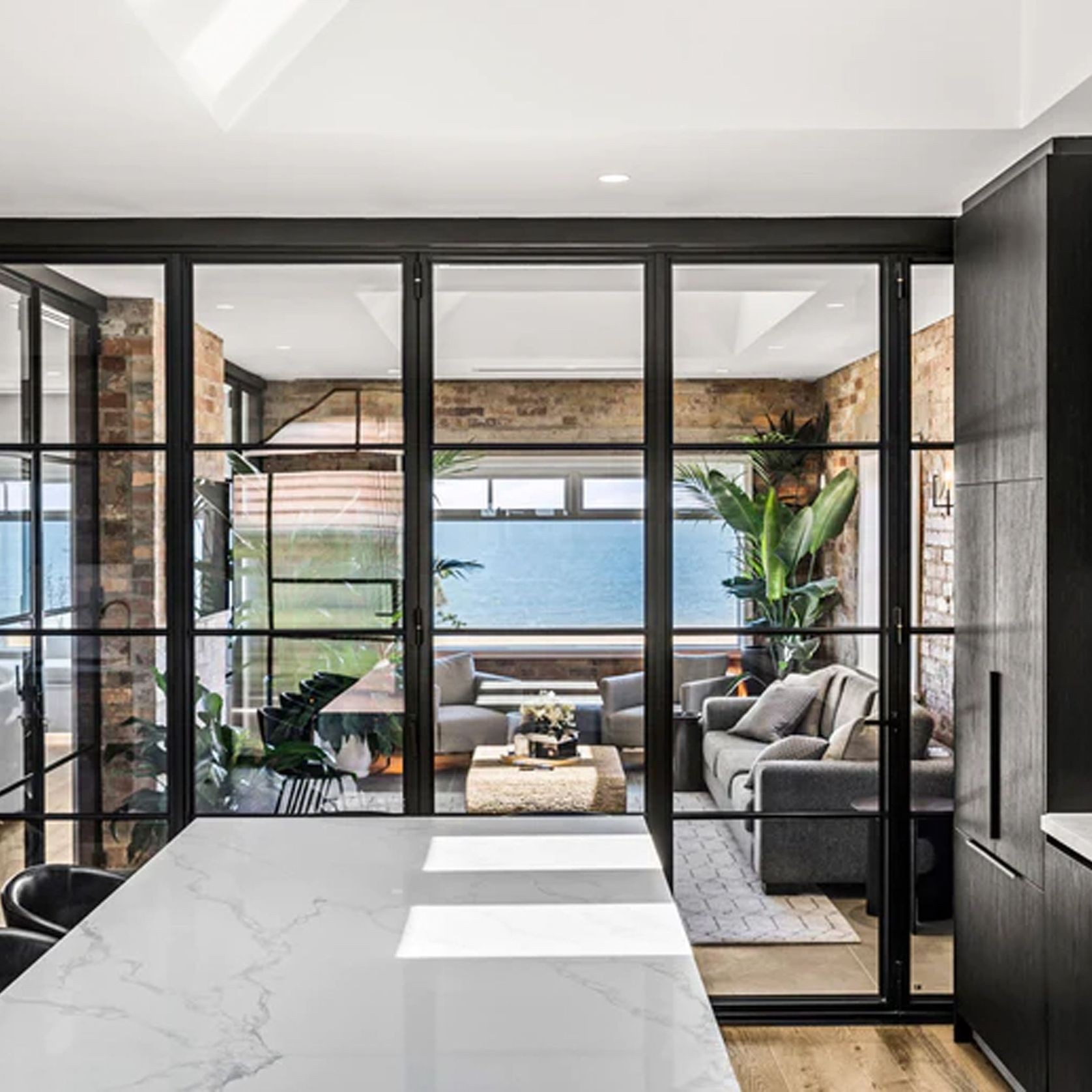

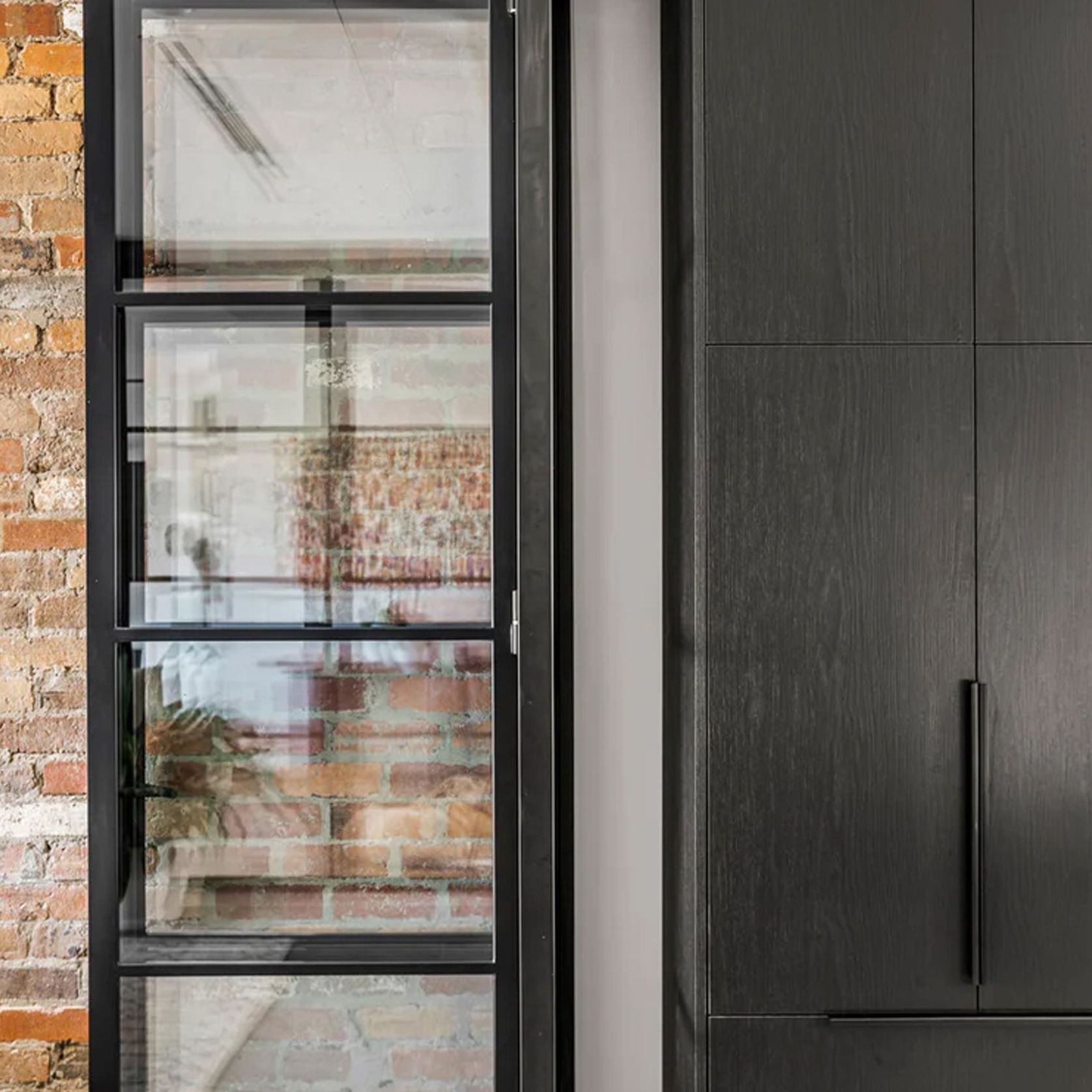

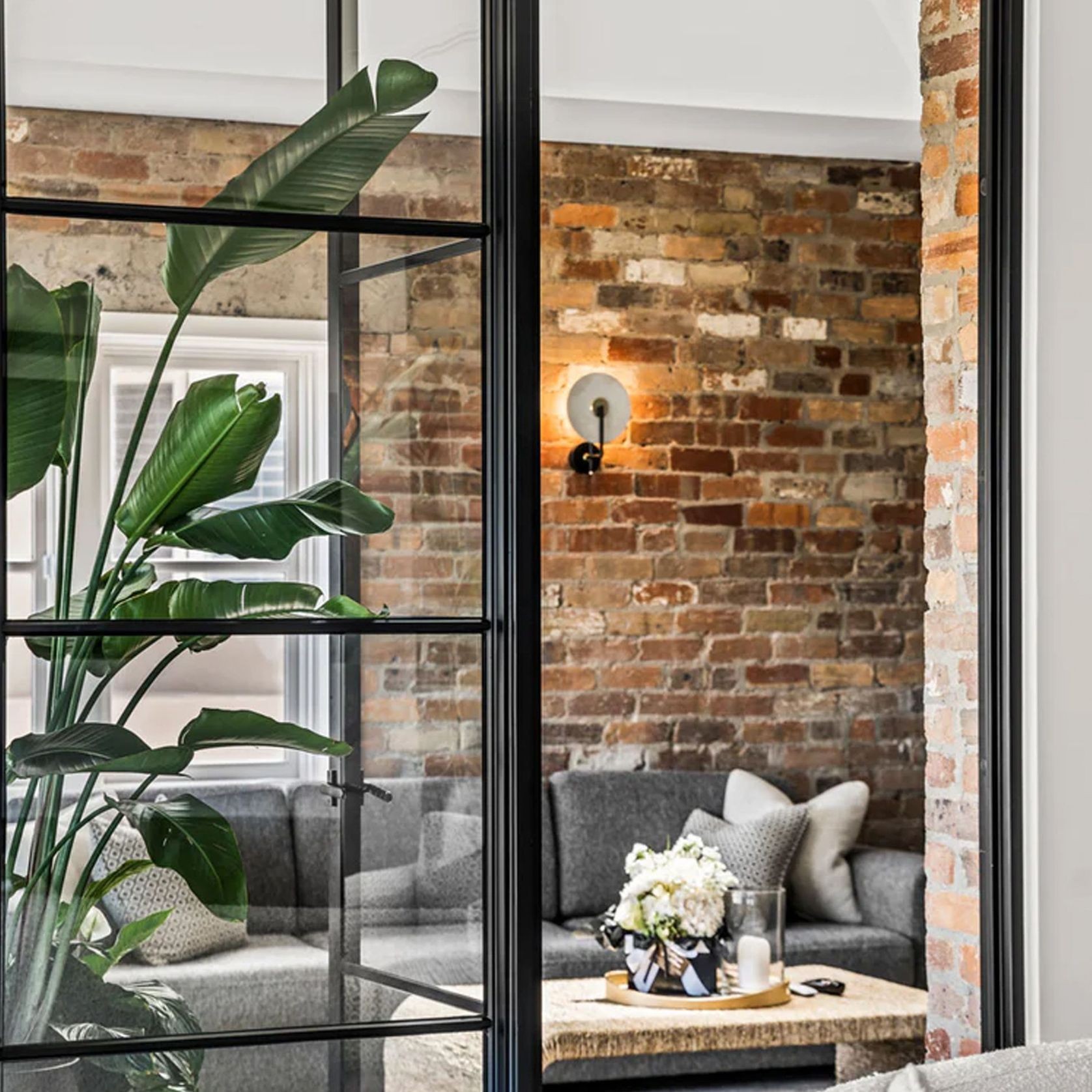

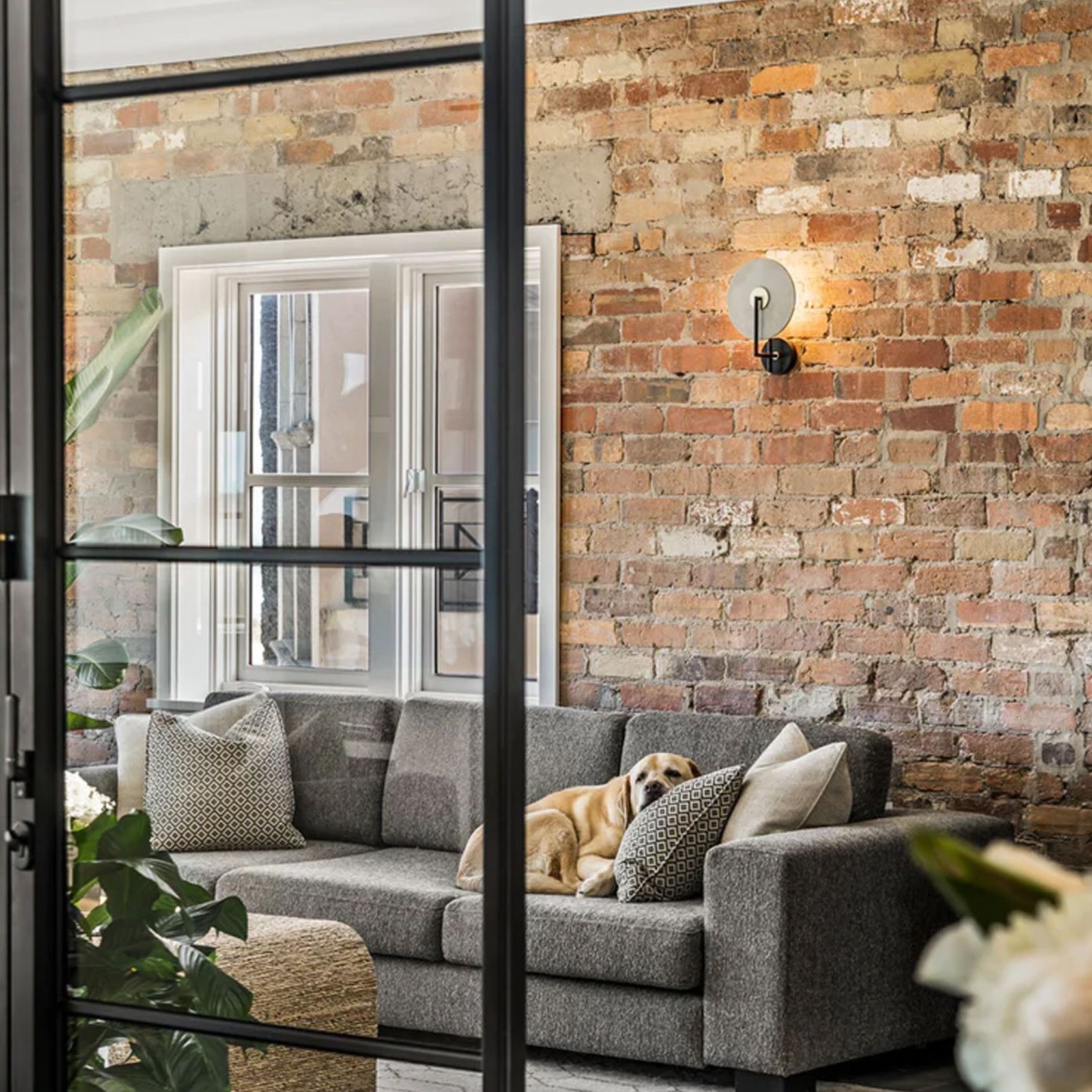

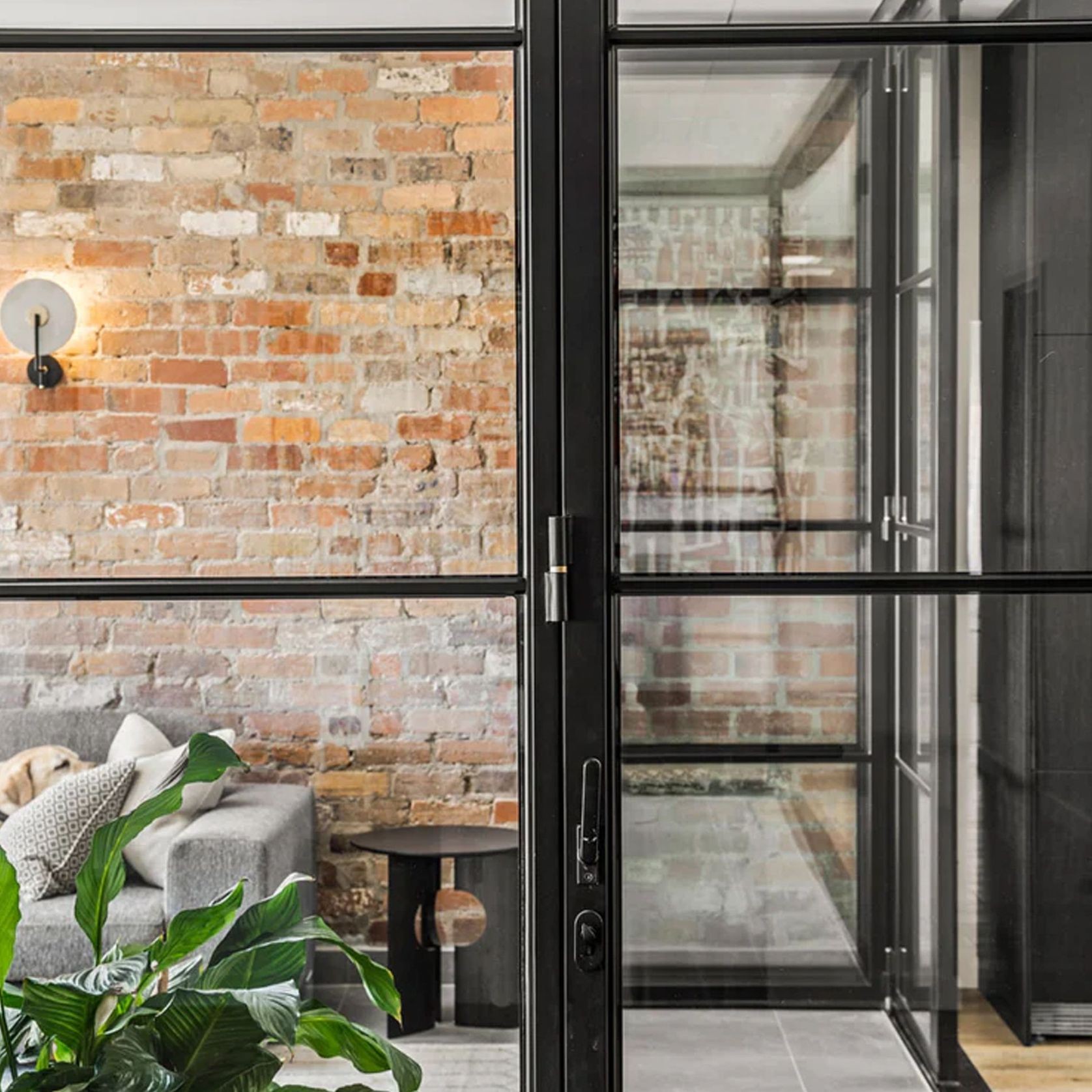

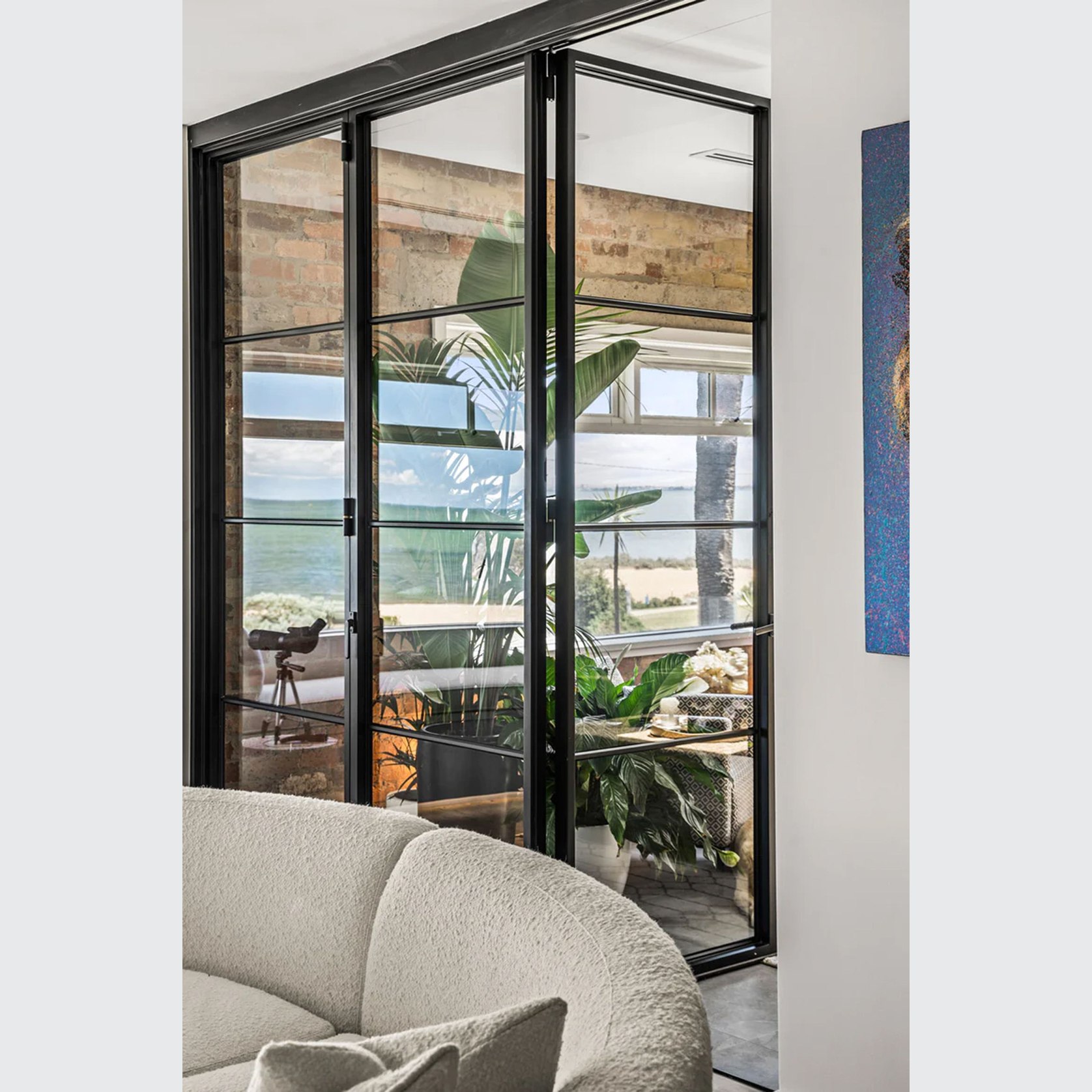

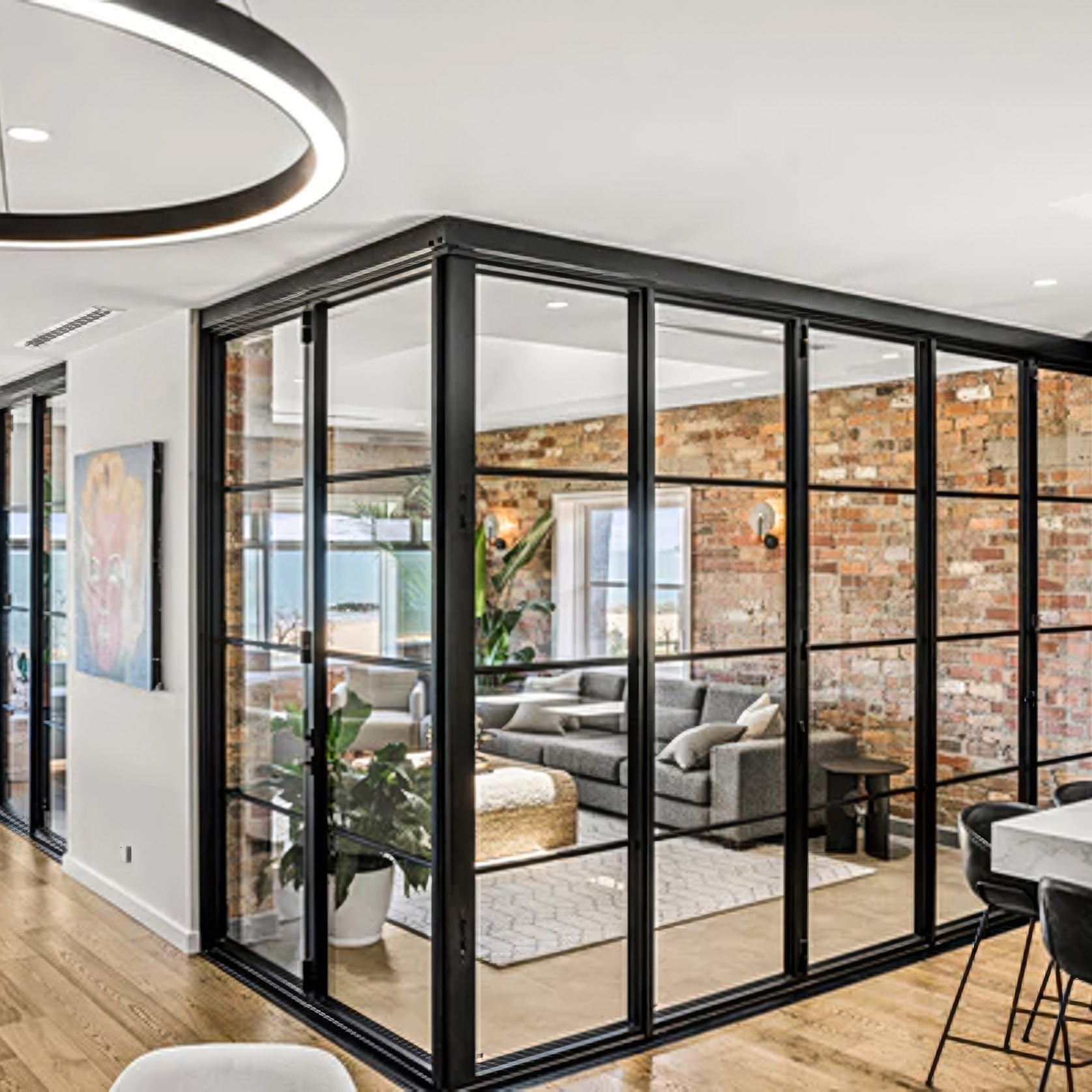

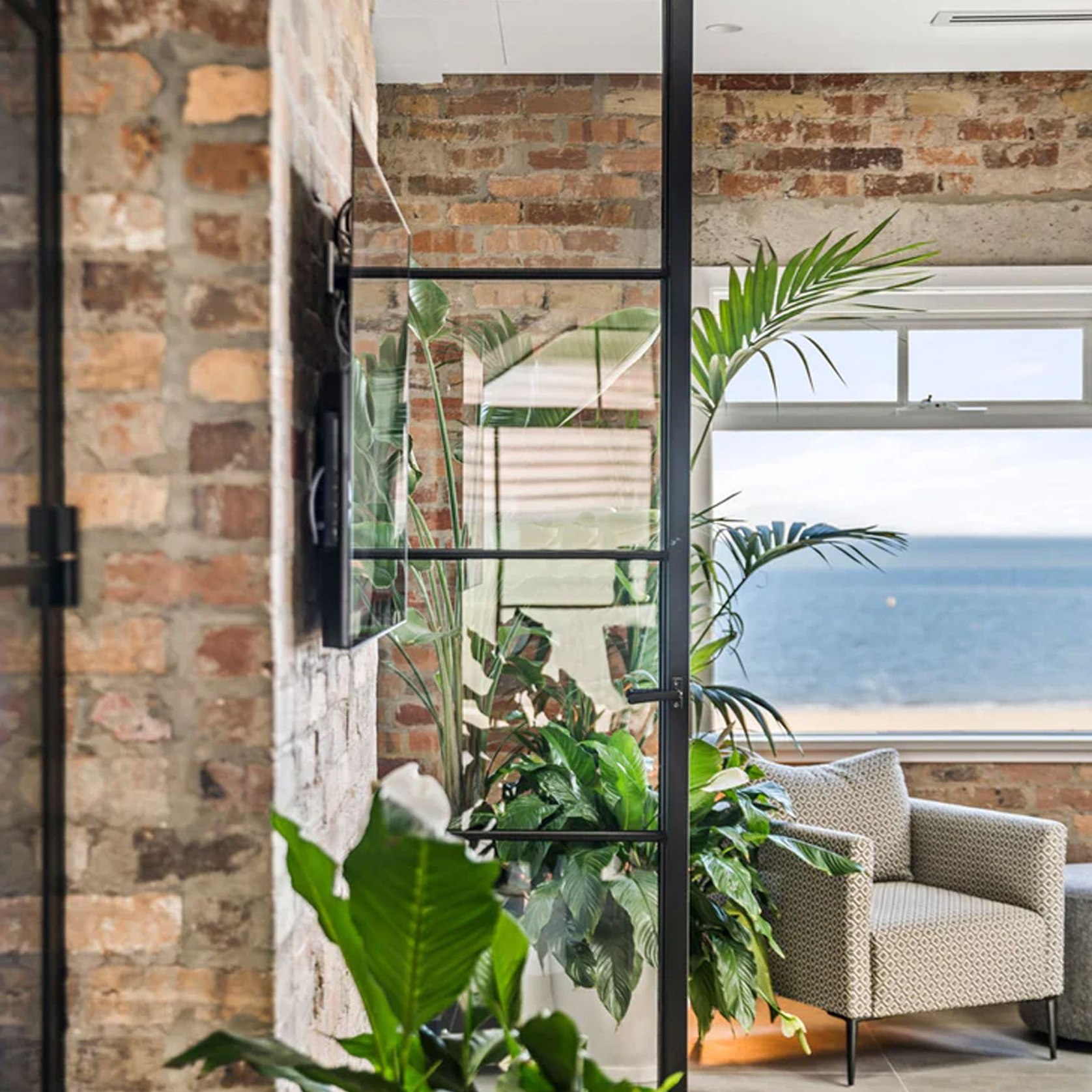

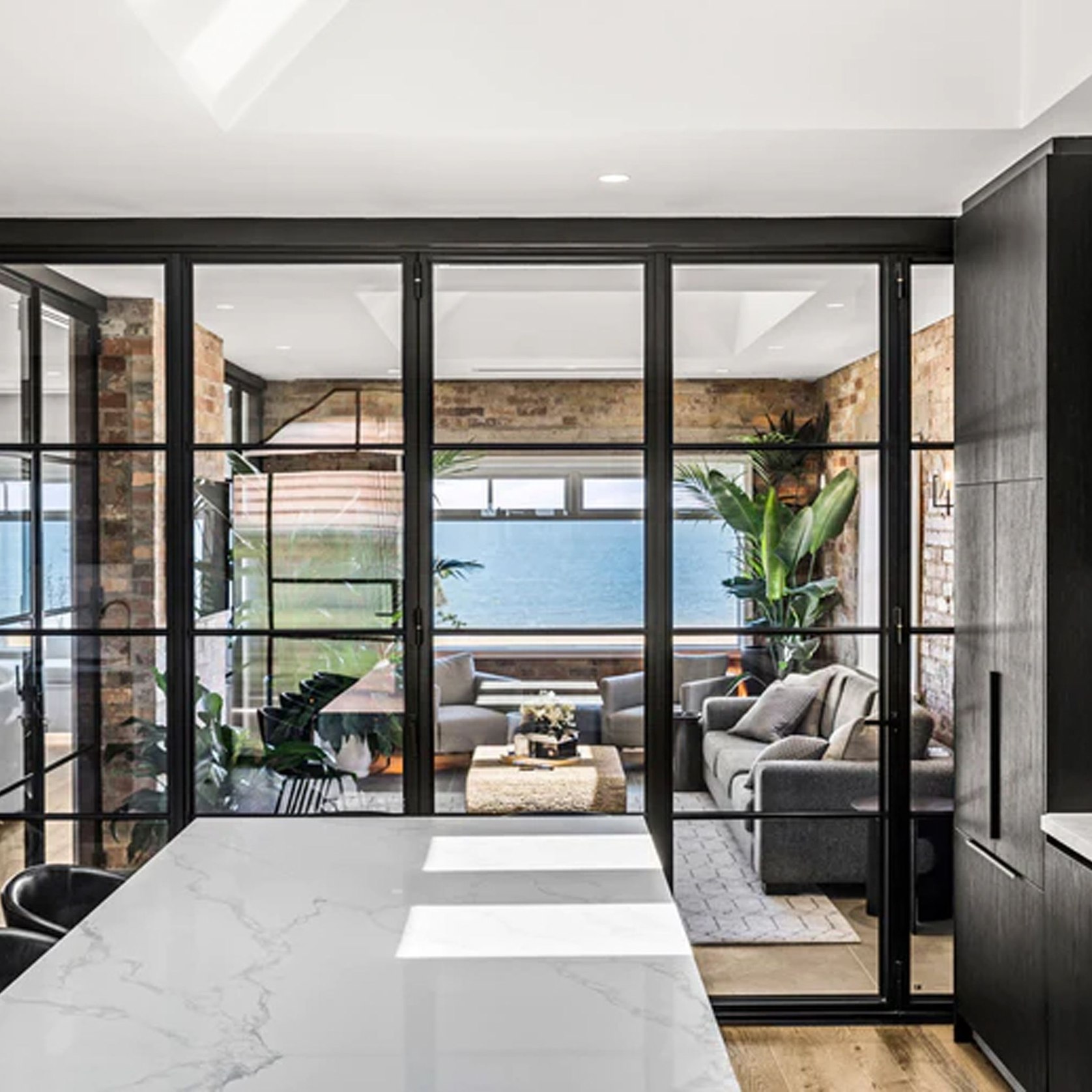

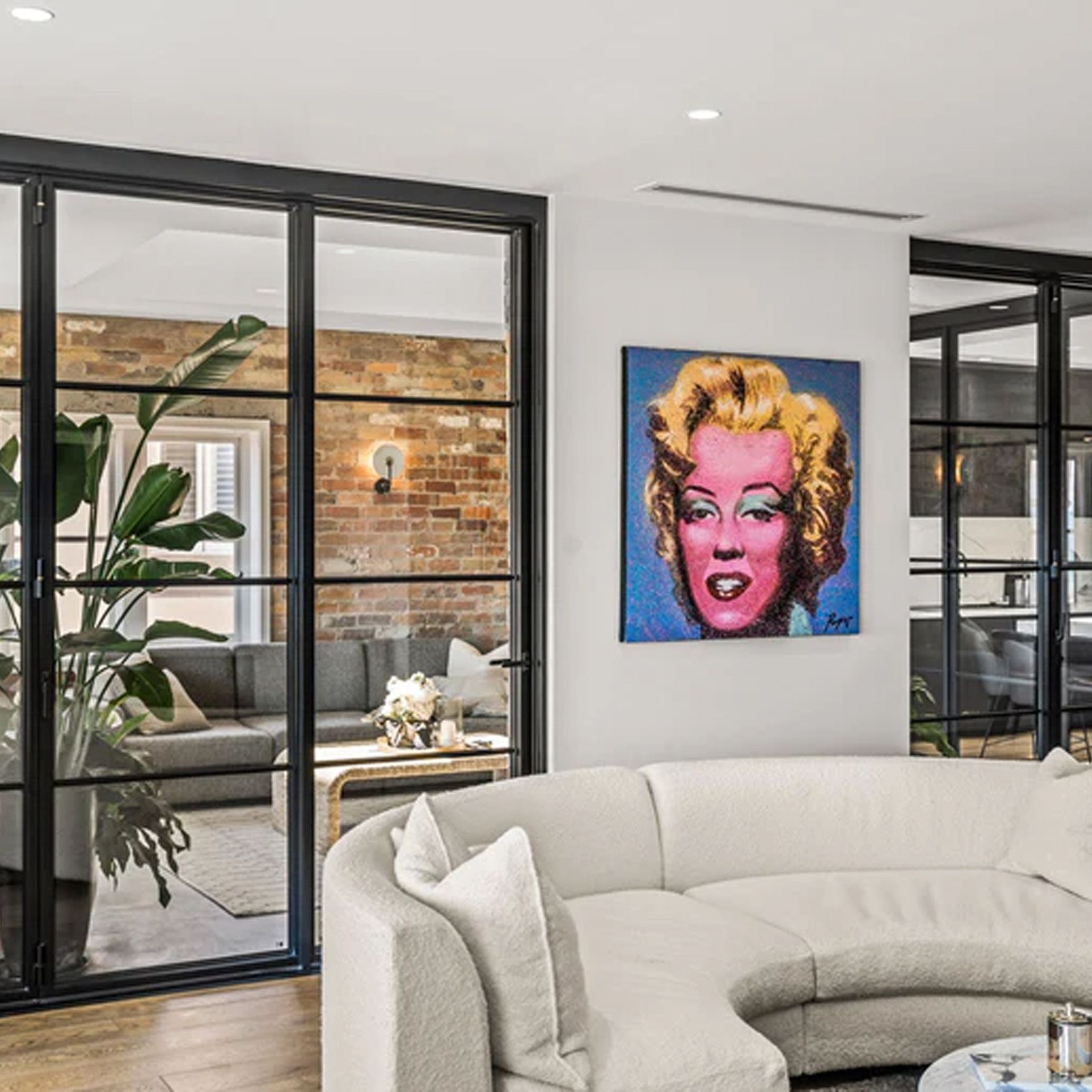

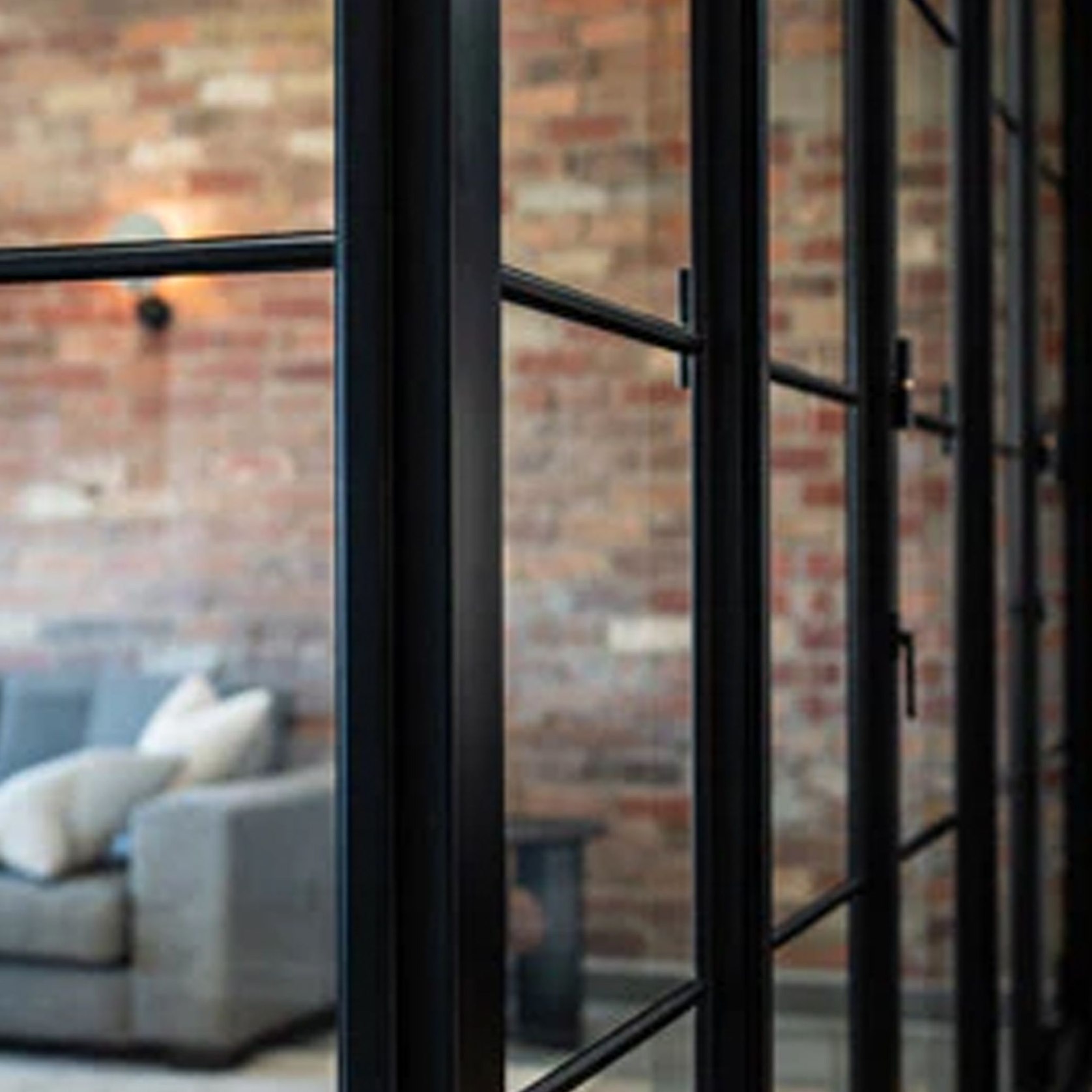

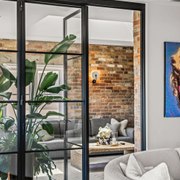

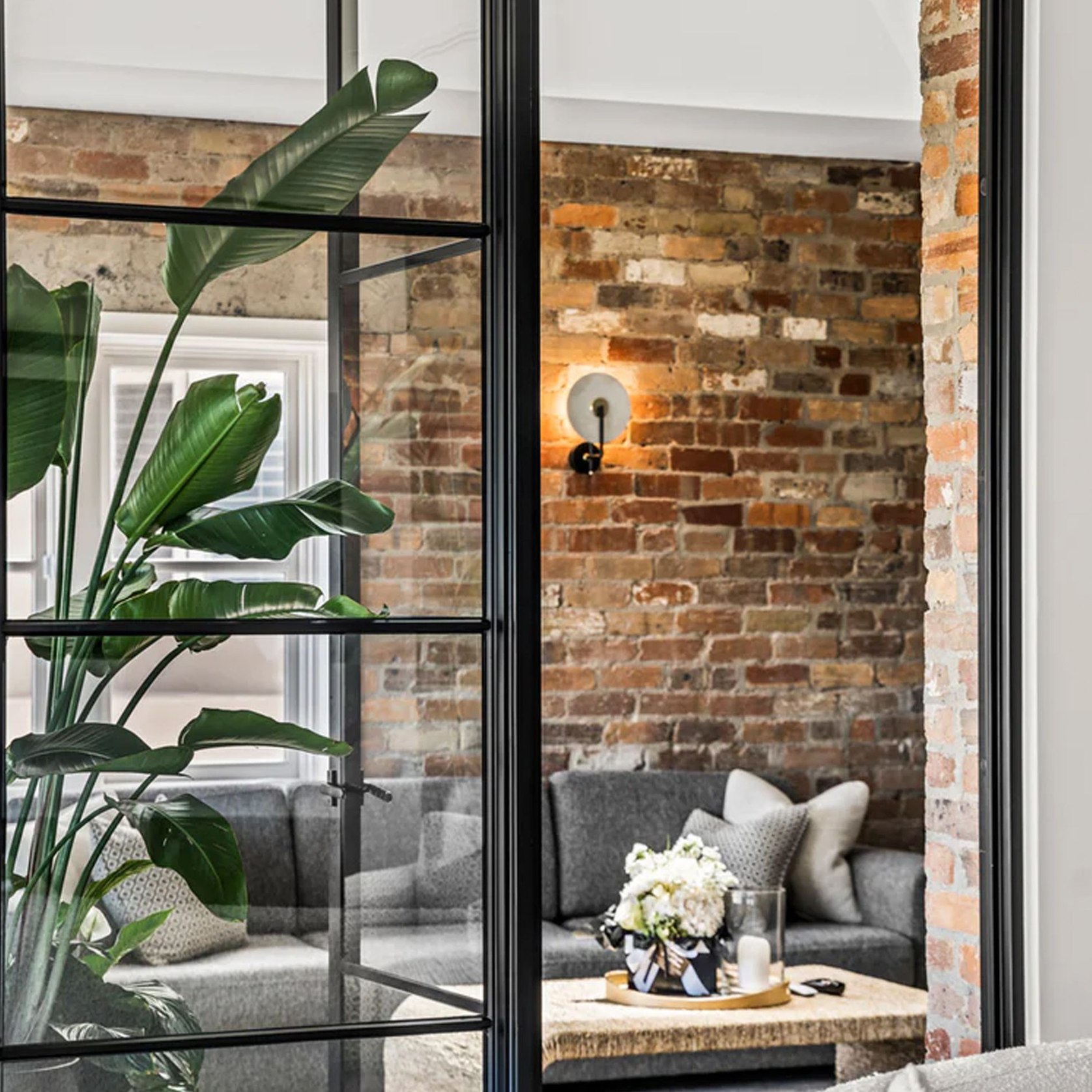

Steel Frame Glass Bifold Doors - Galvanised FPS50 Profile

All doors custom made no standard sizes.

Details
  • Category
    Bifold Doors
  • Range
    Zen Doors
  • Brand
    Zen Doors
  • Warranty
    5 years
Specifications
  • Zen Steel Bifold Doors
  • Use: Internal/External
  • Door Design: Custom

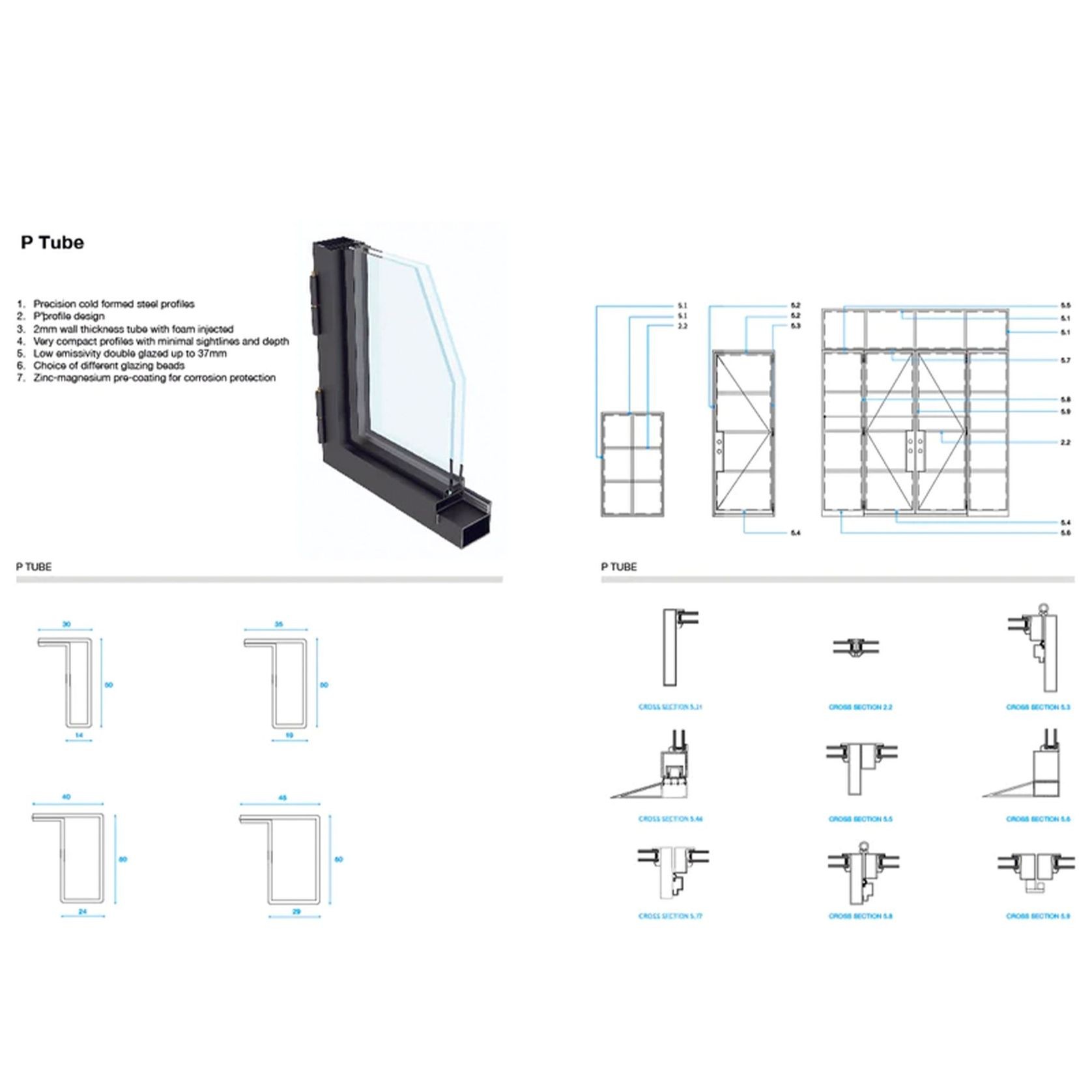

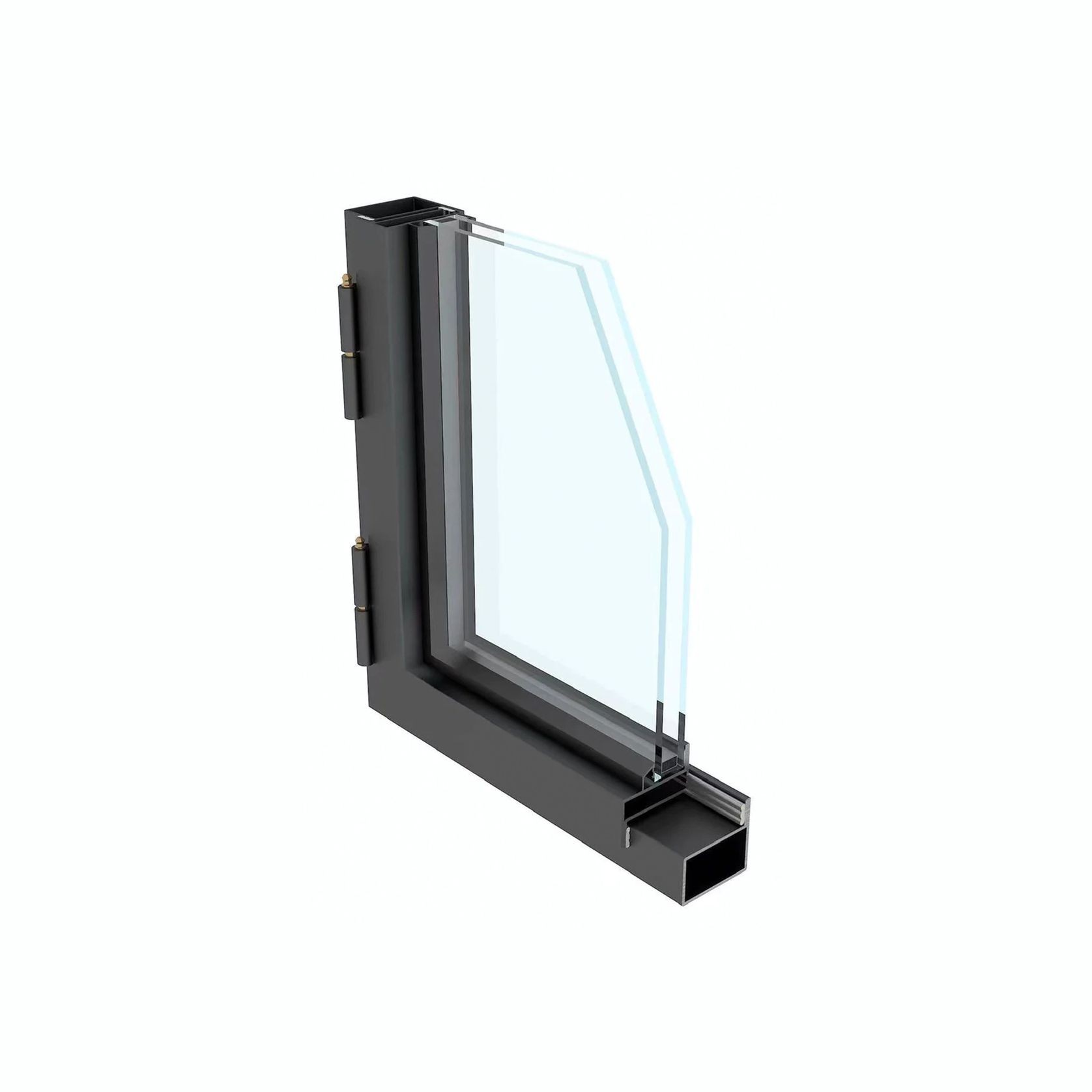

  • Material: Precision cold formed galvanised steel profiles - ”P” profile design
  • 3.2mm wall thickness tube with foam injected - Very compact profiles with minimal depth and sight-lines
  • Surface treatment: Zinc-magnesium pre-coating for corrosion protection
  • Gritblasting SA 2.5;
  • The 1st layer is a sealing primer
  • The 2nd layer is a high-durable top coating;
  • Total thickness is at least 150-180 microns according to VMRG quality requirements.
  • Paint: 4FC (Fluorocarbon) (DAIKIN of Japan)
  • Colour: Standard Finishes or Large Range of RAL Powder Coat colours, https://www.ralcolorchart.com/
  • Door Frame: 50mm x 30mm
  • Glass Type: Clear, Rainstorm, Hammered, Aquatex, Reeded (Fluted), Course Linen, Pinhead, AGC Low-E
  • Glass Thickness: 5/8/10mm single glazed toughened safety glass (Please contact us for double glazed pricing)
  • TDL: 20T/30T
  • Beads: CTM20/CTM30
  • Door Type: Steel Bifold
  • Max Door Panel Size: H3000mm x W1000mm
  • Mounting Type: Mounting Tabs Outside of the Jamb or Predrilled Mounting Holes inside of jamb

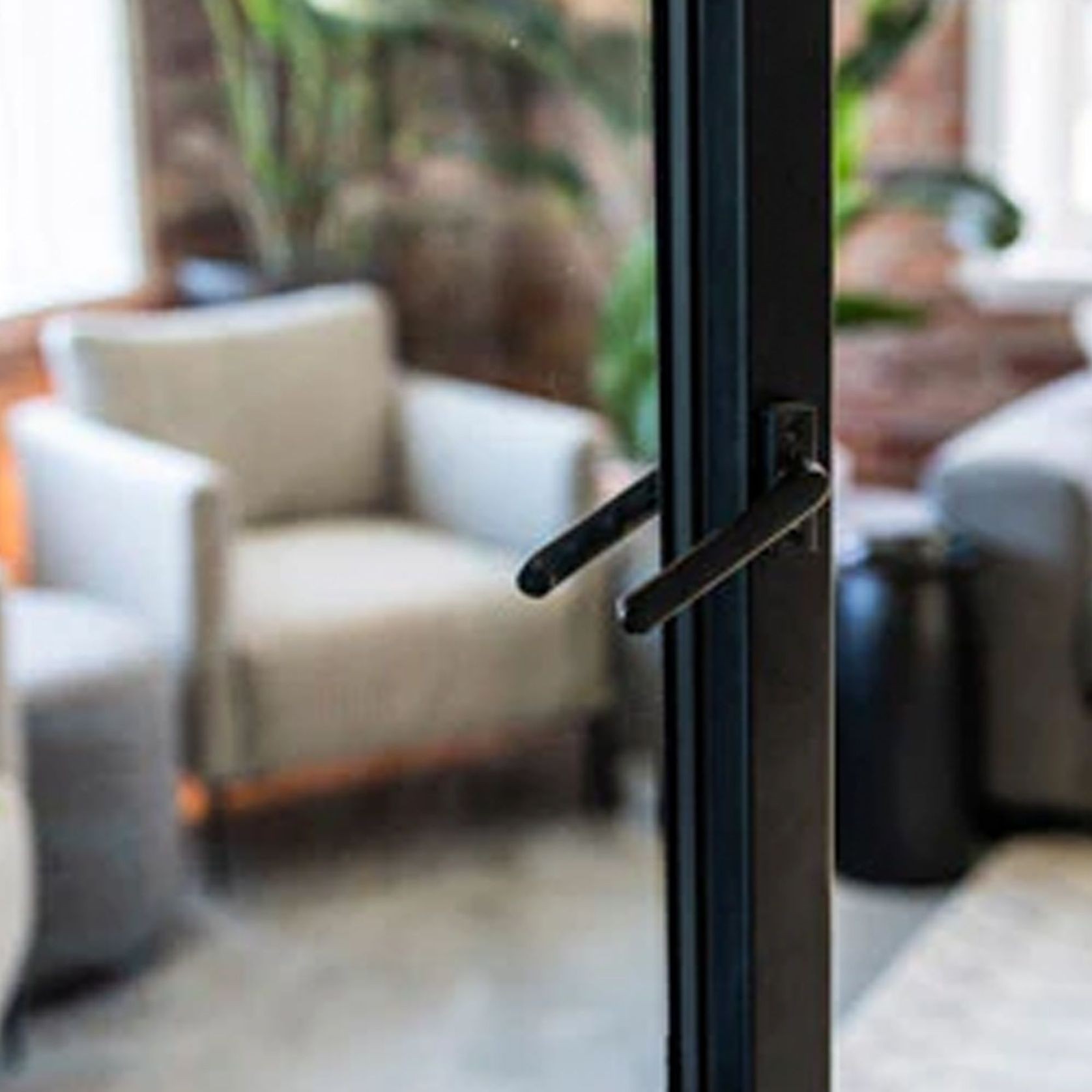

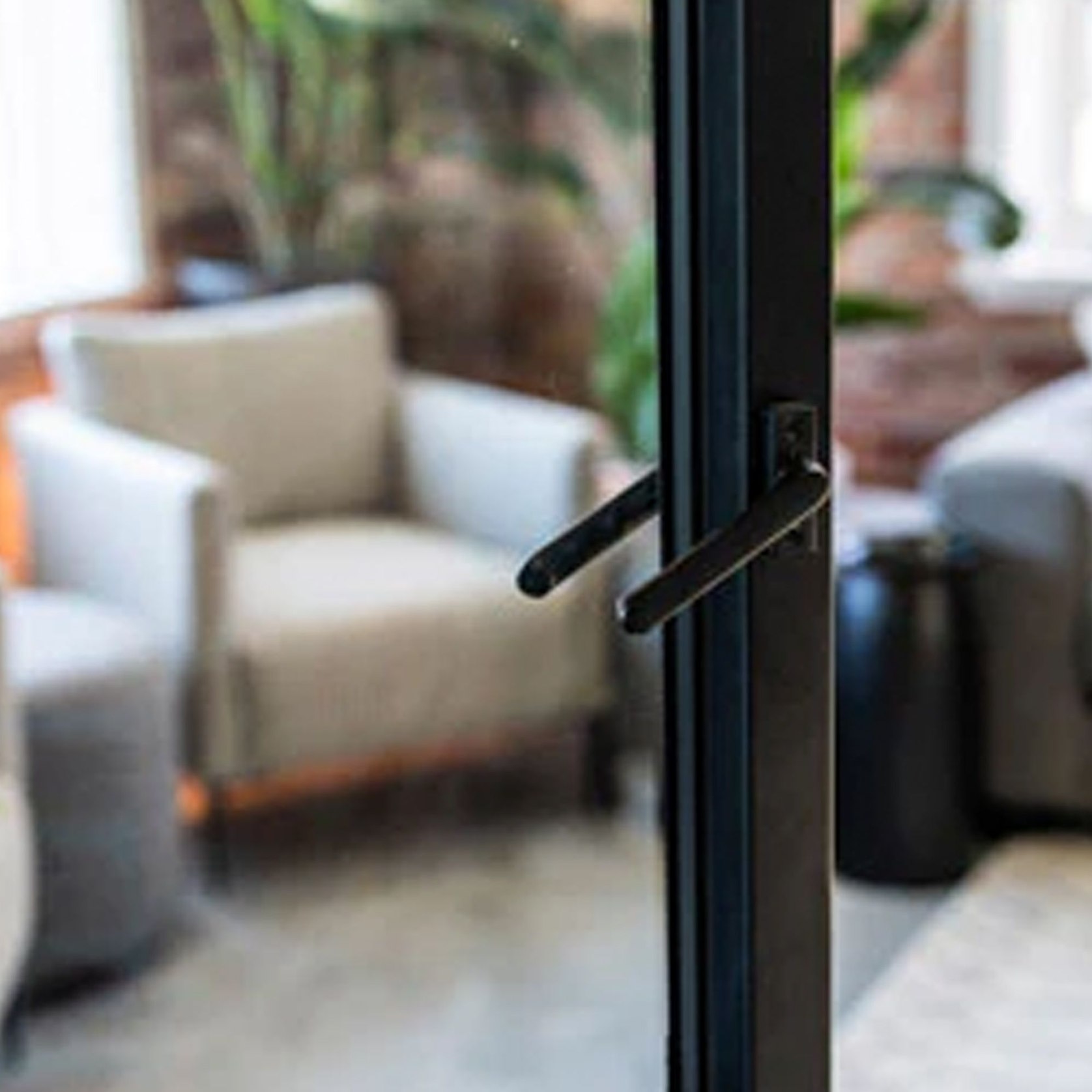

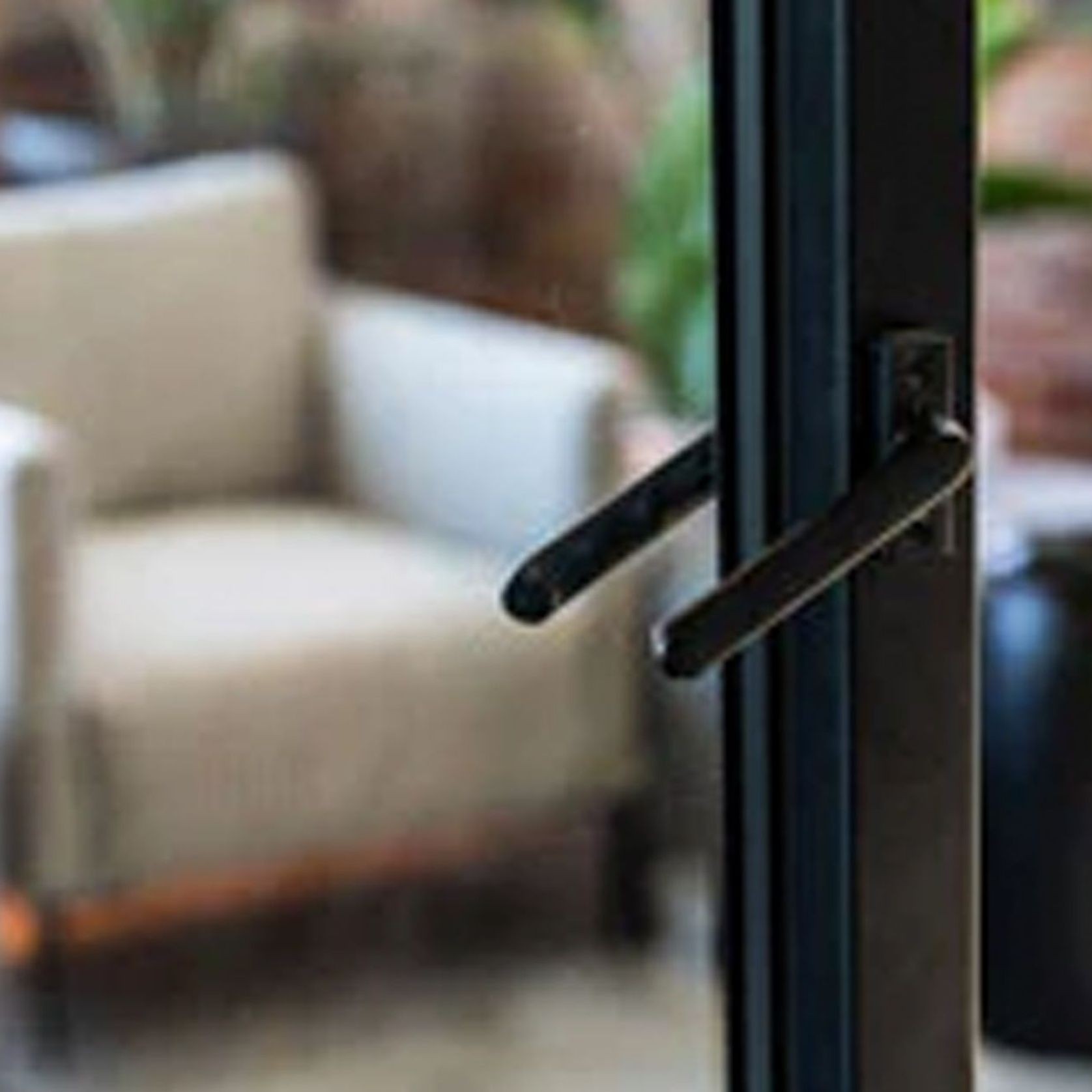

  • Handles: Lever Type
  • Hardware: Heavy Duty
  • Package: 5 Layers of packing, plastic film, soft foam sheet, corrugated paper board, bubble wrap and Wooded Sealed Box
  • CAD Design Drawing: Yes
Features
  • Modern Architectural Design
  • Custom Hand Made Construction for Durable Functionality
  • Built from High Quality Galvanised Steel Tube Profile
  • Fluorocarbon Coating better than Powder coating
  • Single Glazed Toughened Safety Glass included in price (Clear, Rainstorm, Hammered, Aquatex, Reeded (Fluted), Course Linen, Pinhead, AGC Low-E)
  • Designed to Impress and Built to Last
  • Orders Made from June 2023 - *5 Year Warranty - Must comply with our installation requirements.
SKU: steel-frame-glass-bifold-doors-galvanised-p-Matt Black-
