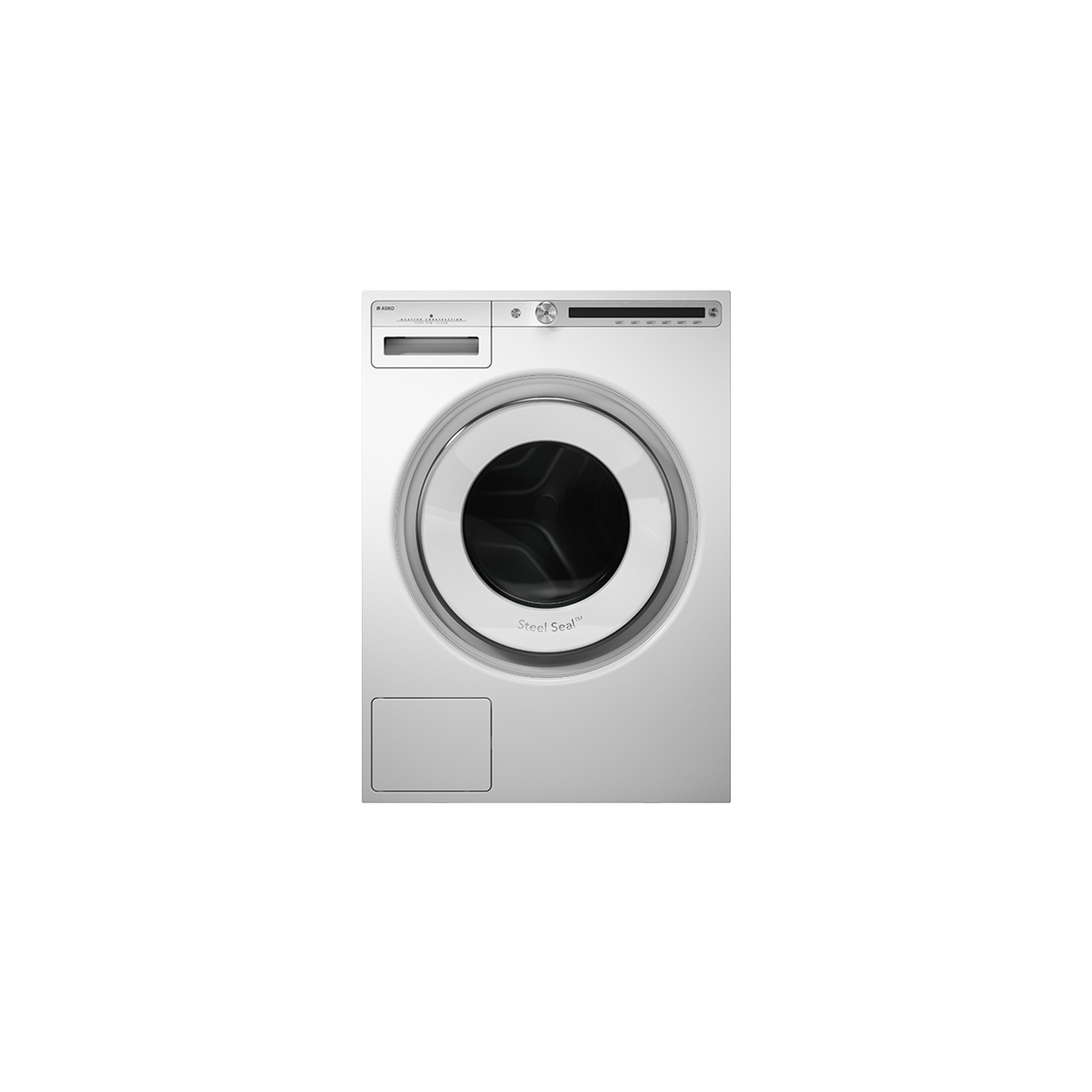

Steel Seal | 8 Kg | Washing Machine | W4104C.W.AU

Functions, programs and modes

Programmes:

• Normal
• Standard cotton
• Easy Care
• Wool/hand wash
• Time program
• Quick
• Mix/synthetic
• Heavy
• Jeans

Special washing programs:

• Allergy program Cotton
• Allergy program Synthetics
• Hygiene
• Dark wash
• Quick Pro
• Auto
• Shirts
• Bedding

Special functions:

• Drain
• Spin
• Drum cleaning
• Rinse

Additional options

• Spin speed setting: Adjustable

Run modes

• Modes:
• Normal - No changes to the program
• Green - Saves water and energy. Program time slightly longer
• Allergy mode - Adds extra water and program time to ensure a well rinsed load
• Speed mode - More water and energy used to ensure a clean laundry in shorter time
• Intensive mode - Improved cleaning with more water and energy. Temperature is kept at high level for longer

Construction and performance

• Quattro Construction™ – vibration-free spinning: Yes
• Door sealing: Steel Seal™ - Hygienic sealing without rubber bellow
• Outer drum: Stainless Steel
• Inner drum: Stainless Steel
• Counter weight material: Cast iron
• Active Drum™ - Ensure a gentle yet effective washing cycle: Yes
• Max +/- 1°C temperature variation: Yes
• Drum size: 80 l
• Motor: Long life and quiet brushless motor
• Automatic dosing system: No
• Prepared for connection to external systems: No

Use and flexibility

• Easy Close door: Yes
• Stop flap for Liquid detergent: Yes
• Automatic detergent drawer cleaning: No
• Temperature range: Cold - 90°C
• Door opening diameter: 310 mm
• Door maximum opening angle: 110 °
• Load Light™ - Illumination of the drum: No

Interaction and control

• Delayed start: 30 min to 24 hours
• Remaining time indication: Yes
• Type of display: LCD display
• Transparent door cover/Double glass door: Transparent door cover
• Number of programmes: 22
• Create own program: Yes
• Design and integration
• Easy mounting of ASKO dryer on top of the washers: Yes
• Loading type: Front load
• Adjustable feet: 10 mm

Safety and maintenance

• Removable lifters for easy maintenance: Yes
• Waterproof bottom plate with leakage detection: Yes
• Maximized water inlet time: Yes
• Extra durable and leakage safe PEX inlet hose: Yes
• Drain system: Anti Block™ - Self-cleaning drain pump
• Overflow protection: Yes
• Emergency door opening function: Yes
• Lockable control panel: Yes
• Unbalance detection - Protects the washer against harmful vibrations: Yes
• Draining capacity: 20 l/min
• Overheat protection: For motor and electronics

Technical data

• Heater power: 2000 W
• Water connection: Size 3/4 - Can be connected to cold water
• Counterweight: 20.1 kg
• Noise level during spin dB(A): 74
• Noise level during washing dB(A): 52
• Energy stars: 5
• Water stars: 5
• Plug type: AU plug
• Connected load: 2200 W
• Voltage (V): 220-240 V
• Number of phases: 1
• Fuse: 10 A
• Frequency: 50 Hz
• Net weight: 91 kg
• ISO 14001 certified manufacturing: Yes

Dimensions

• Width: 595 mm
• Height: 850 mm
• Depth: 700 mm
• Depth with door open: 1057 mm
• Length of electrical cord: 2300 mm
• Length inlet hose: 150 cm
• Length outlet hose: 160 cm

Logistic information

• Packaging width: 640 mm
• Packaging height: 920 mm
• Packaging depth: 776 mm
• Gross weight: 94.4 kg
• Product code: 592078
• EAN code: 3838782021602

• Washing capacity: 10 kg
• Max spin speed: 1400 rpm
• Number of programmes: 22
• Installation: Freestanding
• Range: Logic
• Energy stars: 5
• Colour of the product: White

Steel Seal™

Rubber bellows degrade over time and trap dirt. Eliminating the rubber bellow ensures a hygienic wash and leakage free door. Thanks to the large Steel Seal™ opening it is also more accessible.

Quattro Construction™

The Quattro Construction™ consist of four shock absorbers which transfers drum vibrations to the bottom plate. The whole construction is fitted inside the casing which prevents vibrations further. Shockingly clever.

Active Drum™

With Active Drum ™ the hour-glass shaped, removable lifters and the slanted drum move the laundry to the drum centre to reduce fabric wear. Dirt is removed via bigger holes at the edge.

Auto Dosing system

The Auto Dose system calculates the perfect volume of detergent for every load based on the wash load, dirtiness, water quality, and the chosen program and temperature. No struggle.

Pro Wash™

The Pro Wash™ system circulates fluid to the top of the drum. The laundry is soaked efficiently to ensure superb performance also with short washing cycles. A fast track to professional washing.

Hygienic program

The Hygienic program is designed for fabrics that really need to get clean. Using high temperature, mechanical action and extra rinses and the 15-minute temperature hold to disinfect the fabric.

Quick Pro program

The Quick Pro programme is for those who thinks washing machines are too slow. Still high performing, the program uses gentle tumbling and a lower spinning rate, finishing within an hour.

Super rinse

The Super rinse function adds two extra rinse cycles to the chosen program. This can be particularly helpful if you have sensitive skin and/or have soft water.

Allergy mode

To protect your well-being, the Allergy mode adds extra water, time and energy and washes your garments with extraordinary performance. No residues are left in the garments or the machine.

Anti-Crease

The Anti-Crease option tumbles the laundry gently with less wrinkles as a result. Be gentle to your clothes and save time on ironing.

Aqua Block System™

To keep your home safe and the washing going for many good years the AquaBlockSystem™, with its seven sensors, immediately detects any abnormal rise of the water level.

Auto program

The Auto program optimises washing time and number of rinses depending on load and which program you choose. Now you can wash smaller loads without feeling bad. Just activate the program.

Bedding program

The Bedding program uses extra rinse cycles to keep your linens, quilts, pillows and other large items clean and mites free. Just make sure to check the washing instructions first.

Brushless motor

ASKO washing machines have brushless motors to keep noise levels down even at the highest spinning speeds. The highly efficient long-life motors gives opportunities to develop new program – matching every need.

Cast iron rear gable

We reinforce and stabilise our washing machines with a robust cast iron rear gable. This makes for sturdier, quieter operation and a longer life span.

Conditioning program

Our special Conditioning program uses only cold water together with low mechanical action. This makes the waterproofing agent to effectively cover the whole garment.

Dark wash

The Dark wash special program uses additional rinses, low mechanical action and low spin speeds so that no detergent stays on your dark favourite clothes.

Drum cleaning program

If you use the Drum cleaning program regularly it will maintain the freshness of the laundry and prolong the life of your washing machine. One button, two benefits.

ECO Connection

If you have access to sustainable and economic hot water sources, you can save energy by connecting directly to the water source. Perfect for district heating, heat pumps and solar panels.

Full colour display (TFT)

The flicker free, full colour display guides you to the right choices for each wash. The display, as well as the rest of the machine, is low on energy consumption.

Green mode

Green mode saves both water and energy since each stage in the program is prolonged to reduce energy consumption. Perfect for everyone who cares about saving both energy and water.

Heavy program

The Heavy program takes care of hefty spots and solid dirt. It uses high mechanical action and a thorough rinse procedure. Extra spins removes any dissolved dirt. Spotless in no time.

Intensive

The Intensive mode takes longer than the Normal mode. Use it for heavily soiled laundry that needs the extra water, mechanical action and the held temperature. Extra everything for laundry.

Kid Safe

Keep your kids safe by locking the control panel. This prevents from accidently starting the machine. Better safe than sorry!

Load Light™

The Load Light™ illuminates the inside of the drum, which helps you when loading and emptying the machine - it is simply easier to see that remaining sock inside the drum. It also facilitates inspection when cleaning lifters and lifter inserts. The Load Light™ is integrated in the door hinge and is designed to last the machines entire lifetime.

Mix/Synthethic program

The Mix/Synthethic program for slightly soiled mixed fabrics and cotton is faster than the Everyday wash and the Standard cotton programs. It uses lower speed when spinning to reduce wrinkles.

Night mode

Make washing programmes quieter

Don’t want to hear the machine? Just turn on Night mode and the gentler drum movements and lower spin speed reduces the noise. Extra time to the washing sequence makes the clothes perfect.

Quick program

Use the Quick program for a quick pick up. The program is limited to certain temperatures and is faster thanks to the lower temperature and lighter load.

Removable lifters

Keeping your appliances in good shape should be easy. All ASKO washing machines have easily removable lifters to make sure nothing gets stuck. Simple as that.

Rinse

Use the Rinse program to pick up the freshness of your favourite garment. A thorough rinse followed by a short spin makes it brand new again.

Sensi Save™

The Sensi Save™ reduces the environmental footprint by calculating how much water and energy each load needs. The optimized washing cycle also saves your precious time. Making sense, right?

Shirt program

The special Shirt program uses more water and repeated rinses to clean also the multi-layer parts of the shirts. It both looks nicer and feels nicer to wear.

Speed mode

When selecting Speed mode the washing machine will deliver perfect washing and rinsing results in less time than normal. To achieve this, both more water and more energy are added to the washing cycle.

Spin program

Use the Spin program to spin the water out of something to make it dry faster.

Sportswear program

This short and gentle Sports program is designed to take care of your sports clothes. The low mechanical action and few rinses help preserving the membrane of your garment.

Stain program

Tell the machine what type of fabric and stain you have. Then, let the Stain program deal with it while you do something more fun. Like having another glass of wine.

Standard cotton program

The Standard cotton program is the most efficient for washing cotton. Tailormade for laundry with visible soiling and/or light stains, the program will adjust water level and duration to the load.

Time program

Use the Time program to optimize a wash depending on how long time you have. A smart way to get clean clothes in a jiffy.

Wool/Hand program

The Hand and wool wash programs, delicate garments are washed in 40°C before it is shortly spun in low speed. We promise, your favourite wool sweater has never looked better.
