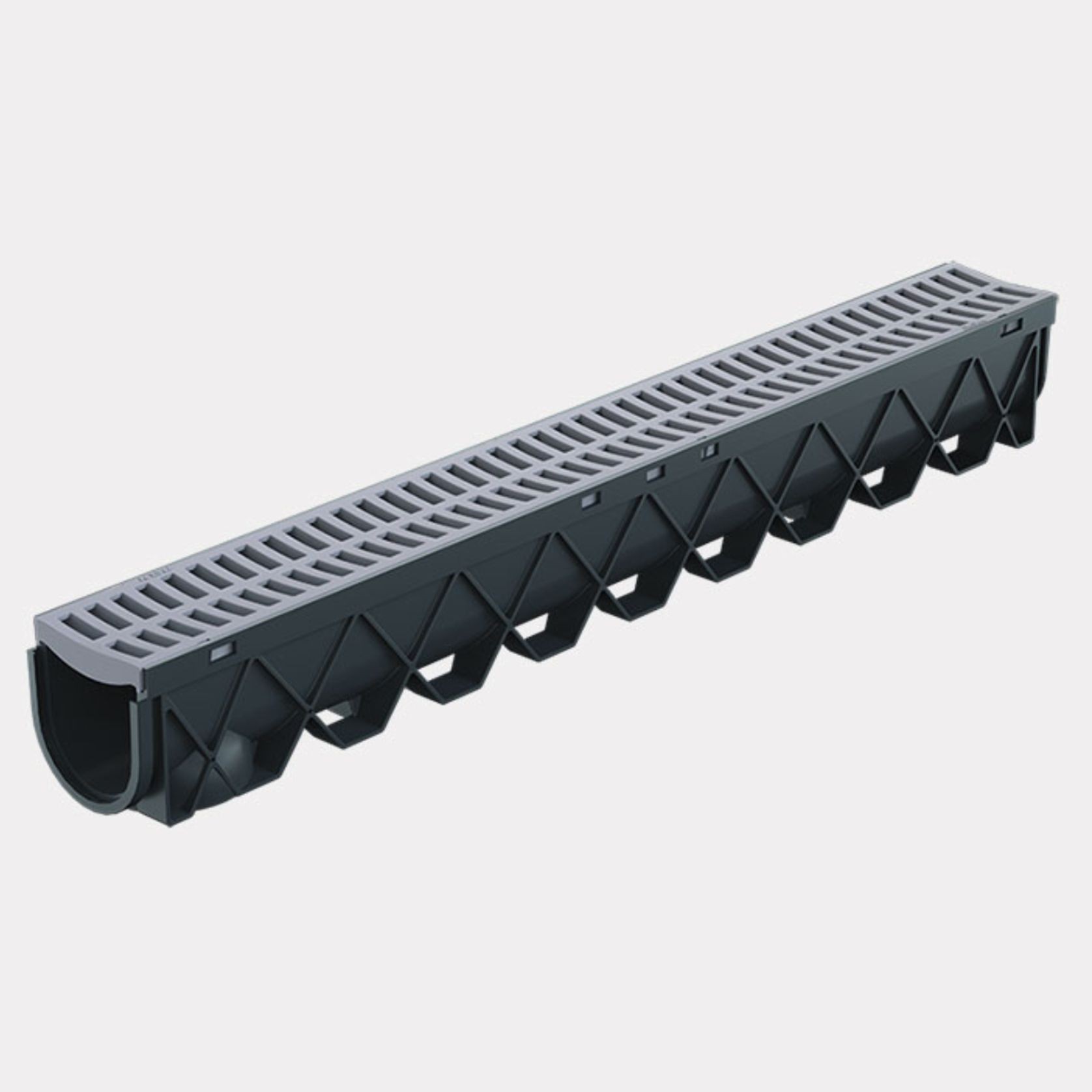

Storm Drain™ – 1m complete with Grey Plastic Grate
RELN Storm Drain is the complete surface drainage solution, with a range of different accessories and grate options, perfect for paths, driveways, and domestic areas with corners, T sections and X sections. With its deep 100mm profile, Storm Drain effectively collects and distributes large volumes of surface water throughout its system. The interchangeable clip in grates, hold-down feet and pipe cut-outs make it easy to install, whether you are a DIYer or a professional.

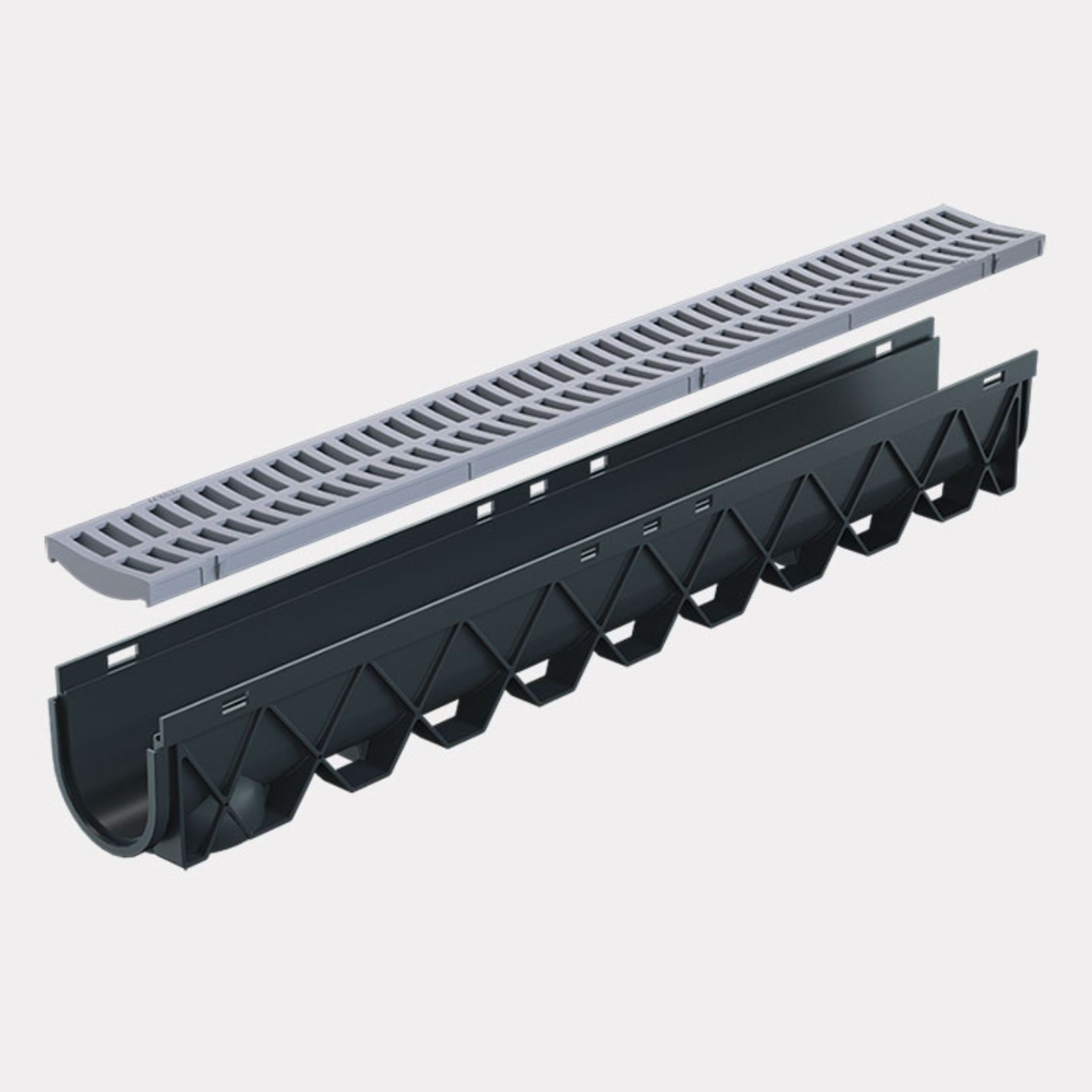

The Portland Grey Plastic Grate is a concave profile, making it perfect for use in paths, driveways, courtyards and trafficable areas.
- CategoryStormwater Drainage
- RangeStorm Drain™
EXTERNAL DIMENSIONS
Measurement of the external perimeter.

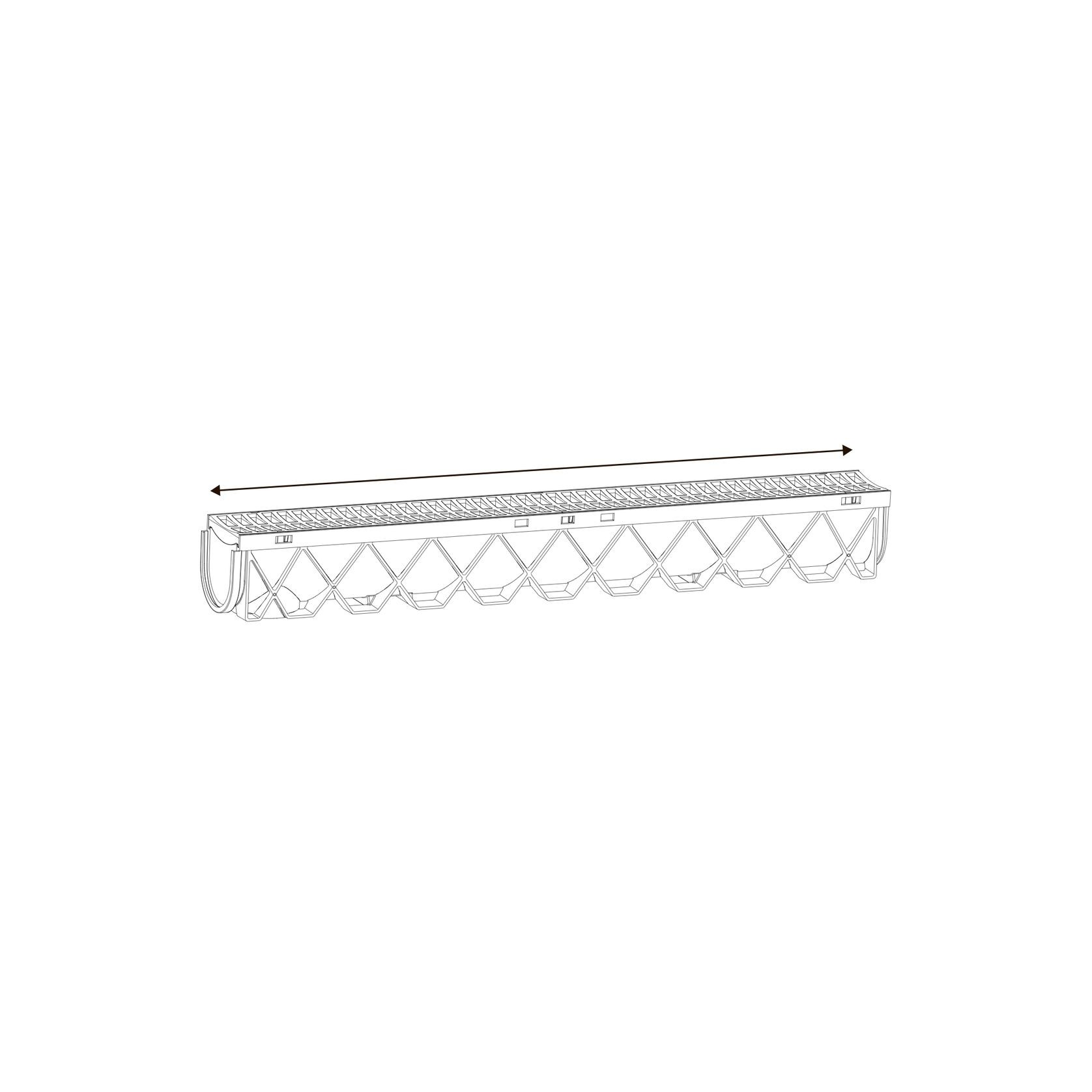

- Length - 1000mm

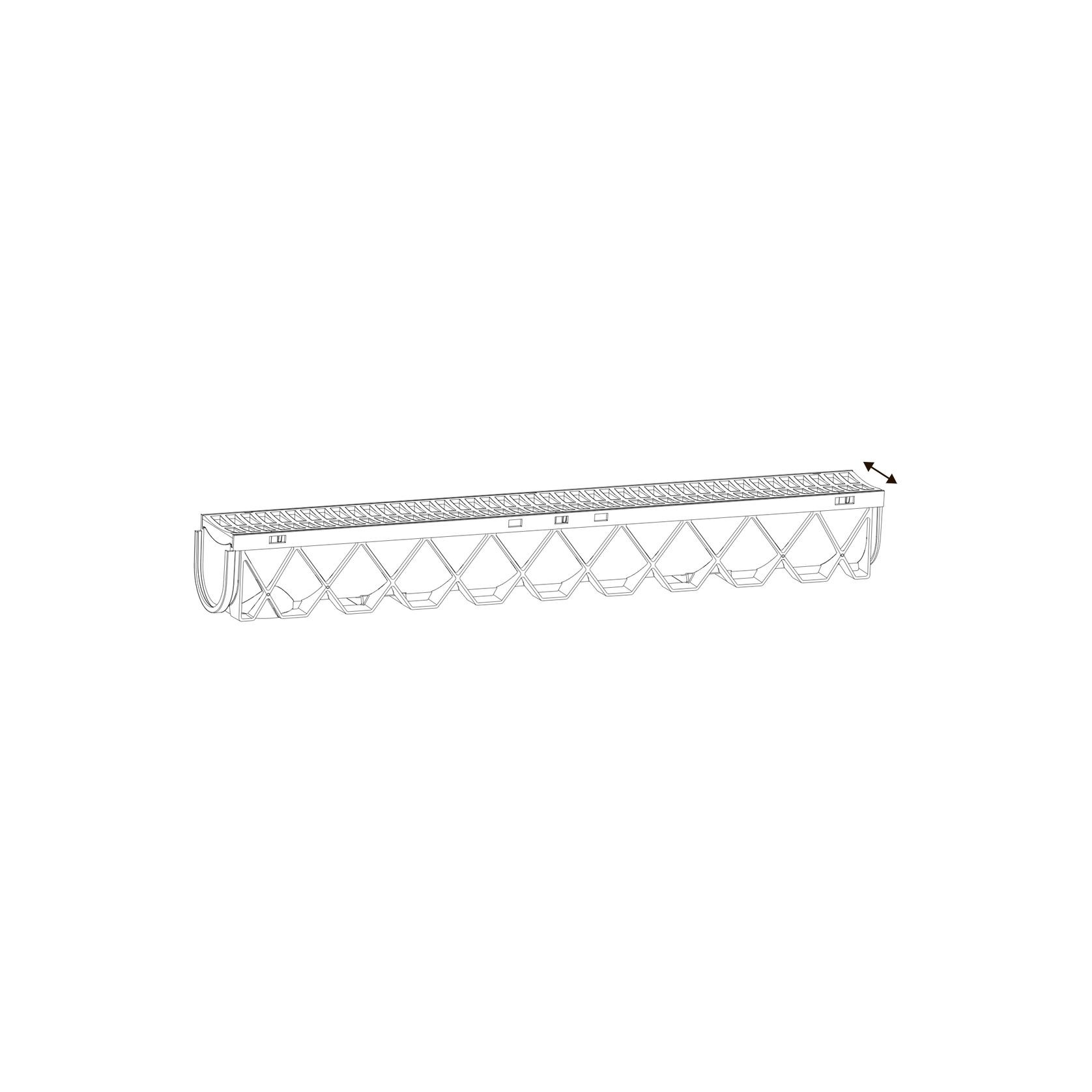

- Width - 121mm

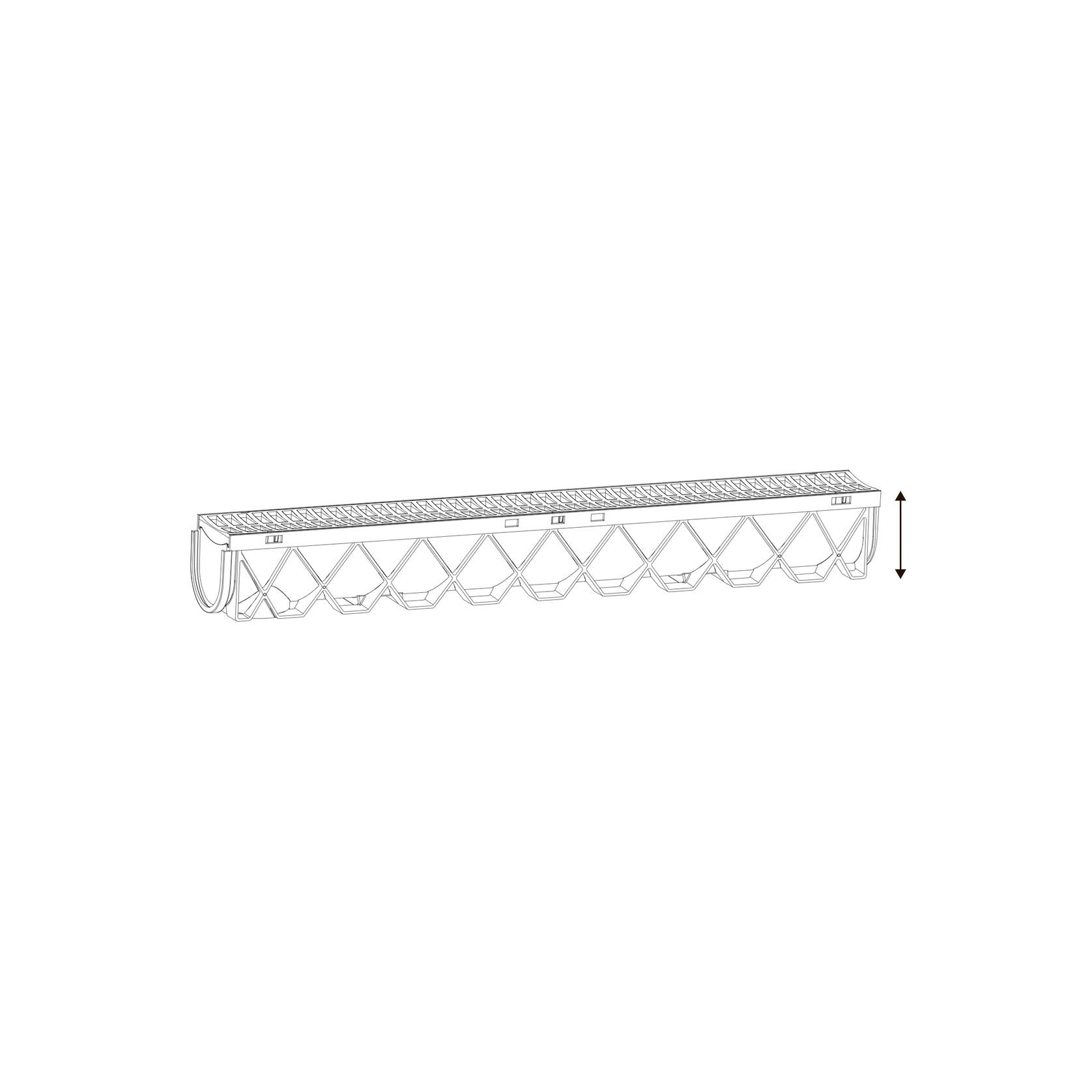

- Depth - 129mm
INTERNAL DIMENSIONS
Measurement of the internal perimeter.

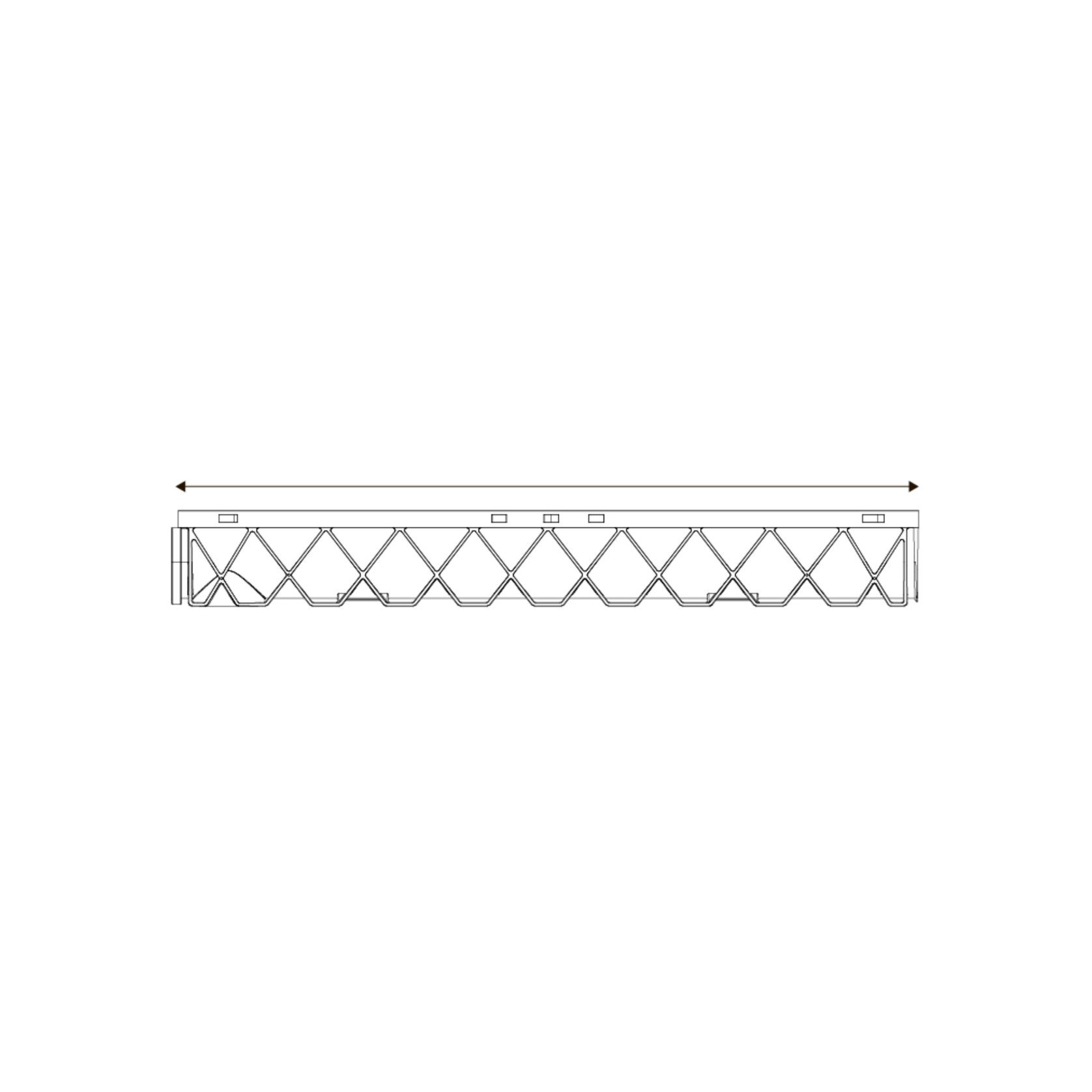

- Length - 1000mm

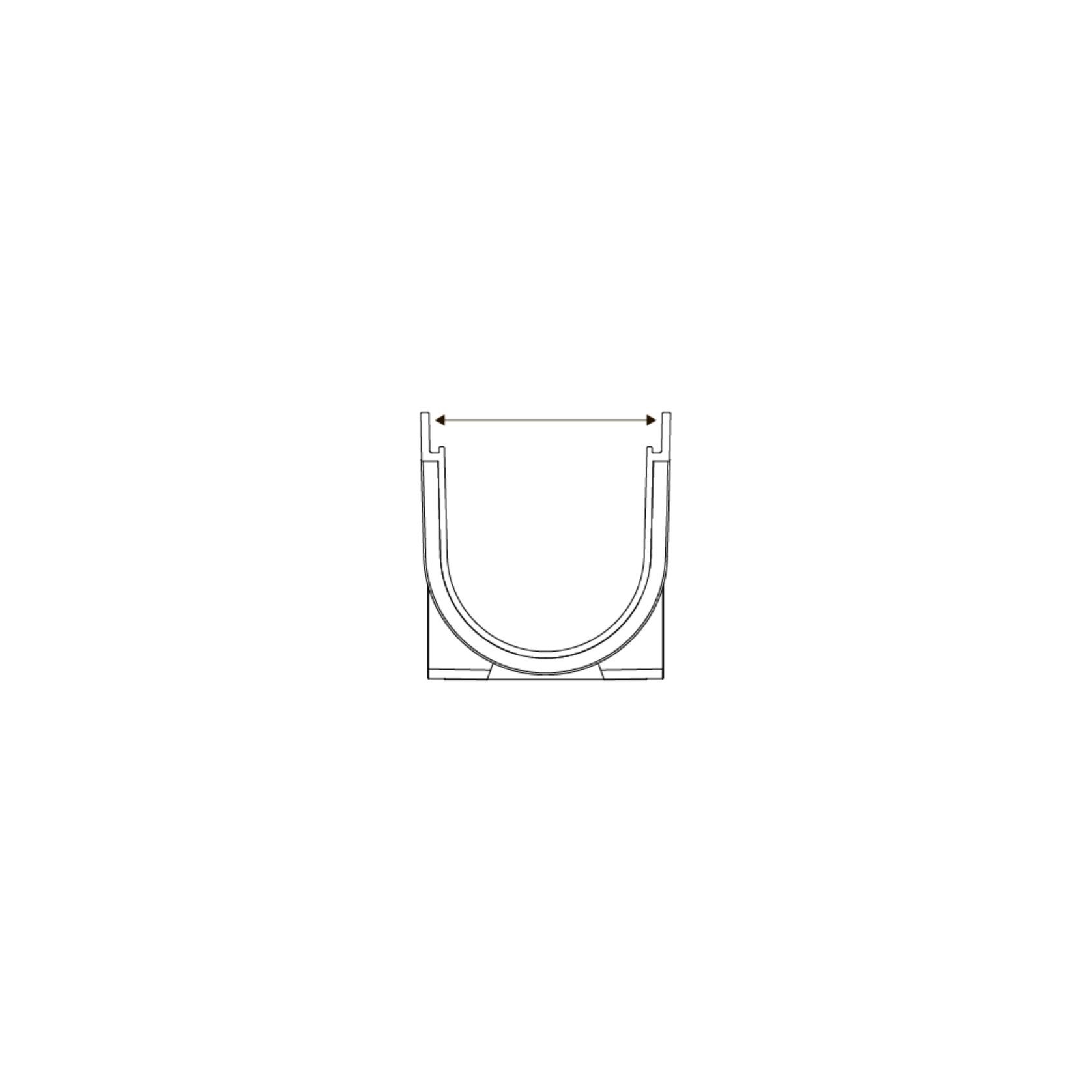

- Width - 100mm

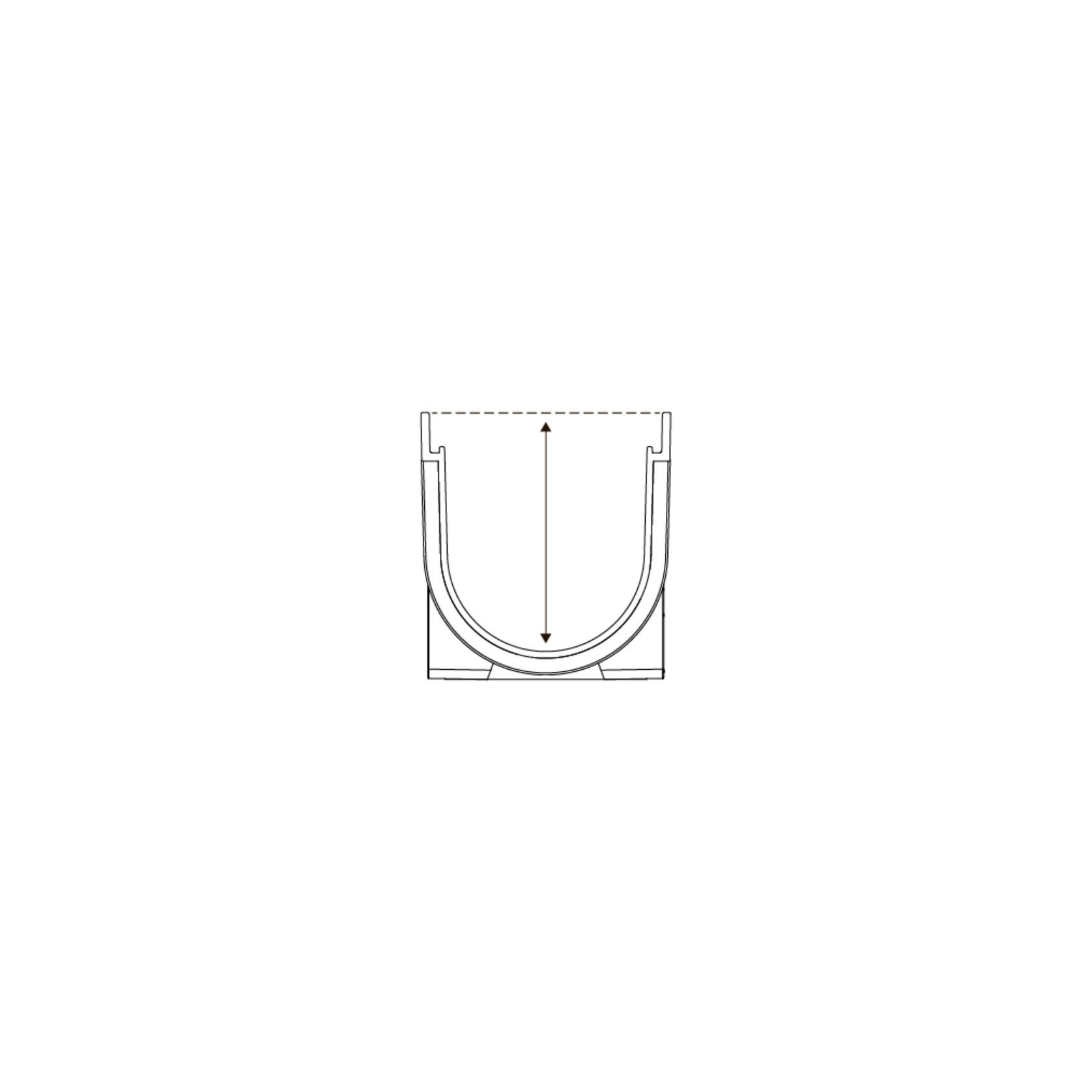

- Depth - 100mm
WEIGHT
4.2kg
- Durability – Made in Australia from tough, durable, and lightweight UV stabilised recycled plastic
- Easy to install – Storm Drain is a breeze to install with its easy connecting channels, interchangeable clip-in grates and hold down feet to stop floatation during the pouring of concrete.
- Available in 1m and 3m lengths – Two different lengths to provide flexibility. 3m Channels means less work and fewer joins in lengthy drainage applications.
- Efficient Hydraulics – Half pipe profile in base for efficient hydraulics
- Self-Cleaning Base – Even at low levels of fall
- Complete drainage solution – With a range of accessories and grate options, Storm Drain is perfect for paths, driveways, and domestic areas with corners and T sections
- Class A Load Rating – Rated to Class A and when correctly installed in concrete, the grate can withstand light vehicle traffic
- Deep 100mm profile – A deep profile for capturing large volumes of water flow
- Plumber-friendly – Bottom outlet can be cut or drilled to fit 90mm PVC stormwater pipe
- Environmentally friendly – Made from 100% UV stabilised recycled plastic
