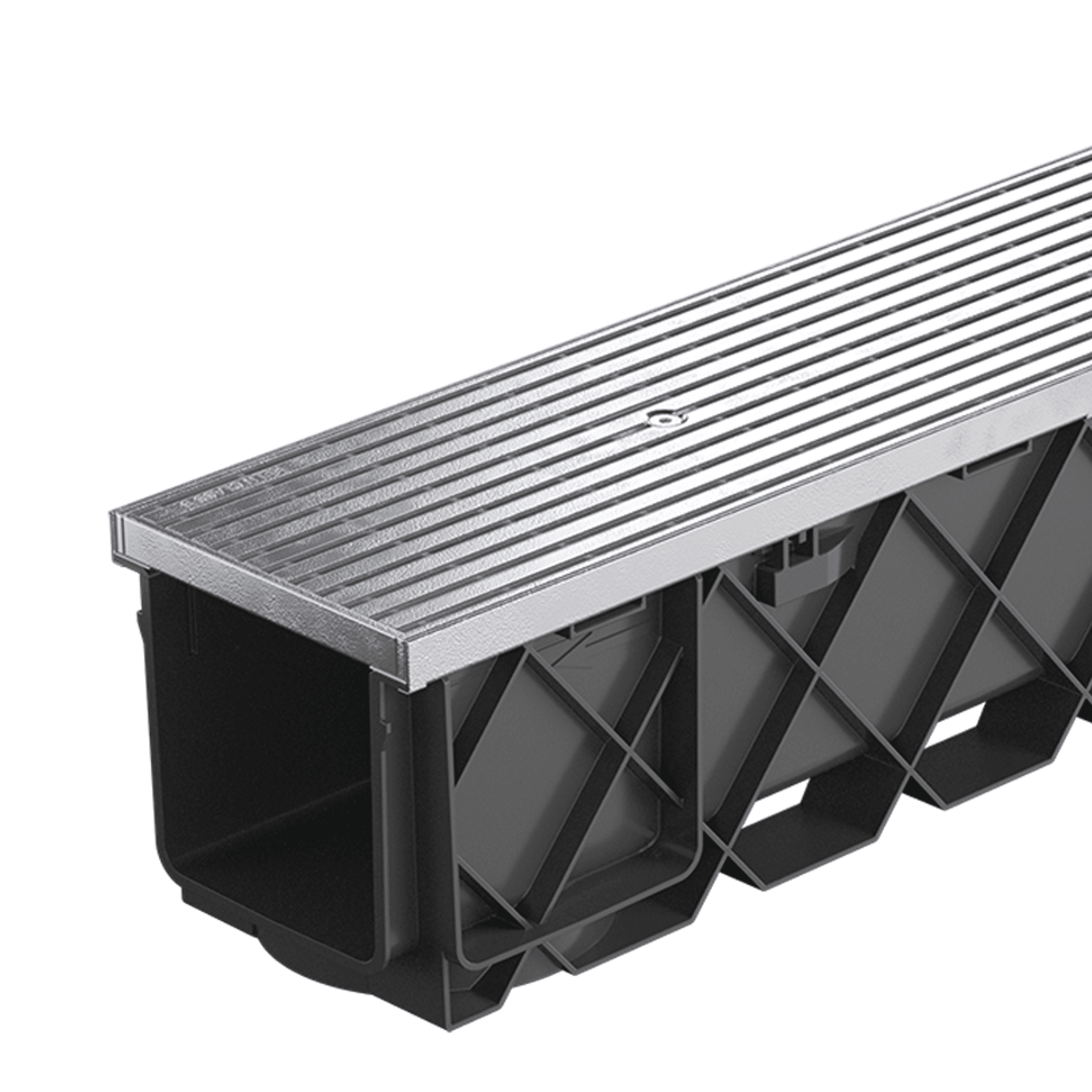

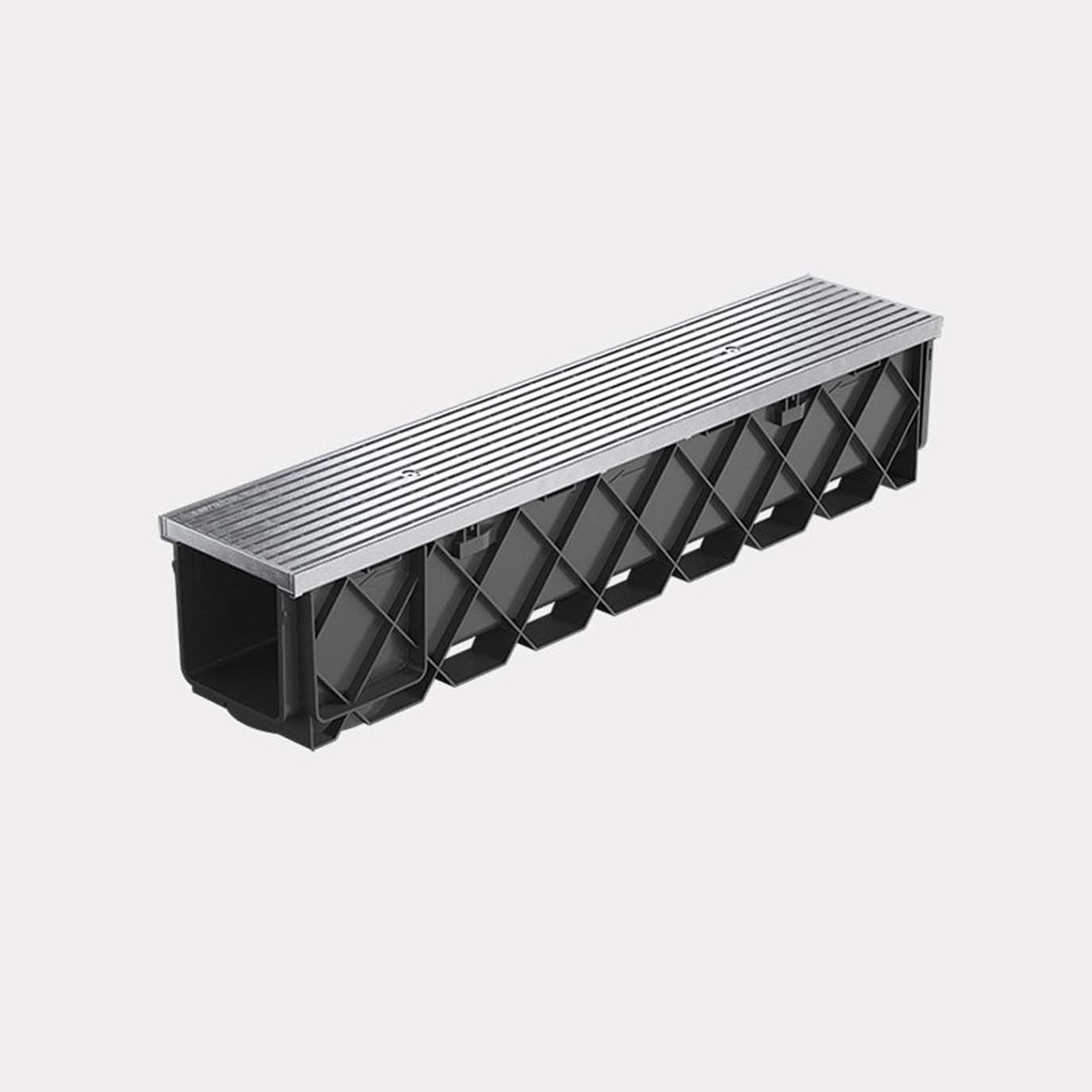

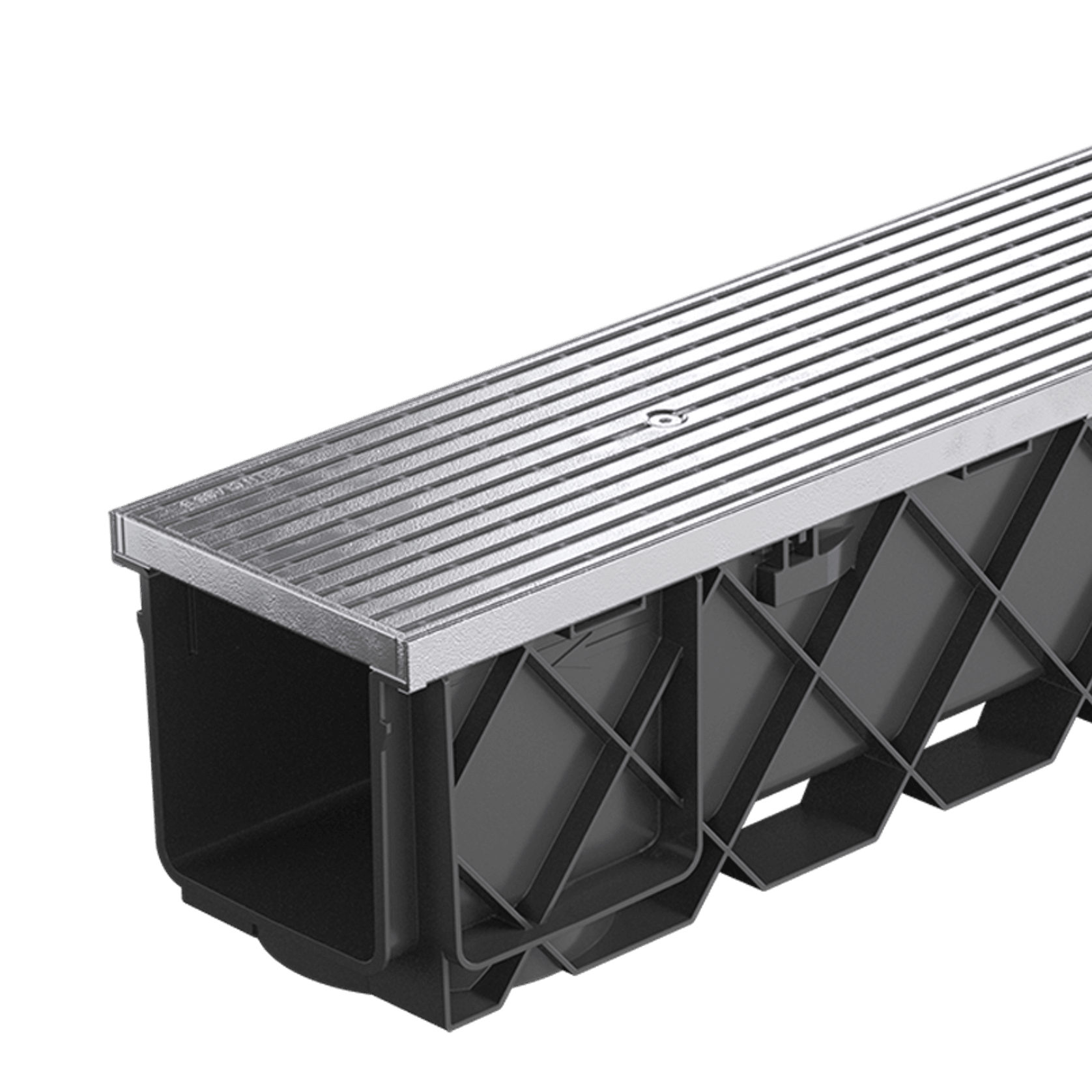

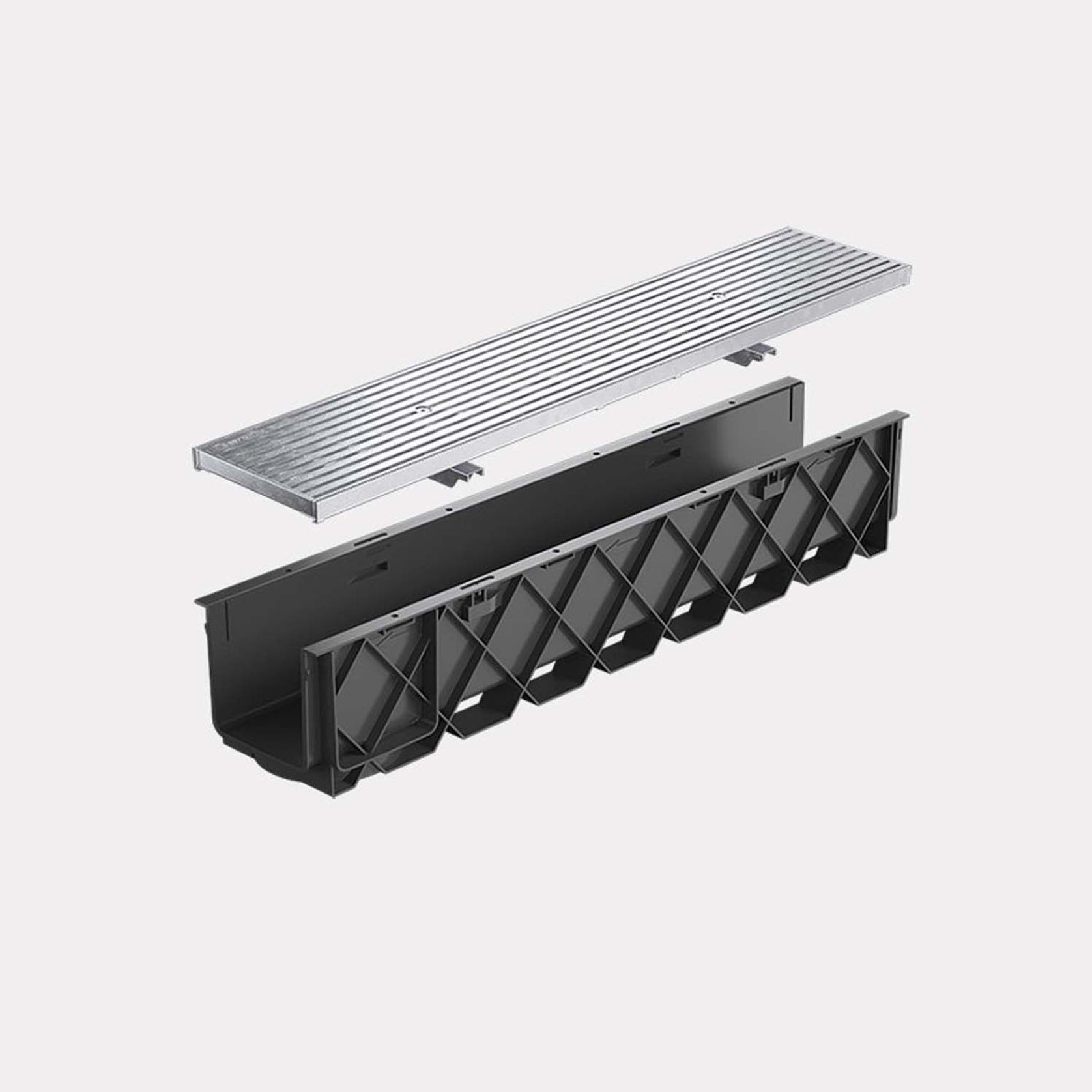

Storm Drain™ Pro – Class B Heelguard Galvanised Grate
RELN Storm Drain Pro is perfect for large domestic and light commercial applications, with a deep 205mm profile. Featuring a large 150mm internal channel width, Storm Drain Pro effectively collects and distributes substantial volumes of surface water throughout its system. The channels innovative design features an integral side flange to create corners and intersections, removing the need for additional fittings, along with galvanised steel edge rails for a premium finish.

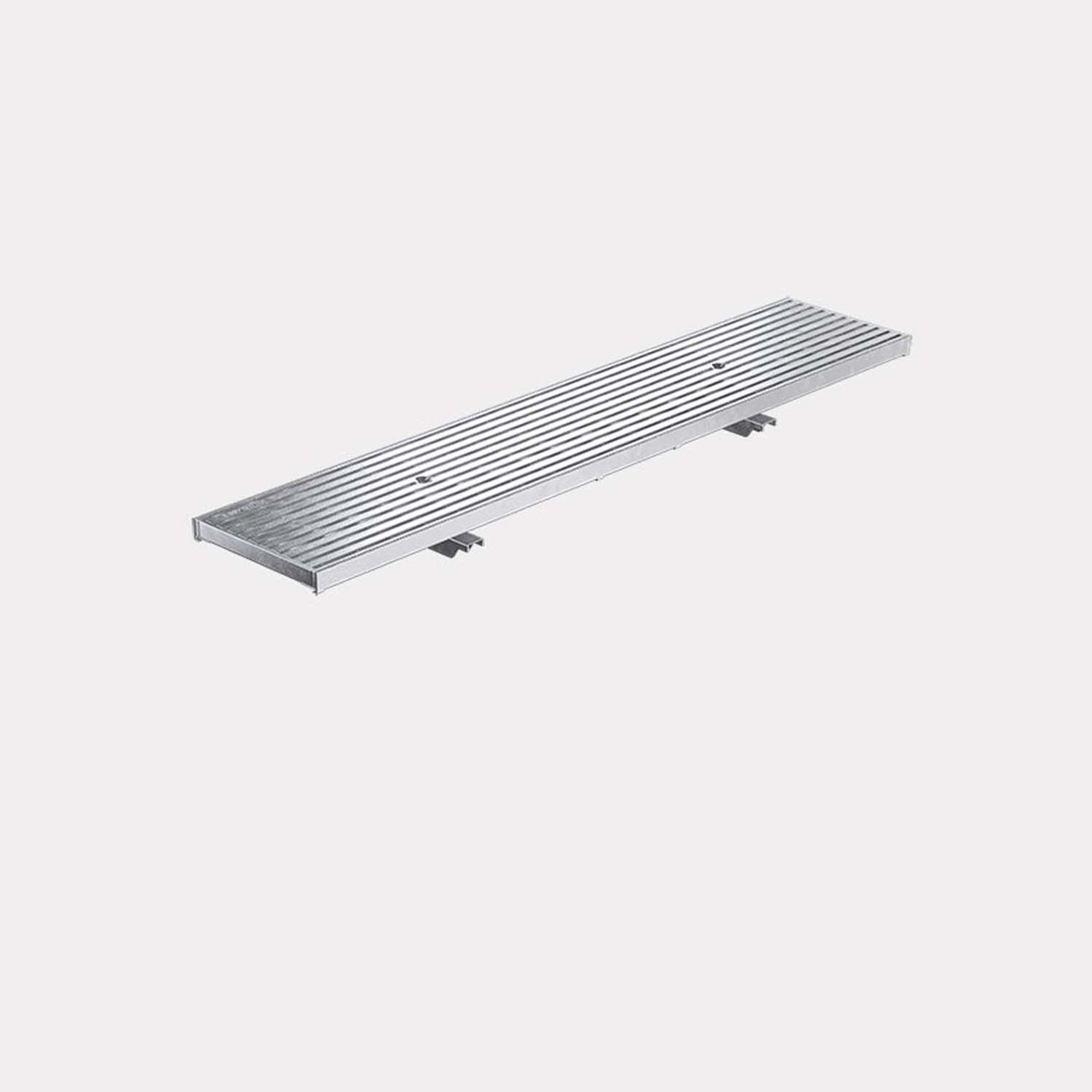

The Class B Heelguard Grate is perfect for pedestrian areas in domestic and light commercial applications.
- CategoryStormwater Drainage
- RangeStorm Drain™ Pro

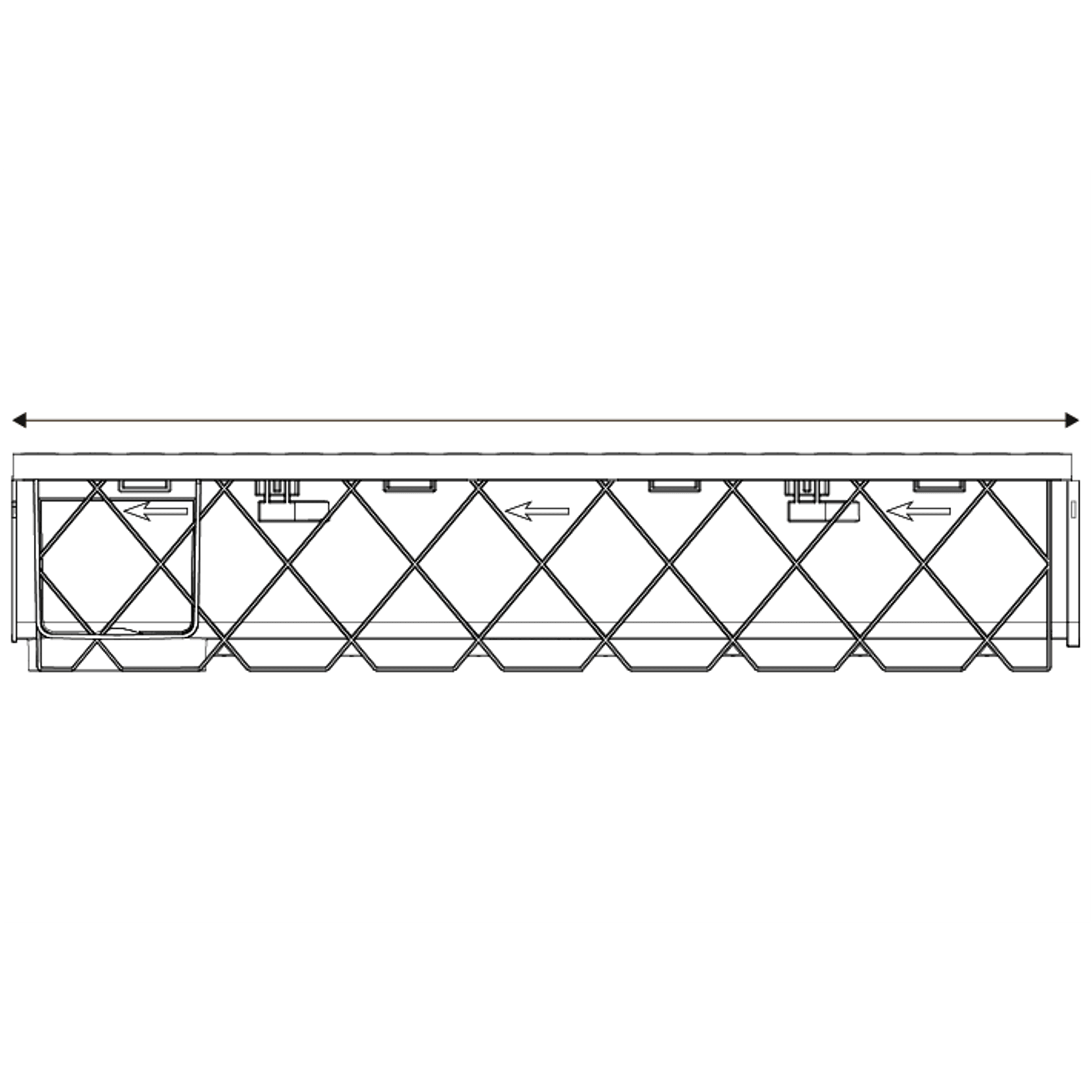

EXTERNAL DIMENSIONS
Measurement of the external perimeter.
- Length- 1000mm
- Width- 202mm
- Depth- 205mm

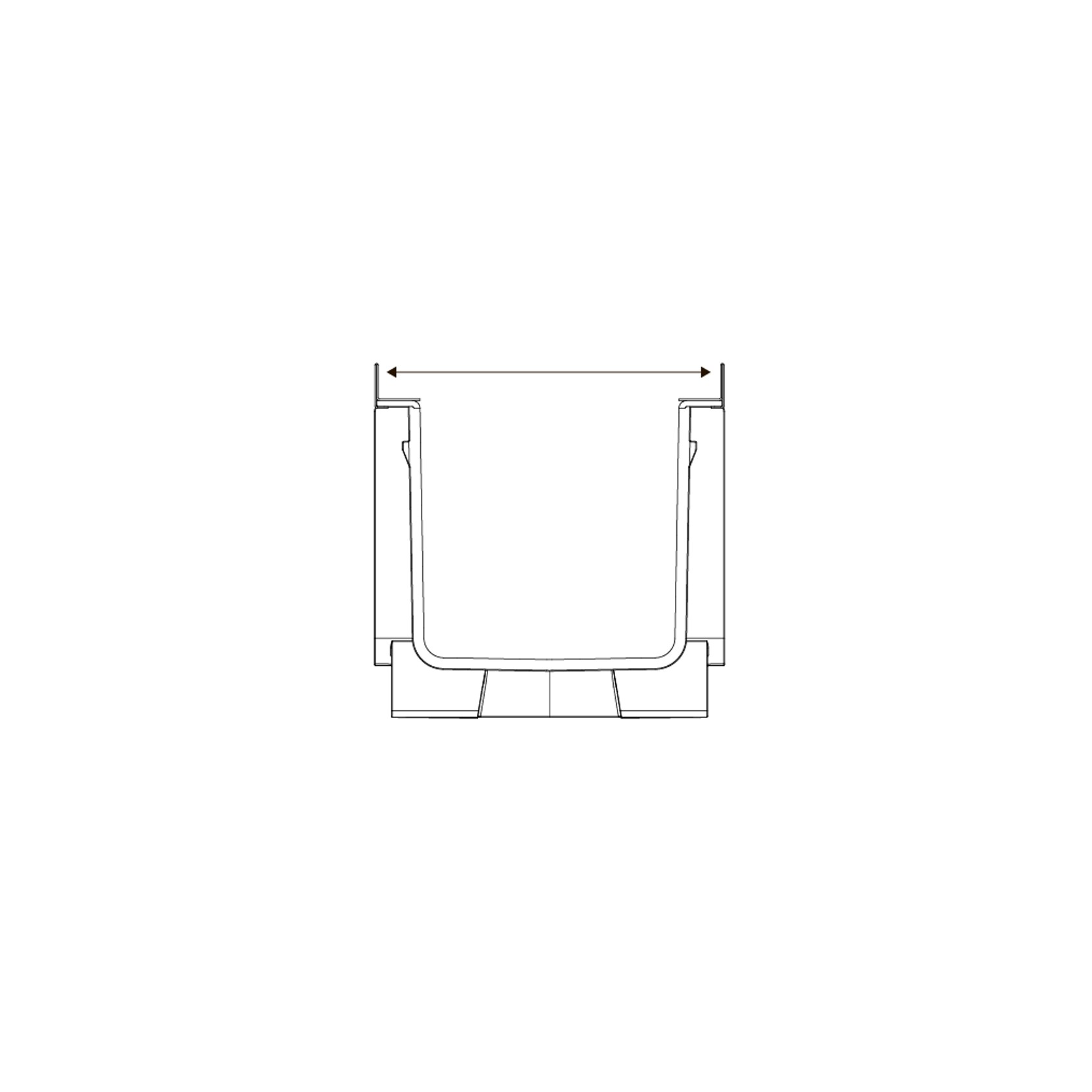

INTERNAL DIMENSIONS
Measurement of the internal perimeter.
- Length- 1000mm
- Width- 150mm
- Depth- 150mm
WEIGHT- 9kg
- Durability – Made in Australia from tough, durable, and lightweight UV stabilised recycled plastic

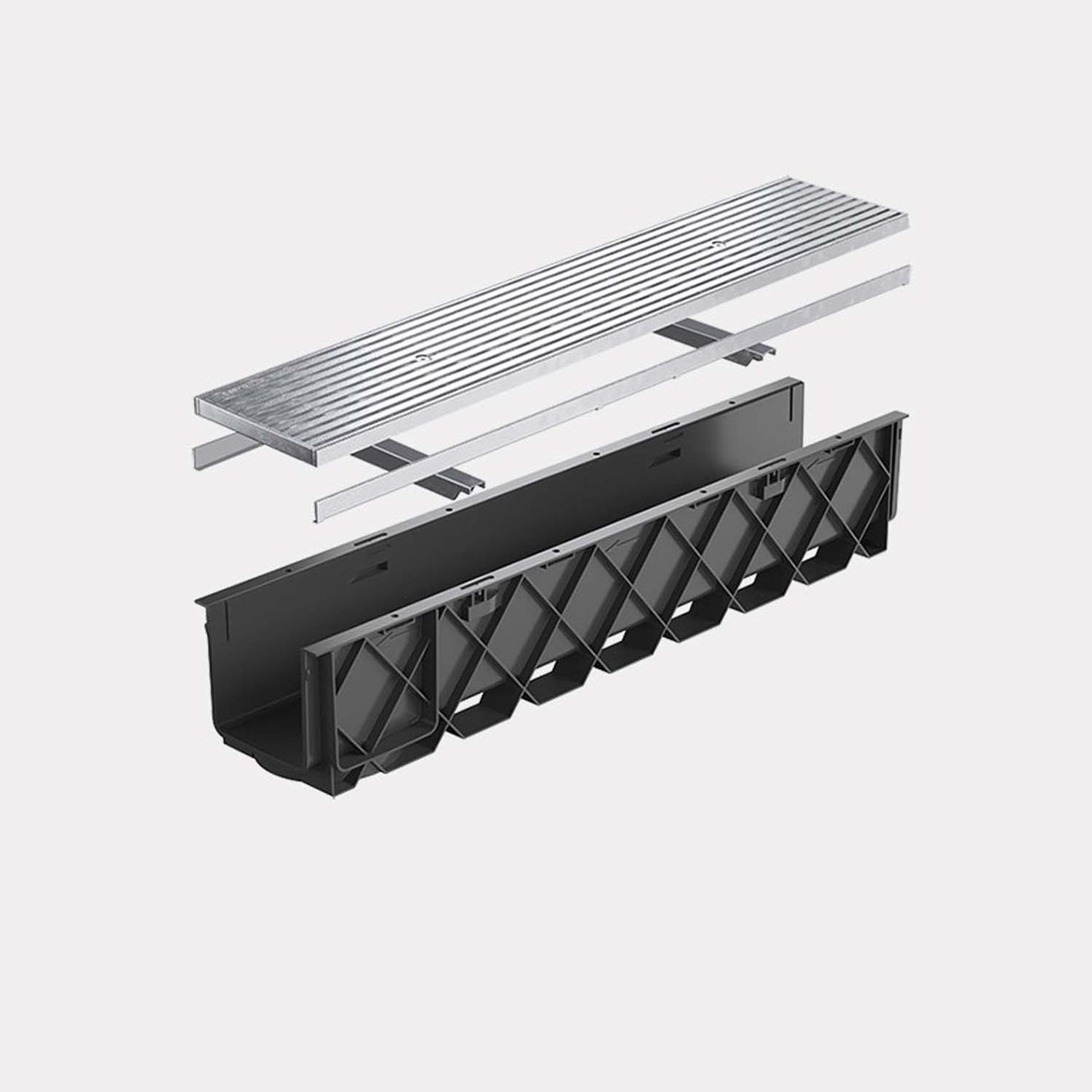

- Easy to install – Storm Drain Pro is a breeze to install with its easy connecting channels, interchangeable clip-in grates and hold down feet to stop floatation during the pouring of concrete.
- No corners or tee pieces required for change of direction – Storm Drain Pro features an integral side flange to create corners and intersections, removing the need to source additional fittings.
- Galvanised steel edges – Rated to light commercial traffic
- Complete drainage solution – With a range of accessories and grate options, Storm Drain Pro is perfect for paths, driveways, and domestic areas with corners and T sections
- Large 150mm profile – A large profile for capturing large volumes of water flow
- Plumber-friendly – Bottom outlet can be cut or drilled to fit 90mm PVC stormwater pipe
- Environmentally friendly – Made from 100% UV stabilised recycled plastic
- Class B Load Rating – Ideal for trafficable areas in domestic and light commercial applications.
