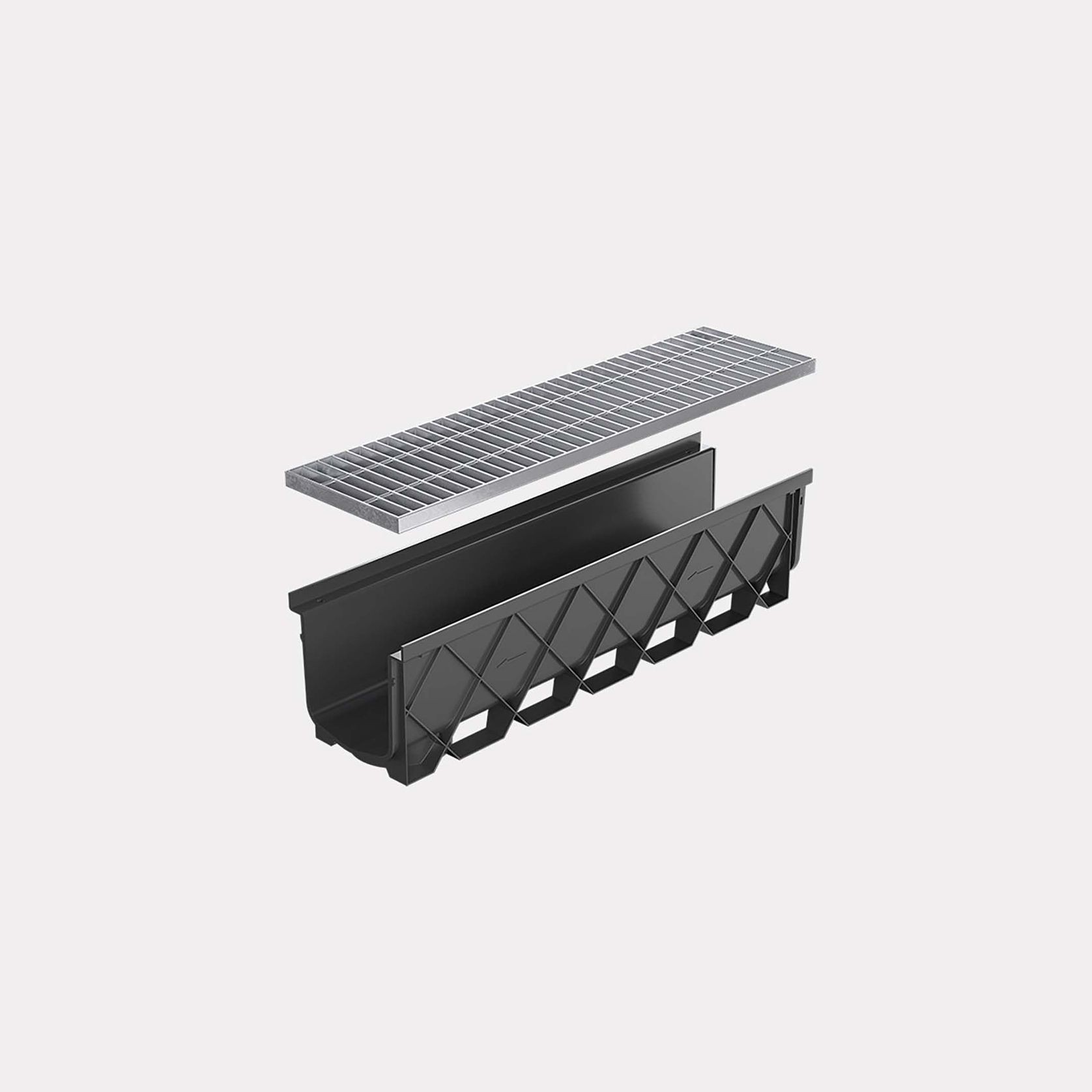

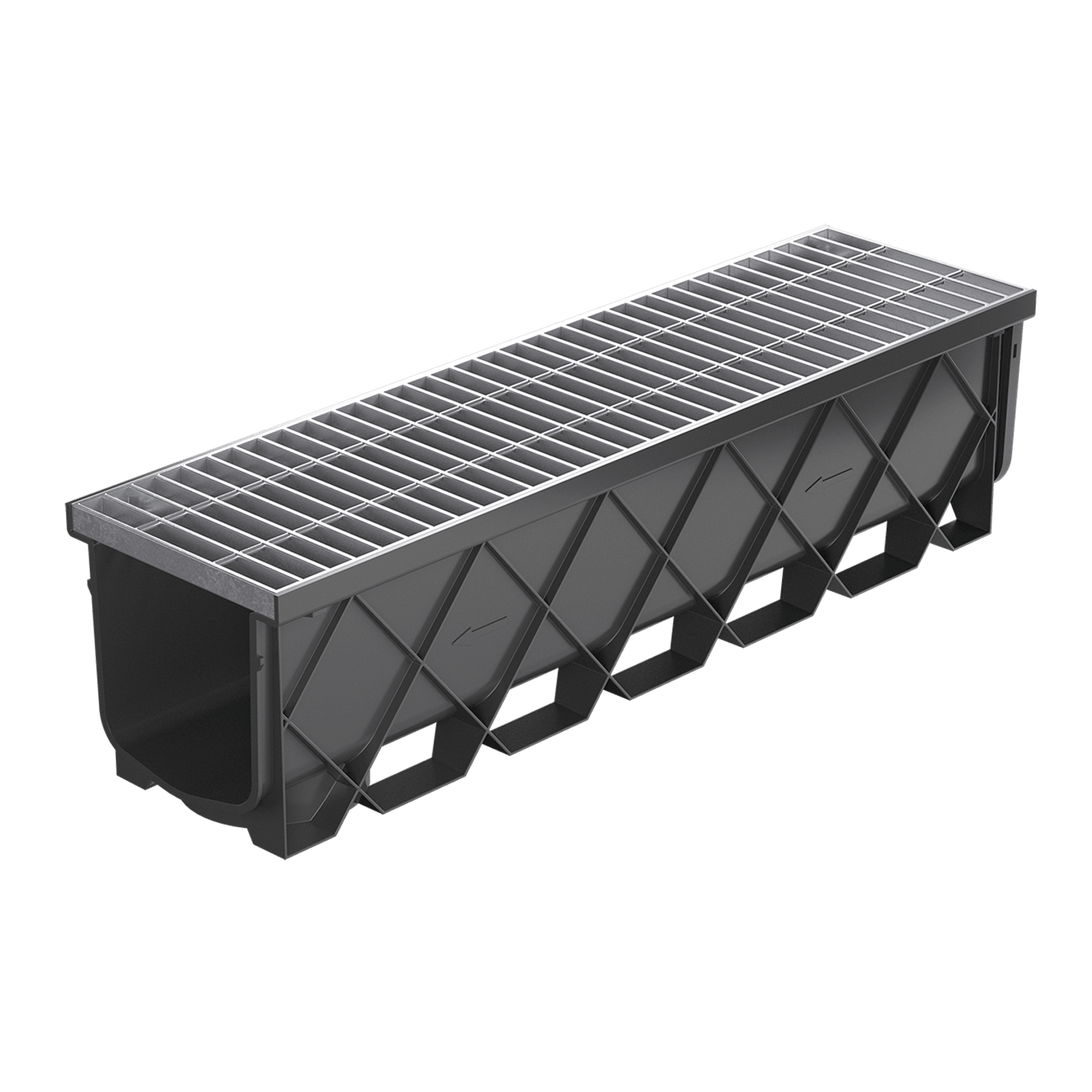

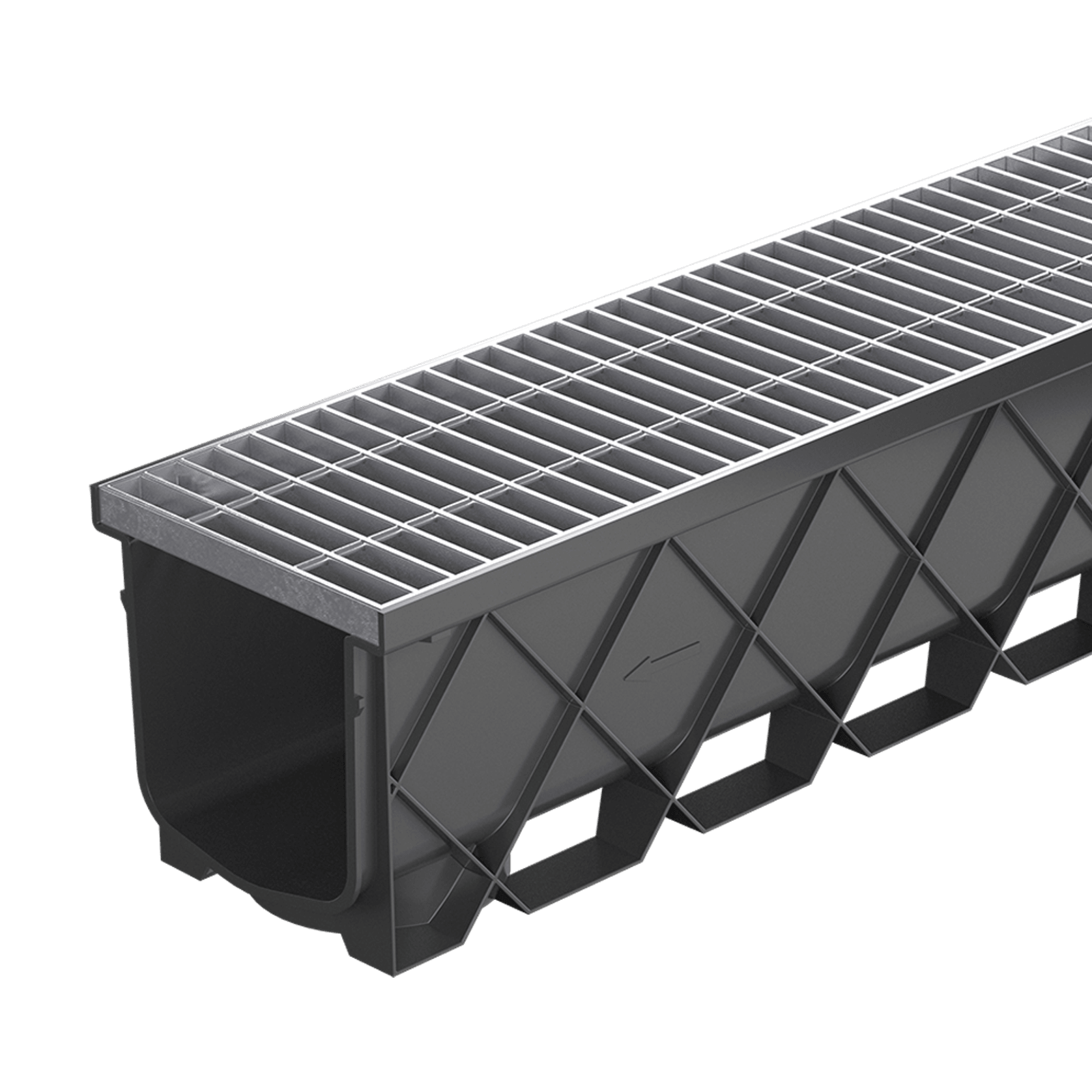

Storm Master^® – 1m with Galvanised Steel Class B Grate

Name: Storm Master® – 1m with Galvanised Steel Class B Grate
Brand: RELN
Availability: InStock

RELN

Visit Website

Storm Master® – 1m with Galvanised Steel Class B Grate gallery detail image

RELN Storm Master is the commercial drainage solution with a deep 200mm profile. Storm Master effectively collects and distributes substantial volumes of surface water throughout its system. The Class B Galvanised Grate is ideal for trafficable areas in commercial applications.

RELN Storm Master is the commercial surface drainage solution, perfect for heavy-use commercial applications, where heavy surface water flows or heavy vehicle and pedestrian traffic is a factor. The range is strong, durable and can withstand 10 tonne of vehicle weight when installed correctly, being the master when it comes to commercial surface drainage.

Details

Category
Stormwater Drainage
Range
Storm Master®

Specifications

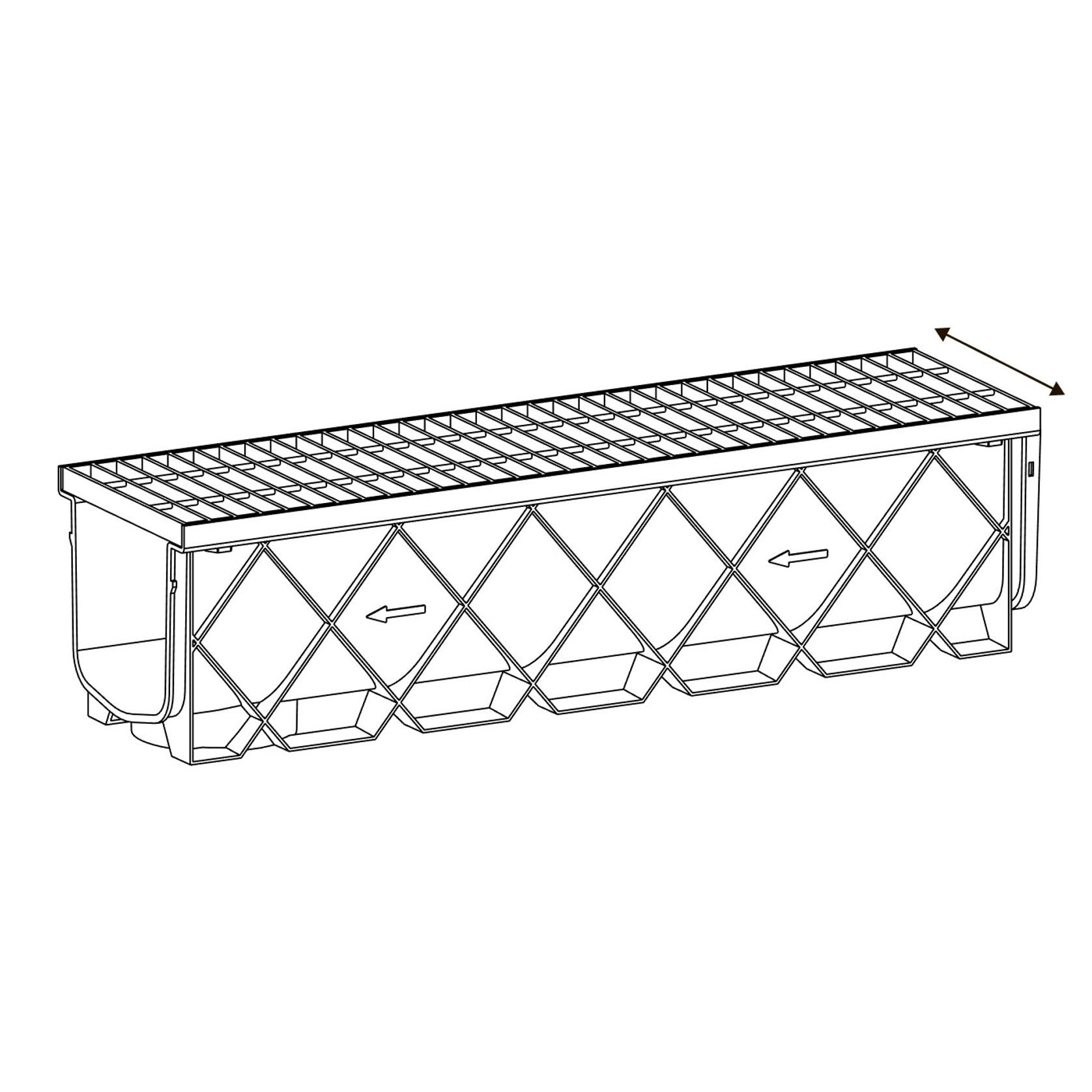

EXTERNAL DIMENSIONS

Measurement of the external perimeter.

Length- 1000mm
Width- 273mm
Depth- 263mm

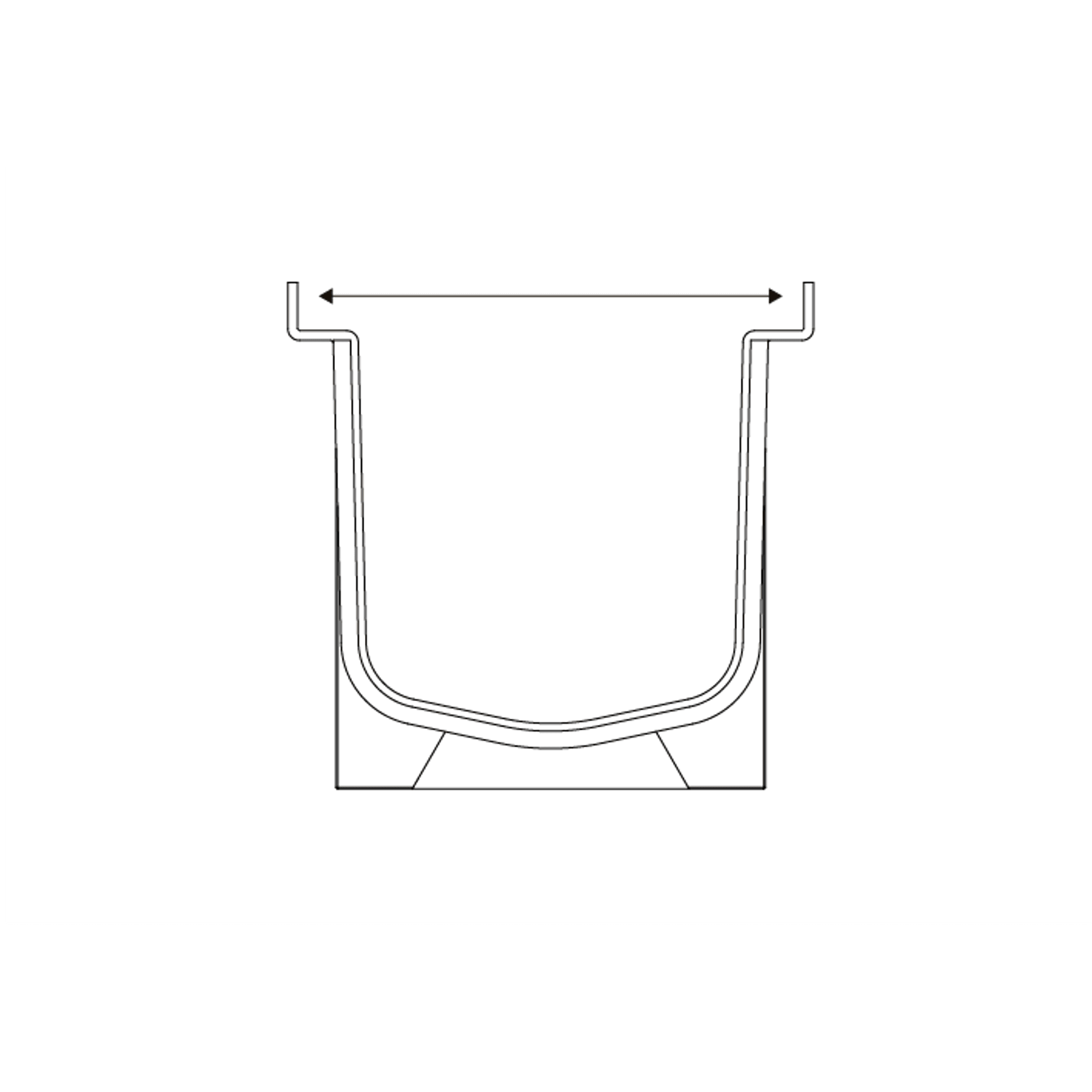

INTERNAL DIMENSIONS

Measurement of the internal perimeter.

Length- 1000mm
Width- 200mm
Depth- 200mm

WEIGHT- 14.4kg

Performance

Durability – Channel made in Australia from tough, durable, and lightweight UV stabilised recycled plastic. Class B Grate made from Galvanised Steel.
Easy to install – Storm Master is a breeze to install with its easy connecting channels, interchangeable grates and hold down feet to stop floatation during the pouring of concrete.
Perfect for Commercial Surface Drainage – With a range of accessories and grate options, Storm Master is the perfect large capacity drainage for commercial applications
Class B Load Rating – Ideal for trafficable areas in domestic and light commercial applications.
Large 200mm profile – A large profile, ideal for clearing high flows of surface water.
Plumber-friendly – Bottom outlet can be cut or drilled to fit 90mm PVC stormwater pipe
Environmentally friendly – Made from 100% UV stabilised recycled plastic

Downloads

RELN

Ingleburn, New South Wales

View Profile

Visit Website

More from RELN

RELN Uni-Pit Vortex™RELN

Storm Drain Pro™ - Specified DrainageRELN

Storm Drain™ - Complete Drainage SystemRELN

Rain Drain™ - Straight Line DrainageRELN

Storm Mate™ - Shallow Straight Line DrainageRELN

Storm Mate – 1m complete with 316 Architectural GrateRELN

Uni-Pit Vortex 200 with Black Plastic Concave GrateRELN

Uni-Pit Vortex 200 with Flat Sandstone Aluminium GrateRELN

Uni-Pit Vortex 200 with Flat Green Plastic GrateRELN

Uni-Pit Vortex 200 with Flat Terracotta Aluminium GrateRELN

About the
Seller

Overview About Products Projects Articles Videos Network Contact

Products listed
150

RELN is the drainage brand you can be confident in trusting. Their products are durable, made to last and are designed and manufactured right here in Australia. RELN's focus is to deliver quality product, at the right place, and the right time. They continue to stay at the forefront of innovation, designing and manufacturing product ranges for surface water, ground water and black water applications, as well as a range of agriculture products.

Their philosophy is to produce product from 100% recycled plastic, and they are proud to say that they've been doing it for many years and will continuously do so.

They are a multi-award winning and quality-endorsed Australian company, known for designing and producing innovative quality plastic products for the Australian and international markets.
