Storm Master® Anti Slip Heel Guard Galvanised Grate

RELN
Visit Website
Storm Master® Anti Slip Heel Guard Galvanised Grate gallery detail image
Storm Master® Anti Slip Heel Guard Galvanised Grate gallery detail image
Storm Master® Anti Slip Heel Guard Galvanised Grate gallery detail image

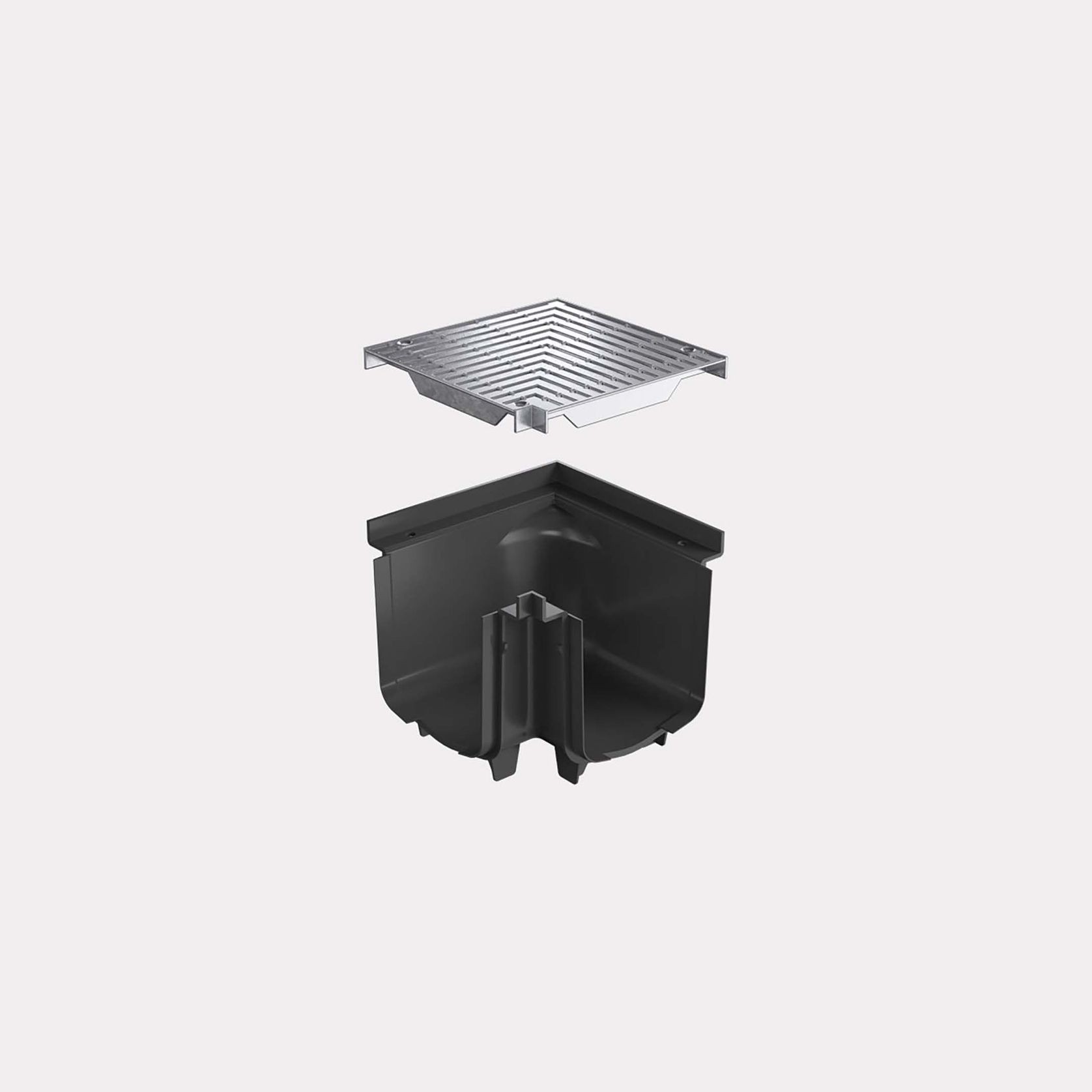

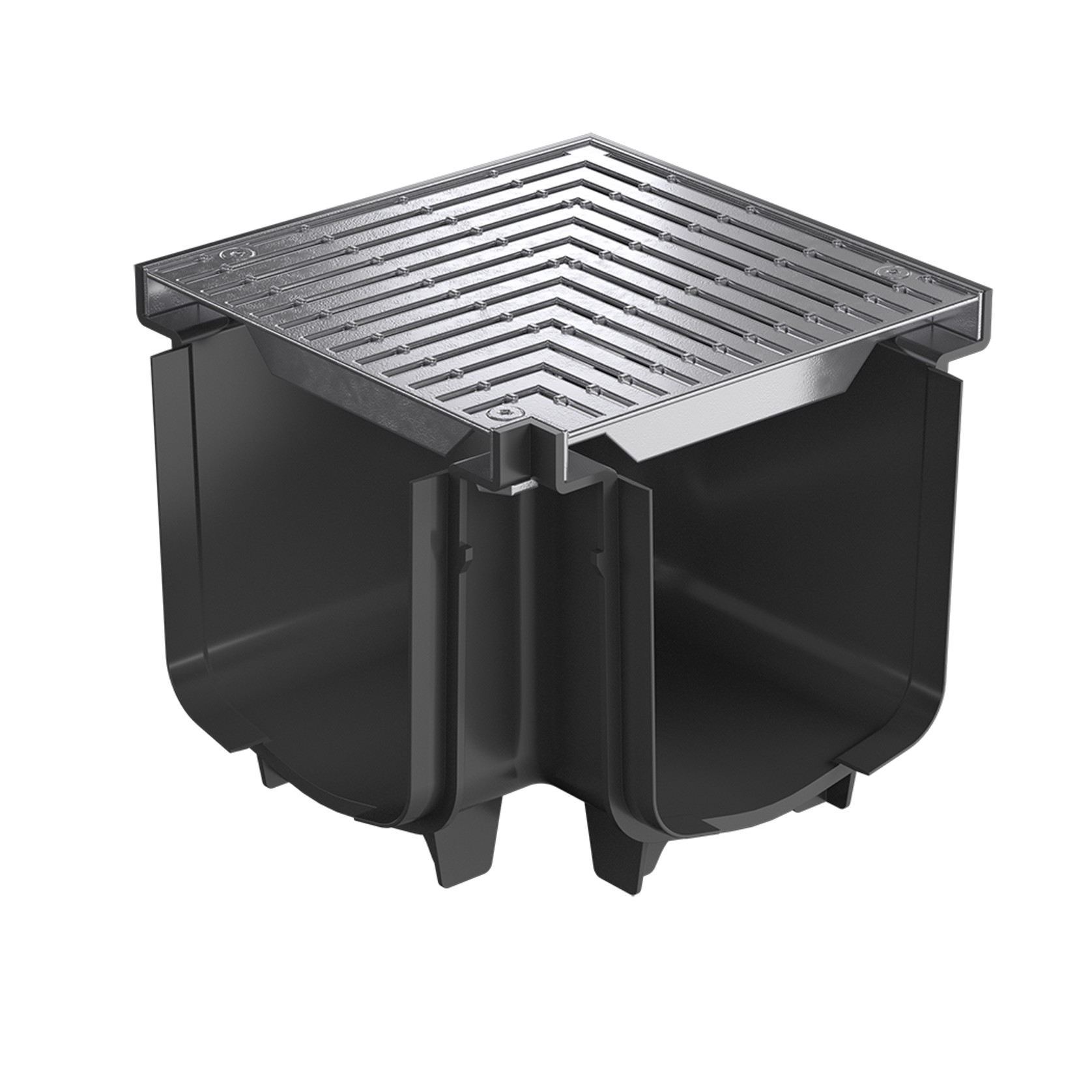

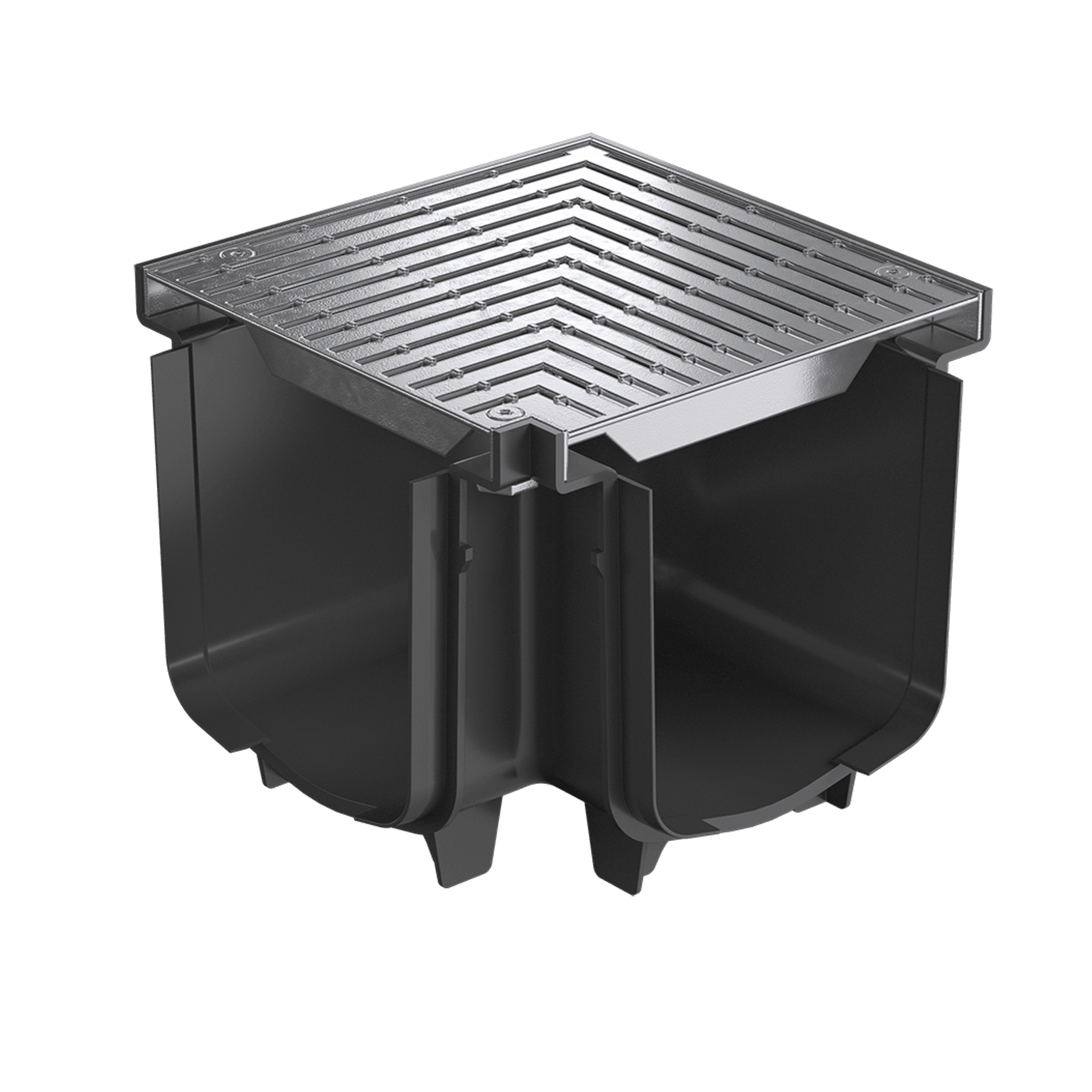

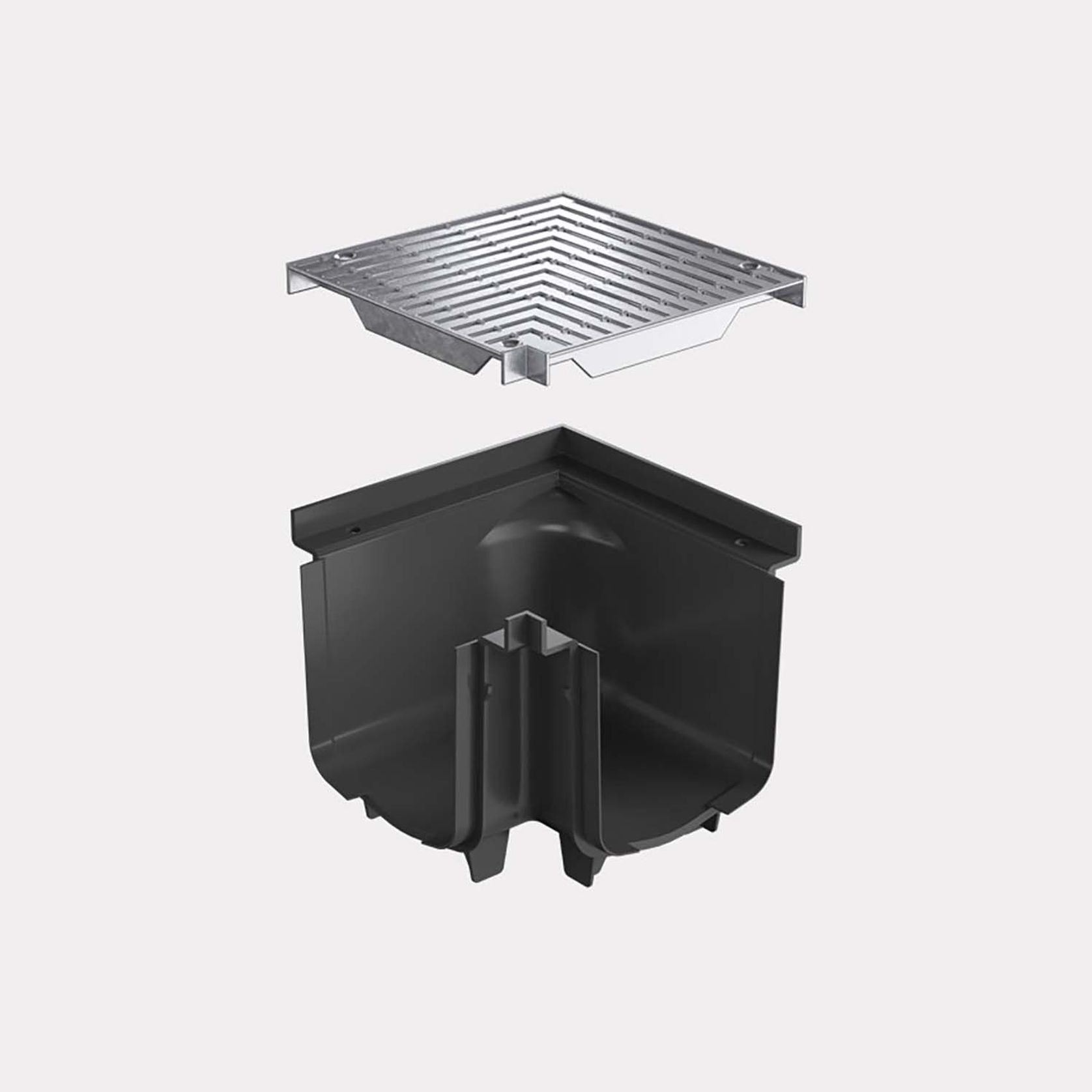

The Storm Master Corner allows a 90 degree change of direction in RELN Storm Master Channels. The unique design allows left or right turns, and is easy to install. The Class C Anti Slip Heelguard Grate is perfect for pedestrian areas in commercial applications.

RELN Storm Master is the commercial surface drainage solution, perfect for heavy-use commercial applications, where heavy surface water flows or heavy vehicle and pedestrian traffic is a factor. The range is strong, durable and can withstand 10 tonne of vehicle weight when installed correctly, being the master when it comes to commercial surface drainage.

Details
  • Category
    Stormwater Drainage
  • Range
    Storm Master®
Specifications

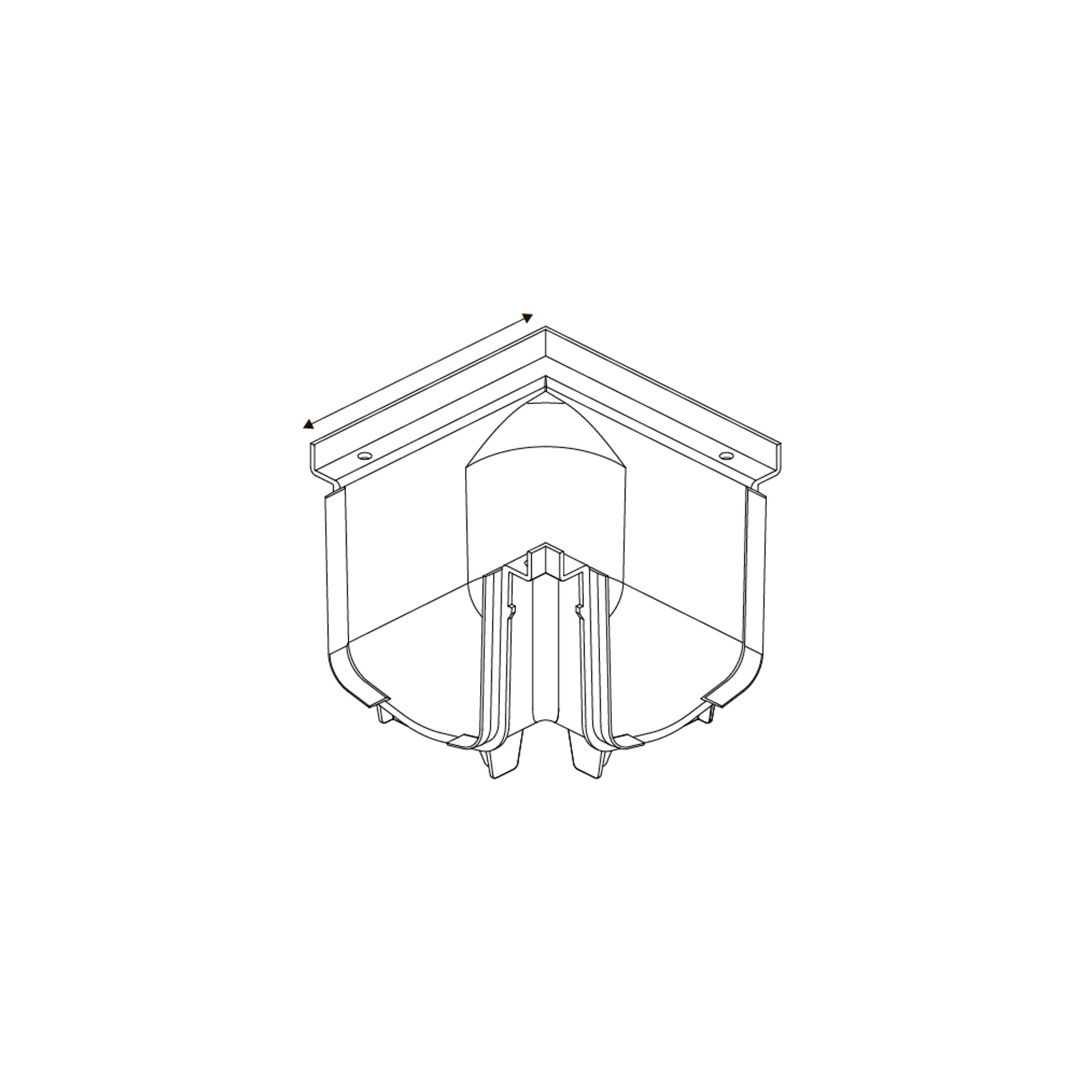

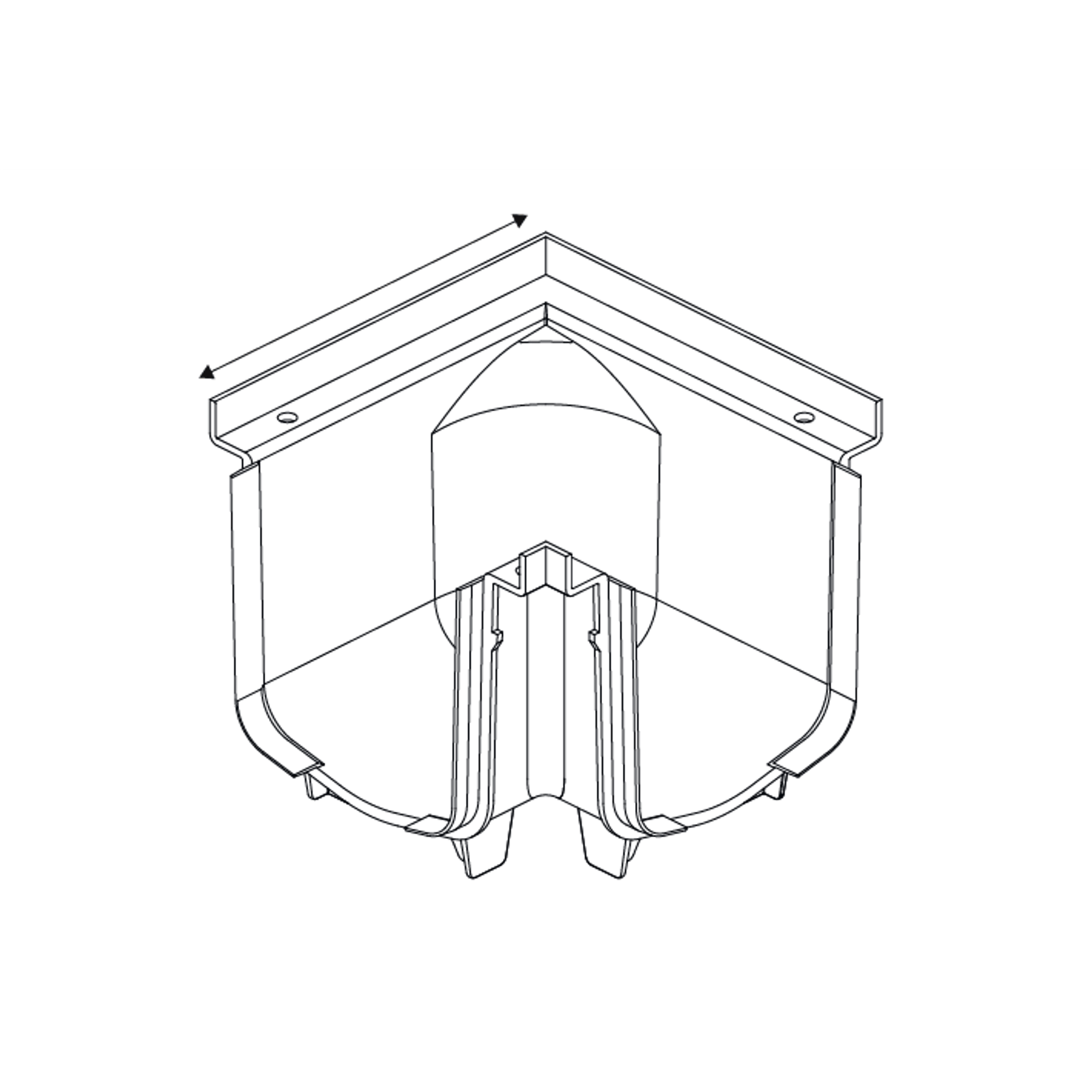

EXTERNAL DIMENSIONS

Measurement of the external perimeter.

  • Length- 290mm
  • Width- 290mm
  • Depth- 263mm

INTERNAL DIMENSIONS

Measurement of the internal perimeter.

  • Length- 290mm
  • Width- 200mm
  • Depth- 200mm

WEIGHT- 7.14kg

Performance
  • Durability – Channel made in Australia from tough, durable, and lightweight UV stabilised recycled plastic. Class C Grate made from Galvanised Steel.
  • Easy to install – Storm Master is a breeze to install with its easy connecting channels, interchangeable grates and hold down feet to stop floatation during the pouring of concrete.
  • Perfect for Commercial Surface Drainage – With a range of accessories and grate options, Storm Master is the perfect large capacity drainage for commercial applications
  • Class C Load Rating – Perfect for commercial applications with slow moving vehicles
  • AS4586 Slip Resistance Classification P5 – Anti-Slip Heel Guard grate complies with the AS4586 Slip Resistance Classification P5
  • Large 200mm profile – A large profile, ideal for clearing high flows of surface water.
  • Plumber-friendly – Bottom outlet can be cut or drilled to fit 90mm PVC stormwater pipe
  • Environmentally friendly – Made from 100% UV stabilised recycled plastic
