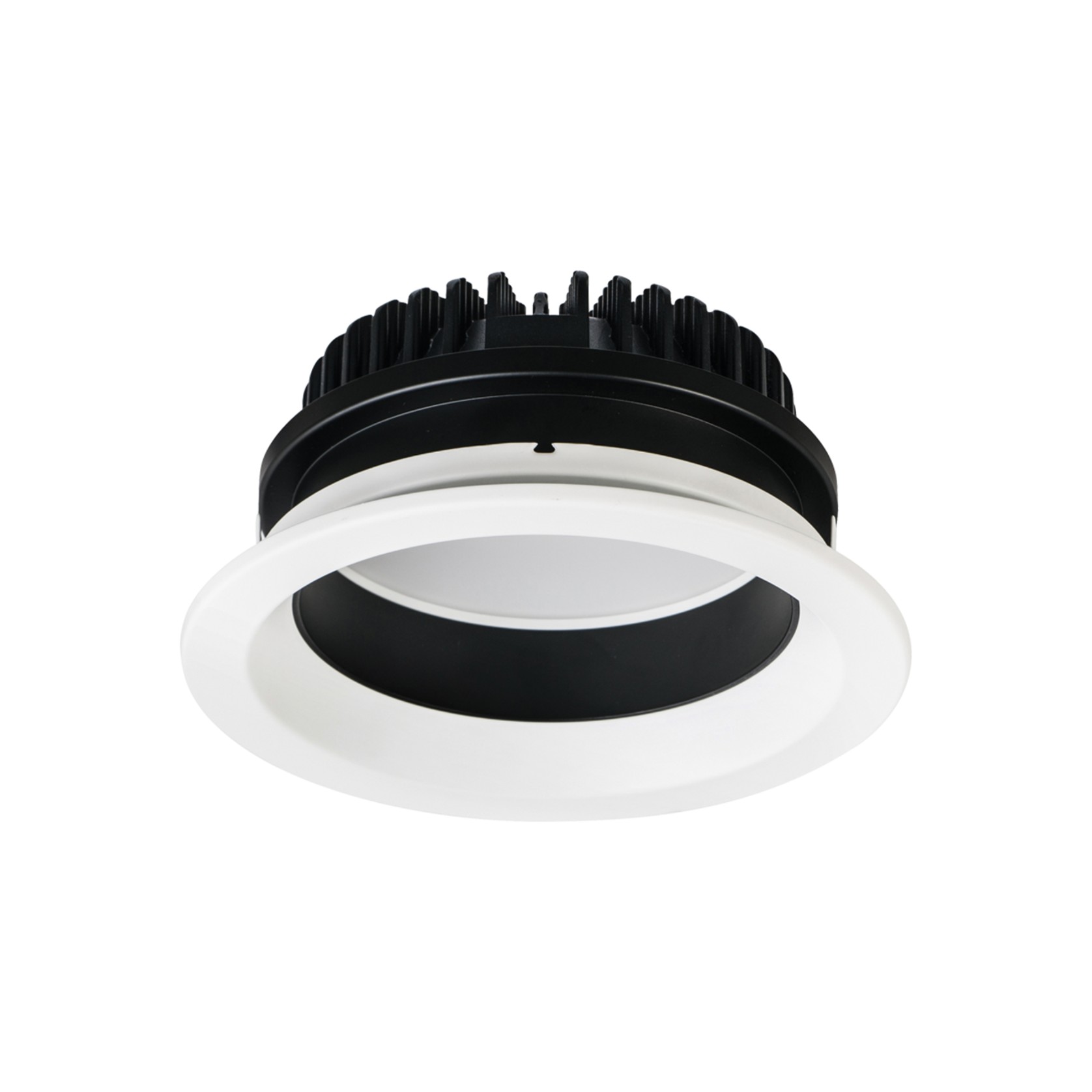

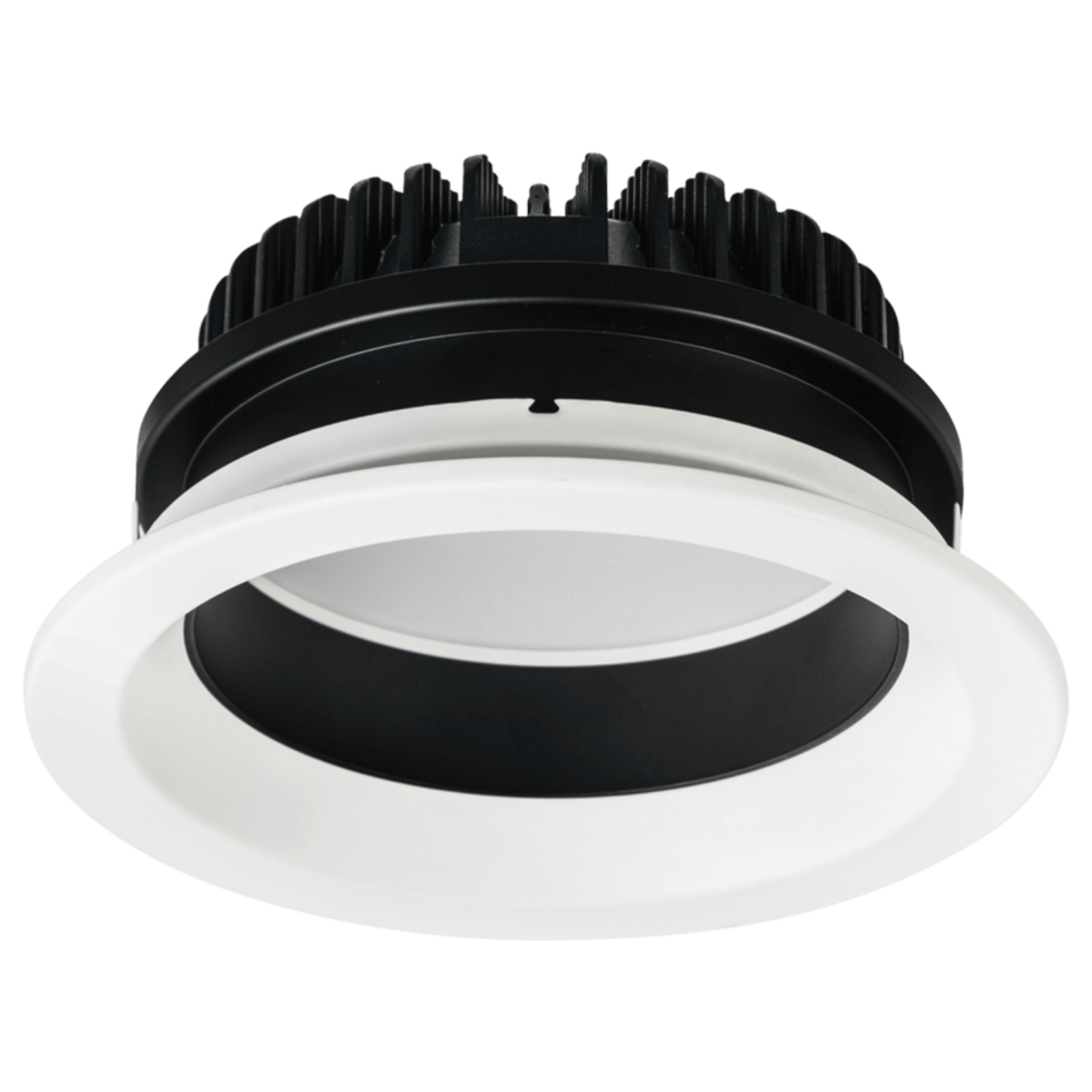

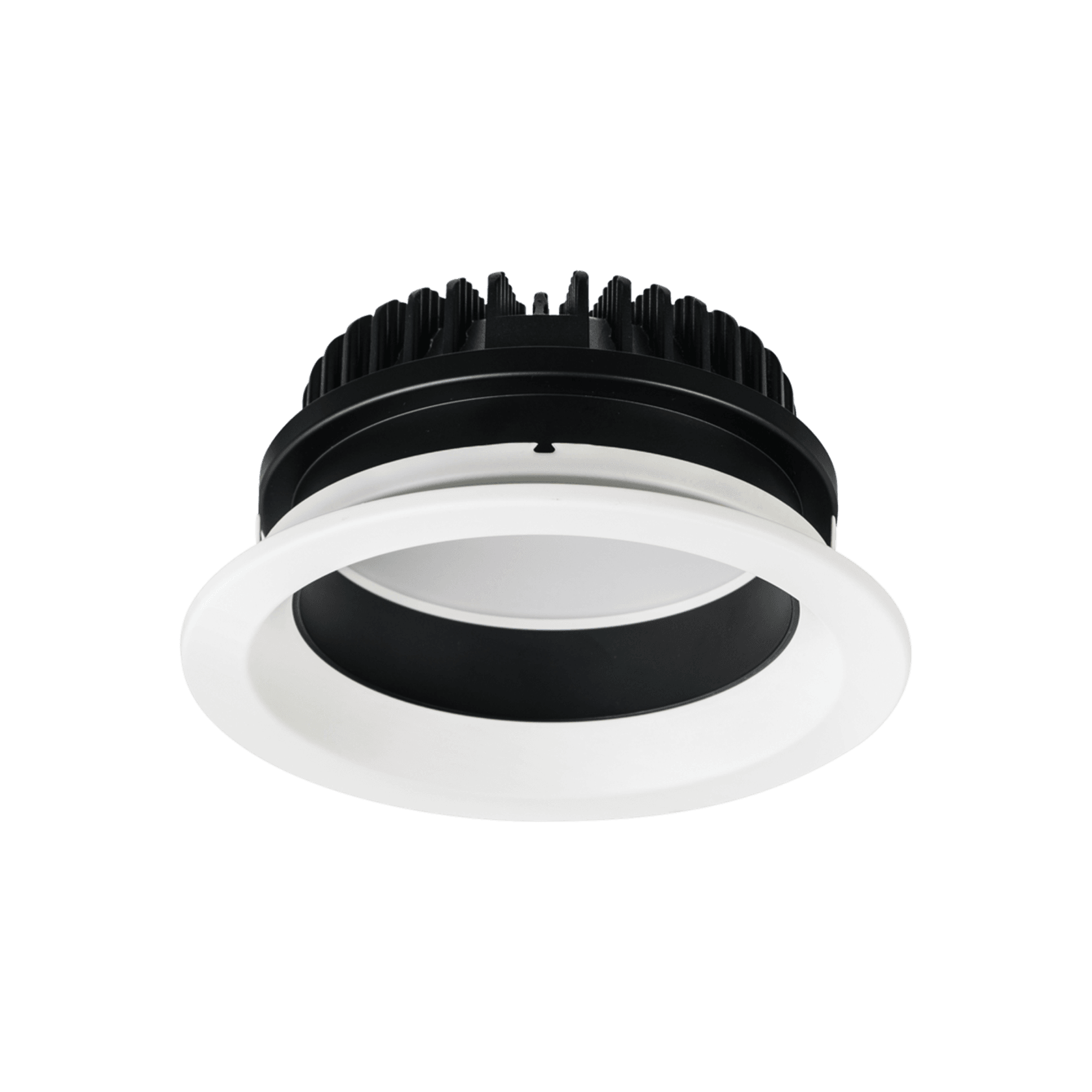

10W / 15W / 18W / 30W / 40W Fixed LED Recessed Downlight

Twist is a modular fixed downlight series with an extensive range of cut-out sizes and wattages and a unique trim twist-lock design that enables versatility and functionality across a range of applications.

Suitable for new builds and ideal as a complete retro-fit downlight solution the Twist LED modules comes in 3 core sizes (small, medium and large) covering a wattage range of up to 40 Watts across the series. Each module has an IP44 rating as standard (IP54 module optional) and comprises interchangeable twist lock trims that adapt to a vast array of pre-existing ceiling cut outs.

The Twist, with its functional twist lock design is constructed of die-cast aluminium, a polycarbonate lens and integrates Osram CCT adjustable LED technology. The Twist luminaire series offers a 5 year warranty.

Not Applicable
Details
Specifications

Technical Specifications

Wattage:

  • 10W (System)
  • 15W (System)
  • 18W (System)
  • 30W (System)
  • 40W (System)

Luminous Flux:

  • 963-1070Lm
  • 1338-1458Lm
  • 1655-1835Lm
  • 2481-2833Lm
  • 3466-3970Lm

Luminaire Efficacy:

  • 84.82 Lm/W
  • 85.69 Lm/W
  • 96.06 Lm/W
  • 88.24 Lm/W
  • 89.20 Lm/W

CCT:

  • CCT Adjustable
  • 3000K
  • 4000K
  • 5000K

CRI: >85

Beam: 100°

Colour Deviation: 3-SDCM

Size:

  • Ø190mm x Height 72mm
  • Ø230mm x Height 72mm
  • Ø285mm x Height 72mm

Cut out size:

  • Ø160-180mm
  • Ø185-210mm
  • Ø230-260mm

Dimming:

  • Mains-dimmable
  • DALI-2
  • BLE (basicDIM Wireless / Casambi)

Longevity: >50,000 Hrs L80 B10

Finish Options:

  • White
  • Black

Warranty: 5 Years

Accessories / Options

Accessories / Options:

  • TWIST-LA
    (Ø190mm Frame Size, Frame Cut Out Ø160-180mm, finish: Satin White)
  • TWIST-LB
    (Ø230mm Frame Size, Frame Cut Out Ø185-210mm, finish: Satin White)
  • TWIST-LC
    (Ø285mm Frame Size, Frame Cut Out Ø230-260mm, finish: Satin White)
  • TWIST-L-RING
    DEEP-SET ring
