Uni-Pit Vortex 200 with Flat Terracotta Aluminium Grate
RELN Uni-Pit Vortex 200 Series has a shallow profile, making it the fastest and easiest pits to install in domestic applications. They are designed to fit with standard sized pavers.
The Flat Terracotta Aluminium Grate has a flat profile, making it perfect for use in pavers around the home and around pools.
- CategoryStormwater Drainage
- RangeUni-Pit

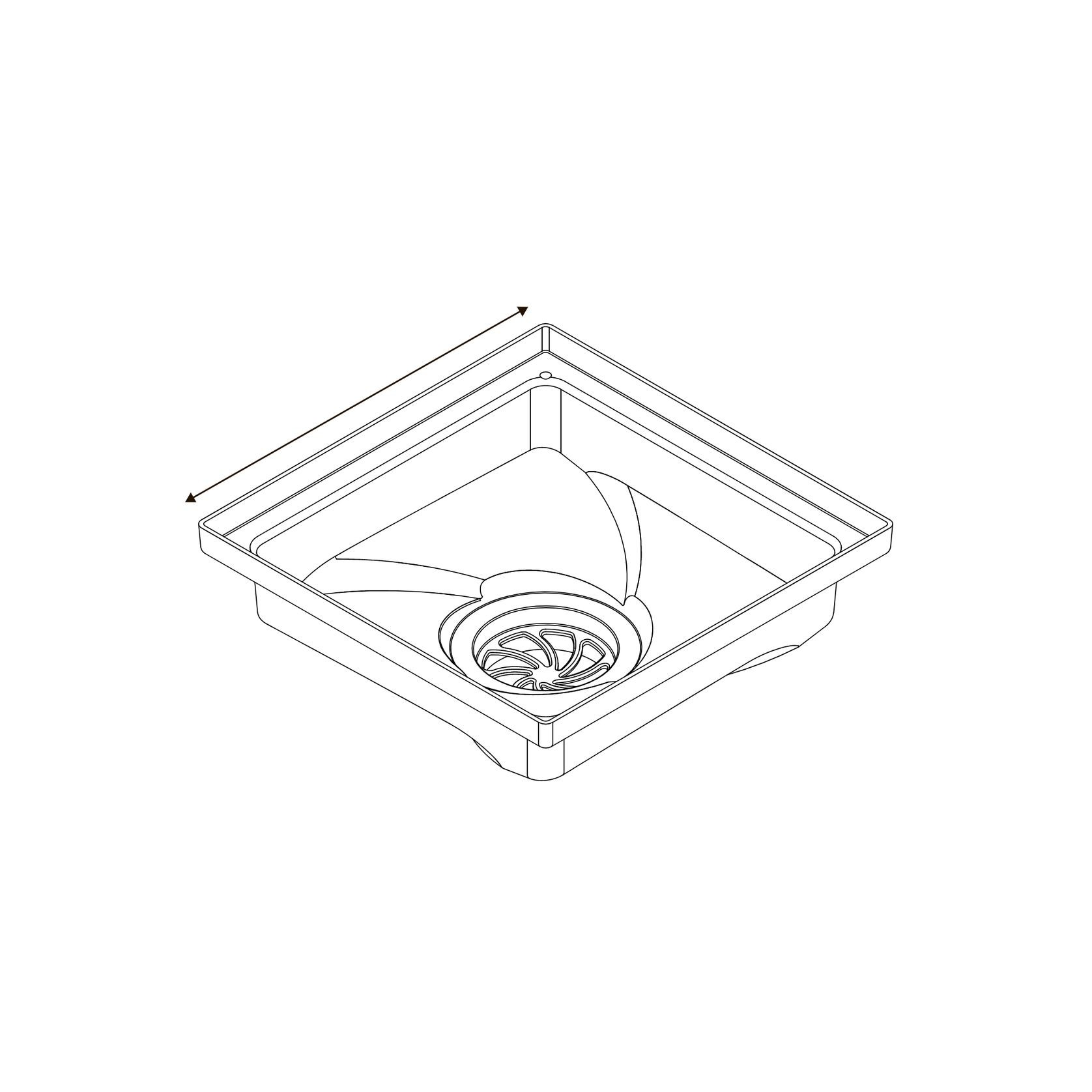

EXTERNAL DIMENSIONS
Measurement of the external perimeter.
- Length - 225mm
- Width - 225mm
- Depth - 89mm
INTERNAL DIMENSIONS
Measurement of the internal perimeter.
- Length - 180mm
- Width - 180mm
- Depth - 46mm
WEIGHT
0.6kg
- Durability – Made in Australia from tough, durable, and lightweight UV stabilised recycled plastic
- Easy to install – RELN Uni-Pit Vortex is easy to install with its extensive range of convenient and security grates
- Domestic and commercial surface drainage solution – With a range of sizes and grate options, RELN Uni-Pit Vortex is perfect for domestic and commercial surface drainage.
- Class A Load Rating – Rated to Class A and when correctly installed in concrete, the grate can withstand light vehicle traffic
- Environmentally friendly – Made from 100% UV stabilised recycled plastic
- Anti-tamper feature
- Vortex design – Assists with water flow and eliminates pooling water, which is a common breeding place for mosquitoes
- Built in debris collector – The pit’s vortex design acts as a debris collector, preventing pipe blockage
- No risers required – Simply cut vertical pipe to required connection level
- Plumber-friendly – Easy glue fit to 90mm or 100mm PVC pipe
- Grates are available in AS3996 Class A, B or C Load Ratings – Perfect for domestic or commercial applications
