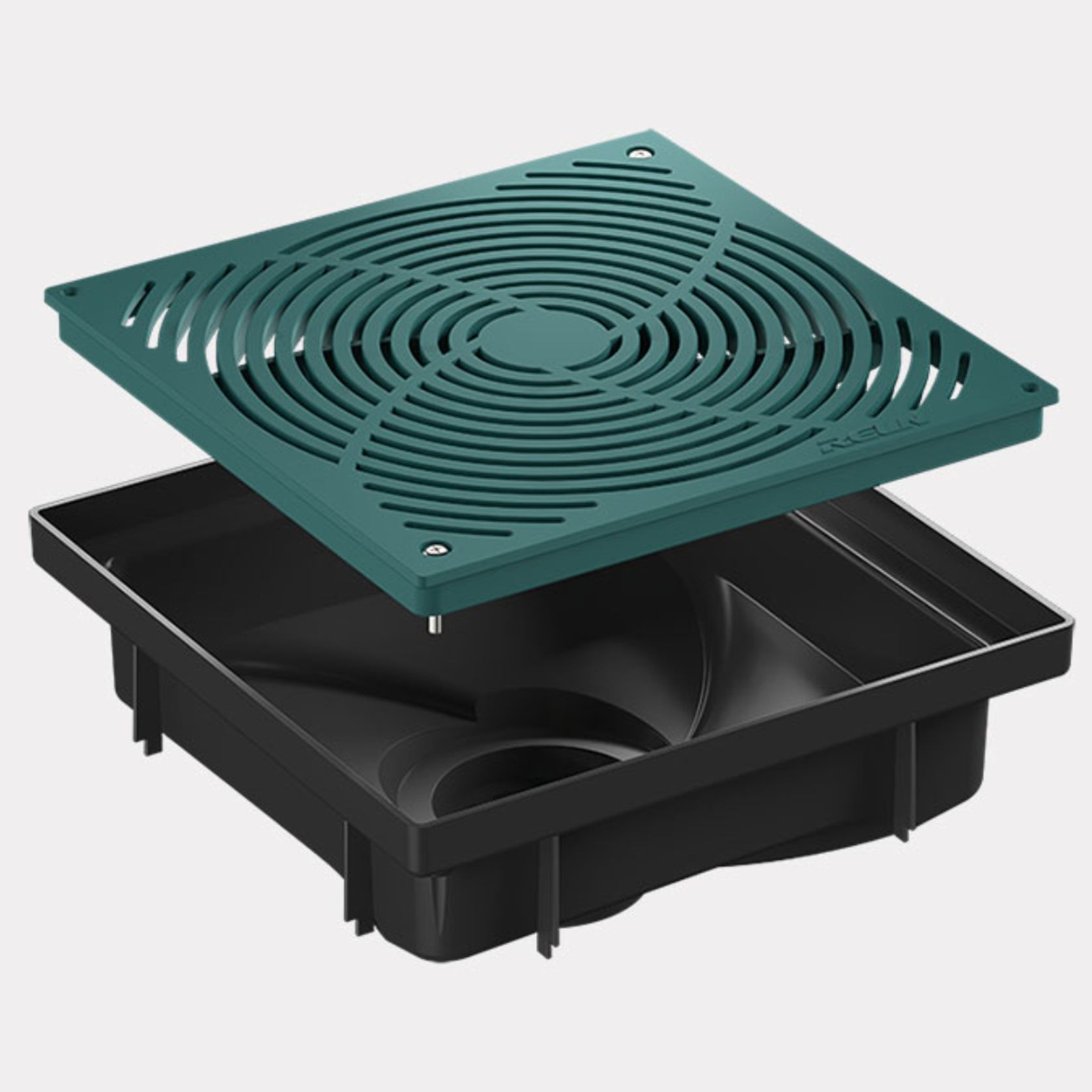

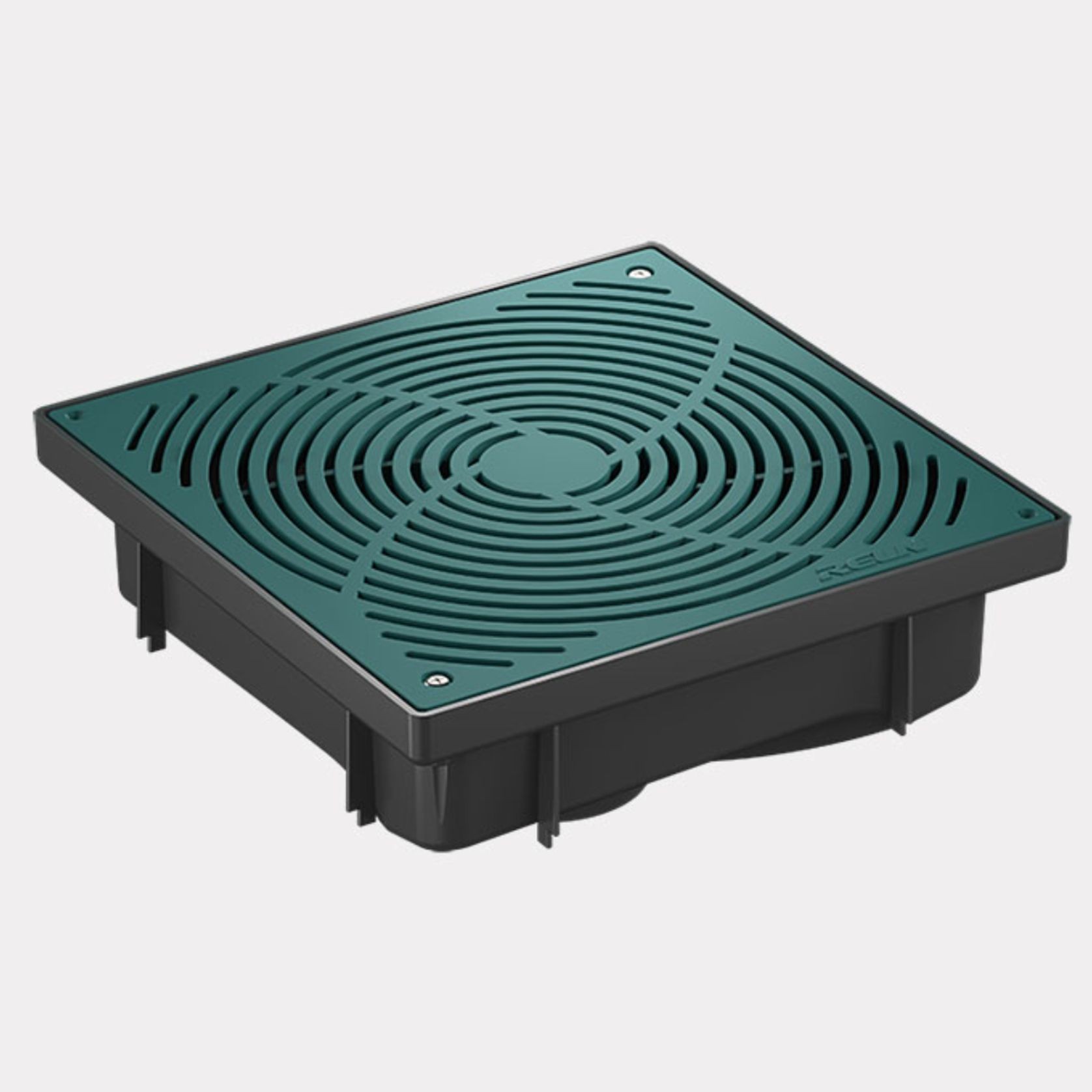

Uni-Pit Vortex 300 with Green Plastic Swirl Grate
RELN Uni-Pit Vortex 300 Series has a shallow profile, making it the fastest and easiest pits to install in commercial applications. They are designed for domestic and commercial larger paved areas and driveways. The unique vortex design prevents water pooling in the bottom of the pit, removing a common breeding place for mosquitoes. The Uni-Pit vortex inline surface water drainage system eliminates the need to risers, as vertical pipe can be cut to the required depth.

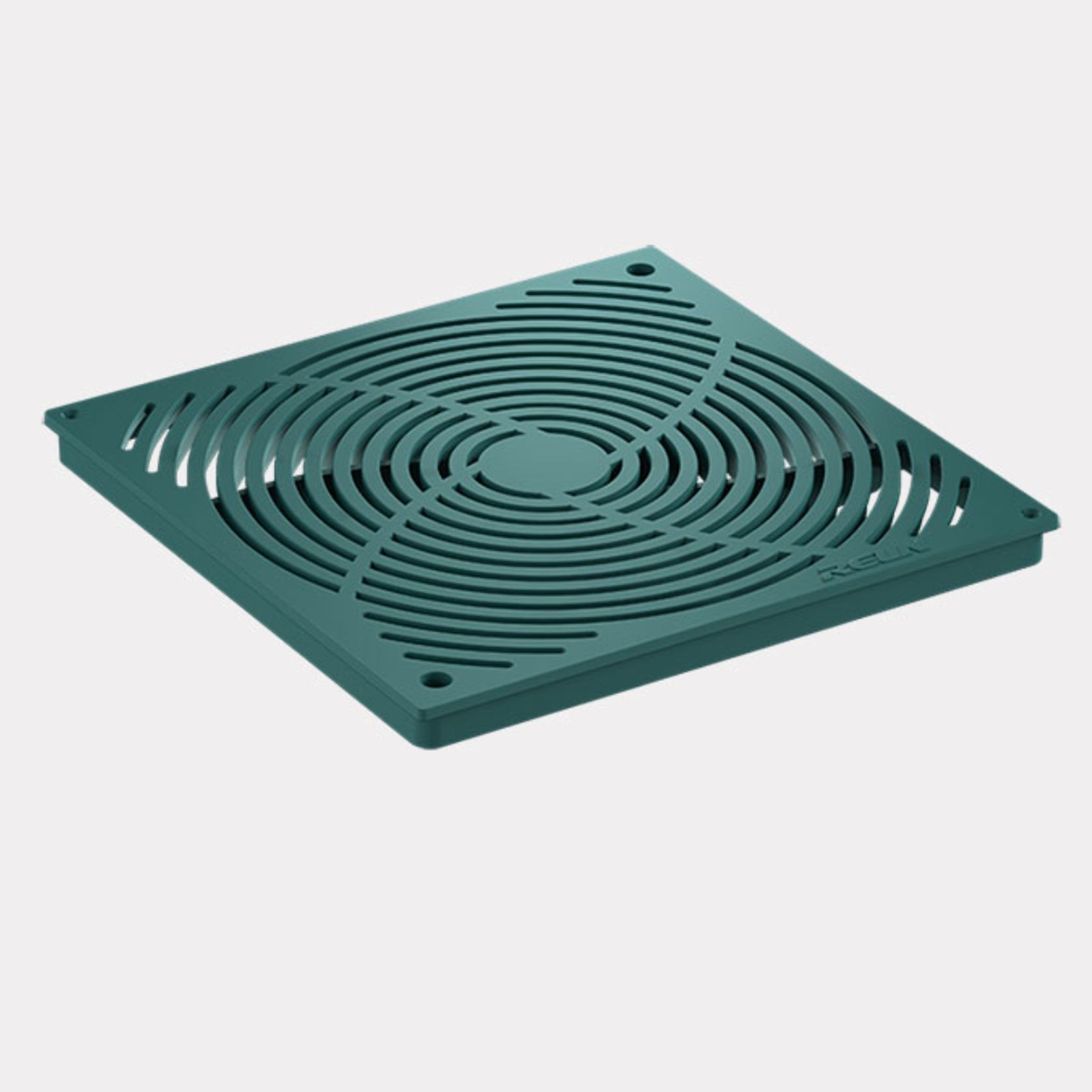

The Green Plastic Swirl Grate has a flat profile pedestrian safe design making it perfect for use in pavers around the home and around pools. It’s designed to blend with softscape environments.
- CategoryStormwater Drainage
- RangeUni-Pit

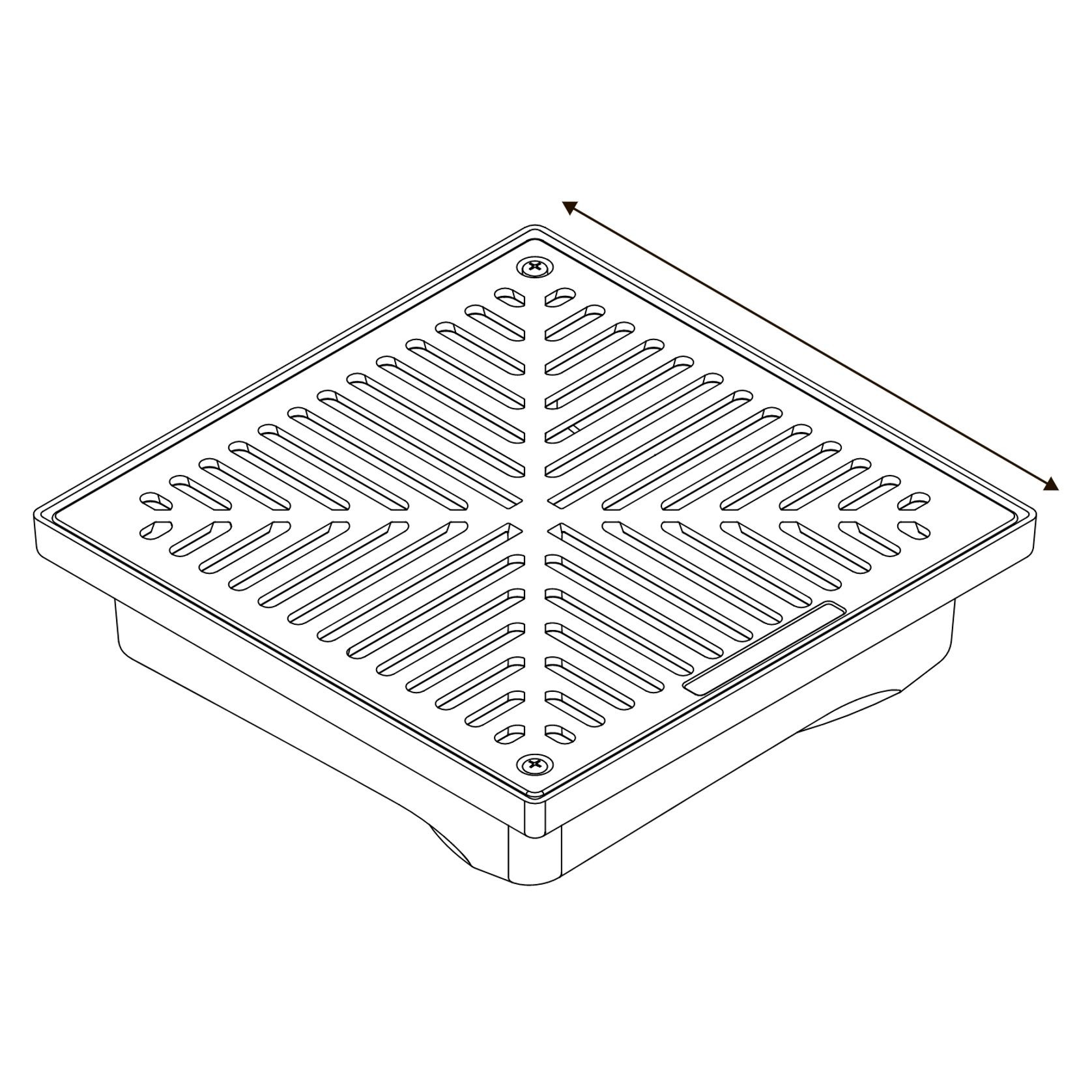

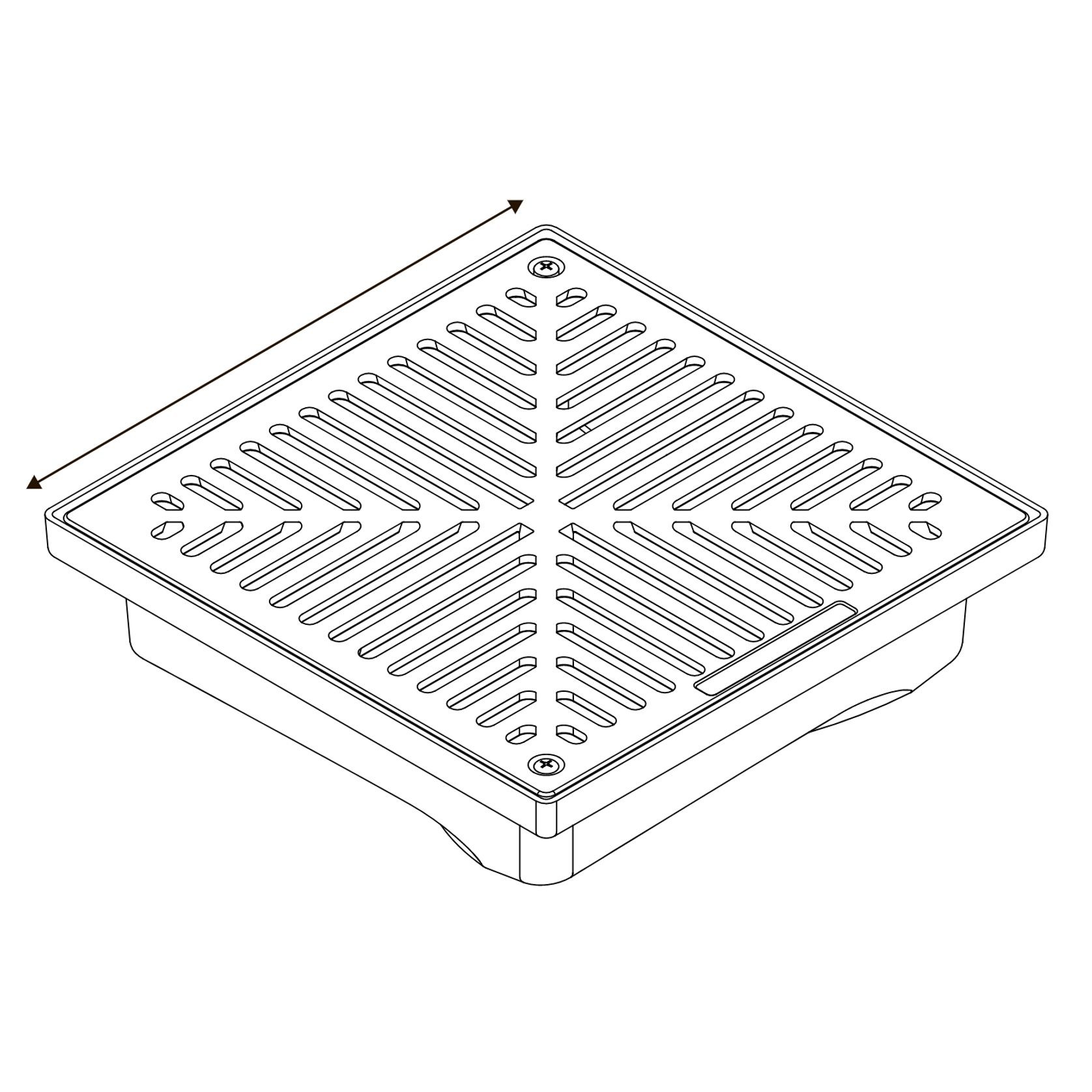

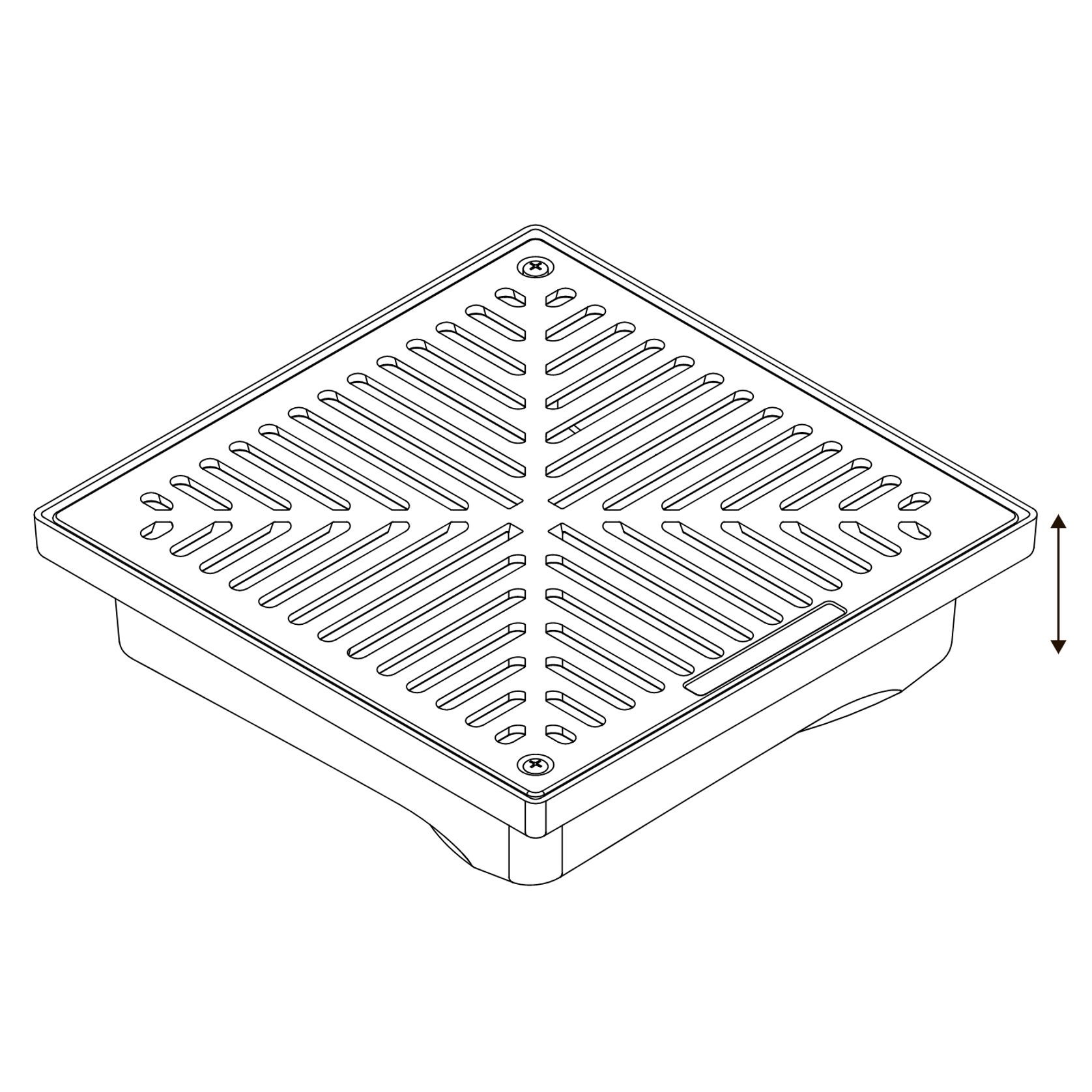

EXTERNAL DIMENSIONS
Measurement of the external perimeter.

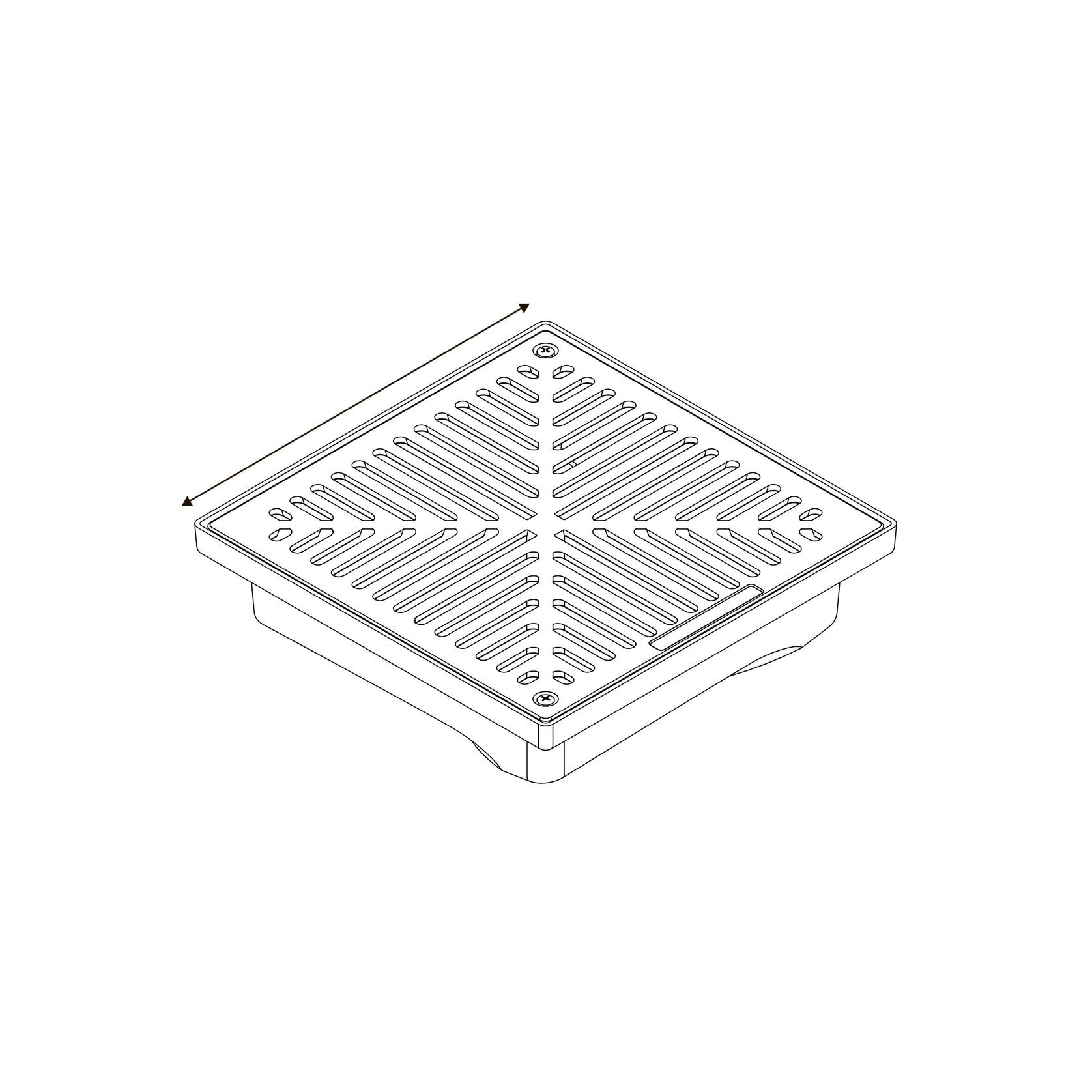

- Length - 334mm

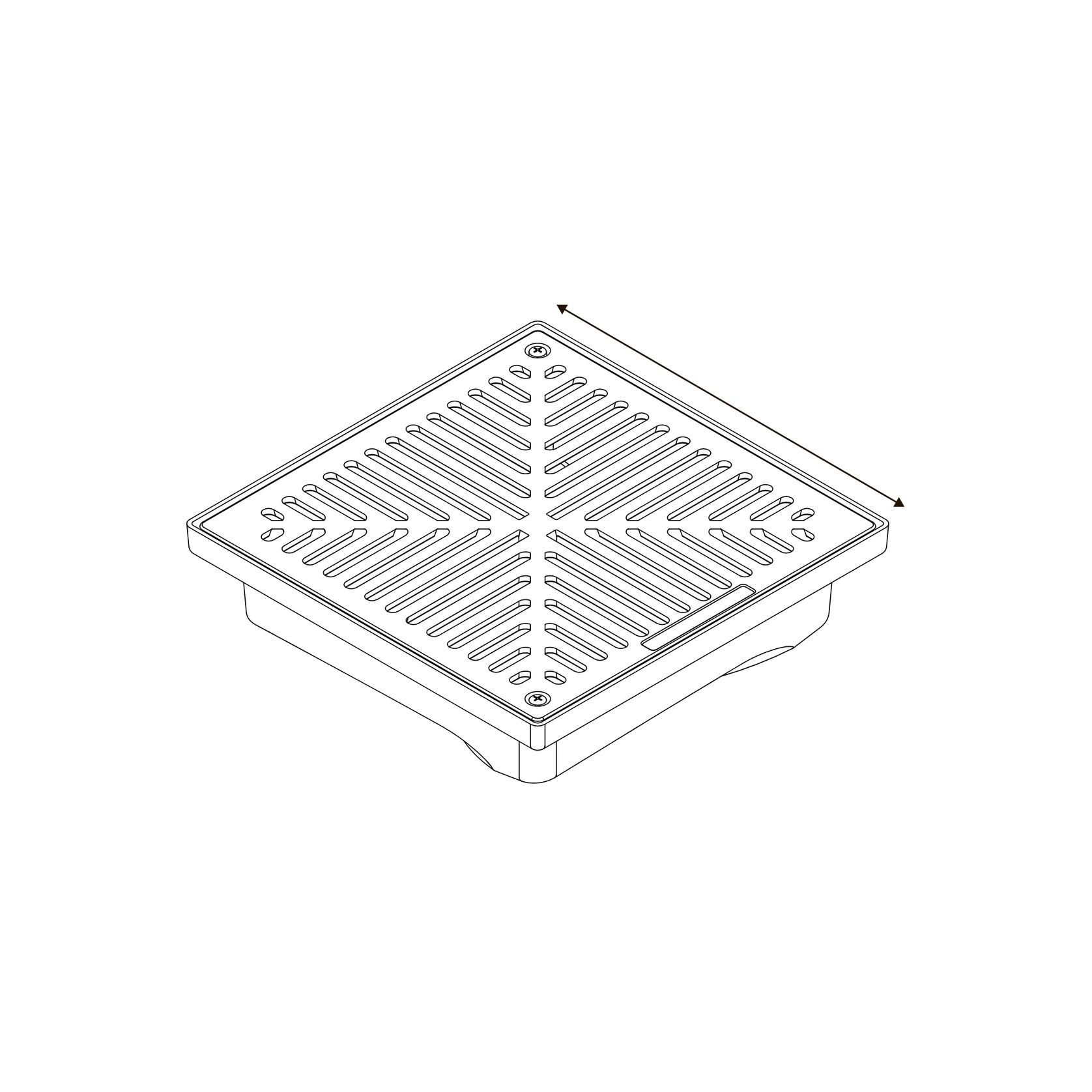

- Width - 334mm

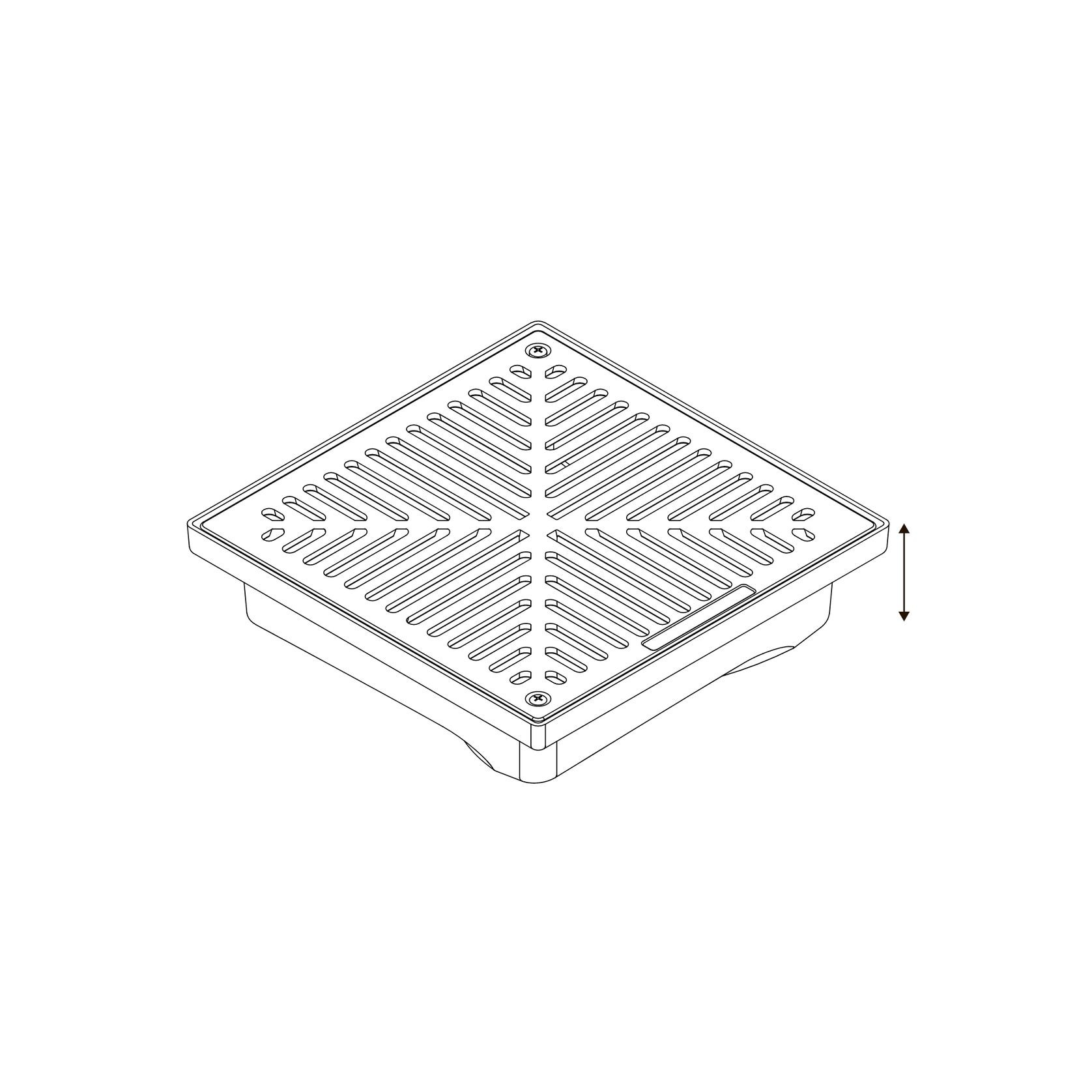

- Depth - 138mm

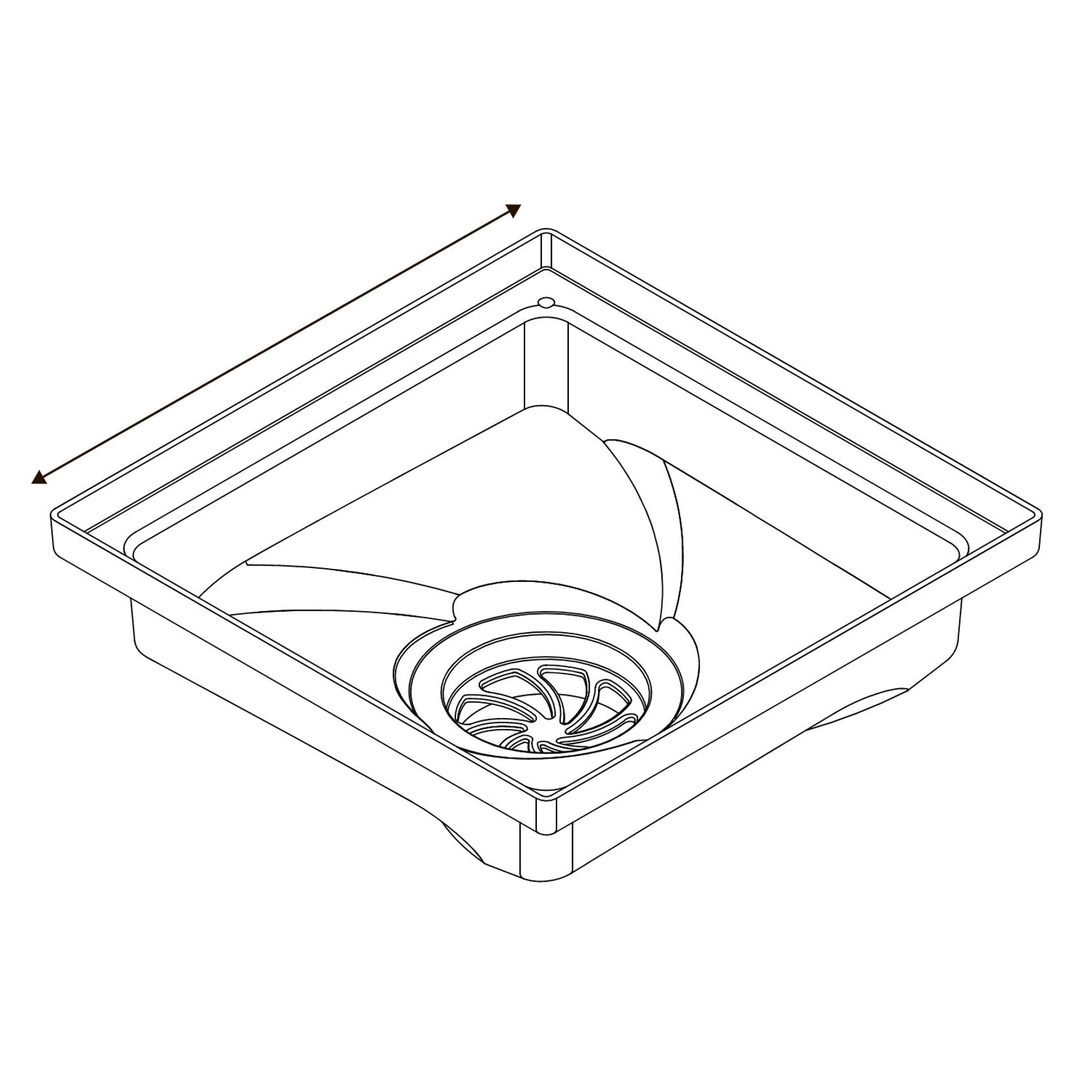

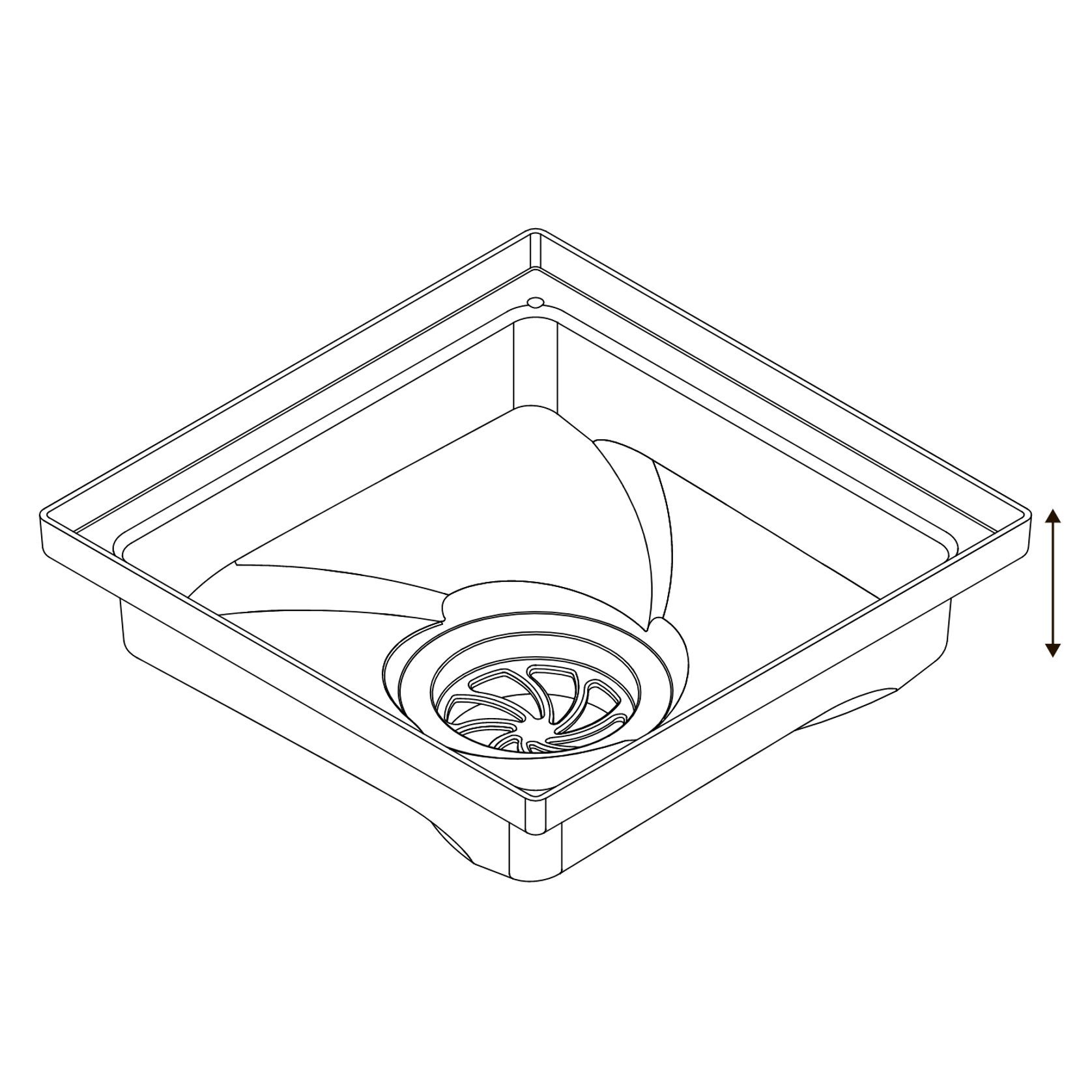

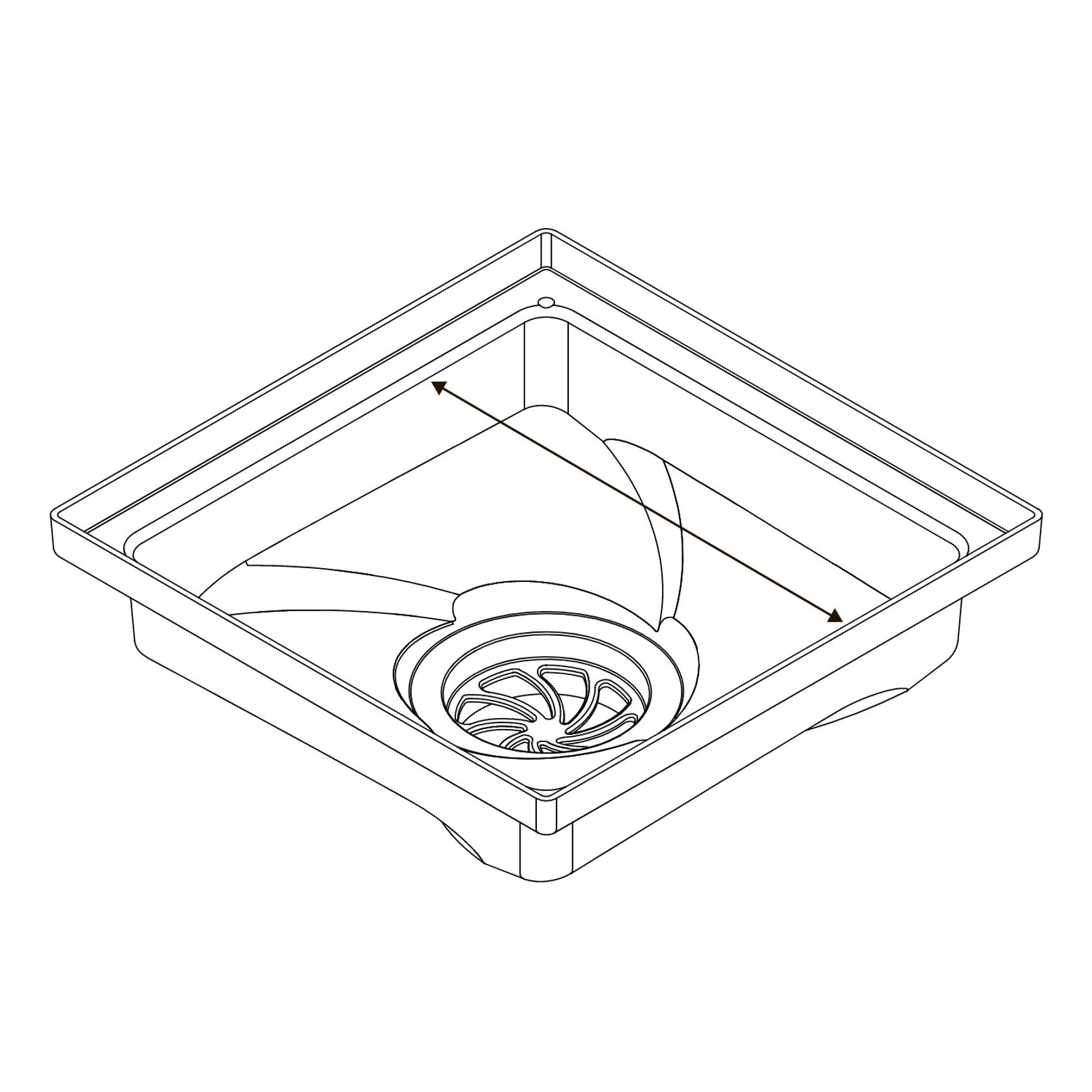

INTERNAL DIMENSIONS
Measurement of the internal perimeter.

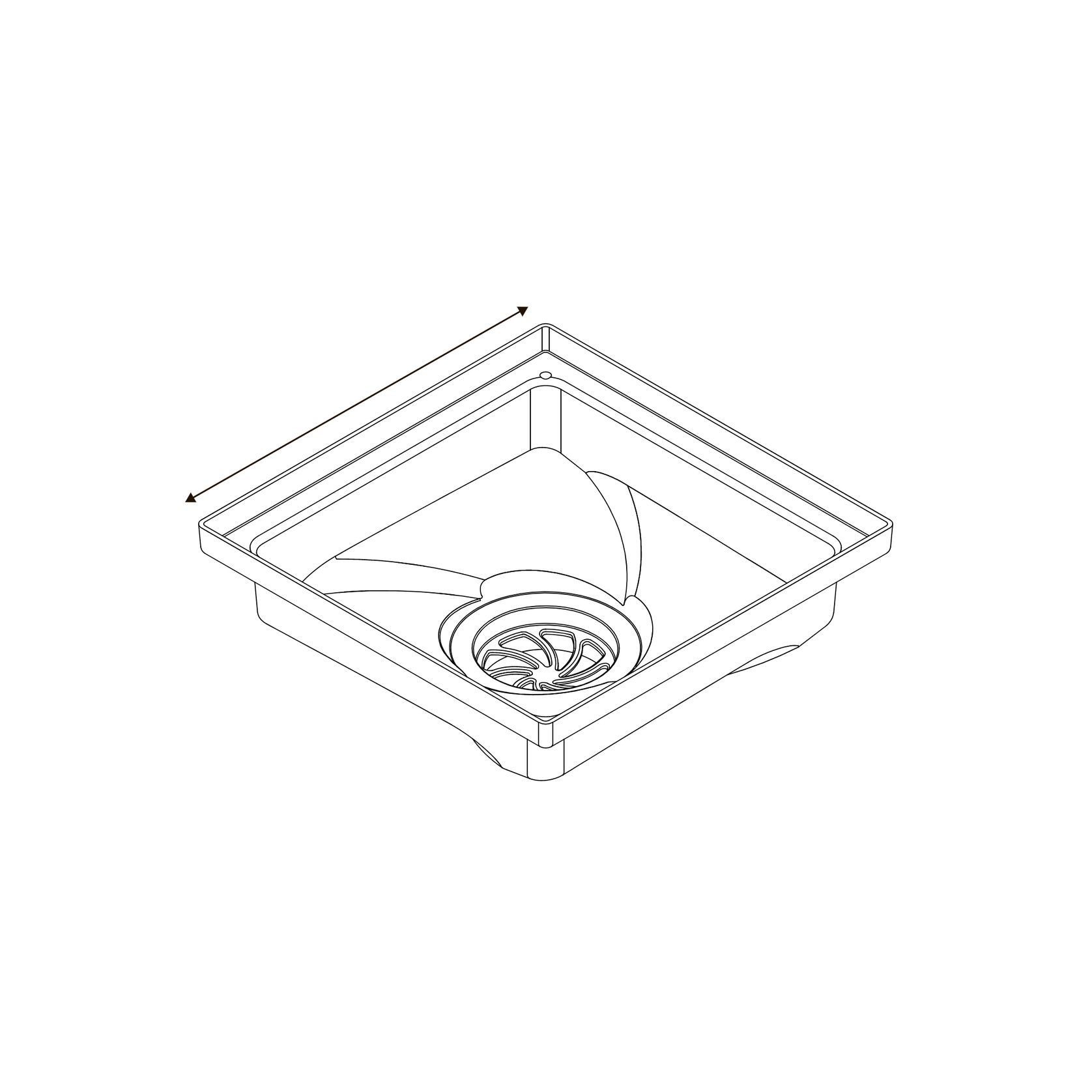

- Length - 291mm

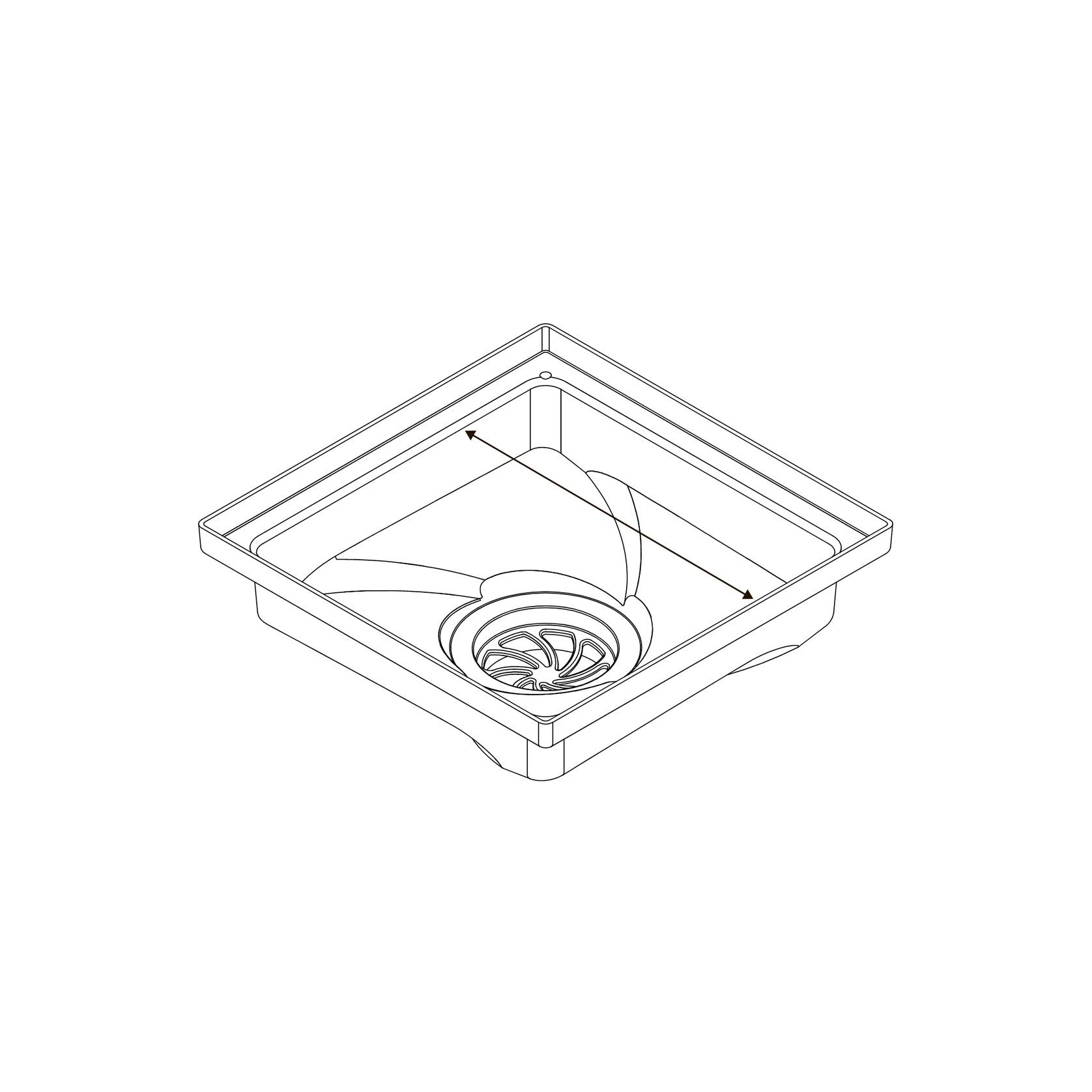

- Width - 291mm

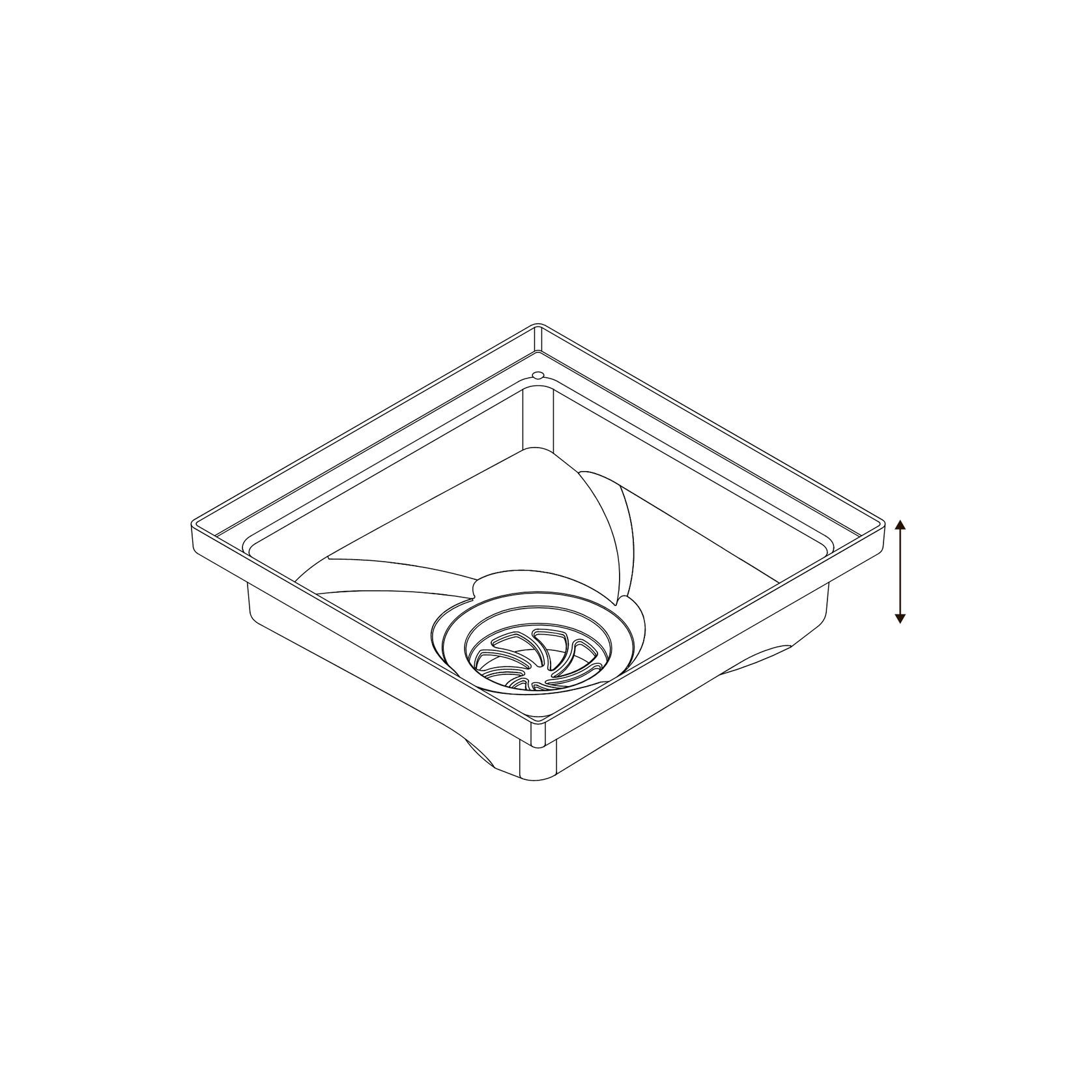

- Depth - 85mm
WEIGHT
0kg
- Durability – Made in Australia from tough, durable, and lightweight UV stabilised recycled plastic
- Easy to install – RELN Uni-Pit Vortex is easy to install with its extensive range of convenient and security grates
- Domestic and commercial surface drainage solution – With a range of sizes and grate options, RELN Uni-Pit Vortex is perfect for domestic and commercial surface drainage.
- Class A Load Rating – Rated to Class A and when correctly installed in concrete, the grate can withstand light vehicle traffic
- Environmentally friendly – Made from 100% UV stabilised recycled plastic
- Anti-tamper feature
- Vortex design – Assists with water flow and eliminates pooling water, which is a common breeding place for mosquitoes
- Built in debris collector – The pit’s vortex design acts as a debris collector, preventing pipe blockage
- No risers required – Simply cut vertical pipe to required connection level
- Plumber-friendly – Easy glue fit to 90mm or 100mm PVC pipe
- Grates are available in AS3996 Class A, B or C Load Ratings – Perfect for domestic or commercial applications
