Veosys Hinges
by Hettich
Waterloo, Australia
- 170.3K profile views
- 26 saves

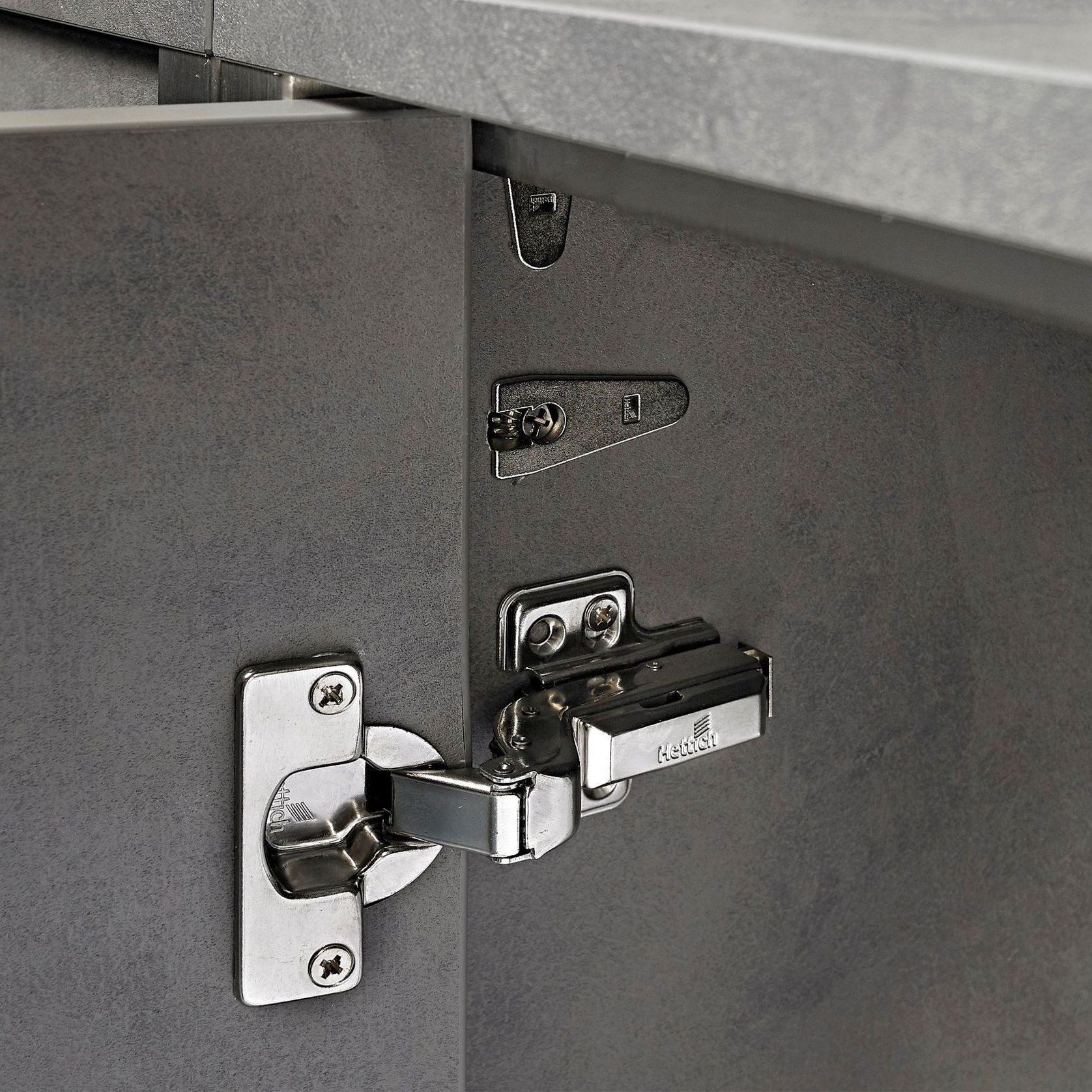

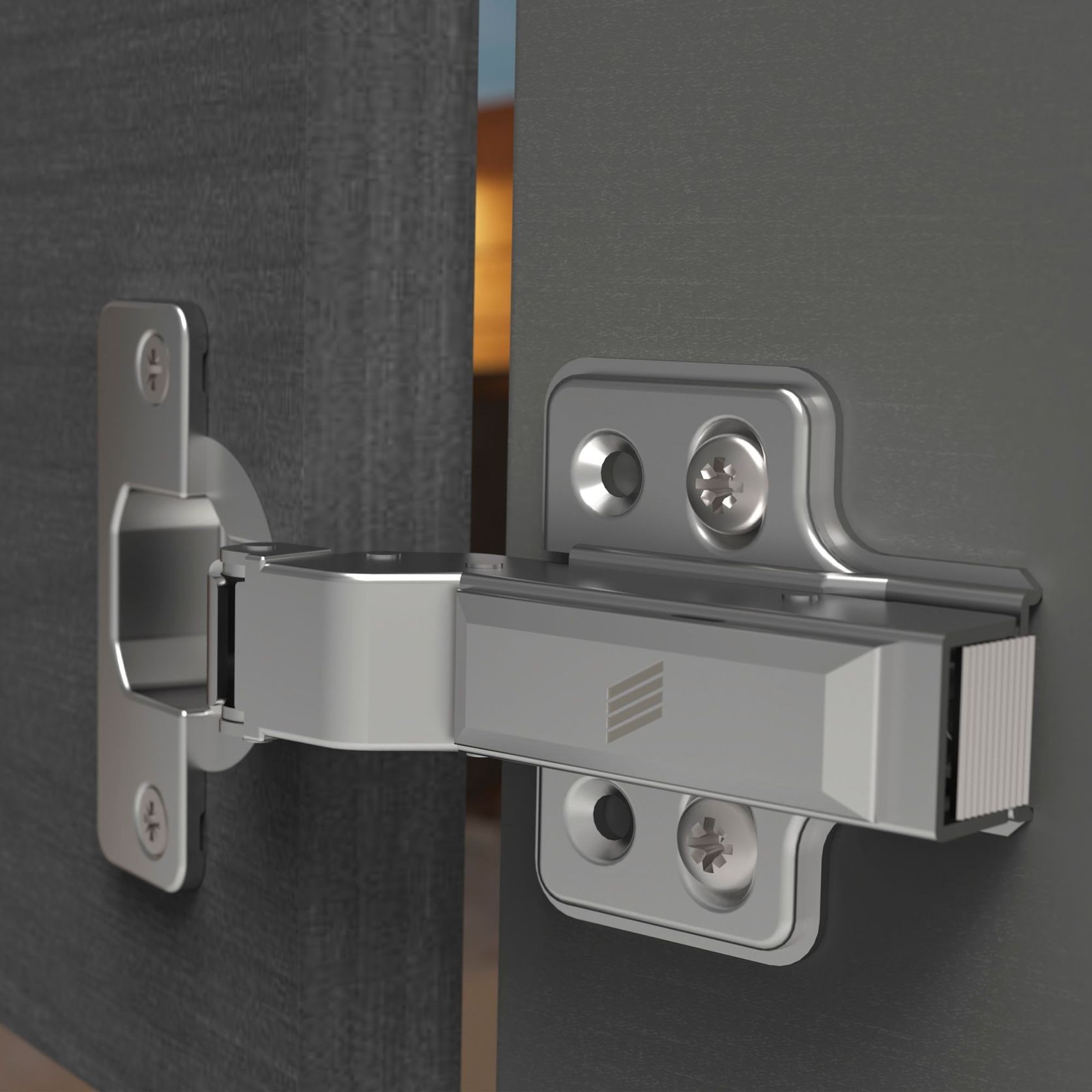

Its stainless steel finish makes the Veosys hinge from Hettich a robust, corrosion-proof all rounder. Not affected by temperature fluctuations and moisture, Veosys is the ideal choice for a broad range of applications.

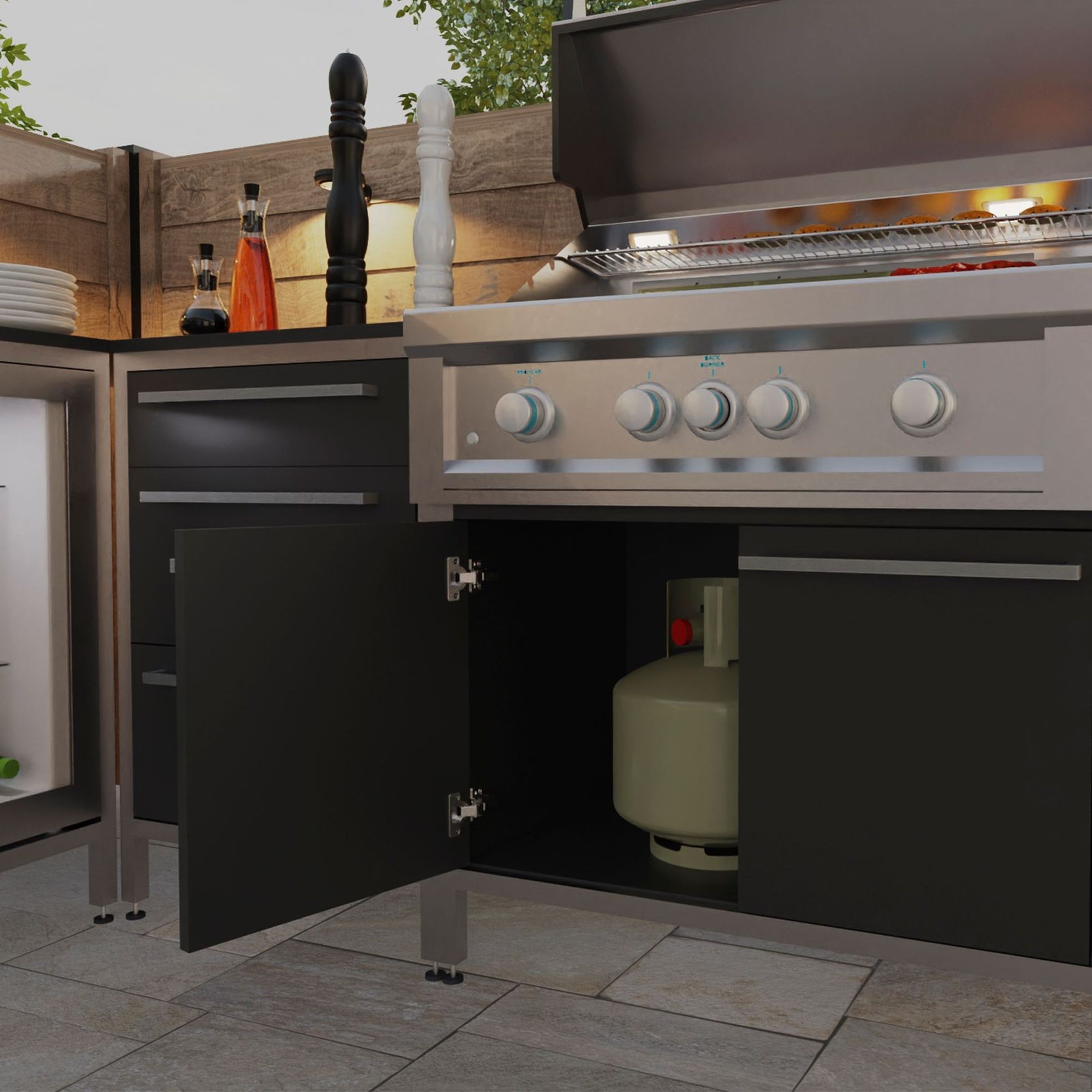

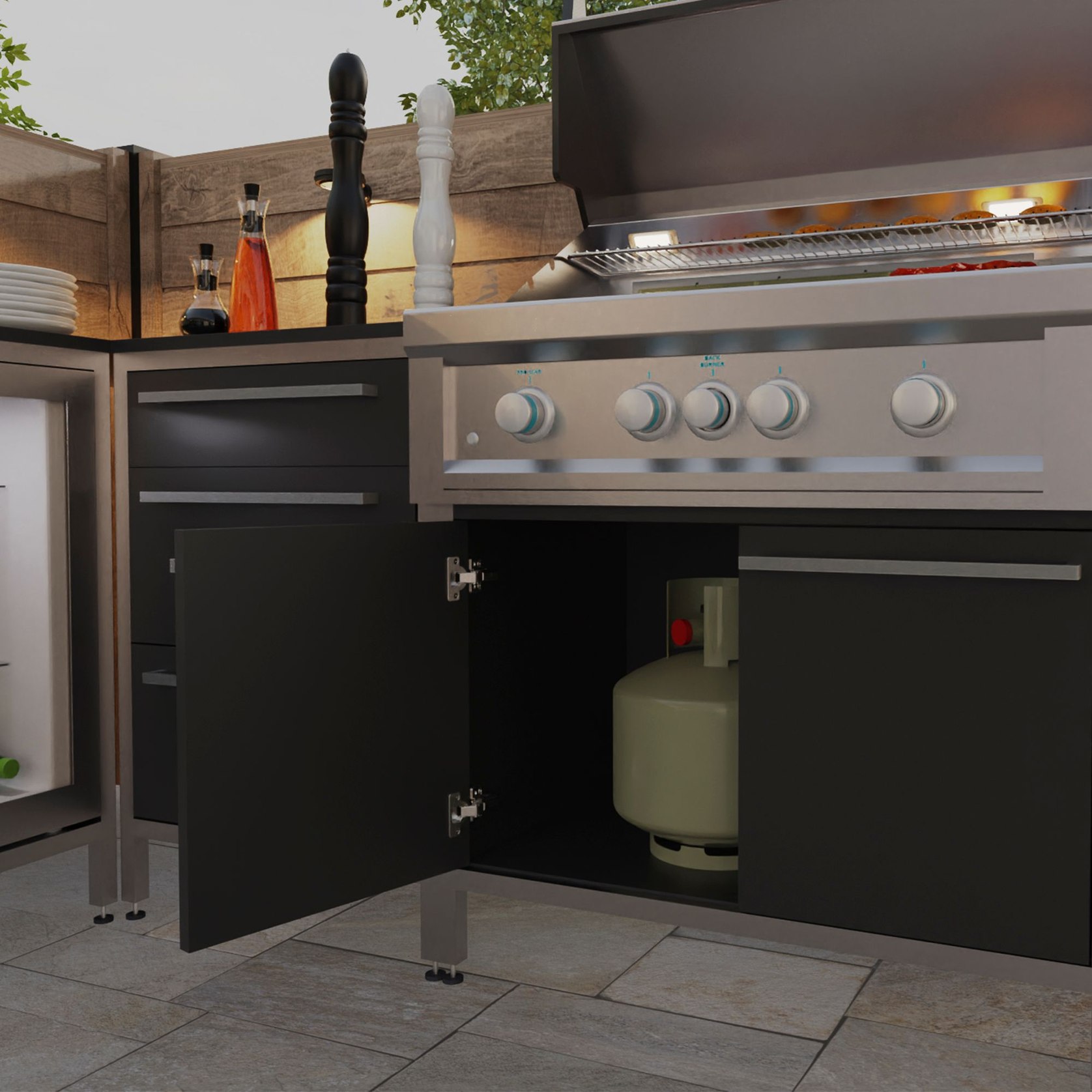

Whether outdoors, in spa centres, gyms or laboratories and hospitals – Veosys comes with tested resistance to corrosion. Hettich's Integrated Silent System never fails either at low or high outdoor temperatures. And with its uniquely wide self closing angle of 35 degrees, Veosys closes doors almost by itself.
Product Details
- Product
- Veosys Hinges
- Category
- Cabinet Hinges
- Sold by
- Hettich
- Range
- Hinges
- Brand
- Hettich
Product Variants
- Material
Hettich is specified by
Stonnington GroupArchitects
J Mammone ArchitectureArchitects
Ande Bunbury ArchitectsArchitects
WexhausArchitects
DX ArchitectsArchitects
Concepts by Gavin HepperInterior Designers
Arli HomesDesign & Build
NOSIVA Custom CabinetryJoiners
ForestOneManufacturers and Suppliers
Millboard DeckingManufacturers and Suppliers
APC BuildBuilders
K.Holland Architectural InteriorsInterior Designers
Matic by DesignInterior Designers
AJB KitchensKitchen Renovations
Hideaway BinsManufacturers and Suppliers
Its stainless steel finish makes the Veosys hinge from Hettich a robust, corrosion-proof all rounder.
Not affected by temperature fluctuations and moisture, Veosys is the ideal choice for a broad range of applications.
Whether outdoors, in spa centres, gyms or laboratories and hospitals – Veosys comes with tested resistance to corrosion. Hettich's Integrated Silent System never fails either at low or high outdoor temperatures. And with its uniquely wide self closing angle of 35 degrees, Veosys closes doors almost by itself.
- Specs

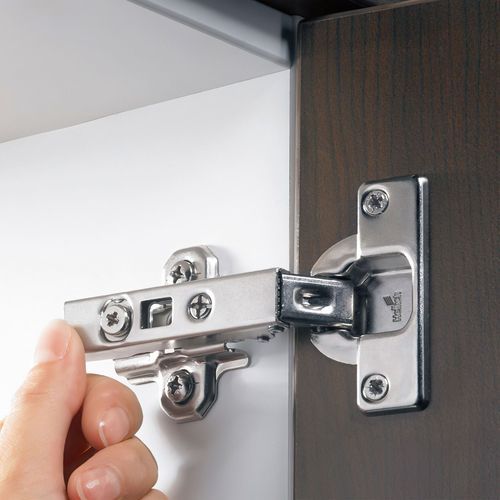

- Concealed hinge with clip on installation and integrated
- Silent System
- Quality classification under EN 15570, Level 2
- Corrosion proof, 120h NSS (neutral salt spray test) to DIN EN ISO 9227
- For door thickness of 14 - 22 mm
- Cup diameter 35 mm
- Cup depth 11.5 mm Integrated overlay adjustment +/- 2 mm Integrated depth adjustment + 2.5 mm / - 1.5 mm
- Height adjustment at mounting plate stainless steel
