J160 Wide-Angle Heavy-Duty Concealed Cabinet Hinge

The J160 is a premium wide-angle concealed cabinet hinge designed for large cabinetry, wardrobe doors and architectural joinery where strength, unrestricted access and controlled closing are essential.

Specs

• Opening angle: 160°
• Door weight: Up to 25kg with 2 hinges / 40kg with 3 hinges
• Maximum door width: 800mm with 2 hinges / 900mm with 3 hinges
• Maximum door height: 2400mm
• Door thickness: 18–36mm
• Overlay: 21–25mm
• Installation: Full overlay
• Adjustment: 3-way
• Depth adjustment: +1.5 / -2.5mm
• Vertical adjustment: ±3mm
• Horizontal overlay adjustment: +0 / -4mm
• Soft close: Integrated damper
• Installation: One-touch mounting

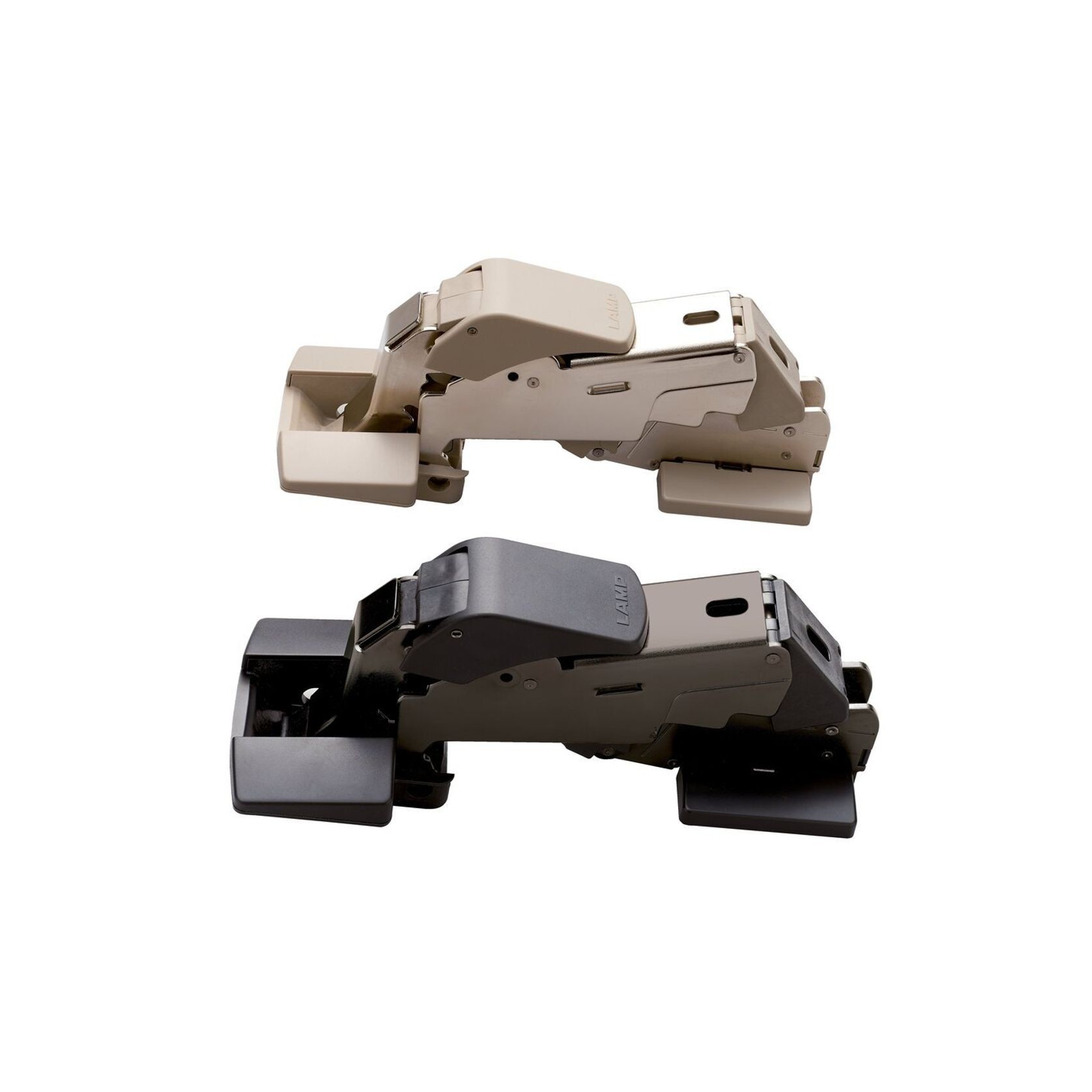

• Finish: Nickel / Black Nickel
• Cycle testing: 50,000 opening and closing cycles

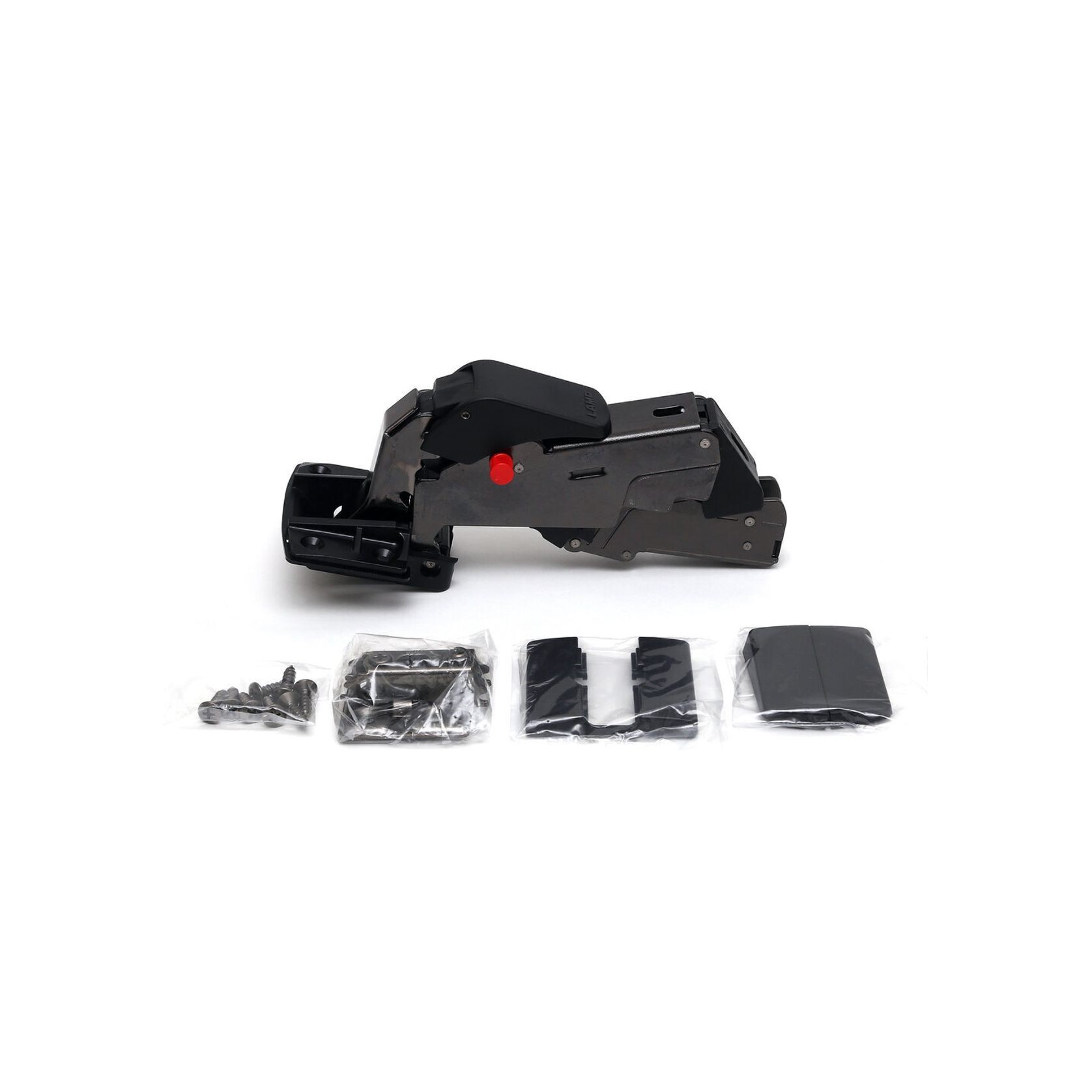

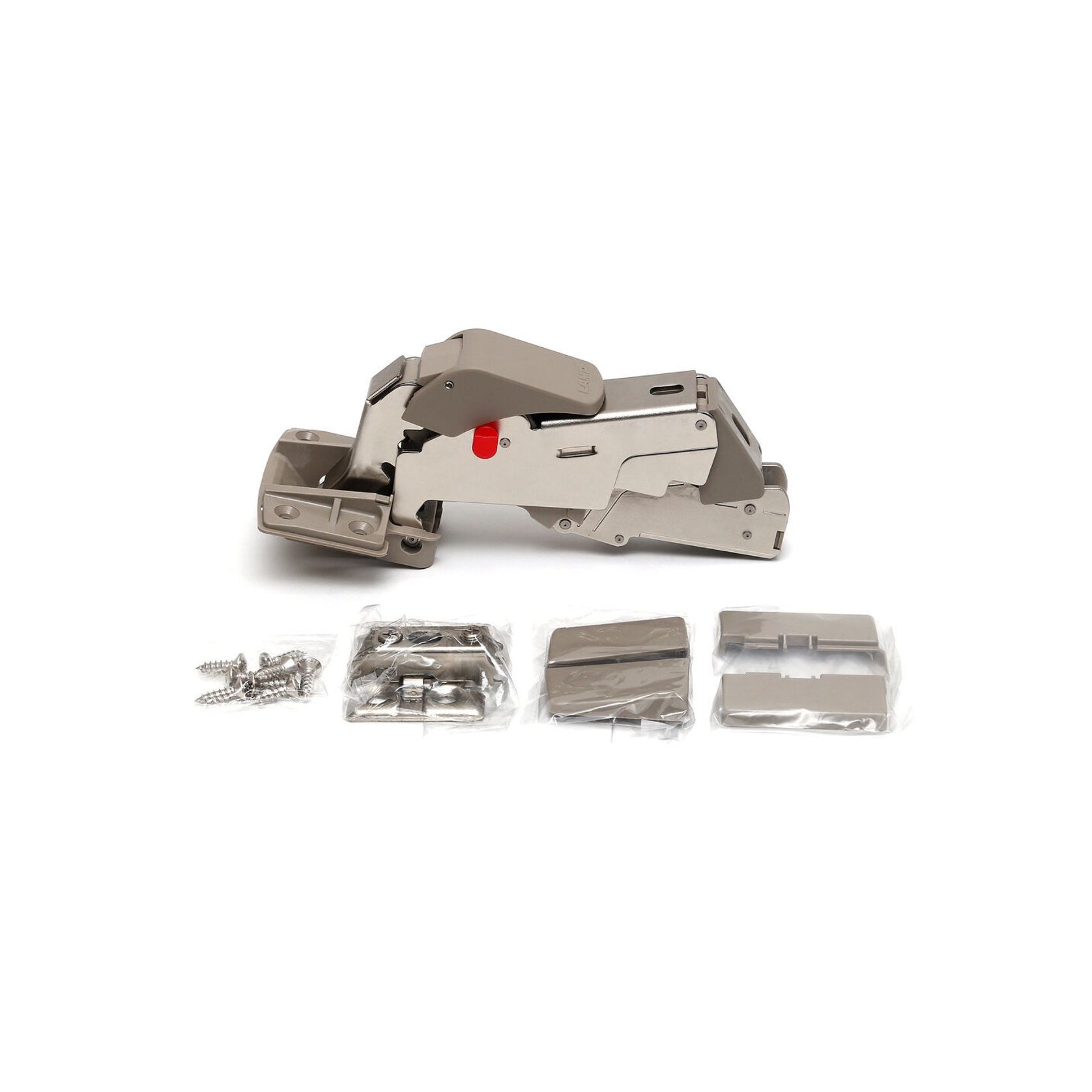

• Mounting plate: Included
• Screw covers: Included
• Application: Large cabinetry, wardrobe doors and architectural joinery

Features

• 160° Wide-Angle Opening – Allows large doors to open further and stay clear of the cabinet opening for improved access.
• Heavy-Duty Load Capacity – Supports up to 25kg with two hinges or 40kg with three hinges.
• Integrated Soft Close – Built-in damping provides smooth, controlled and quiet door closing without a separate damper.
• Three-Way Adjustment – Allows precise adjustment of door depth, height and overlay position.
• Concealed Installation – Keeps the hinge mechanism hidden for a clean architectural finish.
• One-Touch Mounting – Simplifies installation and allows the hinge to be fitted and removed efficiently.
• 18–36mm Door Compatibility – Suitable for a broad range of larger cabinet and joinery doors.
• 21–25mm Overlay Adjustment – Provides flexibility for full-overlay cabinetry.
• Nickel & Black Finishes – Available in finishes suited to contemporary and premium interior applications.
• Long-Term Performance – Successfully tested to 50,000 opening and closing cycles.
• Finished Appearance – Supplied with mounting plate and screw covers.

Scope of use

The J160 is designed for large cabinetry and architectural joinery applications where wide-angle opening, high load capacity and controlled soft-close operation are required.

Ideal for:

• Large wardrobe and walk-in wardrobe doors
• Full-height cabinetry
• Architectural cabinetry
• Feature and statement cabinetry
• Concealed storage
• Home office and study cabinetry
• Media and entertainment cabinetry
• Large cupboard and utility doors
• Premium residential interiors
• Hospitality and commercial joinery

The 160° opening is particularly valuable where unrestricted access to the cabinet interior is important, allowing large doors to move further out of the opening and stay clear of the user.

With a capacity of up to 40kg using three hinges, the J160 provides a robust solution for larger doors where conventional concealed cabinet hinges may be unsuitable.

Configurations & Options

The J160 is available as a complete heavy-duty concealed hinge solution, with options to suit different cabinetry and interior design requirements.

Full Overlay
Designed for full-overlay applications with an adjustable overlay range of 21–25mm.

Door Thickness
Suitable for doors from 18–36mm thick, making the J160 suitable for substantial wardrobe, cabinetry and architectural joinery doors.

Integrated Soft Close
The J160 incorporates the damper directly into the hinge, providing controlled soft-close operation without the need for a separate external damper.

Heavy-Duty Capacity
Supports doors up to 25kg with two hinges or 40kg with three hinges, providing a high-capacity concealed solution for larger doors.

Finishes
Available in nickel and black finishes to complement a wide range of cabinetry, joinery and interior finishes.

Mounting & Finishing Components
The J160 is supplied with its mounting plate and screw covers, helping create a clean and refined finished appearance.

Wide-Angle Access
The 160° opening is a defining feature of the J160, providing greater access to the cabinet interior and allowing large doors to move further out of the opening.

One-Touch Installation
The hinge uses a one-touch mounting system to simplify installation and removal, reducing installation time and making the system easier to work with on larger doors.
