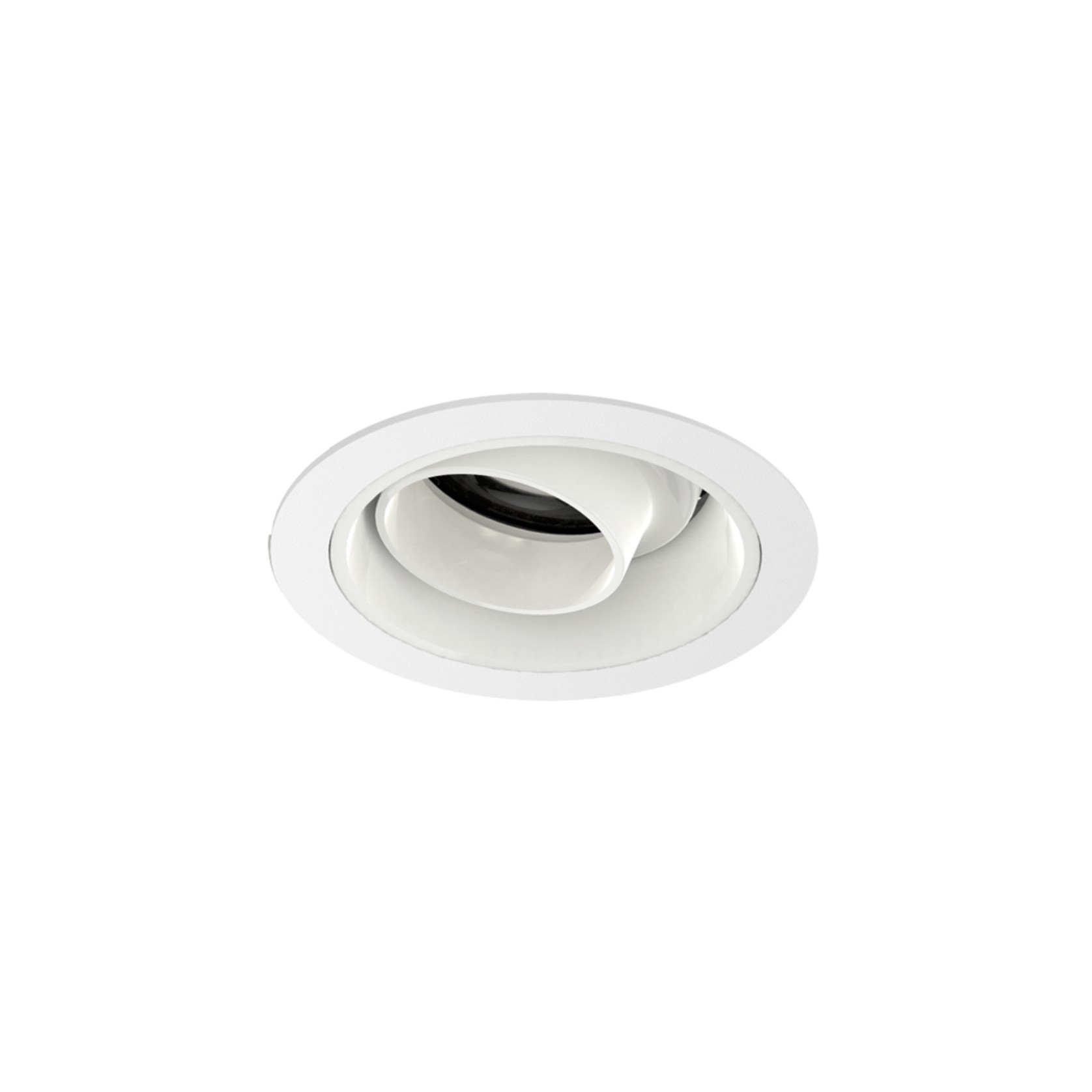

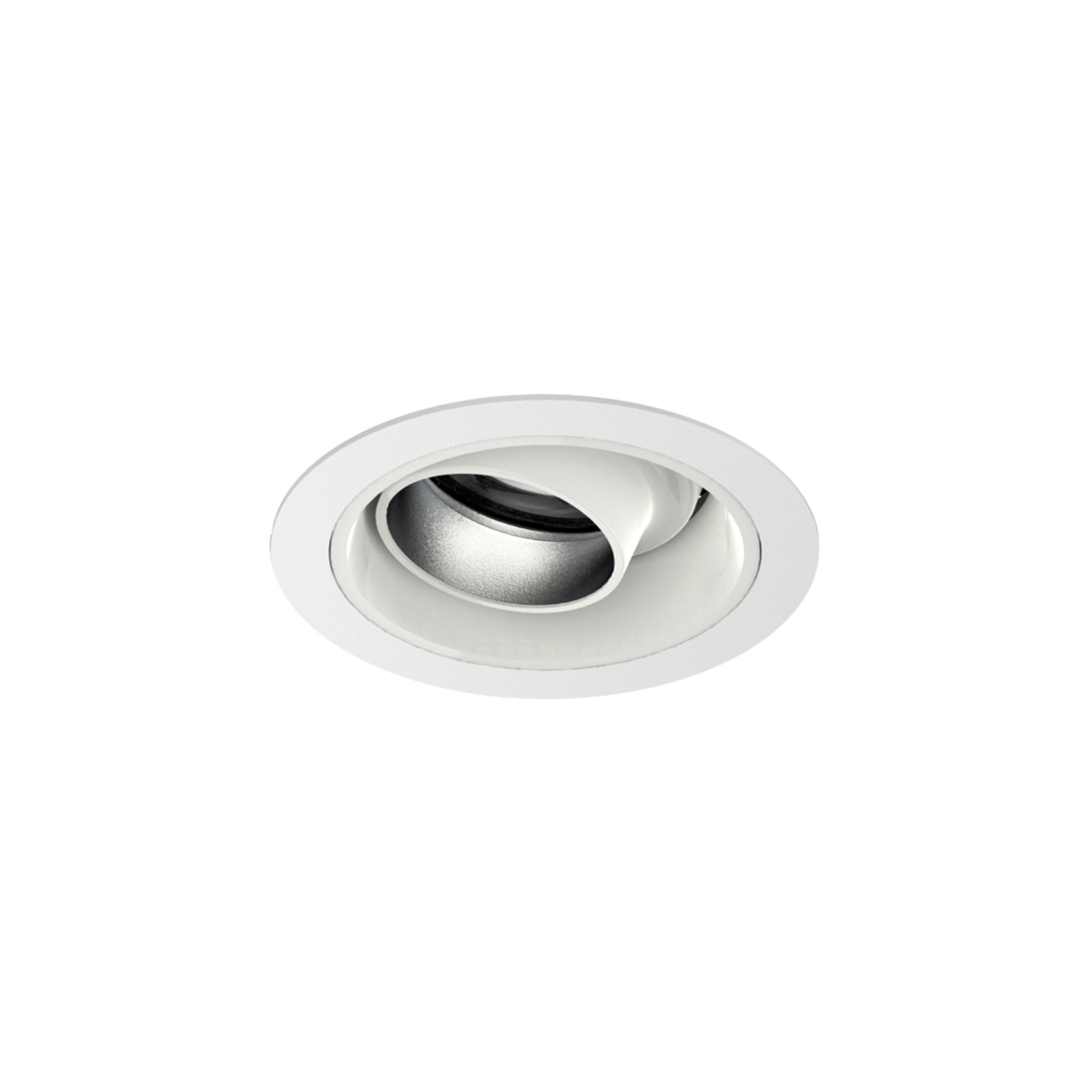

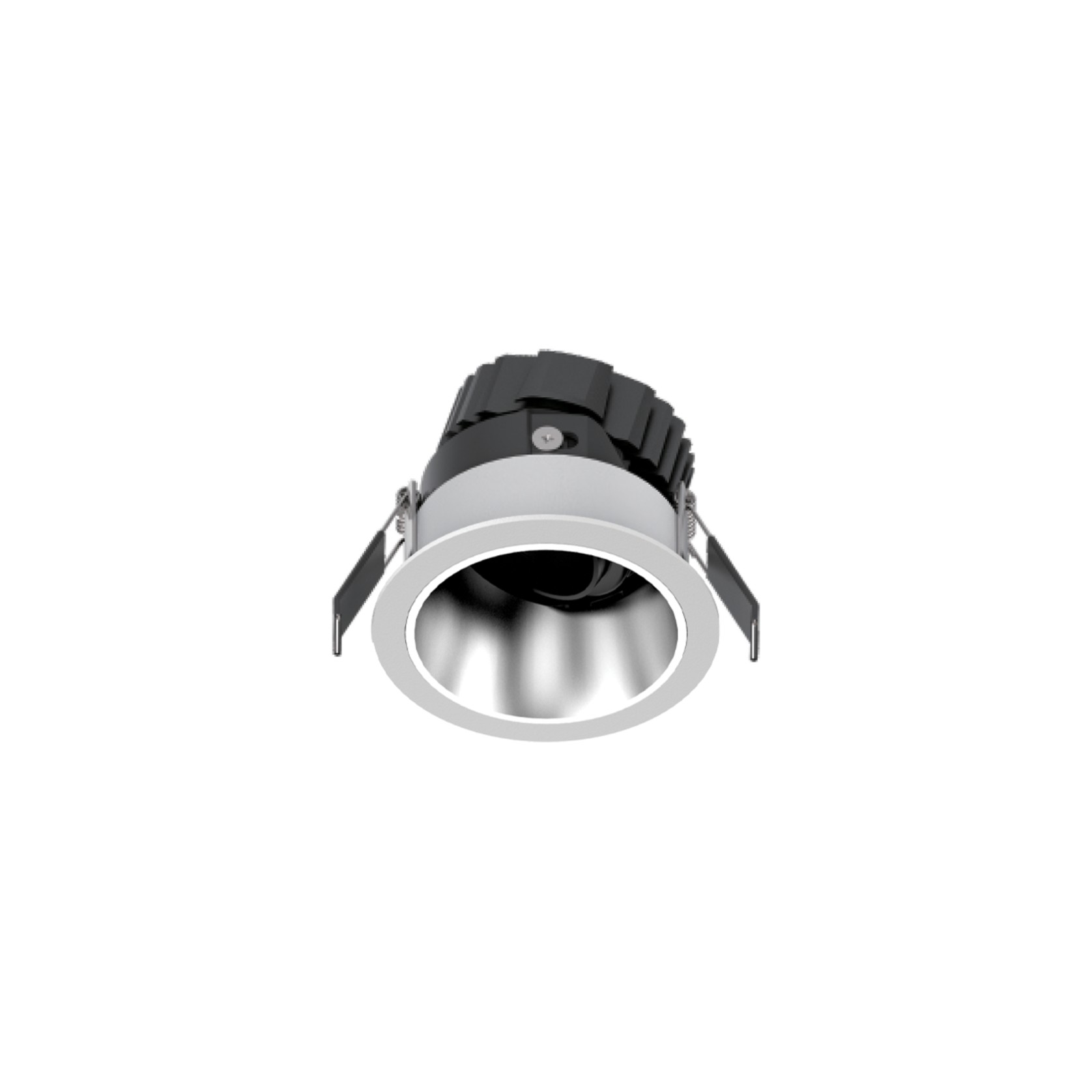

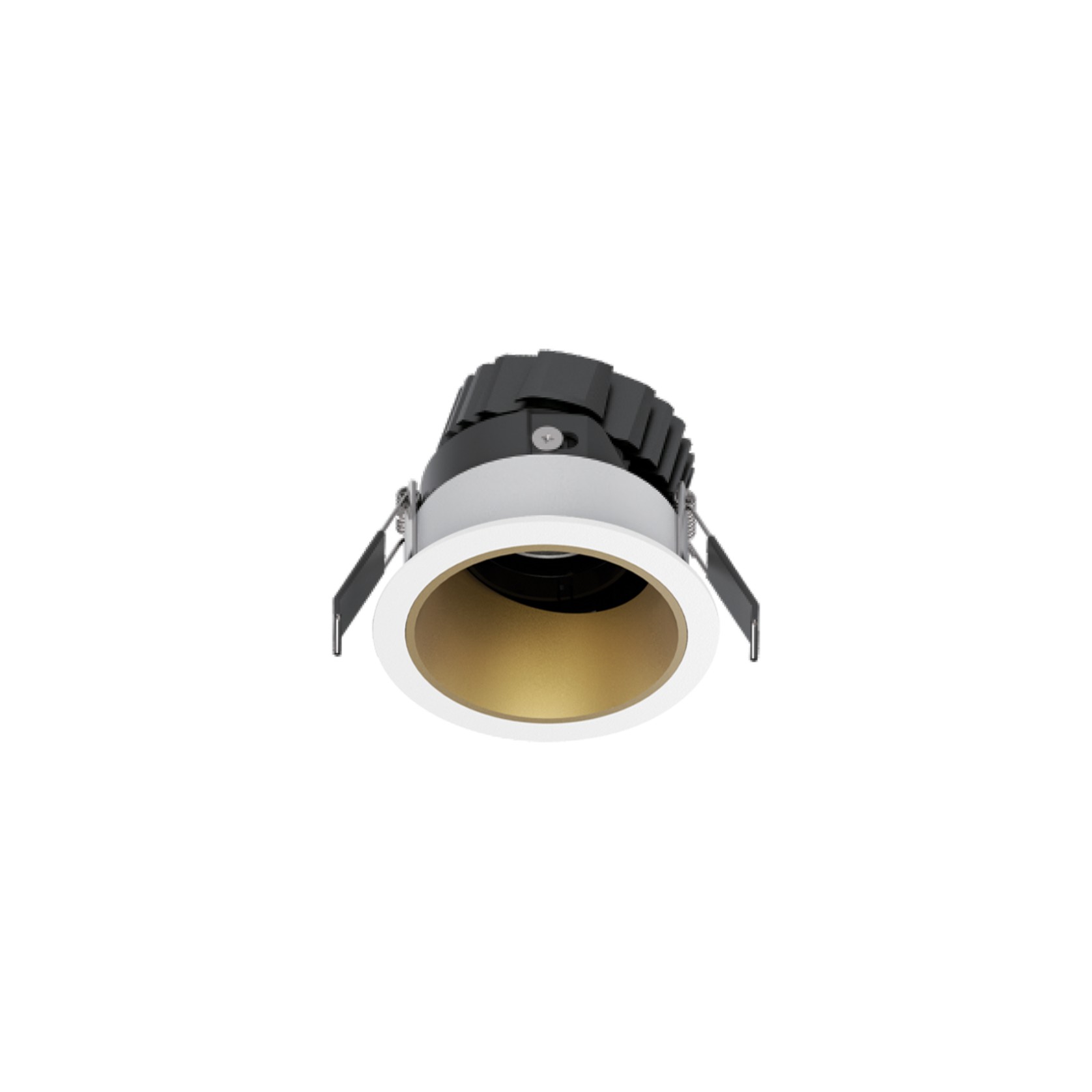

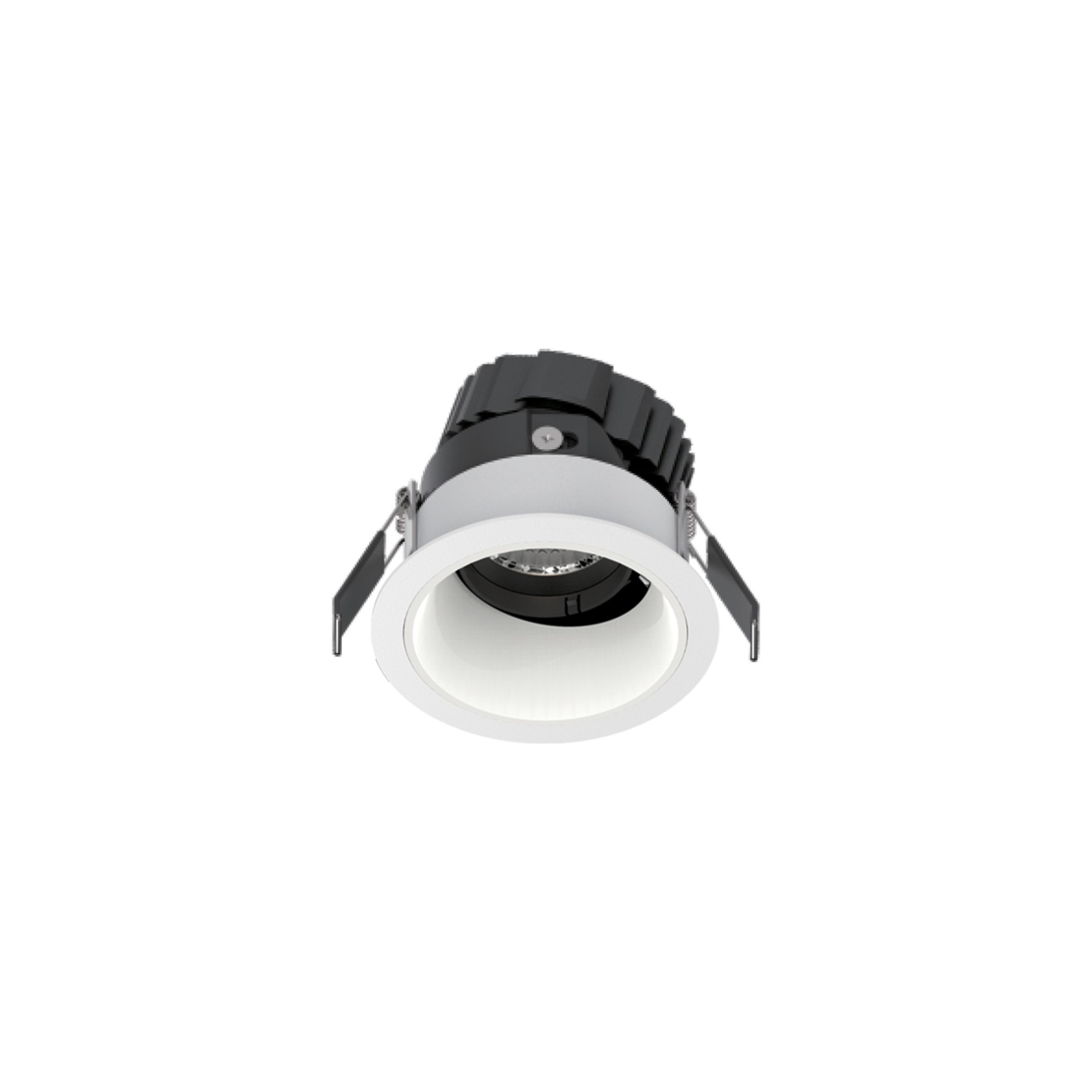

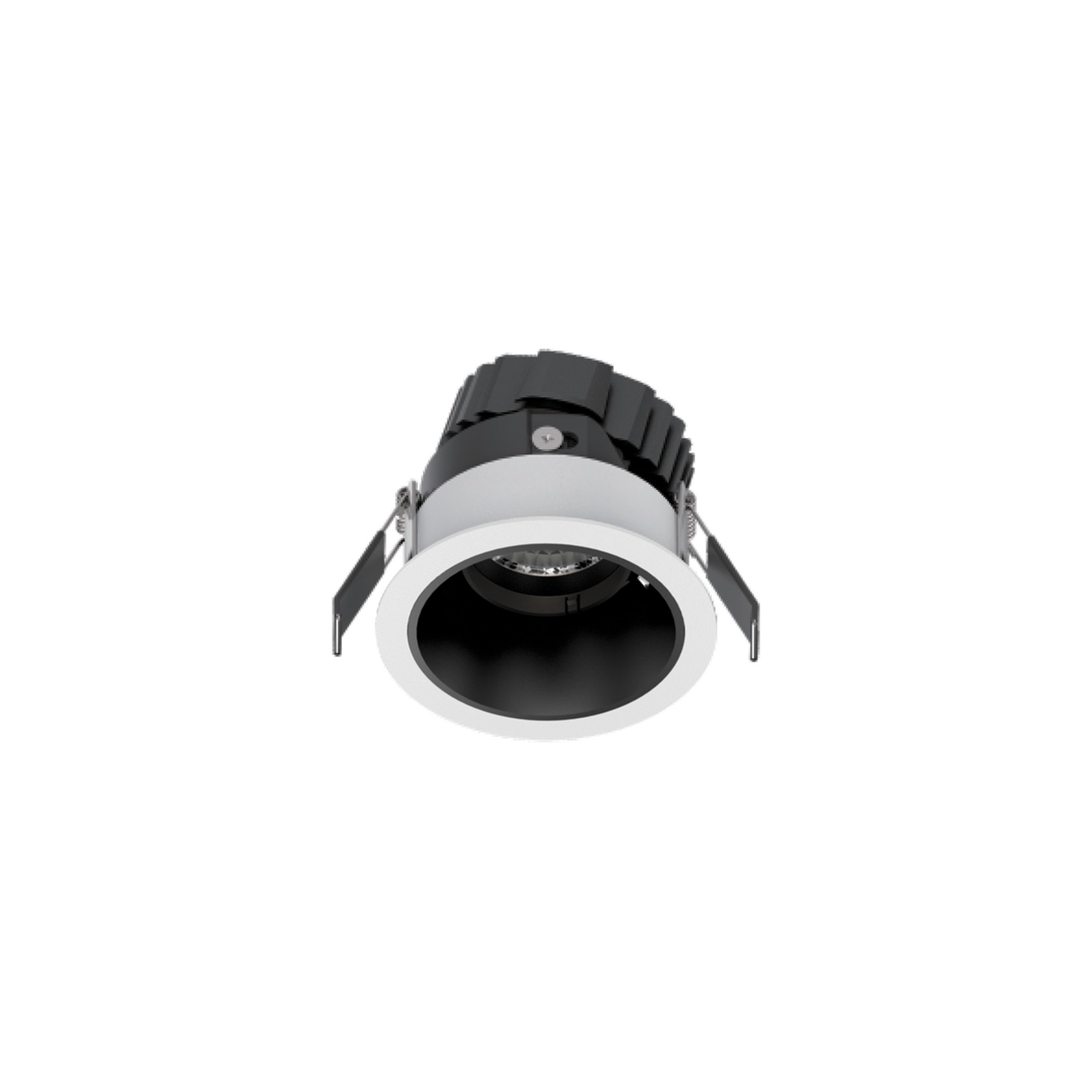

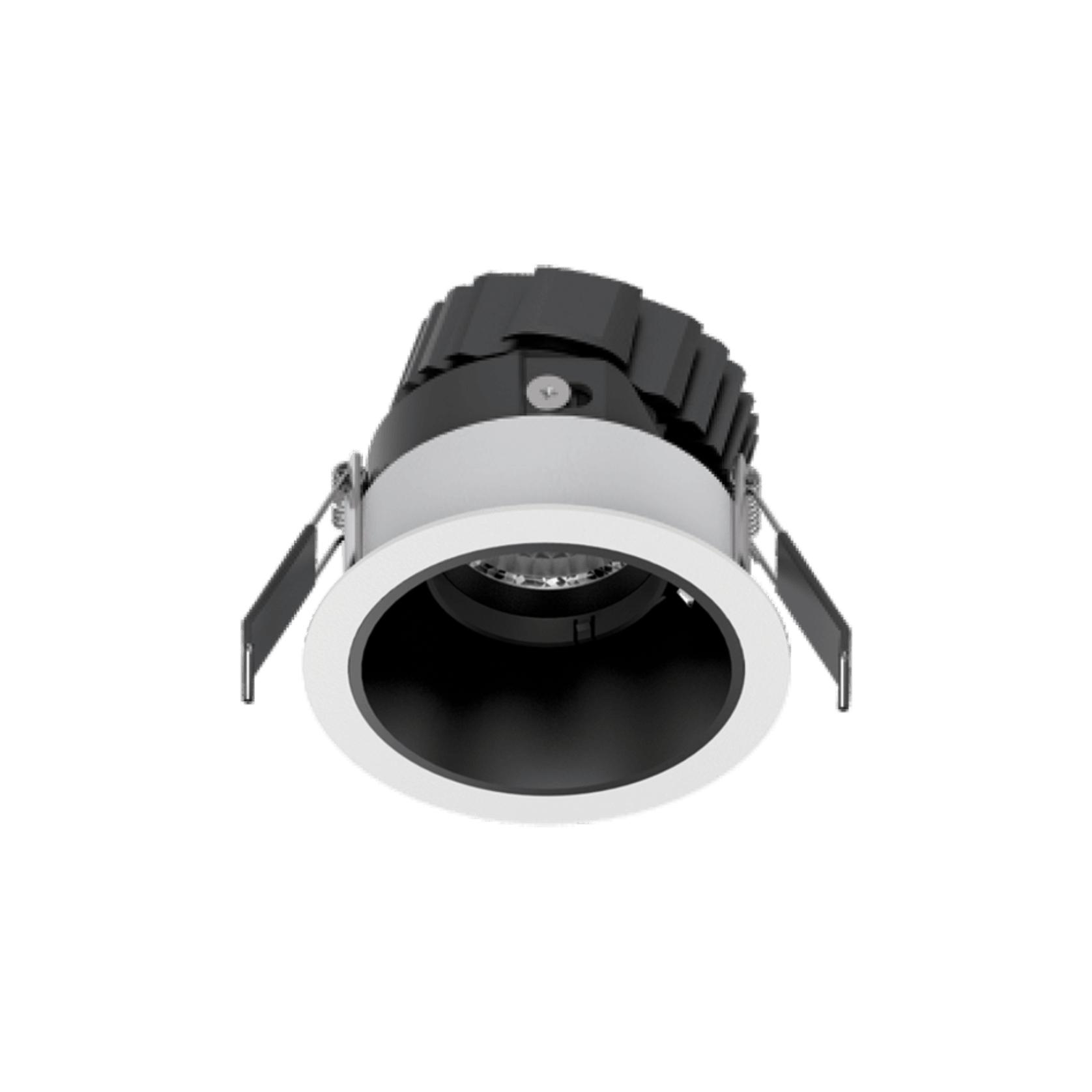

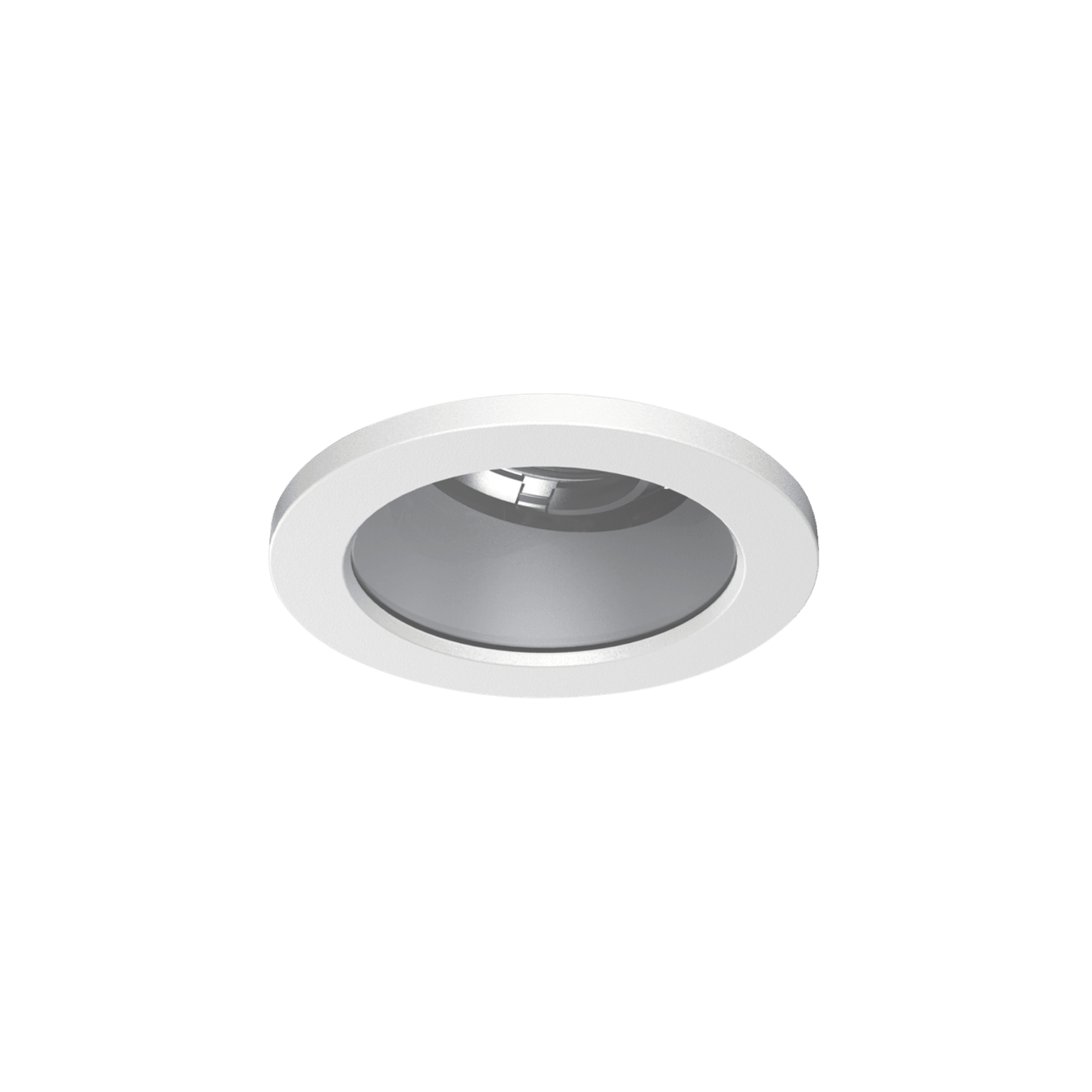

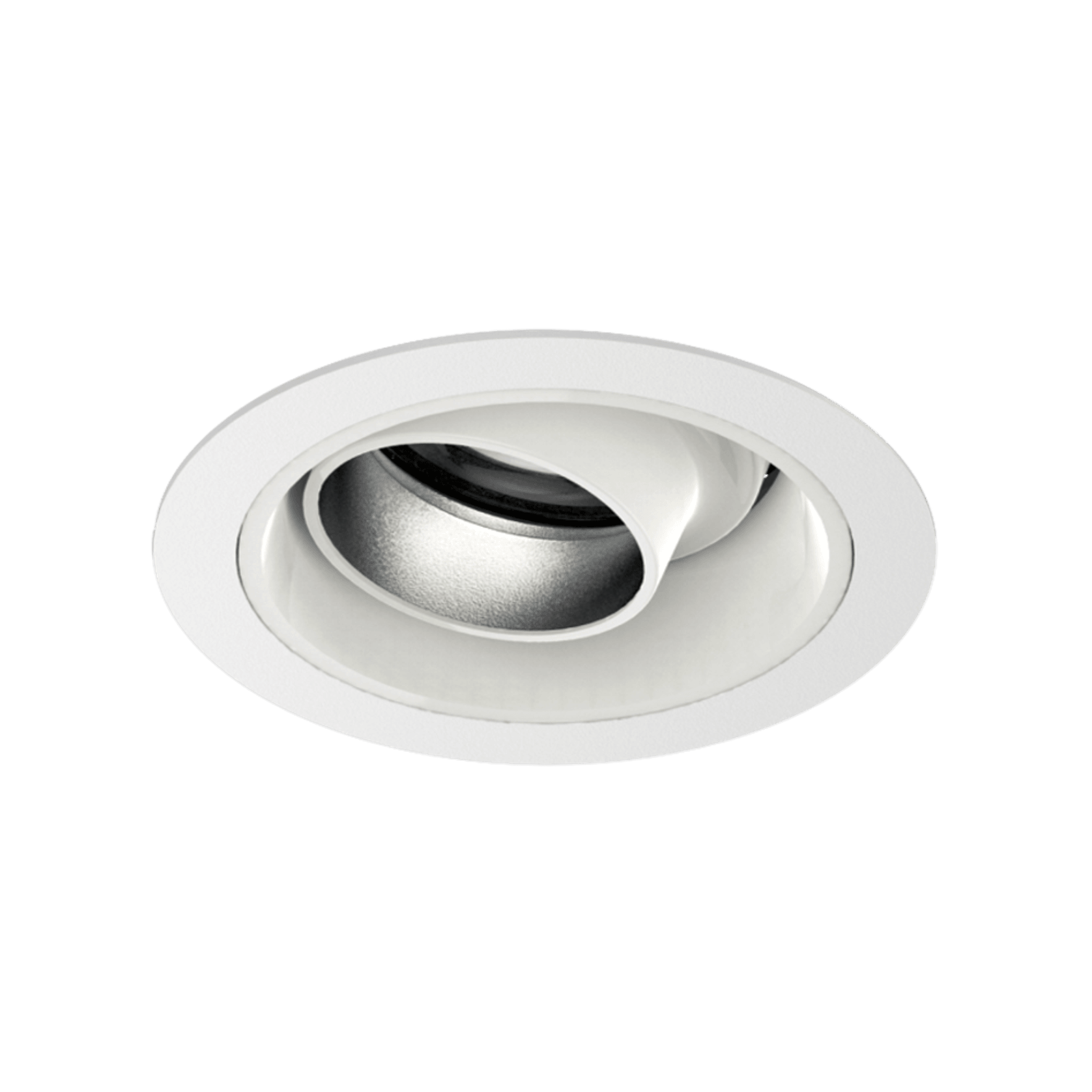

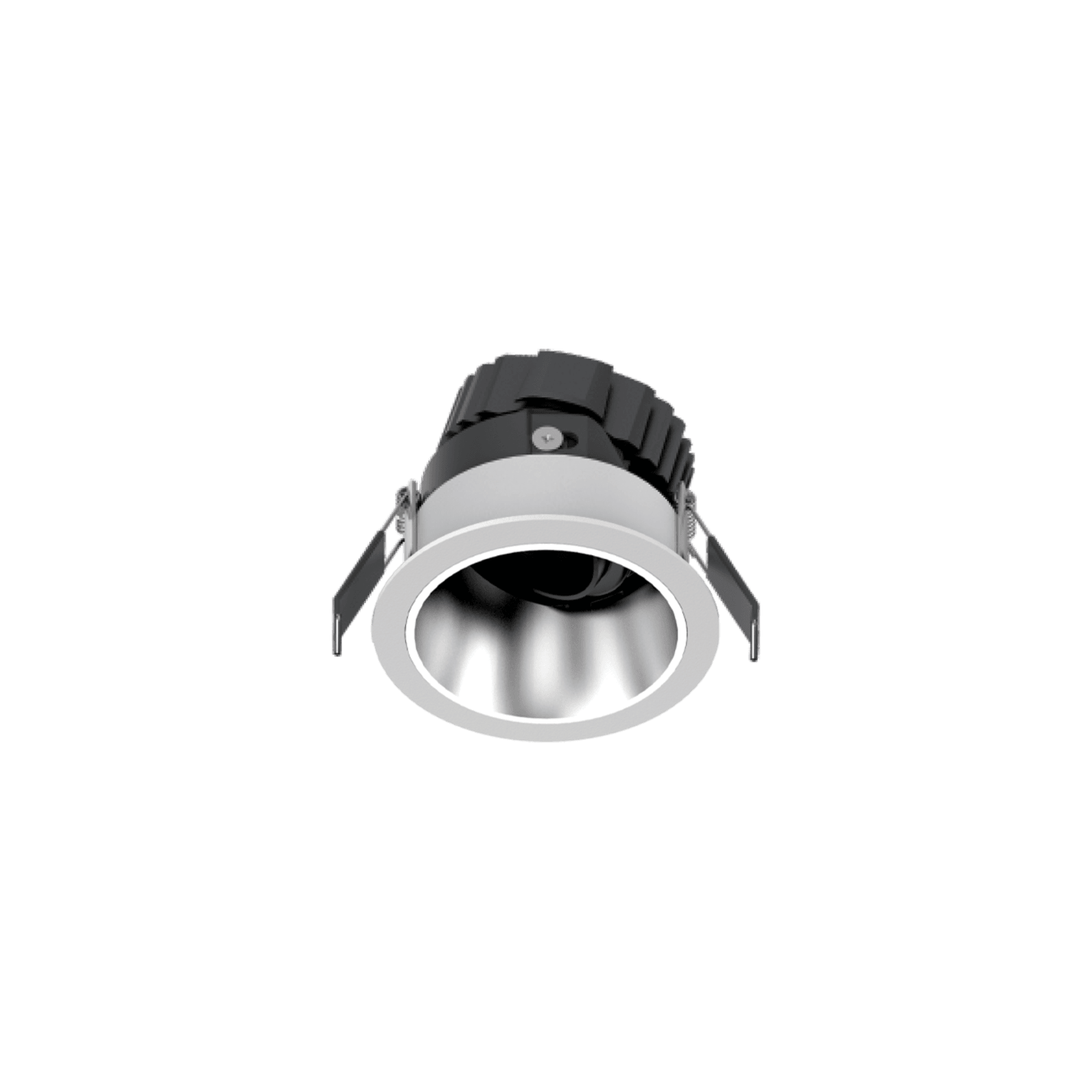

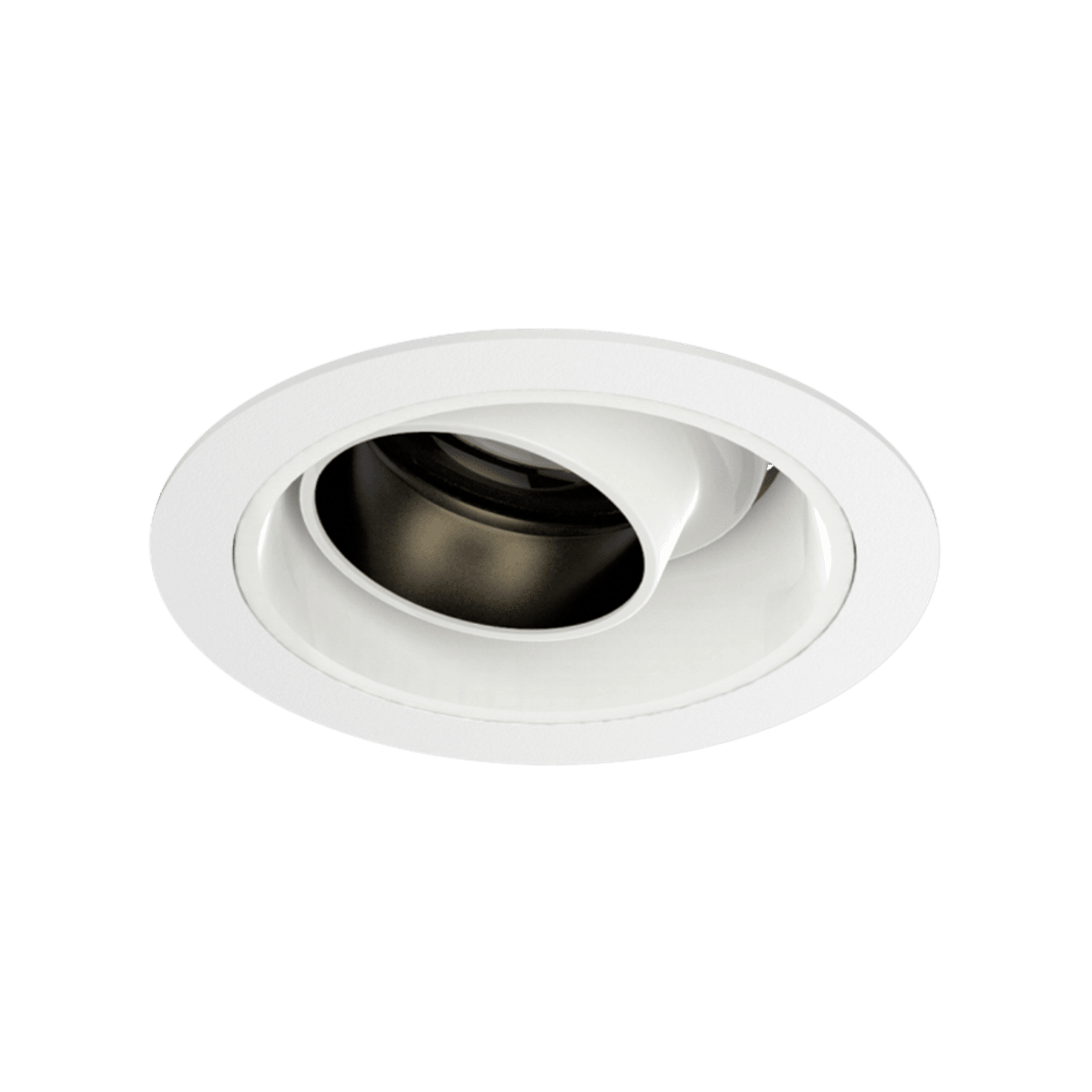

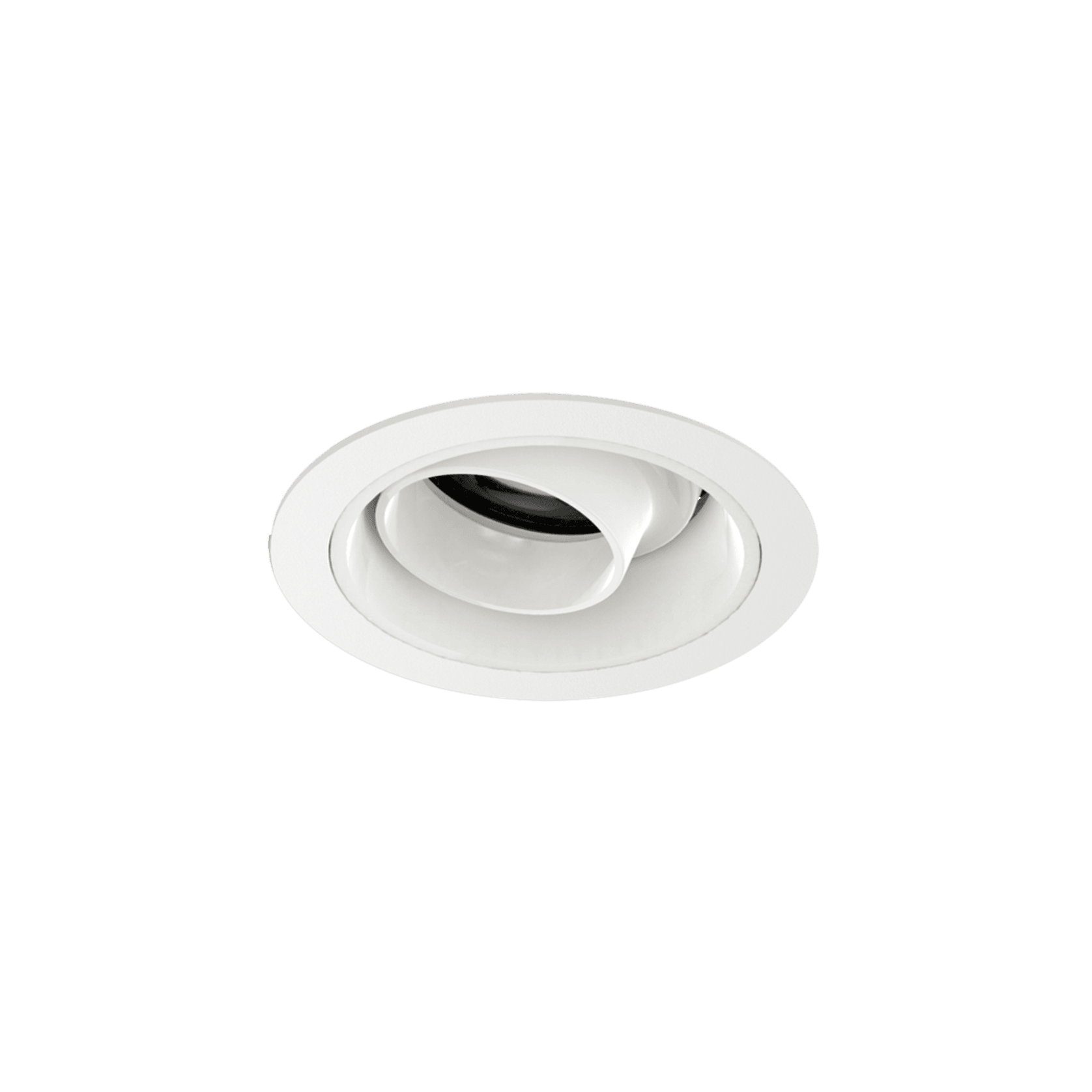

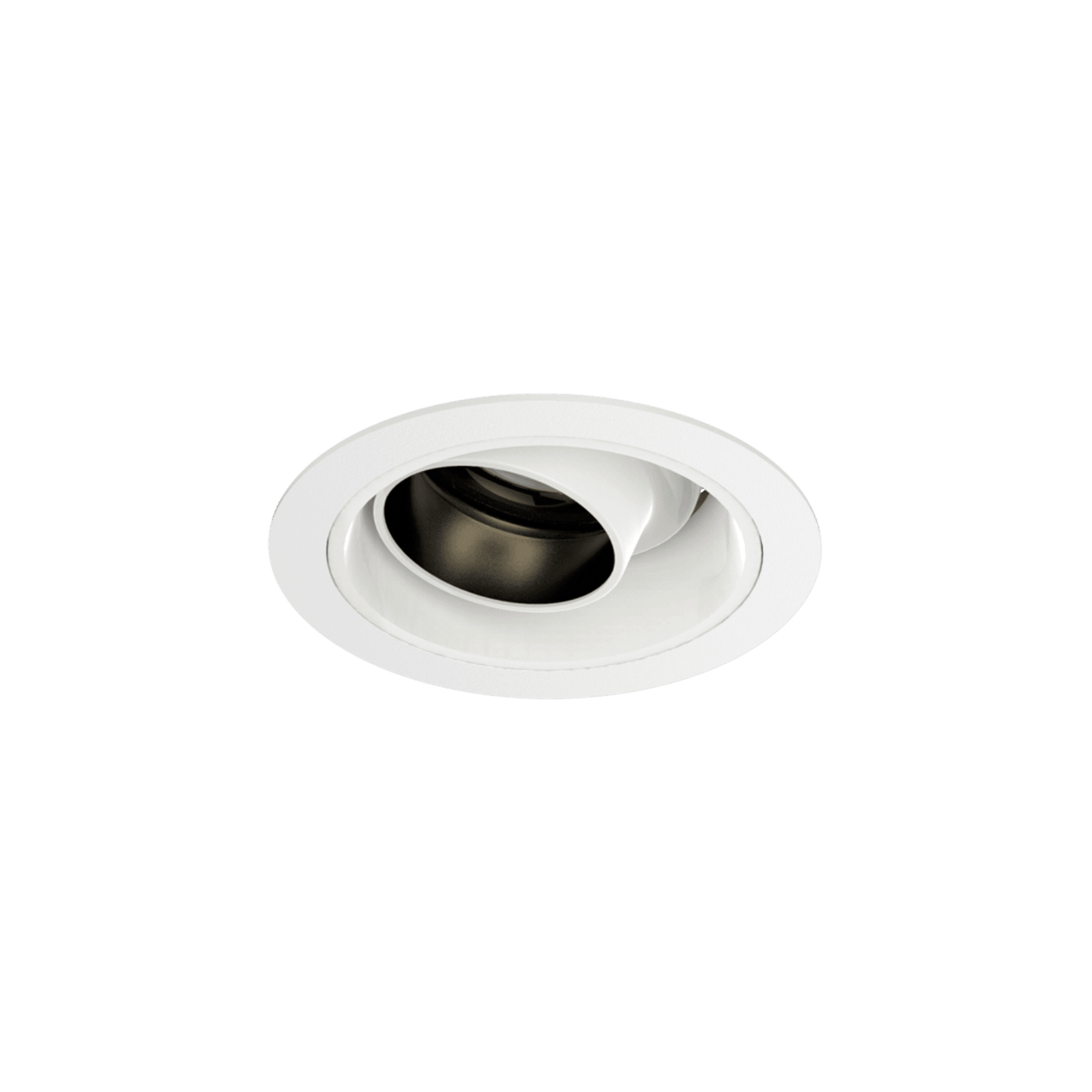

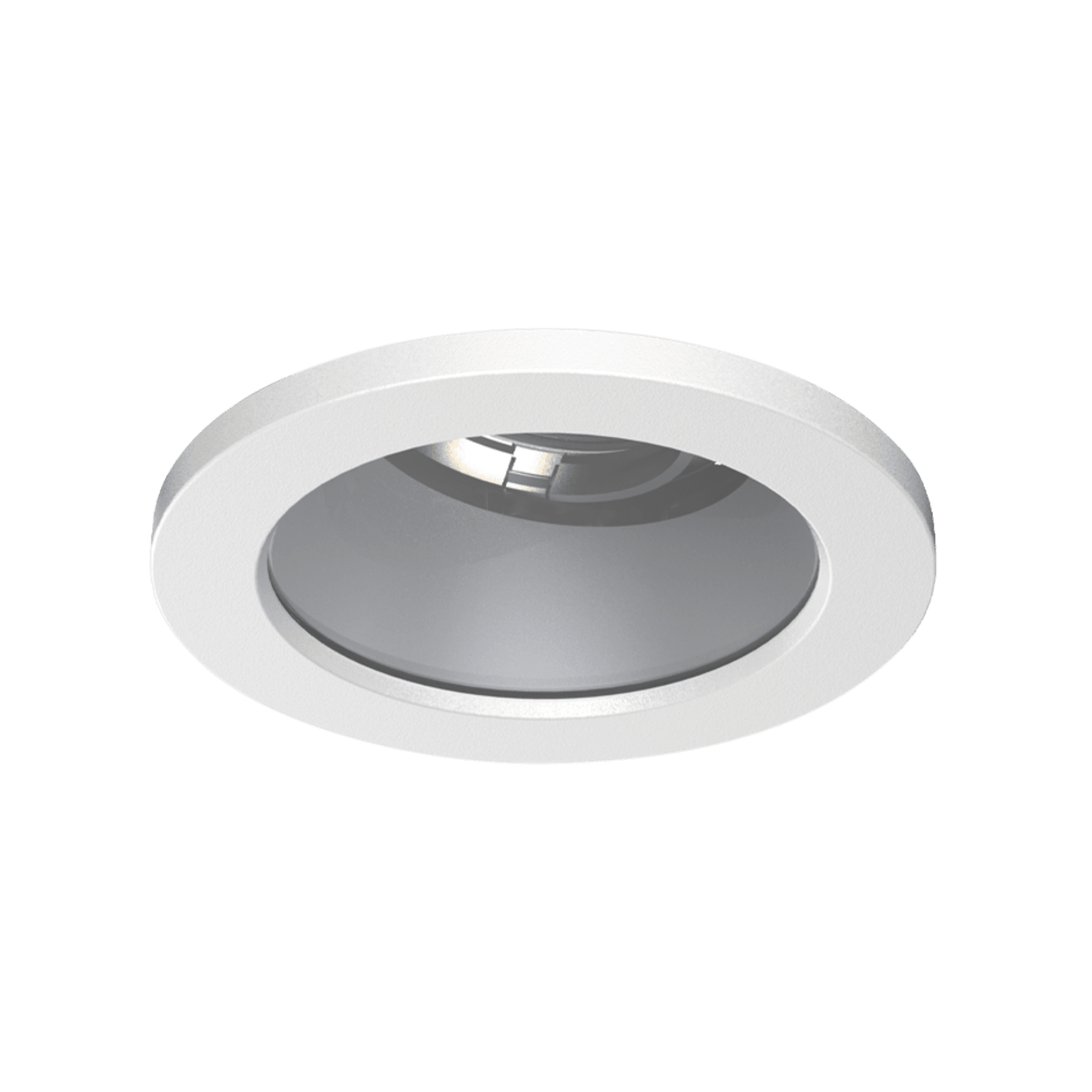

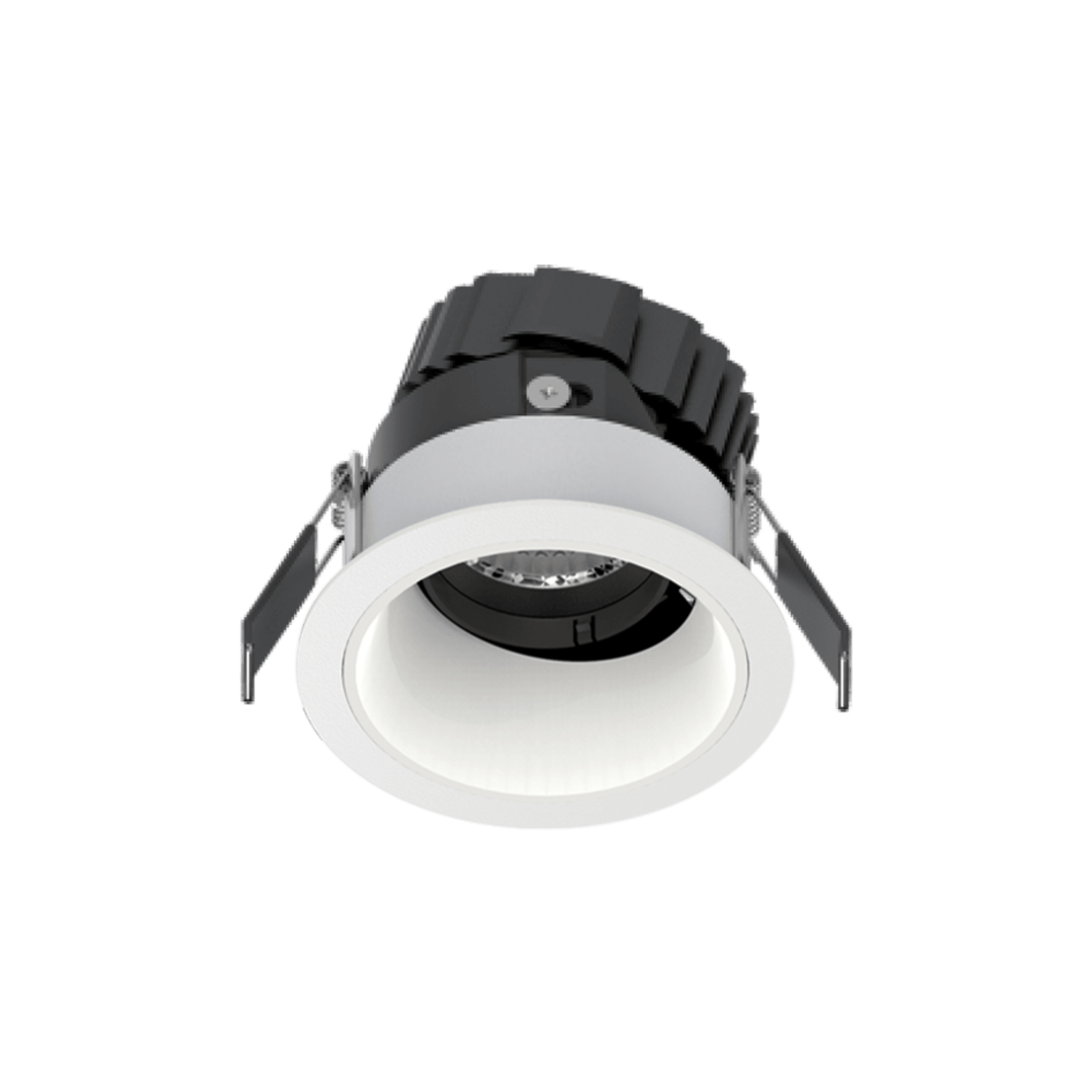

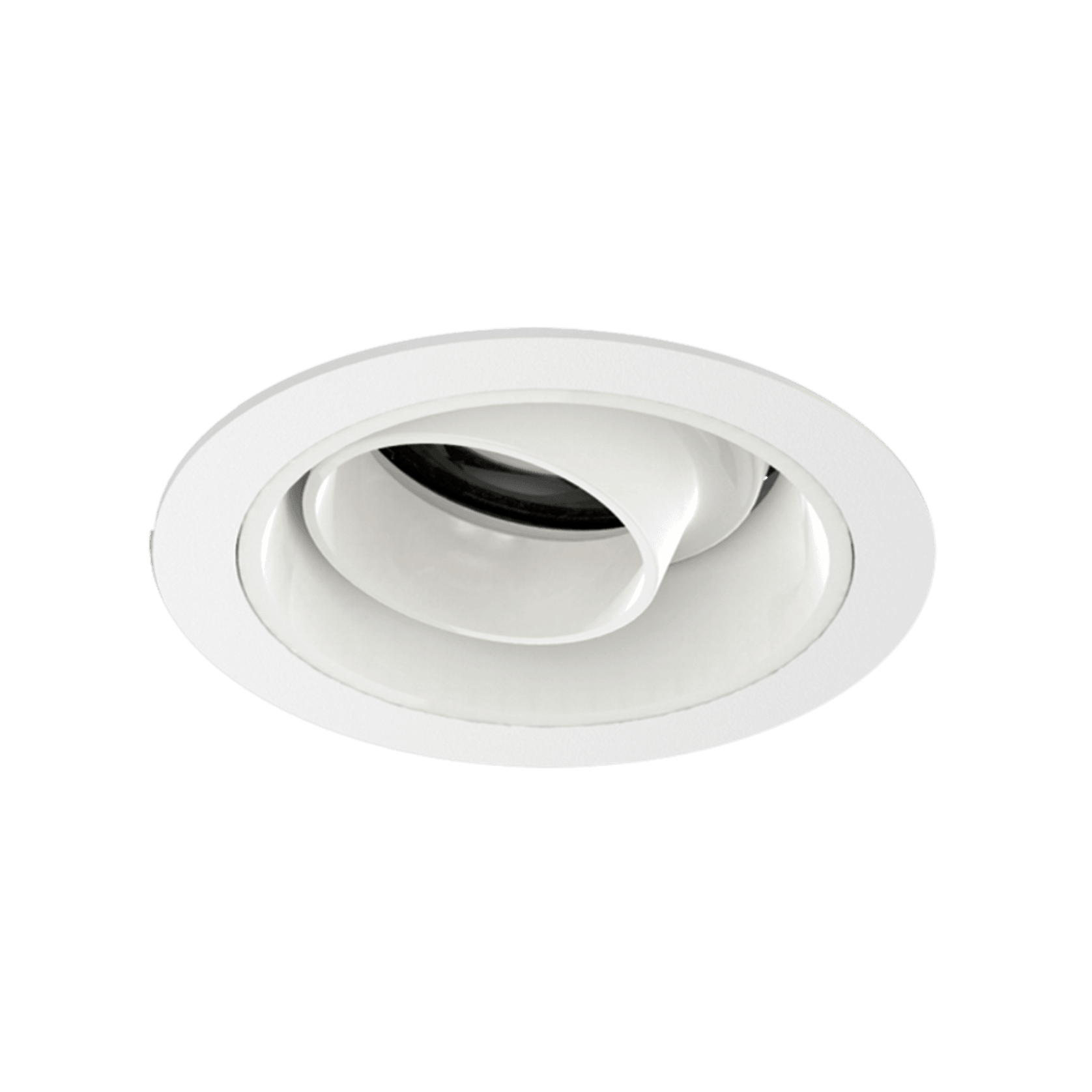

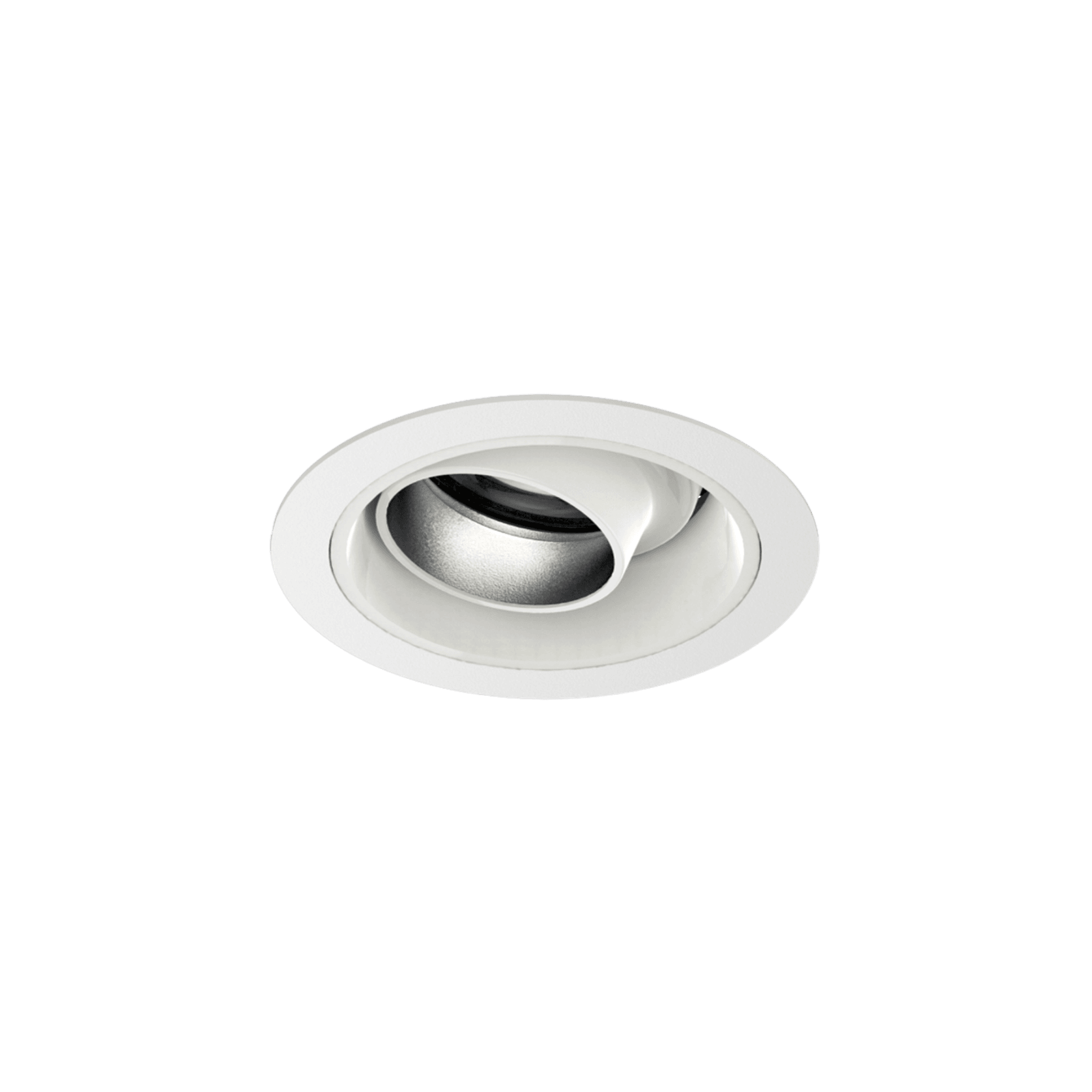

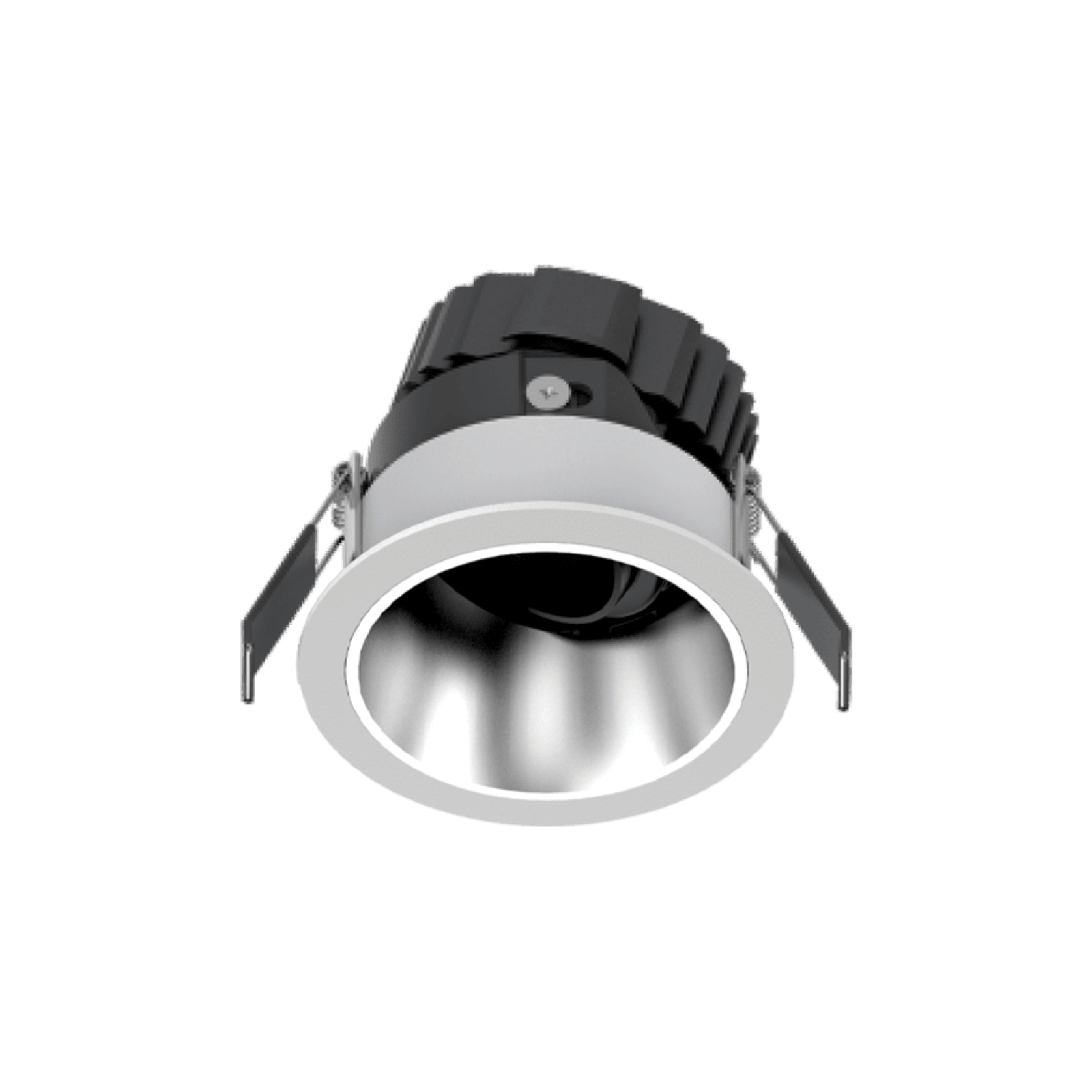

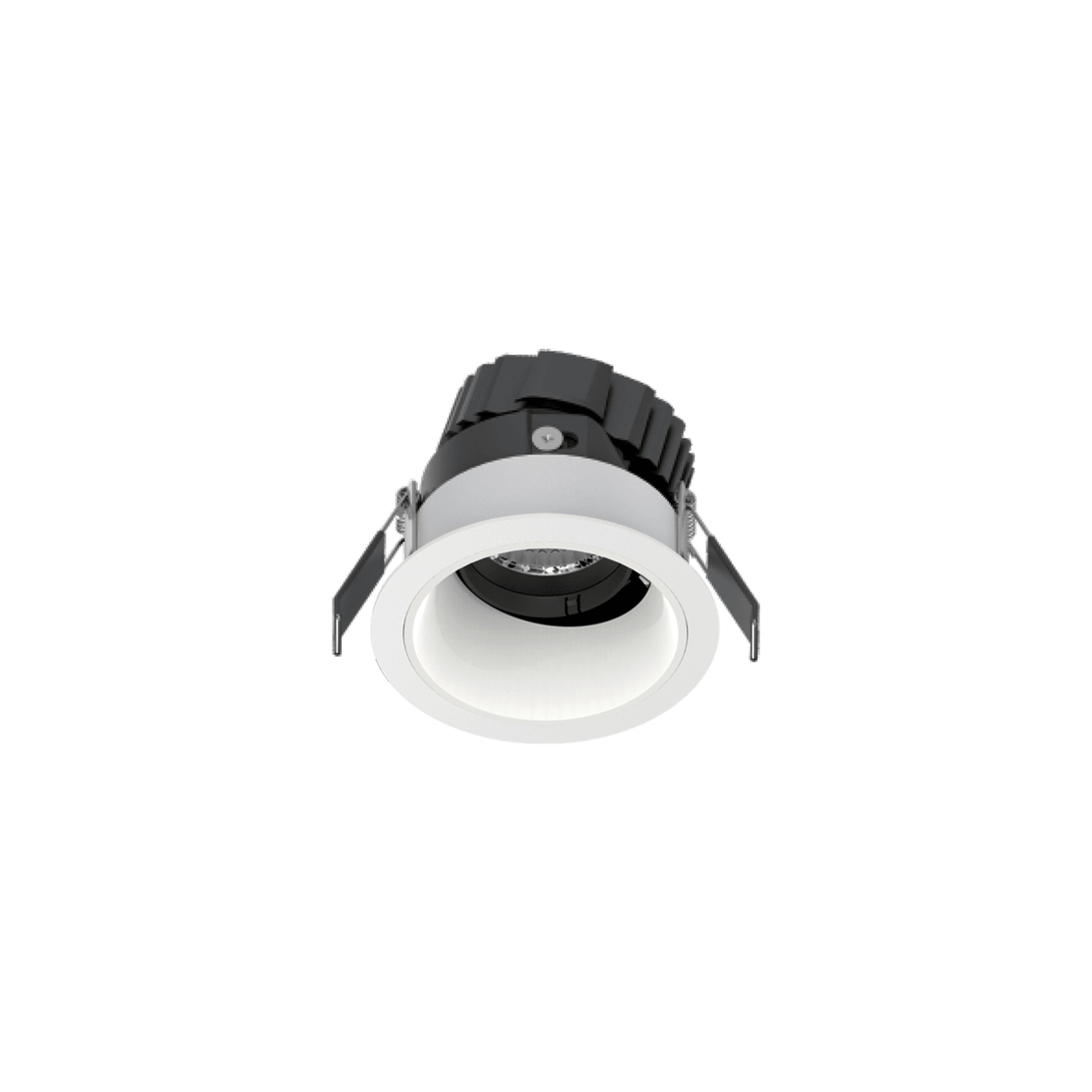

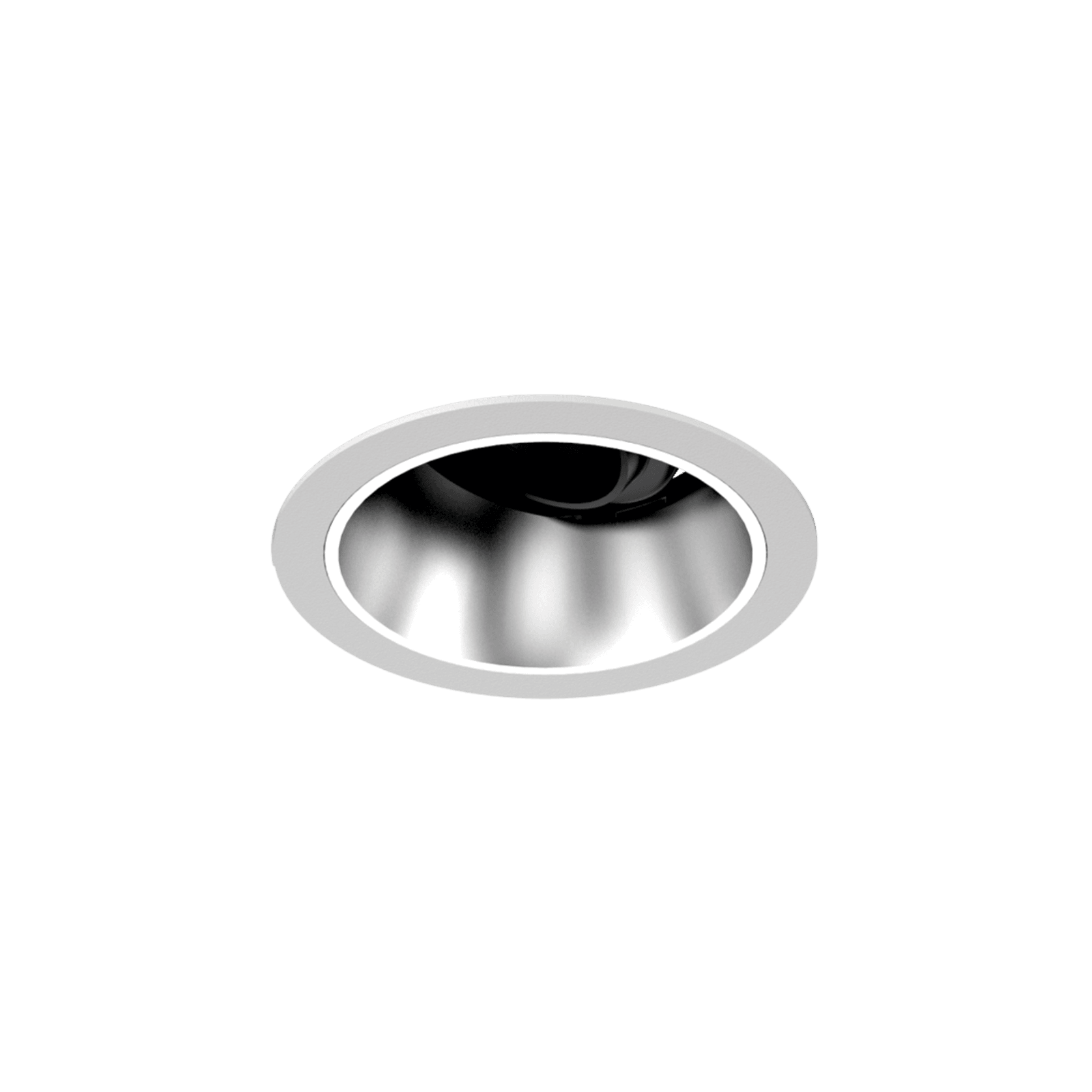

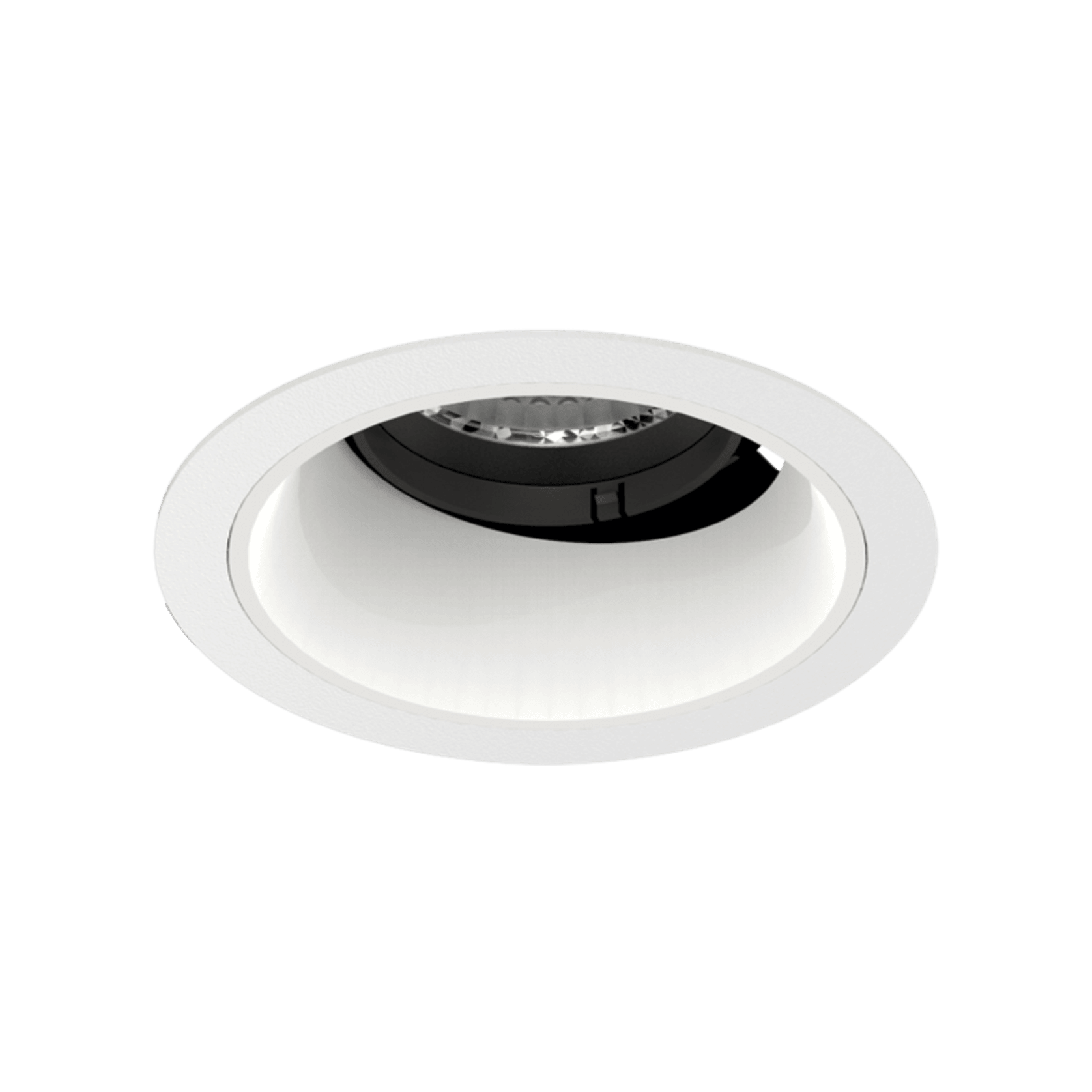

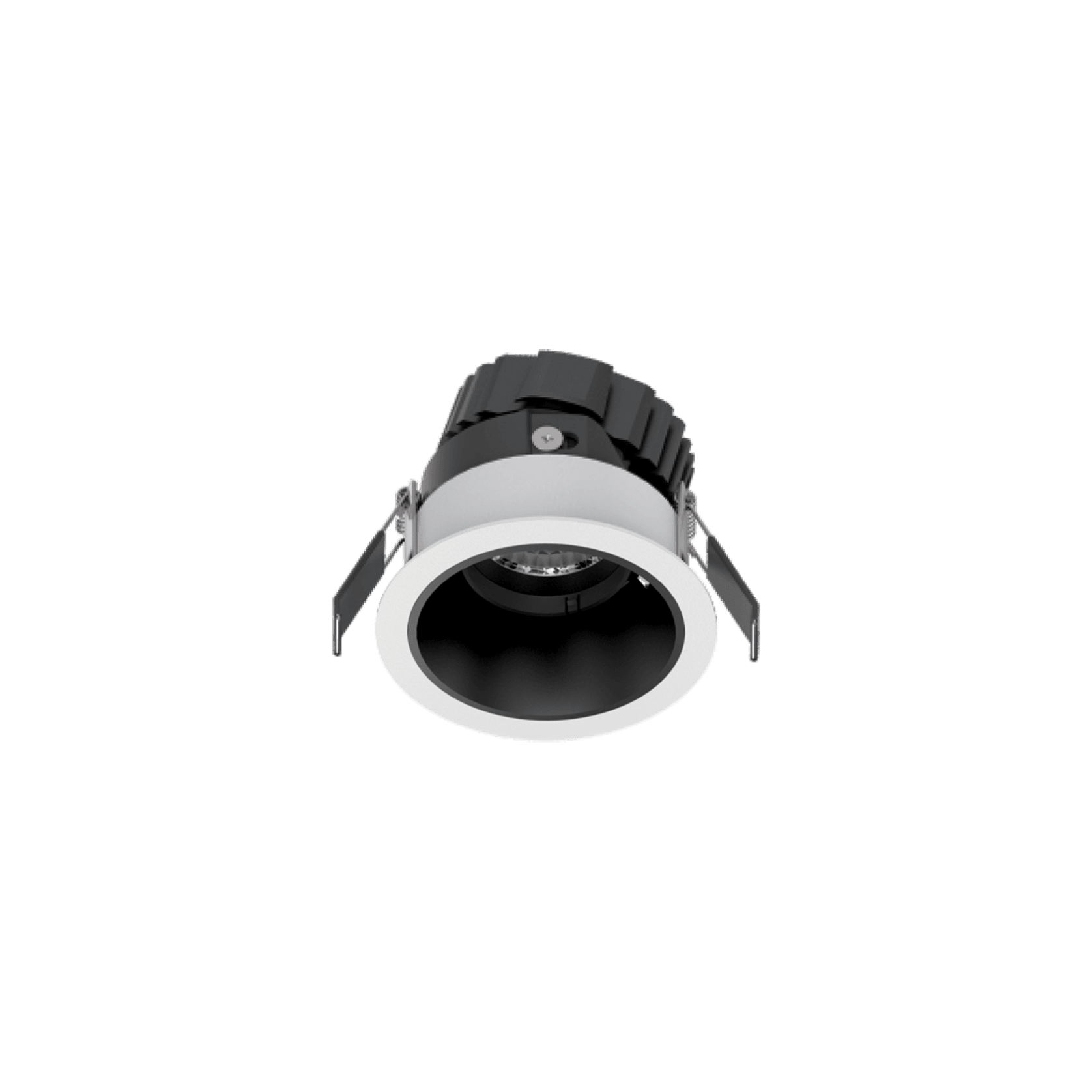

7.5W / 9W / 11W / 13W Adjustable LED Recessed Modular Downlight

LED ceiling recessed adjustable luminaire series providing a high level of design flexibility through a range of modular components. Using interchangeable trims, rings, reflectors, modules, colours and optics and an optional IP20 or IP44 rating, the Vibes-A72 LED downlight series easily adapts to suit a wide range of applications.

Available in a range of colour temperatures, wattage/ lumen packages and beam options, it is made from a die-cast aluminium body with high purity optics and baffle options. Using Citizen COB LED technology, the product is Mains-dimmable as standard with DALI-2 and Bluetooth wireless dimming options. Vibes series offers a 5 year warranty.

Details
  • Category
    Downlights
  • Range
    Downlights
  • Warranty
    5 years
Specifications

Technical Specifications

Wattage:

  • 7.5W (Ststem 9W)
  • 9W (Ststem 11W)
  • 11W (Ststem 13W)
  • 13W (Ststem 15W)

Luminous Flux:

  • 700-750 Lm
  • 900-950 Lm
  • 950-1000 Lm
  • 1200-1300 Lm

Luminaire Efficacy:

  • 77.77 Lm/W
  • 81.81 Lm/W
  • 73.08 Lm/W
  • 80 Lm/W

CCT:

  • 3000K
  • 4000K

CRI: >90

Beam:

  • 15°
  • 20°
  • 25°
  • 35°
  • 60°

Colour Deviation: 3-SDCM

UGR: <19

Size:

  • Ø85mm x Height 72mm
  • Ø85mm x Height 97mm

Cut out size: Ø72mm

Dimming:

  • Non-dimmable
  • DALI-2
  • BLE (basicDIM Wireless / Casambi)

Longevity: >50,000 Hrs L80 B10

Finish Options:

  • White
  • Black

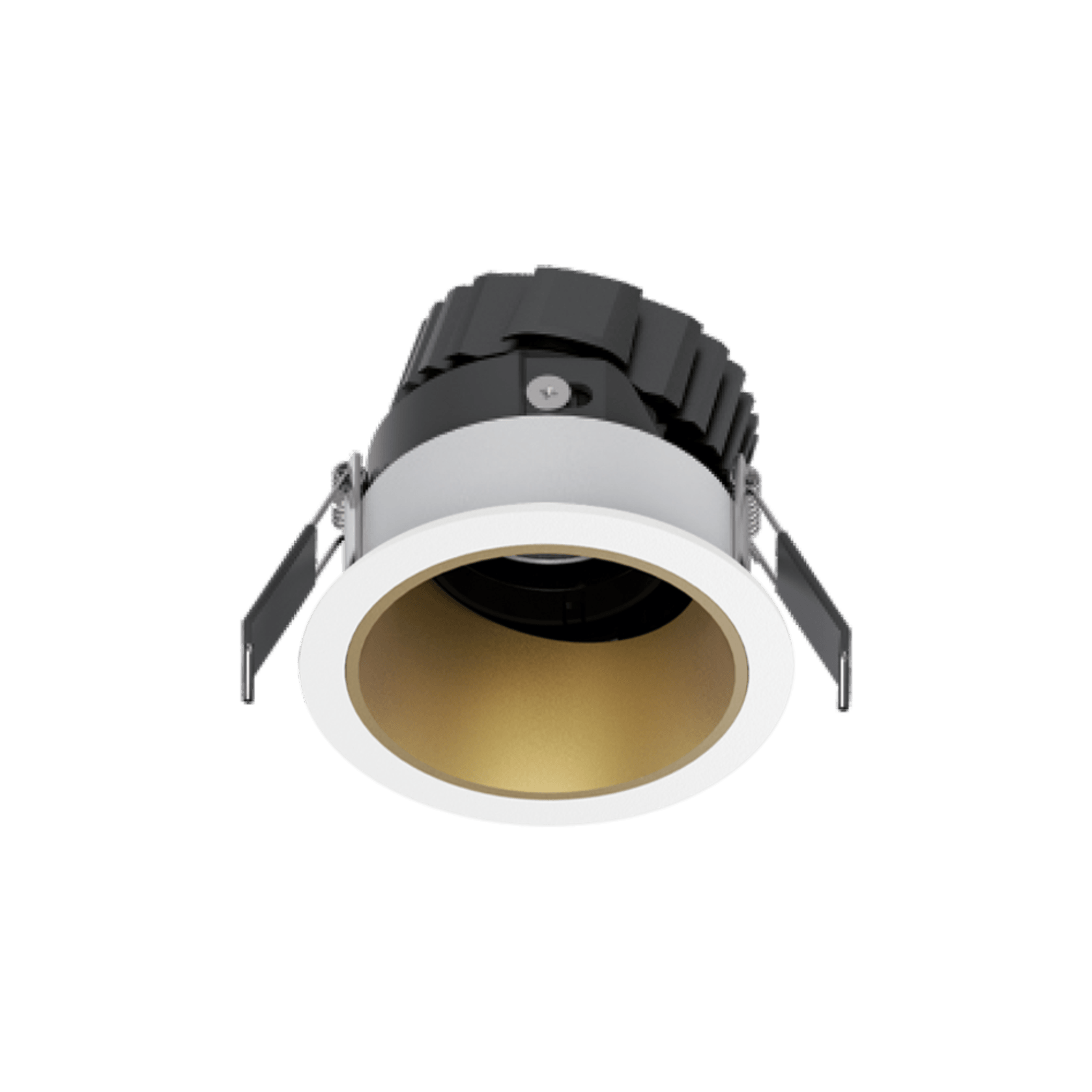

Baffle Colour:

  • White
  • Black
  • Matt
  • Gold

Warranty: 5 Years

Accessories / Options

Accessories / Options:

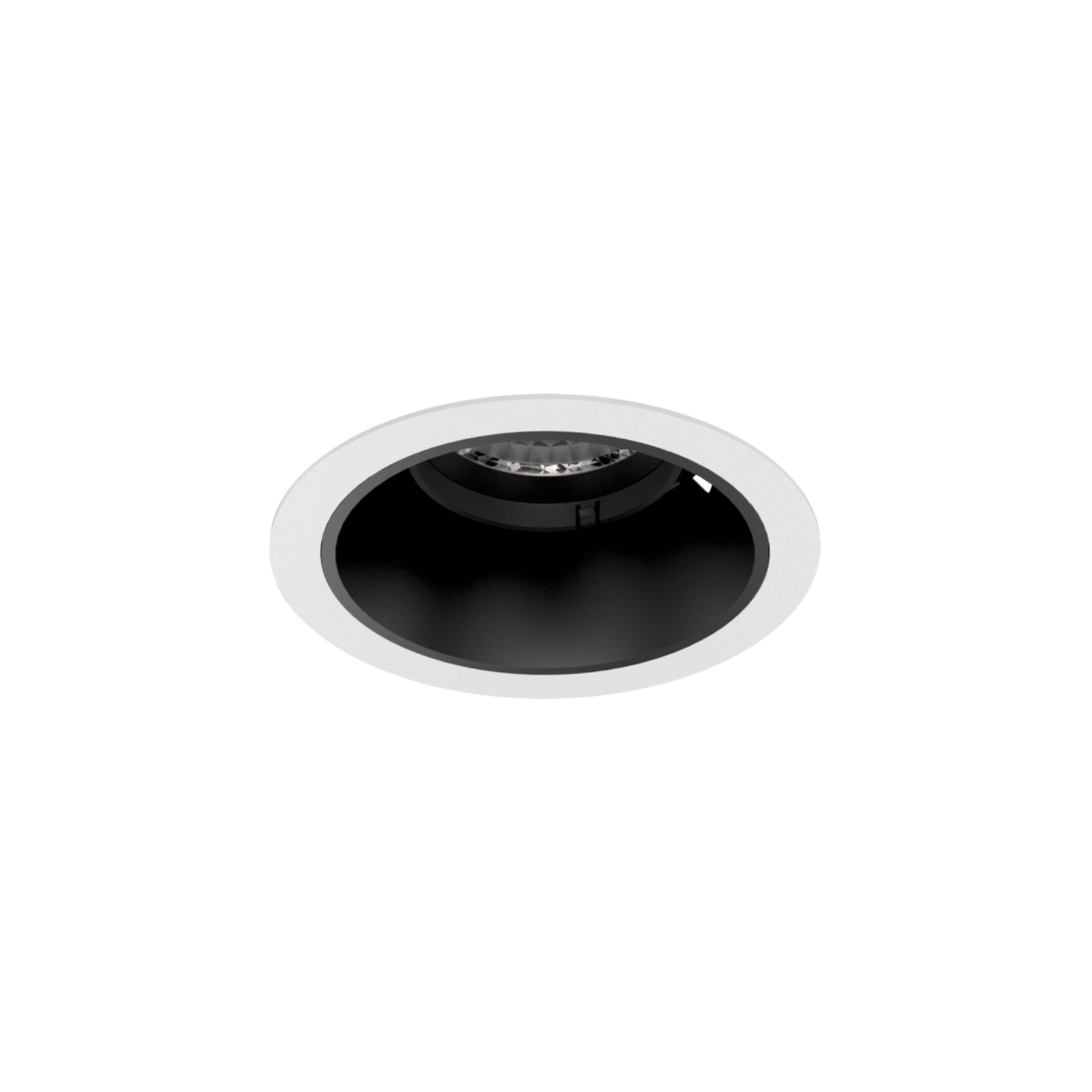

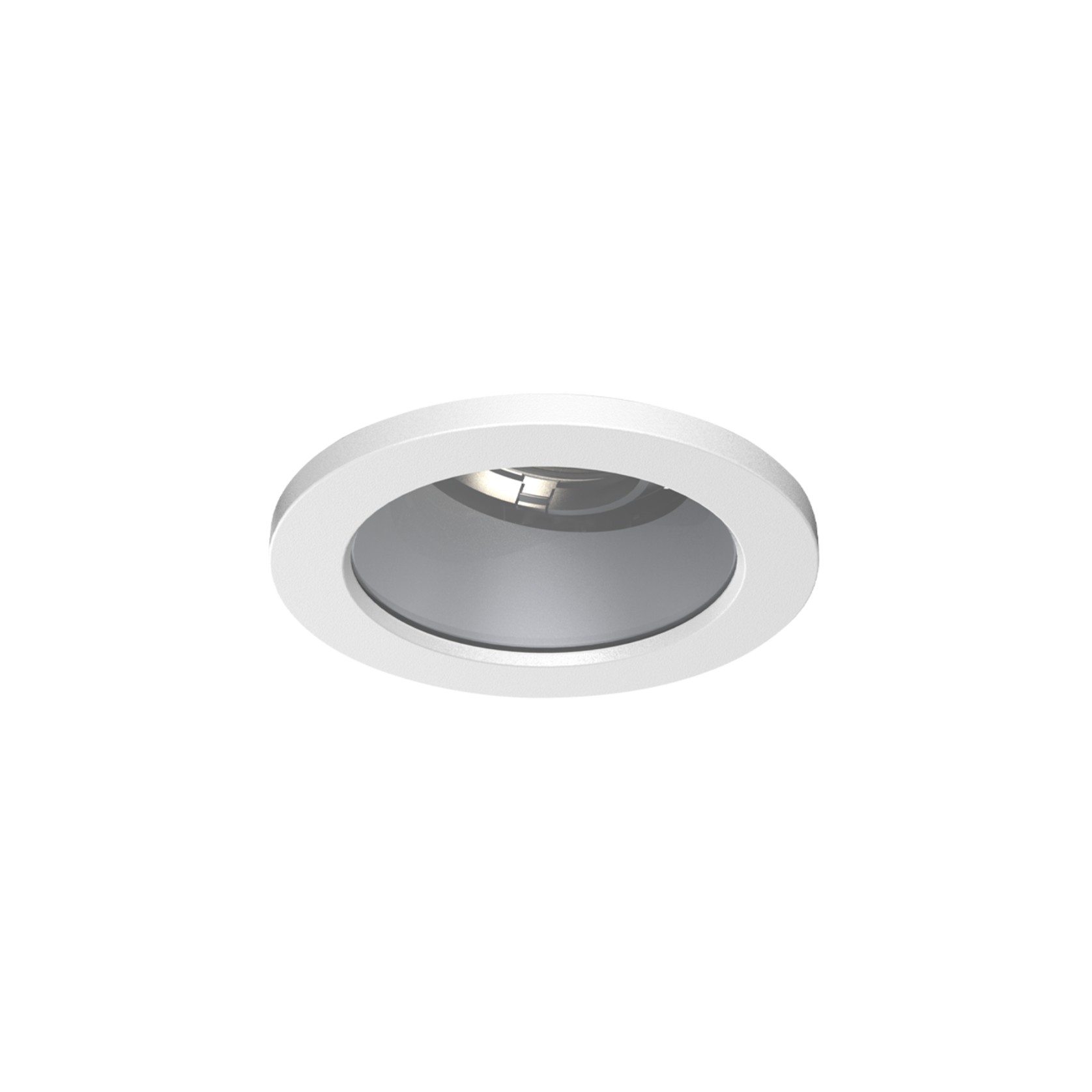

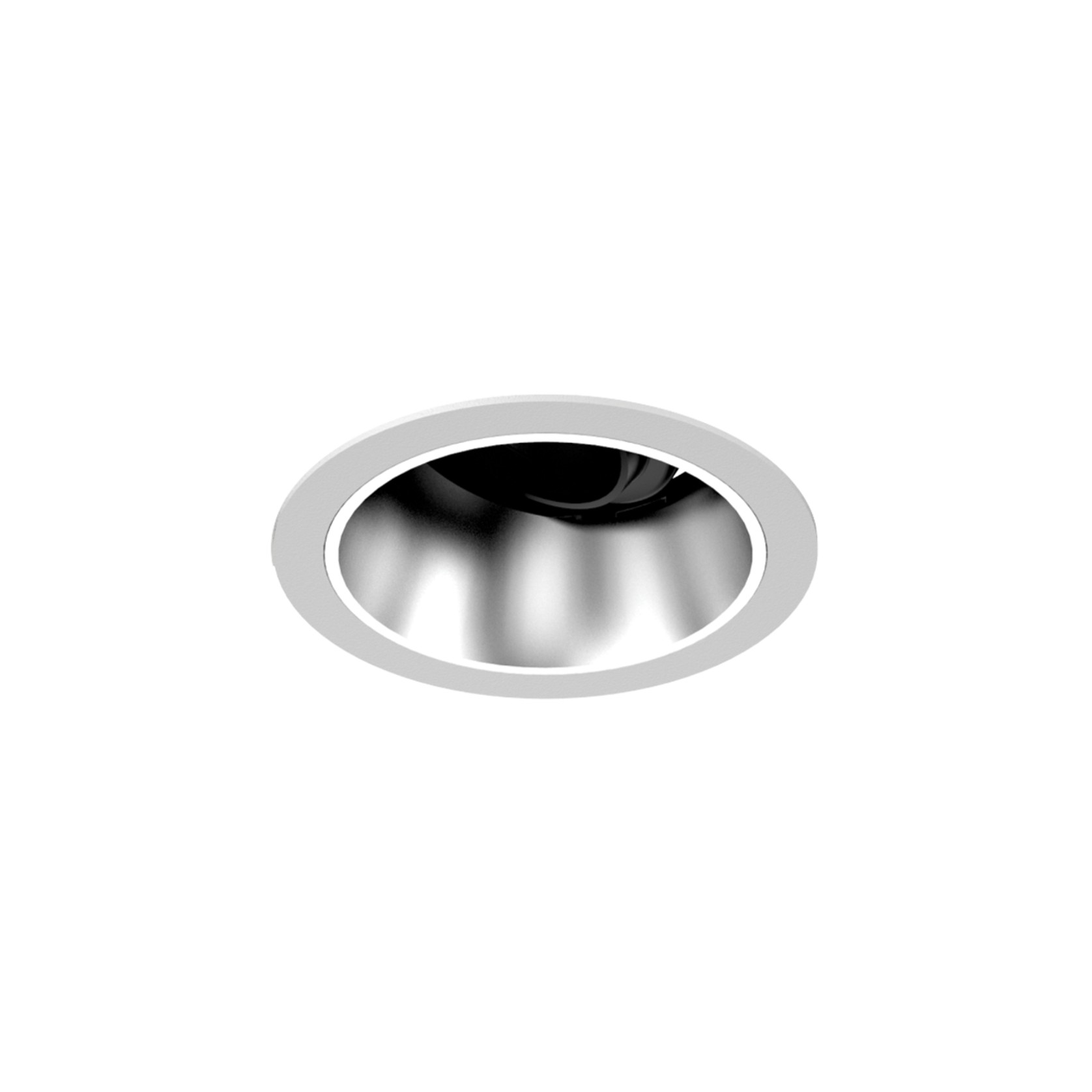

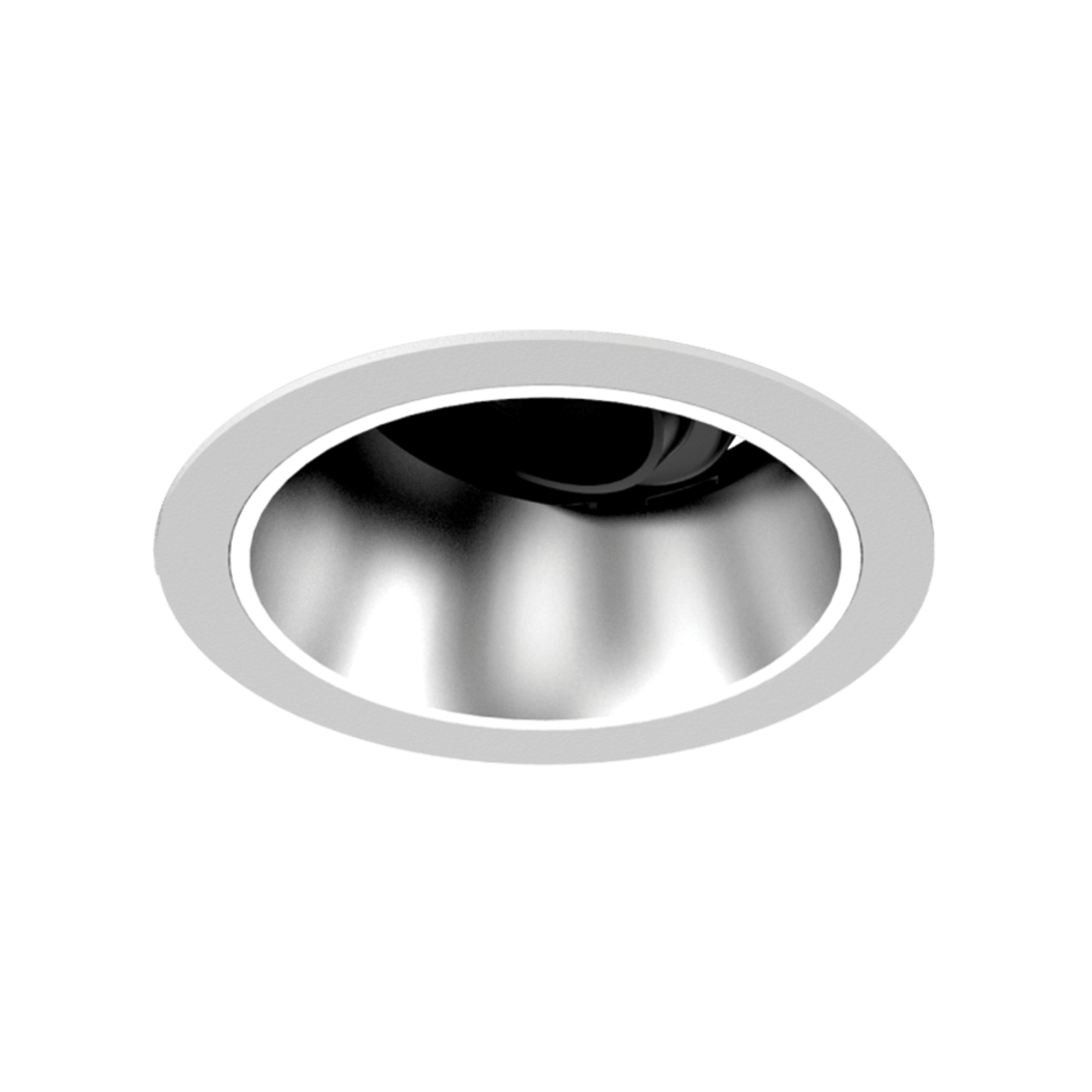

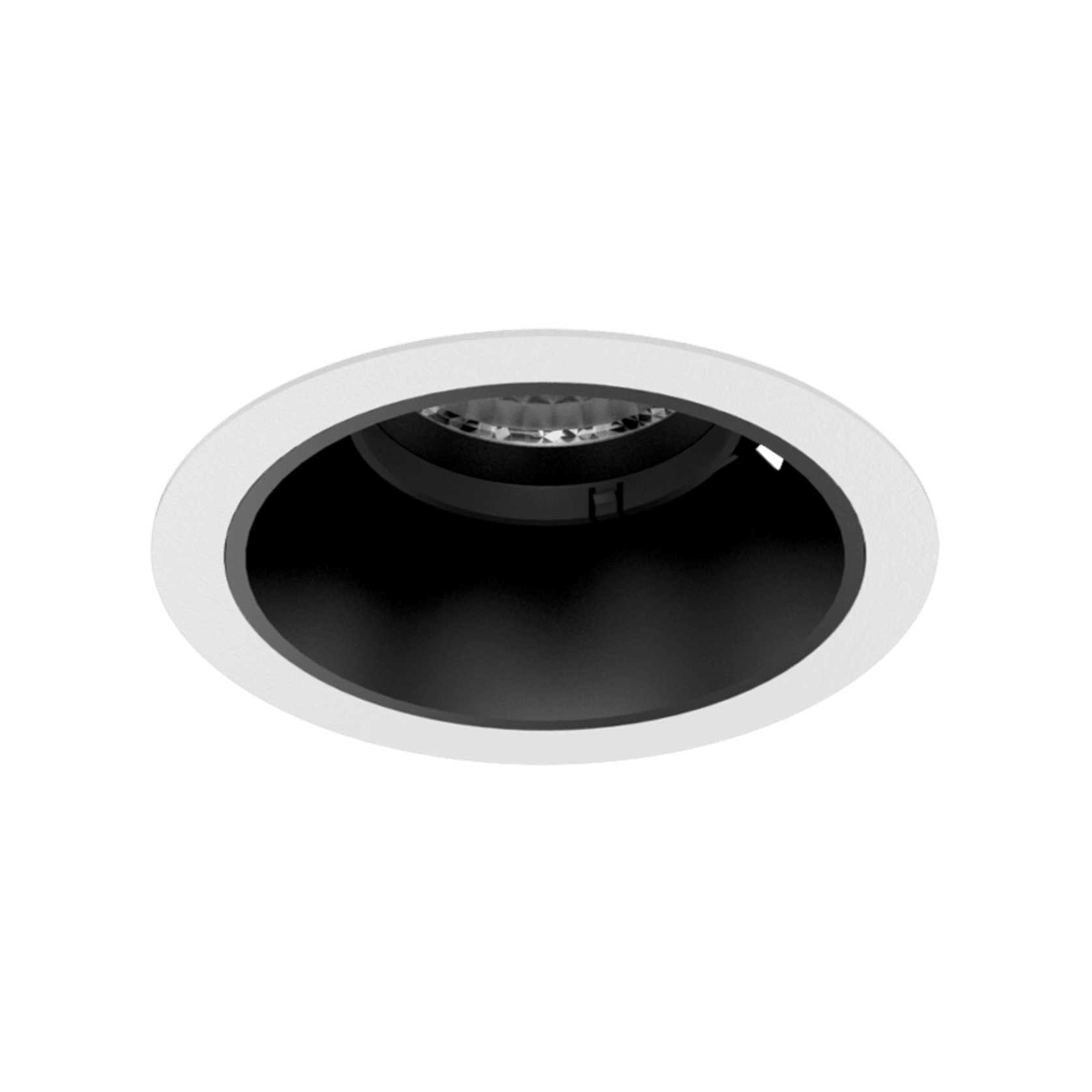

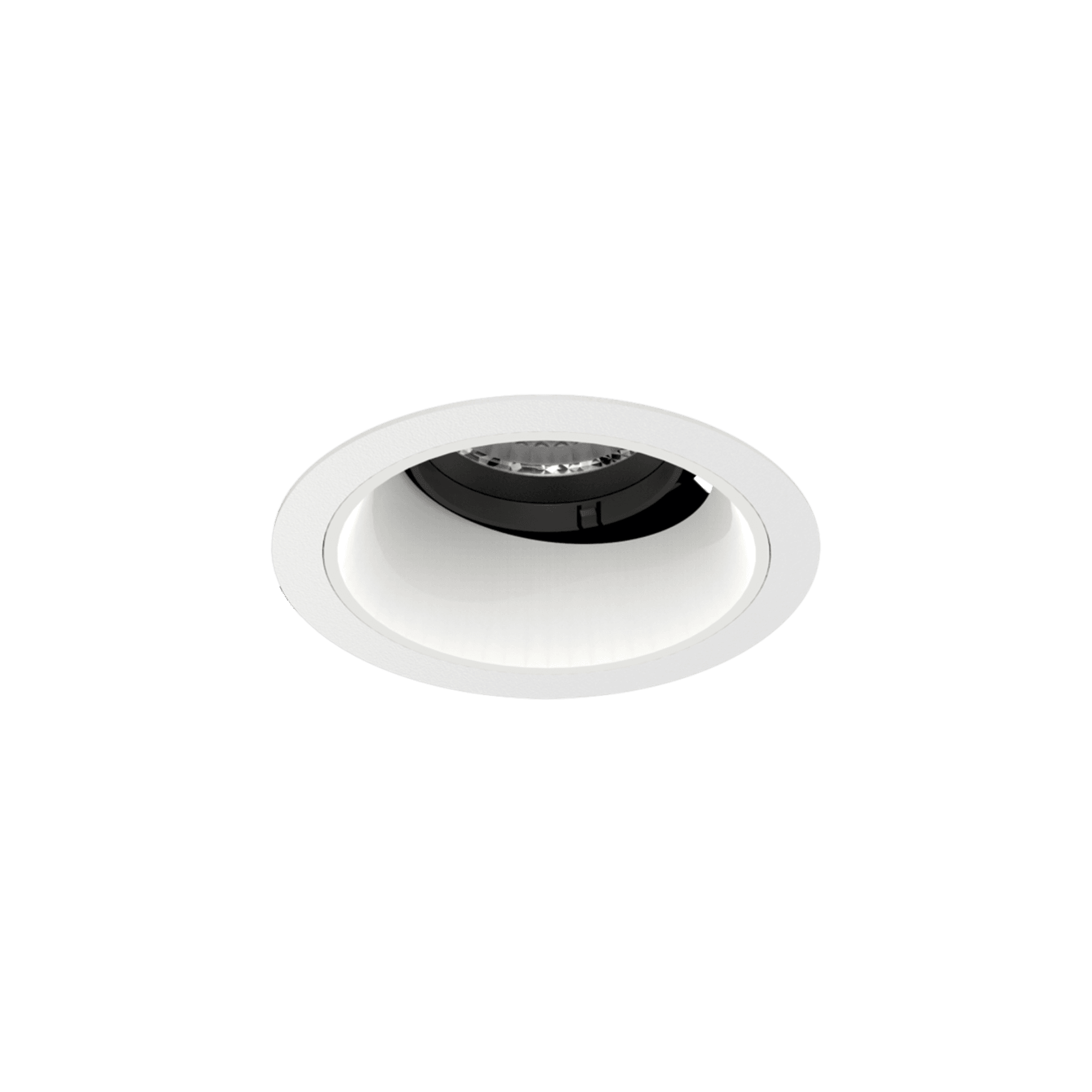

  • DEEP SET
    RA1
    (cut-out Ø72mm)

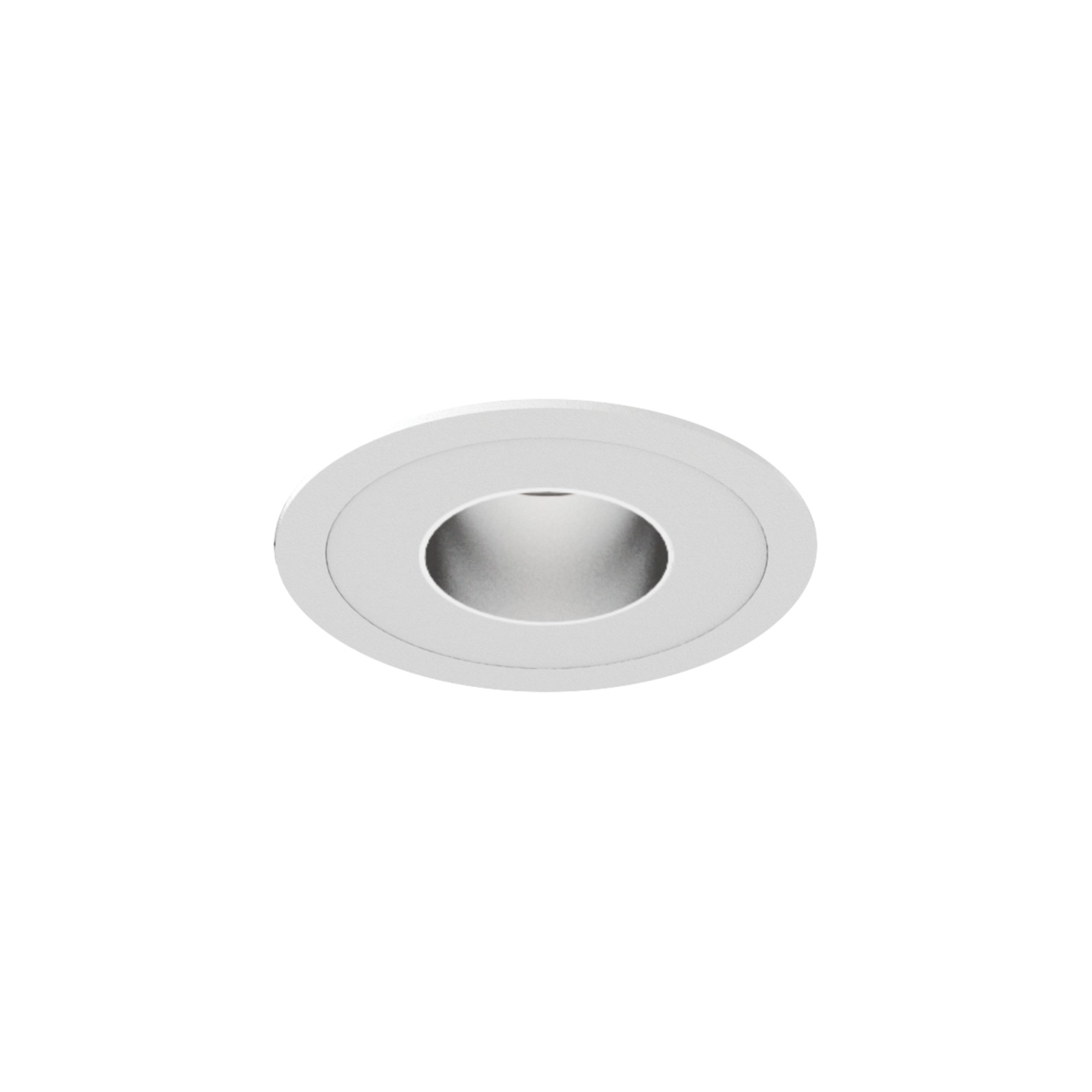

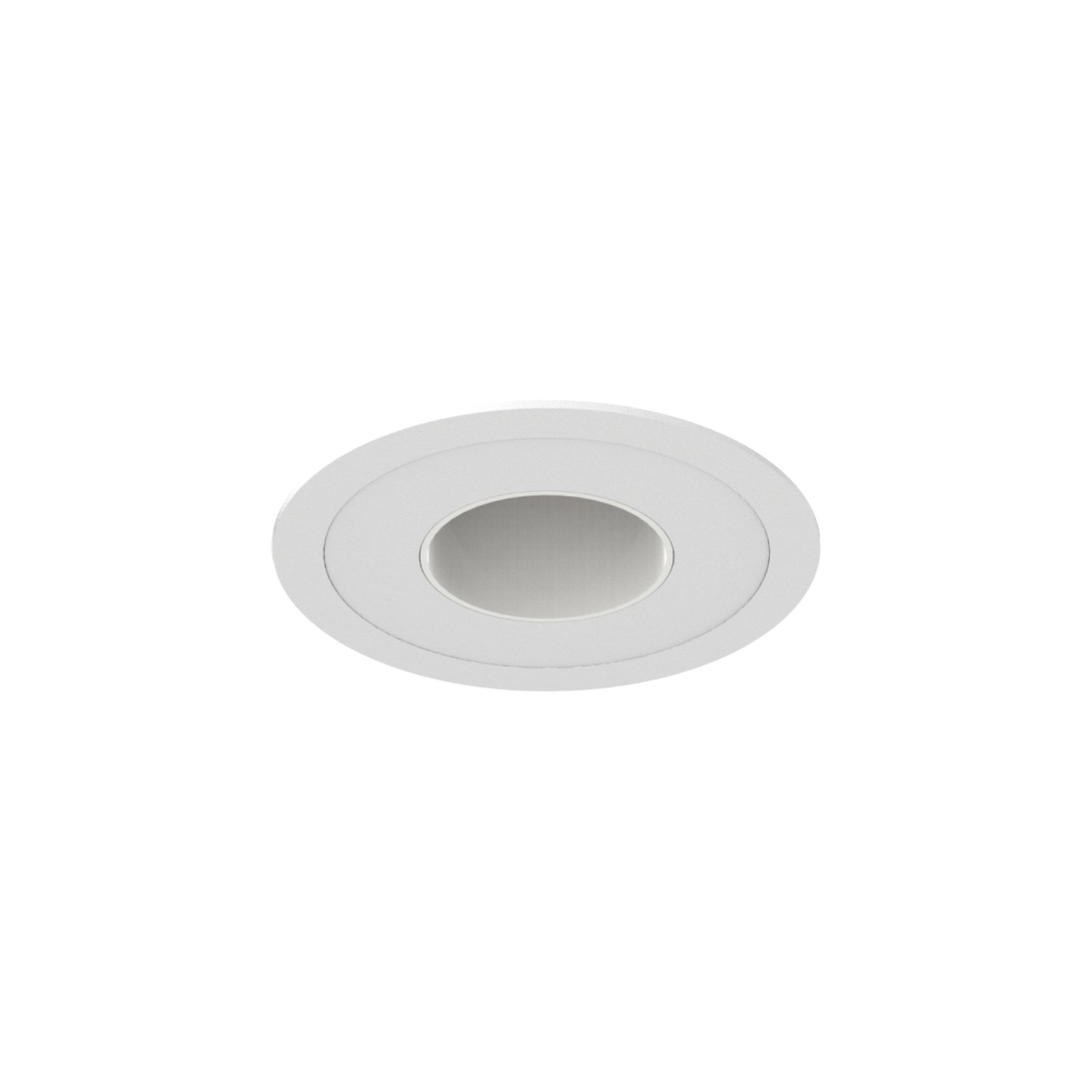

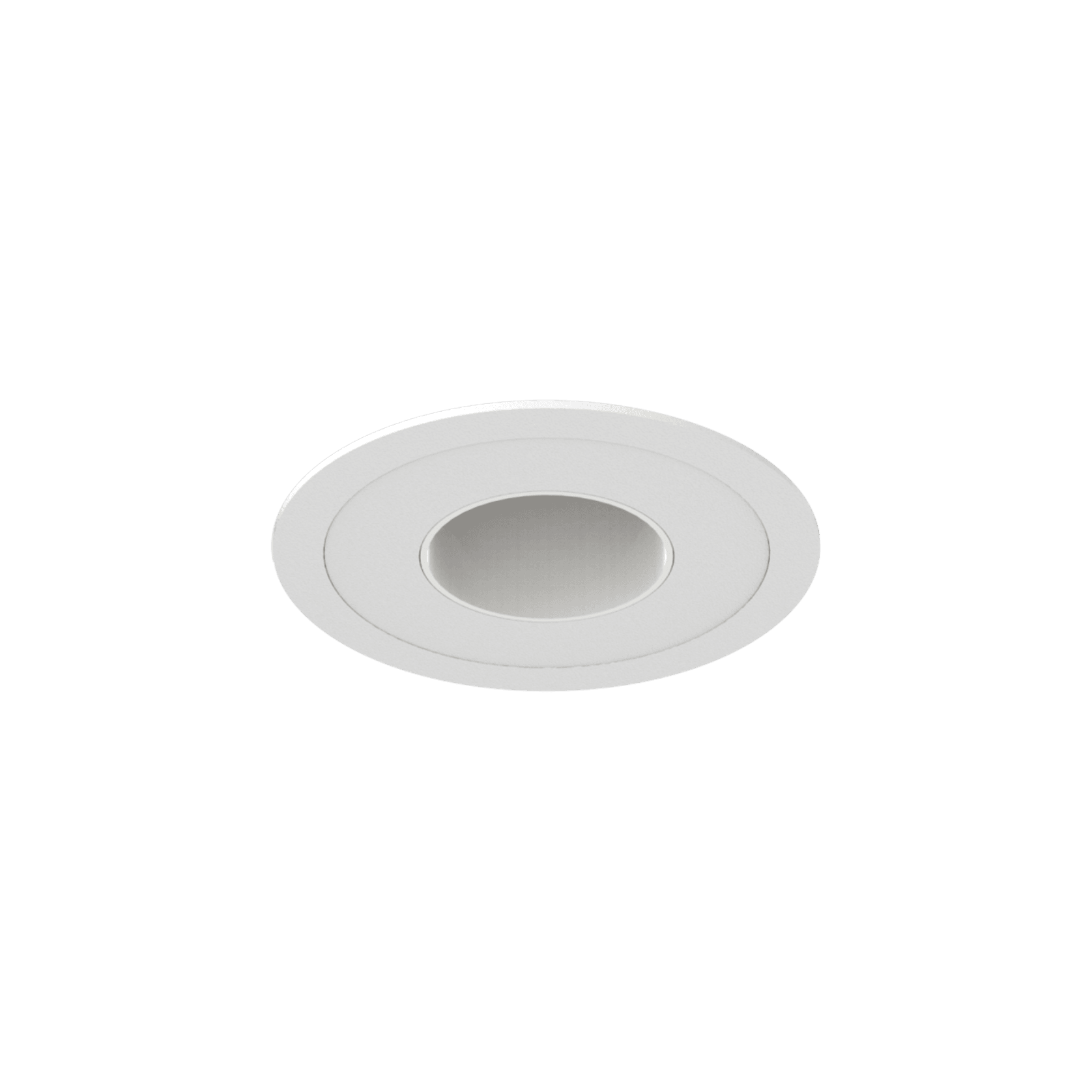

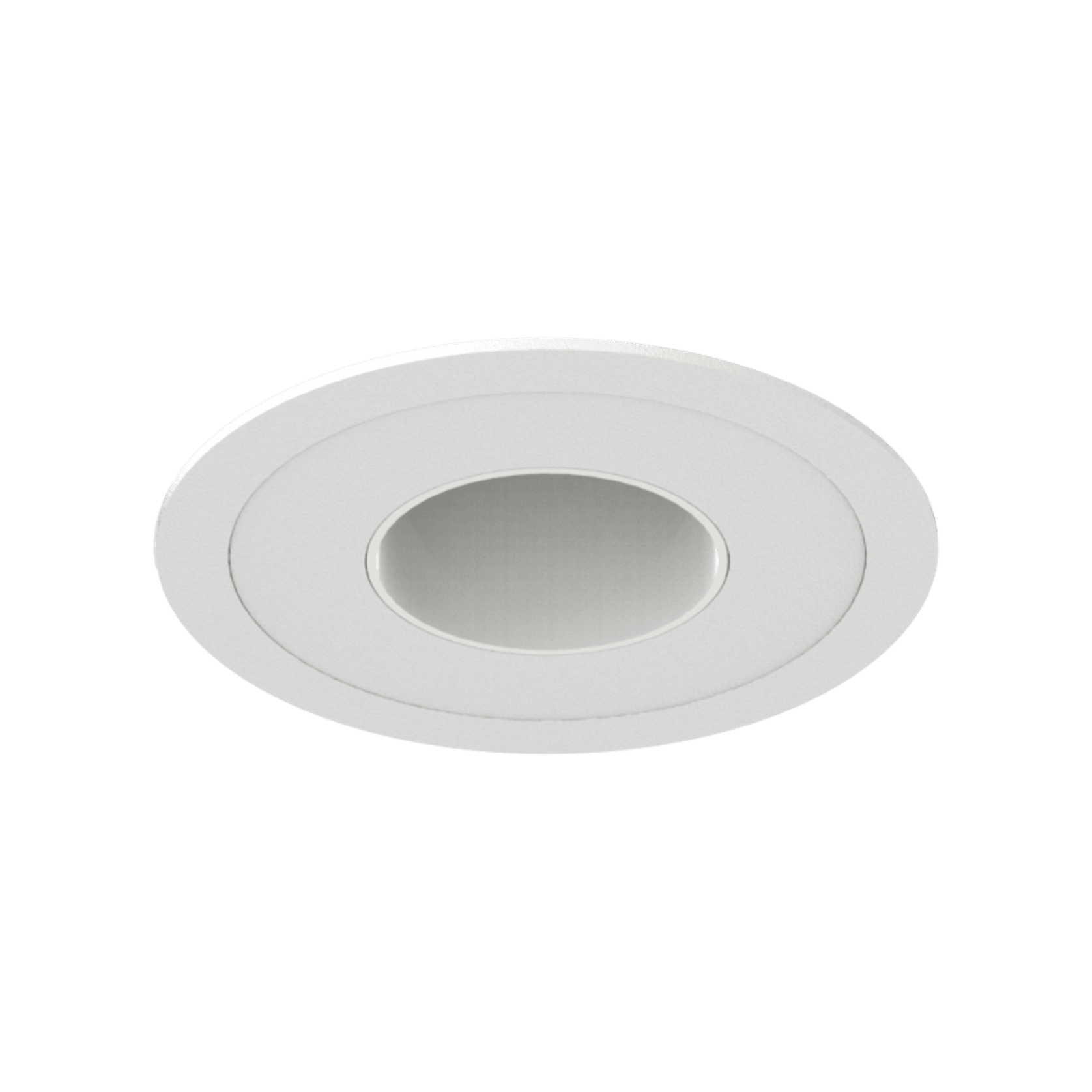

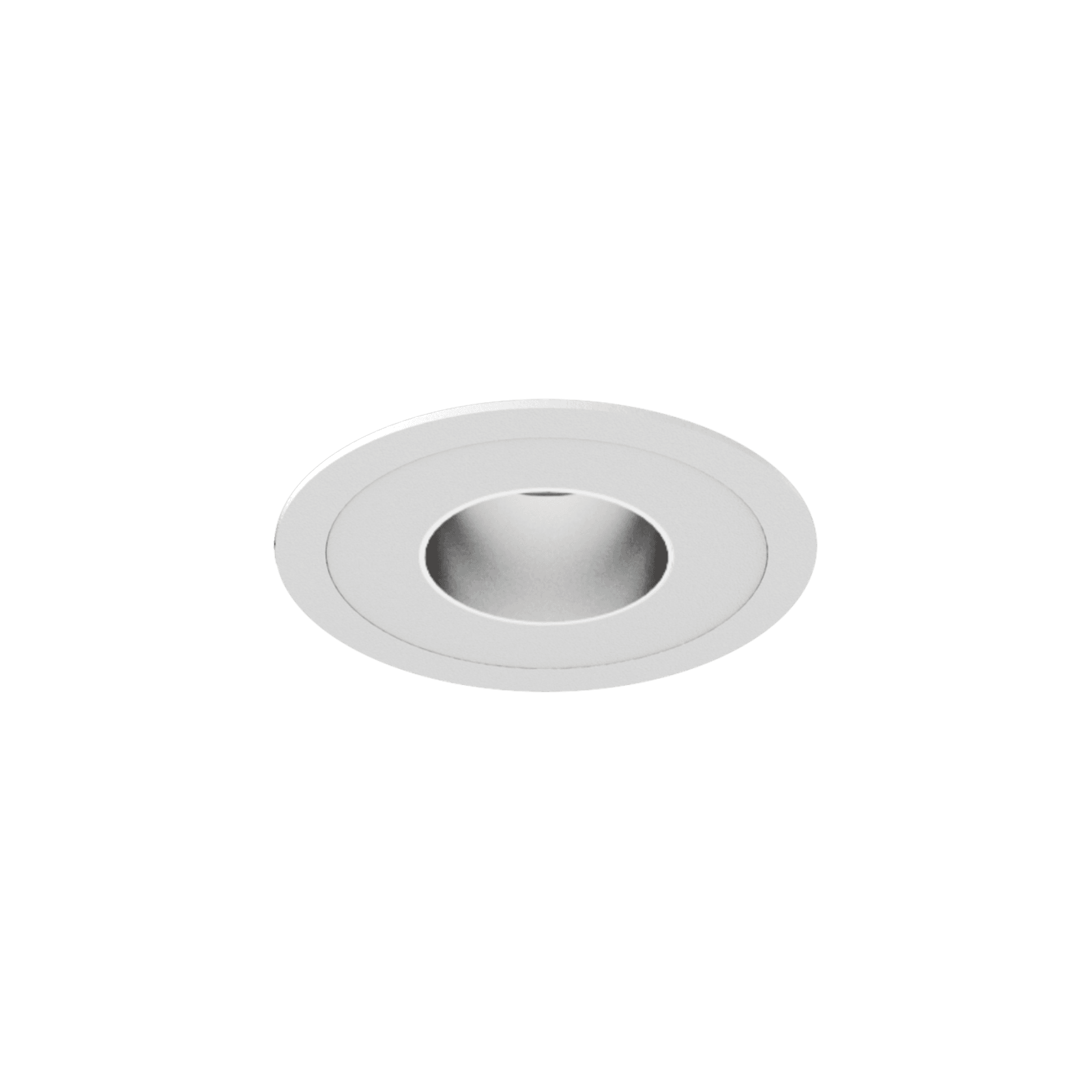

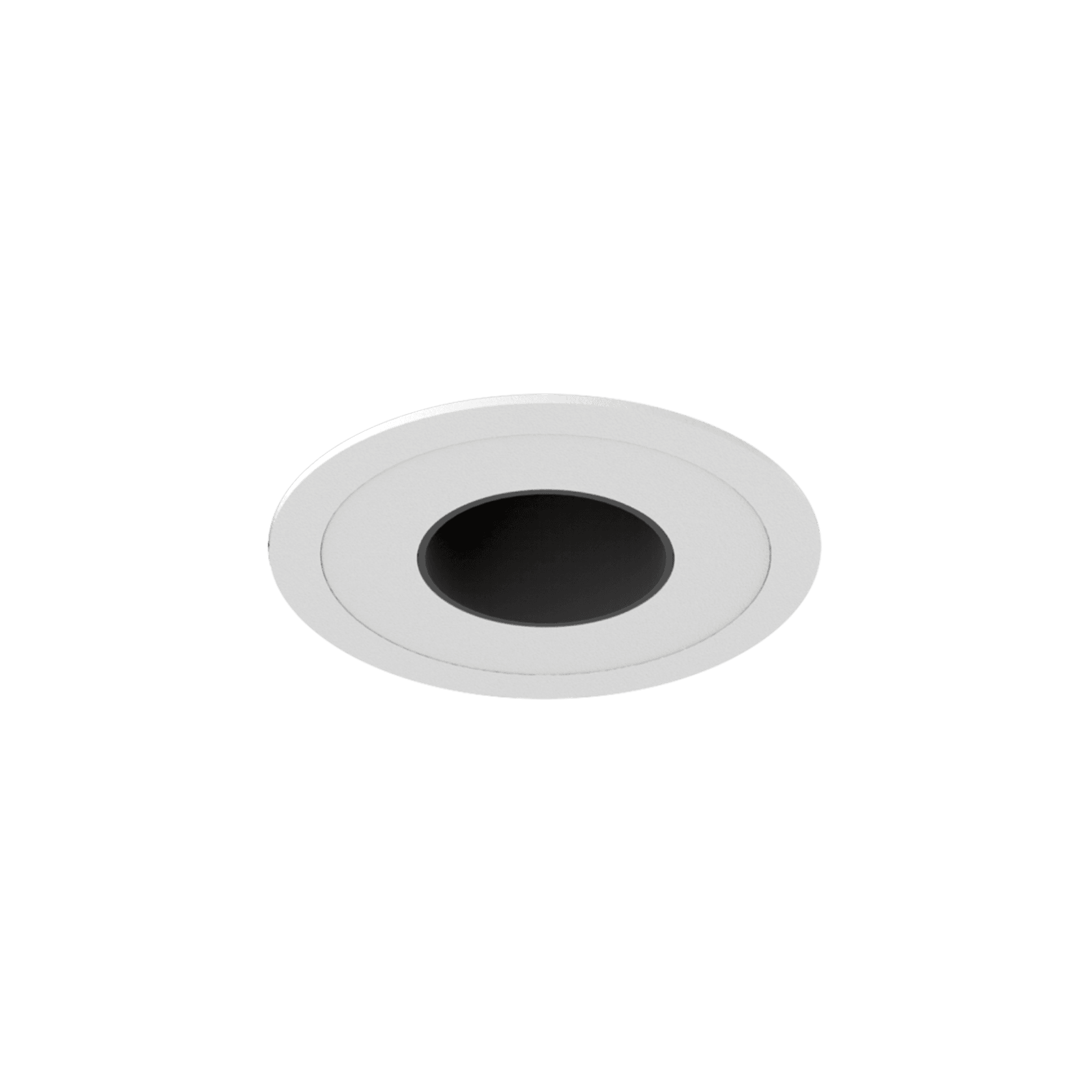

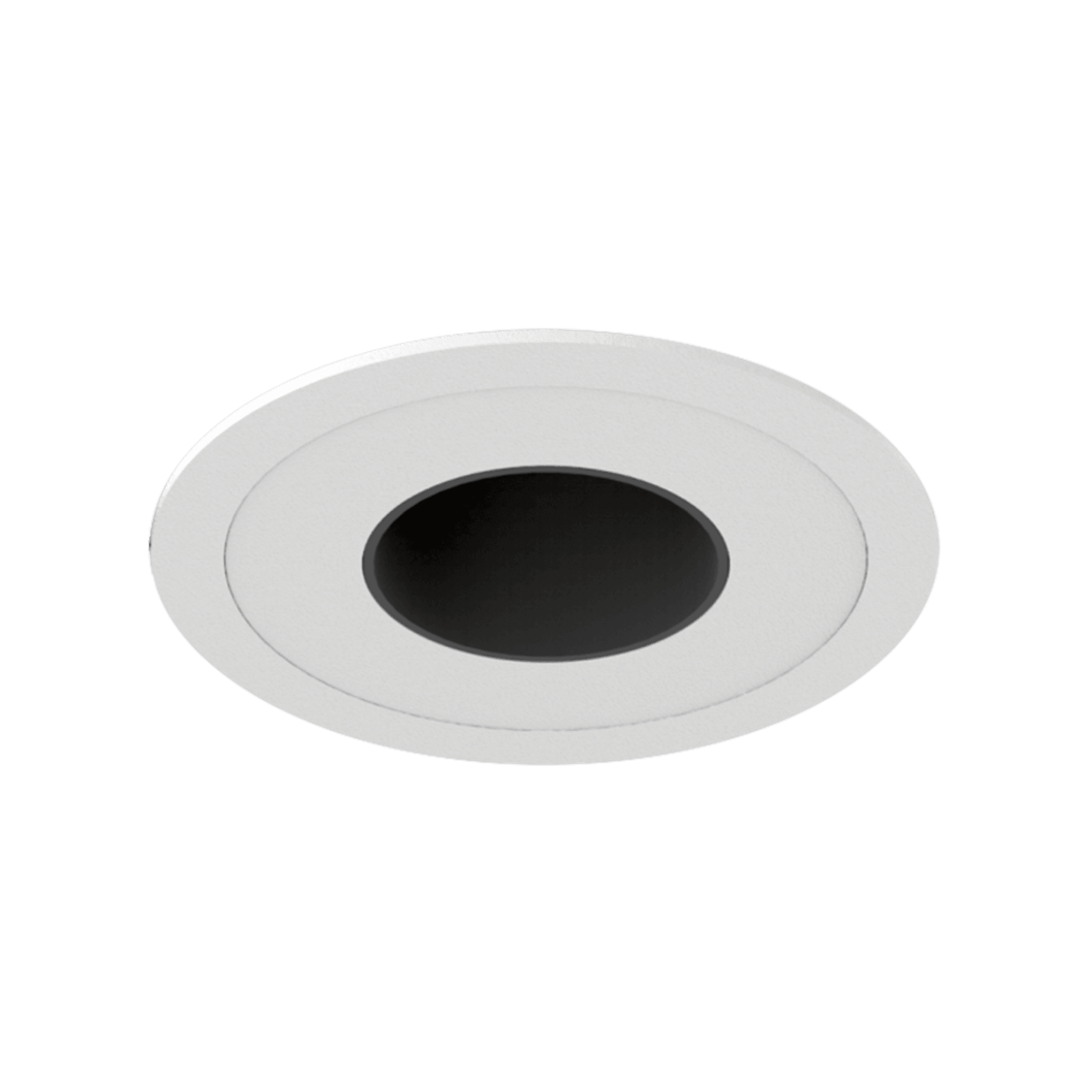

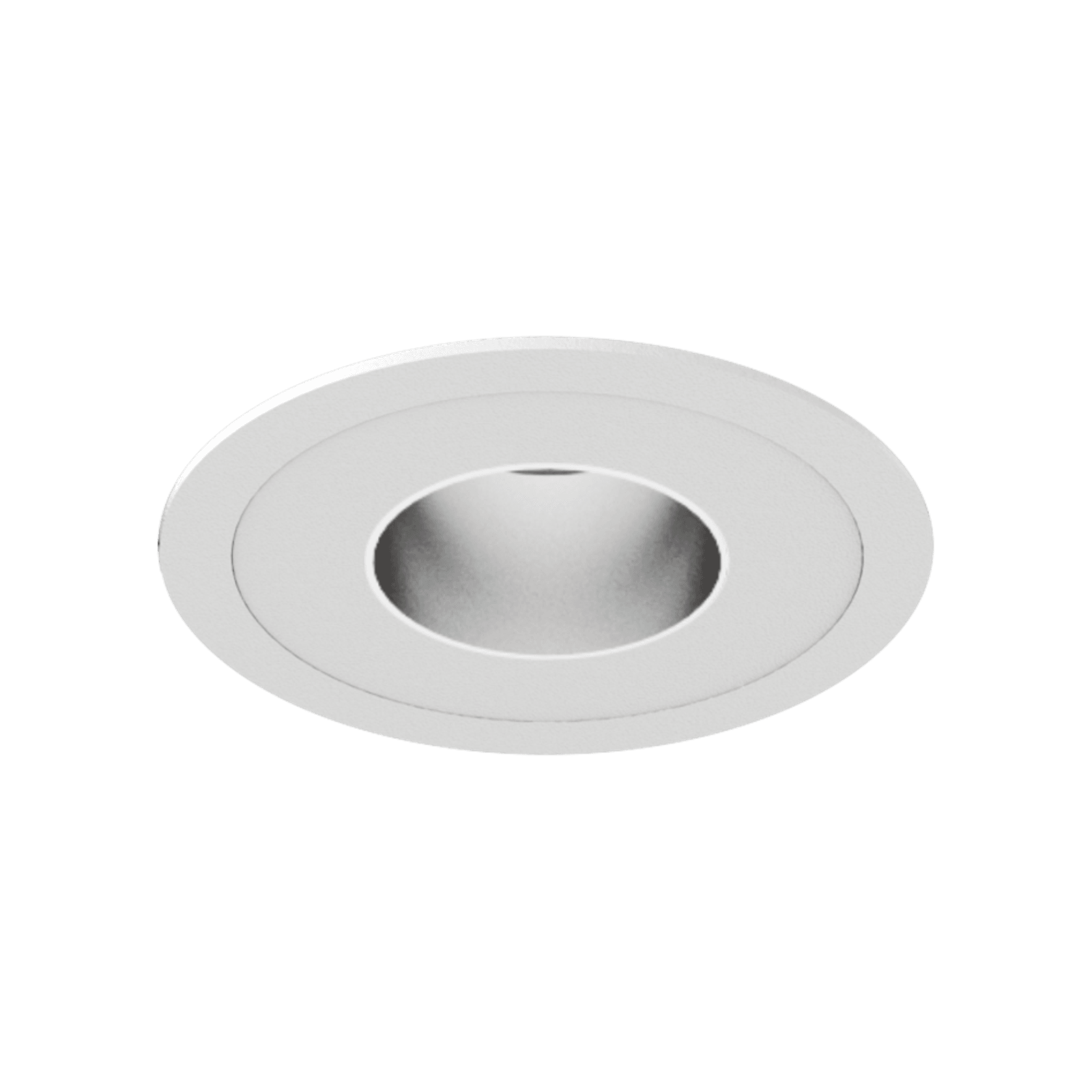

  • PIN HOLE
    RA2
    (cut-out Ø72mm)

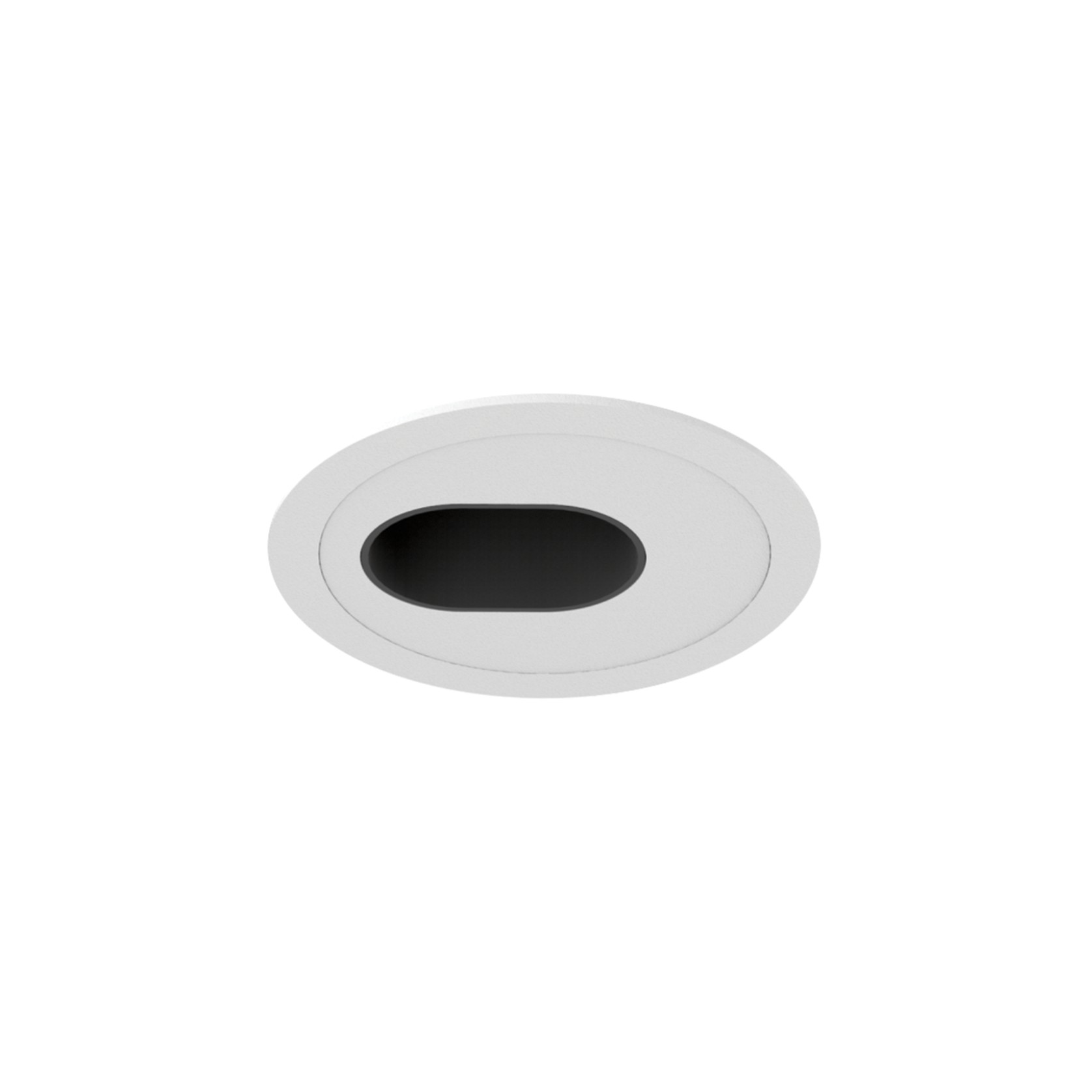

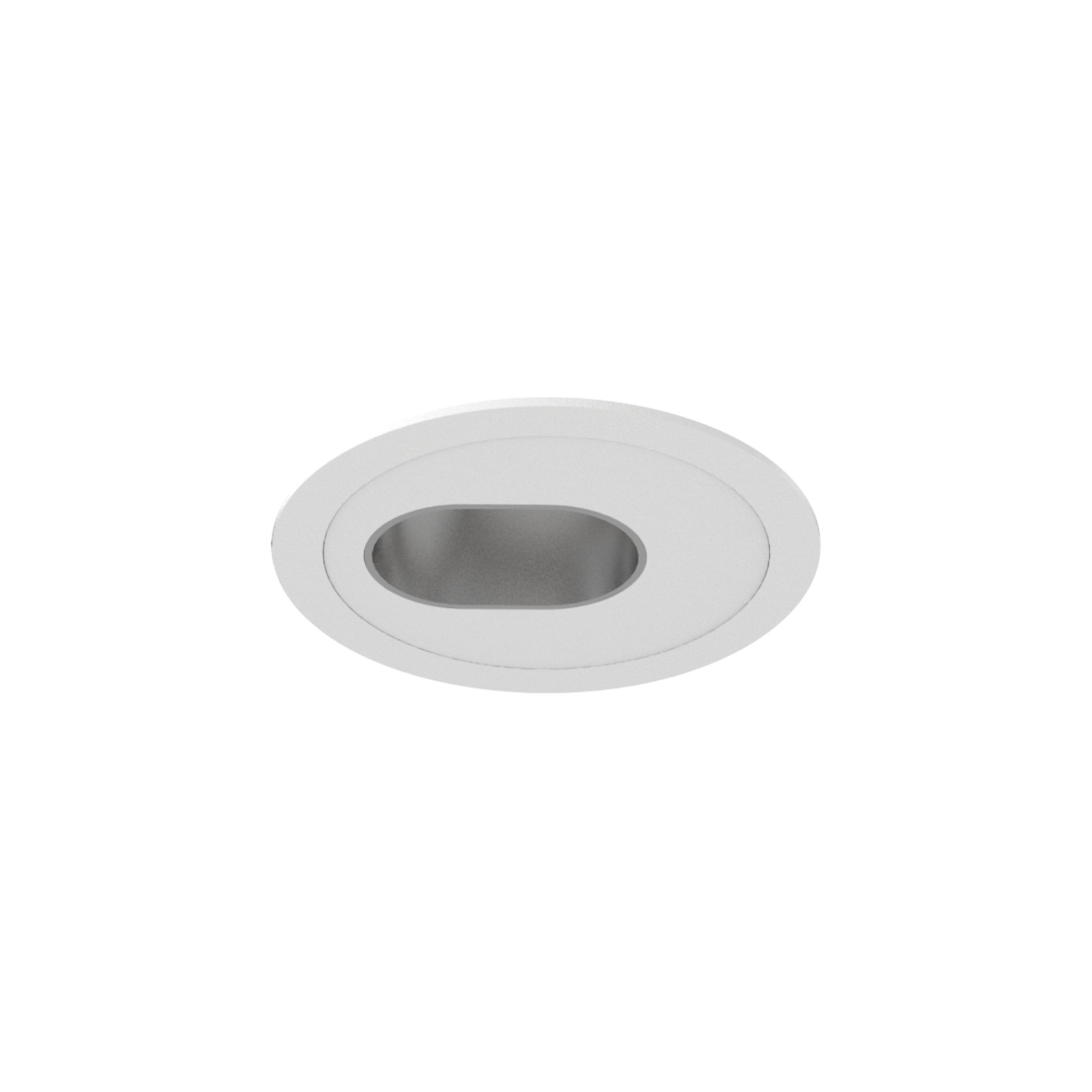

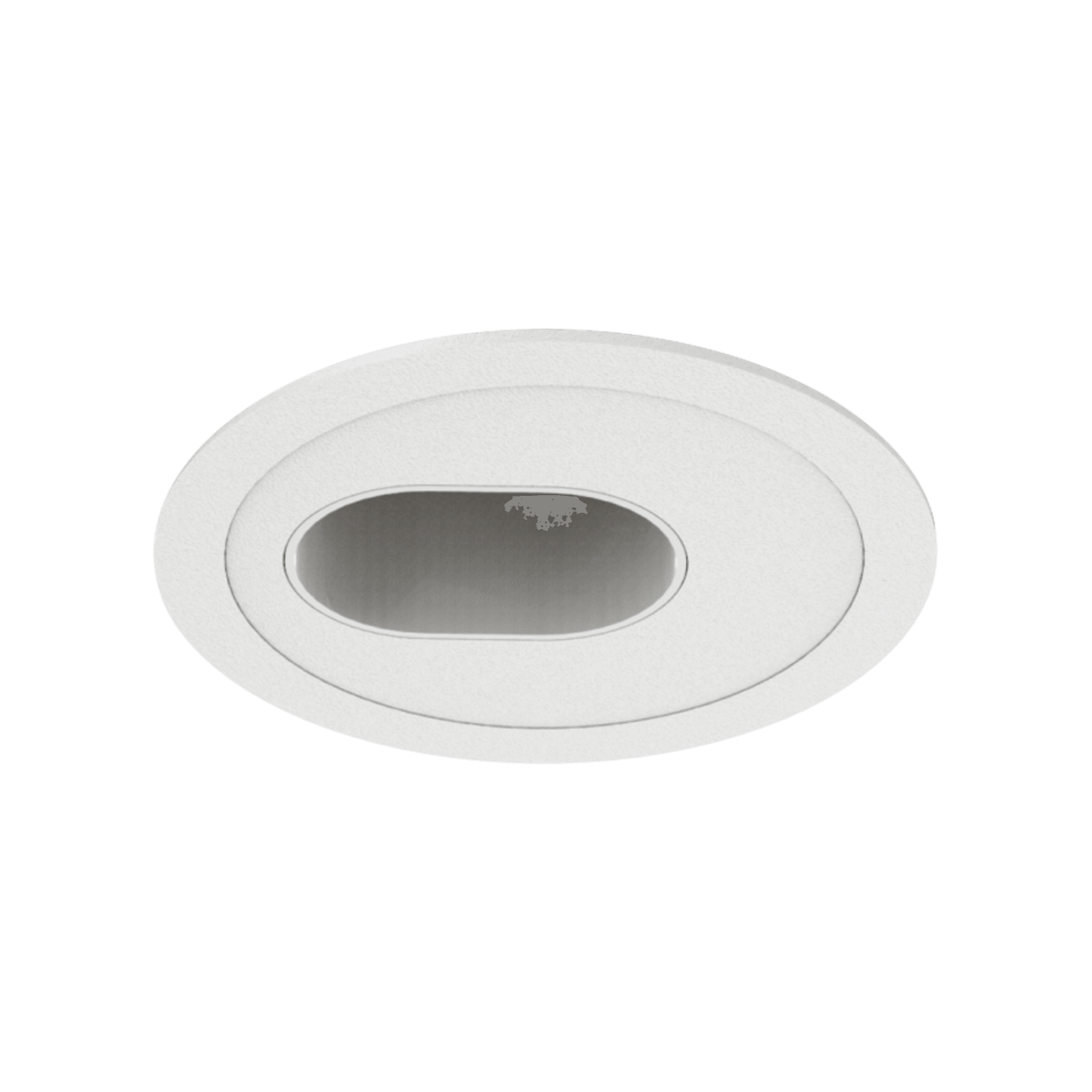

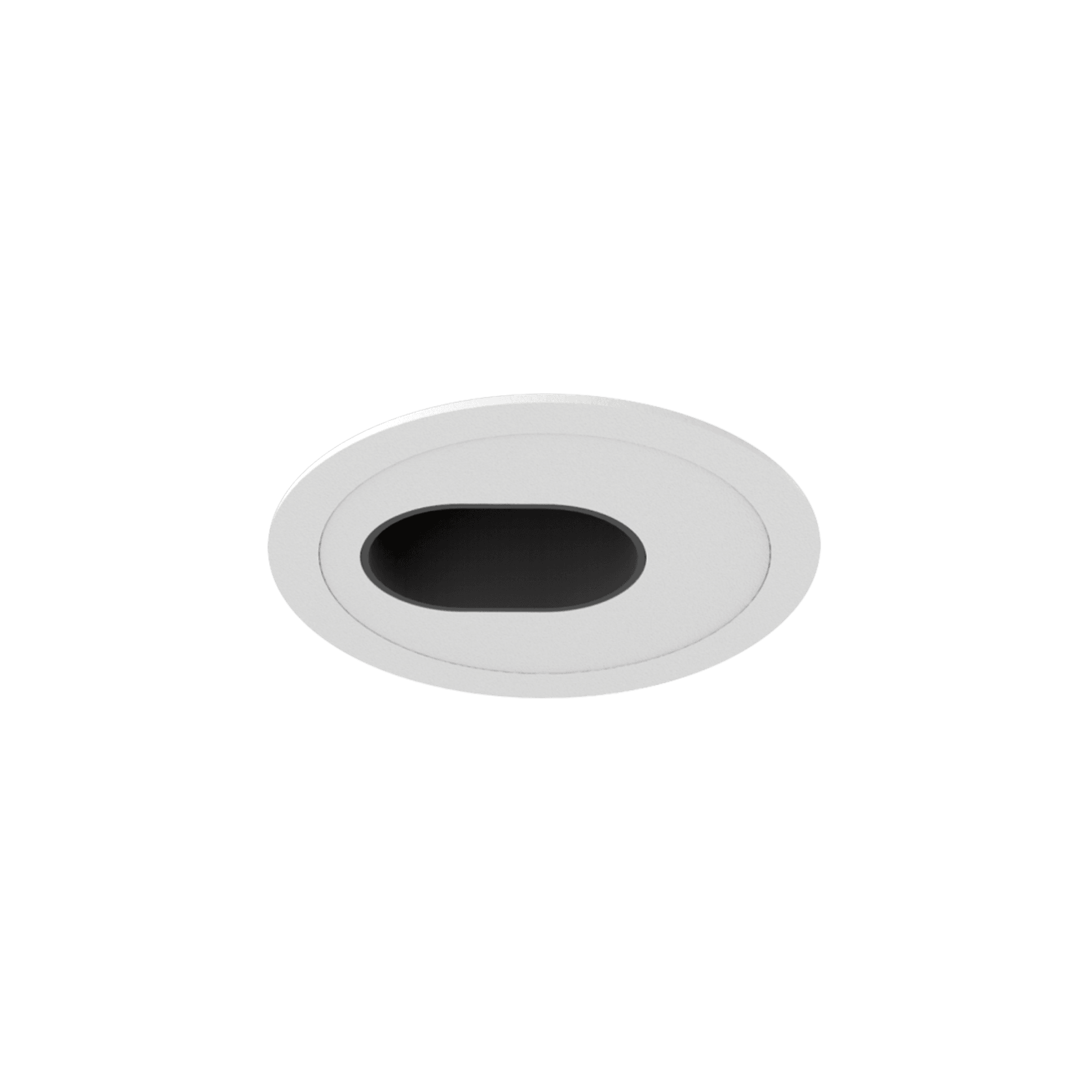

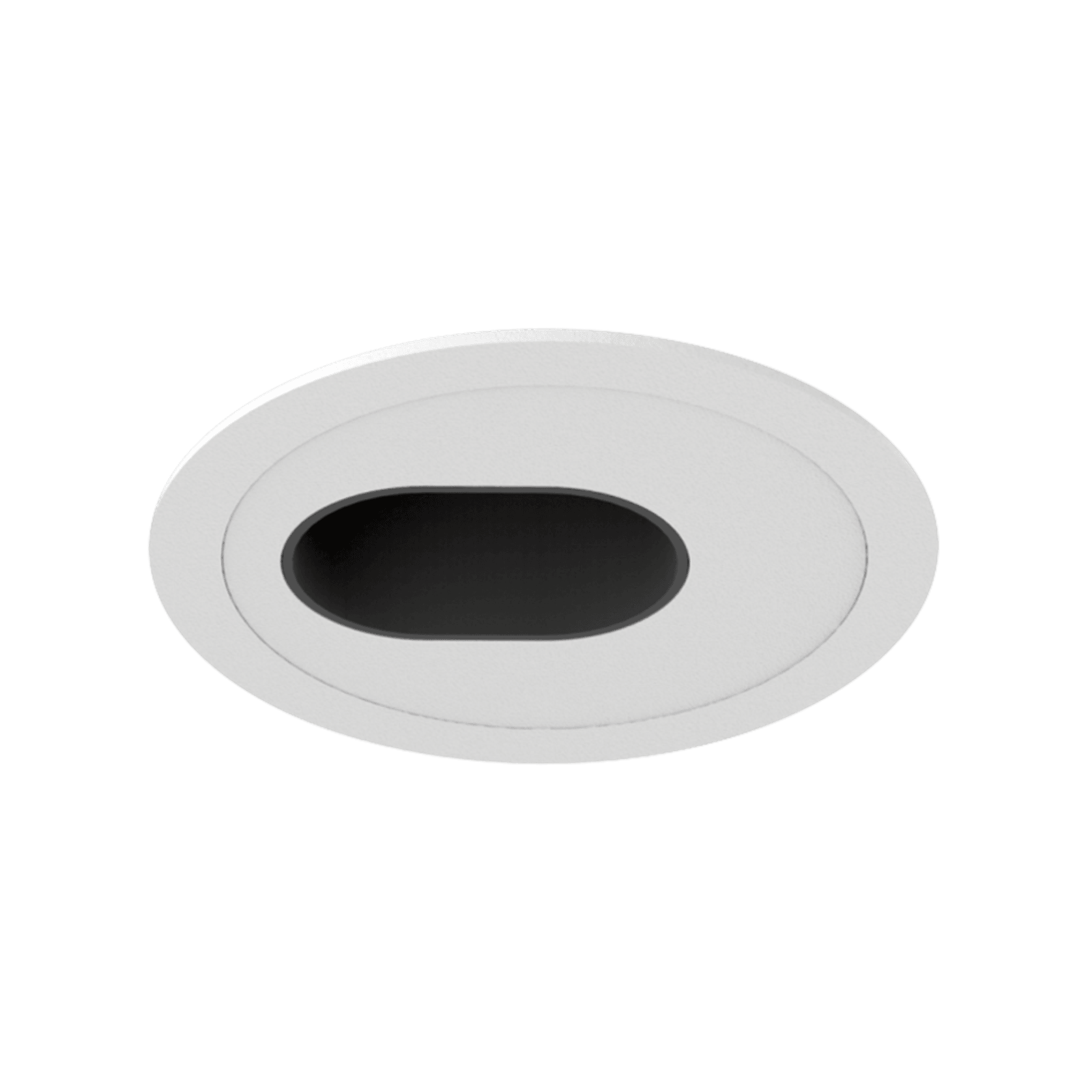

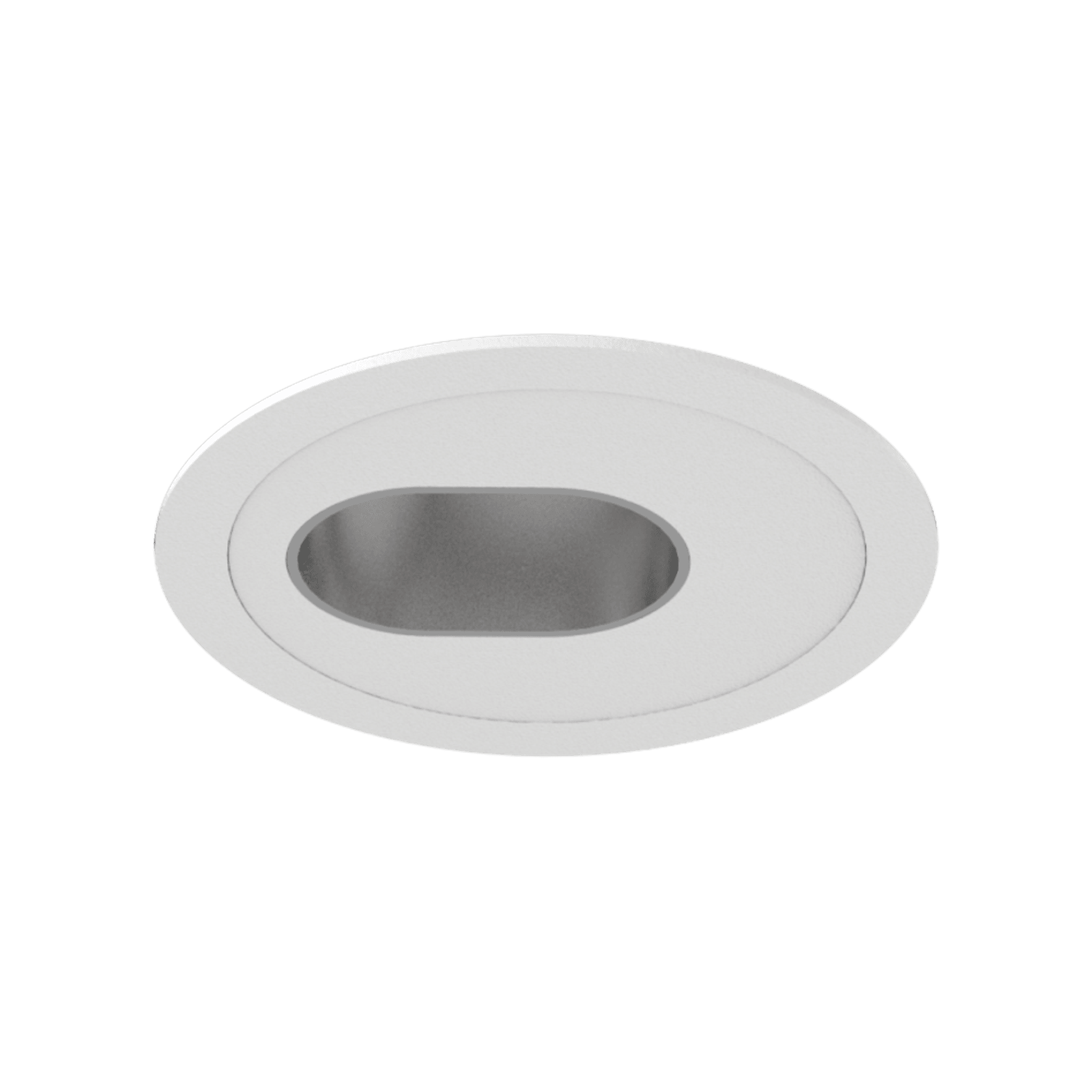

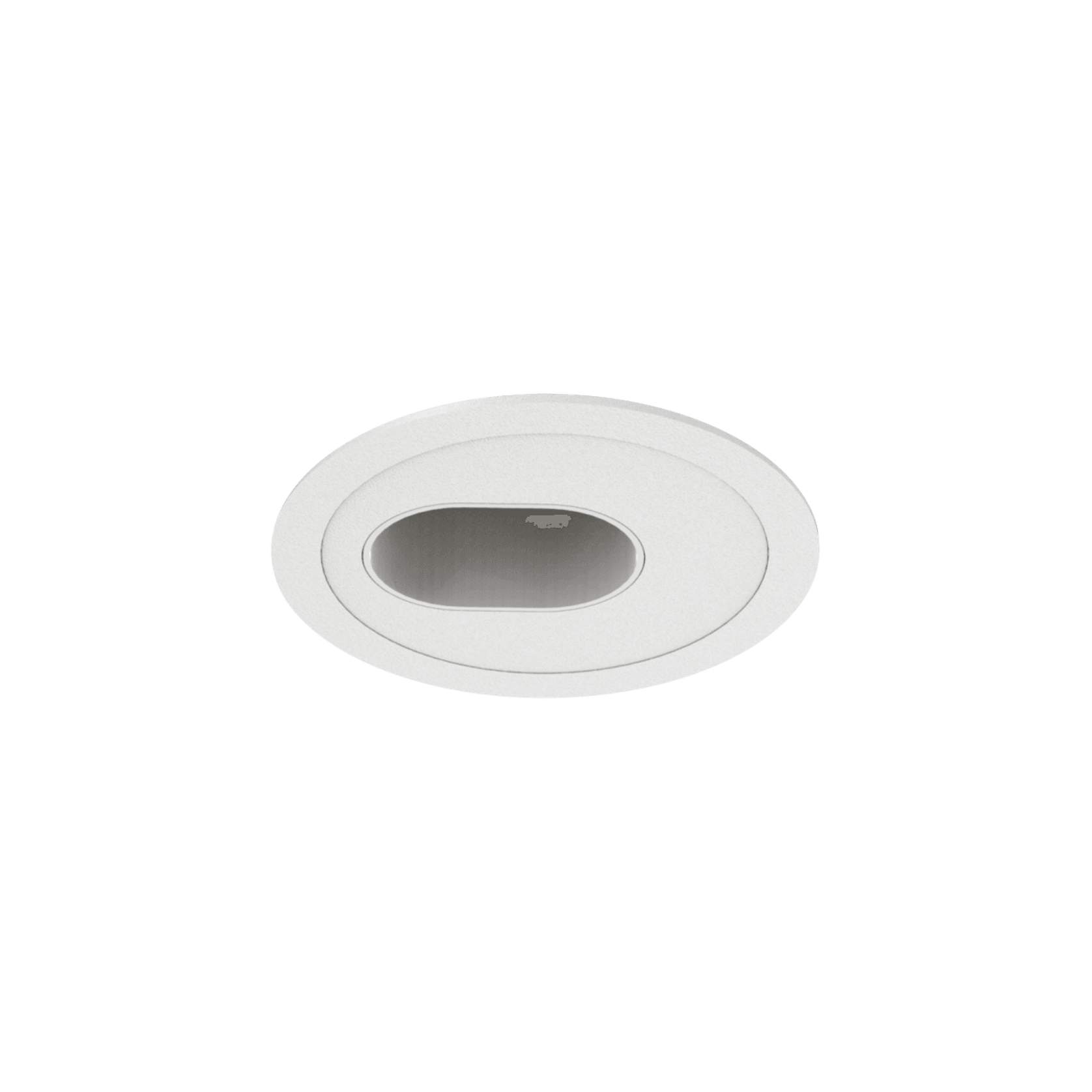

  • KEYHOLE
    RA3
    (cut-out Ø72mm)
  • SNOOT
    RA4
    (cut-out Ø72mm)
  • IP RATED
    RA5
    (cut-out Ø72mm)
