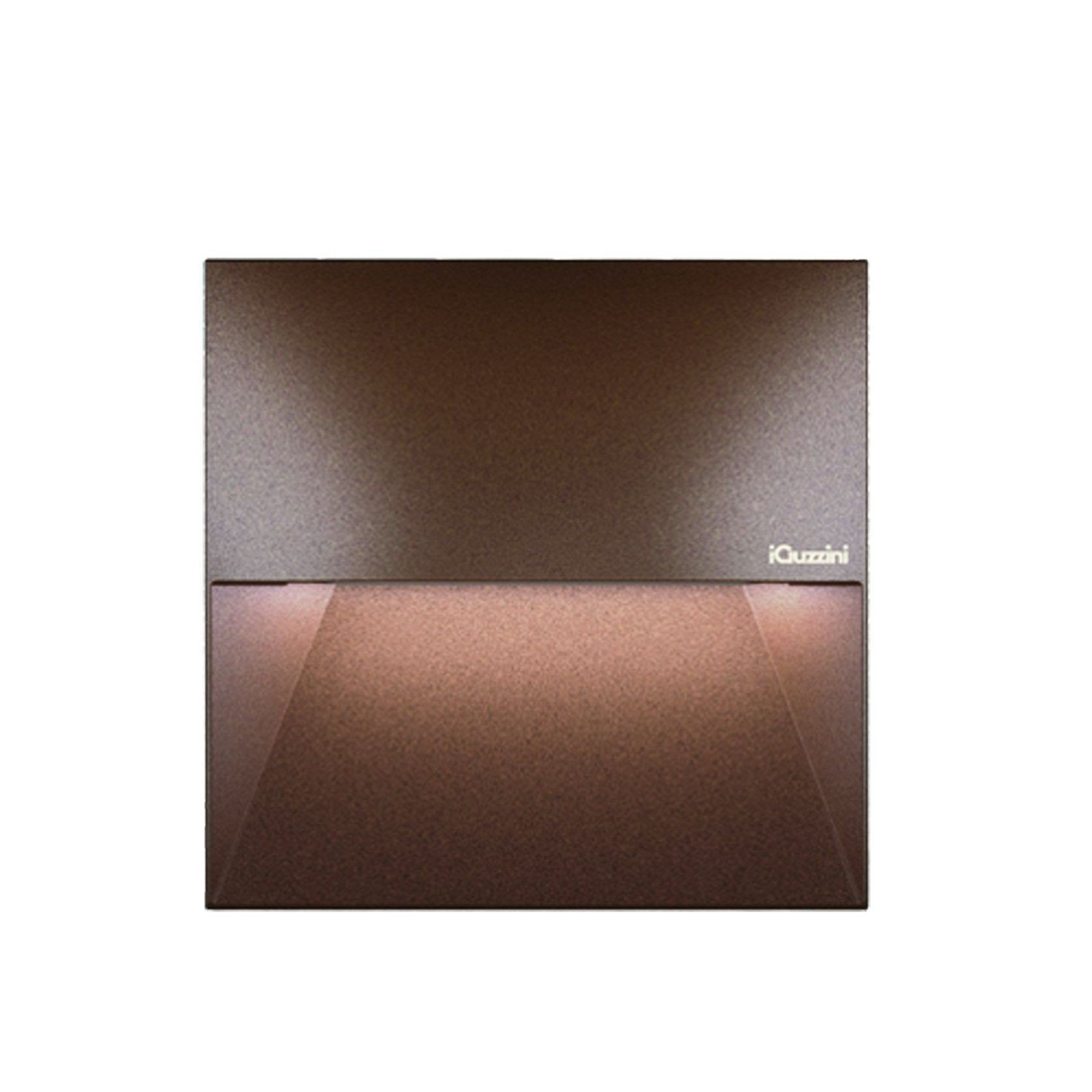

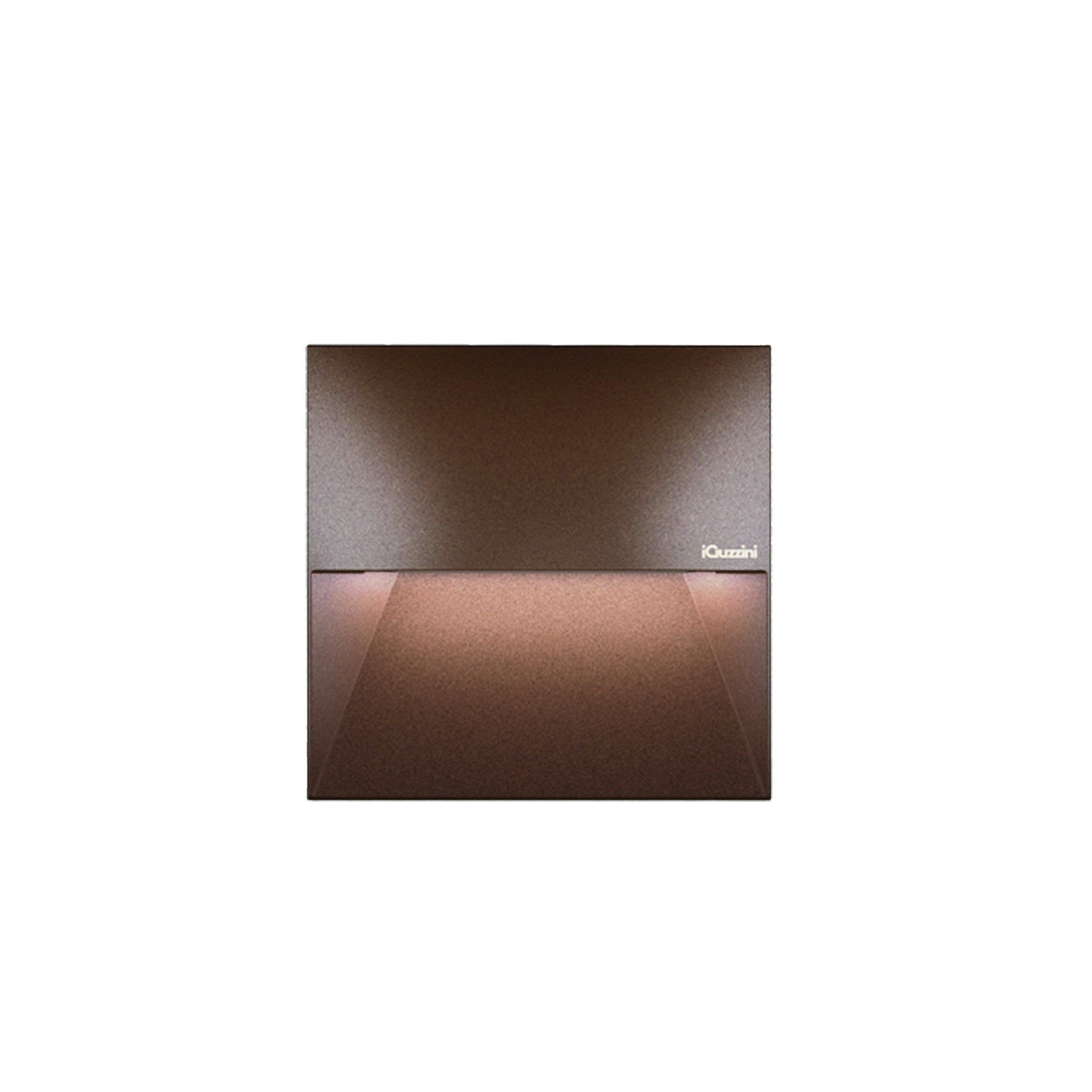

Walky Square

Lighting system for walkways designed for use with LED light sources to ensure high visual comfort.

Recessed installation.

Comprising an optical compartment with IP66 protection rating and wall-mounted casing (to be ordered separately).

Optical compartment and base strip in aluminium alloy with powder paint coating treatment to ensure high resistance to atmospheric agents and UV rays. Plastic closure casing in the rear part of the optical compartment.

Complete with plastic cable gland and output cable 0.5 m long

Black plastic frame casing to be ordered separately

Disposable polystyrene casings are available to create casing seats for applications in concrete walls finished afterwards with plaster or tiles.

Tempered frosted sodium-calcium safety glass.

Luminaire without visible screws with anti-vandalism system involving a key to open access to the rear wiring compartment (supplied in the packaging) for circular ø200 ø100mm, square 180x180mm 90x90mm and rectangular 270x90mm versions. Quick fitting rear opening system for circular ø50, square 45x45 and rectangular 180x45mm versions.

Protection against over-voltages (220 ÷ 240Vac versions): 2kV in Common Mode (CM), 1kV in Differential Mode (DM).

Application ambient temperature:Ta -30°C +50°C for 24Vdc versionsTa -20°C +50°C for 220-240Vac versions (On-Off- DALI)Ta 0°C +45°C for 220-240Vc versions in emergency

All external screws used are in A2 stainless steel
