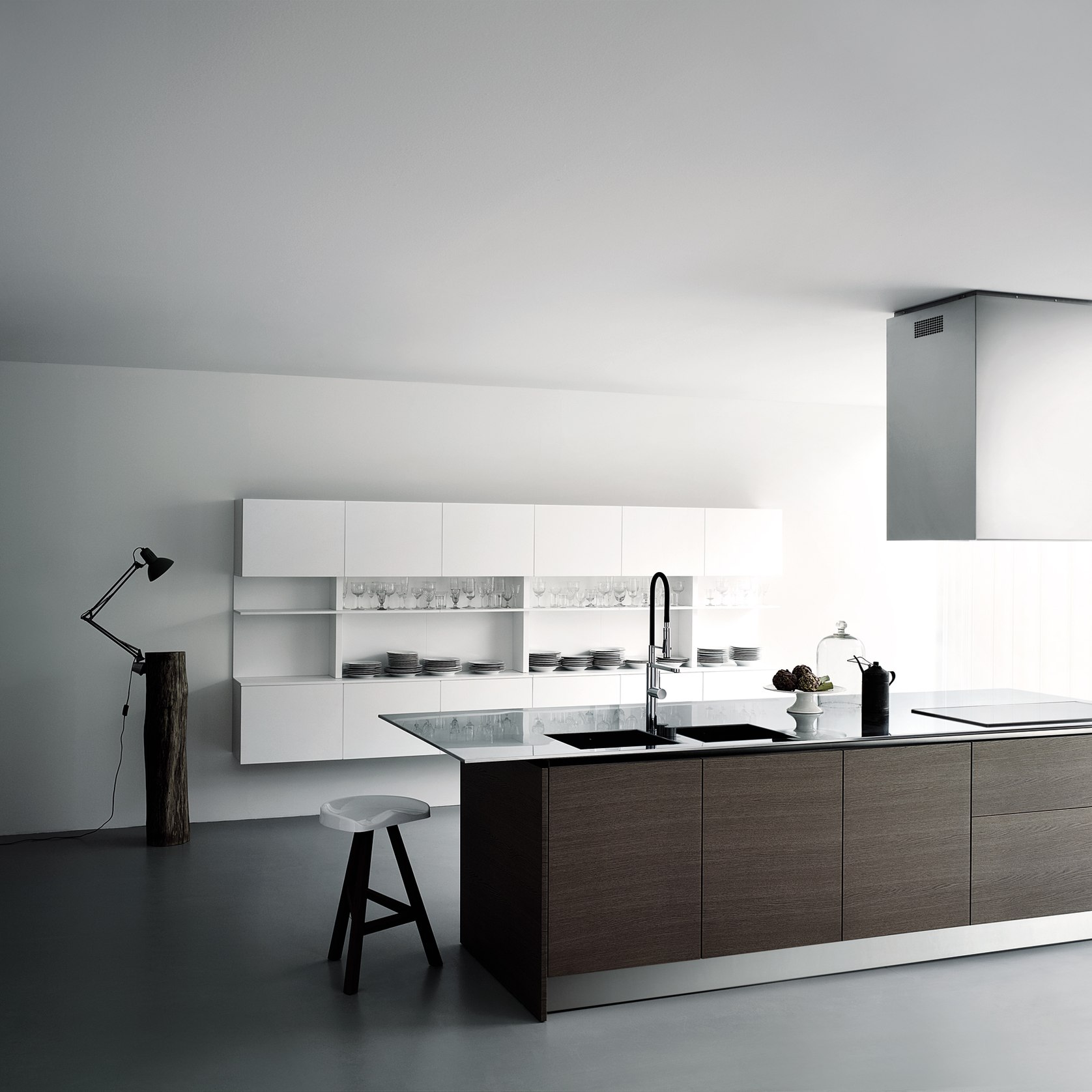

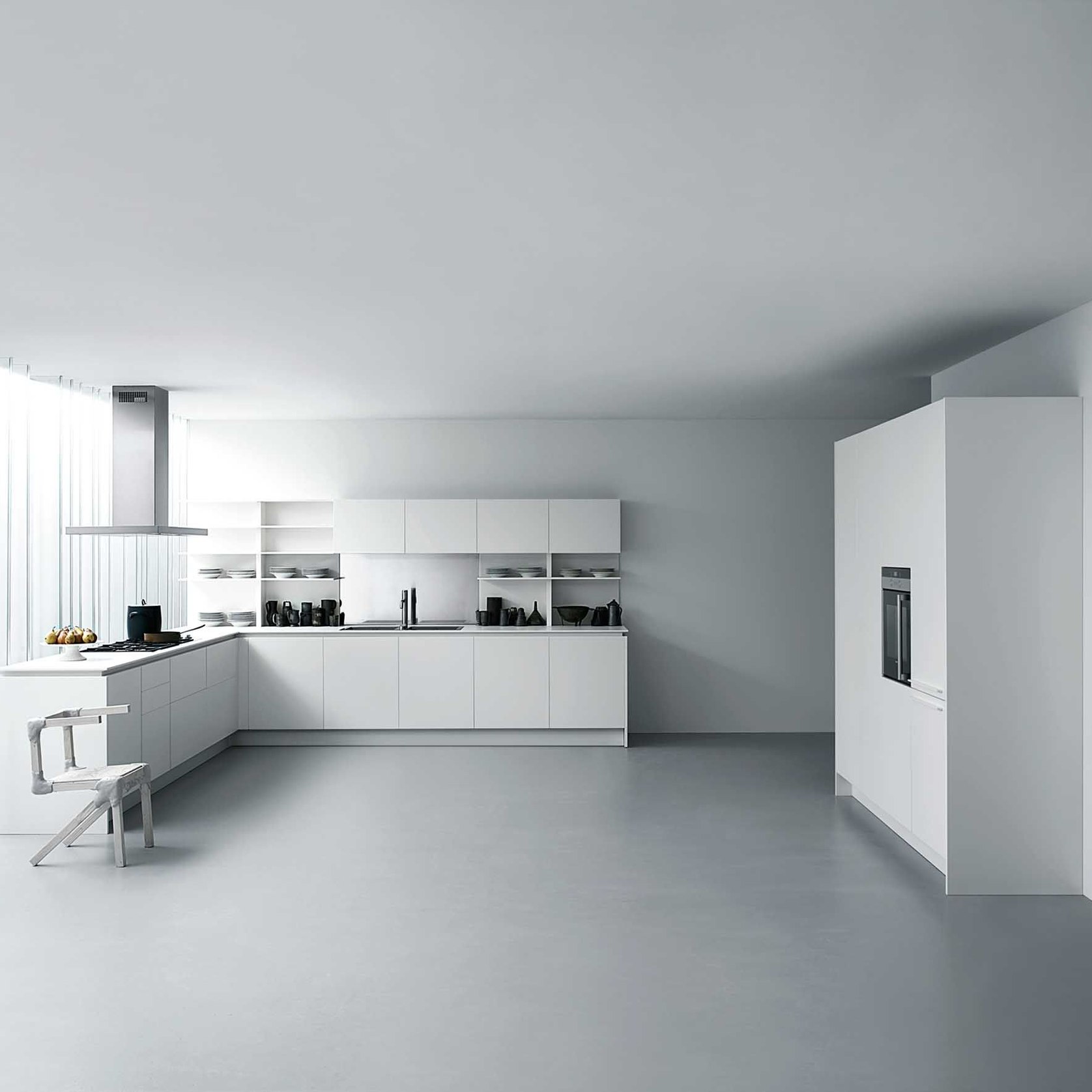

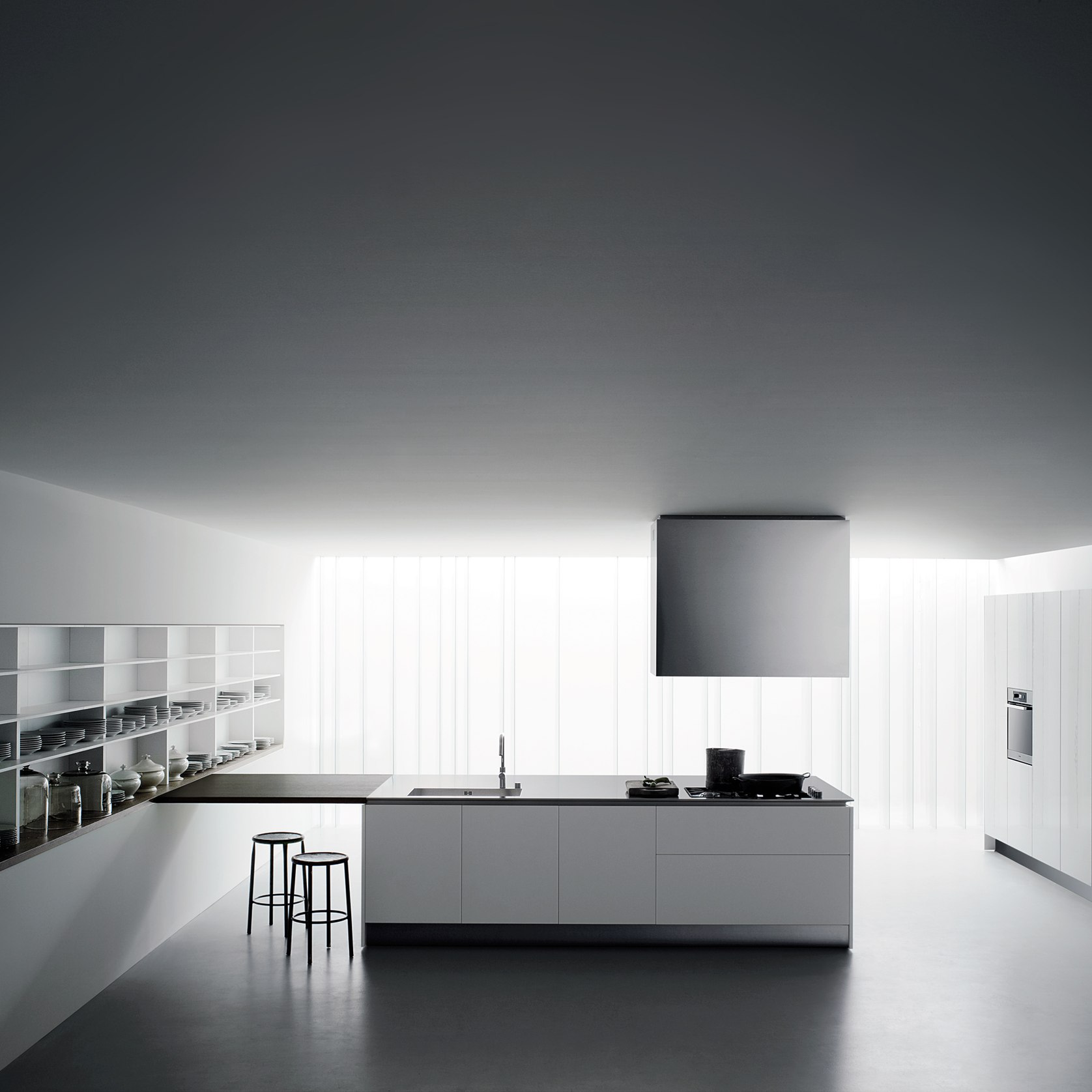

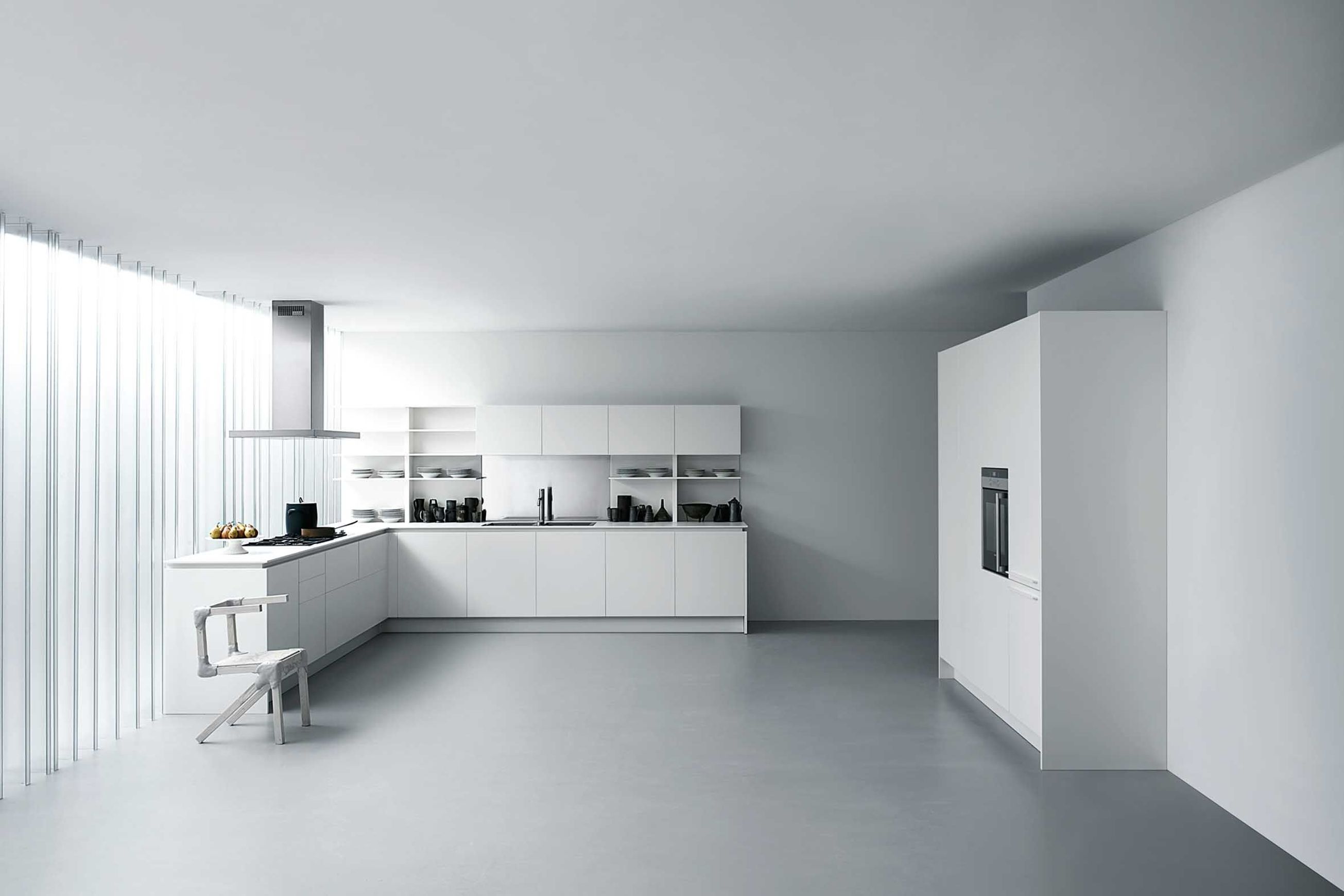

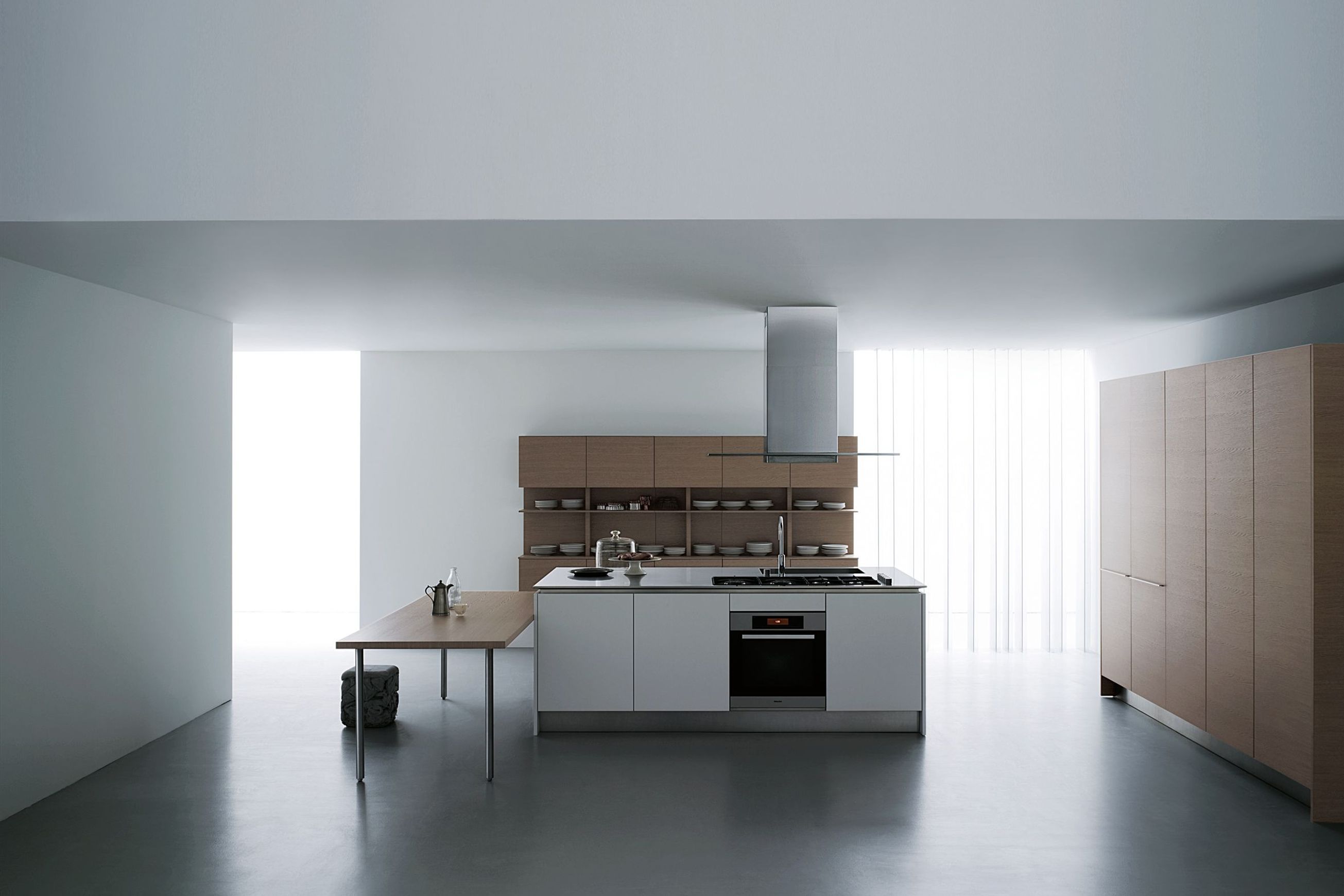

Xila ST Kitchen

DESIGN: Luigi Massoni + CRS Boffi / 2011

DESCRIPTION: a kitchen simplified in type and modules; available in different finishes compared to the existing range. It has no handle, but is instead fitted with push opening on lower drawers and tall unit doors. The worktop is characterised by an under-top indent used as a handle and an integrated top structure, 12mm thick, in different materials. Boiserie shelves complete the system. They can be mounted on top or on the wall as storage shelves.

TECHNICAL FEATURES: Kitchen unit system, consisting of base units, wall units and tall units, with squared doors. It allows for the use of different recessed, flush-mounted, semi-flush-mounted hobs and sinks, which are welded in the stainless steel version.

MATERIAL FEATURES:

Units: they are made in particle wood boards, 19 mm thick, compliant with European standard (class 1, low formaldehyde content), treated with high basic weight melamine-resin - in silk white, or open pore graphite-grey oak finish.

Side panels: base unit h. 720 – wall unit h. 440/720 – tall unit h. 2130mm.

Plinths and handle-rails: In aluminium profile. Plinth height h= 150 mm. Handle-rail in aluminium profile integrated in the worktop thickness.

Finishes: brushed aluminium like stainless steel – matt white varnish.

Doors and front panels: available in
- medium density, 23 mm thick, Silcover, in all the Boffi colour range
- panels in 23mm thick particle board, grey oak or black eco-wood veneer with edge in the same finish (horizontal grain)
- medium density, 23 mm thick, polished white methacrylate finish (policoat), with finished edge (horizontal grain);
- Bi-laminate, matt finish
- Decomat, full range of Boffi colours.

Handle: doors with no handle but exhibiting a continuous aluminium grooved handle rail, fixed to the unit and integrated in the thickness, in satin stainless steel or matt white colours.

Modules: base units h. 720 mm. w. 300 – 450 – 600 – 900 - 1200mm.

Wall units h. 440 - 720 mm., w. 300 – 450 - 600 – 900 mm.

Tall units h. 2130 mm. w. 450 – 600 mm.

Worktops: 60 mm thick worktop consisting of a support in wood particle board, 48mm thick, with integrated handle profile and a finished upper part, 12mm thick, in colour-core laminate Lamicolor®, matt satin stainless steel, polished stainless steel, C.R.S. Scotch Brite stainless steel, Silestone® quartz or white Corian®.

Boiserie: made in wood particle boards, 14/20/40 mm thick, covered by wood veneer or lacquered in matt Silcover. h. 644/1084 mm
