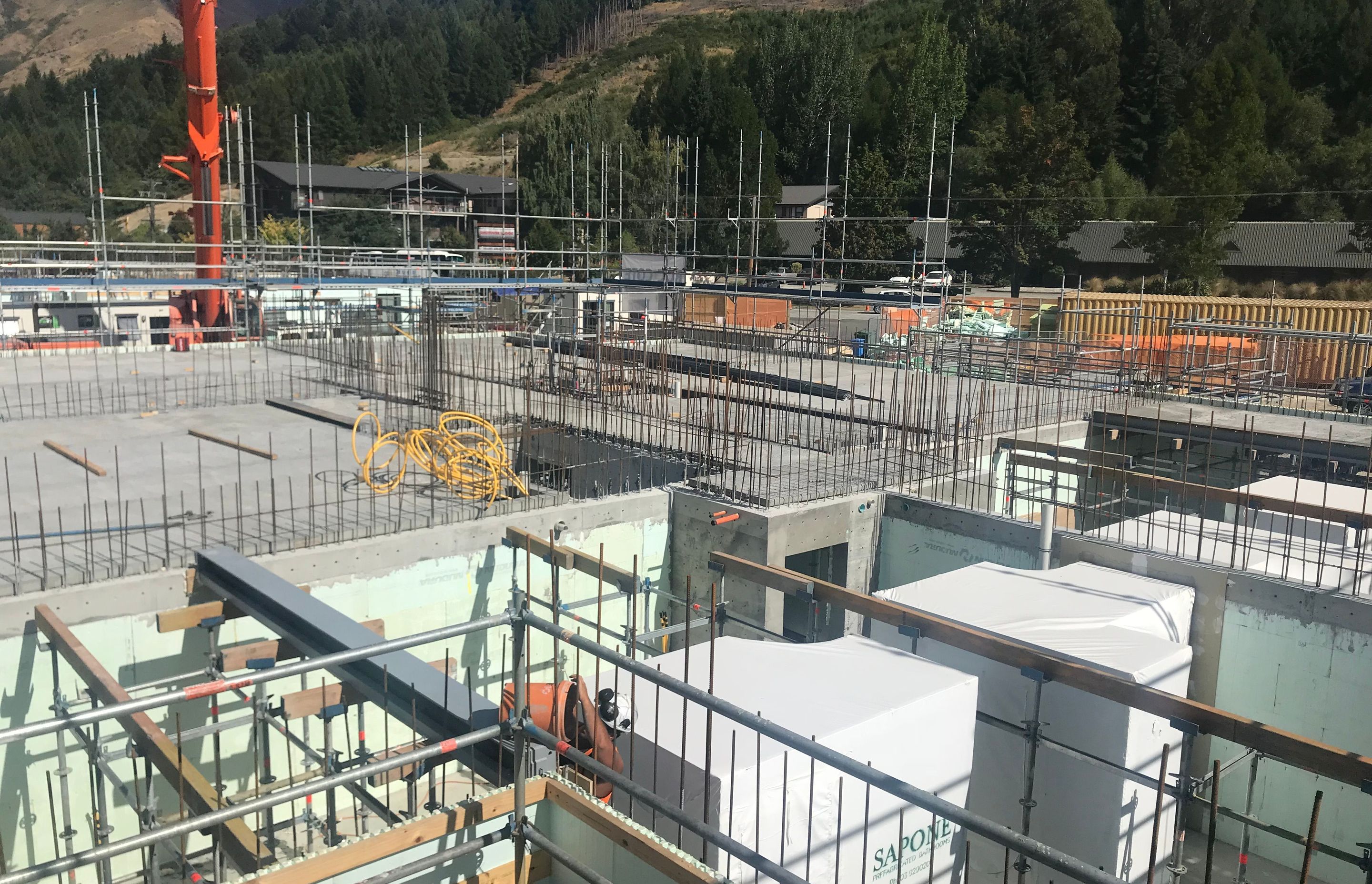

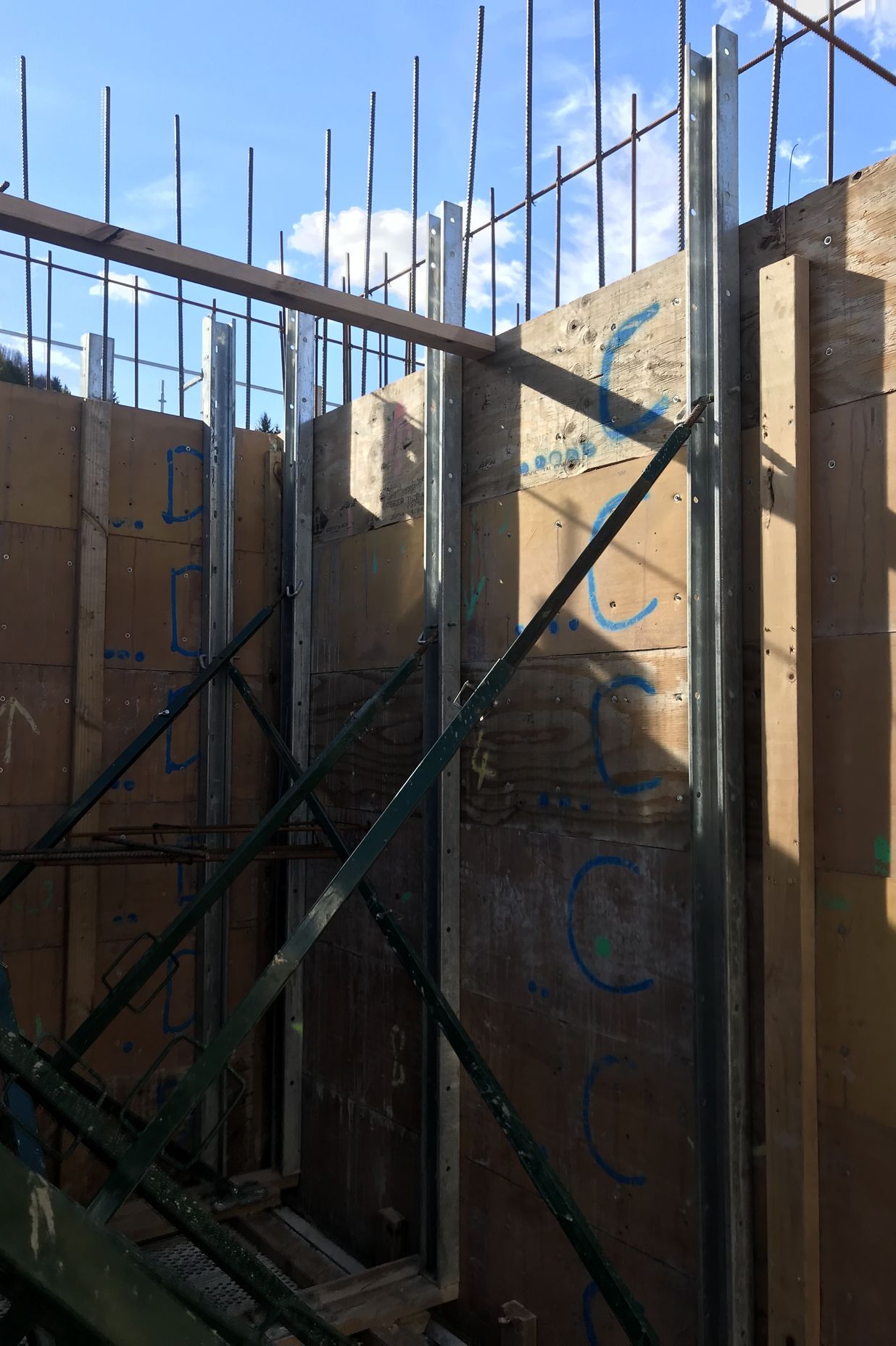

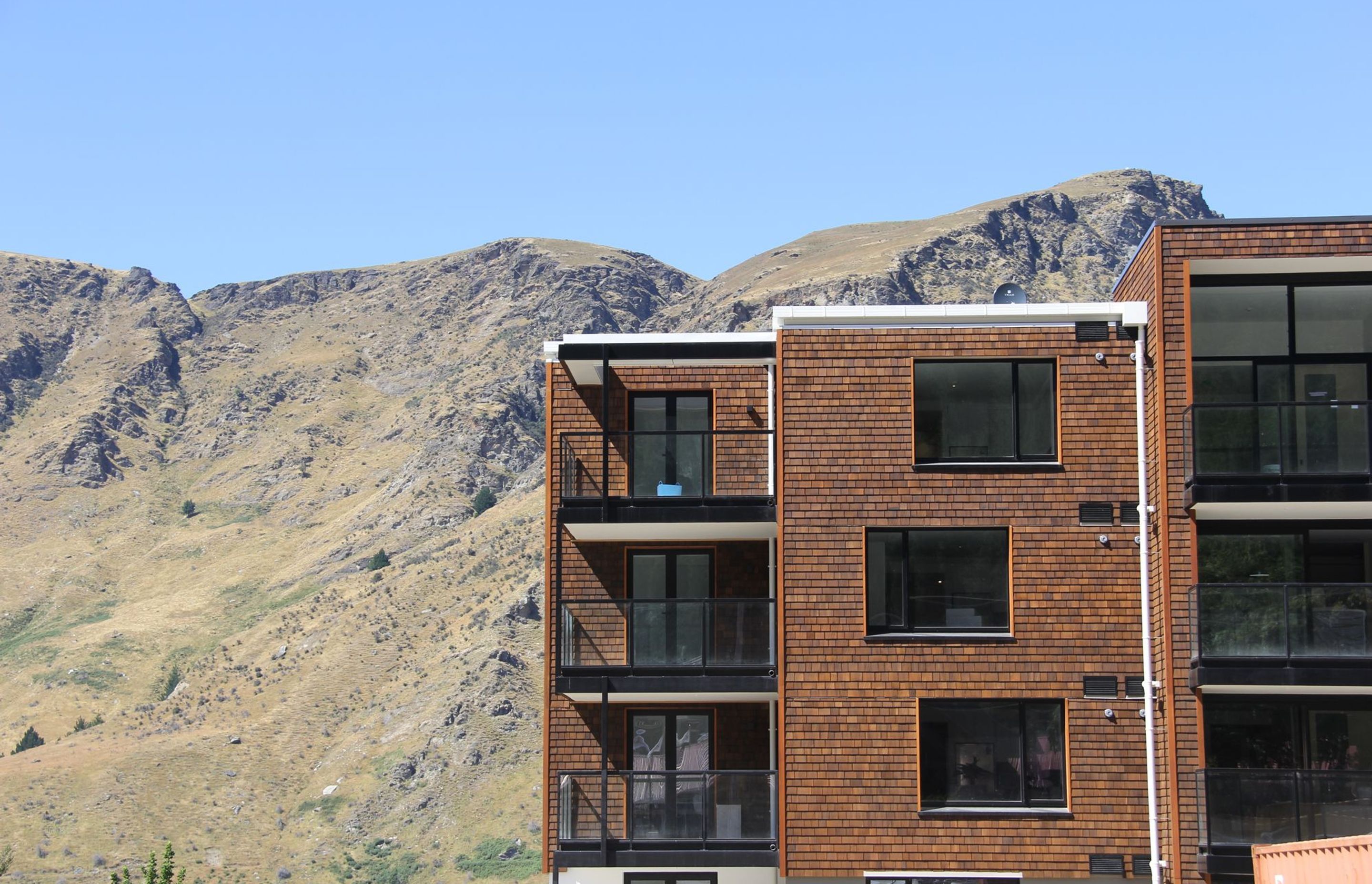

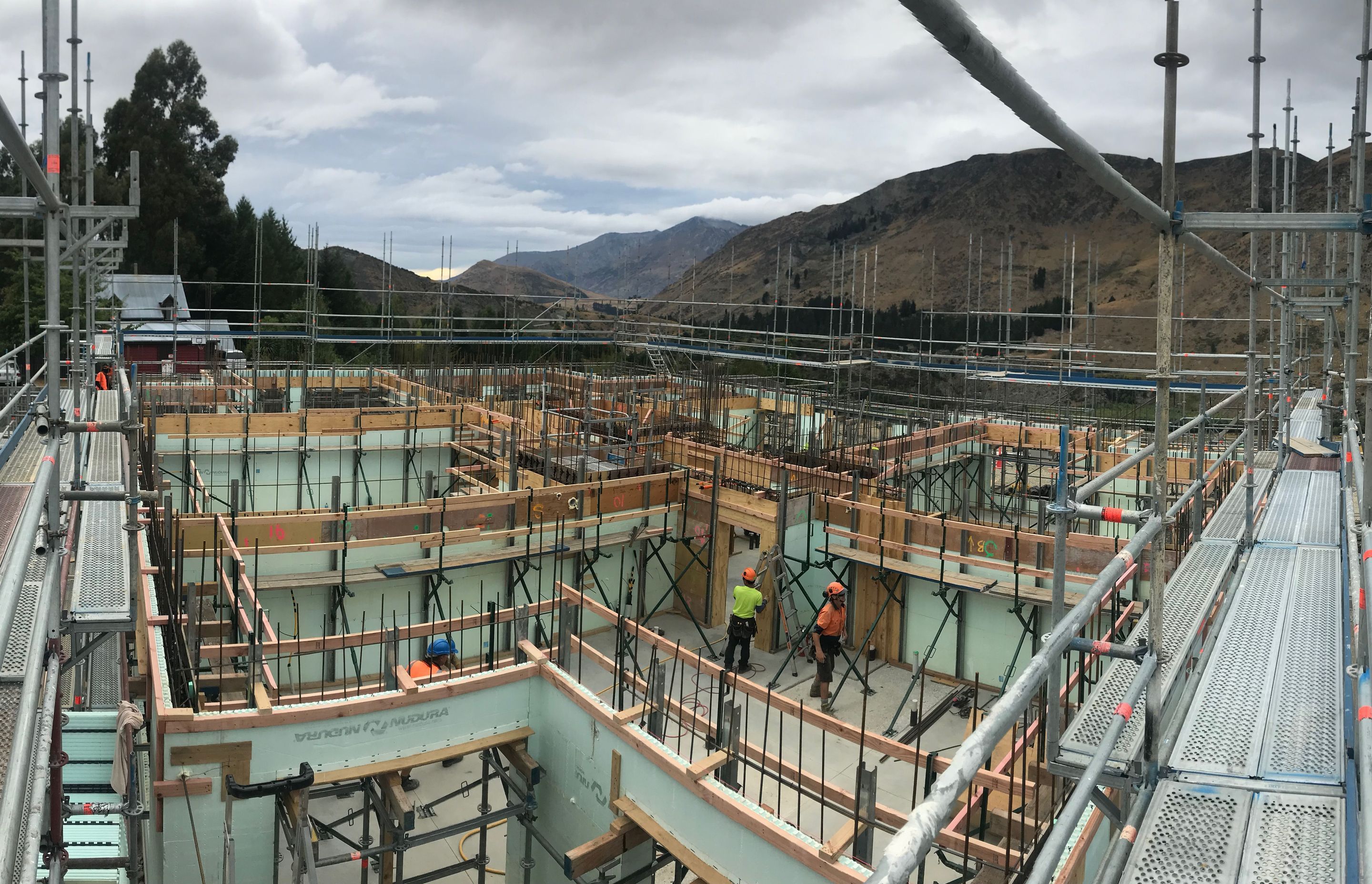

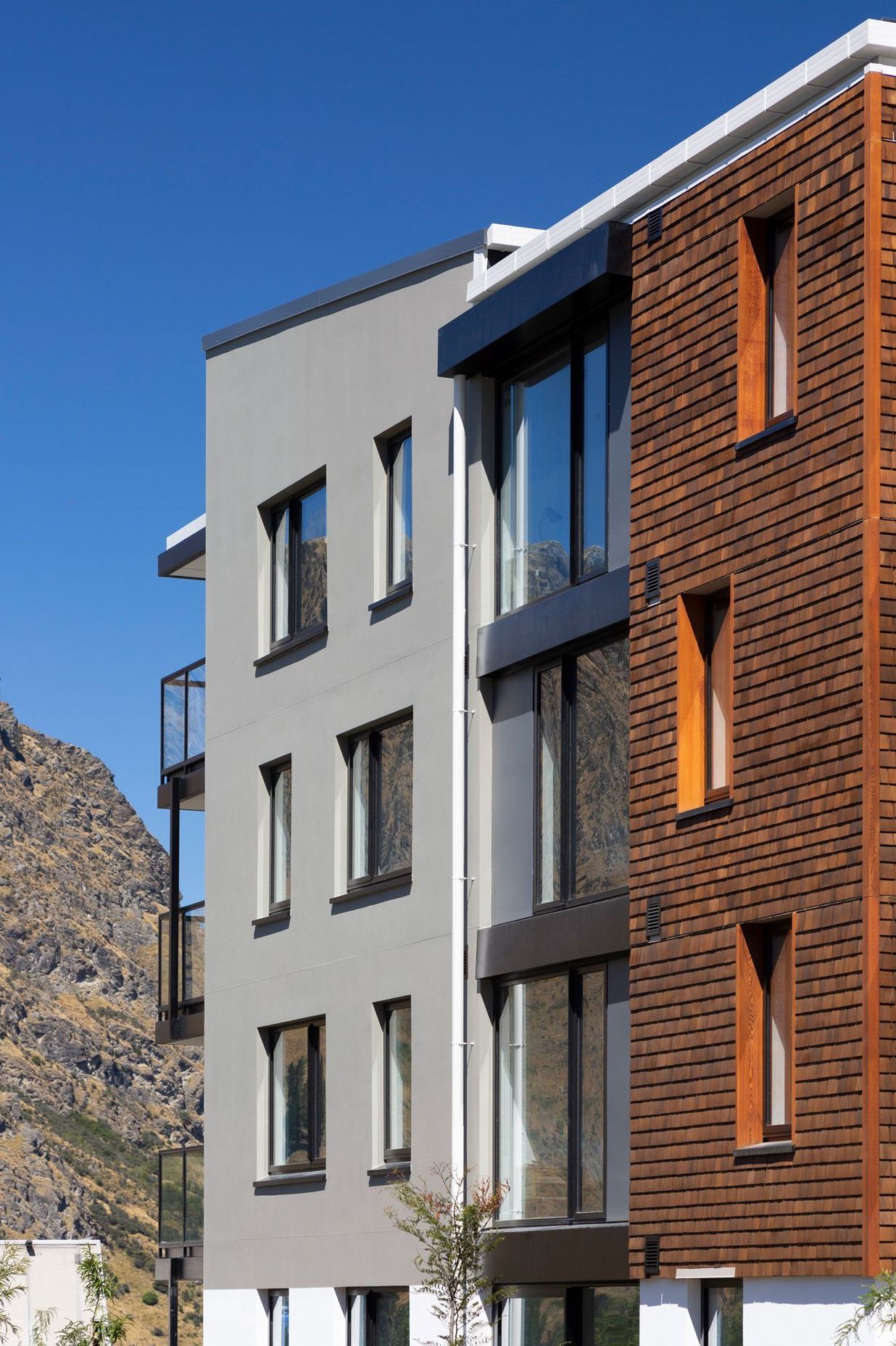

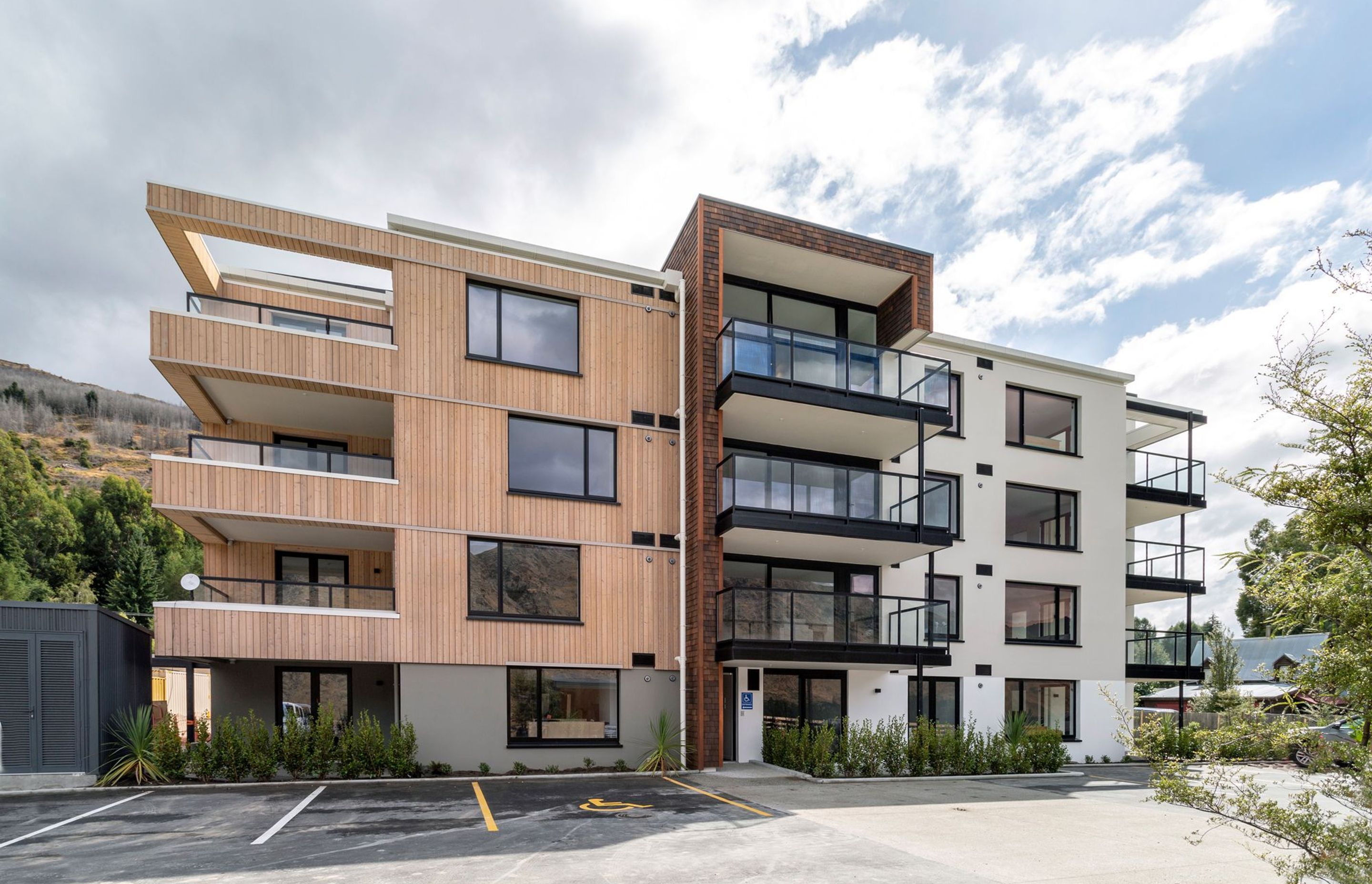

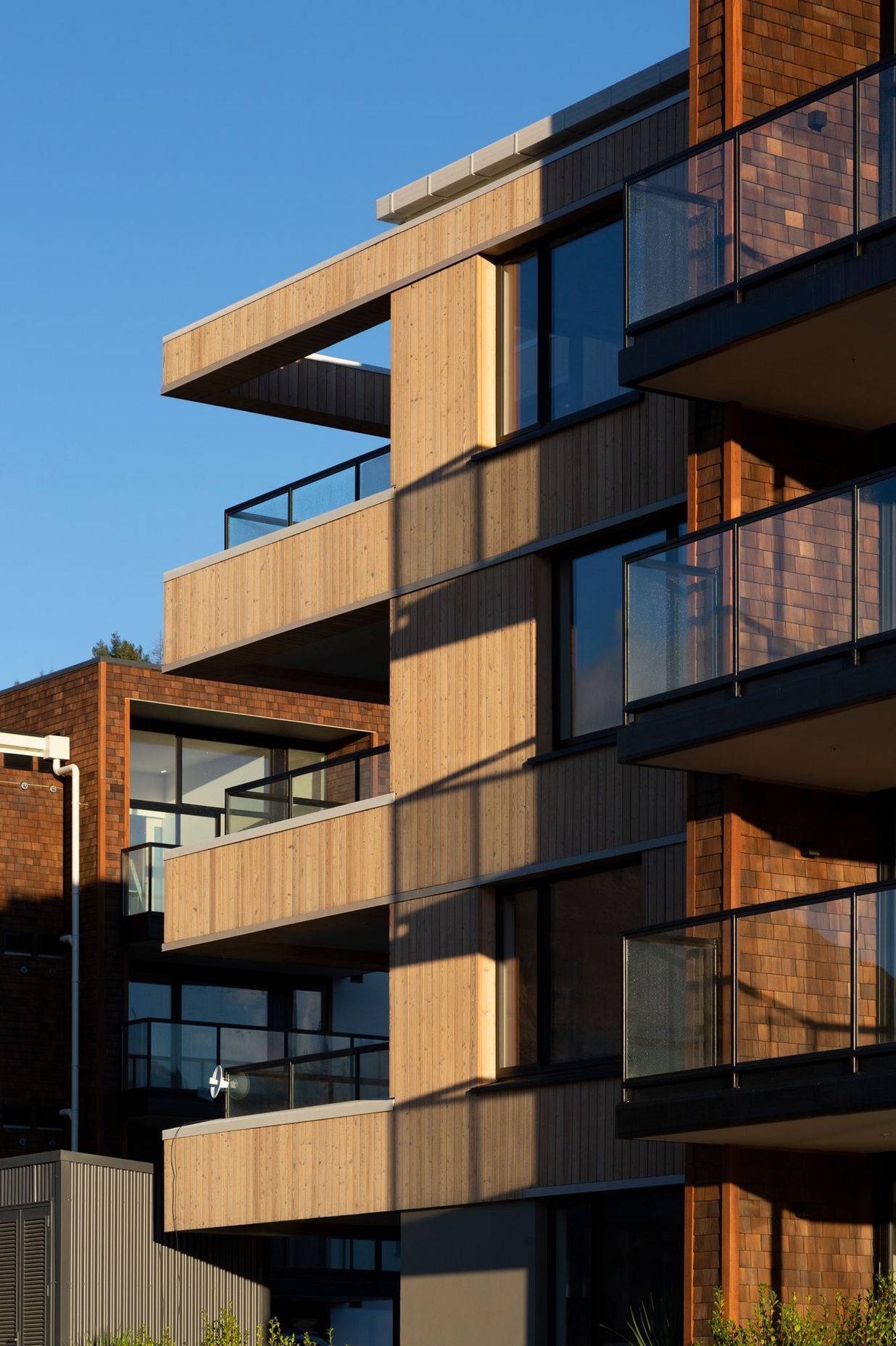

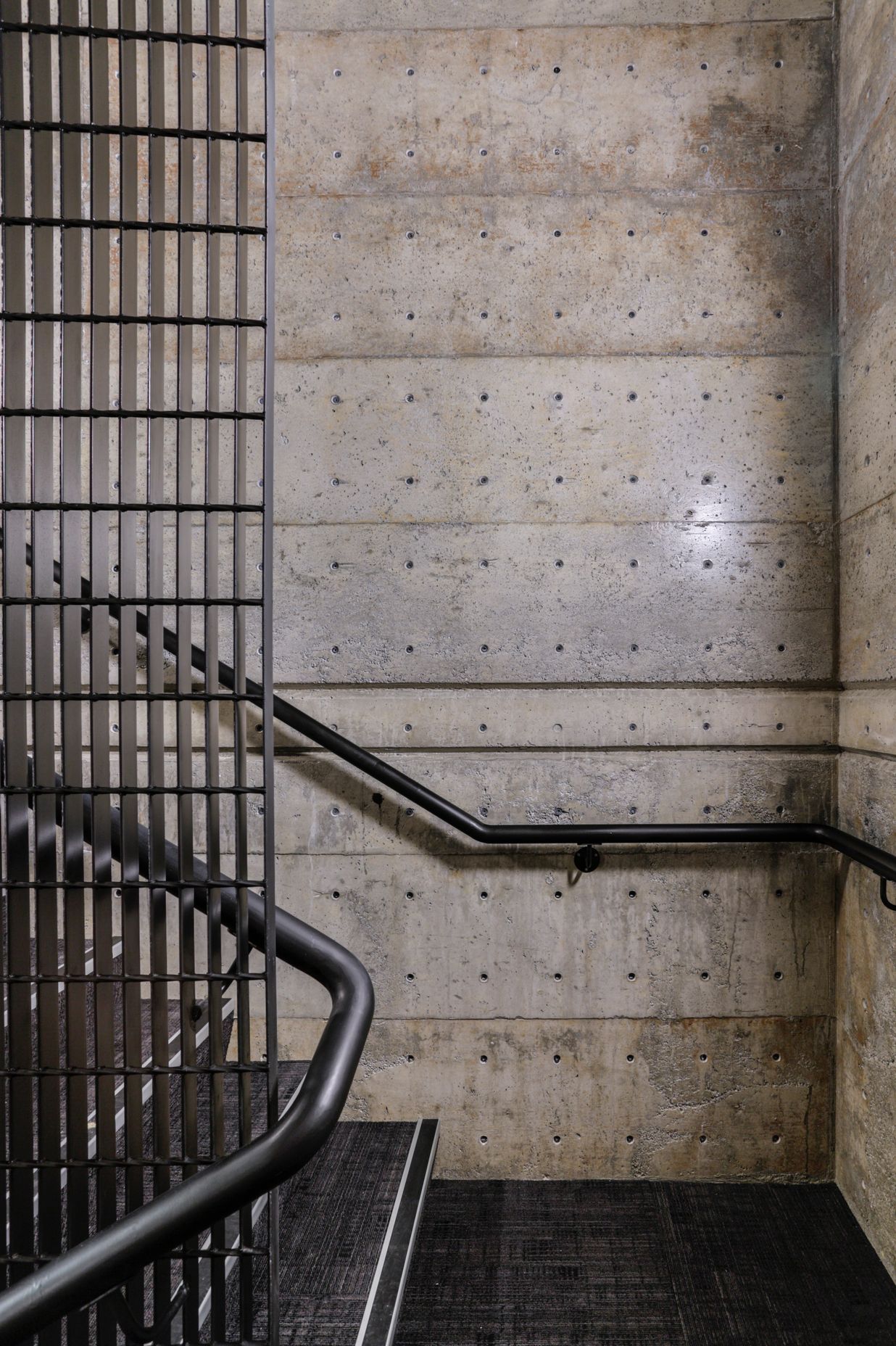

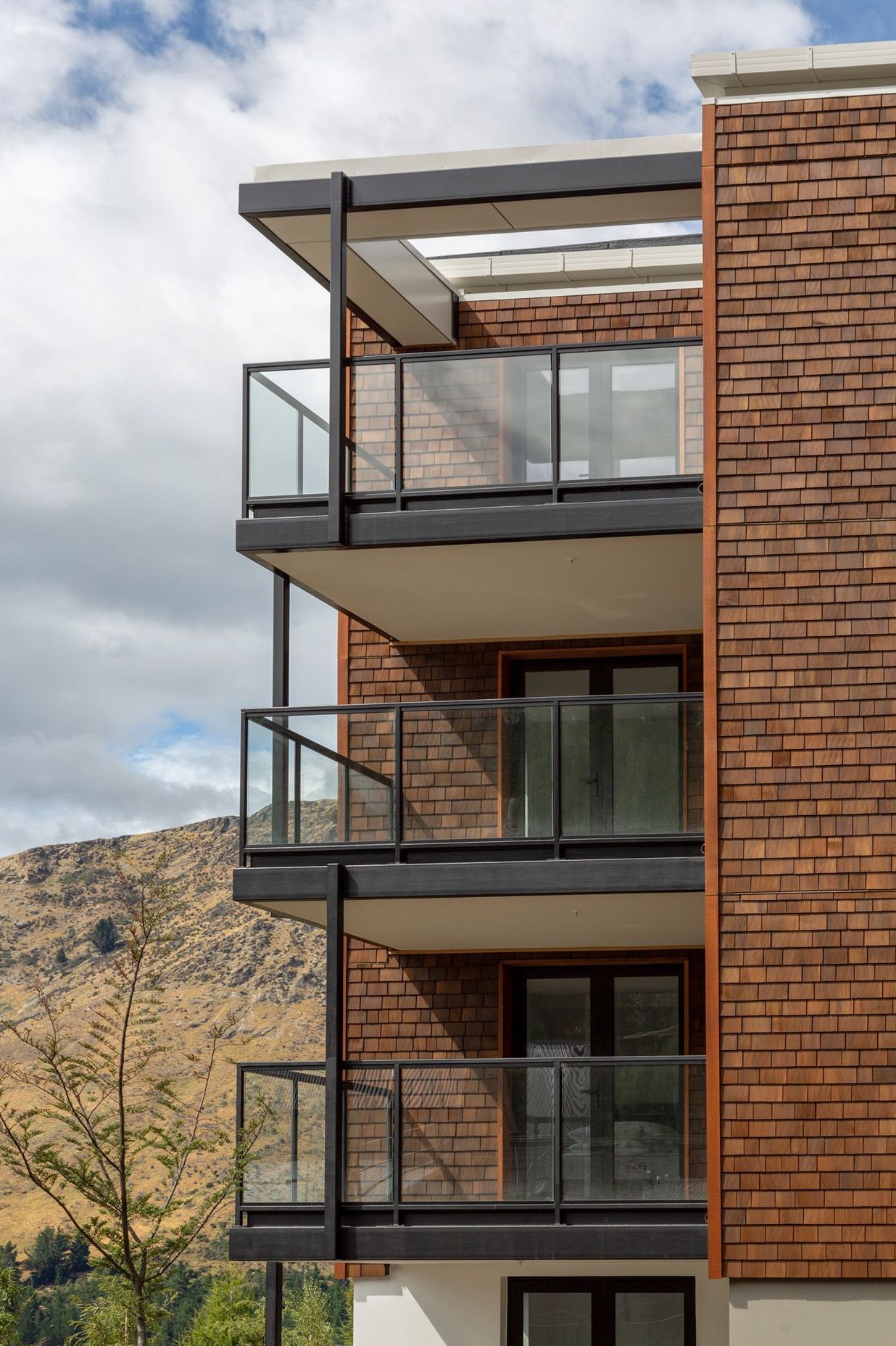

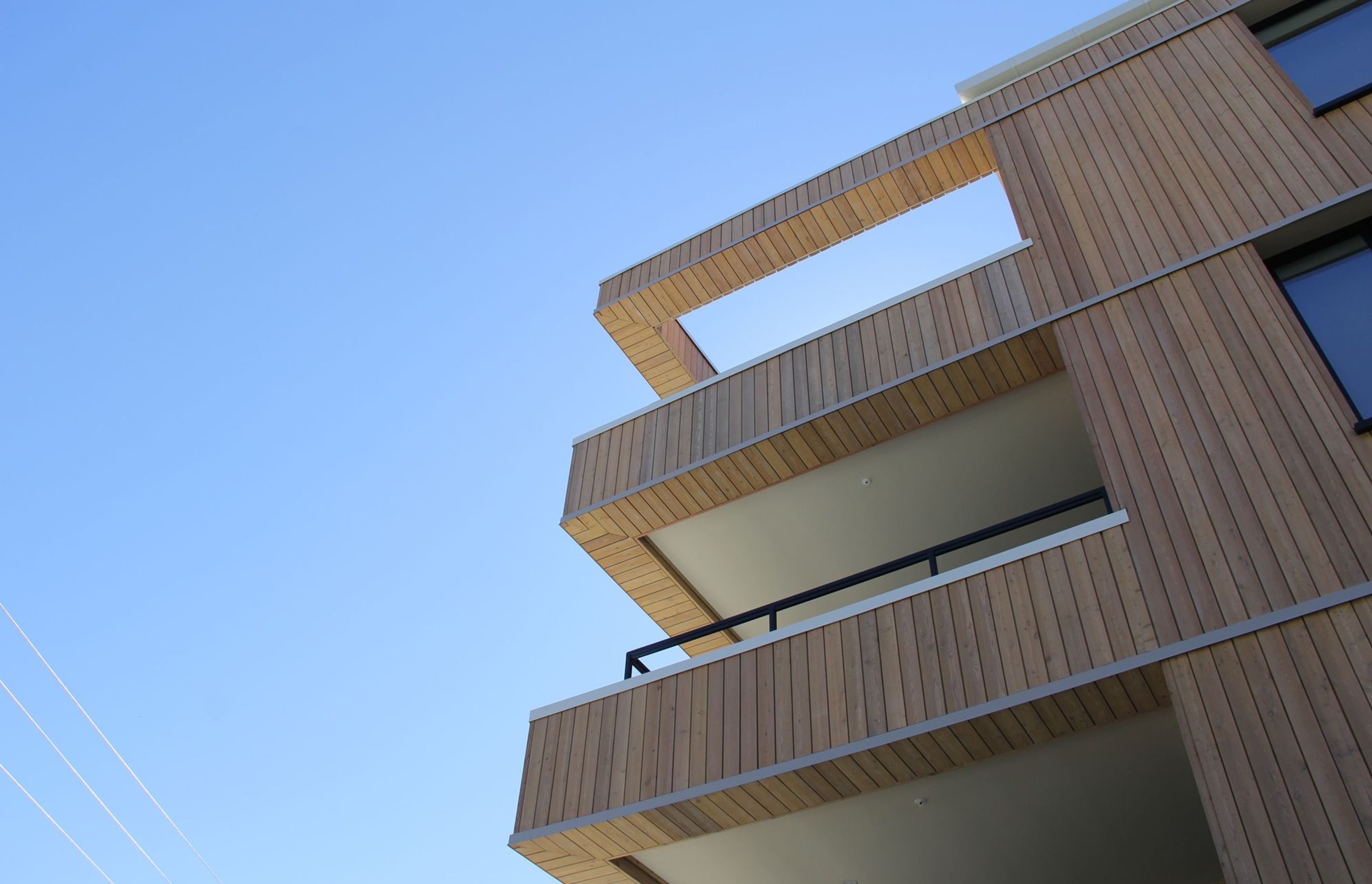

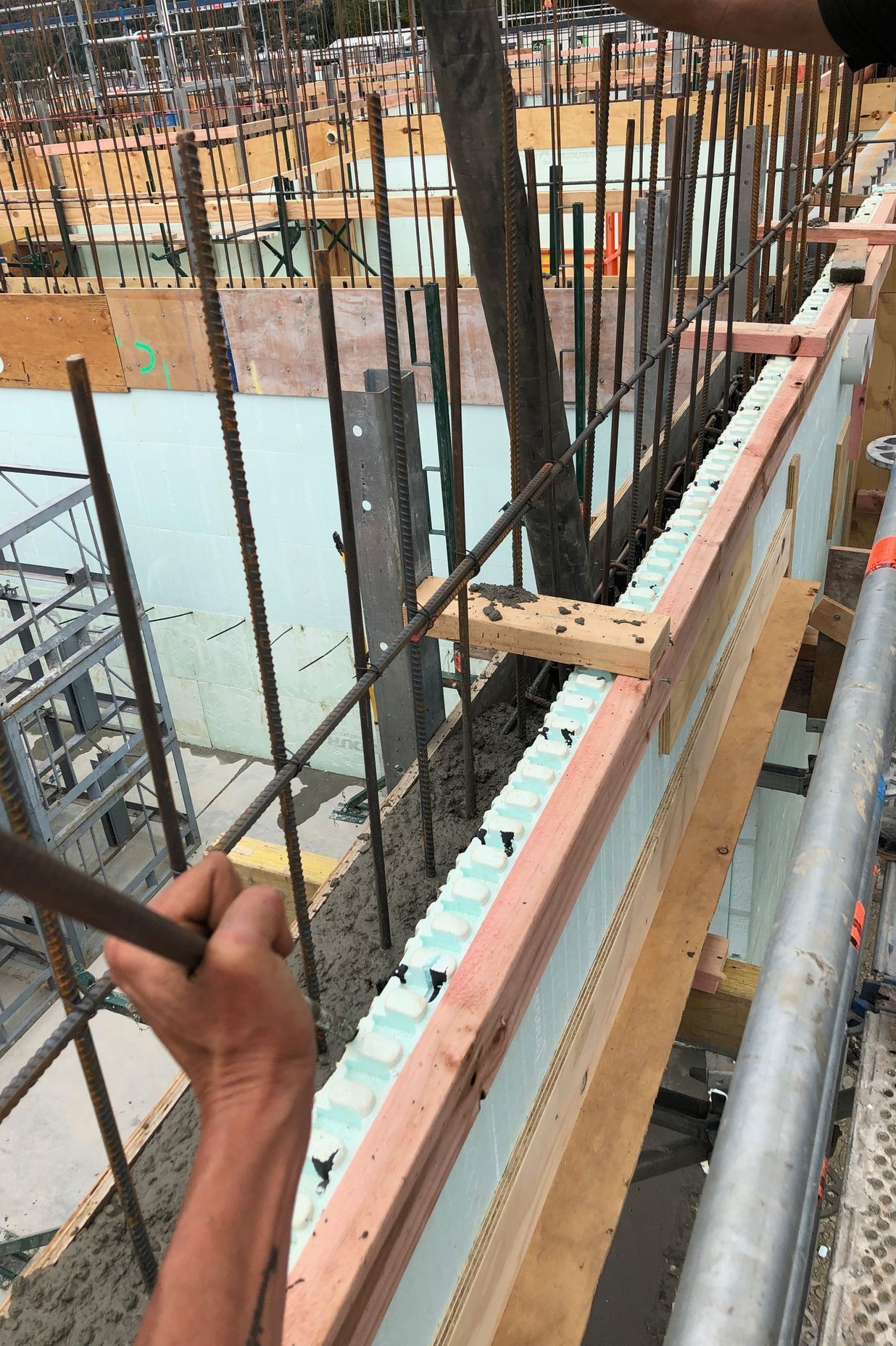

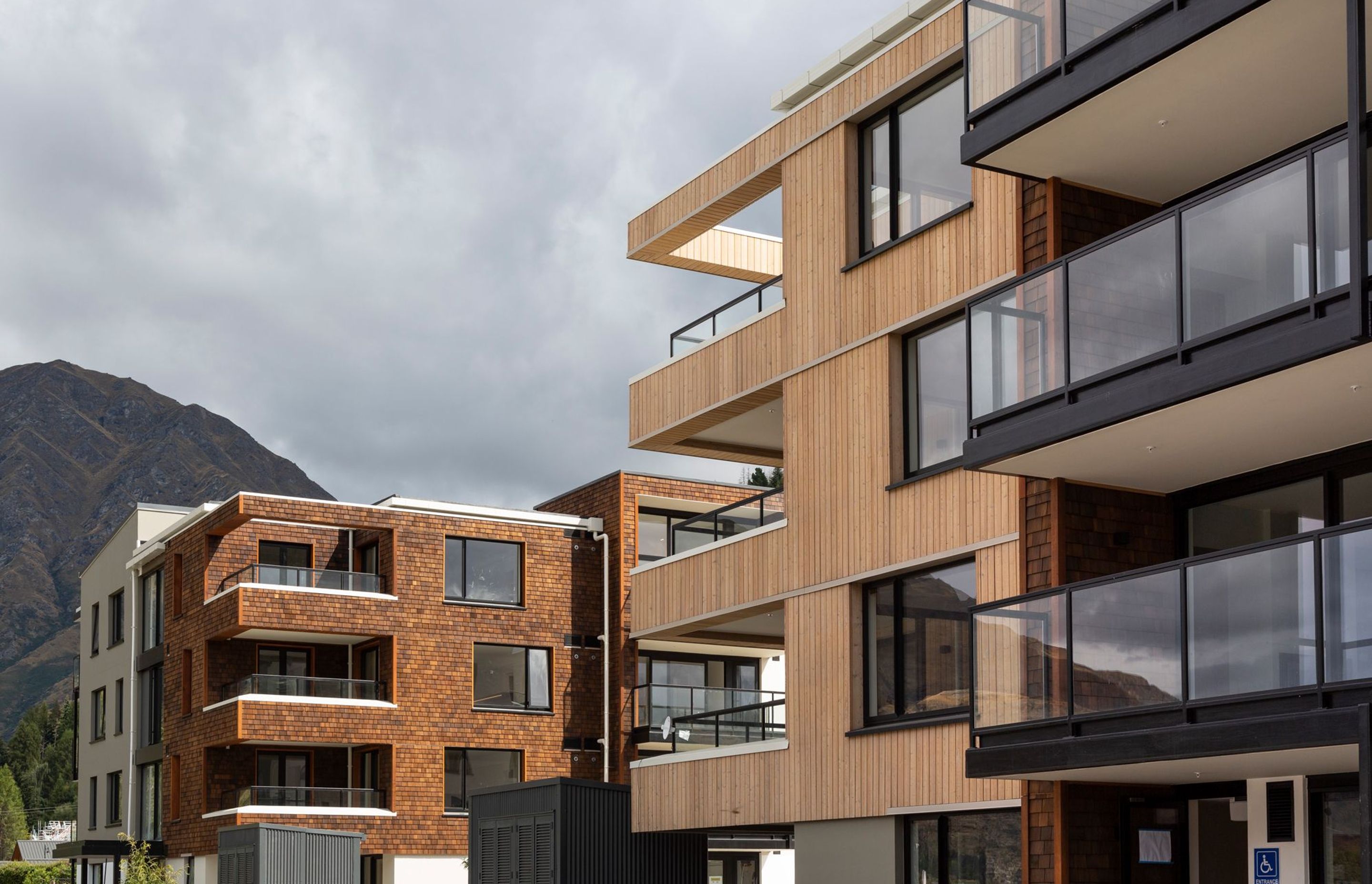

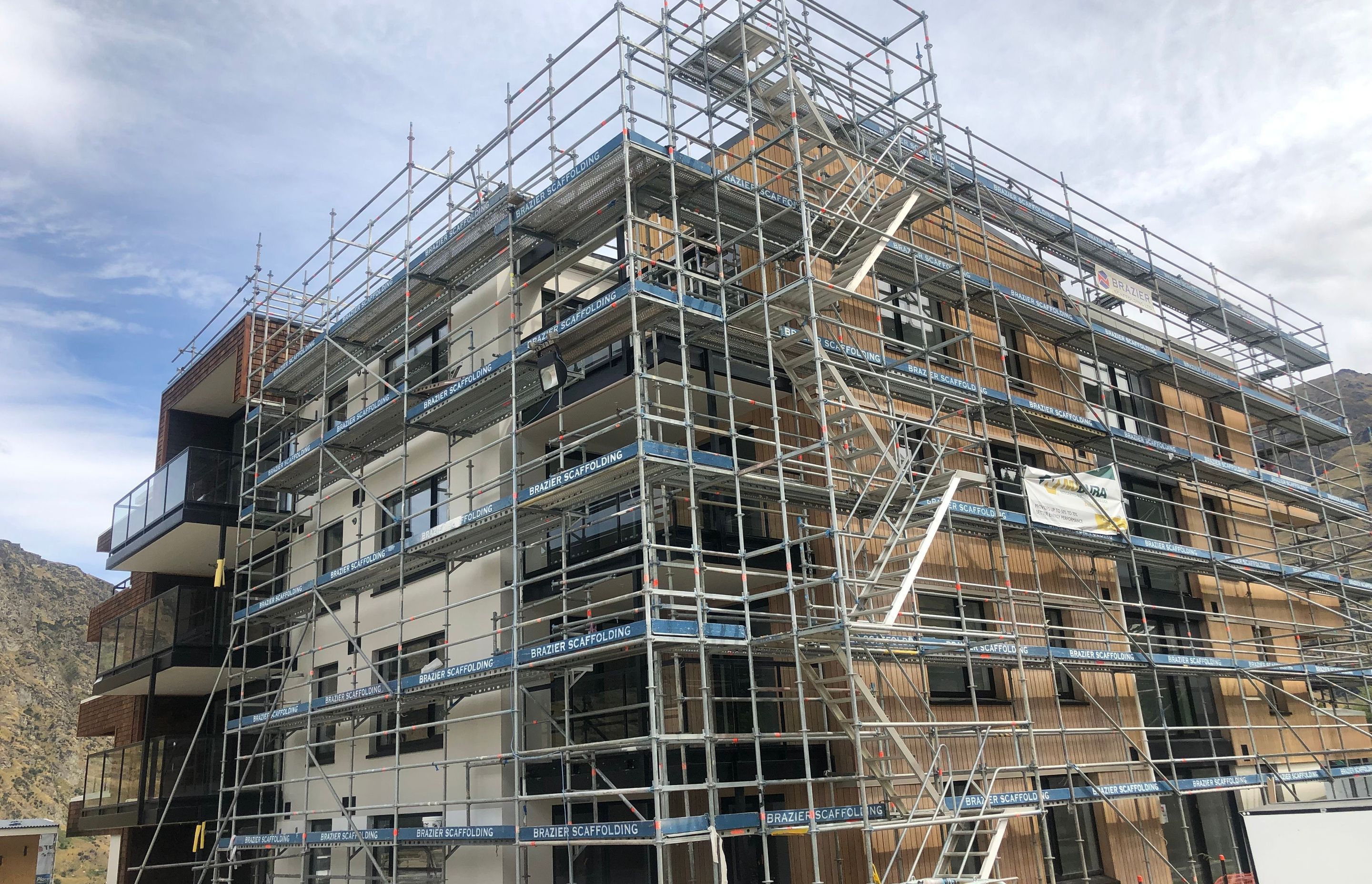

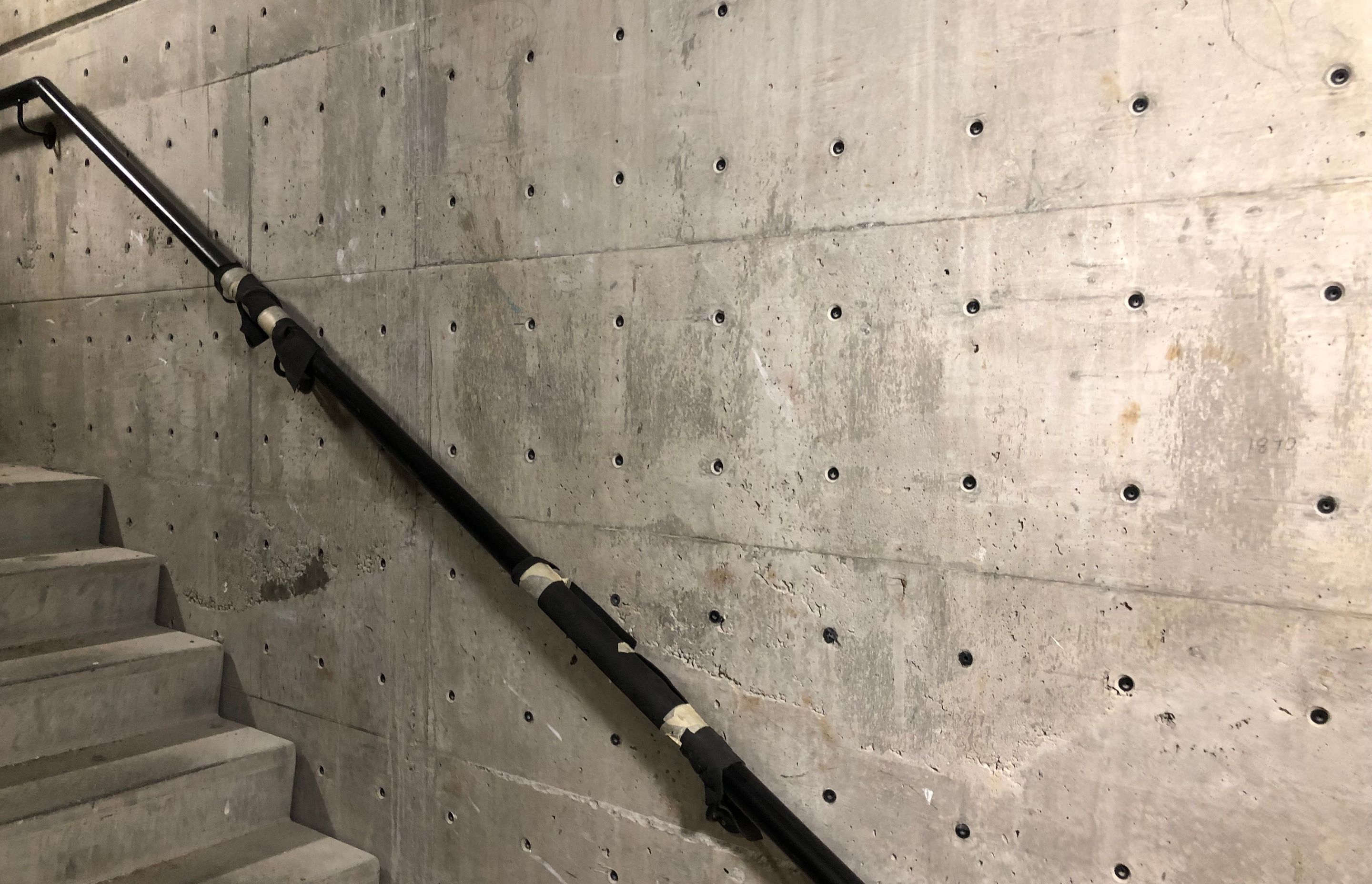

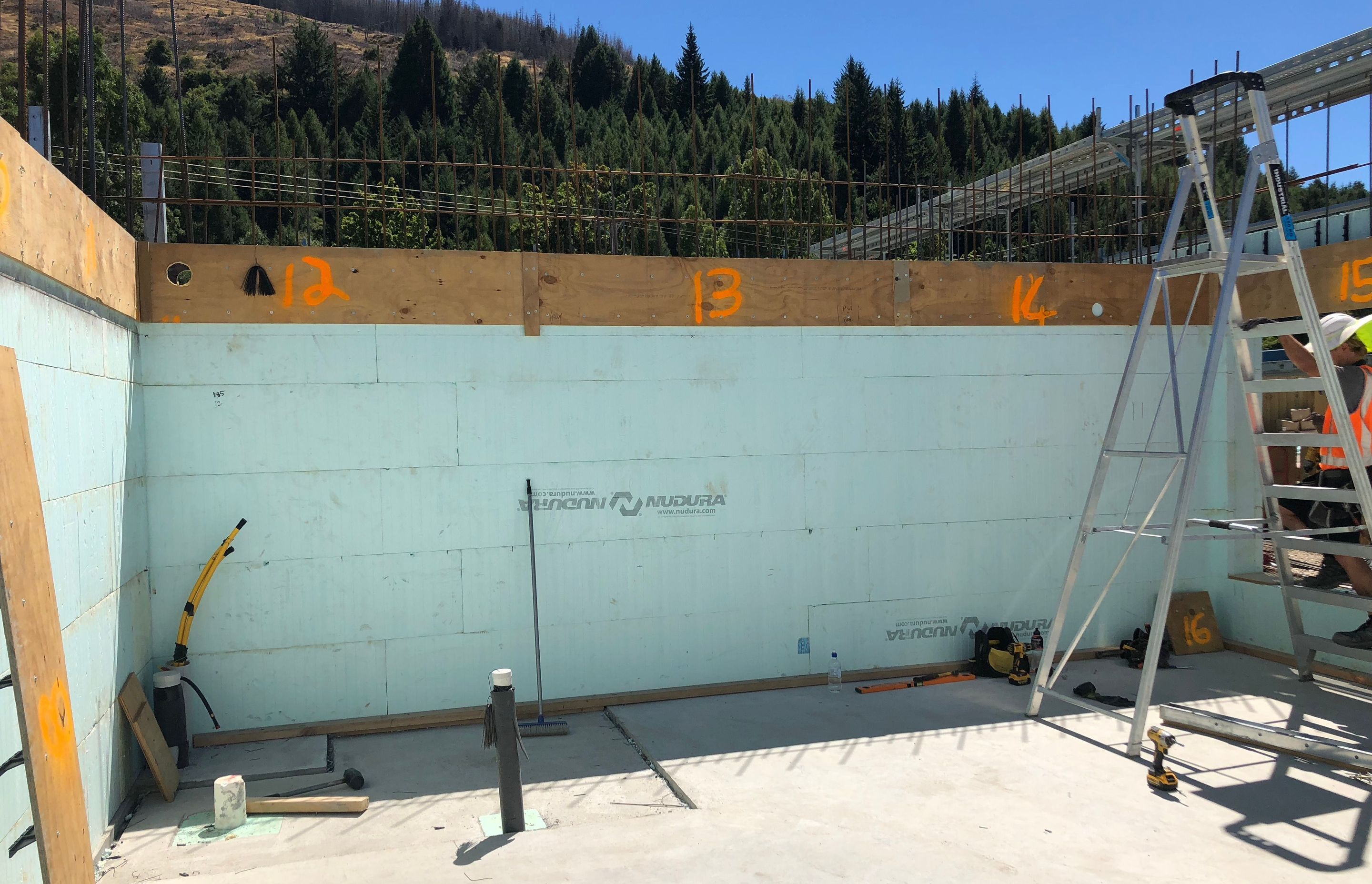

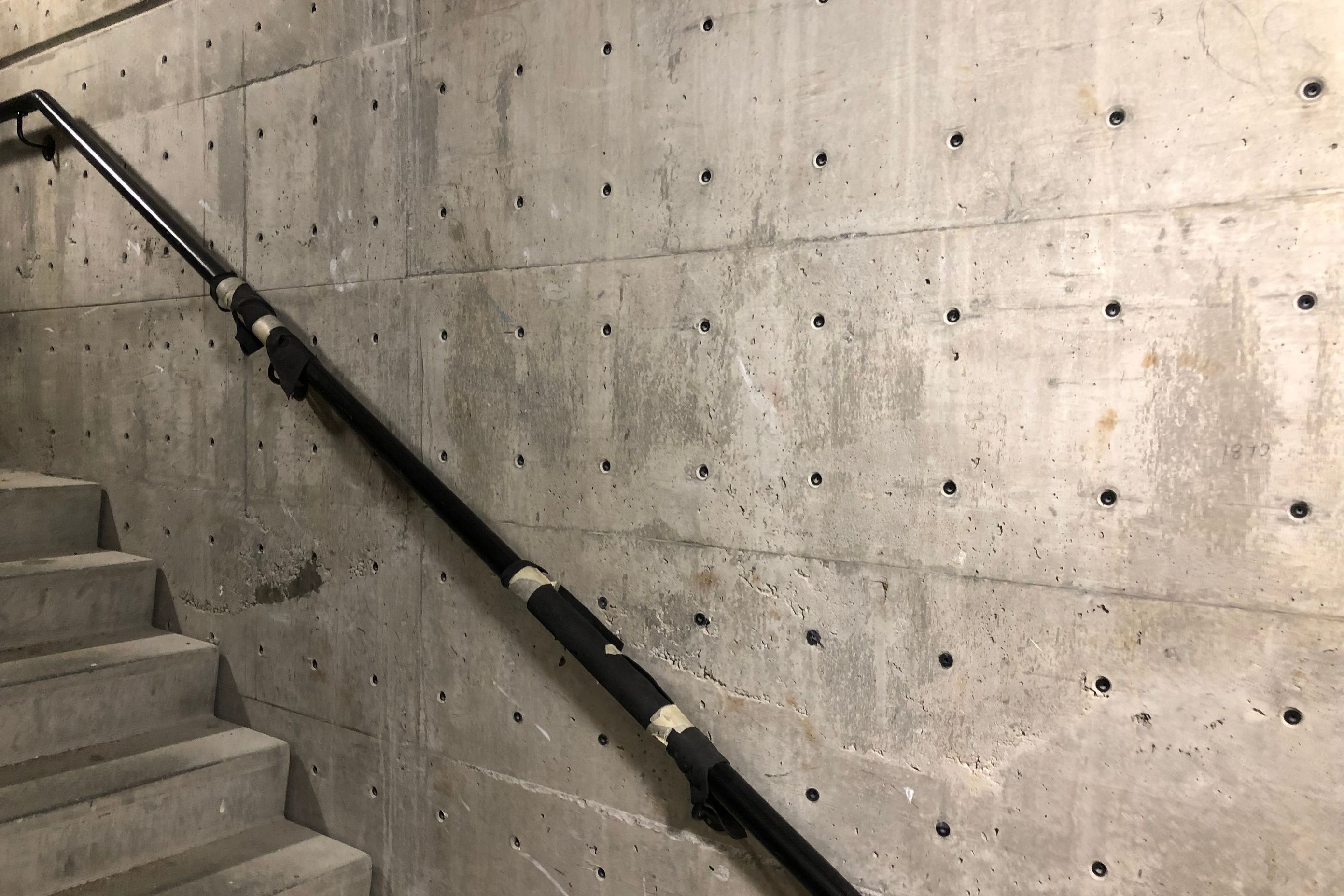

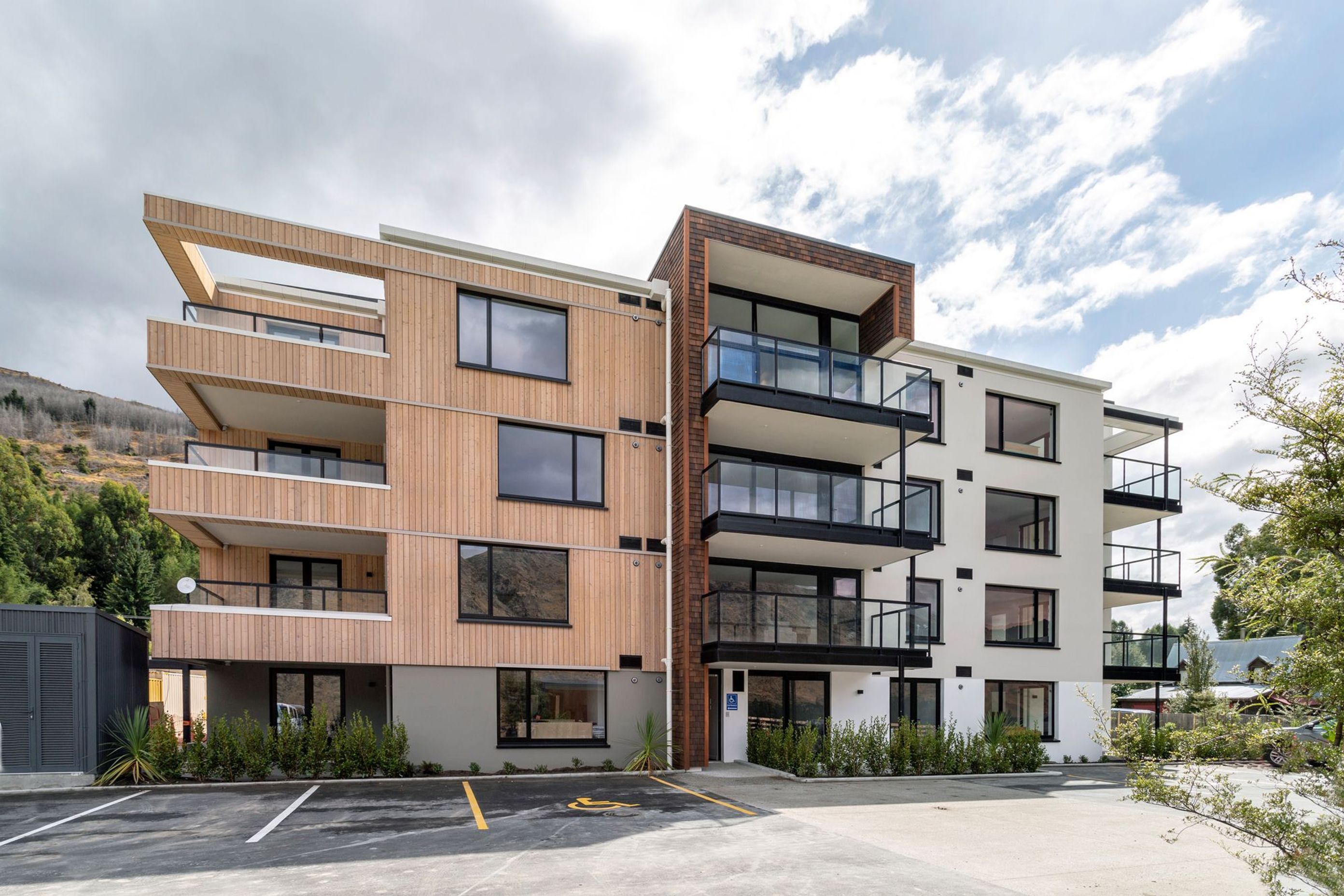

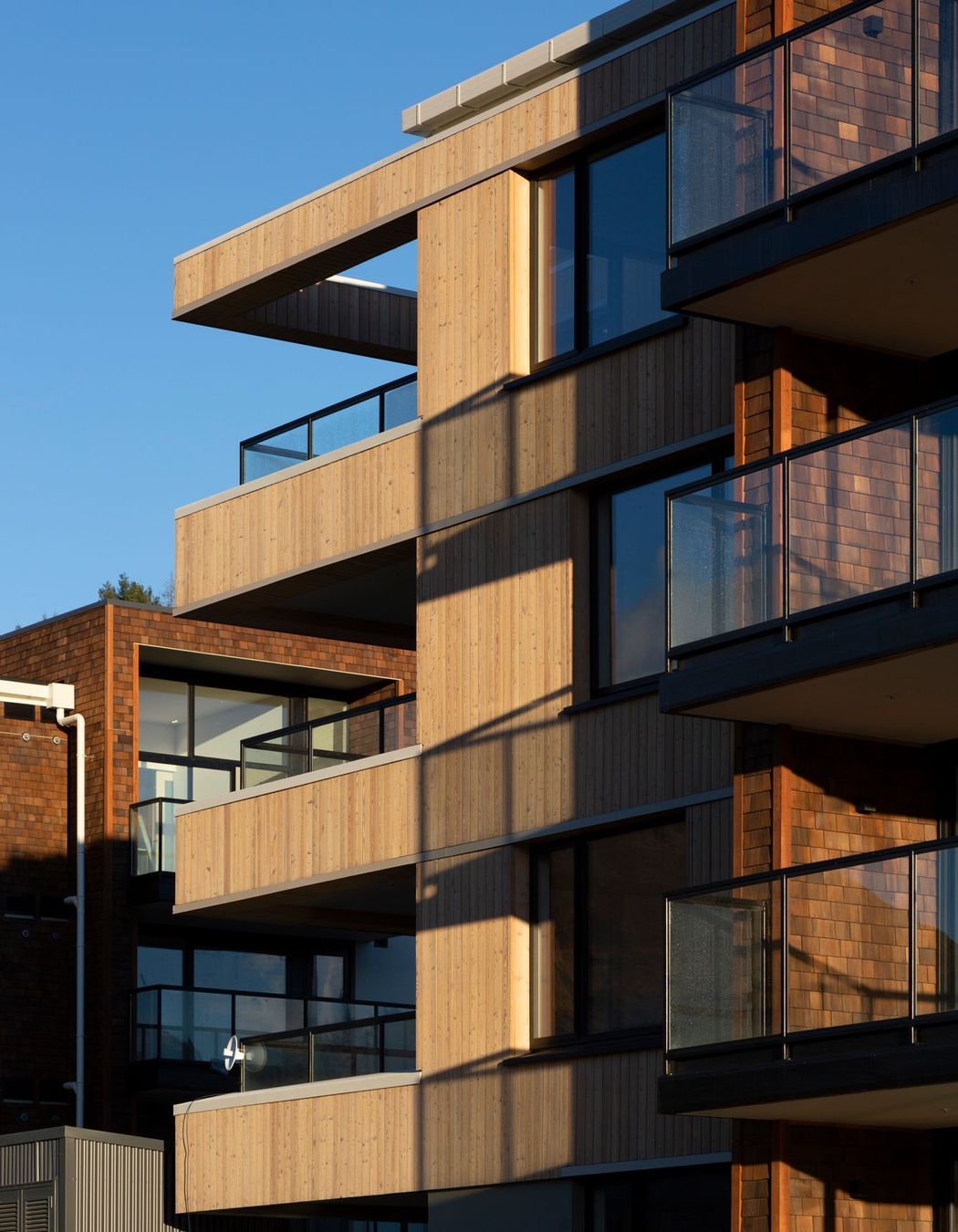

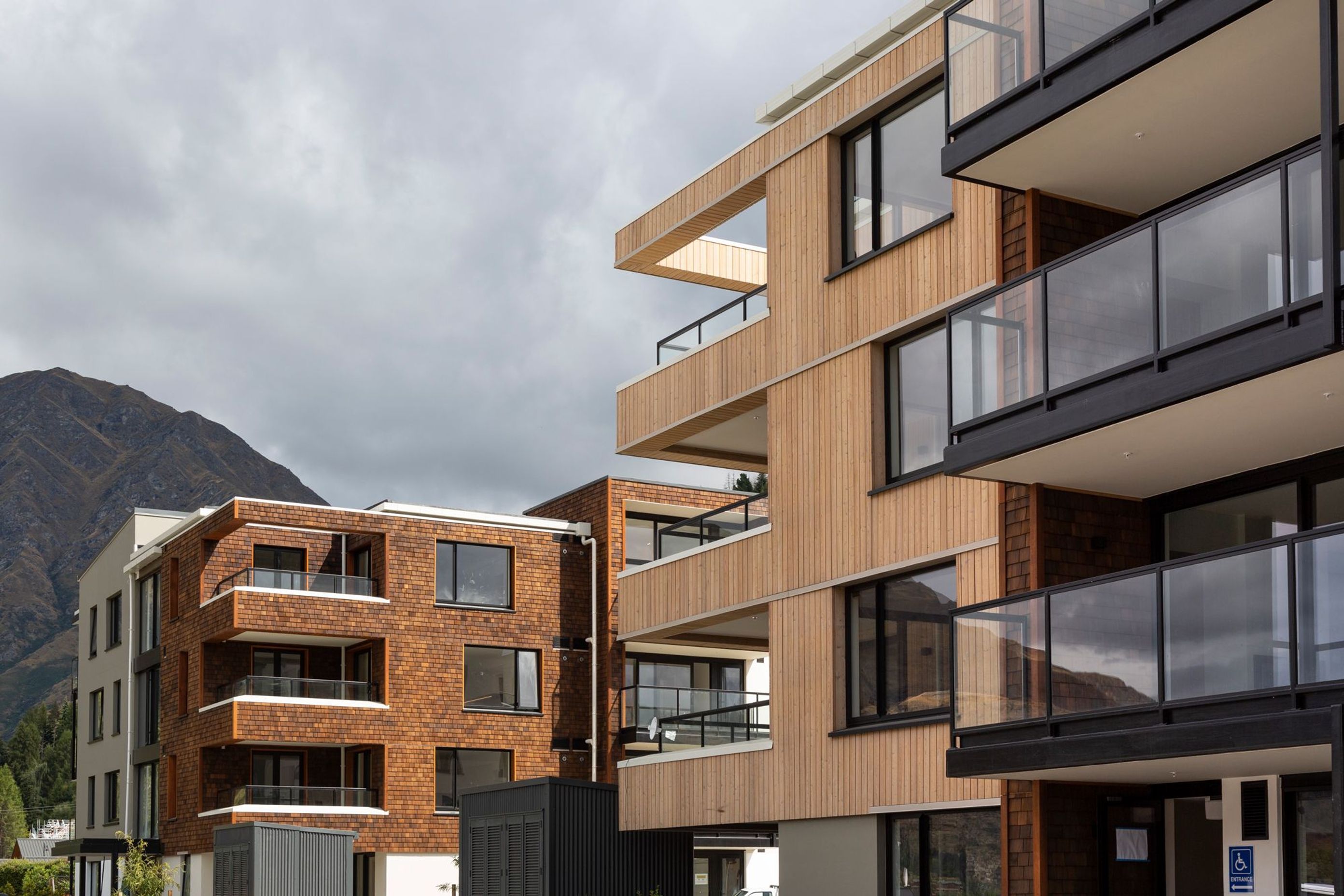

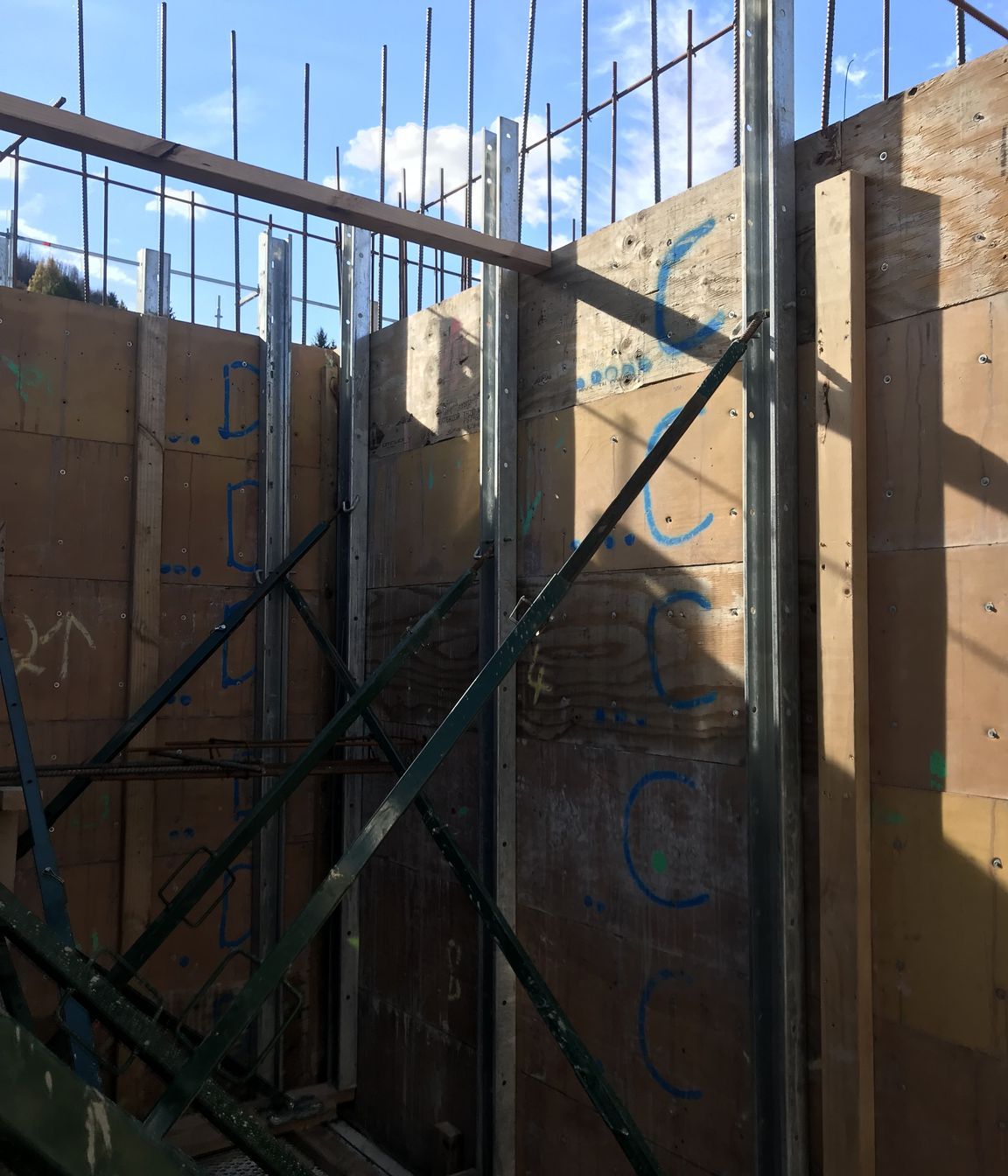

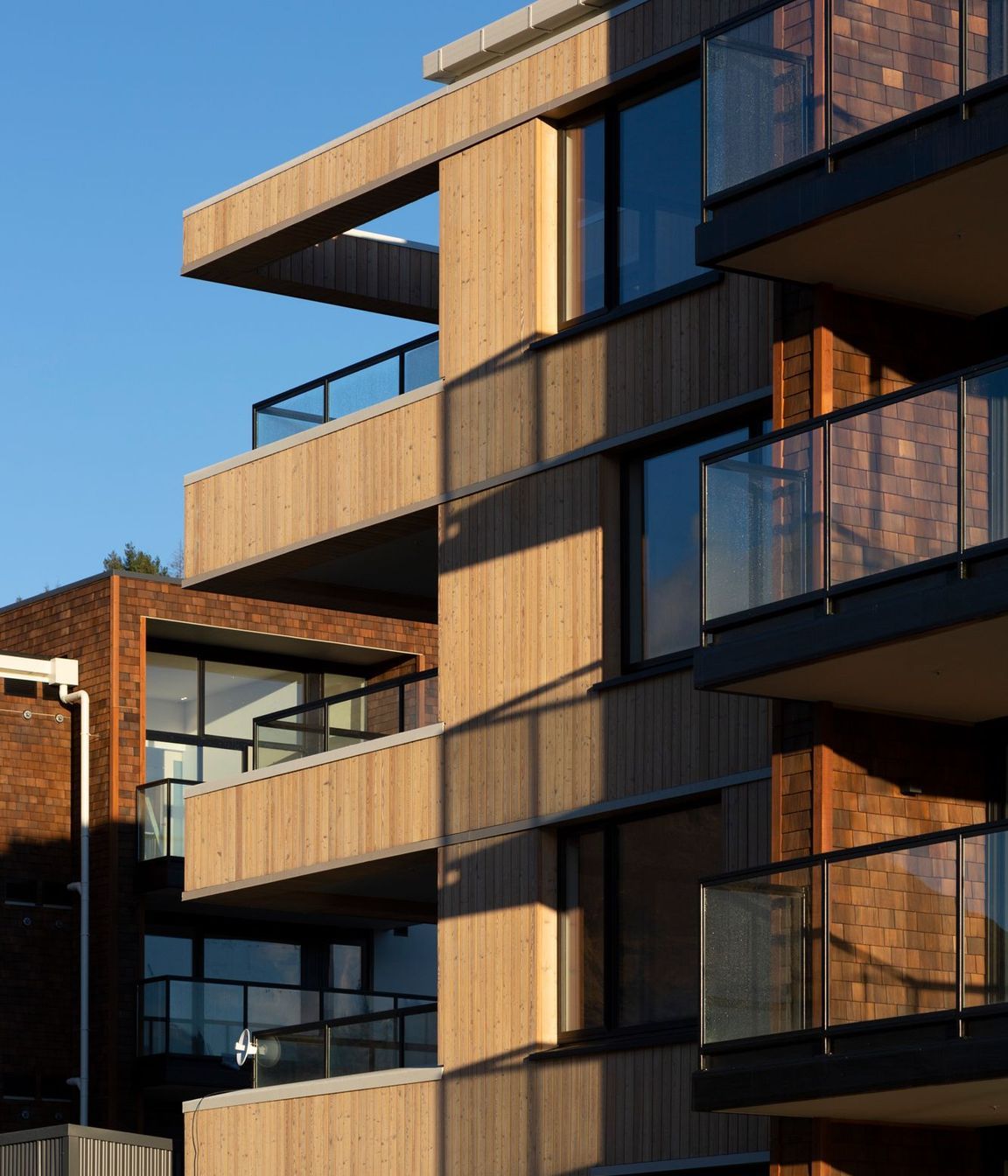

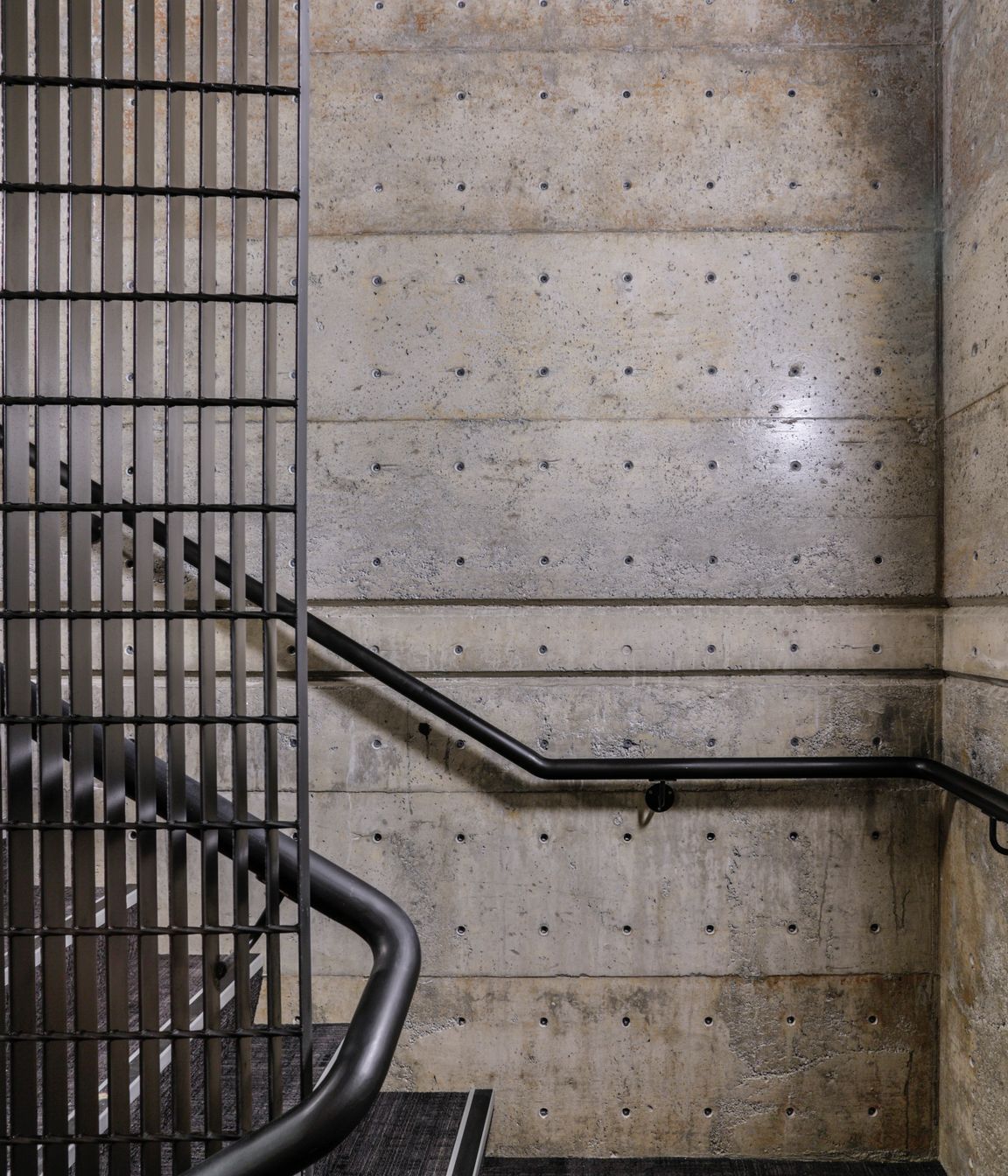

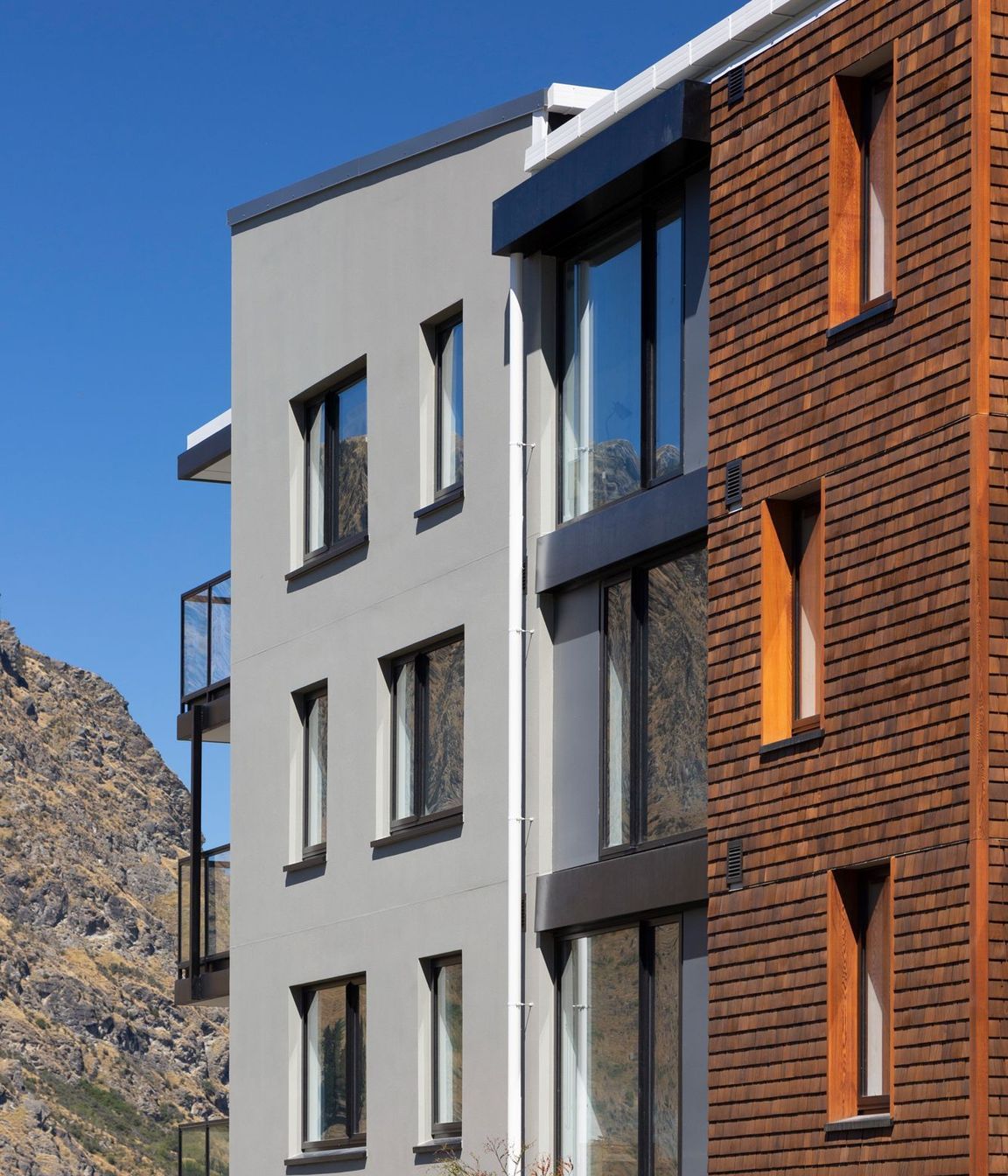

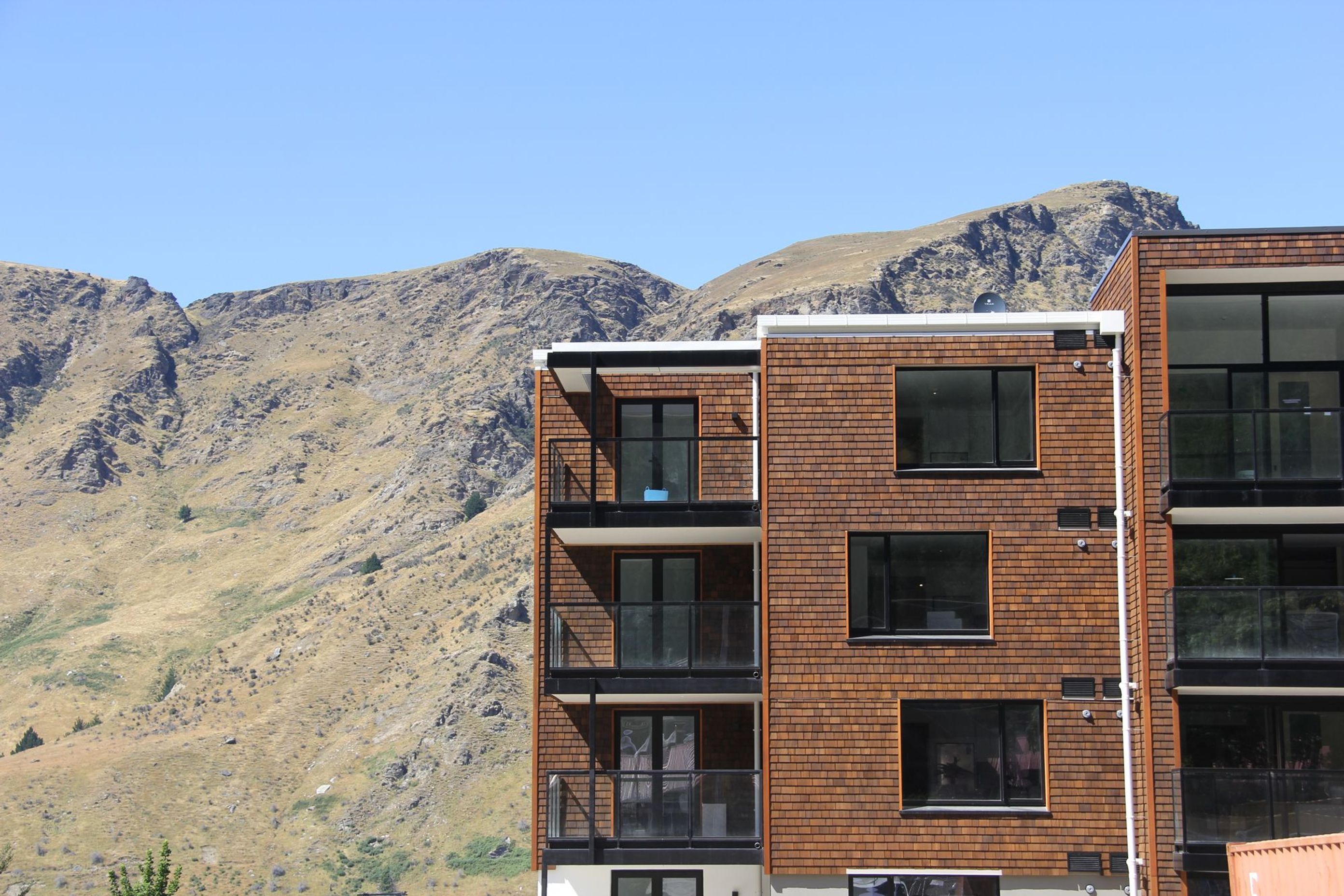

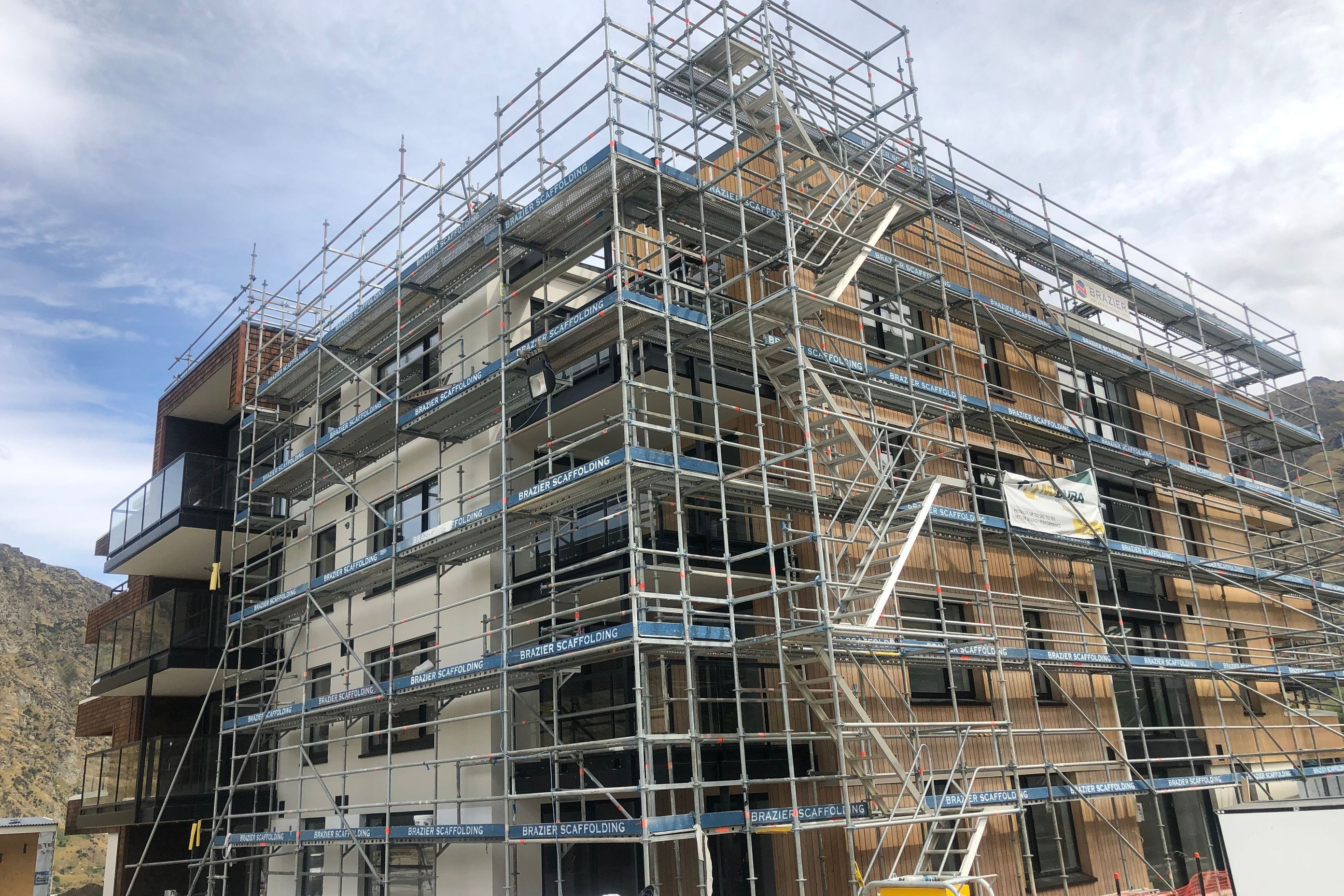

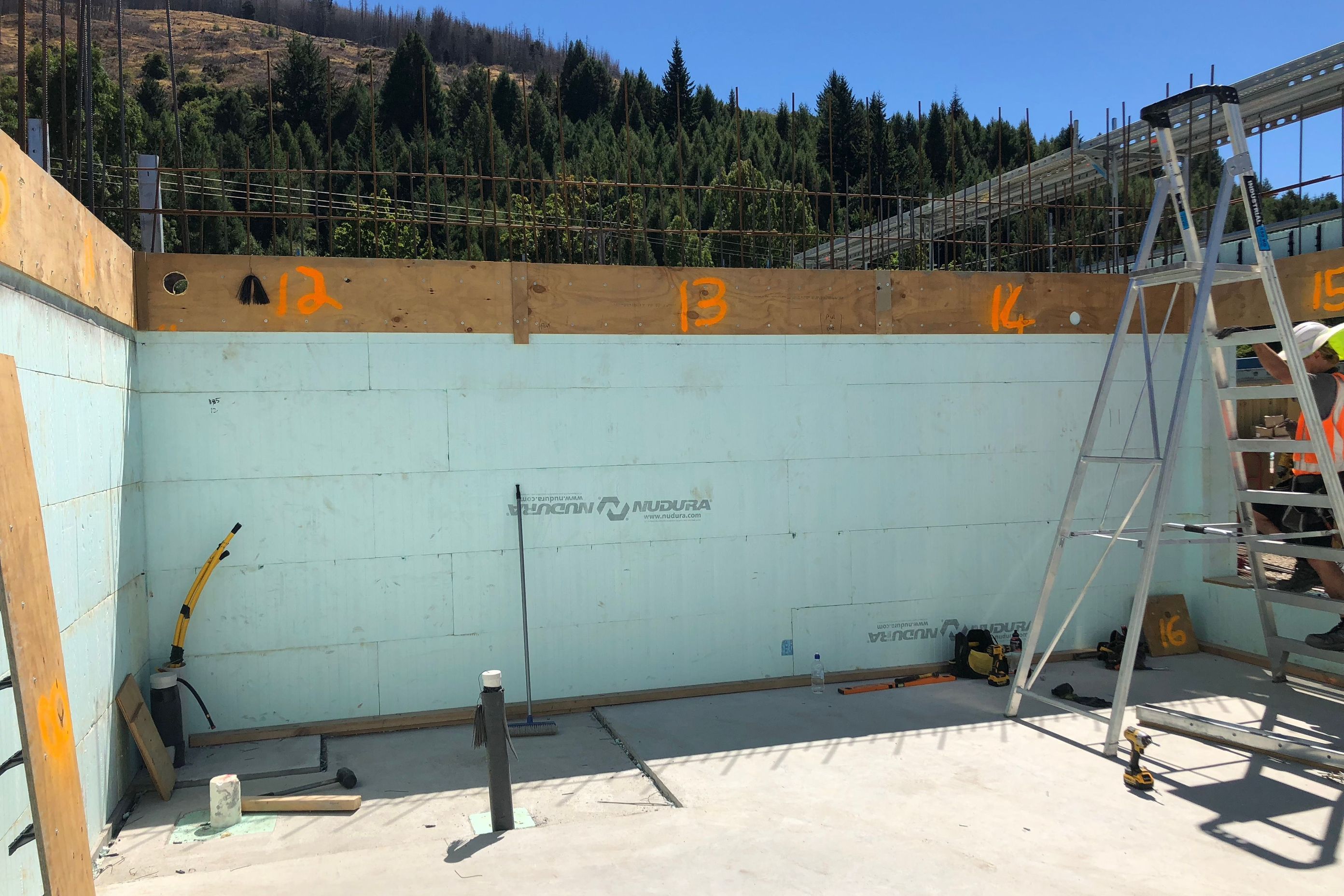

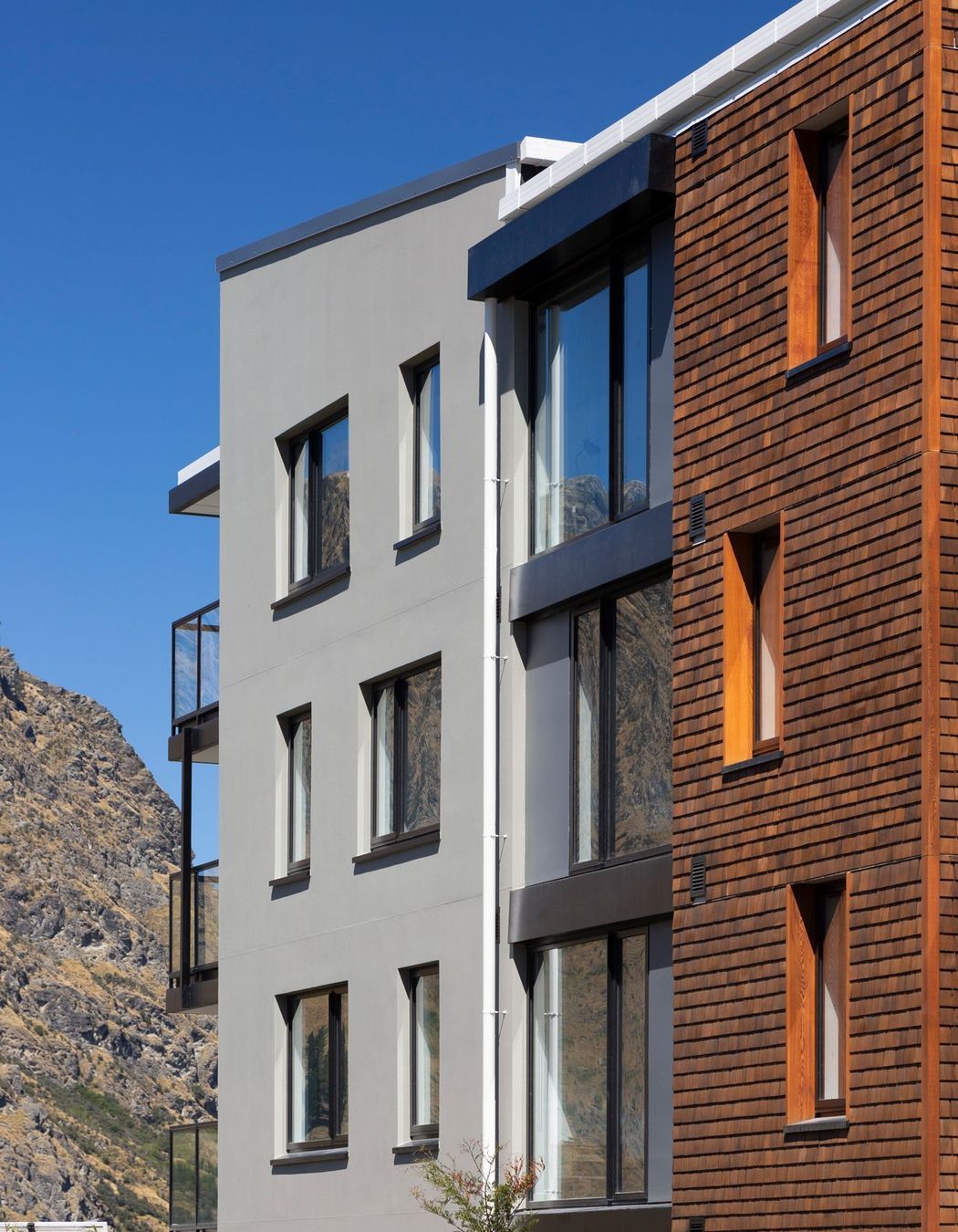

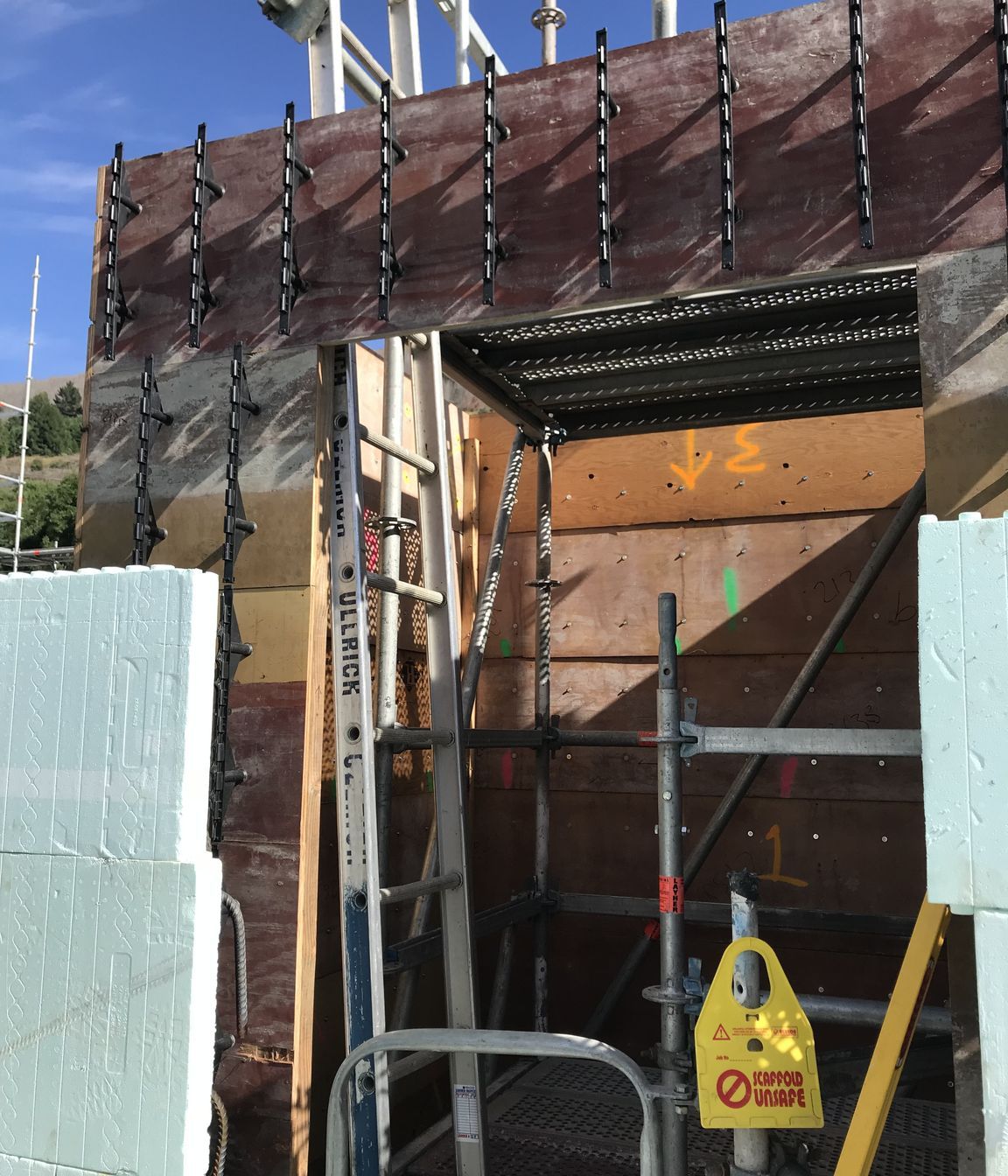

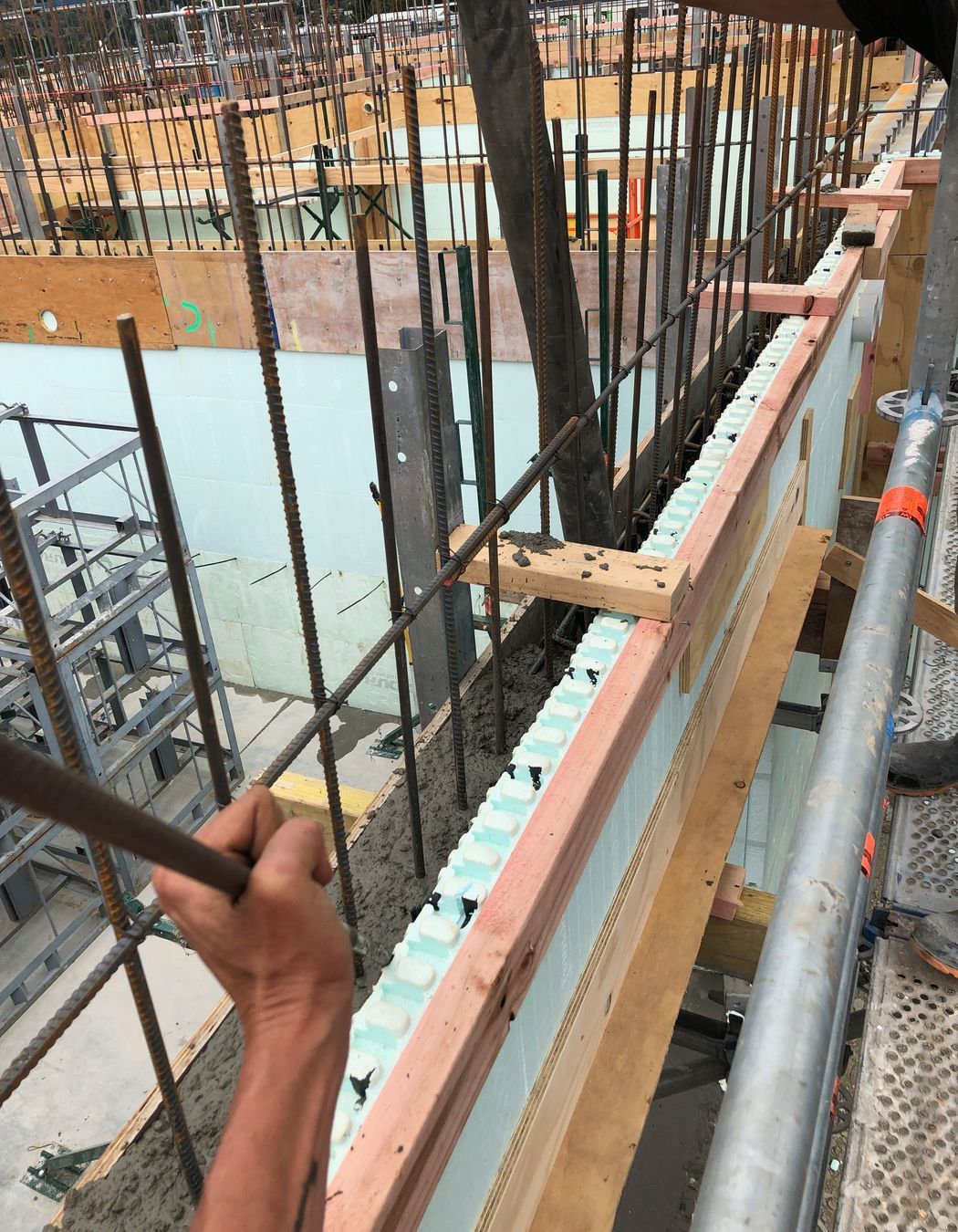

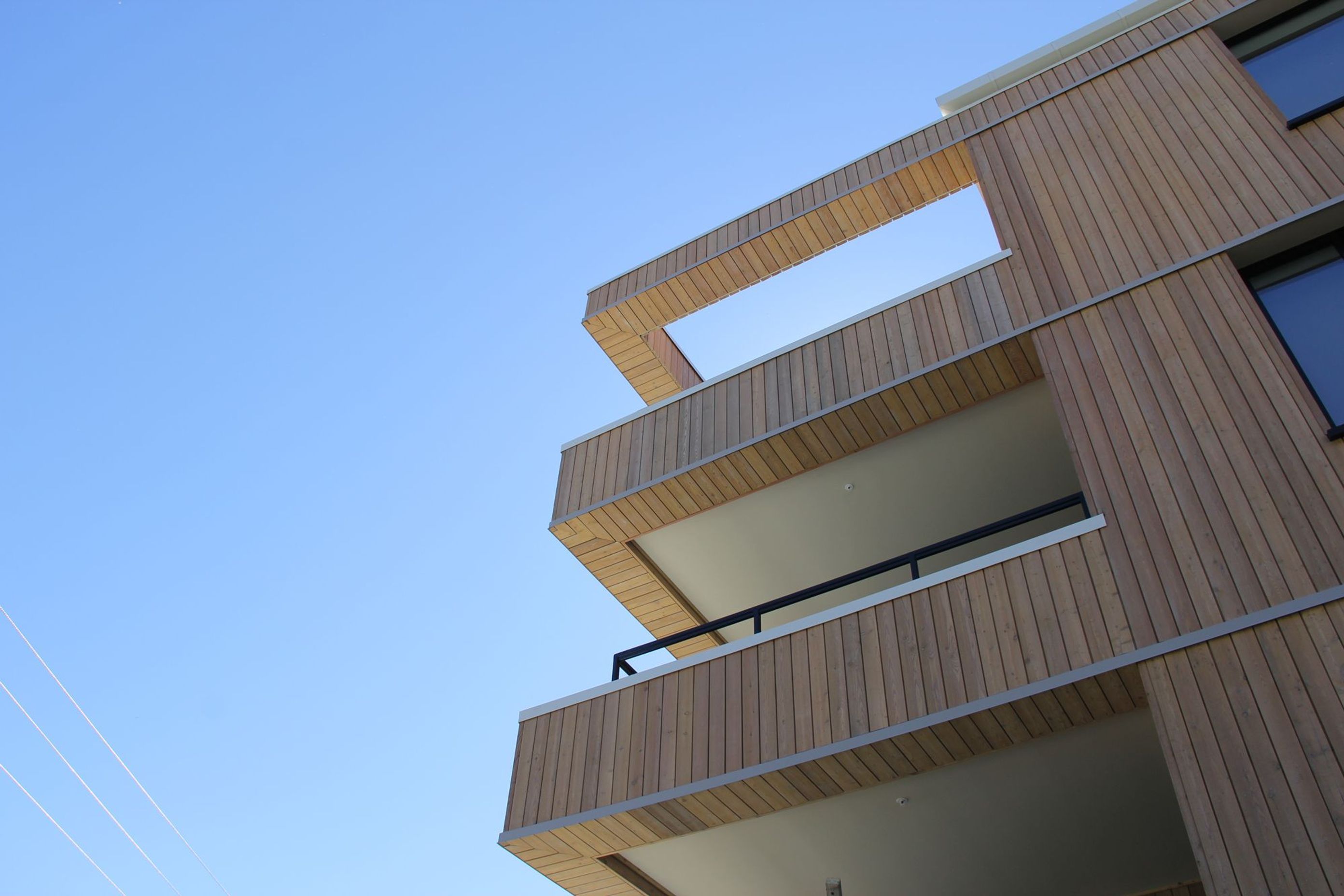

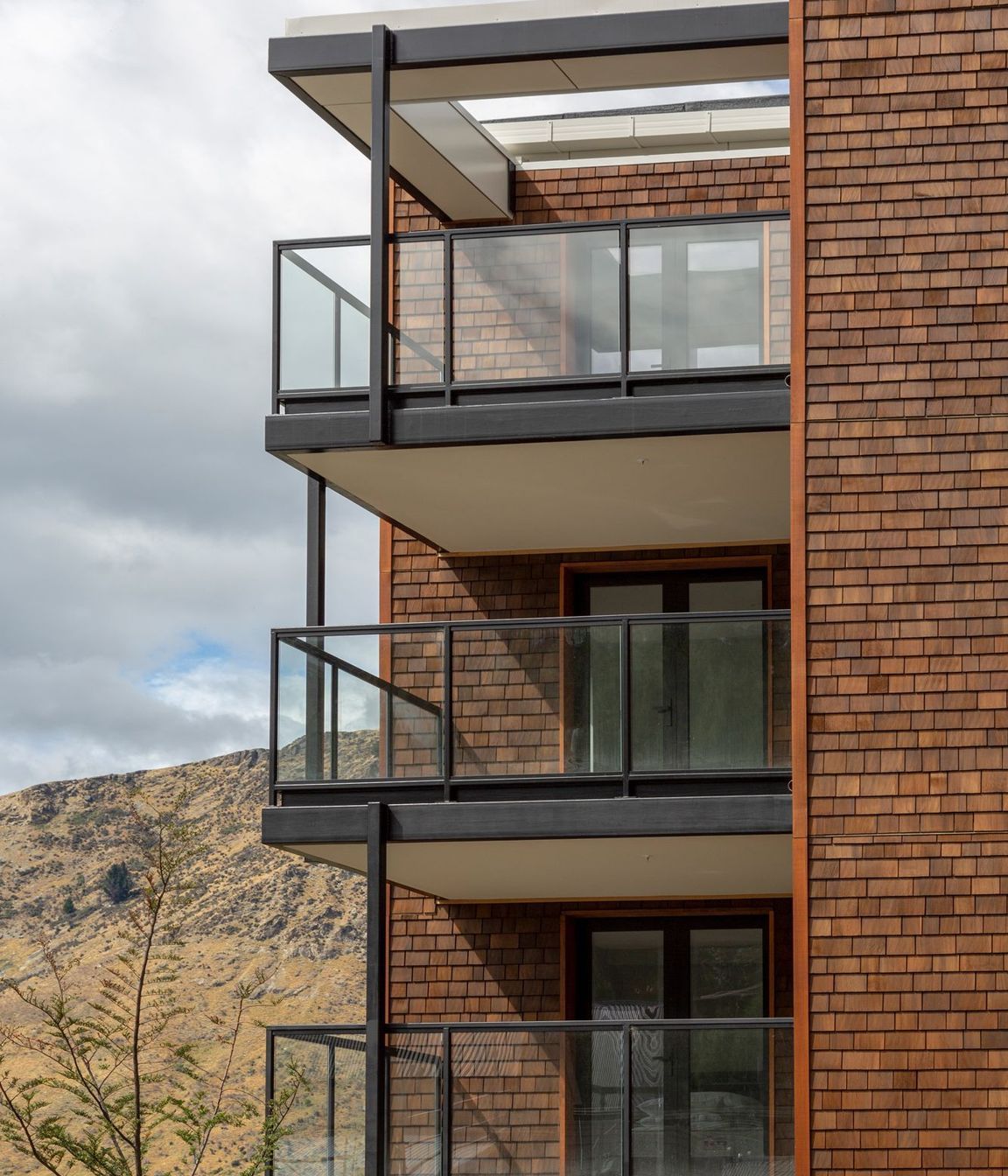

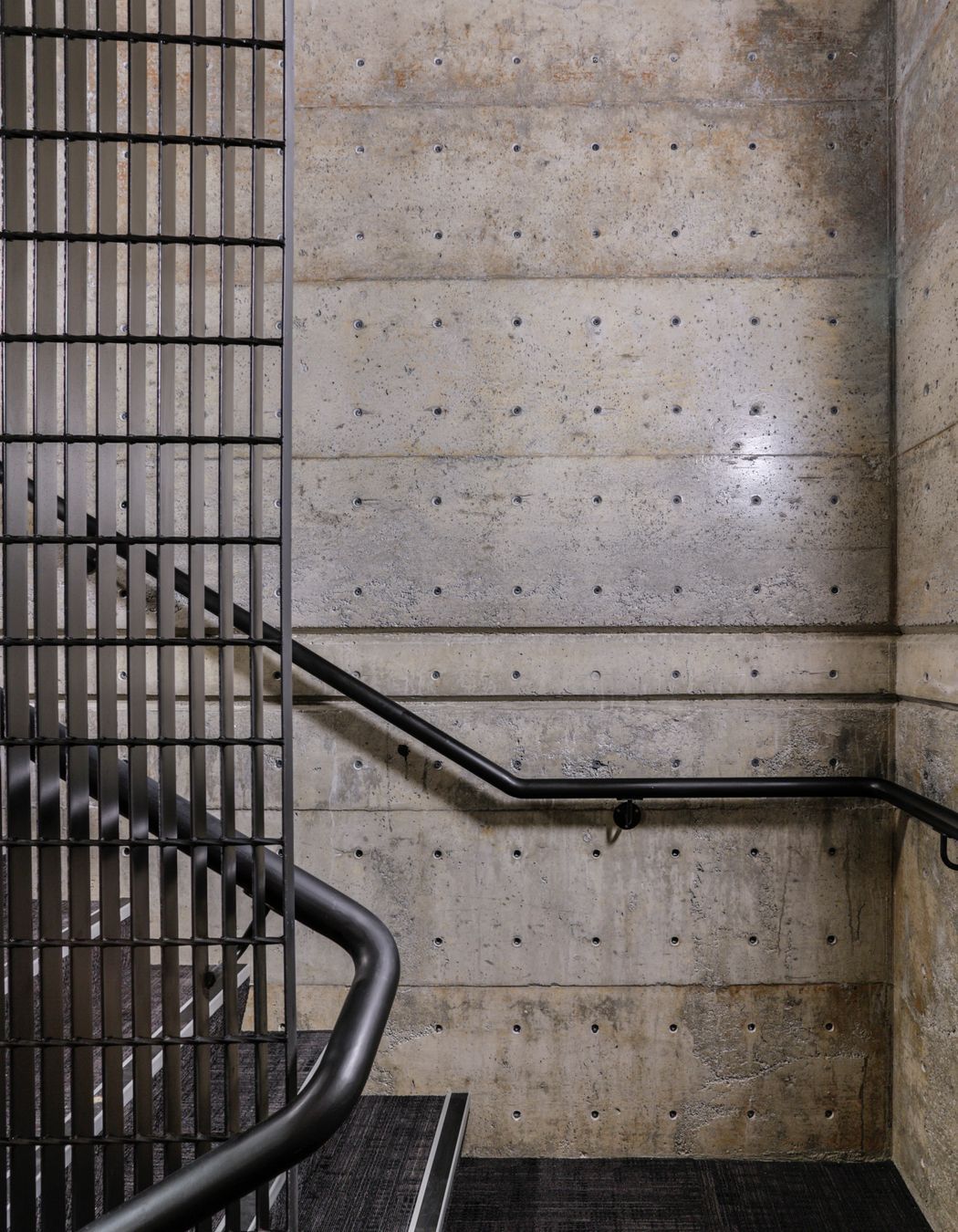

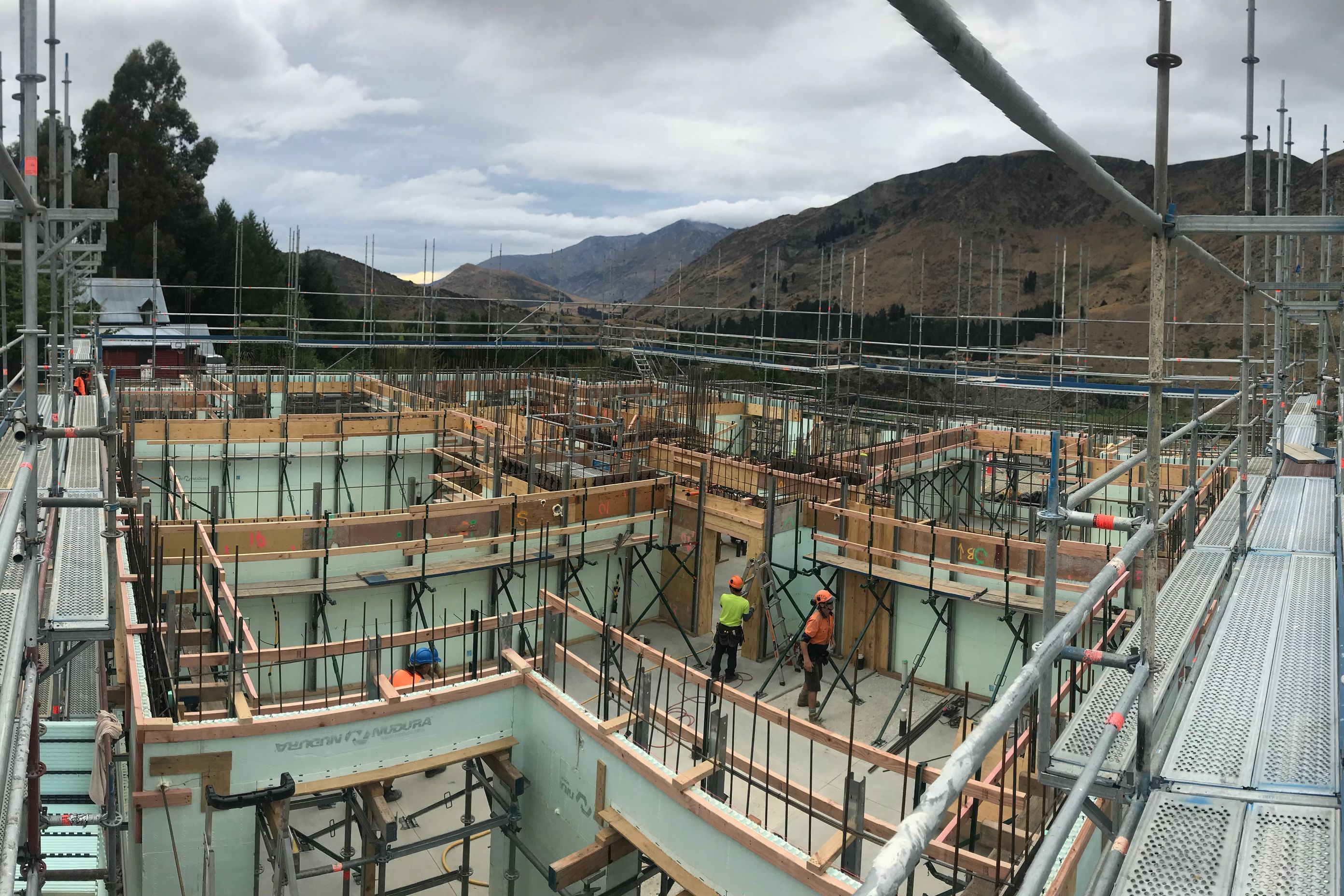

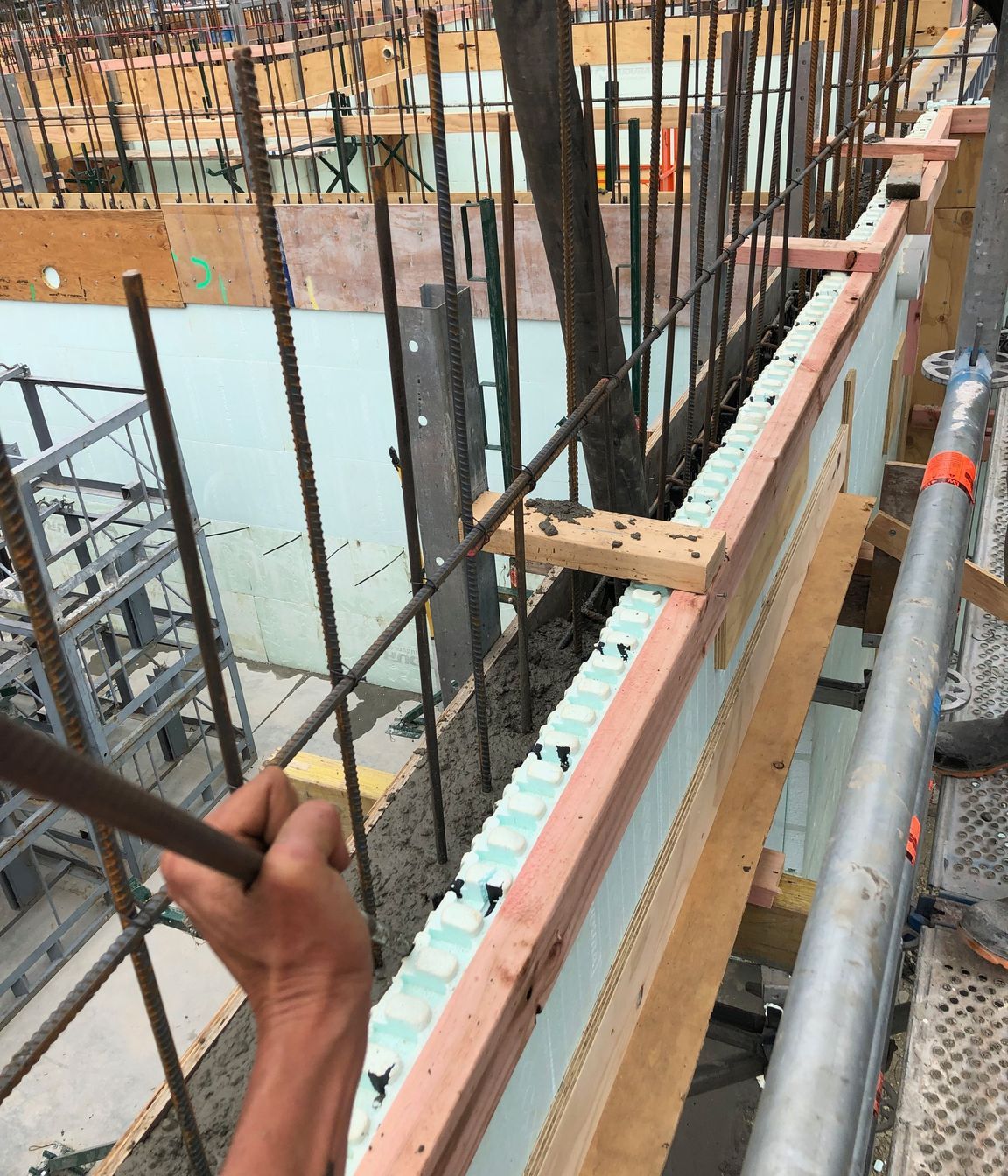

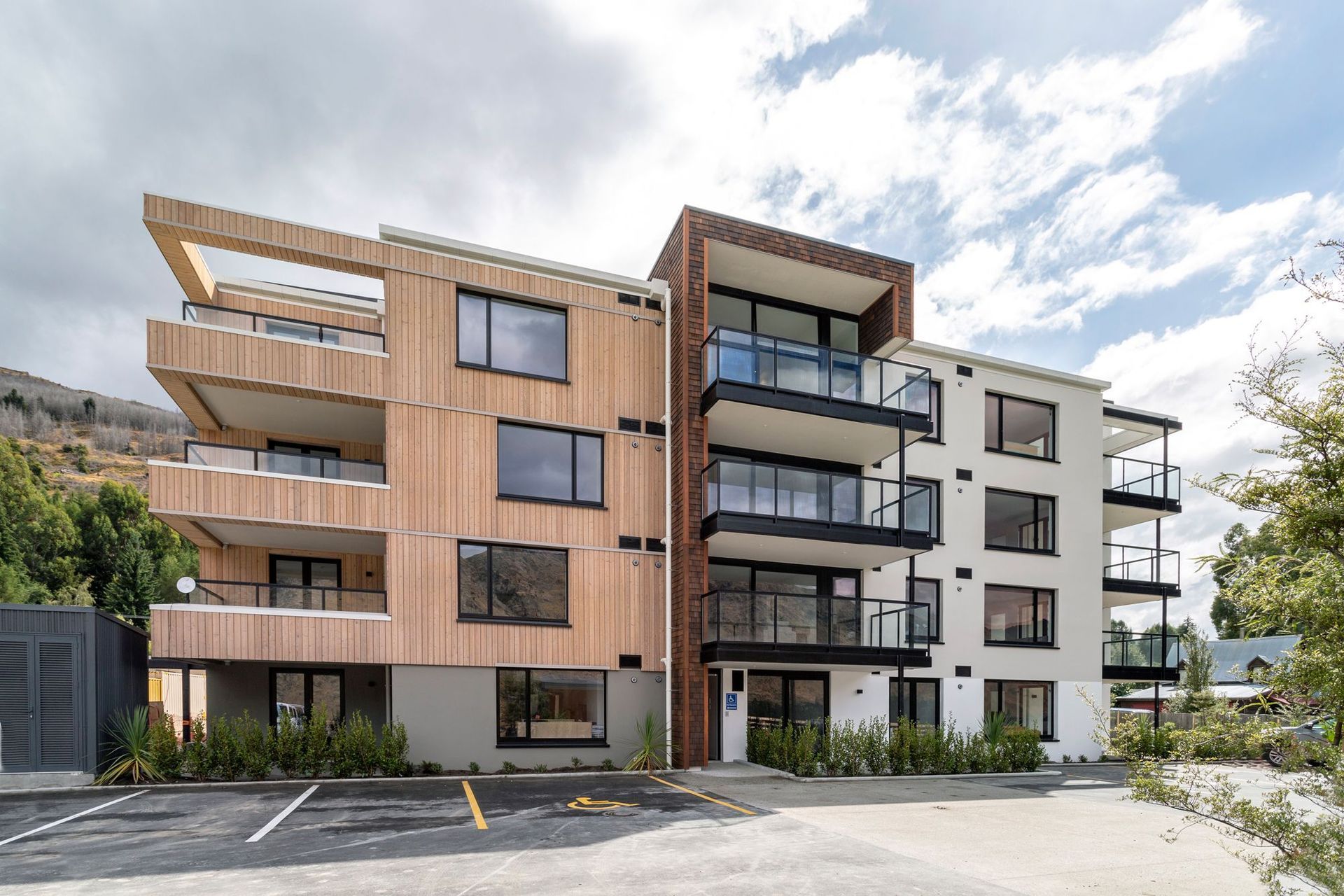

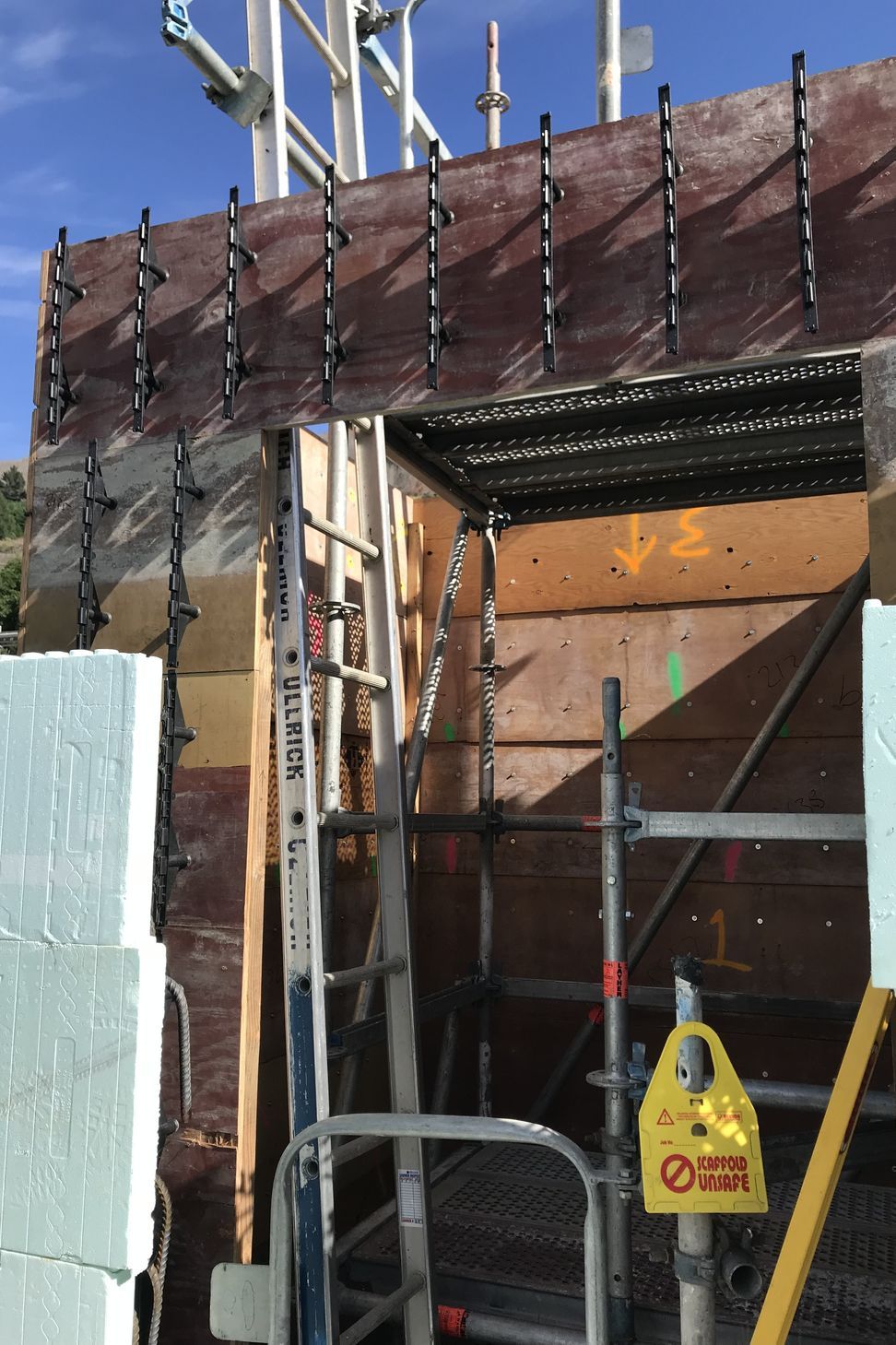

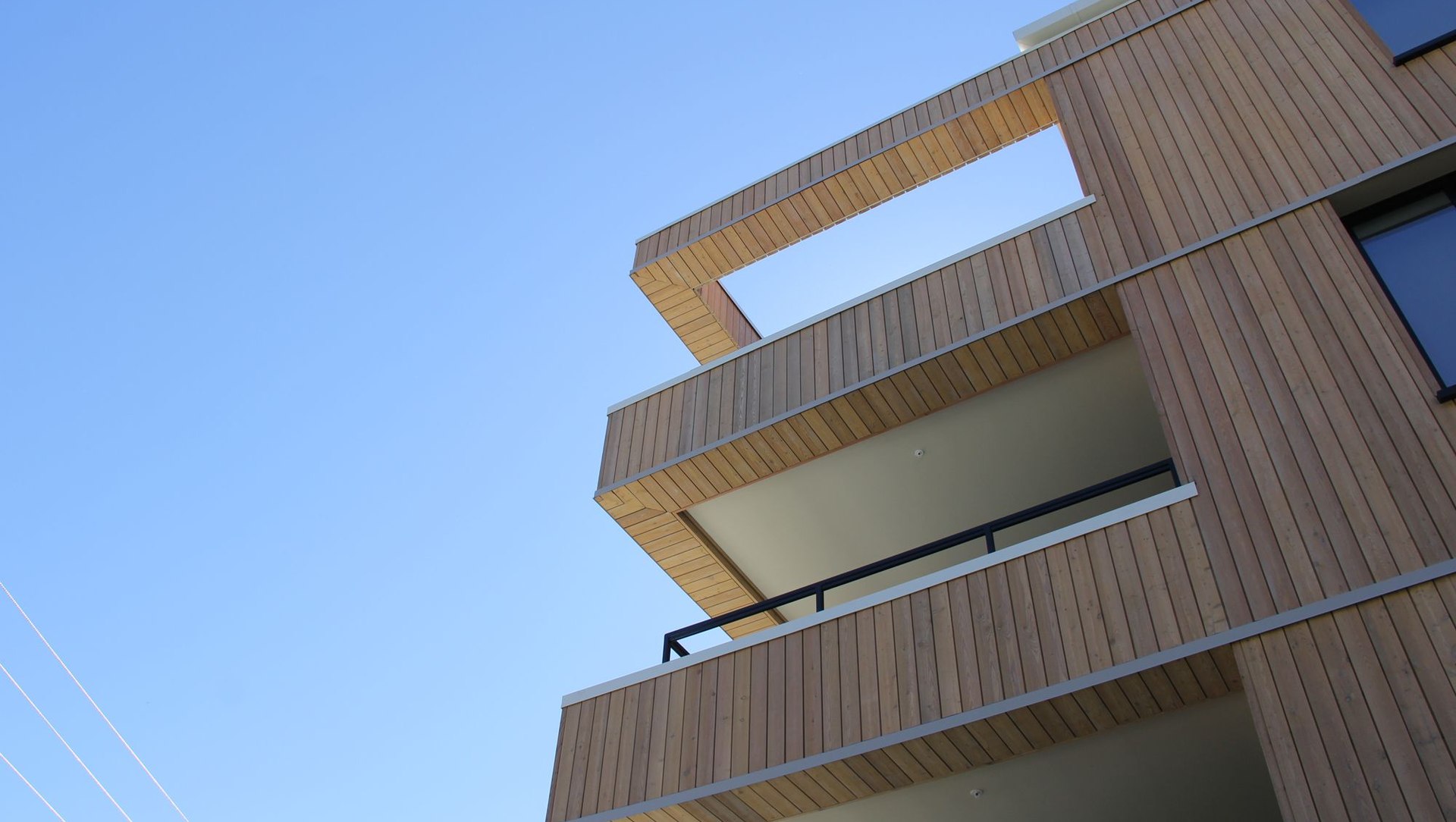

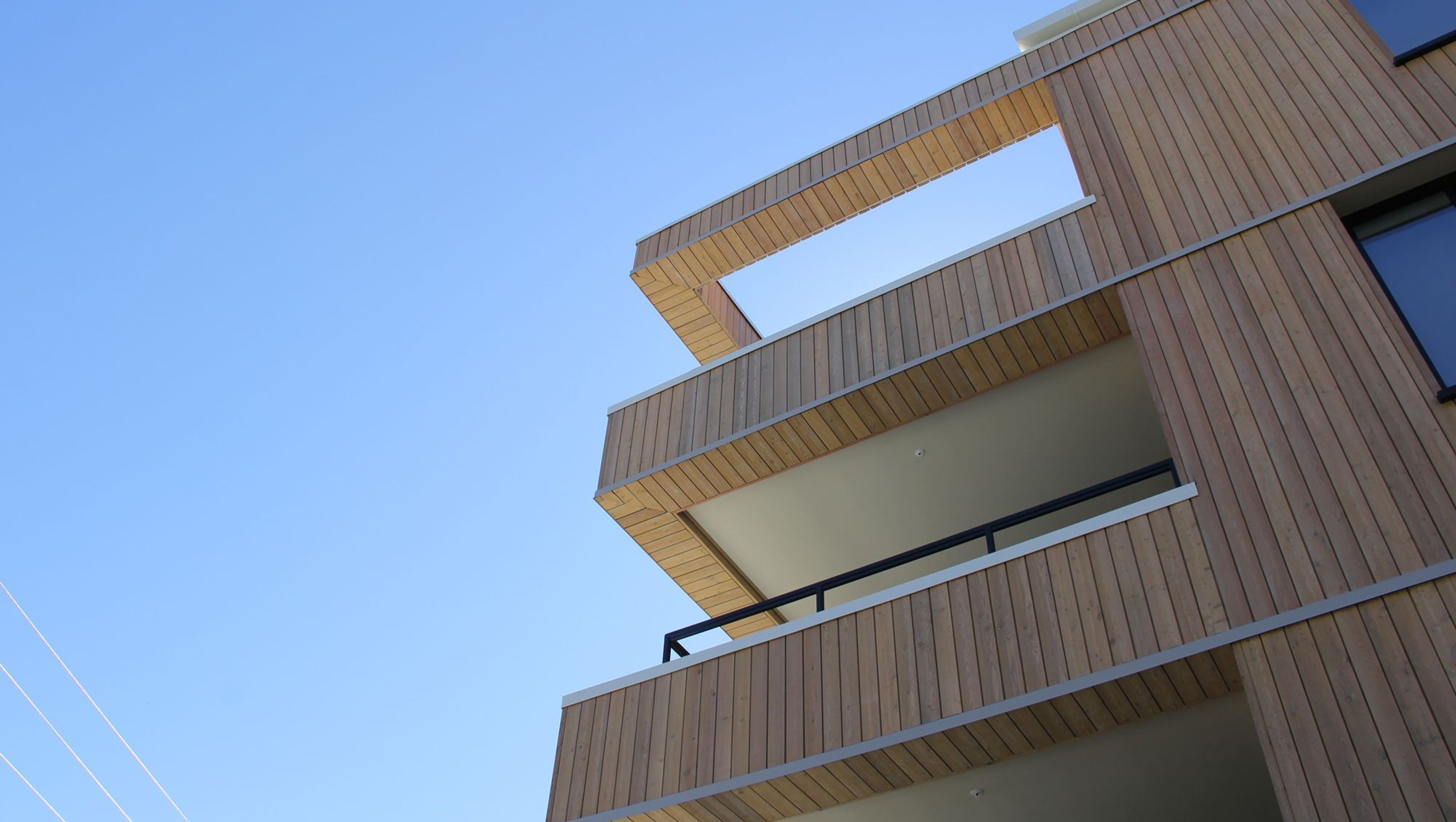

Two four level apartment buildings in Arthurs Point, designed by Tony Koia Architect, built by Hawkins Construction. All exterior and internal structural walls were built using a 150mm concrete core Nudura Block. The lift and stairwell used a removable ply panel to create an exposed concrete face providing simple fire rating and extra structural thickness in these areas. Occupants report high levels of comfort for both warmth and noise reduction. Acoustic field test achieved STC53, well above required level.

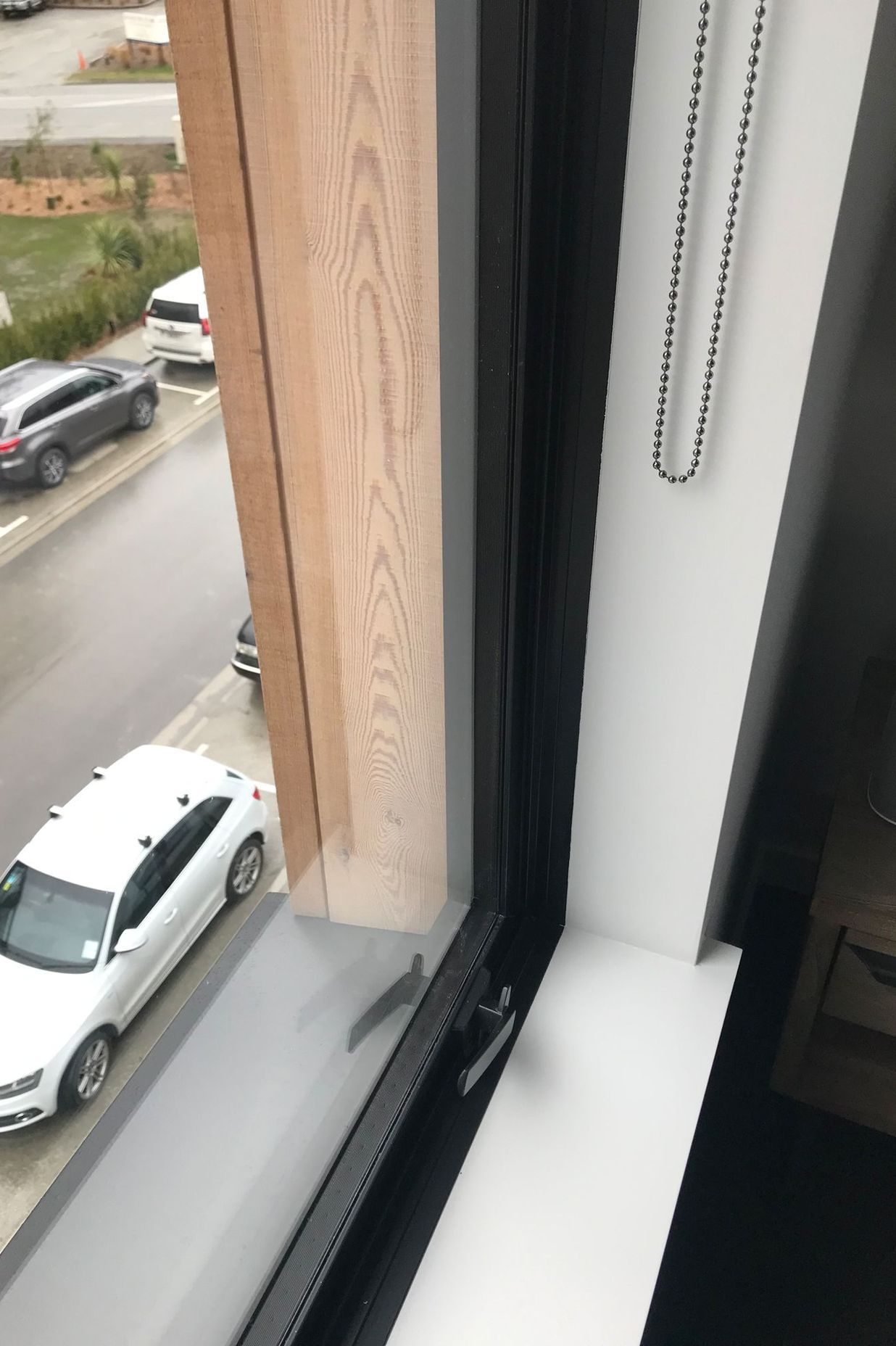

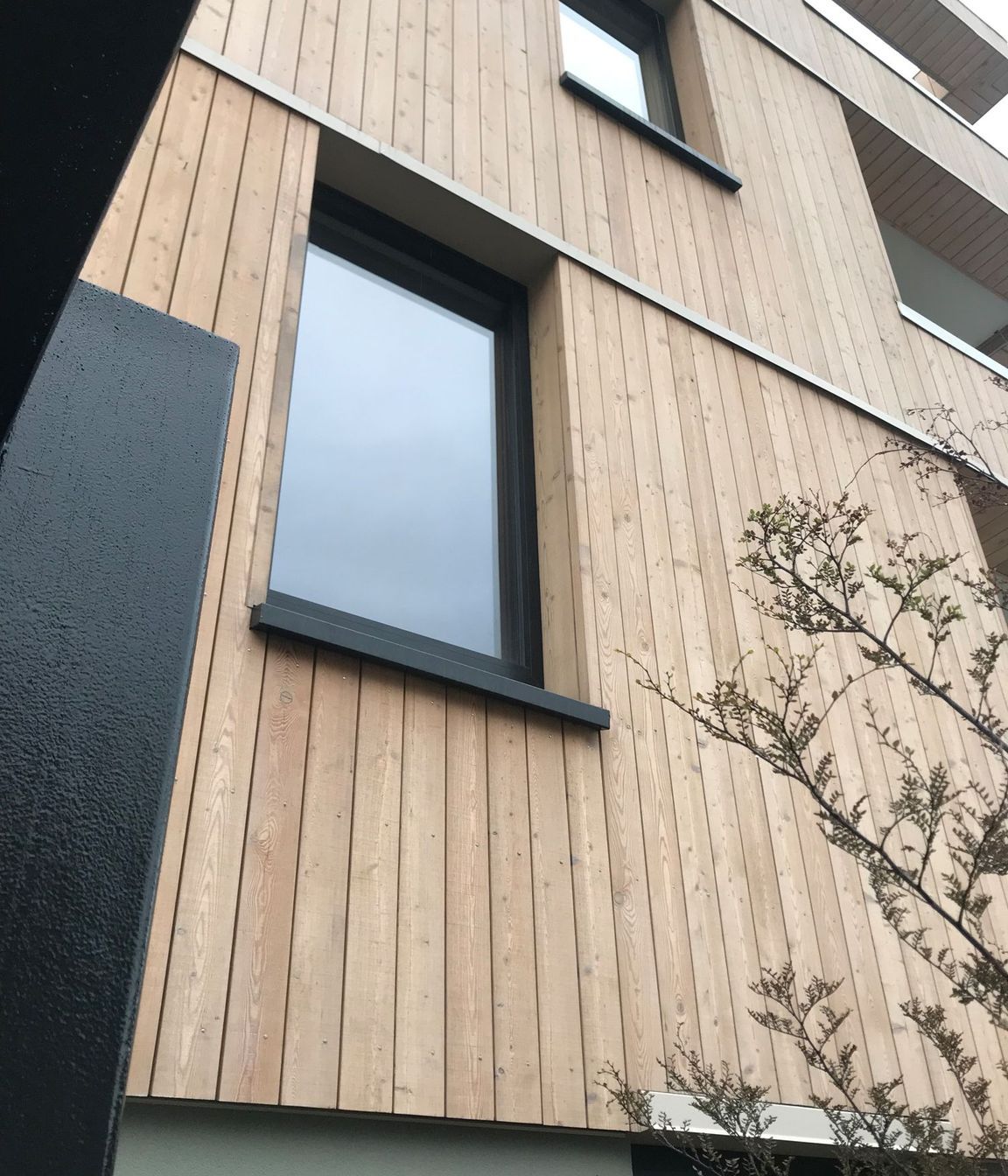

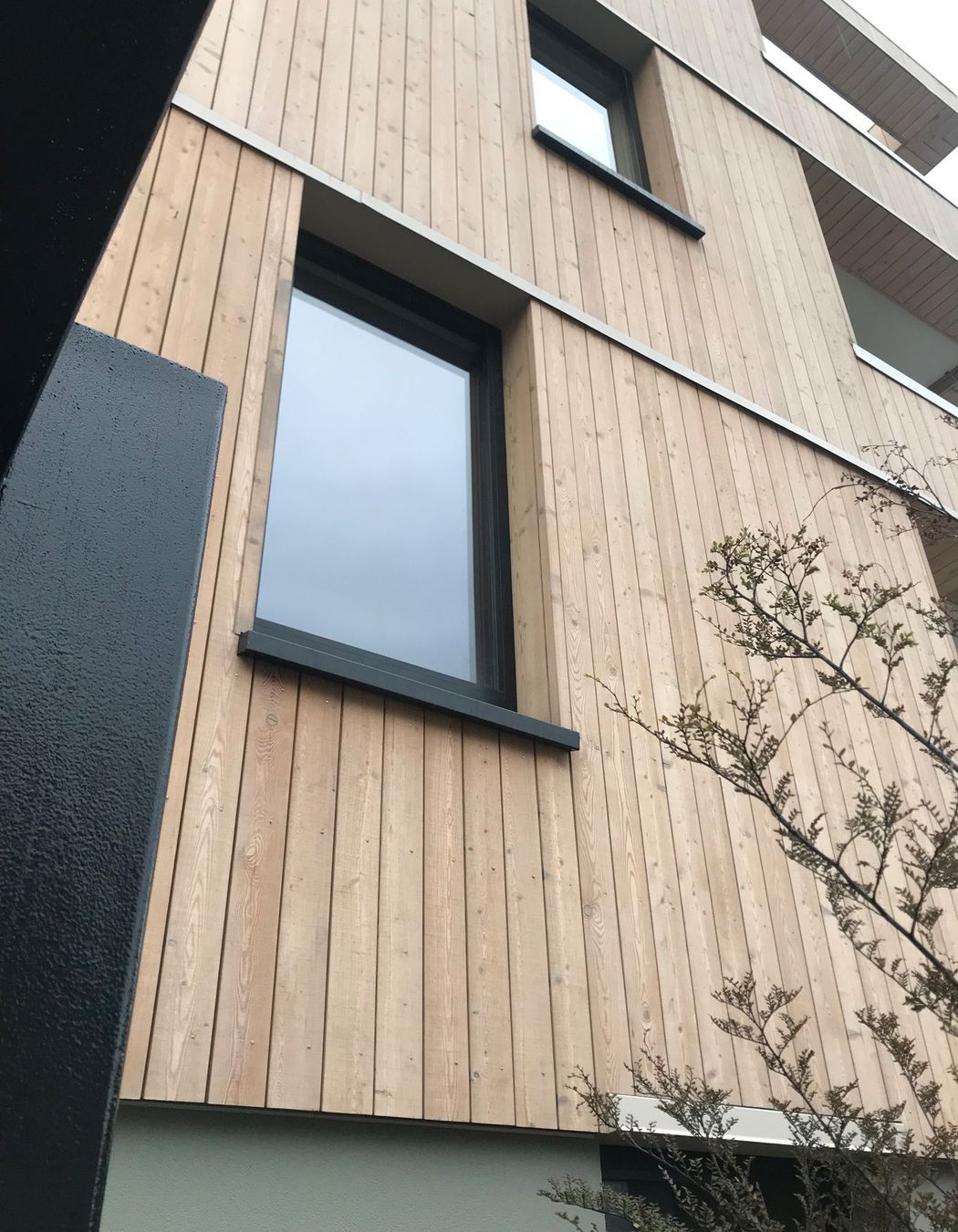

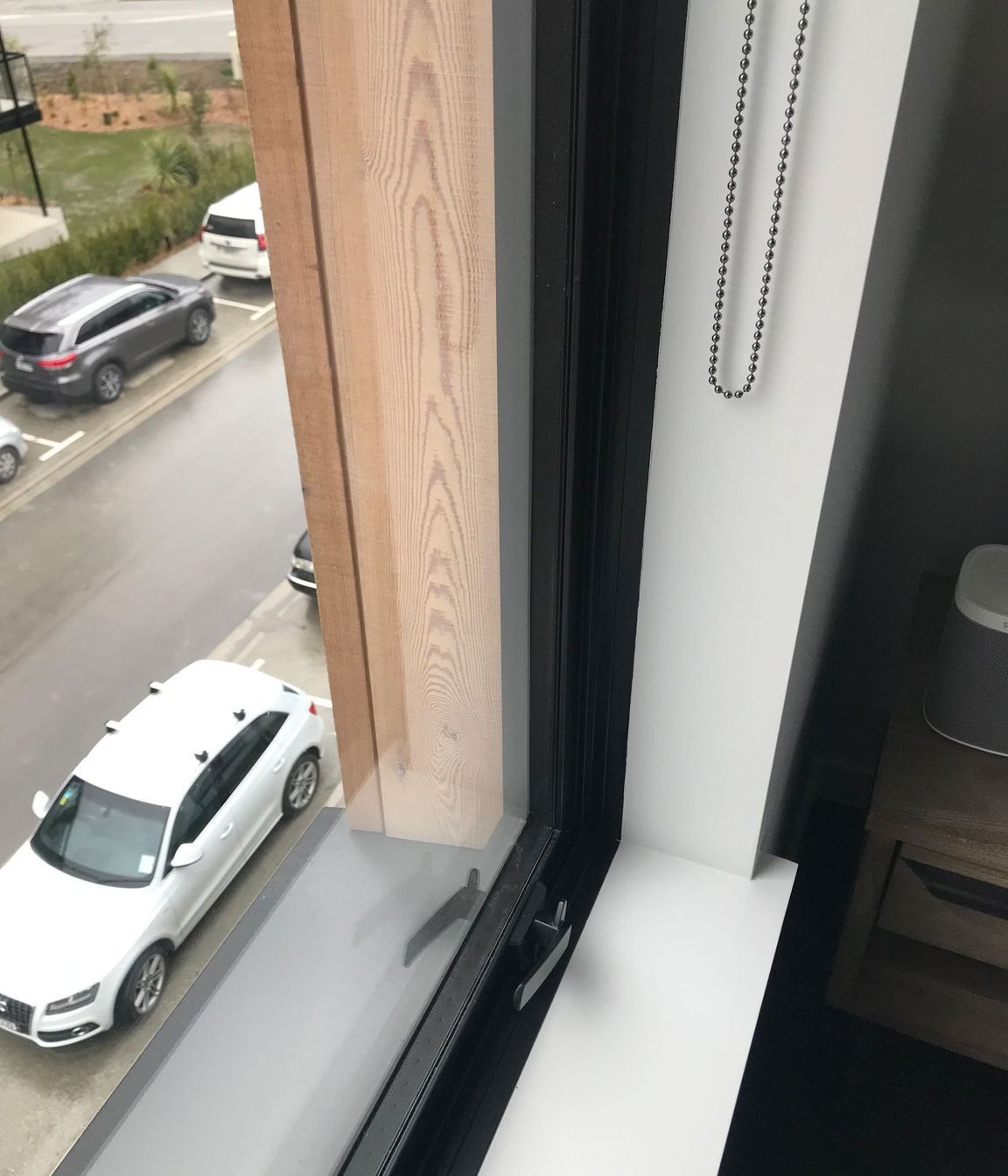

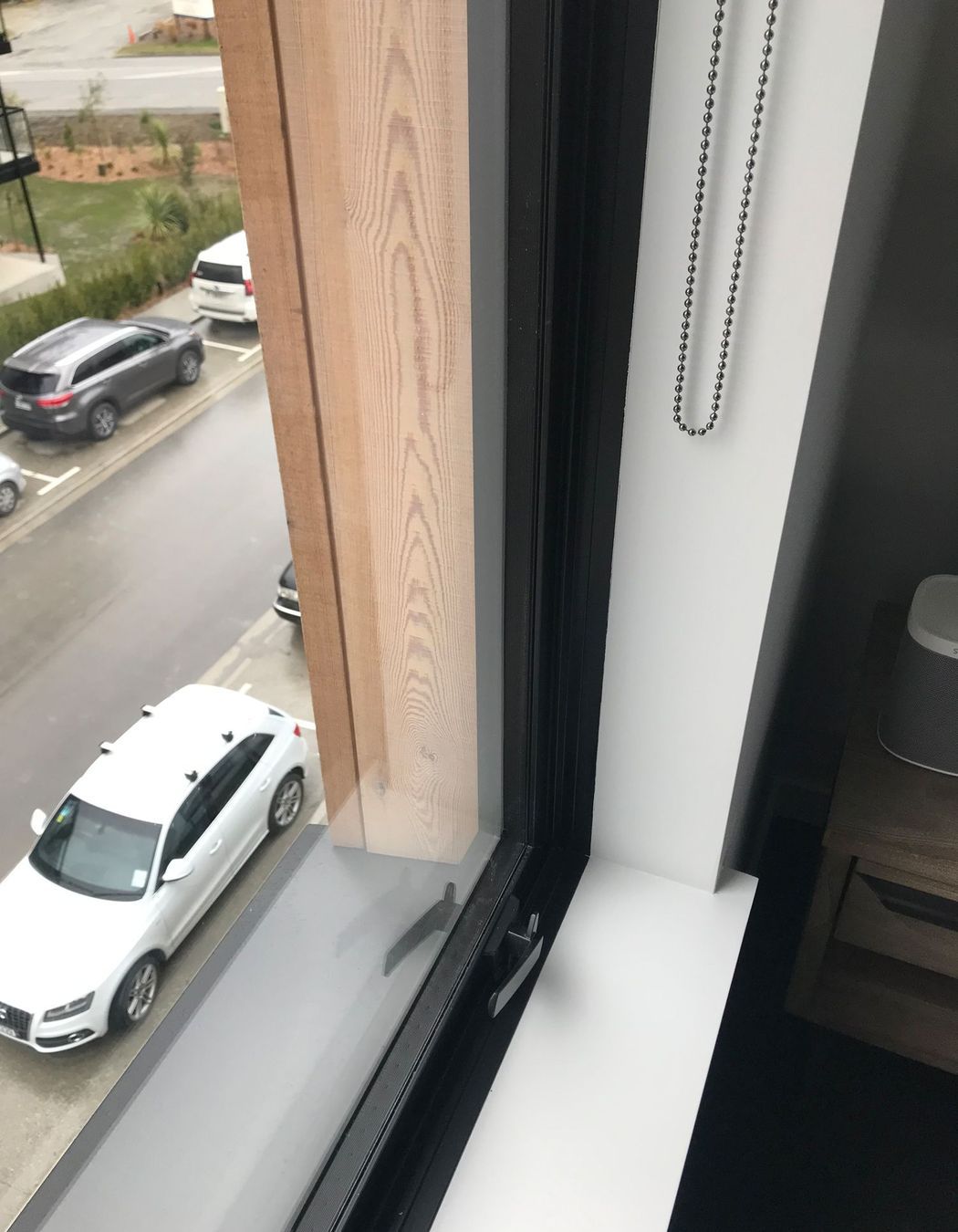

PhD Building are the South Island distributors of Nudura ICF (insulated concrete formwork) - now adding the Viking timber double and triple glazed windows to the range means we can meet the highest thermal efficiency and durability standards desired.
With more than 30 years’ experience in building in NZ, both on our own extensive property developments and for clients. Now living in Otago, we focus on providing exceptional levels of performance from our building envelope materials.
With a minimum durability of 100 years, together with exceeding passive house standards for insulation and airtightness, Nudura ICF walls provides all, and more, that a designer can ask for, whilst saving the client cost.
